This document presents a voice-based collaborative banking application. It allows users to access banking services like money transfers and balance inquiries using only their voice as input and output, without needing a graphical user interface. The application has modules for profile management, account management, and transaction management. It uses VoiceXML technology to allow voice interactions with the system. The proposed voice-based system provides a feasible solution for users, especially those who cannot access traditional online banking methods. It allows banking access anywhere and anytime through a telephone network.

1. VOICE BASED
COLLABORATIVE BANKING
PRESENTED BY
FIRASATH FATHIMA: 107G1A0561
A.SHYAMAL:107G1A0504
M.ABHINAYA:107G1A0531
J.THRUMALA:107G1A0522
UNDER THE GUADIANCE OF
MISS.SHAZIA HUSSANI

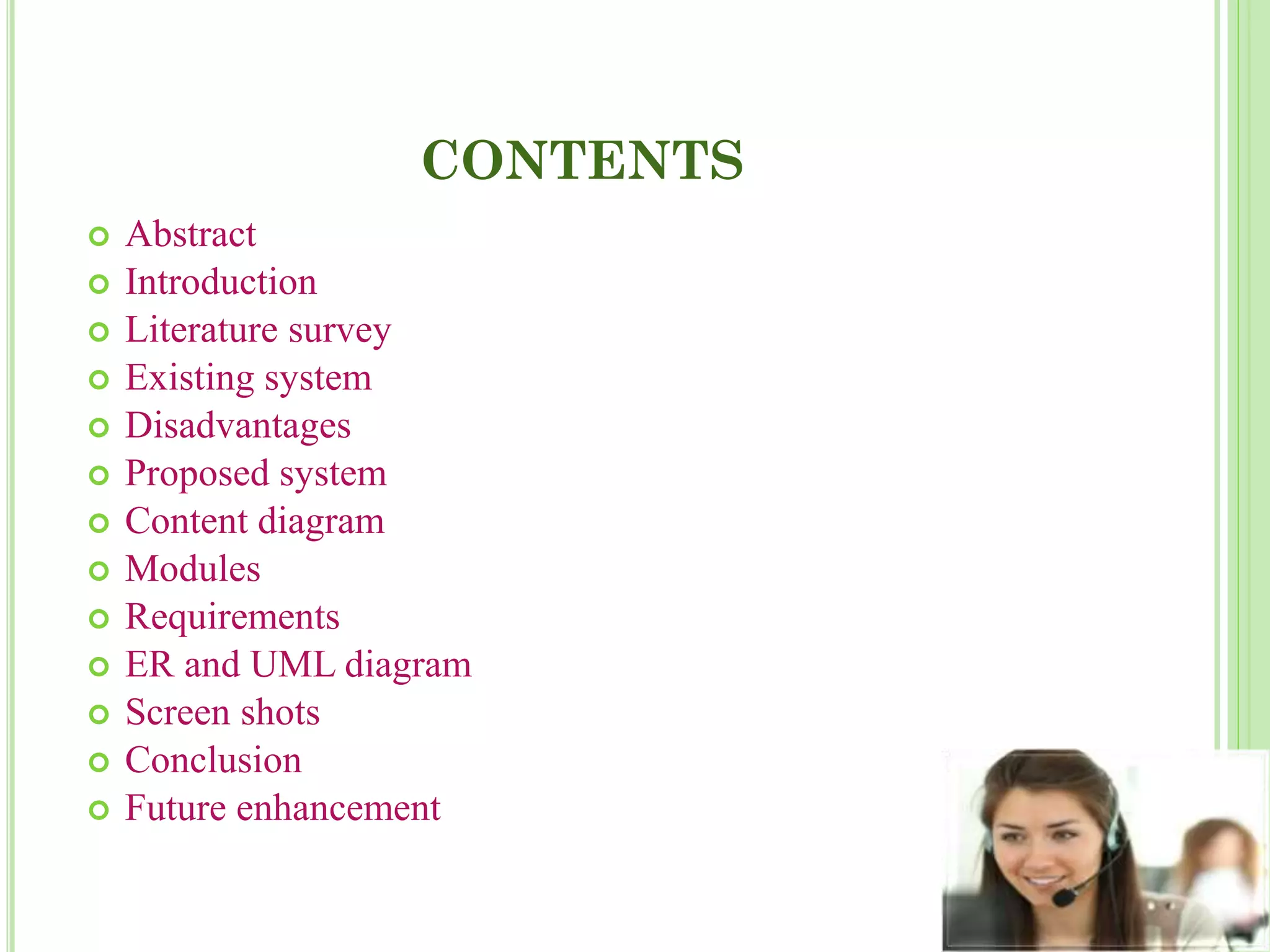

2. CONTENTS
 Abstract
 Introduction
 Literature survey
 Existing system
 Disadvantages
 Proposed system
 Content diagram
 Modules
 Requirements
 ER and UML diagram
 Screen shots
 Conclusion
 Future enhancement

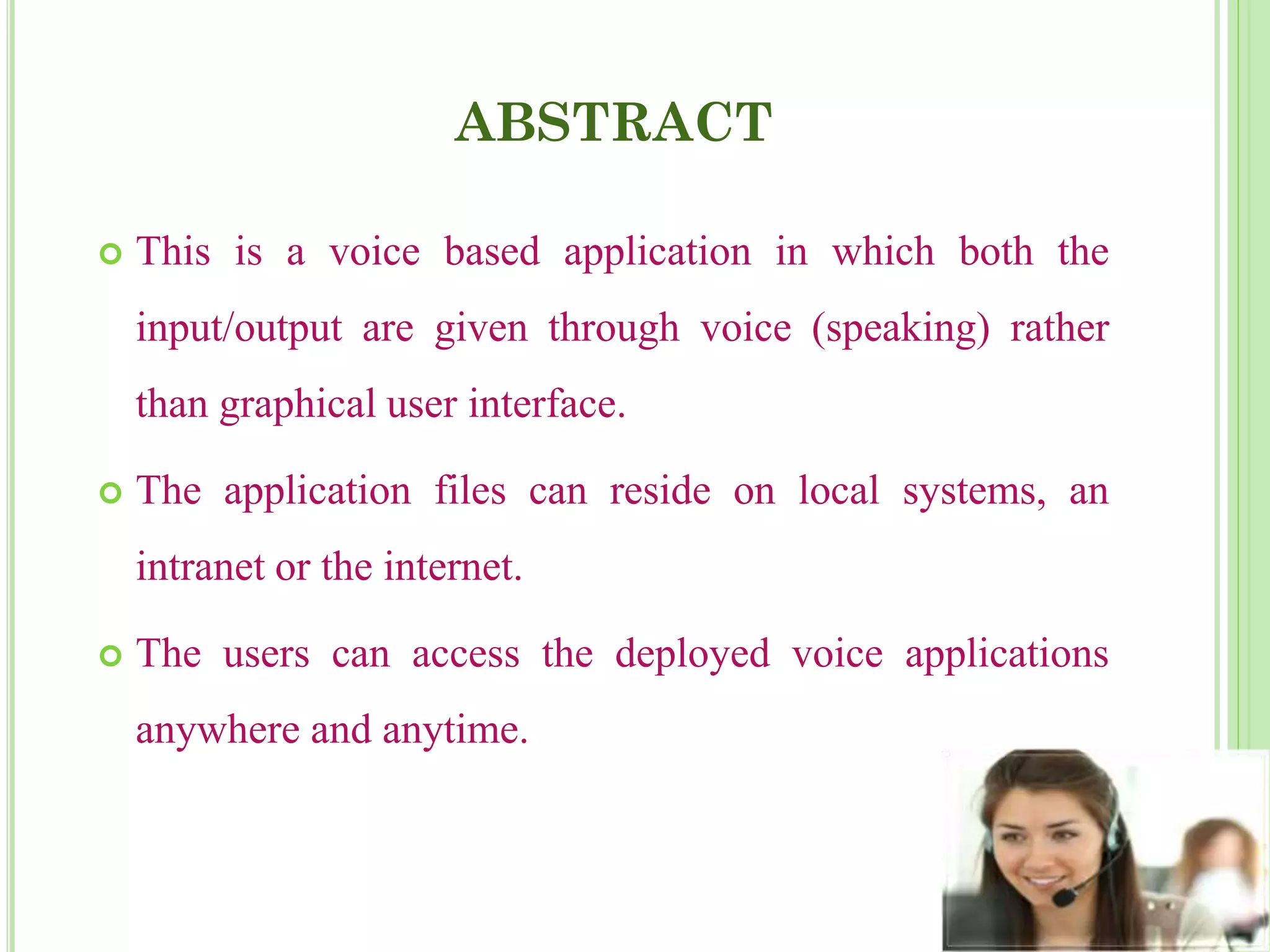

3. ABSTRACT
 This is a voice based application in which both the
input/output are given through voice (speaking) rather
than graphical user interface.
 The application files can reside on local systems, an
intranet or the internet.
 The users can access the deployed voice applications
anywhere and anytime.

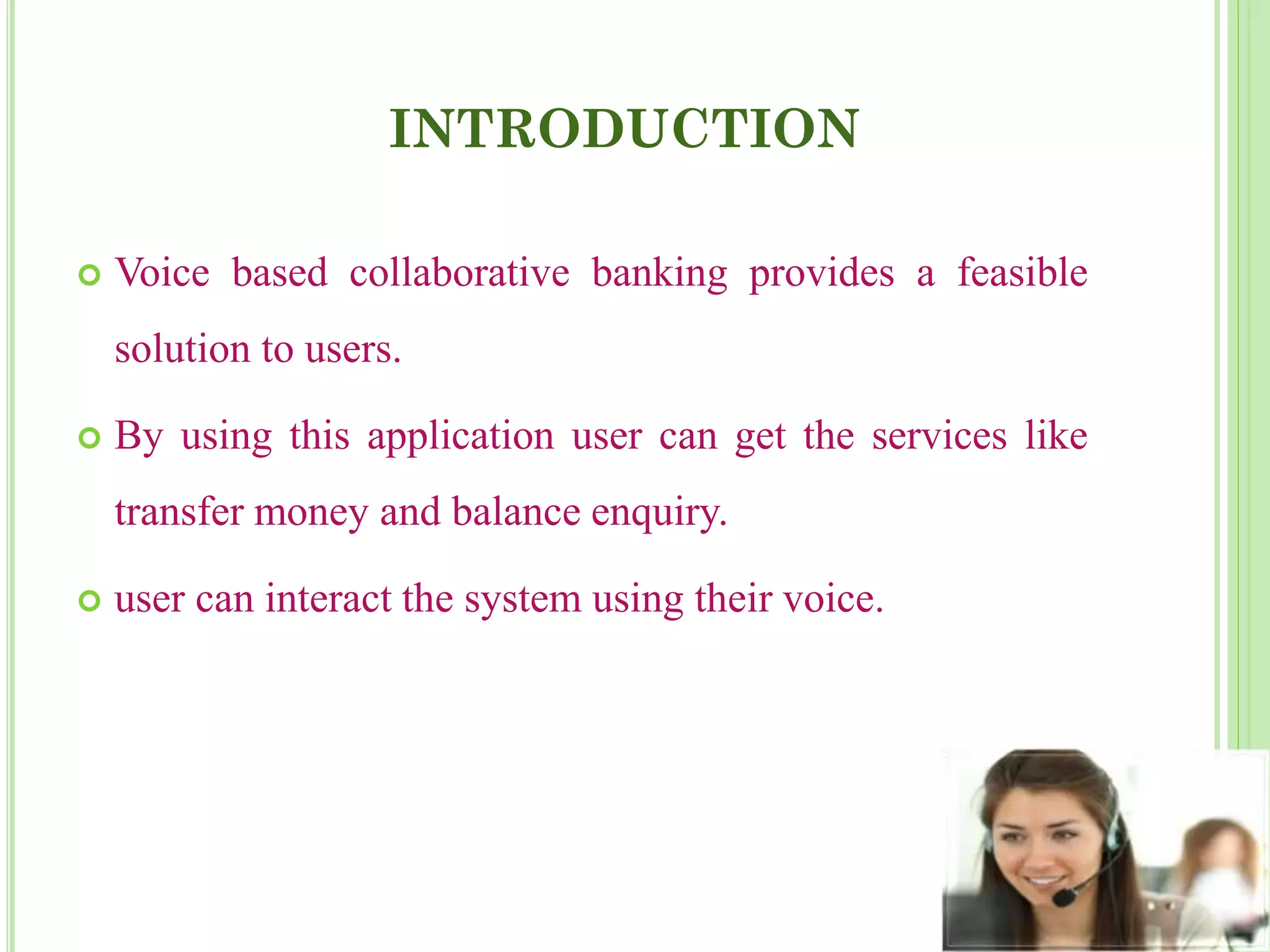

4. INTRODUCTION
 Voice based collaborative banking provides a feasible
solution to users.
 By using this application user can get the services like
transfer money and balance enquiry.
 user can interact the system using their voice.

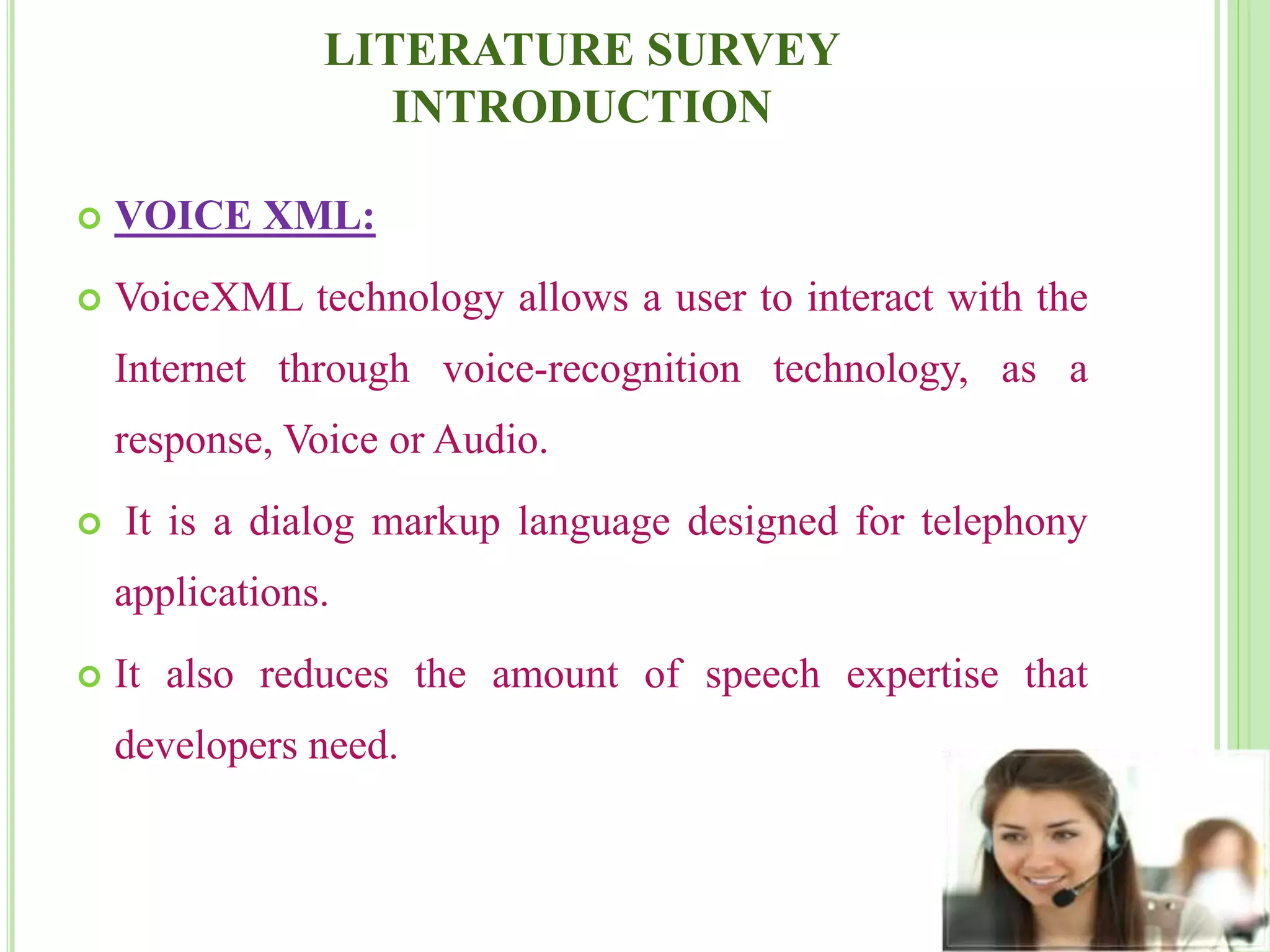

5. LITERATURE SURVEY
INTRODUCTION
 VOICE XML:
 VoiceXML technology allows a user to interact with the
Internet through voice-recognition technology, as a
response, Voice or Audio.
 It is a dialog markup language designed for telephony
applications.
 It also reduces the amount of speech expertise that
developers need.

6. TTS or
Audio
Speech
Browser
Speech
Recognition
Engine
HTTP
Server
Application Code
Voice App Code
VoiceXML
JSPs & Java
Text
Grammars
Text
Audio
Audio Out
Audio In
Request (URL)Markup VXML
Request
Markup
Data Request
Data
Pronunc
Audio Grammars
Docs
Config
Config
Back
End
V
O
I
C
E
S
E
R
V
E
R
S
E
R
V
E
R
1
2
3
4

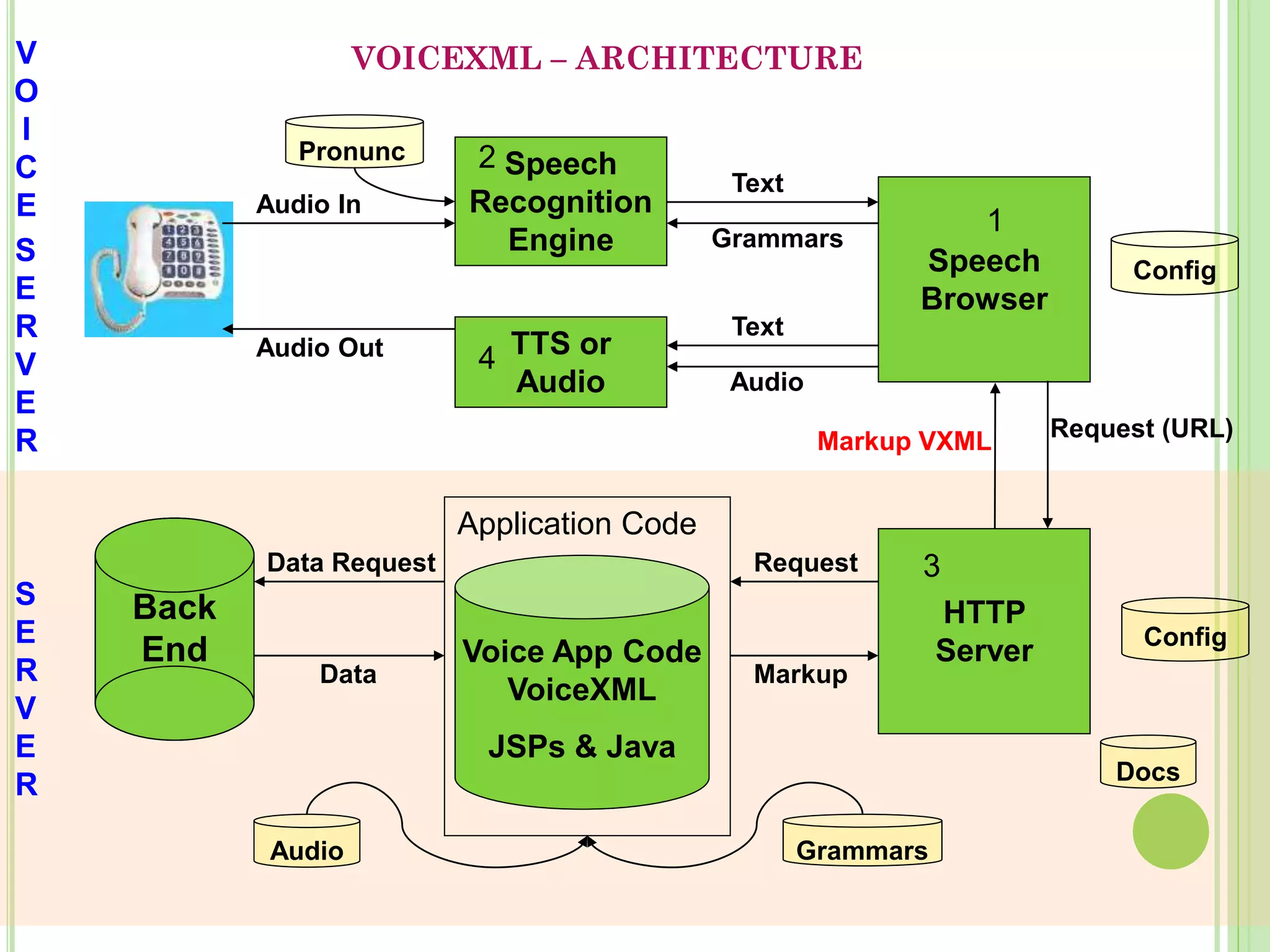

VOICEXML – ARCHITECTURE

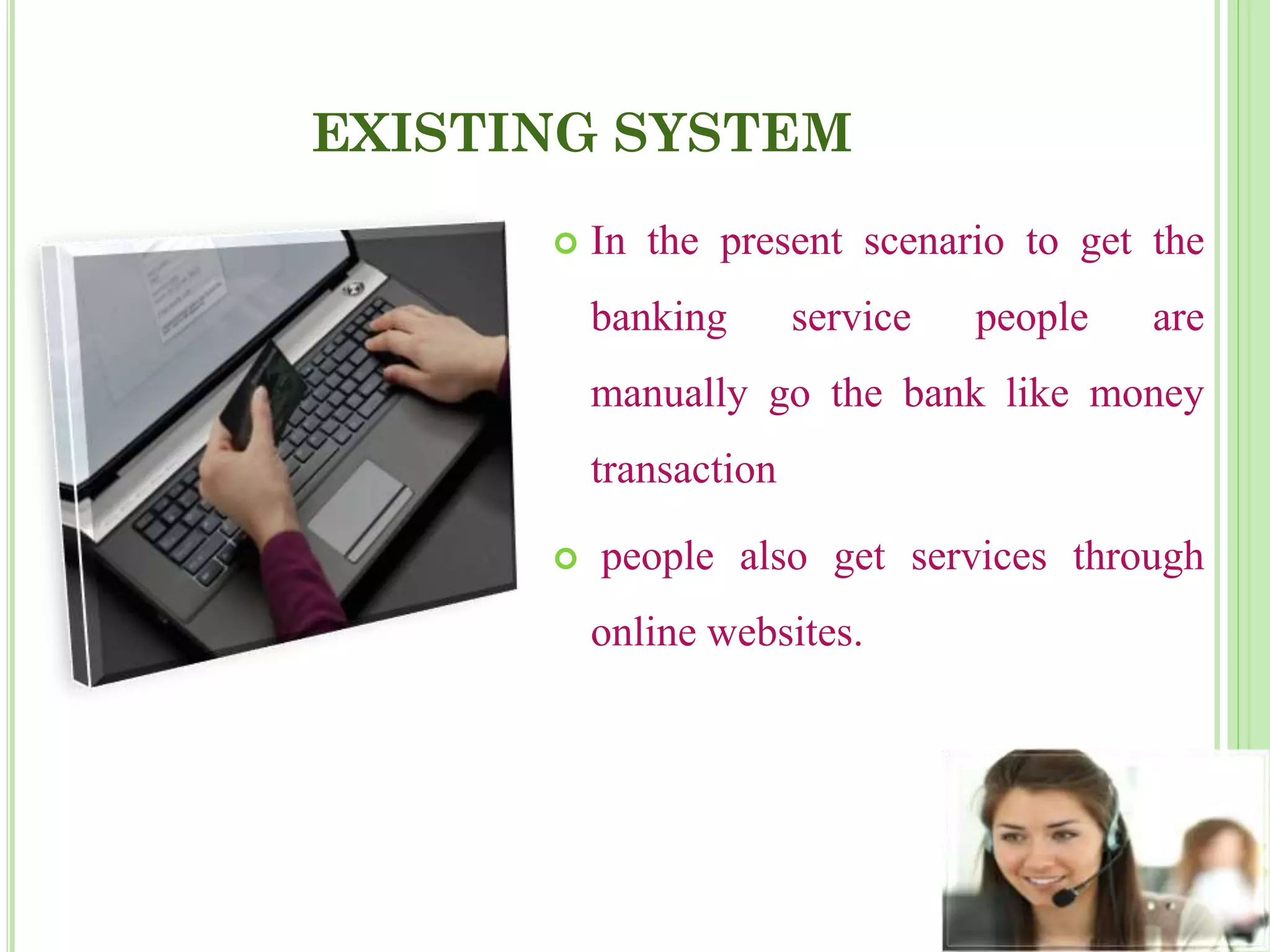

7. EXISTING SYSTEM
 In the present scenario to get the
banking service people are
manually go the bank like money
transaction
 people also get services through
online websites.

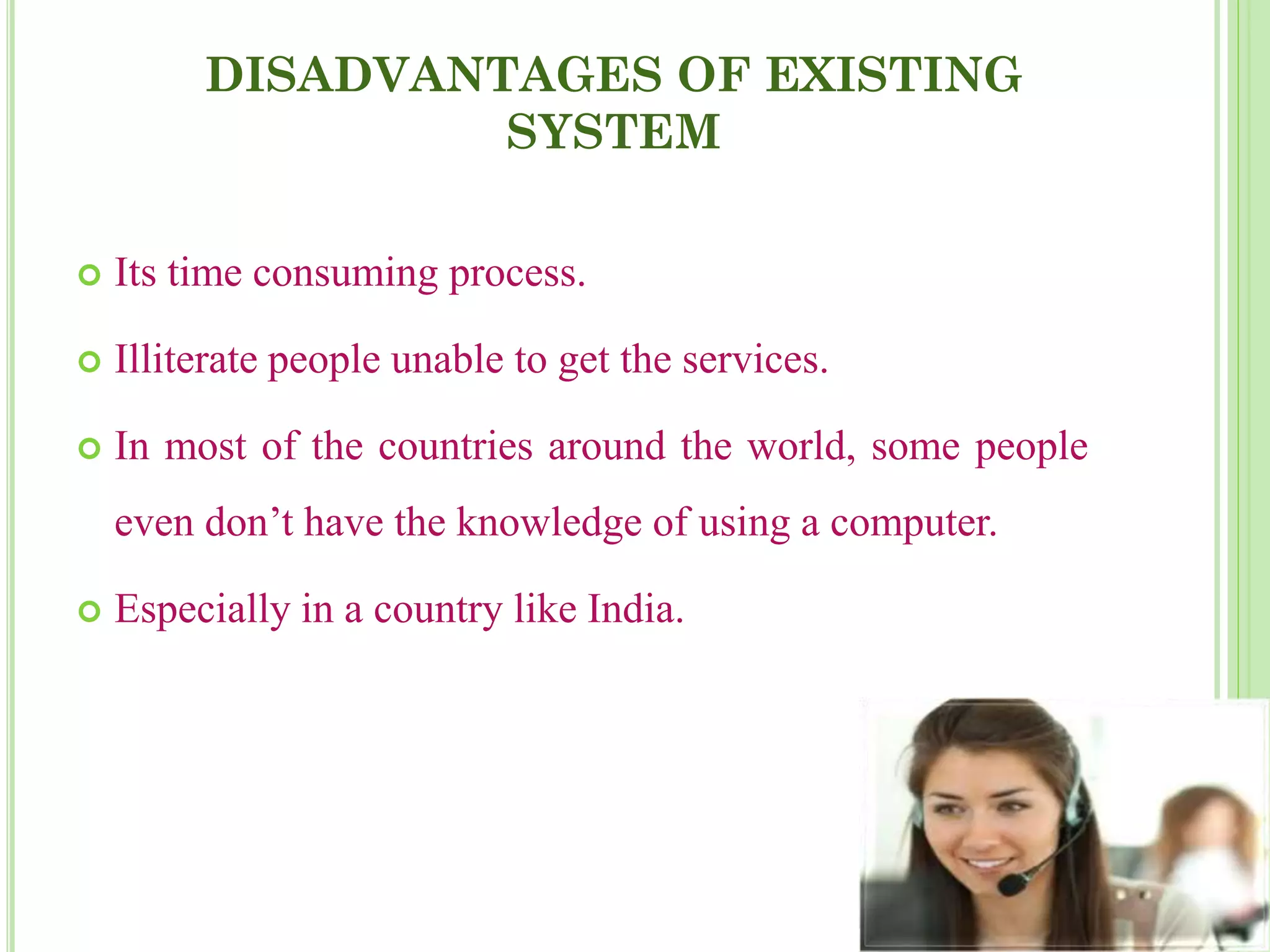

8. DISADVANTAGES OF EXISTING
SYSTEM
 Its time consuming process.
 Illiterate people unable to get the services.
 In most of the countries around the world, some people
even don’t have the knowledge of using a computer.
 Especially in a country like India.

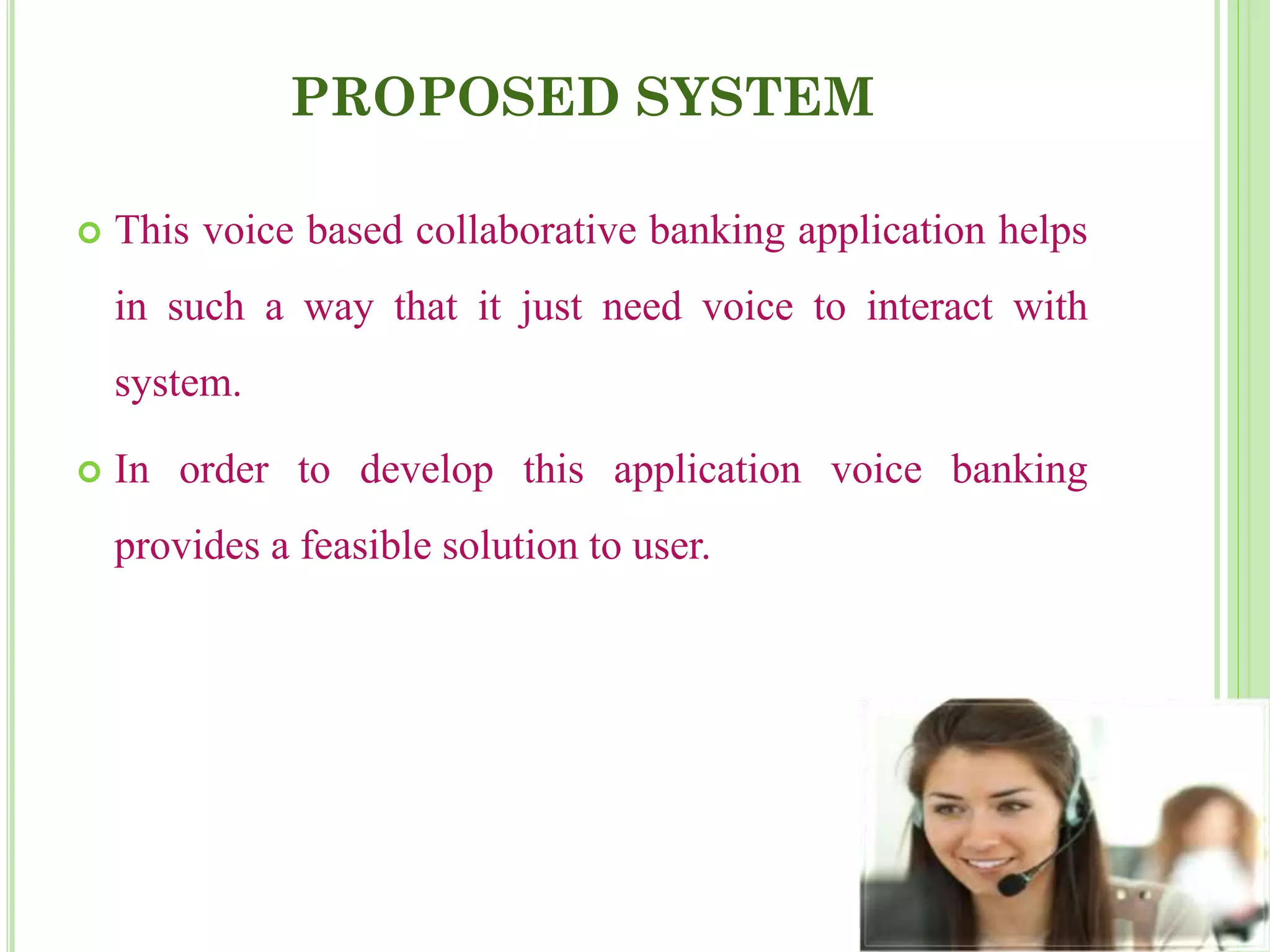

9. PROPOSED SYSTEM
 This voice based collaborative banking application helps
in such a way that it just need voice to interact with
system.
 In order to develop this application voice banking
provides a feasible solution to user.

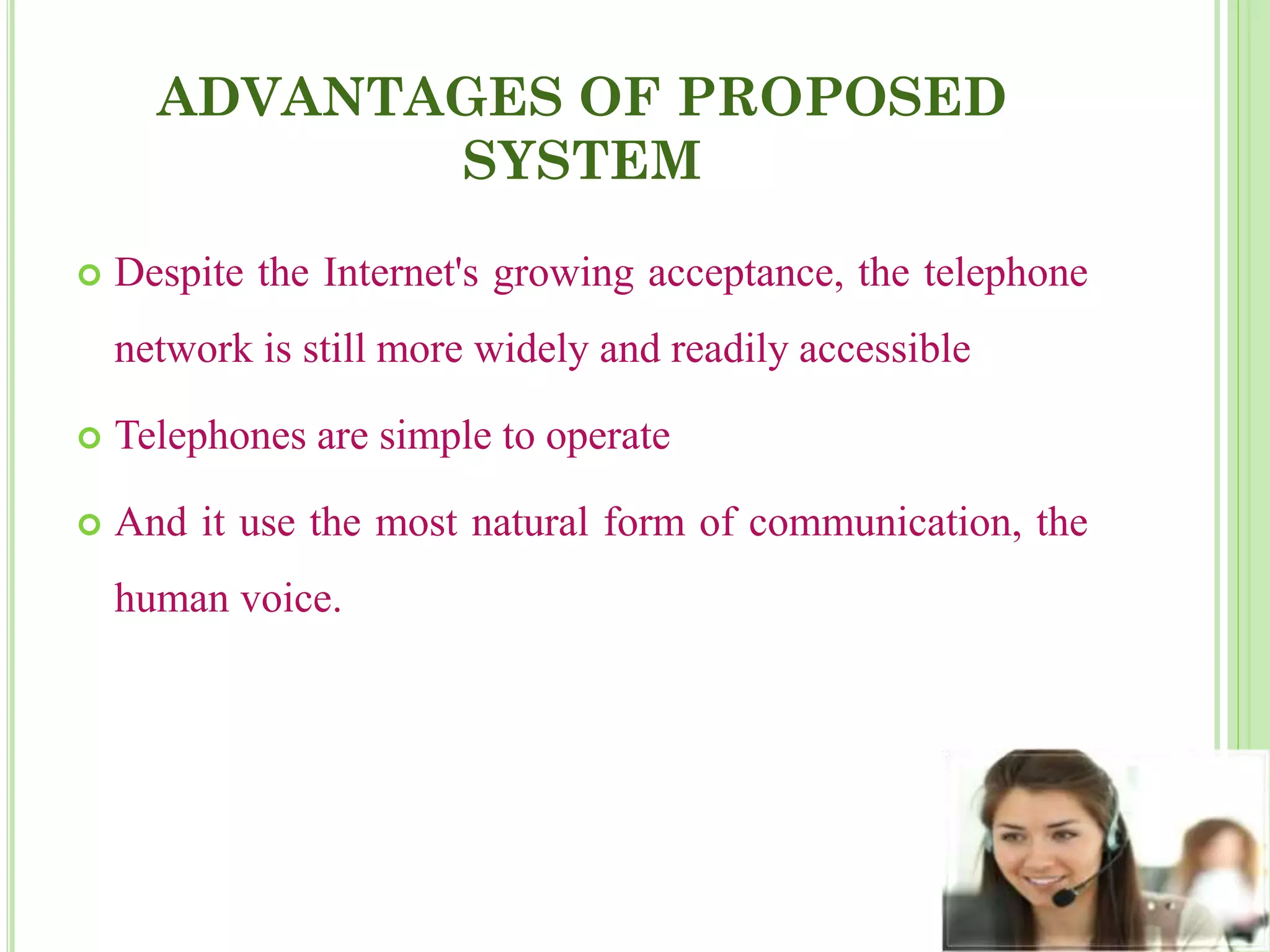

10. ADVANTAGES OF PROPOSED
SYSTEM
 Despite the Internet's growing acceptance, the telephone
network is still more widely and readily accessible
 Telephones are simple to operate
 And it use the most natural form of communication, the
human voice.

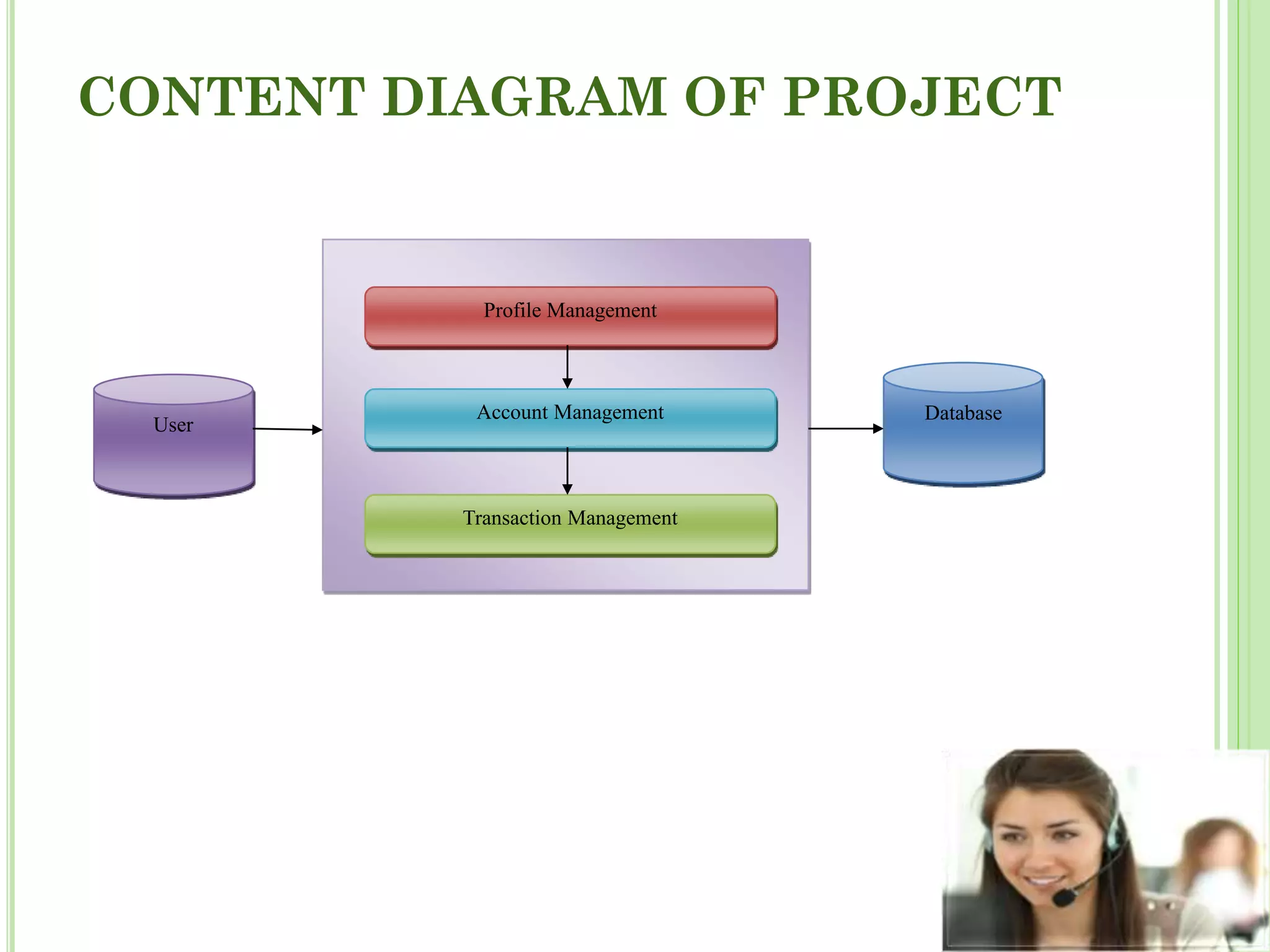

11. CONTENT DIAGRAM OF PROJECT
User
Database
Profile Management
Account Management
Transaction Management

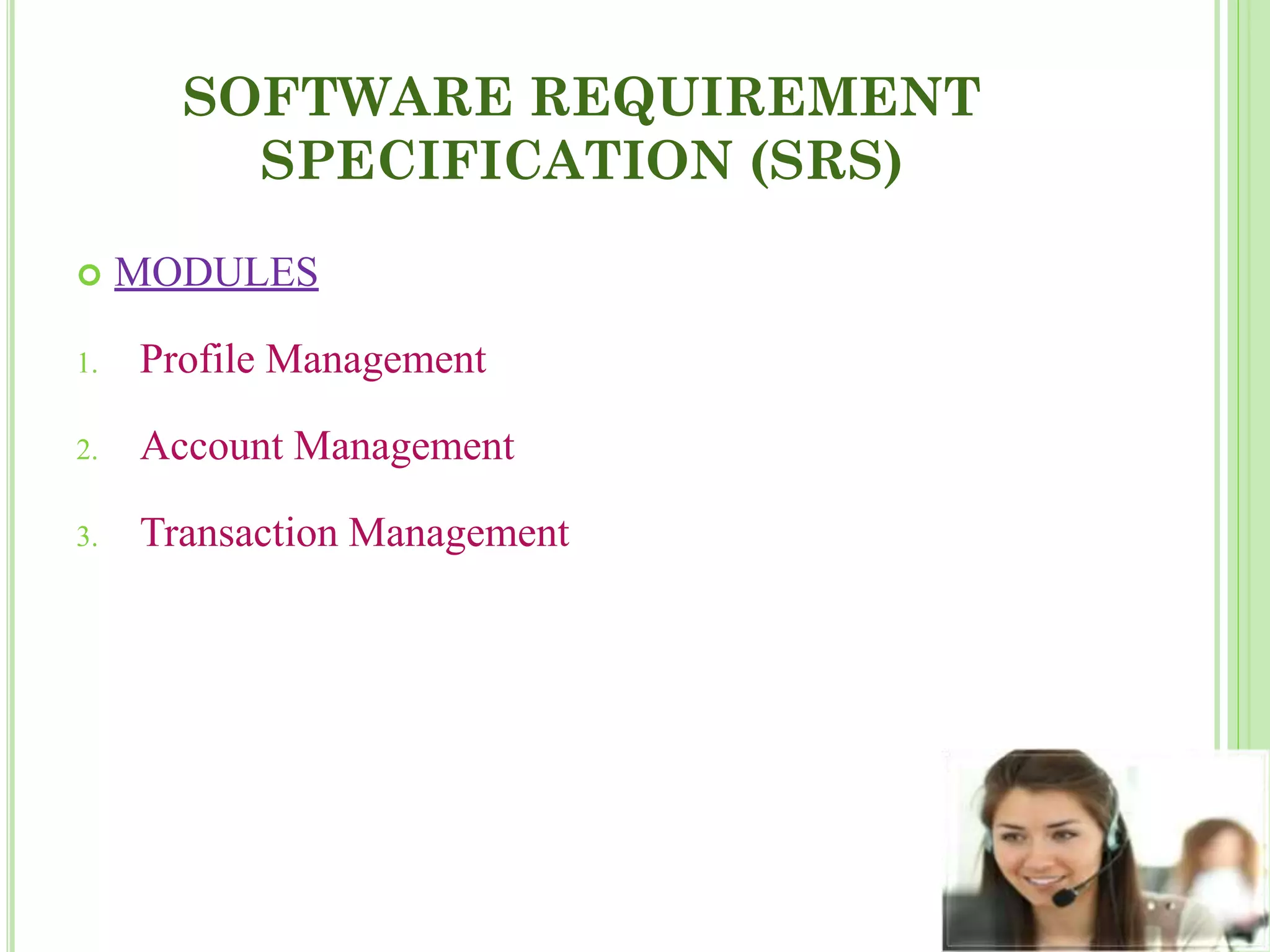

12. SOFTWARE REQUIREMENT
SPECIFICATION (SRS)
 MODULES
1. Profile Management
2. Account Management
3. Transaction Management

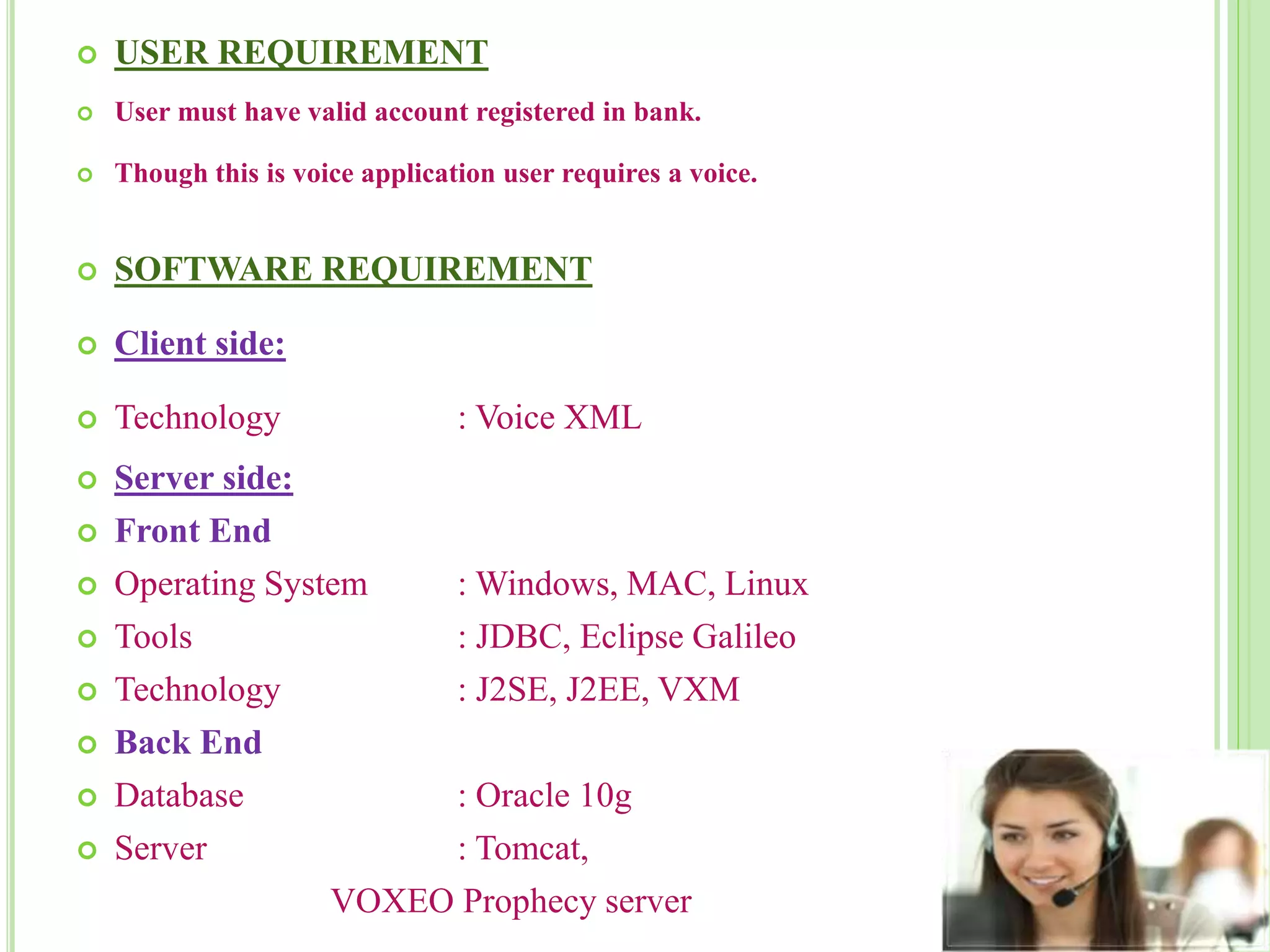

13.  USER REQUIREMENT
 User must have valid account registered in bank.
 Though this is voice application user requires a voice.
 SOFTWARE REQUIREMENT
 Client side:
 Technology : Voice XML
 Server side:
 Front End
 Operating System : Windows, MAC, Linux
 Tools : JDBC, Eclipse Galileo
 Technology : J2SE, J2EE, VXM
 Back End
 Database : Oracle 10g
 Server : Tomcat,
VOXEO Prophecy server

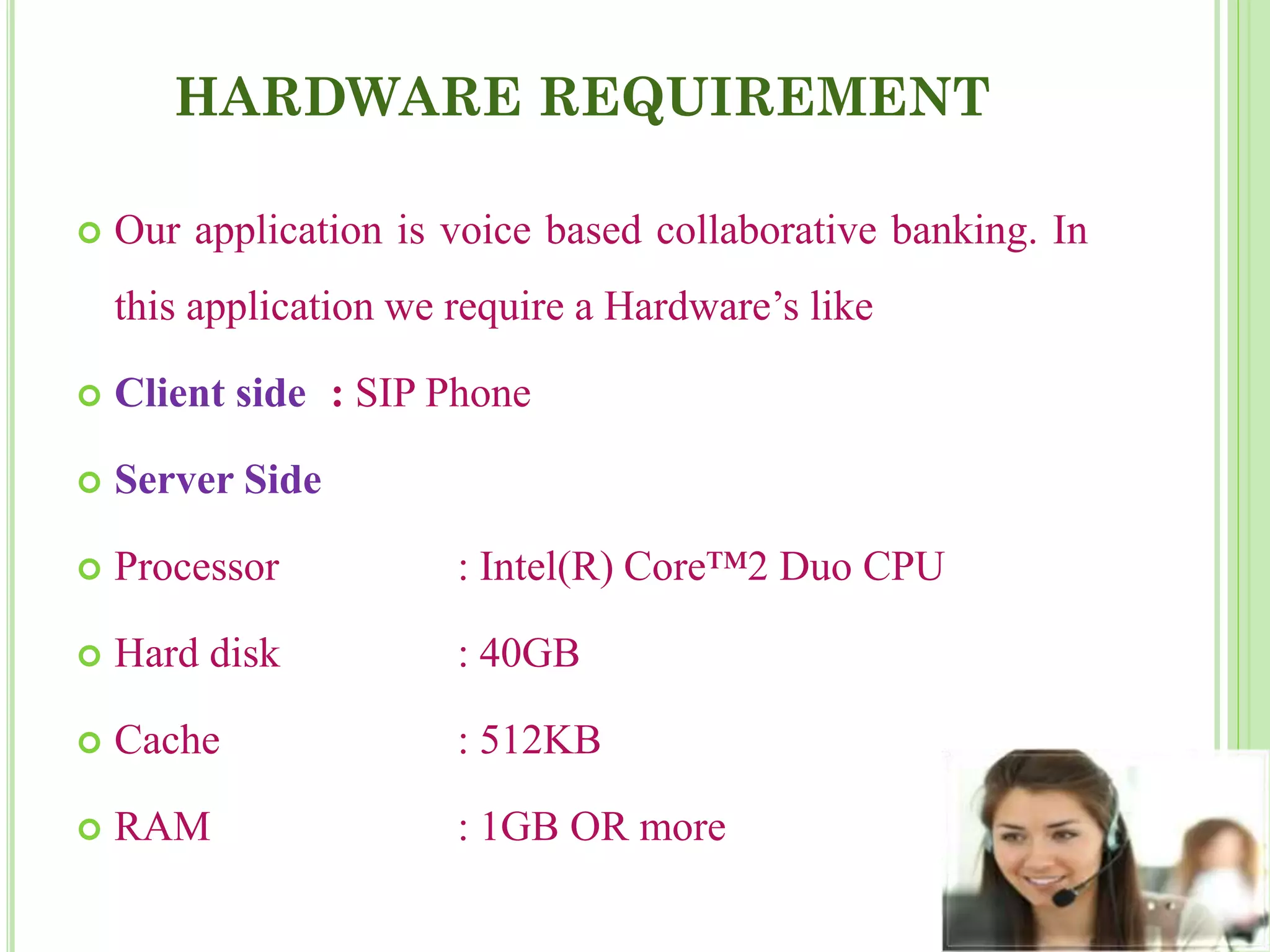

14. HARDWARE REQUIREMENT
 Our application is voice based collaborative banking. In
this application we require a Hardware’s like
 Client side : SIP Phone
 Server Side
 Processor : Intel(R) Core™2 Duo CPU
 Hard disk : 40GB
 Cache : 512KB
 RAM : 1GB OR more

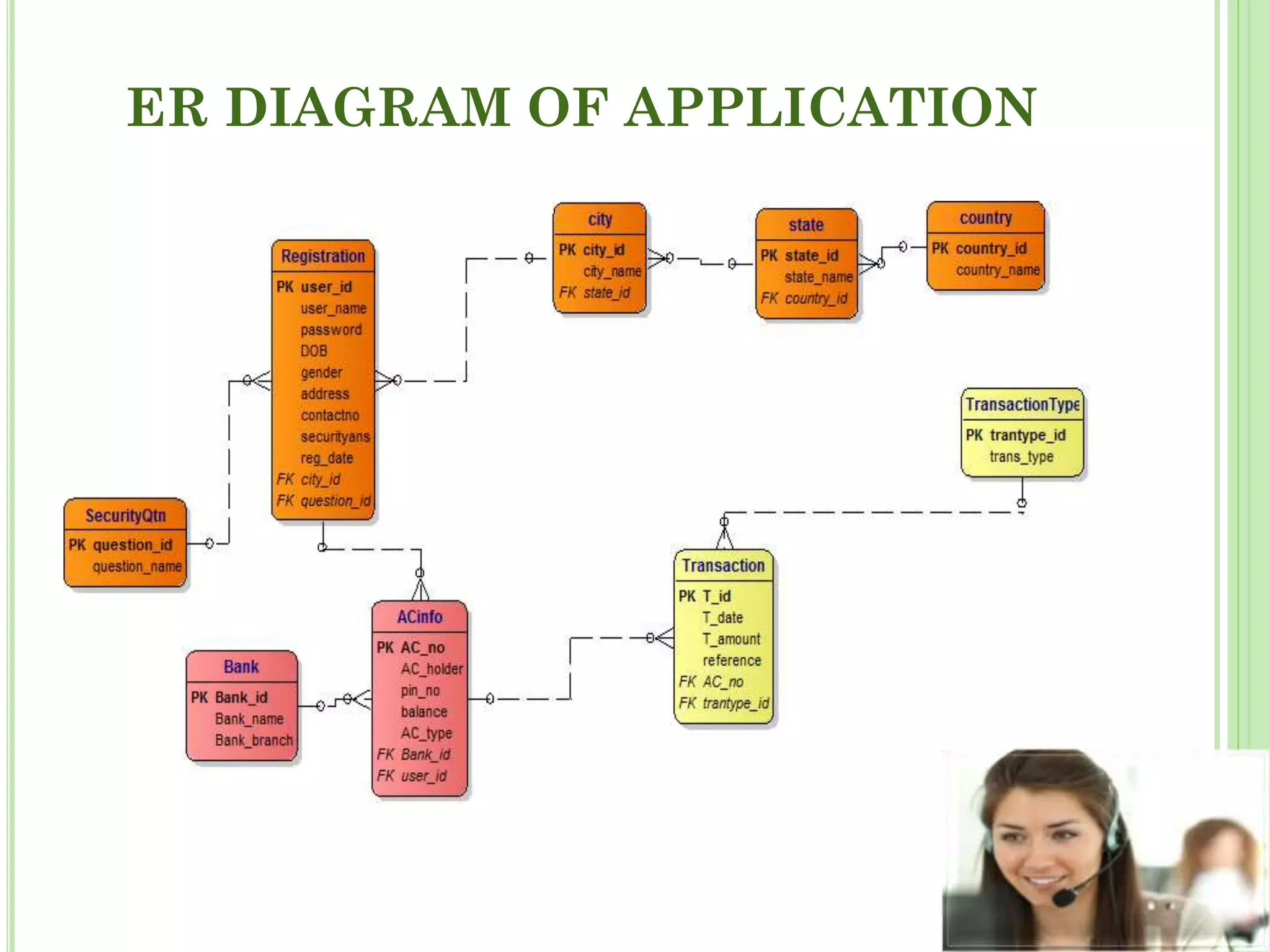

15. ER DIAGRAM OF APPLICATION

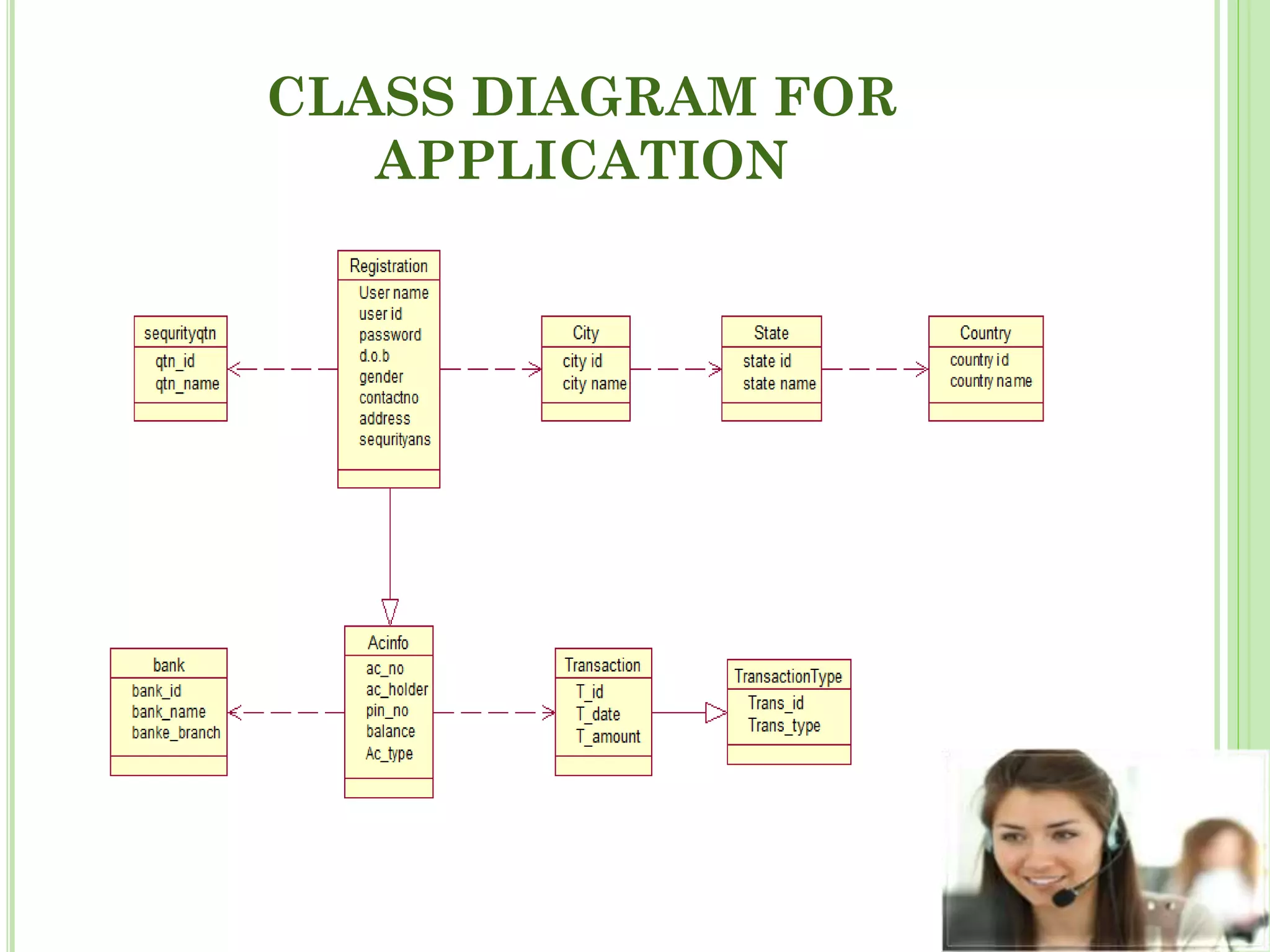

16. CLASS DIAGRAM FOR
APPLICATION

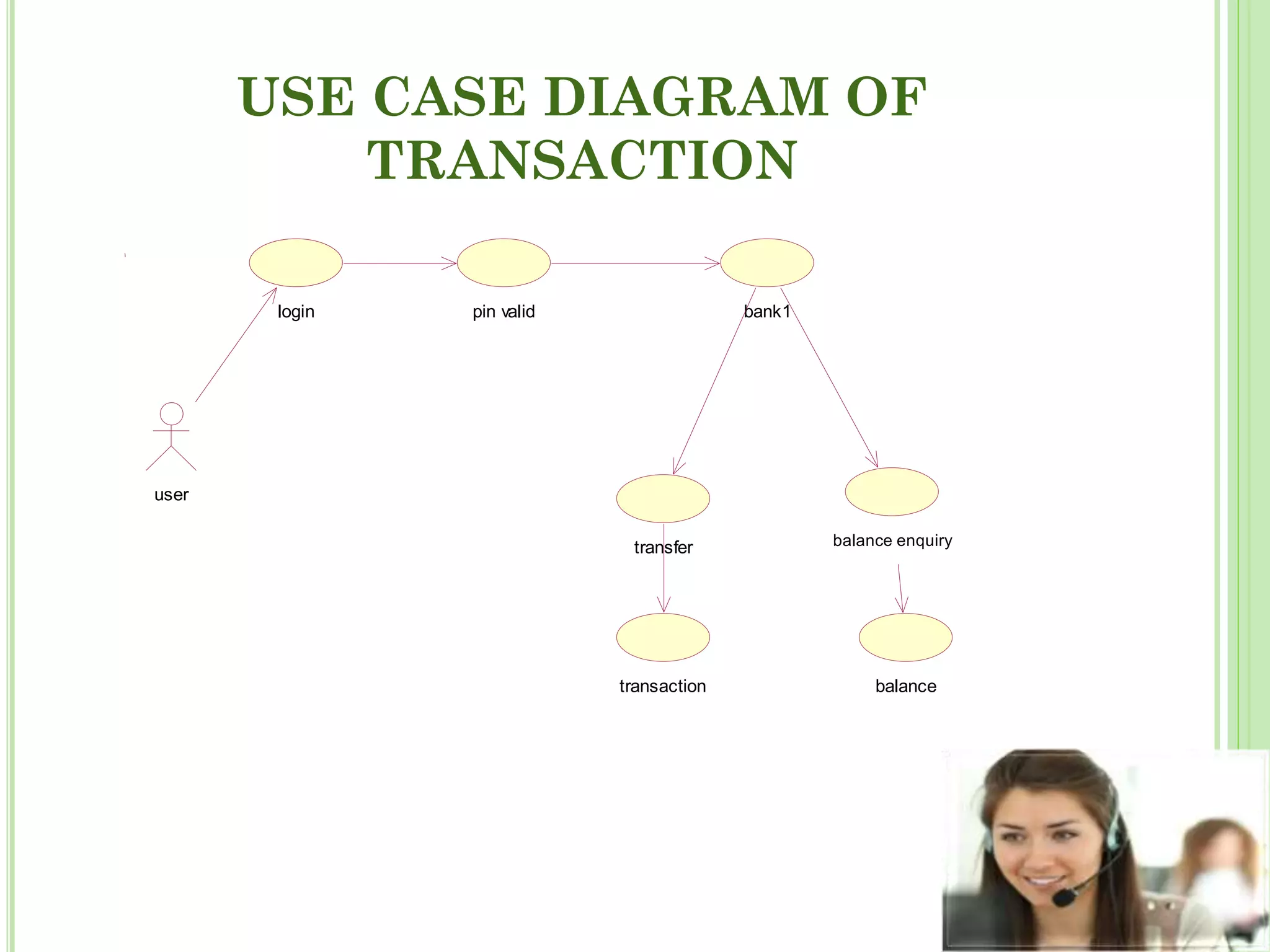

17. USE CASE DIAGRAM OF
TRANSACTION
user
login pin valid
transfer
transaction
bank1
balance enquiry
balance

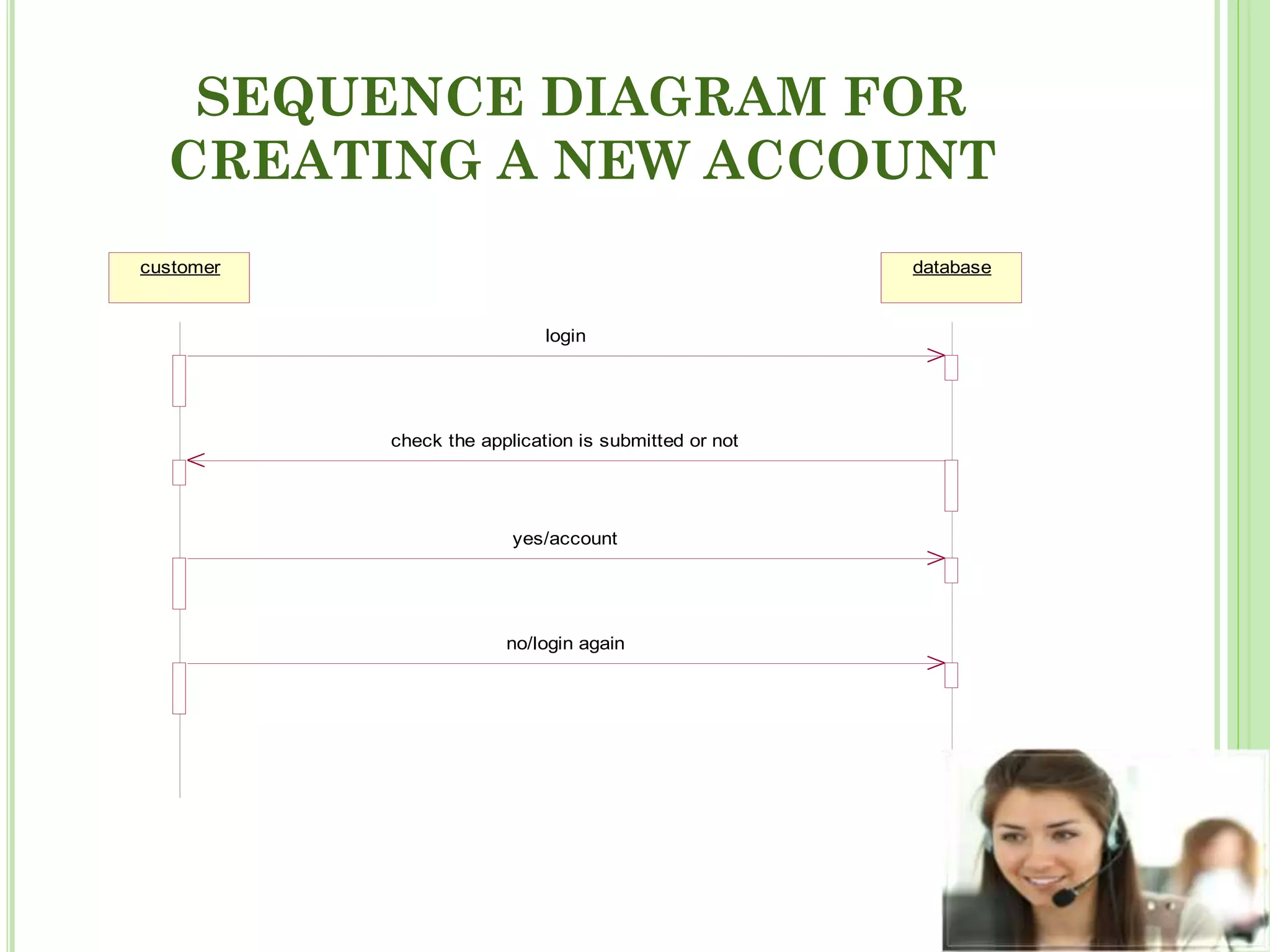

18. SEQUENCE DIAGRAM FOR
CREATING A NEW ACCOUNT
customer database
login
check the application is submitted or not
yes/account
no/login again

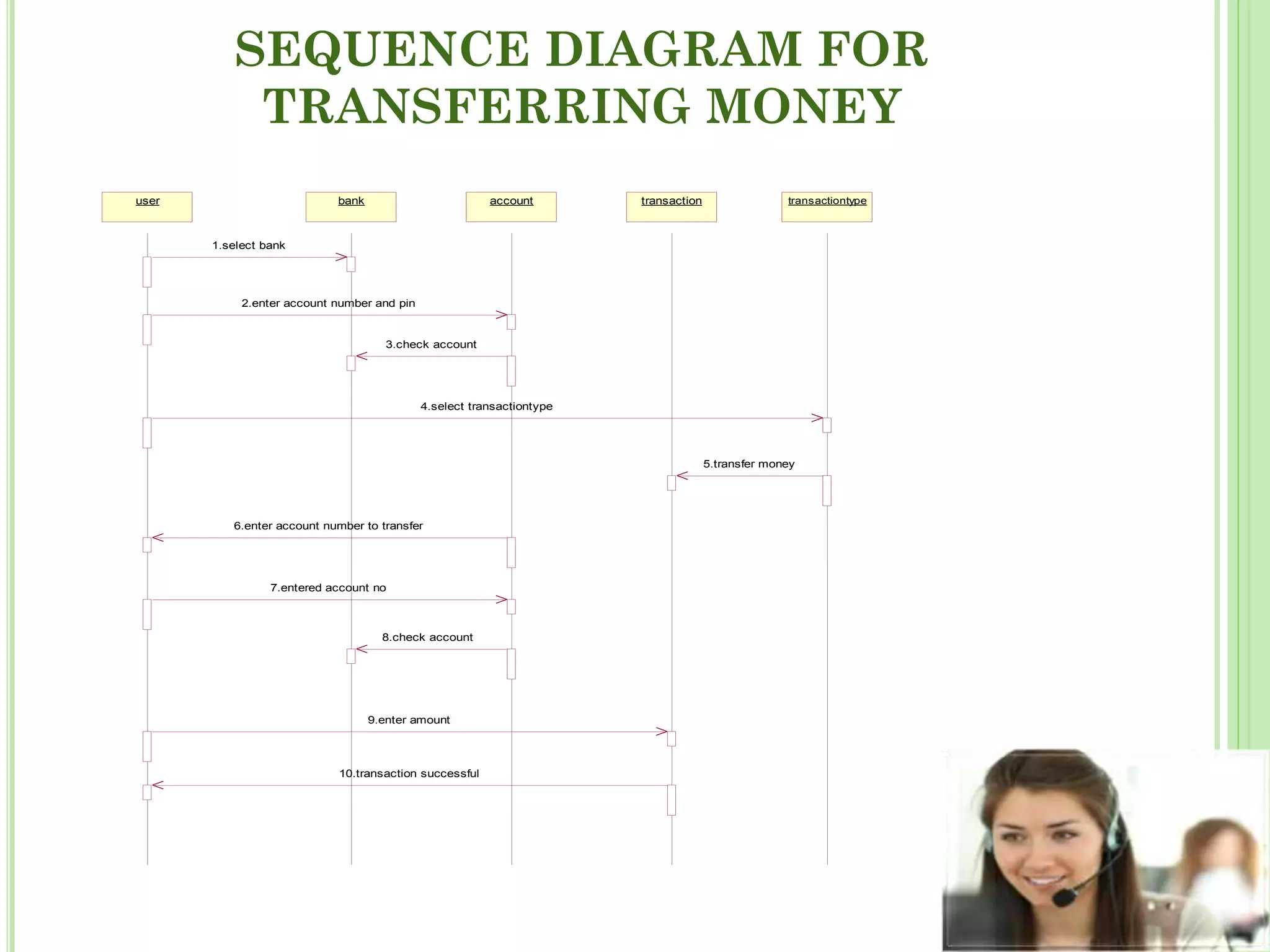

19. SEQUENCE DIAGRAM FOR
TRANSFERRING MONEY
user bank account transaction transactiontype
1.select bank
2.enter account number and pin
3.check account
4.select transactiontype
6.enter account number to transfer
7.entered account no
8.check account
5.transfer money
9.enter amount
10.transaction successful

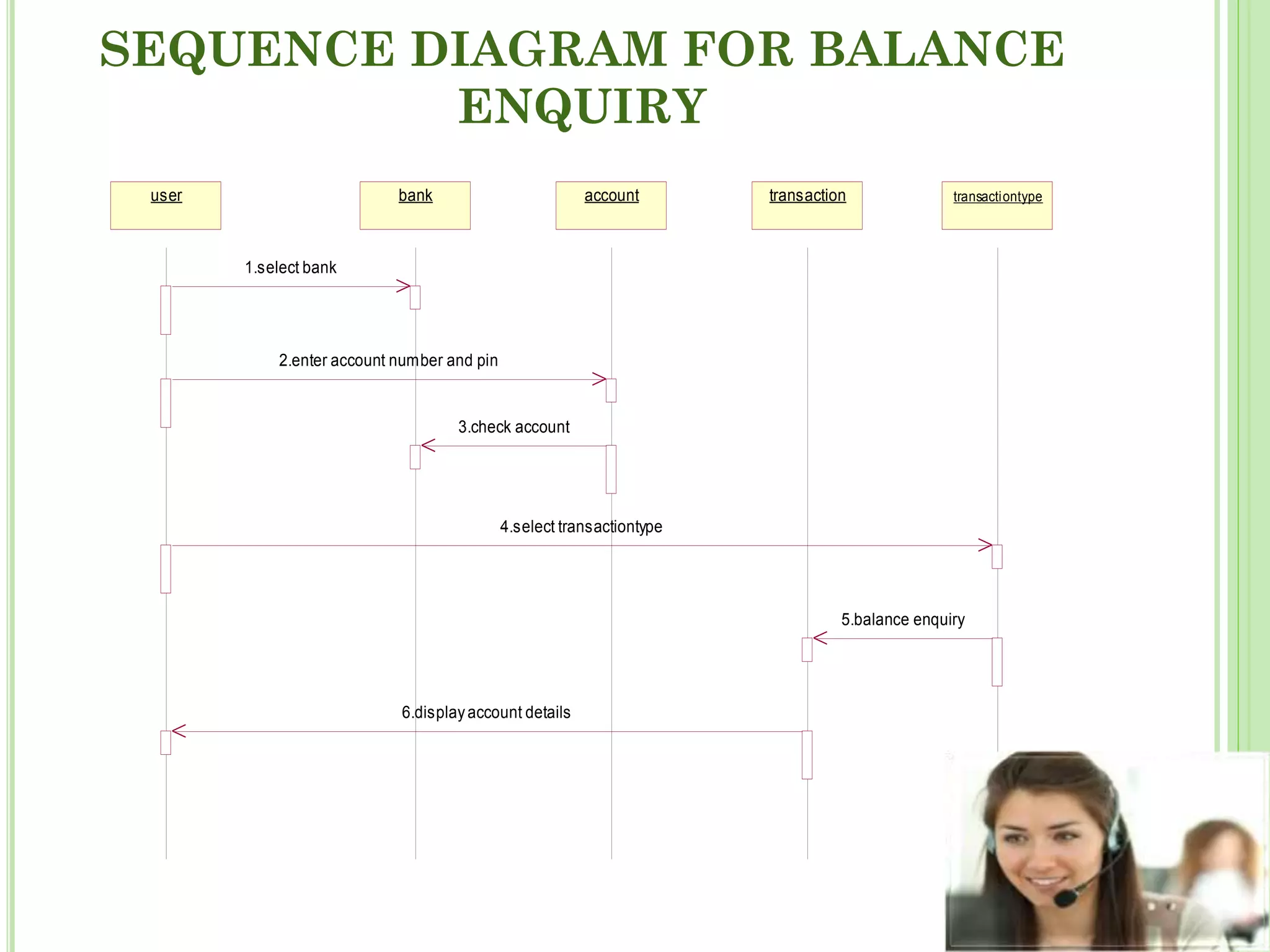

20. SEQUENCE DIAGRAM FOR BALANCE
ENQUIRY
bankuser account transaction transactiontype
1.select bank
2.enter account number and pin
3.check account
4.select transactiontype
5.balance enquiry
6.displayaccount details

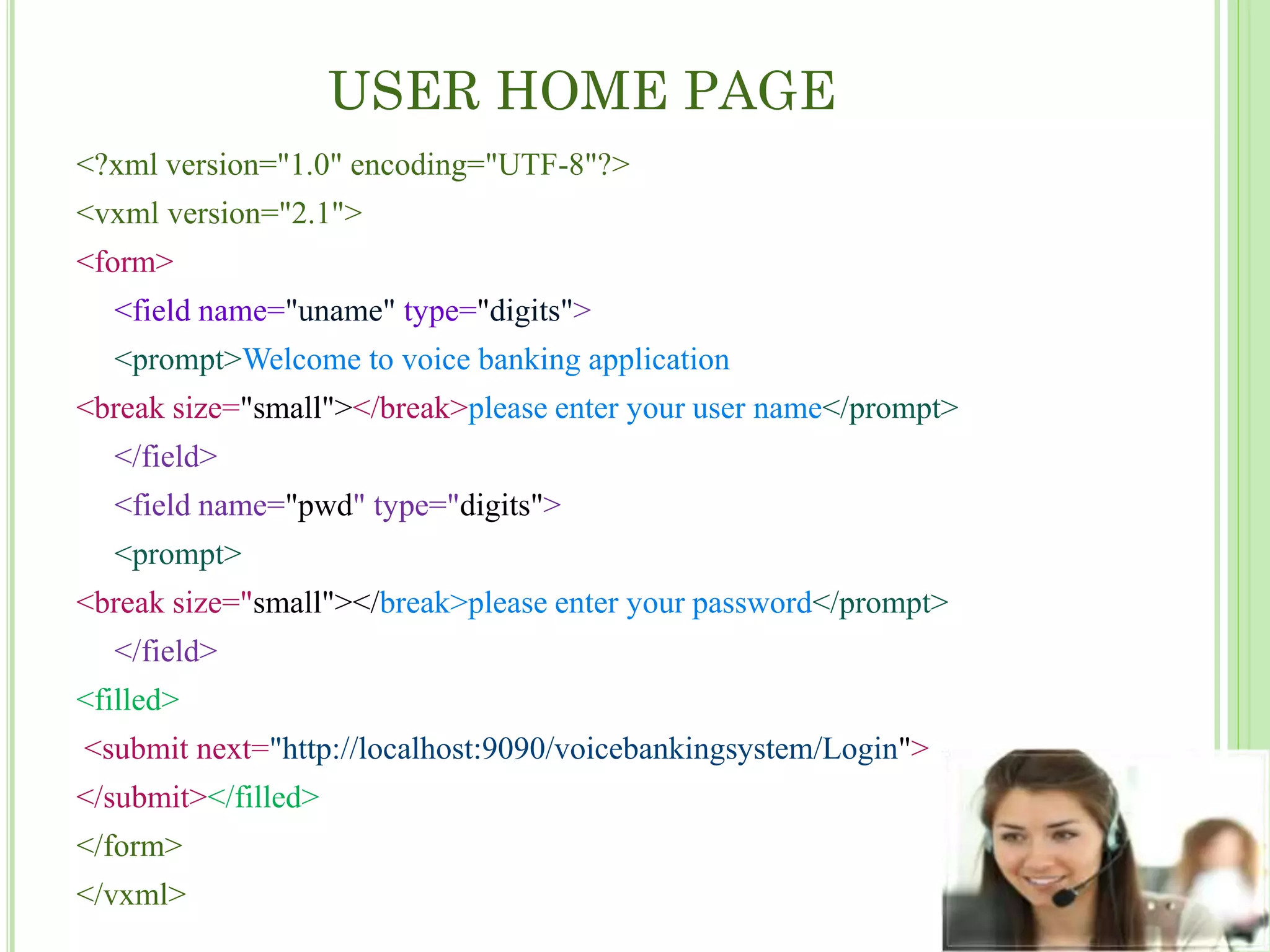

21. USER HOME PAGE
<?xml version="1.0" encoding="UTF-8"?>
<vxml version="2.1">
<form>
<field name="uname" type="digits">
<prompt>Welcome to voice banking application
<break size="small"></break>please enter your user name</prompt>
</field>
<field name="pwd" type="digits">
<prompt>
<break size="small"></break>please enter your password</prompt>
</field>
<filled>
<submit next="http://localhost:9090/voicebankingsystem/Login">
</submit></filled>
</form>
</vxml>

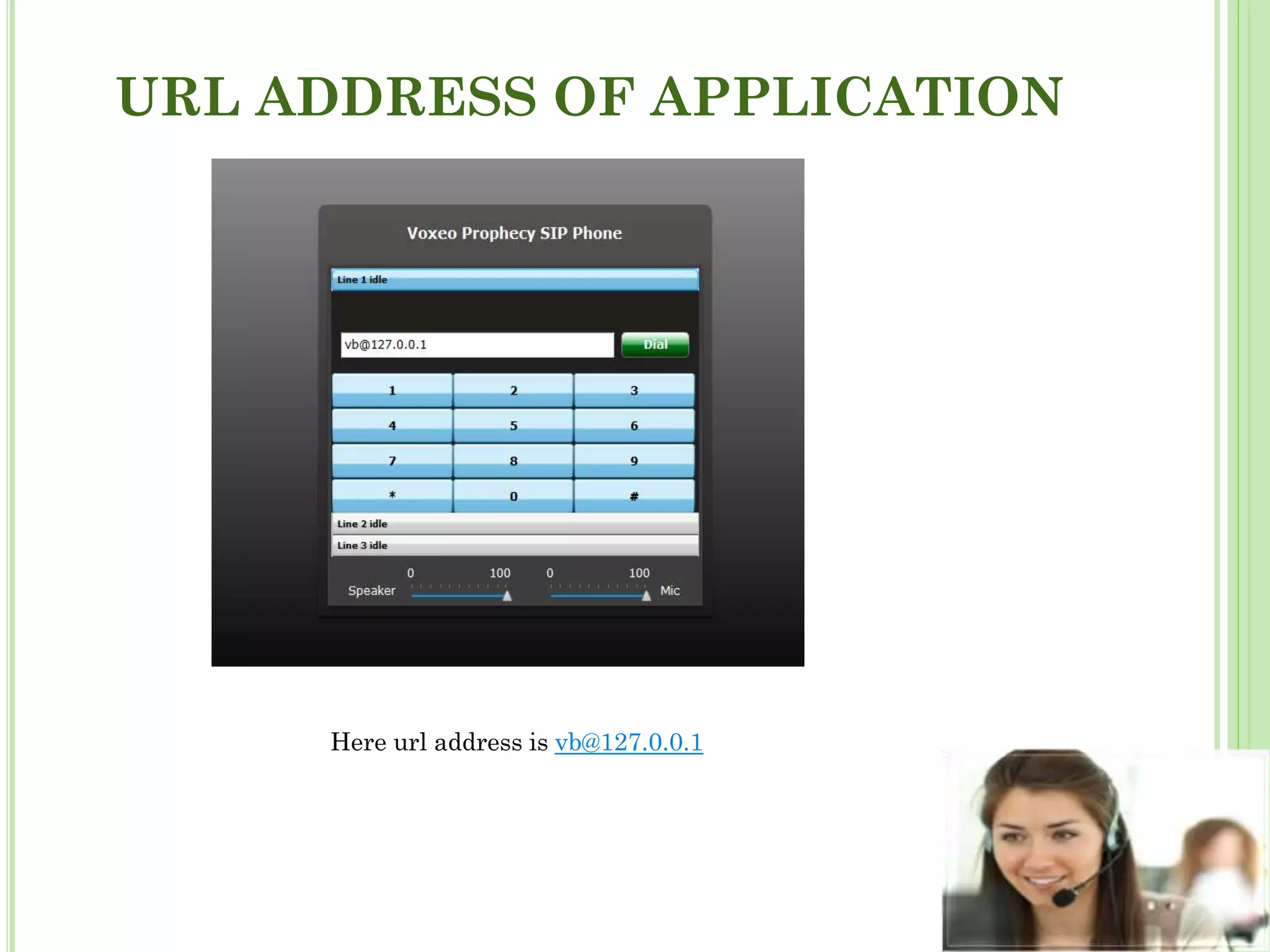

22. URL ADDRESS OF APPLICATION
Here url address is vb@127.0.0.1

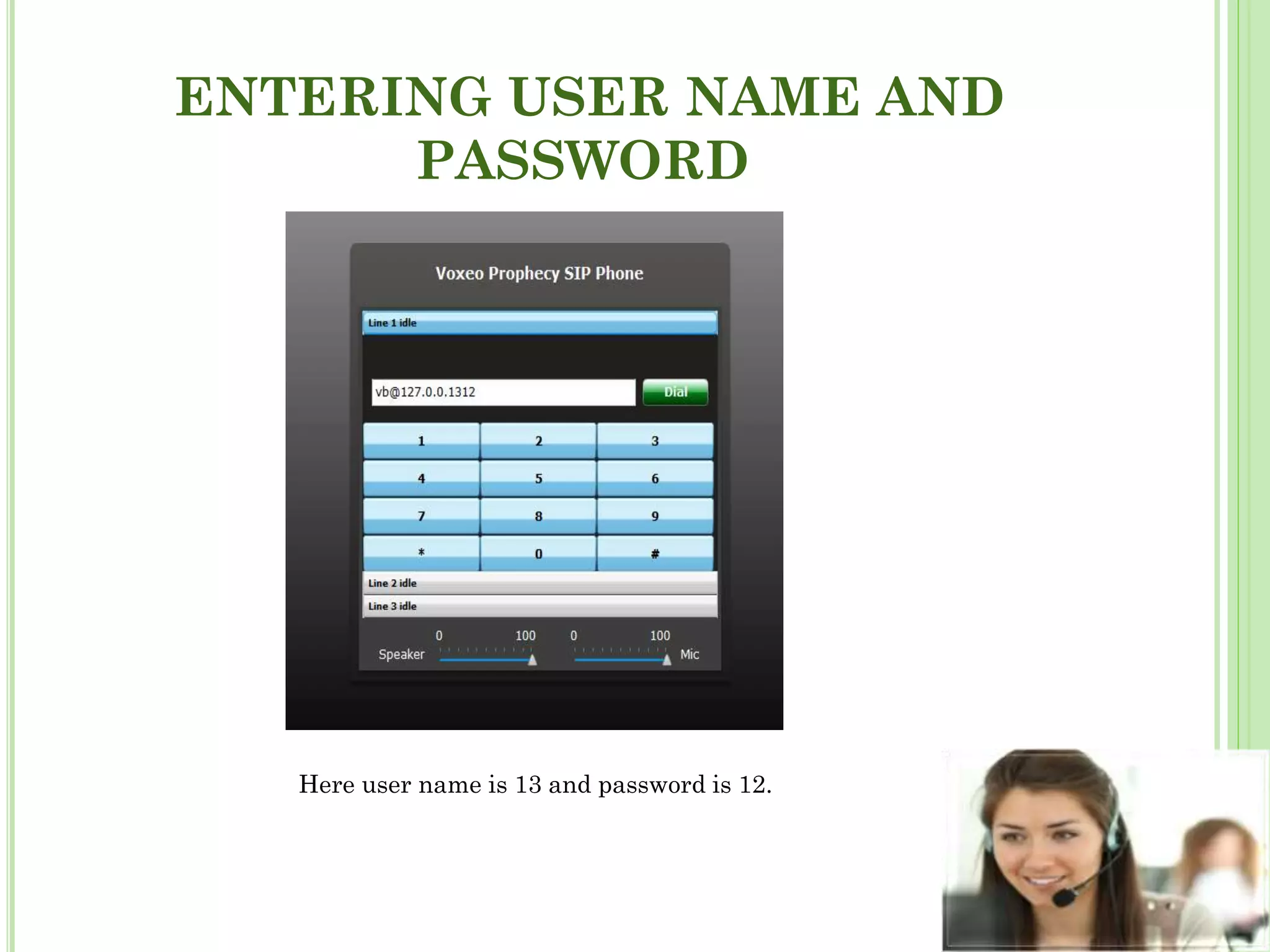

23. ENTERING USER NAME AND
PASSWORD
Here user name is 13 and password is 12.

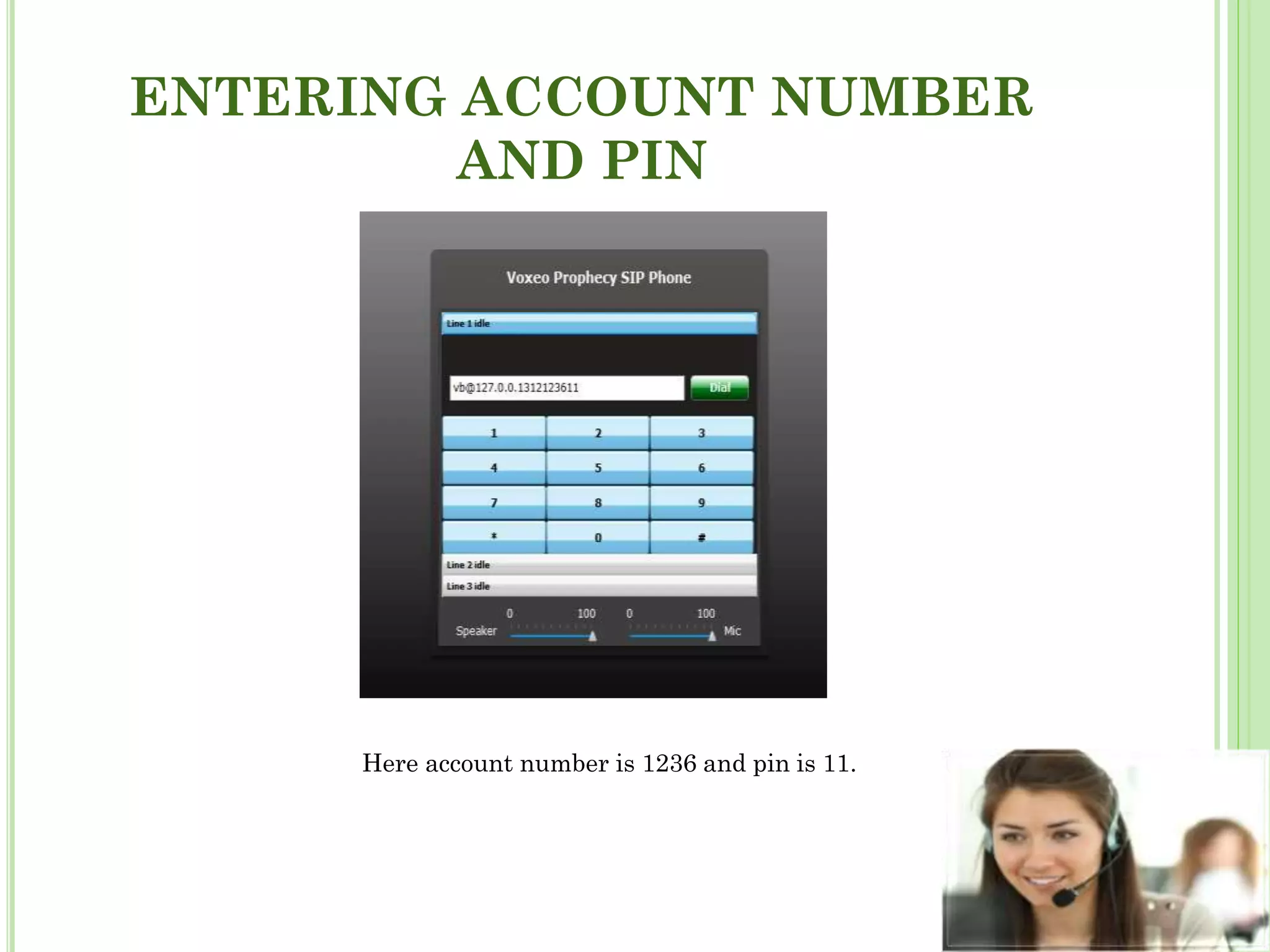

24. ENTERING ACCOUNT NUMBER
AND PIN
Here account number is 1236 and pin is 11.

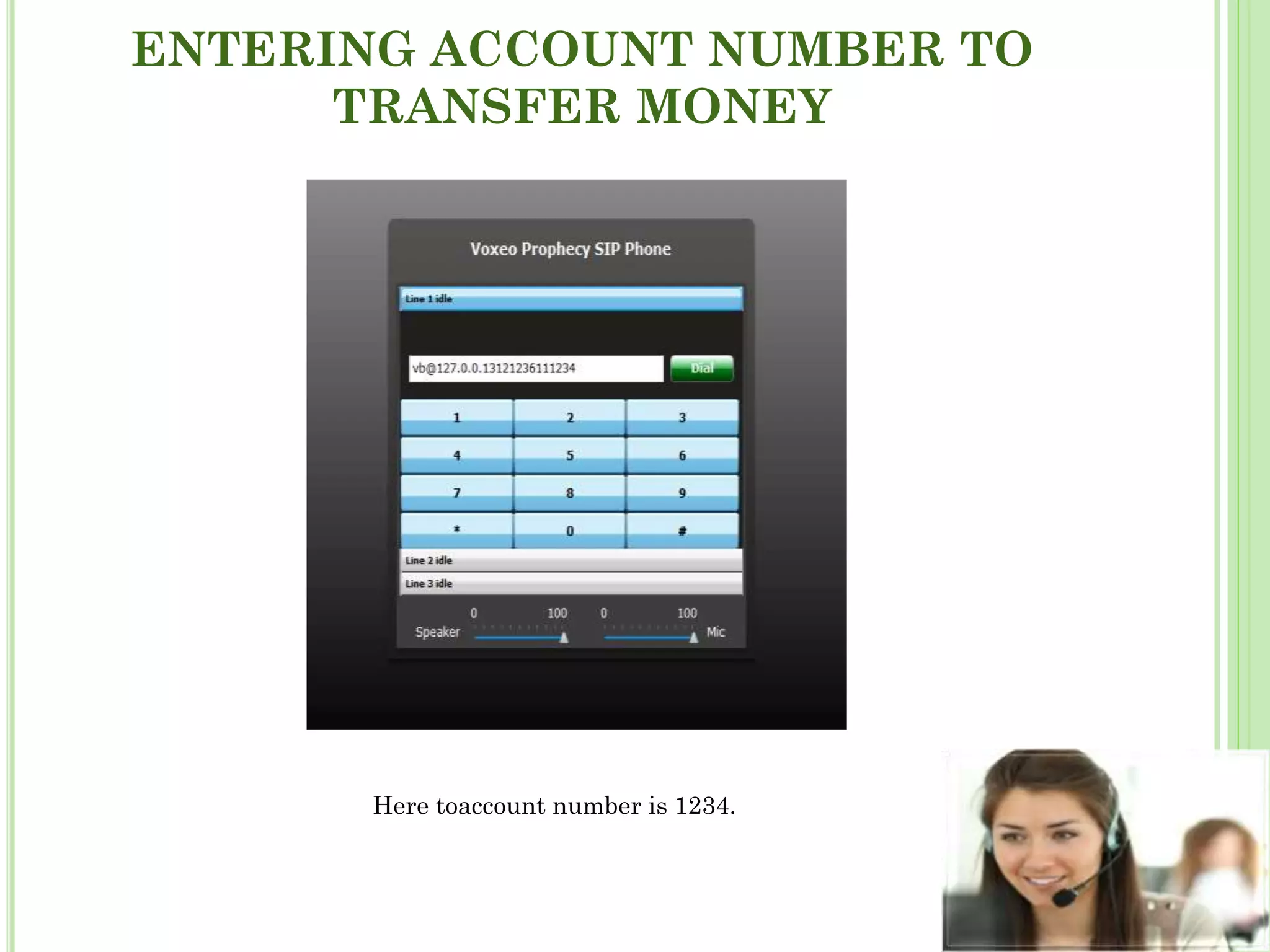

25. ENTERING ACCOUNT NUMBER TO
TRANSFER MONEY
Here toaccount number is 1234.

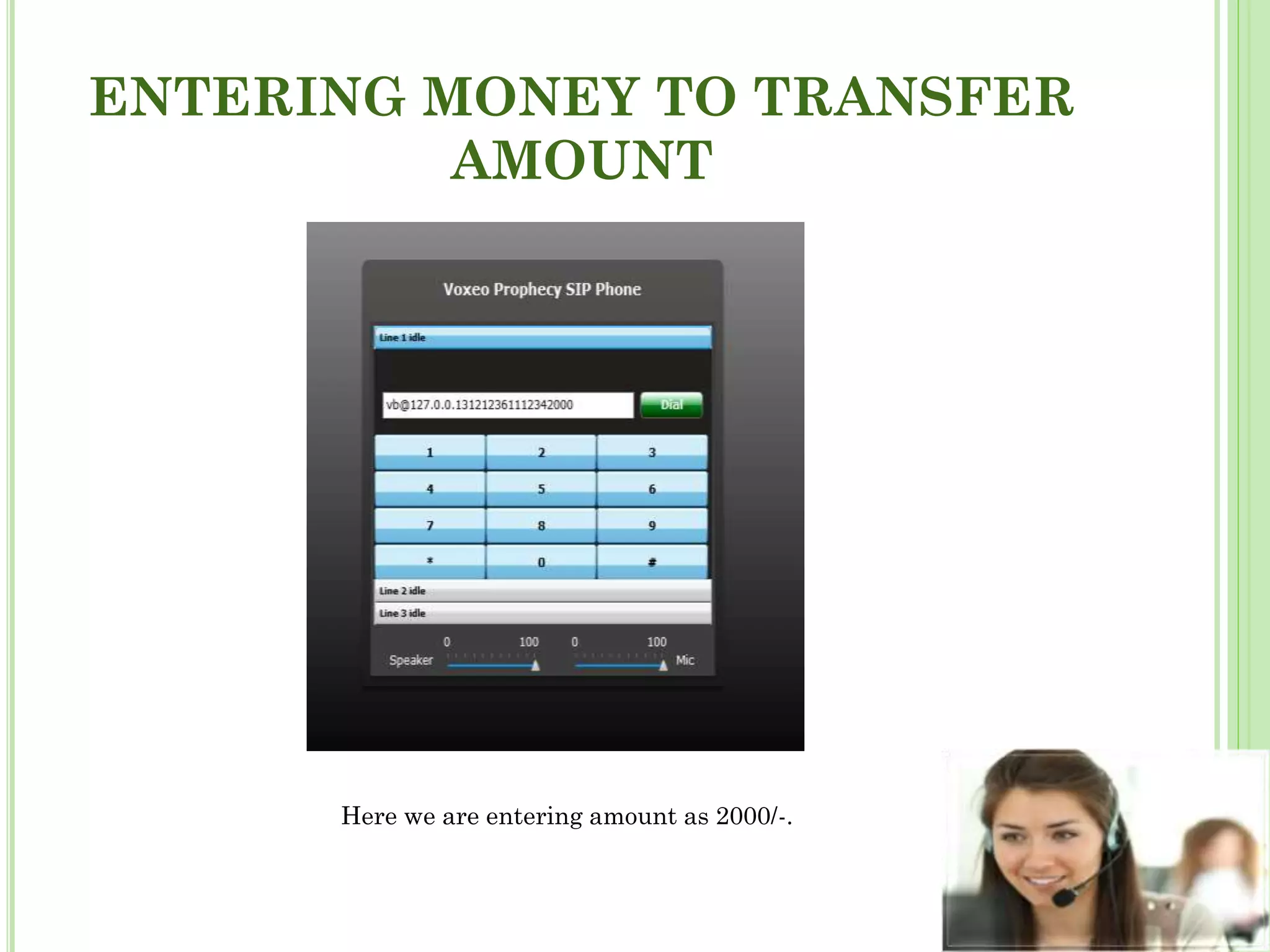

26. ENTERING MONEY TO TRANSFER
AMOUNT
Here we are entering amount as 2000/-.

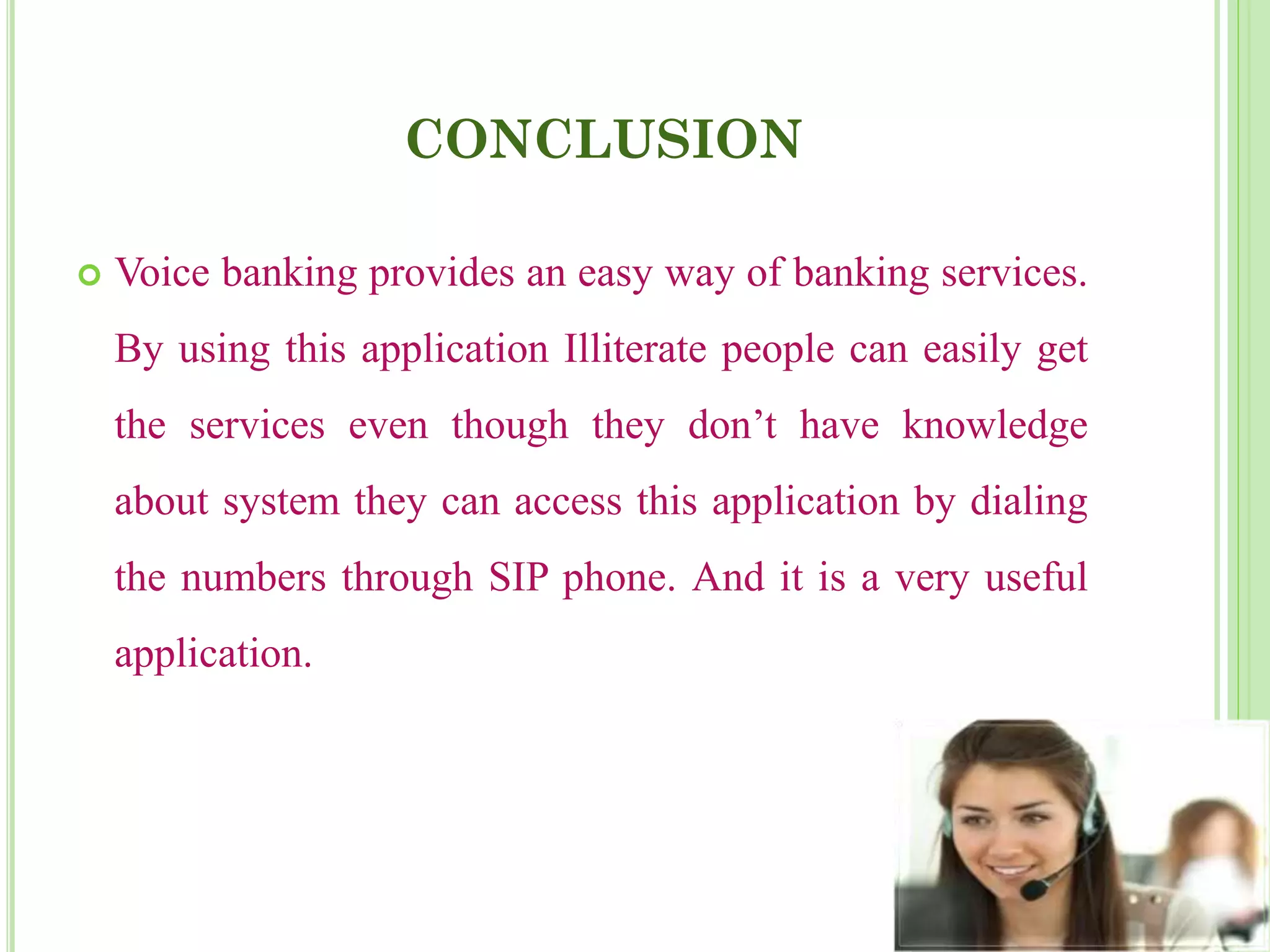

27. CONCLUSION
 Voice banking provides an easy way of banking services.
By using this application Illiterate people can easily get
the services even though they don’t have knowledge
about system they can access this application by dialing
the numbers through SIP phone. And it is a very useful
application.

28. FUTURE ENHANCEMENTS
 This project is limited to balance enquiry, and transfer
money from one account to another. In future we can
extend this project by adding more banks, Appling for
new check books, Date of transferring money and many
more features.
