The document presents on VLSM and Supernetting. It contains introductions to VLSM and Supernetting, their histories, basic concepts, implementation processes and examples. VLSM allows variable length subnet masking to efficiently divide a network into subnets of different sizes. Supernetting combines multiple networks or subnets into a larger single network to reduce routing table sizes. The document provides step-by-step explanations of VLSM and Supernetting techniques along with illustrative examples.

1. Presentation
On
VLSM & Supernetting

2. Presented by:
BUG FREE
Group Members:
1. Md. Omor Faruk ID: 151-15-5444
2. Nahian Ahmed ID: 151-15-5137
3. Monsur Ahmed Shafiq ID: 151-15-5439
4. Md. Sajibul Hasan ID: 151-15-4986
5. Md. Taikul Islam ID: 151-15-5144
4/9/2017 VLSM & Supernetting

3. Contains:
• Introduction
• History of VLSM
• Basic knowledge about Subnet Masking
• Process of Subnet Masking
• Steps of Variable Length Subnet Masking(VLSM)
• Implementing VLSM
• History of Supernetting
• Basic knowledge about Supernetting
• Steps of Supernetting
• Implementation of Supernetting
4/9/2017 VLSM & Supernetting

4. History of VLSM
Classless Inter-Domain Routing (CIDR) is a method for
allocating IP addresses and IP routing. The Internet Engineering
Task Force introduced CIDR in 1993 to replace the previous
addressing architecture of classful network design in the
Internet.
Classless Inter-Domain Routing is based on variable-length subnet
masking (VLSM), which allows a network to be divided into variously
sized subnets, providing the opportunity to size a network more
appropriately for local needs.

5. What is VLSM ?
• Subnetting of a subnet.
• The more realistic way of Subnetting.
• To make the most efficient use of all the bits of a
network.
• Prevent network and host from waste.
4/9/2017 VLSM & Supernetting

6. •Steps of VLSM:
• Find the largest segment which need largest number of hosts address.
• Do Subnetting to fulfill the requirement of largest segment.
• Assign the appropriate subnet mask for the largest segment.
• For second largest segments, take one of these newly created subnets and
use different subnet mask for this one.
• It will cover from the large number host first.
• Repeat this process until the last network.
4/9/2017 VLSM & Supernetting

7. VLSM Examples

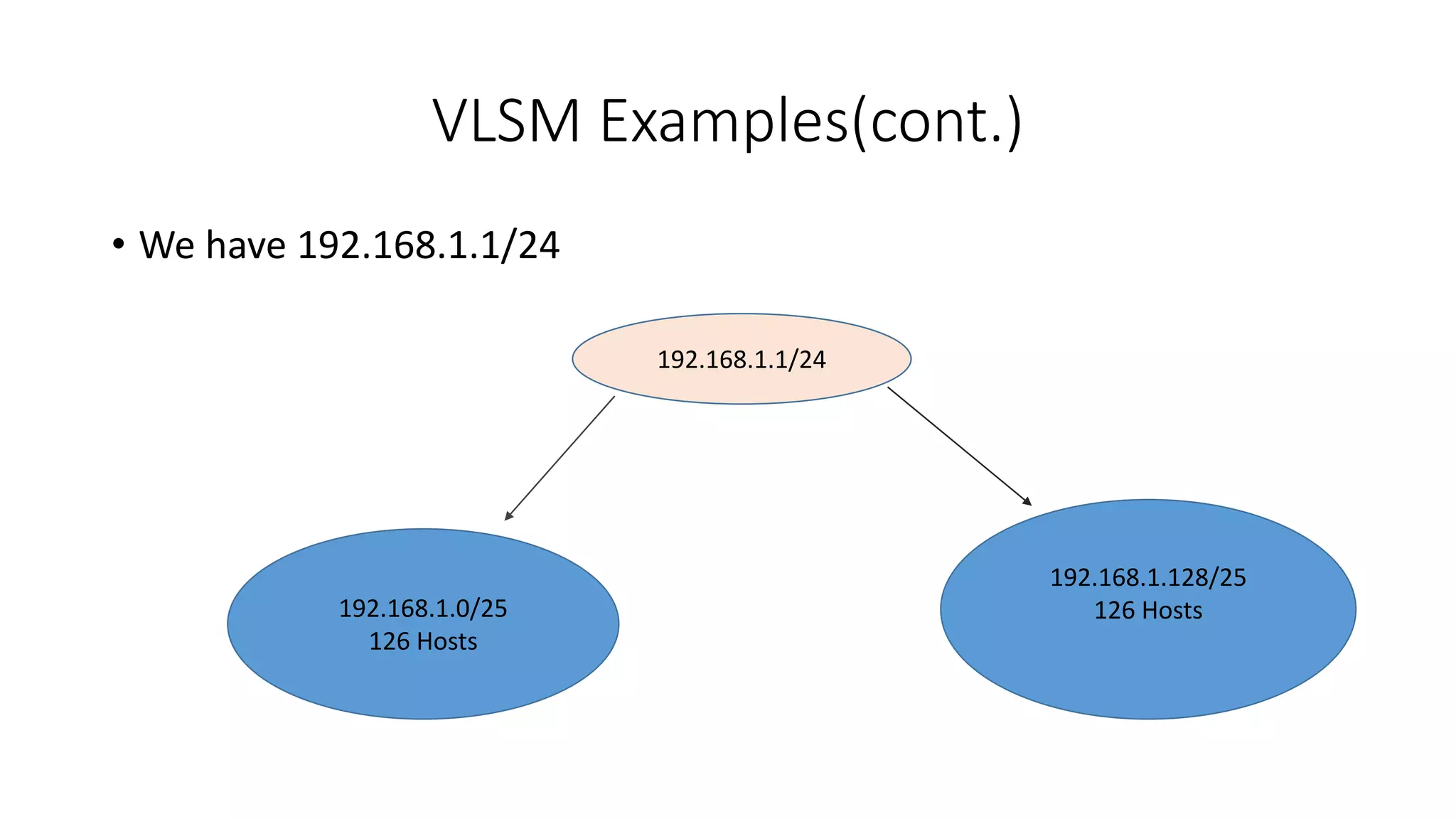

8. VLSM Examples(cont.)
• We have 192.168.1.1/24
192.168.1.1/24192.168.1.1/24
192.168.1.0/25
126 Hosts
192.168.1.128/25
126 Hosts

9. VLSM Examples(cont.)
• We have 192.168.1.0/25
192.168.1.0/25
192.168.1.0/26
62 Hosts
192.168.1.64/26
62 Hosts
Assign To A which need 50 hosts Assign To B which need 50 hosts

10. VLSM Examples(cont.)
• We have 192.168.1.128/25
192.168.1.128/25
192.168.1.128/26
62 Hosts
192.168.1.192/26
62 Hosts
Assign To C which need 40 hosts We can assign in D but ……

11. VLSM Examples(cont.)
• We have 192.168.1.192/26
192.168.1.192/26
192.168.1.192/27
30 Hosts
192.168.1.224/27
30 Hosts
Assign To D which need 20 hosts May be in future……

12. Why use VLSM
• Because of Addressing crisis.
• The Internet Engineering Task Force identified two problems in
1992
----IPv4 may not enough in future
----Rapid increase of internet user.
**Freedom to use different subnet masks for networks within a single
autonomous system.

13. Advantage of VLSM
• We can divide our Network in to many area.
• It helps ISP to allocate more host.
• Save our Host IP Addresses.
• VLSM is supported by :
1.OSPF
2.Integrated IS-IS
3.RIPv2
4.Static Routing

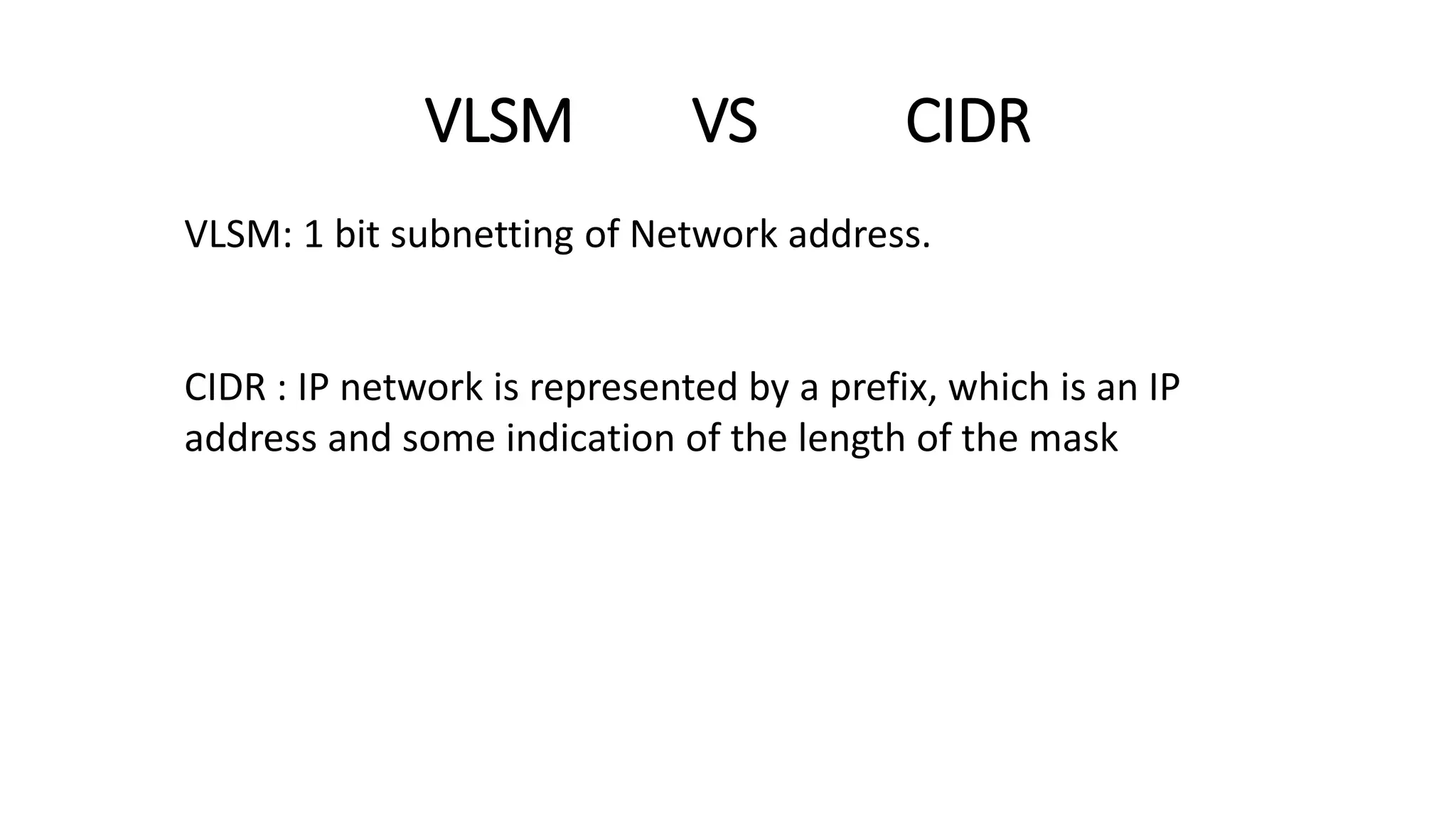

14. VLSM VS CIDR
VLSM: 1 bit subnetting of Network address.
CIDR : IP network is represented by a prefix, which is an IP
address and some indication of the length of the mask

15. VLSM VS Supernetting

16. Introduction of Supernetting
4/9/2017 VLSM & Supernetting
• Reverse process of VLSM
• Creating larger network.
• Combination of two or more networks (or subnets).
• This method facilitates regional route aggregation.

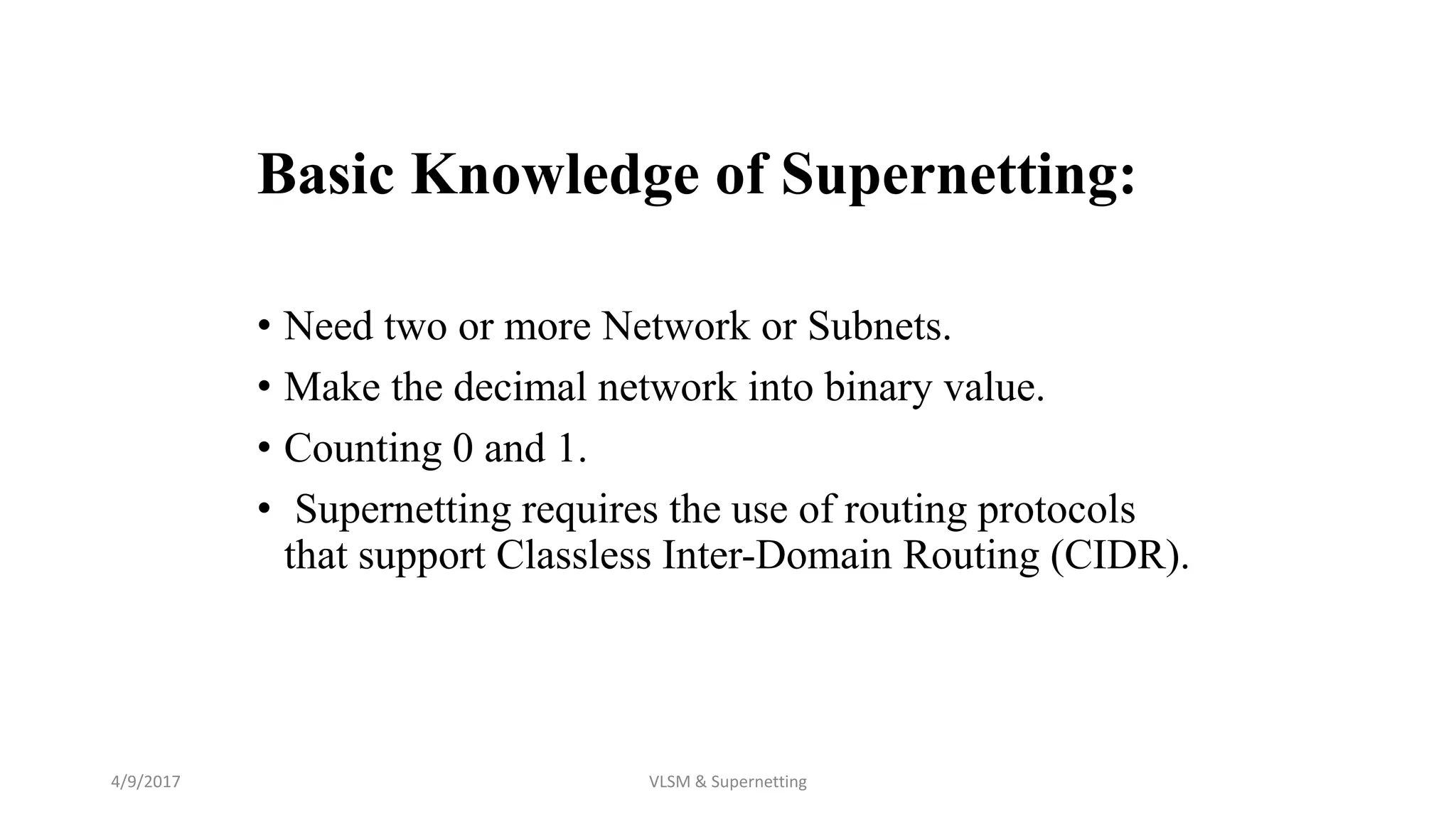

17. Basic Knowledge of Supernetting:
• Need two or more Network or Subnets.
• Make the decimal network into binary value.
• Counting 0 and 1.
• Supernetting requires the use of routing protocols
that support Classless Inter-Domain Routing (CIDR).
4/9/2017 VLSM & Supernetting

18. Steps of Supernetting:
• Contain many IP or network.
• Write down IP serially then convert into binary.
• Find matching from left site and underline upto match.
• Write upto match and make “0” zero upto end.
• Put dot (.) after the (8) eight interval.
• Make decimal from the binay of each portion which
will be the new network address.
• Make all (1) upto match and zero upto end which will
be the musk.
4/9/2017 VLSM & Supernetting

19. Supernetting Scenario

20. Implementation of Supernetting:
Make a Summation of the following network:
192.168.98.0 , 192.168.99.0 , 192.168.100.0 , 192.168.101.0, 192.168.102.0 , 192.168.105.0
Firstly, the addresses are converted to binary format and aligned in a list:
4/9/2017 VLSM & Supernetting

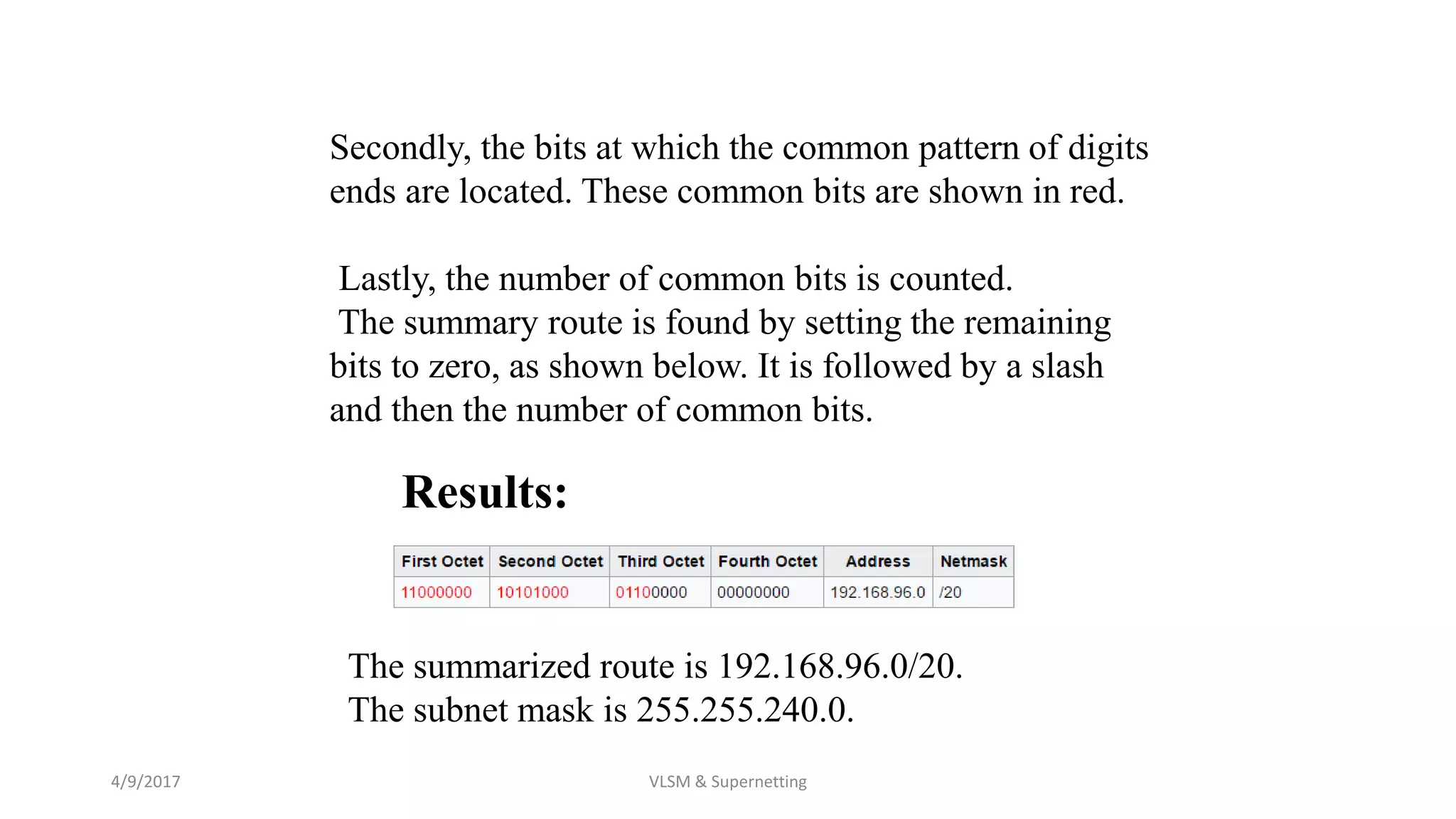

21. 4/9/2017 VLSM & Supernetting
Results:
Secondly, the bits at which the common pattern of digits
ends are located. These common bits are shown in red.
Lastly, the number of common bits is counted.
The summary route is found by setting the remaining
bits to zero, as shown below. It is followed by a slash
and then the number of common bits.
The summarized route is 192.168.96.0/20.
The subnet mask is 255.255.240.0.

22. Advantages & Disadvantage of Supernetting:
Advantages:
• Control and reduce the network traffic.
• Helpful to solve the problem of lacking IP addresses.
• To minimize the size of the routing tables.
In the near future the newer Wireless Scalable Access System models will use smart
supernetting device.
Disadvantages:
• It cannot cover different area of a network when combined.
• All the networks should be in the same class.

23. Thank You!
If You Have any Question
