1. Visual Field Basics &
Interpretation
Dr Salman Sohail
FCPS Resident - I

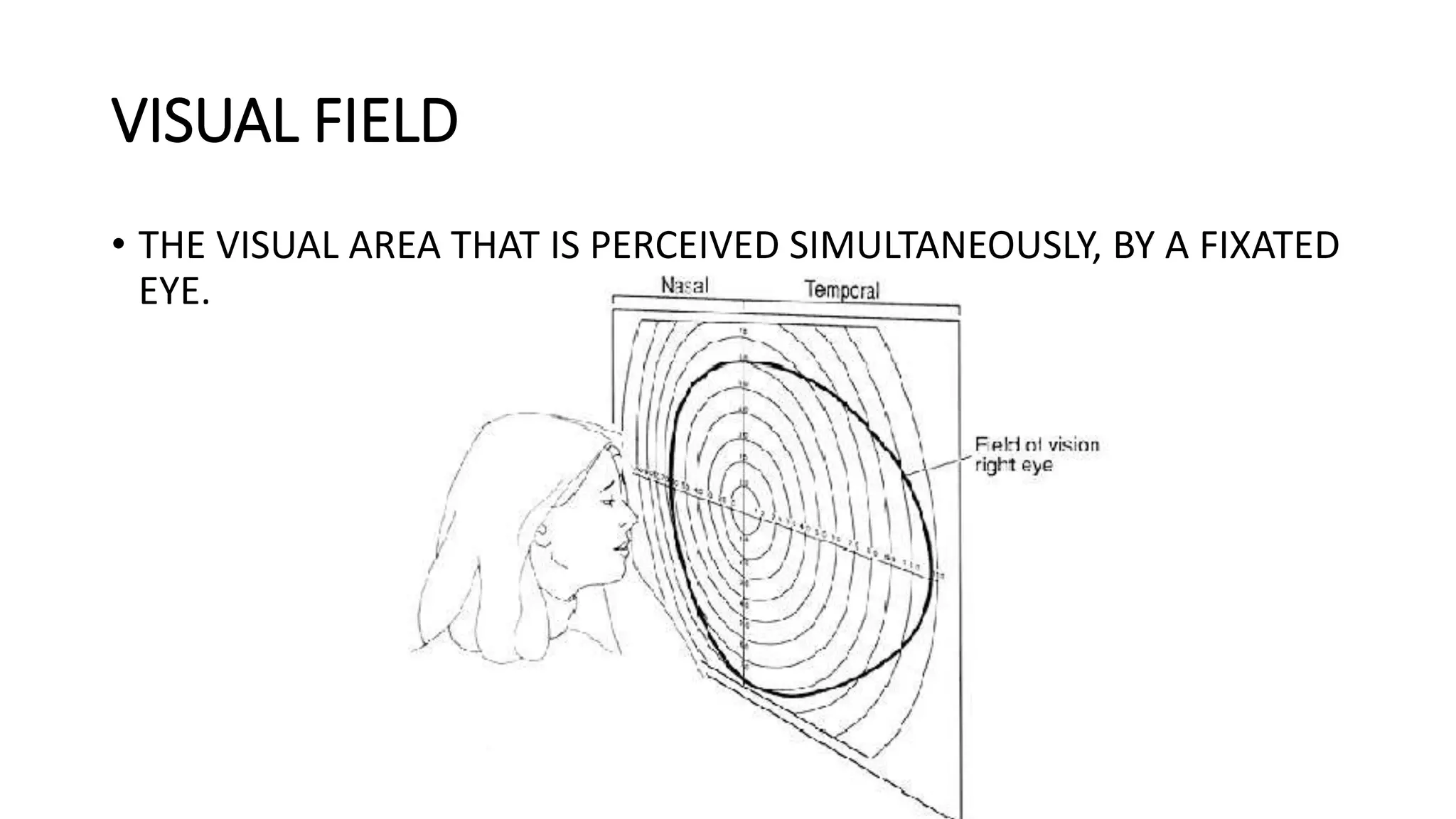

2. VISUAL FIELD
• THE VISUAL AREA THAT IS PERCEIVED SIMULTANEOUSLY, BY A FIXATED
EYE.

4. Blind Spot
• Optic disc
• Nasal to the fovea (on retina) –
• Seen in temporal VF as a Blind spot
( on visual field )

5. • Right or Left EYE ? L
• Field From the front

6. Normal limits of visual field

7. Terminologies
• THRESHOLD: THE WEAKEST TEST STIMULUS THAT IS JUST VISIBLE IN A
PARTICULAR LOCATION UNDER THE SPECIFIC TESTING CONDITION
VARIES ACROSS THE VISUAL FIELD.
• SENSITIVITY: MOST SUBTLE CHARACTERISTICS OF A STIMULUS THAT
IS VISIBLE AT A SPECIFIC POINT IN SPACE.
• FIXATION: THAT PART OF VISUAL FIELD CORRESPONDING TO FOVEA
CENTRALIS.

8. Isopter
• ISOPTER:
• LINE CONNECTING ALL POINTS IN THE VISUAL FIELD WITH THE
SAME THRESHOLD ( FOR A GIVEN TEST SPOT)
• BOUNDARY BETWEEN AREA OF VISIBILITY TO THE AREA OF
NONVISIBILITY FOR A
PARTICULAR STIMULUS

9. • SCOTOMA: LOCALIZED DEFECTSDEPRESSIONS SURROUNDED BY
NORMAL VISUAL FIELD.
• ABSOLUTE: DEFECT THAT PERSISTS WHEN THE MAXIMUM
STIMULUS IS USED E. G BLIND SPOT.
• RELATIVE : DEFECT THAT IS PRESENT TO WEAKER STIMULUS BUT
DISAPPEARS WITH BRIGHTER STIMULUS

10. Location of VF defect
• CENTRAL
5 DEGREES OR LESS FROM THE POINT OF FIXATION
• PARACENTRAL
> 5 DEGRESS – 30 DEGREES
• • PERIPHERAL
• • >30 DEGREES

11. SIGNIFICANCE OF VISUAL
FIELD TESTING
• FIND OUT THE EXTENT OF VF TO DIAGNOSE AND DETECT DISEASES AS
WELL AS EXTENT OF DAMAGE CAUSED IN VF BY THE DISEASE
• TO LOCATE POSSIBLE LESION IN NEUROLOGICAL DISORDER
• TO FIND OUT THE PROGRESSION OF DISEASES

13. VISUAL FIELD TESTING
METHODS/TOOLS
• CENTRAL
AMSLER GRID: 200
TANGENT (BJERRUM SCREEN): 300
GOLDMANN
AUTOMATED (OCTOPUS / HUMPHERY) :300
• PERIPHERAL
CONFRONTATION
GOLDMANN
AUTOMATED 900 PROGRAMME

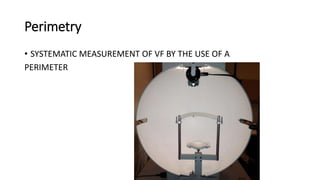

14. Perimetry
• SYSTEMATIC MEASUREMENT OF VF BY THE USE OF A
PERIMETER

15. PERIMETRY TYPES

16. GOLDMAN PERIMETRY
• THE MOST WIDELY USED INSTRUMENT FOR MANUAL
PERIMETRY.
• HAS A CALIBRATED BOWL PROJECTION INSTRUMENT
WITH A BACKGROUND INTENSITY OF 31.5 APOSTILBS (ASB),
• TEST TARGETS: DOTS
of VARYING SIZE AND ILLUMINATION

18. Interpretation of perimetry
• THE VISUAL FIELD IS CONSIDERED ABNORMAL IF:
• THE THRESHOLD VALUES ARE SIGNIFICANTLY BRIGHTER (0.5
LOG UNITS OR MORE) THAN THE EXPECTED VALUES
AND / OR
• SCOTOMAS OR DEPRESSIONS ARE PRESENT

19. Whats the Possible Diagnosis?
• RIGHT EYE
• LEFT EYE

20. Bitemporal Hemianopia

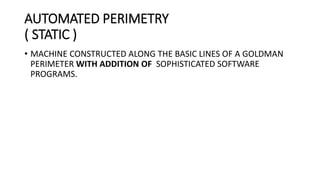

21. AUTOMATED PERIMETRY
( STATIC )
• MACHINE CONSTRUCTED ALONG THE BASIC LINES OF A GOLDMAN
PERIMETER WITH ADDITION OF SOPHISTICATED SOFTWARE
PROGRAMS.

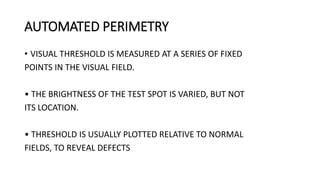

22. AUTOMATED PERIMETRY
• VISUAL THRESHOLD IS MEASURED AT A SERIES OF FIXED
POINTS IN THE VISUAL FIELD.
• THE BRIGHTNESS OF THE TEST SPOT IS VARIED, BUT NOT
ITS LOCATION.
• THRESHOLD IS USUALLY PLOTTED RELATIVE TO NORMAL
FIELDS, TO REVEAL DEFECTS

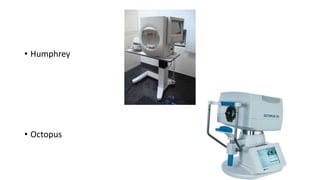

23. • Humphrey
• Octopus

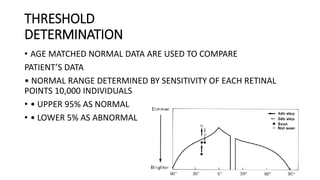

24. THRESHOLD
DETERMINATION
• AGE MATCHED NORMAL DATA ARE USED TO COMPARE
PATIENT’S DATA
• NORMAL RANGE DETERMINED BY SENSITIVITY OF EACH RETINAL
POINTS 10,000 INDIVIDUALS
• • UPPER 95% AS NORMAL
• • LOWER 5% AS ABNORMAL

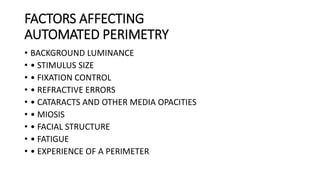

25. FACTORS AFFECTING
AUTOMATED PERIMETRY
• BACKGROUND LUMINANCE
• • STIMULUS SIZE
• • FIXATION CONTROL
• • REFRACTIVE ERRORS
• • CATARACTS AND OTHER MEDIA OPACITIES
• • MIOSIS
• • FACIAL STRUCTURE
• • FATIGUE
• • EXPERIENCE OF A PERIMETER

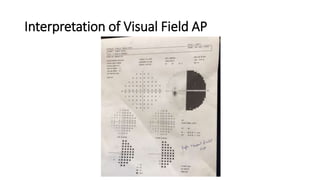

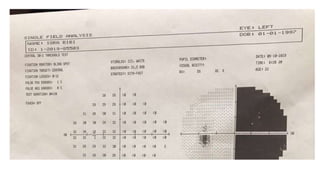

26. Interpretation of Visual Field AP

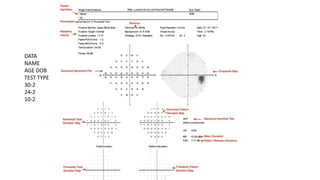

28. DATA
NAME
AGE DOB
TEST TYPE
30-2
24-2
10-2

29. VALIDITY OF THE TEST –
• FALSE POSITIVE RESPONSE
> 20% UNRELIABLE
• FALSE NEGATIVE
>20% UNRELIABLE
• SHORT TERM FLUCTUATION
1-3 DB NORMAL FLUCTUATION
• FIXATION LOSS
>33% UNRELIABLE

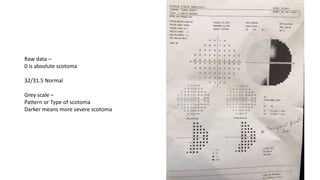

30. Raw data –
0 is absolute scotoma
32/31.5 Normal
Grey scale –
Pattern or Type of scotoma
Darker means more severe scotoma

31. • Total Deviation plot
- According to AGE avg. sensitivity
to the stimulus given
0 Normal to that age ..
- less the value in minus , more the deviation and
defect
- Probability of TDP
%age of normal of that age group

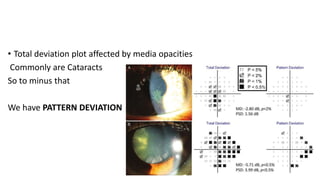

32. • Total deviation plot affected by media opacities
Commonly are Cataracts
So to minus that
We have PATTERN DEVIATION

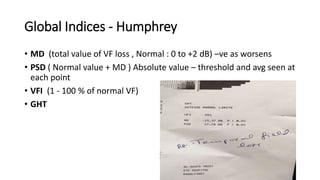

33. Global Indices - Humphrey
• MD (total value of VF loss , Normal : 0 to +2 dB) –ve as worsens
• PSD ( Normal value + MD ) Absolute value – threshold and avg seen at
each point
• VFI (1 - 100 % of normal VF)
• GHT

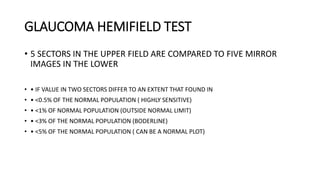

34. GLAUCOMA HEMIFIELD TEST
• 5 SECTORS IN THE UPPER FIELD ARE COMPARED TO FIVE MIRROR
IMAGES IN THE LOWER
• • IF VALUE IN TWO SECTORS DIFFER TO AN EXTENT THAT FOUND IN
• • <0.5% OF THE NORMAL POPULATION ( HIGHLY SENSITIVE)
• • <1% OF NORMAL POPULATION (OUTSIDE NORMAL LIMIT)
• • <3% OF THE NORMAL POPULATION (BODERLINE)
• • <5% OF THE NORMAL POPULATION ( CAN BE A NORMAL PLOT)

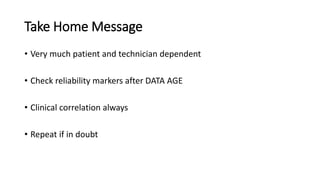

37. Take Home Message
• Very much patient and technician dependent
• Check reliability markers after DATA AGE
• Clinical correlation always
• Repeat if in doubt

38. THANKYOU

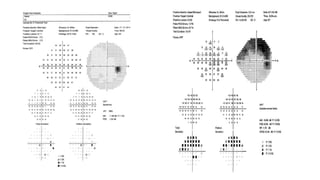

LEFT TEMPORAL HEMIANOPIA
