1. S2Graph :
A large-scale graph database
with Hbase
daumkakao
Doyoung Yoon x Taejin Chin

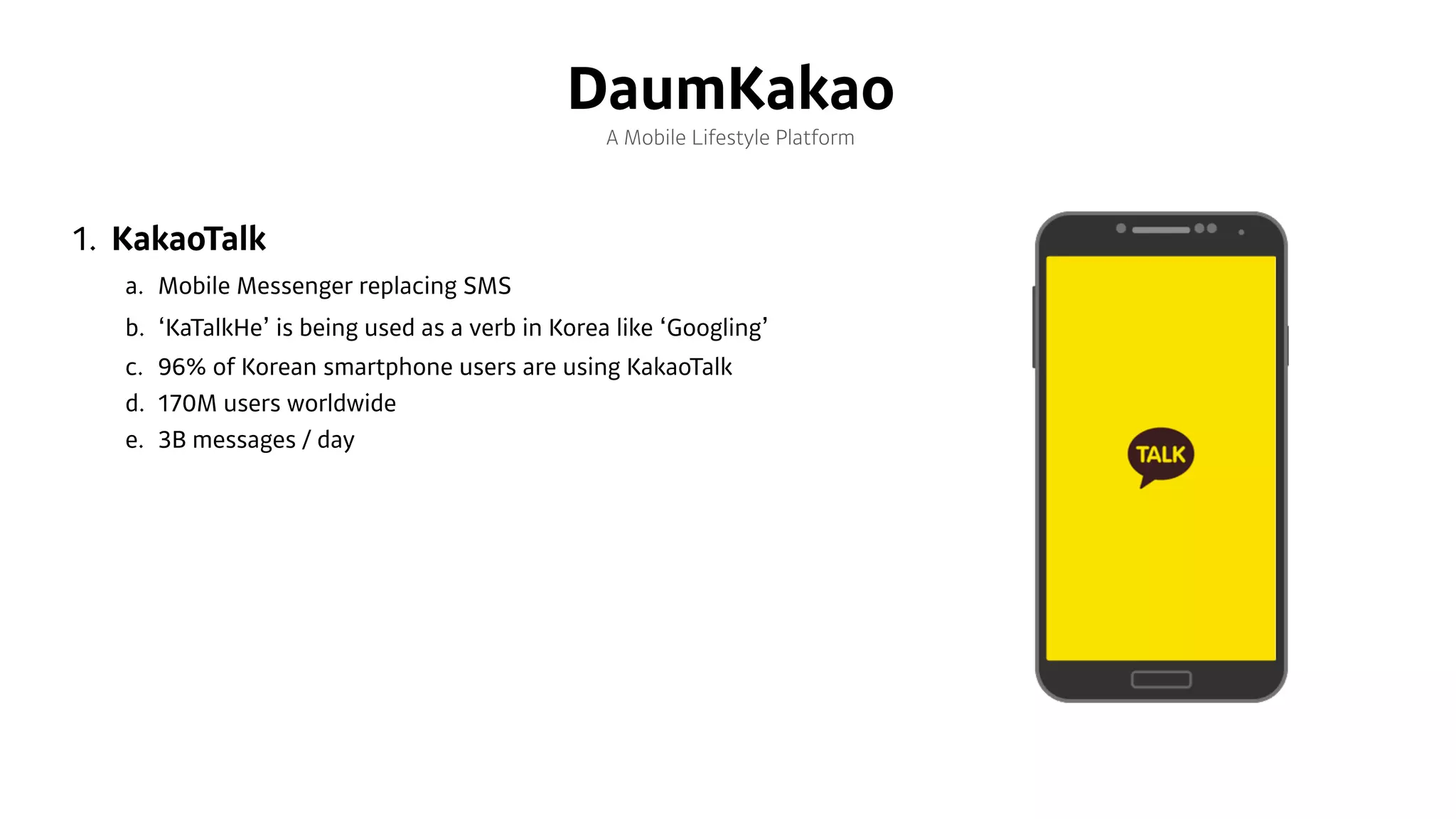

2. 2
DaumKakao
A Mobile Lifestyle Platform
1. KakaoTalk
a. Mobile Messenger replacing SMS
b. ‘KaTalkHe’ is being used as a verb in Korea like ‘Googling’
c. 96% of Korean smartphone users are using KakaoTalk
d. 170M users worldwide
e. 3B messages / day

3. 3
KakaoTalk
Social
Platform
DaumKakao
A Mobile Lifestyle Platform
KakaoStory
KakaoGroup
Daum Cafe
Contents
Platform
KakaoTopic
KakaoPage
KakaoGame
Commerce
Platform
KakaoPick
KakaoMusic
Marketing
Platform
Yellow IDMedia Daum
Daum tvPot
Local
Platform
Daum Map
Daum Webtoon
Personal
Platform
Sol calendarKakaoPlace
Sol Mail
Zap
Plus FriendGift Shop
Digital Item Store KakaoStyle
KakaoHome
Sol Group
Story Plus
Daum Cluod
Biggest mobile SNS
in Korea
96% of Korean
smartphone users are
using KakaoTalk messenger,
170 million users
worldwide)

4. 4
Our Social Graph
Message
length : 9
Write
length : 3
Read
impact :3
Coupon
price : 10
Present
price : 3
affinity 6affinity: 9
affinity 3
affinity 3
affinity 4
affinity 1
affinity 2
affinity 2
affinity 9
Friend
Group
size : 6
Emoticon
count : 7
Eat
rating : 4
View
count : 8
Play
level: 6
Pick
withFriend : 3
Advertise
ctr : 0.32
Search
keyword
: “HBase"
Listen
count : 6
Like
count : 7
Comment
length : 15
affinity 3

5. 5
Our Social Graph
Message
length : 9
Write
length : 3
affinity 6affinity: 9
affinity 3
affinity 3
affinity 4
affinity 1
affinity 2
affinity 2
affinity 9
Friend
Play
level: 6
Pick
withFriend : 3
Advertise
ctr : 0.32
Search
keyword
: “HBase"
Listen
count : 6
C
l
affinity 3
Message ID : 201
Ad ID : 603
Music ID
Item ID : 13
Post ID : 97
Game ID : 1984

6. 6
Technical Challenges
1. Large social graph constantly changing
a. Scale
more than,
social network: 10 billion edges, 200 million vertices, 50 million update on existing edges.
user activities: 400 million new edges per day

7. 7
Technical Challenges (cont)
2. Low latency for breadth first search traversal on connected data.
a. performance requirement
peak graph-traversing query per second: 20000
response time: 100ms

8. 8
Technical Challenges (cont)
3. Update should be applied to graph in real time for viral effect
Person A
Post
Fast Person B
Comment
Person C
Sharing
Person D
Mention
Fast Fast

9. 9
Technical Challenges (cont)
4. Support for Dynamic Ranking logic
a. push strategy: hard to change data ranking logic dynamically.
b. pull strategy: can try various data ranking logic

10. 10
Before
Each app server should know each DB’s sharding logic.
Highly inter-connected architecture
Friend relationship SNS feeds Blog user activities Messaging
Messaging
App
SNS
App
Blog
App

11. 11
After
SNS
App
Blog
App
Messaging
App
S2Graph DB
stateless app servers

12. 12
S2Graph : Distributed Online GraphDB
1. Low-latency
2.Graph-traversable
3.Scalable
4.Eventually consistent
5.Asynchronous, non-blocking

13. 13
Why We Choose HBase?
1. High Availability
2.Scalability
3.Low latency
4.High concurrency
5.Fault tolerant
6.Integration with HDFS
7.Distributed operation

14. 14
The Data Model
1. Columns
2. Labels
3. Directions
4. Index Properties
5. Non-index Properties 1 3comment
4
know created
name = “josh”
age = 32
edge 2 source vertex
vertex 1 out edges
edge 2 target vertex
2
edge 2 label
vertex 2 in edges
vertex 4 id
vertex 4 properties
date = 20150507
edge 5 properties
5

15. 15
How to store the data - Edge
Logical View
1. Snapshot edges : Up-to-date status of edge
column
row
Tgt Vertex ID1 Tgt Vertex ID2 Tgt Vertex ID3
Src Vertex ID1 Properties Properties Properties
Src Vertex ID2 Properties Properties Properties
a. Fetching an edge between two specific vertex
b. Lookup Table to reach indexed edges for update, increment, delete operations

16. 16
How to store the data - Edge
Logical View
2. Indexed edges : Edges with index
column
row
Index Values | Tgt Vertex ID1 Index Values | Tgt Vertex ID2
Src Vertex ID1 Non-index Properties Non-index Properties
a. Fetches edges originating from a certain vertex in order of index

17. 17
How to store the data - Edge
Physical View - table schema
1. Snapshot Edge
a. Rowkey
Murmur Hash Src Vertex ID Label ID Direction Index Sequence Is Inverted
16 bit variable length 30 bit 2 bit 7bit 1 bit
Vertex IDs can be encoded with 8 bit header + byte array (long, integer, short, byte, string)

18. 18
How to store the data - Edge
Physical View - table schema
1. Snapshot Edge
b. Qualifier
Target Vertex ID
variable length
c. Value
All Property Key Value Pairs
variable length

19. 19
How to store the data - Edge
Physical View - table schema
2. Indexed Edge
a. Rowkey
Murmur Hash Src Vertex ID Label ID Direction Index Sequence Is Inverted
16 bit variable length 30 bit 2 bit 7bit 1 bit
Vertex IDs can be encoded with 8 bit header + byte array (long, integer, short, byte, string)

20. 20
How to store the data - Edge
Physical View - table schema
2. Indexed Edge
b. Qualifier
Index Property Values Tgt Vertex ID
variable length variable length
c. Value
Non-index Property Key Value Pairs
variable length

21. 21
How to store the data - Vertex
Logical View
1. Vertex : Up-to-date status of Vertex
column
row
Property Key1 Property Key2
Src Vertex ID1 Value1 Value2
Vertex ID2 Value1 Value2

22. 22
How to store the data - Vertex
Physical View - table schema
1. Vertex : Up-to-date status of Vertex
a. Rowkey
Murmur Hash Column ID Vertex ID
16 bit integer(32bit) variable length
b. Qualifier
Property Key
Byte(8 bit)
c. Value
Property Value
variable length

23. 23
How to read the data - GetEdges
Using a custom query DSL on top of HTTP
curl -XPOST localhost:9000/graphs/getEdges -H 'Content-Type: Application/json' -d '
{
"srcVertices": [{"serviceName": "s2graph", "columnName": "account_id", "id":1}],
"steps": [
[{"label": "friends", "direction": "out", "limit": 100}], // step
[{"label": "hear", "direction": "out", "limit": 10}]
]
}
'
Steps = a list of Step
Step = contains the labels to traverse
and how to rank them in the result
Step 1
friend 1
hear
time: 20140502
hear
time: 20140712
hear
time: 20141116
Friends Friends
friend 2
User 1
Step 2
Don’t let go let it be let it go

24. 24
How to read the data - GetEdges Example
Friend list
curl -XPOST localhost:9000/graphs/getEdges -H 'Content-Type: Application/json' -d '
{
"srcVertices": [{"serviceName": "s2graph", "columnName": "account_id", "id":1}],
"steps": [
[{"label": "friends", "direction": "out", "limit": 100}], // step
]
}
'
friend 1 friend 2
User 1
Friends Friends

25. 25
How to read the data - GetEdges Example
Songs my friends have listened
curl -XPOST localhost:9000/graphs/getEdges -H 'Content-Type: Application/json' -d '
{
"srcVertices": [{"serviceName": "s2graph", "columnName": "account_id", "id":1}],
"steps": [
[{"label": "friends", "direction": "out", "limit": 50, “scoring”: {“score”: 1.0}],
[{"label": "listen", "direction": "out", "limit": 10}]
]
}
'
friend 1
Friends Friends
friend 2
Don’t let go let it be let it go
hear
time: 20140502
hear
time: 20140712
hear
time: 20141116
User 1
Reference : https://github.com/daumkakao/s2graph#1-definition

26. 26
How to read the data - GetEdges Example
Similar songs to songs that I have listened to.
curl -XPOST localhost:9000/graphs/getEdges -H 'Content-Type: Application/json' -d '
{
"srcVertices": [{"serviceName": "s2graph", "columnName": "account_id", "id":1}],
"steps": [
[{"label": "listen", "direction": "out", "limit": 50}],
[{"label": "similar_song", "direction": "out", "limit": 10, “scoring”: {“score”: 1.0}]
]
}
User 1
Don’t let go let it be let it go
hear
time: 20140502
hear
time: 20140712
hear
time: 20141116
let it bleed Hey jude Do you wanna
build a snowman?
similar_song
similarity: 0.3
similar_song
similarity: 0.4
similar_song
similarity: 0.6

27. 27
How to read the data - GetVertices
curl -XPOST localhost:9000/graphs/getVertices -H 'Content-Type: Application/json' -d '
[
{"serviceName": "s2graph", "columnName": "account_id", "ids": [1, 2, 3]},
{"serviceName": "kakaomusic", "columnName": "user_id", "ids": [1, 2, 3]}
]
'
User 1
{created_at:20070812,
updated_at:20150507}
User 2
{created_at:201206132,
updated_at:20140505}

28. 28
How to write the data - Insert
curl -XPOST localhost:9000/graphs/edges/insert -H 'Content-Type: Application/json' -d '
[
{"from":1,"to":2,"label":"graph_test","props":{"time":-1, "weight":10},"timestamp":1417616431},
]
'
User 1 User 2

29. 29
How to write the data - Delete
curl -XPOST localhost:9000/graphs/edges/delete -H 'Content-Type: Application/json' -d '
[
{"from":1,"to":2,"label":"graph_test","timestamp":1417616431},
{"from":1,"to":3,"label":"graph_test","timestamp":1417616431},
]
'
User 1 User 2

30. 30
How to write the data - Update
curl -XPOST localhost:9000/graphs/edges/update -H 'Content-Type: Application/json' -d '
[
{"from":1,"to":2,"label":"graph_test","timestamp":1417616431, "props": {"is_hidden": true, “status”: 200},
{"from":1,"to":3,"label":"graph_test","timestamp":1417616431, "props": {"status": -500}
]
User 1 User 2
friend
{is_hidden:true,
status:200}

31. 31
REST API Spec.
Read
1. getEdges
2. checkEdge
3. getEdgesCount
4. getVertices
Write
1. insert
2. delete
3. update
4. increment
Management
1. create service (vertex type)
2. create label (edge type)
3. add Index

32. 32
HBase Table Configuration
1. setDurability(Durability.ASYNC_WAL)
2. setCompressionType(Compression.Algorithm.LZ4)
3. setBloomFilterType(BloomType.Row)
4. setDataBlockEncoding(DataBlockEncoding.FAST_DIFF)
5. setBlockSize(32768)
6. setBlockCacheEnabled(true)
7. pre-split by (Intger.MaxValue / regionCount). regionCount = 120 when create table(on 20 region server).

33. 33
HBase Cluster Configuration
• each machine: 8core, 32G memory
• hfile.block.cache.size: 0.6
• hbase.hregion.memstore.flush.size: 128MB
• otherwise use default value from CDH 5.3.1

34. 34
Overall Architecture
S2graphClients

35. 35
Compare to other Online GraphDBs
Titan (v0.4.2)
a. Pros
- Rich API and easy to setup
- Relatively large community
- Transaction handling
b. Cons
- Using it’s own ID system; less efficient for graph traversal (details in next slide)
- Index data stored on one region (hotspot) with strong consistency option
- Not many references on Titan with HBase comparing to other storages

36. 36
Compare to Titan
Titan is less efficient for graph traversal
- For following 1 normal graph traversal query,
Vertex(“userID:1”).out(“friends”).limit(10).out(“friends”).limit(10)
User 1
friends
friends

37. 37
Compare to Titan (cont)
Vertex(“userID:1”).out(“friend”).limit(10).out(“friend”).limit(10)
Titan S2graph
# of read requests
on HBase
112 =
1 (Vertex Lookup : a)
+ 1 (1st step edges : b)
+ 10 (2nd step edges : c)
+ 100 (Destination Vertices : d)
11 =
1 (1step edges : e)
+ 10 (2nd step edges : f)
Titan S2graph
B
A
C
D
e
f

38. 38
Performance
1. Test data
a. Total # of Edges: 9,000,000,000
b. Average # of adjacent edges per vertex: 500
c. Seed vertex: vertices that has more than 100 adjacent edges.
2. Test environment
a. Zookeeper server: 3
b. HBase Masterserver: 2
c. HBase Regionserver: 20
d. App server: 8 core, 16GB Ram

39. 39
- Benchmark Query : src.out(“friend”).limit(50).out(“friend”).limit(10)
- Total concurrency: 20 * # of app server
Performance
2. Linear scalability
Latency
0
50
100
150
200
QPS
0
1,000
2,000
3,000
4,000
# of app server
1 2 4 8
QPS(Query Per Second) Latency(ms)
51515047
3,097
1,567
803
42147 50 51 51
# of app server
1 2 3 4 5 6 7 8
50010001500200025003000
QPS

40. 40
Performance
3. Varying width of traverse (tested with a single server)
Latency
0
75
150
225
300
QPS
0
500
1,000
1,500
2,000
Limit on first step
20 40 80 100
QPS Latency(ms)
97
75
43
23 203266
457
943
23
43
75
97
- Benchmark Query : src.out(“friend”).limit(x).out(“friend”).limit(10)
- Total concurrency = 20 * 1(# of app server)

41. Performance
3. Varying width of traverse (tested with a single server)
Latency
0
75
150
225
300
QPS
0
500
1,000
1,500
2,000
Limit on first step
20 40 80 100
QPS Latency(ms)
97
75
43
23 203266
457
943
23
43
75
97
- Benchmark Query : src.out(“friend”).limit(x).out(“friend”).limit(10)
- Total concurrency = 20 * 1(# of app server)

42. 42
- All query touch 1000 edges.
- each step` limit is on x axis.
- Can expect performance with given query`s search space.
Performance
4. Different query path(different I/O pattern)
Latency
0
37.5
75
112.5
150
QPS
0
80
160
240
320
400
limits on path
10 -> 100 100 -> 10 10 -> 10 -> 10 2 -> 5 -> 10 -> 10 2 -> 5 -> 2 -> 5 -> 10
QPS Latency(ms)
5667716867
352.2
298.1280272.5297
67 68 71 67 56

43. 43
Performance
5. Write throughput per operation on single app server
Insert operation
Latency
0
1.25
2.5
3.75
5
Request per second
8000 16000 800000

44. 44
Performance
6. write throughput per operation on single app server
Update(increment/update/delete) operation
Latency
0
2
4
6
8
Request per second
2000 4000 6000

45. 45
Stats
1. HBase cluster per IDC (2 IDC)
- 3 Zookeeper Server
- 2 HBase Master
- 20 HBase Slave
2. App server per IDC
- 10 server for write-only
- 20 server for query only
3. Real traffic
- read: over 10K request per second
- now mostly 2 step queries with limit 100 on first step.
- write: over 5k request per second
* Deep traversal queries are not counted since it is in test stage for production

46. 46

47. 47
Through HBase !

48. 48
Now Available As an Open Source
- https://github.com/daumkakao/s2graph
- Finding a mentor
Contact
- Taejin Chin : taejin.chin@gmail.com
- Doyoung Yoon : shom83@gmail.com

49. 49
Latency
0
50
100
150
200
QPS
0
500
1,000
1,500
2,000
# of app server
1 2 3 4 5
Native Client QPS
Native Client Latency(ms)
174186189
177178
570
429315224112
178 177
189 186 174
- Benchmark Query : src.out(“friend”).limit(50).out(“friend”).limit(10)
- Test seed edges have adjacent edges more than 100: 30millions
- Total concurrency: 20 * # of app server
Appendix
Latency
0
50
100
150
200
QPS
0
500
1,000
1,500
2,000
# of app server
1 2 3 4 5
Asnychbase QPS
Asynchbase Latency(ms)
5351505047
1,895
1,567
1,192
803
421
47 50 50 51 53
3.5x performance improvement using Asynchbase
