1. O C T O B E R 1 2 , 2 0 1 7 | B E S P O K E | S A N F R A N C I S C O
# M D B l o c a l
MongoDB Stitch Overview

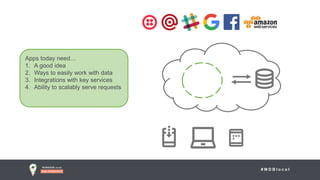

2. # M D B l o c a l
Apps today need…
1. A good idea
2. Ways to easily work with data
3. Integrations with key services
4. Ability to scalably serve requests

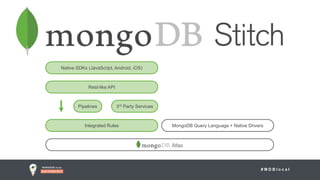

3. # M D B l o c a l
MongoDB Query Language + Native DriversIntegrated Rules
Pipelines 3rd Party Services
Native SDKs (JavaScript, Android, iOS)
Rest-like API

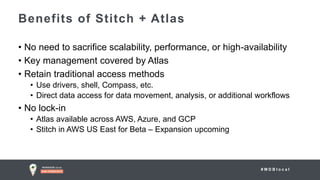

4. # M D B l o c a l
• No need to sacrifice scalability, performance, or high-availability
• Key management covered by Atlas
• Retain traditional access methods
• Use drivers, shell, Compass, etc.
• Direct data access for data movement, analysis, or additional workflows
• No lock-in
• Atlas available across AWS, Azure, and GCP
• Stitch in AWS US East for Beta – Expansion upcoming
Benefits of Stitch + Atlas

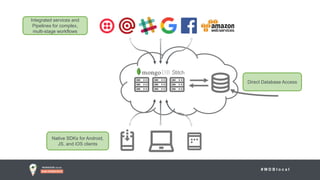

5. # M D B l o c a l
Integrated services and
Pipelines for complex,
multi-stage workflows
Native SDKs for Android,
JS, and iOS clients
Direct Database Access

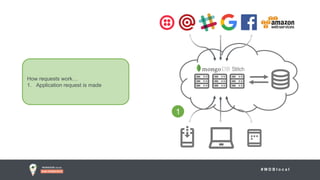

6. # M D B l o c a l
How requests work…
1. Application request is made
1

7. # M D B l o c a l
How requests work…
1. Application request is made
2. Stitch parses and applies write rules

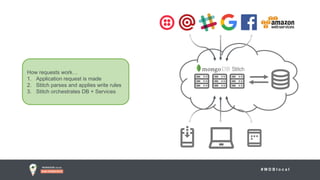

8. # M D B l o c a l
How requests work…
1. Application request is made
2. Stitch parses and applies write rules
3. Stitch orchestrates DB + Services

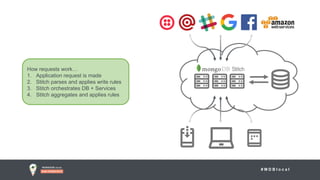

9. # M D B l o c a l
How requests work…
1. Application request is made
2. Stitch parses and applies write rules
3. Stitch orchestrates DB + Services
4. Stitch aggregates and applies rules

10. # M D B l o c a l
How requests work…
1. Application request is made
2. Stitch parses and applies write rules
3. Stitch orchestrates DB + Services
4. Stitch aggregates and applies rules
5. Client receives results

11. # M D B l o c a l

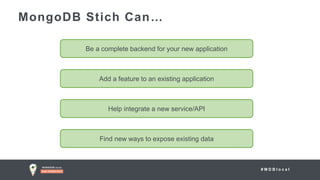

MongoDB Stich Can…
Be a complete backend for your new application
Add a feature to an existing application
Help integrate a new service/API
Find new ways to expose existing data

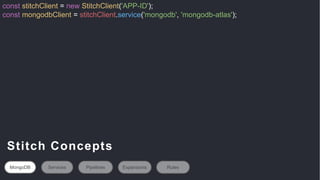

12. const stitchClient = new StitchClient('APP-ID');
const mongodbClient = stitchClient.service('mongodb', 'mongodb-atlas');
Stitch Concepts
MongoDB Services Pipelines Expansions Rules

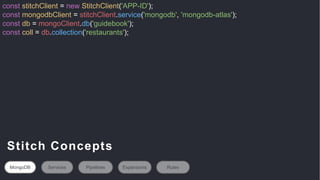

13. const stitchClient = new StitchClient('APP-ID');
const mongodbClient = stitchClient.service('mongodb', 'mongodb-atlas');
const db = mongoClient.db('guidebook');
const coll = db.collection('restaurants');
Stitch Concepts
MongoDB Services Pipelines Expansions Rules

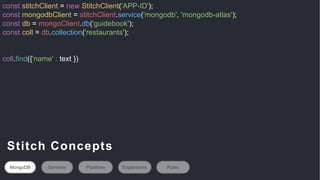

14. const stitchClient = new StitchClient('APP-ID');
const mongodbClient = stitchClient.service('mongodb', 'mongodb-atlas');
const db = mongoClient.db('guidebook');
const coll = db.collection('restaurants');
coll.find({'name' : text })
Stitch Concepts
MongoDB Services Pipelines Expansions Rules

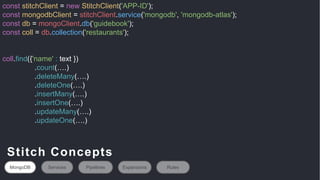

15. const stitchClient = new StitchClient('APP-ID');
const mongodbClient = stitchClient.service('mongodb', 'mongodb-atlas');
const db = mongoClient.db('guidebook');
const coll = db.collection('restaurants');
coll.find({'name' : text })
.count(….)
.deleteMany(….)
.deleteOne(….)
.insertMany(….)
.insertOne(….)
.updateMany(….)
.updateOne(….)
Stitch Concepts
MongoDB Services Pipelines Expansions Rules

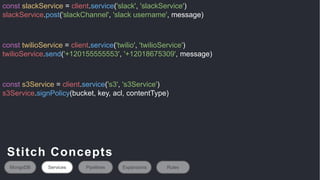

16. const slackService = client.service('slack', 'slackService')
slackService.post('slackChannel', 'slack username', message)
const twilioService = client.service('twilio', 'twilioService')
twilioService.send('+120155555553', '+12018675309', message)
const s3Service = client.service('s3', 's3Service')
s3Service.signPolicy(bucket, key, acl, contentType)
MongoDB Services Pipelines Expansions Rules
Stitch Concepts

17. const mongodb = client.service('mongodb', 'mongodb-atlas');
const twilio = client.service('twilio', 'twilioService');
MongoDB Services Pipelines Expansions Rules
Stitch Concepts

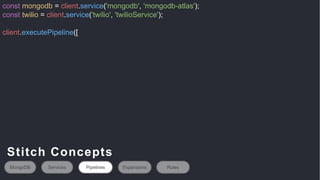

18. const mongodb = client.service('mongodb', 'mongodb-atlas');
const twilio = client.service('twilio', 'twilioService');
client.executePipeline([
MongoDB Services Pipelines Expansions Rules
Stitch Concepts

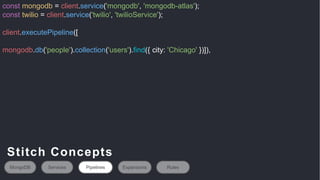

19. const mongodb = client.service('mongodb', 'mongodb-atlas');
const twilio = client.service('twilio', 'twilioService');
client.executePipeline([
mongodb.db('people').collection('users').find({ city: 'Chicago' })]),
MongoDB Services Pipelines Expansions Rules
Stitch Concepts

20. const mongodb = client.service('mongodb', 'mongodb-atlas');
const twilio = client.service('twilio', 'twilioService');
client.executePipeline([
mongodb.db('people').collection('users').find({ city: 'Chicago' })]),
twilio
.send('Chicago Users???', '+12018675309', 'Looks like rain today!')
.let({ toPhone: 'Chicago Users???'})
]);
MongoDB Services Pipelines Expansions Rules
Stitch Concepts

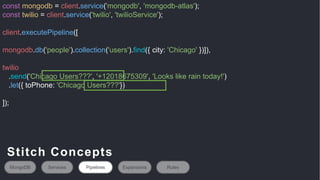

21. const mongodb = client.service('mongodb', 'mongodb-atlas');
const twilio = client.service('twilio', 'twilioService');
client.executePipeline([
mongodb.db('people').collection('users').find({ city: 'Chicago' })]),
twilio
.send('Chicago Users???', '+12018675309', 'Looks like rain today!')
.let({ toPhone: 'Chicago Users???'})
]);
MongoDB Services Pipelines Expansions Rules
Stitch Concepts

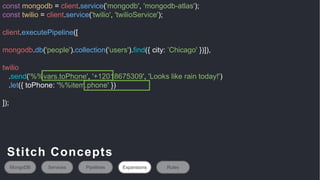

22. const mongodb = client.service('mongodb', 'mongodb-atlas');
const twilio = client.service('twilio', 'twilioService');
client.executePipeline([
mongodb.db('people').collection('users').find({ city: ’Chicago' })]),
twilio
.send('%%vars.toPhone', '+12018675309', 'Looks like rain today!')
.let({ toPhone: '%%item.phone' })
]);
MongoDB Services Pipelines Expansions Rules
Stitch Concepts

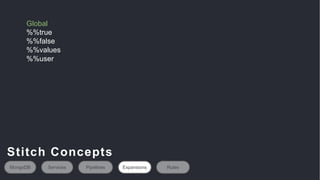

23. Global
%%true
%%false
%%values
%%user
MongoDB Services Pipelines Expansions Rules
Stitch Concepts

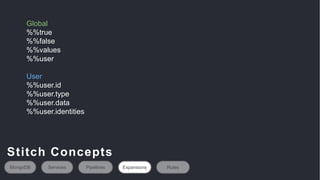

24. Global
%%true
%%false
%%values
%%user
User
%%user.id
%%user.type
%%user.data
%%user.identities
MongoDB Services Pipelines Expansions Rules
Stitch Concepts

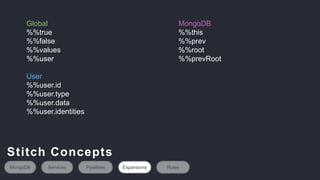

25. Global
%%true
%%false
%%values
%%user
User
%%user.id
%%user.type
%%user.data
%%user.identities
MongoDB Services Pipelines Expansions
MongoDB
%%this
%%prev
%%root
%%prevRoot
Rules
Stitch Concepts

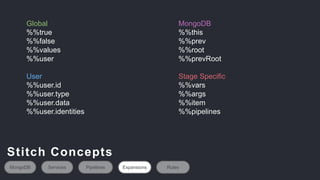

26. Global
%%true
%%false
%%values
%%user
User
%%user.id
%%user.type
%%user.data
%%user.identities
MongoDB Services Pipelines Expansions
MongoDB
%%this
%%prev
%%root
%%prevRoot
Stage Specific
%%vars
%%args
%%item
%%pipelines
Rules
Stitch Concepts

27. {'owner_id': '%%user.id'}
MongoDB Actions Pipelines Expansions Rules
Stitch Concepts

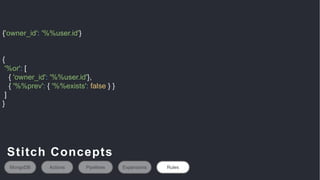

28. {'owner_id': '%%user.id'}
{
'%or': [
{ 'owner_id': '%%user.id'},
{ '%%prev': { '%%exists': false } }
]
}
MongoDB Actions Pipelines Expansions Rules
Stitch Concepts

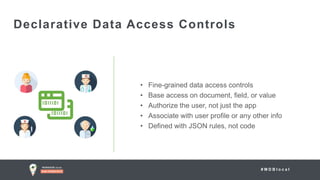

29. # M D B l o c a l
Declarative Data Access Controls
• Fine-grained data access controls
• Base access on document, field, or value
• Authorize the user, not just the app
• Associate with user profile or any other info
• Defined with JSON rules, not code

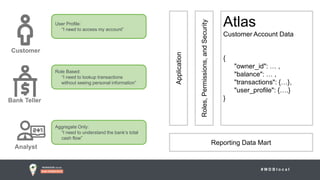

30. # M D B l o c a l
Atlas
Customer Account Data
{
"owner_id": … ,
"balance": … ,
"transactions": {…},
"user_profile": {….}
}Bank Teller
Analyst
Customer
Roles,Permissions,andSecurity
Application
Reporting Data Mart
User Profile:
“I need to access my account”
Role Based:
“I need to lookup transactions
without seeing personal information”
Aggregate Only:
“I need to understand the bank’s total
cash flow”

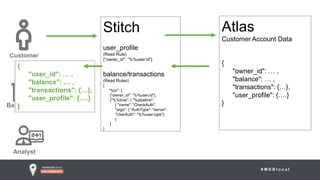

31. # M D B l o c a l
Bank Teller
Analyst
Customer
Atlas
Customer Account Data
{
"owner_id": … ,
"balance": … ,
"transactions": {…},
"user_profile": {….}
}
Stitch
user_profile
(Read Rule)
{”owner_id": ”%%user.id"}
balance/transactions
(Read Rules)
{
”%or": [
{”owner_id": ”%%user.id"},
{"%%true": { "%pipeline":
{ "name": "CheckAuth",
"args": { "AuthType": "server",
"UserAuth": "%%user.type"}
}
]
}
{
"user_id": … ,
"balance": … ,
"transactions": {…},
"user_profile": {….}
}

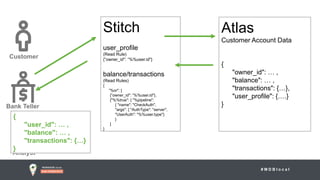

32. # M D B l o c a l
Stitch
user_profile
(Read Rule)
{”owner_id": ”%%user.id"}
balance/transactions
(Read Rules)
{
”%or": [
{”owner_id": ”%%user.id"},
{"%%true": { "%pipeline":
{ "name": "CheckAuth",
"args": { "AuthType": "server",
"UserAuth": "%%user.type"}
}
]
}
Bank Teller
Analyst
Customer
Atlas
Customer Account Data
{
"owner_id": … ,
"balance": … ,
"transactions": {…},
"user_profile": {….}
}
{
"user_id": … ,
"balance": … ,
"transactions": {…}
}

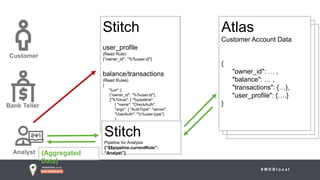

33. # M D B l o c a l
Stitch
user_profile
(Read Rule)
{”owner_id": ”%%user.id"}
balance/transactions
(Read Rules)
{
”%or": [
{”owner_id": ”%%user.id"},
{"%%true": { "%pipeline":
{ "name": "CheckAuth",
"args": { "AuthType": "server",
"UserAuth": "%%user.type"}
}
]
}
Stitch
user_profile
(Read Rule)
{”owner_id": ”%%user.id"}
balance/transactions
(Read Rules)
{
”%or": [
{”owner_id": ”%%user.id"},
{"%%true": { "%pipeline":
{ "name": "CheckAuth",
"args": { "AuthType": "server",
"UserAuth": "%%user.type"}
}
]
}
Bank Teller
Analyst
Customer
{Aggregated
Data}
Stitch
Pipeline for Analysis
{“$$pipeline.currentRole”:
“Analyst”}
Atlas
Customer Account Data
{
"owner_id": … ,
"balance": … ,
"transactions": {…},
"user_profile": {….}
}

34. # M D B l o c a l
Stitch in Action

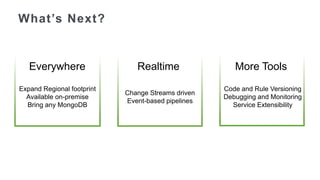

35. What’s Next?
xx
Everywhere Realtime
Expand Regional footprint
Available on-premise
Bring any MongoDB
Change Streams driven
Event-based pipelines
More Tools
Code and Rule Versioning
Debugging and Monitoring
Service Extensibility

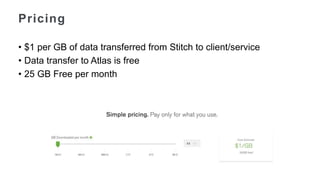

36. • $1 per GB of data transferred from Stitch to client/service
• Data transfer to Atlas is free
• 25 GB Free per month
Pricing

37. What now?
• Get started at our Tutorial later today!
• Implementing Your Full Stack App with MongoDB Stitch
• 1:45 – 3:15 in Breakout Room D
• Check out Stitch – stitch.mongodb.com
• Check out SDKs and examples
• Code at github.com/MongodbStitch
• Docs at docs.mongodb.com/stitch
• Build the Platespace app in our Tutorials section
• Ask Questions or let us know what you’re building through Intercom
