1. Globus Connect Server
Deep Dive
Rachana Ananthakrishnan
Vas Vasiliadis
1

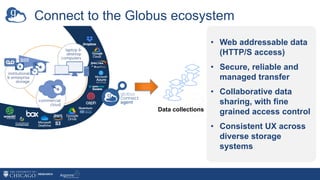

2. Connect to the Globus ecosystem
Globus Connect Agent
Data collections
• Web addressable data
(HTTP/S access)
• Secure, reliable and
managed transfer
• Collaborative data
sharing, with fine
grained access control
• Consistent UX across
diverse storage
systems

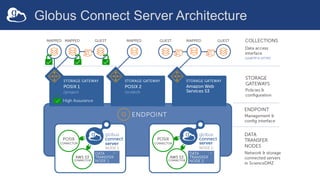

3. Globus Connect Server Architecture

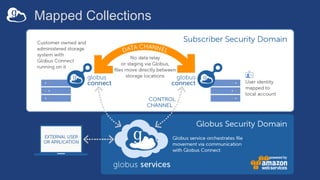

4. Mapped Collections

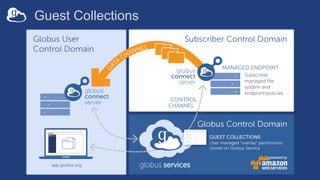

5. Guest Collections

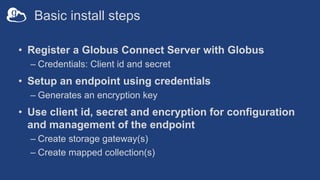

6. Basic install steps
• Register a Globus Connect Server with Globus
– Credentials: Client id and secret
• Setup an endpoint using credentials
– Generates an encryption key
• Use client id, secret and encryption for configuration
and management of the endpoint
– Create storage gateway(s)
– Create mapped collection(s)

7. Managing multi-DTN
endpoints
8

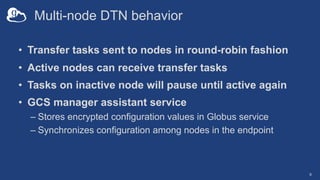

8. Multi-node DTN behavior
• Transfer tasks sent to nodes in round-robin fashion
• Active nodes can receive transfer tasks
• Tasks on inactive node will pause until active again
• GCS manager assistant service
– Stores encrypted configuration values in Globus service
– Synchronizes configuration among nodes in the endpoint
9

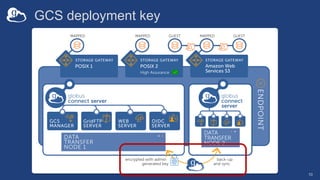

9. GCS deployment key
10

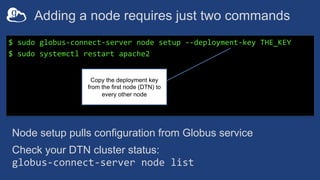

10. Adding a node requires just two commands
$ sudo globus-connect-server node setup --deployment-key THE_KEY
$ sudo systemctl restart apache2
Copy the deployment key
from the first node (DTN) to
every other node
Node setup pulls configuration from Globus service
Check your DTN cluster status:
globus-connect-server node list

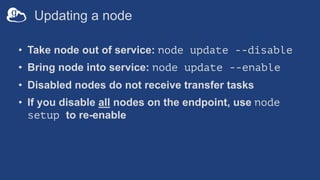

11. Updating a node
• Take node out of service: node update --disable
• Bring node into service: node update --enable
• Disabled nodes do not receive transfer tasks
• If you disable all nodes on the endpoint, use node
setup to re-enable

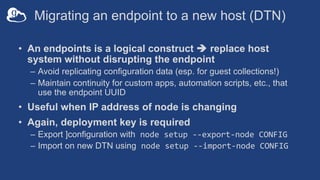

12. Migrating an endpoint to a new host (DTN)
• An endpoints is a logical construct è replace host
system without disrupting the endpoint
– Avoid replicating configuration data (esp. for guest collections!)
– Maintain continuity for custom apps, automation scripts, etc., that
use the endpoint UUID
• Useful when IP address of node is changing
• Again, deployment key is required
– Export ]configuration with node setup --export-node CONFIG
– Import on new DTN using node setup --import-node CONFIG

13. Customizing/extending
identity mapping
14

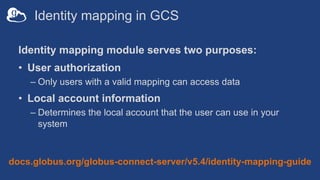

14. Identity mapping in GCS
Identity mapping module serves two purposes:
• User authorization
– Only users with a valid mapping can access data
• Local account information
– Determines the local account that the user can use in your
system
docs.globus.org/globus-connect-server/v5.4/identity-mapping-guide

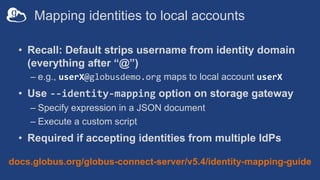

15. Mapping identities to local accounts
• Recall: Default strips username from identity domain
(everything after “@”)
– e.g., userX@globusdemo.org maps to local account userX
• Use --identity-mapping option on storage gateway
– Specify expression in a JSON document
– Execute a custom script
• Required if accepting identities from multiple IdPs
docs.globus.org/globus-connect-server/v5.4/identity-mapping-guide

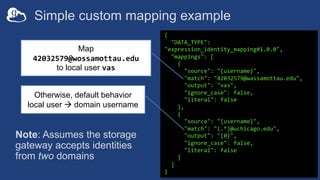

16. Simple custom mapping example
Note: Assumes the storage
gateway accepts identities
from two domains
{
"DATA_TYPE":
"expression_identity_mapping#1.0.0",
"mappings": [
{
"source": "{username}",
"match": "42032579@wassamottau.edu",
"output": "vas",
"ignore_case": false,
"literal": false
},
{
"source": "{username}",
"match": "(.*)@uchicago.edu",
"output": "{0}",
"ignore_case": false,
"literal": false
}
]
}
Otherwise, default behavior
local user à domain username
Map
42032579@wossamottau.edu
to local user vas

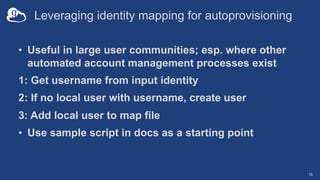

17. Leveraging identity mapping for autoprovisioning
• Useful in large user communities; esp. where other
automated account management processes exist
1: Get username from input identity
2: If no local user with username, create user
3: Add local user to map file
• Use sample script in docs as a starting point
18

18. Implementing sharing
policies
19

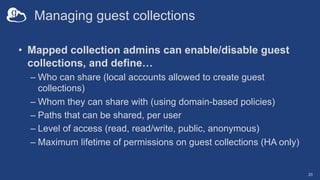

19. Managing guest collections
• Mapped collection admins can enable/disable guest
collections, and define…
– Who can share (local accounts allowed to create guest
collections)
– Whom they can share with (using domain-based policies)
– Paths that can be shared, per user
– Level of access (read, read/write, public, anonymous)
– Maximum lifetime of permissions on guest collections (HA only)
20

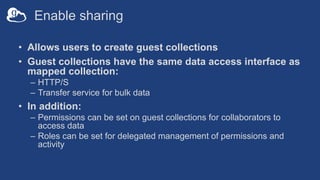

20. Enable sharing
• Allows users to create guest collections
• Guest collections have the same data access interface as
mapped collection:
– HTTP/S
– Transfer service for bulk data
• In addition:
– Permissions can be set on guest collections for collaborators to
access data
– Roles can be set for delegated management of permissions and
activity

21. Allow sharing on mapped collection
$ globus-connect-server collection update --allow-guest-collections
80c527d7-fa54-4f30-a6cd-cbb087bd4d56
> code: success
$ globus-connect-server collection show 80c527d7-fa54-4f30-a6cd-
cbb087bd4d56
>Display Name: GW24 Demonstration Mapped Collection 1
..
Collection Type: mapped
Allow Guest Collections: True
Disable Anonymous Writes: False
High Assurance: False
…
Enable creation of guest
collections (sharing)

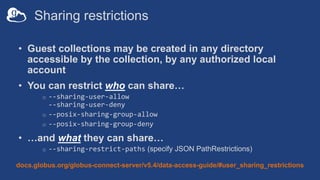

22. Sharing restrictions
• Guest collections may be created in any directory
accessible by the collection, by any authorized local
account
• You can restrict who can share…
o --sharing-user-allow
--sharing-user-deny
o --posix-sharing-group-allow
o --posix-sharing-group-deny
• …and what they can share…
o --sharing-restrict-paths (specify JSON PathRestrictions)
docs.globus.org/globus-connect-server/v5.4/data-access-guide/#user_sharing_restrictions

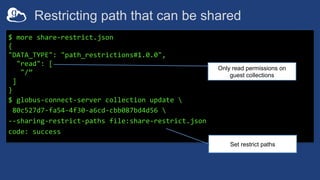

23. Restricting path that can be shared
$ more share-restrict.json
{
"DATA_TYPE": "path_restrictions#1.0.0",
"read": [
"/”
]
}
$ globus-connect-server collection update
80c527d7-fa54-4f30-a6cd-cbb087bd4d56
--sharing-restrict-paths file:share-restrict.json
code: success
Only read permissions on
guest collections
Set restrict paths

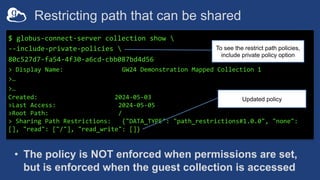

24. Restricting path that can be shared
$ globus-connect-server collection show
--include-private-policies
80c527d7-fa54-4f30-a6cd-cbb087bd4d56
> Display Name: GW24 Demonstration Mapped Collection 1
>…
>…
Created: 2024-05-03
>Last Access: 2024-05-05
>Root Path: /
> Sharing Path Restrictions: {"DATA_TYPE": "path_restrictions#1.0.0", "none":
[], "read": ["/"], "read_write": []}
To see the restrict path policies,
include private policy option
Updated policy
• The policy is NOT enforced when permissions are set,
but is enforced when the guest collection is accessed

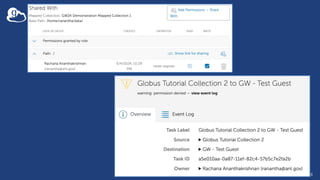

25. 26

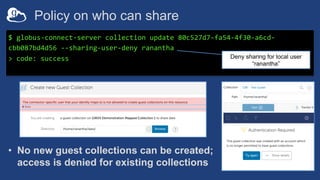

26. Policy on who can share
$ globus-connect-server collection update 80c527d7-fa54-4f30-a6cd-
cbb087bd4d56 --sharing-user-deny ranantha
> code: success Deny sharing for local user
“ranantha”
• No new guest collections can be created;
access is denied for existing collections

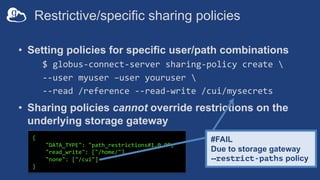

27. Restrictive/specific sharing policies
• Setting policies for specific user/path combinations
$ globus-connect-server sharing-policy create
--user myuser –user youruser
--read /reference --read-write /cui/mysecrets
• Sharing policies cannot override restrictions on the
underlying storage gateway
{
"DATA_TYPE": "path_restrictions#1.0.0”,
"read_write": ["/home/"],
"none": ["/cui"]
}
#FAIL
Due to storage gateway
--restrict-paths policy

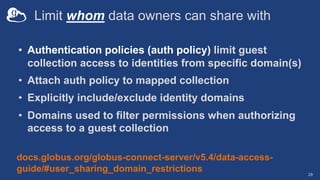

28. Limit whom data owners can share with
• Authentication policies (auth policy) limit guest
collection access to identities from specific domain(s)
• Attach auth policy to mapped collection
• Explicitly include/exclude identity domains
• Domains used to filter permissions when authorizing
access to a guest collection
29
docs.globus.org/globus-connect-server/v5.4/data-access-
guide/#user_sharing_domain_restrictions

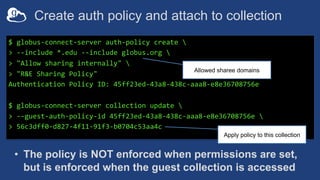

29. Create auth policy and attach to collection
$ globus-connect-server auth-policy create
> --include *.edu --include globus.org
> "Allow sharing internally"
> "R&E Sharing Policy"
Authentication Policy ID: 45ff23ed-43a8-438c-aaa8-e8e36708756e
$ globus-connect-server collection update
> --guest-auth-policy-id 45ff23ed-43a8-438c-aaa8-e8e36708756e
> 56c3dff0-d827-4f11-91f3-b0704c53aa4c
Allowed sharee domains
Apply policy to this collection
• The policy is NOT enforced when permissions are set,
but is enforced when the guest collection is accessed

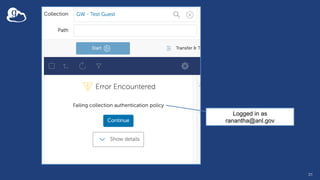

30. 31
Logged in as
ranantha@anl.gov

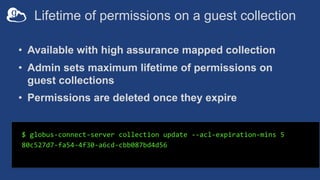

31. Lifetime of permissions on a guest collection
• Available with high assurance mapped collection
• Admin sets maximum lifetime of permissions on
guest collections
• Permissions are deleted once they expire
$ globus-connect-server collection update --acl-expiration-mins 5
80c527d7-fa54-4f30-a6cd-cbb087bd4d56

32. 33

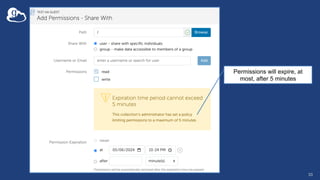

Permissions will expire, at
most, after 5 minutes

33. Customizing GCS
data access domains
34

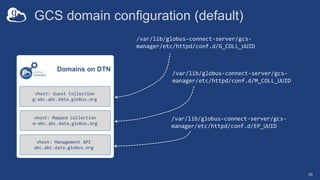

34. GCS domain configuration (default)
35
/var/lib/globus-connect-server/gcs-
manager/etc/httpd/conf.d/G_COLL_UUID
Domains on DTN
vhost: Management API
abc.abc.data.globus.org
vhost: Mapped Collection
m-abc.abc.data.globus.org
vhost: Guest Collection
g-abc.abc.data.globus.org
/var/lib/globus-connect-server/gcs-
manager/etc/httpd/conf.d/M_COLL_UUID
/var/lib/globus-connect-server/gcs-
manager/etc/httpd/conf.d/EP_UUID

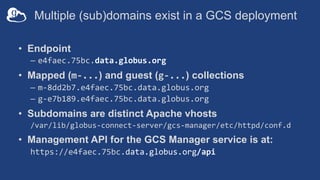

35. Multiple (sub)domains exist in a GCS deployment
• Endpoint
– e4faec.75bc.data.globus.org
• Mapped (m-...) and guest (g-...) collections
– m-8dd2b7.e4faec.75bc.data.globus.org
– g-e7b189.e4faec.75bc.data.globus.org
• Subdomains are distinct Apache vhosts
/var/lib/globus-connect-server/gcs-manager/etc/httpd/conf.d
• Management API for the GCS Manager service is at:
https://e4faec.75bc.data.globus.org/api

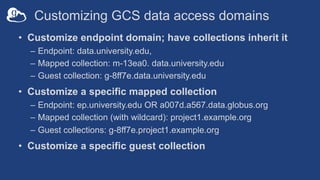

36. Customizing GCS data access domains
• Customize endpoint domain; have collections inherit it
– Endpoint: data.university.edu,
– Mapped collection: m-13ea0. data.university.edu
– Guest collection: g-8ff7e.data.university.edu
• Customize a specific mapped collection
– Endpoint: ep.university.edu OR a007d.a567.data.globus.org
– Mapped collection (with wildcard): project1.example.org
– Guest collections: g-8ff7e.project1.example.org
• Customize a specific guest collection

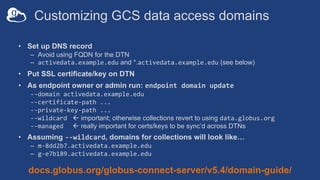

37. Customizing GCS data access domains
• Set up DNS record
– Avoid using FQDN for the DTN
– activedata.example.edu and *.activedata.example.edu (see below)
• Put SSL certificate/key on DTN
• As endpoint owner or admin run: endpoint domain update
--domain activedata.example.edu
--certificate-path ...
--private-key-path ...
--wildcard ß important; otherwise collections revert to using data.globus.org
--managed ß really important for certs/keys to be sync’d across DTNs
• Assuming --wildcard, domains for collections will look like…
– m-8dd2b7.activedata.example.edu
– g-e7b189.activedata.example.edu
docs.globus.org/globus-connect-server/v5.4/domain-guide/

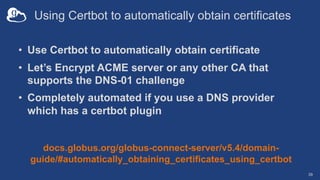

38. Using Certbot to automatically obtain certificates
• Use Certbot to automatically obtain certificate
• Let’s Encrypt ACME server or any other CA that
supports the DNS-01 challenge
• Completely automated if you use a DNS provider
which has a certbot plugin
39
docs.globus.org/globus-connect-server/v5.4/domain-
guide/#automatically_obtaining_certificates_using_certbot

39. Accessing non-
POSIX systems
40

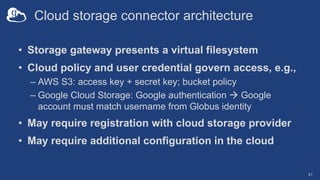

40. Cloud storage connector architecture
• Storage gateway presents a virtual filesystem
• Cloud policy and user credential govern access, e.g.,
– AWS S3: access key + secret key; bucket policy
– Google Cloud Storage: Google authentication à Google
account must match username from Globus identity
• May require registration with cloud storage provider
• May require additional configuration in the cloud
41

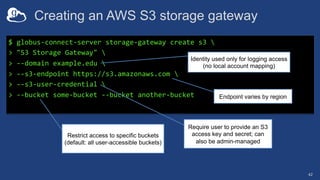

41. Creating an AWS S3 storage gateway
42
$ globus-connect-server storage-gateway create s3
> "S3 Storage Gateway"
> --domain example.edu
> --s3-endpoint https://s3.amazonaws.com
> --s3-user-credential
> --bucket some-bucket --bucket another-bucket
Require user to provide an S3
access key and secret; can
also be admin-managed
Restrict access to specific buckets
(default: all user-accessible buckets)
Endpoint varies by region
Identity used only for logging access
(no local account mapping)

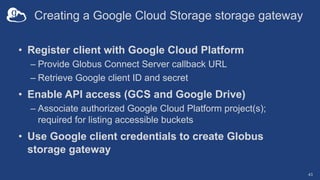

42. Creating a Google Cloud Storage storage gateway
• Register client with Google Cloud Platform
– Provide Globus Connect Server callback URL
– Retrieve Google client ID and secret
• Enable API access (GCS and Google Drive)
– Associate authorized Google Cloud Platform project(s);
required for listing accessible buckets
• Use Google client credentials to create Globus
storage gateway
43

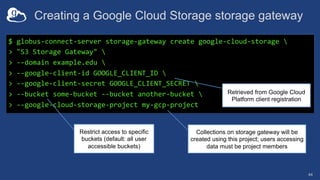

43. Creating a Google Cloud Storage storage gateway
44
$ globus-connect-server storage-gateway create google-cloud-storage
> "S3 Storage Gateway"
> --domain example.edu
> --google-client-id GOOGLE_CLIENT_ID
> --google-client-secret GOOGLE_CLIENT_SECRET
> --bucket some-bucket --bucket another-bucket
> --google-cloud-storage-project my-gcp-project
Retrieved from Google Cloud
Platform client registration
Restrict access to specific
buckets (default: all user
accessible buckets)
Collections on storage gateway will be
created using this project; users accessing
data must be project members

44. Globus Connect Server
logging and audit trails
45

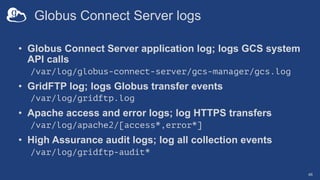

45. Globus Connect Server logs
• Globus Connect Server application log; logs GCS system
API calls
/var/log/globus-connect-server/gcs-manager/gcs.log
• GridFTP log; logs Globus transfer events
/var/log/gridftp.log
• Apache access and error logs; log HTTPS transfers
/var/log/apache2/[access*,error*]
• High Assurance audit logs; log all collection events
/var/log/gridftp-audit*
46

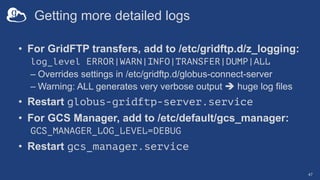

46. Getting more detailed logs
• For GridFTP transfers, add to /etc/gridftp.d/z_logging:
log_level ERROR|WARN|INFO|TRANSFER|DUMP|ALL
– Overrides settings in /etc/gridftp.d/globus-connect-server
– Warning: ALL generates very verbose output è huge log files
• Restart globus-gridftp-server.service
• For GCS Manager, add to /etc/default/gcs_manager:
GCS_MANAGER_LOG_LEVEL=DEBUG
• Restart gcs_manager.service
47

47. Troubleshooting
Globus Connect Server
49

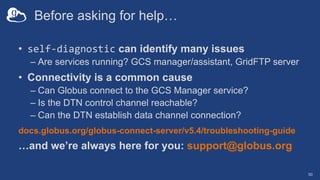

48. Before asking for help…
• self-diagnostic can identify many issues
– Are services running? GCS manager/assistant, GridFTP server
• Connectivity is a common cause
– Can Globus connect to the GCS Manager service?
– Is the DTN control channel reachable?
– Can the DTN establish data channel connection?
docs.globus.org/globus-connect-server/v5.4/troubleshooting-guide
…and we’re always here for you: support@globus.org
50

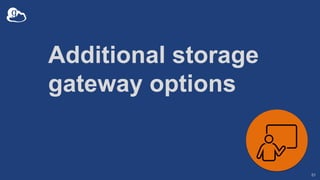

49. Additional storage
gateway options
51

50. Configuring a “private” data channel
• Default: data interface is set to the DTN’s public IP
address (see data_interface in
/etc/gridftp.d/globus-connect-server)
• Create /etc/gridftp.d/STORAGE_GATEWAY_ID
• Set data_interface PRIVATE_INTERFACE_IP_ADDRESS
• Replicate on every DTN (files in /etc/gridftp.d/ are
not sync'd between nodes by Globus)
52

51. On performance…
53

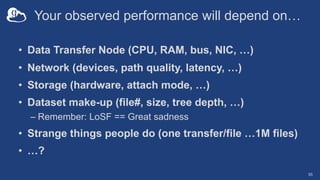

52. Your observed performance will depend on…
• Data Transfer Node (CPU, RAM, bus, NIC, …)
• Network (devices, path quality, latency, …)
• Storage (hardware, attach mode, …)
• Dataset make-up (file#, size, tree depth, …)
– Remember: LoSF == Great sadness
• Strange things people do (one transfer/file …1M files)
• …?
55

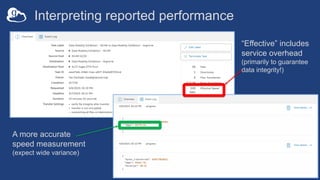

53. Interpreting reported performance
56
A more accurate
speed measurement
(expect wide variance)
“Effective” includes
service overhead
(primarily to guarantee
data integrity!)

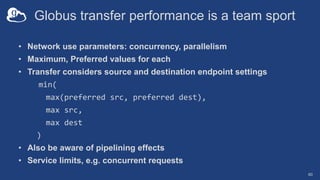

54. Globus transfer performance is a team sport
• Network use parameters: concurrency, parallelism
• Maximum, Preferred values for each
• Transfer considers source and destination endpoint settings
min(
max(preferred src, preferred dest),
max src,
max dest
)
• Also be aware of pipelining effects
• Service limits, e.g. concurrent requests
60

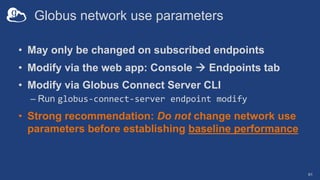

55. Globus network use parameters
• May only be changed on subscribed endpoints
• Modify via the web app: Console à Endpoints tab
• Modify via Globus Connect Server CLI
– Run globus-connect-server endpoint modify
• Strong recommendation: Do not change network use
parameters before establishing baseline performance
61

56. The ESnet experts
will tell us more….
62
