Understanding Globus Data Transfers with NetSage
The document discusses the Netsage platform, designed to monitor and analyze data transfers across research and education networks. It highlights its capabilities to identify traffic patterns, major data sources, and provide performance insights, with a focus on privacy and security. Developed through NSF-funded collaborations and currently managed by TACC, Netsage serves as a valuable resource for understanding data movement between institutions.
More Related Content
Similar to Understanding Globus Data Transfers with NetSage
Understanding Globus Data Transfers with NetSage
- 1. Understanding Globus Data Transferswith NetSage Doug Southworth dsouthworth@tacc.utexas.edu TACC / UT Austin GlobusWorld May 8, 2024 NSF #2137603
- 2. Monitoring using NetSage •NetSage advanced measurement services for R&E data traffic • Better understanding of current traffic patterns across instrumented circuits • Better understanding of large flow sources/sinks • Performance information for data transfers • Originally a NSF funded collaboration between Indiana University, LBNL, and University Hawaii Manoa • Now primary development at TACC • Homepage: https://netsage.io 2

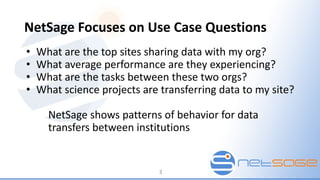

- 3. NetSage Focuses onUse Case Questions • What are the top sites sharing data with my org? • What average performance are they experiencing? • What are the tasks between these two orgs? • What science projects are transferring data to my site? NetSage shows patterns of behavior for data transfers between institutions 3

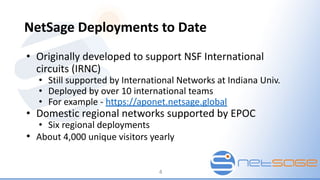

- 4. NetSage Deployments toDate • Originally developed to support NSF International circuits (IRNC) • Still supported by International Networks at Indiana Univ. • Deployed by over 10 international teams • For example - https://aponet.netsage.global • Domestic regional networks supported by EPOC • Six regional deployments • About 4,000 unique visitors yearly 4

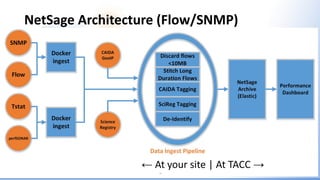

- 5. NetSage Architecture (Flow/SNMP) 5 ←At your site | At TACC →

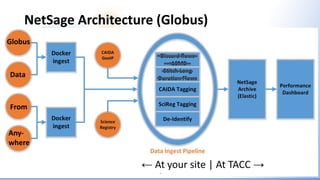

- 6. NetSage Architecture (Globus) 6 ←At your site | At TACC → Globus Data From Any- where

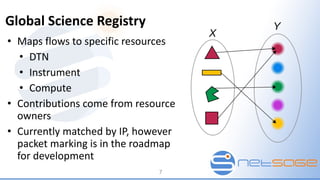

- 7. Global Science Registry •Maps flows to specific resources • DTN • Instrument • Compute • Contributions come from resource owners • Currently matched by IP, however packet marking is in the roadmap for development 7

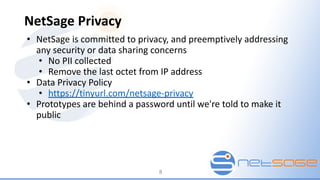

- 8. NetSage Privacy • NetSageis committed to privacy, and preemptively addressing any security or data sharing concerns • No PII collected • Remove the last octet from IP address • Data Privacy Policy • https://tinyurl.com/netsage-privacy • Prototypes are behind a password until we're told to make it public 8

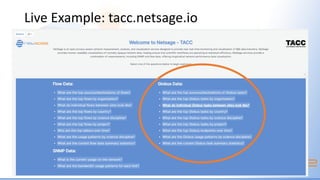

- 9.

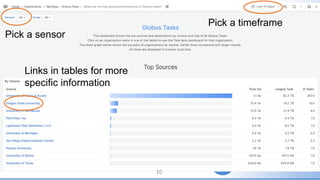

- 10. 10 Pick a sensor Picka timeframe Links in tables for more specific information

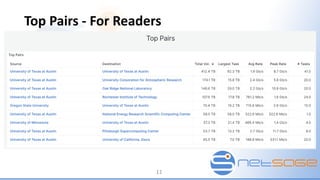

- 11. Top Pairs -For Readers 11

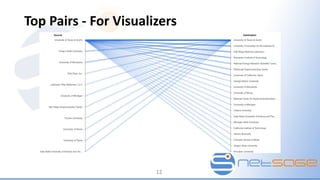

- 12. Top Pairs -For Visualizers 12

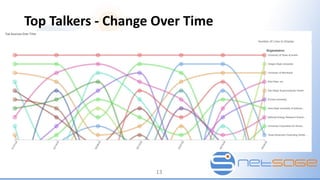

- 13. Top Talkers -Change Over Time 13
- 14. 14 Detailed Individual TaskInformation:

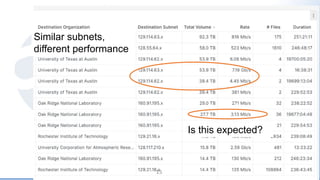

- 15. 15 Similar subnets, different performance Isthis expected?
- 16. Takeaways • NetSage canhelp answer questions about data movement between sites • Useful resource to understand how data is moving in various R&E communities • NetSage for Globus example: • https://tacc.netsage.io • More information • Jennifer Schopf, Doug Southworth • jms@tacc.utexas.edu, dsouthworth@tacc.utexas.edu 16 GlobusWorld May 8, 2024 NSF #2137603
