Ureteroceles, embryogenesis evaluation and management

1. Ureterocele
Dr. Faheem Ul Hassan
Andrabi
Fellow Pediatric Urology
Dr. Vinay Jadhav
Assistant Professor
Pediatric Urology, IGICH

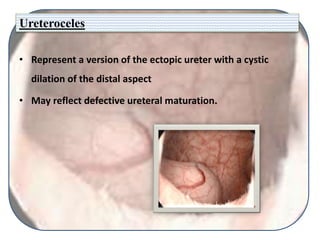

2. Ureteroceles
• Represent a version of the ectopic ureter with a cystic
dilation of the distal aspect
• May reflect defective ureteral maturation.

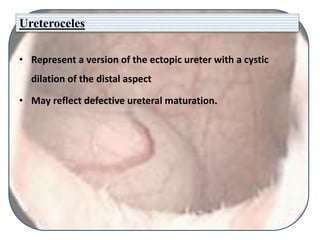

3. Ureteroceles
• Represent a version of the ectopic ureter with a cystic
dilation of the distal aspect
• May reflect defective ureteral maturation.

4. Ureteroceles
• May be associated with a single or duplex system
• Usually associated with the upper pole.
• Ureteroceles can extend into the urethra
• They do not attach to the wolffian ductal structures

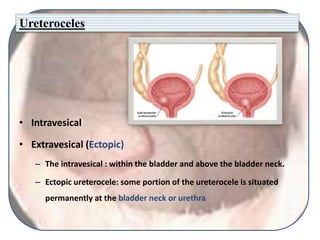

5. Ureteroceles
• Intravesical
• Extravesical (Ectopic)
– The intravesical : within the bladder and above the bladder neck.
– Ectopic ureterocele: some portion of the ureterocele is situated
permanently at the bladder neck or urethra

6. Ectopic Ureteroceles
• The orifice
– may be in the bladder,
– at the bladder neck,
– or in the urethra.
Should be distinguished from an intravesical ureterocele that prolapses into the urethra with
voiding.

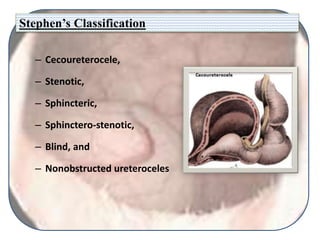

7. Stephen’s Classification
– Cecoureterocele,
– Stenotic,
– Sphincteric,
– Sphinctero-stenotic,
– Blind, and
– Nonobstructed ureteroceles

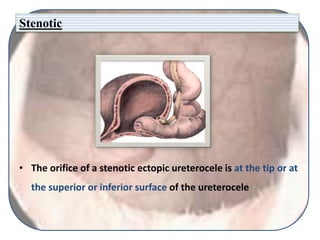

8. Stenotic
• The orifice of a stenotic ectopic ureterocele is at the tip or at
the superior or inferior surface of the ureterocele

9. Sphinteric
• Sphincteric variant of extravesical ureterocele
• The orifice opens proximal to the external sphincter.
• Normal contraction of the bladder neck may contribute to ureteral
obstruction.

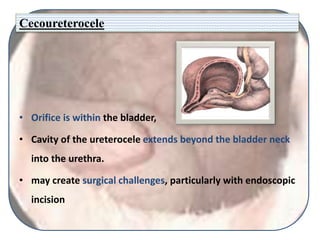

10. Cecoureterocele
• Orifice is within the bladder,
• Cavity of the ureterocele extends beyond the bladder neck
into the urethra.
• may create surgical challenges, particularly with endoscopic
incision

11. Cecoureterocele

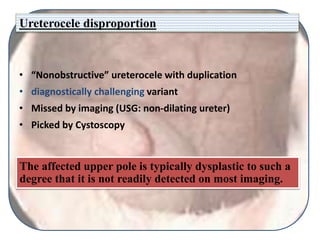

12. Ureterocele disproportion
• “Nonobstructive” ureterocele with duplication
• diagnostically challenging variant
• Missed by imaging (USG: non-dilating ureter)
• Picked by Cystoscopy
The affected upper pole is typically dysplastic to such a
degree that it is not readily detected on most imaging.

13. Embryogeneis
• 4 th week of gestation
• Ureteric bud erupts from the mesonephric duct (MND)
• MND is also called Wolffian Duct

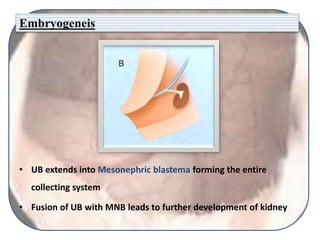

14. Embryogeneis
• UB extends into Mesonephric blastema forming the entire
collecting system
• Fusion of UB with MNB leads to further development of kidney

15. Embryogeneis
• Mesonephric duct is integrated into the bladder at the distal
most portion of ureteral bud

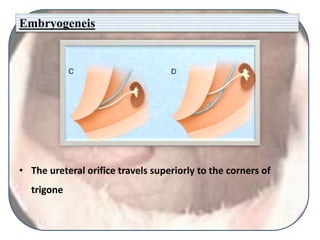

16. Embryogeneis
• The ureteral orifice travels superiorly to the corners of
trigone

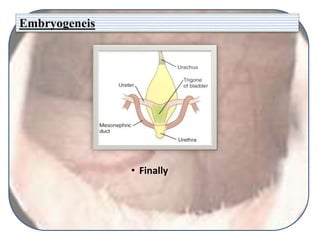

17. Embryogeneis
• Finally

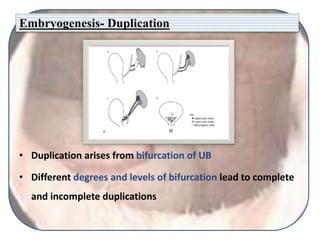

18. Embryogenesis- Duplication
• Duplication arises from bifurcation of UB
• Different degrees and levels of bifurcation lead to complete
and incomplete duplications

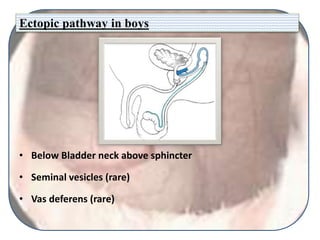

19. Ectopic pathway in boys
• Below Bladder neck above sphincter
• Seminal vesicles (rare)
• Vas deferens (rare)

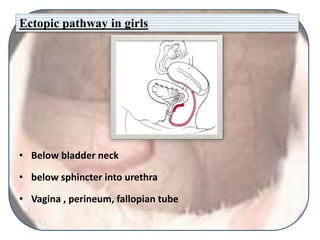

20. Ectopic pathway in girls
• Below bladder neck
• below sphincter into urethra
• Vagina , perineum, fallopian tube

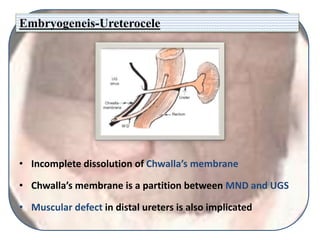

21. Embryogeneis-Ureterocele
• Incomplete dissolution of Chwalla’s membrane
• Chwalla’s membrane is a partition between MND and UGS
• Muscular defect in distal ureters is also implicated

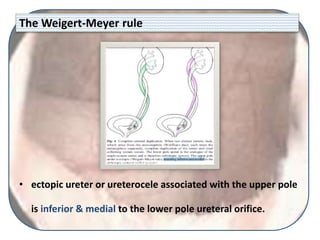

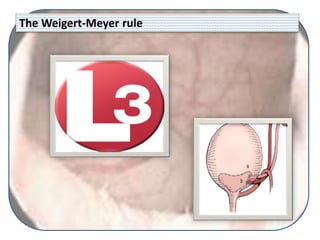

22. The Weigert-Meyer rule
• ectopic ureter or ureterocele associated with the upper pole
is inferior & medial to the lower pole ureteral orifice.

23. The Weigert-Meyer rule

24. Epidemiology
• Ureteroceles- 1 per 5000-12000 population;
• 10% bilateral
• 60-80% ectopic,
• 80% associated with upper moiety
• More common in females.
• More common in whites.

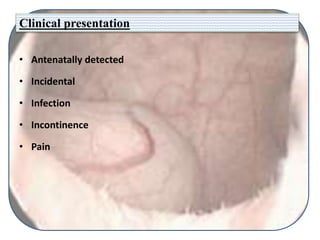

25. Clinical presentation
• Antenatally detected
• Incidental
• Infection
• Incontinence
• Pain

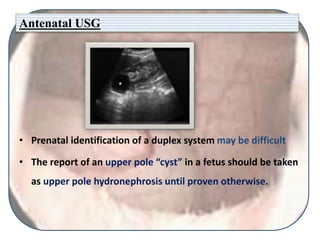

26. Antenatal USG
• Prenatal identification of a duplex system may be difficult
• The report of an upper pole “cyst” in a fetus should be taken
as upper pole hydronephrosis until proven otherwise.

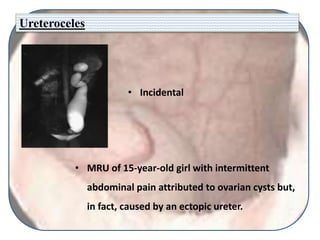

27. Ureteroceles
• MRU of 15-year-old girl with intermittent
abdominal pain attributed to ovarian cysts but,
in fact, caused by an ectopic ureter.
• Incidental

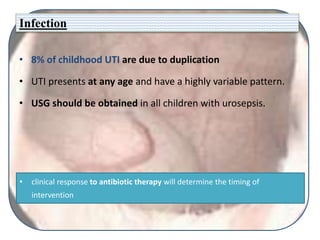

28. Infection
• 8% of childhood UTI are due to duplication
• UTI presents at any age and have a highly variable pattern.
• USG should be obtained in all children with urosepsis.
• clinical response to antibiotic therapy will determine the timing of
intervention

29. Infection
in ectopic ureter
• Parents may describe a purulent discharge from the
perineum.
• Infection is rare , but it is associated when there is
incontinence.
• Boys may present with epididymitis

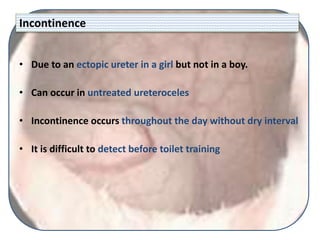

30. Incontinence
• Due to an ectopic ureter in a girl but not in a boy.
• Can occur in untreated ureteroceles
• Incontinence occurs throughout the day without dry interval
• It is difficult to detect before toilet training

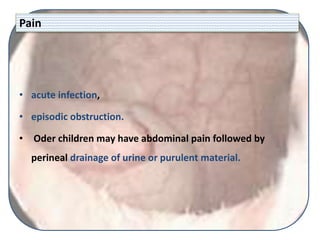

31. Pain
• acute infection,
• episodic obstruction.
• Oder children may have abdominal pain followed by
perineal drainage of urine or purulent material.

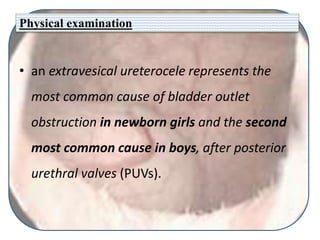

32. Physical examination
• an extravesical ureterocele represents the
most common cause of bladder outlet
obstruction in newborn girls and the second
most common cause in boys, after posterior
urethral valves (PUVs).

33. Physical exam
In severe cases,
• an abdominal mass becomes palpable
• BOO may be caused by
– an ectopic ureter inserting at veru ( by compressing
bladder neck)
– Cecoureterocele

34. Ureteroceles
• Ureteral ectopia should be suspected in any infant or child
who presents with a culture-proven case of epididymo-
orchitis.

35. Physical examination
• Prolapsed, congested, ecchymotic intralabial mass
• meatus will be evident anteriorly

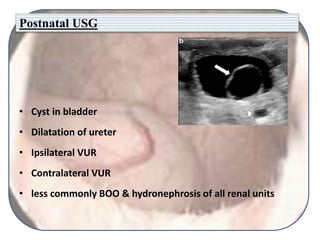

36. Postnatal USG
• Cyst in bladder
• Dilatation of ureter
• Ipsilateral VUR
• Contralateral VUR
• less commonly BOO & hydronephrosis of all renal units

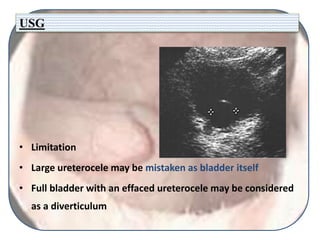

37. USG
• Limitation
• Large ureterocele may be mistaken as bladder itself
• Full bladder with an effaced ureterocele may be considered
as a diverticulum

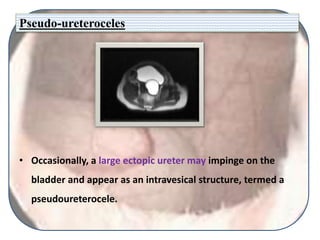

38. Pseudo-ureteroceles
• Occasionally, a large ectopic ureter may impinge on the
bladder and appear as an intravesical structure, termed a
pseudoureterocele.

39. IVU
Drooping Lily Sign of LRM

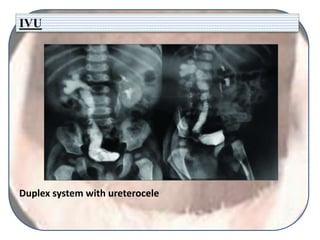

40. IVU
Duplex system with ureterocele

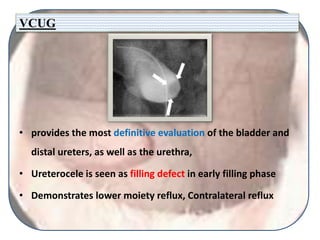

41. VCUG
• provides the most definitive evaluation of the bladder and
distal ureters, as well as the urethra,
• Ureterocele is seen as filling defect in early filling phase
• Demonstrates lower moiety reflux, Contralateral reflux

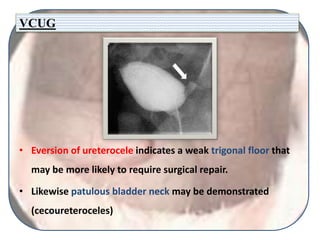

42. VCUG
• Eversion of ureterocele indicates a weak trigonal floor that
may be more likely to require surgical repair.
• Likewise patulous bladder neck may be demonstrated
(cecoureteroceles)

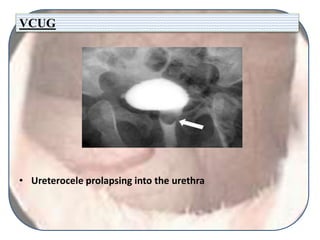

43. VCUG
• Ureterocele prolapsing into the urethra

44. VCUG
• Usual reflux Vs LMR

45. VCUG
• Ectopic ureter in VCUG

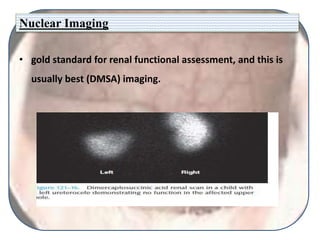

46. Nuclear Imaging
• gold standard for renal functional assessment, and this is
usually best (DMSA) imaging.

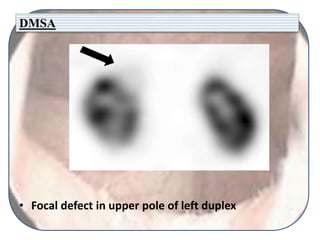

47. DMSA
• Focal defect in upper pole of left duplex

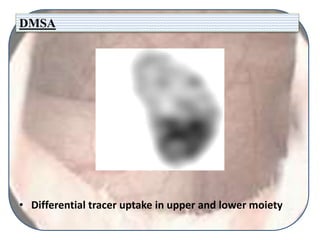

48. DMSA
• Differential tracer uptake in upper and lower moiety

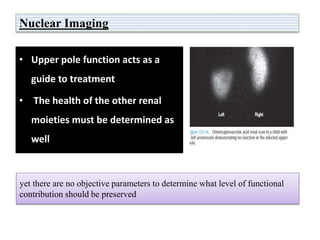

49. Nuclear Imaging
• Upper pole function acts as a
guide to treatment
• The health of the other renal
moieties must be determined as
well
yet there are no objective parameters to determine what level of functional
contribution should be preserved

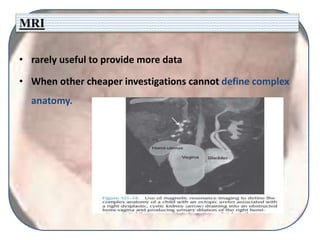

50. MRI
• rarely useful to provide more data
• When other cheaper investigations cannot define complex
anatomy.

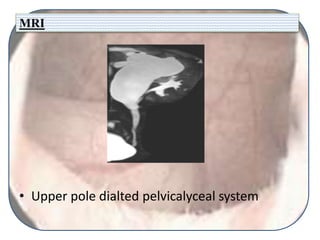

51. MRI
• Upper pole dialted pelvicalyceal system

52. Cystoscopy
Assess character of urethra, bladder neck and trigone
Location of other ureteral orifices should be documented.
Orifice is best seen when we start filling bladder slowly as the ureterocele will flatten later
Urethra is examined carefully for orifice if not seen in bladder.
Ureterocoeles are better seen in early fills
Lowest portion – best site for incision.

53. Cystoscopy

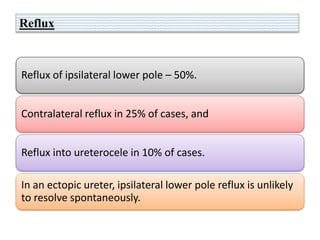

54. Reflux
Reflux of ipsilateral lower pole – 50%.
Contralateral reflux in 25% of cases, and
Reflux into ureterocele in 10% of cases.
In an ectopic ureter, ipsilateral lower pole reflux is unlikely
to resolve spontaneously.

55. Management
• No Consensus about management
• Treatment tailored to individual patient

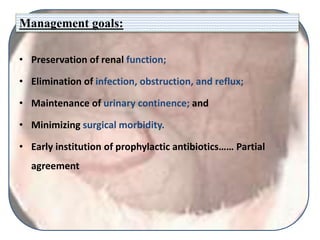

56. Management goals:
• Preservation of renal function;
• Elimination of infection, obstruction, and reflux;
• Maintenance of urinary continence; and
• Minimizing surgical morbidity.
• Early institution of prophylactic antibiotics…… Partial
agreement

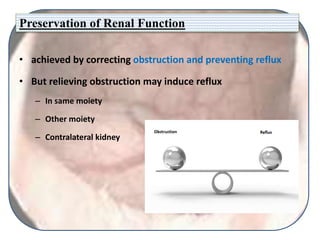

57. Preservation of Renal Function
• achieved by correcting obstruction and preventing reflux
• But relieving obstruction may induce reflux
– In same moiety
– Other moiety
– Contralateral kidney

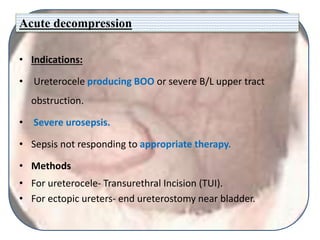

58. Acute decompression
• Indications:
• Ureterocele producing BOO or severe B/L upper tract
obstruction.
• Severe urosepsis.
• Sepsis not responding to appropriate therapy.
• Methods
• For ureterocele- Transurethral Incision (TUI).
• For ectopic ureters- end ureterostomy near bladder.

59. Definitive surgical options
• For Ectopic ureter
– common sheath reimplantation or
– Uretero-ureterostomy,.
• For Ureterocele-
– TUI,
– Partial nephrouretectomy
– ureterocele excision and common sheath reimplantation or
– Ureteroureterostomy/ Ureteropyelostomy.

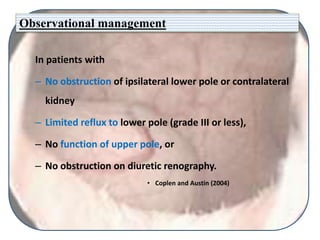

60. Observational management
In patients with
– No obstruction of ipsilateral lower pole or contralateral
kidney
– Limited reflux to lower pole (grade III or less),
– No function of upper pole, or
– No obstruction on diuretic renography.
• Coplen and Austin (2004)

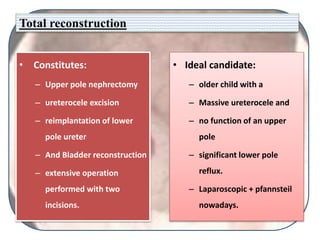

61. Total reconstruction
• Constitutes:
– Upper pole nephrectomy
– ureterocele excision
– reimplantation of lower
pole ureter
– And Bladder reconstruction
– extensive operation
performed with two
incisions.
• Ideal candidate:
– older child with a
– Massive ureterocele and
– no function of an upper
pole
– significant lower pole
reflux.
– Laparoscopic + pfannsteil
nowadays.

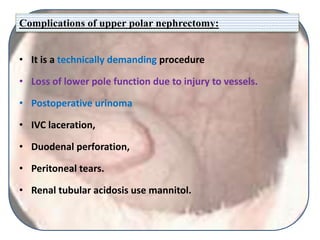

62. Complications of upper polar nephrectomy:
• It is a technically demanding procedure
• Loss of lower pole function due to injury to vessels.
• Postoperative urinoma
• IVC laceration,
• Duodenal perforation,
• Peritoneal tears.
• Renal tubular acidosis use mannitol.

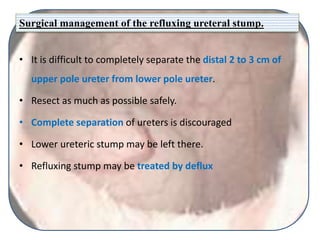

63. Surgical management of the refluxing ureteral stump.
• It is difficult to completely separate the distal 2 to 3 cm of
upper pole ureter from lower pole ureter.
• Resect as much as possible safely.
• Complete separation of ureters is discouraged
• Lower ureteric stump may be left there.
• Refluxing stump may be treated by deflux

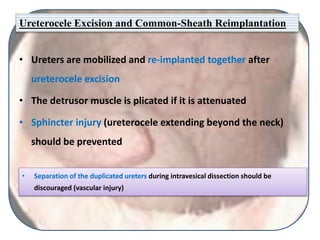

64. Ureterocele Excision and Common-Sheath Reimplantation
• Ureters are mobilized and re-implanted together after
ureterocele excision
• The detrusor muscle is plicated if it is attenuated
• Sphincter injury (ureterocele extending beyond the neck)
should be prevented
• Separation of the duplicated ureters during intravesical dissection should be
discouraged (vascular injury)

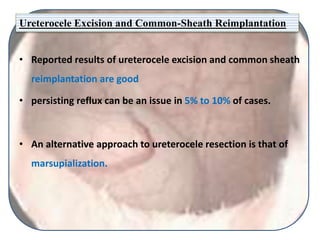

65. Ureterocele Excision and Common-Sheath Reimplantation
• Reported results of ureterocele excision and common sheath
reimplantation are good
• persisting reflux can be an issue in 5% to 10% of cases.
• An alternative approach to ureterocele resection is that of
marsupialization.

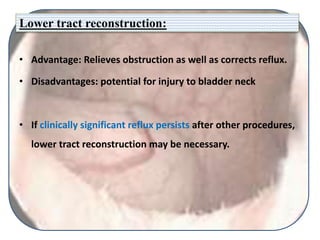

66. Lower tract reconstruction:
• Advantage: Relieves obstruction as well as corrects reflux.
• Disadvantages: potential for injury to bladder neck
• If clinically significant reflux persists after other procedures,
lower tract reconstruction may be necessary.

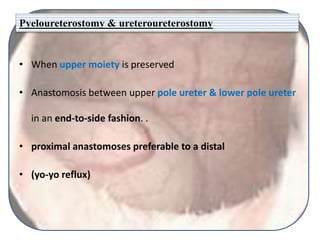

67. Pyeloureterostomy & ureteroureterostomy
• When upper moiety is preserved
• Anastomosis between upper pole ureter & lower pole ureter
in an end-to-side fashion. .
• proximal anastomoses preferable to a distal
• (yo-yo reflux)

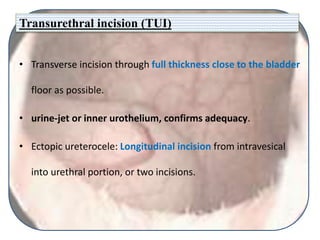

68. Transurethral incision (TUI)
• Transverse incision through full thickness close to the bladder
floor as possible.
• urine-jet or inner urothelium, confirms adequacy.
• Ectopic ureterocele: Longitudinal incision from intravesical
into urethral portion, or two incisions.

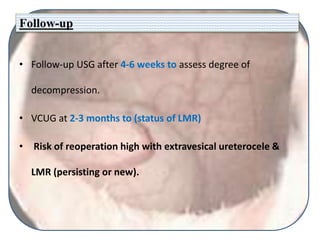

69. Follow-up
• Follow-up USG after 4-6 weeks to assess degree of
decompression.
• VCUG at 2-3 months to (status of LMR)
• Risk of reoperation high with extravesical ureterocele &
LMR (persisting or new).

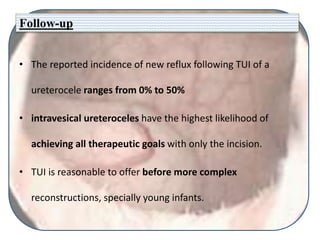

70. Follow-up
• The reported incidence of new reflux following TUI of a
ureterocele ranges from 0% to 50%
• intravesical ureteroceles have the highest likelihood of
achieving all therapeutic goals with only the incision.
• TUI is reasonable to offer before more complex
reconstructions, specially young infants.

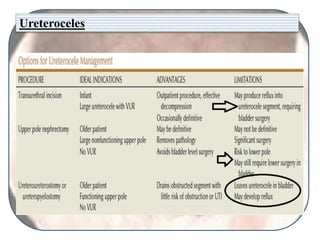

71. Ureteroceles

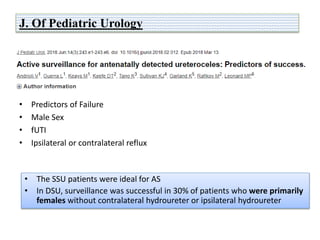

73. J. Of Pediatric Urology
• Predictors of Failure
• Male Sex
• fUTI
• Ipsilateral or contralateral reflux
• The SSU patients were ideal for AS
• In DSU, surveillance was successful in 30% of patients who were primarily
females without contralateral hydroureter or ipsilateral hydroureter

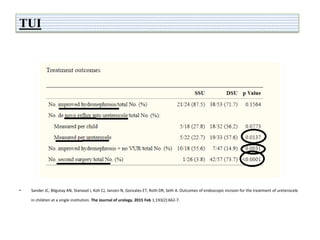

74. TUI
• Sander JC, Bilgutay AN, Stanasel I, Koh CJ, Janzen N, Gonzales ET, Roth DR, Seth A. Outcomes of endoscopic incision for the treatment of ureterocele
in children at a single institution. The Journal of urology. 2015 Feb 1;193(2):662-7.

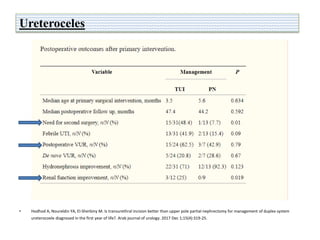

75. Ureteroceles
• Hodhod A, Noureldin YA, El-Sherbiny M. Is transurethral incision better than upper pole partial nephrectomy for management of duplex system
ureterocoele diagnosed in the first year of life?. Arab journal of urology. 2017 Dec 1;15(4):319-25.

79. Thank youdrfaheemandrabi@gmail.com
