- 1. “We try toclose the neck of bladder in exstrophy incontinence but it recanalizes and doesn’t close & when we try to open it in strictured urethra it closes and doesn’t open. That makes the Urethra the craziest thing to deal with” Dr. Vinay Jadha
- 2. Exstrophy: types andtiming of surgery Dr. Faheem Ul Hassan Fellow Pediatric Urology Dr. Vinay Jadhav Assoc. Prof. Pediatric Surgery and Pediatric Urology IGICH Banglore
- 3.

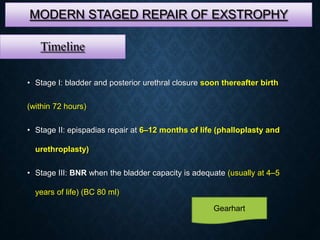

- 4. MODERN STAGED REPAIROF EXSTROPHY • Stage I: bladder and posterior urethral closure soon thereafter birth (within 72 hours) • Stage II: epispadias repair at 6–12 months of life (phalloplasty and urethroplasty) • Stage III: BNR when the bladder capacity is adequate (usually at 4–5 years of life) (BC 80 ml) Timeline Gearhart
- 5.

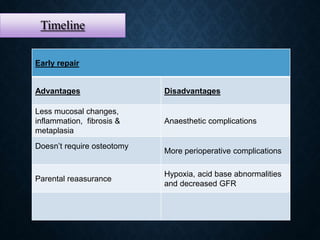

- 6. Timeline Early repair Advantages Disadvantages Lessmucosal changes, inflammation, fibrosis & metaplasia Anaesthetic complications Doesn’t require osteotomy More perioperative complications Parental reaasurance Hypoxia, acid base abnormalities and decreased GFR

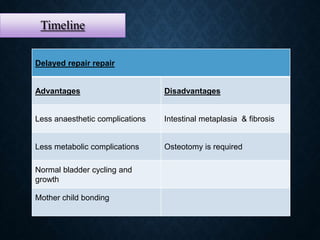

- 7. Timeline Delayed repair repair AdvantagesDisadvantages Less anaesthetic complications Intestinal metaplasia & fibrosis Less metabolic complications Osteotomy is required Normal bladder cycling and growth Mother child bonding
- 8.

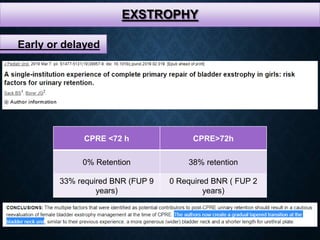

- 10. EXSTROPHY Early or delayed CPRE<72 h CPRE>72h 0% Retention 38% retention 33% required BNR (FUP 9 years) 0 Required BNR ( FUP 2 years)

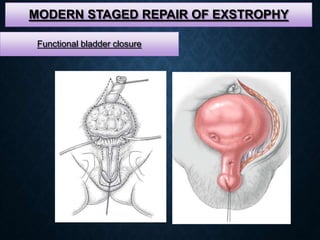

- 11. MODERN STAGED REPAIROF EXSTROPHY Functional bladder closure

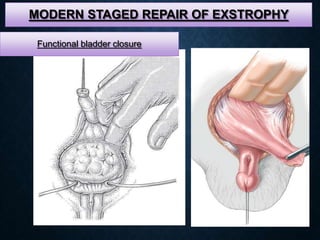

- 12. MODERN STAGED REPAIROF EXSTROPHY Functional bladder closure
- 13. MODERN STAGED REPAIROF EXSTROPHY • Inversion of the bladder plate and approximation of the corpora . Also note the inferior paraexstrophy incisions. Functional bladder closure

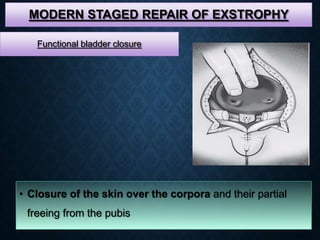

- 14. MODERN STAGED REPAIROF EXSTROPHY • Closure of the skin over the corpora and their partial freeing from the pubis Functional bladder closure

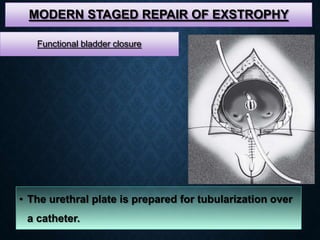

- 15. MODERN STAGED REPAIROF EXSTROPHY • The urethral plate is prepared for tubularization over a catheter. Functional bladder closure

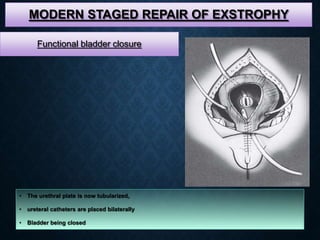

- 16. MODERN STAGED REPAIROF EXSTROPHY • The urethral plate is now tubularized, • ureteral catheters are placed bilaterally • Bladder being closed Functional bladder closure

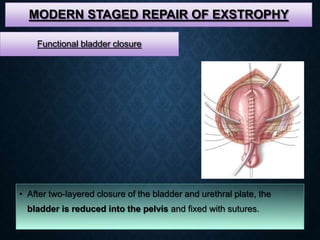

- 17. MODERN STAGED REPAIROF EXSTROPHY • After two-layered closure of the bladder and urethral plate, the bladder is reduced into the pelvis and fixed with sutures. Functional bladder closure

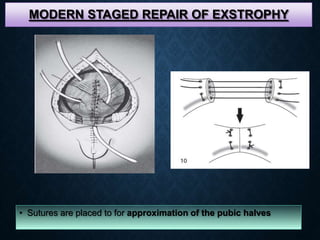

- 18. MODERN STAGED REPAIROF EXSTROPHY • Sutures are placed to for approximation of the pubic halves
- 19.
- 20.

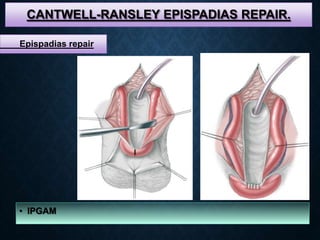

- 21. CANTWELL-RANSLEY EPISPADIAS REPAIR. •IPGAM Epispadias repair

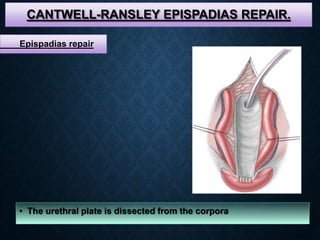

- 22. CANTWELL-RANSLEY EPISPADIAS REPAIR. •The urethral plate is dissected from the corpora Epispadias repair

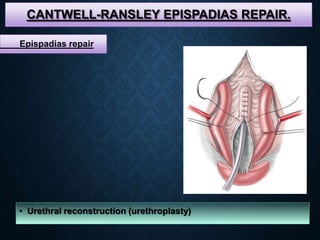

- 23. CANTWELL-RANSLEY EPISPADIAS REPAIR. •Urethral reconstruction (urethroplasty) Epispadias repair

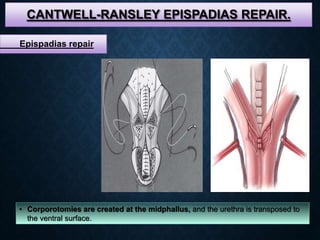

- 24. CANTWELL-RANSLEY EPISPADIAS REPAIR. •Corporotomies are created at the midphallus, and the urethra is transposed to the ventral surface. Epispadias repair

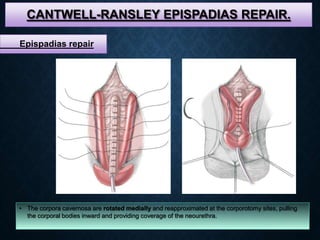

- 25. CANTWELL-RANSLEY EPISPADIAS REPAIR. •The corpora cavernosa are rotated medially and reapproximated at the corporotomy sites, pulling the corporal bodies inward and providing coverage of the neourethra. Epispadias repair

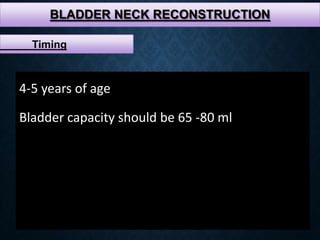

- 26. BLADDER NECK RECONSTRUCTION 4-5years of age Bladder capacity should be 65 -80 ml Timing

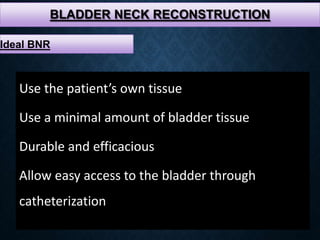

- 27. BLADDER NECK RECONSTRUCTION Usethe patient’s own tissue Use a minimal amount of bladder tissue Durable and efficacious Allow easy access to the bladder through catheterization Ideal BNR

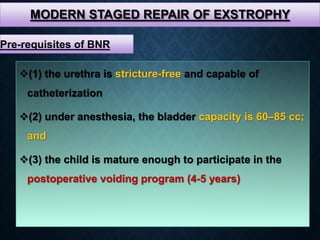

- 28. MODERN STAGED REPAIROF EXSTROPHY (1) the urethra is stricture-free and capable of catheterization (2) under anesthesia, the bladder capacity is 60–85 cc; and (3) the child is mature enough to participate in the postoperative voiding program (4-5 years) Pre-requisites of BNR

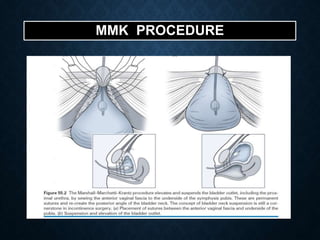

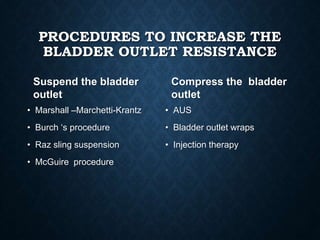

- 29. PROCEDURES TO INCREASETHE BLADDER OUTLET RESISTANCE Suspend the bladder outlet • Marshall –Marchetti-Krantz • Burch ‘s procedure • Raz sling suspension • McGuire procedure Compress the bladder outlet • AUS • Bladder outlet wraps • Injection therapy
- 30.

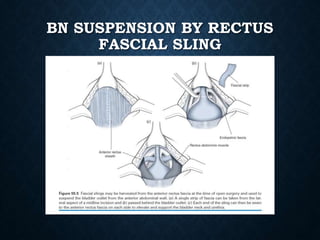

- 31. BN SUSPENSION BYRECTUS FASCIAL SLING

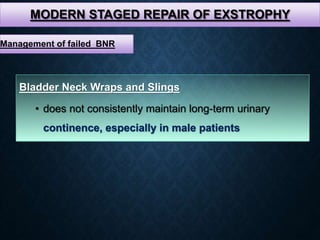

- 32. MODERN STAGED REPAIROF EXSTROPHY Bladder Neck Wraps and Slings • does not consistently maintain long-term urinary continence, especially in male patients Management of failed BNR

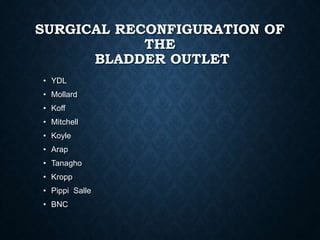

- 33. SURGICAL RECONFIGURATION OF THE BLADDEROUTLET • YDL • Mollard • Koff • Mitchell • Koyle • Arap • Tanagho • Kropp • Pippi Salle • BNC

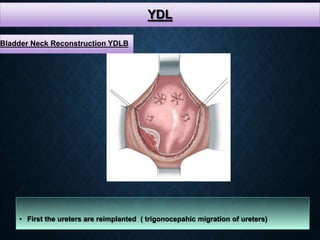

- 34. YDL • First theureters are reimplanted ( trigonocepahic migration of ureters) Bladder Neck Reconstruction YDLB

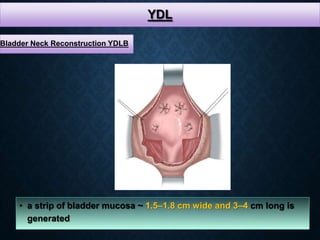

- 35. YDL • a stripof bladder mucosa ~ 1.5–1.8 cm wide and 3–4 cm long is generated Bladder Neck Reconstruction YDLB

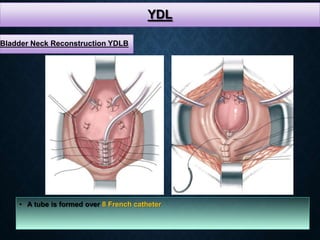

- 36. YDL • A tubeis formed over 8 French catheter Bladder Neck Reconstruction YDLB

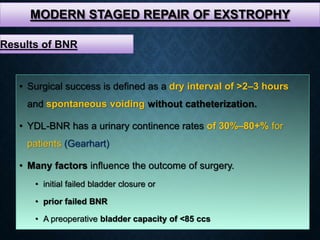

- 37. MODERN STAGED REPAIROF EXSTROPHY • Surgical success is defined as a dry interval of >2–3 hours and spontaneous voiding without catheterization. • YDL-BNR has a urinary continence rates of 30%–80+% for patients (Gearhart) • Many factors influence the outcome of surgery. • initial failed bladder closure or • prior failed BNR • A preoperative bladder capacity of <85 ccs Results of BNR
- 38. MODERN STAGED REPAIROF EXSTROPHY Results of BNR Approximately 80% of patients had compliant and stable bladders before BNR 19% maintained normal filling and voiding dynamics after reconstruction.
- 39. MODERN STAGED REPAIROF EXSTROPHY Results of BNR 8 of 13 patients with initially successful BNR required further surgery in second decade of life because of poor compliance and incontinence

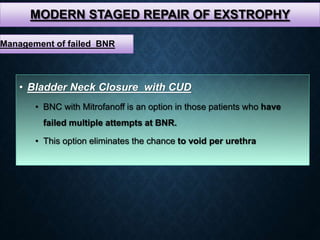

- 40. MODERN STAGED REPAIROF EXSTROPHY • Bladder Neck Closure with CUD • BNC with Mitrofanoff is an option in those patients who have failed multiple attempts at BNR. • This option eliminates the chance to void per urethra Management of failed BNR
- 41. COMPLETE PRIMARY REPAIROF EXSTROPHY
- 42. COMPLETE PRIMARY REPAIROF EXSTROPHY In the late 1980s, Mitchell initiated simultaneous bladder and abdominal wall closure with epispadias repair and bladder neck remodeling

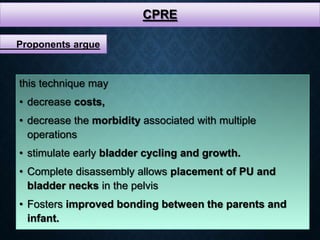

- 43. CPRE this technique may •decrease costs, • decrease the morbidity associated with multiple operations • stimulate early bladder cycling and growth. • Complete disassembly allows placement of PU and bladder necks in the pelvis • Fosters improved bonding between the parents and infant. Proponents argue

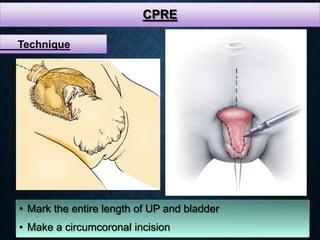

- 44. CPRE • Mark theentire length of UP and bladder • Make a circumcoronal incision Technique

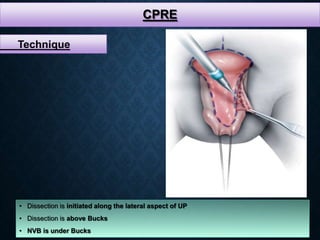

- 45. CPRE • Dissection isinitiated along the lateral aspect of UP • Dissection is above Bucks • NVB is under Bucks Technique

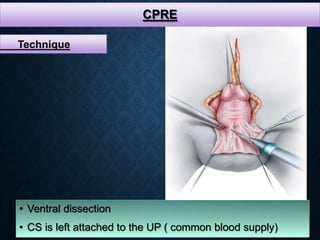

- 46. CPRE • Ventral dissection •CS is left attached to the UP ( common blood supply) Technique

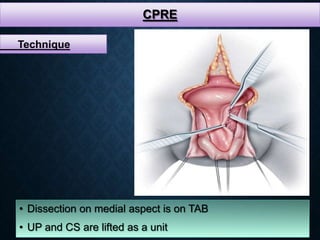

- 47. CPRE • Dissection onmedial aspect is on TAB • UP and CS are lifted as a unit Technique

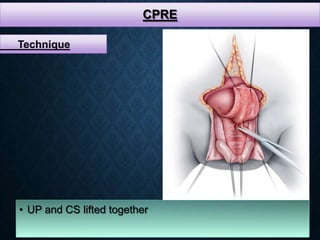

- 48. CPRE • UP andCS lifted together Technique

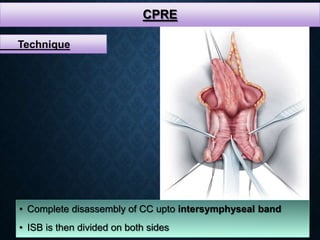

- 49. CPRE • Complete disassemblyof CC upto intersymphyseal band • ISB is then divided on both sides Technique
- 50.

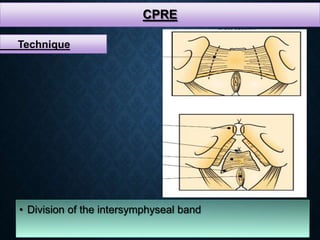

- 51. CPRE • Division ofthe intersymphyseal band Technique

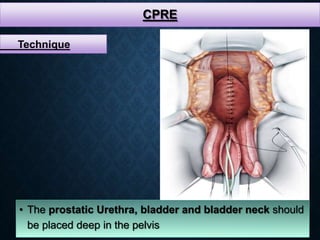

- 52. CPRE • The prostaticUrethra, bladder and bladder neck should be placed deep in the pelvis Technique

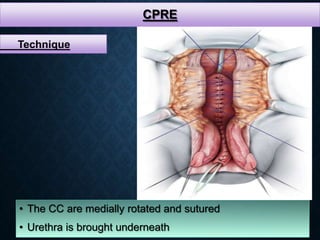

- 53. CPRE • The CCare medially rotated and sutured • Urethra is brought underneath Technique

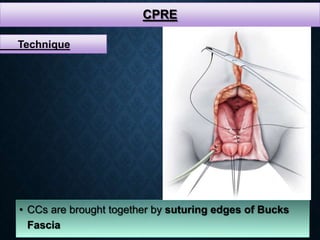

- 54. CPRE • CCs arebrought together by suturing edges of Bucks Fascia Technique

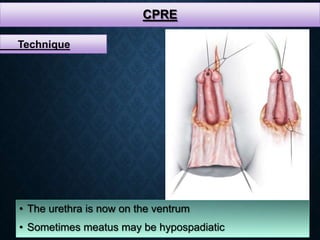

- 55. CPRE • The urethrais now on the ventrum • Sometimes meatus may be hypospadiatic Technique

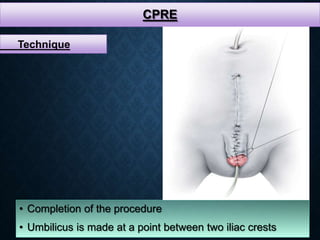

- 56. CPRE • Completion ofthe procedure • Umbilicus is made at a point between two iliac crests Technique

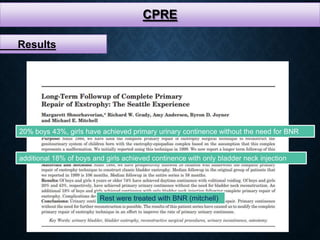

- 57. CPRE Results 20% boys 43%,girls have achieved primary urinary continence without the need for BNR additional 18% of boys and girls achieved continence with only bladder neck injection Rest were treated with BNR (mitchell)
- 58.

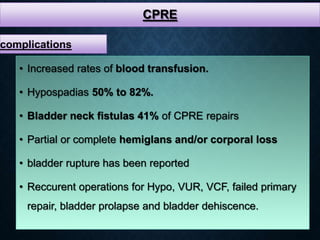

- 59. CPRE • Increased ratesof blood transfusion. • Hypospadias 50% to 82%. • Bladder neck fistulas 41% of CPRE repairs • Partial or complete hemiglans and/or corporal loss • bladder rupture has been reported • Reccurent operations for Hypo, VUR, VCF, failed primary repair, bladder prolapse and bladder dehiscence. complications
- 60.
- 61.

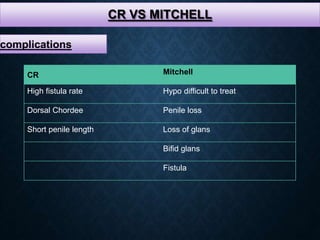

- 62. CR VS MITCHELL complications CRMitchell High fistula rate Hypo difficult to treat Dorsal Chordee Penile loss Short penile length Loss of glans Bifid glans Fistula

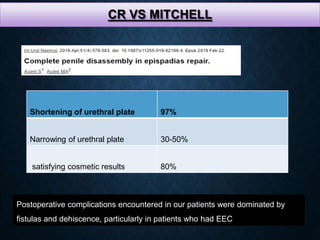

- 63. CR VS MITCHELL Shorteningof urethral plate 97% Narrowing of urethral plate 30-50% satisfying cosmetic results 80% Postoperative complications encountered in our patients were dominated by fistulas and dehiscence, particularly in patients who had EEC

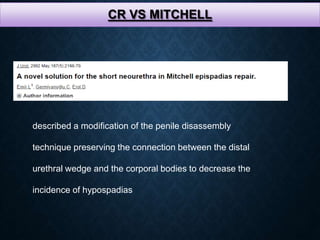

- 64. CR VS MITCHELL describeda modification of the penile disassembly technique preserving the connection between the distal urethral wedge and the corporal bodies to decrease the incidence of hypospadias

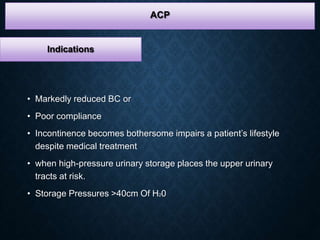

- 65. Indications • Markedly reducedBC or • Poor compliance • Incontinence becomes bothersome impairs a patient’s lifestyle despite medical treatment • when high-pressure urinary storage places the upper urinary tracts at risk. • Storage Pressures >40cm Of H20 ACP

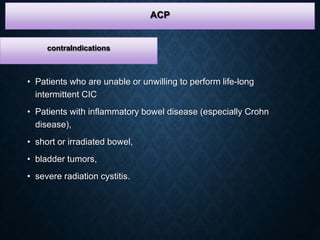

- 66. • Patients whoare unable or unwilling to perform life-long intermittent CIC • Patients with inflammatory bowel disease (especially Crohn disease), • short or irradiated bowel, • bladder tumors, • severe radiation cystitis. ACP contraIndications

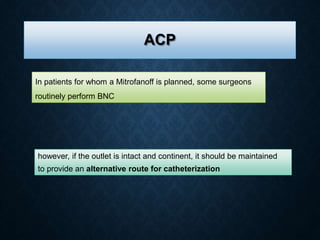

- 67. ACP In patients forwhom a Mitrofanoff is planned, some surgeons routinely perform BNC however, if the outlet is intact and continent, it should be maintained to provide an alternative route for catheterization

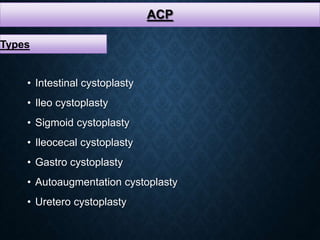

- 68. ACP Types • Intestinal cystoplasty •Ileo cystoplasty • Sigmoid cystoplasty • Ileocecal cystoplasty • Gastro cystoplasty • Autoaugmentation cystoplasty • Uretero cystoplasty
- 69. ACP Types • Intestinal cystoplasty •Ileo cystoplasty • Sigmoid cystoplasty • Ileocecal cystoplasty • Gastro cystoplasty • Autoaugmentation cystoplasty • Uretero cystoplasty

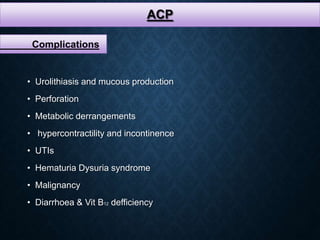

- 70. ACP Complications • Urolithiasis andmucous production • Perforation • Metabolic derrangements • hypercontractility and incontinence • UTIs • Hematuria Dysuria syndrome • Malignancy • Diarrhoea & Vit B12 defficiency
- 71.
