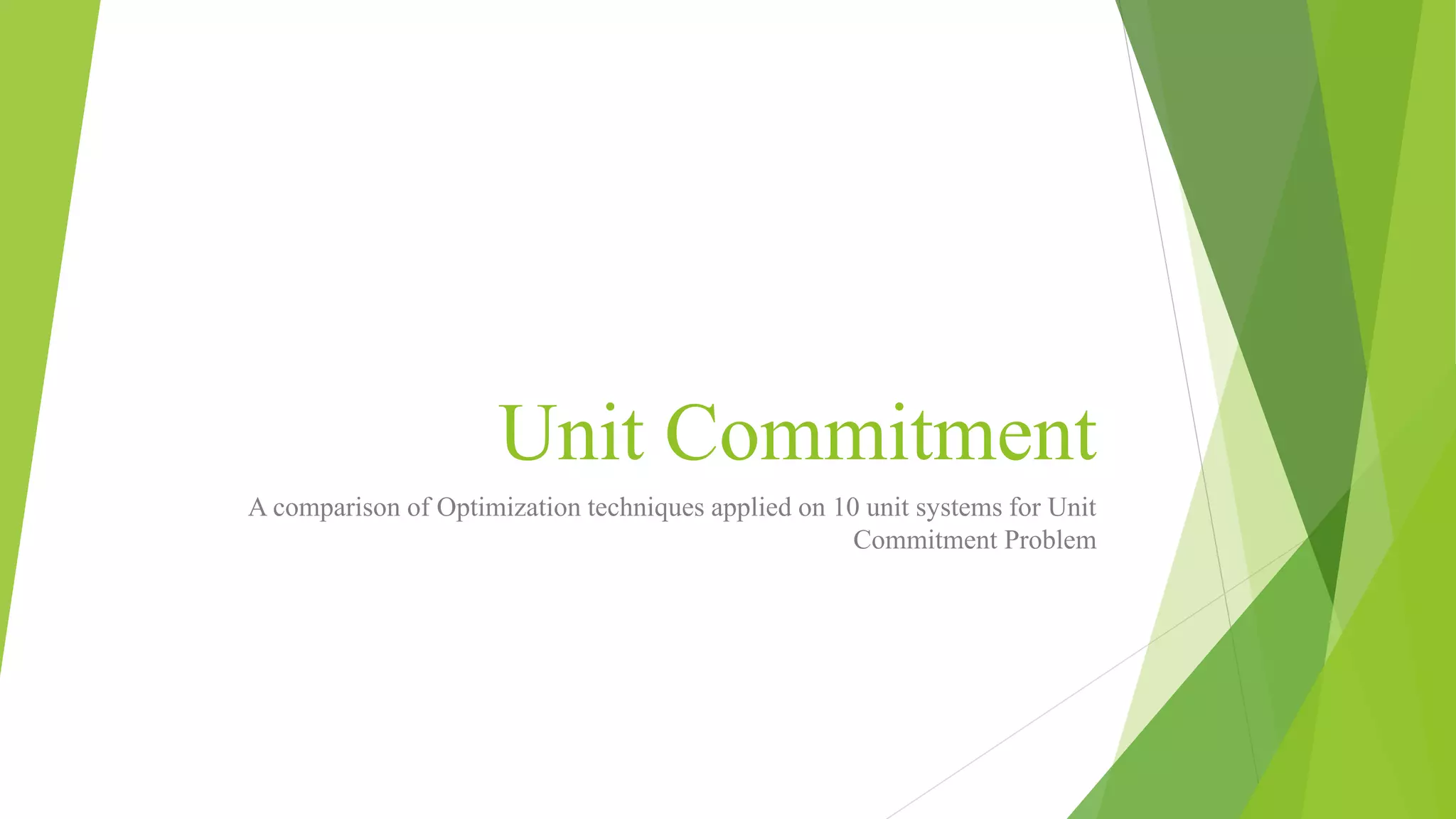

This document provides an overview of optimization techniques applied to solve the unit commitment problem for a 10 unit power system. It describes the objective function and constraints of the unit commitment problem formulation. It then briefly introduces several common optimization techniques used to solve unit commitment, including simulated annealing, harmony search, and multi-agent evolutionary programming incorporating a priority list. The document presents cost comparisons of applying different optimization techniques to the standard 10 unit test system, including tabular and graphical summaries of results from research papers. It concludes with references.

1. Unit Commitment
A comparison of Optimization techniques applied on 10 unit systems for Unit
Commitment Problem

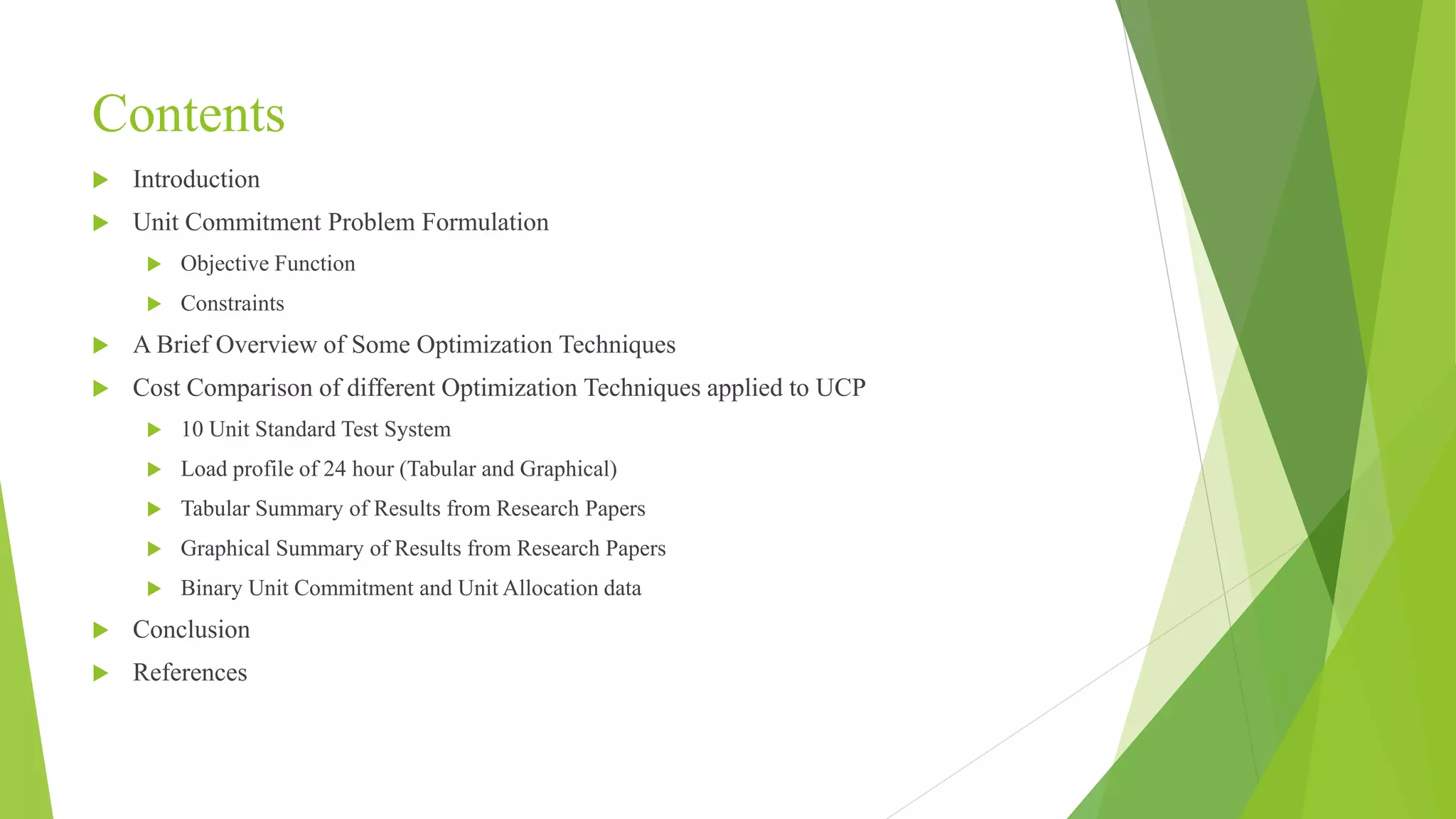

2. Contents
 Introduction
 Unit Commitment Problem Formulation
 Objective Function
 Constraints
 A Brief Overview of Some Optimization Techniques
 Cost Comparison of different Optimization Techniques applied to UCP
 10 Unit Standard Test System
 Load profile of 24 hour (Tabular and Graphical)
 Tabular Summary of Results from Research Papers
 Graphical Summary of Results from Research Papers
 Binary Unit Commitment and Unit Allocation data
 Conclusion
 References

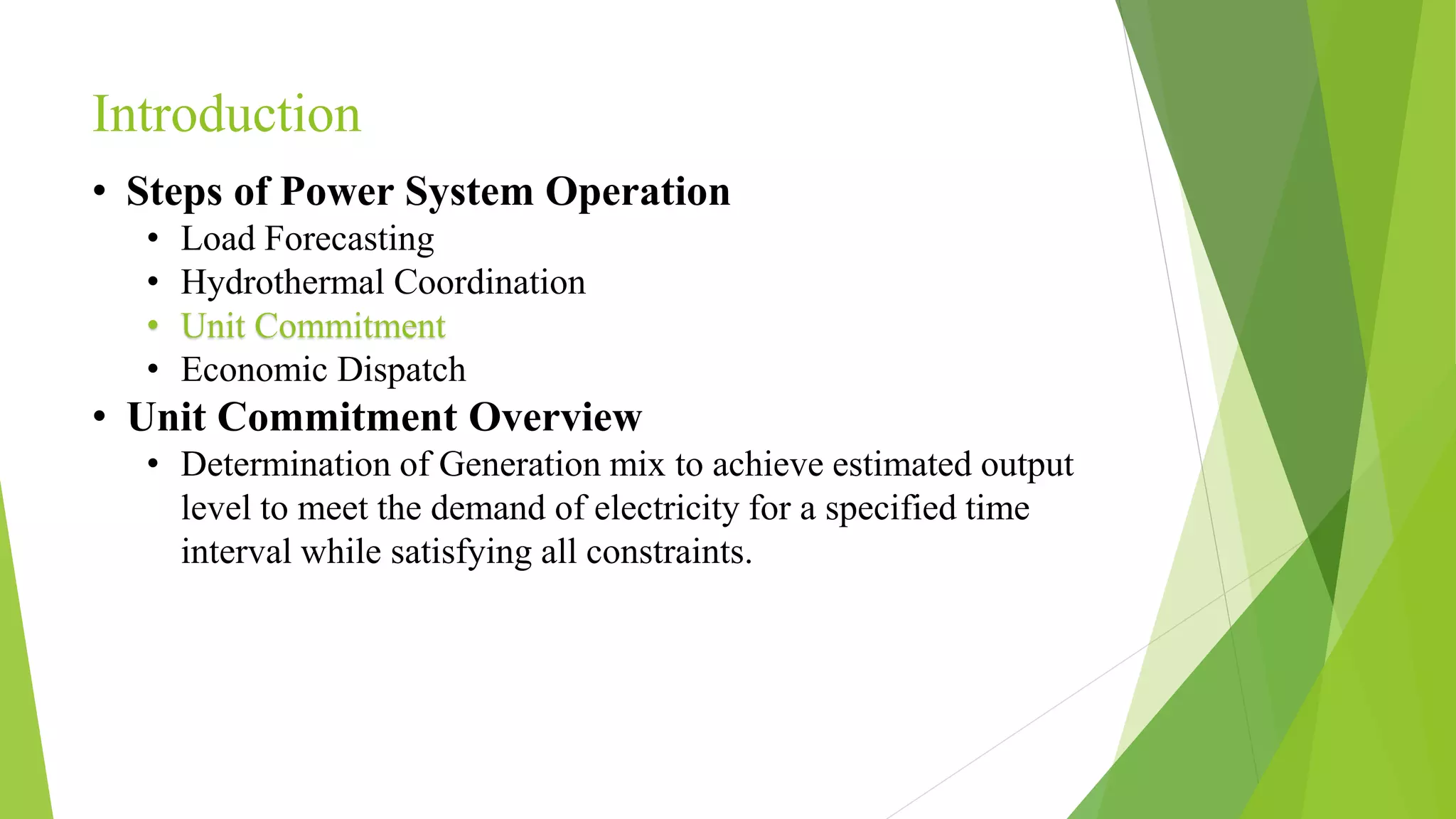

3. Introduction
• Steps of Power System Operation
• Load Forecasting
• Hydrothermal Coordination
• Unit Commitment
• Economic Dispatch
• Unit Commitment Overview
• Determination of Generation mix to achieve estimated output
level to meet the demand of electricity for a specified time
interval while satisfying all constraints.

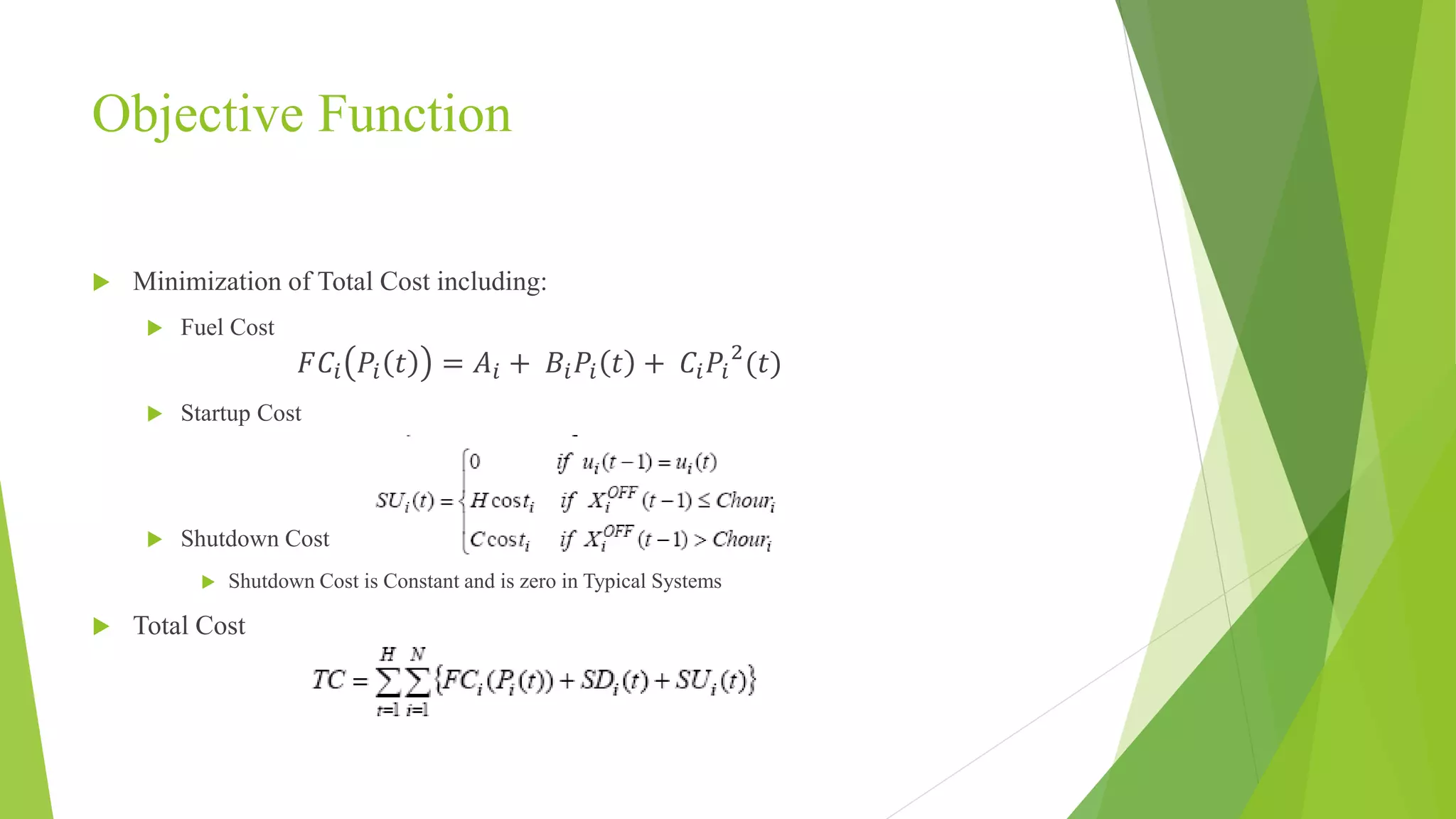

4. Objective Function
 Minimization of Total Cost including:
 Fuel Cost
𝐹𝐶𝑖 𝑃𝑖 𝑡 = 𝐴𝑖 + 𝐵𝑖 𝑃𝑖 𝑡 + 𝐶𝑖 𝑃𝑖
2
(𝑡)
 Startup Cost
 Shutdown Cost
 Shutdown Cost is Constant and is zero in Typical Systems
 Total Cost

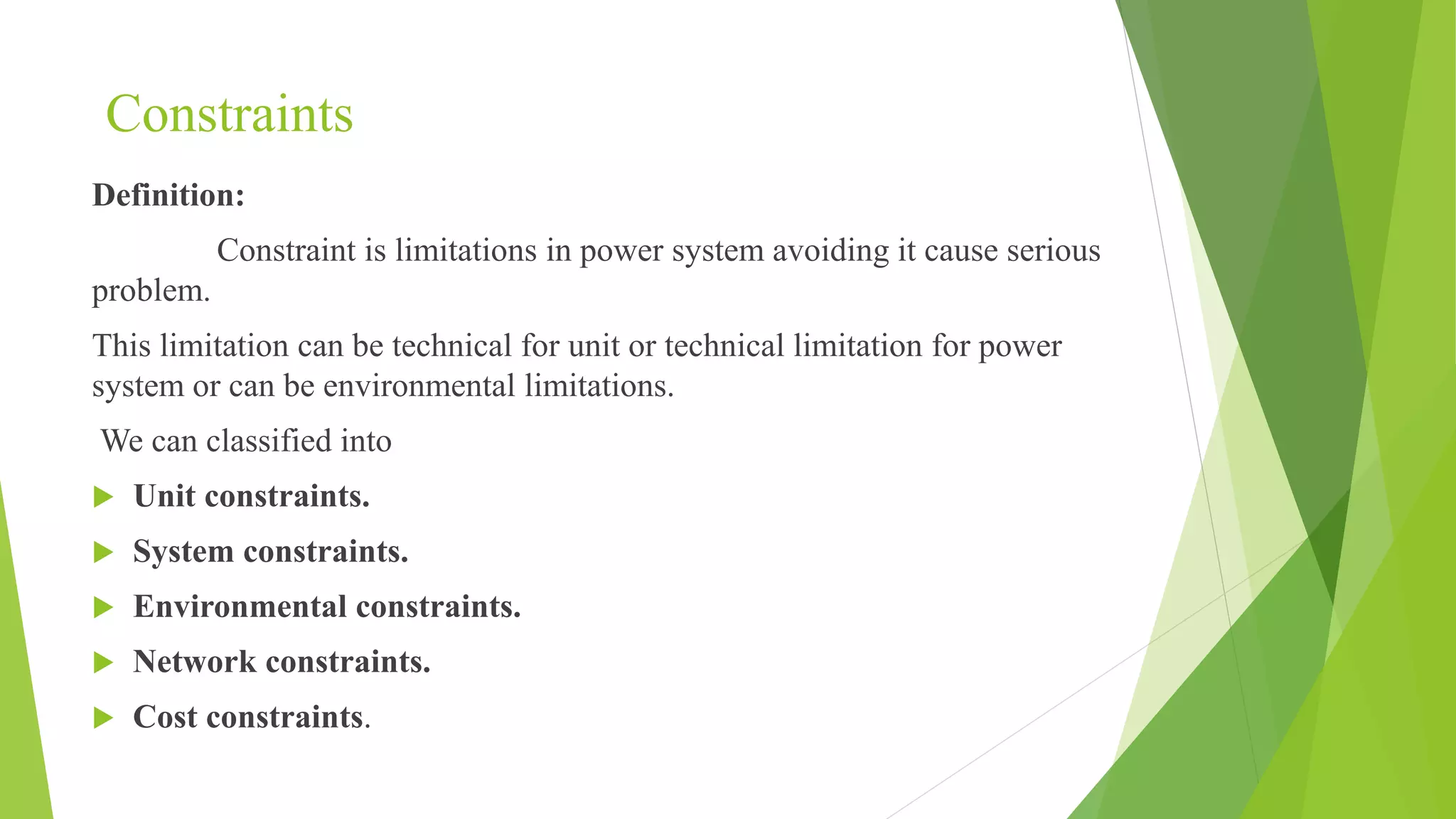

5. Constraints
Definition:
Constraint is limitations in power system avoiding it cause serious
problem.
This limitation can be technical for unit or technical limitation for power
system or can be environmental limitations.
We can classified into
 Unit constraints.
 System constraints.
 Environmental constraints.
 Network constraints.
 Cost constraints.

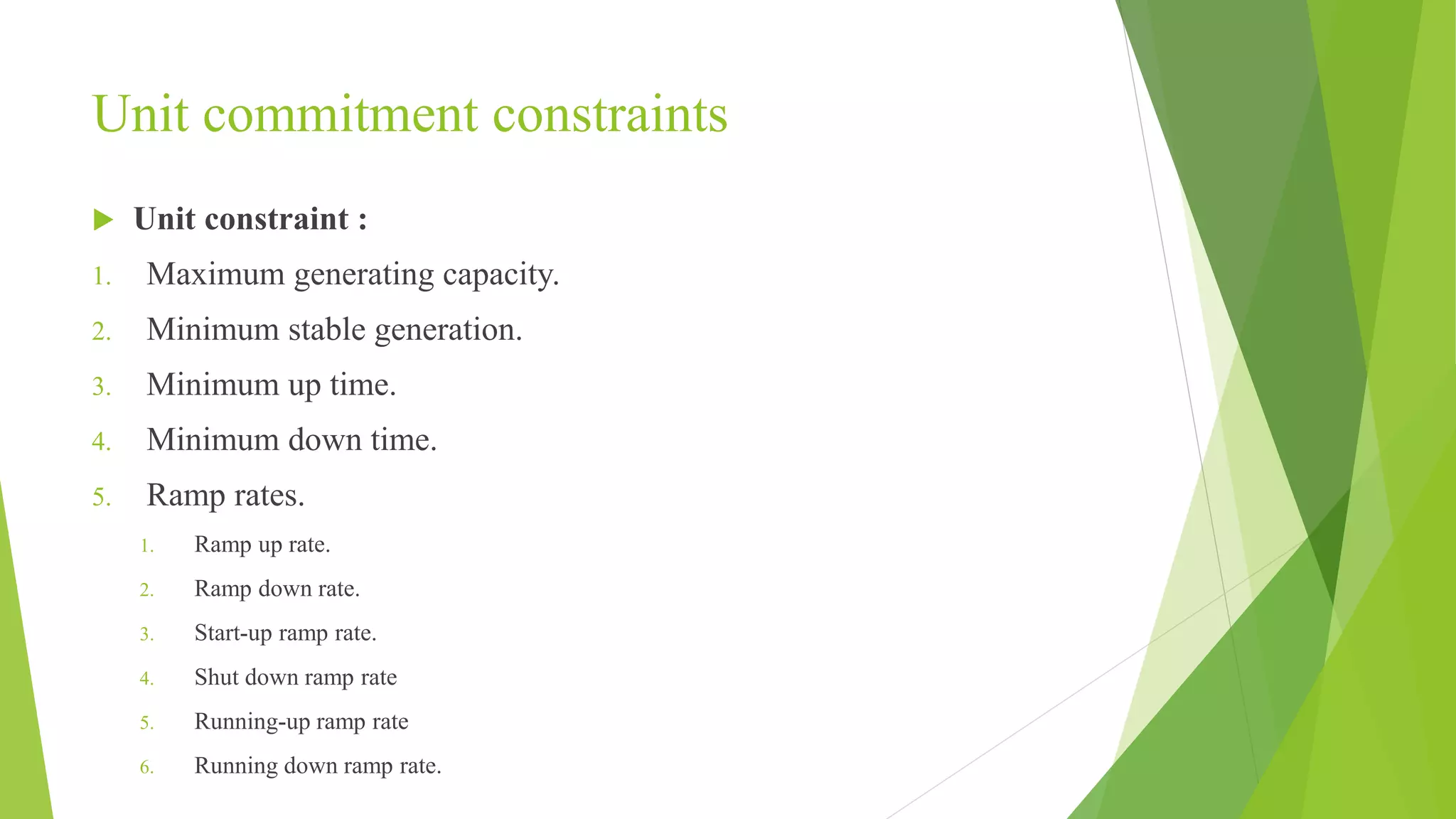

6. Unit commitment constraints
 Unit constraint :
1. Maximum generating capacity.
2. Minimum stable generation.
3. Minimum up time.
4. Minimum down time.
5. Ramp rates.
1. Ramp up rate.
2. Ramp down rate.
3. Start-up ramp rate.
4. Shut down ramp rate
5. Running-up ramp rate
6. Running down ramp rate.

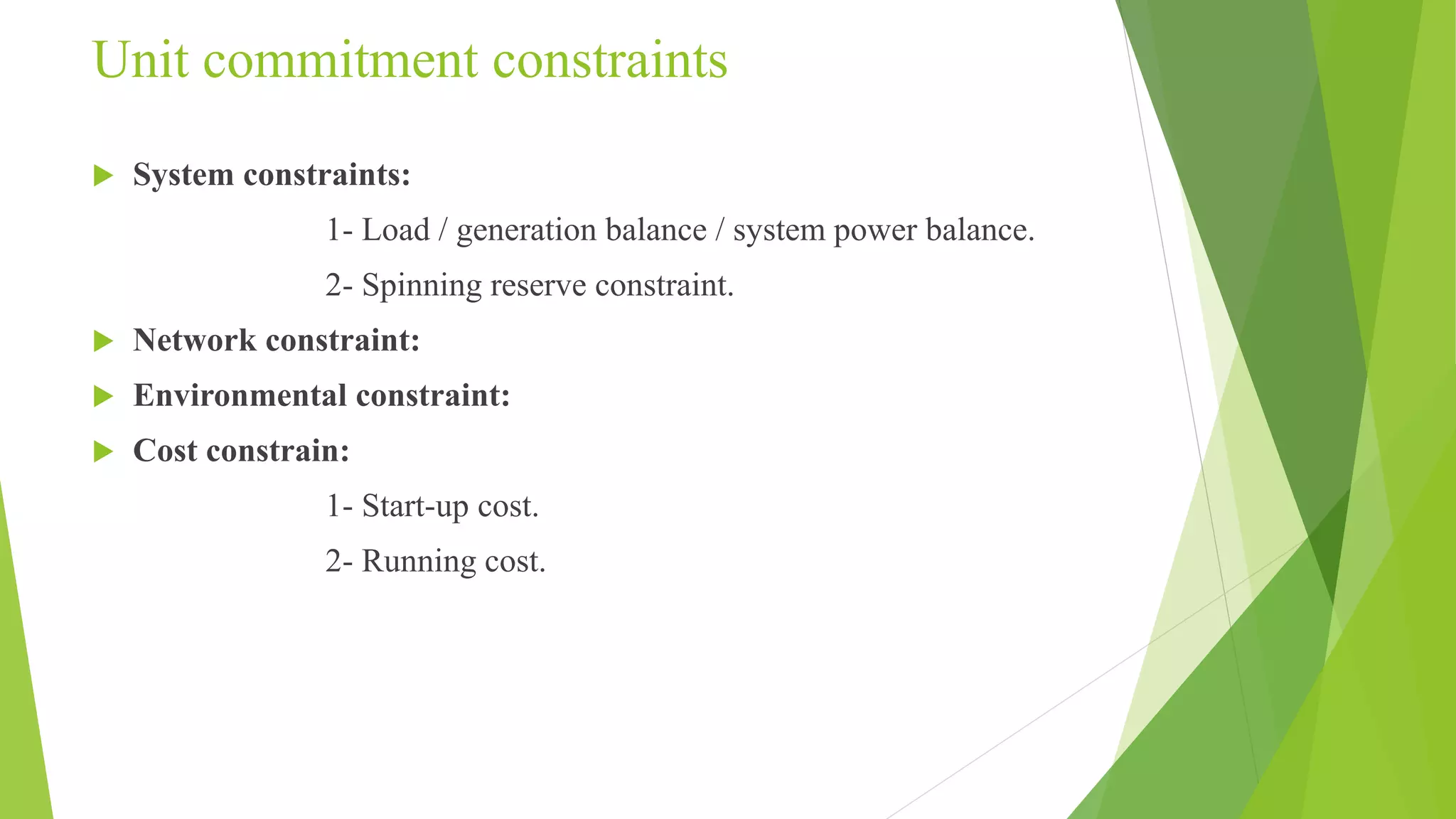

7. Unit commitment constraints
 System constraints:
1- Load / generation balance / system power balance.
2- Spinning reserve constraint.
 Network constraint:
 Environmental constraint:
 Cost constrain:
1- Start-up cost.
2- Running cost.

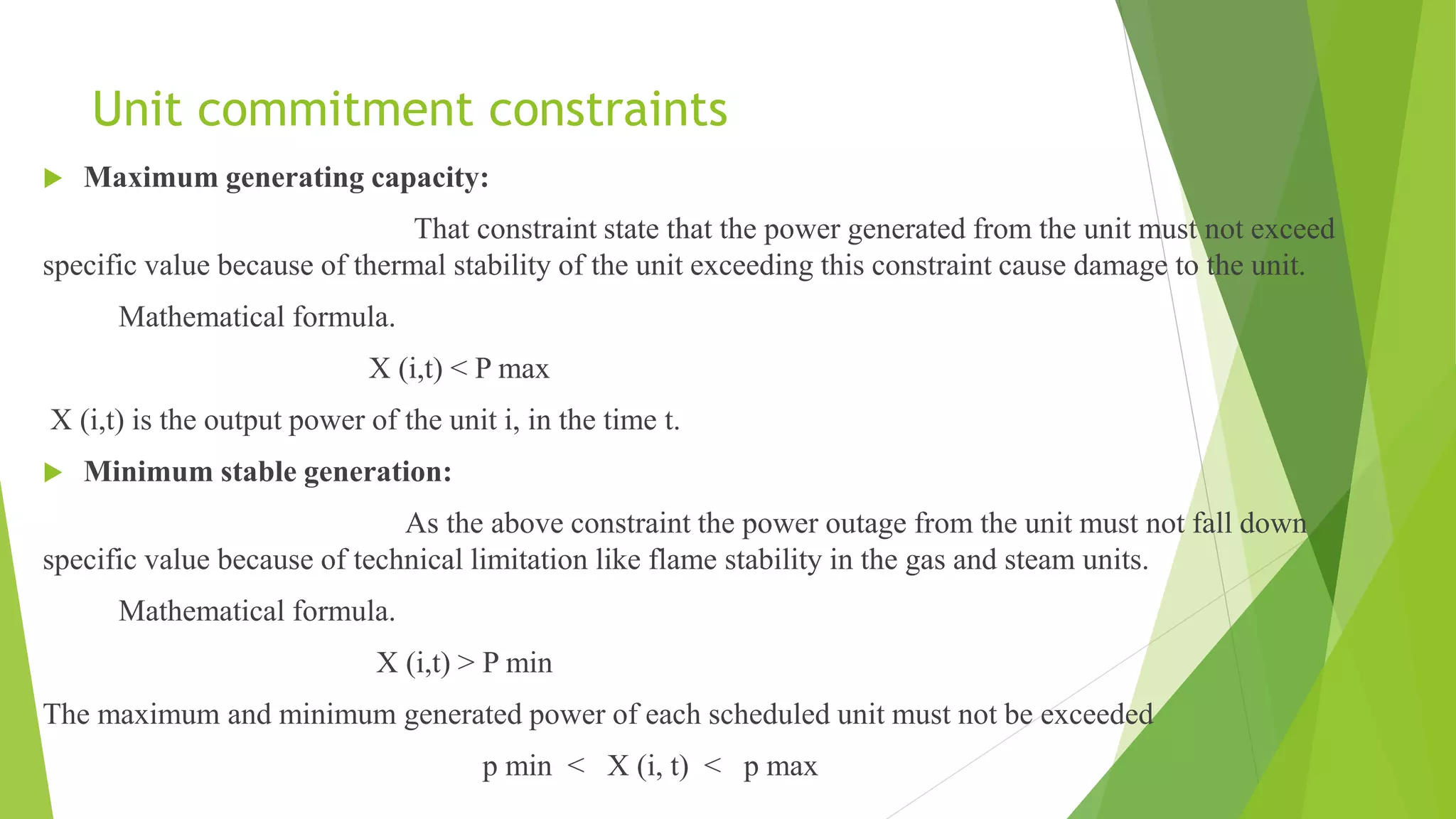

8. Unit commitment constraints
 Maximum generating capacity:
That constraint state that the power generated from the unit must not exceed
specific value because of thermal stability of the unit exceeding this constraint cause damage to the unit.
Mathematical formula.
X (i,t) < P max
X (i,t) is the output power of the unit i, in the time t.
 Minimum stable generation:
As the above constraint the power outage from the unit must not fall down
specific value because of technical limitation like flame stability in the gas and steam units.
Mathematical formula.
X (i,t) > P min
The maximum and minimum generated power of each scheduled unit must not be exceeded
p min < X (i, t) < p max

9. Unit commitment constraints
 Minimum up time:
This constraint state that once the unit is running must not shunt down
immediately due technical limitation and mechanical characteristic of the unit.
Mathematical formula:
Where
u(i, t) : status of unit i at period t.
u(i, t) = 1 unit i is ON during period t.
u(i, t) = 0 unit i is Off during period t.

10. Unit commitment constraints
Ramp rates:
Definition:
To avoid damaging the turbine, the electrical output of a unit cannot
change by more than a certain amount over a period of time.

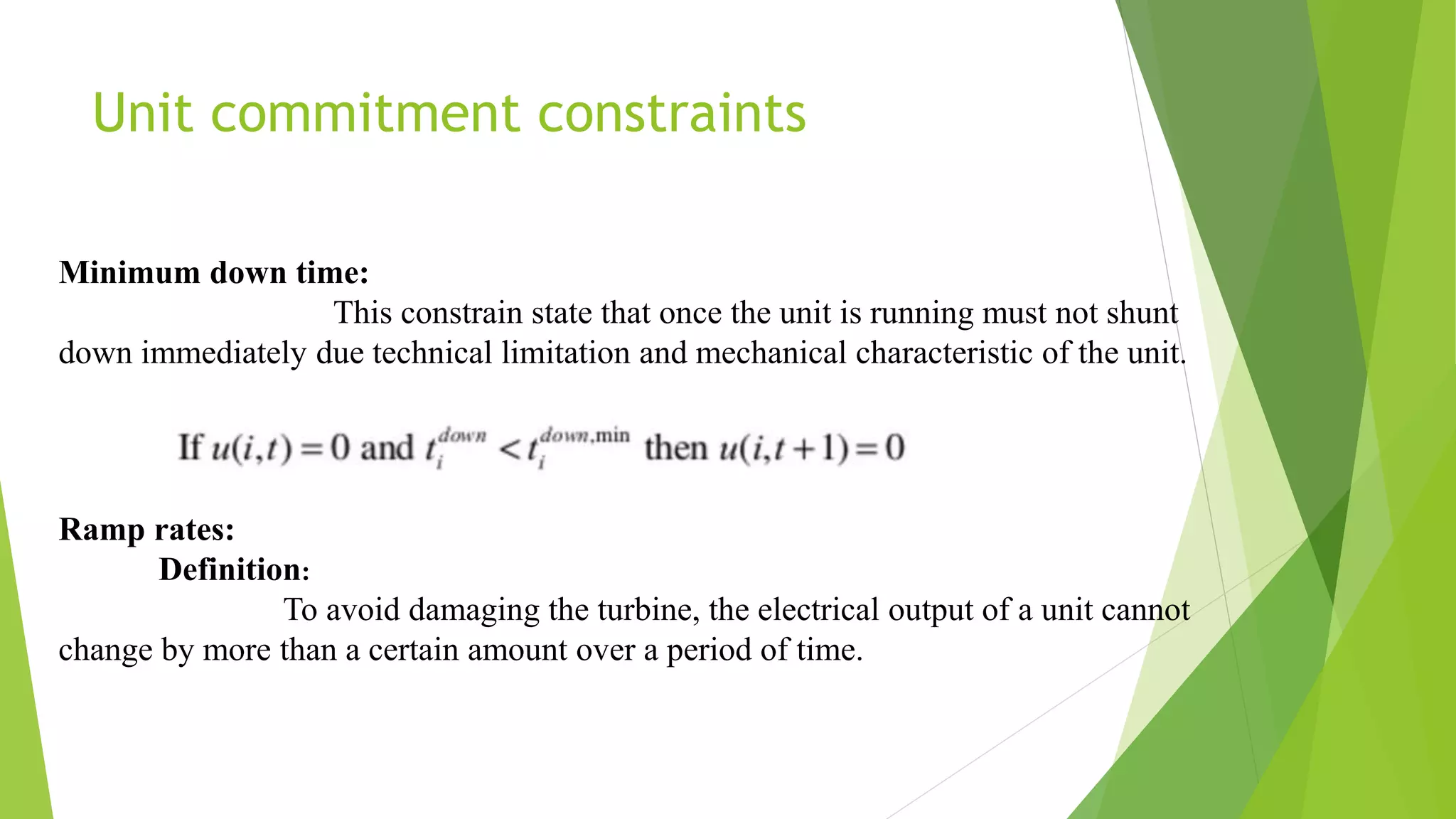

Minimum down time:
This constrain state that once the unit is running must not shunt
down immediately due technical limitation and mechanical characteristic of the unit.

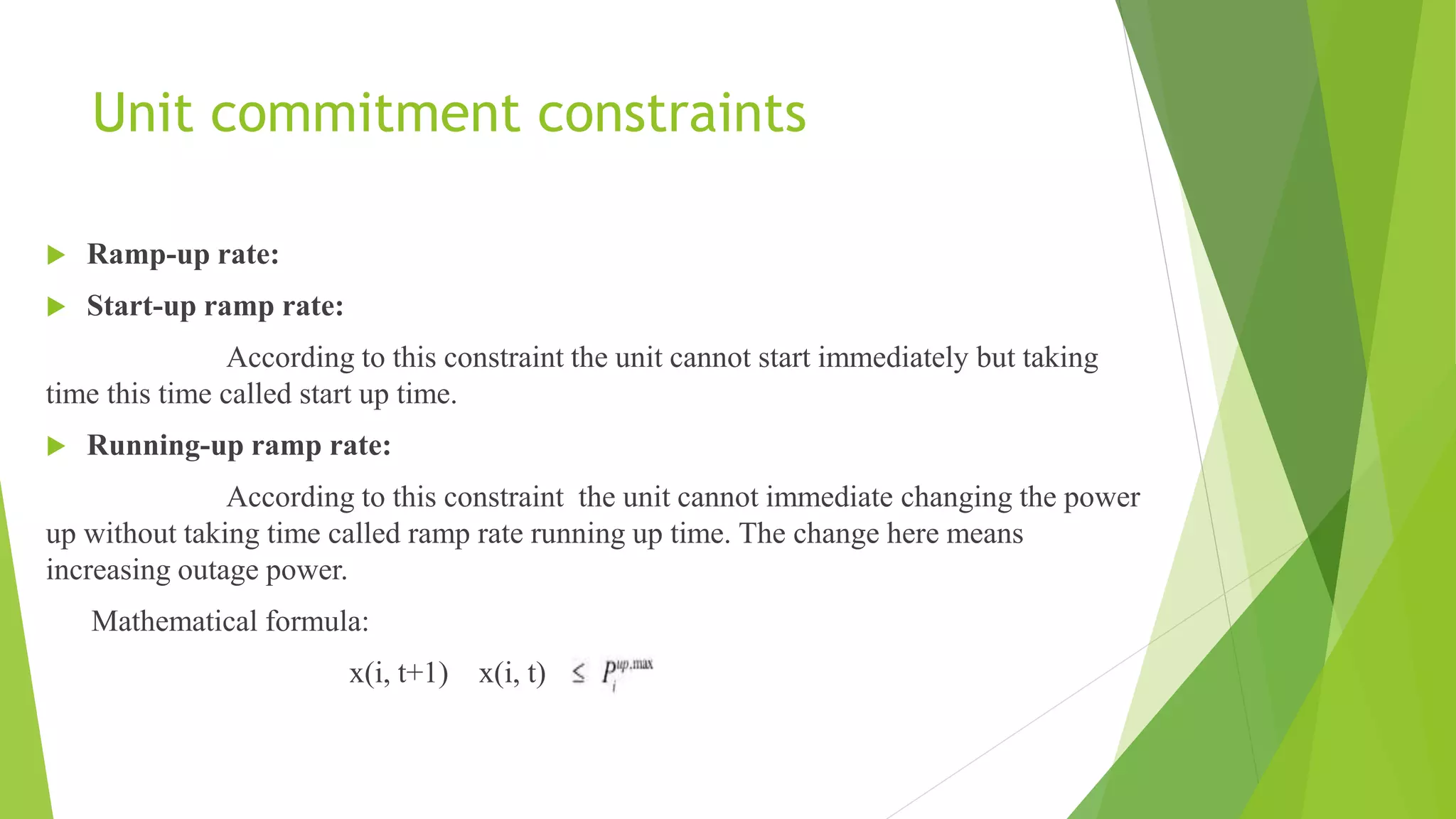

11. Unit commitment constraints
 Ramp-up rate:
 Start-up ramp rate:
According to this constraint the unit cannot start immediately but taking
time this time called start up time.
 Running-up ramp rate:
According to this constraint the unit cannot immediate changing the power
up without taking time called ramp rate running up time. The change here means
increasing outage power.
Mathematical formula:
x(i, t+1) x(i, t)

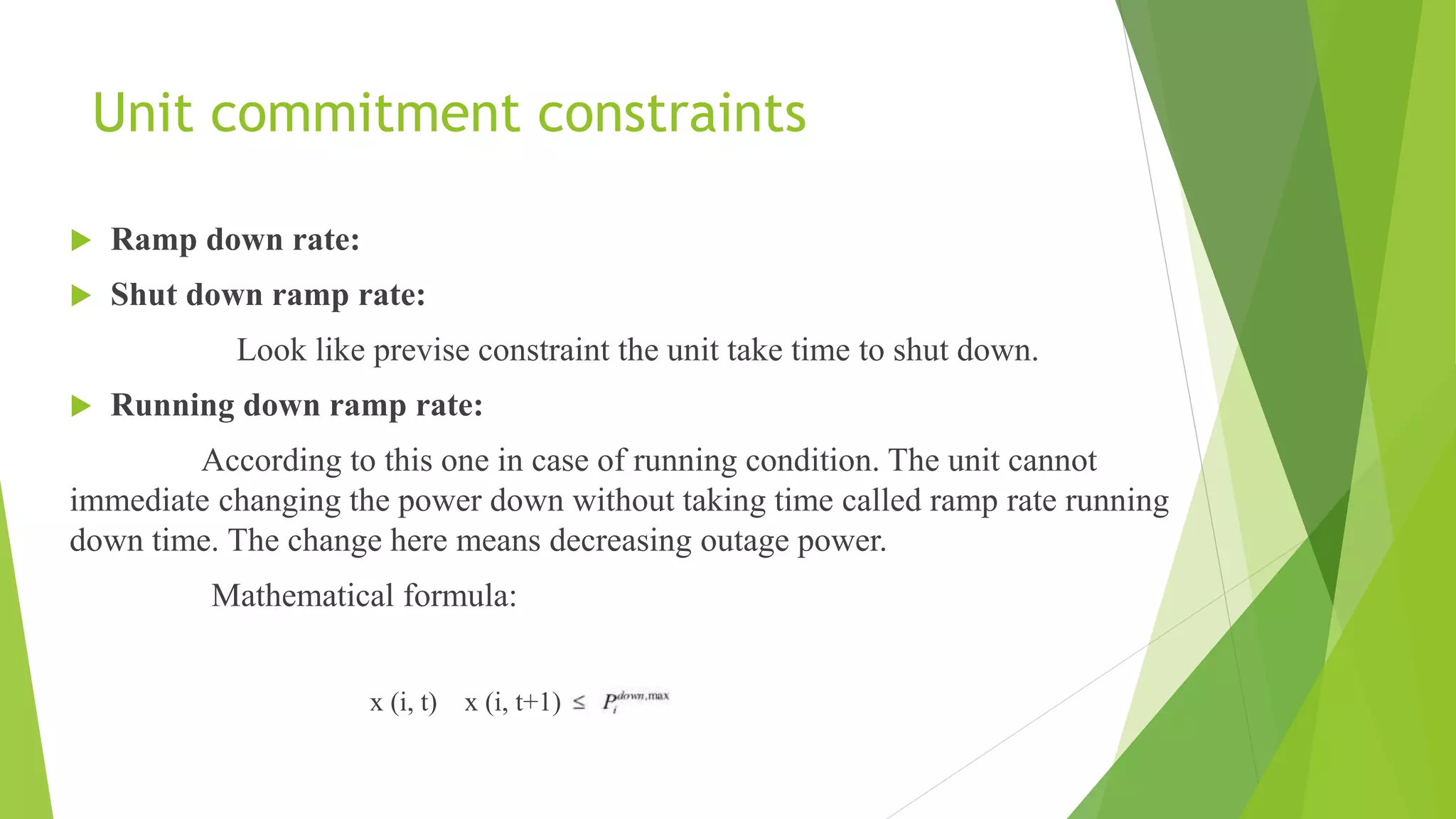

12. Unit commitment constraints
 Ramp down rate:
 Shut down ramp rate:
Look like previse constraint the unit take time to shut down.
 Running down ramp rate:
According to this one in case of running condition. The unit cannot
immediate changing the power down without taking time called ramp rate running
down time. The change here means decreasing outage power.
Mathematical formula:
x (i, t) x (i, t+1)

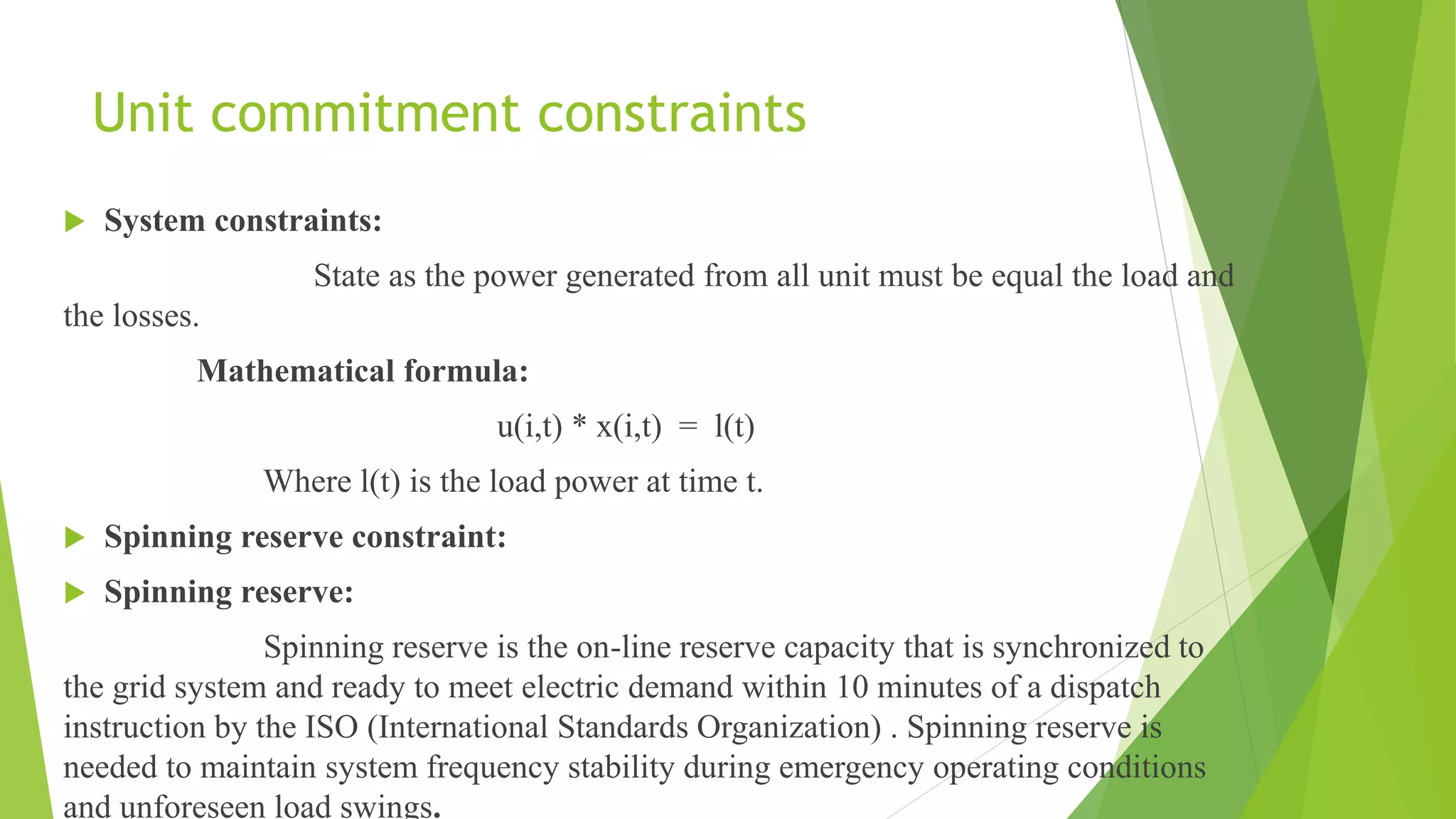

13. Unit commitment constraints
 System constraints:
State as the power generated from all unit must be equal the load and
the losses.
Mathematical formula:
u(i,t) * x(i,t) = l(t)
Where l(t) is the load power at time t.
 Spinning reserve constraint:
 Spinning reserve:
Spinning reserve is the on-line reserve capacity that is synchronized to
the grid system and ready to meet electric demand within 10 minutes of a dispatch
instruction by the ISO (International Standards Organization) . Spinning reserve is
needed to maintain system frequency stability during emergency operating conditions
and unforeseen load swings.

14. Unit commitment constraints
 Reason to keep reserve power.
1- Sudden unexpected increase in the load demand.
2- Underestimating the load due to error in load forecasting.
3- Local shortage in the generated power
4- Force outage of some generating units.
5- Force outage of supplementary equipment’s due to stability problem.
In Electrical engineering, Force outage is the shutdown condition of a power station, transmission
line or distribution line when the generating unit is unavailable to produce power due to unexpected
breakdown.
 Condition of reserve.
1- Reserve must be higher than largest unit.
2- Should be spread around the network.
3- The unit must operate at 80-85% of its rated.

15. Unit commitment constraints

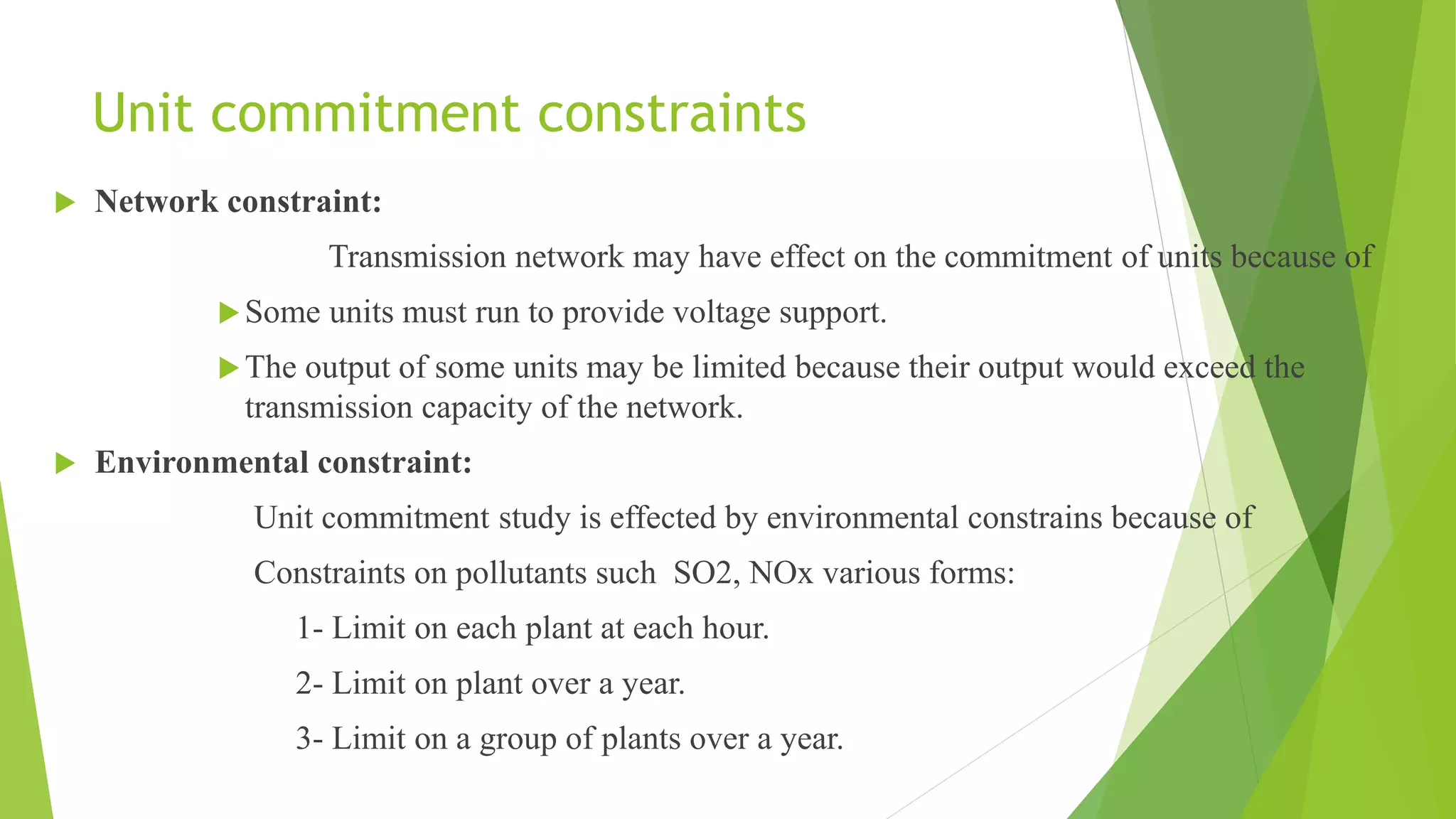

 Network constraint:
Transmission network may have effect on the commitment of units because of
Some units must run to provide voltage support.
The output of some units may be limited because their output would exceed the
transmission capacity of the network.
 Environmental constraint:
Unit commitment study is effected by environmental constrains because of
Constraints on pollutants such SO2, NOx various forms:
1- Limit on each plant at each hour.
2- Limit on plant over a year.
3- Limit on a group of plants over a year.

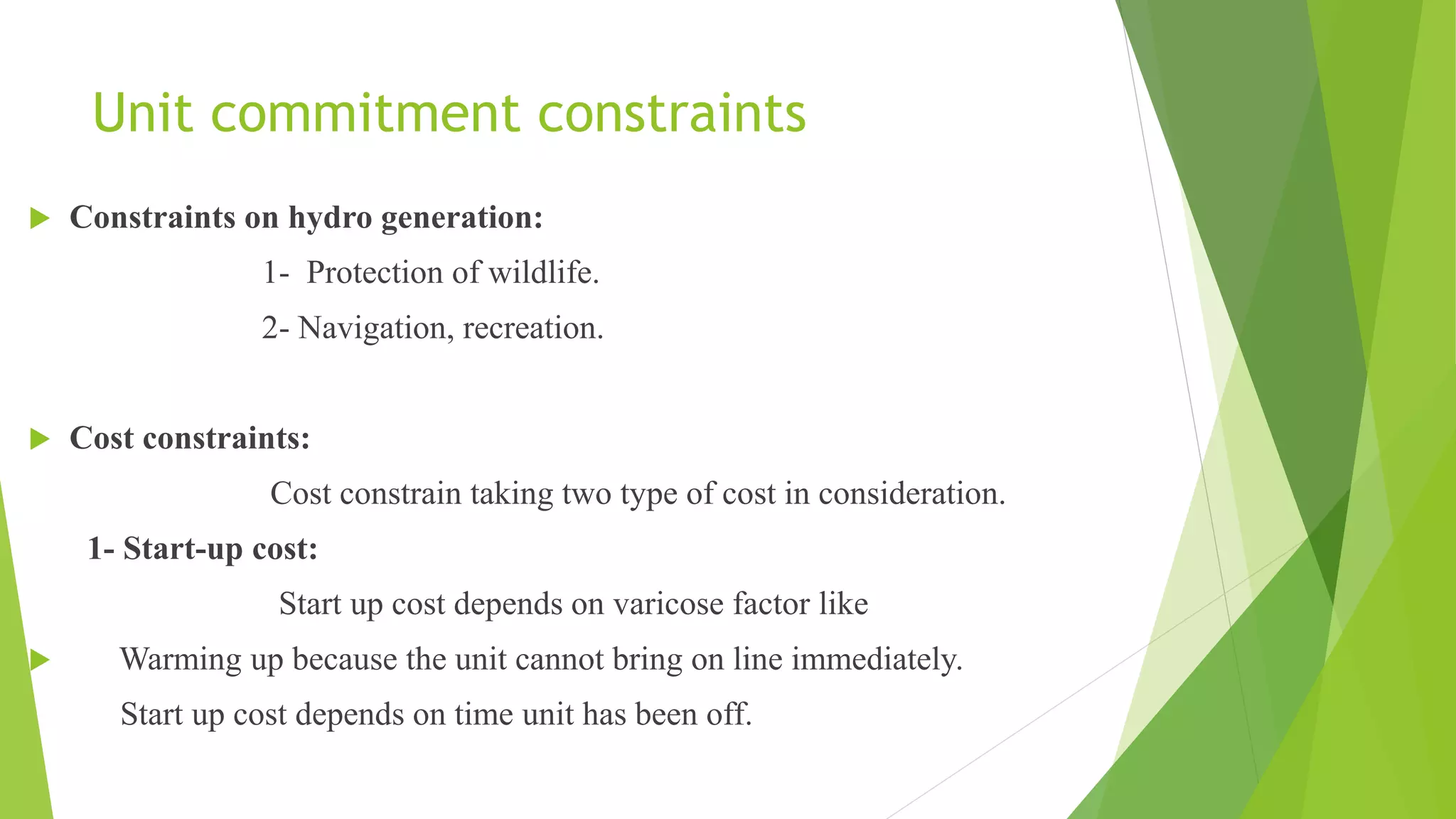

16. Unit commitment constraints
 Constraints on hydro generation:
1- Protection of wildlife.
2- Navigation, recreation.
 Cost constraints:
Cost constrain taking two type of cost in consideration.
1- Start-up cost:
Start up cost depends on varicose factor like
 Warming up because the unit cannot bring on line immediately.
Start up cost depends on time unit has been off.

17. Unit commitment constraints

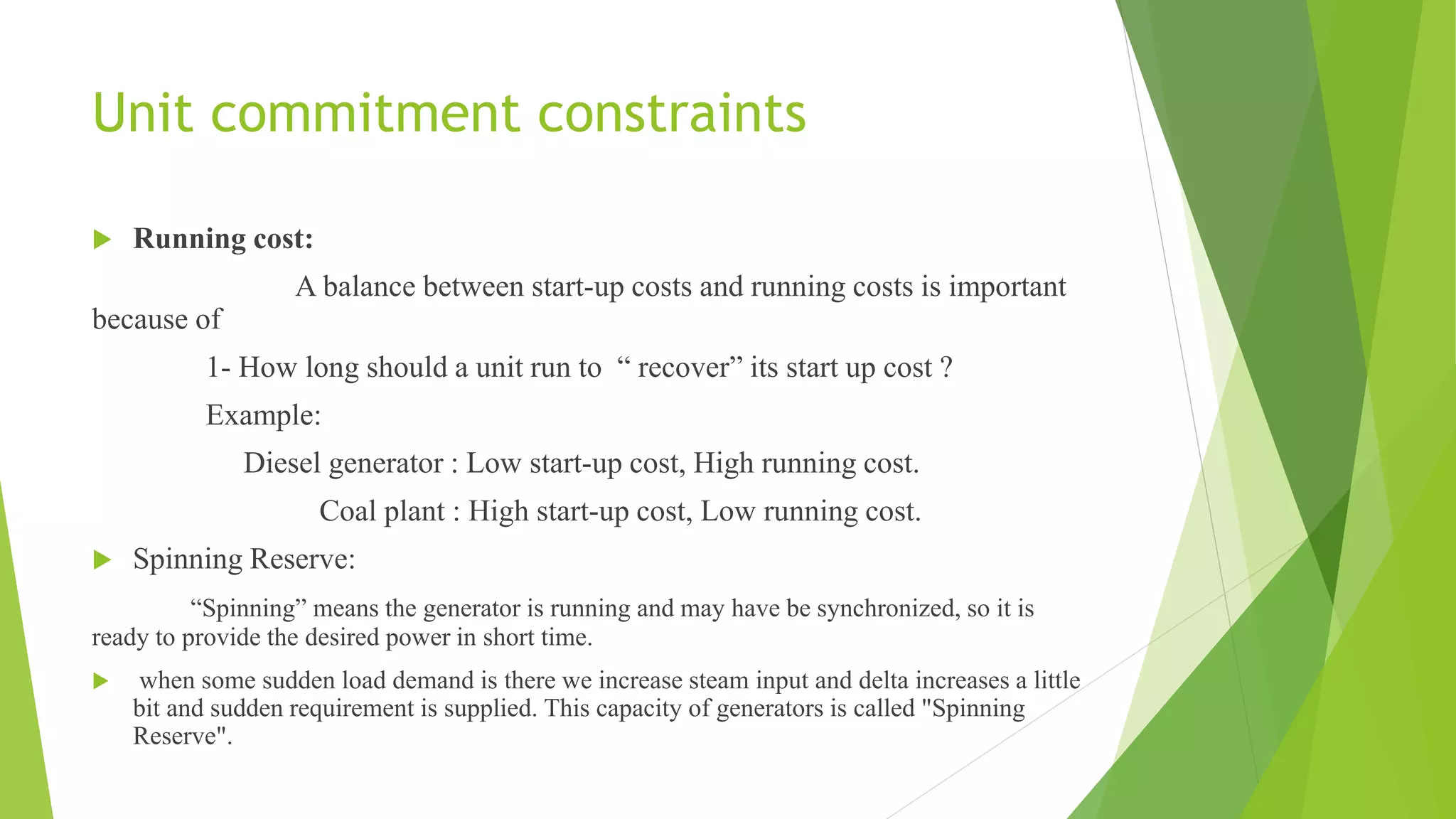

 Running cost:
A balance between start-up costs and running costs is important
because of
1- How long should a unit run to “ recover” its start up cost ?
Example:
Diesel generator : Low start-up cost, High running cost.
Coal plant : High start-up cost, Low running cost.
 Spinning Reserve:
“Spinning” means the generator is running and may have be synchronized, so it is
ready to provide the desired power in short time.
 when some sudden load demand is there we increase steam input and delta increases a little
bit and sudden requirement is supplied. This capacity of generators is called "Spinning
Reserve".

18. A Brief Overview of Some
Optimization Techniques

19. Algorithms used in UC
 Solving Unit Commitment Problem
Using Modified Sub-gradient
Method Combined with Simulated
Annealing Algorithm
 A New Heuristic Algorithm for Unit
Commitment Problem (Modified
Harmonic Search)
 Solving Unit Commitment Problem
Using Multi-agent Evolutionary
Programming Incorporating Priority
List
 Solution to Unit Commitment
Problem using La-Grangian
Relaxation and Mendel’s GA Method
 A New Priority List Unit
Commitment Method for Large-
Scale Power Systems
 Three meta heuristic techniques:
 Charged Search System
 Particle Swarm Optimization
 Ant Colony Search

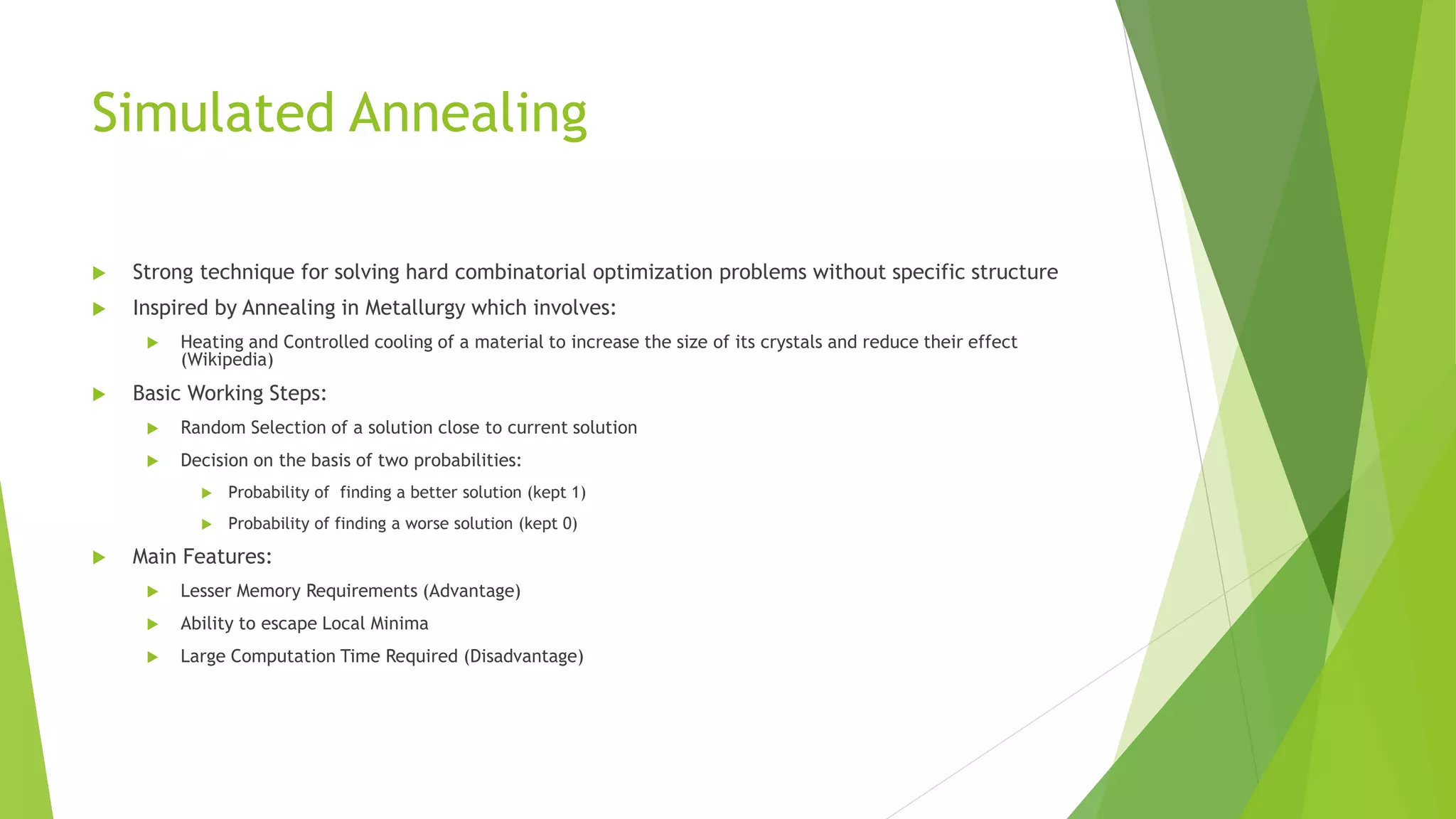

20. Simulated Annealing
 Strong technique for solving hard combinatorial optimization problems without specific structure
 Inspired by Annealing in Metallurgy which involves:
 Heating and Controlled cooling of a material to increase the size of its crystals and reduce their effect
(Wikipedia)
 Basic Working Steps:
 Random Selection of a solution close to current solution
 Decision on the basis of two probabilities:
 Probability of finding a better solution (kept 1)
 Probability of finding a worse solution (kept 0)
 Main Features:
 Lesser Memory Requirements (Advantage)
 Ability to escape Local Minima
 Large Computation Time Required (Disadvantage)

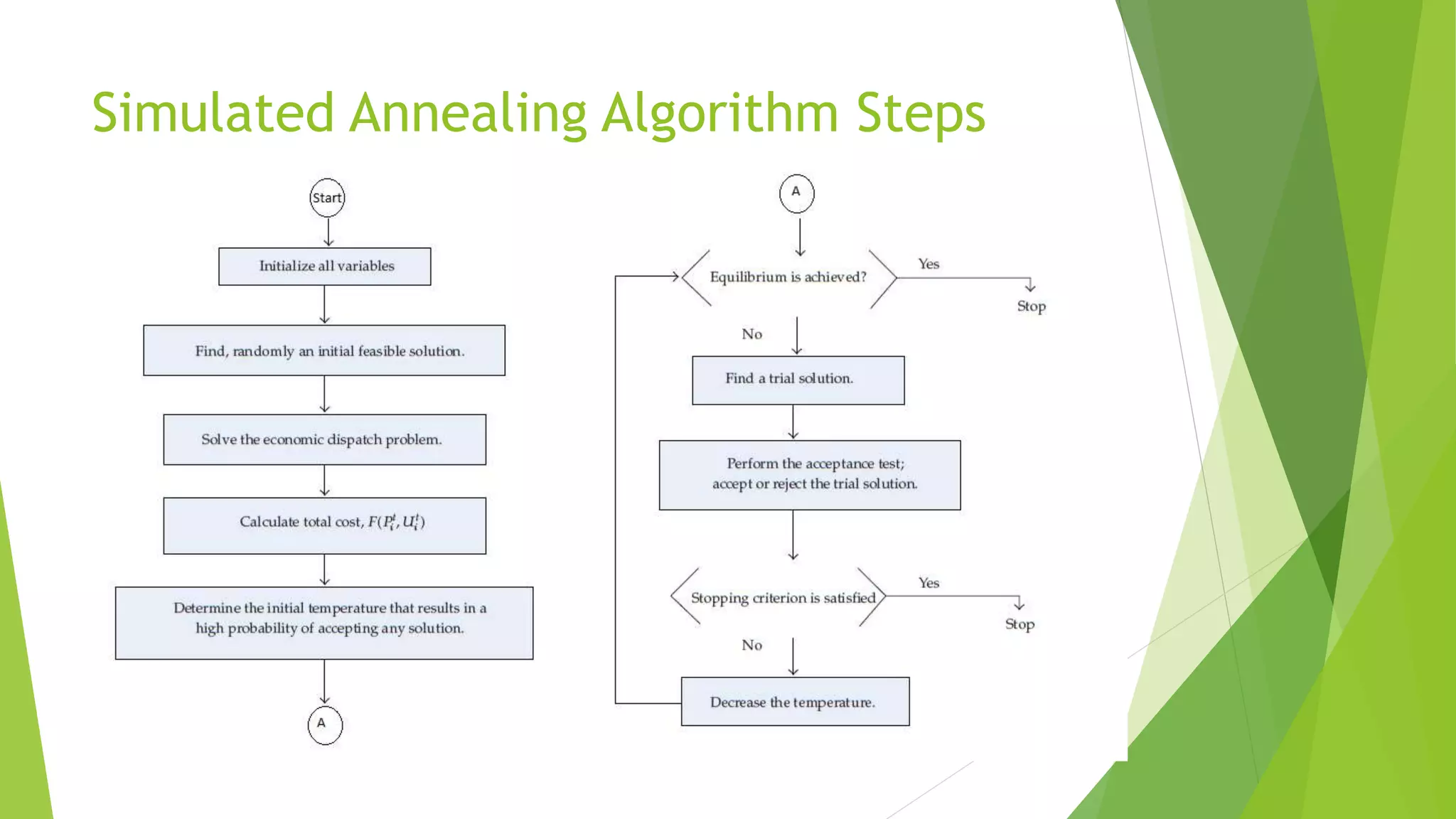

21. Simulated Annealing Algorithm Steps

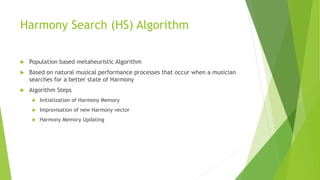

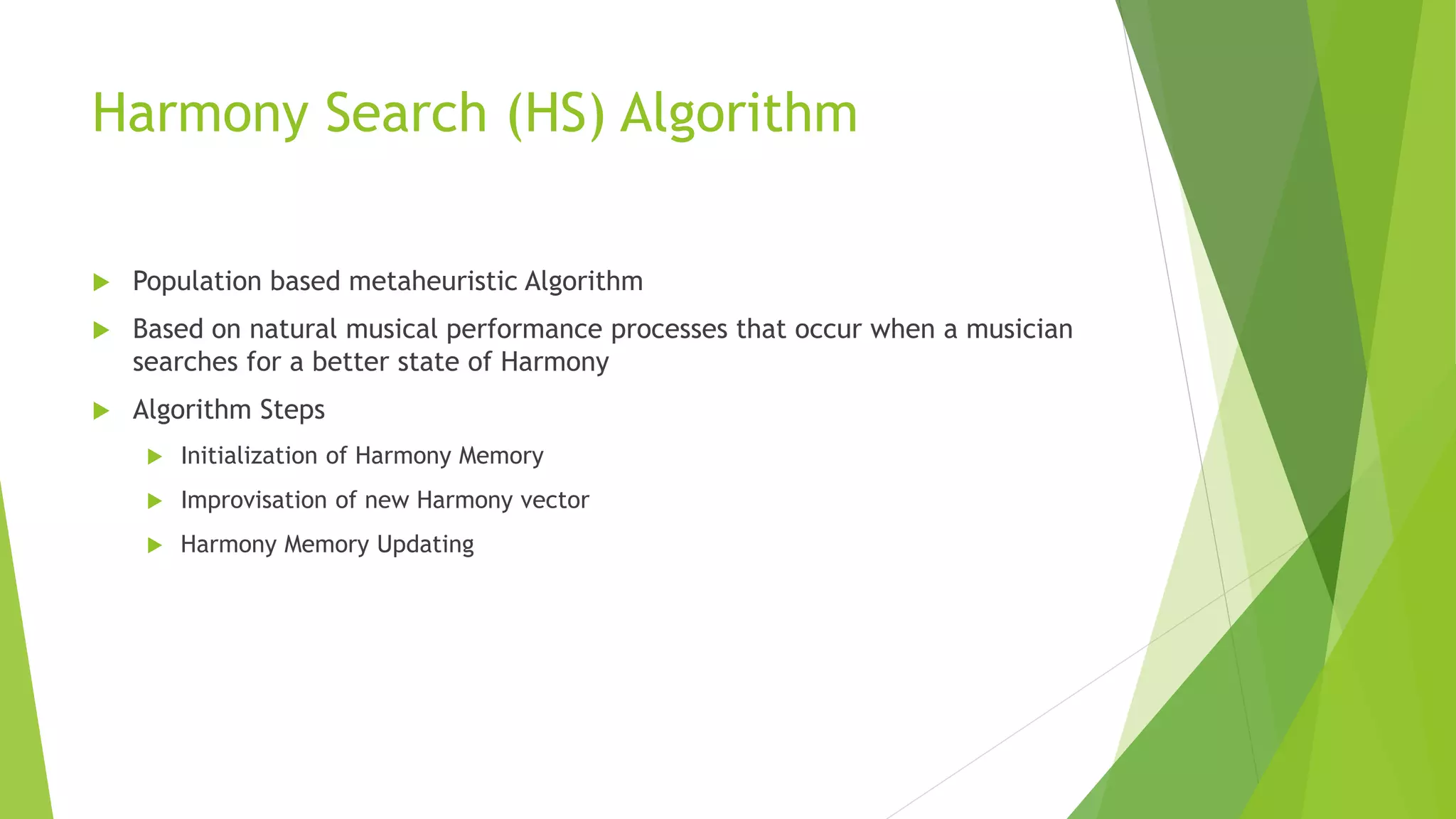

22. Harmony Search (HS) Algorithm
 Population based metaheuristic Algorithm
 Based on natural musical performance processes that occur when a musician
searches for a better state of Harmony
 Algorithm Steps
 Initialization of Harmony Memory
 Improvisation of new Harmony vector
 Harmony Memory Updating

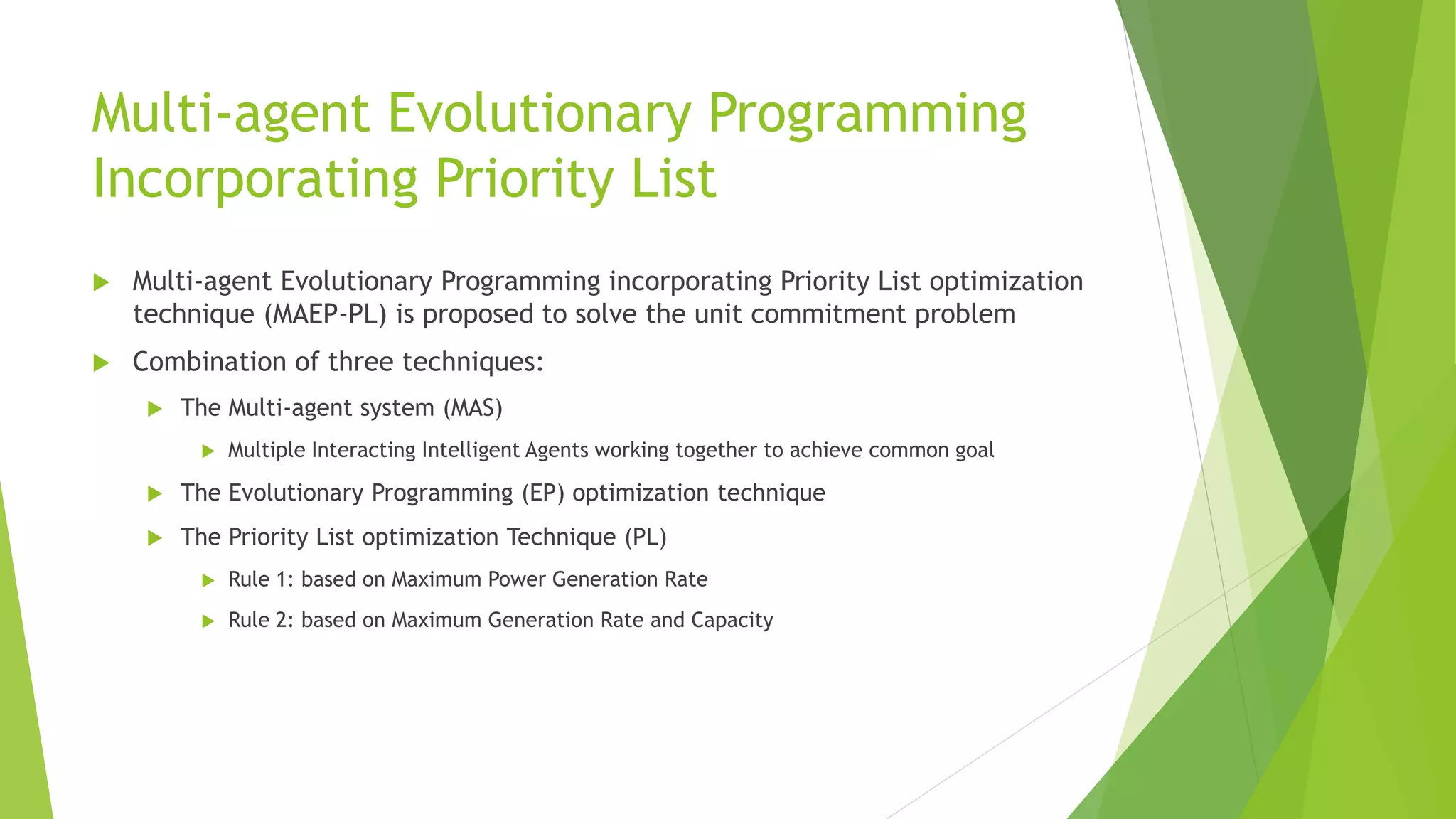

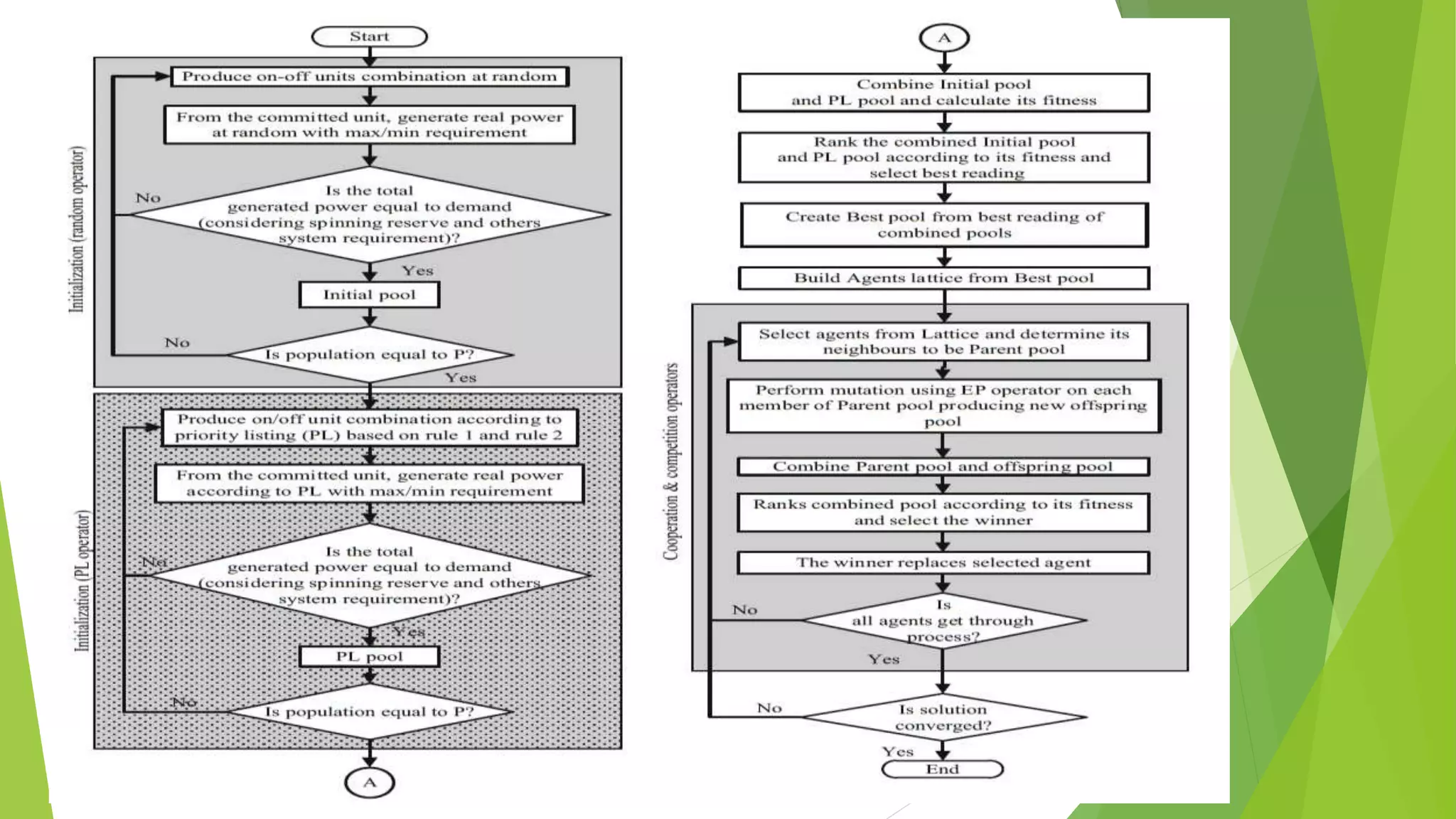

23. Multi-agent Evolutionary Programming
Incorporating Priority List
 Multi-agent Evolutionary Programming incorporating Priority List optimization
technique (MAEP-PL) is proposed to solve the unit commitment problem
 Combination of three techniques:
 The Multi-agent system (MAS)
 Multiple Interacting Intelligent Agents working together to achieve common goal
 The Evolutionary Programming (EP) optimization technique
 The Priority List optimization Technique (PL)
 Rule 1: based on Maximum Power Generation Rate
 Rule 2: based on Maximum Generation Rate and Capacity

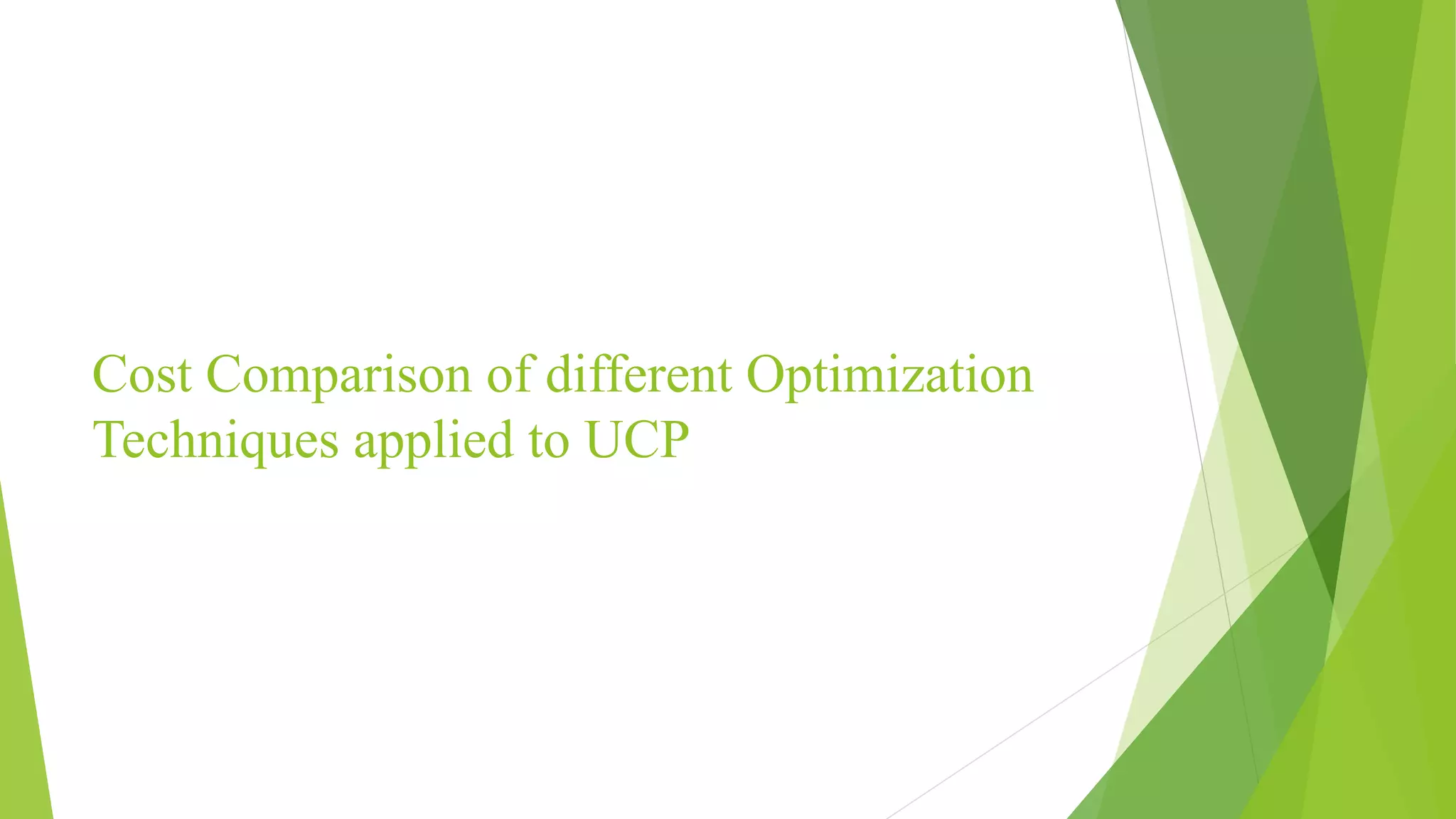

25. Cost Comparison of different Optimization
Techniques applied to UCP

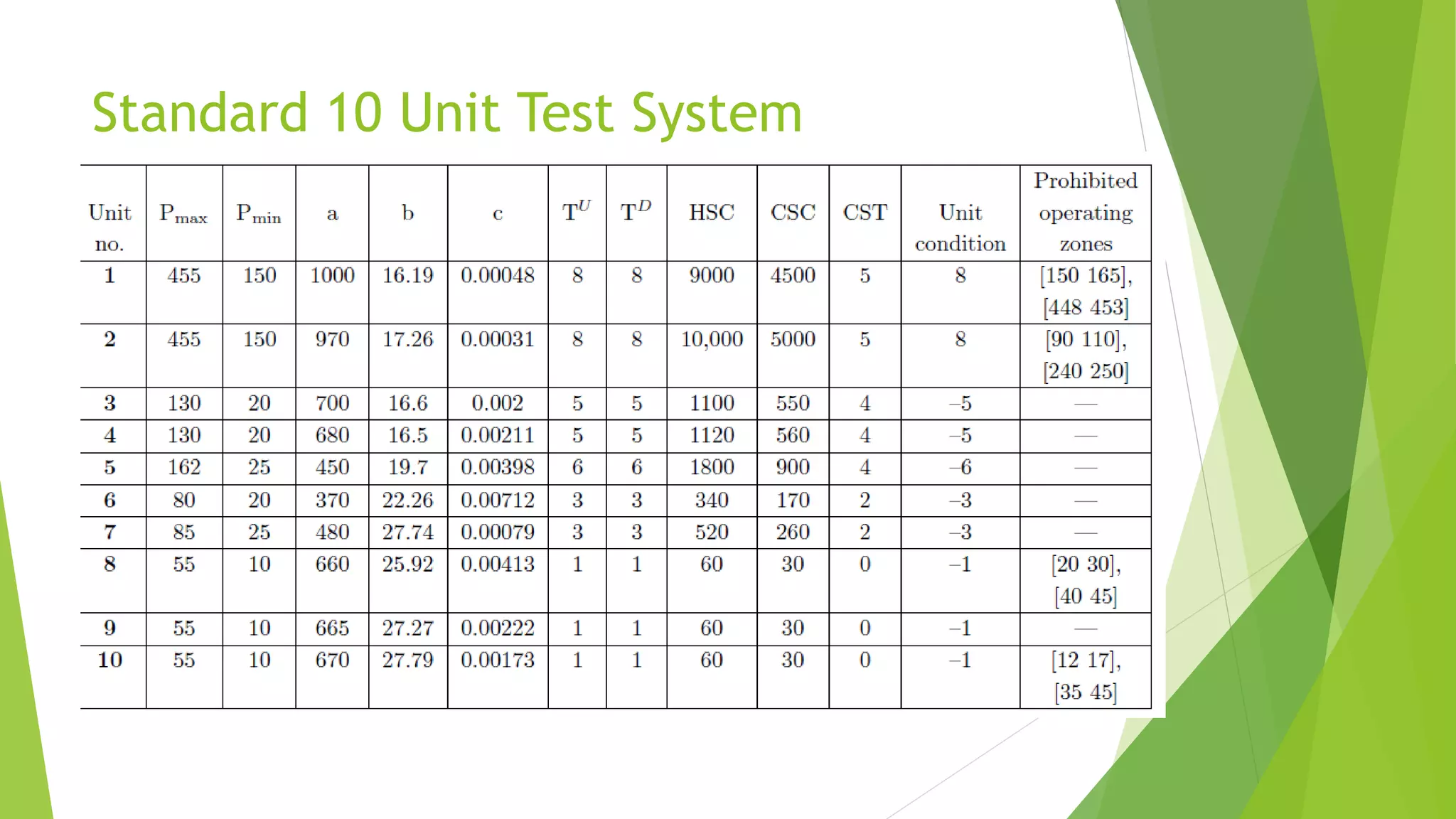

26. Standard 10 Unit Test System

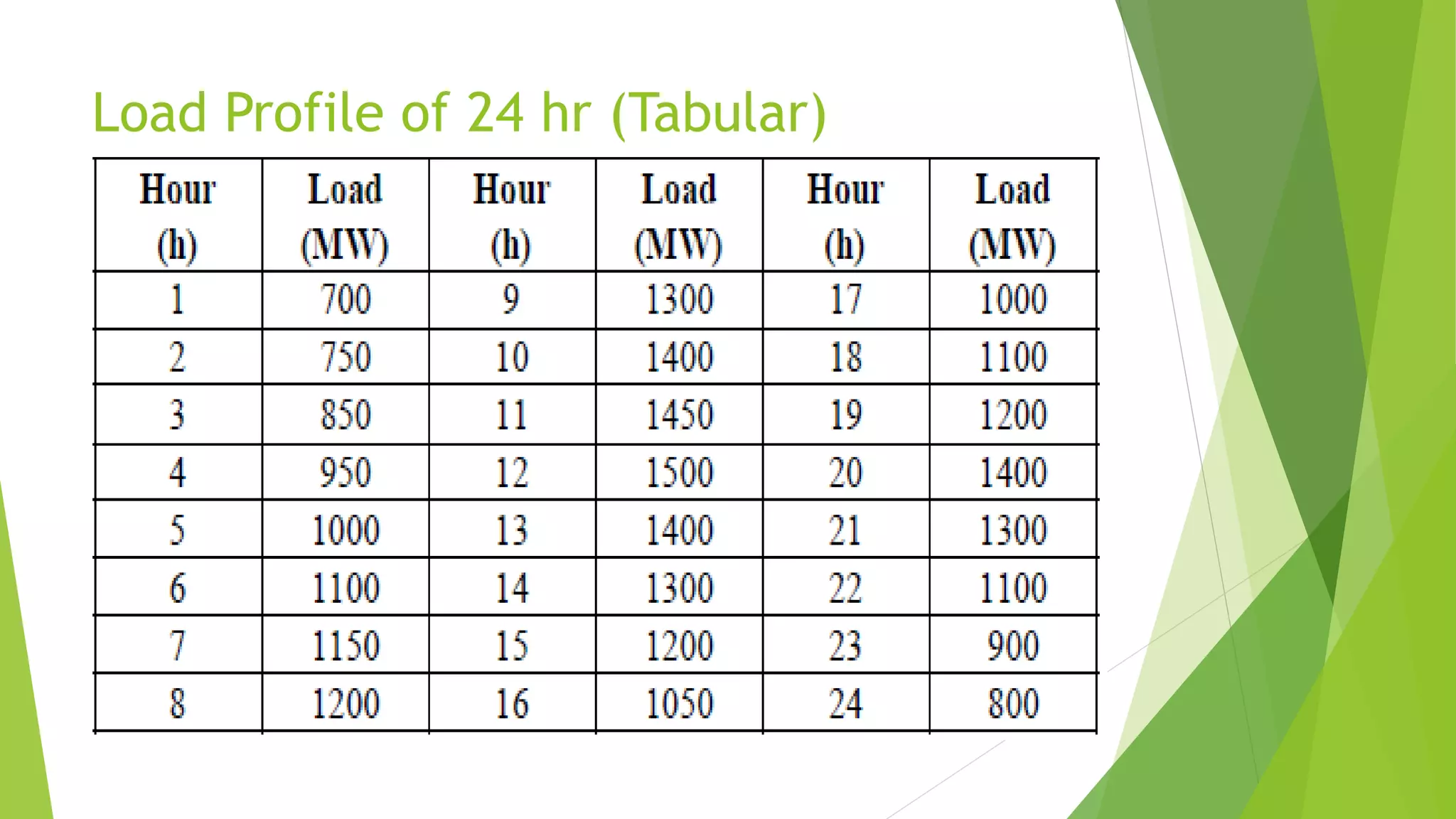

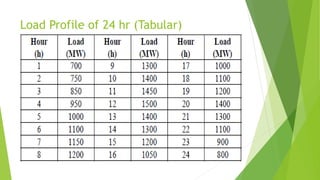

27. Load Profile of 24 hr (Tabular)

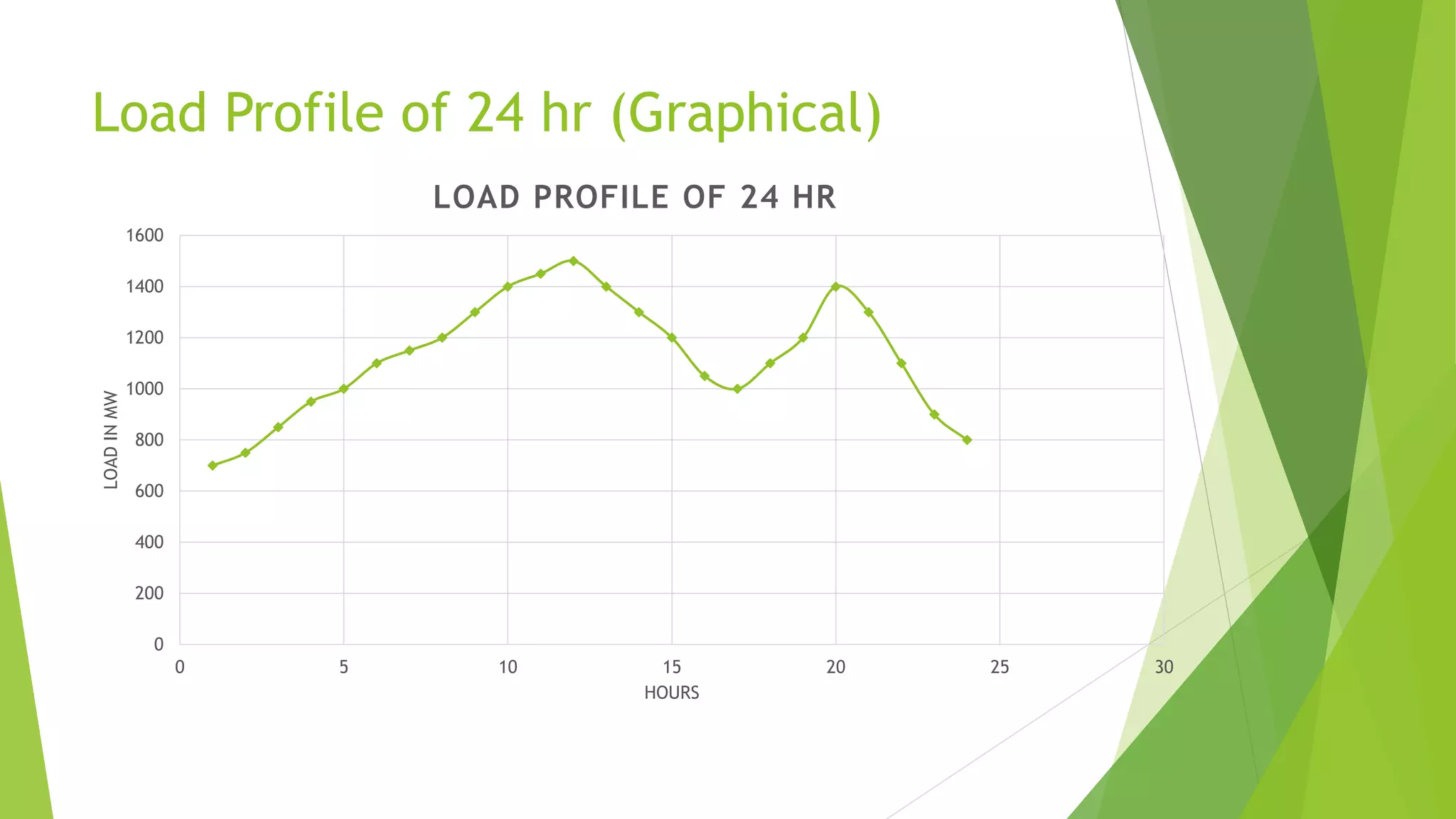

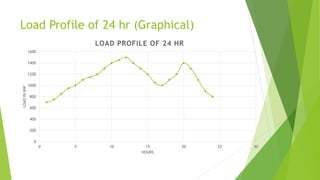

28. Load Profile of 24 hr (Graphical)
0
200
400
600
800
1000
1200
1400
1600
0 5 10 15 20 25 30
LOADINMW
HOURS
LOAD PROFILE OF 24 HR

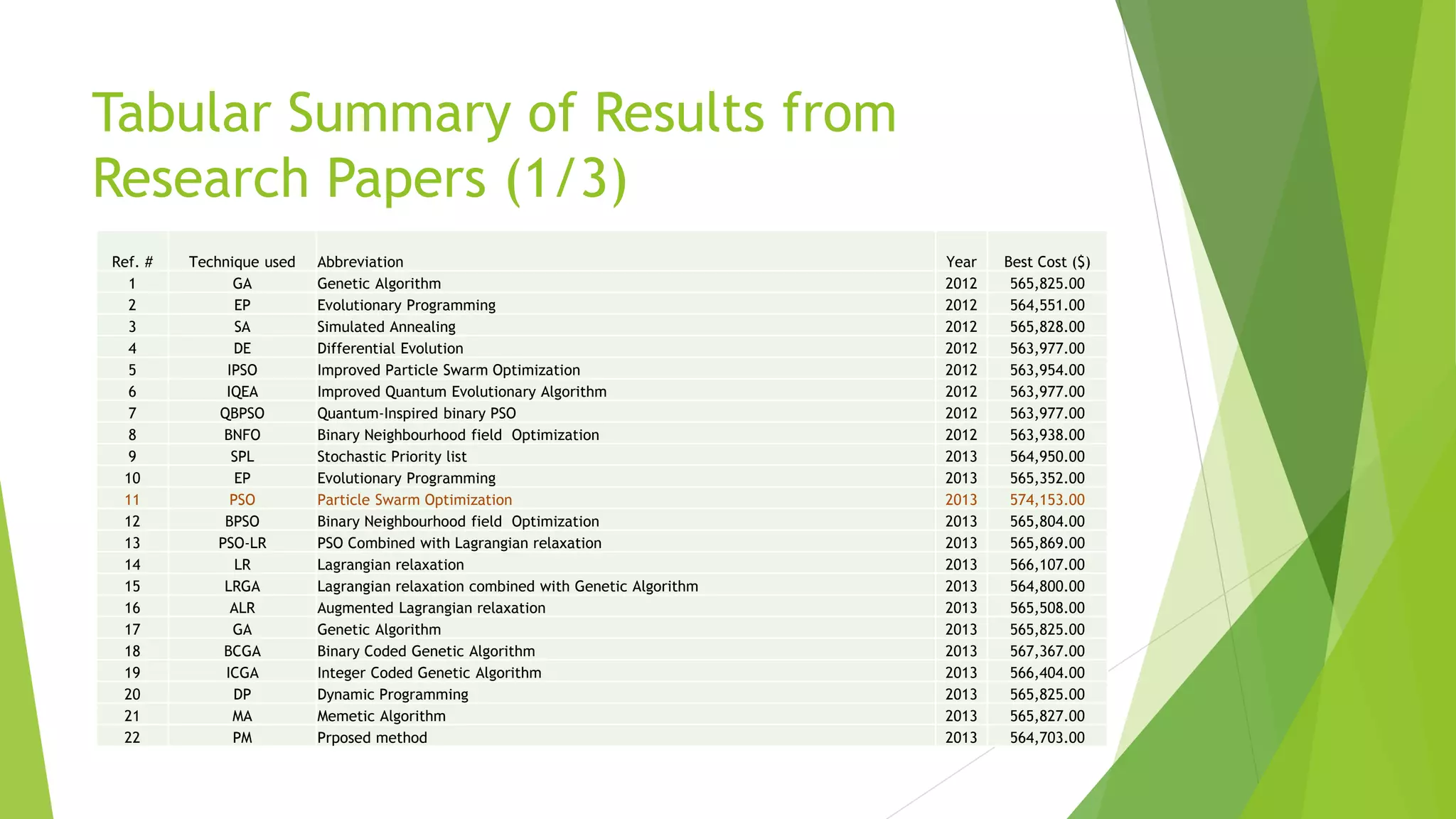

29. Tabular Summary of Results from
Research Papers (1/3)
Ref. # Technique used Abbreviation Year Best Cost ($)
1 GA Genetic Algorithm 2012 565,825.00
2 EP Evolutionary Programming 2012 564,551.00
3 SA Simulated Annealing 2012 565,828.00
4 DE Differential Evolution 2012 563,977.00
5 IPSO Improved Particle Swarm Optimization 2012 563,954.00
6 IQEA Improved Quantum Evolutionary Algorithm 2012 563,977.00
7 QBPSO Quantum-Inspired binary PSO 2012 563,977.00
8 BNFO Binary Neighbourhood field Optimization 2012 563,938.00
9 SPL Stochastic Priority list 2013 564,950.00
10 EP Evolutionary Programming 2013 565,352.00
11 PSO Particle Swarm Optimization 2013 574,153.00
12 BPSO Binary Neighbourhood field Optimization 2013 565,804.00
13 PSO-LR PSO Combined with Lagrangian relaxation 2013 565,869.00
14 LR Lagrangian relaxation 2013 566,107.00
15 LRGA Lagrangian relaxation combined with Genetic Algorithm 2013 564,800.00
16 ALR Augmented Lagrangian relaxation 2013 565,508.00
17 GA Genetic Algorithm 2013 565,825.00
18 BCGA Binary Coded Genetic Algorithm 2013 567,367.00
19 ICGA Integer Coded Genetic Algorithm 2013 566,404.00
20 DP Dynamic Programming 2013 565,825.00
21 MA Memetic Algorithm 2013 565,827.00
22 PM Prposed method 2013 564,703.00

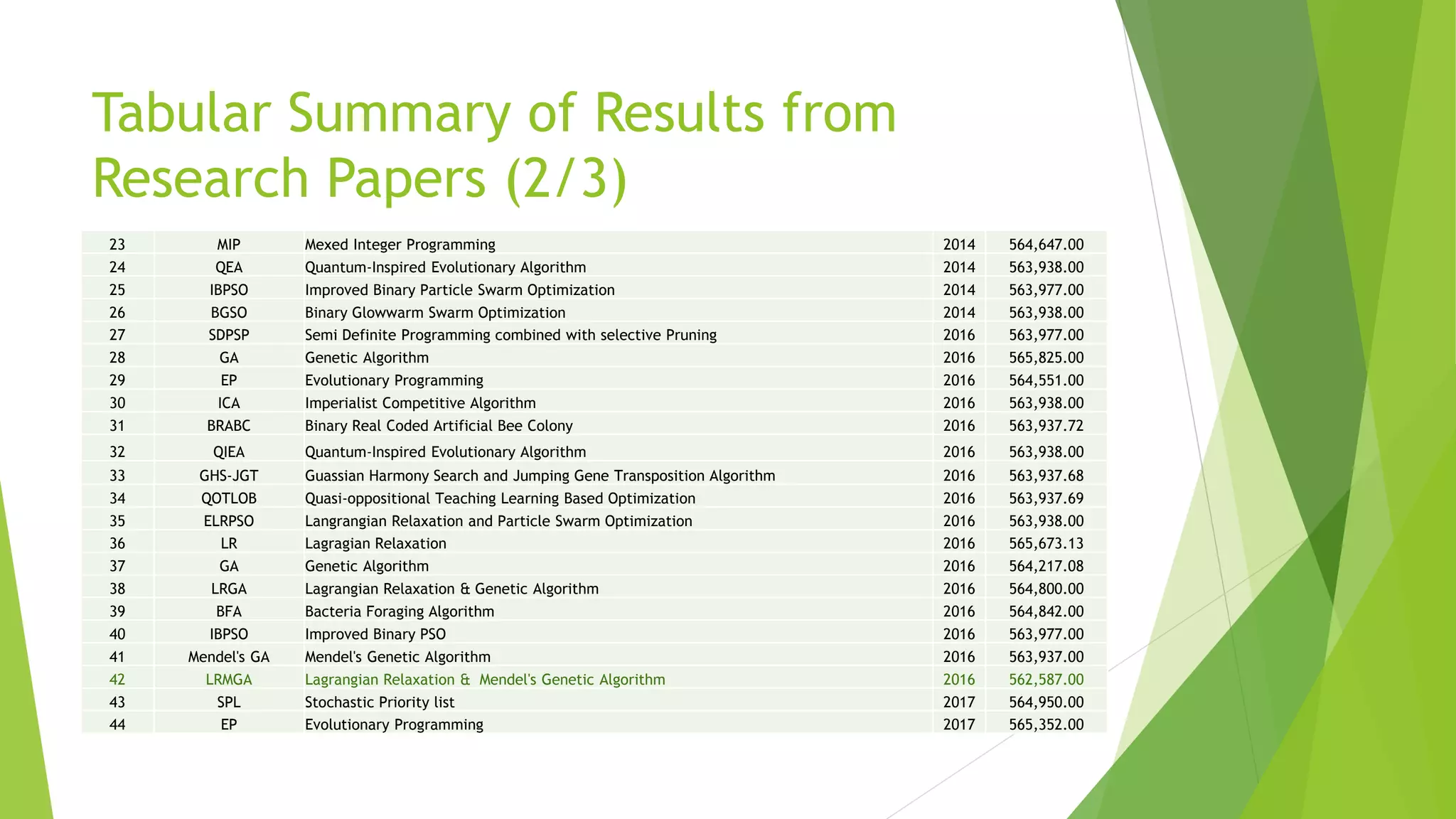

30. Tabular Summary of Results from
Research Papers (2/3)
23 MIP Mexed Integer Programming 2014 564,647.00
24 QEA Quantum-Inspired Evolutionary Algorithm 2014 563,938.00
25 IBPSO Improved Binary Particle Swarm Optimization 2014 563,977.00
26 BGSO Binary Glowwarm Swarm Optimization 2014 563,938.00
27 SDPSP Semi Definite Programming combined with selective Pruning 2016 563,977.00
28 GA Genetic Algorithm 2016 565,825.00
29 EP Evolutionary Programming 2016 564,551.00
30 ICA Imperialist Competitive Algorithm 2016 563,938.00
31 BRABC Binary Real Coded Artificial Bee Colony 2016 563,937.72
32 QIEA Quantum-Inspired Evolutionary Algorithm 2016 563,938.00
33 GHS-JGT Guassian Harmony Search and Jumping Gene Transposition Algorithm 2016 563,937.68
34 QOTLOB Quasi-oppositional Teaching Learning Based Optimization 2016 563,937.69
35 ELRPSO Langrangian Relaxation and Particle Swarm Optimization 2016 563,938.00
36 LR Lagragian Relaxation 2016 565,673.13
37 GA Genetic Algorithm 2016 564,217.08
38 LRGA Lagrangian Relaxation & Genetic Algorithm 2016 564,800.00
39 BFA Bacteria Foraging Algorithm 2016 564,842.00
40 IBPSO Improved Binary PSO 2016 563,977.00
41 Mendel's GA Mendel's Genetic Algorithm 2016 563,937.00
42 LRMGA Lagrangian Relaxation & Mendel's Genetic Algorithm 2016 562,587.00
43 SPL Stochastic Priority list 2017 564,950.00
44 EP Evolutionary Programming 2017 565,352.00

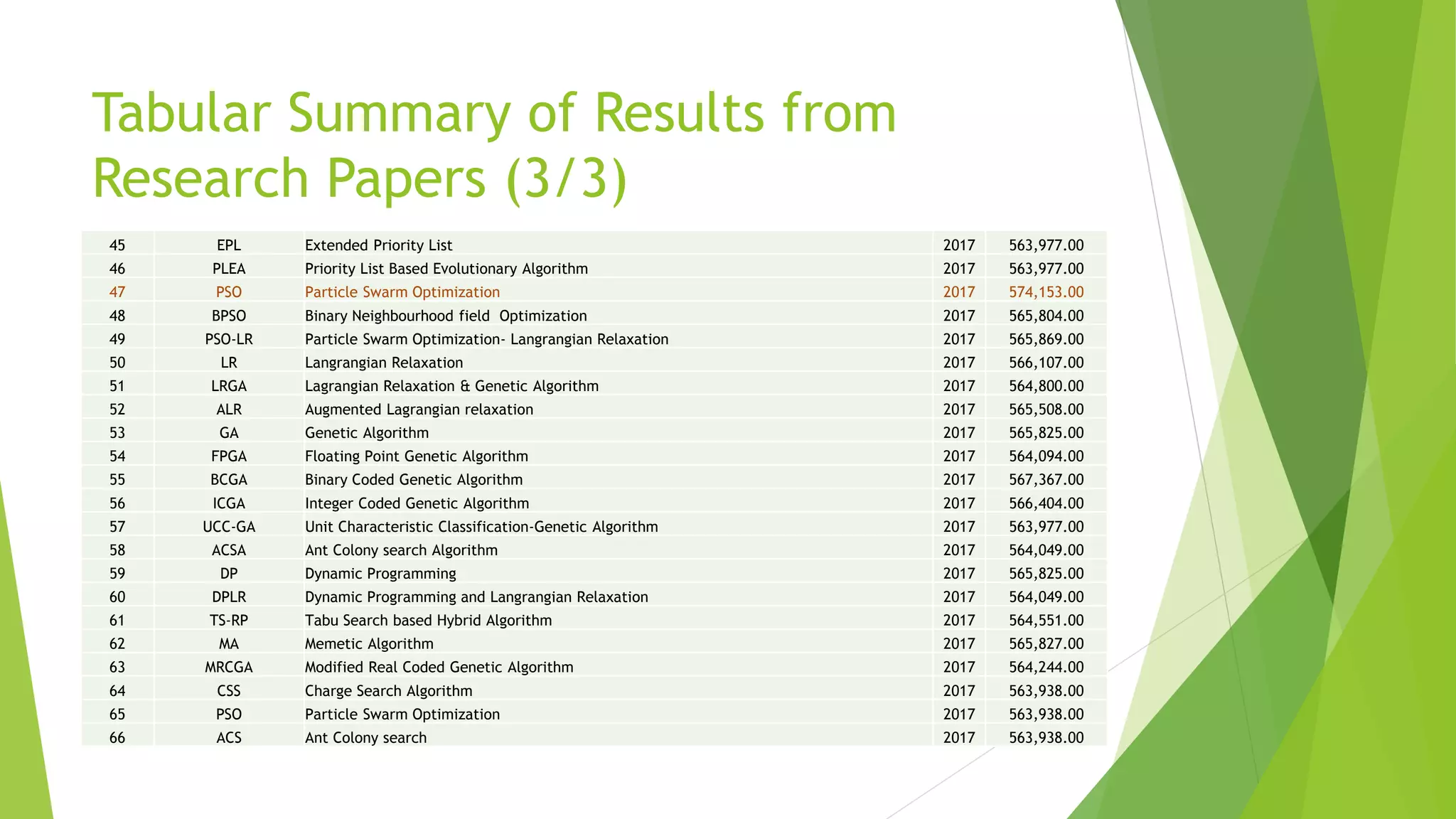

31. Tabular Summary of Results from
Research Papers (3/3)
45 EPL Extended Priority List 2017 563,977.00
46 PLEA Priority List Based Evolutionary Algorithm 2017 563,977.00
47 PSO Particle Swarm Optimization 2017 574,153.00
48 BPSO Binary Neighbourhood field Optimization 2017 565,804.00
49 PSO-LR Particle Swarm Optimization- Langrangian Relaxation 2017 565,869.00
50 LR Langrangian Relaxation 2017 566,107.00
51 LRGA Lagrangian Relaxation & Genetic Algorithm 2017 564,800.00
52 ALR Augmented Lagrangian relaxation 2017 565,508.00
53 GA Genetic Algorithm 2017 565,825.00
54 FPGA Floating Point Genetic Algorithm 2017 564,094.00
55 BCGA Binary Coded Genetic Algorithm 2017 567,367.00
56 ICGA Integer Coded Genetic Algorithm 2017 566,404.00
57 UCC-GA Unit Characteristic Classification-Genetic Algorithm 2017 563,977.00
58 ACSA Ant Colony search Algorithm 2017 564,049.00
59 DP Dynamic Programming 2017 565,825.00
60 DPLR Dynamic Programming and Langrangian Relaxation 2017 564,049.00
61 TS-RP Tabu Search based Hybrid Algorithm 2017 564,551.00
62 MA Memetic Algorithm 2017 565,827.00
63 MRCGA Modified Real Coded Genetic Algorithm 2017 564,244.00
64 CSS Charge Search Algorithm 2017 563,938.00
65 PSO Particle Swarm Optimization 2017 563,938.00
66 ACS Ant Colony search 2017 563,938.00

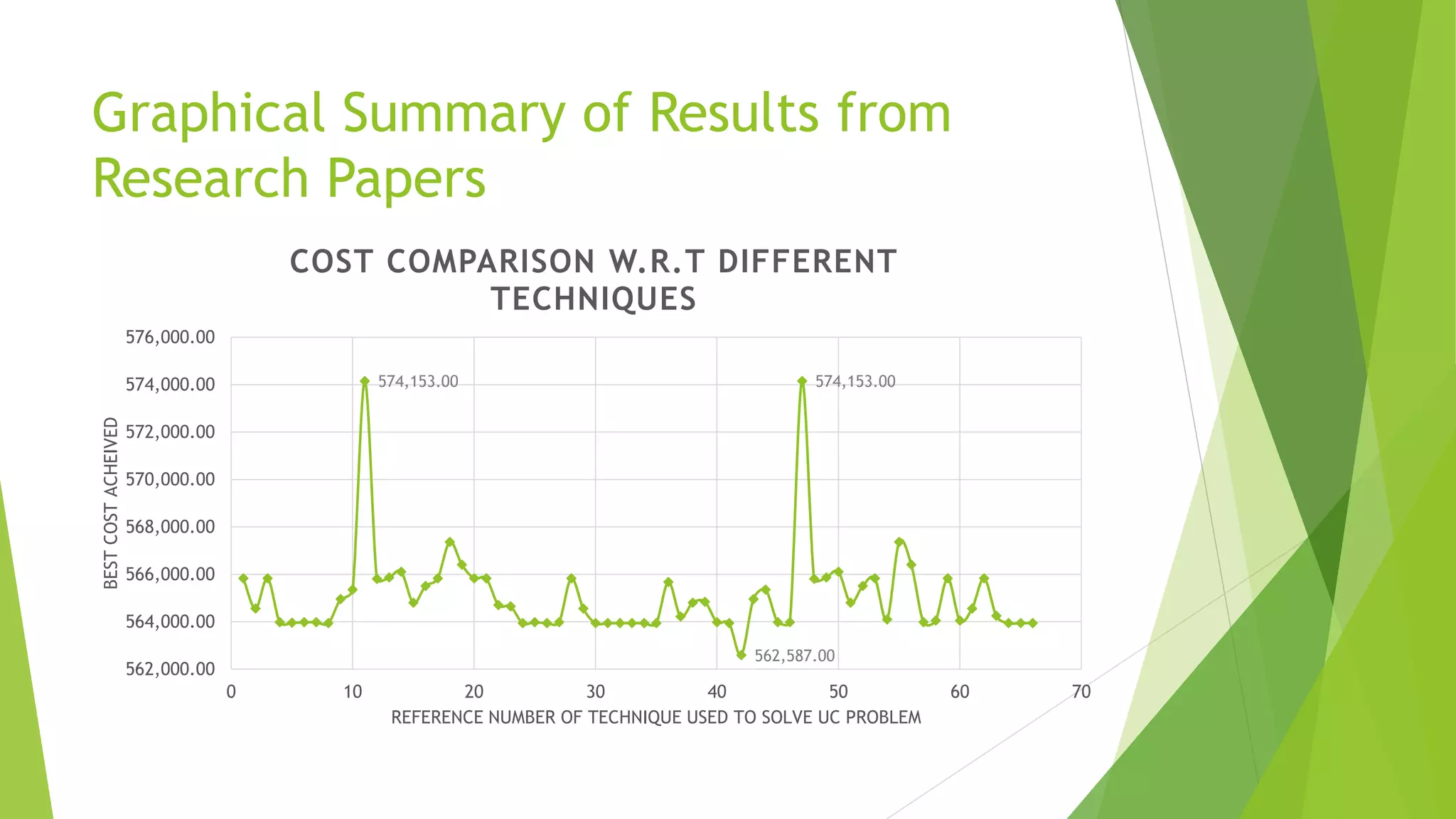

32. Graphical Summary of Results from
Research Papers
574,153.00
562,587.00
574,153.00
562,000.00
564,000.00
566,000.00
568,000.00
570,000.00
572,000.00
574,000.00
576,000.00
0 10 20 30 40 50 60 70
BESTCOSTACHEIVED
REFERENCE NUMBER OF TECHNIQUE USED TO SOLVE UC PROBLEM
COST COMPARISON W.R.T DIFFERENT
TECHNIQUES

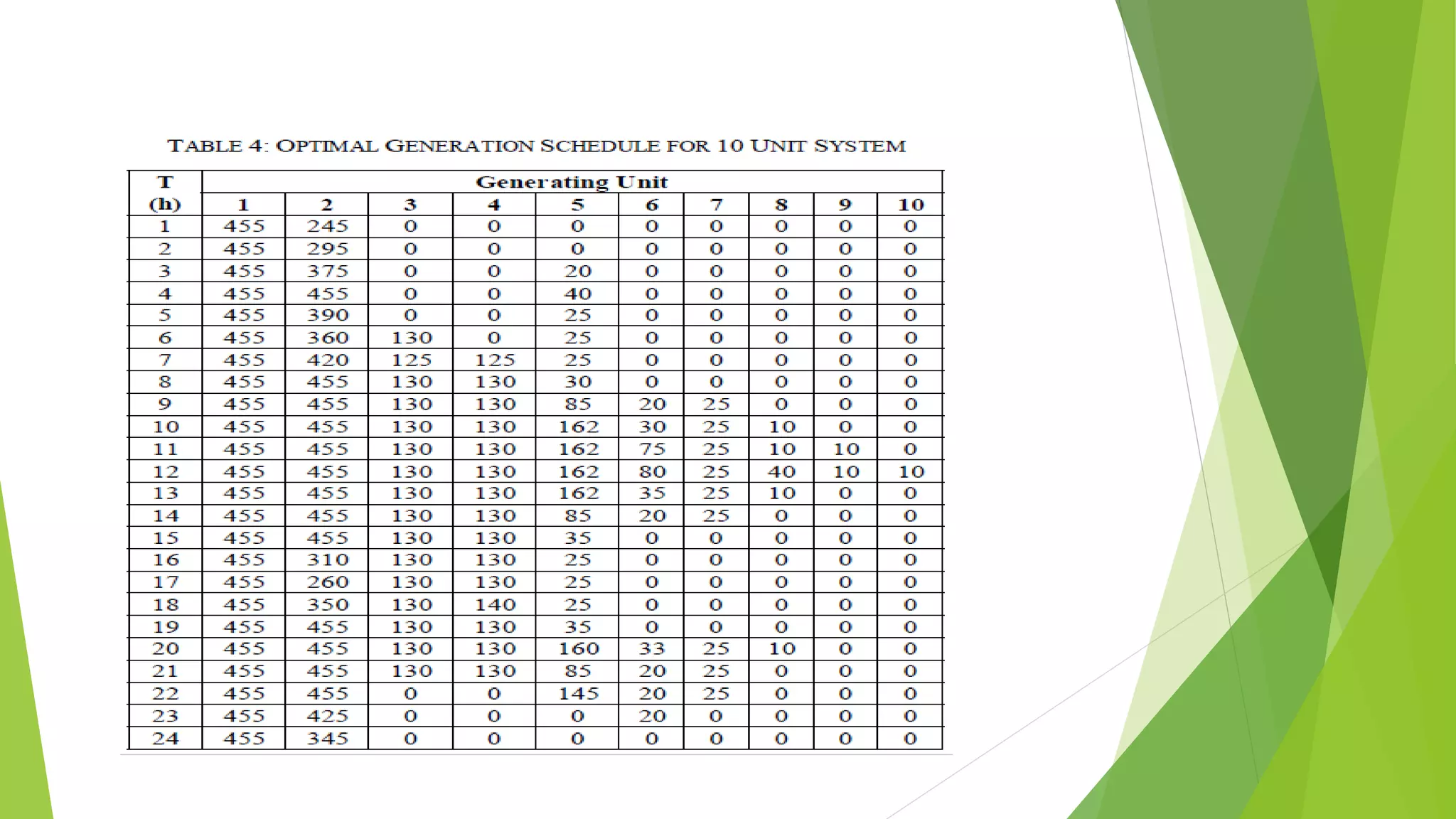

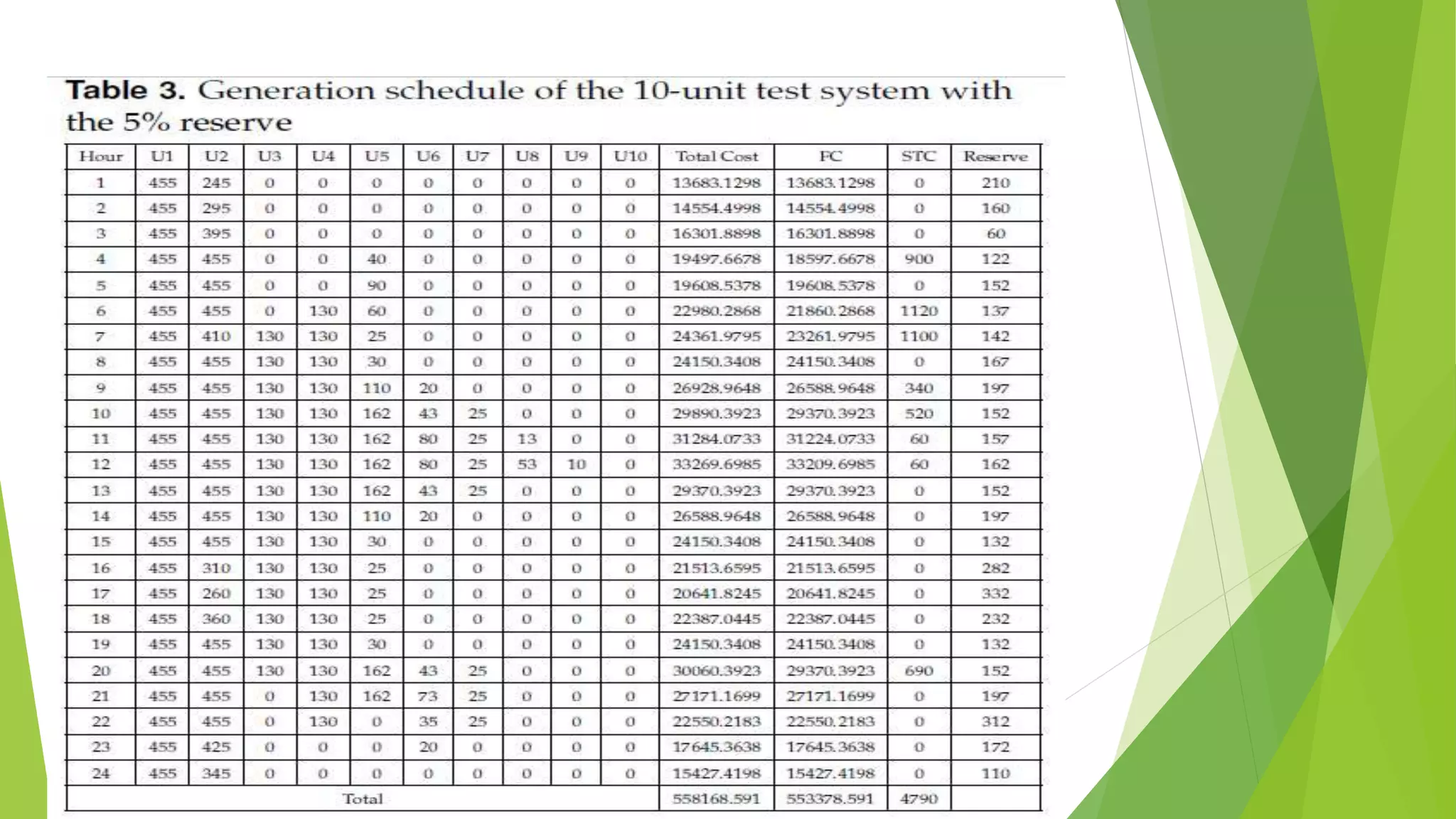

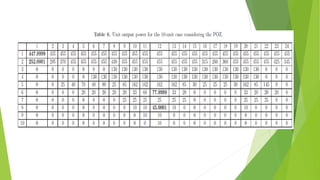

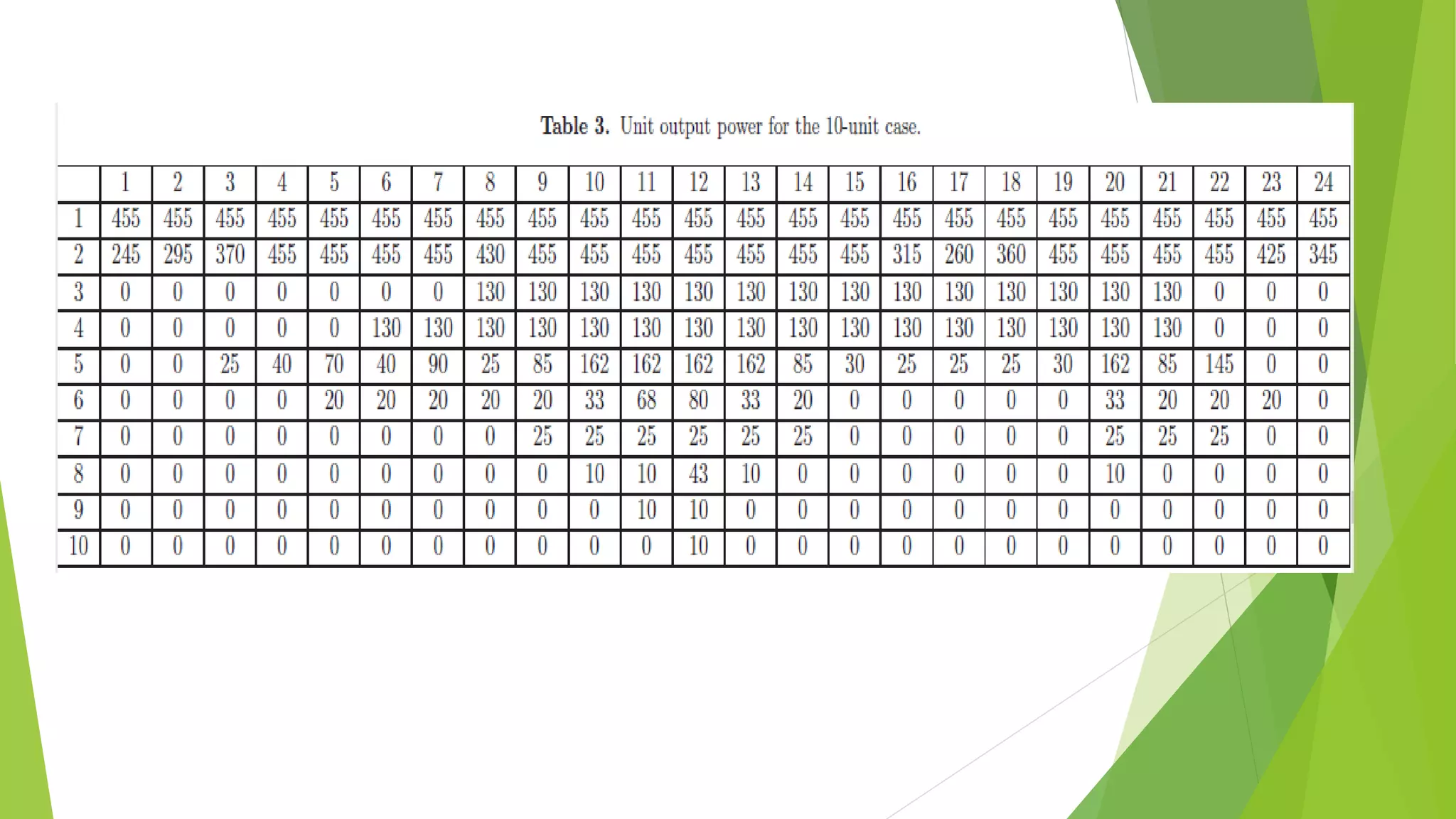

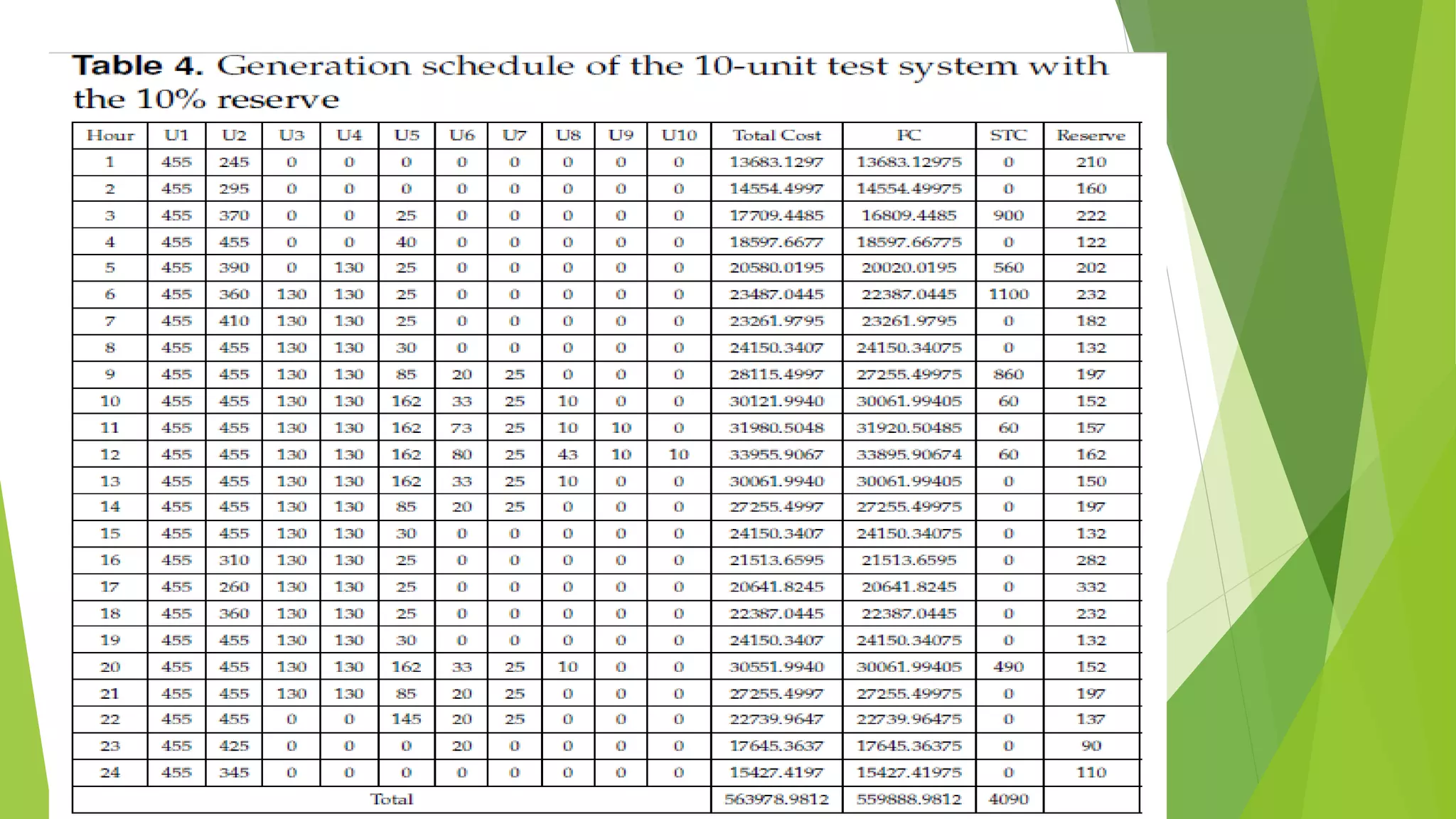

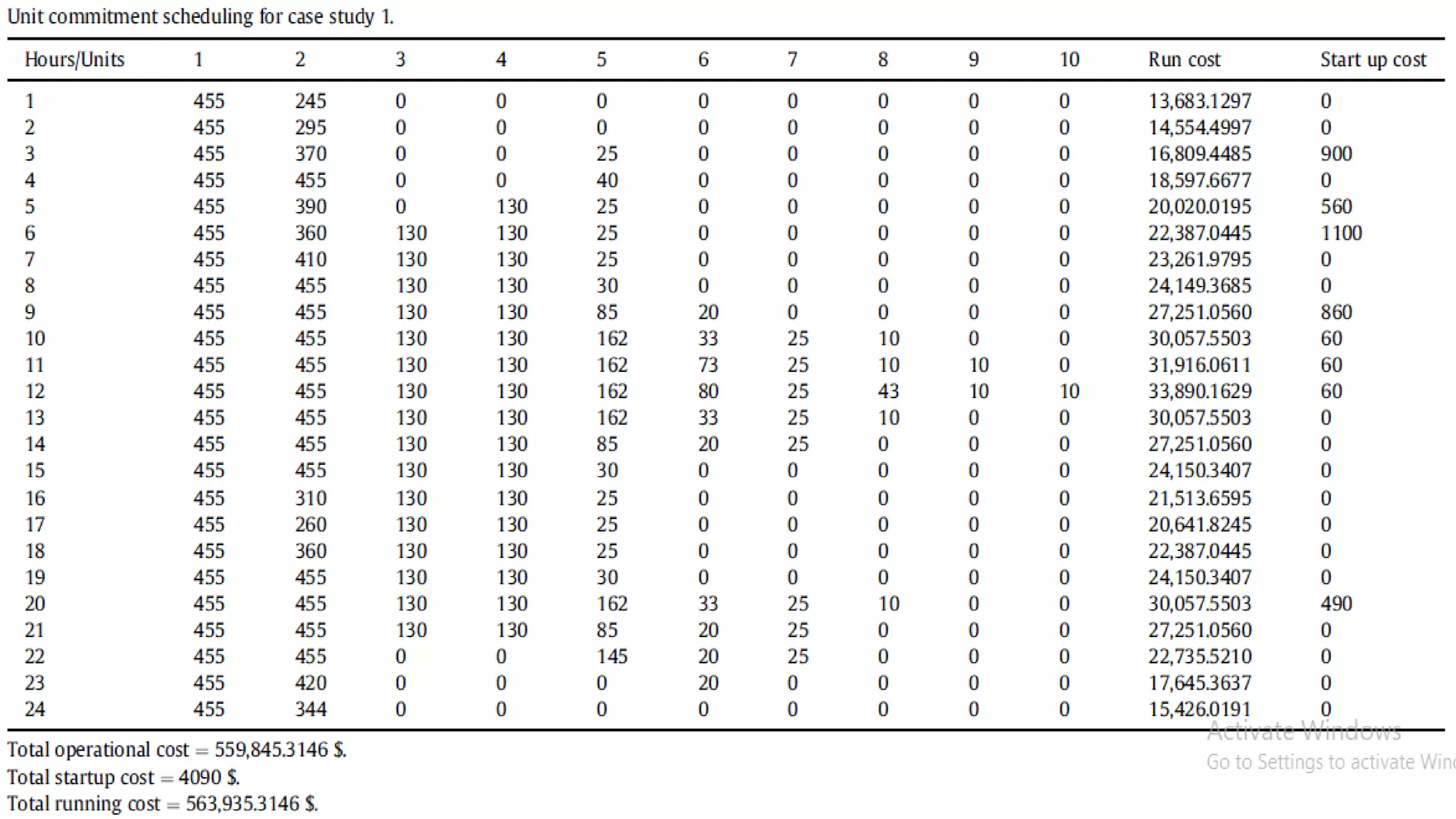

33. Some Binaries extracted from
Research Papers

41. Conclusion
 In this Presentation, we have learned
 Unit Commitment Problem Formulation
 Objective Function
 Constraints
 Some Algorithms Applied to UCP
 Results and Comparison from recent Research Papers

42. References
 Wu, Zhou, and Tommy WS Chow. "Binary neighbourhood field optimisation for
unit commitment problems." IET Generation, Transmission & Distribution 7.3
(2013): 298-308.
 Najafi, S. "A new heuristic algorithm for unit commitment problem." Energy
Procedia 14 (2012): 2005-2011.
 Sharma, Deepak, et al. "Multi-agent modeling for solving profit based unit
commitment problem." Applied Soft Computing 13.8 (2013): 3751-3761.
 Roy, Provas Kumar, and Ranadhir Sarkar. "Solution of unit commitment
problem using quasi-oppositional teaching learning based algorithm."
International Journal of Electrical Power & Energy Systems 60 (2014): 96-106.
 Mingwei, L. I., et al. "Binary glowworm swarm optimization for unit
commitment." Journal of Modern Power Systems and Clean Energy 2.4 (2014):
357-365.

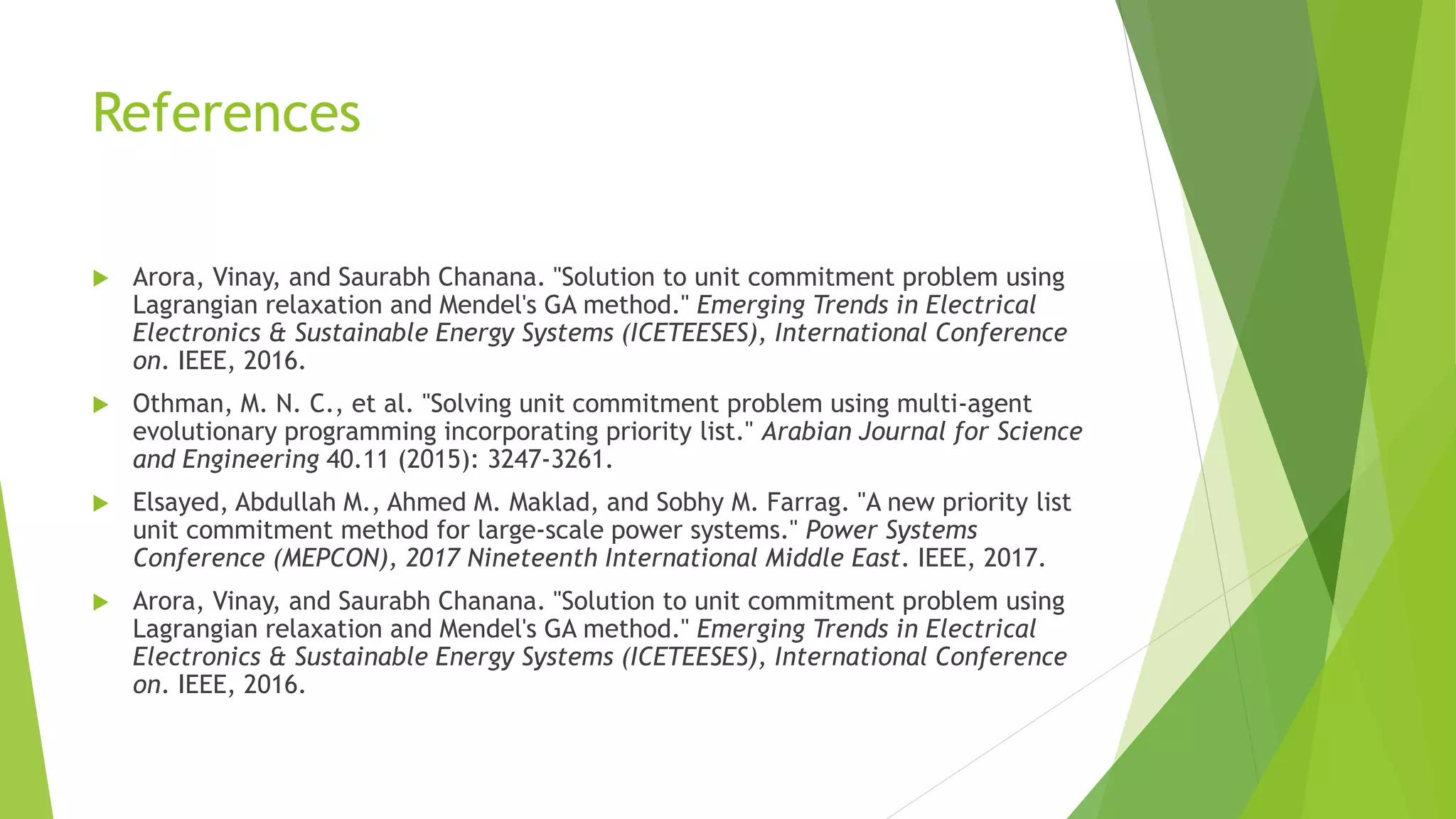

43. References
 Arora, Vinay, and Saurabh Chanana. "Solution to unit commitment problem using
Lagrangian relaxation and Mendel's GA method." Emerging Trends in Electrical
Electronics & Sustainable Energy Systems (ICETEESES), International Conference
on. IEEE, 2016.
 Othman, M. N. C., et al. "Solving unit commitment problem using multi-agent
evolutionary programming incorporating priority list." Arabian Journal for Science
and Engineering 40.11 (2015): 3247-3261.
 Elsayed, Abdullah M., Ahmed M. Maklad, and Sobhy M. Farrag. "A new priority list
unit commitment method for large-scale power systems." Power Systems
Conference (MEPCON), 2017 Nineteenth International Middle East. IEEE, 2017.
 Arora, Vinay, and Saurabh Chanana. "Solution to unit commitment problem using
Lagrangian relaxation and Mendel's GA method." Emerging Trends in Electrical
Electronics & Sustainable Energy Systems (ICETEESES), International Conference
on. IEEE, 2016.

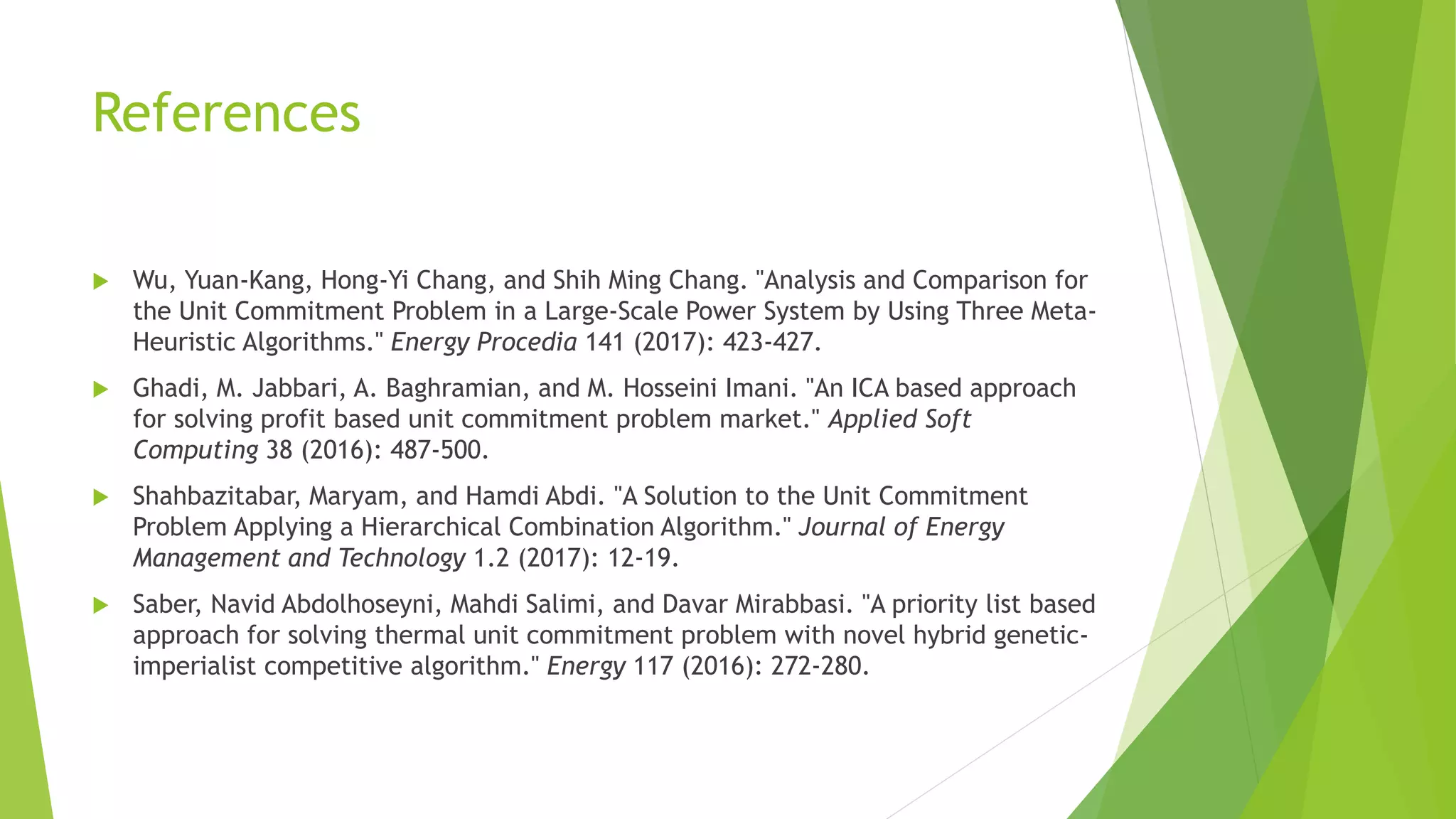

44. References
 Wu, Yuan-Kang, Hong-Yi Chang, and Shih Ming Chang. "Analysis and Comparison for
the Unit Commitment Problem in a Large-Scale Power System by Using Three Meta-
Heuristic Algorithms." Energy Procedia 141 (2017): 423-427.
 Ghadi, M. Jabbari, A. Baghramian, and M. Hosseini Imani. "An ICA based approach
for solving profit based unit commitment problem market." Applied Soft
Computing 38 (2016): 487-500.
 Shahbazitabar, Maryam, and Hamdi Abdi. "A Solution to the Unit Commitment
Problem Applying a Hierarchical Combination Algorithm." Journal of Energy
Management and Technology 1.2 (2017): 12-19.
 Saber, Navid Abdolhoseyni, Mahdi Salimi, and Davar Mirabbasi. "A priority list based
approach for solving thermal unit commitment problem with novel hybrid genetic-
imperialist competitive algorithm." Energy 117 (2016): 272-280.
