Unit 5_Interrupt programming in 8051 micro controller - part 2

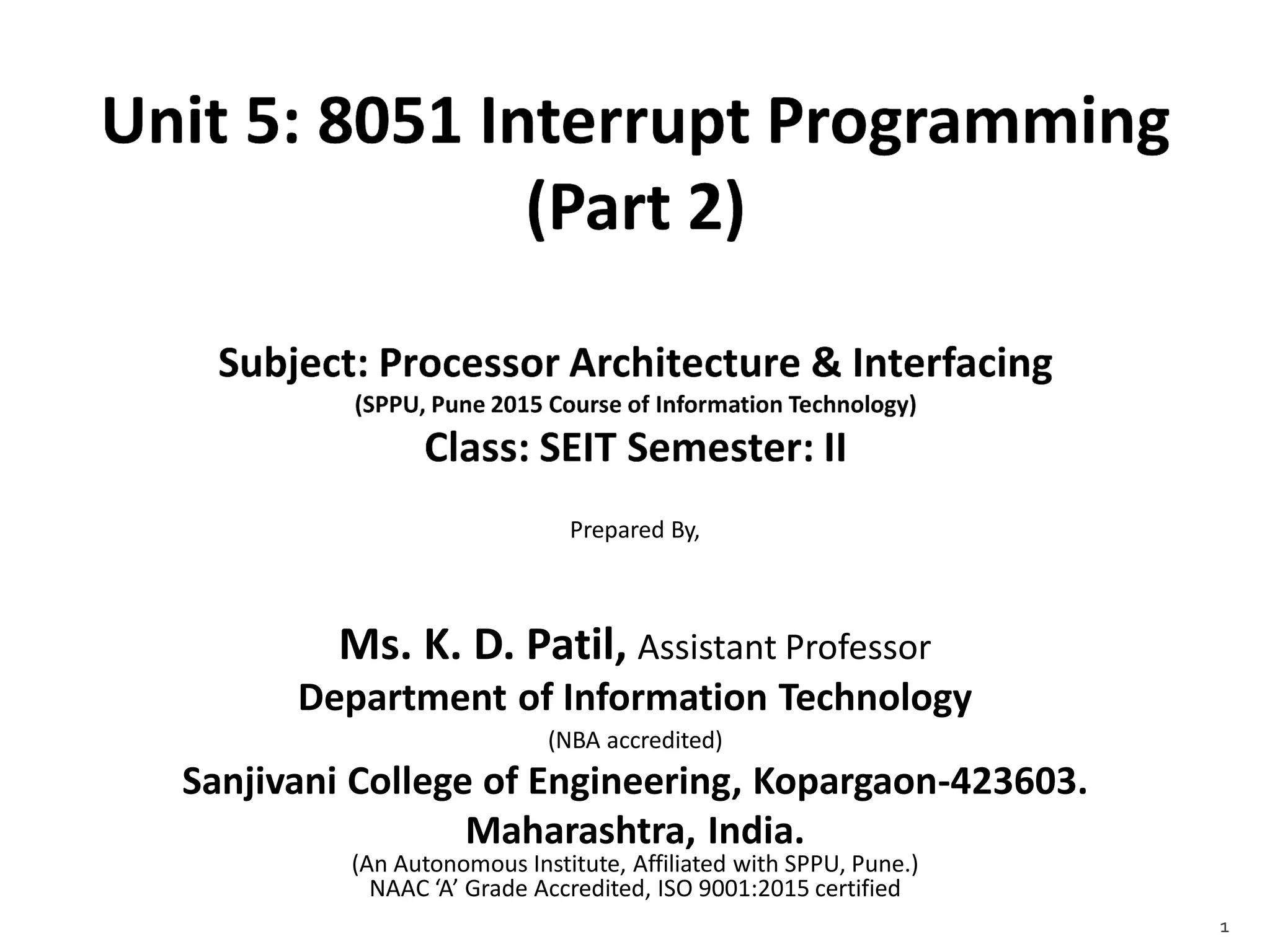

1. 1
Prepared By,
Ms. K. D. Patil, Assistant Professor
Department of Information Technology
(NBA accredited)
Sanjivani College of Engineering, Kopargaon-423603.
Maharashtra, India.
(An Autonomous Institute, Affiliated with SPPU, Pune.)
NAAC ‘A’ Grade Accredited, ISO 9001:2015 certified
2. There are two special function Registers
Interrupt Enable (IE) Register
▪ Bit addressable
▪ Used to enable/ Disable interrupts of 8051
Interrupt Priority (IP) Register
▪ Bit addressable
▪ Used to set the priority of interrupts
Prepared By: Ms. K. D. Patil, Dept. of InformationTechnology, Sanjivani COE,
Kopargaon 2
3. Prepared By: Ms. K. D. Patil, Dept. of InformationTechnology, Sanjivani COE,
Kopargaon 3
EA --- --- ES ET1 EX1 ET0 EX0
IE.7 IE.6 IE.5 IE.4 IE.3 IE.2 IE.1 IE.0
IE Bits Operation
EA IE.7 Enables/ Disables all interrupts
If EA = 0 , no interrupt will be acknowledged
If EA = 1, interrupt source is individually enabled/ disabled by setting or
clearing its enable bit
___ IE.6 Not Implemented, Reversed for future use
___ IE.5 Not Implemented, Reversed for future use
ES IE.4 enable/ disable the serial port interrupt
ET1 IE.3 enable/ disable theTimer 1 overflow interrupt
EX1 IE.2 enable/ disable External Interrupt 1
ET0 IE.1 enable/ disable theTimer 0 overflow interrupt
EX0 IE.0 enable/ disable External Interrupt 0
MSB LSB
4. When 8051 is powered up or upon reset, , IP register contains all
‘0’ s, making priority sequence based according to the below
Priority schema in table is nothing but an internal polling
sequence in which 8051 polls the interrupt in the sequence
To give higher priority in any of the interrupts, we make the
corresponding bit in IP register high
Prepared By: Ms. K. D. Patil, Dept. of InformationTechnology, Sanjivani COE,
Kopargaon 4
Type of Interrupt Priority
External Interrupt 0 INT 0 Highest Priority
Timer Interrupt 0 TF0
External Interrupt 1 INT 1
Timer Interrupt 1 TF1
Serial Communication RI +TI
Timer 2 Interrupt (8052 only) TF2 Lowest Priority
5. Prepared By: Ms. K. D. Patil, Dept. of InformationTechnology, Sanjivani COE,
Kopargaon 5
--- --- PT2 PS PT1 PX1 PT0 PX0
IP.7 IP.6 IP.5 IP.4 IP.3 IP.2 IP.1 IP.0
IP Bits Operation
___ IP.7 Not Implemented, Reversed for future use
___ IP.6 Not Implemented, Reversed for future use
PT2 IP.5 If PT2 = 1, High Priority
If PT2 = 0, Low Priority forTimer 2 Interrupt (In case of 8052)
PS IP.4 If PS = 1, High Priority
If PS = 0, Low Priority for Serial COM Interrupt
PT1 IP.3 If PT1 = 1, High Priority
If PT1 = 0, Low Priority forTimer 1 Interrupt
PX1 IP.2 If PX0 = 1, High Priority
If PX0 = 0, Low Priority for External Interrupt 1
PT0 IP.1 If PT2 = 1, High Priority
If PT2 = 0, Low Priority forTimer 0 Interrupt
PX0 IP.0 If PX0 = 1, High Priority
If PX0 = 0, Low Priority for External Interrupt 0

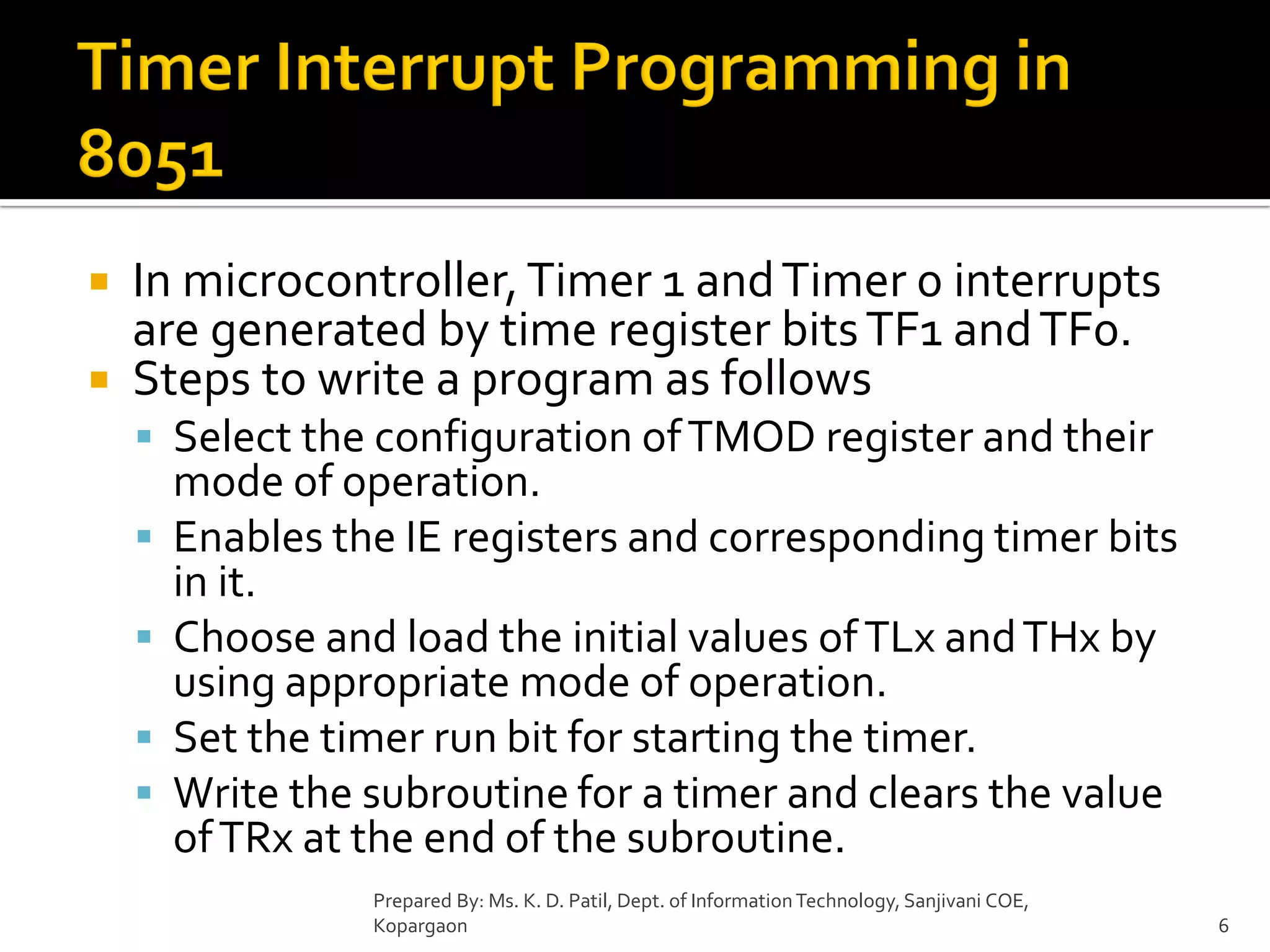

6. In microcontroller,Timer 1 andTimer 0 interrupts
are generated by time register bitsTF1 andTF0.
Steps to write a program as follows
Select the configuration ofTMOD register and their
mode of operation.
Enables the IE registers and corresponding timer bits
in it.
Choose and load the initial values ofTLx andTHx by
using appropriate mode of operation.
Set the timer run bit for starting the timer.
Write the subroutine for a timer and clears the value
ofTRx at the end of the subroutine.
Prepared By: Ms. K. D. Patil, Dept. of InformationTechnology, Sanjivani COE,
Kopargaon 6
7. ORG 0oH ;wake-up ROM reset location
LJMP MAIN ;by-pass interrupt vector table
ORG 30H ;main program for initialization
MAIN:
....
END
While writing a program using interrupt we must
avoid using memory space allocated to the Interrupt
VectorTable.Therefore, we place all the initialization
codes in the memory starting at 30H
LJMP is the first instruction that the 8051 executes
when it is powered up
LJMP redirects the controller away from the IVT
Prepared By: Ms. K. D. Patil, Dept. of InformationTechnology, Sanjivani COE,
Kopargaon 7

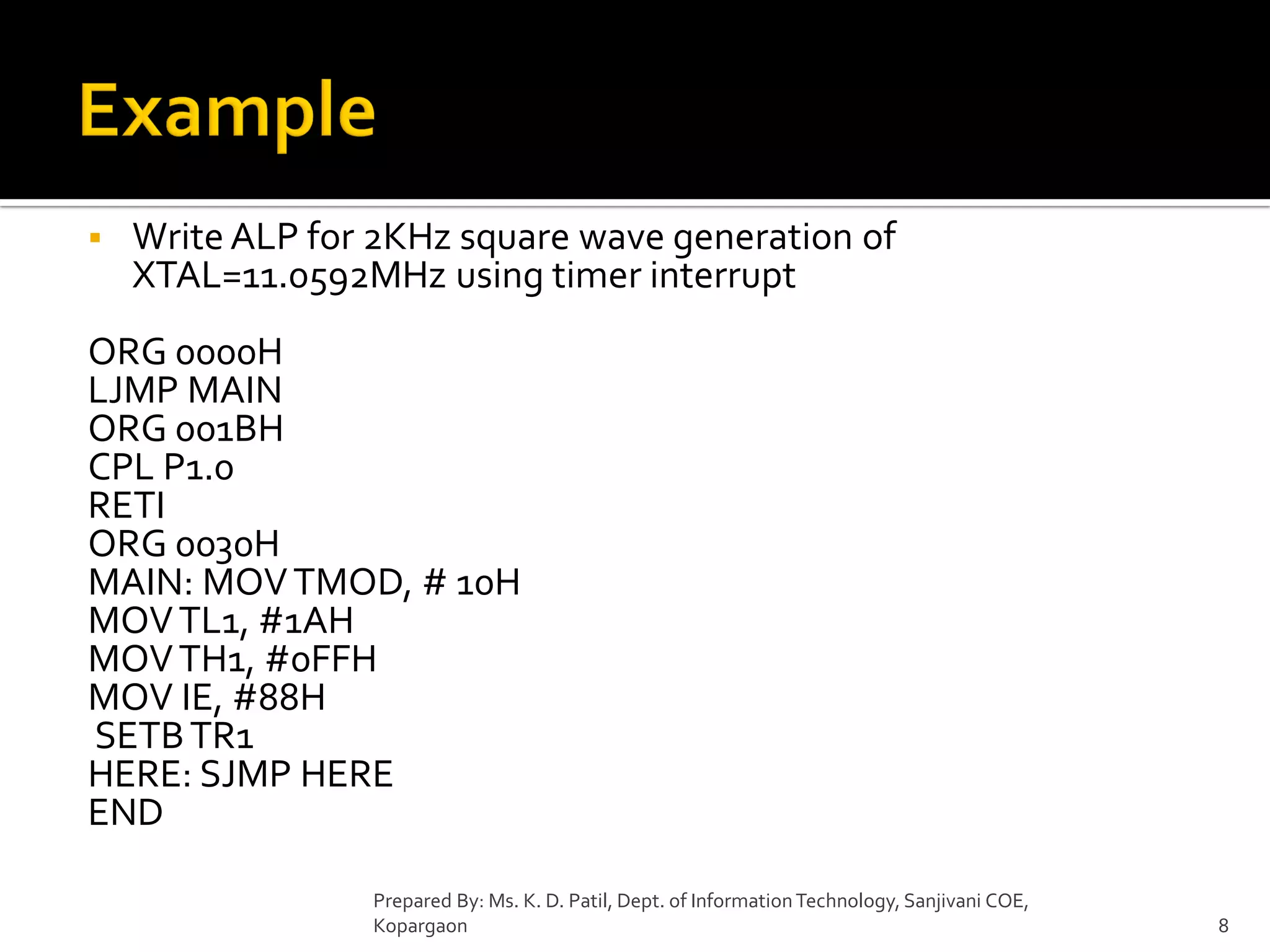

8. Write ALP for 2KHz square wave generation of
XTAL=11.0592MHz using timer interrupt
ORG 0000H
LJMP MAIN
ORG 001BH
CPL P1.0
RETI
ORG 0030H
MAIN: MOVTMOD, # 10H
MOVTL1, #1AH
MOVTH1, #0FFH
MOV IE, #88H
SETBTR1
HERE: SJMP HERE
END
Prepared By: Ms. K. D. Patil, Dept. of InformationTechnology, Sanjivani COE,
Kopargaon 8

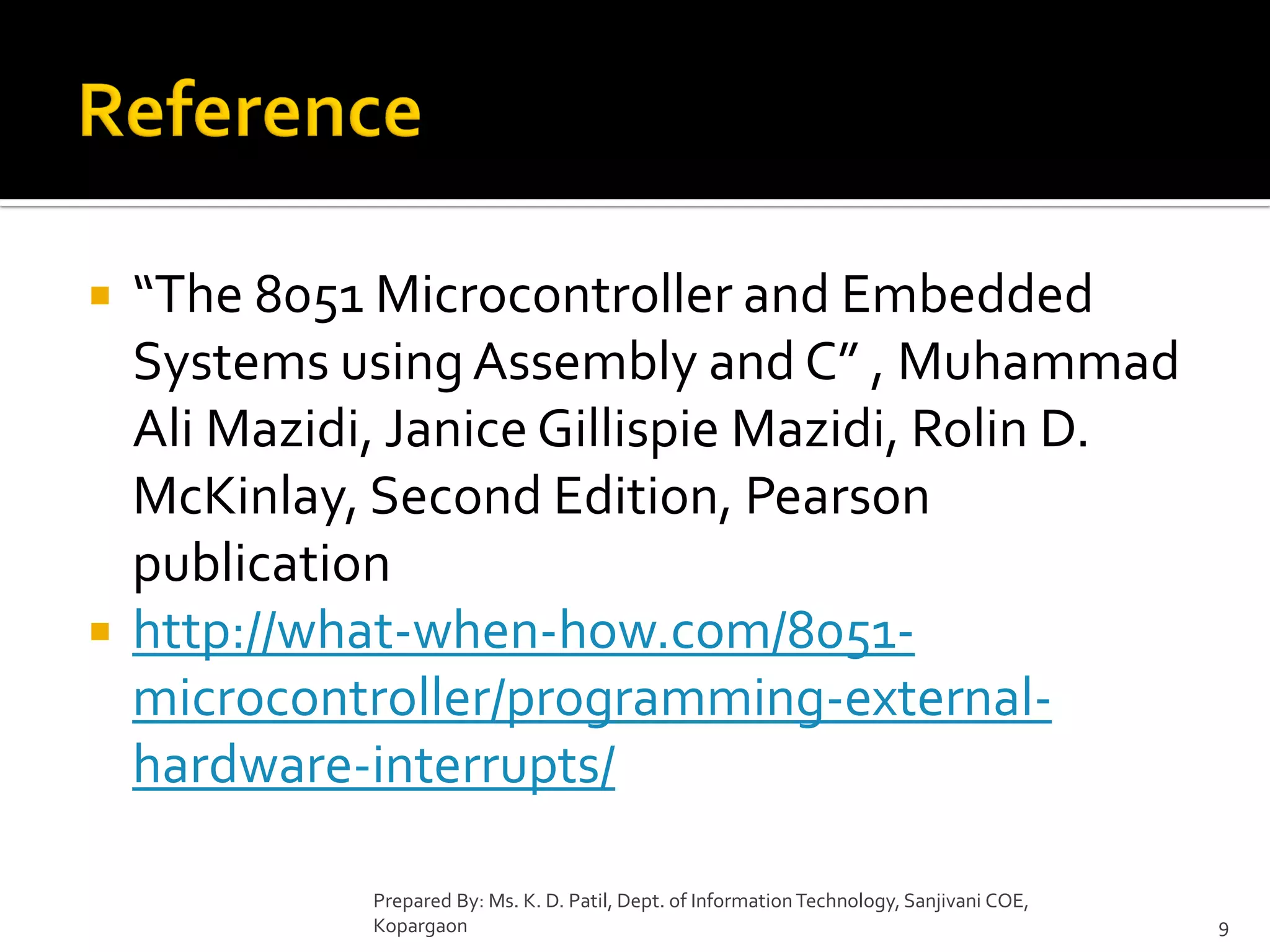

9. “The 8051 Microcontroller and Embedded
Systems usingAssembly and C” , Muhammad
Ali Mazidi, Janice Gillispie Mazidi, Rolin D.
McKinlay, Second Edition, Pearson
publication
http://what-when-how.com/8051-
microcontroller/programming-external-
hardware-interrupts/
Prepared By: Ms. K. D. Patil, Dept. of InformationTechnology, Sanjivani COE,
Kopargaon 9
10. Prepared By: Ms. K. D. Patil, Dept. of InformationTechnology, Sanjivani COE,
Kopargaon 10
