Unit 5 oscillators and voltage regulators

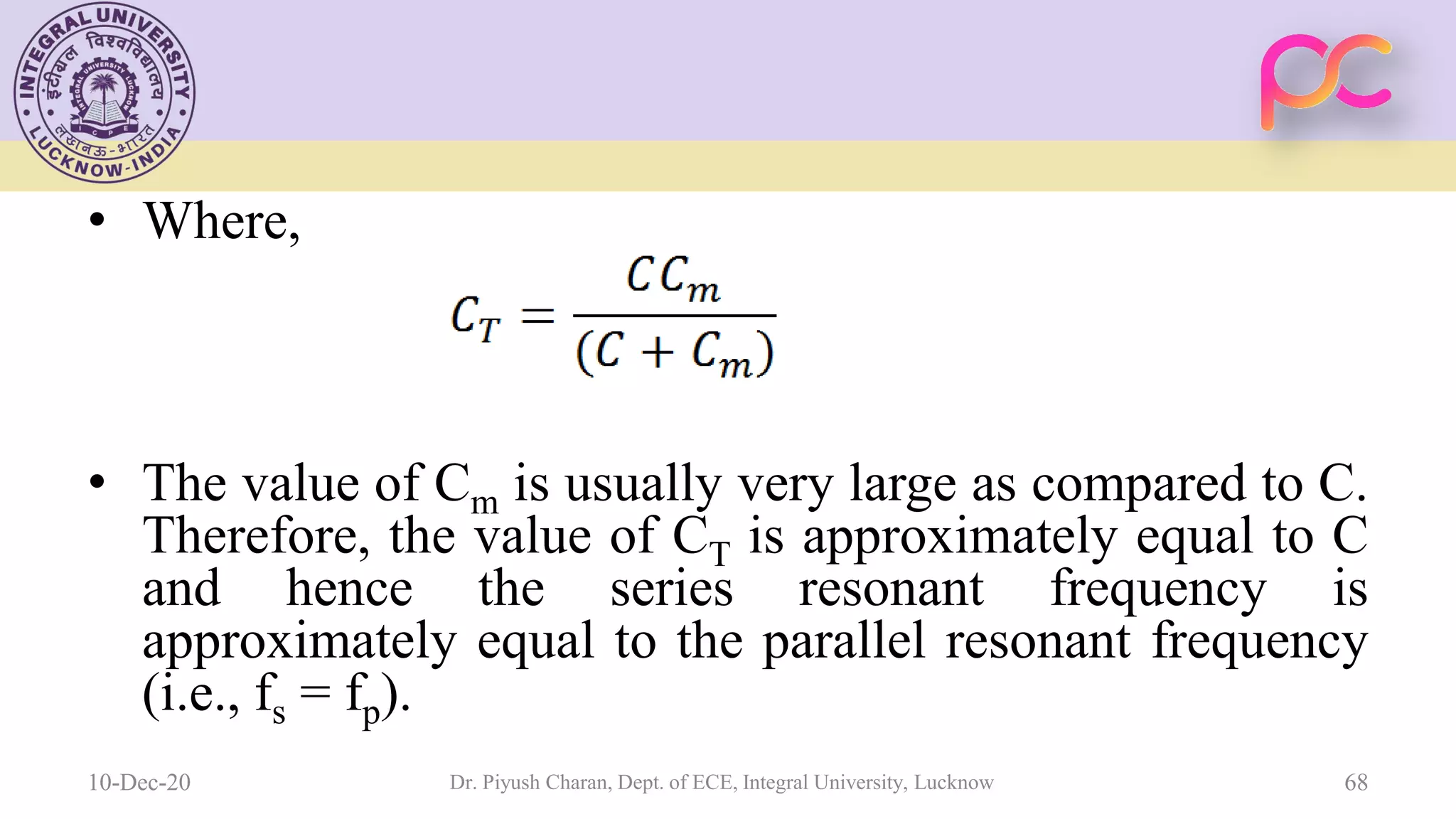

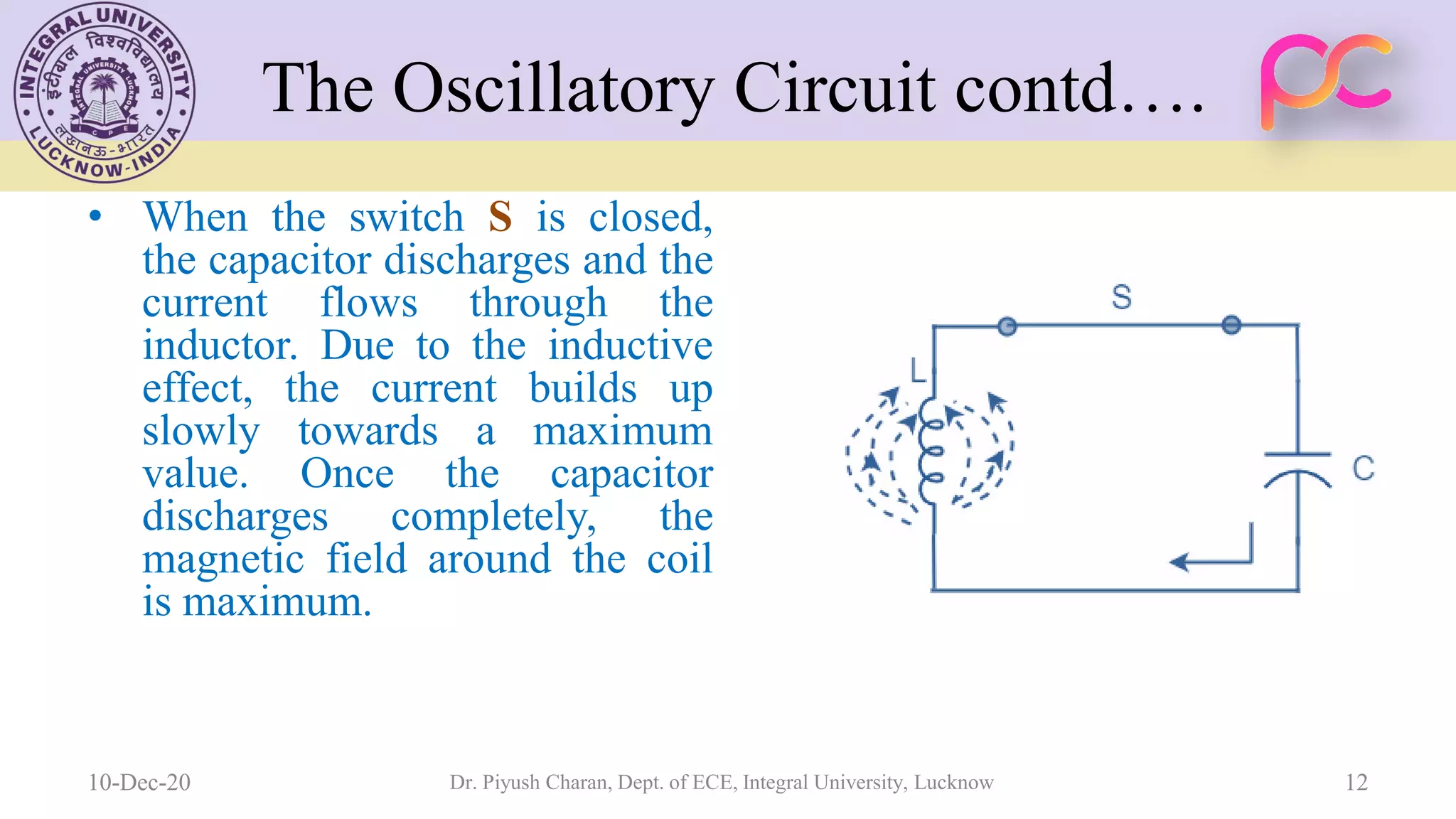

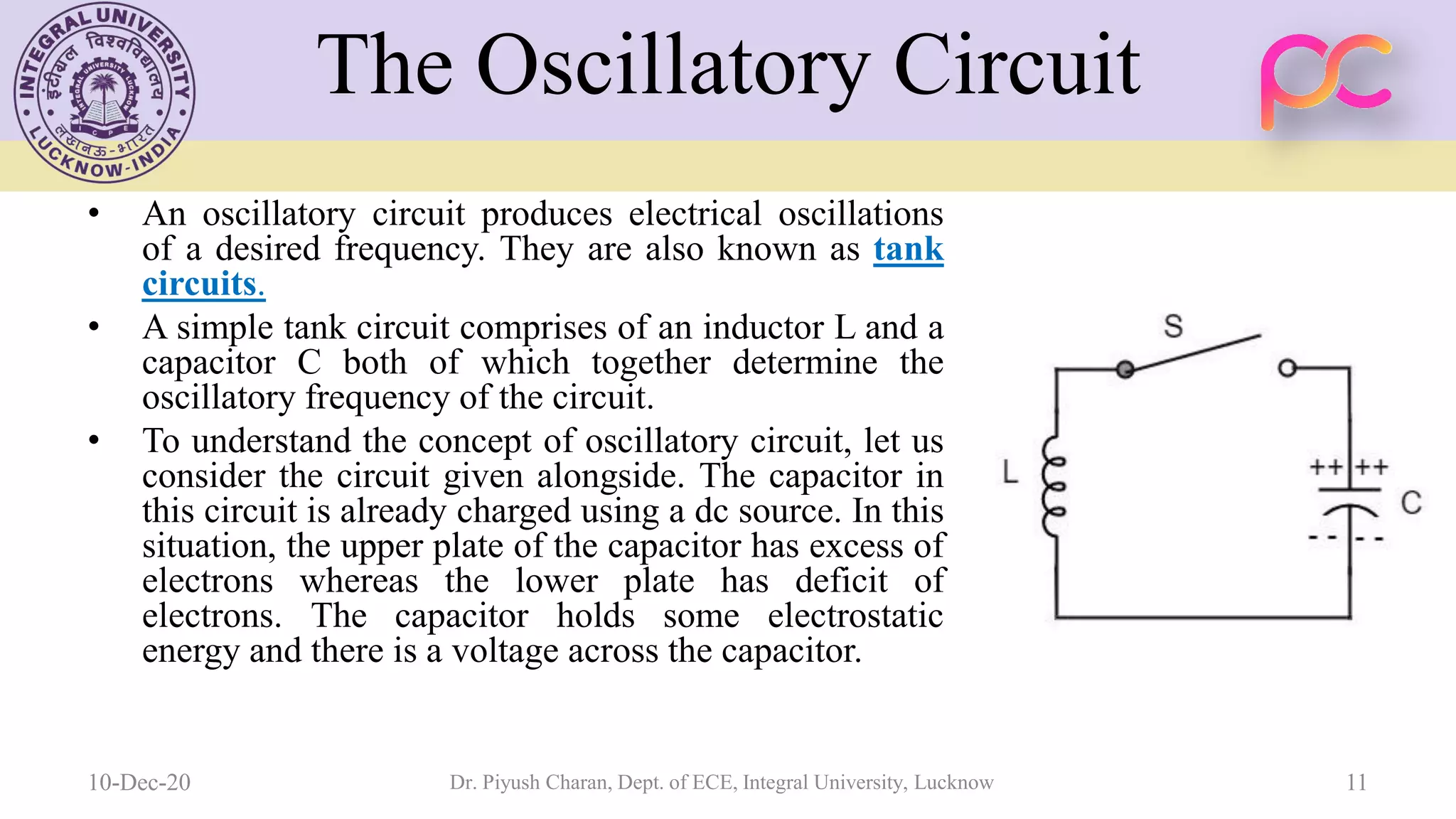

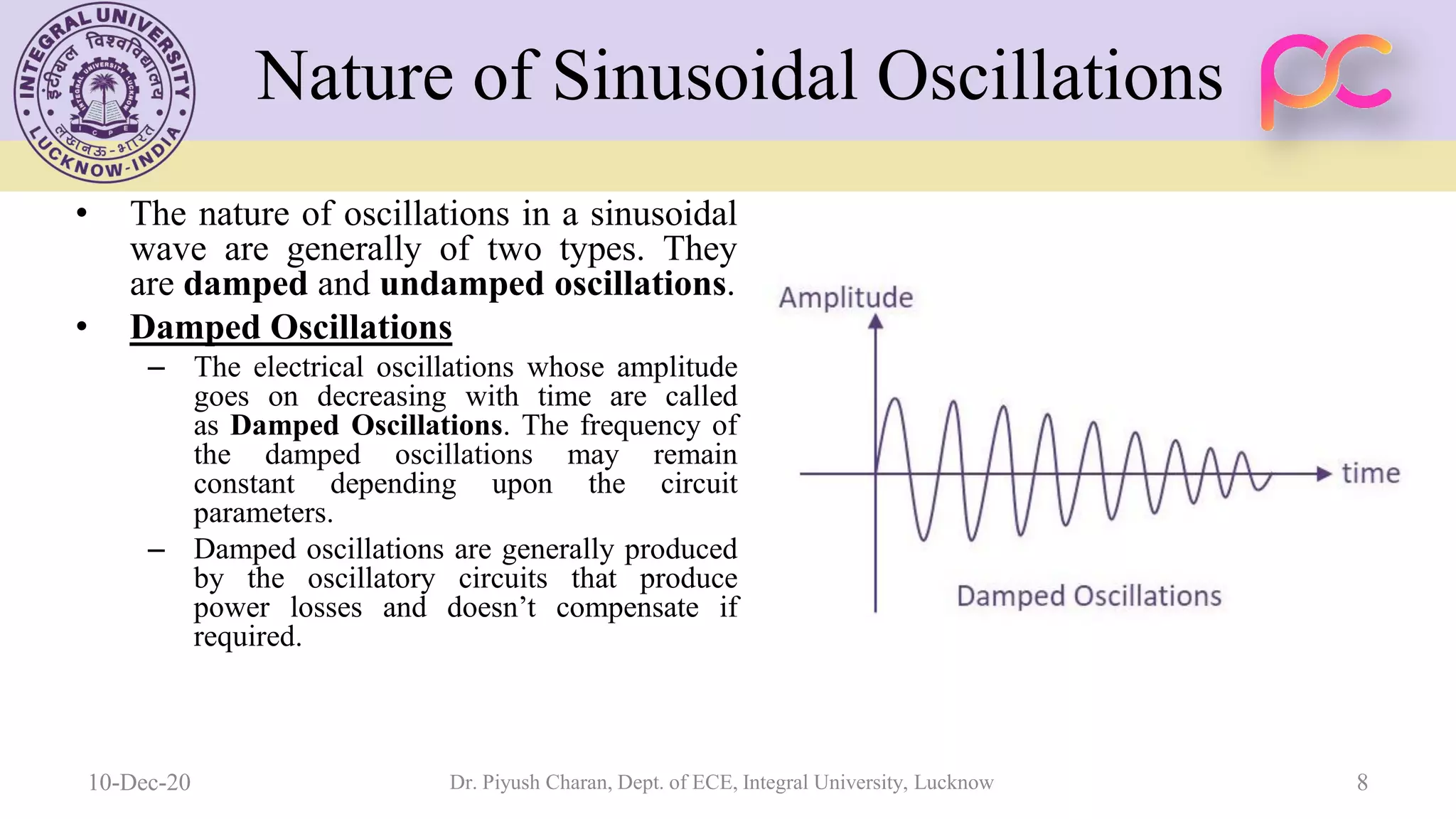

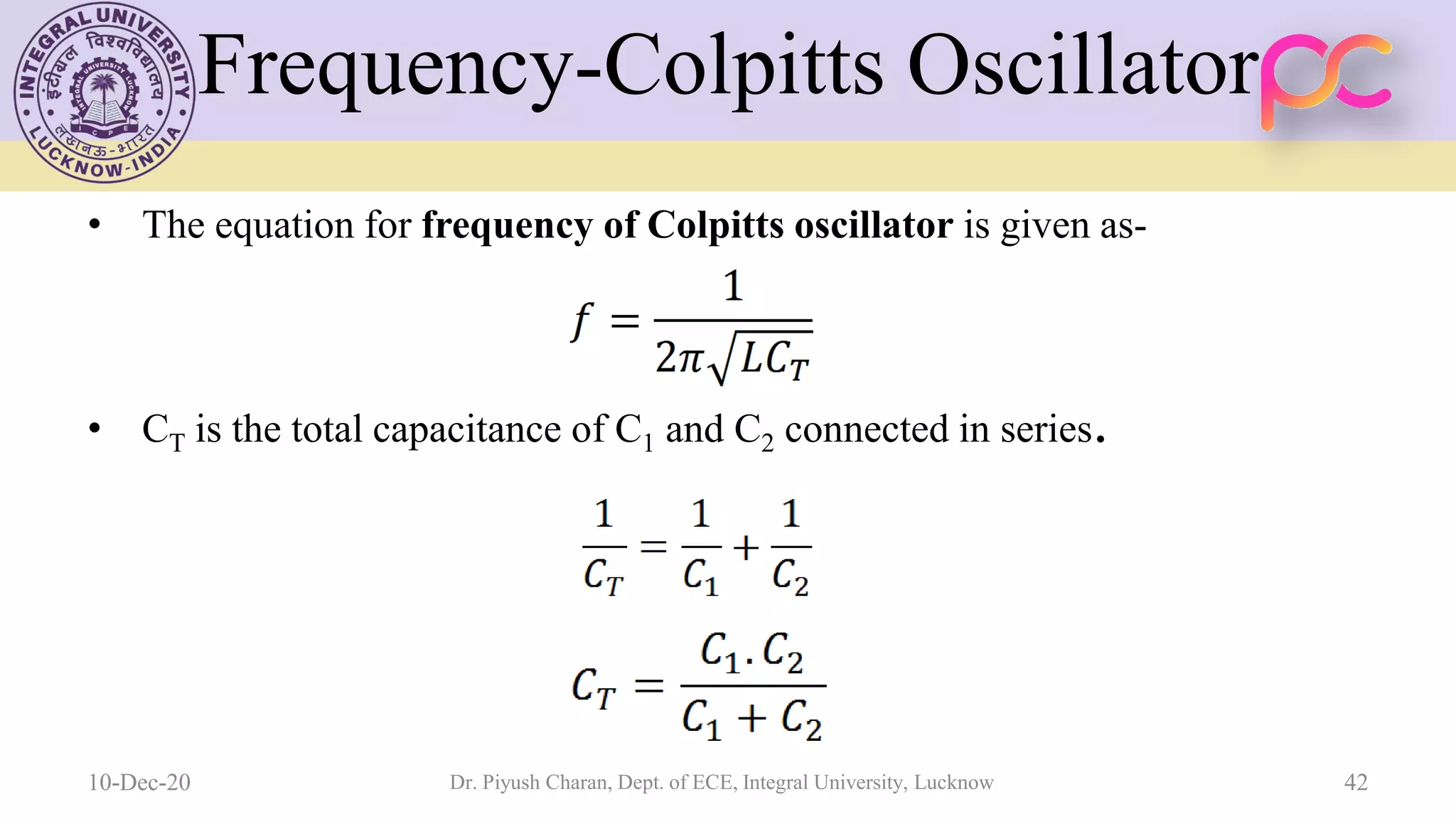

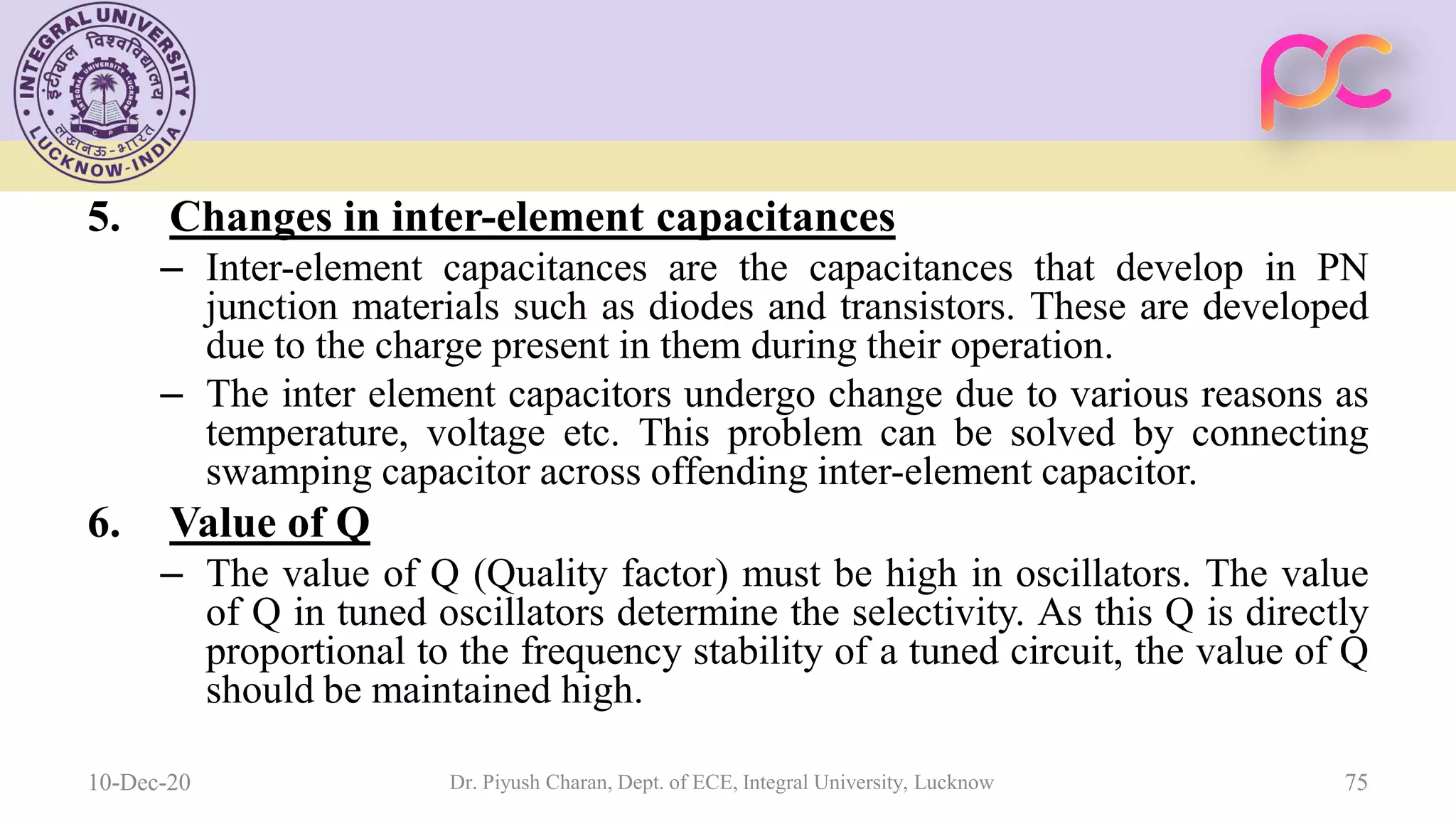

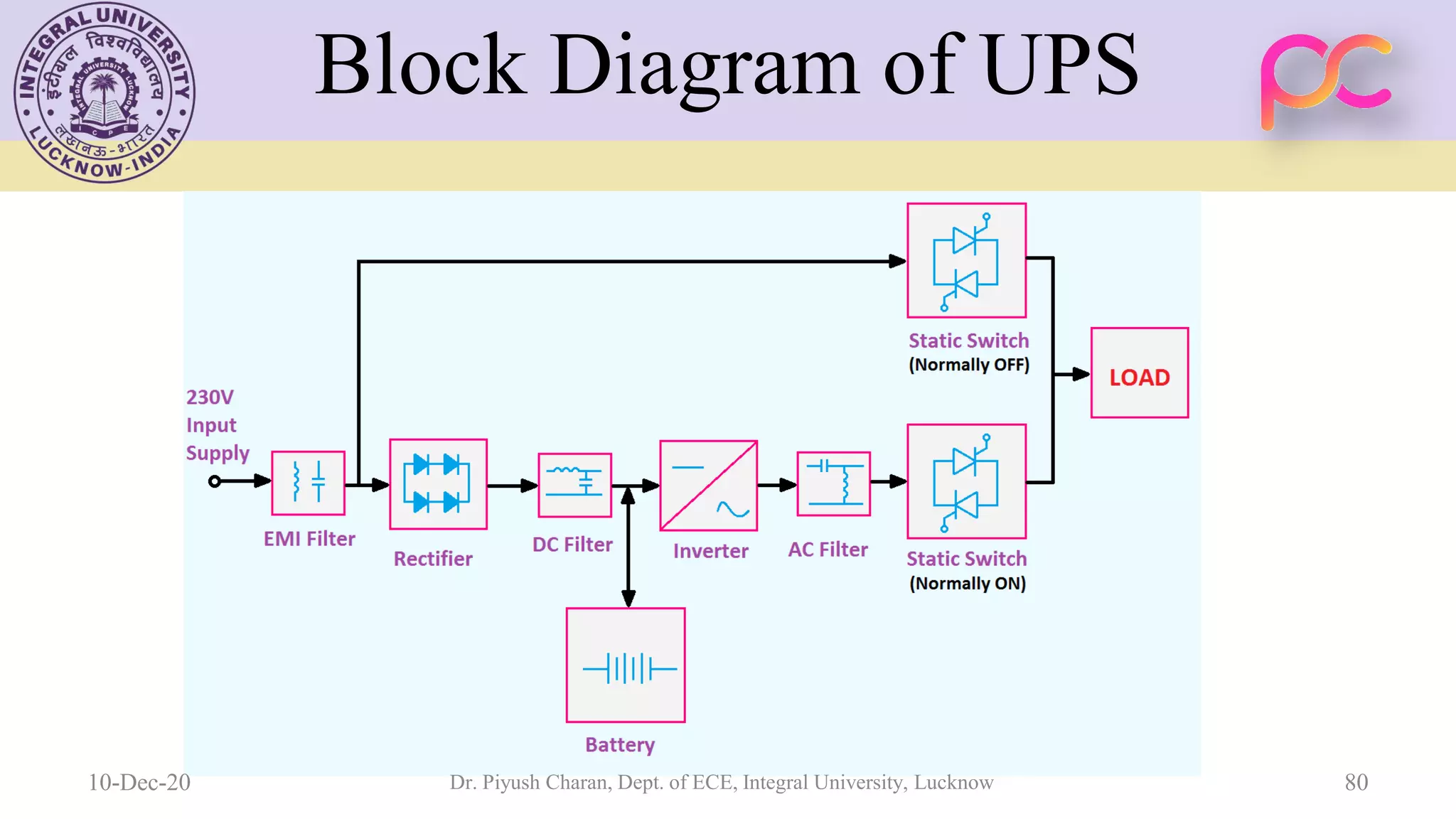

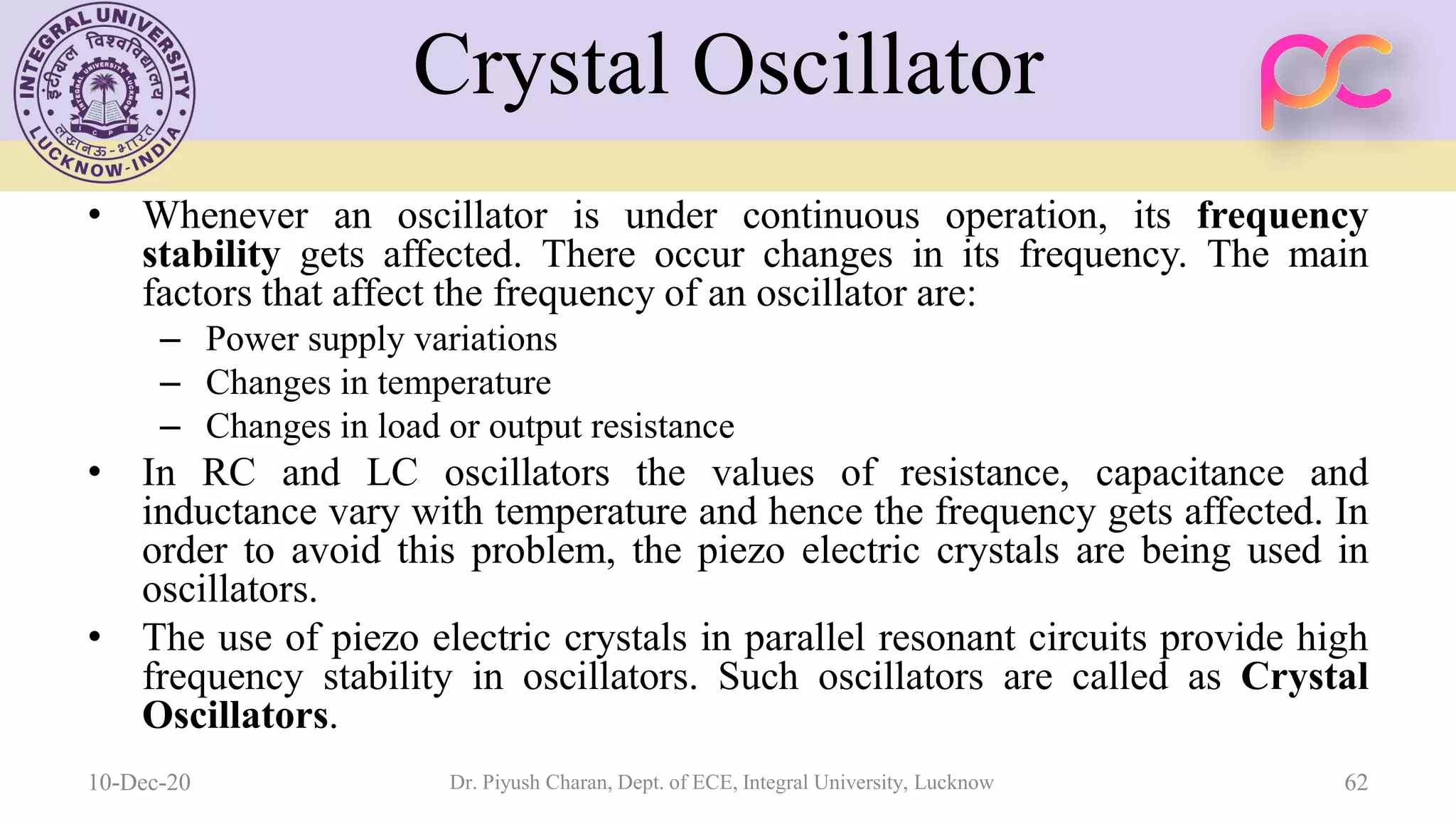

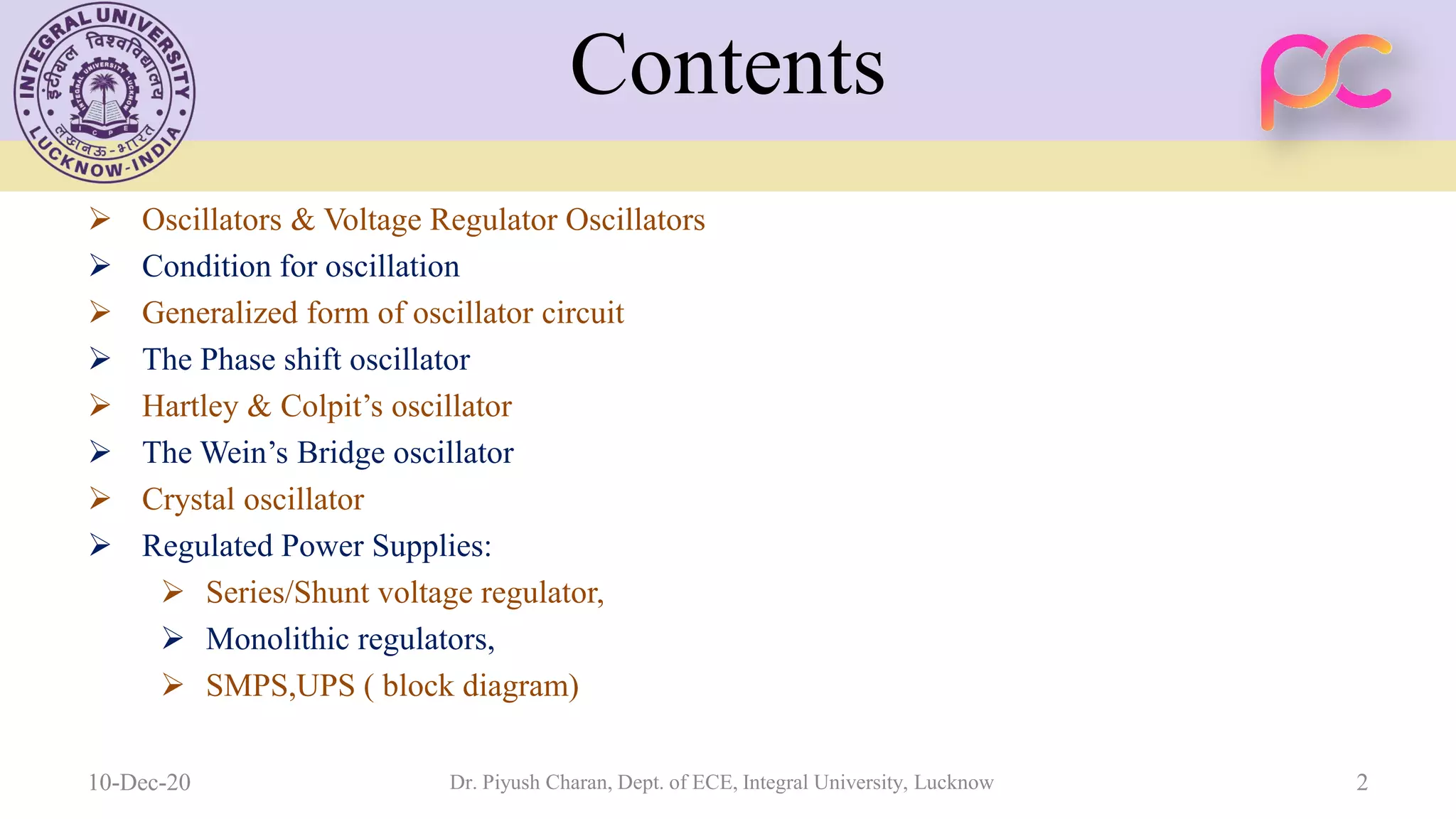

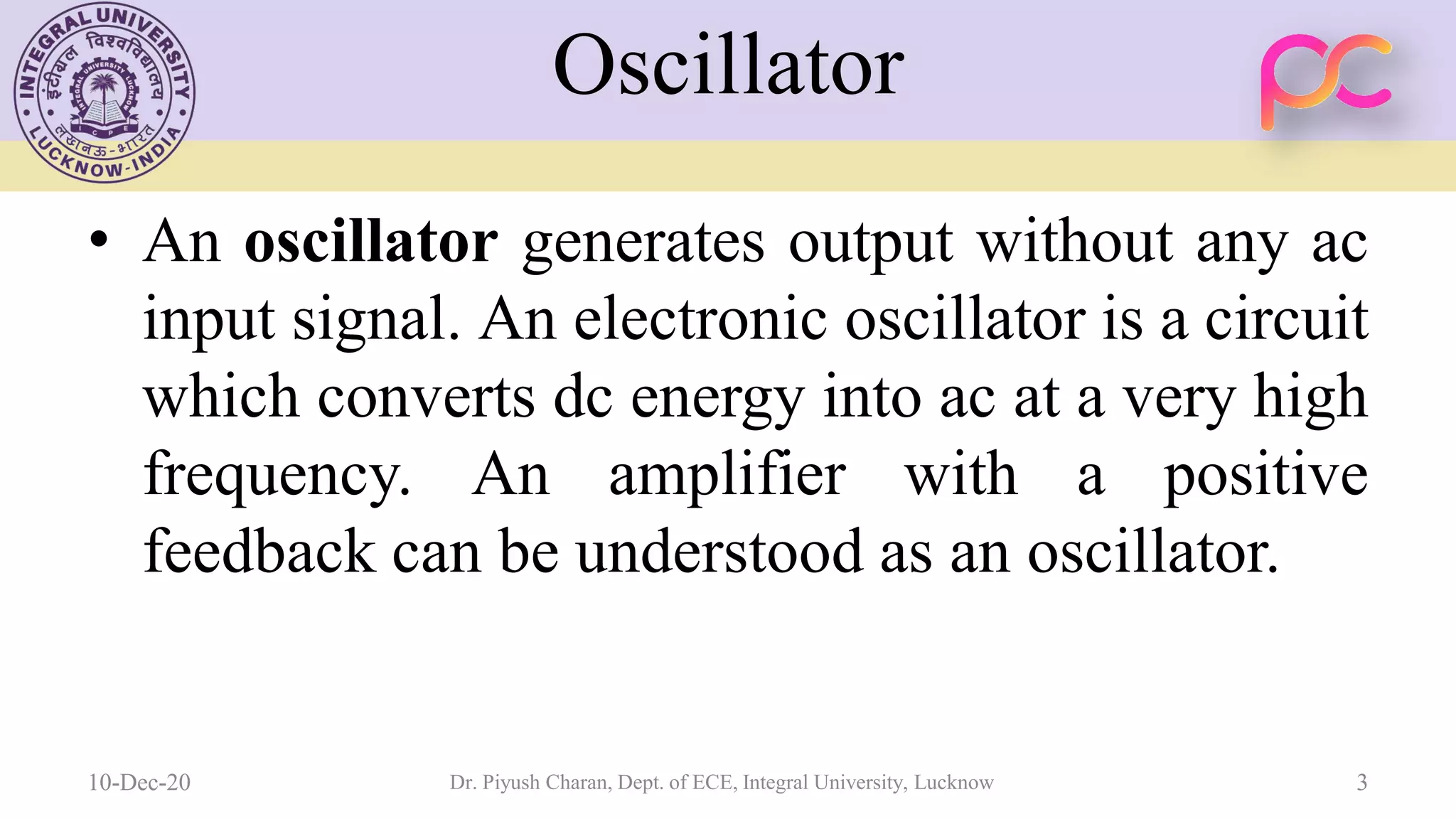

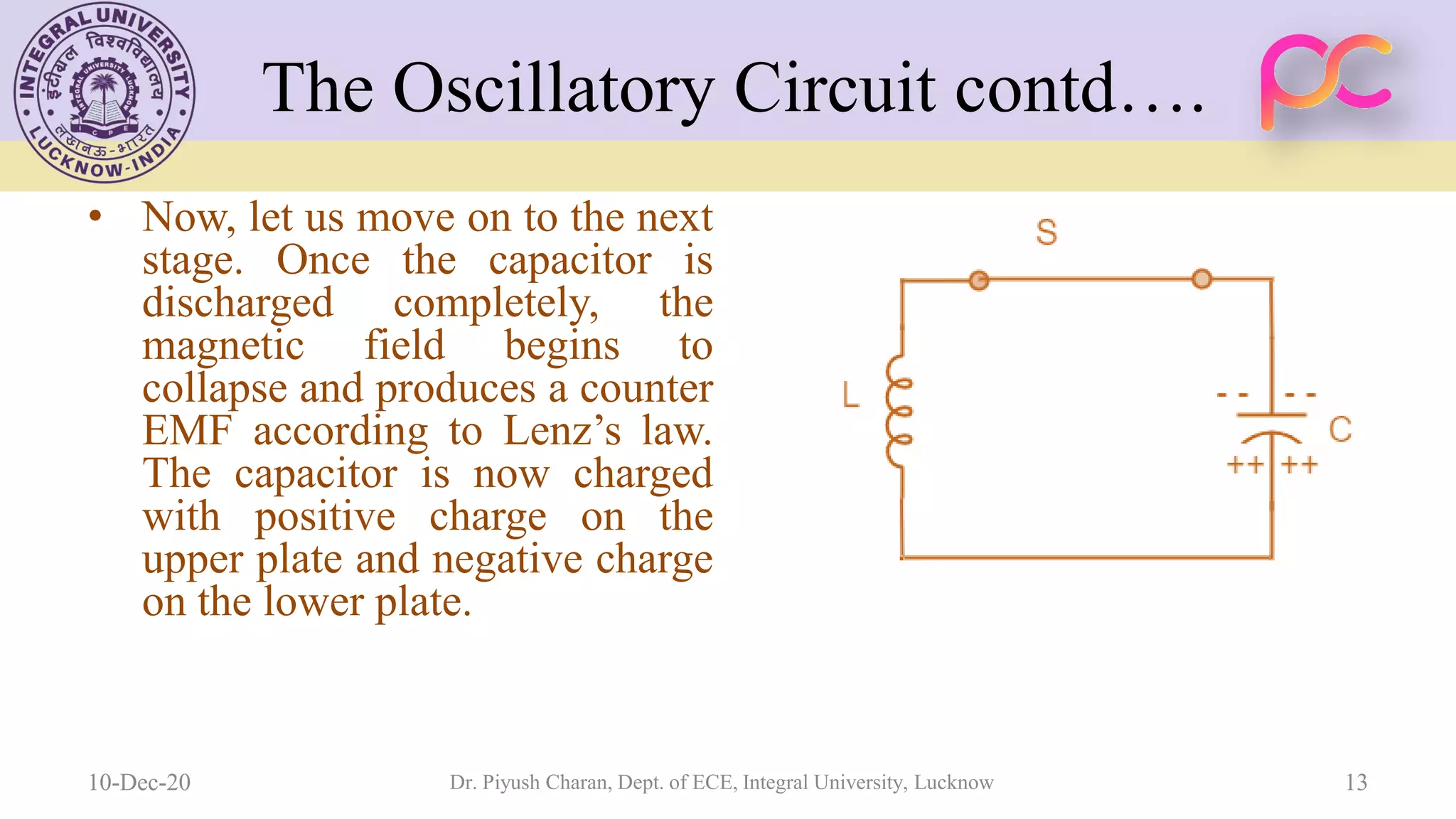

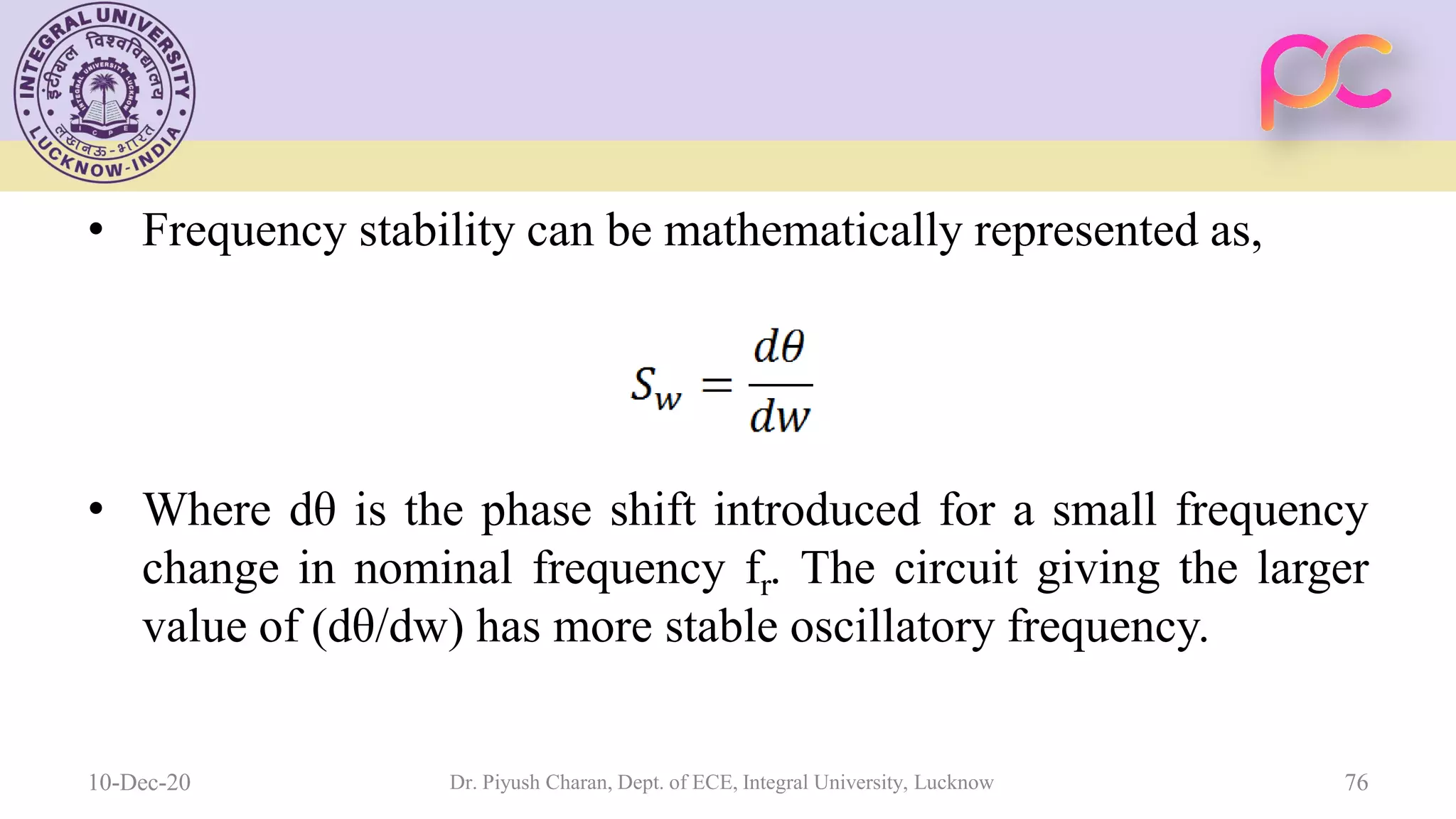

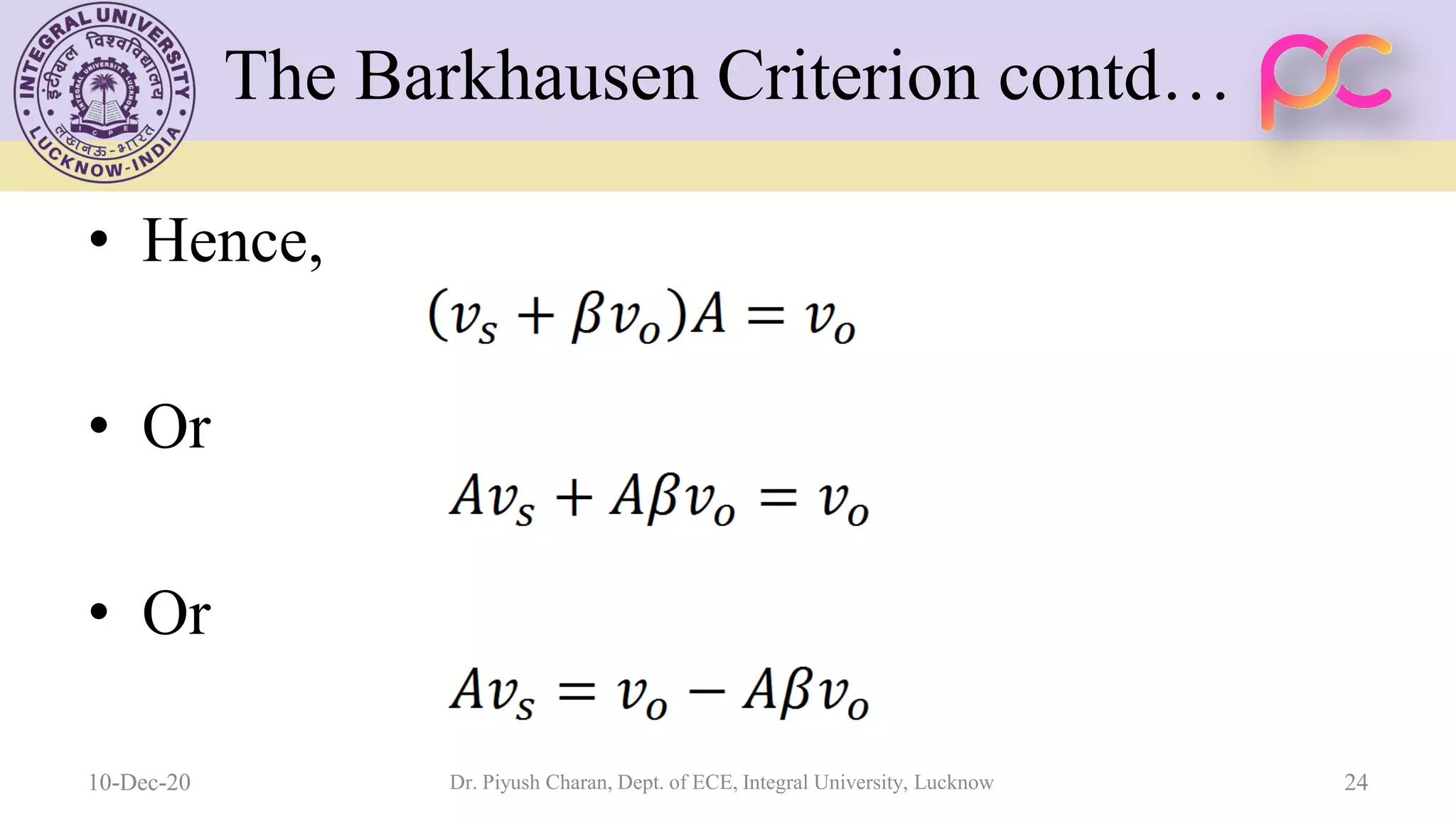

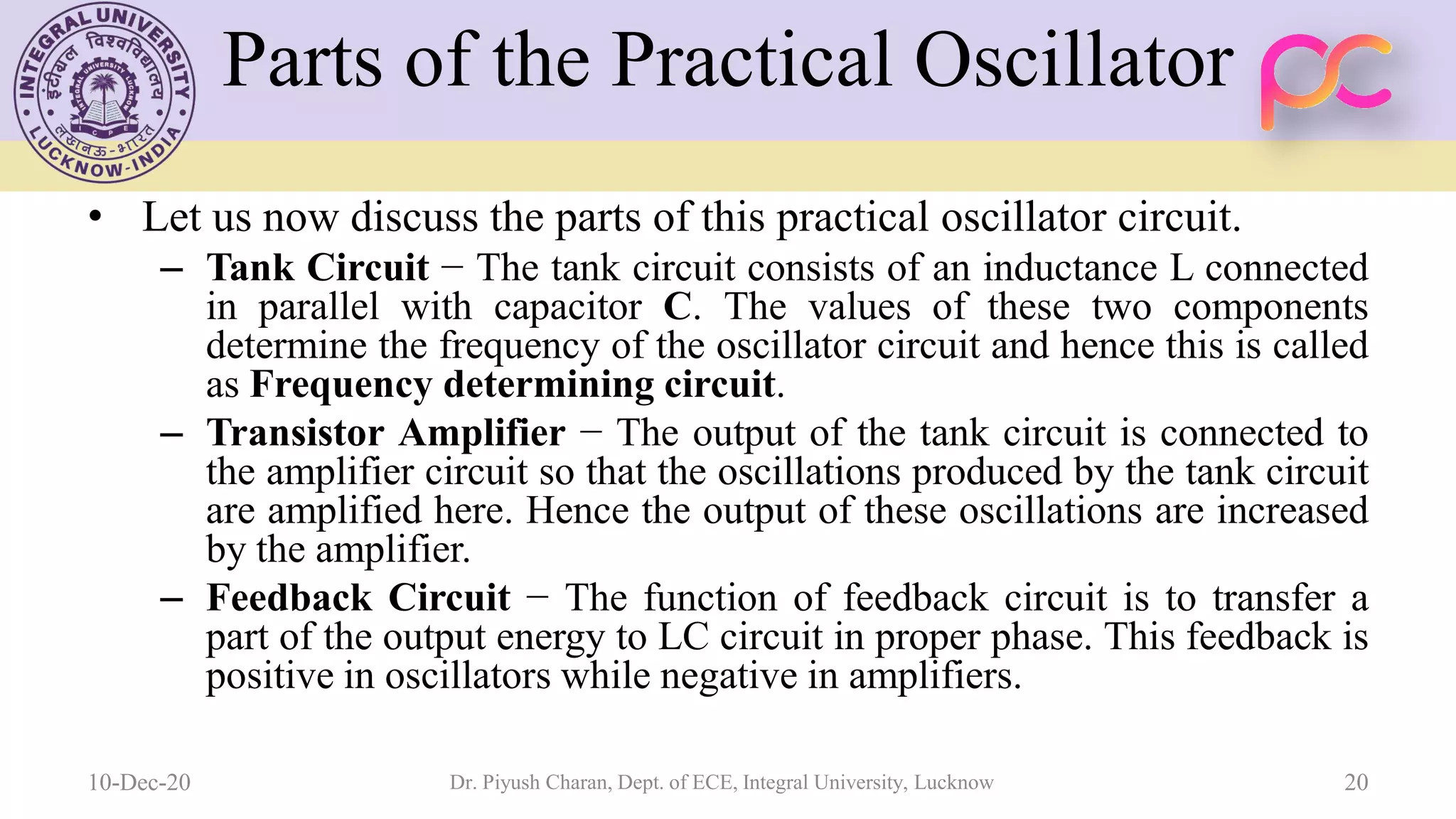

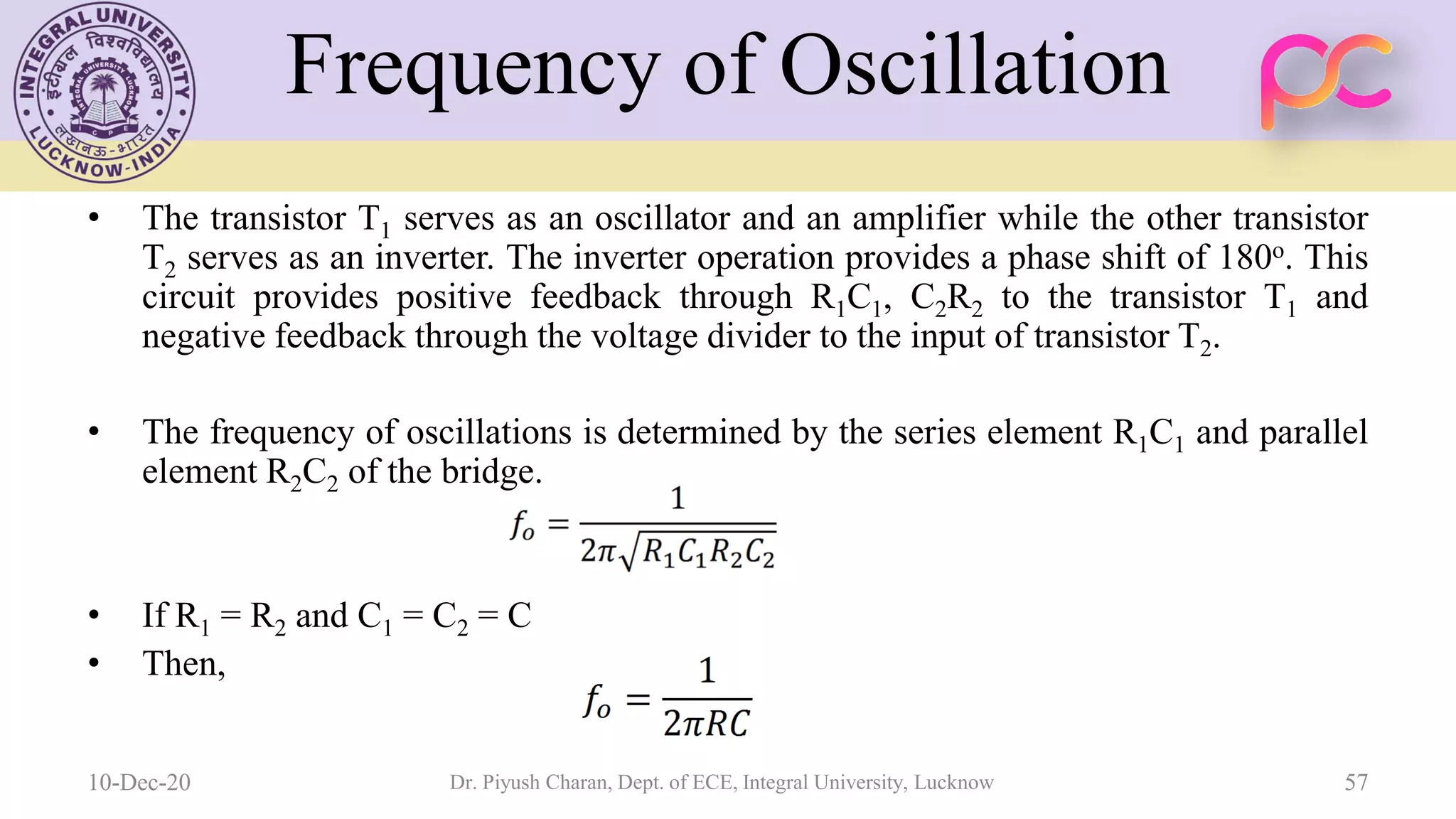

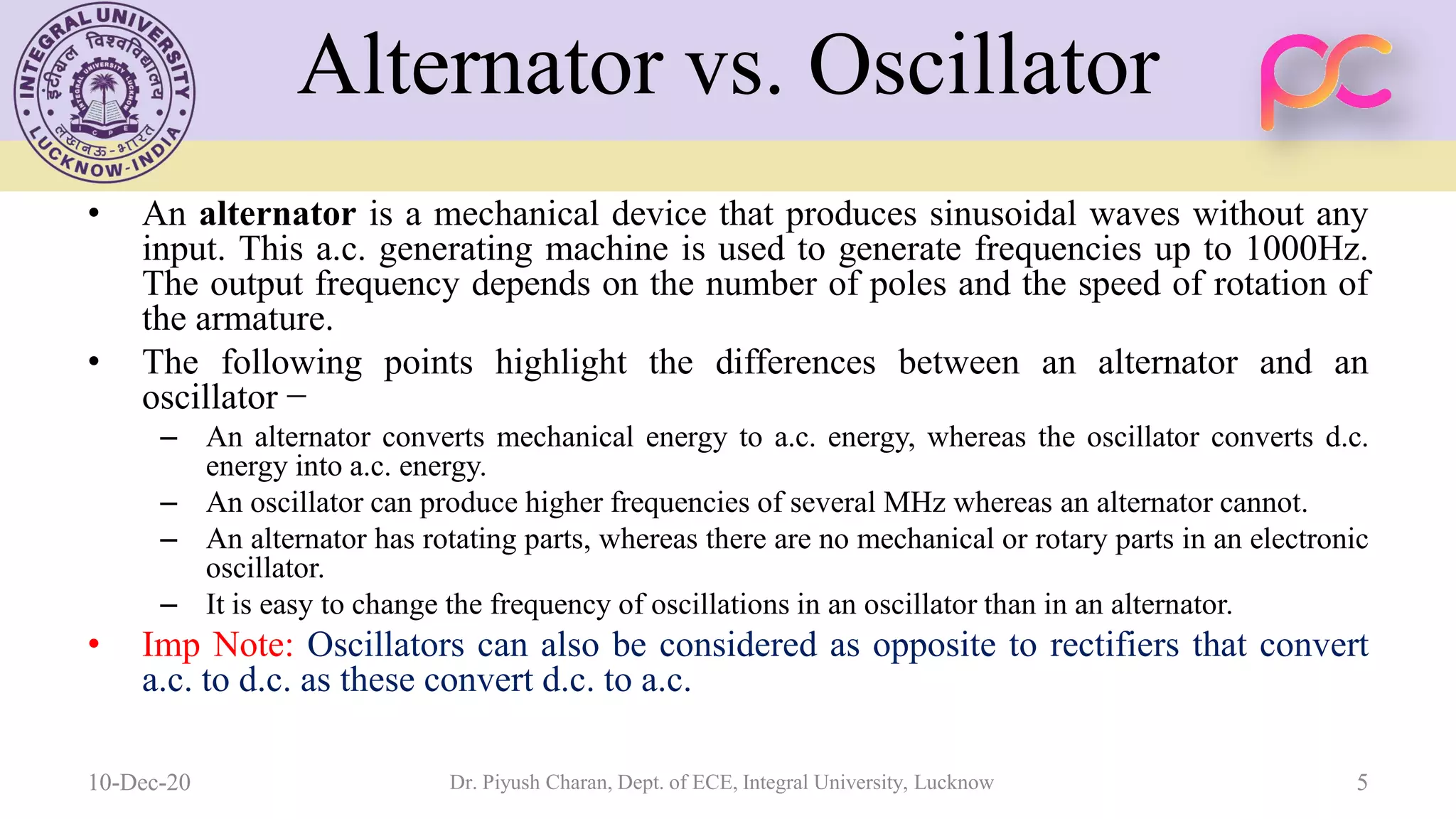

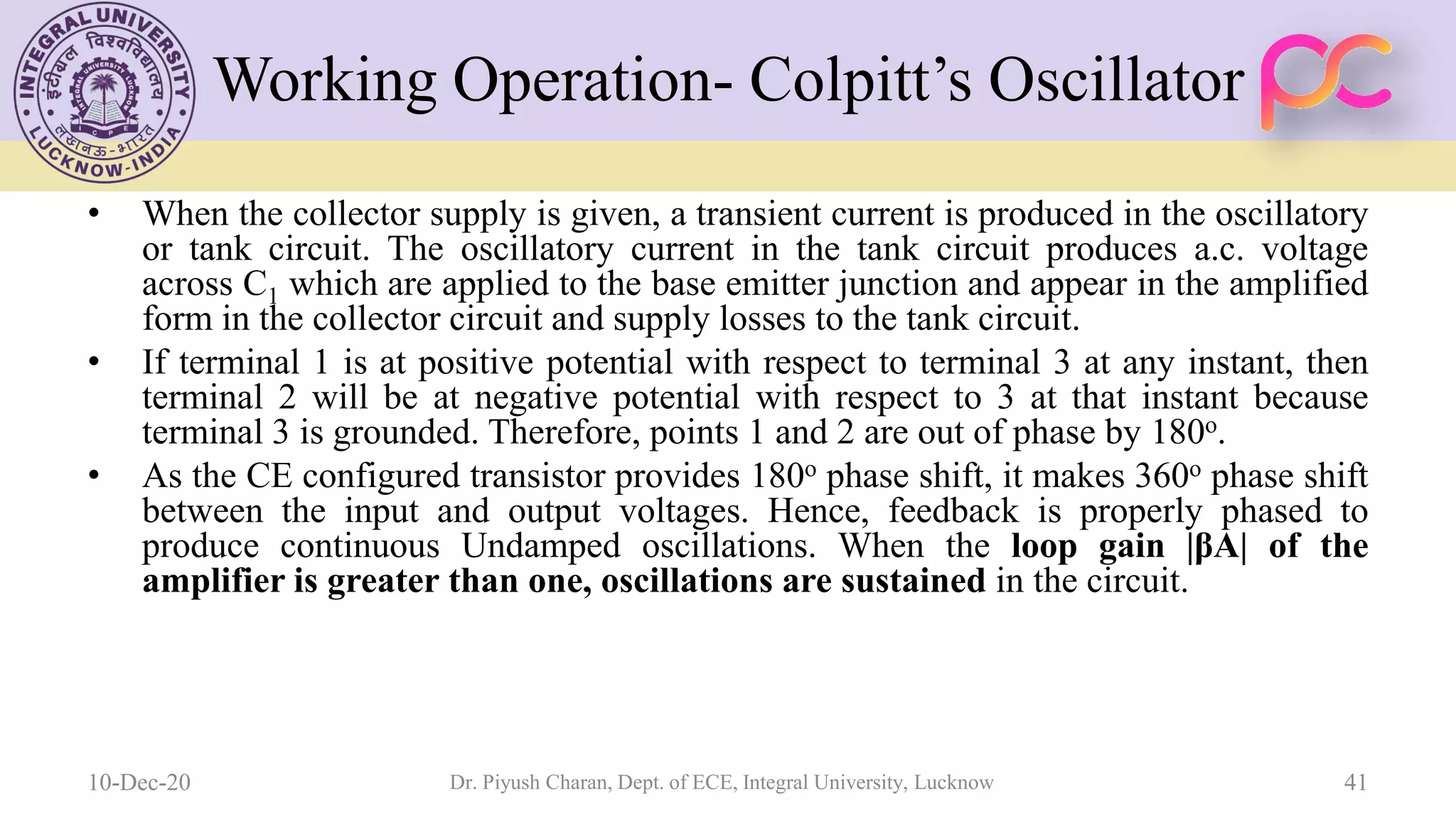

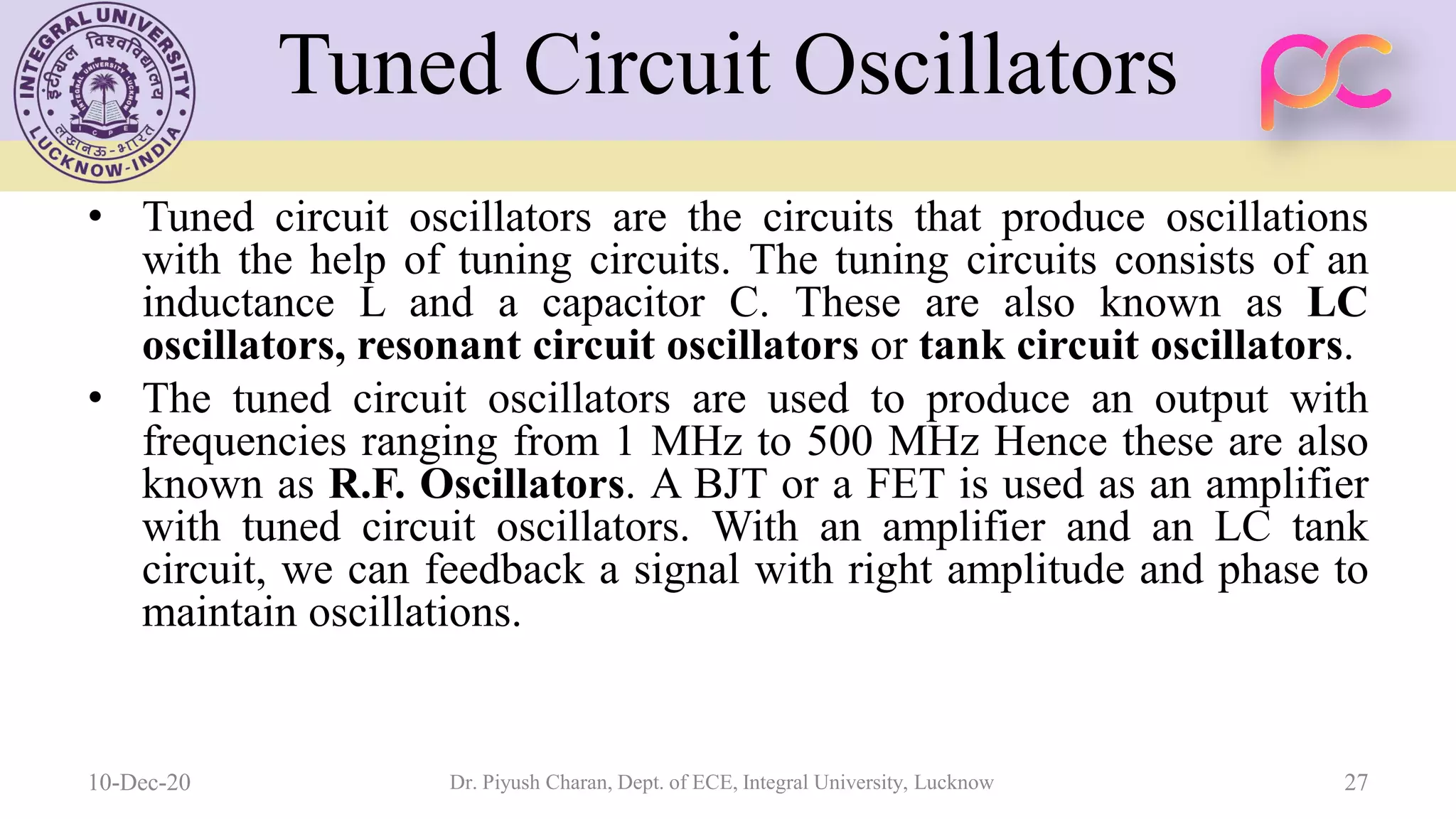

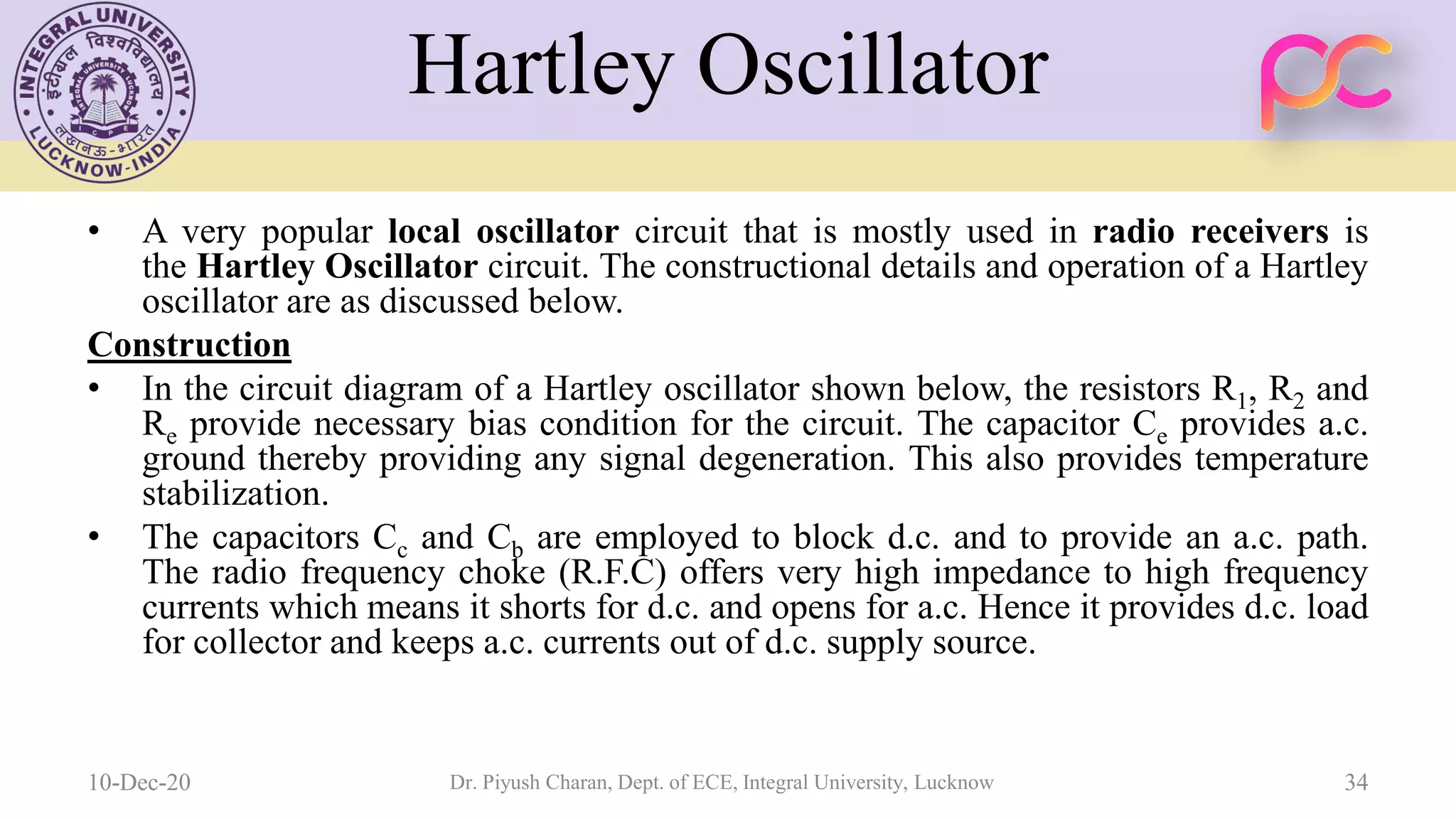

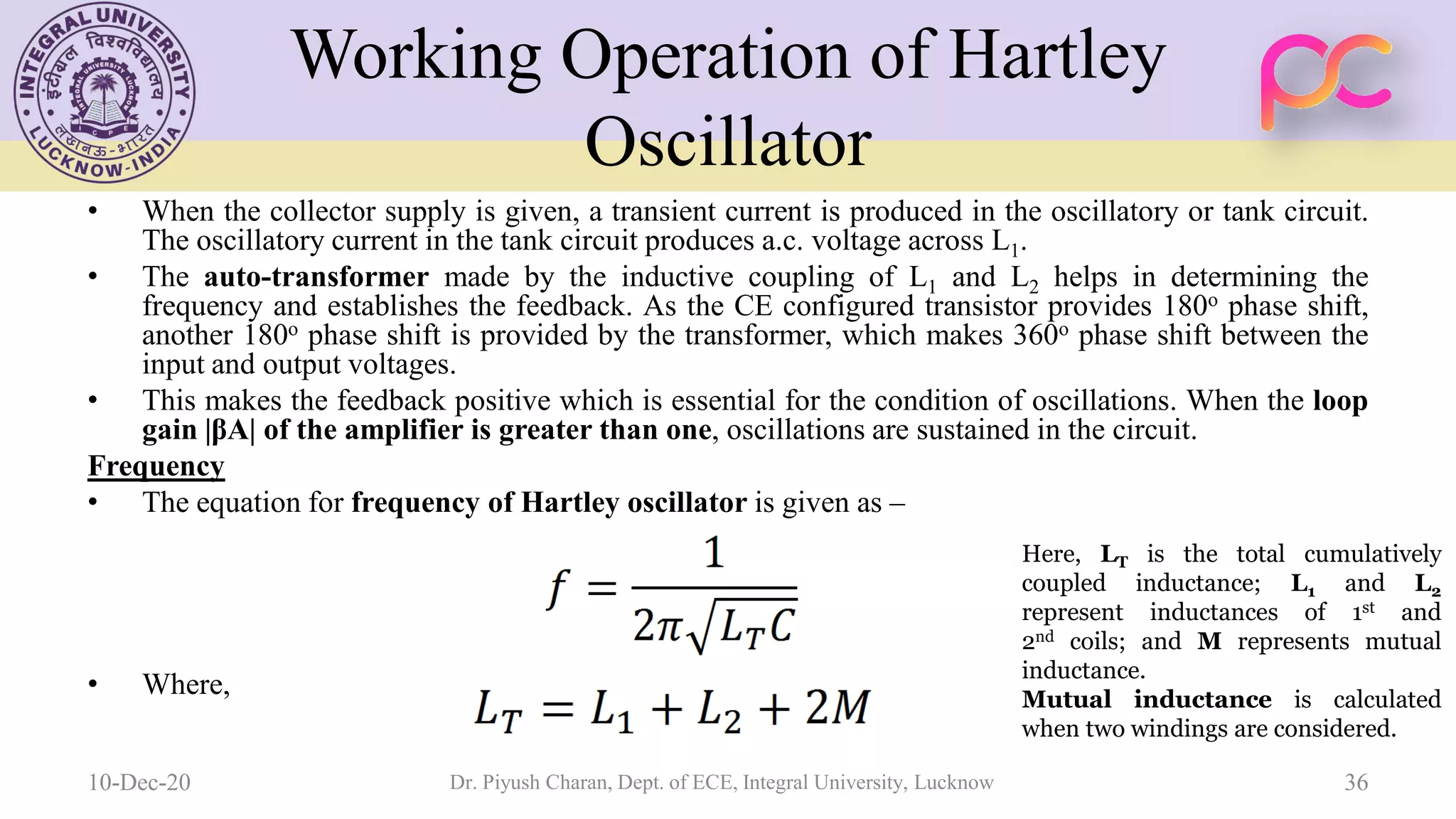

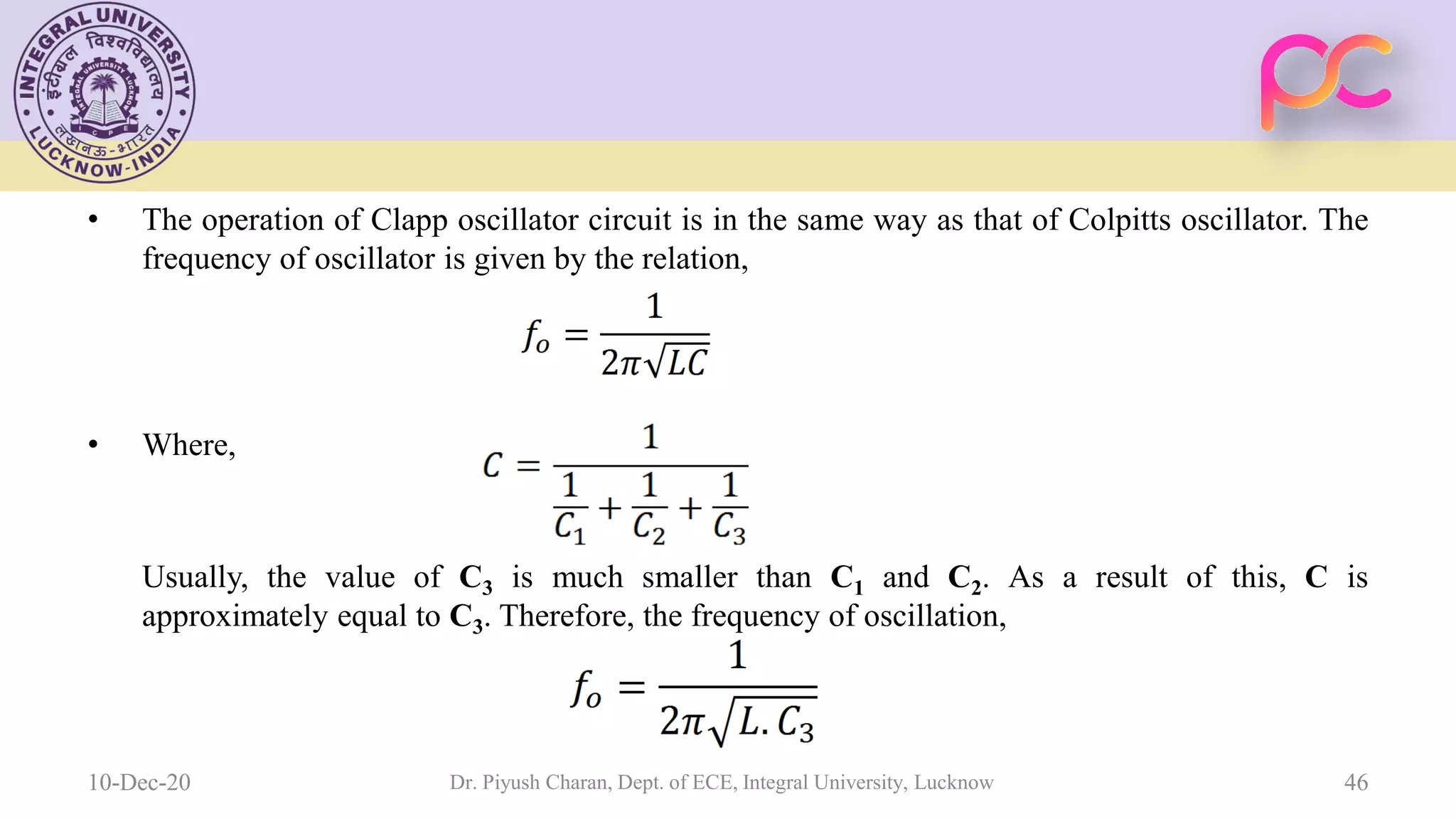

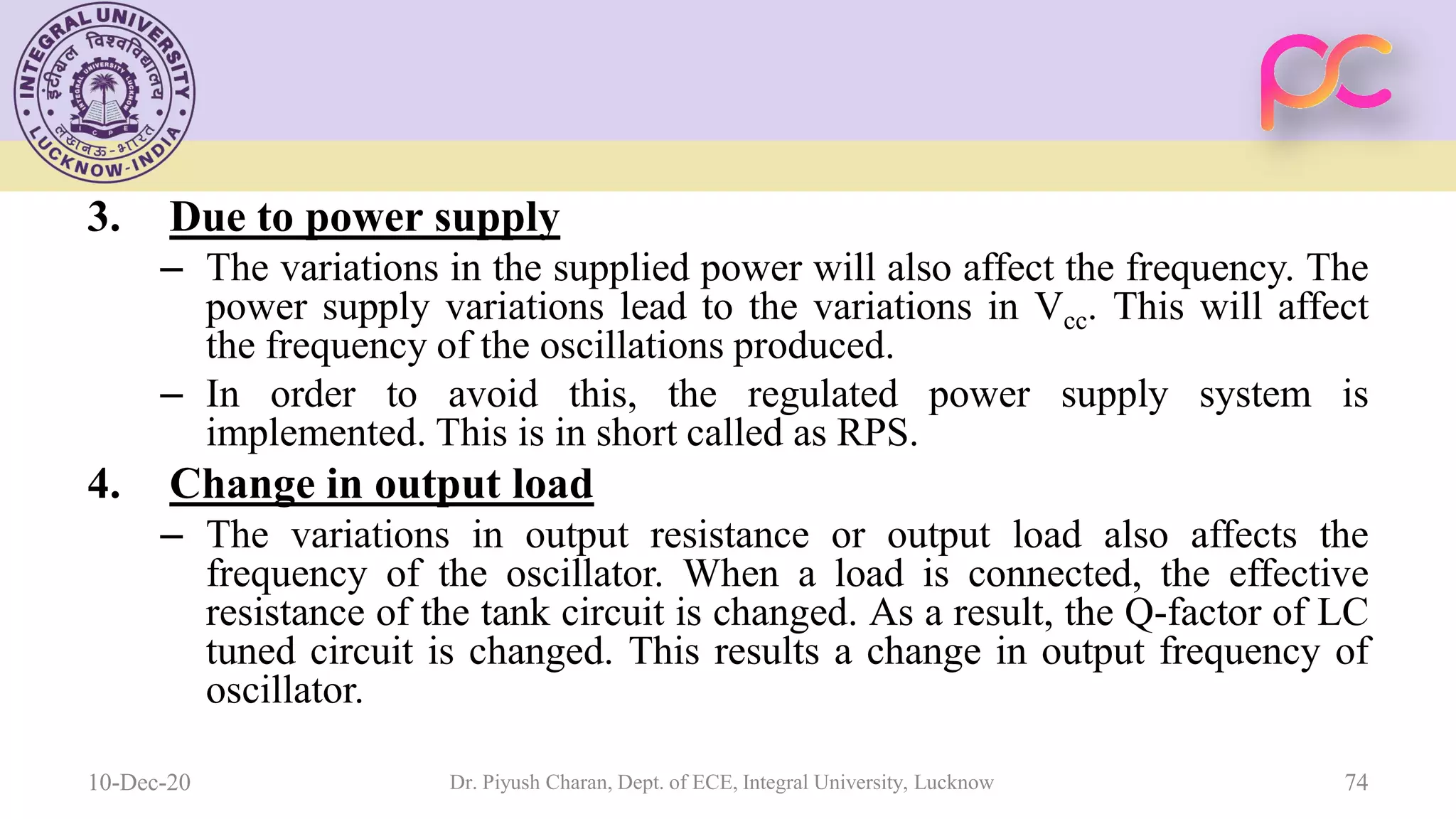

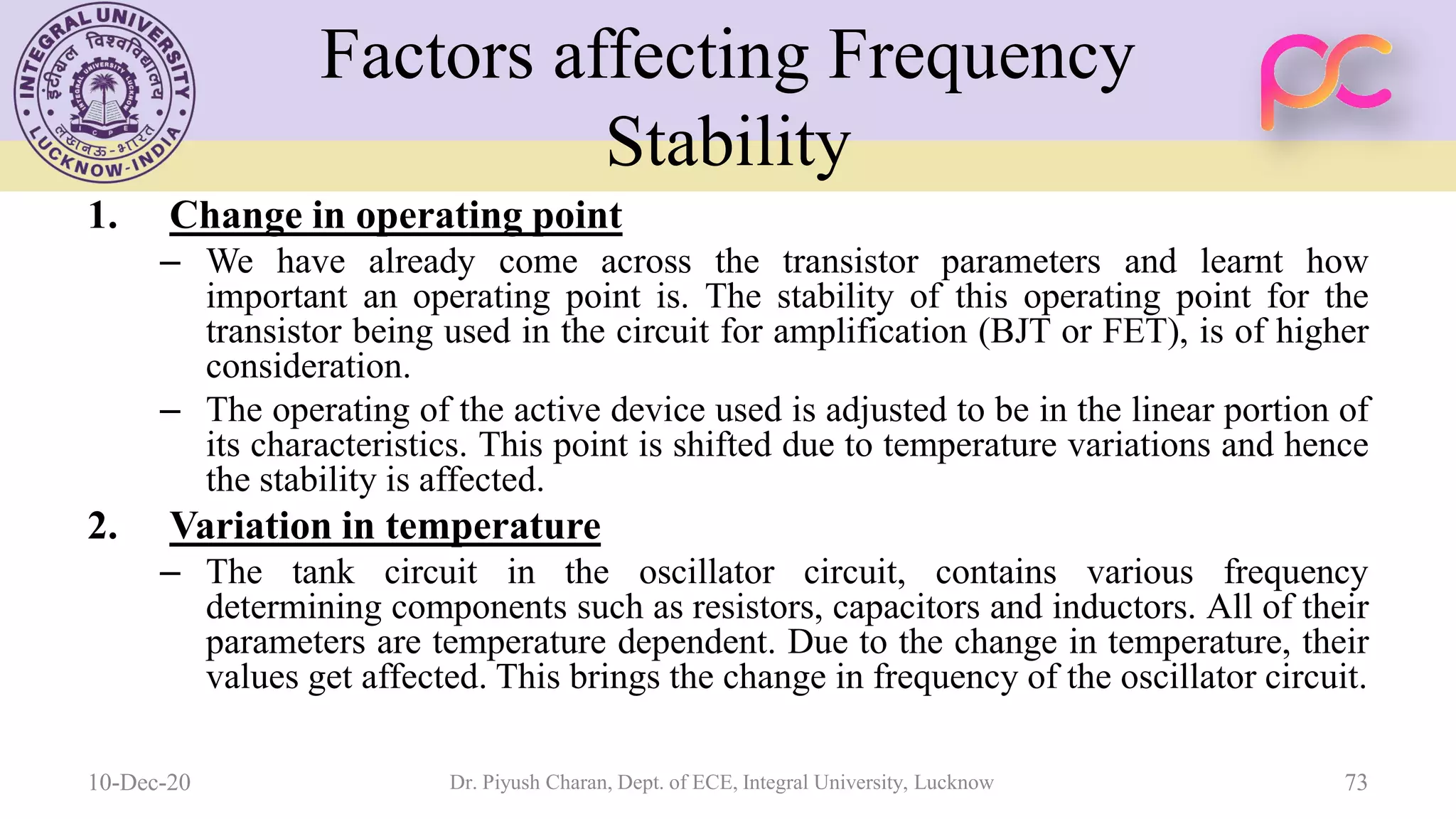

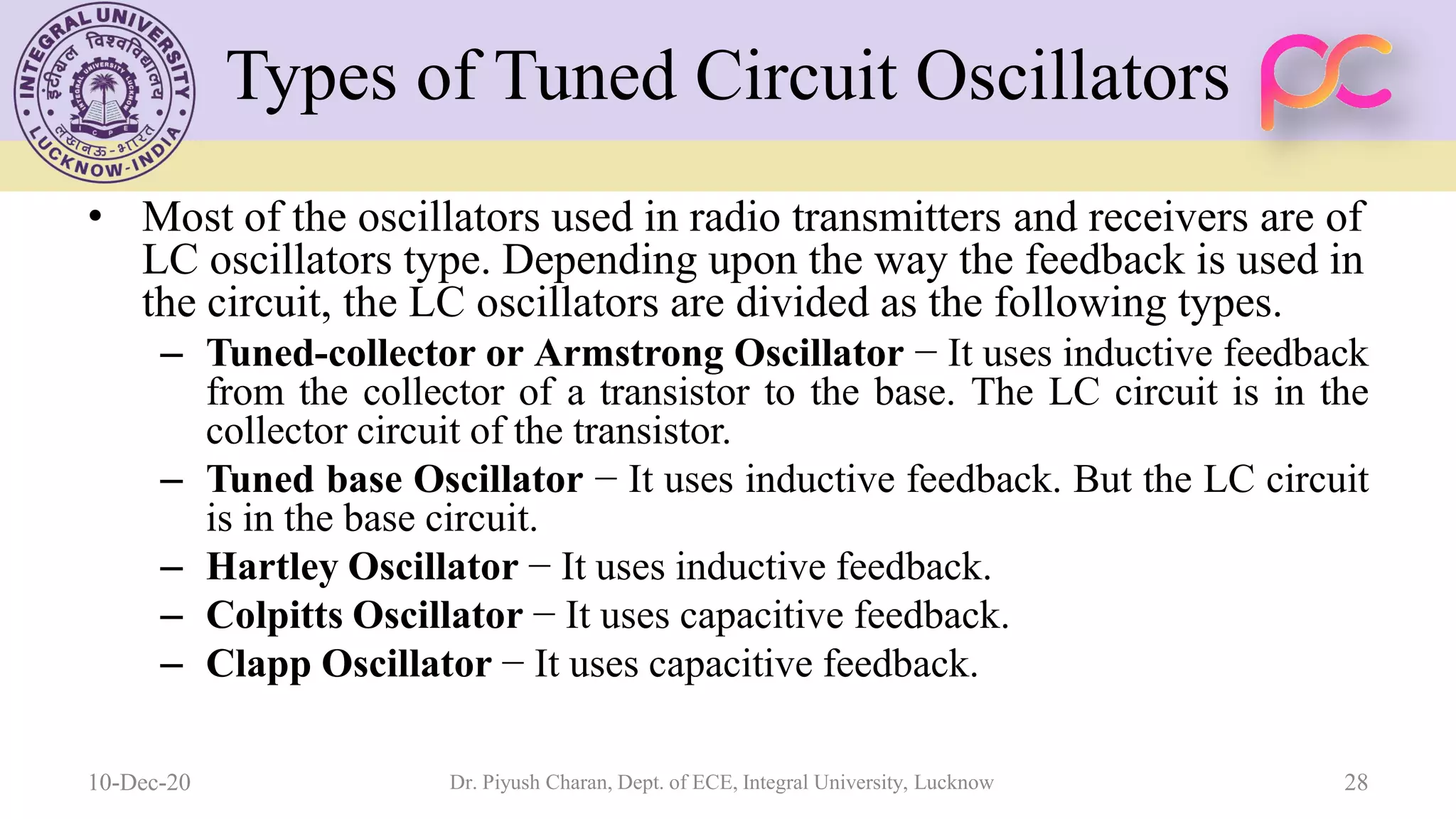

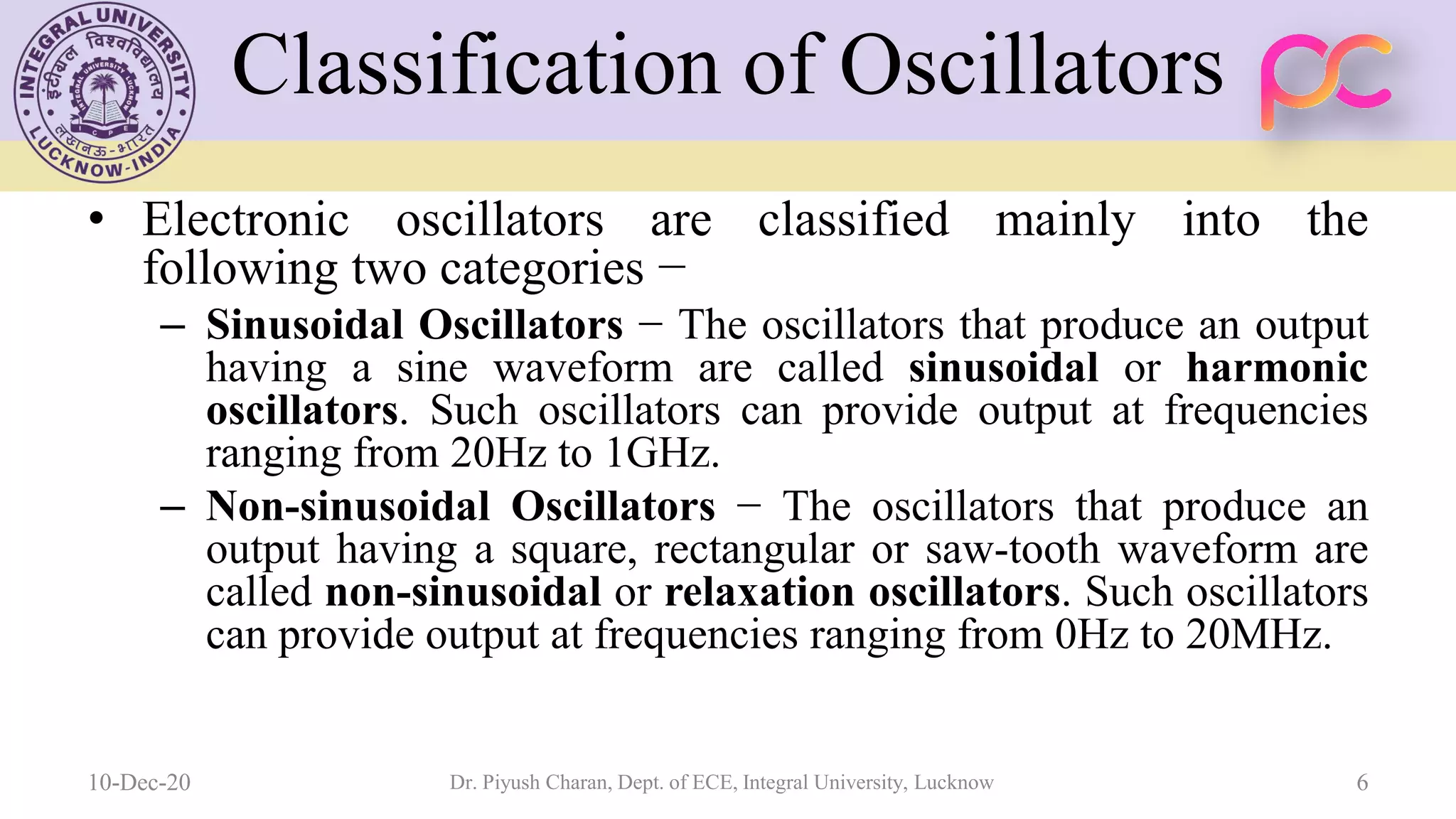

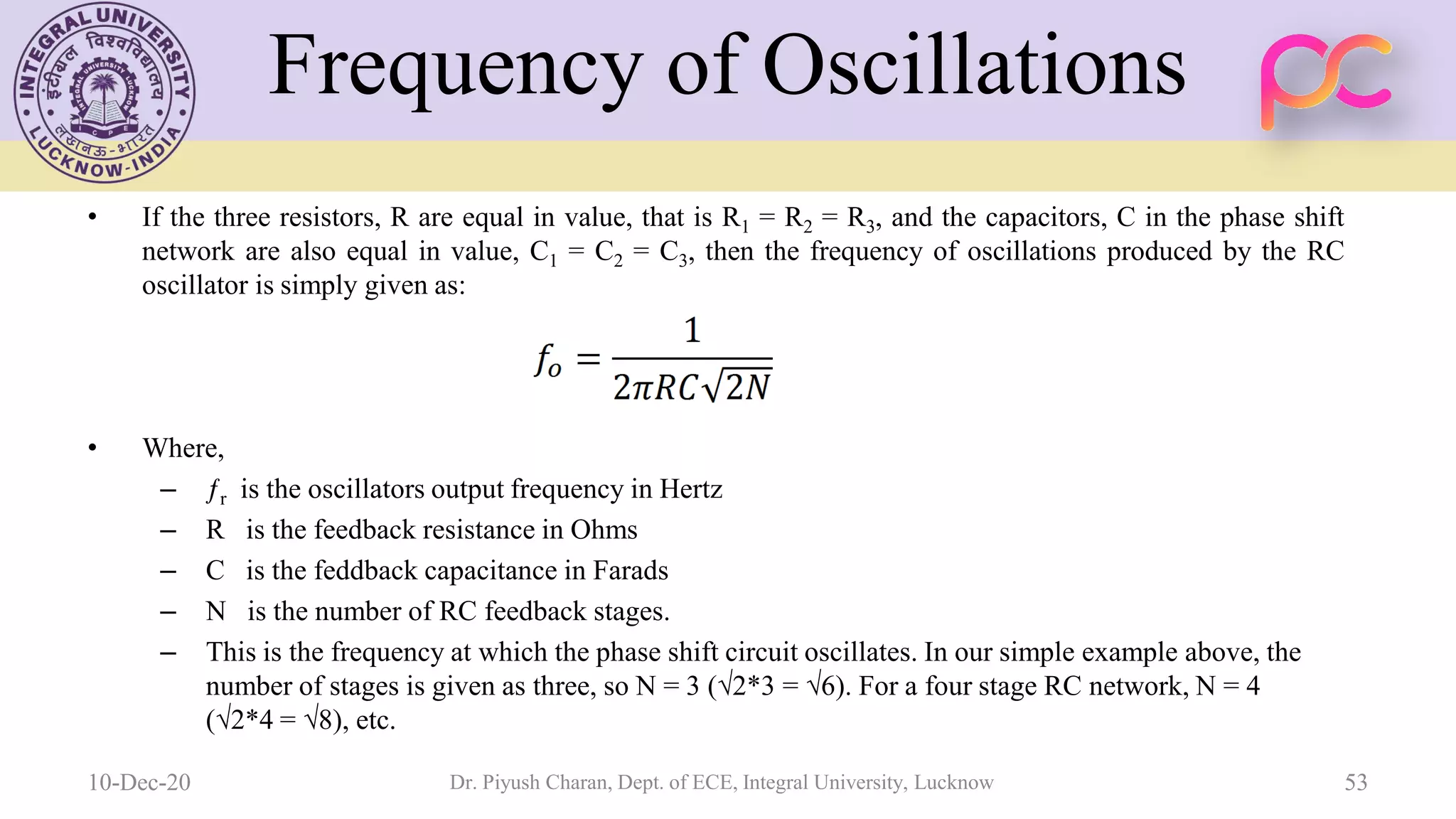

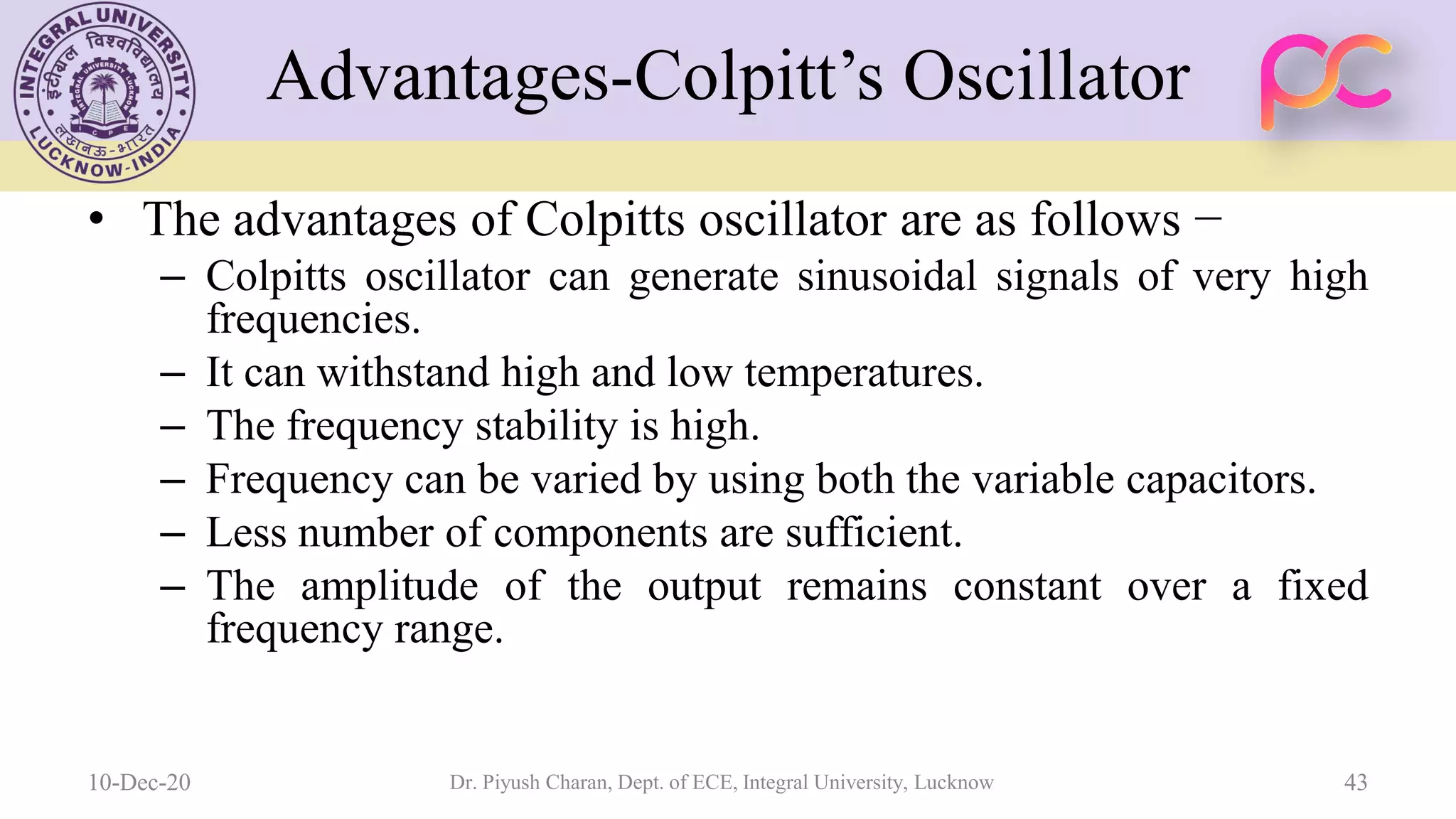

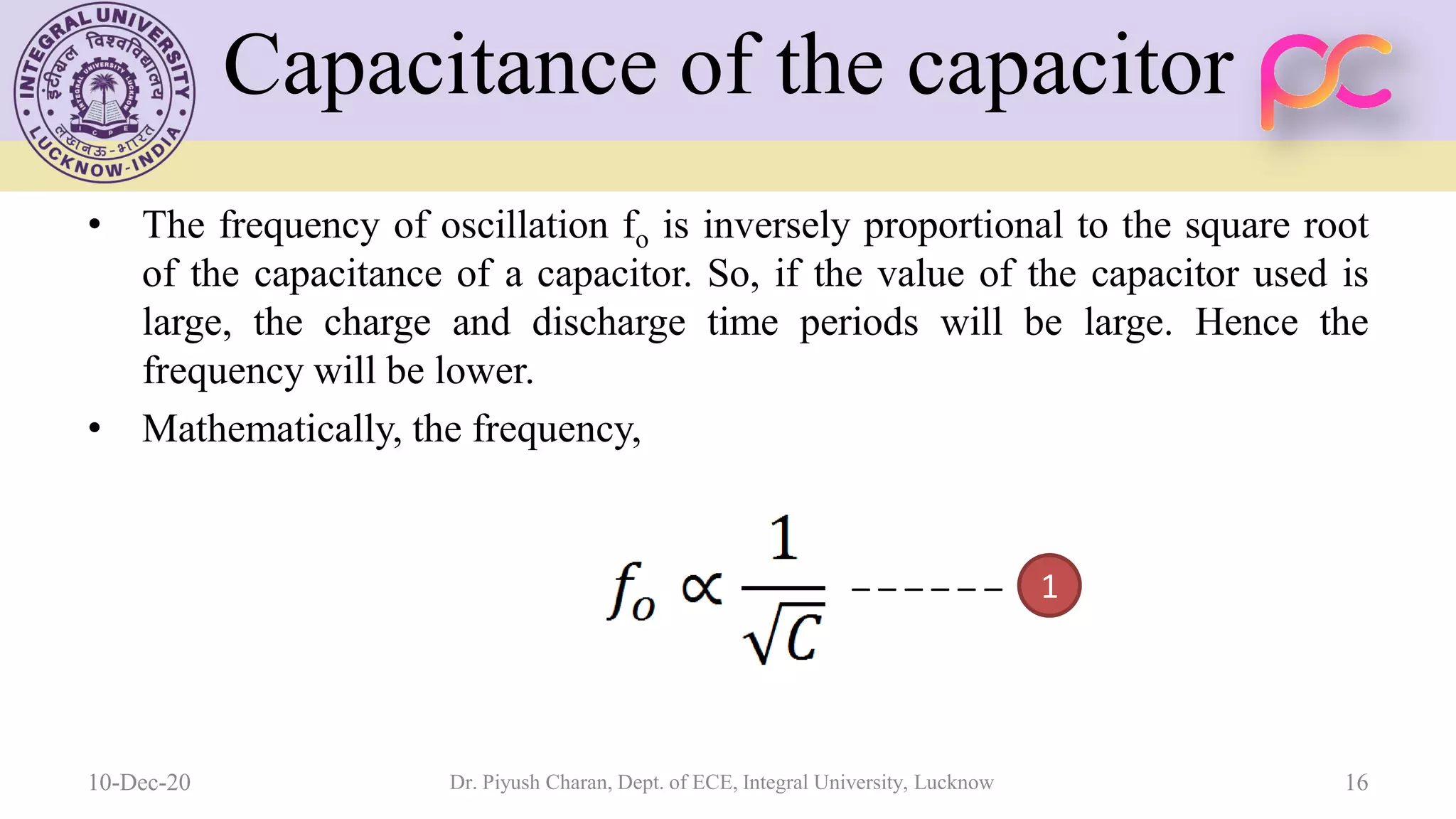

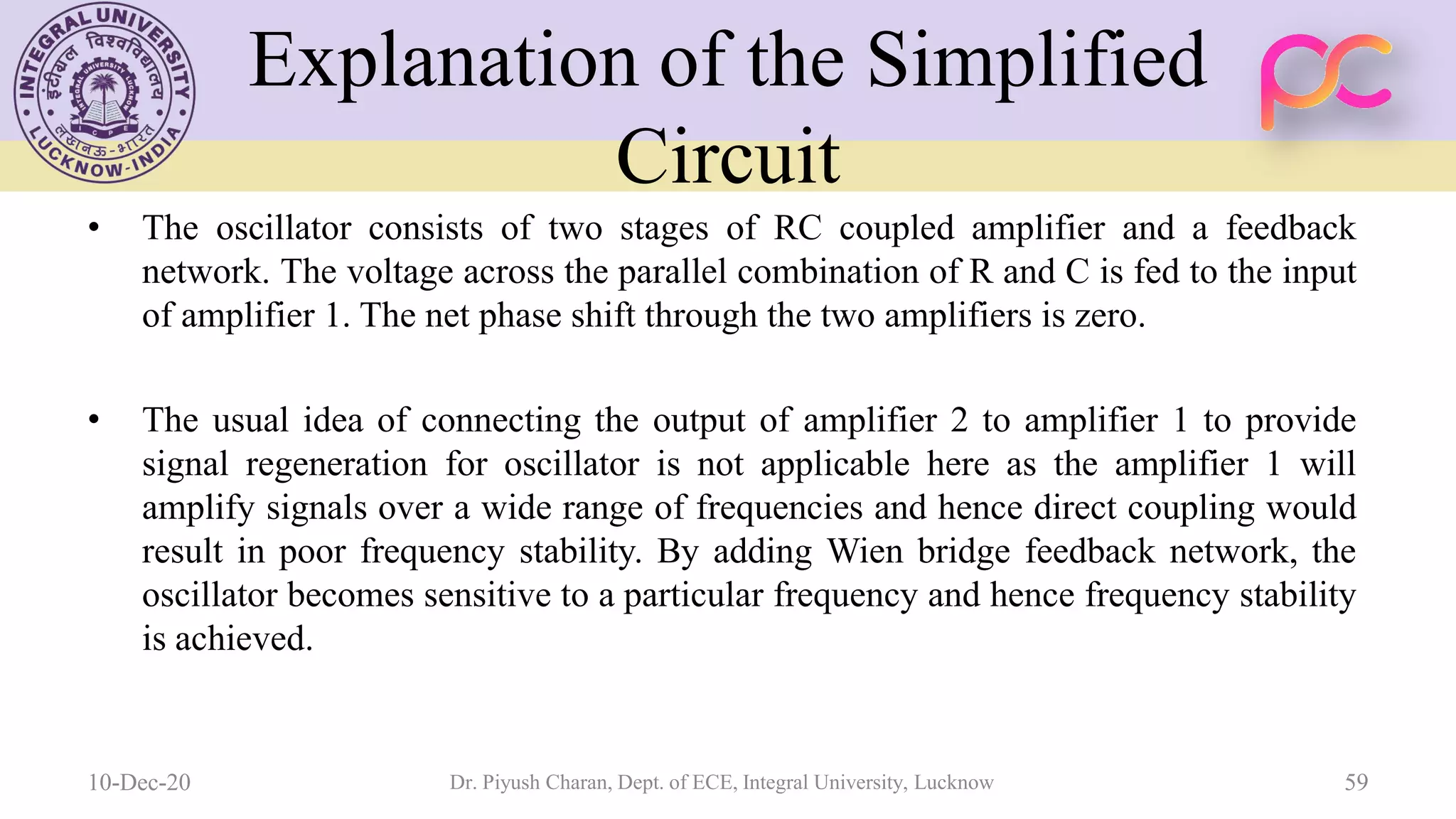

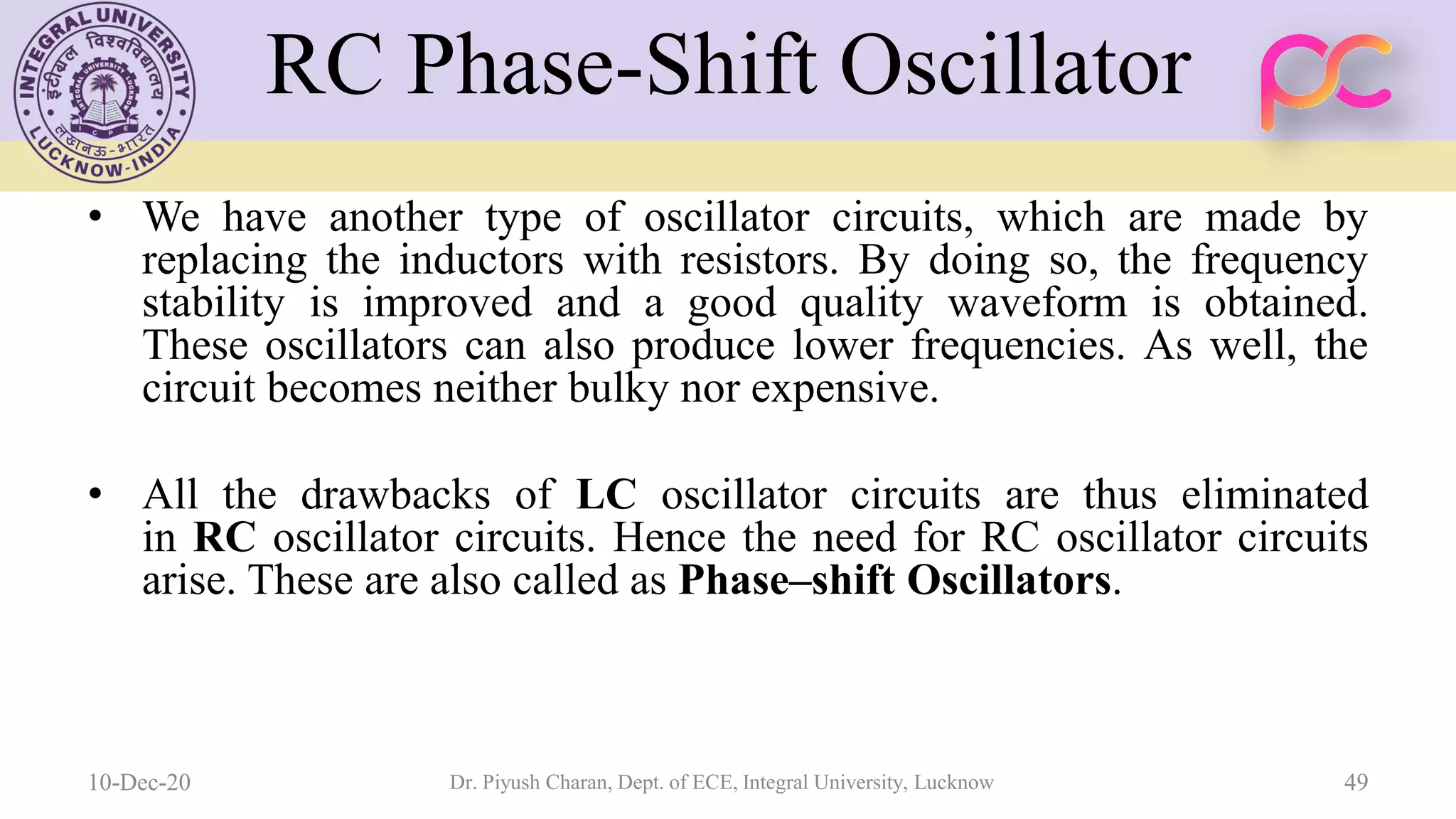

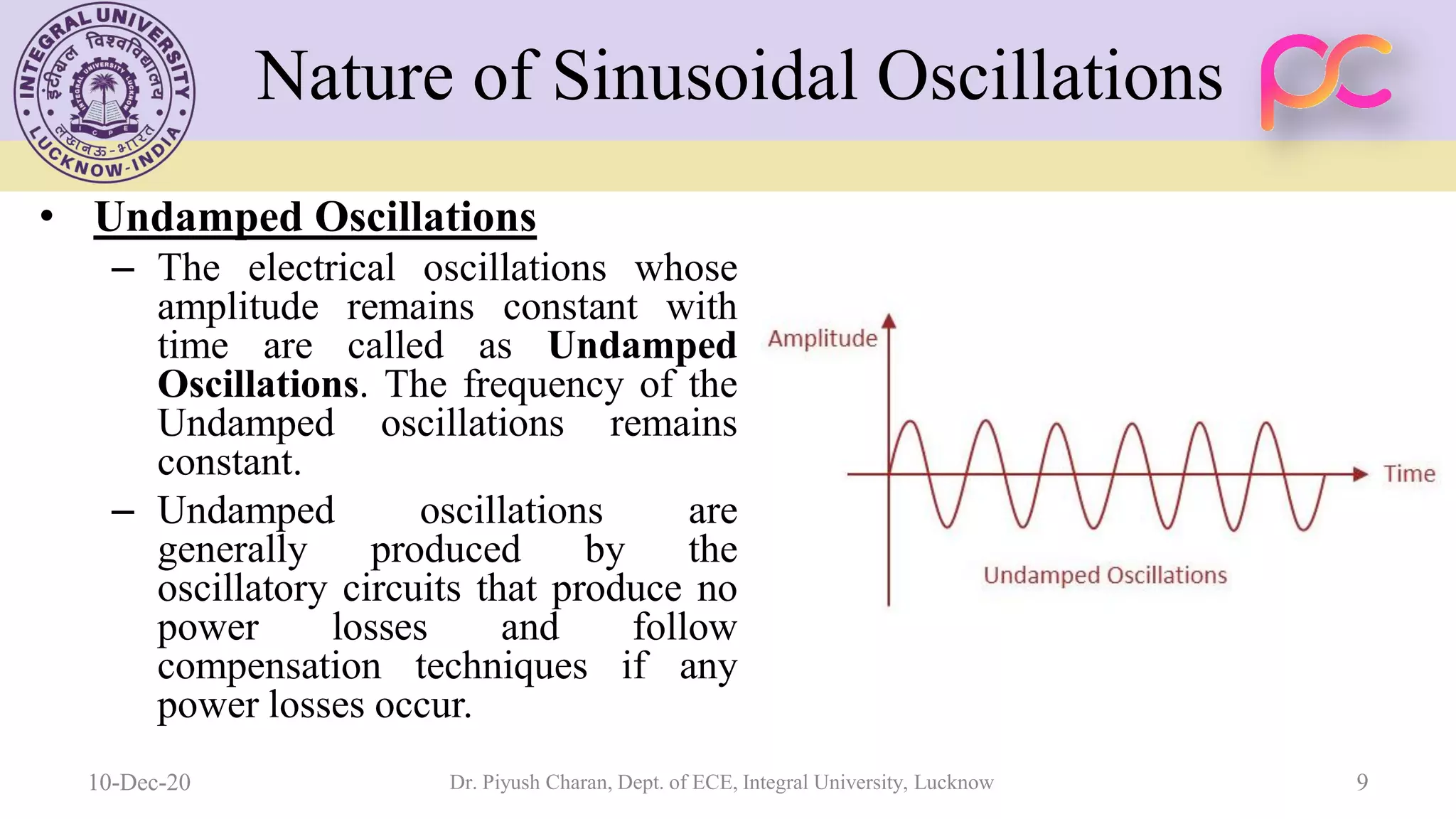

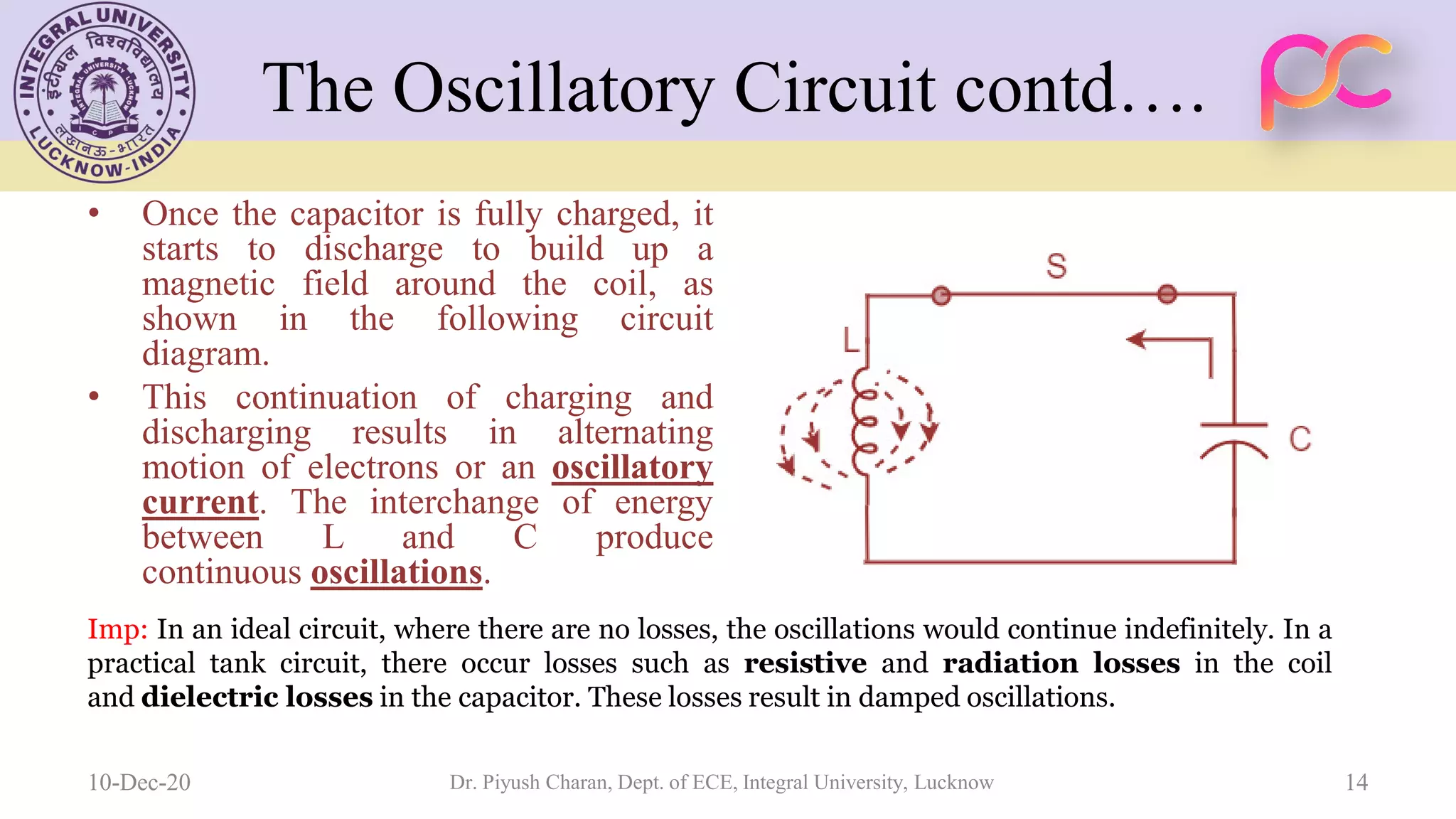

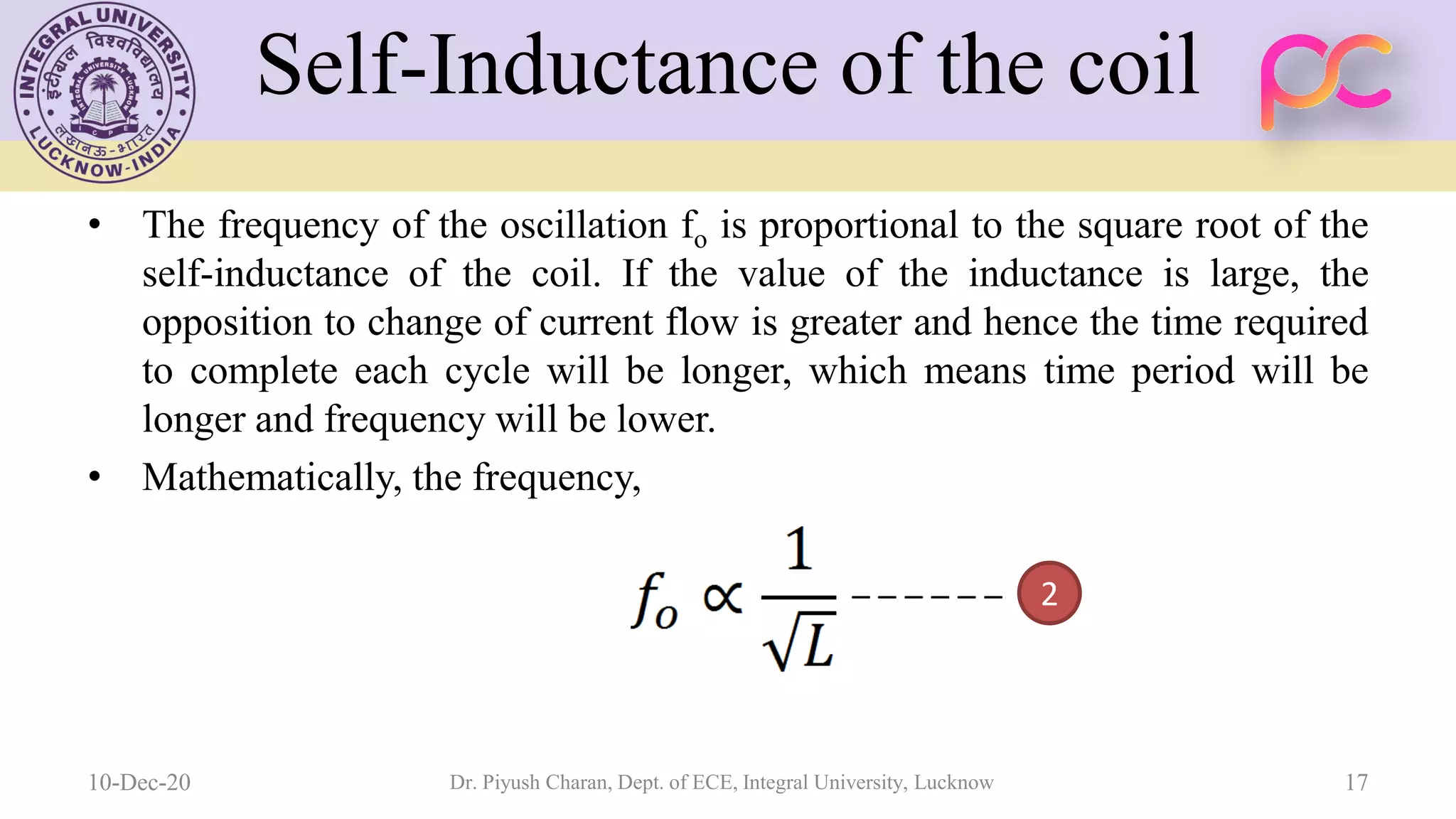

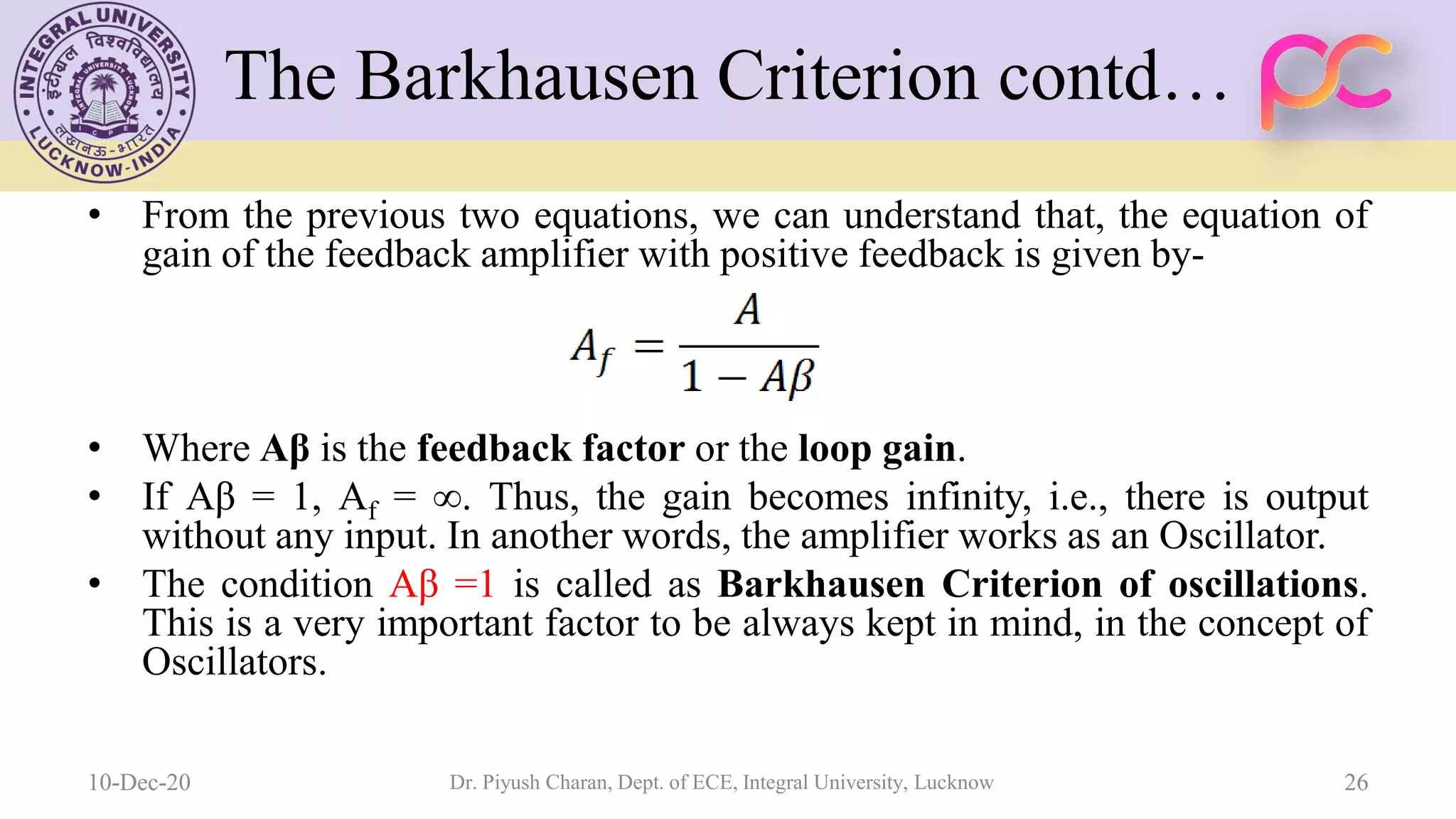

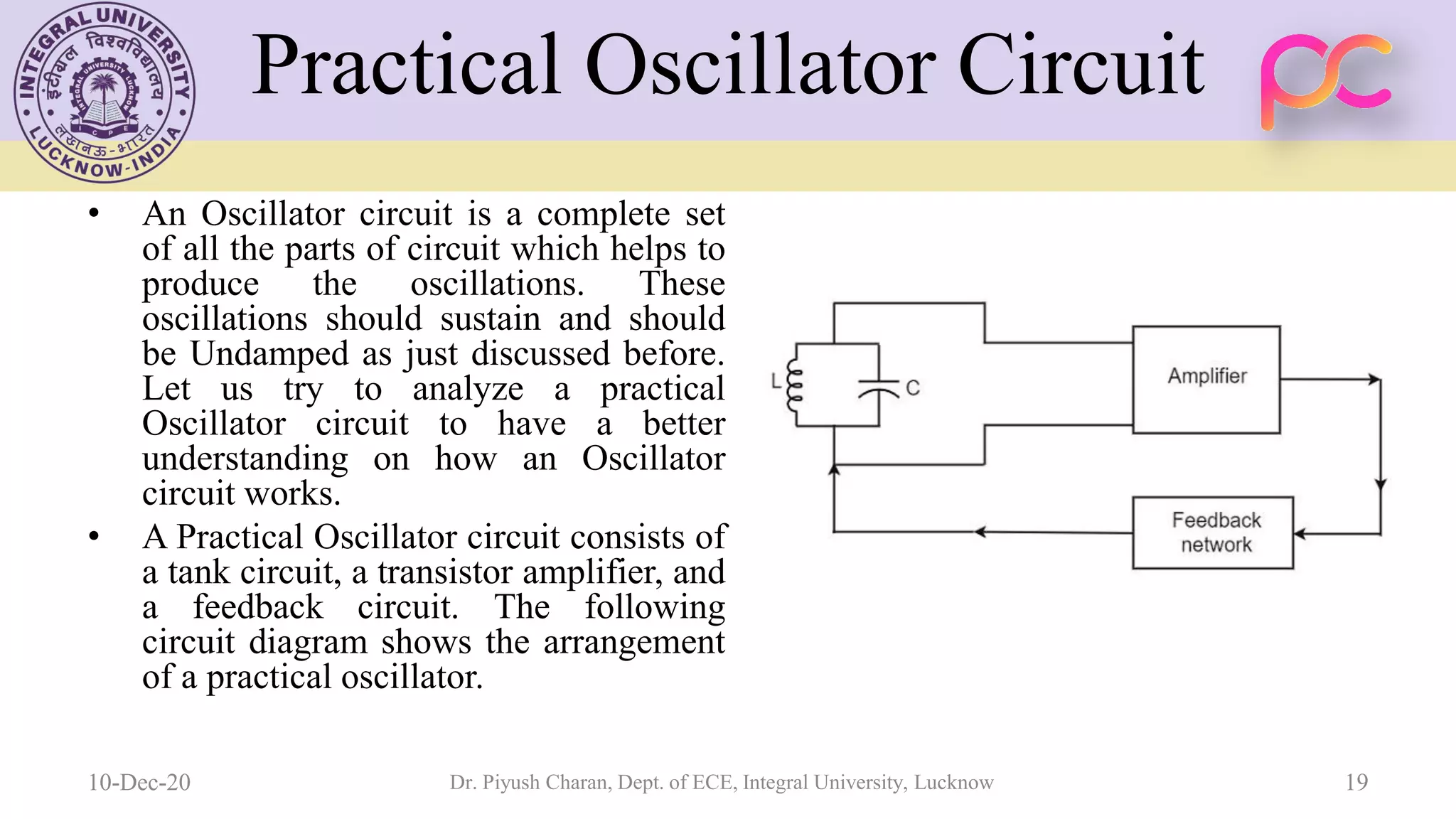

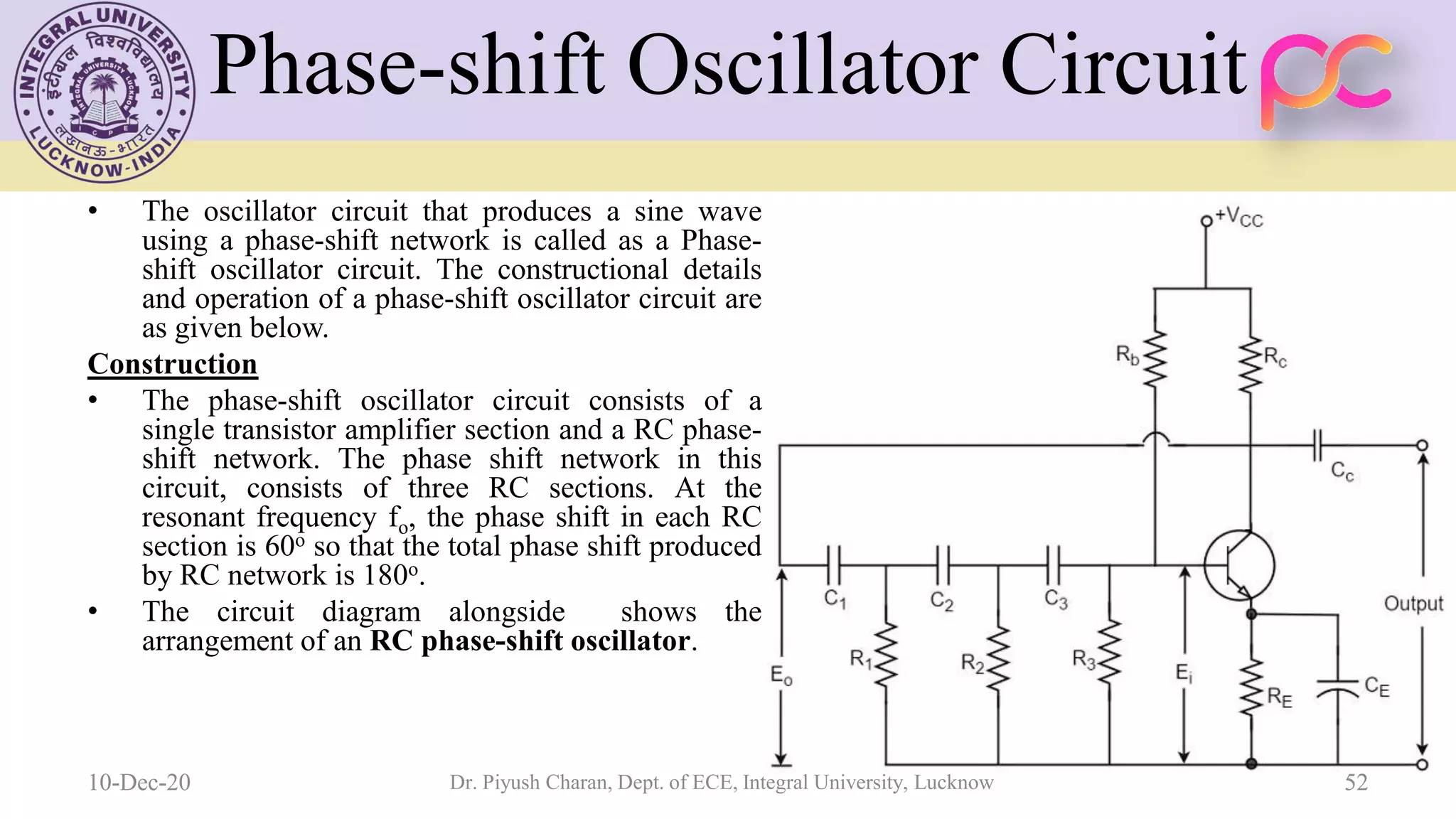

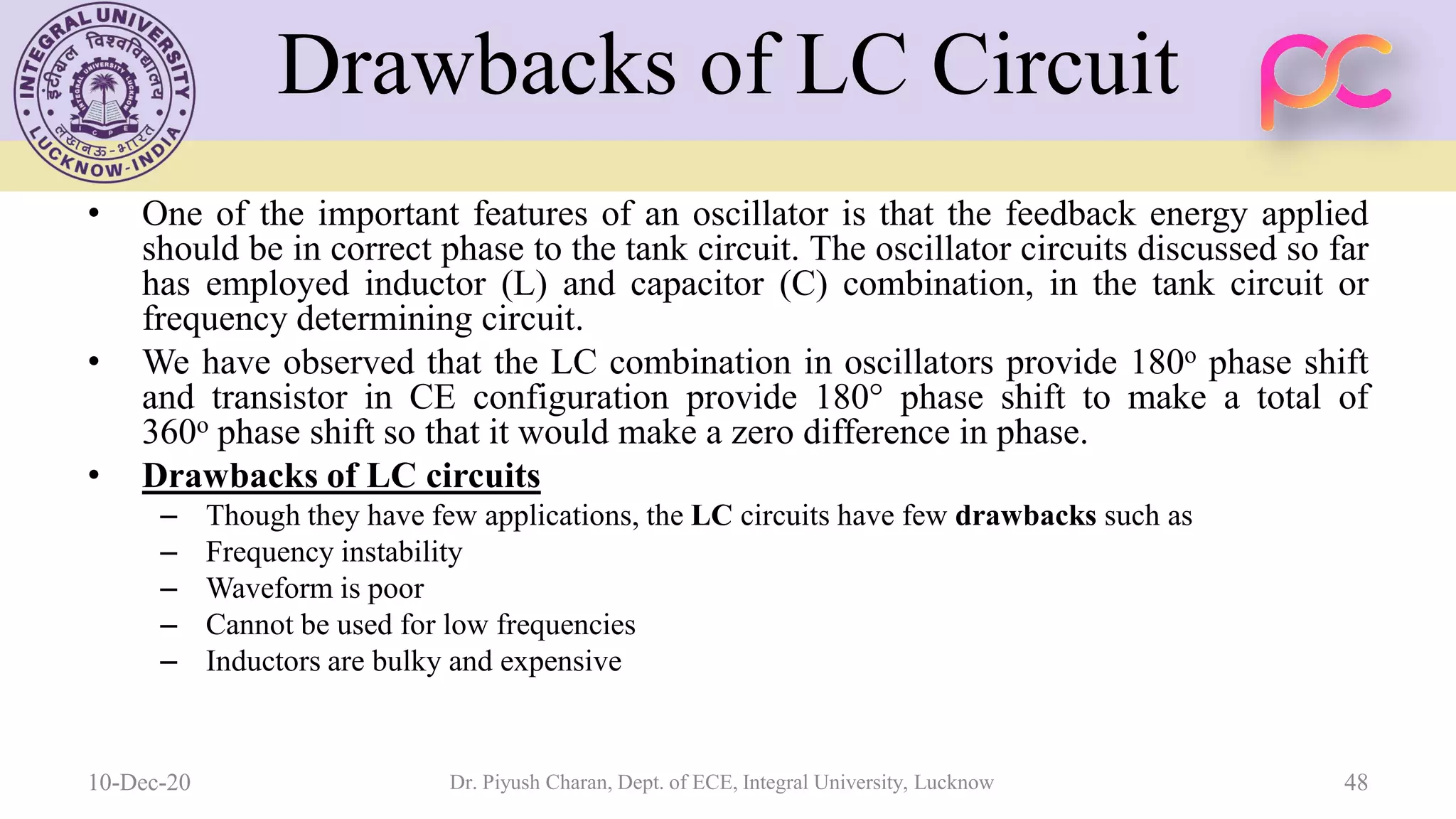

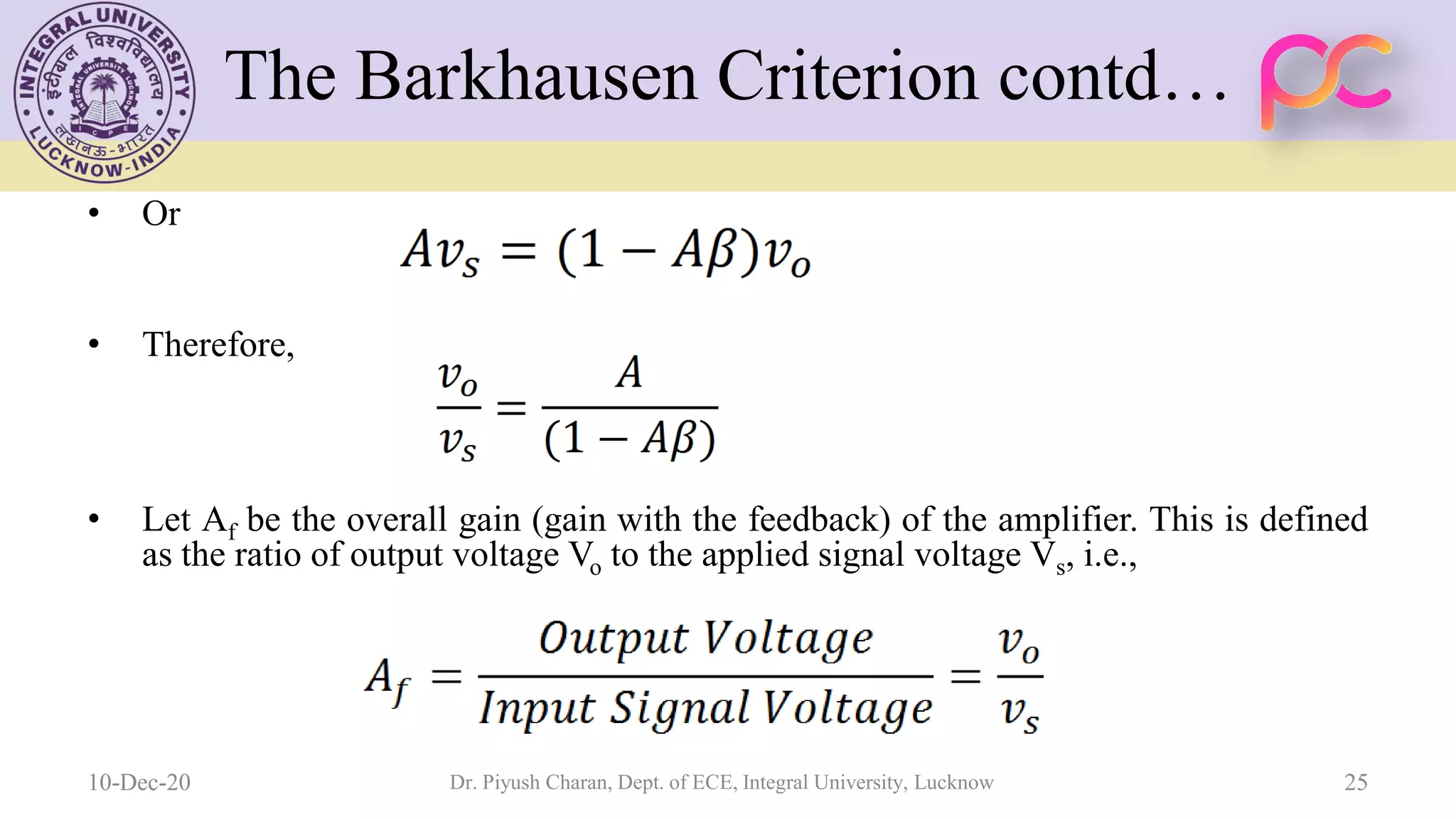

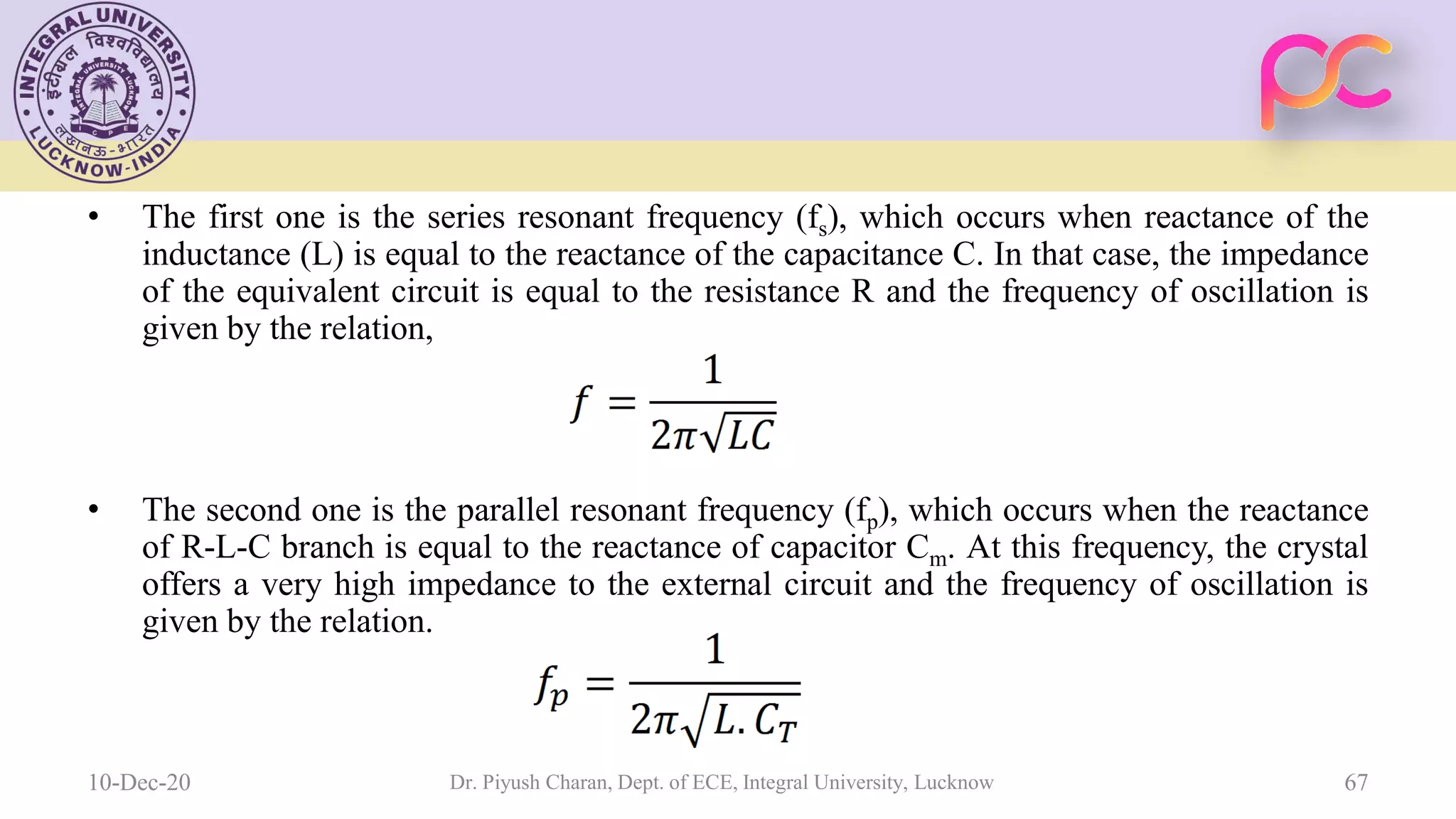

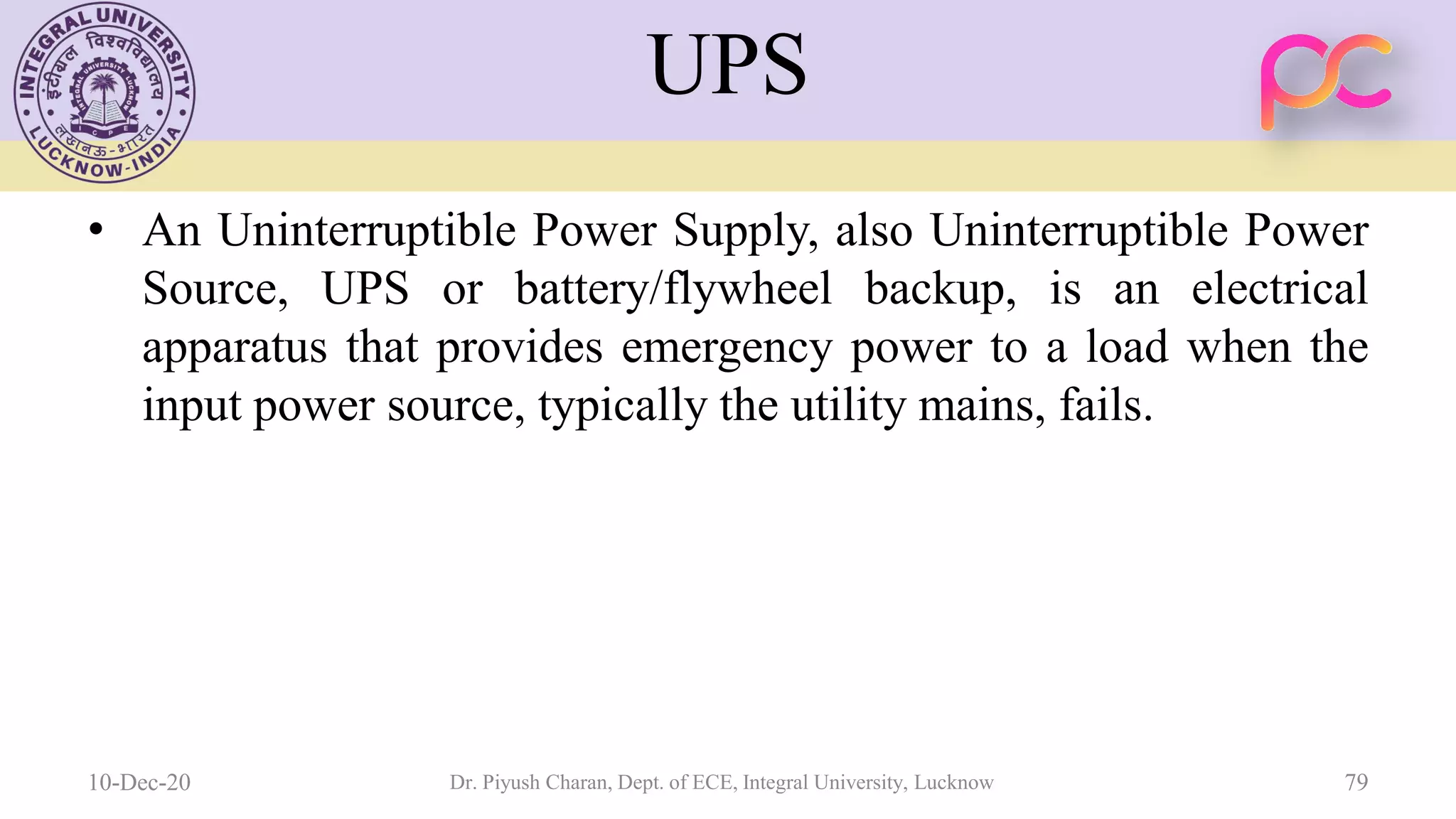

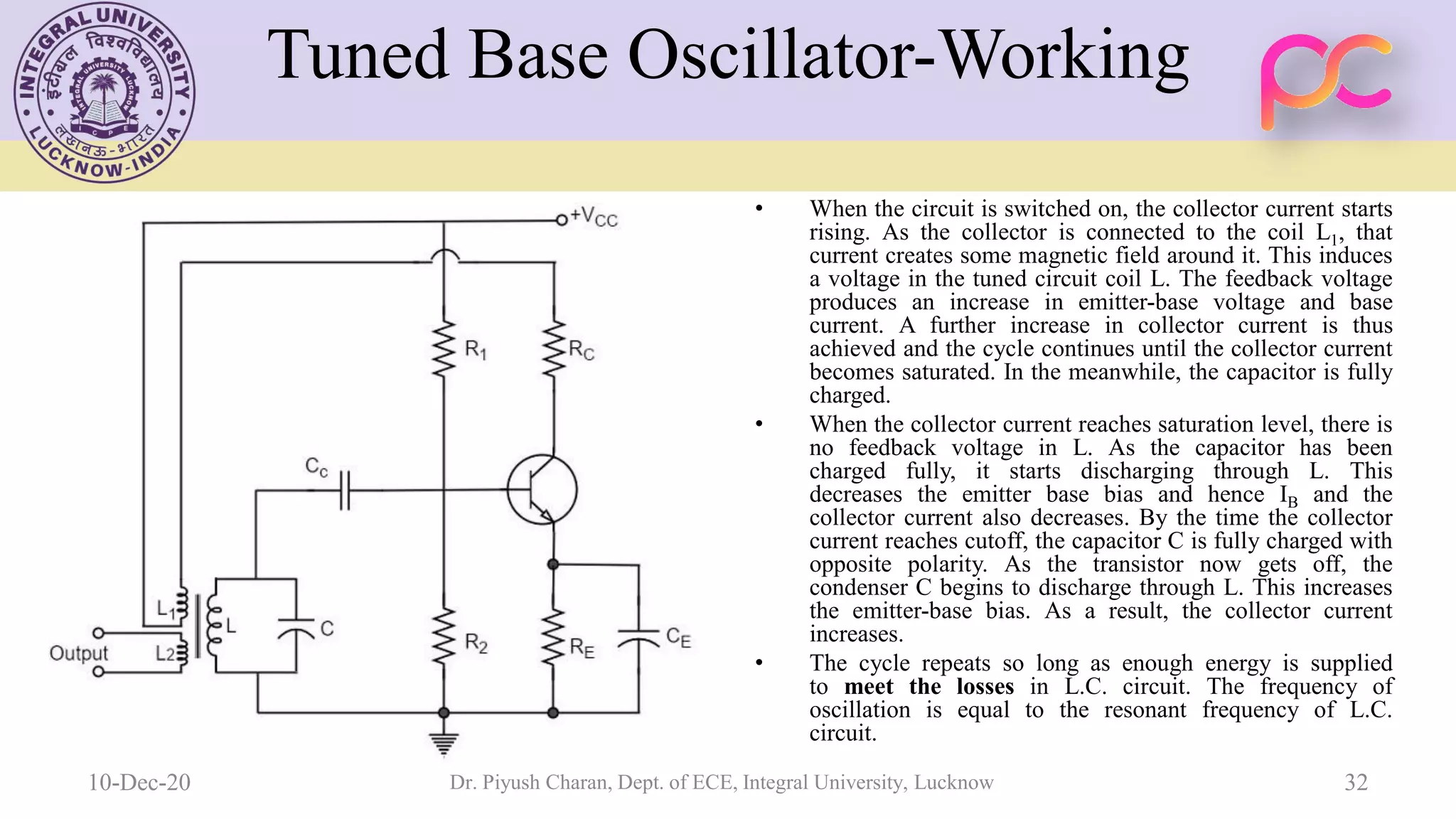

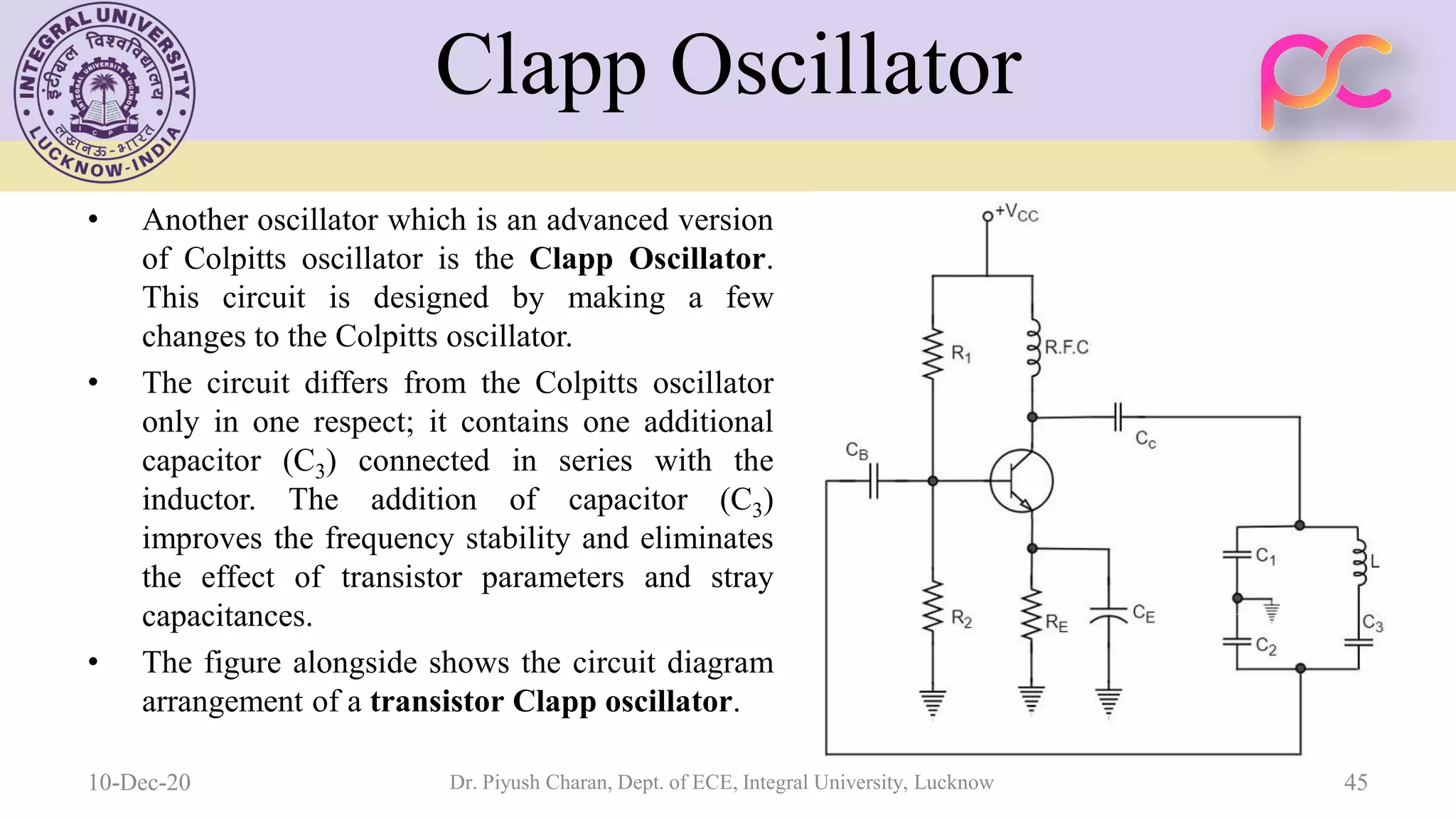

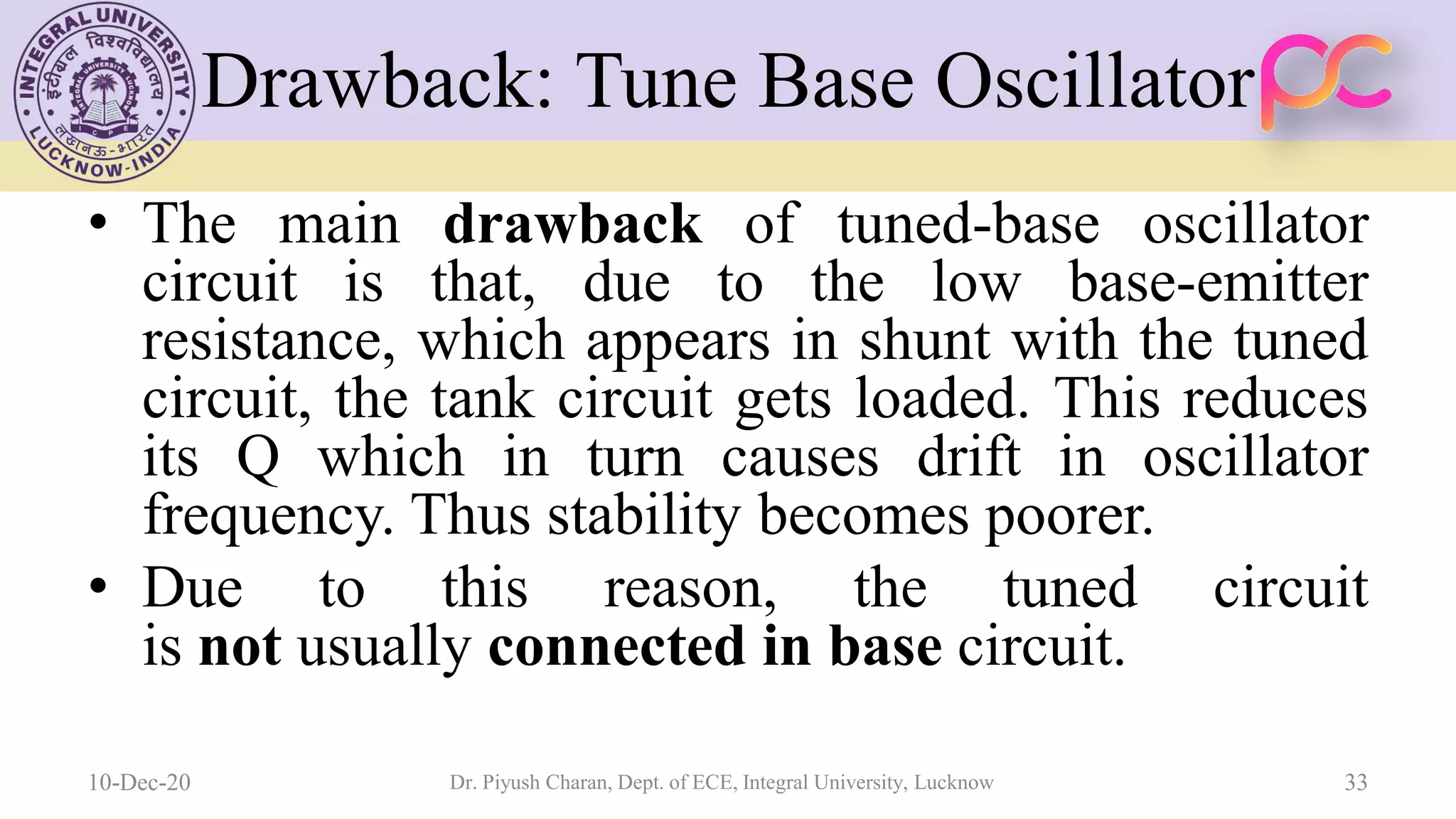

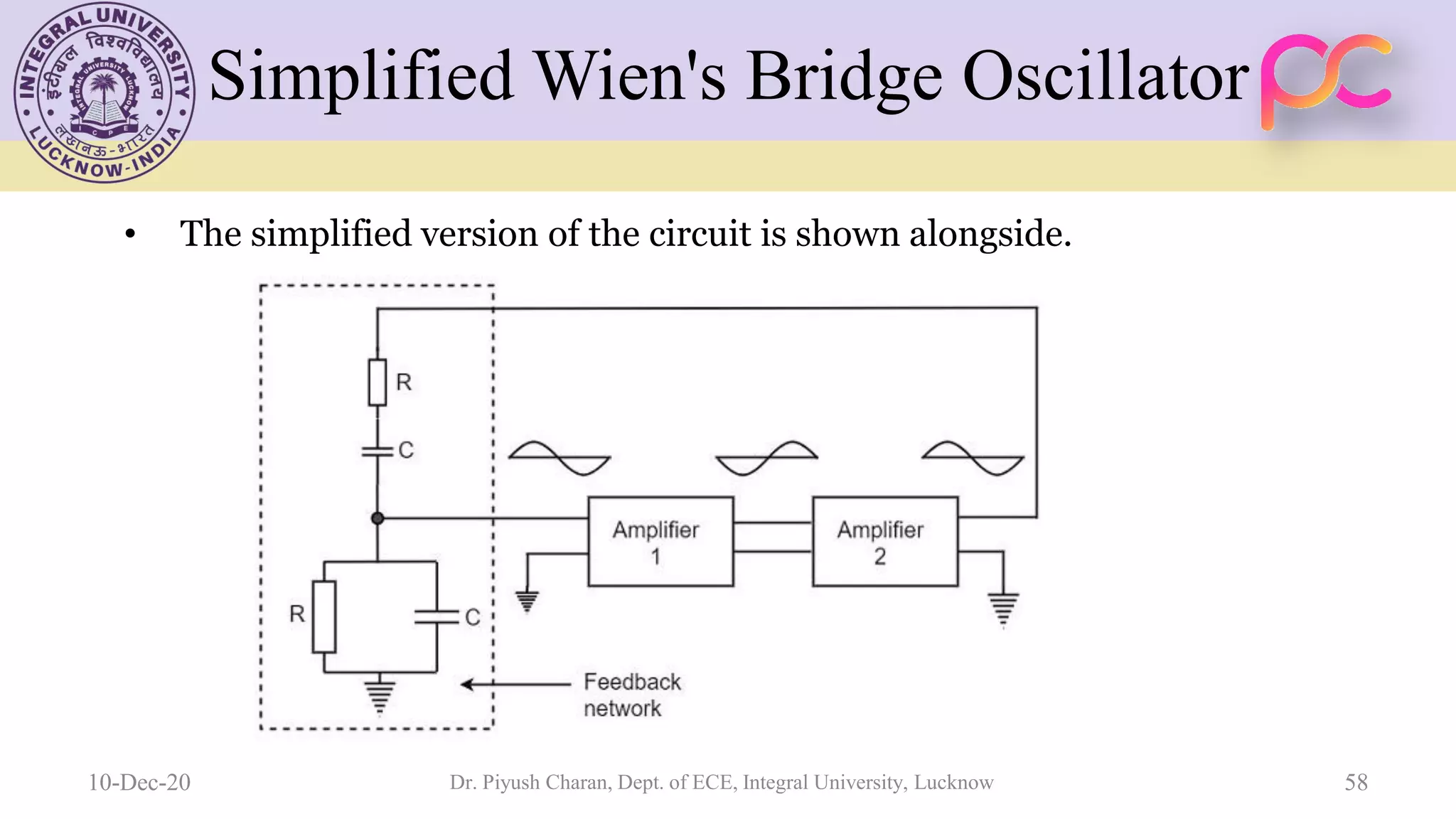

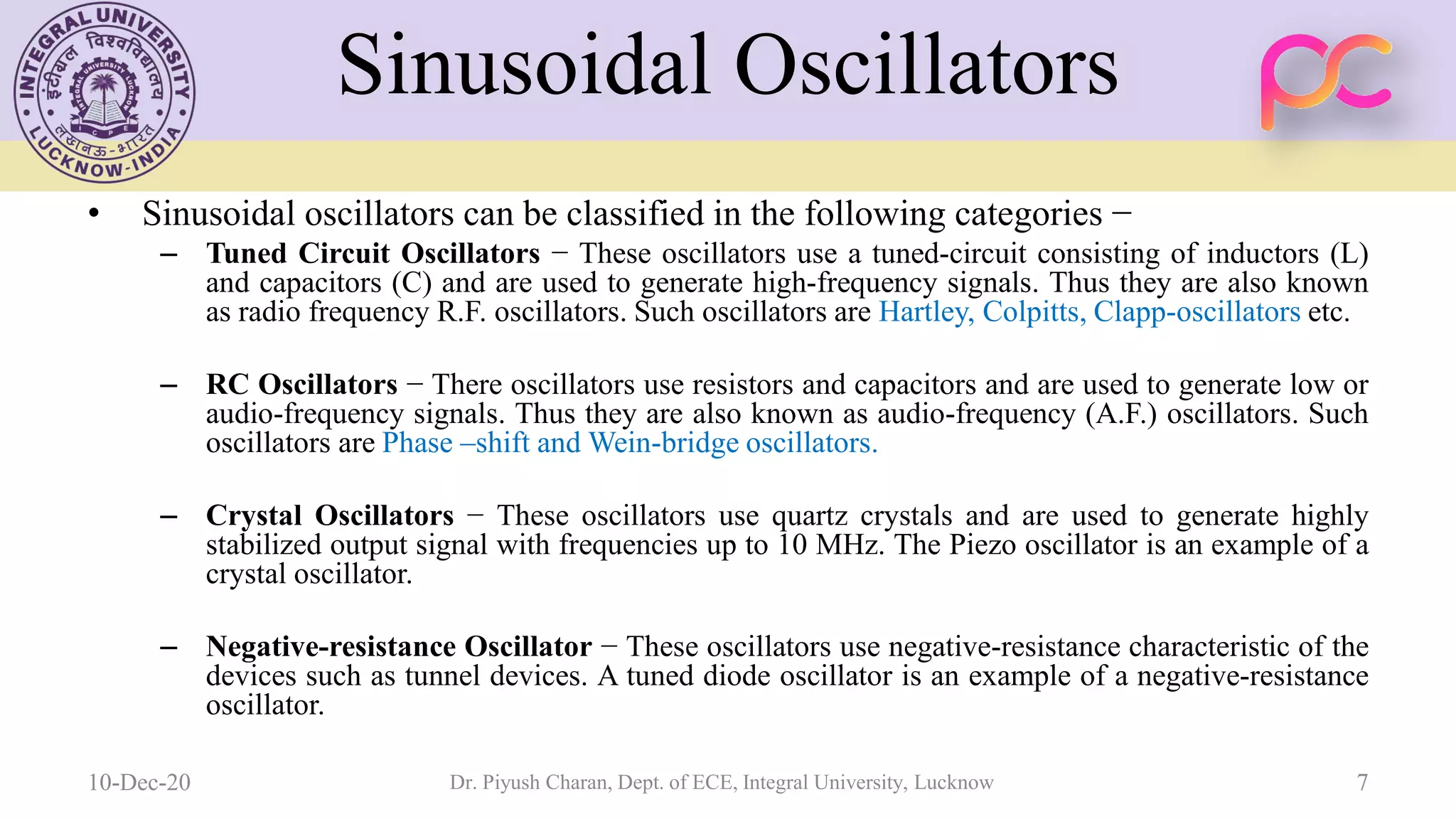

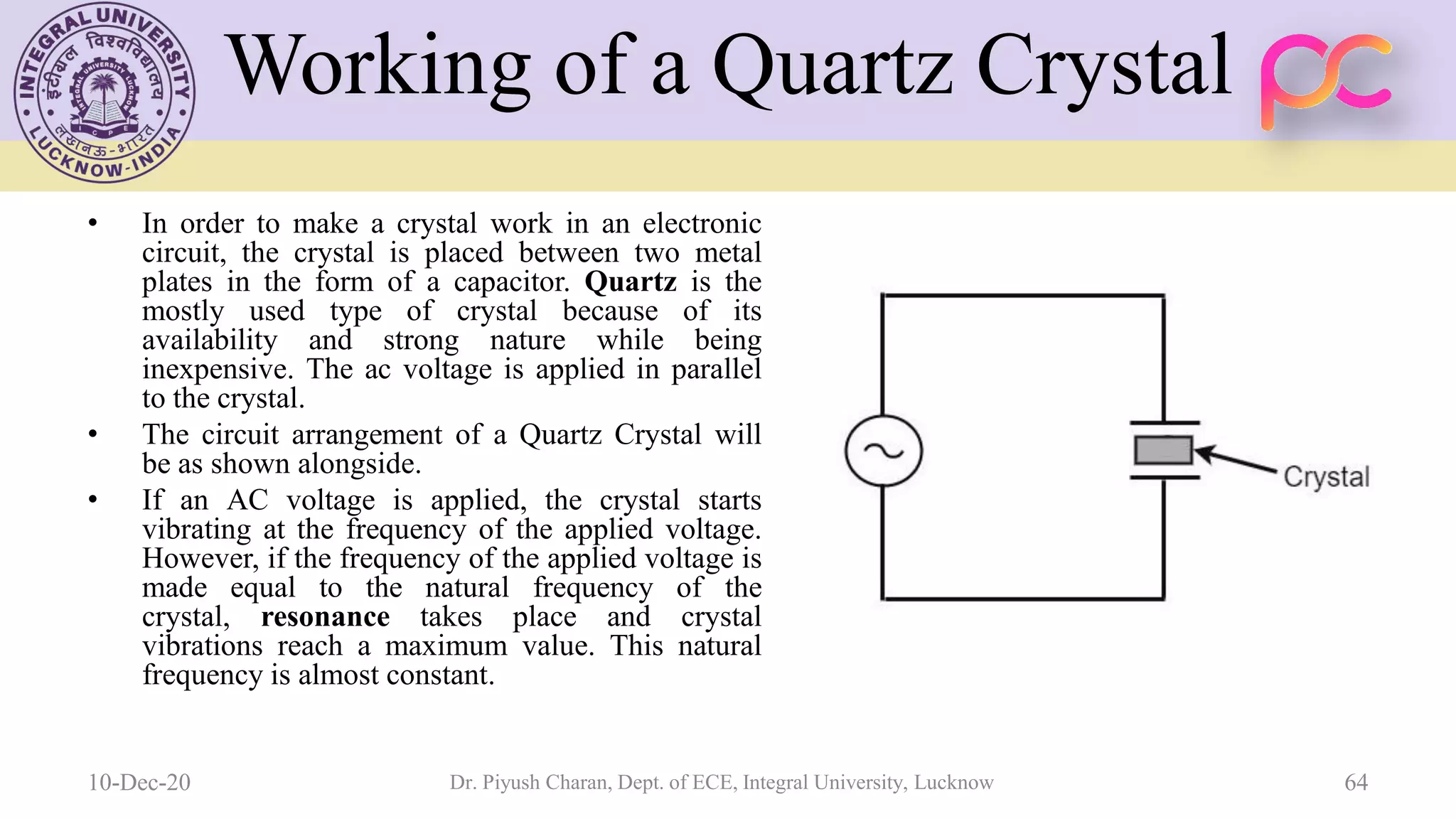

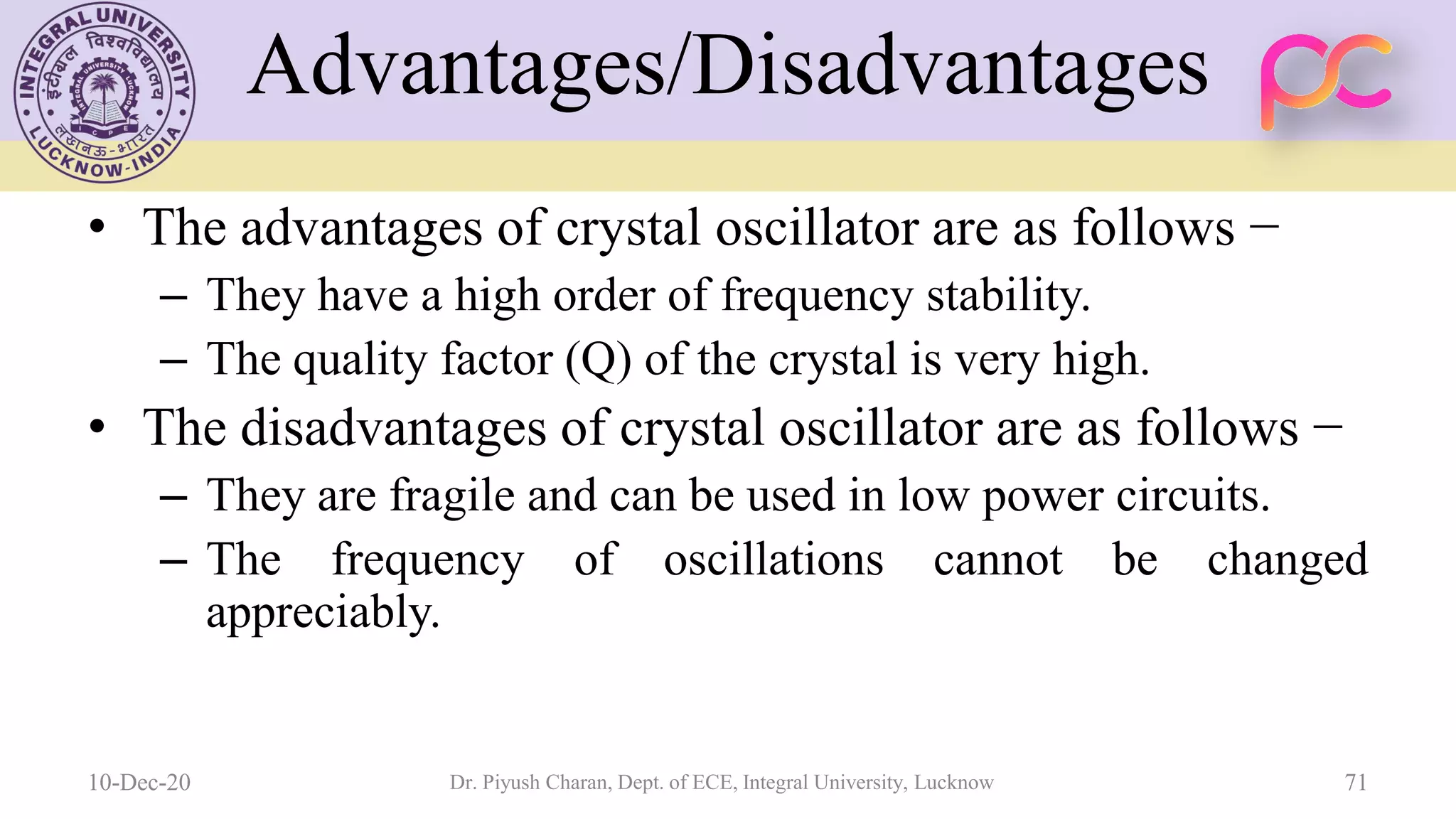

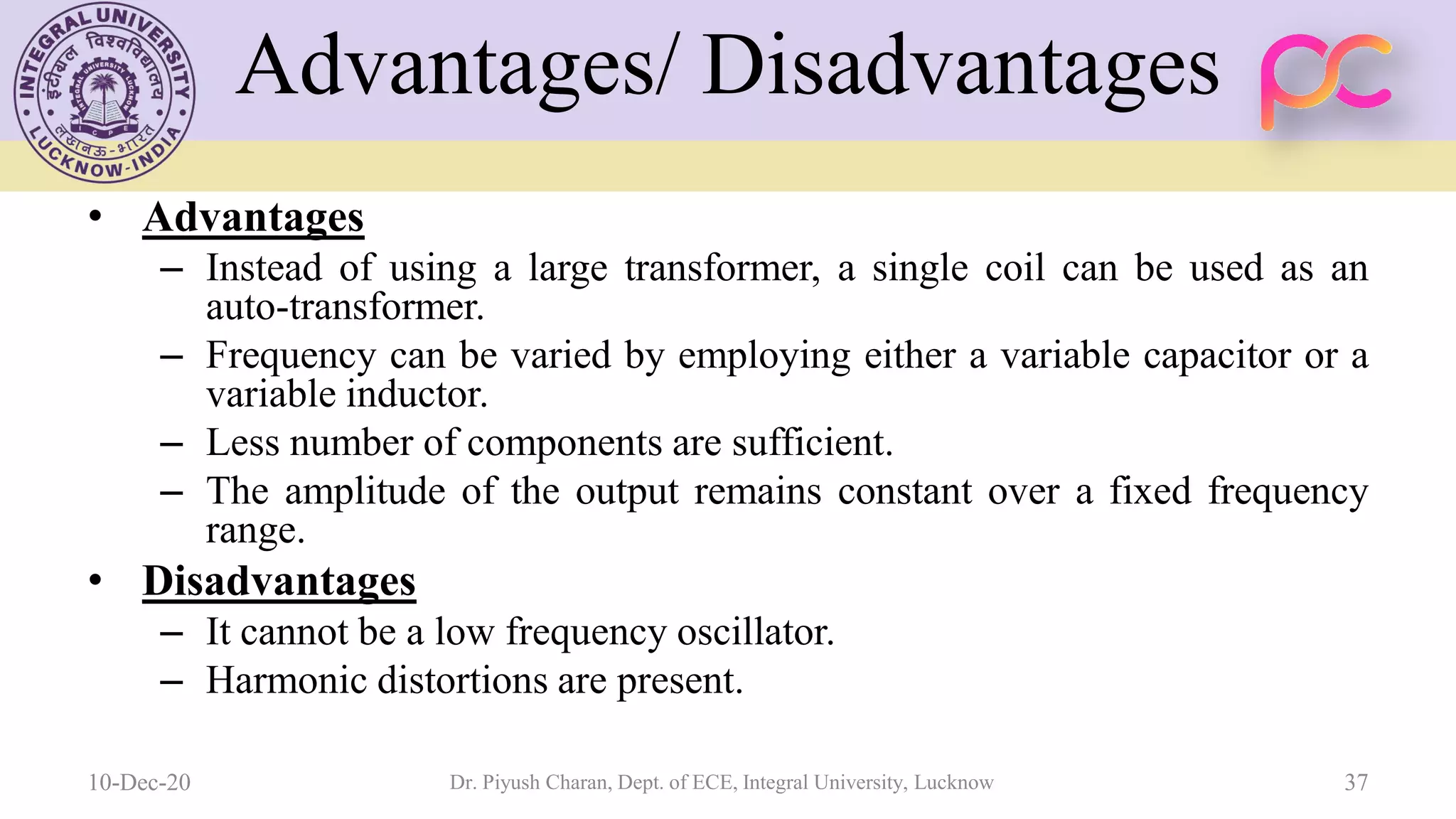

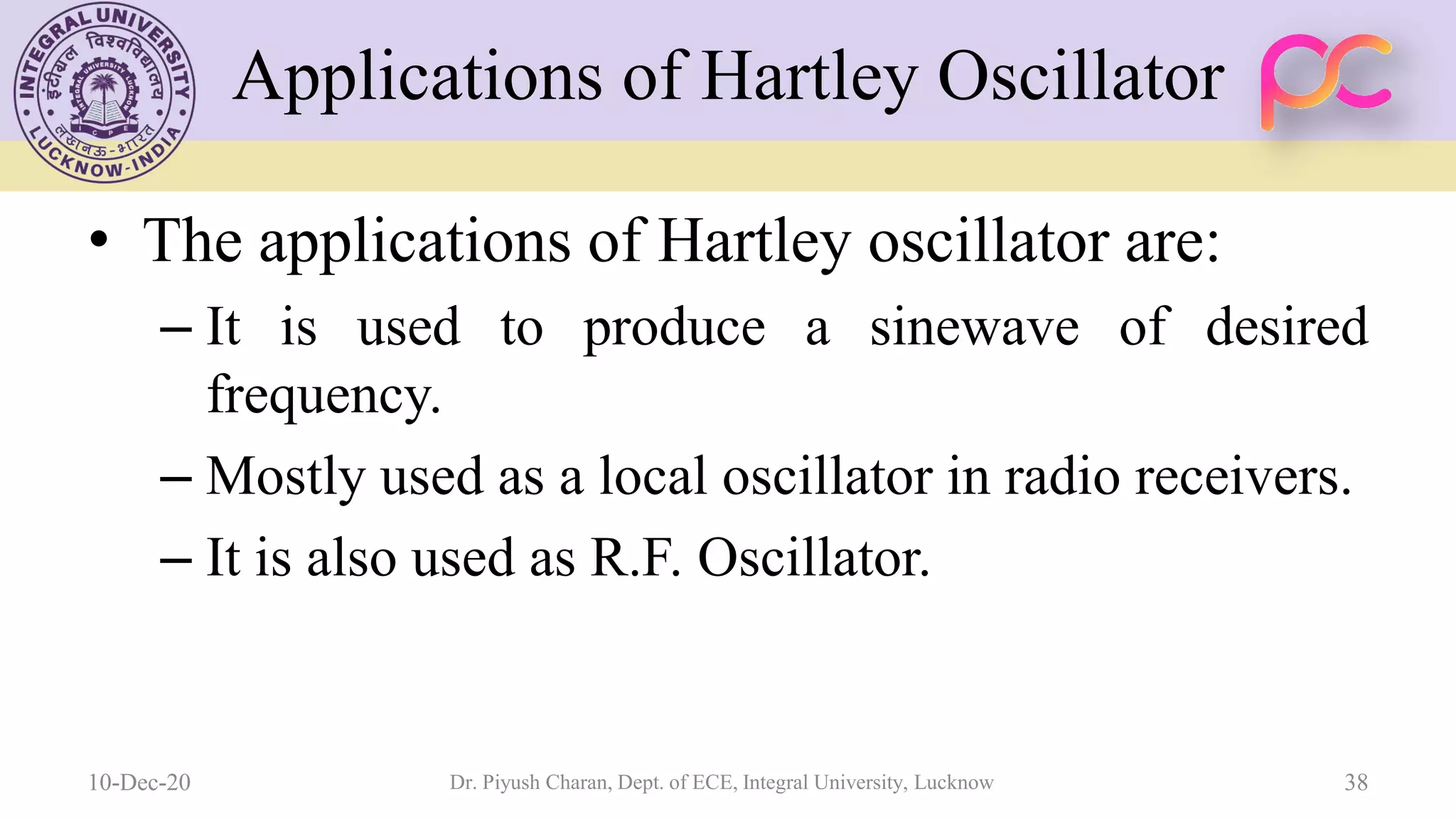

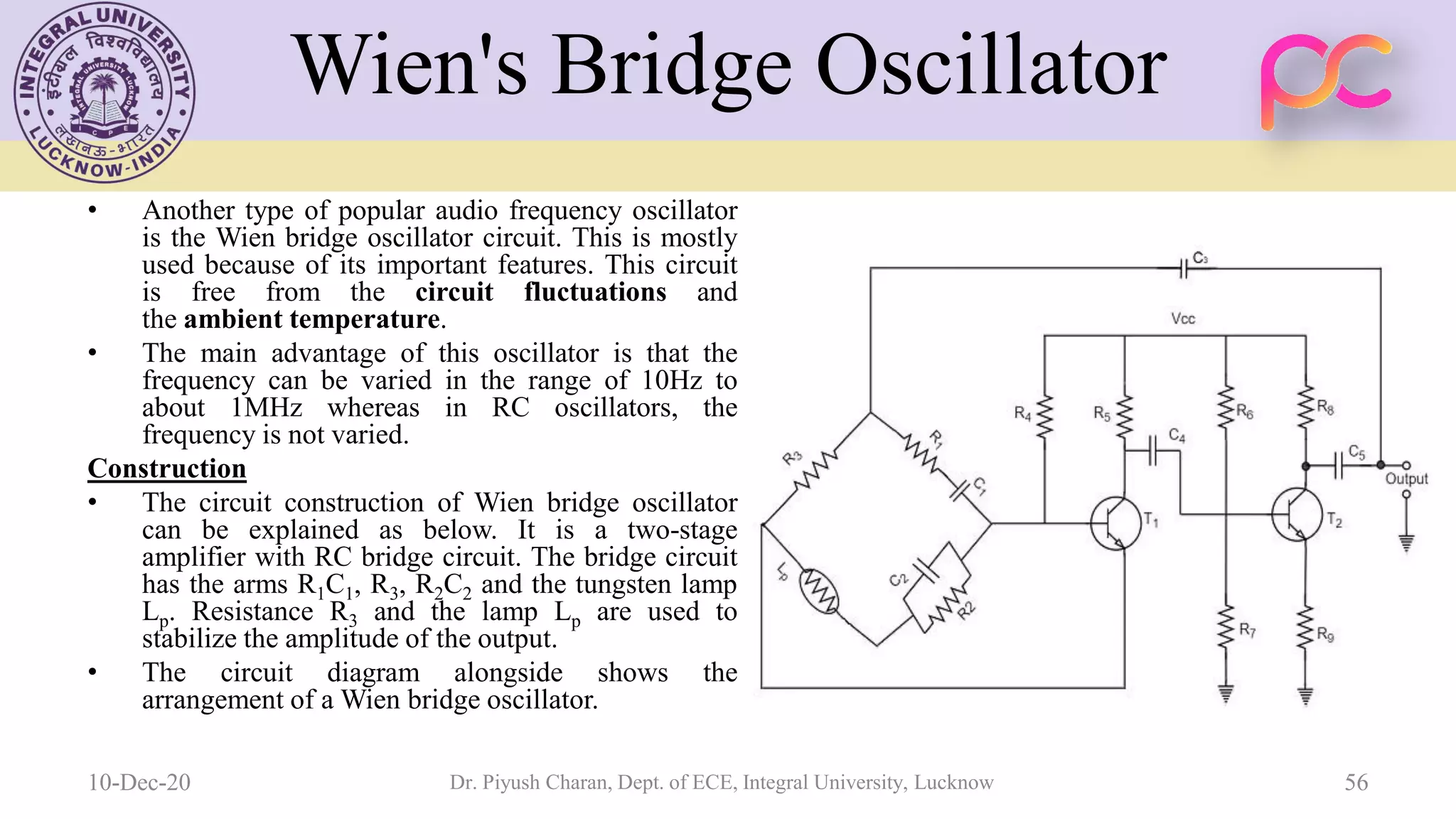

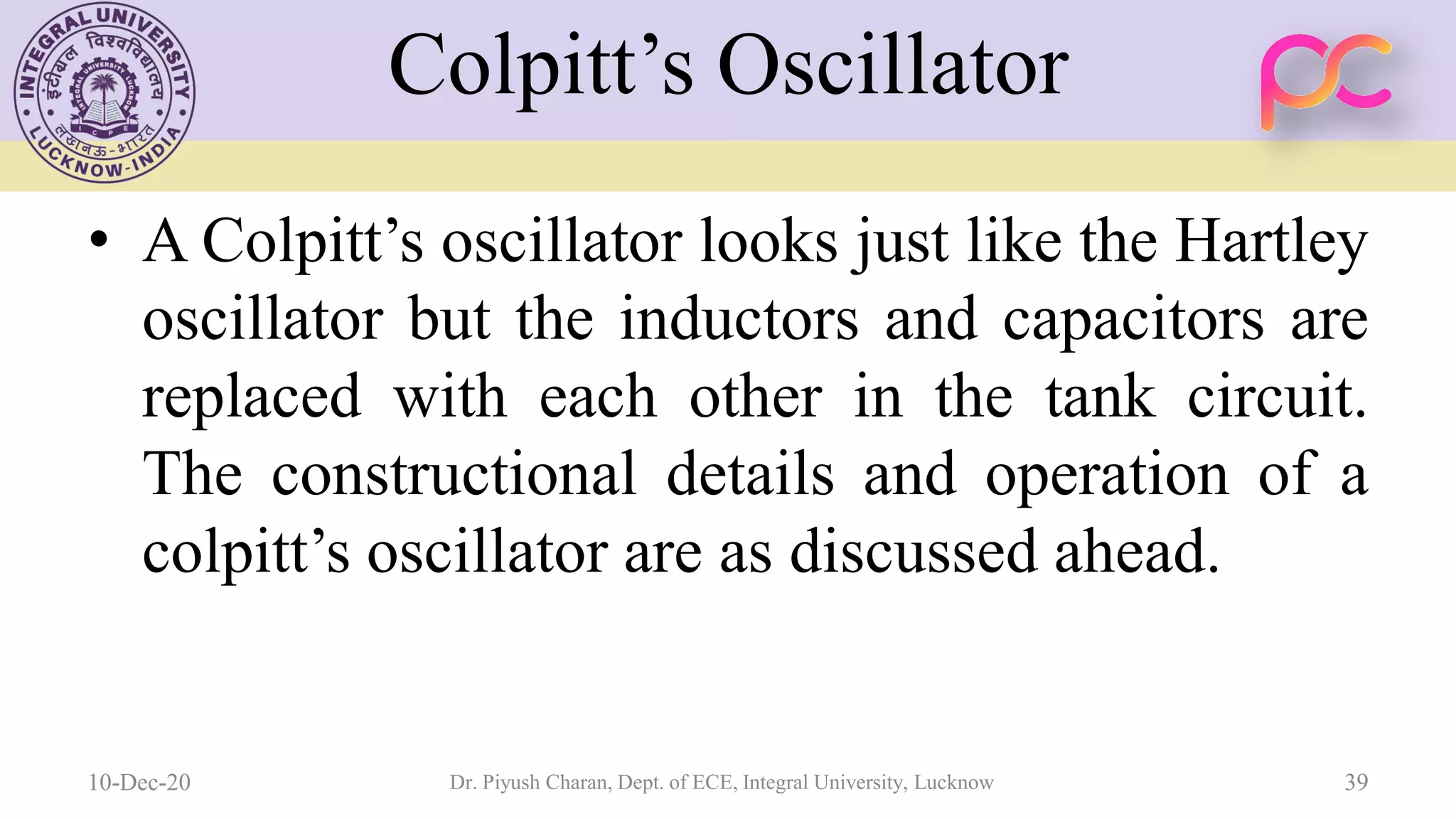

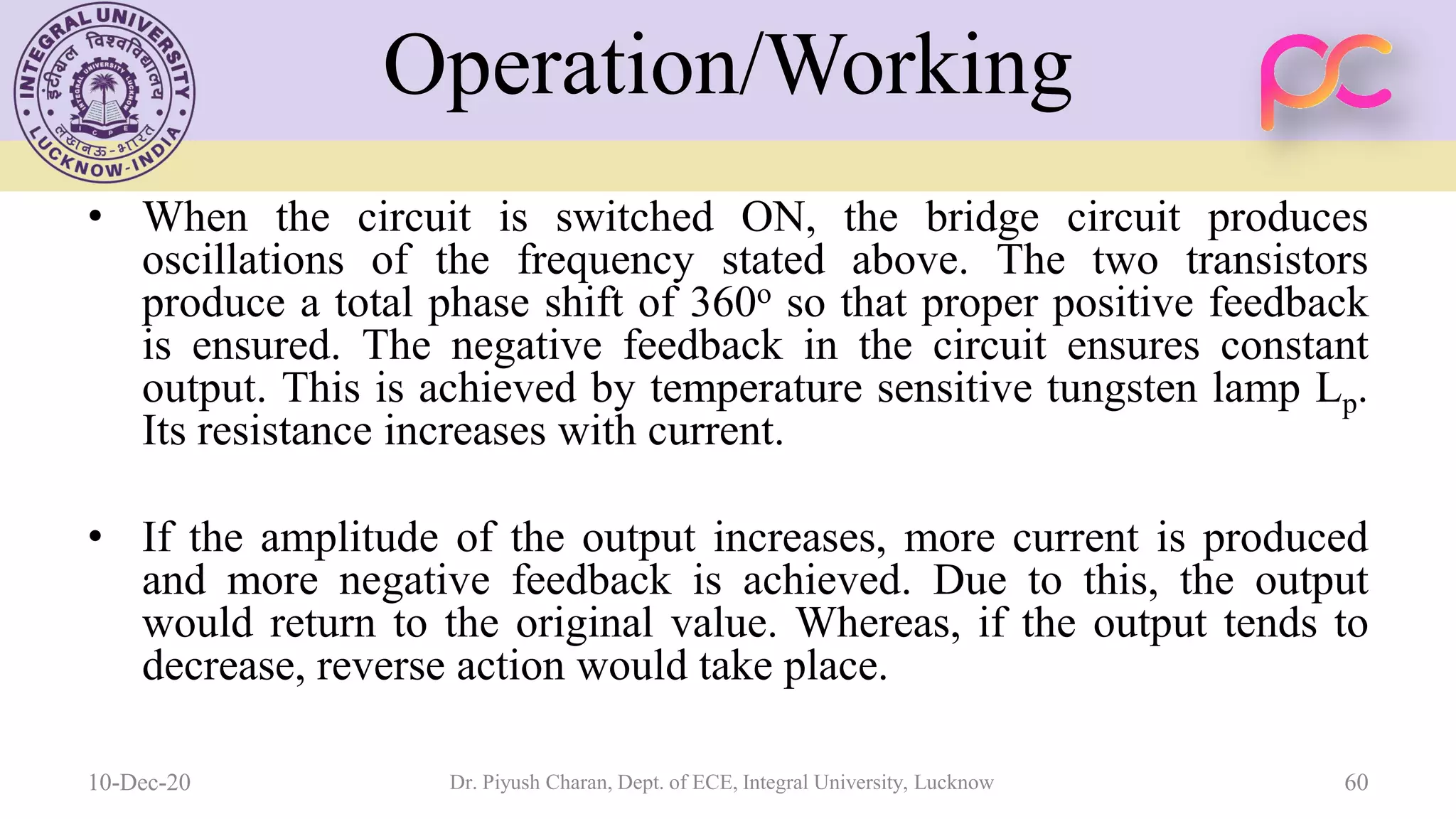

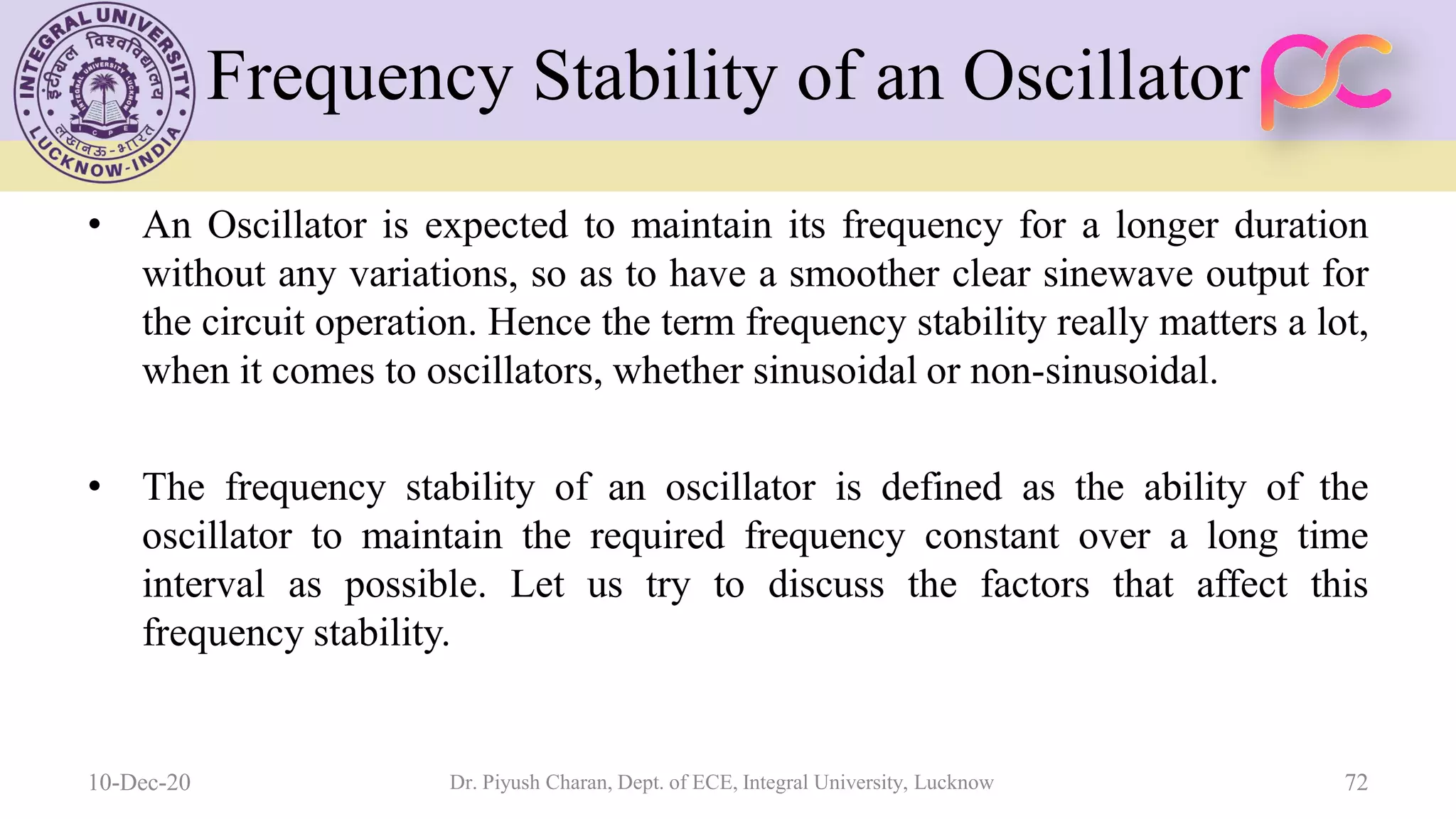

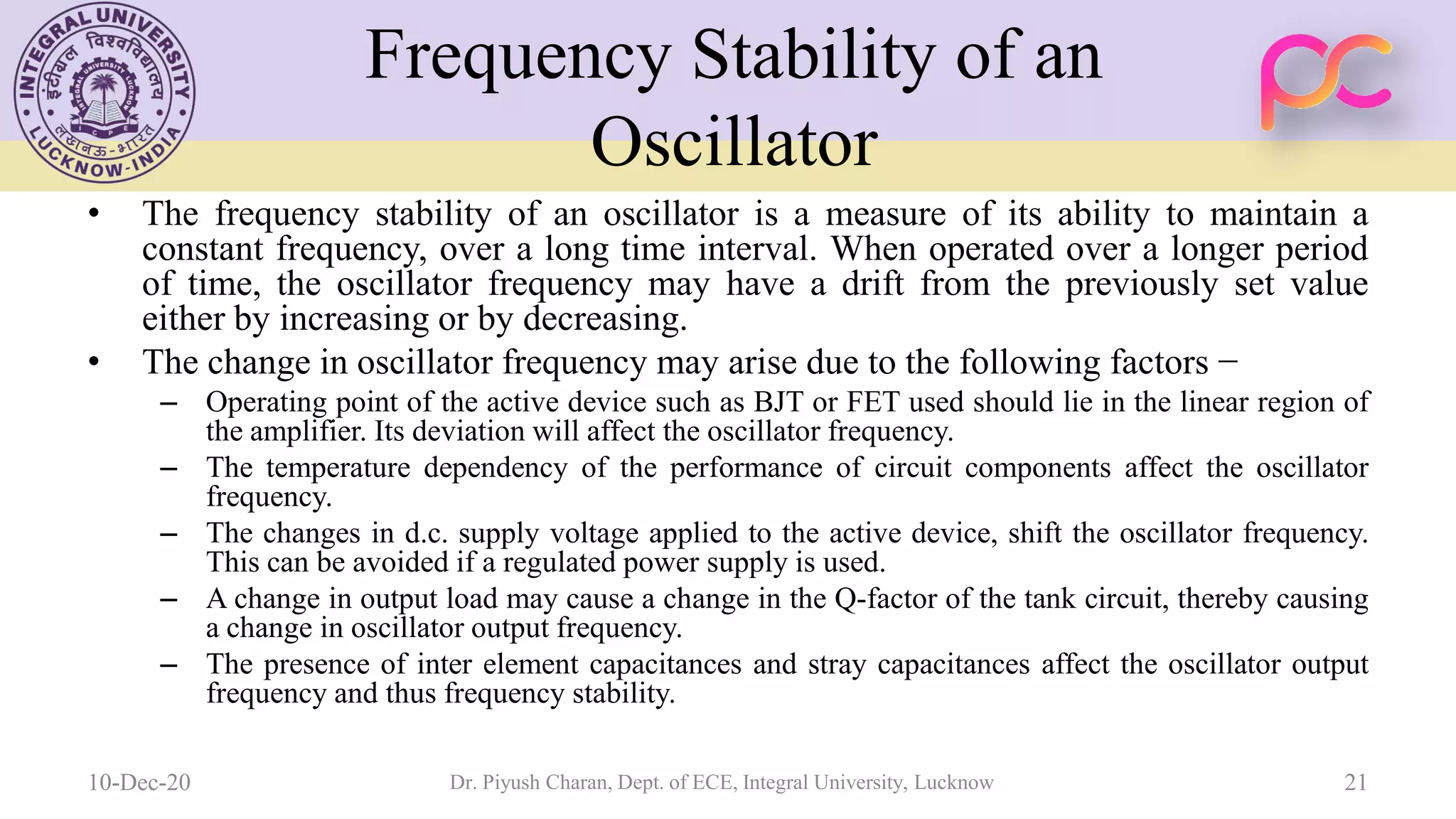

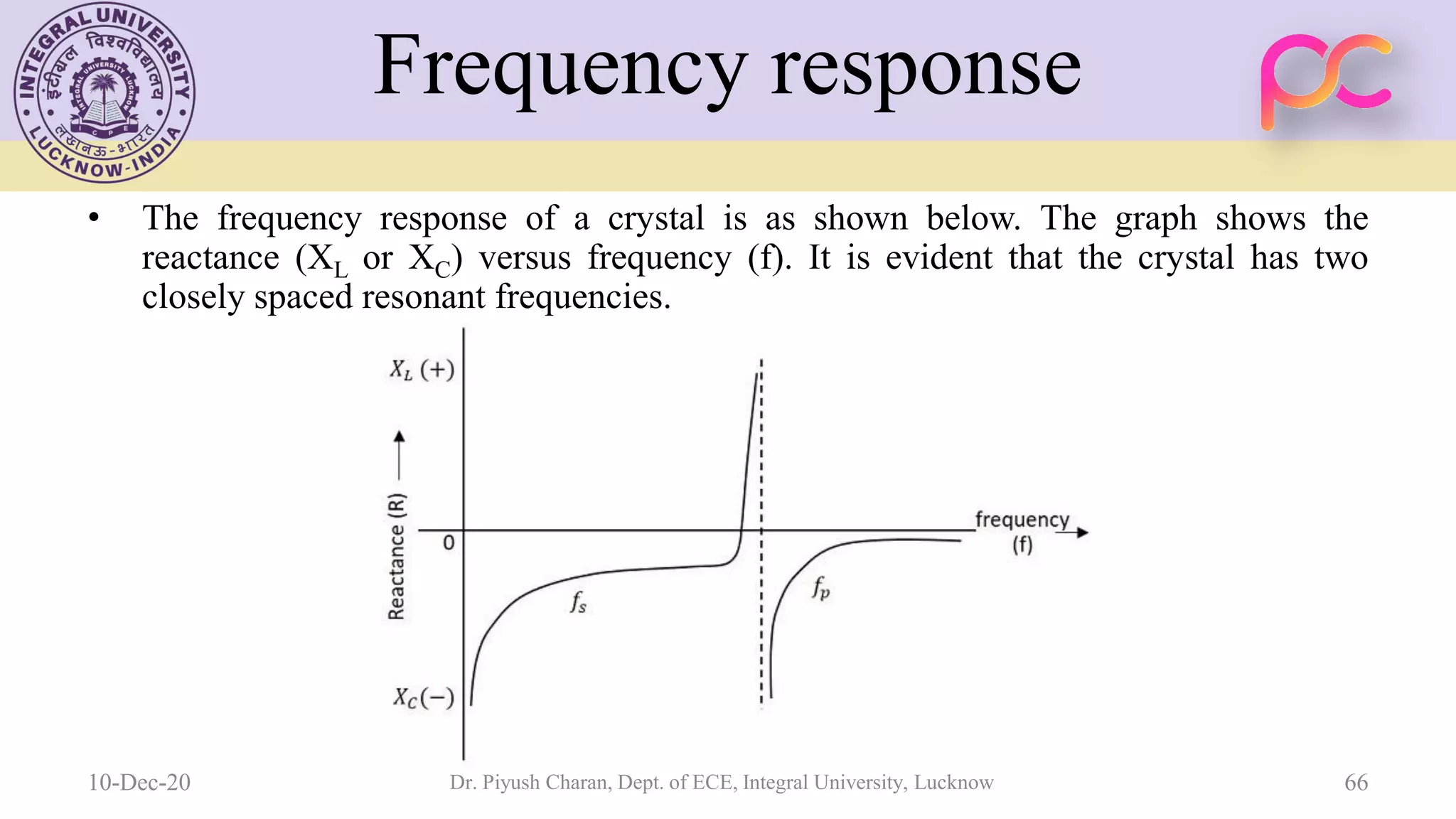

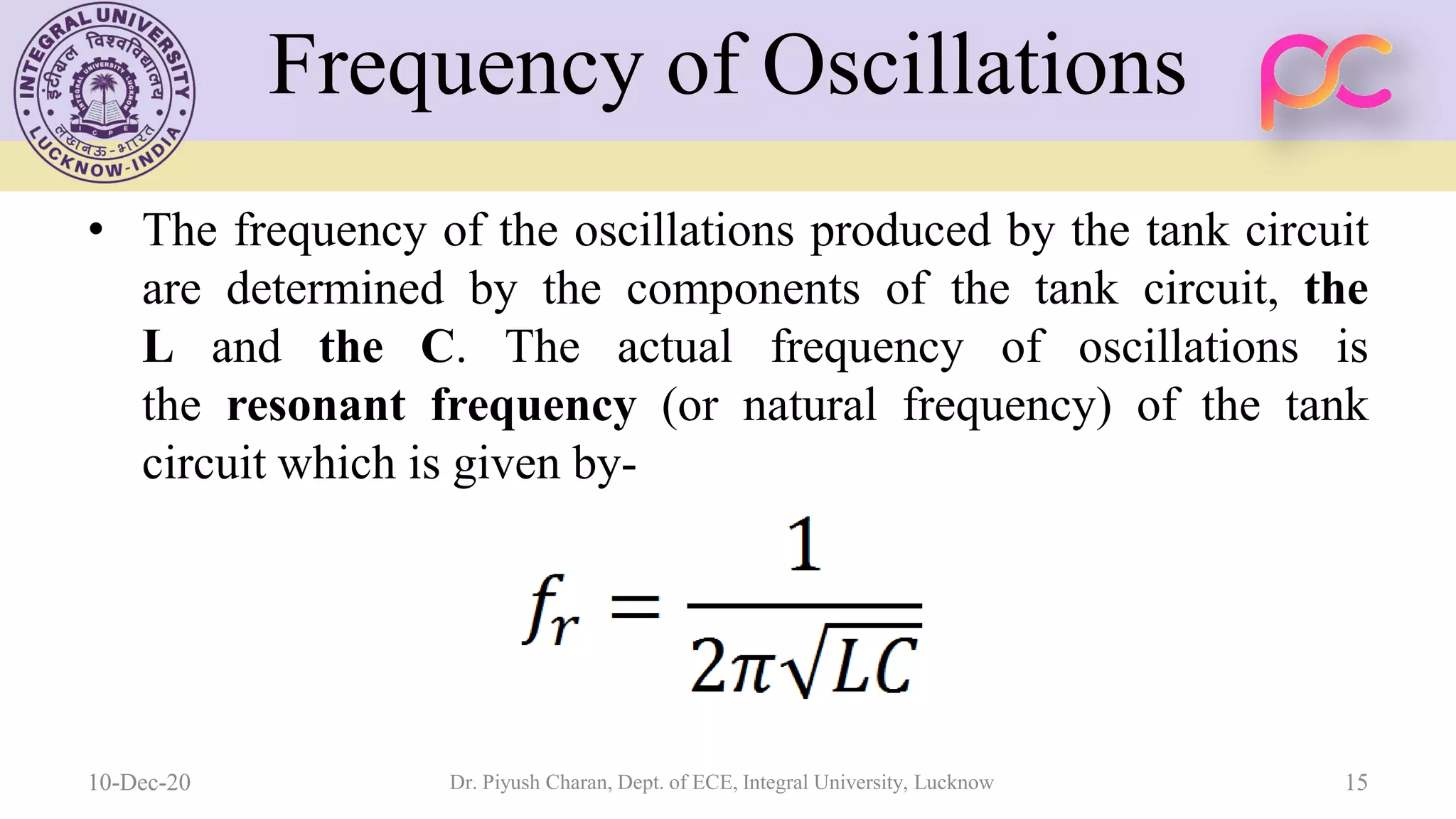

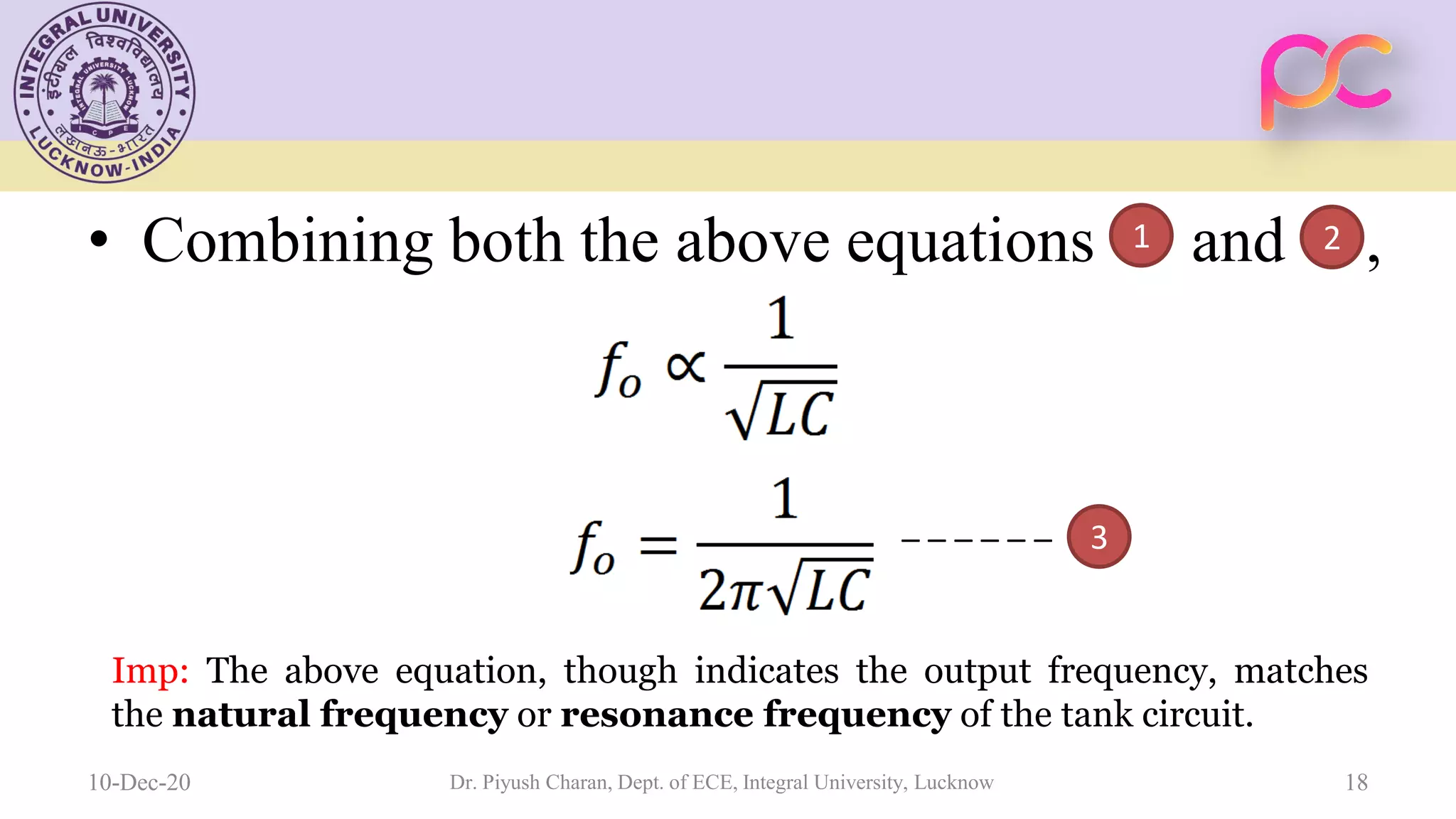

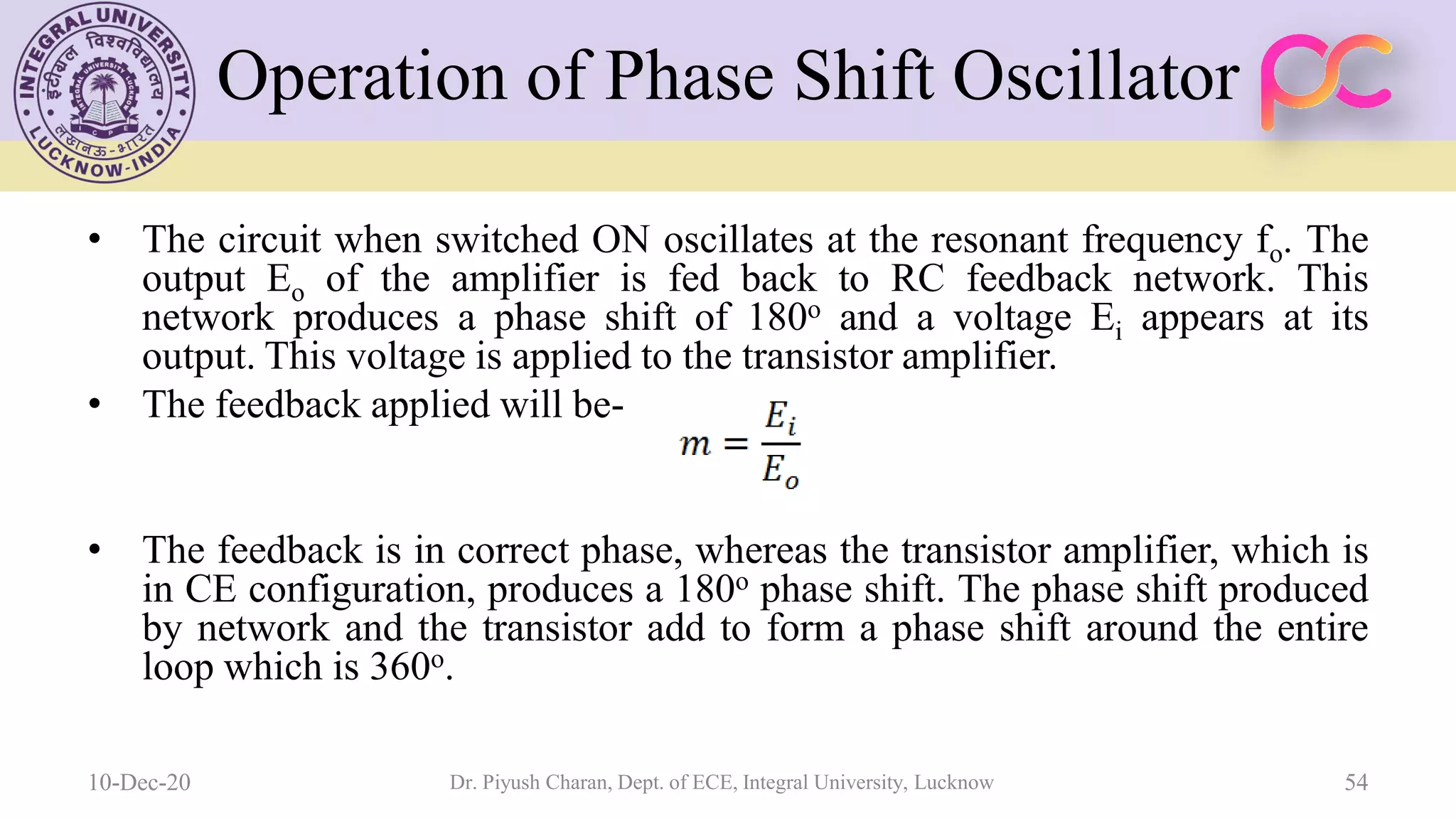

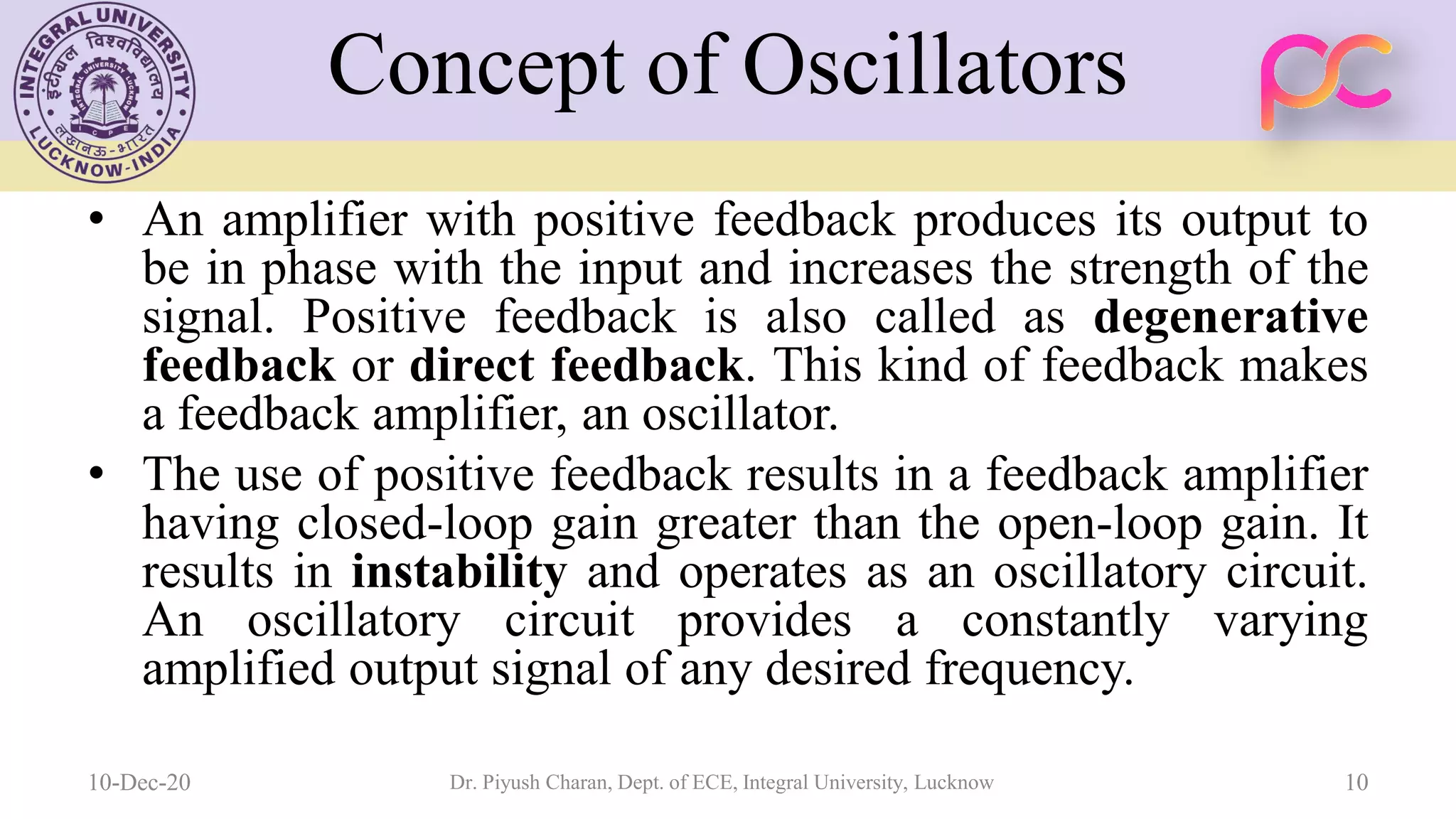

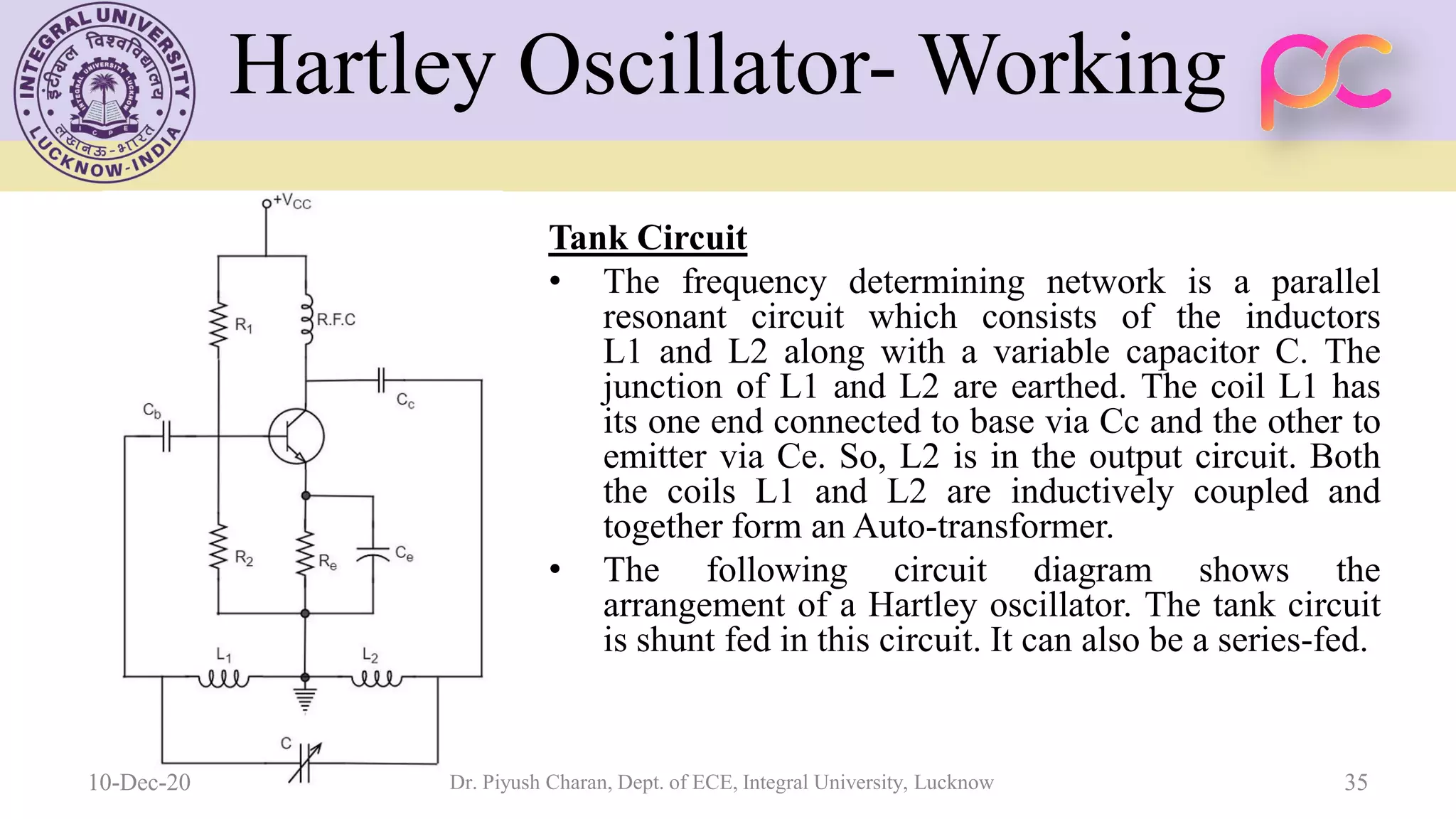

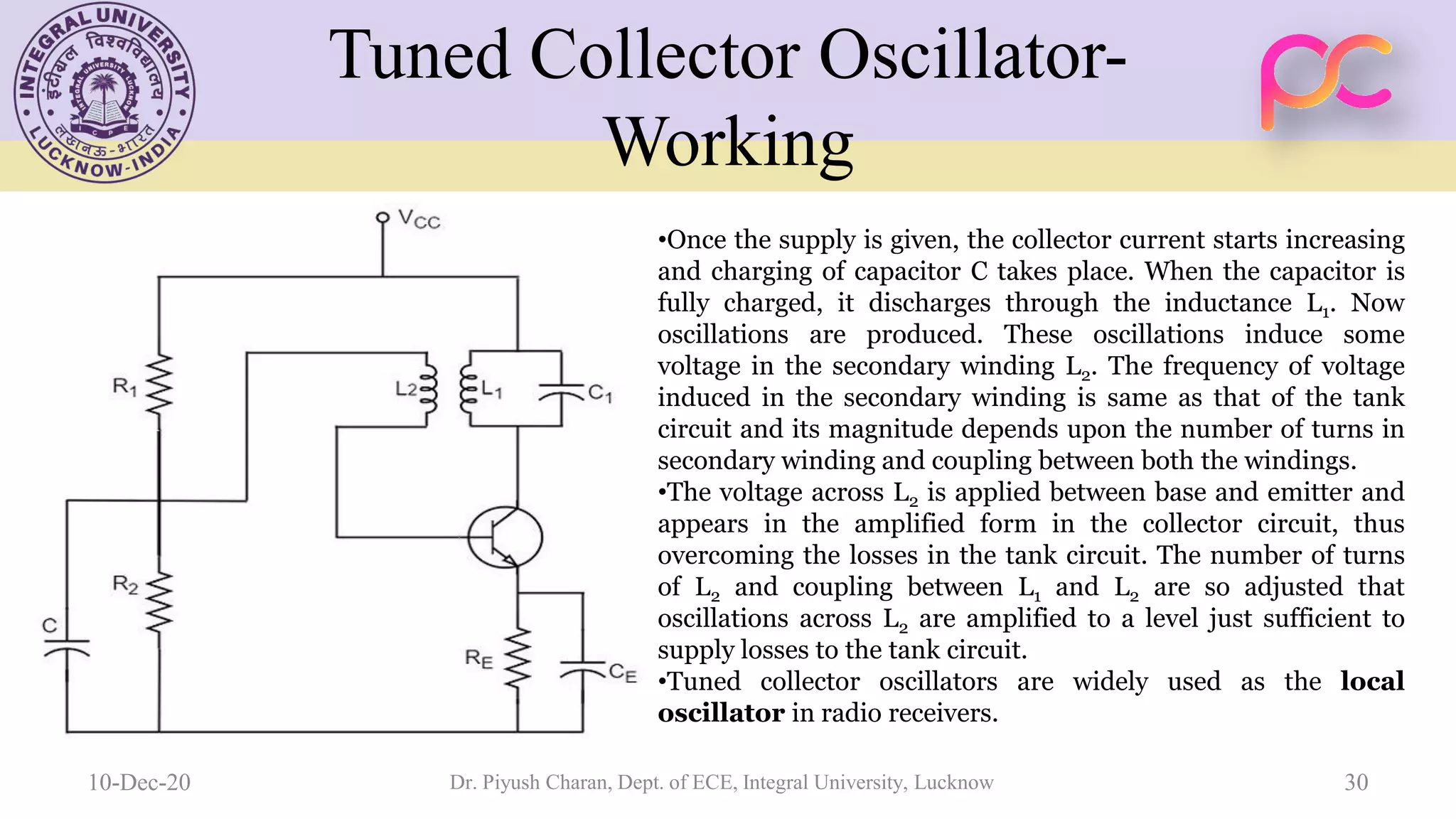

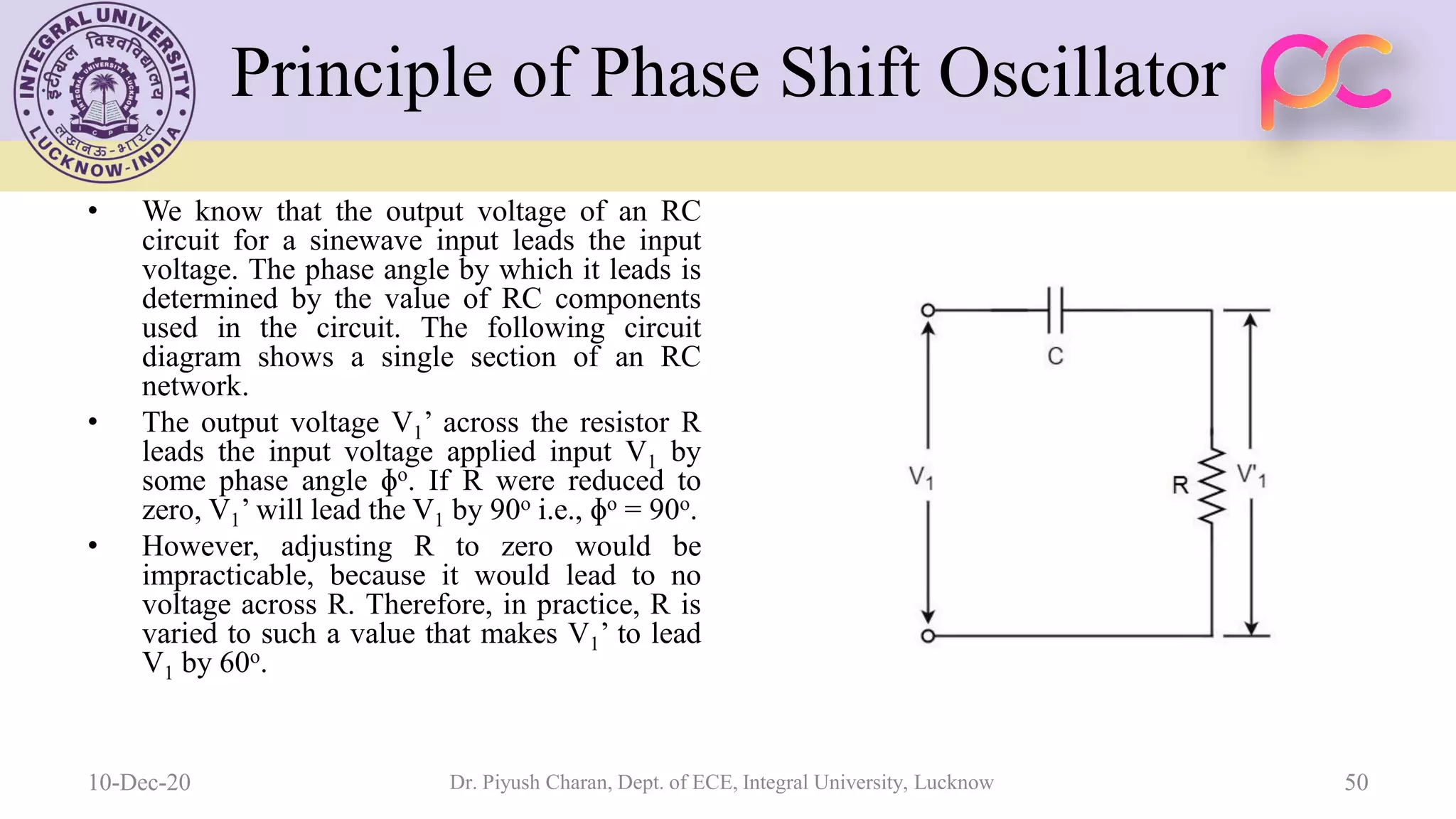

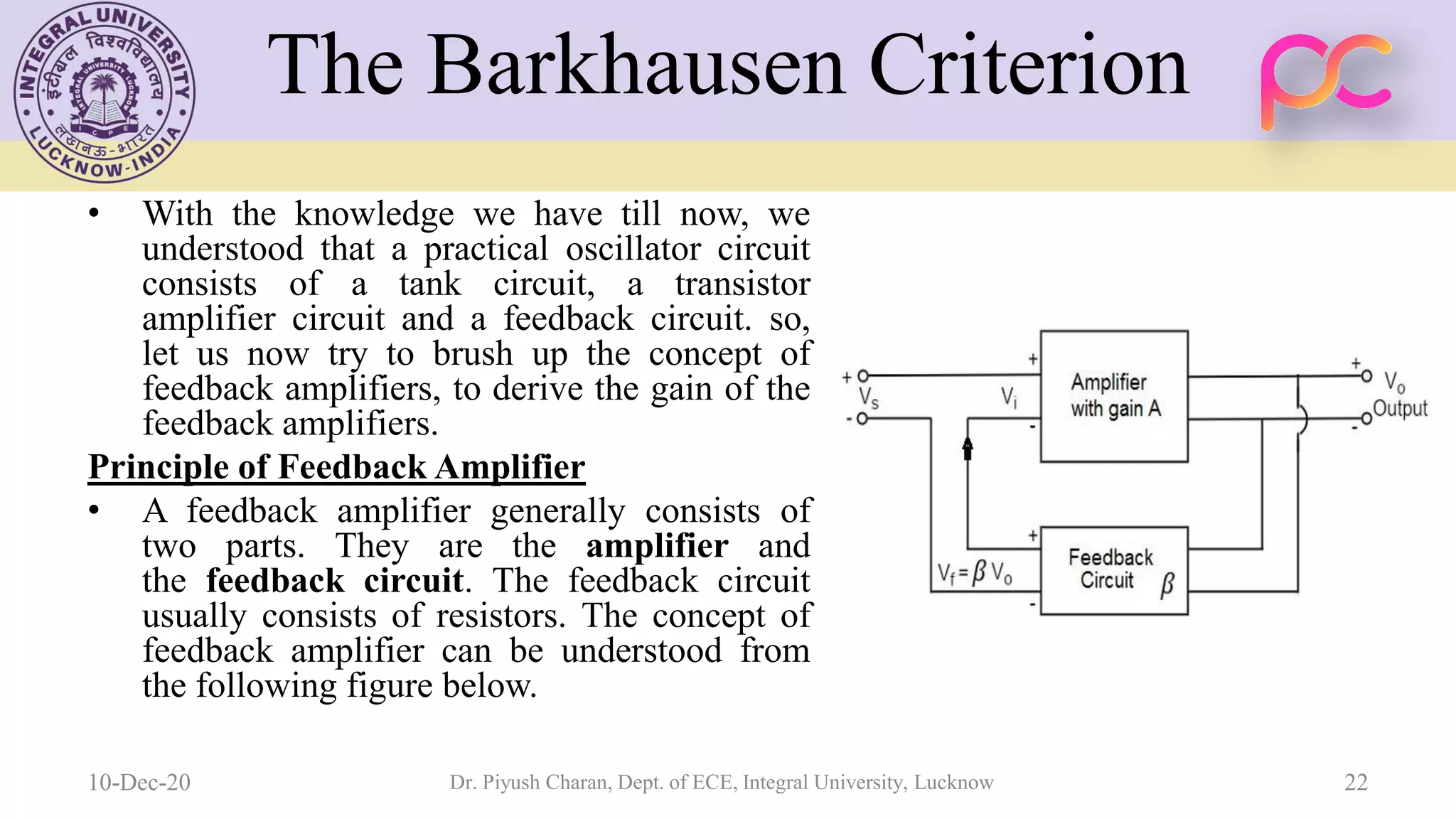

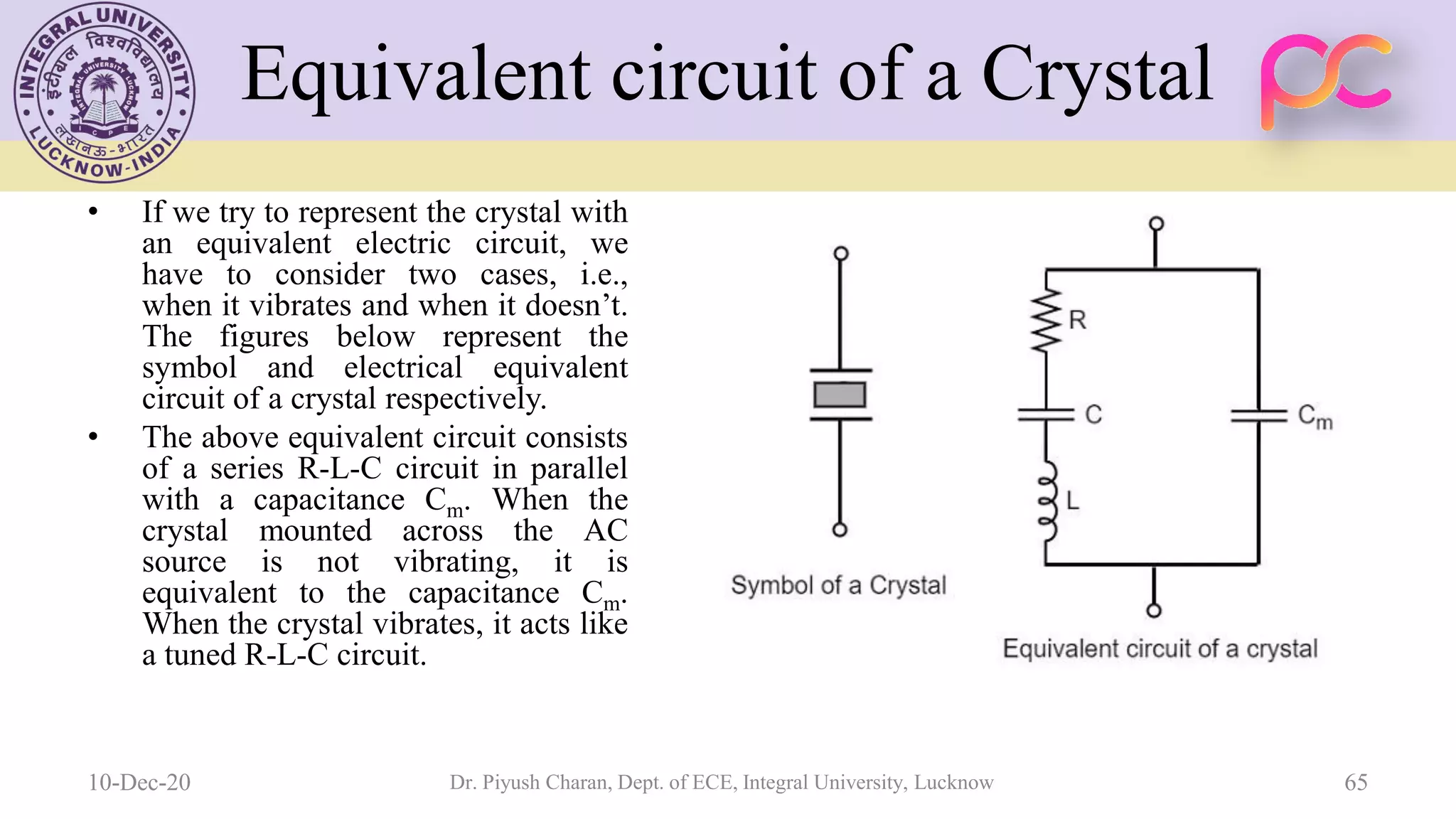

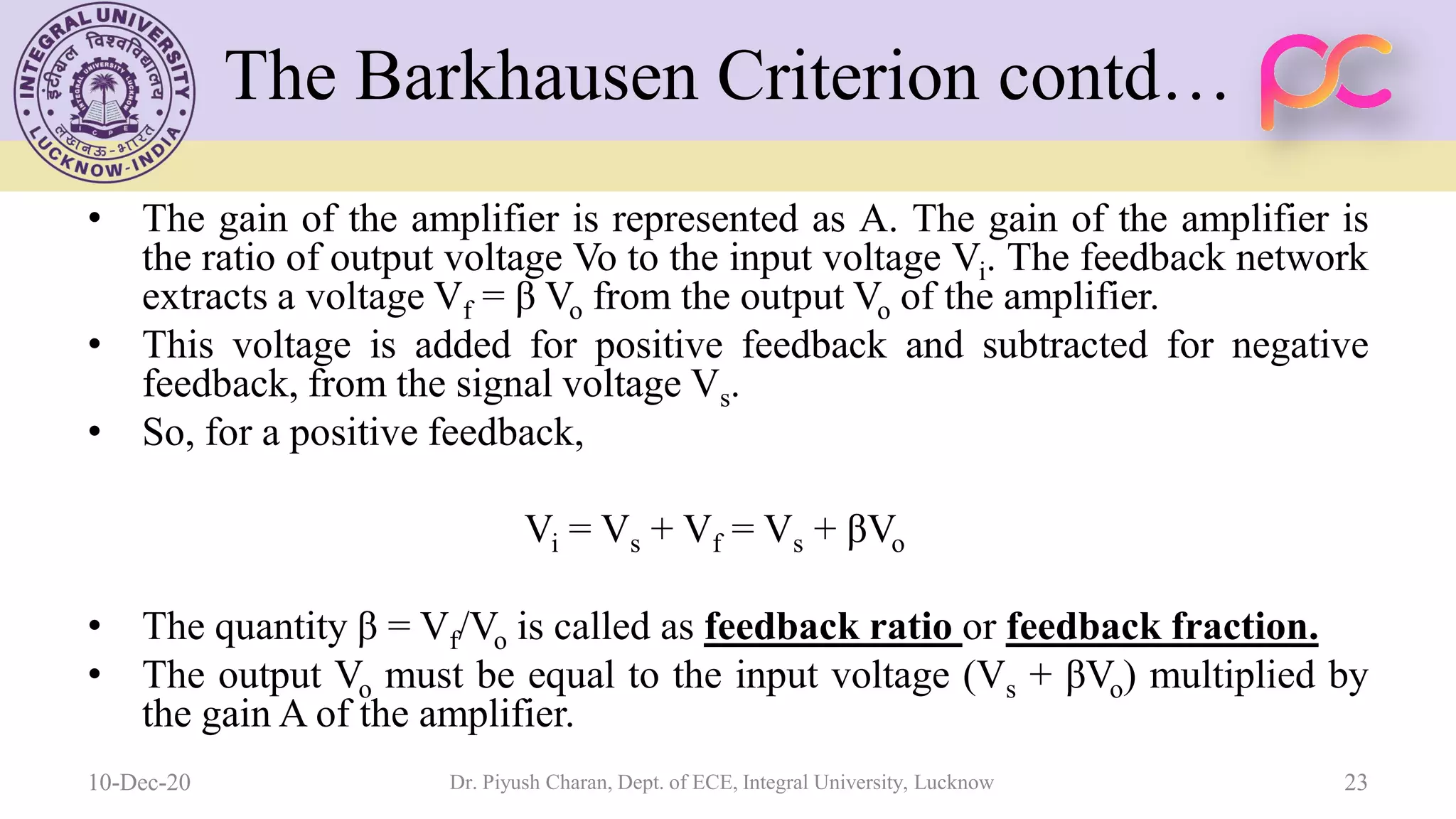

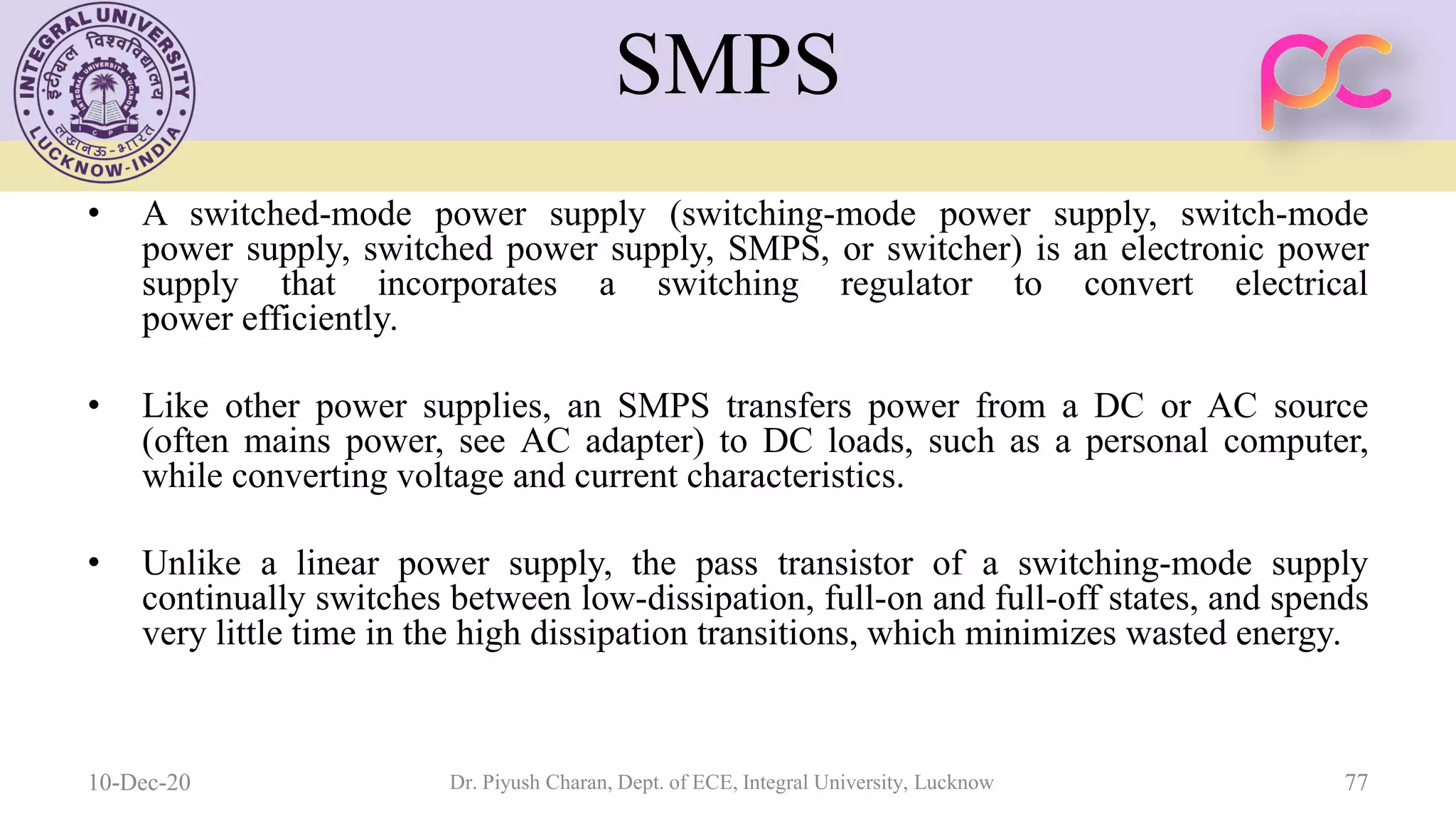

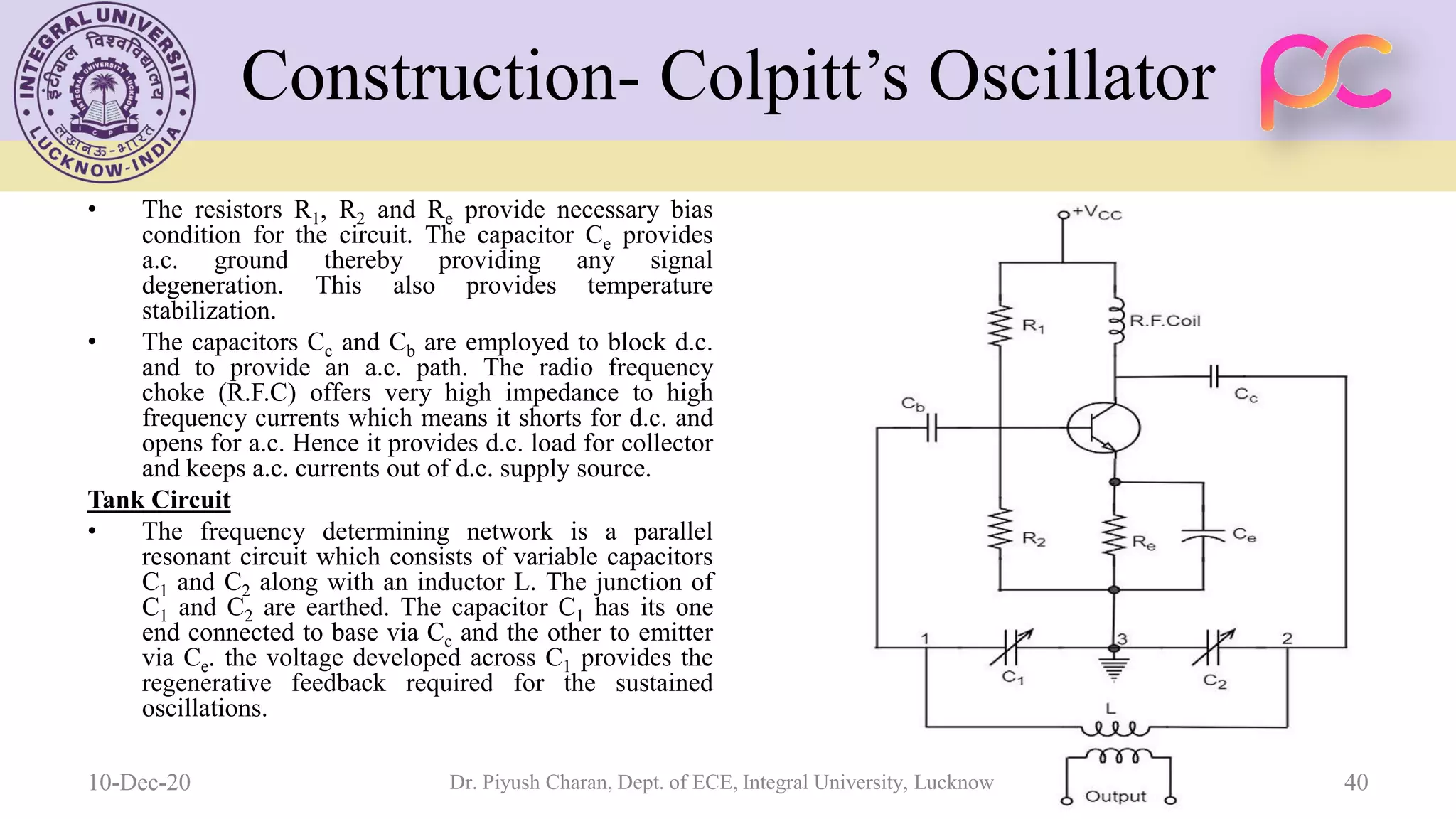

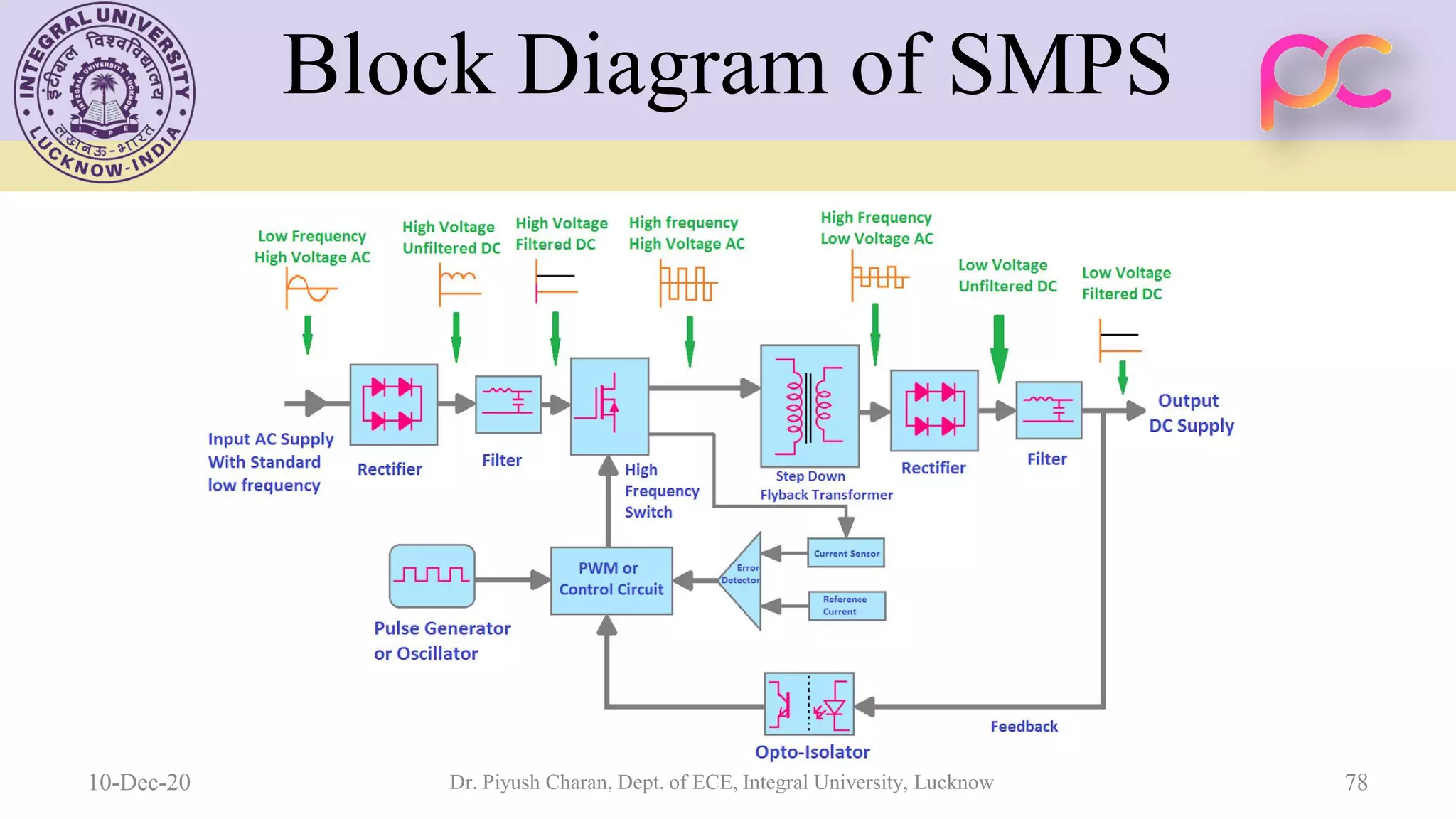

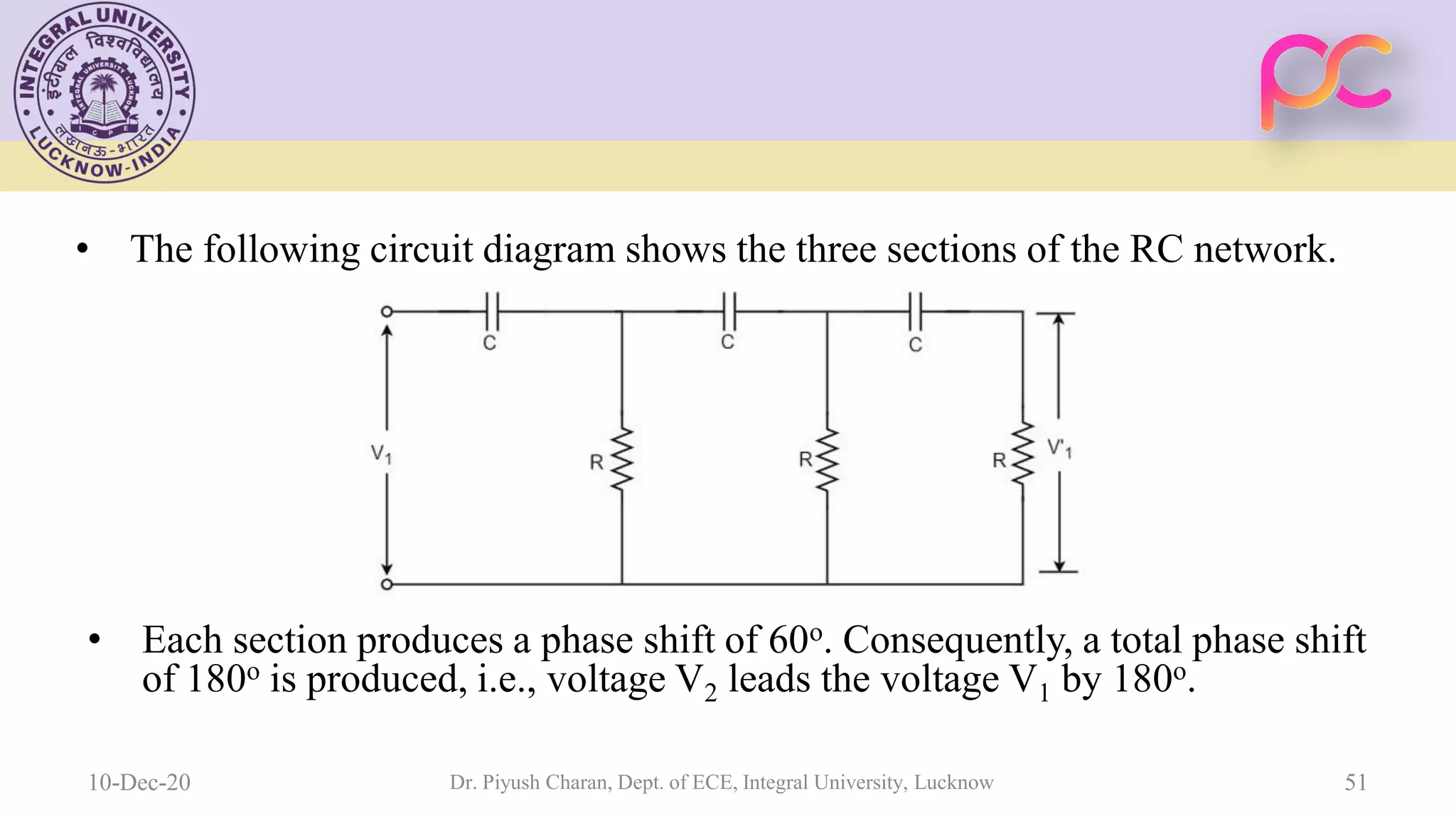

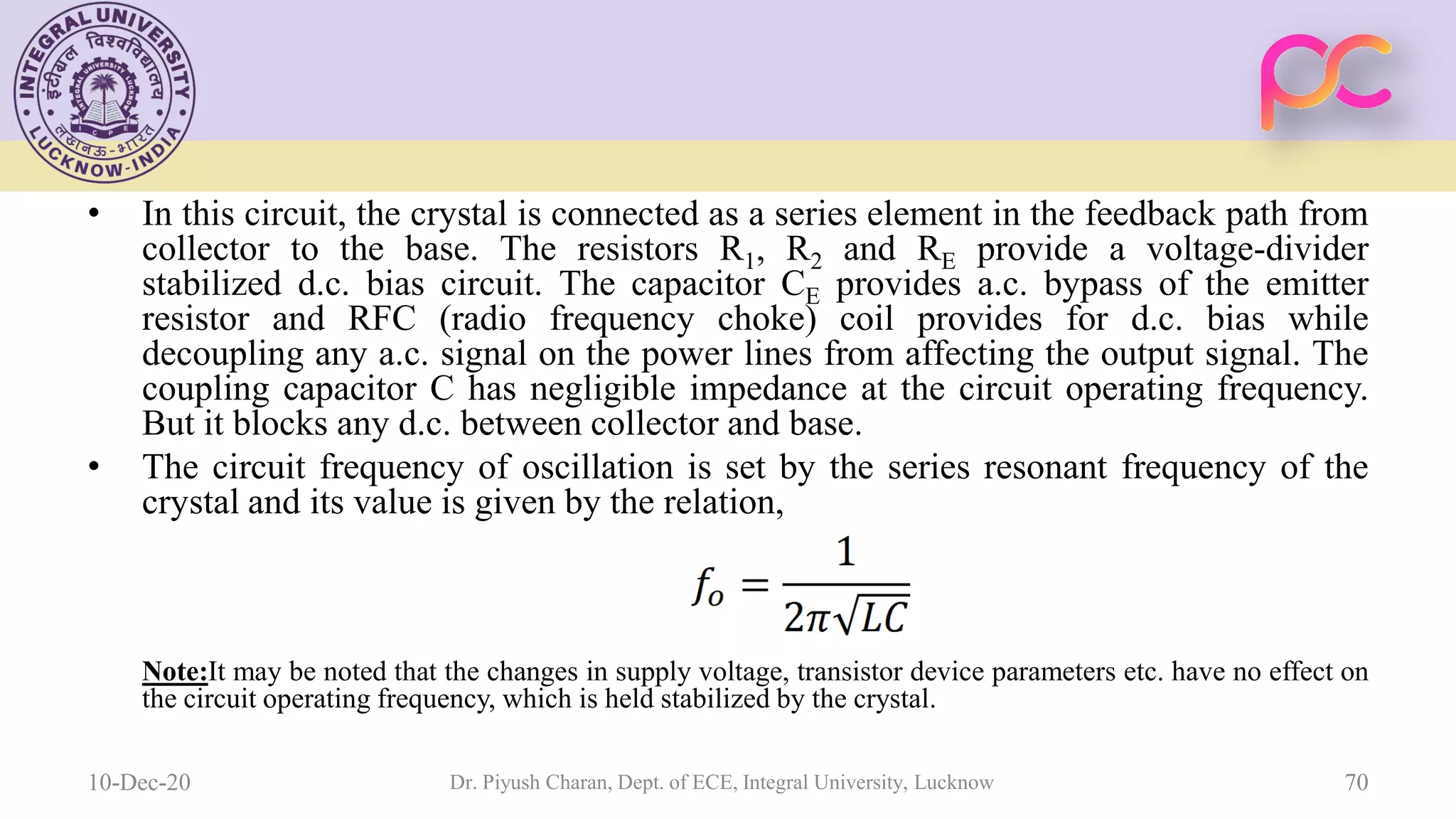

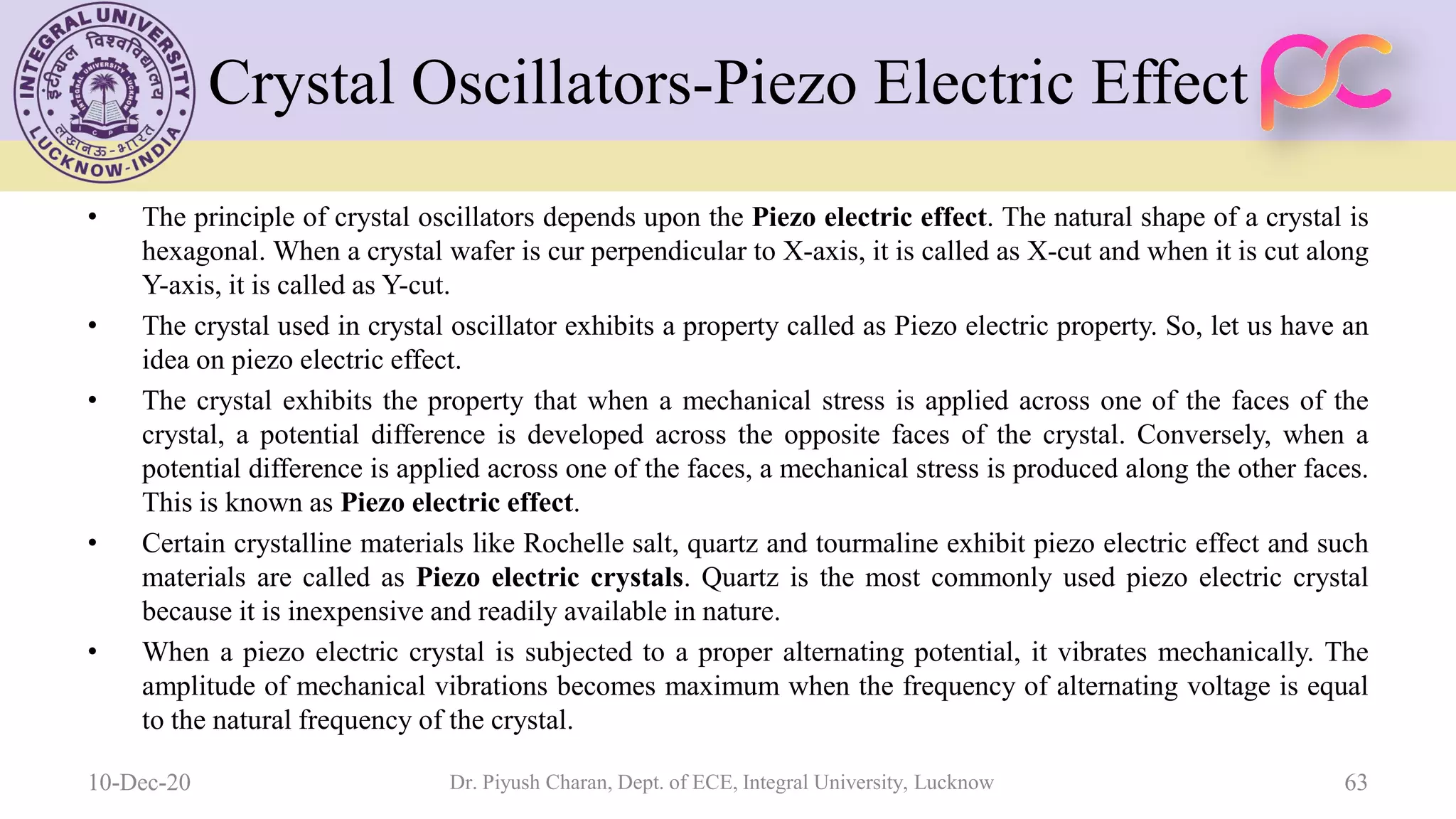

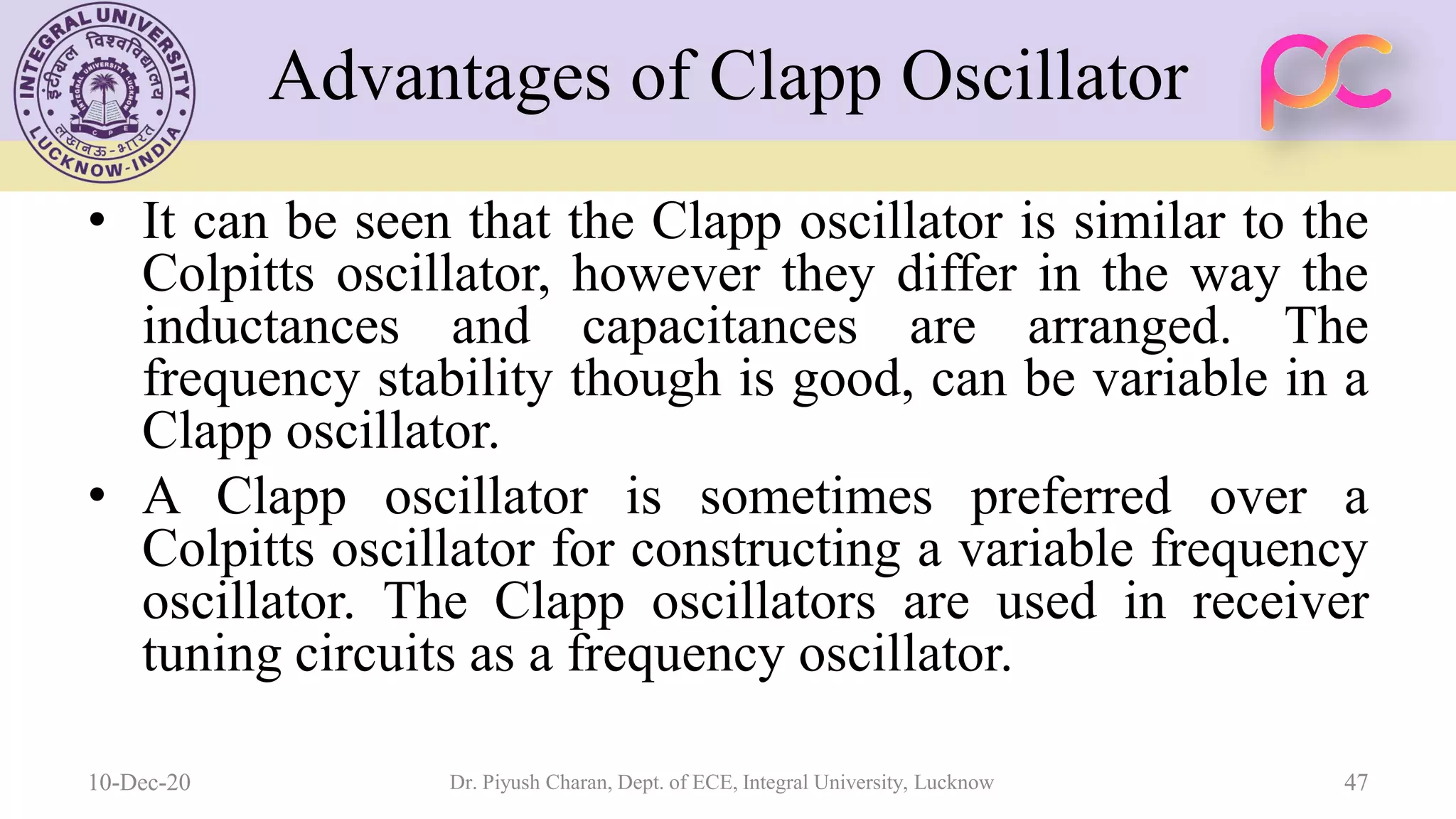

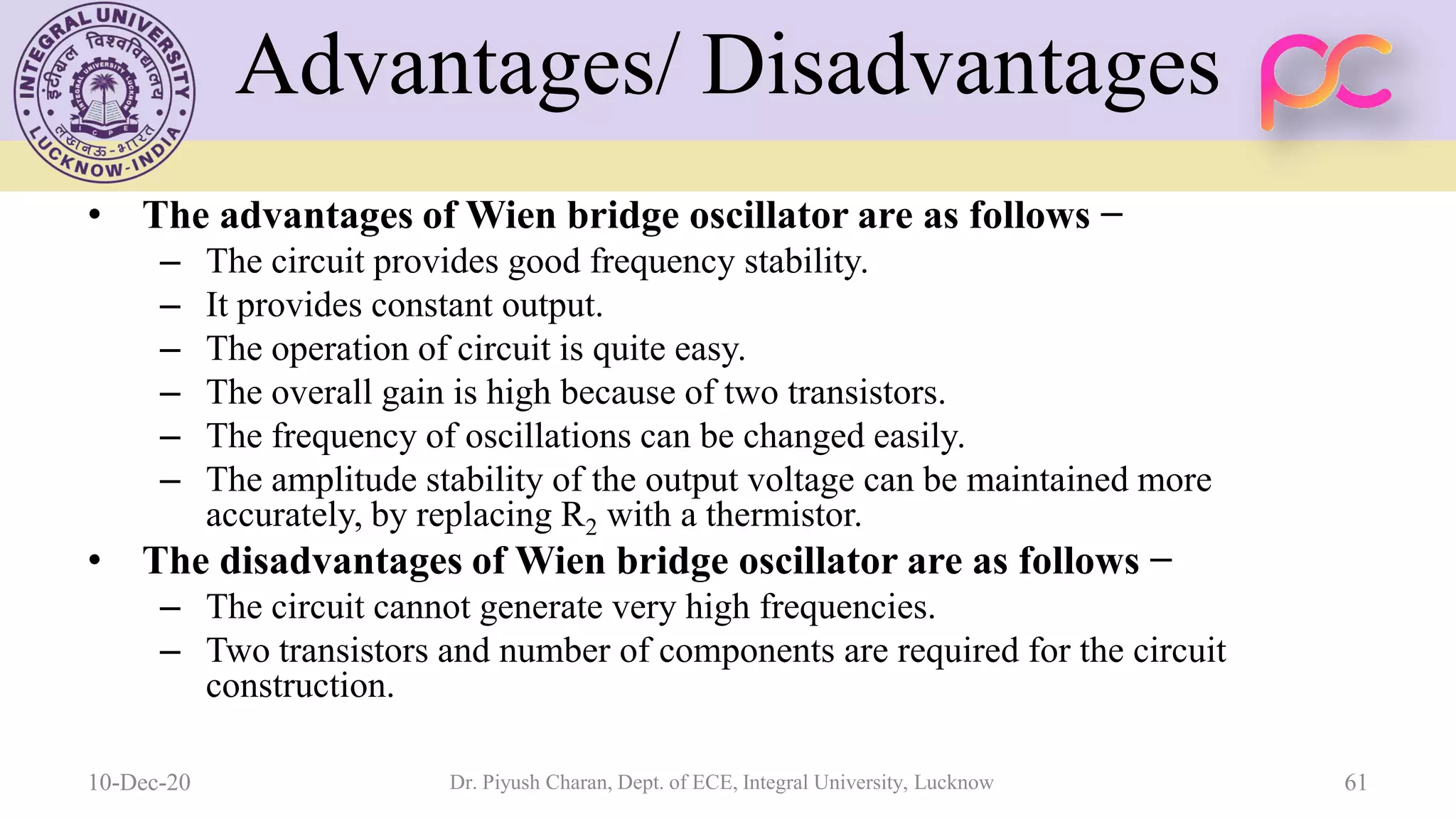

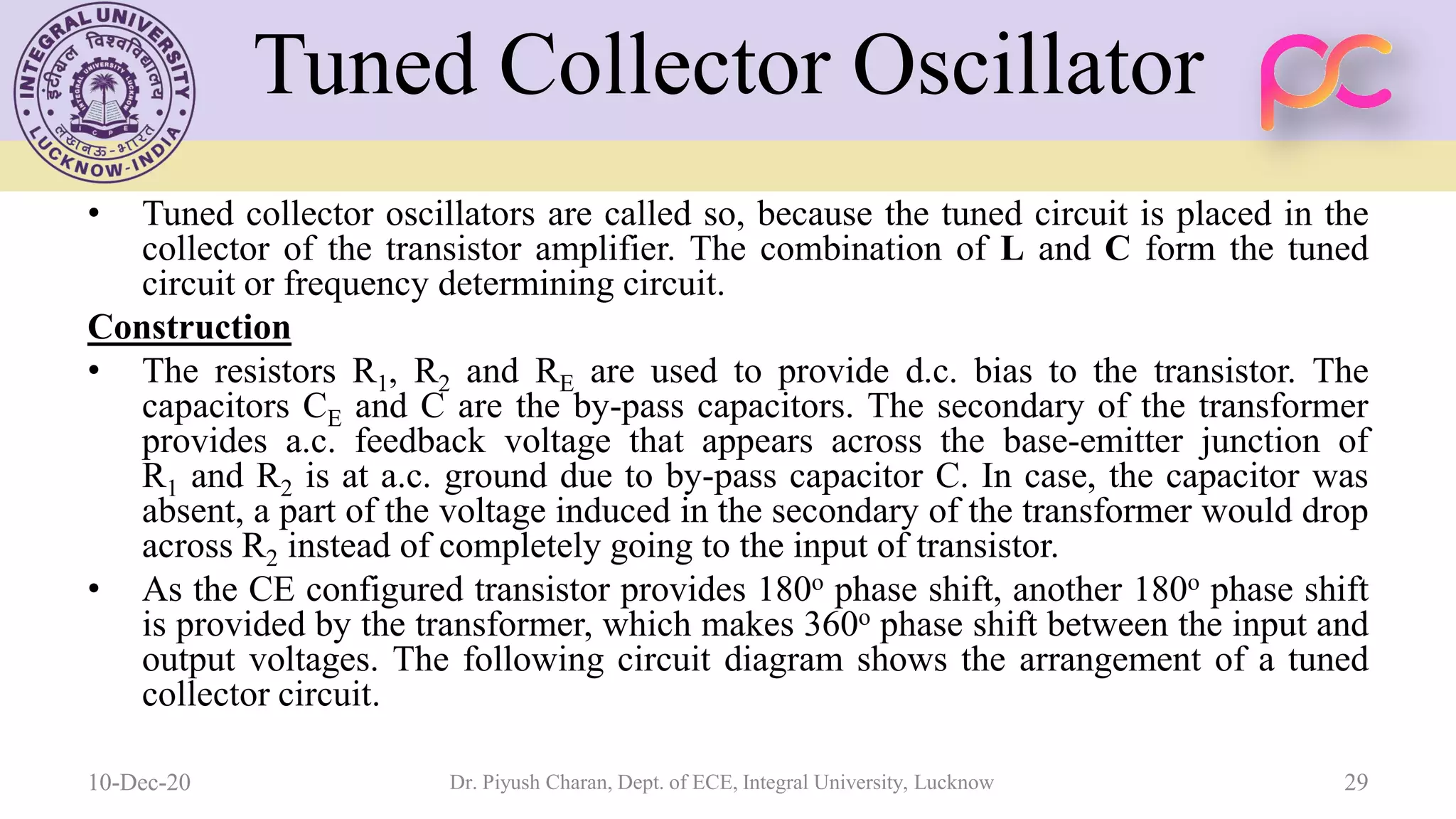

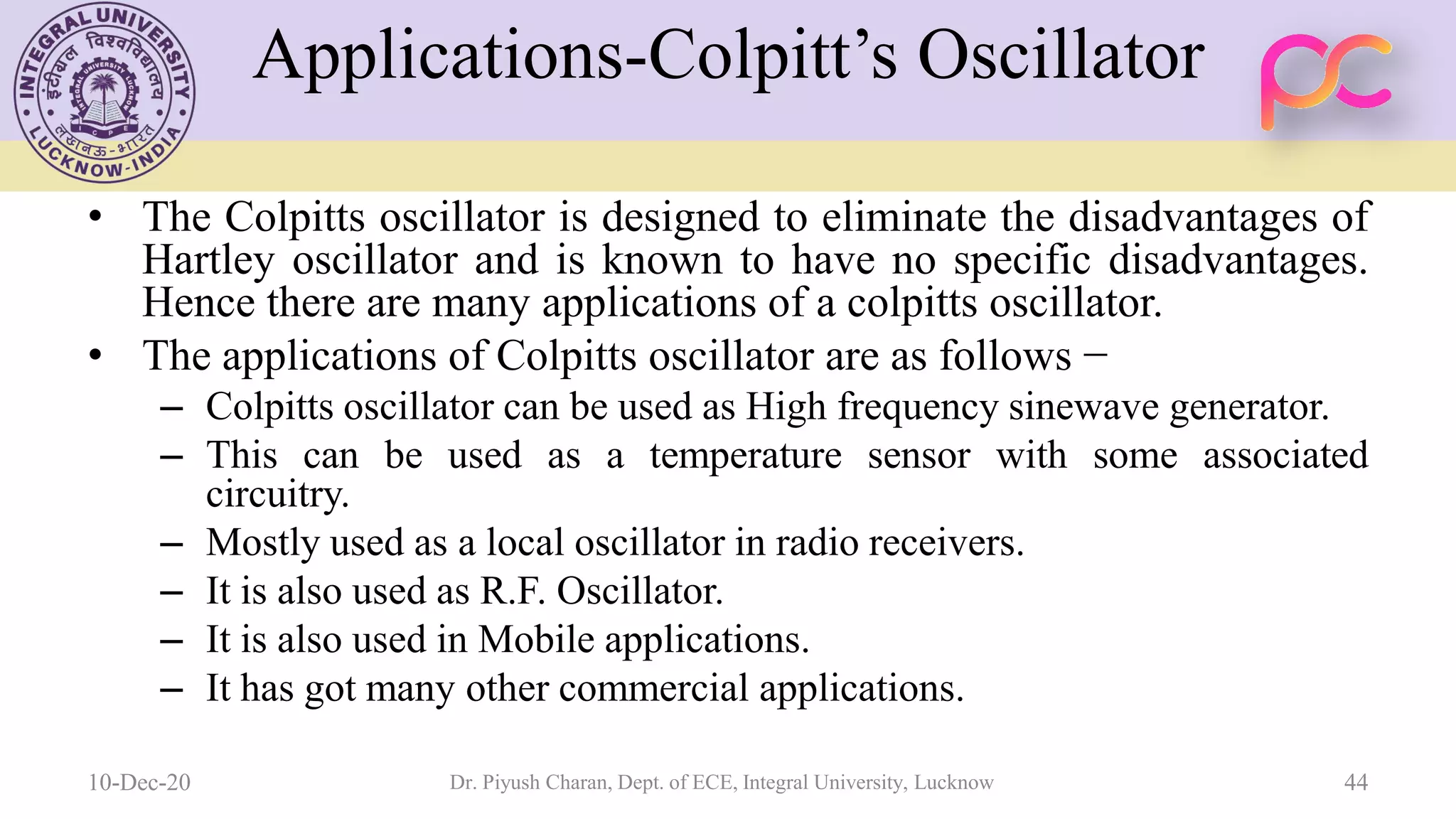

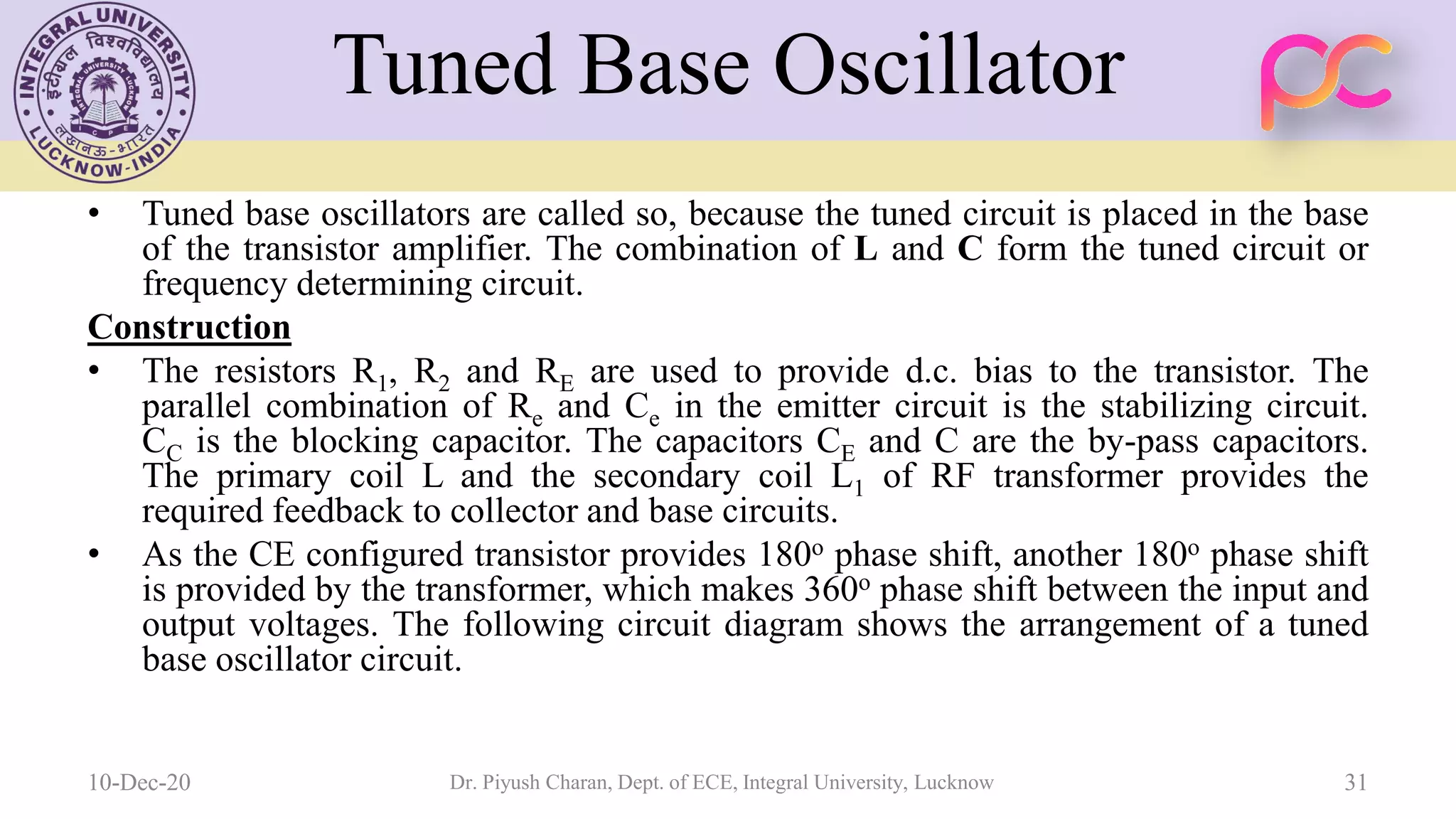

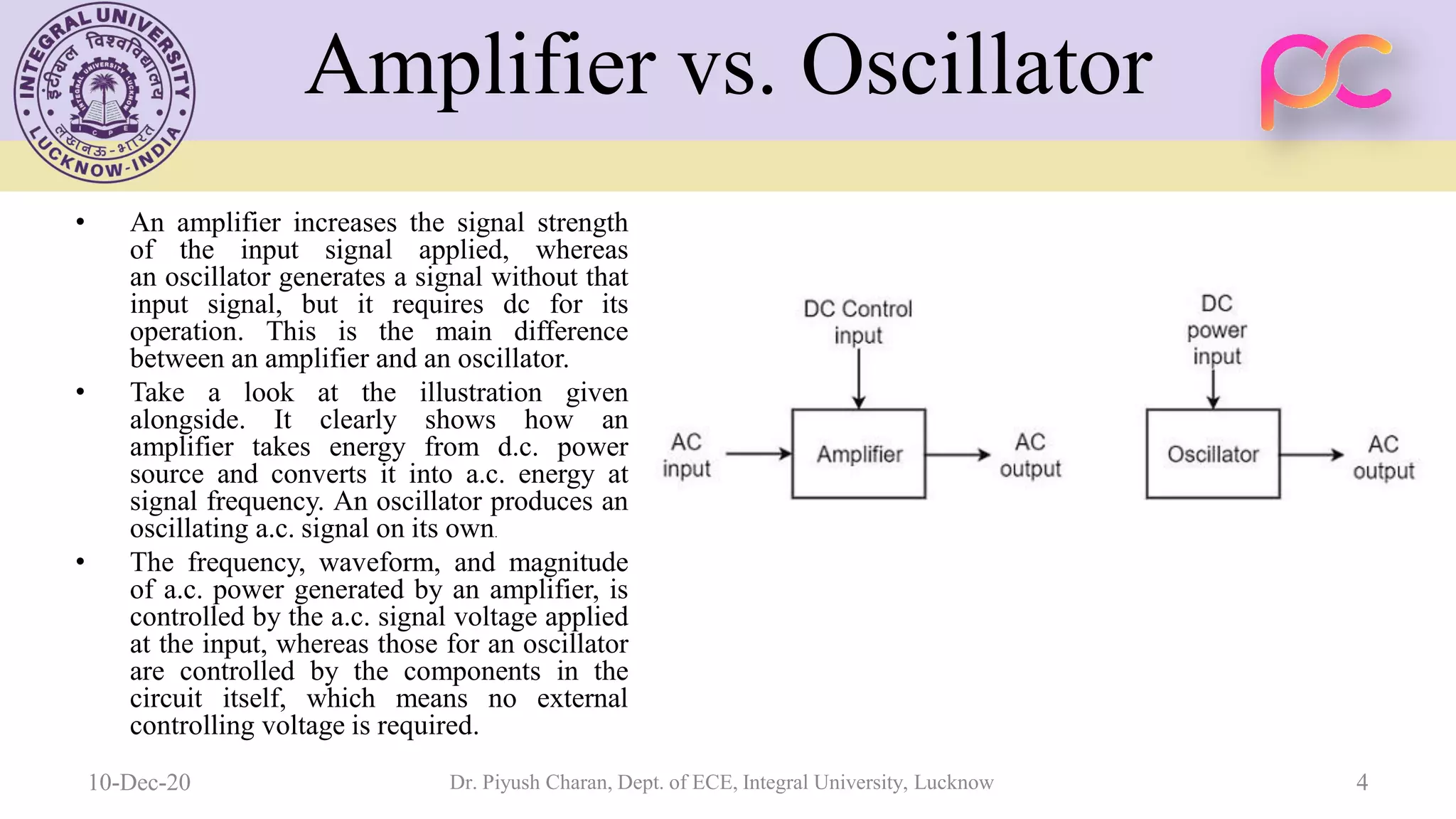

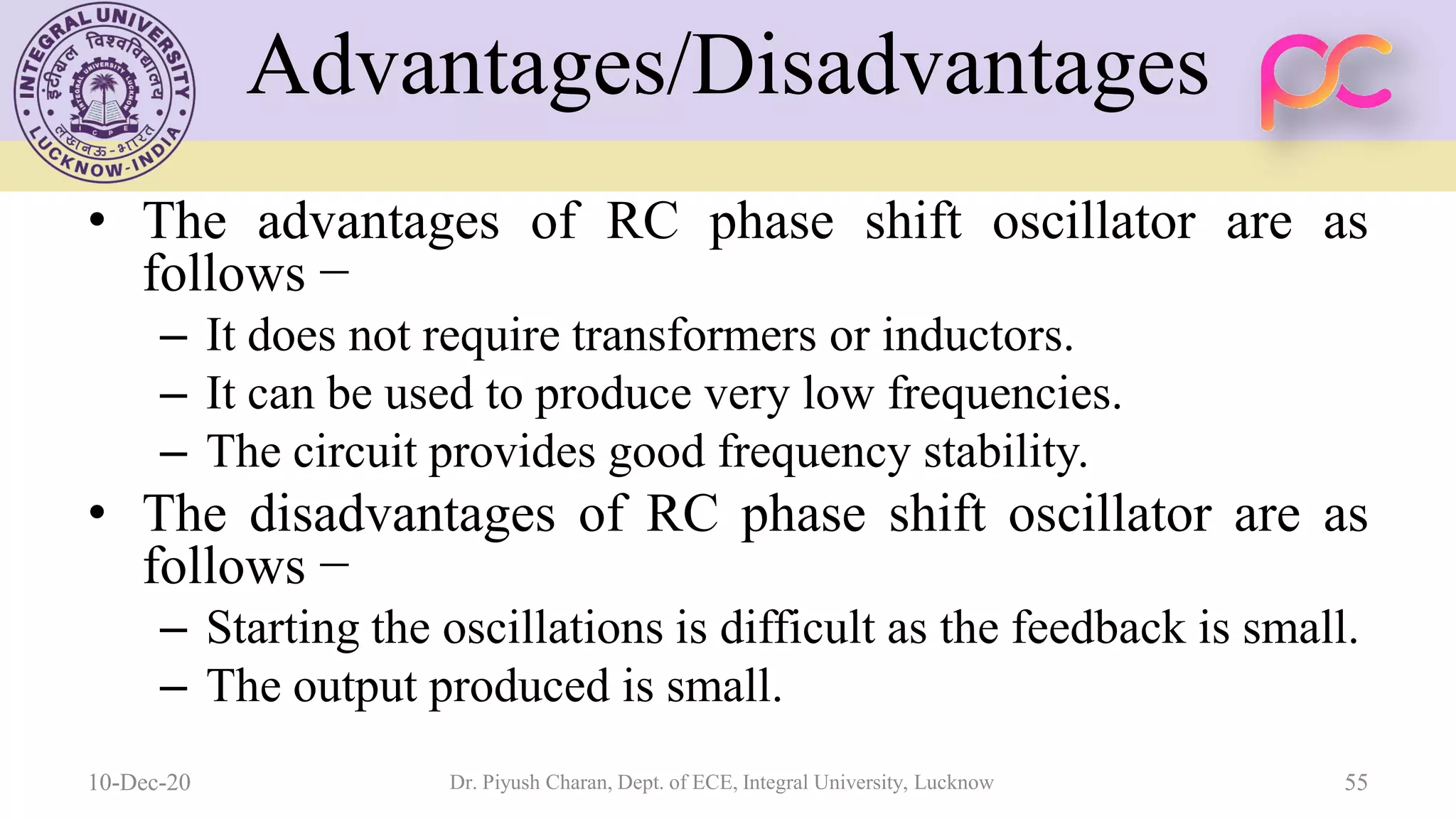

- The document discusses oscillators and voltage regulators, including oscillator circuits that convert DC to AC like the phase shift oscillator, Hartley oscillator, and Wein bridge oscillator. - It also discusses regulated power supplies including series/shunt voltage regulators, monolithic regulators, and switching mode power supplies (SMPS). Key types of oscillators are classified as sinusoidal oscillators generating sine waves and non-sinusoidal oscillators generating square or sawtooth waves.
