2. Turning Large CAD Assemblies
into Real-Time 3D Visualizations
PiXYZ Software | Cédric Rousteau & Axel Jacquet

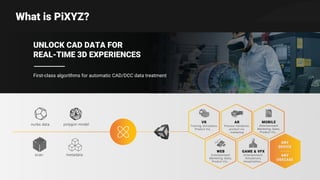

3. UNLOCK CAD DATA FOR
REAL-TIME 3D EXPERIENCES
First-class algorithms for automatic CAD/DCC data treatment
What is PiXYZ?
polygon model
scan metadata
nurbs data
VR
Training, Simulation,
Product Viz, …
AR
Process Validation,
product viz,
marketing
MOBILE
Entertainment
Marketing, Sales,
Product Viz,…
WEB
Entertainment
Marketing, Sales,
Product Viz,…
GAME & VFX
Entertainment,
Simulations,
Visualization,…
ANY
DEVICE
ANY
USECASE

4. VRED to Unity workflow example
LINK

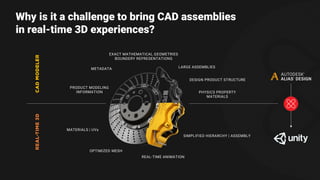

5. Why is it a challenge to bring CAD assemblies
in real-time 3D experiences?
EXACT MATHEMATICAL GEOMETRIES
BOUNDERY REPRESENTATIONS
DESIGN PRODUCT STRUCTURE
METADATA
SIMPLIFIED HIERARCHY | ASSEMBLY
OPTIMIZED MESH
REAL-TIME ANIMATION
PRODUCT MODELING
INFORMATION PHYSICS PROPERTY
MATERIALS
LARGE ASSEMBLIES
MATERIALS | UVs

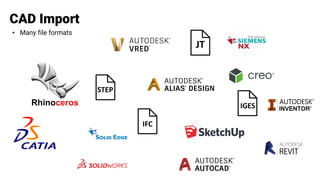

6. • Many file formats
CAD Import
JT
STEP
IGES
IFC

7. CAD Import
• Complex and heavy product structure
Root
Rear Right
Wheel
Rear Left
Wheel
Rear Axle
Right Wheel
Left Wheel
Axle
Wheel
Front Right
Wheel
Front Left
Wheel
Front Axle

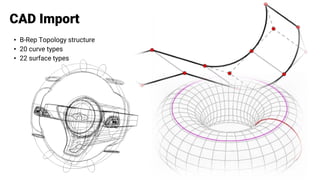

8. • B-Rep Topology structure
• 20 curve types
• 22 surface types
CAD Import

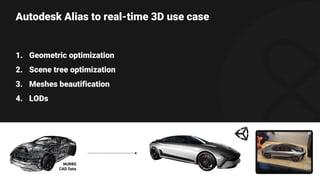

9. 1. Geometric optimization
2. Scene tree optimization
3. Meshes beautification
4. LODs
Autodesk Alias to real-time 3D use case
NURBS
CAD Data

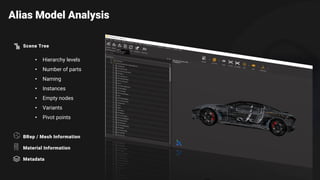

10. Alias Model Analysis
Scene Tree
• Hierarchy levels
• Number of parts
• Naming
• Instances
• Empty nodes
• Variants
• Pivot points
BRep / Mesh Information
Material Information
Metadata

11. Geometric optimization
Scene tree optimization
Mesh beautification
LOD

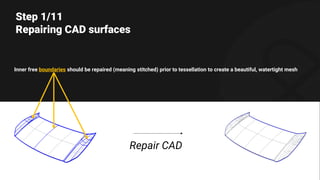

12. Step 1/11
Repairing CAD surfaces
Inner free boundaries should be repaired (meaning stitched) prior to tessellation to create a beautiful, watertight mesh
Repair CAD

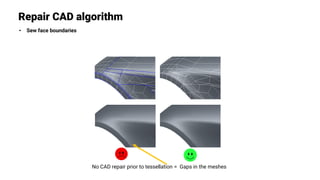

13. Repair CAD algorithm
• Sew face boundaries
No CAD repair prior to tessellation = Gaps in the meshes

14. Repair CAD algorithm
• Sew face boundaries
• Remove duplicated faces
No CAD repair prior to tessellation = non-manifold edges / duplicated polygons / Z-fighting

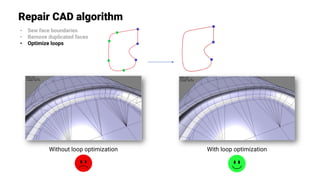

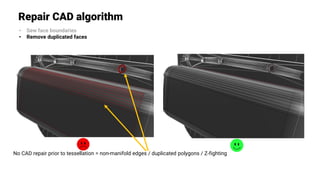

15. Repair CAD algorithm
• Sew face boundaries
• Remove duplicated faces
• Optimize loops
Without loop optimization With loop optimization

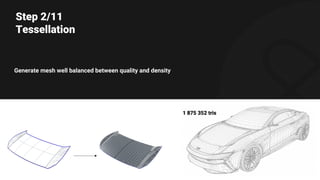

16. Step 2/11
Tessellation
Generate mesh well balanced between quality and density
1 875 352 tris

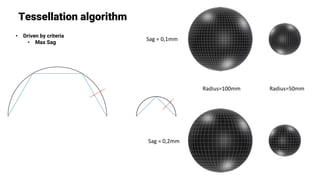

17. Tessellation algorithm
• Driven by criteria
• Max Sag
Sag = 0,1mm
Sag = 0,2mm
Radius=100mm Radius=50mm

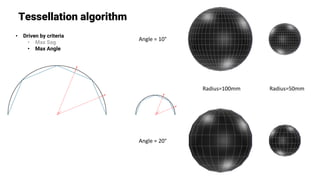

18. Tessellation algorithm
• Driven by criteria
• Max Sag
• Max Angle
Angle = 10°
Radius=100mm Radius=50mm
Angle = 20°

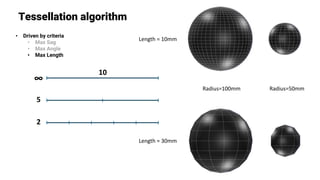

19. Tessellation algorithm
• Driven by criteria
• Max Sag
• Max Angle
• Max Length
Length = 10mm
Radius=100mm Radius=50mm
Length = 30mm
∞
5
2
10

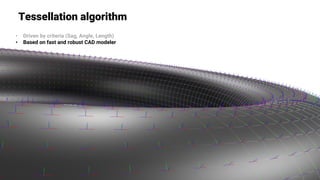

20. Tessellation algorithm
• Driven by criteria (Sag, Angle, Length)
• Based on fast and robust CAD modeler

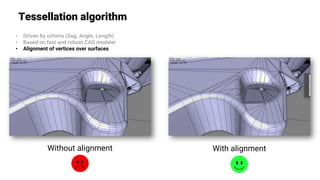

21. Tessellation algorithm
• Driven by criteria (Sag, Angle, Length)
• Based on fast and robust CAD modeler
• Alignment of vertices over surfaces
Without alignment With alignment

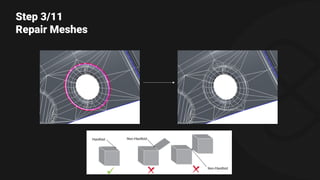

22. Step 3/11
Repair Meshes

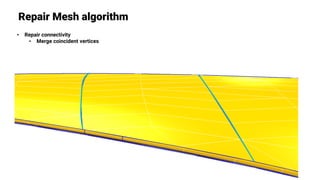

23. Repair Mesh algorithm
• Repair connectivity
• Merge coincident vertices

24. Repair Mesh algorithm
• Repair connectivity
• Merge coincident vertices
• Sew mesh boundaries

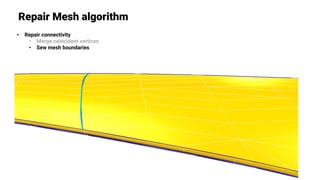

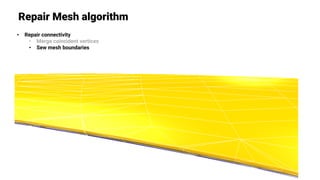

25. Repair Mesh algorithm
• Repair connectivity
• Merge coincident vertices
• Sew mesh boundaries

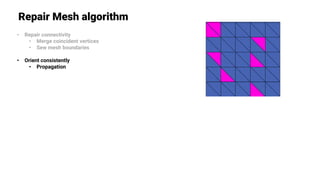

26. Repair Mesh algorithm
• Repair connectivity
• Merge coincident vertices
• Sew mesh boundaries
• Orient consistently
• Propagation

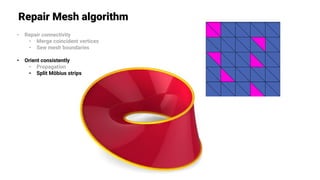

27. Repair Mesh algorithm
• Repair connectivity
• Merge coincident vertices
• Sew mesh boundaries
• Orient consistently
• Propagation
• Split Môbius strips

28. Step 4/11
Fix faces orientation

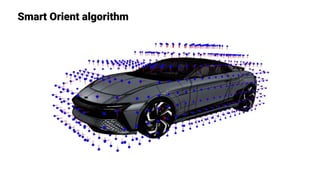

29. Smart Orient algorithm

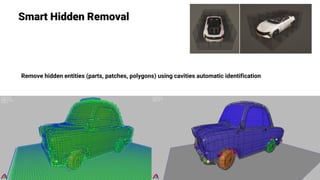

30. Smart Hidden Removal
Remove hidden entities (parts, patches, polygons) using cavities automatic identification

31. Geometric optimization
Scene tree optimization
Mesh beautification
LOD

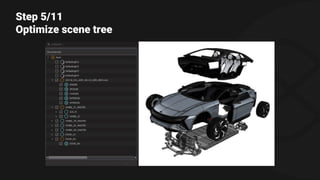

32. Step 5/11
Optimize scene tree

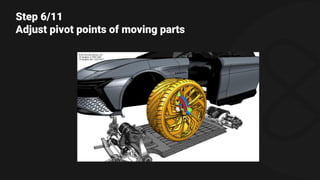

33. Step 6/11
Adjust pivot points of moving parts

34. Geometric optimization
Scene tree optimization
Mesh beautification
LOD

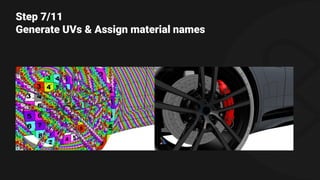

35. Step 7/11
Generate UVs & Assign material names

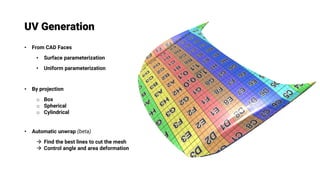

36. UV Generation
• From CAD Faces
• Surface parameterization
• Uniform parameterization
• By projection
o Box
o Spherical
o Cylindrical
• Automatic unwrap (beta)
→ Find the best lines to cut the mesh
→ Control angle and area deformation

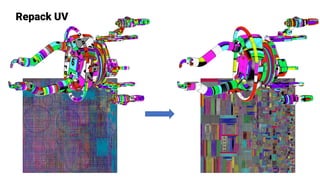

37. Repack UV

38. Geometric optimization
Scene tree optimization
Mesh beautification
LODs

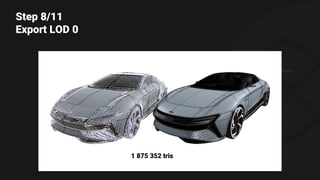

39. Step 8/11
Export LOD 0
1 875 352 tris

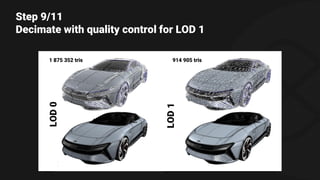

40. Step 9/11
Decimate with quality control for LOD 1
1 875 352 tris 914 905 tris
LOD0
LOD1

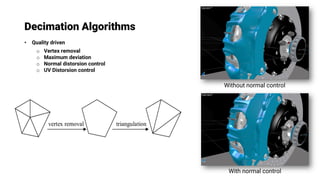

41. Decimation Algorithms
• Quality driven
o Vertex removal
o Maximum deviation
o Normal distorsion control
o UV Distorsion control
With normal control
Without normal control

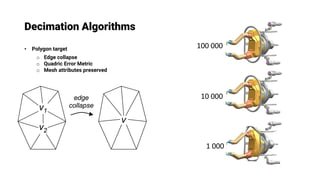

42. Decimation Algorithms
• Polygon target
o Edge collapse
o Quadric Error Metric
o Mesh attributes preserved
100 000
10 000
1 000

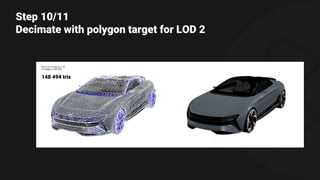

43. Step 10/11
Decimate with polygon target for LOD 2
148 494 tris

44. Step 11/11
Shadow & Physics proxy meshes
5 504 tris

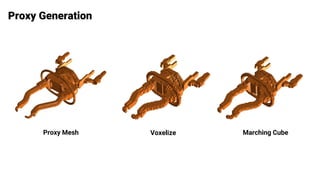

45. Proxy Generation
Proxy Mesh Voxelize Marching Cube

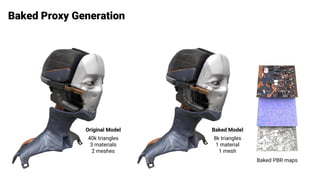

46. Baked Proxy Generation
Baked PBR maps
Original Model
40k triangles
3 materials
2 meshes
Baked Model
8k triangles
1 material
1 mesh

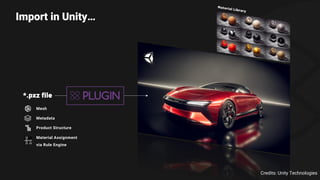

47. Import in Unity…
Mesh
Metadata
Product Structure
Material Assignment
via Rule Engine
*.pxz file
Credits: Unity Technologies

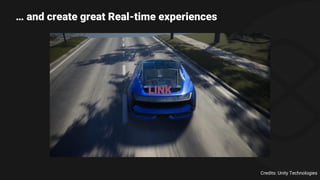

48. … and create great Real-time experiences
Credits: Unity Technologies
LINK

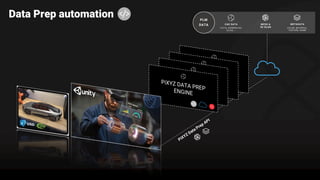

49. CAD DATA
CATIA, SIEMENS NX,
ALIAS, …
MESH &
3D SCAN
METADATA
COLOR, MATERIAL,
TEXTURE, NAME
PLM
DATA
Data Prep automation

50. What’s next?
Machine Learning
