This document describes a training and placement management system created by students for their college. It includes an introduction, the technologies used, data flow diagrams, data dictionaries, screen designs, an ER diagram, and conclusion. The system allows students, companies, and administrators to manage training, placement, and other related processes. It provides functionality like registration, profile management, job posting, and search. The goal is to automate the current manual system for better management of information and services for students and recruiters.

1. Guided By :
Kalpesh A Kshatriya
Lecturer of IT Department
BBIT
Prepare By:-
Bhavesh Parmar(106050316031)
Stiven Macwan (106050316051)
Harshang Patel(106050316016)

2. Introduction
Tools(Technology)
Data Flow Diagram
Data Dictionary
Screen (GUI)
 E-R Diagram
Conclusion

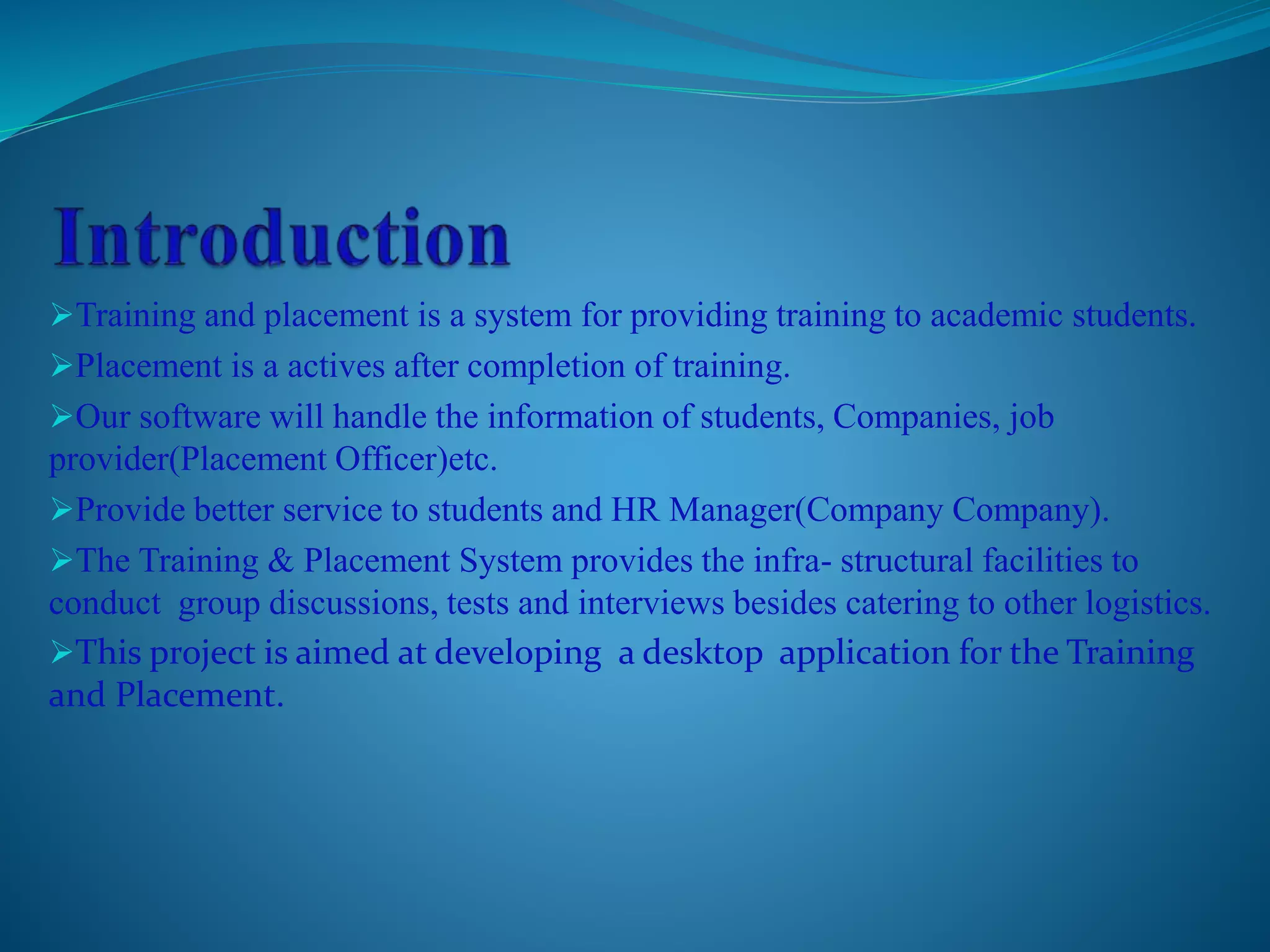

3. Training and placement is a system for providing training to academic students.
Placement is a actives after completion of training.
Our software will handle the information of students, Companies, job
provider(Placement Officer)etc.
Provide better service to students and HR Manager(Company Company).
The Training & Placement System provides the infra- structural facilities to
conduct group discussions, tests and interviews besides catering to other logistics.
This project is aimed at developing a desktop application for the Training
and Placement.

4. Processor :- Pentium(R)Dual-Core CPU E6600
@3.06GHz 3.07GHz
Server :- Microsoft SQL Server
Operating System :- Windows 7
Memory :- 4GB RAM
Hard Disk :- 500GB

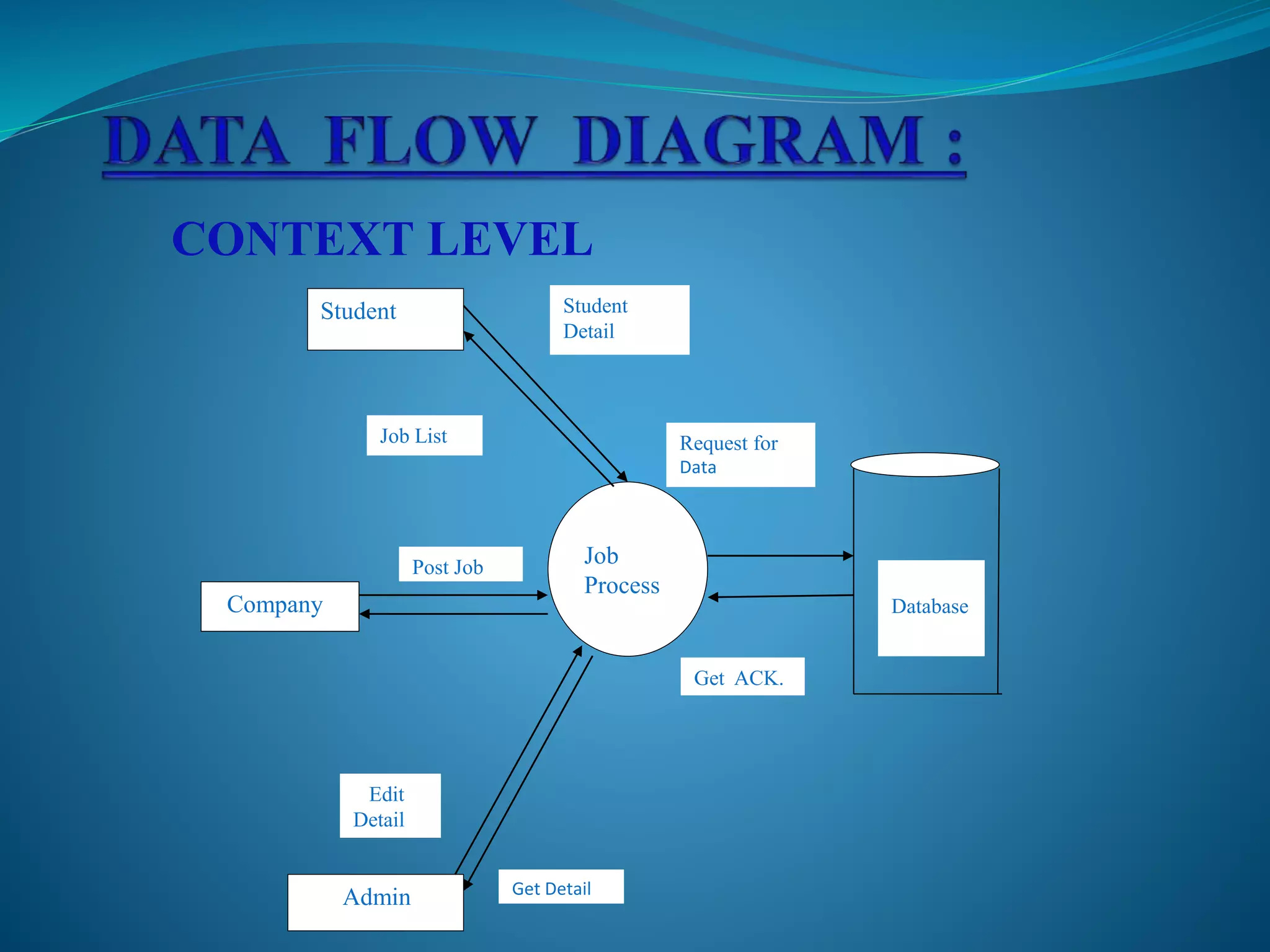

5. CONTEXT LEVEL
Student
Job
Process
Company
Admin
Student
Detail
Get Detail
Job List
Post Job
Request for
Data
Get ACK.
Edit
Detail
Database

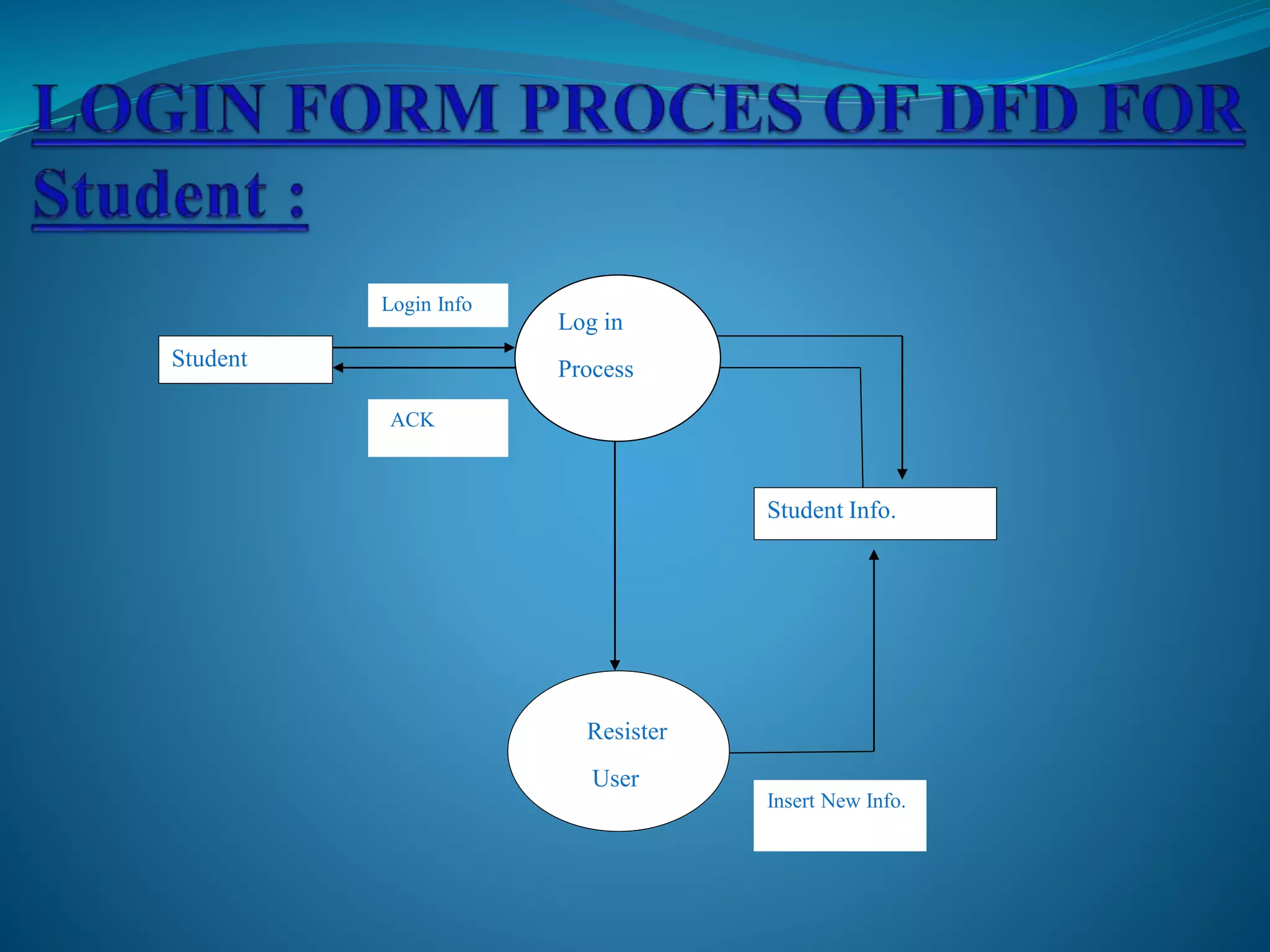

6. Login Info.
ACK.
Insert New Info.
Student
Student Info.
Log in
Process
Resister
User

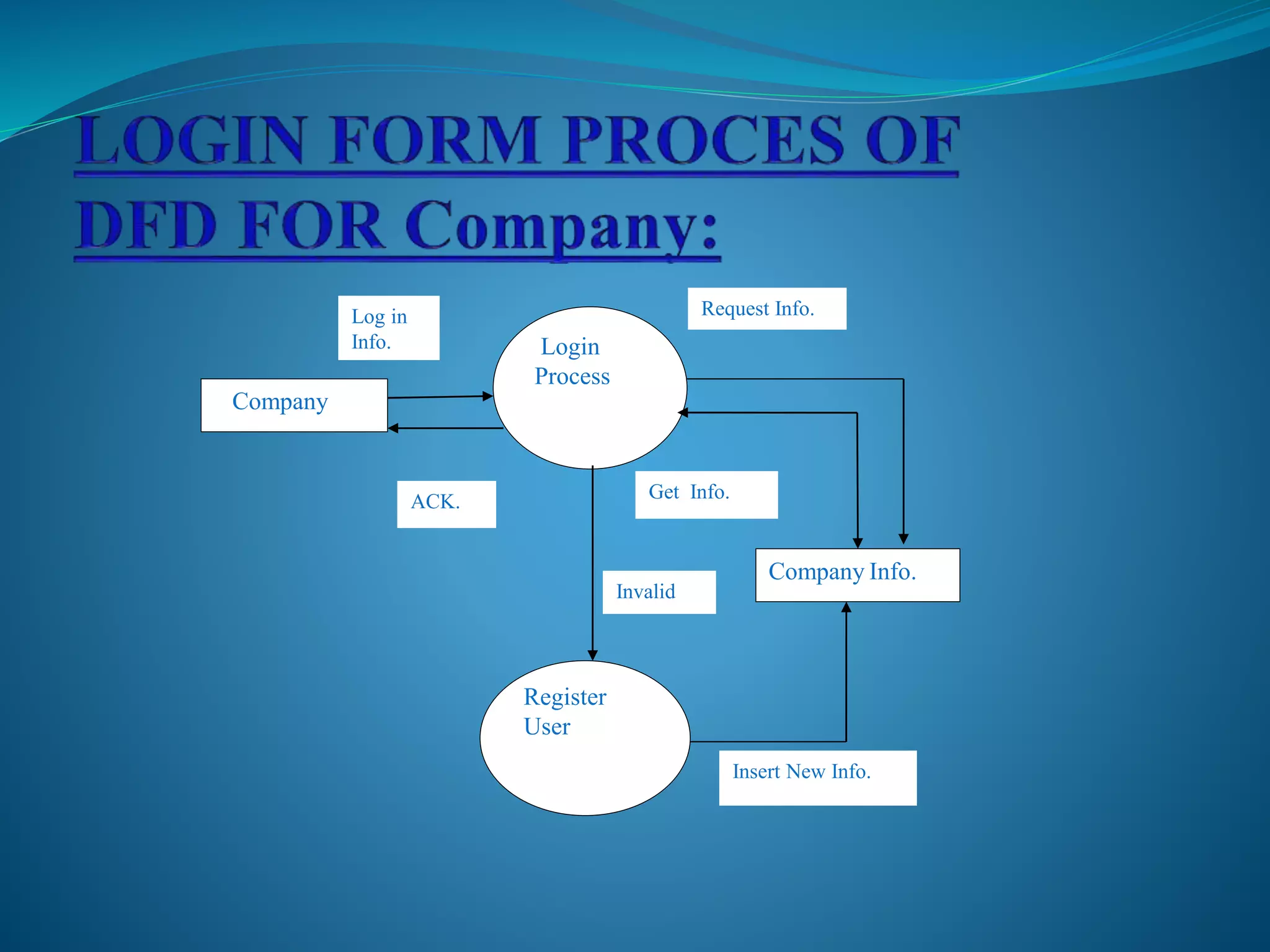

7. Register
User
Company Info.
Log in
Info.
Request Info.
Company
Get Info.
ACK.
Invalid
Insert New Info.
Login
Process

8. Admin Login
Process
Request Info.
Get Info.
Admin
Info.
Login Info.
ACK.

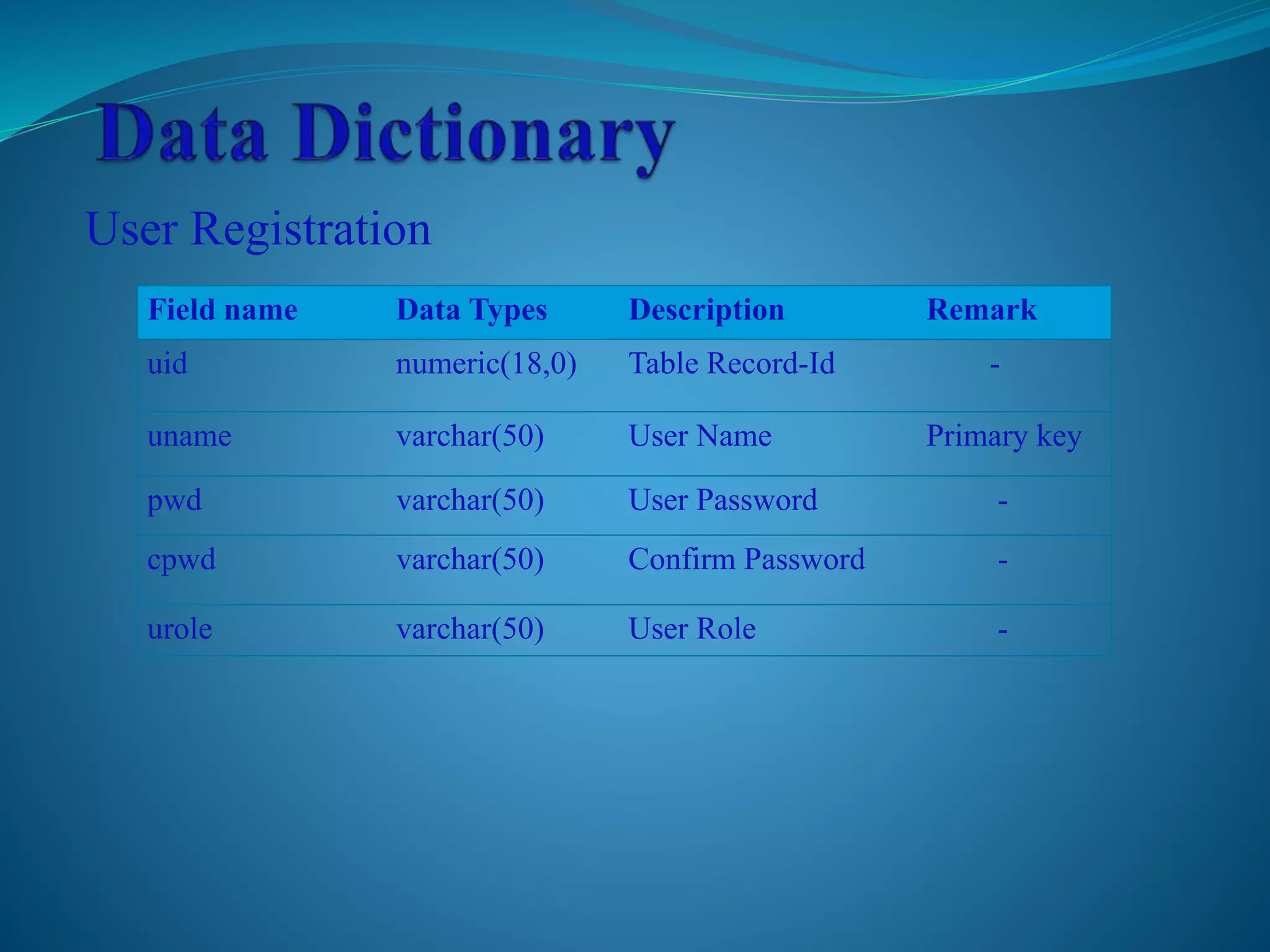

9. User Registration
Field name Data Types Description Remark
uid numeric(18,0) Table Record-Id -
uname varchar(50) User Name Primary key
pwd varchar(50) User Password -
cpwd varchar(50) Confirm Password -
urole varchar(50) User Role -

10. Student Registration
Field name Data Types Description Remark
stdid numeric(18, 0) Student Table Record-Id -
stderno numeric(12, 0) Student Enrollment Number Primary Key
fname varchar(15) Student First Name -
mname varchar(15) Student Middle Name -
lname varchar(15) Student Last Name -
preadd varchar(30) Present address of Student -
paradd varchar(30) Student Permanent address -
dob varchar(50) Student Date Of Birth -
city varchar(10) City of Student -
pincode numeric(6, 0) Student City Pin code -
emailid varchar(30) Email-ID of Student -
gender varchar(50) Student = Male or Female -
branch varchar(20) Branch of Student -
percentage numeric(2, 0) Percentage of Student -
photo varchar(50) ImagePath of Student -
extracourse varchar(50) Selected Extra course -

11. Company Registration
Field name Data Types Description Remark
companyid numeric(18,0) Table Record-Id -
name varchar(20) Name of Company Primary Key
crtteria varchar(20) Class of Company -
branch varchar(30) Branch of Students -
address varchar(20) Address of Company -
contactno numeric(13,0) Contact number of Company -
emailid varchar(20) Email-id of Company -
webaddress varchar(20) Web Address of Company -
compcity varchr(50) City of Company -

12. Pin-code and City
Field name Data Types Description Remark
id numeric(18,0) Table Record-Id -
cityname varchar(50) City Name -
pincode numeric(18) Pin code Of City Primary Key

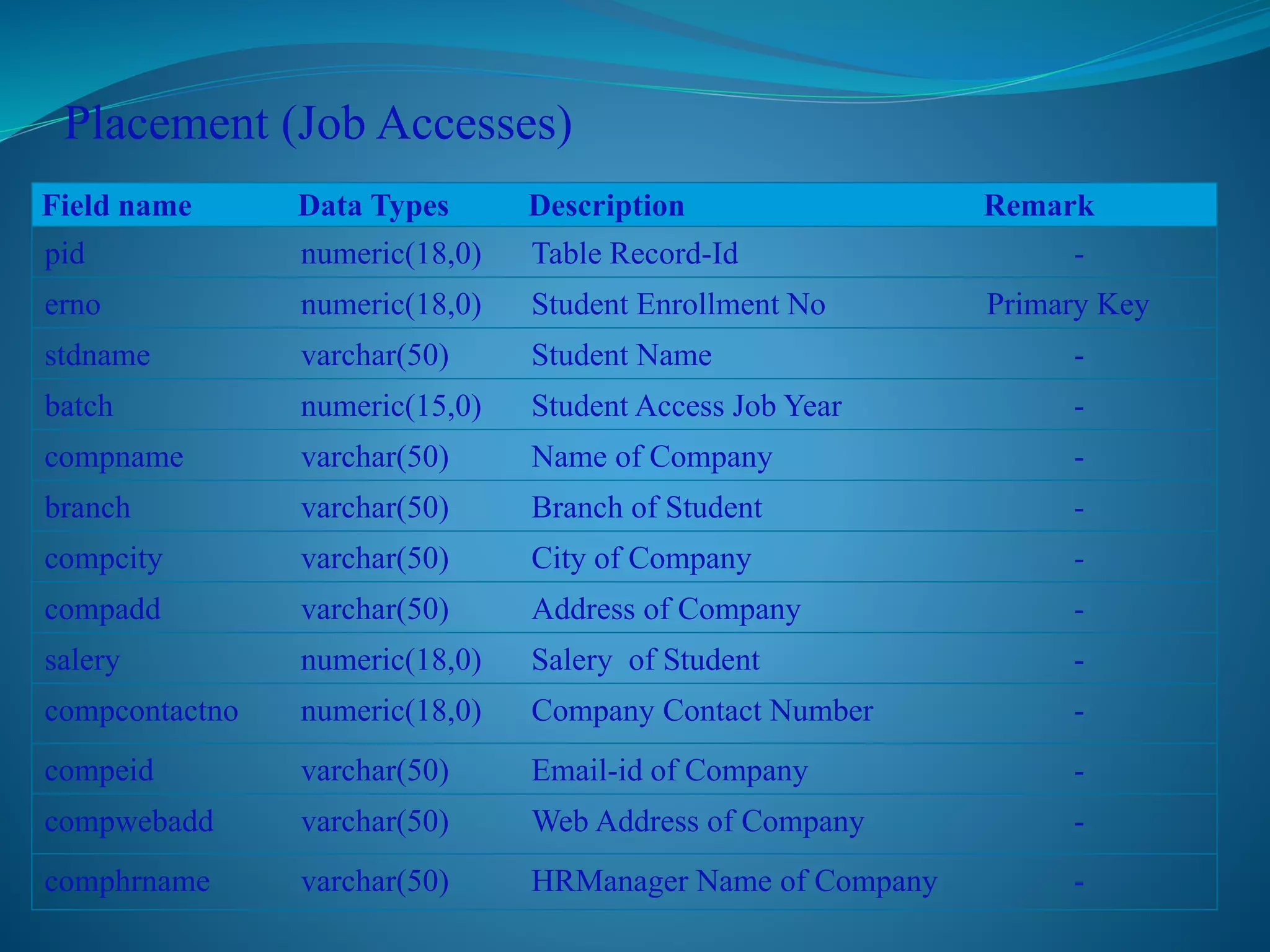

13. Placement (Job Accesses)
Field name Data Types Description Remark
pid numeric(18,0) Table Record-Id -
erno numeric(18,0) Student Enrollment No Primary Key
stdname varchar(50) Student Name -
batch numeric(15,0) Student Access Job Year -
compname varchar(50) Name of Company -
branch varchar(50) Branch of Student -
compcity varchar(50) City of Company -
compadd varchar(50) Address of Company -
salery numeric(18,0) Salery of Student -
compcontactno numeric(18,0) Company Contact Number -
compeid varchar(50) Email-id of Company -
compwebadd varchar(50) Web Address of Company -
comphrname varchar(50) HRManager Name of Company -

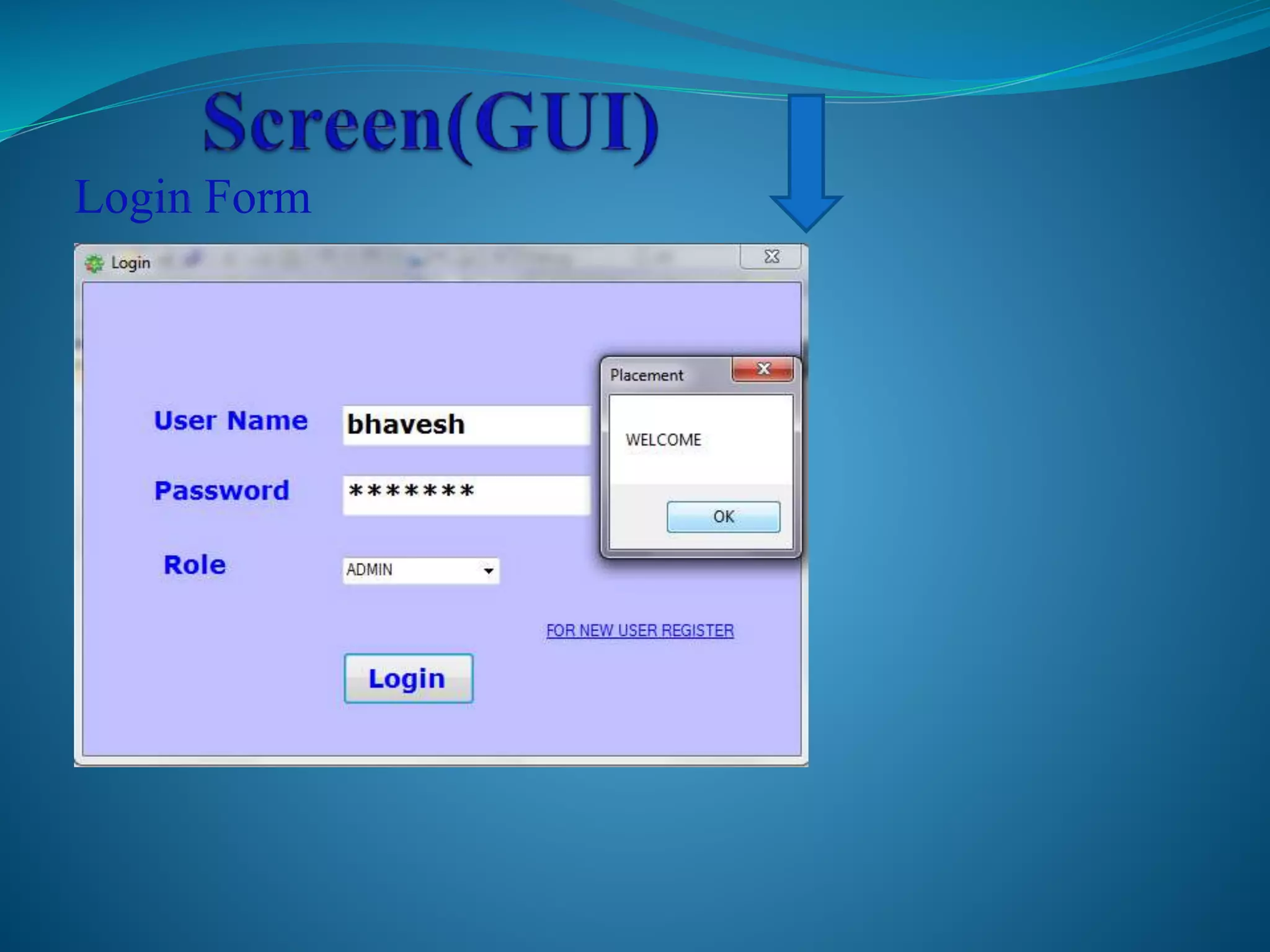

14. Login Form

15. Registration For New User

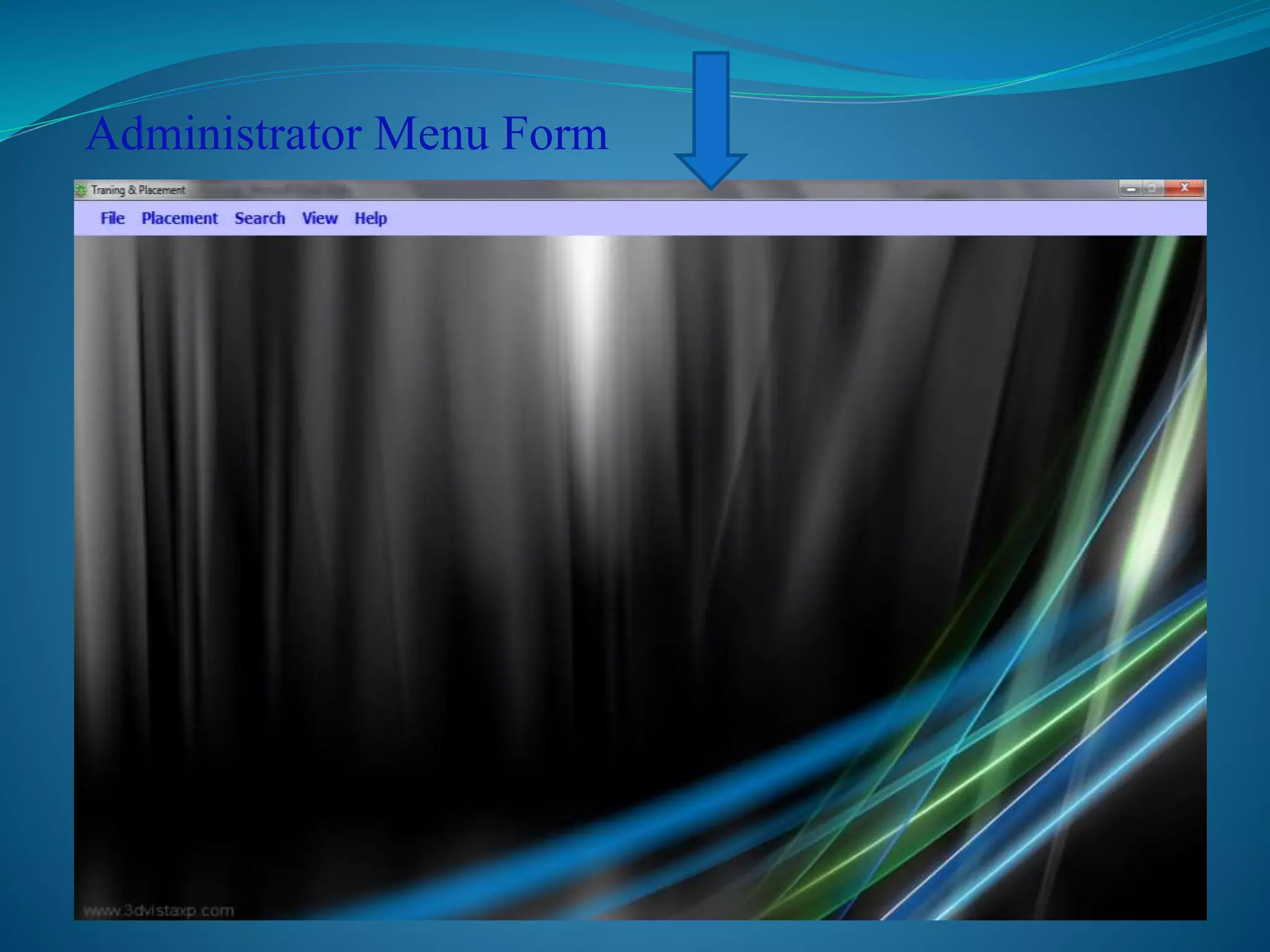

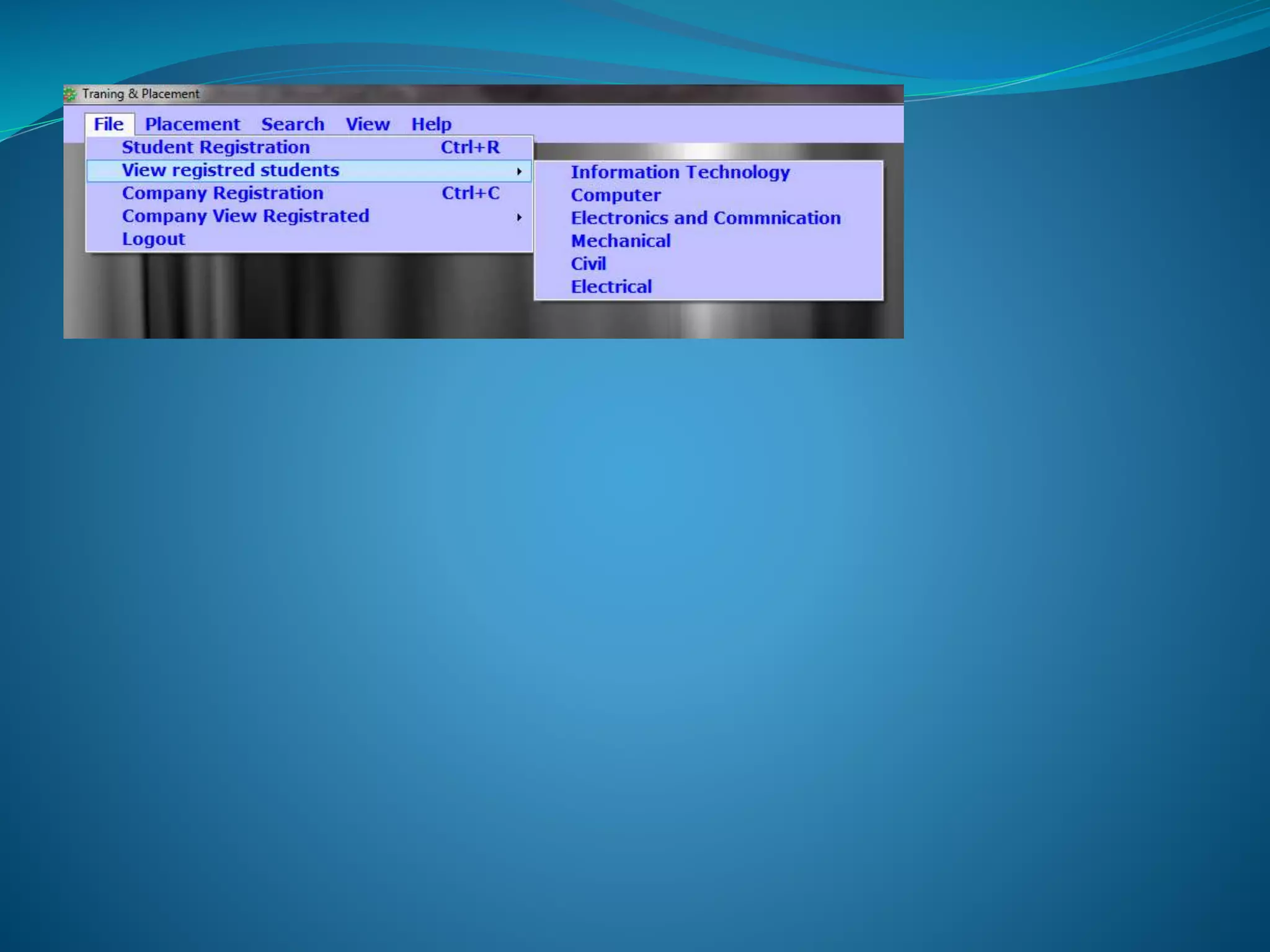

16. Administrator Menu Form

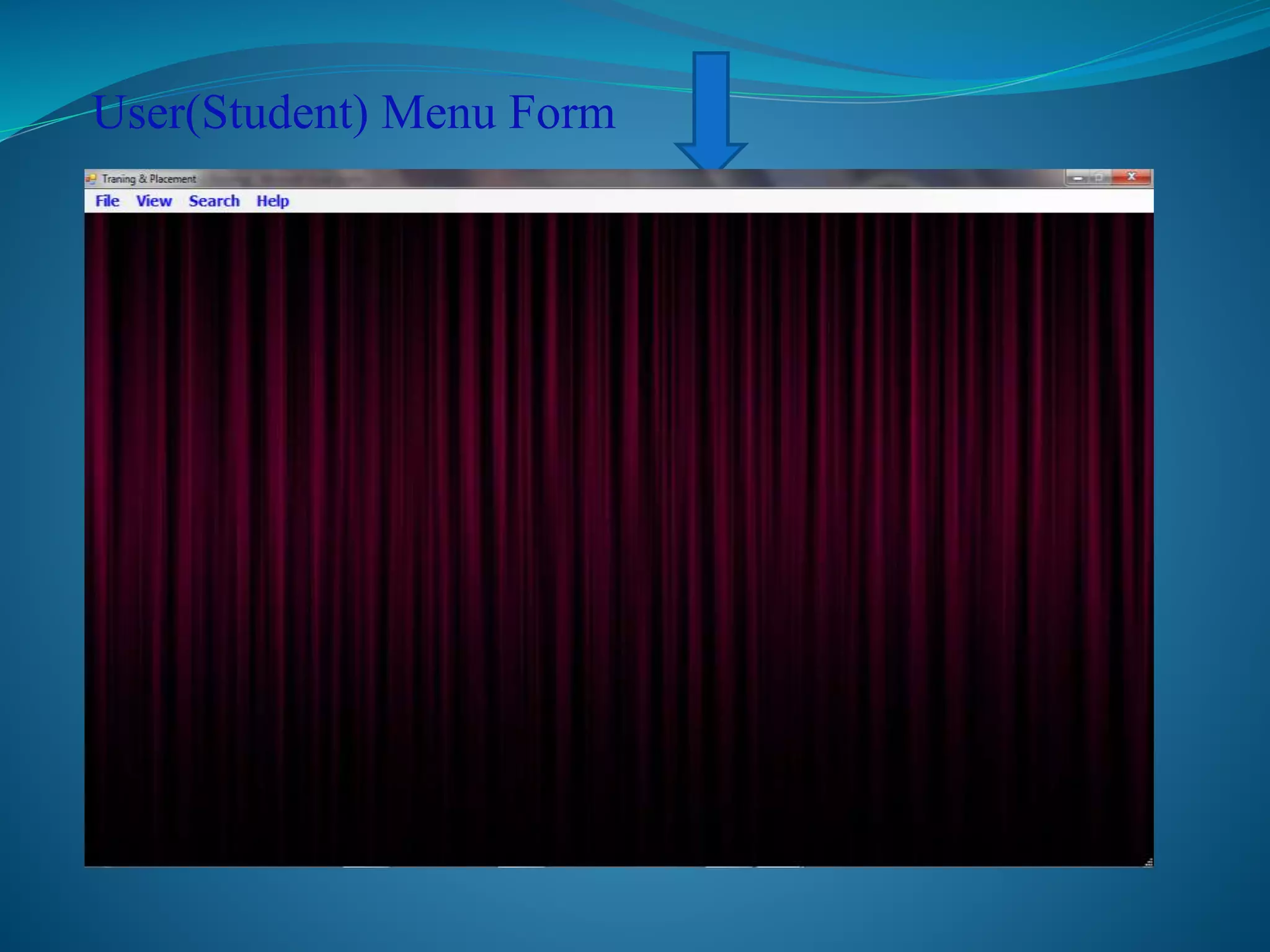

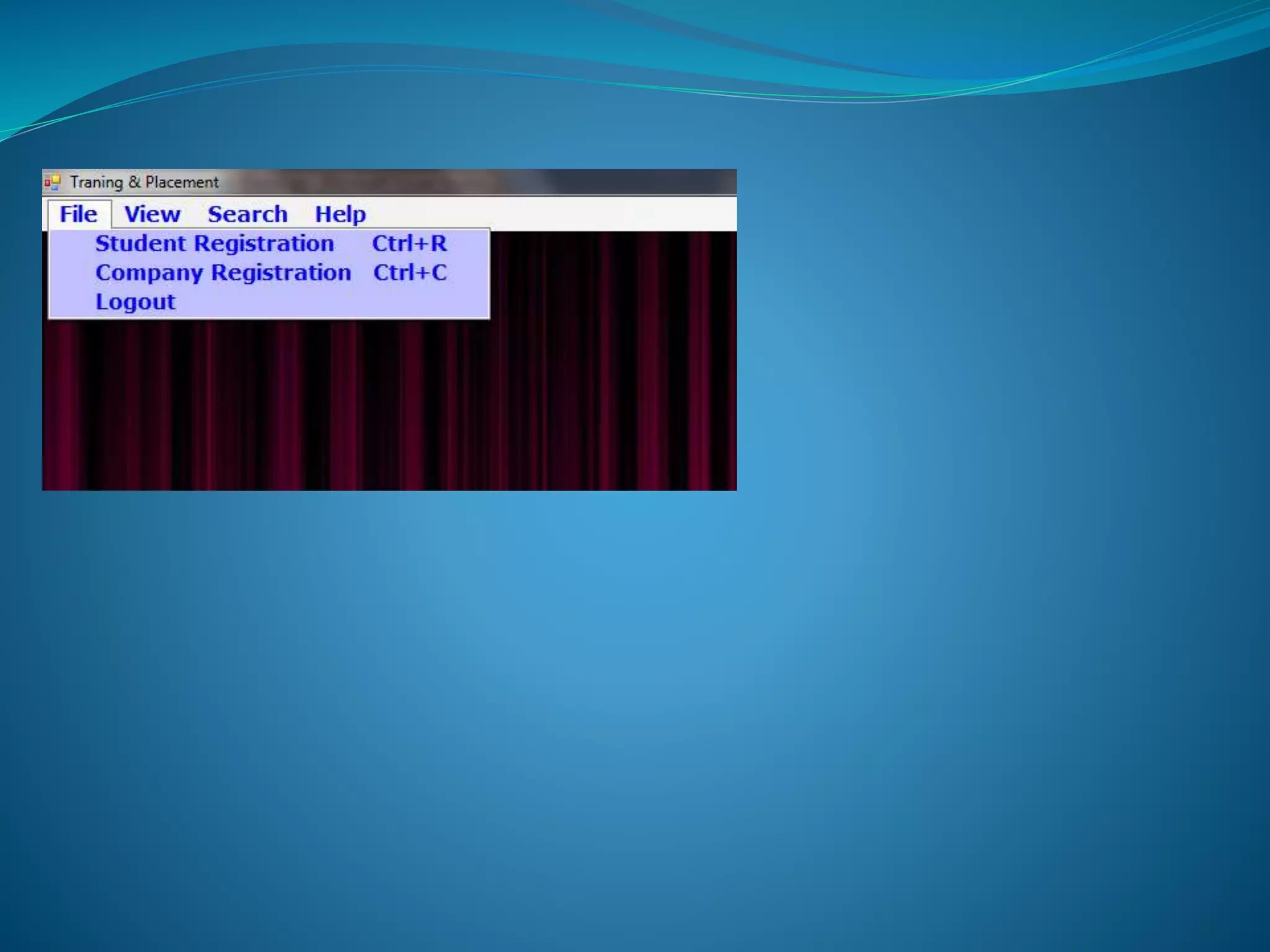

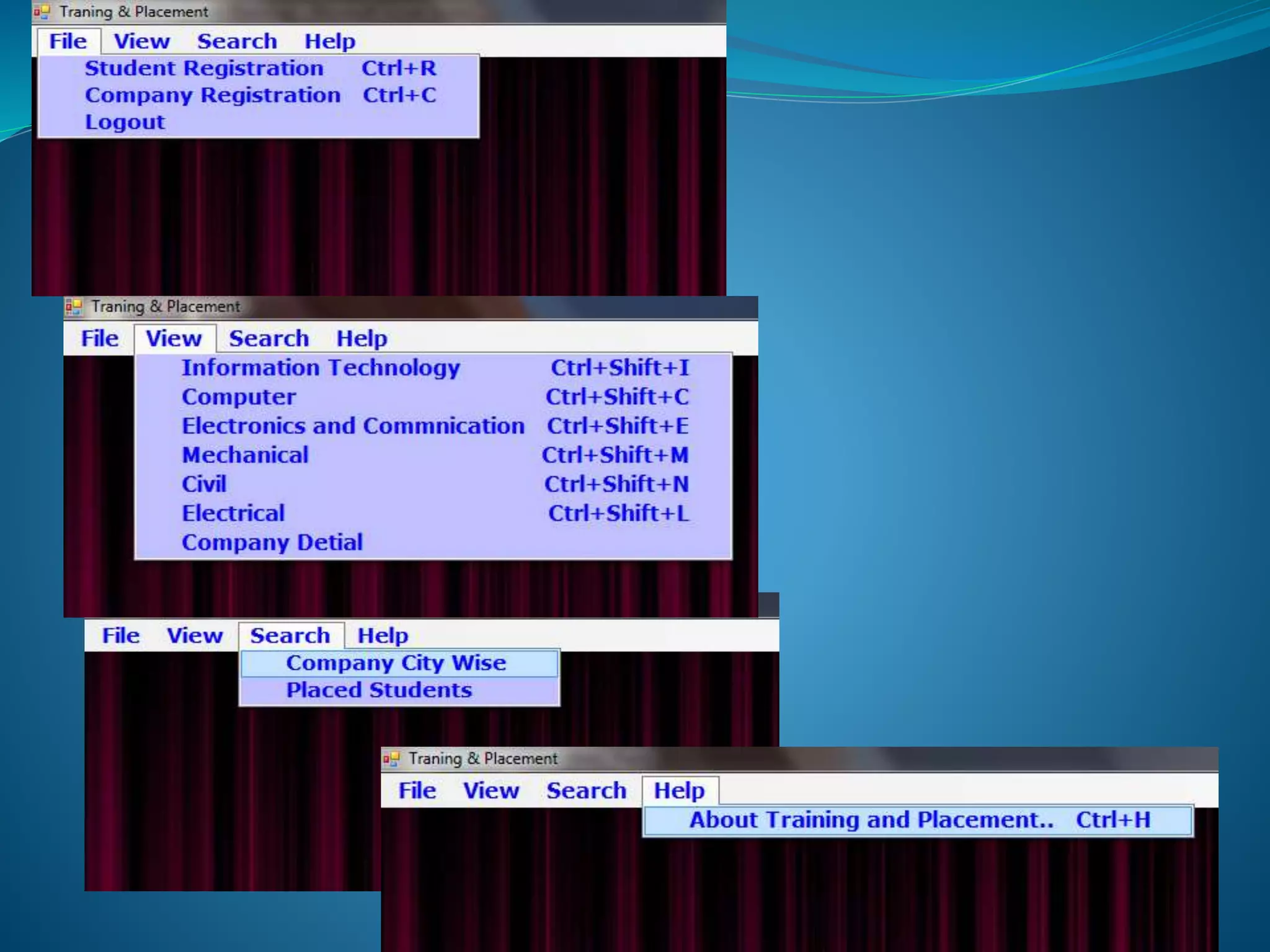

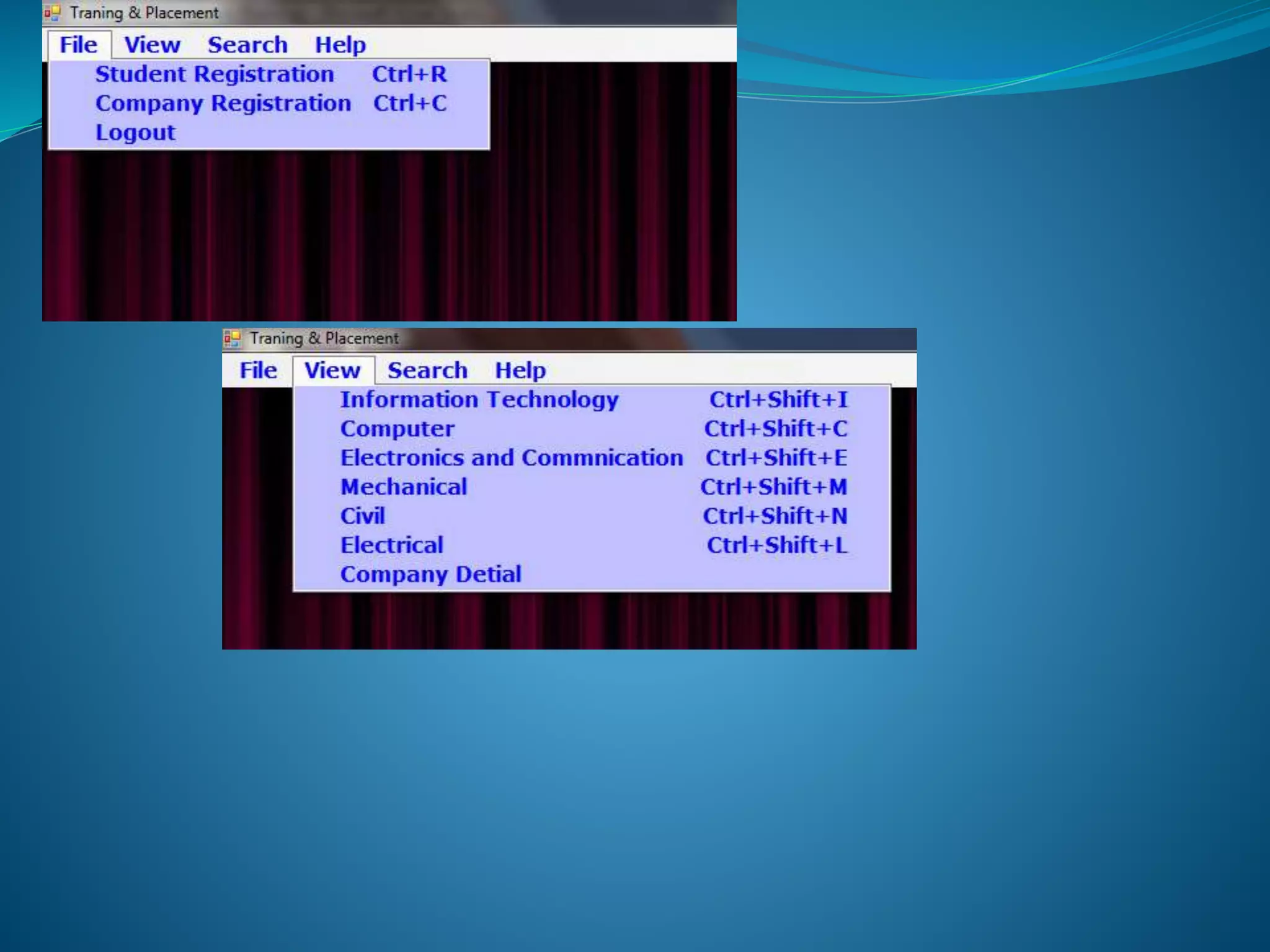

20. User(Student) Menu Form

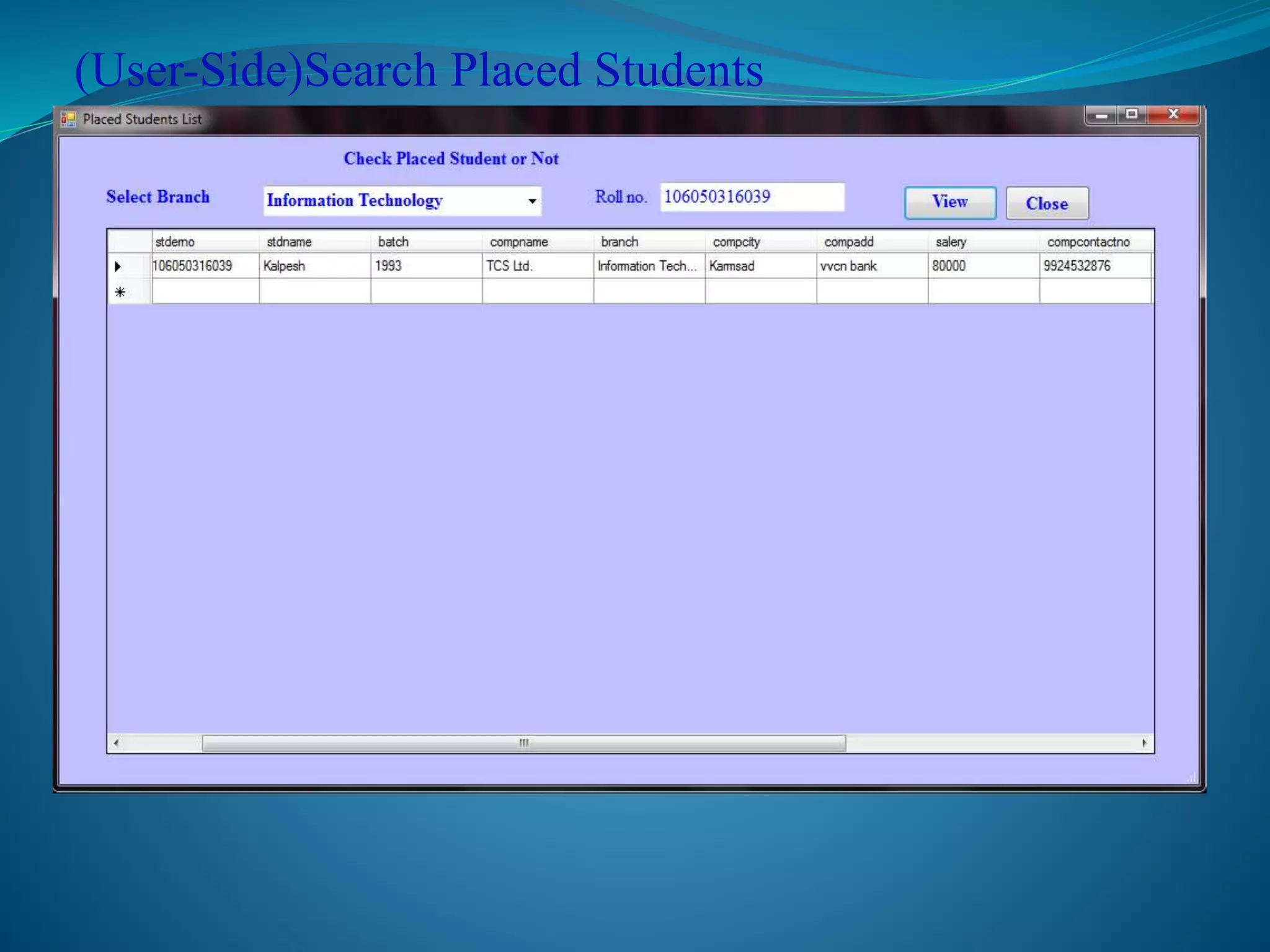

24. (User-Side)Search Placed Students

25. Admin side Student Registration Form

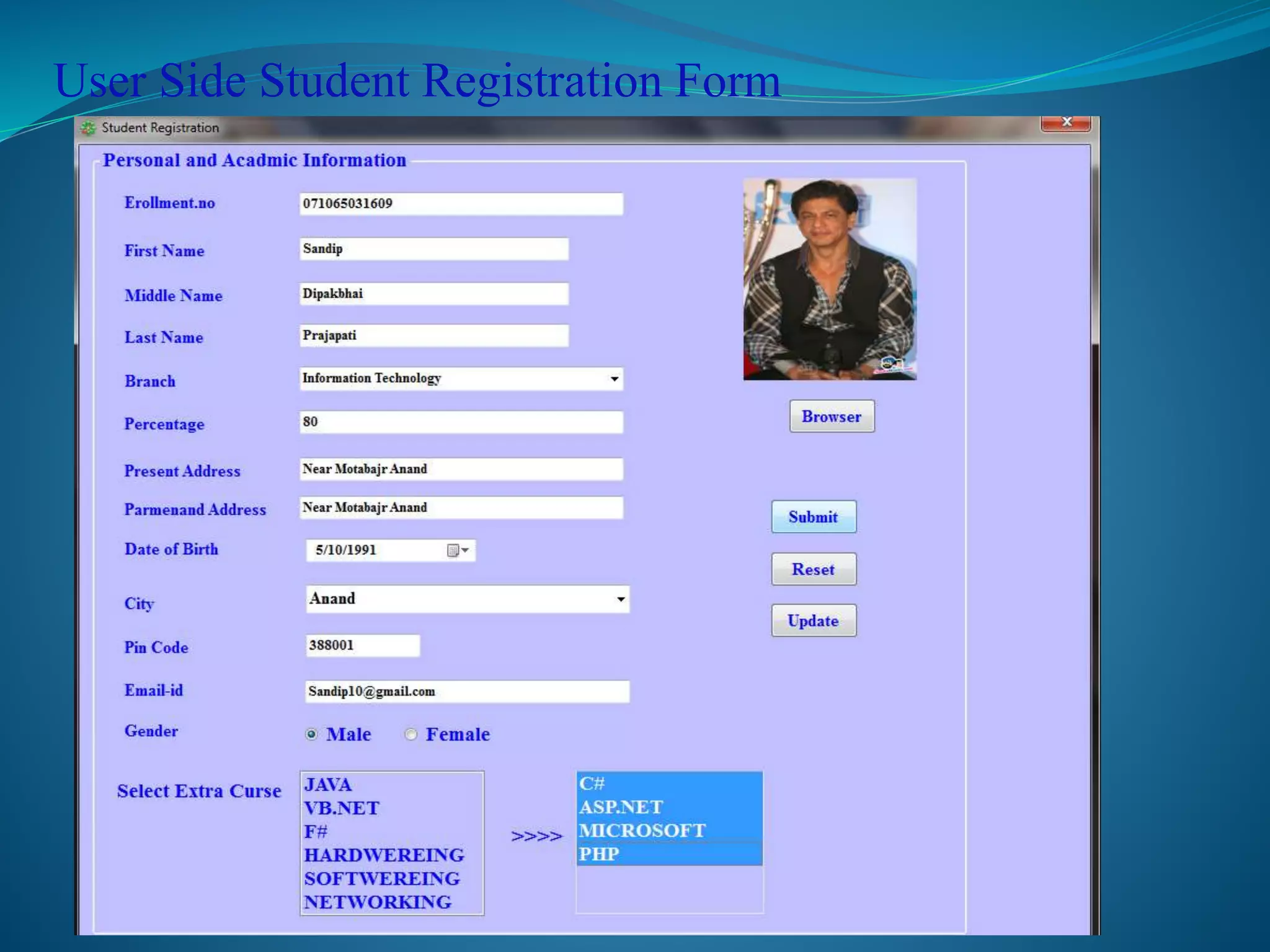

26. User Side Student Registration Form

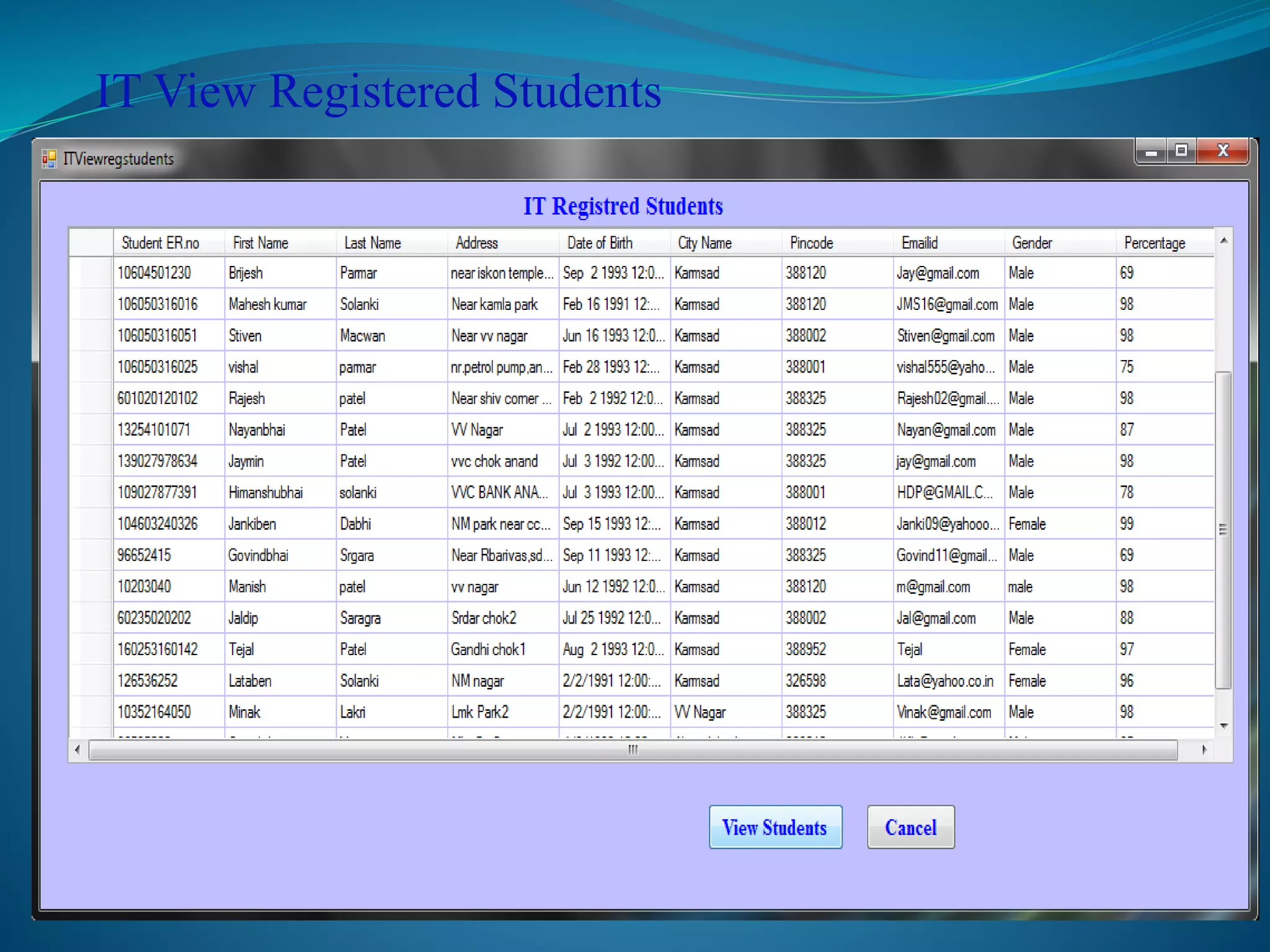

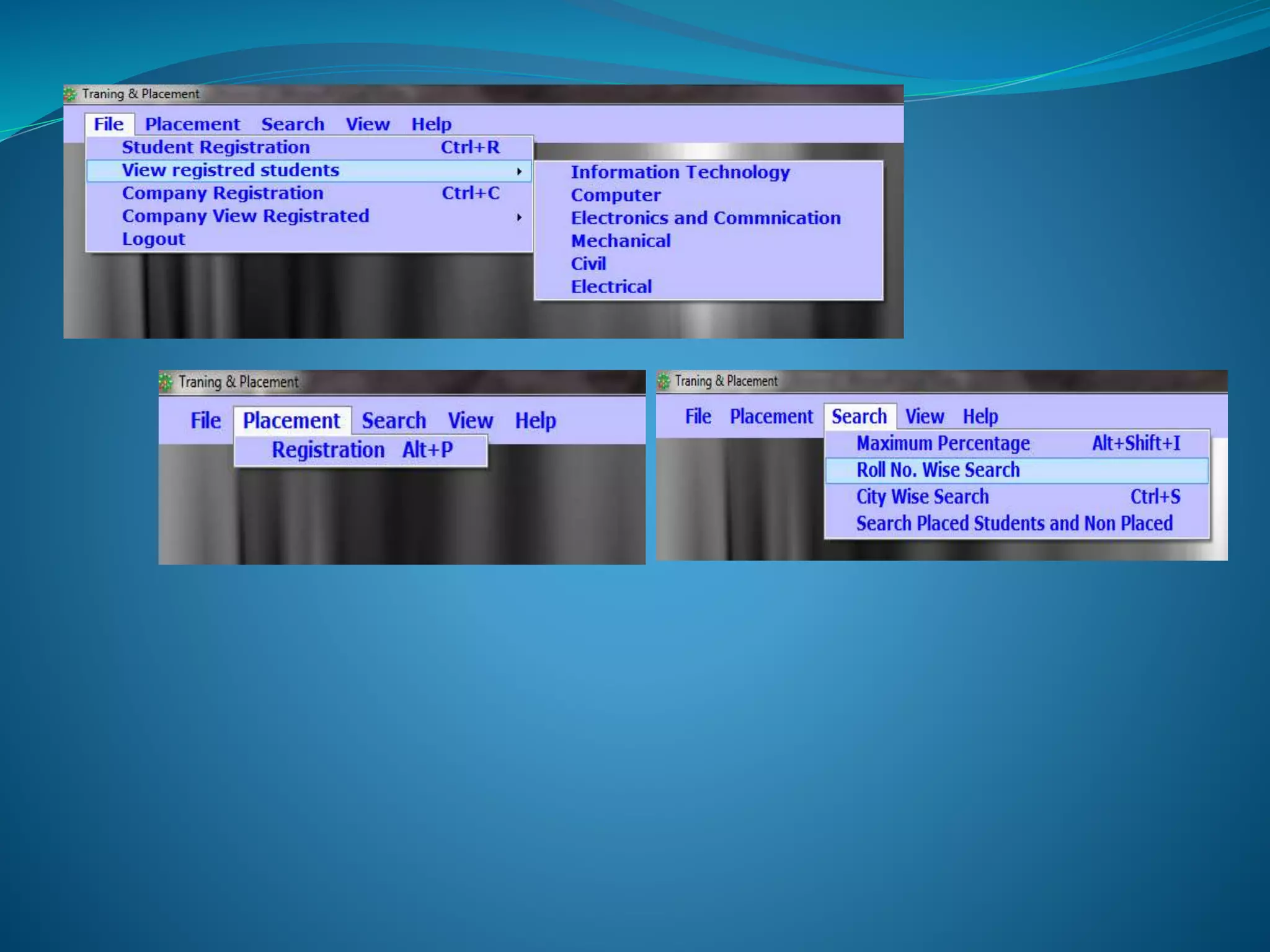

27. IT View Registered Students

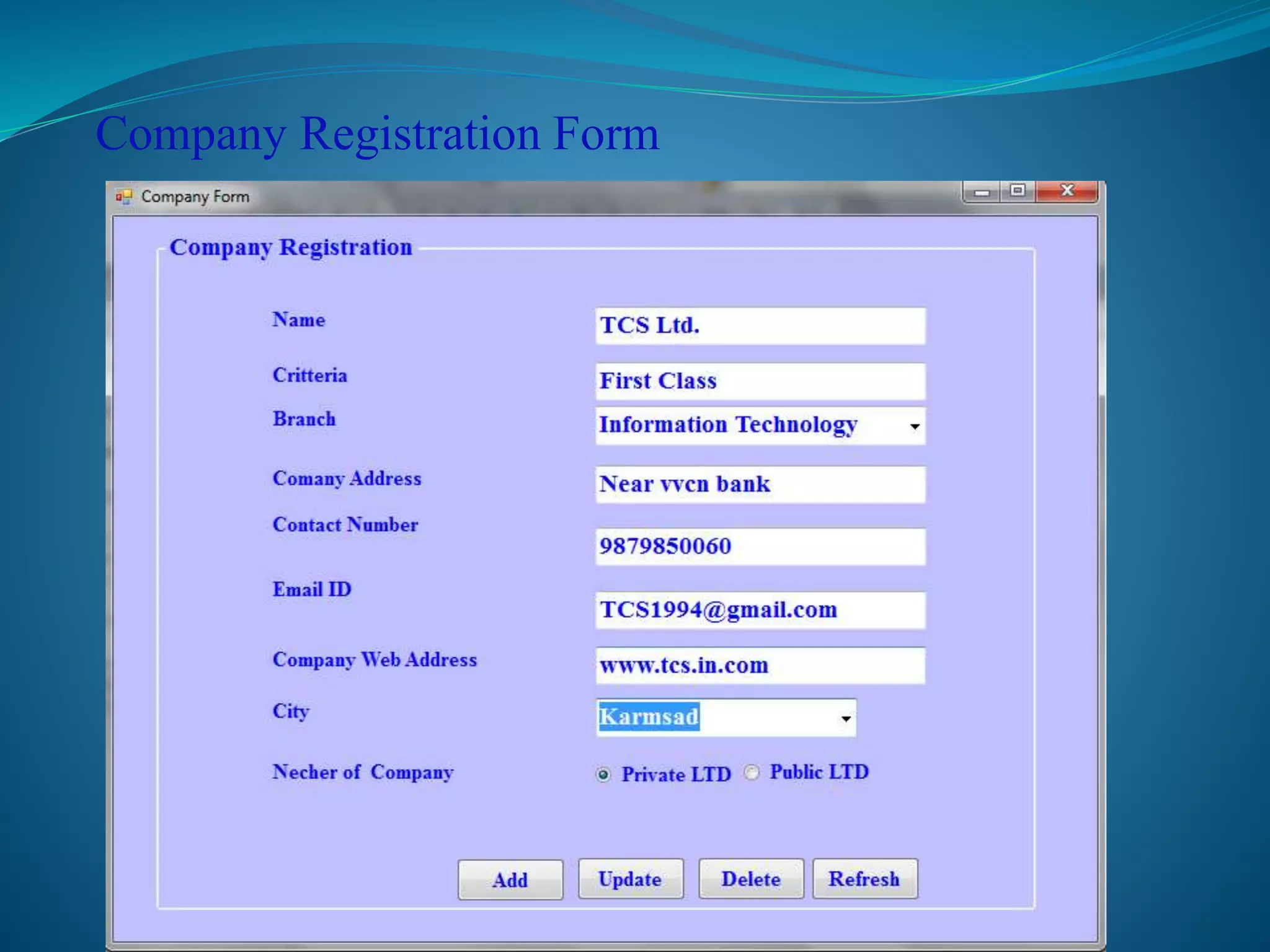

28. Company Registration Form

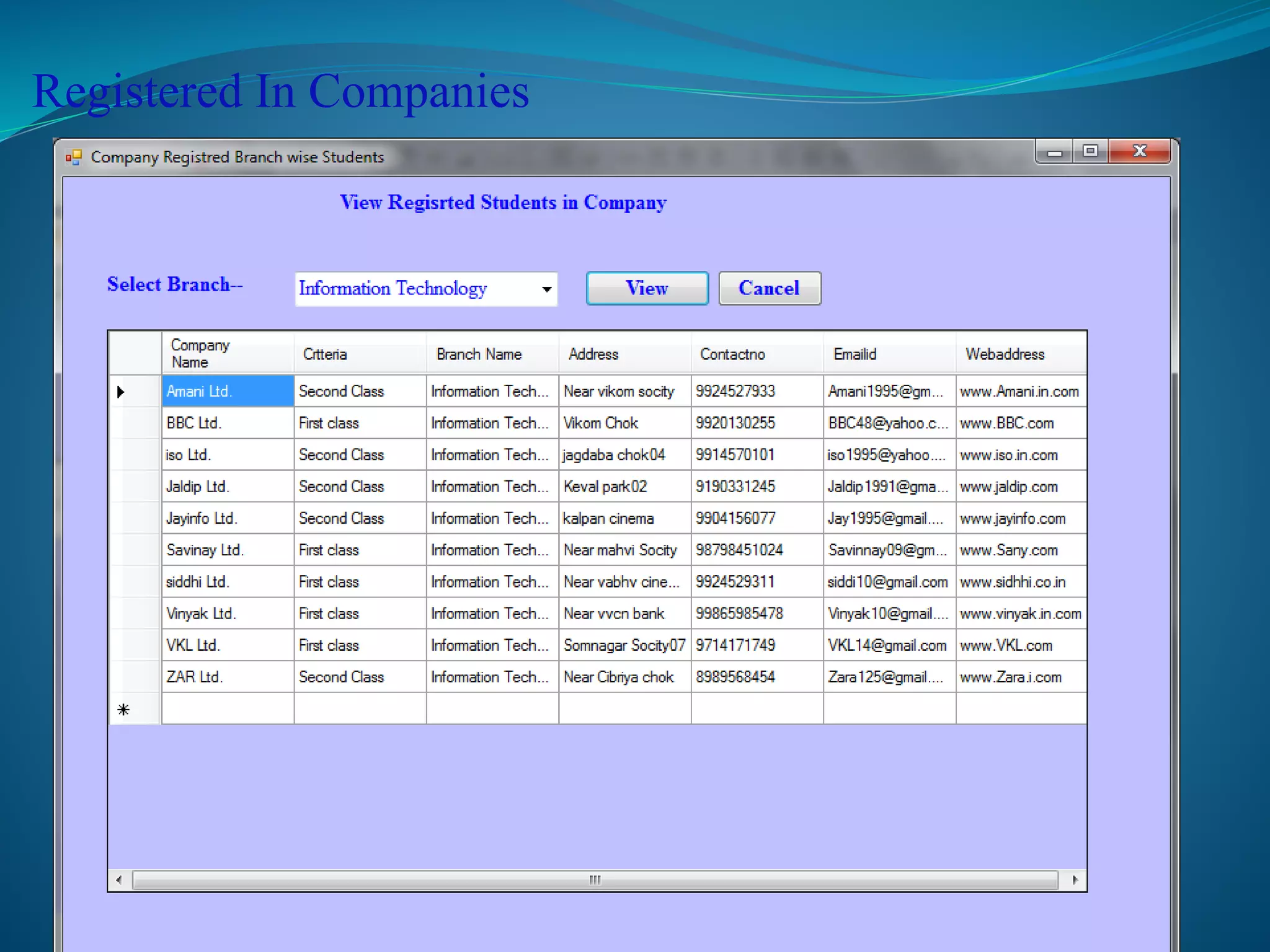

29. Registered In Companies

30. Placed Student And Company Records(Details)

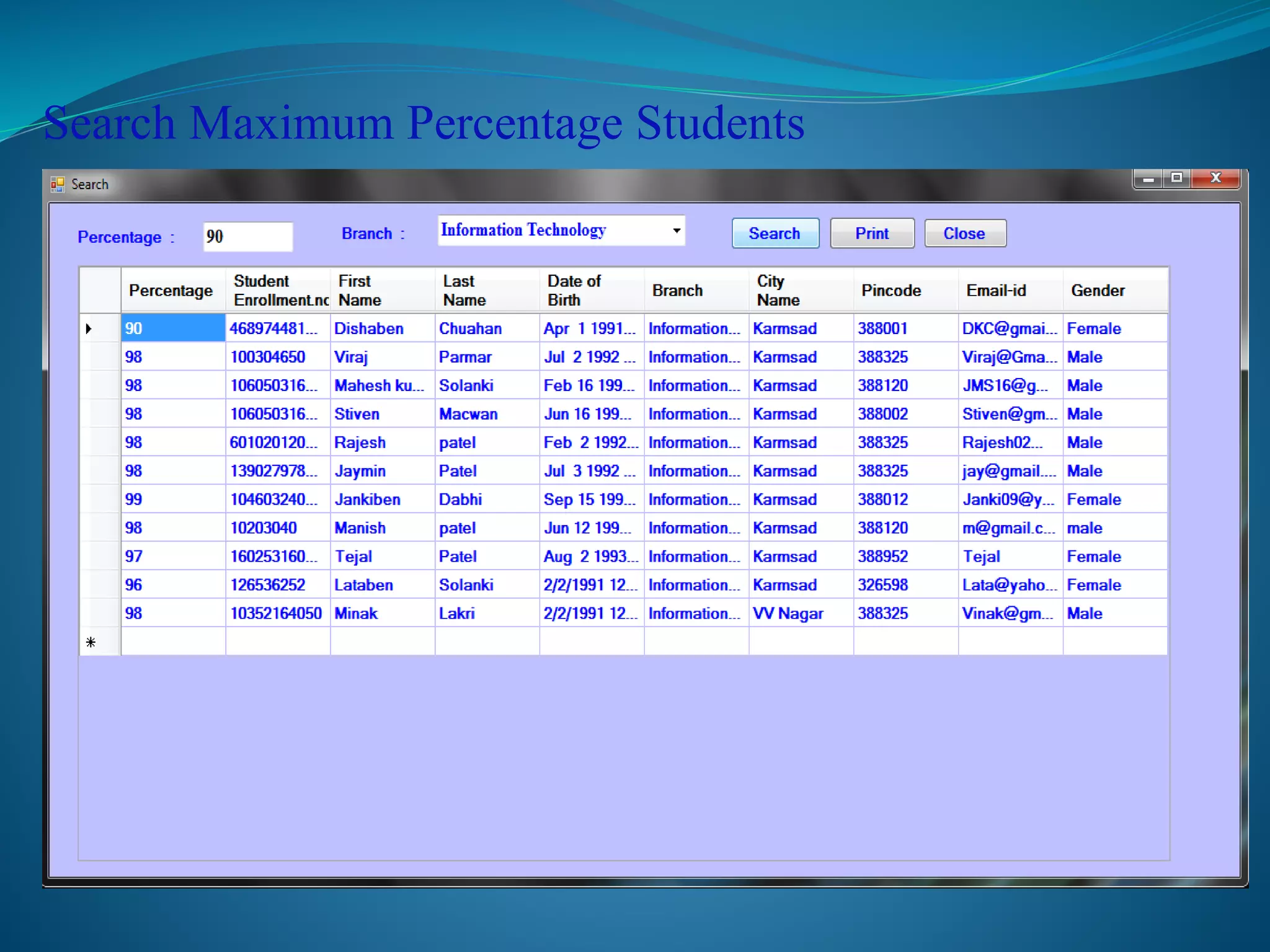

31. Search Maximum Percentage Students

32. Search Roll No-wise Students

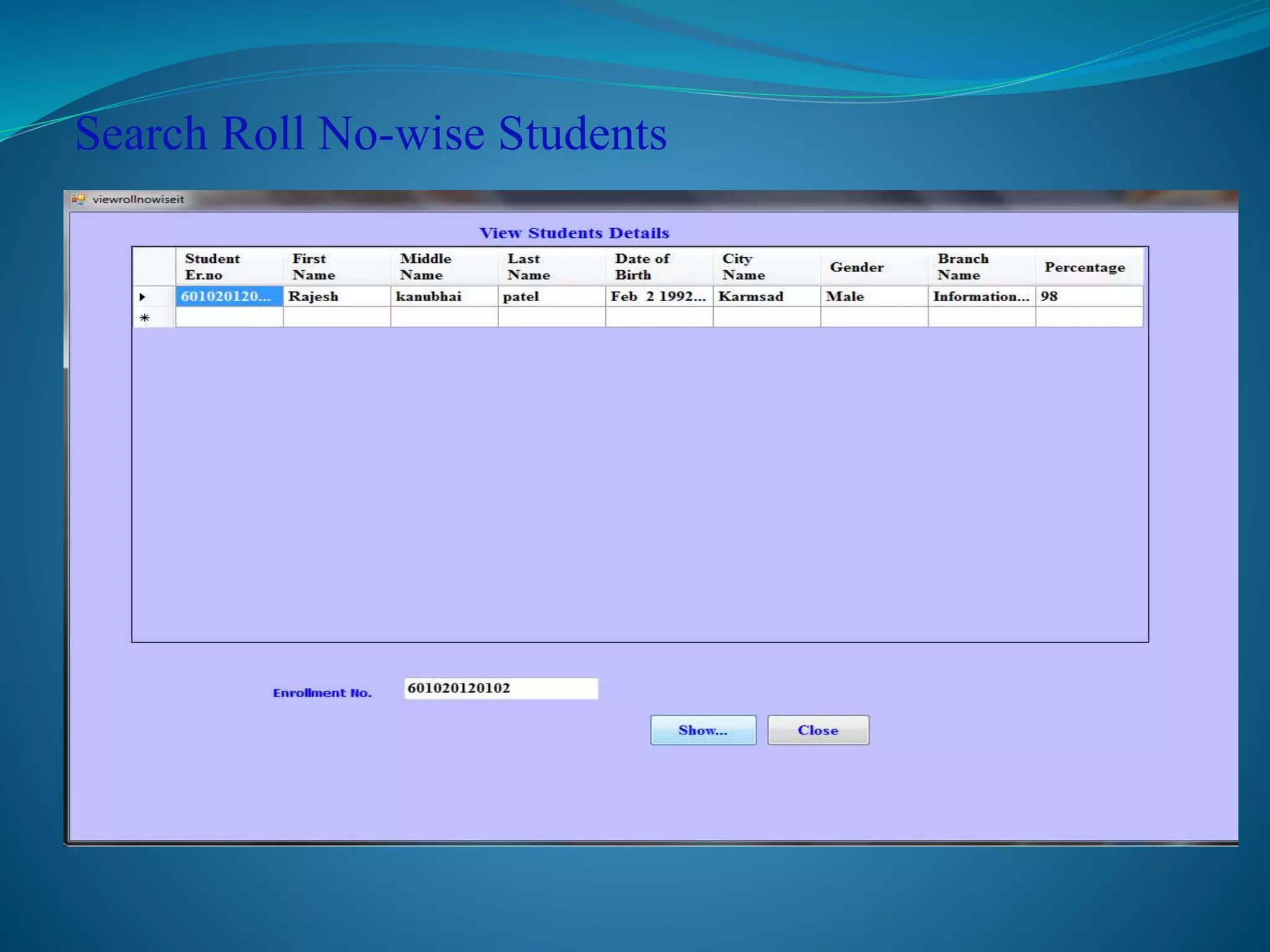

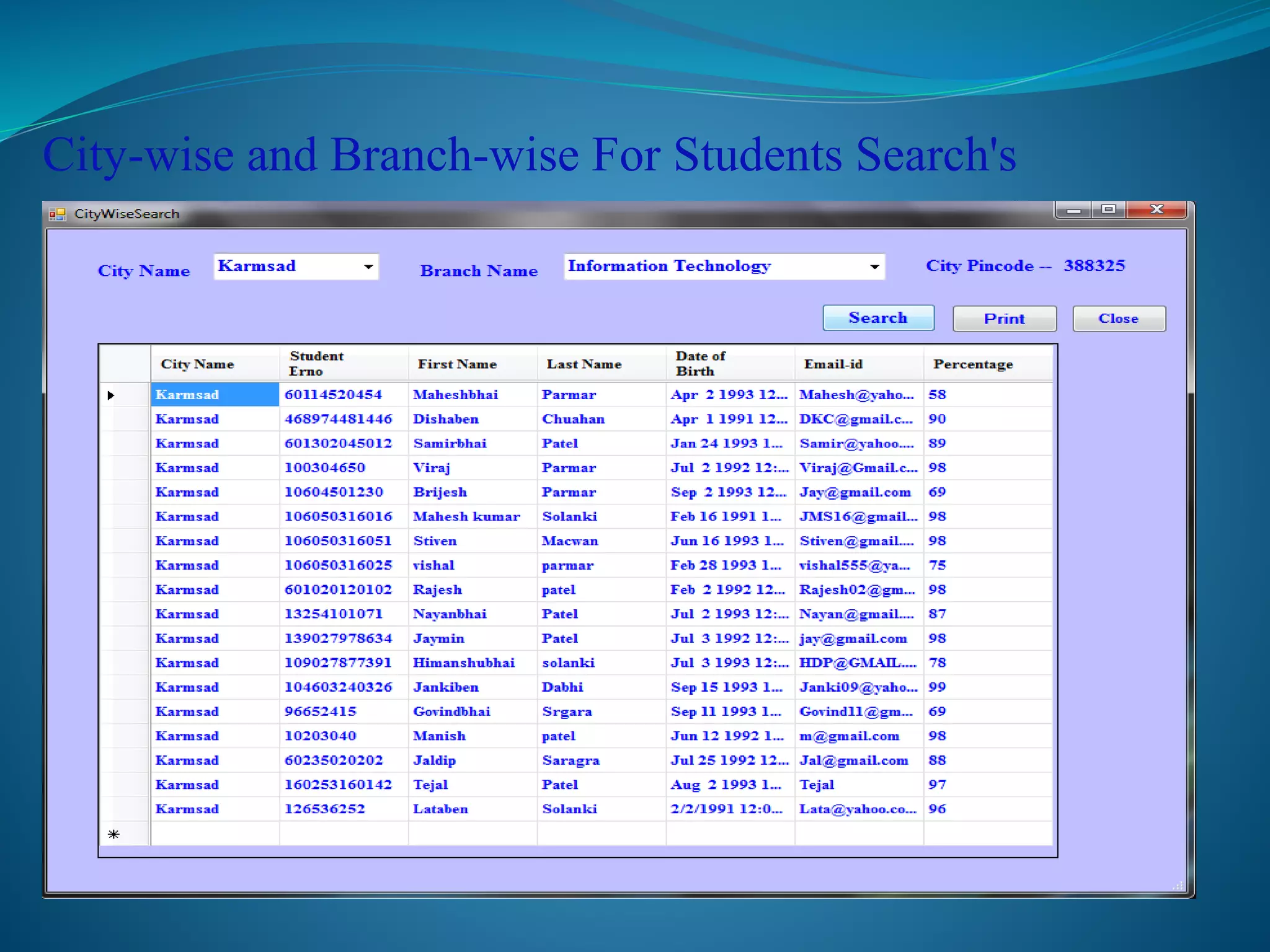

33. City-wise and Branch-wise For Students Search's

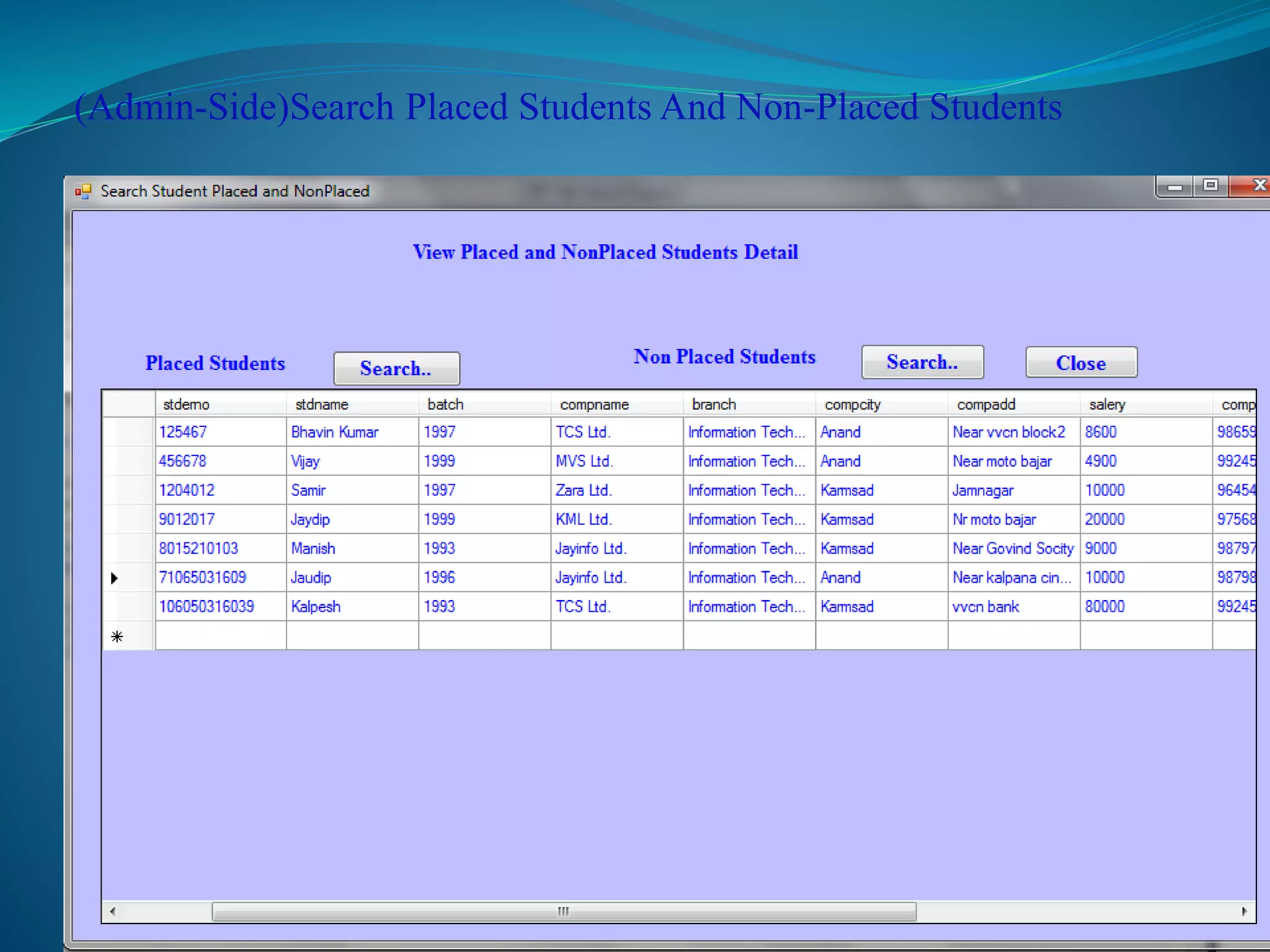

34. (Admin-Side)Search Placed Students And Non-Placed Students

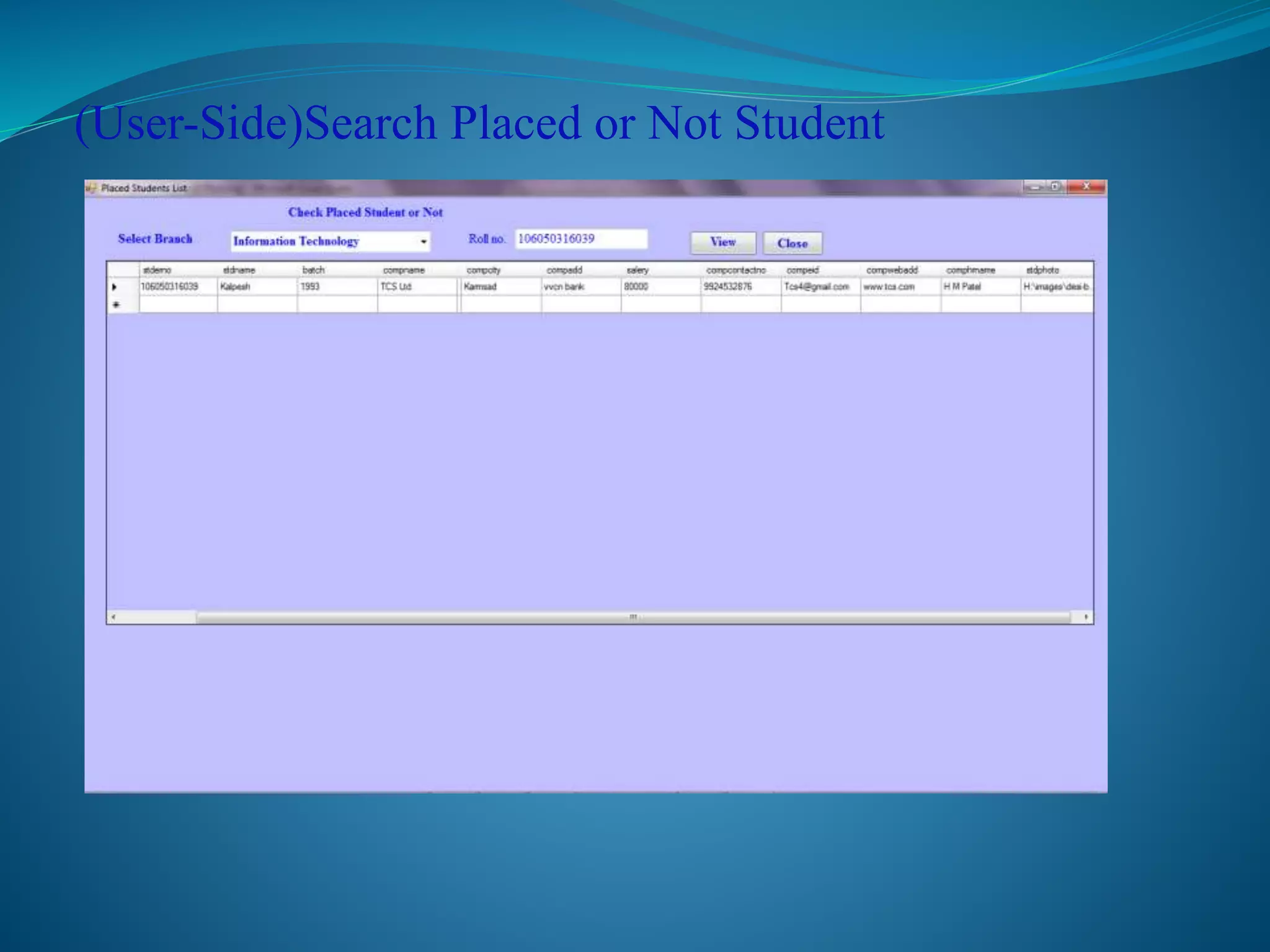

35. (User-Side)Search Placed or Not Student

36. Help Form of User

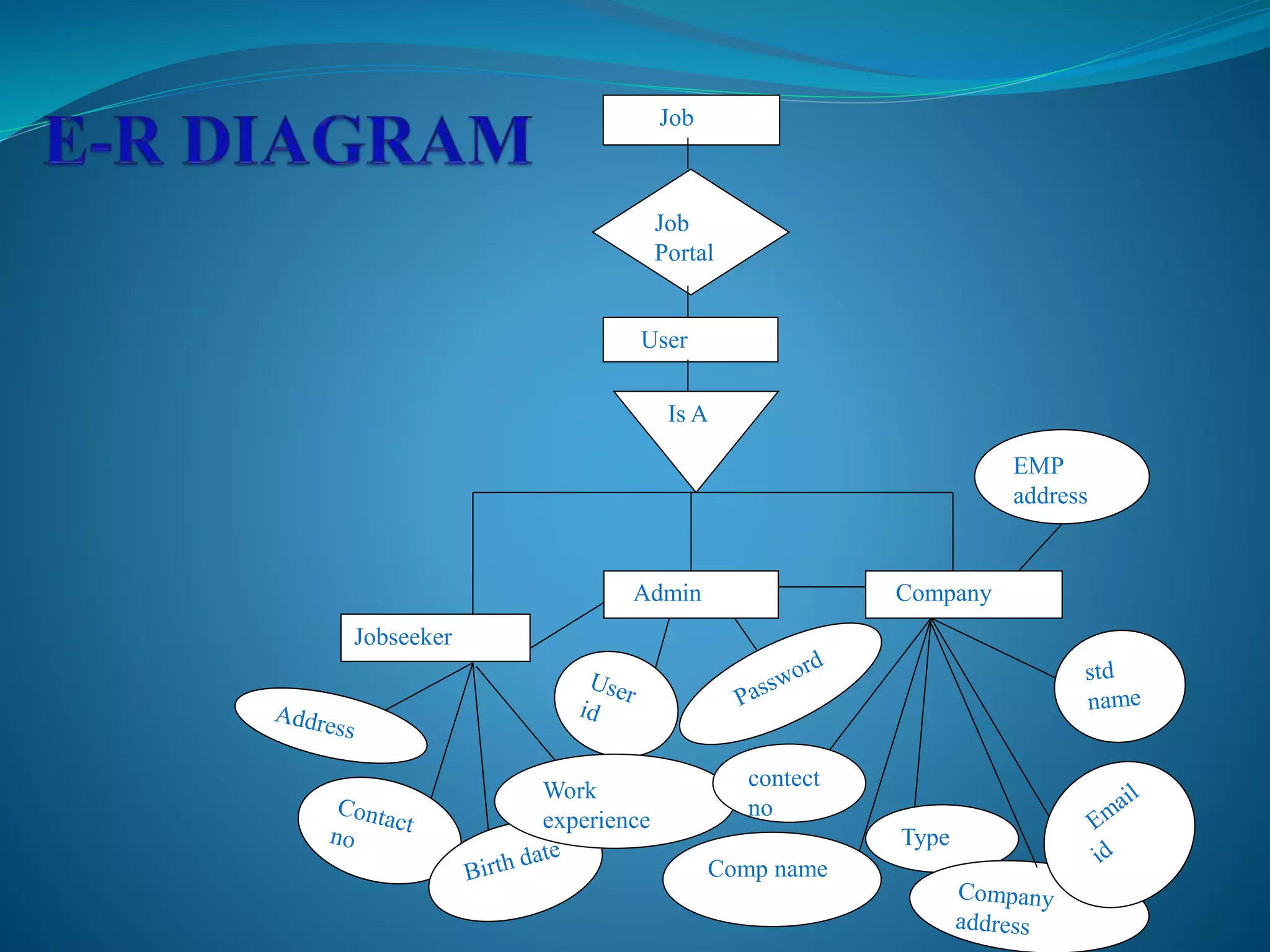

37. Job
Portal
User
Is A
Admin
Jobseeker
Company
Work
experience
contect
no
Comp name
Type
EMP
address
Job

38. •The Training & Placement System facilitates the process of placement of
students passing out from the Institute.
This component can be easily plugged in many other systems. Also the
component is user friendly.
This all information has to be managed manually. So, there is a need to
develop a system that can solve the mentioned problem. This software
comes with just that solution.
Comparing to existing computerized system, it performs at a faster pace.
System gives better feedback.
Accurate information is available.
Chances of such types of errors are much low.
Provides security to the system & software.
Forms are very user friendly.
