Tower cranes are fixed to the ground and have an asymmetrically balanced horizontal boom, with a short arm carrying counterweights and a long arm carrying lifting gear. They consist of a tower footing, fixed or climbing tower, swing ring, boom, counterweight, trolley, and operator's cabin. Tower cranes are time-saving, multipurpose, heavy-duty machines that provide high performance lifting even in critical situations and can be transferred between projects, with optimum utilization of resources when idle. However, they are cumbersome to erect and dismantle, have high initial and dismantling costs, require skilled operators, and can hamper schedules and create safety issues if defective.
More Related Content
Tower cranes
- 1.
- 2. CONTENTS • INTRODUCTION • TYPESOF CRANES • DIFFERENT COMPONENTS OF CRANE • ERECTION PROCEDURE • UTILITY TO PROJECT / SITE • DISADVANTAGES • STATISTICAL ANALYSIS • CONCLUSION & CONSENSUS

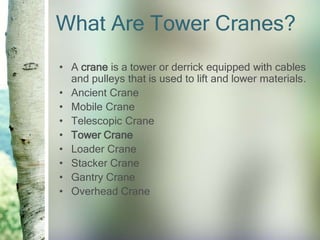

- 3. What Are TowerCranes? • A crane is a tower or derrick equipped with cables and pulleys that is used to lift and lower materials. • Ancient Crane • Mobile Crane • Telescopic Crane • Tower Crane • Loader Crane • Stacker Crane • Gantry Crane • Overhead Crane

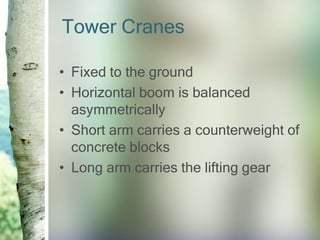

- 4. Tower Cranes • Fixedto the ground • Horizontal boom is balanced asymmetrically • Short arm carries a counterweight of concrete blocks • Long arm carries the lifting gear

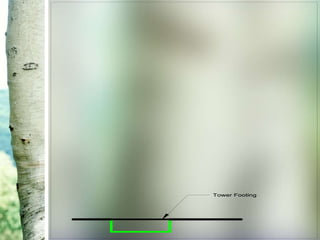

- 5.
- 6.
- 7.
- 8.
- 9.
- 10.
- 11.
- 12.
- 13.

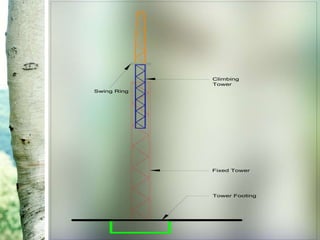

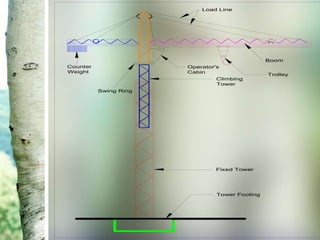

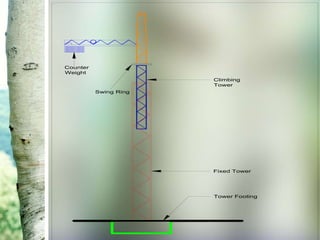

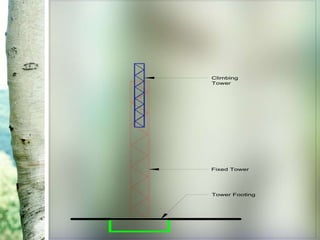

- 14. Tower Footing Fixed Tower Climbing Tower Operator's Cabin Boom LoadLine Counter Weight Swing Ring Trolley

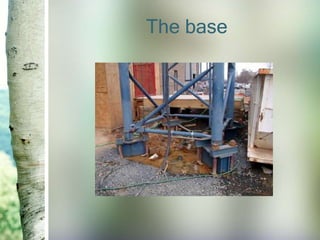

- 15.
- 16. Mast / FixedTower

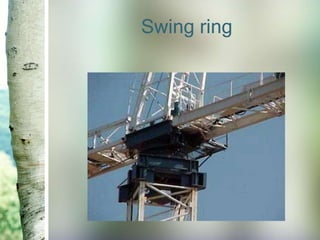

- 17.
- 18.
- 19.
- 20.
- 21. ABC D Radius of the Boom Locationof the Tower Crane Tower Crane Rohan Tapovan Rohan Builders Pvt. Ltd. (India) Gokhale Nagar, Near Mendhi Farm Senapati Bapat Marg, Pune.

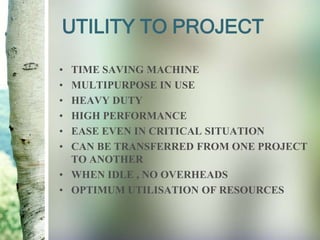

- 22. UTILITY TO PROJECT •TIME SAVING MACHINE • MULTIPURPOSE IN USE • HEAVY DUTY • HIGH PERFORMANCE • EASE EVEN IN CRITICAL SITUATION • CAN BE TRANSFERRED FROM ONE PROJECT TO ANOTHER • WHEN IDLE , NO OVERHEADS • OPTIMUM UTILISATION OF RESOURCES
- 23. DISADVANTAGES • CUMBERSOME TOERECT & DISMANTLE. • HIGH INITIAL COST FOR ERECTION AS WELL AS DISMANTLING. • SKILLED OPERATORS ARE REQUIRED. • IF IN DEFECTIVE SESSION , HAMPERS THE SCHEDULE. • MAINTANANCE IS DIFFICULT. • SOMETIMES CREATE SAFETY PROBLEMS. • LIMITED TO PROJECTS WITH LARGE AREAS.
- 24. • Thank you…..,,
