- 1. Tips for AdditiveManufacturing in Metal
- 2. Before We Start This webinar will be available afterwards at designworldonline.com & email Q&A at the end of the presentation Hashtag for this webinar: #DWwebinar
- 3.

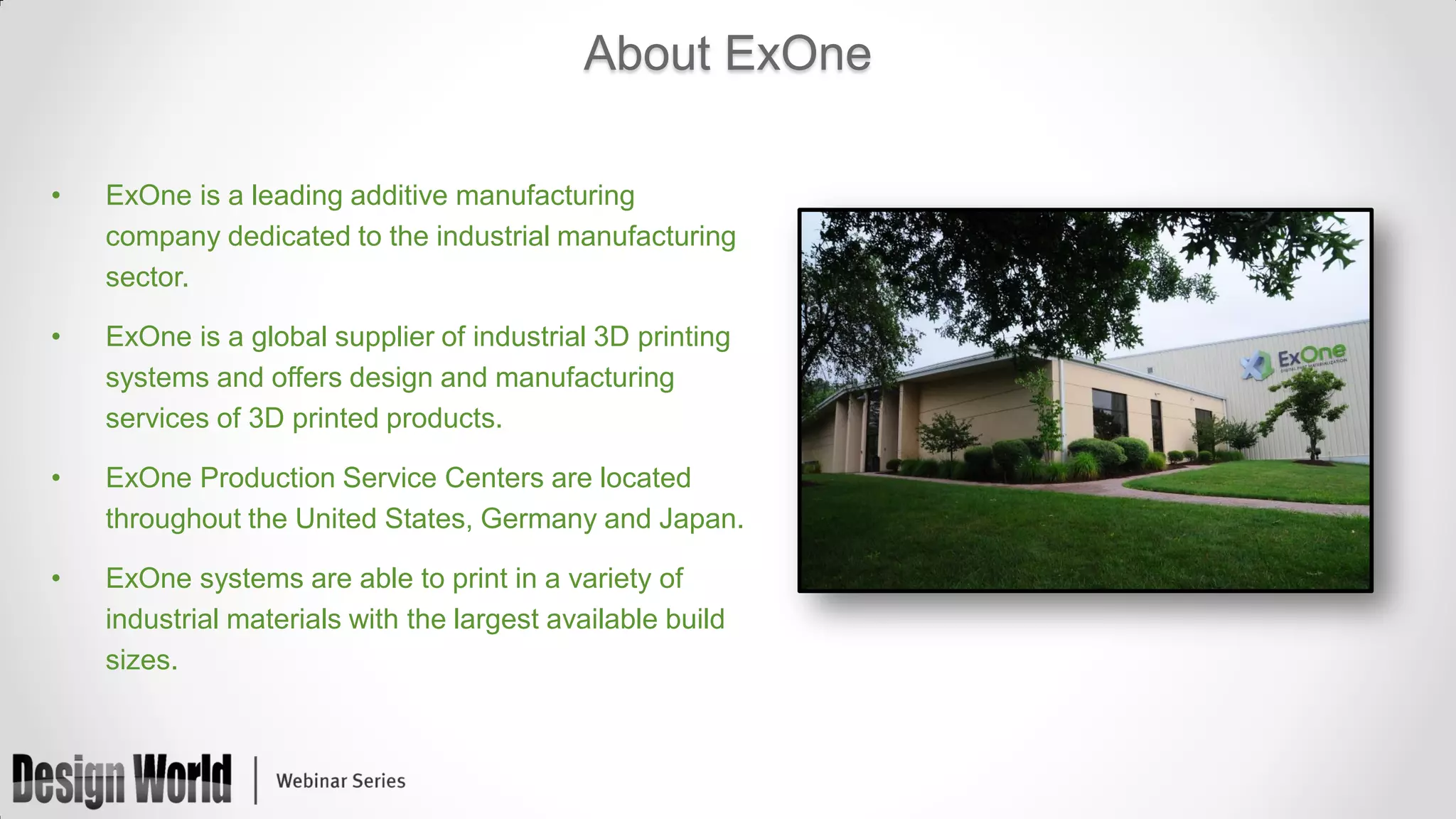

- 5. About ExOne • ExOne isa leading additive manufacturing company dedicated to the industrial manufacturing sector. • ExOne is a global supplier of industrial 3D printing systems and offers design and manufacturing services of 3D printed products. • ExOne Production Service Centers are located throughout the United States, Germany and Japan. • ExOne systems are able to print in a variety of industrial materials with the largest available build sizes.

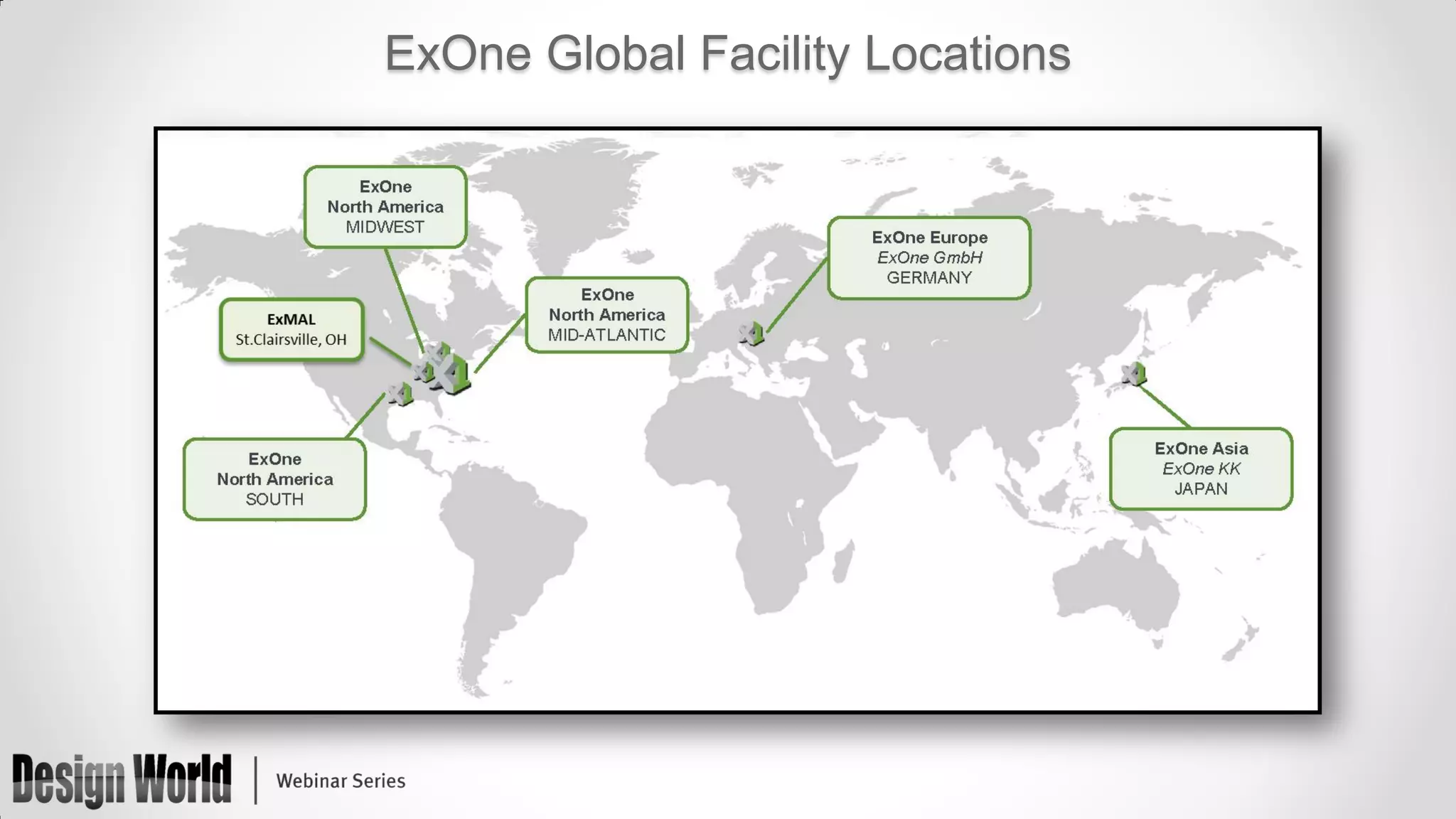

- 6. ExOne Global FacilityLocations

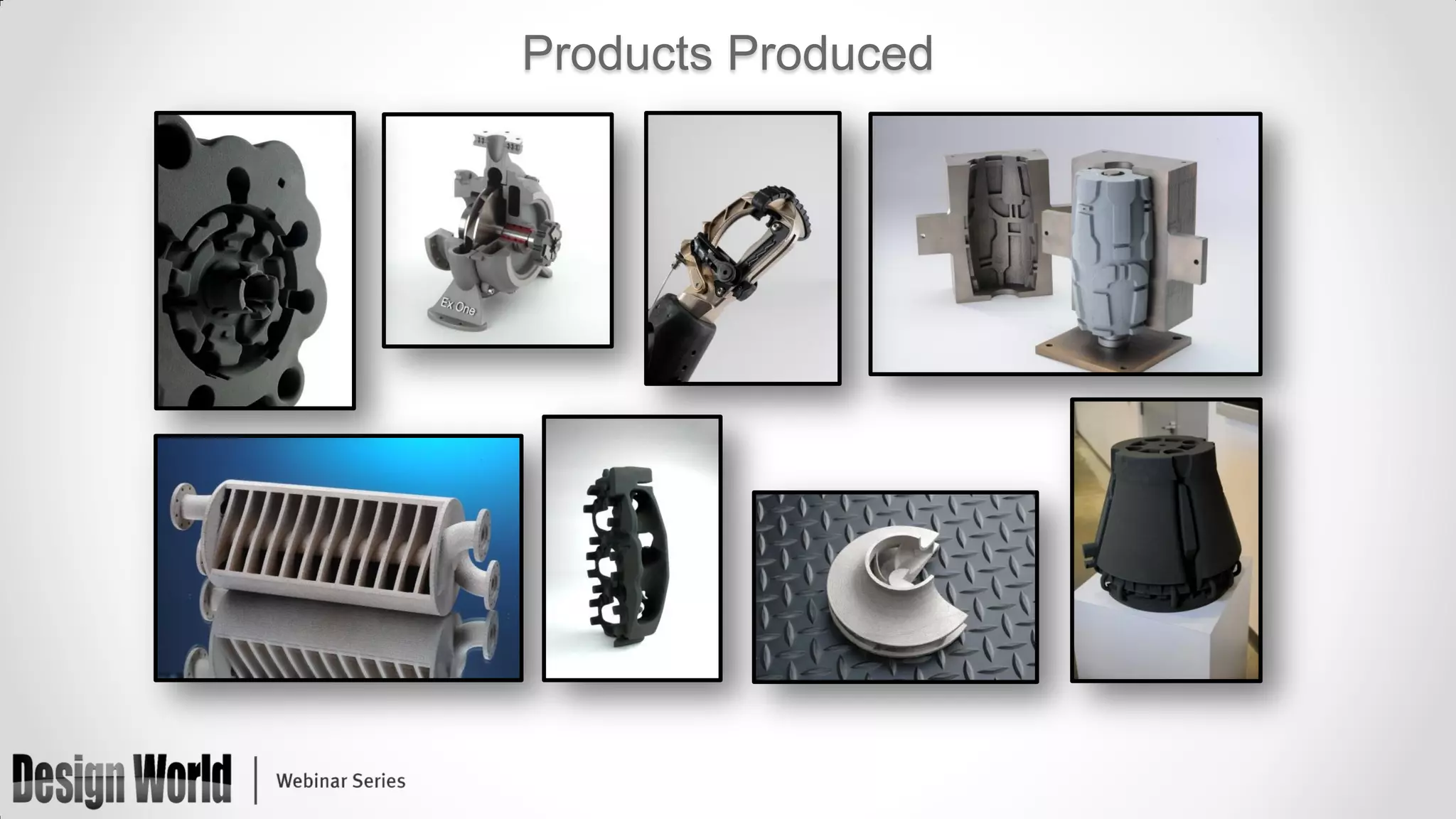

- 7.

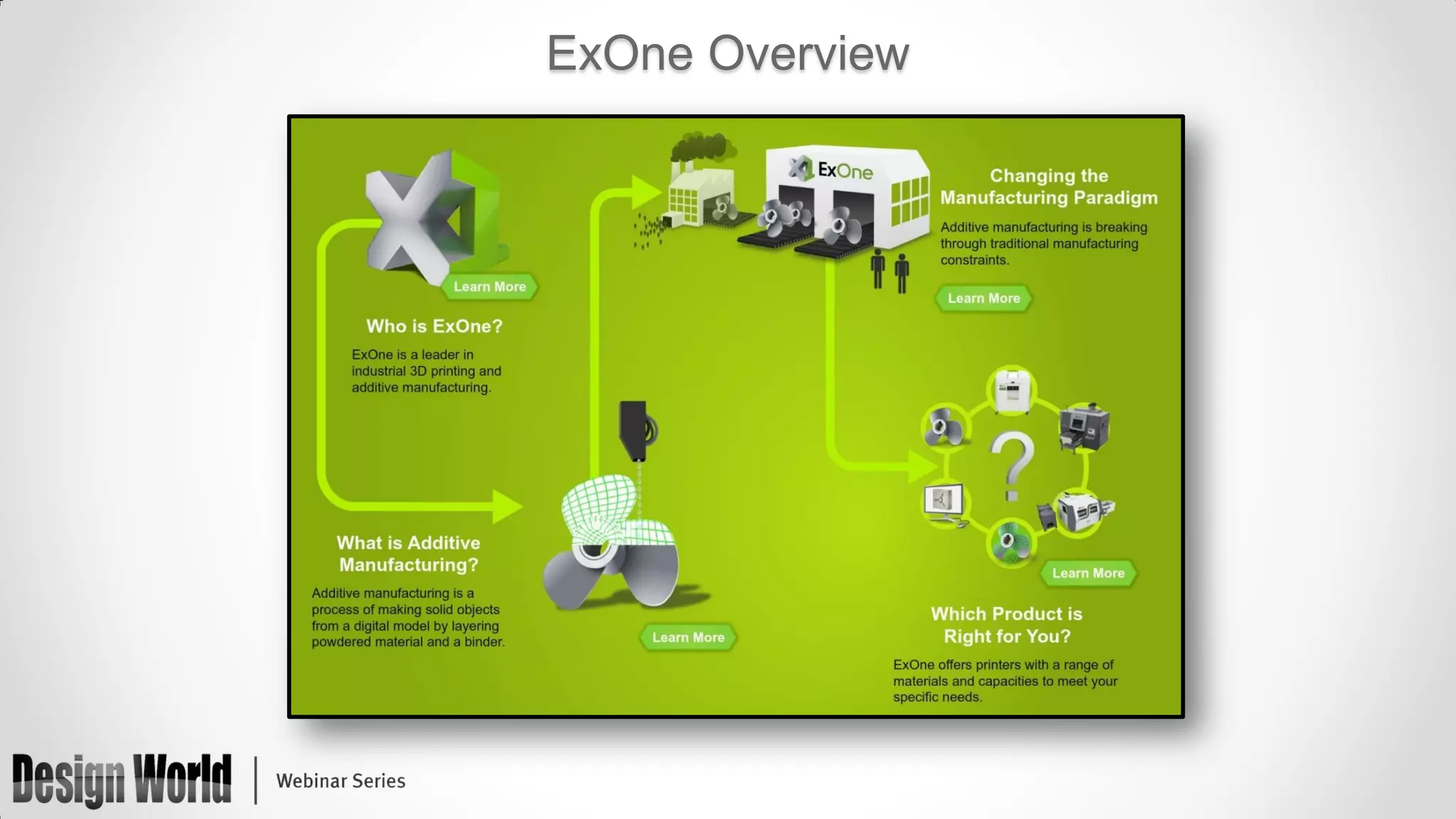

- 8.

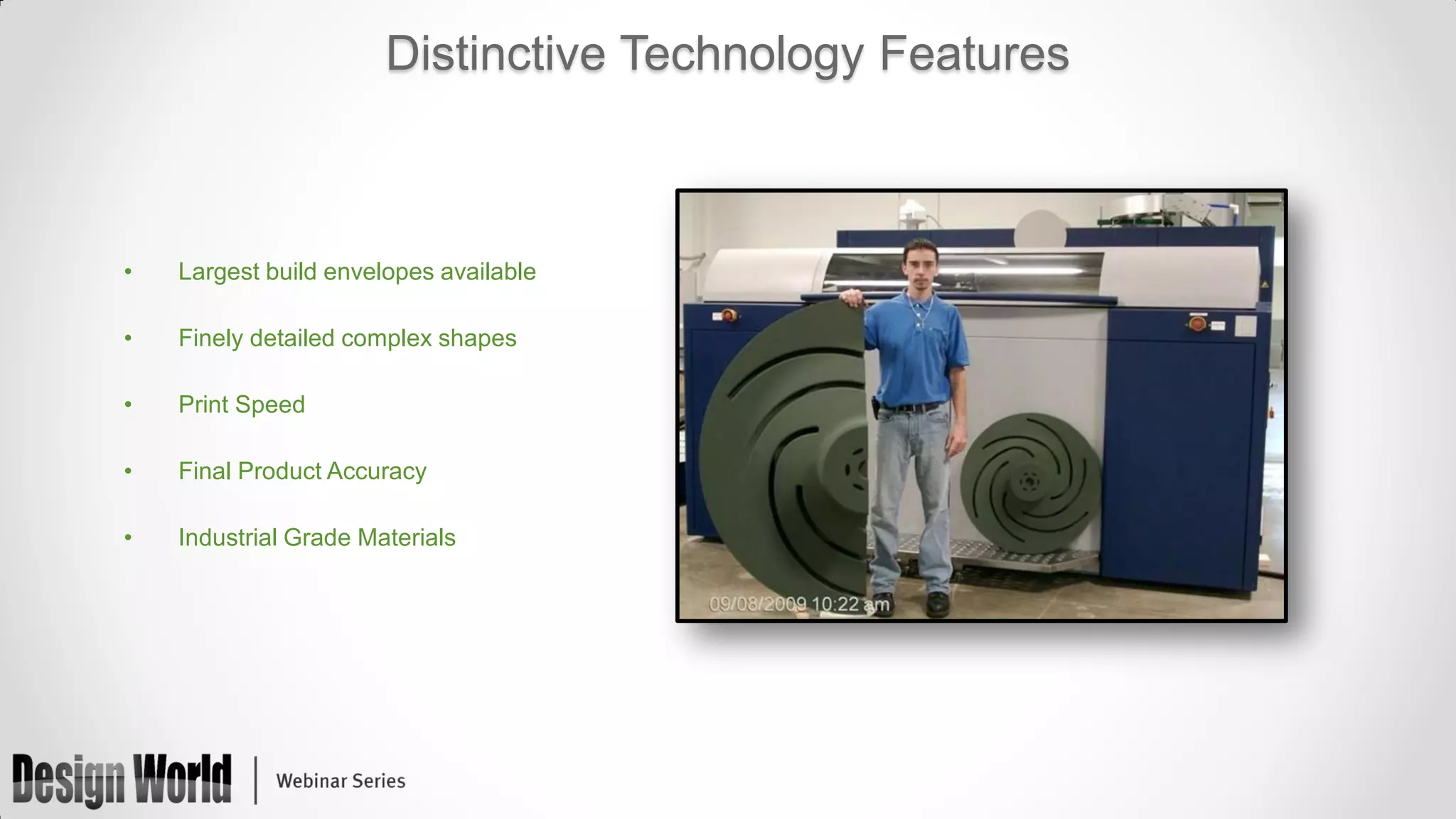

- 9. Distinctive Technology Features • Largestbuild envelopes available • Finely detailed complex shapes • Print Speed • Final Product Accuracy • Industrial Grade Materials

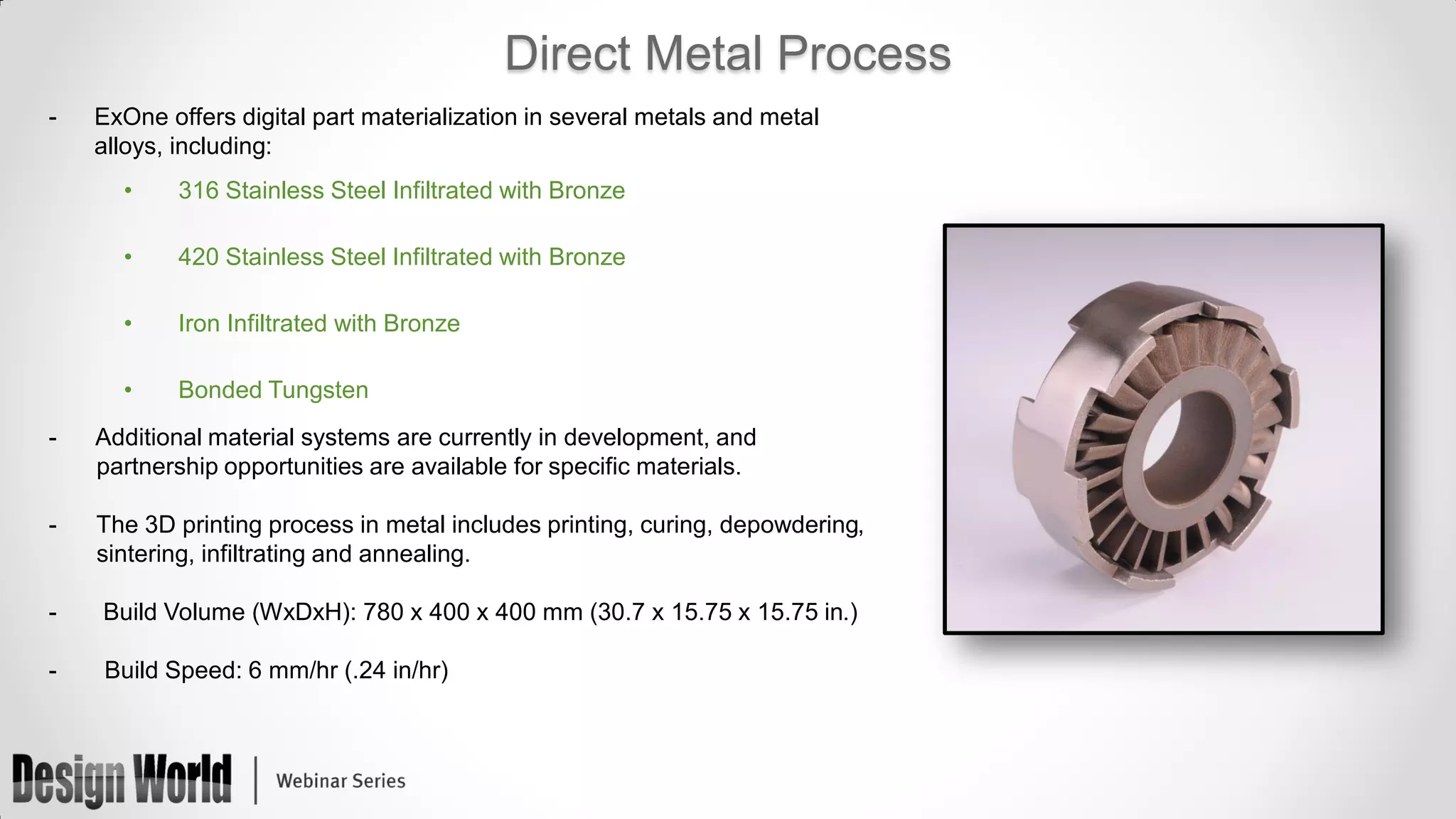

- 10. Direct Metal Process - ExOneoffers digital part materialization in several metals and metal alloys, including: • 316 Stainless Steel Infiltrated with Bronze • 420 Stainless Steel Infiltrated with Bronze • Iron Infiltrated with Bronze • Bonded Tungsten - Additional material systems are currently in development, and partnership opportunities are available for specific materials. - The 3D printing process in metal includes printing, curing, depowdering, sintering, infiltrating and annealing. - Build Volume (WxDxH): 780 x 400 x 400 mm (30.7 x 15.75 x 15.75 in.) - Build Speed: 6 mm/hr (.24 in/hr)

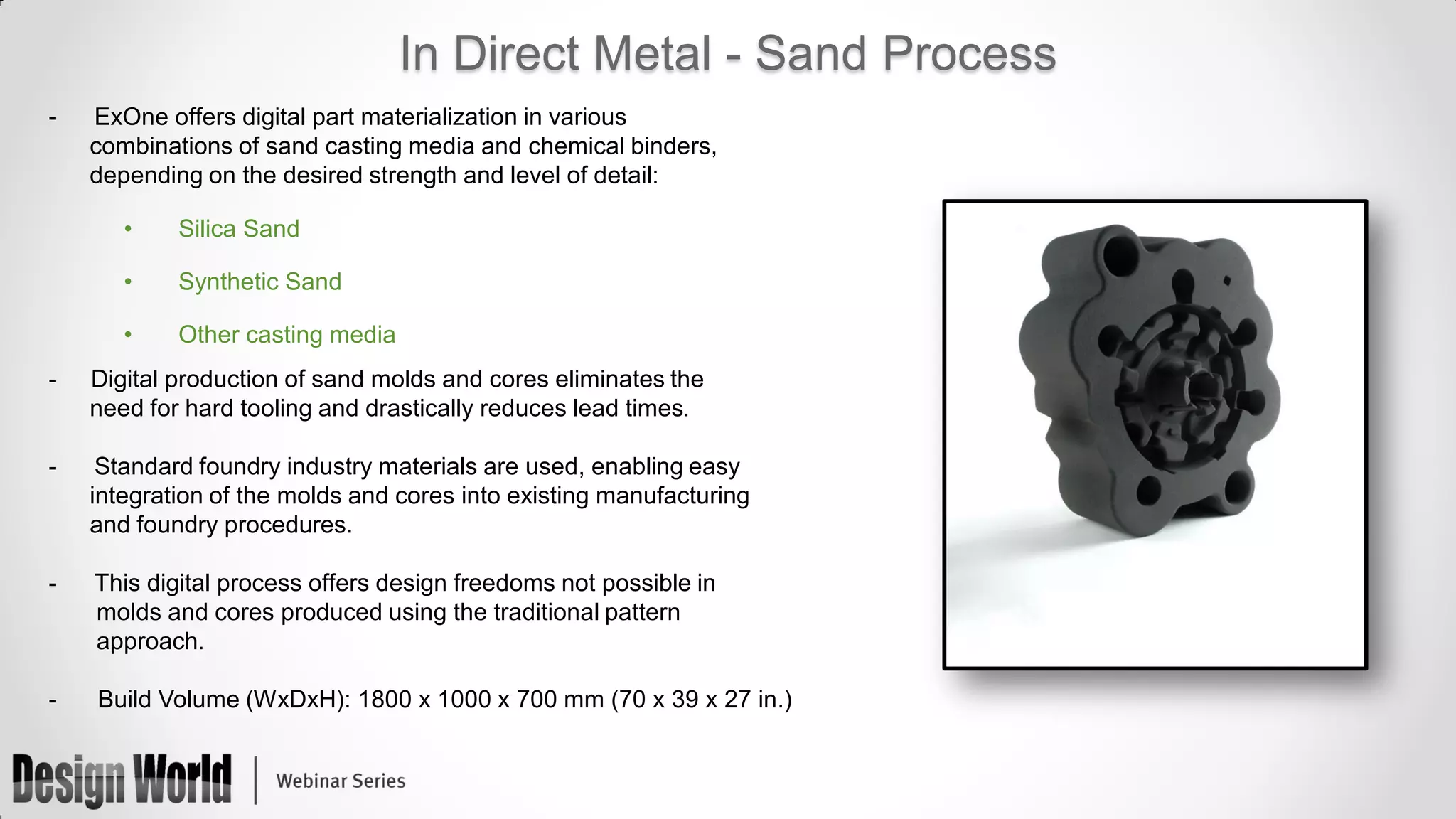

- 11. In Direct Metal- Sand Process - ExOne offers digital part materialization in various combinations of sand casting media and chemical binders, depending on the desired strength and level of detail: • Silica Sand • Synthetic Sand • Other casting media - Digital production of sand molds and cores eliminates the need for hard tooling and drastically reduces lead times. - Standard foundry industry materials are used, enabling easy integration of the molds and cores into existing manufacturing and foundry procedures. - This digital process offers design freedoms not possible in molds and cores produced using the traditional pattern approach. - Build Volume (WxDxH): 1800 x 1000 x 700 mm (70 x 39 x 27 in.)
- 12.

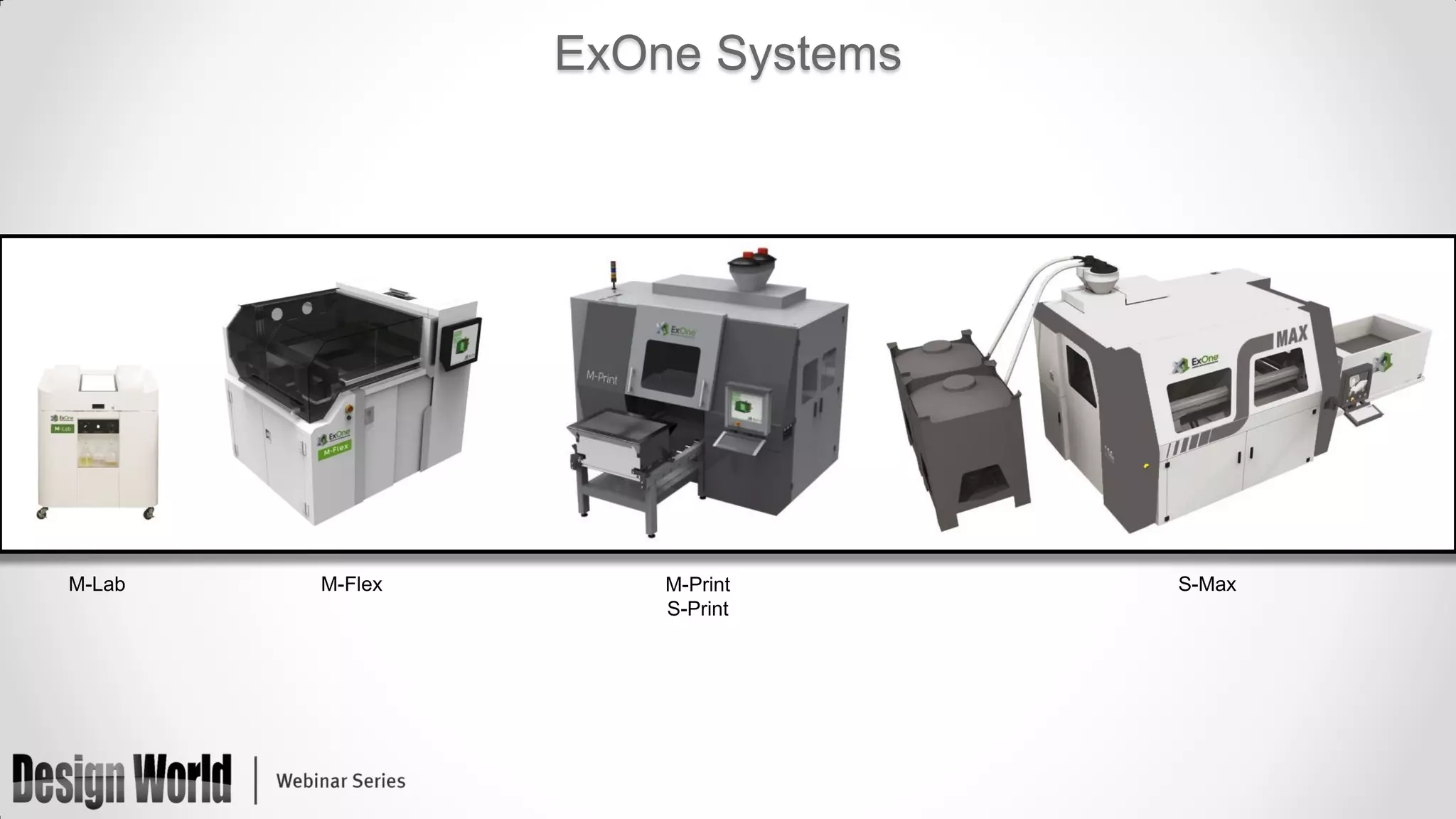

- 13.

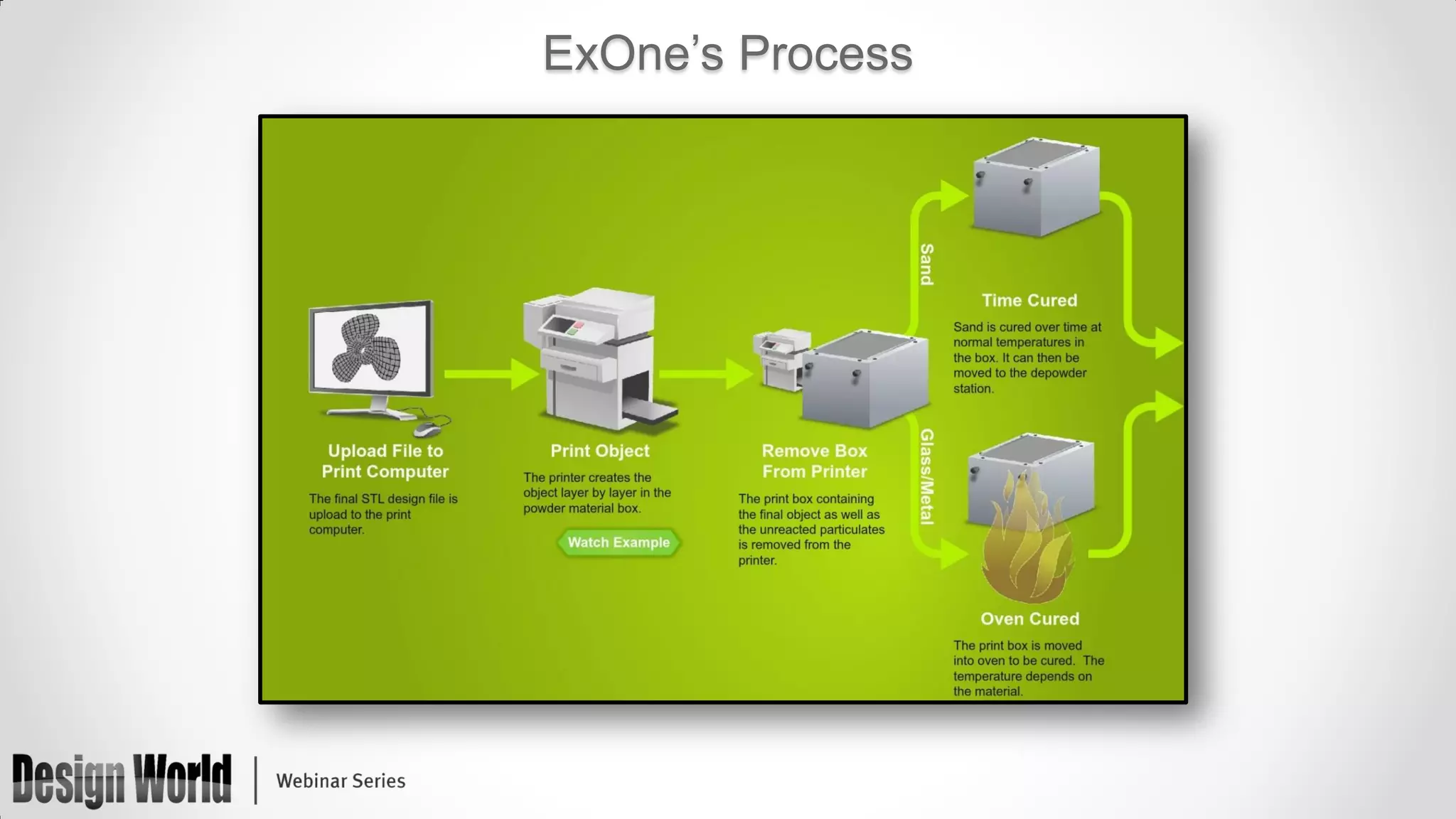

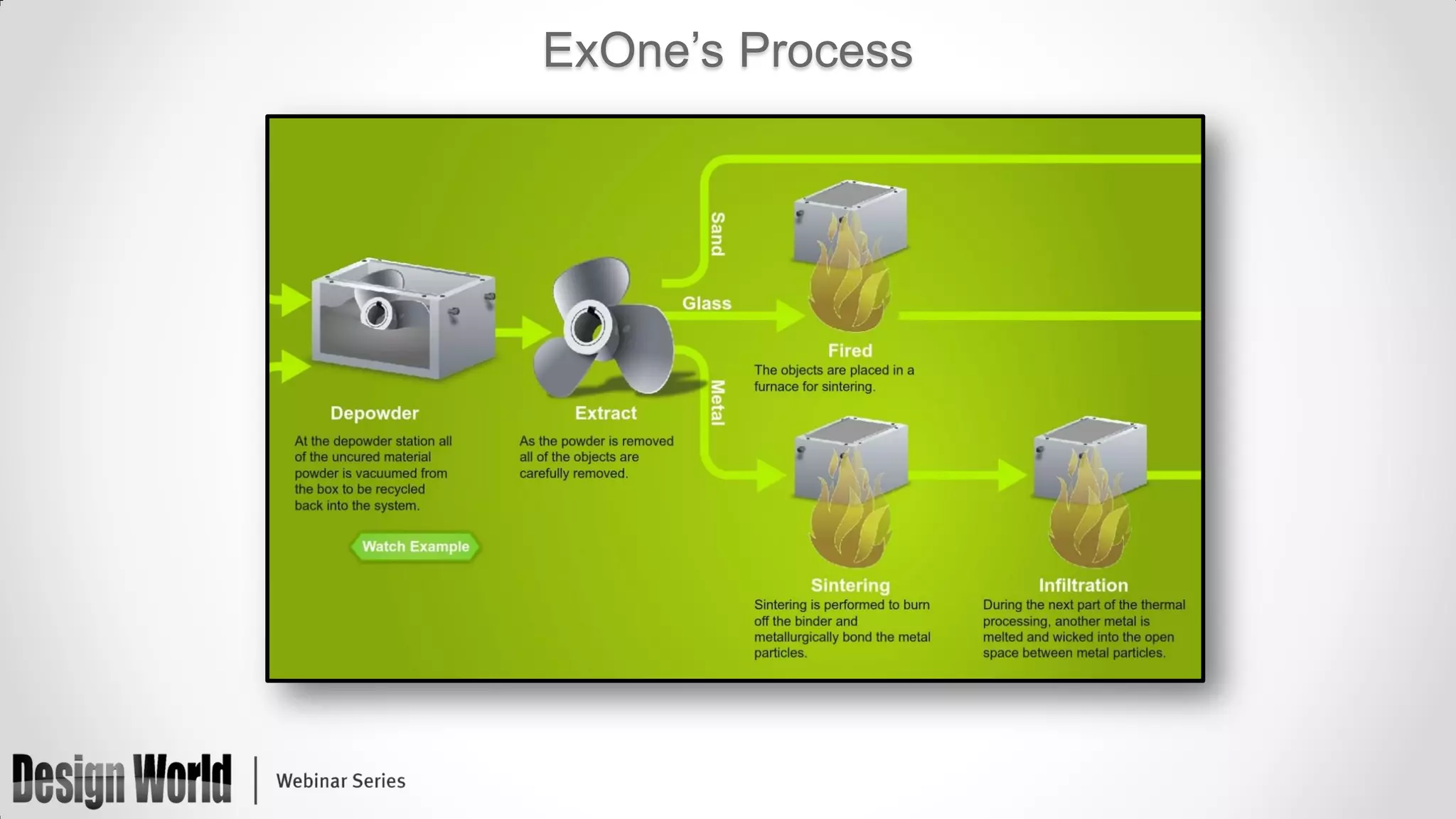

- 14.
- 15.

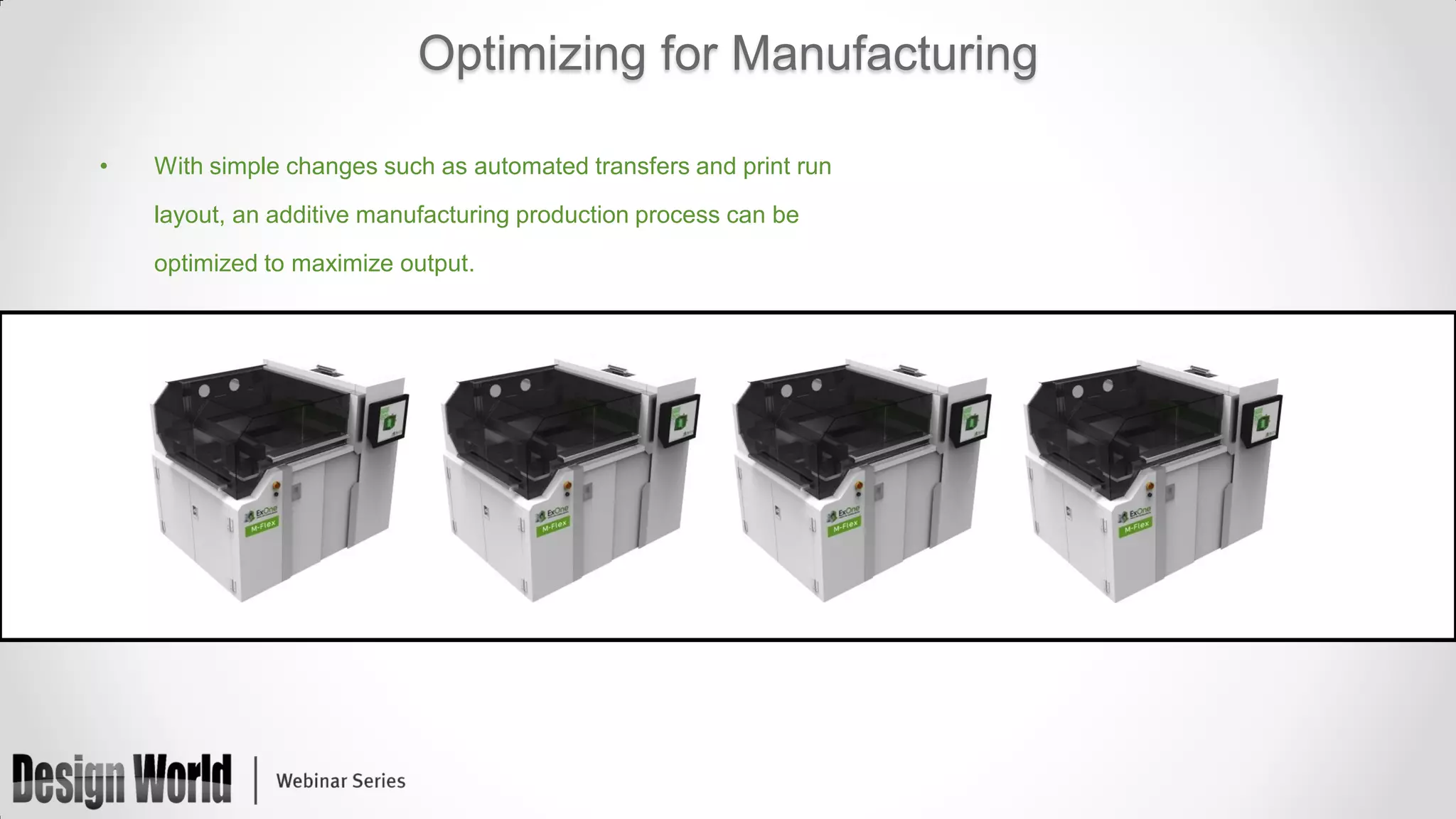

- 16. Optimizing for Manufacturing • Withsimple changes such as automated transfers and print run layout, an additive manufacturing production process can be optimized to maximize output.

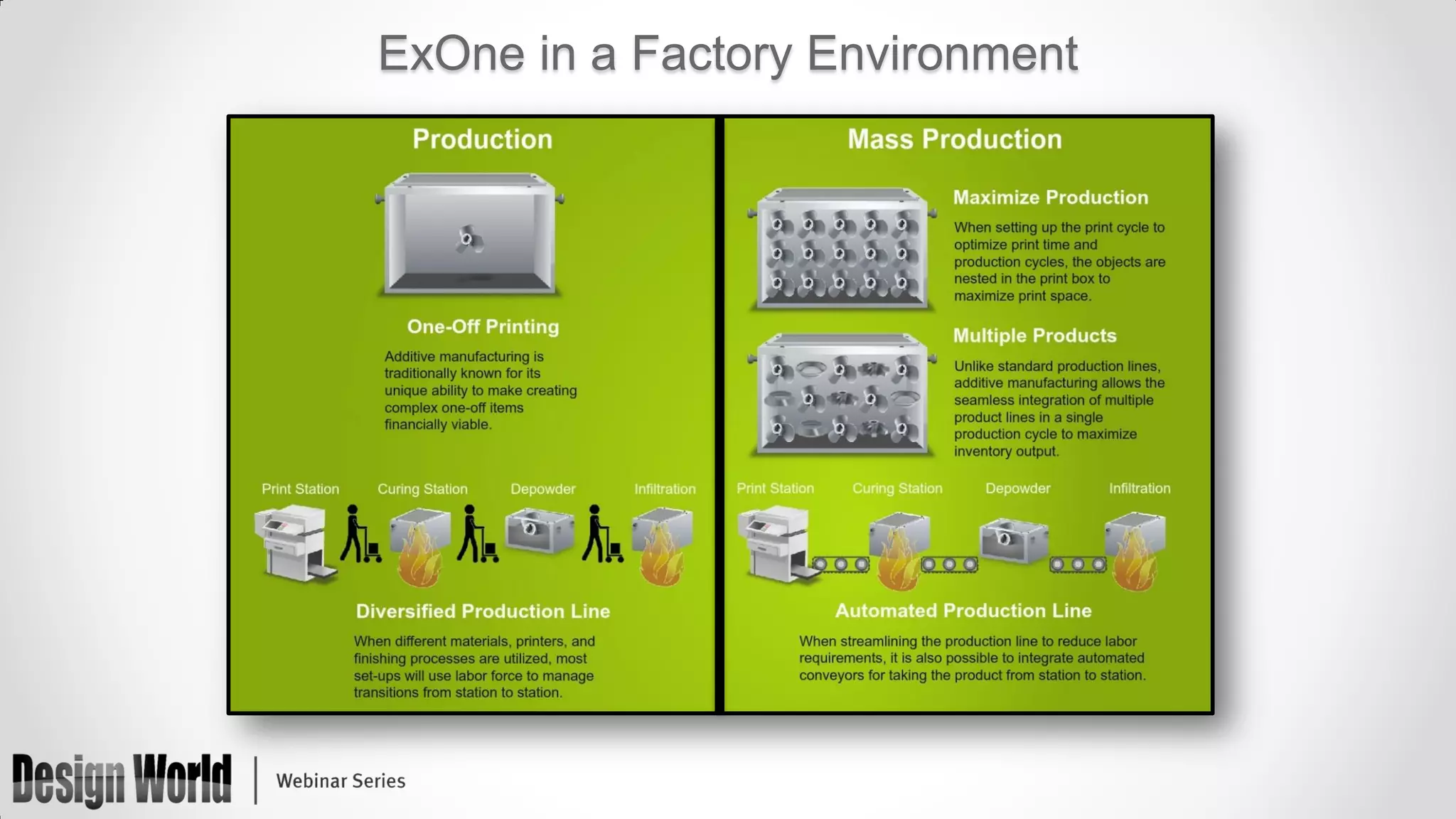

- 17. ExOne in aFactory Environment

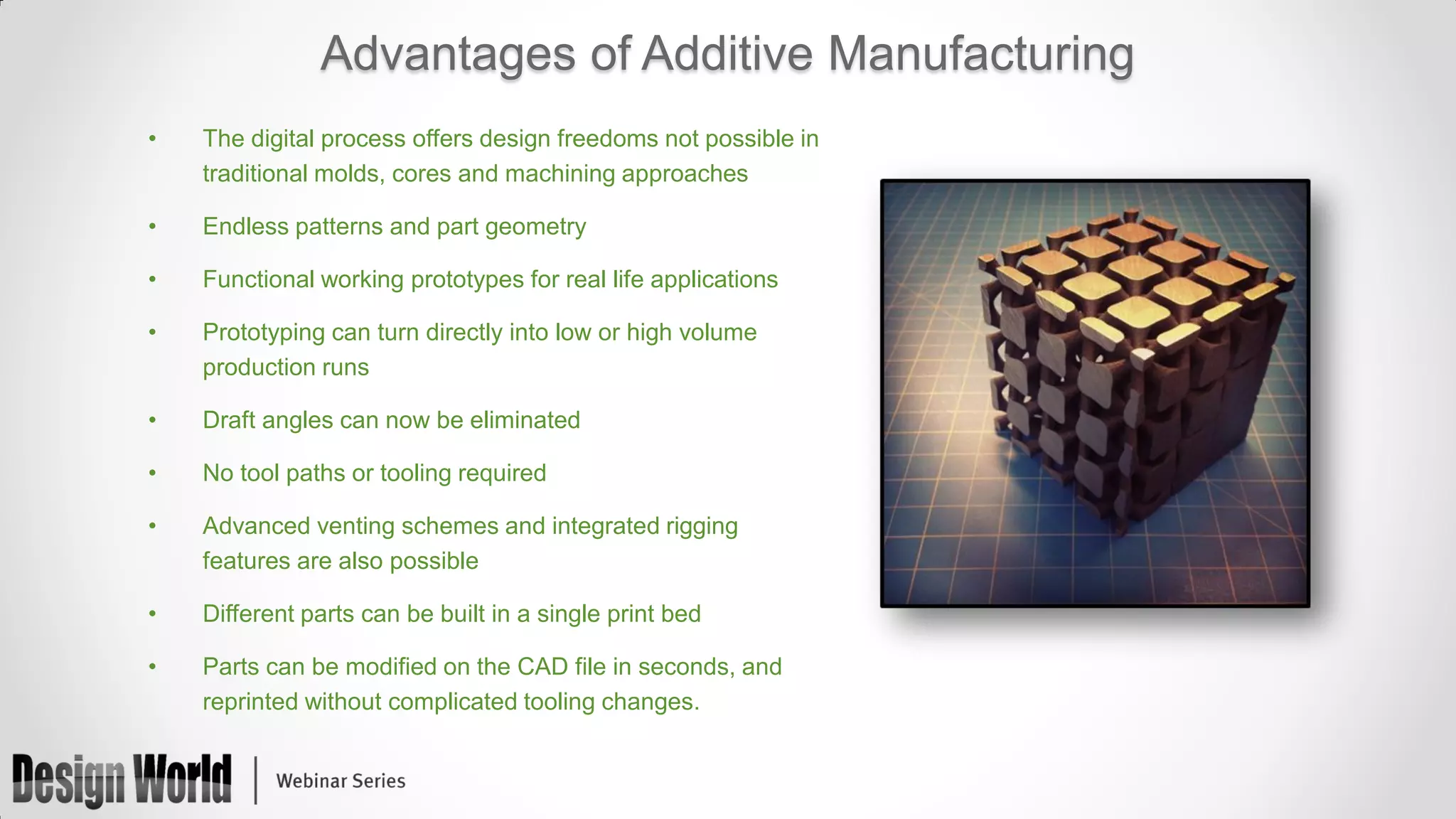

- 18. Advantages of AdditiveManufacturing • The digital process offers design freedoms not possible in traditional molds, cores and machining approaches • Endless patterns and part geometry • Functional working prototypes for real life applications • Prototyping can turn directly into low or high volume production runs • Draft angles can now be eliminated • No tool paths or tooling required • Advanced venting schemes and integrated rigging features are also possible • Different parts can be built in a single print bed • Parts can be modified on the CAD file in seconds, and reprinted without complicated tooling changes.

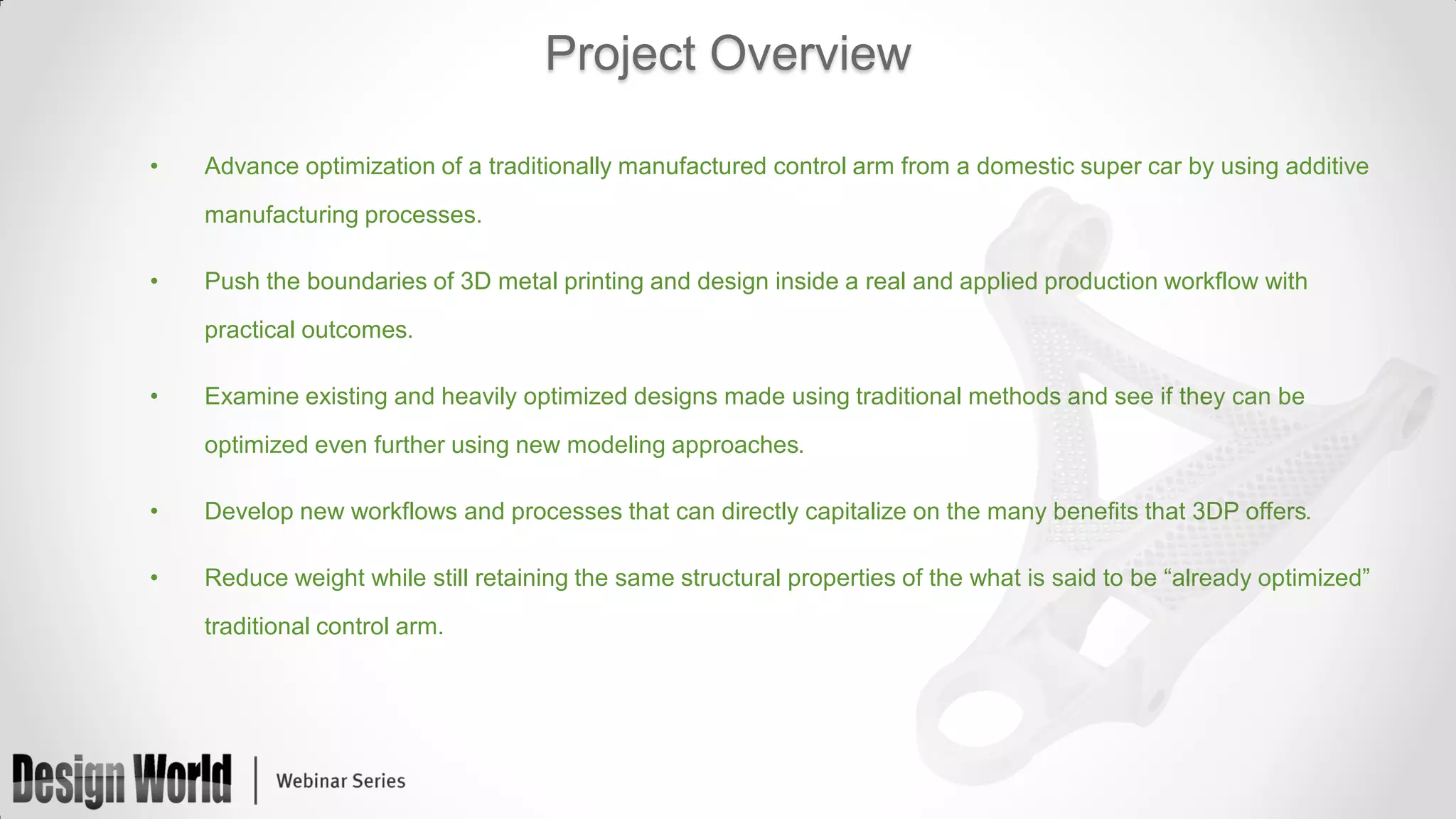

- 19. Project Overview • Advance optimizationof a traditionally manufactured control arm from a domestic super car by using additive manufacturing processes. • Push the boundaries of 3D metal printing and design inside a real and applied production workflow with practical outcomes. • Examine existing and heavily optimized designs made using traditional methods and see if they can be optimized even further using new modeling approaches. • Develop new workflows and processes that can directly capitalize on the many benefits that 3DP offers. • Reduce weight while still retaining the same structural properties of the what is said to be “already optimized” traditional control arm.

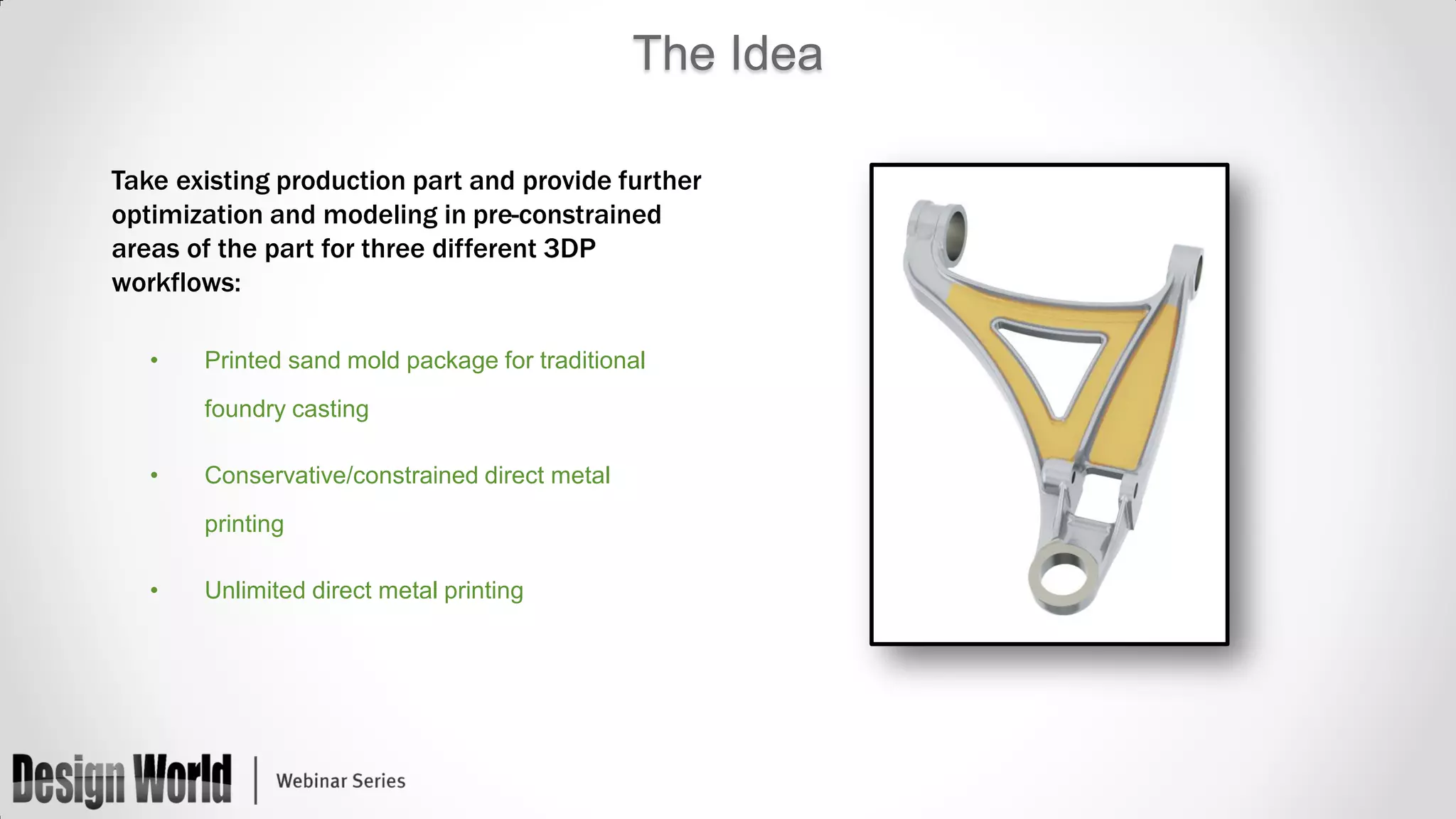

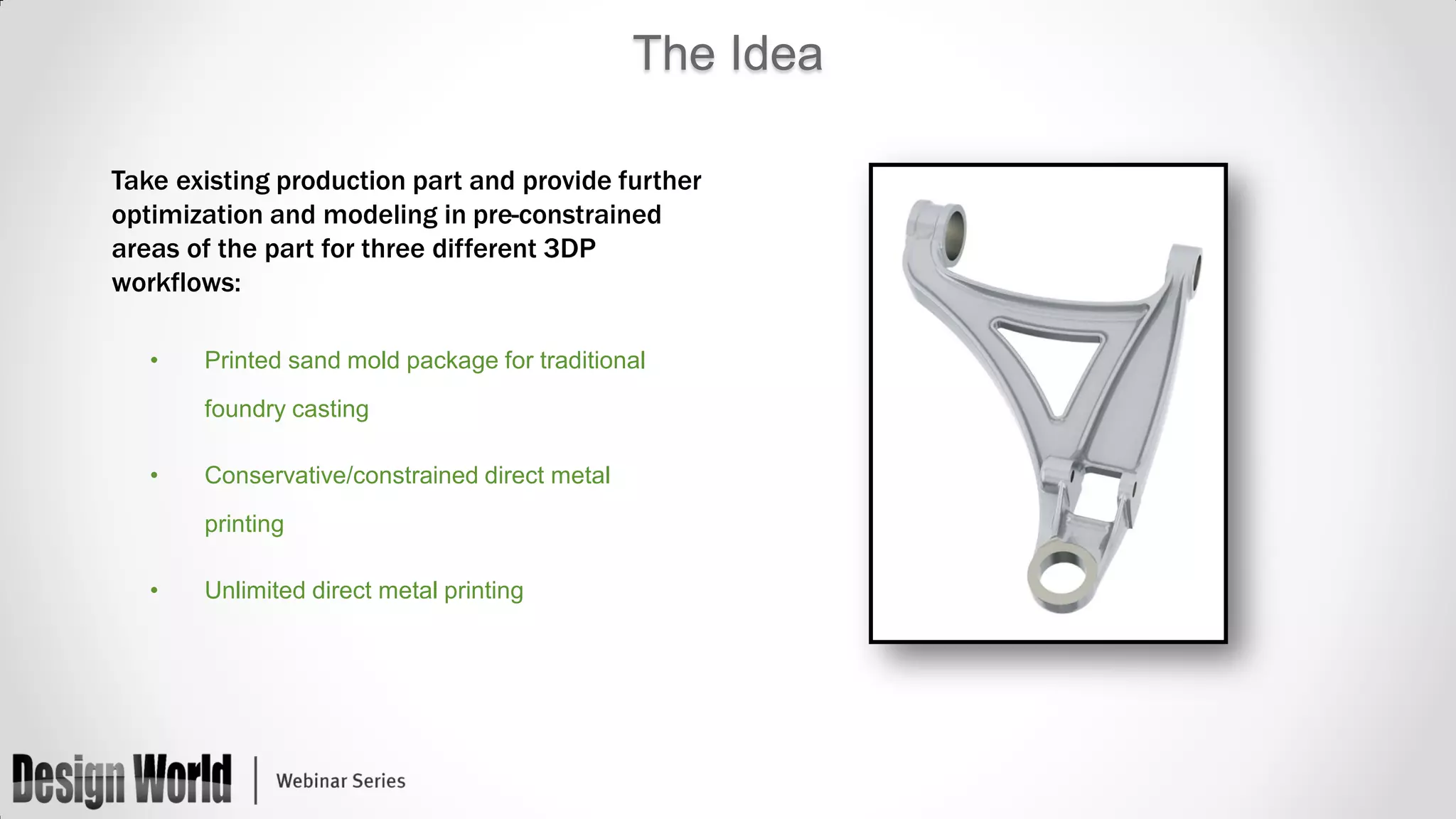

- 20. The Idea Take existingproduction part and provide further optimization and modeling in pre-constrained areas of the part for three different 3DP workflows: • Printed sand mold package for traditional foundry casting • Conservative/constrained direct metal printing • Unlimited direct metal printing
- 21. The Idea Take existingproduction part and provide further optimization and modeling in pre-constrained areas of the part for three different 3DP workflows: • Printed sand mold package for traditional foundry casting • Conservative/constrained direct metal printing • Unlimited direct metal printing
- 22.

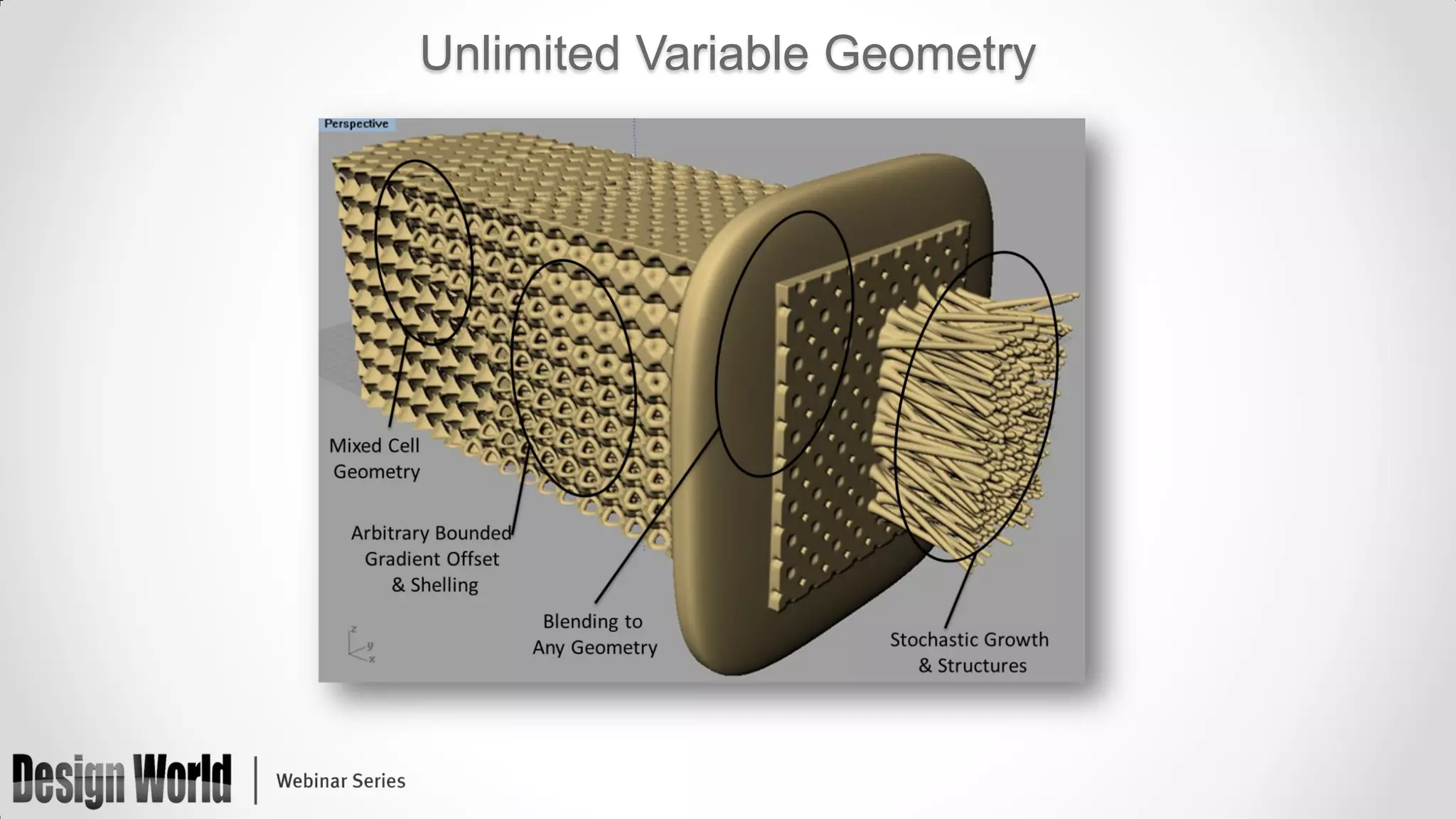

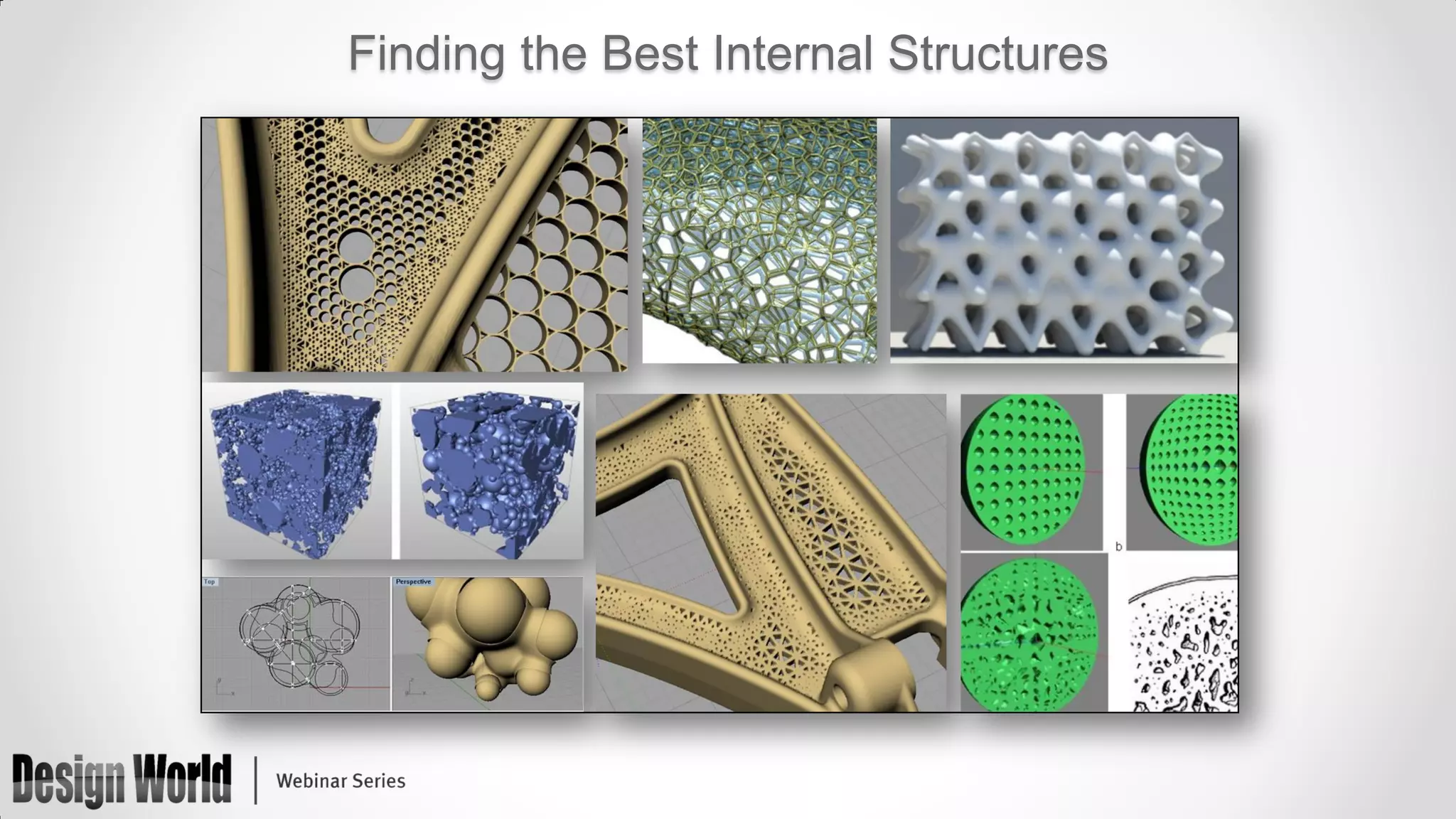

- 23. Finding the BestInternal Structures

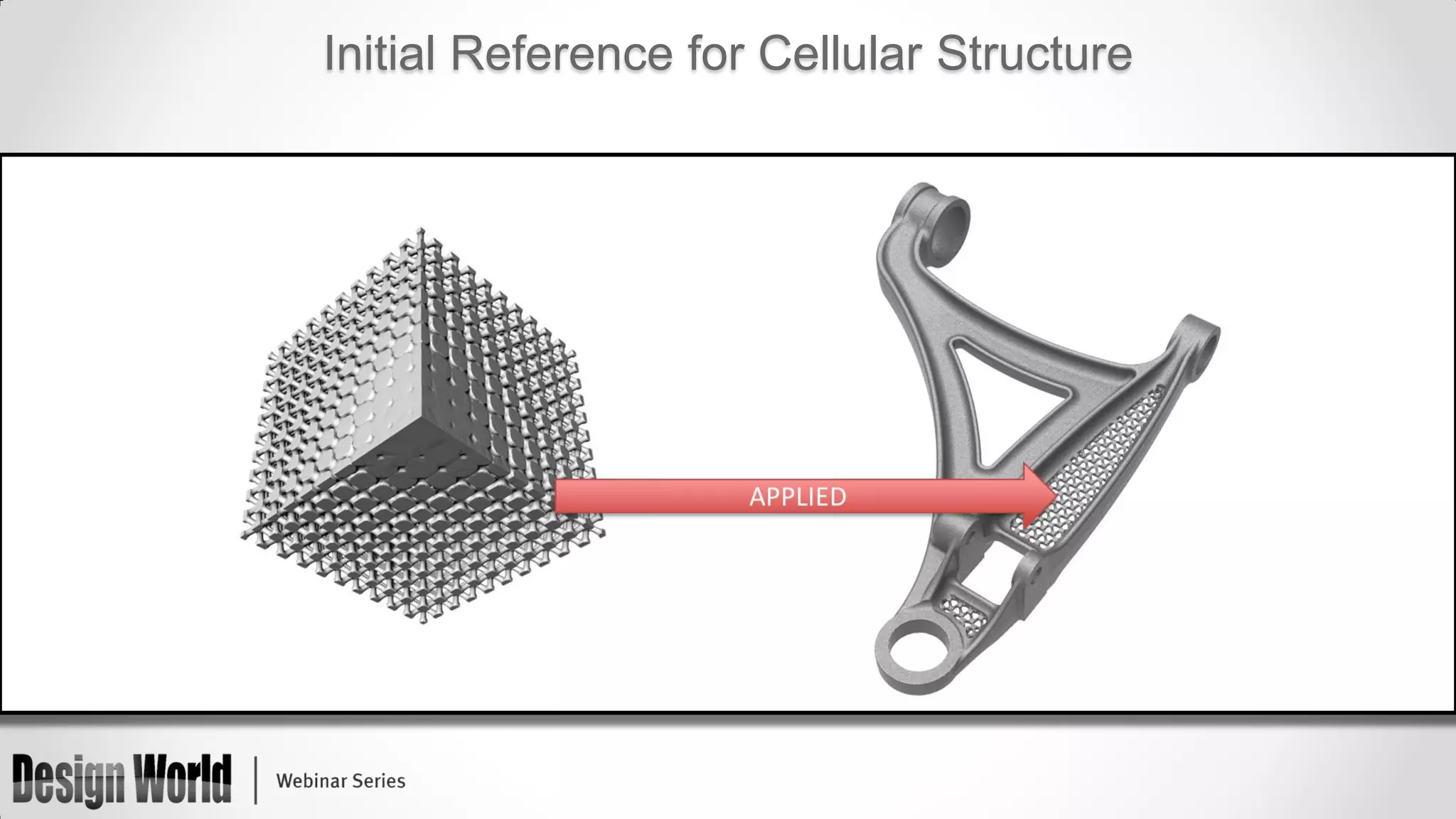

- 24. Initial Reference forCellular Structure

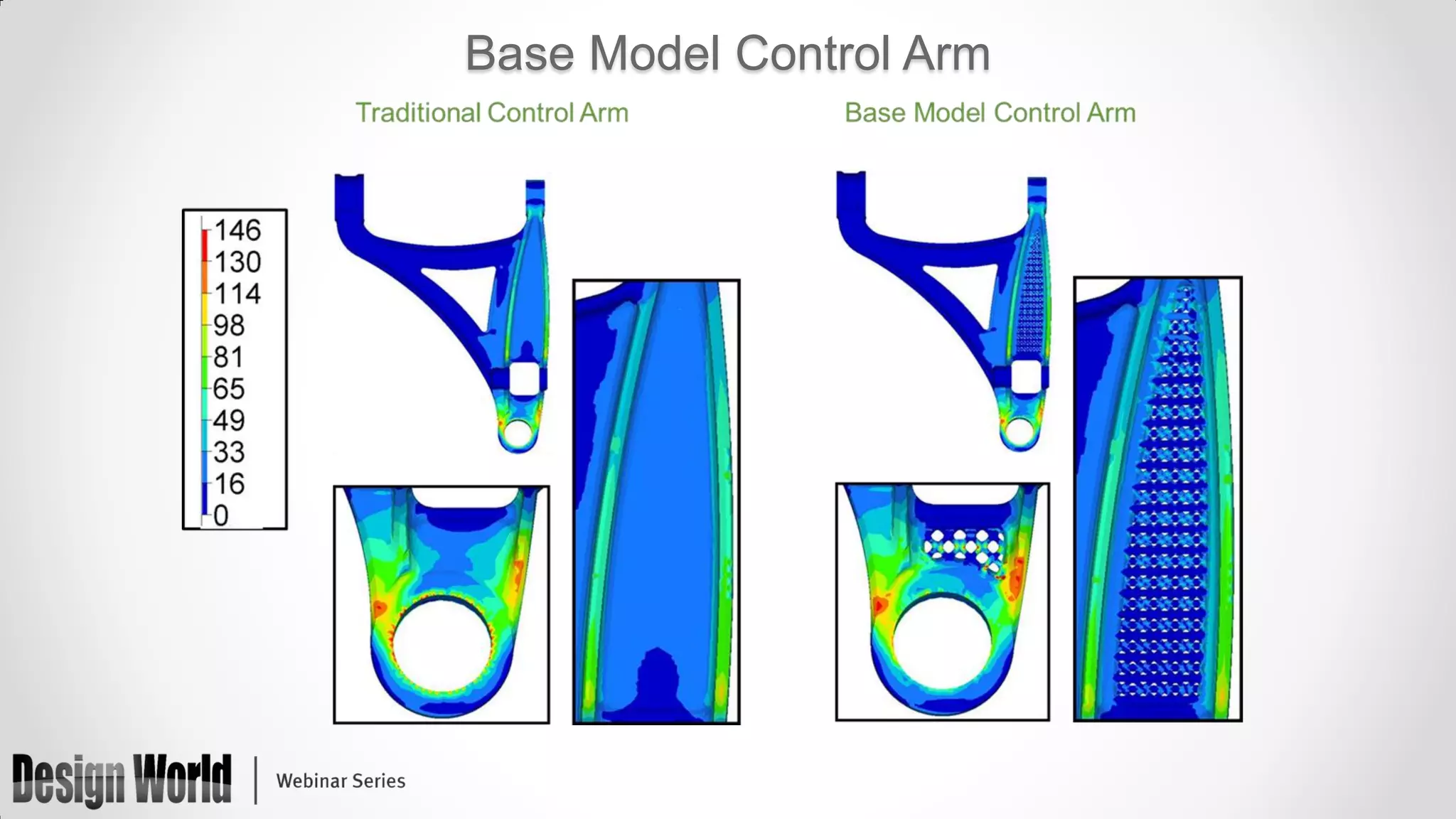

- 25.

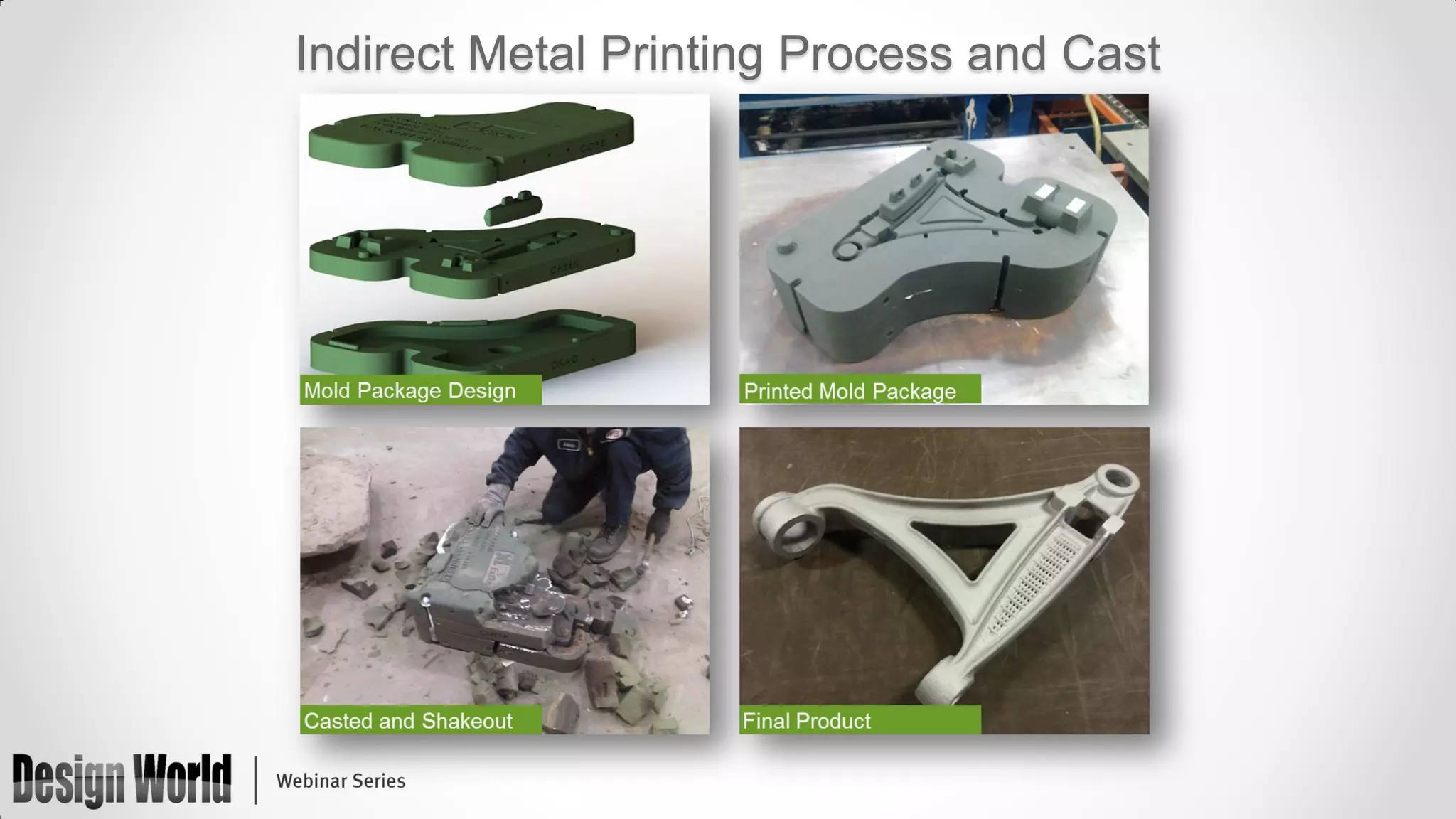

- 26. Indirect Metal PrintingProcess and Cast

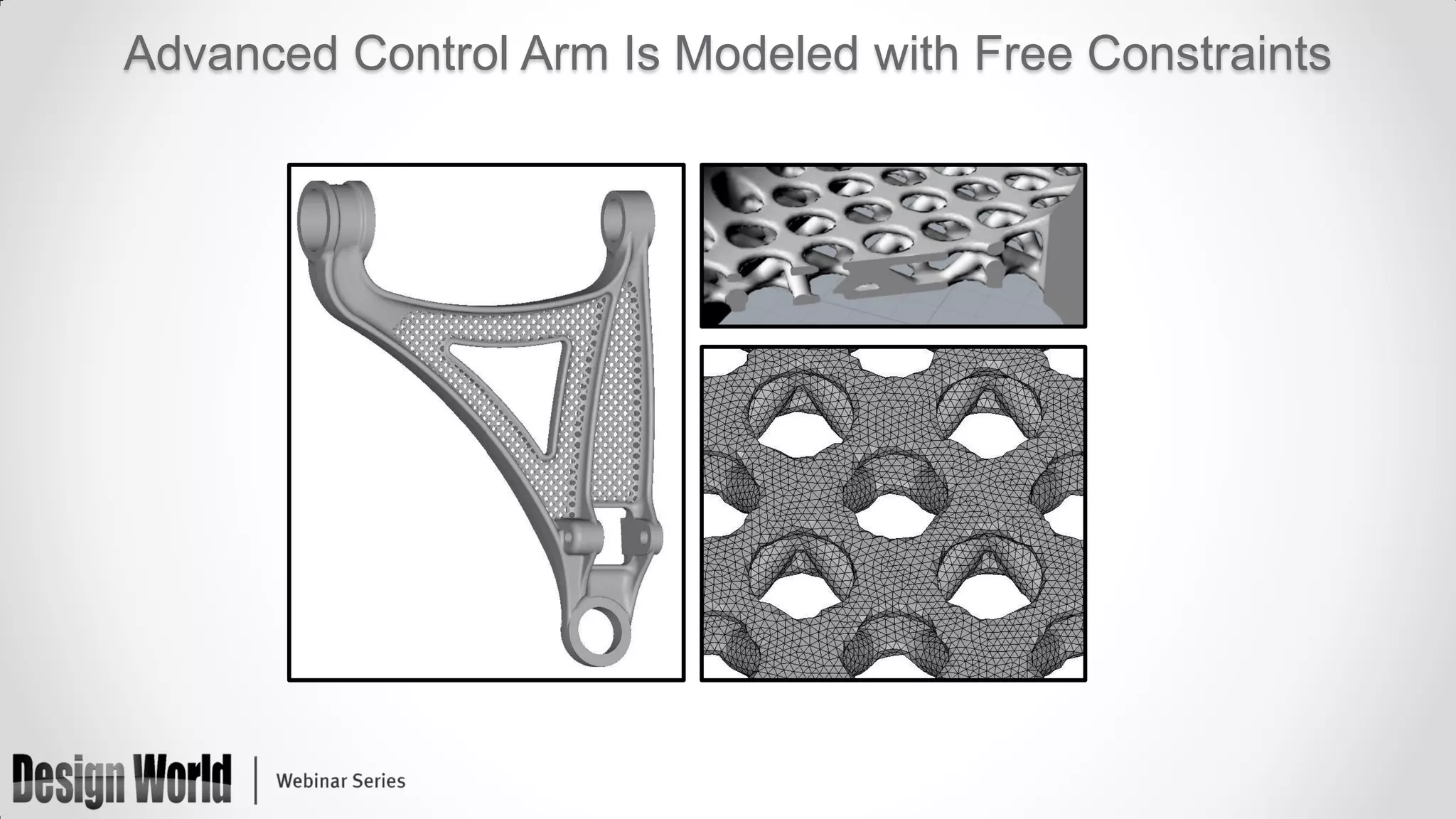

- 27. Advanced Control ArmIs Modeled with Free Constraints

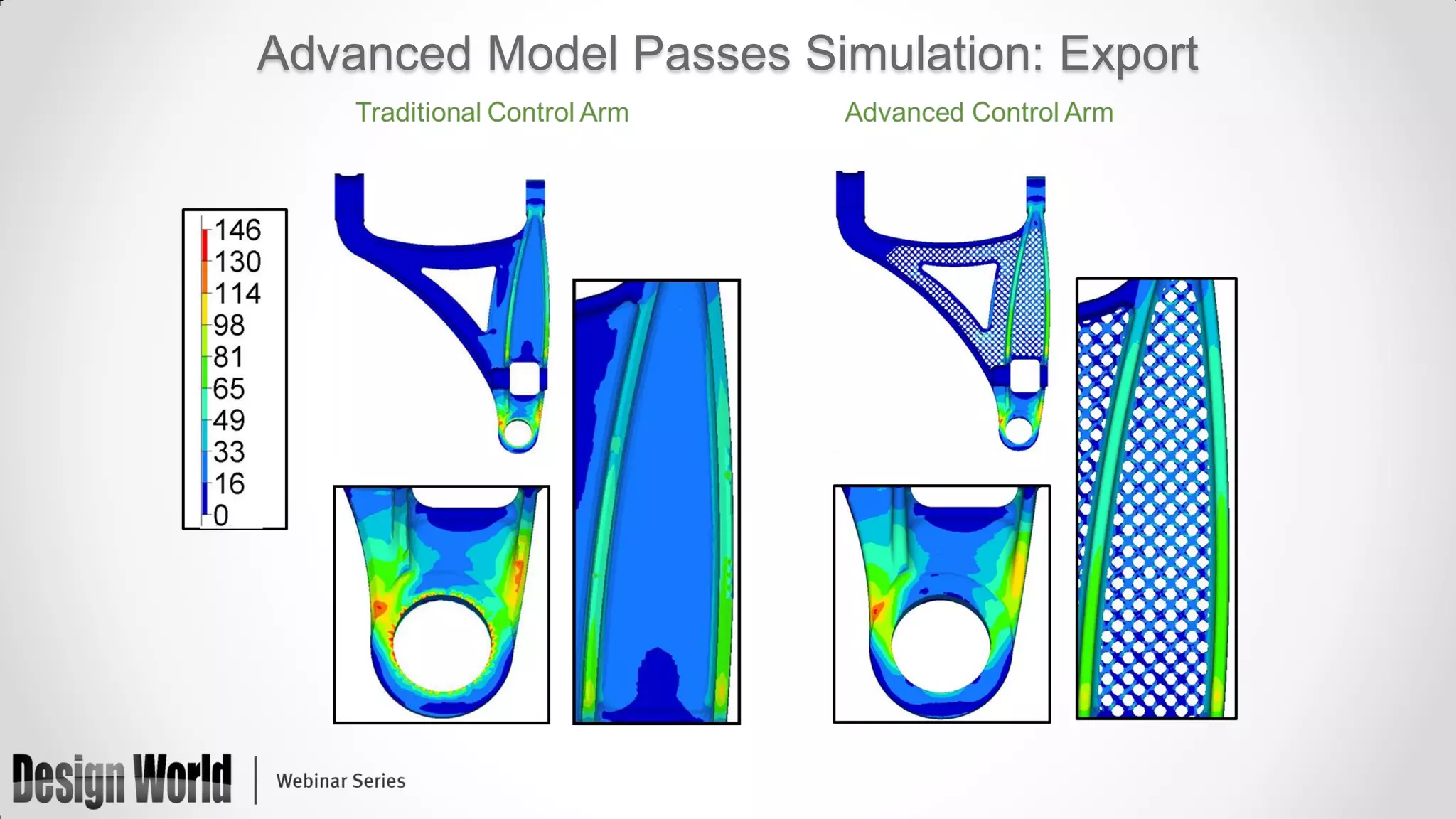

- 28. Advanced Model PassesSimulation: Export

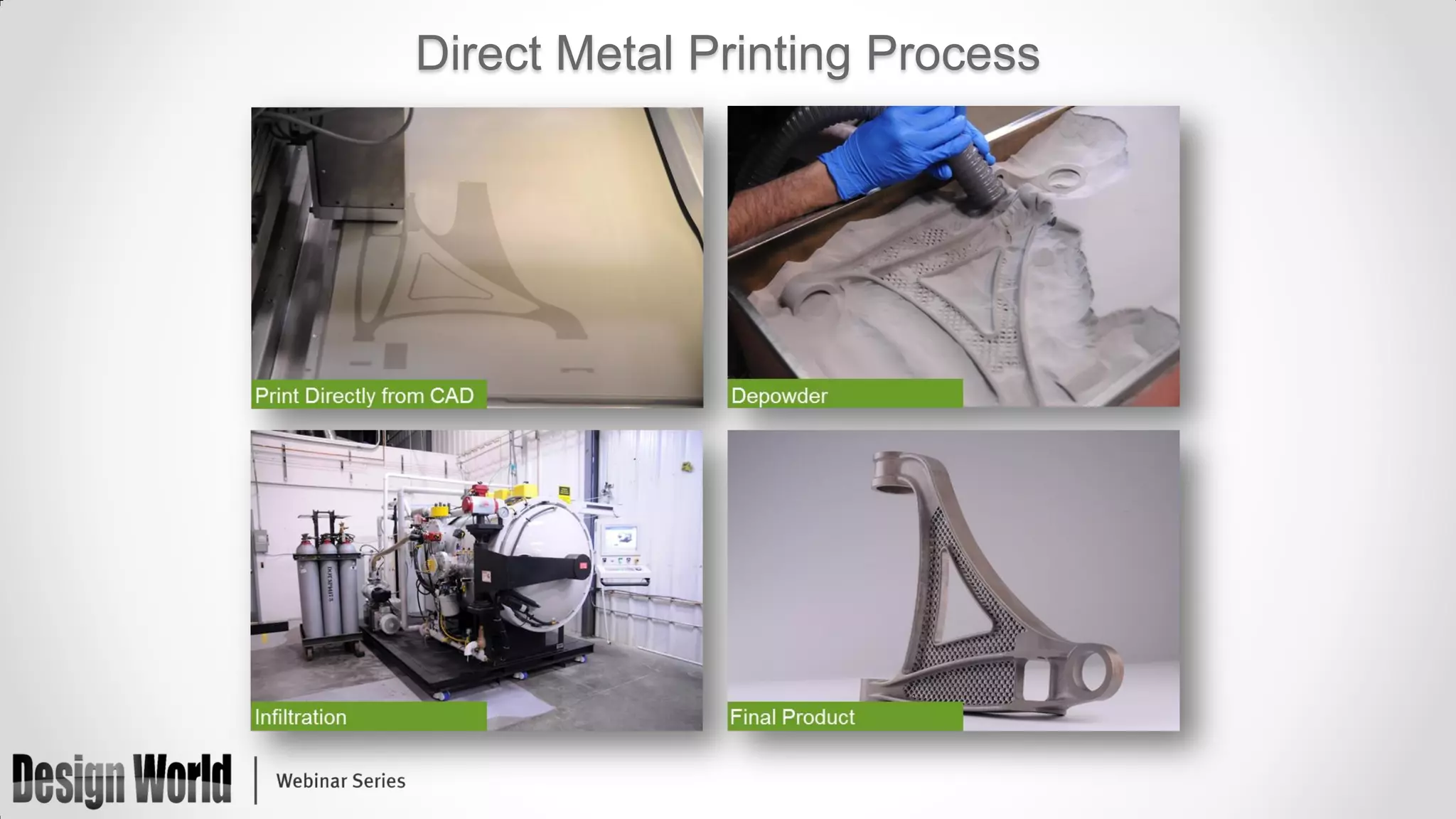

- 29. Direct Metal PrintingProcess

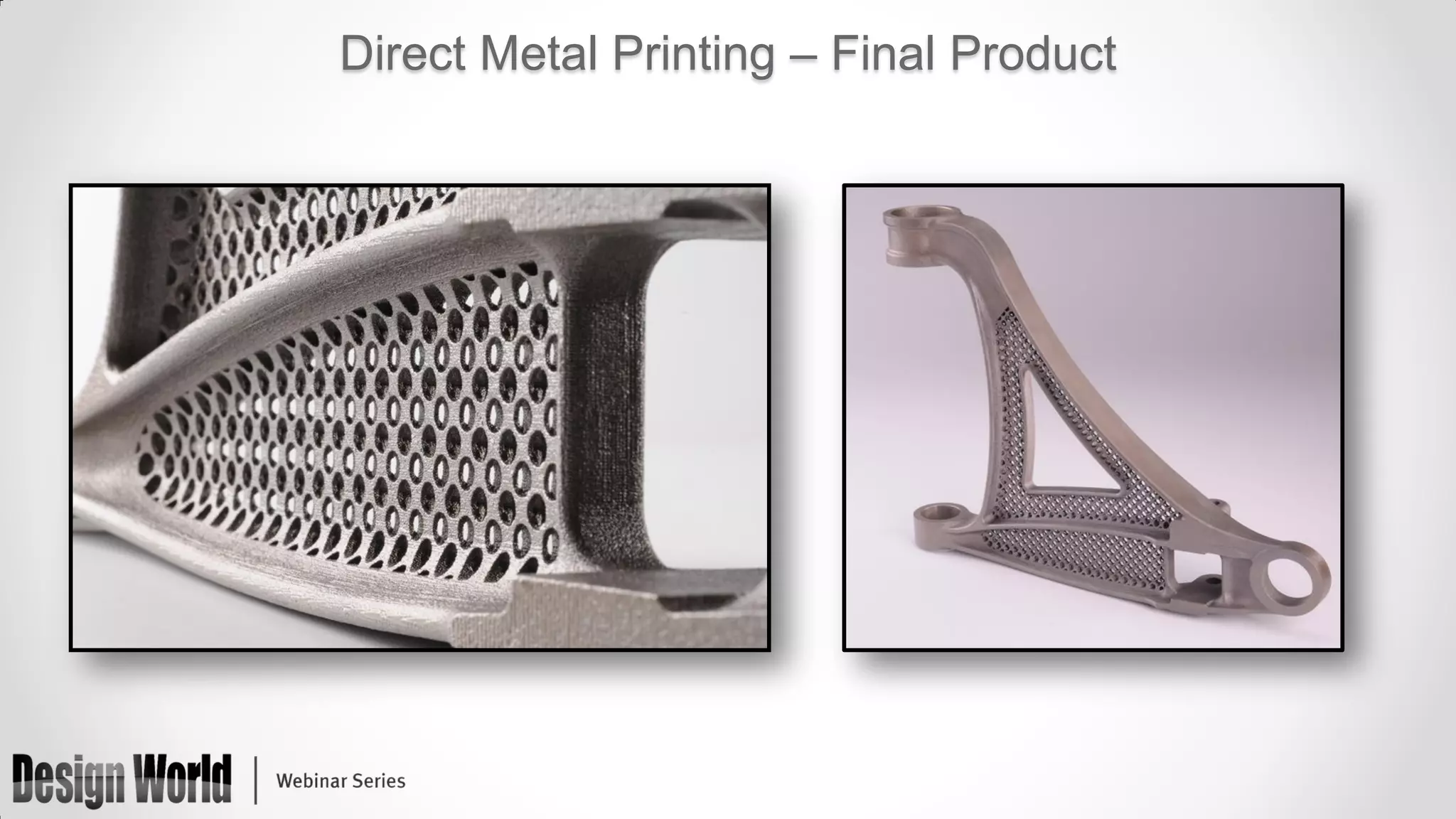

- 30. Direct Metal Printing– Final Product
- 31.

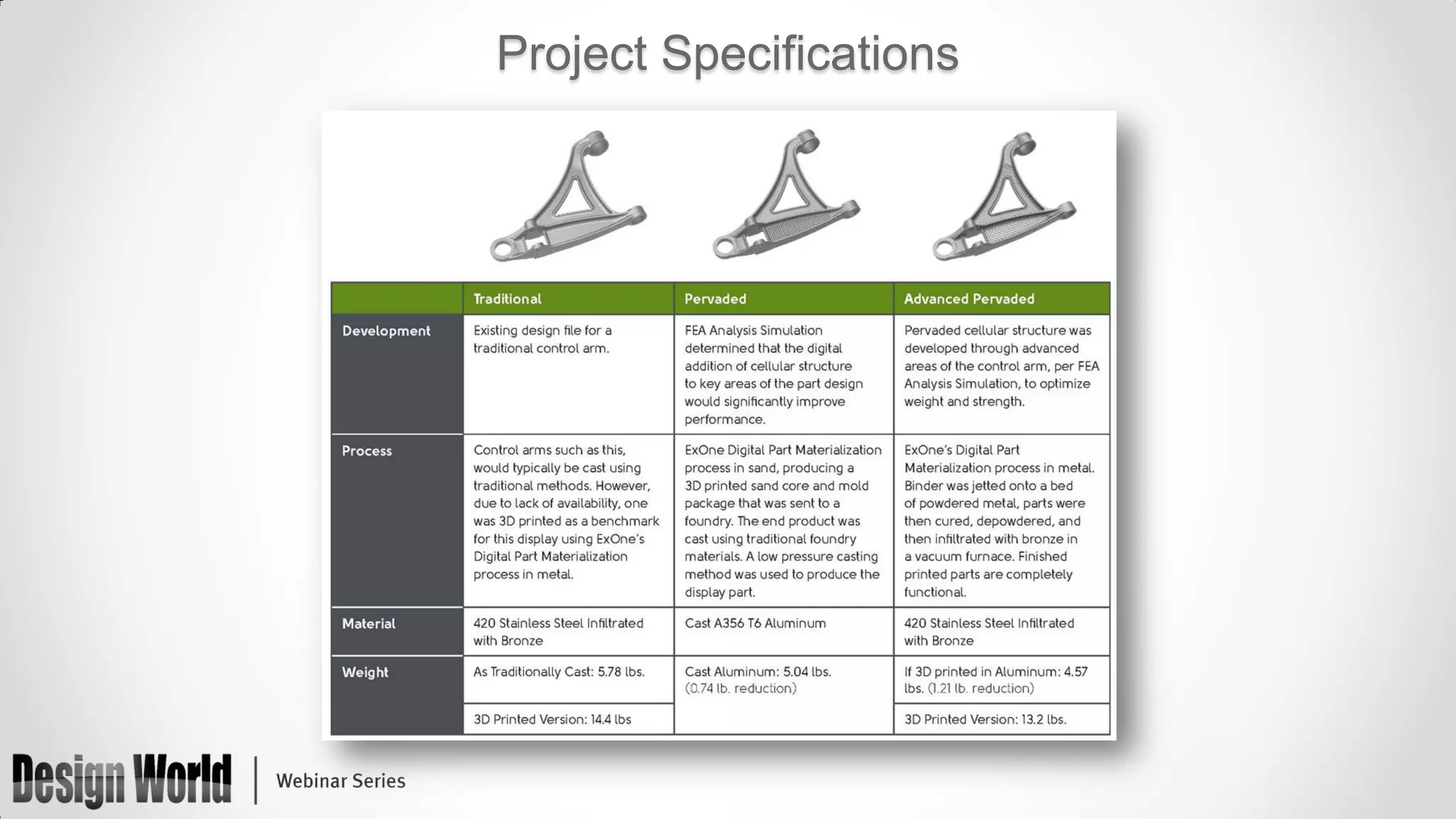

- 32.

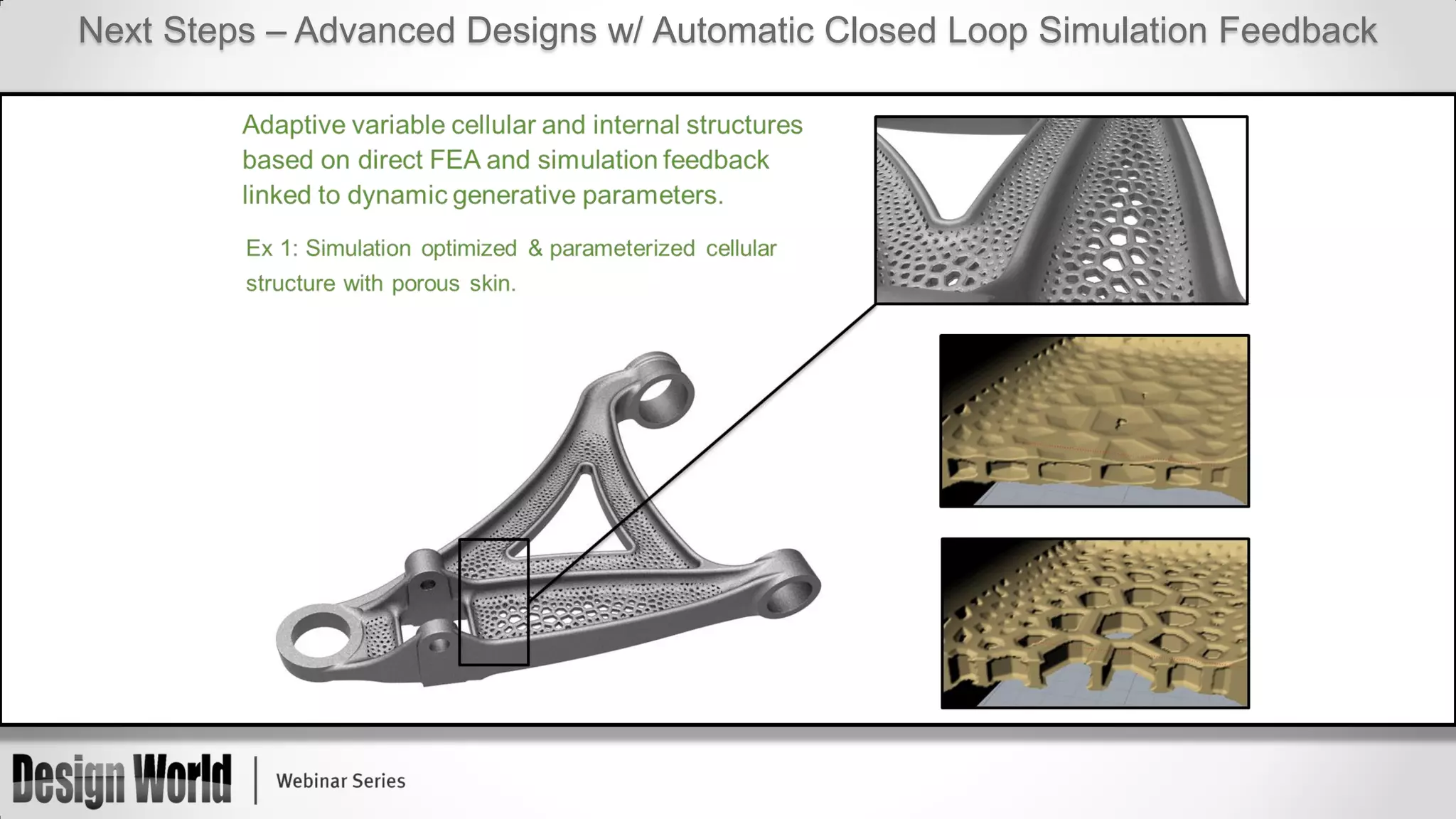

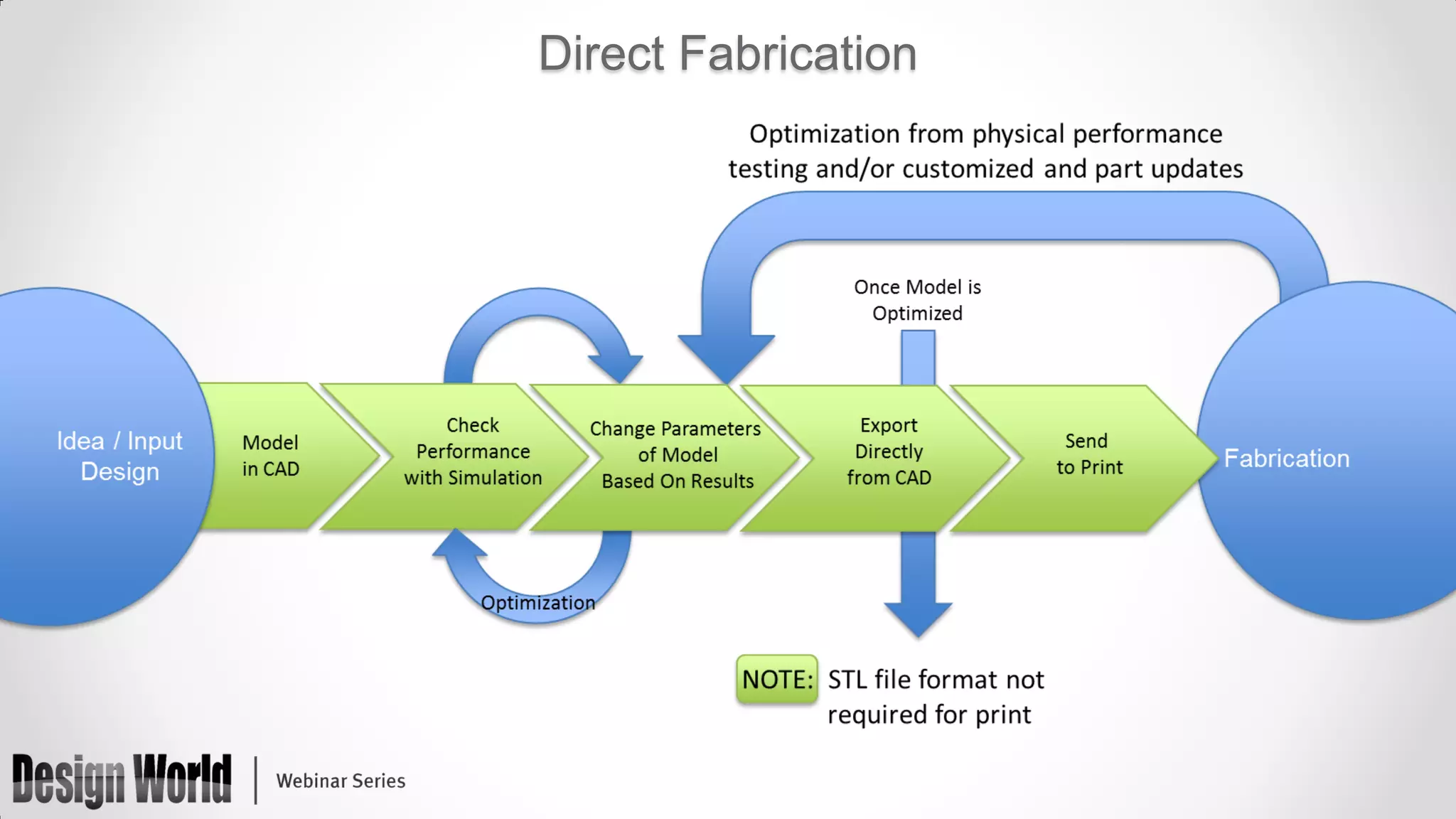

- 33. Next Steps –Advanced Designs w/ Automatic Closed Loop Simulation Feedback

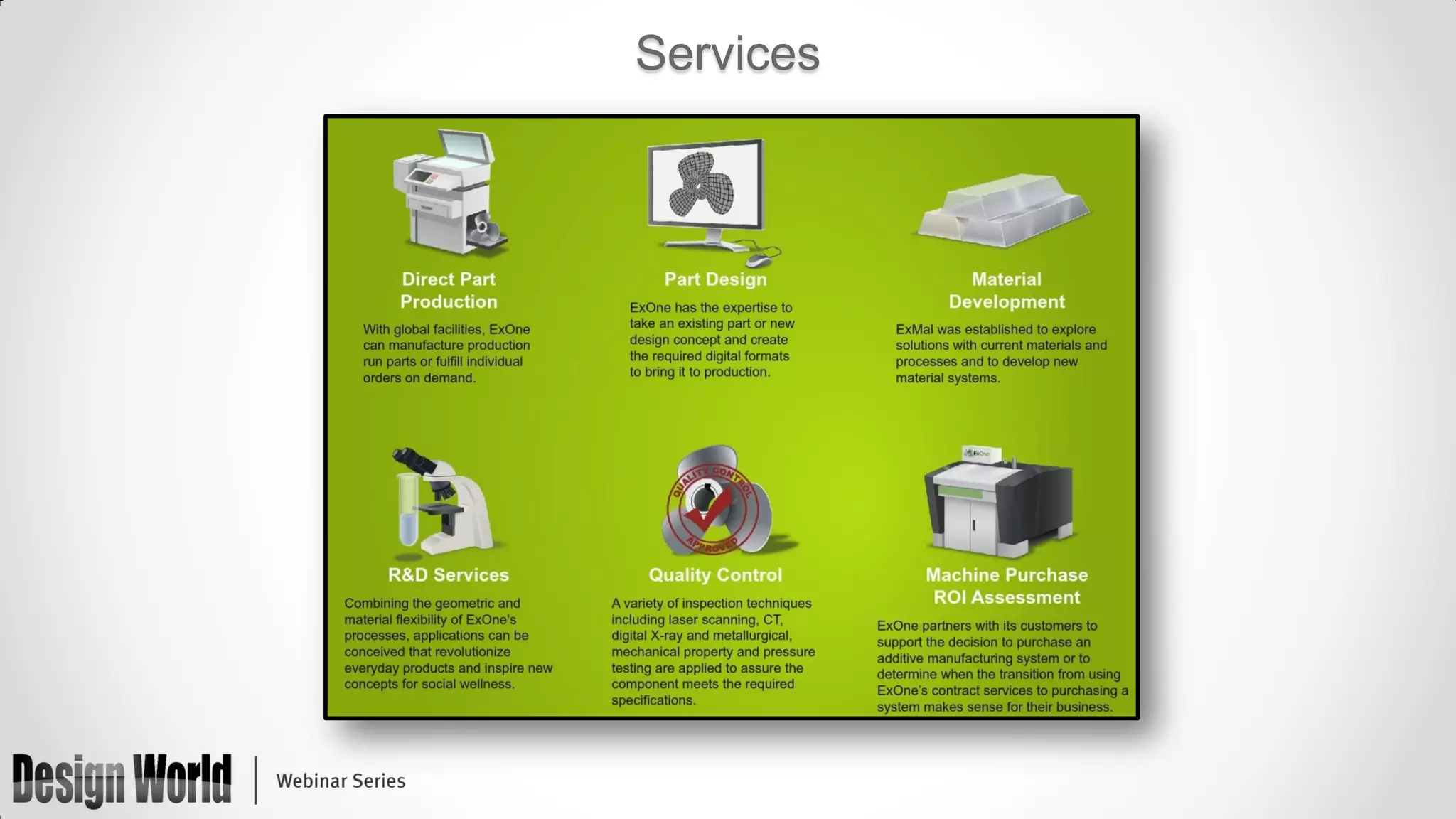

- 34.
- 36. Questions? Design World Leslie Langnau llangnau@wtwhmedia.com Phone:440.234.4531 Twitter: @DW_3DPrinting ExOne Tom Pasterik tom.pasterik@exone.com Phone: 724.765.1361 www.exone.com
