The document discusses a three-phase half-wave converter circuit. It includes diagrams of the circuit layout with varying phase angles between 0-90 degrees. The maximum average DC output voltage is obtained at a delay angle of 0 degrees and the formula for calculating this output is provided. Charts show how the output DC voltage and RMS voltage varies based on the phase angle.

1. 1
3-PHASE HALF WAVE
CONVERTER
Dr. A. Ravi
Professor/EEE
FRANCIS XAVIER ENGINEERING COLLEGE
TIRUNELVELI
Tamil Nadu - India

2. Dr.A.Ravi, Francis Xavier Engineering College,Tirunelveli
2
CIRCUIT DIAGRAM
Three single phase half-wave converters

3. Dr.A.Ravi, Francis Xavier Engineering College,Tirunelveli
3
THREE PHASE HALF WAVE RECTIFIER

4. Dr.A.Ravi, Francis Xavier Engineering College,Tirunelveli
4
THREE PHASE HALF WAVE RECTIFIER
α =15°
R Load

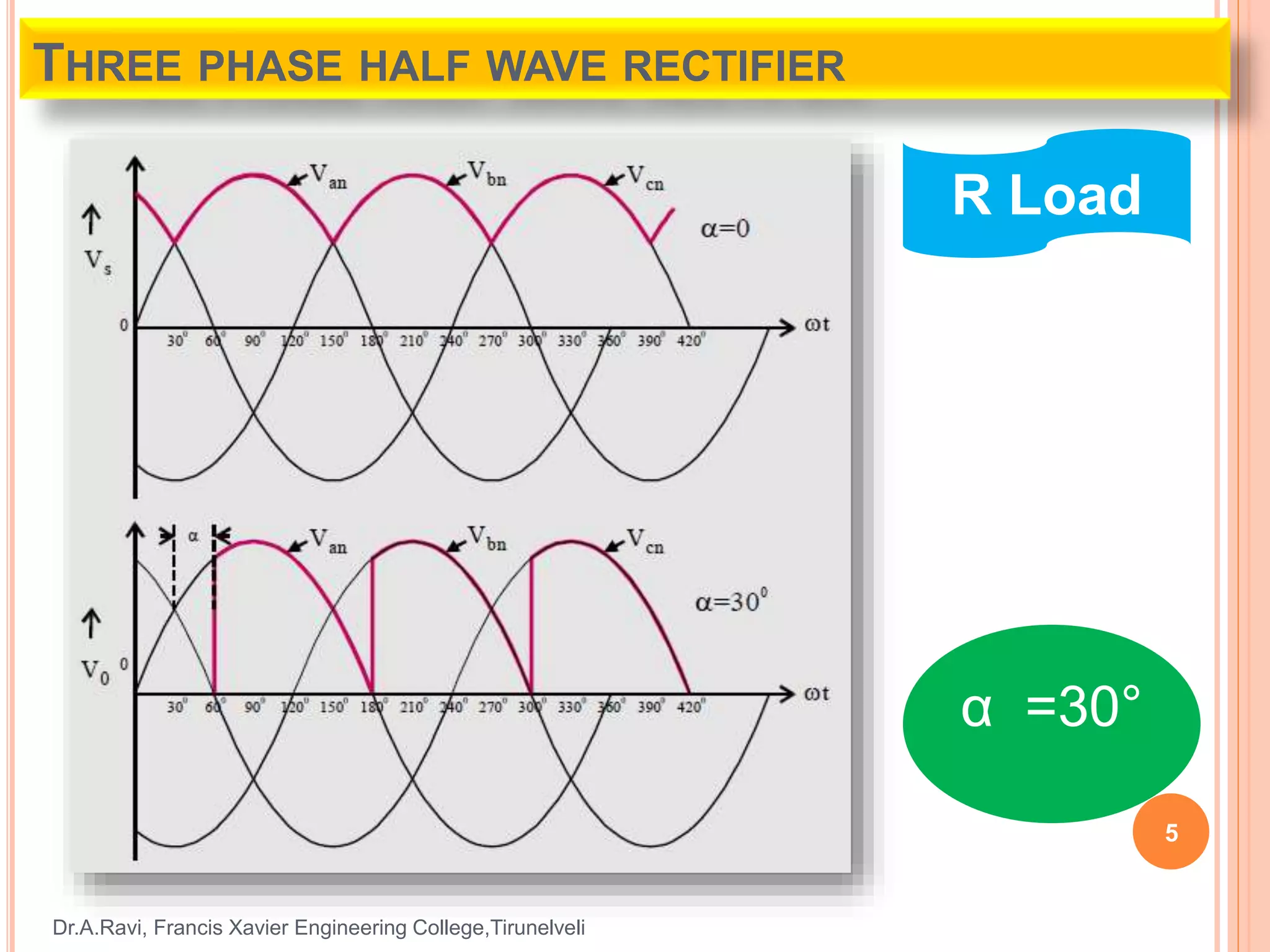

5. Dr.A.Ravi, Francis Xavier Engineering College,Tirunelveli
5
THREE PHASE HALF WAVE RECTIFIER
α =30°
R Load

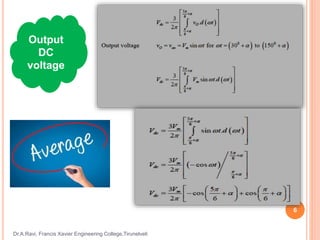

6. Dr.A.Ravi, Francis Xavier Engineering College,Tirunelveli
6
Output
DC
voltage

7. Dr.A.Ravi, Francis Xavier Engineering College,Tirunelveli
7
Output DC voltage

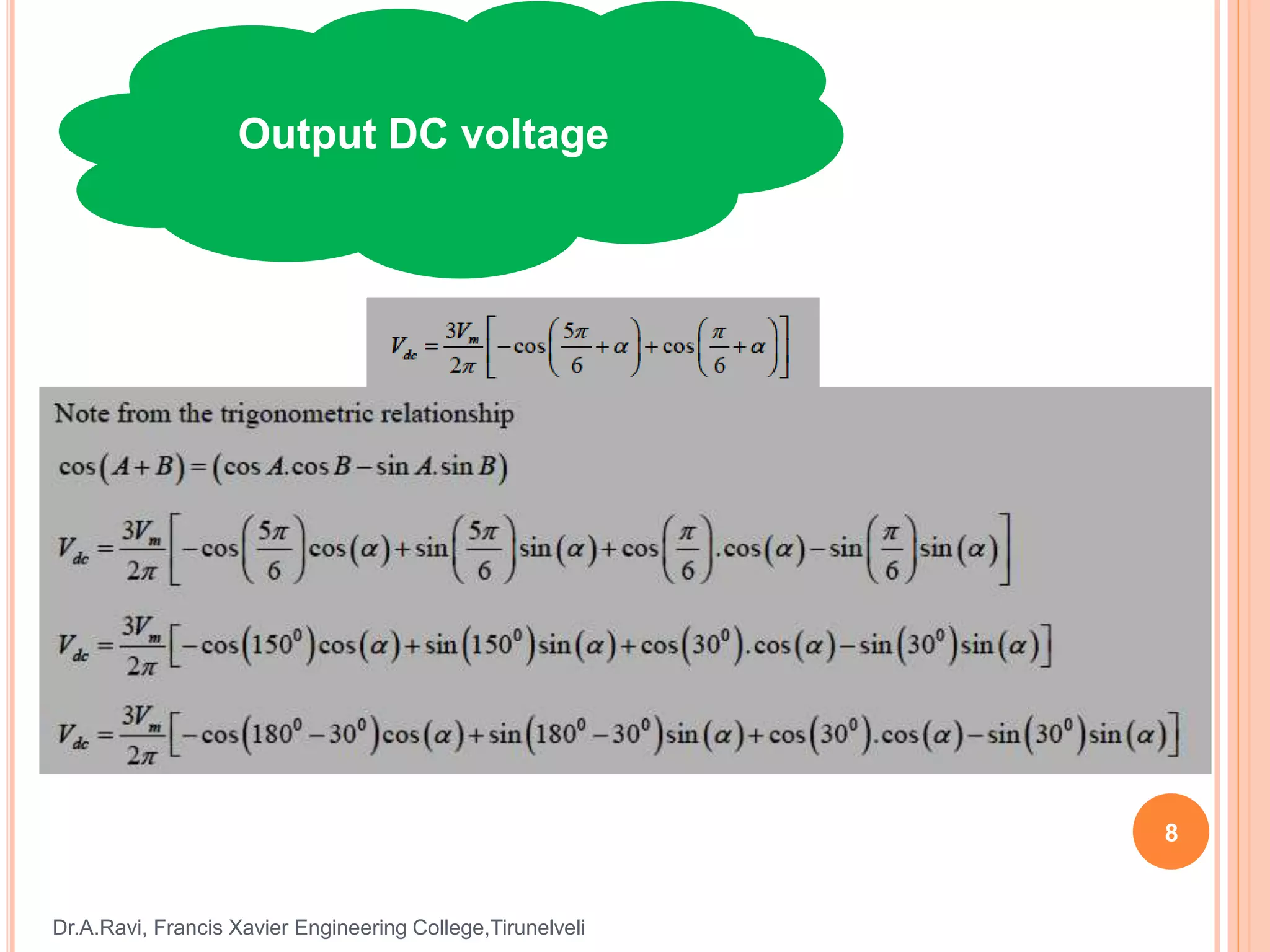

8. Dr.A.Ravi, Francis Xavier Engineering College,Tirunelveli
8
Output DC voltage

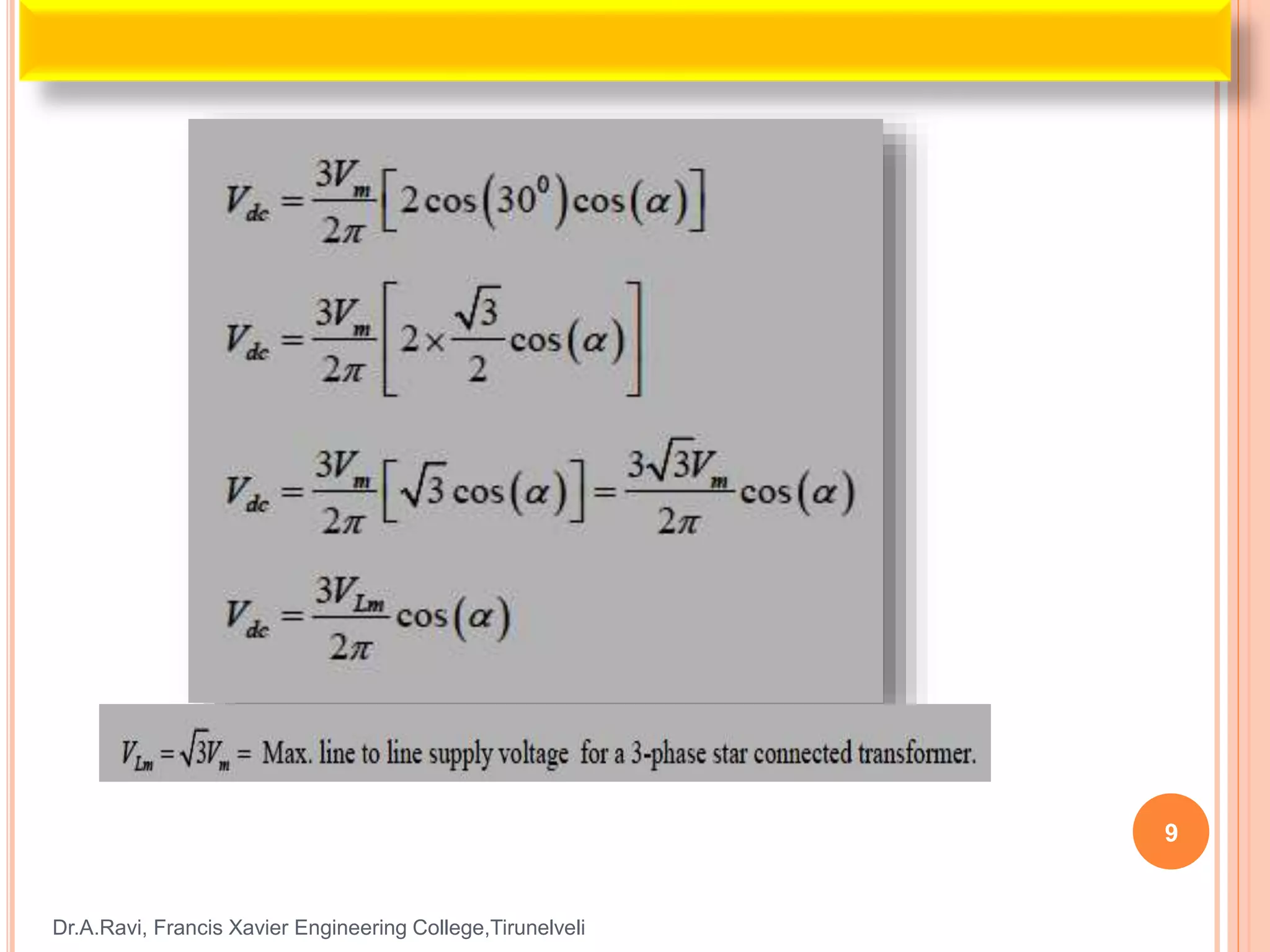

9. Dr.A.Ravi, Francis Xavier Engineering College,Tirunelveli
9

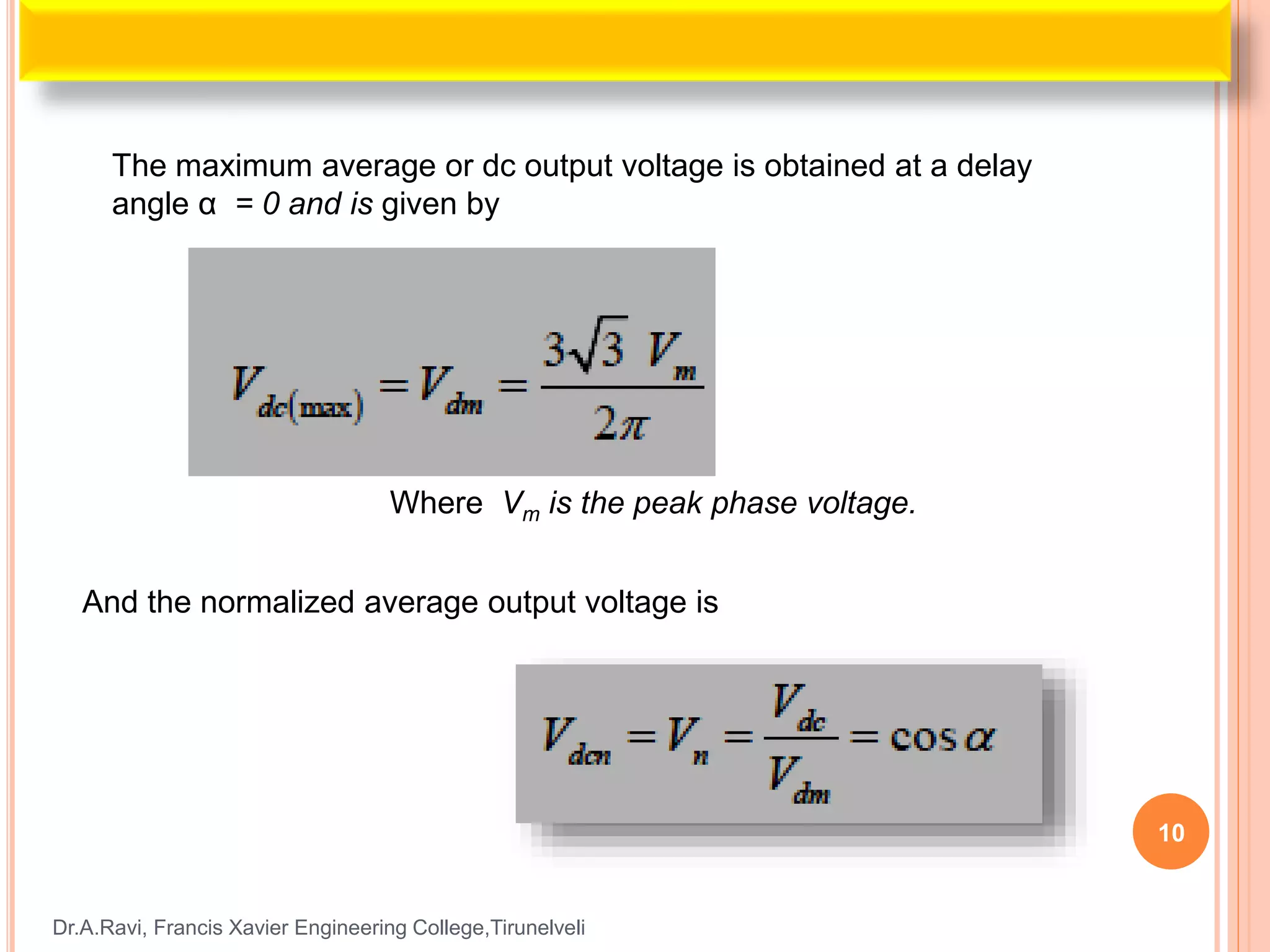

10. Dr.A.Ravi, Francis Xavier Engineering College,Tirunelveli
10
The maximum average or dc output voltage is obtained at a delay
angle α = 0 and is given by
Where Vm is the peak phase voltage.
And the normalized average output voltage is

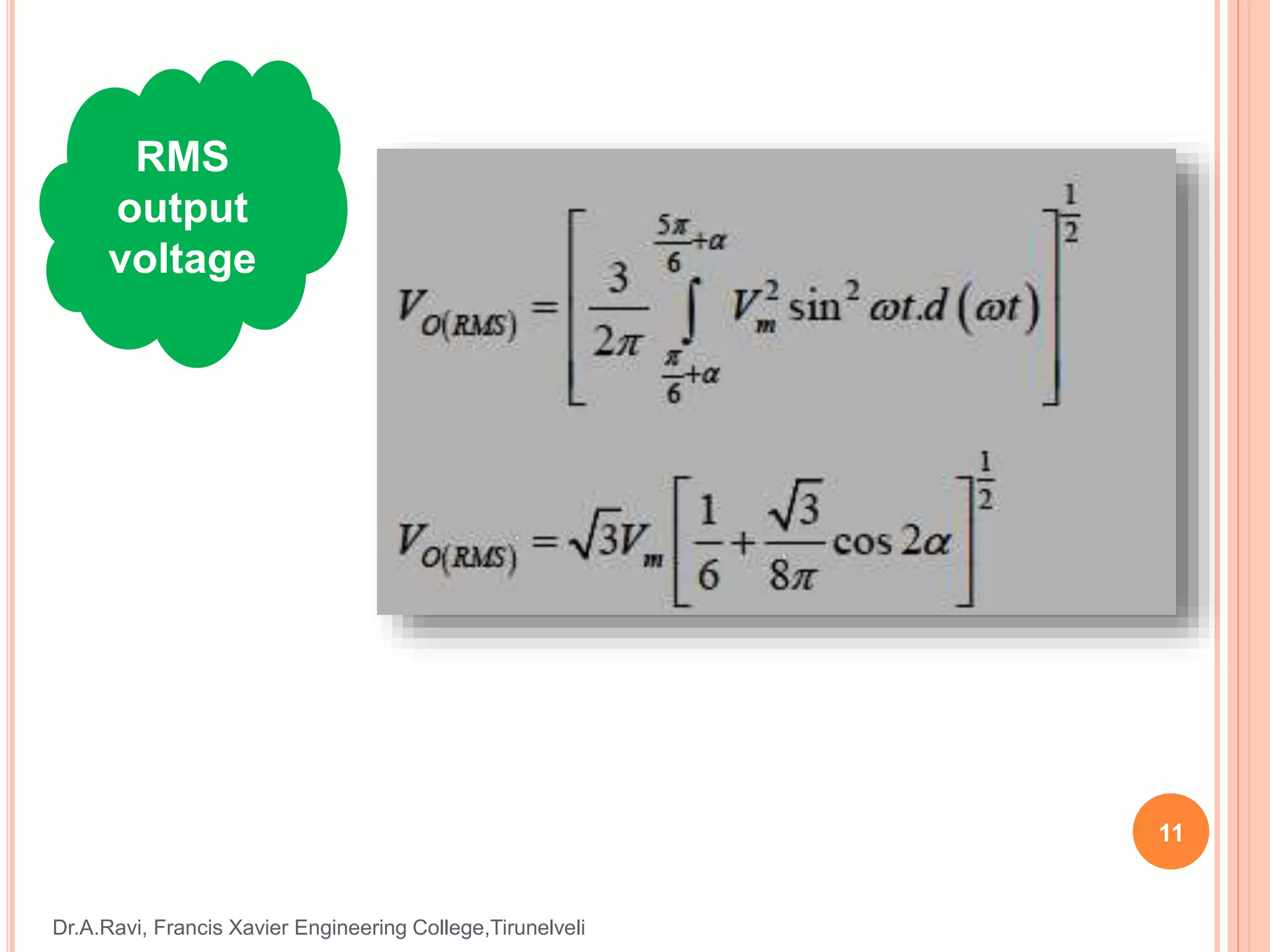

11. Dr.A.Ravi, Francis Xavier Engineering College,Tirunelveli
11
RMS
output
voltage

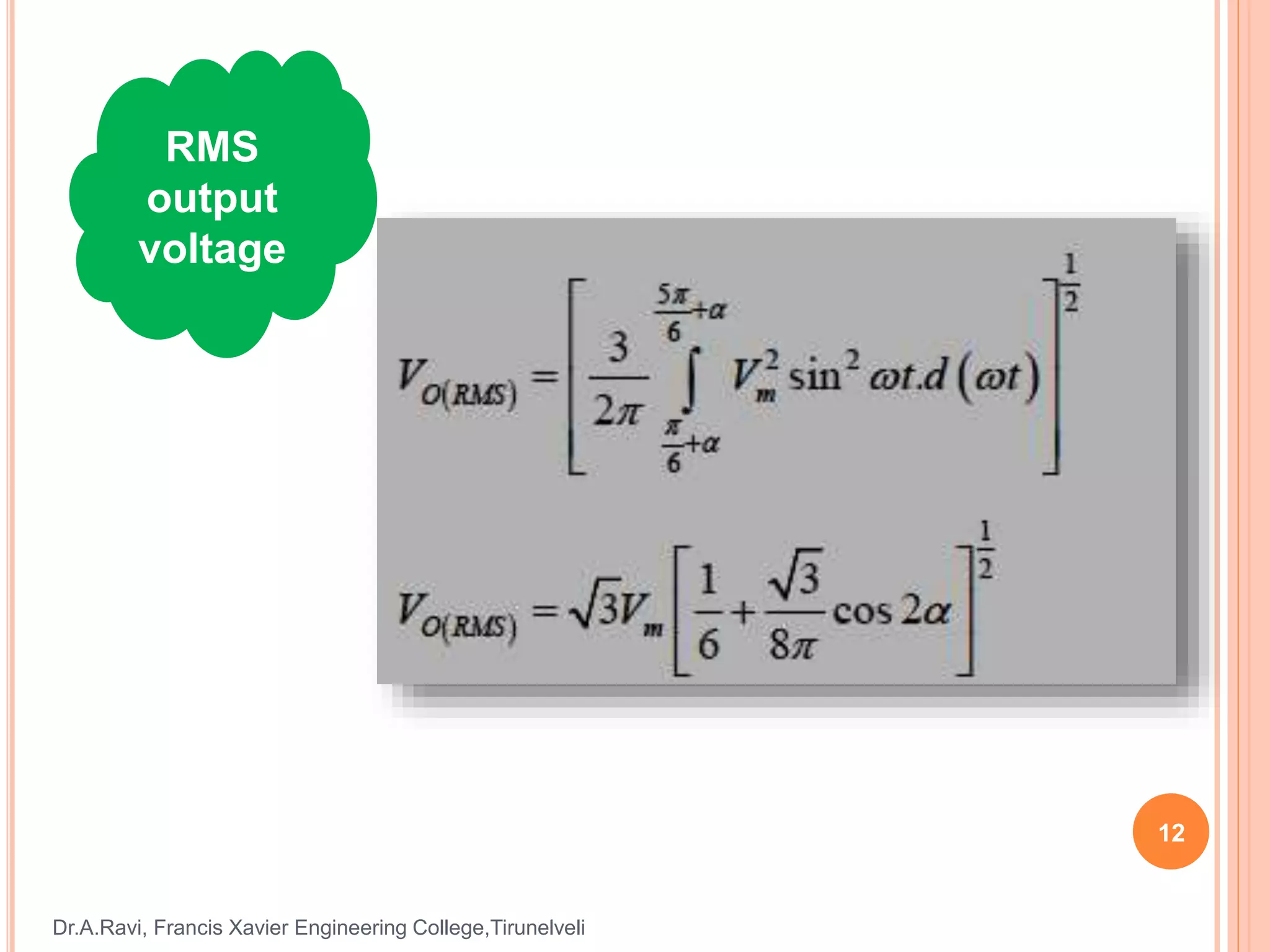

12. Dr.A.Ravi, Francis Xavier Engineering College,Tirunelveli
12
RMS
output
voltage

13. Dr.A.Ravi, Francis Xavier Engineering College,Tirunelveli

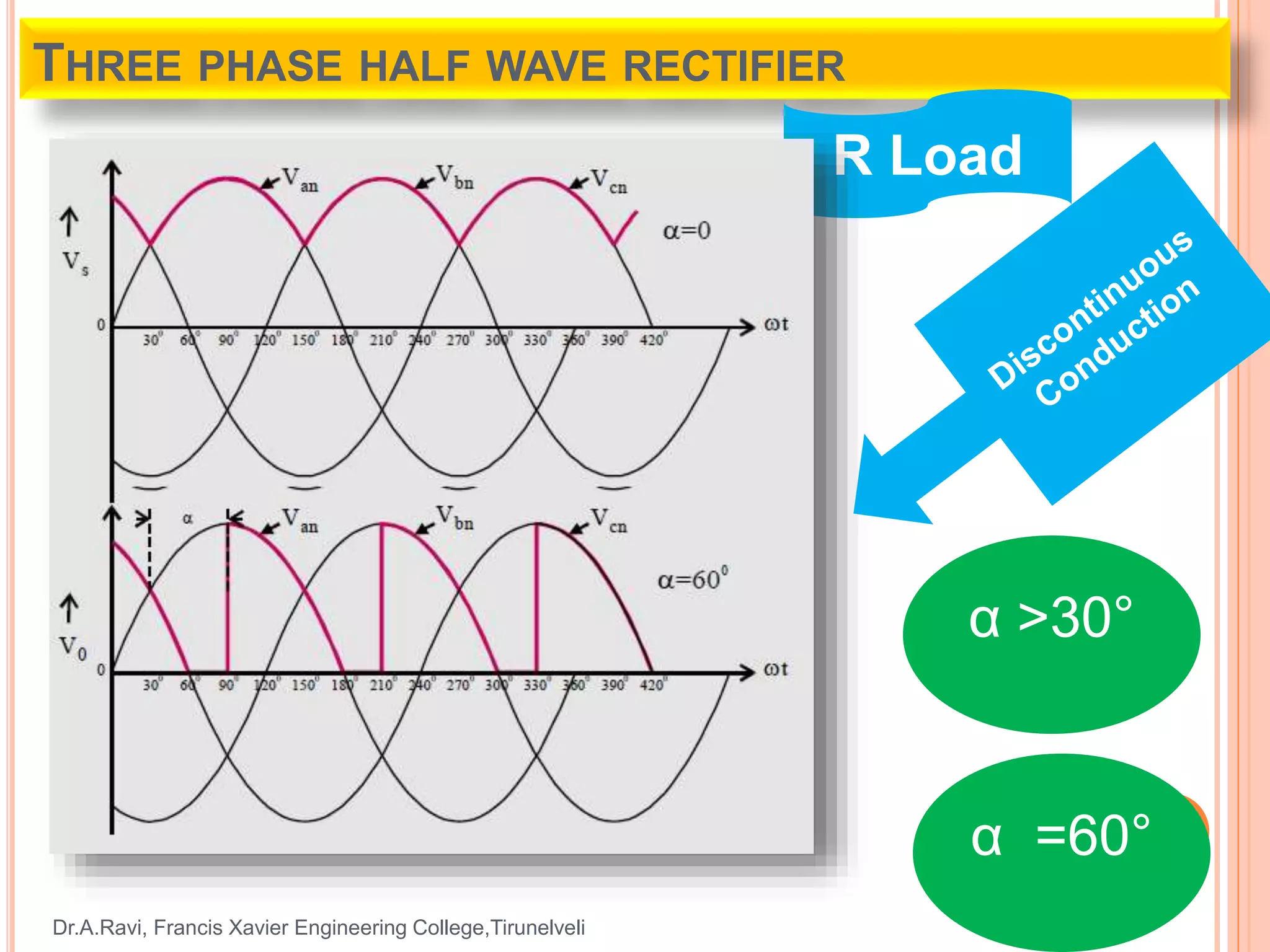

13
THREE PHASE HALF WAVE RECTIFIER
α =60°
R Load
α >30°

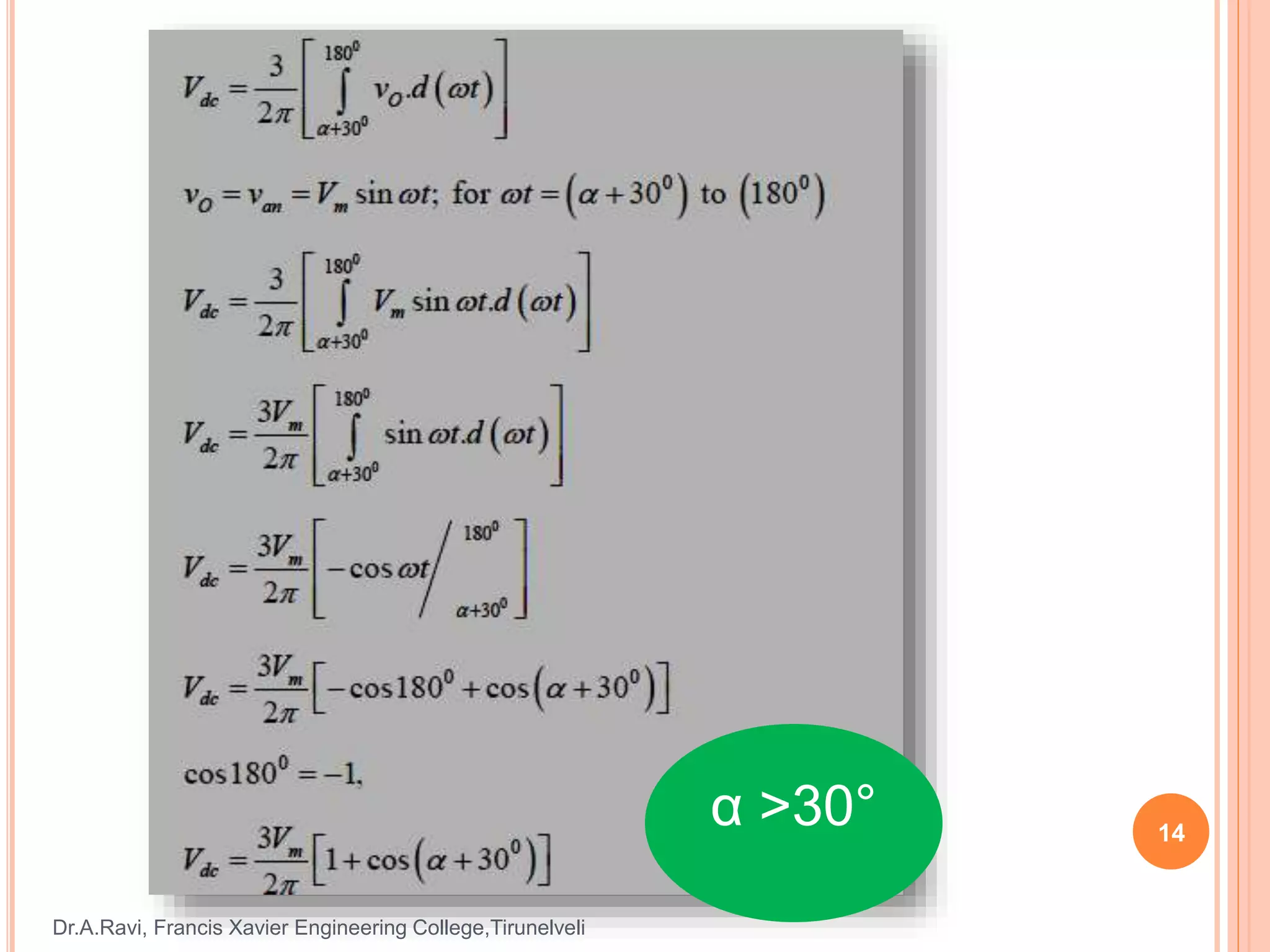

14. Dr.A.Ravi, Francis Xavier Engineering College,Tirunelveli
14
α >30°

15. Dr.A.Ravi, Francis Xavier Engineering College,Tirunelveli
15
THREE PHASE HALF WAVE RECTIFIER R-L Load
α =30°
α =60°
α =90°

16. 16
