Tensile Strength

1

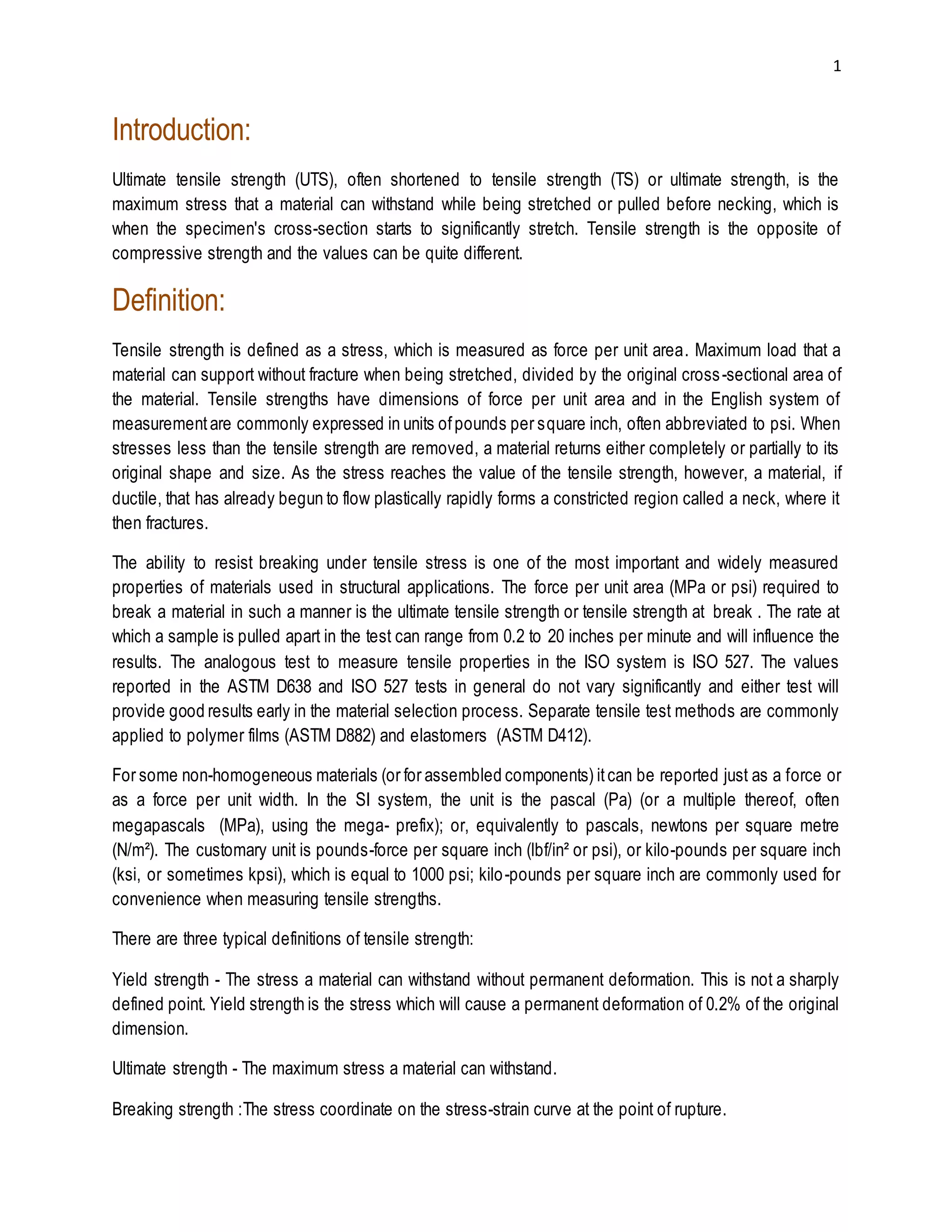

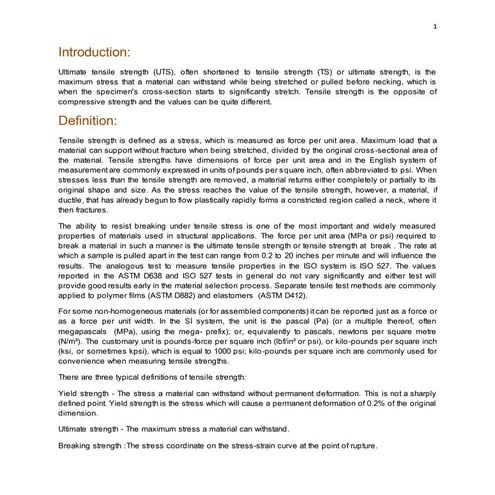

Introduction:
Ultimate tensile strength (UTS), often shortened to tensile strength (TS) or ultimate strength, is the
maximum stress that a material can withstand while being stretched or pulled before necking, which is
when the specimen's cross-section starts to significantly stretch. Tensile strength is the opposite of
compressive strength and the values can be quite different.
Definition:
Tensile strength is defined as a stress, which is measured as force per unit area. Maximum load that a
material can support without fracture when being stretched, divided by the original cross -sectional area of
the material. Tensile strengths have dimensions of force per unit area and in the English system of
measurement are commonly expressed in units of pounds per square inch, often abbreviated to psi. When
stresses less than the tensile strength are removed, a material returns either completely or partially to its
original shape and size. As the stress reaches the value of the tensile strength, however, a material, if
ductile, that has already begun to flow plastically rapidly forms a constricted region called a neck, where it
then fractures.
The ability to resist breaking under tensile stress is one of the most important and widely measured
properties of materials used in structural applications. The force per unit area (MPa or psi) required to
break a material in such a manner is the ultimate tensile strength or tensile strength at break . The rate at
which a sample is pulled apart in the test can range from 0.2 to 20 inches per minute and will influence the
results. The analogous test to measure tensile properties in the ISO system is ISO 527. The values
reported in the ASTM D638 and ISO 527 tests in general do not vary significantly and either test will
provide good results early in the material selection process. Separate tensile test methods are commonly
applied to polymer films (ASTM D882) and elastomers (ASTM D412).
For some non-homogeneous materials (or for assembled components) it can be reported just as a force or
as a force per unit width. In the SI system, the unit is the pascal (Pa) (or a multiple thereof, often
megapascals (MPa), using the mega- prefix); or, equivalently to pascals, newtons per square metre
(N/m²). The customary unit is pounds-force per square inch (lbf/in² or psi), or kilo-pounds per square inch
(ksi, or sometimes kpsi), which is equal to 1000 psi; kilo-pounds per square inch are commonly used for
convenience when measuring tensile strengths.
There are three typical definitions of tensile strength:
Yield strength - The stress a material can withstand without permanent deformation. This is not a sharply
defined point. Yield strength is the stress which will cause a permanent deformation of 0.2% of the original
dimension.
Ultimate strength - The maximum stress a material can withstand.
Breaking strength :The stress coordinate on the stress-strain curve at the point of rupture.

2

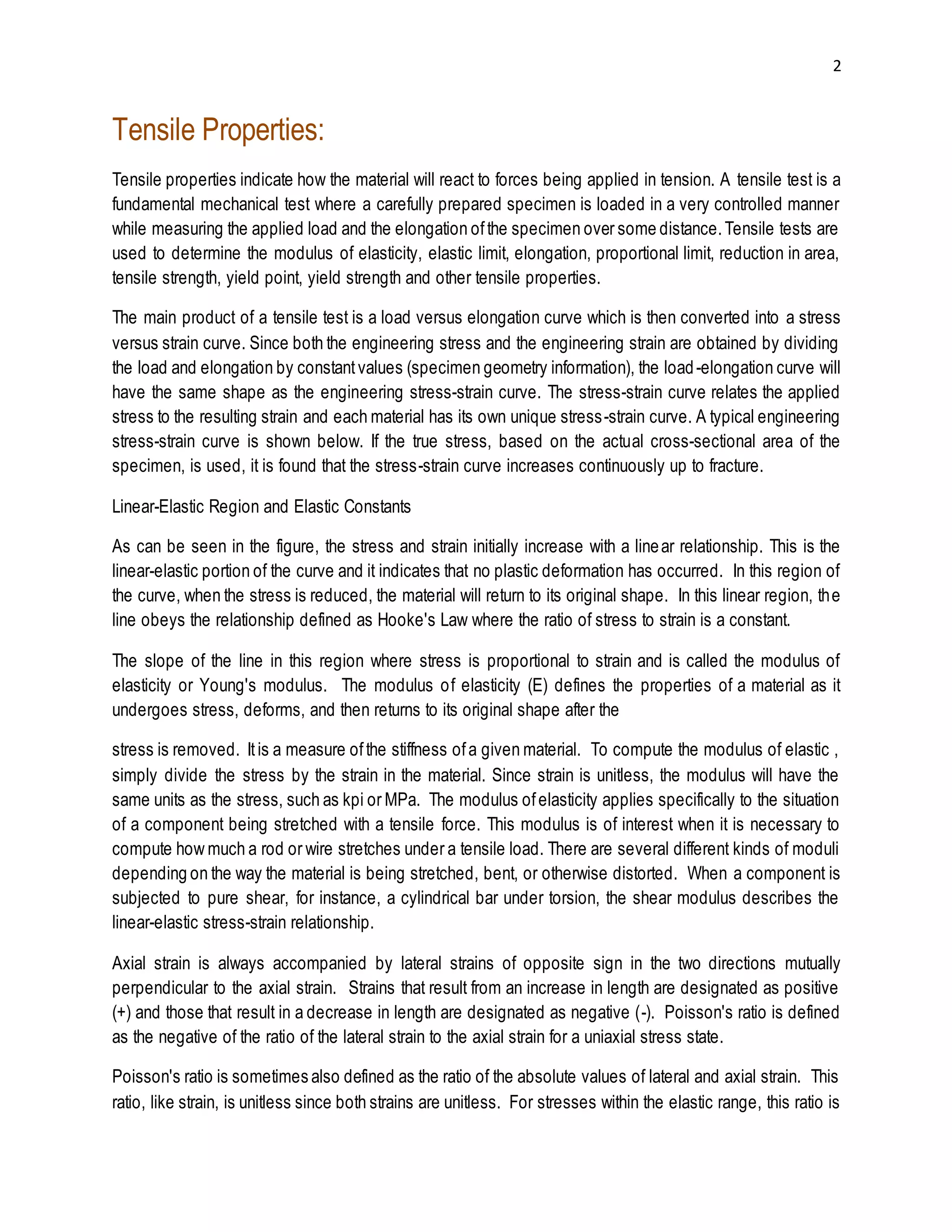

Tensile Properties:
Tensile properties indicate how the material will react to forces being applied in tension. A tensile test is a
fundamental mechanical test where a carefully prepared specimen is loaded in a very controlled manner
while measuring the applied load and the elongation of the specimen over some distance. Tensile tests are
used to determine the modulus of elasticity, elastic limit, elongation, proportional limit, reduction in area,
tensile strength, yield point, yield strength and other tensile properties.
The main product of a tensile test is a load versus elongation curve which is then converted into a stress
versus strain curve. Since both the engineering stress and the engineering strain are obtained by dividing
the load and elongation by constant values (specimen geometry information), the load -elongation curve will
have the same shape as the engineering stress-strain curve. The stress-strain curve relates the applied
stress to the resulting strain and each material has its own unique stress -strain curve. A typical engineering
stress-strain curve is shown below. If the true stress, based on the actual cross-sectional area of the
specimen, is used, it is found that the stress-strain curve increases continuously up to fracture.
Linear-Elastic Region and Elastic Constants
As can be seen in the figure, the stress and strain initially increase with a line ar relationship. This is the
linear-elastic portion of the curve and it indicates that no plastic deformation has occurred. In this region of
the curve, when the stress is reduced, the material will return to its original shape. In this linear region, the
line obeys the relationship defined as Hooke's Law where the ratio of stress to strain is a constant.
The slope of the line in this region where stress is proportional to strain and is called the modulus of
elasticity or Young's modulus. The modulus of elasticity (E) defines the properties of a material as it
undergoes stress, deforms, and then returns to its original shape after the
stress is removed. It is a measure of the stiffness of a given material. To compute the modulus of elastic ,
simply divide the stress by the strain in the material. Since strain is unitless, the modulus will have the
same units as the stress, such as kpi or MPa. The modulus of elasticity applies specifically to the situation
of a component being stretched with a tensile force. This modulus is of interest when it is necessary to
compute how much a rod or wire stretches under a tensile load. There are several different kinds of moduli
depending on the way the material is being stretched, bent, or otherwise distorted. When a component is
subjected to pure shear, for instance, a cylindrical bar under torsion, the shear modulus describes the
linear-elastic stress-strain relationship.
Axial strain is always accompanied by lateral strains of opposite sign in the two directions mutually
perpendicular to the axial strain. Strains that result from an increase in length are designated as positive
(+) and those that result in a decrease in length are designated as negative (-). Poisson's ratio is defined
as the negative of the ratio of the lateral strain to the axial strain for a uniaxial stress state.
Poisson's ratio is sometimes also defined as the ratio of the absolute values of lateral and axial strain. This
ratio, like strain, is unitless since both strains are unitless. For stresses within the elastic range, this ratio is

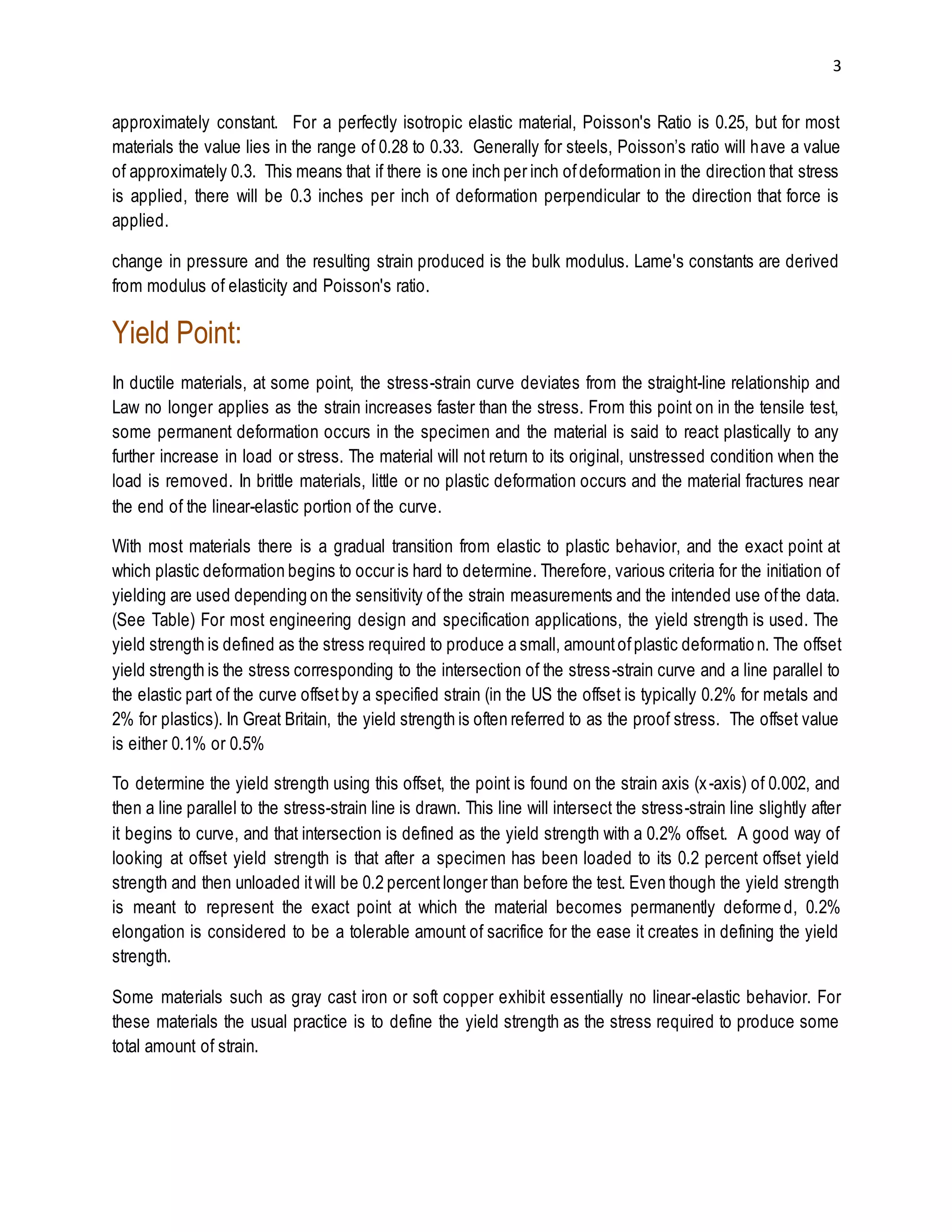

3
approximately constant. For a perfectly isotropic elastic material, Poisson's Ratio is 0.25, but for most
materials the value lies in the range of 0.28 to 0.33. Generally for steels, Poisson’s ratio will have a value
of approximately 0.3. This means that if there is one inch per inch of deformation in the direction that stress
is applied, there will be 0.3 inches per inch of deformation perpendicular to the direction that force is
applied.
change in pressure and the resulting strain produced is the bulk modulus. Lame's constants are derived
from modulus of elasticity and Poisson's ratio.
Yield Point:
In ductile materials, at some point, the stress-strain curve deviates from the straight-line relationship and
Law no longer applies as the strain increases faster than the stress. From this point on in the tensile test,
some permanent deformation occurs in the specimen and the material is said to react plastically to any
further increase in load or stress. The material will not return to its original, unstressed condition when the
load is removed. In brittle materials, little or no plastic deformation occurs and the material fractures near
the end of the linear-elastic portion of the curve.
With most materials there is a gradual transition from elastic to plastic behavior, and the exact point at
which plastic deformation begins to occur is hard to determine. Therefore, various criteria for the initiation of
yielding are used depending on the sensitivity of the strain measurements and the intended use of the data.
(See Table) For most engineering design and specification applications, the yield strength is used. The
yield strength is defined as the stress required to produce a small, amount of plastic deformatio n. The offset
yield strength is the stress corresponding to the intersection of the stress -strain curve and a line parallel to
the elastic part of the curve offset by a specified strain (in the US the offset is typically 0.2% for metals and
2% for plastics). In Great Britain, the yield strength is often referred to as the proof stress. The offset value
is either 0.1% or 0.5%
To determine the yield strength using this offset, the point is found on the strain axis (x -axis) of 0.002, and
then a line parallel to the stress-strain line is drawn. This line will intersect the stress-strain line slightly after
it begins to curve, and that intersection is defined as the yield strength with a 0.2% offset. A good way of
looking at offset yield strength is that after a specimen has been loaded to its 0.2 percent offset yield
strength and then unloaded it will be 0.2 percent longer than before the test. Even though the yield strength
is meant to represent the exact point at which the material becomes permanently deforme d, 0.2%
elongation is considered to be a tolerable amount of sacrifice for the ease it creates in defining the yield
strength.
Some materials such as gray cast iron or soft copper exhibit essentially no linear-elastic behavior. For
these materials the usual practice is to define the yield strength as the stress required to produce some
total amount of strain.

4

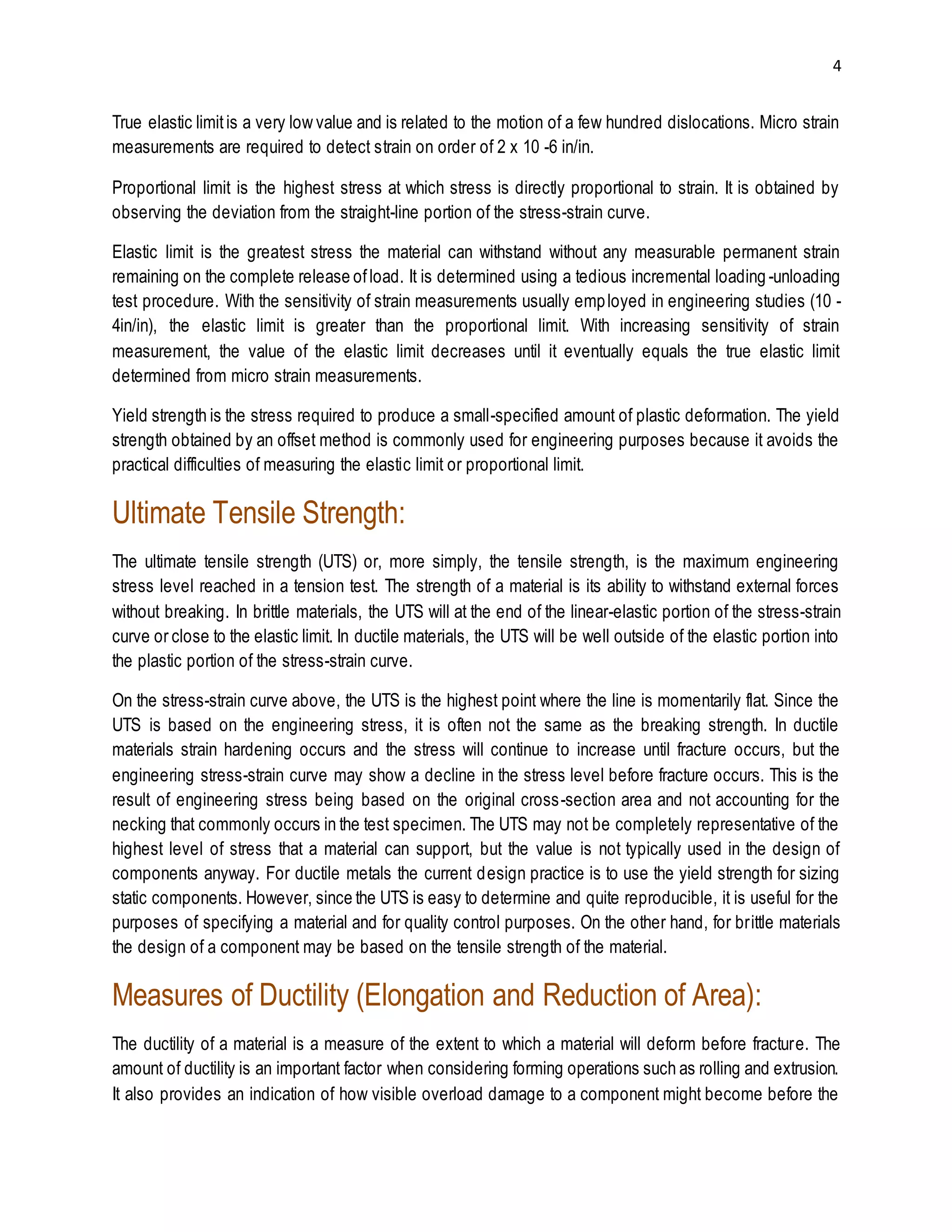

True elastic limit is a very low value and is related to the motion of a few hundred dislocations. Micro strain
measurements are required to detect strain on order of 2 x 10 -6 in/in.
Proportional limit is the highest stress at which stress is directly proportional to strain. It is obtained by
observing the deviation from the straight-line portion of the stress-strain curve.
Elastic limit is the greatest stress the material can withstand without any measurable permanent strain
remaining on the complete release of load. It is determined using a tedious incremental loading -unloading
test procedure. With the sensitivity of strain measurements usually emp loyed in engineering studies (10 -
4in/in), the elastic limit is greater than the proportional limit. With increasing sensitivity of strain
measurement, the value of the elastic limit decreases until it eventually equals the true elastic limit
determined from micro strain measurements.
Yield strength is the stress required to produce a small-specified amount of plastic deformation. The yield
strength obtained by an offset method is commonly used for engineering purposes because it avoids the
practical difficulties of measuring the elastic limit or proportional limit.
Ultimate Tensile Strength:
The ultimate tensile strength (UTS) or, more simply, the tensile strength, is the maximum engineering
stress level reached in a tension test. The strength of a material is its ability to withstand external forces
without breaking. In brittle materials, the UTS will at the end of the linear-elastic portion of the stress-strain
curve or close to the elastic limit. In ductile materials, the UTS will be well outside of the elastic portion into
the plastic portion of the stress-strain curve.
On the stress-strain curve above, the UTS is the highest point where the line is momentarily flat. Since the
UTS is based on the engineering stress, it is often not the same as the breaking strength. In ductile
materials strain hardening occurs and the stress will continue to increase until fracture occurs, but the
engineering stress-strain curve may show a decline in the stress level before fracture occurs. This is the
result of engineering stress being based on the original cross-section area and not accounting for the
necking that commonly occurs in the test specimen. The UTS may not be completely representative of the
highest level of stress that a material can support, but the value is not typically used in the design of
components anyway. For ductile metals the current design practice is to use the yield strength for sizing
static components. However, since the UTS is easy to determine and quite reproducible, it is useful for the
purposes of specifying a material and for quality control purposes. On the other hand, for br ittle materials
the design of a component may be based on the tensile strength of the material.
Measures of Ductility (Elongation and Reduction of Area):
The ductility of a material is a measure of the extent to which a material will deform before fracture. The
amount of ductility is an important factor when considering forming operations such as rolling and extrusion.
It also provides an indication of how visible overload damage to a component might become before the

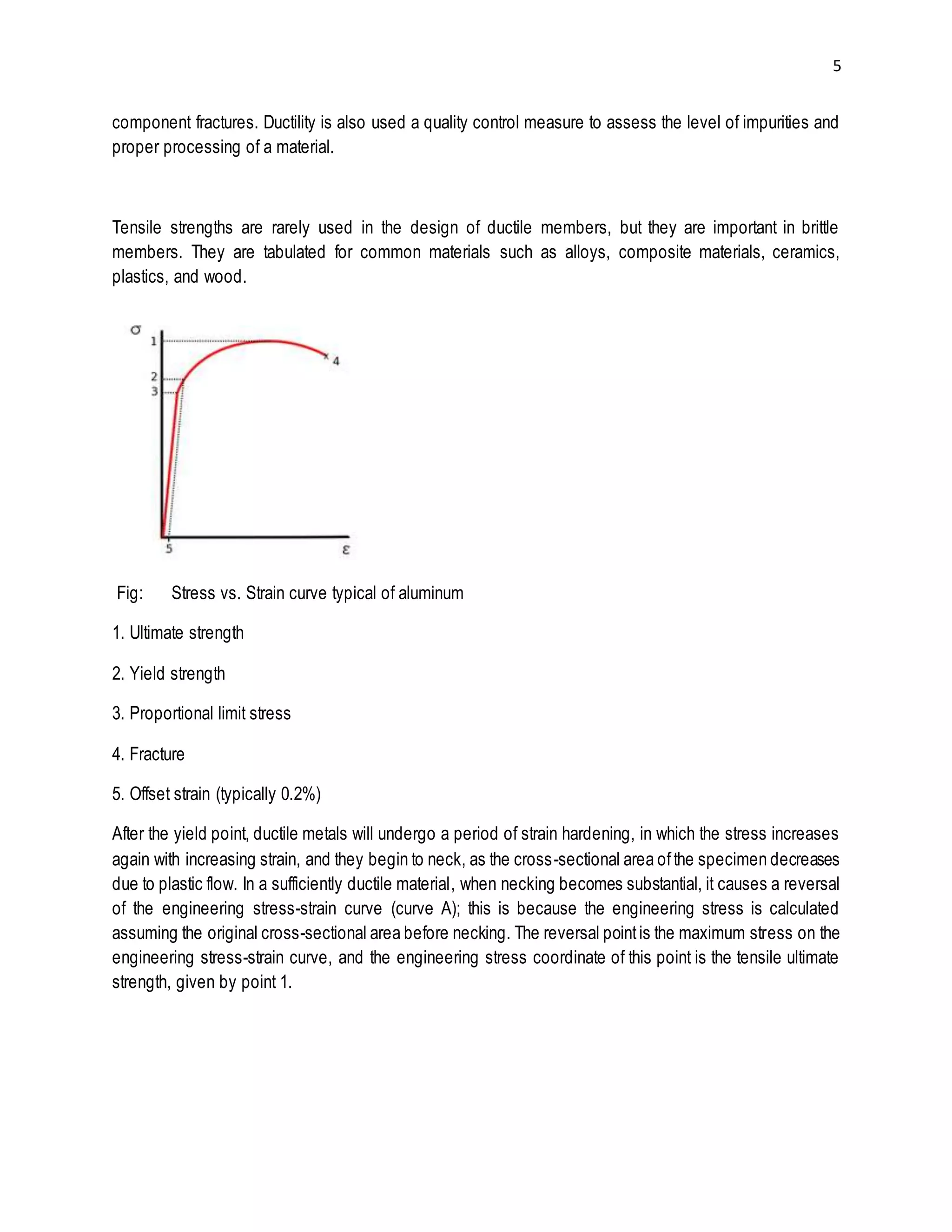

5
component fractures. Ductility is also used a quality control measure to assess the level of impurities and
proper processing of a material.
Tensile strengths are rarely used in the design of ductile members, but they are important in brittle
members. They are tabulated for common materials such as alloys, composite materials, ceramics,
plastics, and wood.
Fig: Stress vs. Strain curve typical of aluminum
1. Ultimate strength
2. Yield strength
3. Proportional limit stress
4. Fracture
5. Offset strain (typically 0.2%)
After the yield point, ductile metals will undergo a period of strain hardening, in which the stress increases
again with increasing strain, and they begin to neck, as the cross-sectional area of the specimen decreases
due to plastic flow. In a sufficiently ductile material, when necking becomes substantial, it causes a reversal
of the engineering stress-strain curve (curve A); this is because the engineering stress is calculated
assuming the original cross-sectional area before necking. The reversal point is the maximum stress on the
engineering stress-strain curve, and the engineering stress coordinate of this point is the tensile ultimate
strength, given by point 1.

6

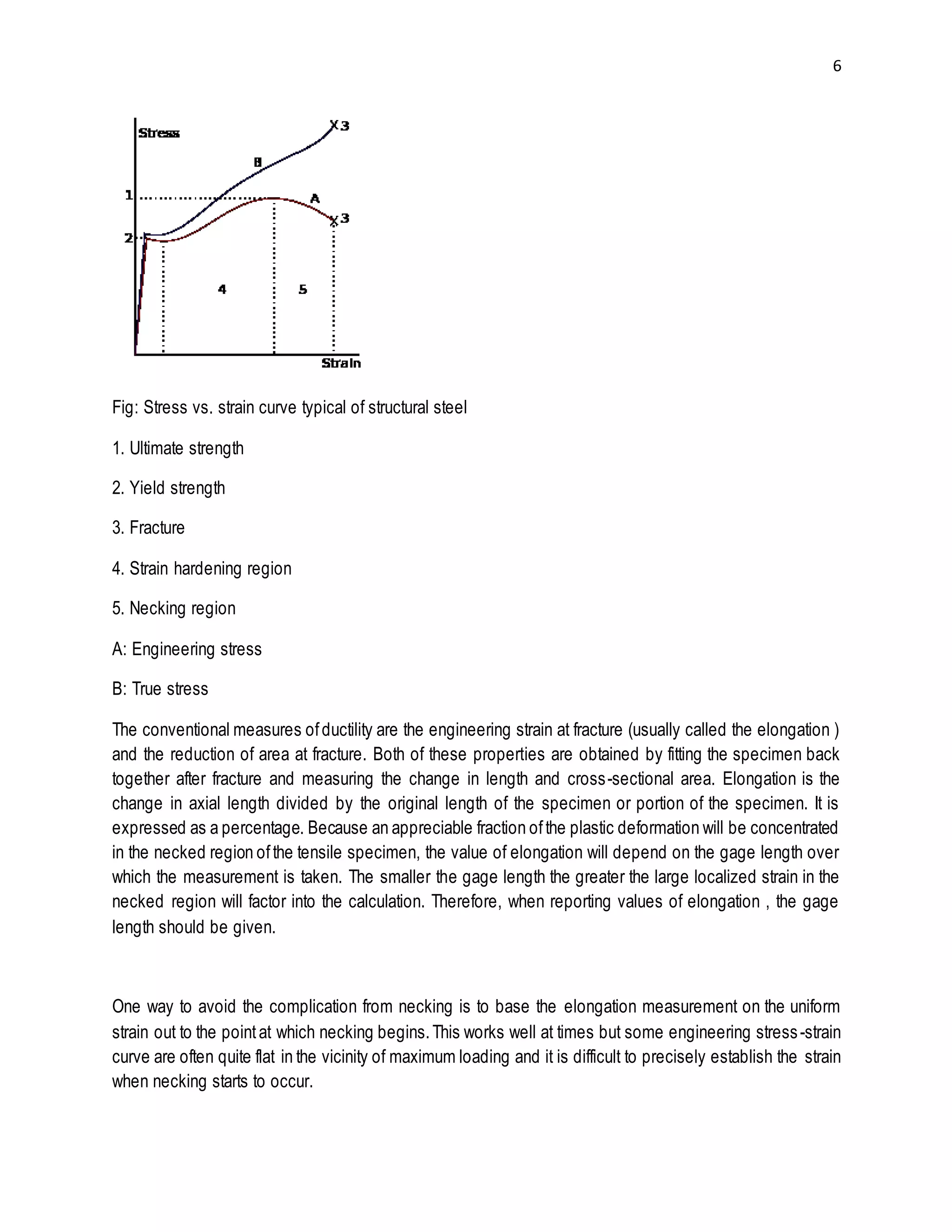

Fig: Stress vs. strain curve typical of structural steel
1. Ultimate strength
2. Yield strength
3. Fracture
4. Strain hardening region
5. Necking region
A: Engineering stress
B: True stress
The conventional measures of ductility are the engineering strain at fracture (usually called the elongation )
and the reduction of area at fracture. Both of these properties are obtained by fitting the specimen back
together after fracture and measuring the change in length and cross -sectional area. Elongation is the
change in axial length divided by the original length of the specimen or portion of the specimen. It is
expressed as a percentage. Because an appreciable fraction of the plastic deformation will be concentrated
in the necked region of the tensile specimen, the value of elongation will depend on the gage length over
which the measurement is taken. The smaller the gage length the greater the large localized strain in the
necked region will factor into the calculation. Therefore, when reporting values of elongation , the gage
length should be given.
One way to avoid the complication from necking is to base the elongation measurement on the uniform
strain out to the point at which necking begins. This works well at times but some engineering stress -strain
curve are often quite flat in the vicinity of maximum loading and it is difficult to precisely establish the strain
when necking starts to occur.

7

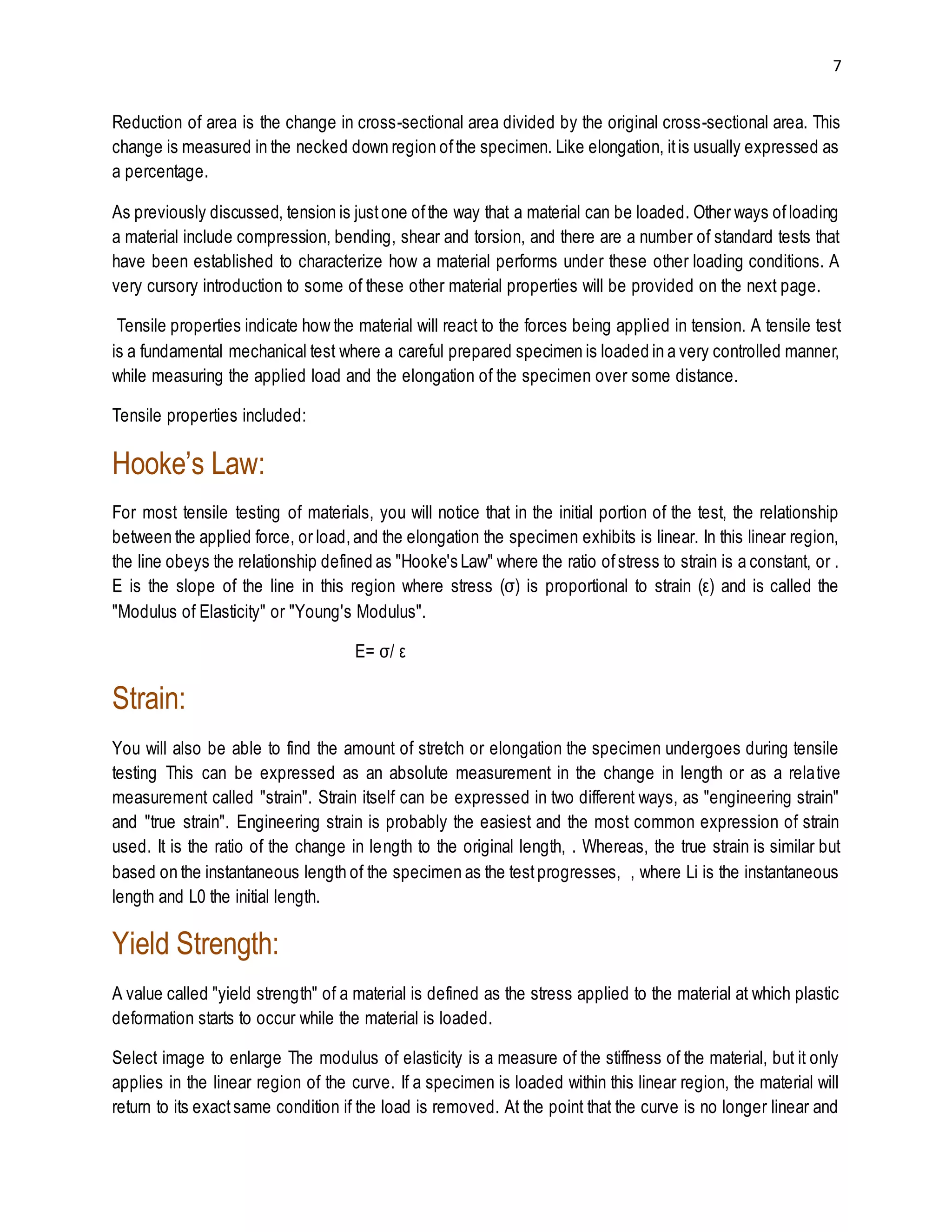

Reduction of area is the change in cross-sectional area divided by the original cross-sectional area. This
change is measured in the necked down region of the specimen. Like elongation, it is usually expressed as
a percentage.
As previously discussed, tension is just one of the way that a material can be loaded. Other ways of loading
a material include compression, bending, shear and torsion, and there are a number of standard tests that
have been established to characterize how a material performs under these other loading conditions. A
very cursory introduction to some of these other material properties will be provided on the next page.
Tensile properties indicate how the material will react to the forces being applied in tension. A tensile test
is a fundamental mechanical test where a careful prepared specimen is loaded in a very controlled manner,
while measuring the applied load and the elongation of the specimen over some distance.
Tensile properties included:
Hooke’s Law:
For most tensile testing of materials, you will notice that in the initial portion of the test, the relationship
between the applied force, or load, and the elongation the specimen exhibits is linear. In this linear region,
the line obeys the relationship defined as "Hooke's Law" where the ratio of stress to strain is a constant, or .
E is the slope of the line in this region where stress (σ) is proportional to strain (ε) and is called the
"Modulus of Elasticity" or "Young's Modulus".
E= σ/ ε
Strain:
You will also be able to find the amount of stretch or elongation the specimen undergoes during tensile
testing This can be expressed as an absolute measurement in the change in length or as a relative
measurement called "strain". Strain itself can be expressed in two different ways, as "engineering strain"
and "true strain". Engineering strain is probably the easiest and the most common expression of strain
used. It is the ratio of the change in length to the original length, . Whereas, the true strain is similar but
based on the instantaneous length of the specimen as the test progresses, , where Li is the instantaneous
length and L0 the initial length.
Yield Strength:
A value called "yield strength" of a material is defined as the stress applied to the material at which plastic
deformation starts to occur while the material is loaded.
Select image to enlarge The modulus of elasticity is a measure of the stiffness of the material, but it only
applies in the linear region of the curve. If a specimen is loaded within this linear region, the material will
return to its exact same condition if the load is removed. At the point that the curve is no longer linear and

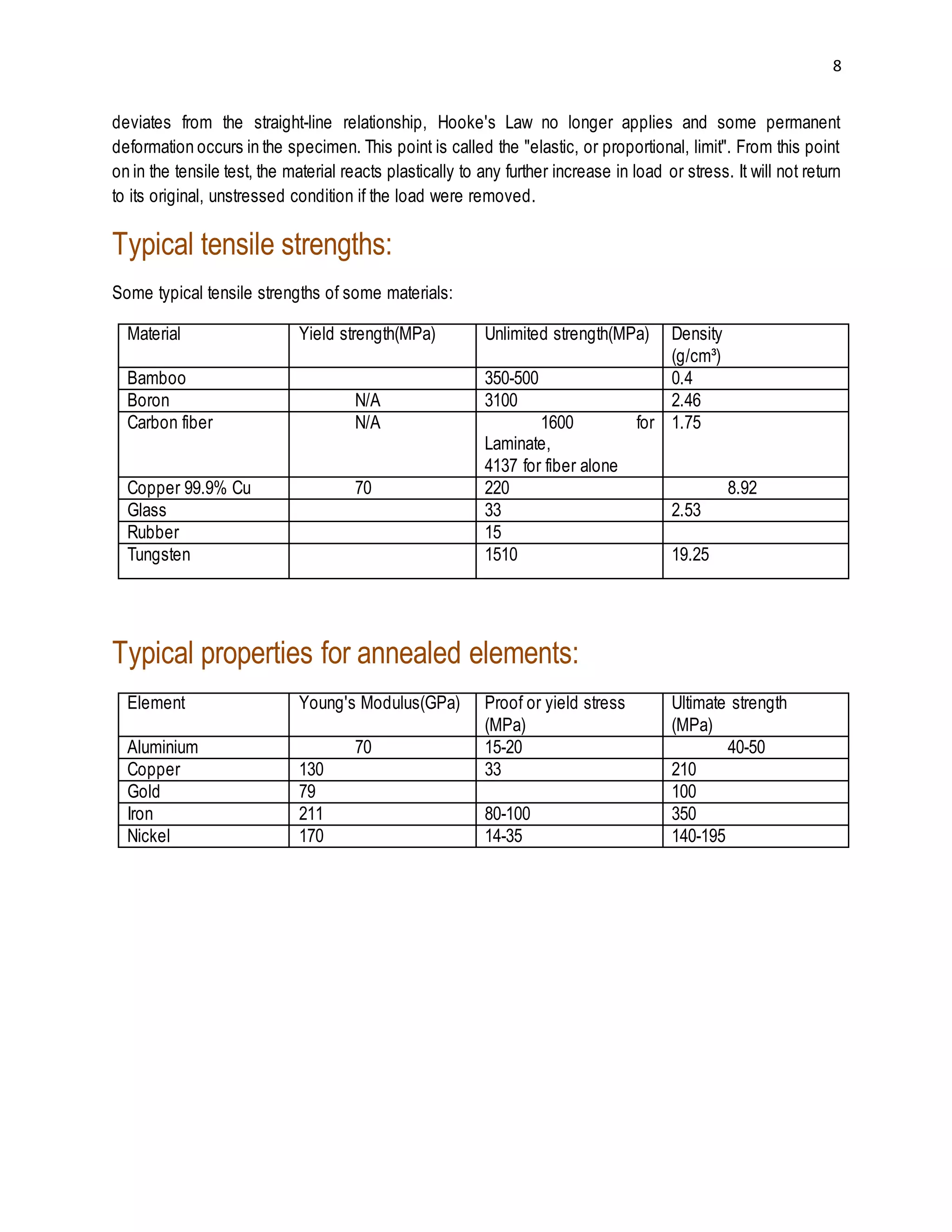

8
deviates from the straight-line relationship, Hooke's Law no longer applies and some permanent
deformation occurs in the specimen. This point is called the "elastic, or proportional, limit". From this point
on in the tensile test, the material reacts plastically to any further increase in load or stress. It will not return
to its original, unstressed condition if the load were removed.
Typical tensile strengths:
Some typical tensile strengths of some materials:
Material Yield strength(MPa) Unlimited strength(MPa) Density
(g/cm³)
Bamboo 350-500 0.4
Boron N/A 3100 2.46
Carbon fiber N/A 1600 for
Laminate,
4137 for fiber alone
1.75
Copper 99.9% Cu 70 220 8.92
Glass 33 2.53
Rubber 15
Tungsten 1510 19.25
Typical properties for annealed elements:
Element Young's Modulus(GPa) Proof or yield stress
(MPa)
Ultimate strength
(MPa)
Aluminium 70 15-20 40-50
Copper 130 33 210
Gold 79 100
Iron 211 80-100 350
Nickel 170 14-35 140-195

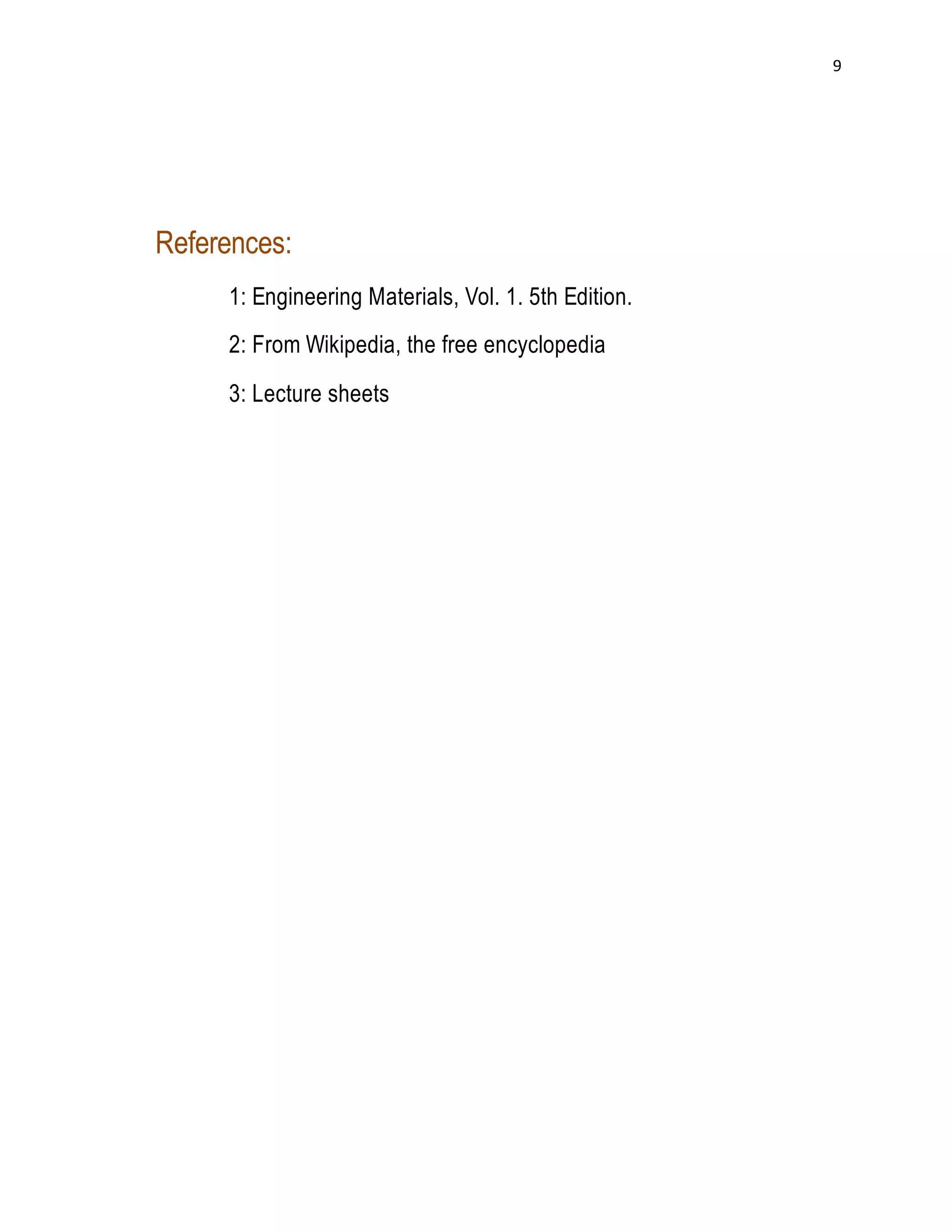

9
References:
1: Engineering Materials, Vol. 1. 5th Edition.
2: From Wikipedia, the free encyclopedia
3: Lecture sheets

Tensile Strength

More Related Content

What's hot

Viewers also liked

Similar to Tensile Strength

More from VICTOR ROY

Recently uploaded

In this document

Tensile Strength
