2. 7/16/2022 2

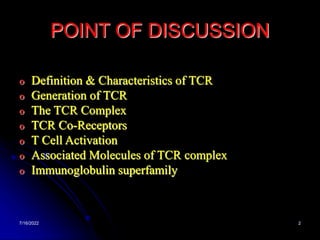

POINT OF DISCUSSION
o Definition & Characteristics of TCR
o Generation of TCR
o The TCR Complex
o TCR Co-Receptors
o T Cell Activation
o Associated Molecules of TCR complex
o Immunoglobulin superfamily
3. 7/16/2022 3

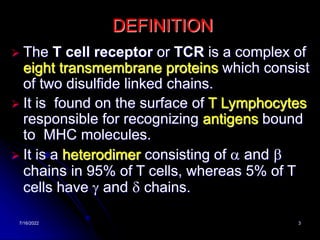

DEFINITION
The T cell receptor or TCR is a complex of
eight transmembrane proteins which consist
of two disulfide linked chains.
It is found on the surface of T Lymphocytes
responsible for recognizing antigens bound
to MHC molecules.
It is a heterodimer consisting of a and b
chains in 95% of T cells, whereas 5% of T
cells have g and d chains.

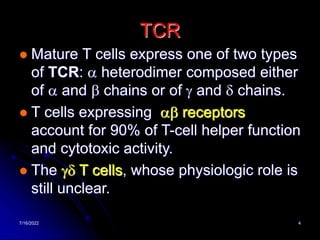

4. 7/16/2022 4
TCR
Mature T cells express one of two types
of TCR: a heterodimer composed either
of a and b chains or of g and d chains.
T cells expressing ab receptors
account for 90% of T-cell helper function
and cytotoxic activity.
The gd T cells, whose physiologic role is
still unclear.
5. 7/16/2022 5
a b TCR
a b TCR mostly found in thymus & peripheral
lymphoid organs.
Is disulphide linked heterodimer of
.alpha subunit-40-50 kDa
.beta subunit-35-47kDa
Each polypeptide chain contains two
extacellular Ig- like domain of 110 aa.
The extracellular portion of the ab
heterodimer is structurally similar to the
antigen-binding fragment (Fab) of an Ig
7. 7/16/2022 7

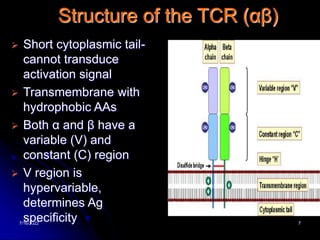

Structure of the TCR (αβ)
Short cytoplasmic tail-
cannot transduce
activation signal
Transmembrane with
hydrophobic AAs
Both α and β have a
variable (V) and
constant (C) region
V region is
hypervariable,
determines Ag
specificity
8. 7/16/2022 8
Structural characteristics of the TCR
The structure of TCR is very similar to
immunoglobulin Fab fragments
The V- domain of both TCR α-chain
and β-chain have 3 hypervariable or
complementarity determining regions
The V-region of the β-chain has an
additional area of hypervariability
(HV4) that does not normally contact
antigen and not considered a CDR.
9. 7/16/2022 9

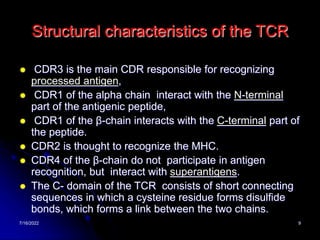

Structural characteristics of the TCR
CDR3 is the main CDR responsible for recognizing
processed antigen,
CDR1 of the alpha chain interact with the N-terminal
part of the antigenic peptide,
CDR1 of the β-chain interacts with the C-terminal part of
the peptide.
CDR2 is thought to recognize the MHC.
CDR4 of the β-chain do not participate in antigen
recognition, but interact with superantigens.
The C- domain of the TCR consists of short connecting
sequences in which a cysteine residue forms disulfide
bonds, which forms a link between the two chains.
11. 7/16/2022 11
Similarity with B-cell (Ig)
Each a and b chain consists of
‘Ig-like’ N-terminal variable region (V)
Ig-like constant (C) domain
Hydrophobic transmembrane region
Short cytoplasmic region.
V-region of alpha & delta of
TCR is like v-region of L-chain with V&J
seg. similarly…

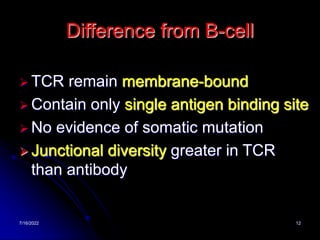

12. 7/16/2022 12
Difference from B-cell
TCR remain membrane-bound
Contain only single antigen binding site
No evidence of somatic mutation
Junctional diversity greater in TCR
than antibody
13. 7/16/2022 13
Generation of the TCR
TCR formation are similar to those of
B cell receptors.
TCR alpha chain is generated by VJ
recombination, whereas the beta chain
is generated by V(D)J recombination .
Generation of the TCR gamma chain
involves VJ recombination, whereas
generation of the TCR delta chain occurs
by V(D)J recombination.
14. 7/16/2022 14

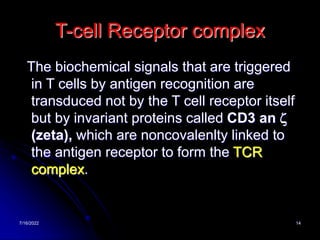

T-cell Receptor complex
The biochemical signals that are triggered
in T cells by antigen recognition are
transduced not by the T cell receptor itself
but by invariant proteins called CD3 an z
(zeta), which are noncovalenlty linked to
the antigen receptor to form the TCR
complex.
15. 7/16/2022 15
TCR and CD3 complex
TCR is closely
associated with CD3
complex
Group of 5 proteins
Commonly called
“invariant” chains of TCR
Role of CD3 complex
CD3 necessary for cell
surface expression of
TCR
transduces signal after Ag
interaction with TCR

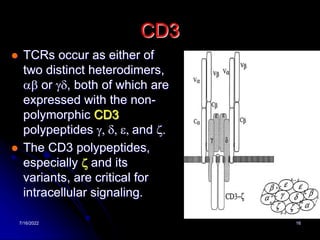

16. 7/16/2022 16
CD3
TCRs occur as either of
two distinct heterodimers,
ab or gd, both of which are
expressed with the non-
polymorphic CD3
polypeptides g, d, e, and z.
The CD3 polypeptides,
especially z and its
variants, are critical for
intracellular signaling.
17. 7/16/2022 17

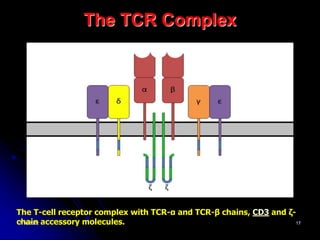

The TCR Complex
The T-cell receptor complex with TCR-α and TCR-β chains, CD3 and ζ-
chain accessory molecules.

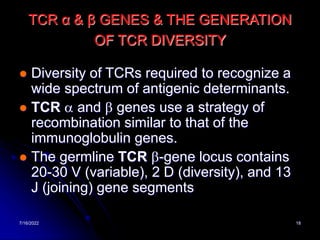

18. 7/16/2022 18
TCR α & β GENES & THE GENERATION
OF TCR DIVERSITY
Diversity of TCRs required to recognize a
wide spectrum of antigenic determinants.
TCR a and b genes use a strategy of
recombination similar to that of the
immunoglobulin genes.
The germline TCR b-gene locus contains
20-30 V (variable), 2 D (diversity), and 13
J (joining) gene segments
19. 7/16/2022 19

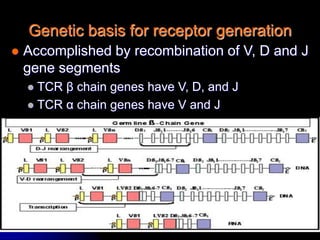

Genetic basis for receptor generation
Accomplished by recombination of V, D and J
gene segments
TCR β chain genes have V, D, and J
TCR α chain genes have V and J

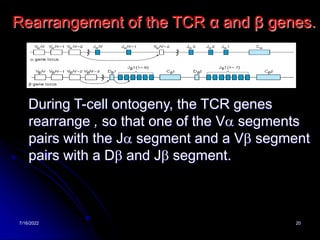

20. 7/16/2022 20
Rearrangement of the TCR α and β genes.
During T-cell ontogeny, the TCR genes
rearrange , so that one of the Va segments
pairs with the Ja segment and a Vb segment
pairs with a Db and Jb segment.

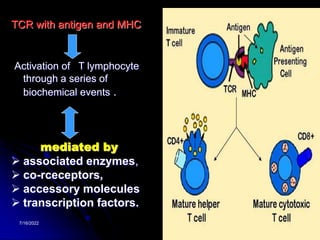

21. 7/16/2022 21
TCR with antigen and MHC
Activation of T lymphocyte
through a series of
biochemical events .
mediated by
associated enzymes,
co-rceceptors,
accessory molecules
transcription factors.
22. 7/16/2022 22

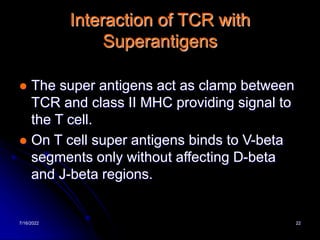

Interaction of TCR with
Superantigens
The super antigens act as clamp between
TCR and class II MHC providing signal to
the T cell.
On T cell super antigens binds to V-beta
segments only without affecting D-beta
and J-beta regions.
23. 7/16/2022 23
gd TCR
The gd TCR are a second type of TCR.
Their function remains largely unresolved.
They do not recognize MHC-associated
peptides and are not MHC restricted.
In mice and chickens they are found in the small
bowel mucosa and termed intraepithelial
lymphocytes.
In humans they are found in the tongue, uterus
and vagina.

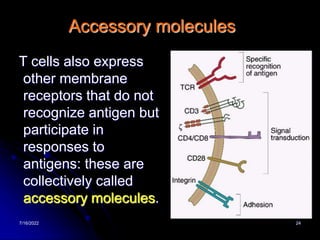

24. 7/16/2022 24
Accessory molecules
T cells also express
other membrane
receptors that do not
recognize antigen but
participate in
responses to
antigens: these are
collectively called
accessory molecules.
25. 7/16/2022 25

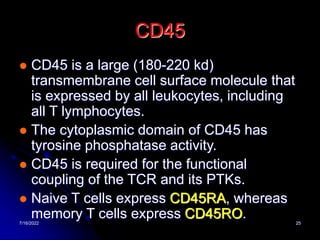

CD45
CD45 is a large (180-220 kd)
transmembrane cell surface molecule that
is expressed by all leukocytes, including
all T lymphocytes.
The cytoplasmic domain of CD45 has
tyrosine phosphatase activity.
CD45 is required for the functional
coupling of the TCR and its PTKs.
Naive T cells express CD45RA, whereas
memory T cells express CD45RO.

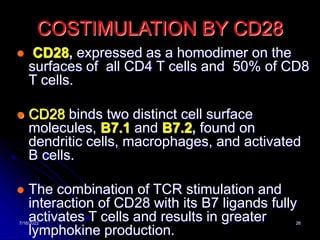

26. 7/16/2022 26

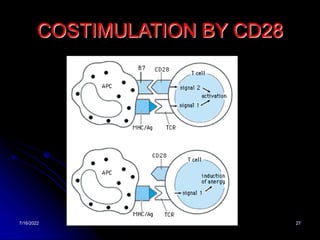

COSTIMULATION BY CD28
CD28, expressed as a homodimer on the
surfaces of all CD4 T cells and 50% of CD8
T cells.
CD28 binds two distinct cell surface
molecules, B7.1 and B7.2, found on
dendritic cells, macrophages, and activated
B cells.
The combination of TCR stimulation and
interaction of CD28 with its B7 ligands fully
activates T cells and results in greater
lymphokine production.
28. 7/16/2022 28

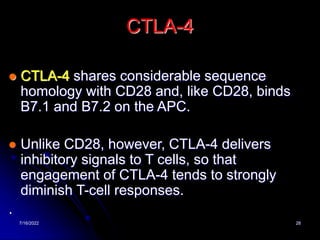

CTLA-4
CTLA-4 shares considerable sequence
homology with CD28 and, like CD28, binds
B7.1 and B7.2 on the APC.
Unlike CD28, however, CTLA-4 delivers
inhibitory signals to T cells, so that
engagement of CTLA-4 tends to strongly
diminish T-cell responses.
.
29. 7/16/2022 29

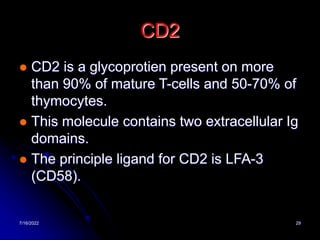

CD2
CD2 is a glycoprotien present on more
than 90% of mature T-cells and 50-70% of
thymocytes.
This molecule contains two extracellular Ig
domains.
The principle ligand for CD2 is LFA-3
(CD58).
30. 7/16/2022 30

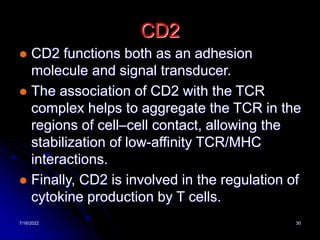

CD2
CD2 functions both as an adhesion
molecule and signal transducer.
The association of CD2 with the TCR
complex helps to aggregate the TCR in the
regions of cell–cell contact, allowing the
stabilization of low-affinity TCR/MHC
interactions.
Finally, CD2 is involved in the regulation of
cytokine production by T cells.
31. 7/16/2022 31

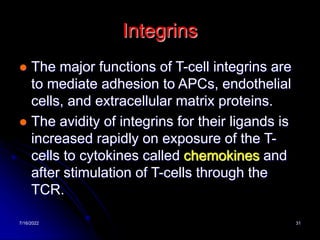

Integrins
The major functions of T-cell integrins are
to mediate adhesion to APCs, endothelial
cells, and extracellular matrix proteins.
The avidity of integrins for their ligands is
increased rapidly on exposure of the T-
cells to cytokines called chemokines and
after stimulation of T-cells through the
TCR.
33. 7/16/2022 33

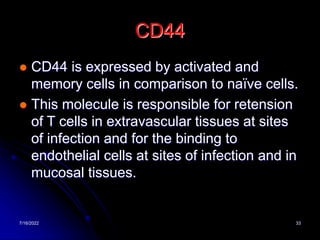

CD44
CD44 is expressed by activated and
memory cells in comparison to naïve cells.
This molecule is responsible for retension
of T cells in extravascular tissues at sites
of infection and for the binding to
endothelial cells at sites of infection and in
mucosal tissues.
34. 7/16/2022 34

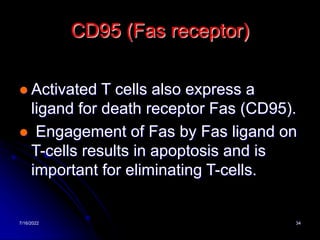

CD95 (Fas receptor)
Activated T cells also express a
ligand for death receptor Fas (CD95).
Engagement of Fas by Fas ligand on
T-cells results in apoptosis and is
important for eliminating T-cells.
35. 7/16/2022 35

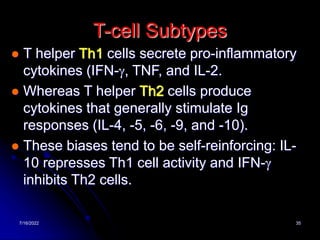

T-cell Subtypes
T helper Th1 cells secrete pro-inflammatory
cytokines (IFN-g, TNF, and IL-2.
Whereas T helper Th2 cells produce
cytokines that generally stimulate Ig
responses (IL-4, -5, -6, -9, and -10).
These biases tend to be self-reinforcing: IL-
10 represses Th1 cell activity and IFN-g
inhibits Th2 cells.
37. 7/16/2022 37

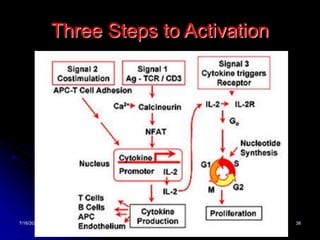

Key steps in T cell activation
APC must process and present peptides
to Ts
Ts must receive co-stimulatory signal
Accessory adhesion molecules stabilize
binding of TCR and MHC
Signal from cell surface is transmitted to
nucleus
Cytokines produced help drive cell
proliferation
39. 7/16/2022 39

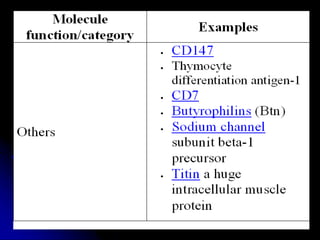

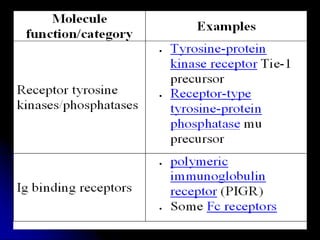

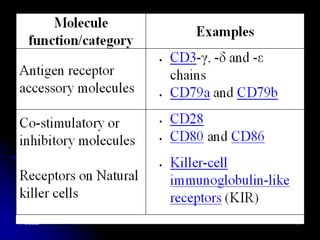

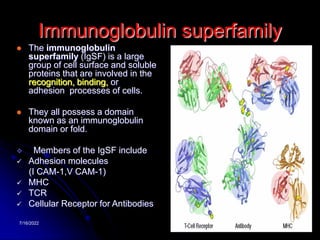

Immunoglobulin superfamily
The immunoglobulin
superfamily (IgSF) is a large
group of cell surface and soluble
proteins that are involved in the
recognition, binding, or
adhesion processes of cells.
They all possess a domain
known as an immunoglobulin
domain or fold.

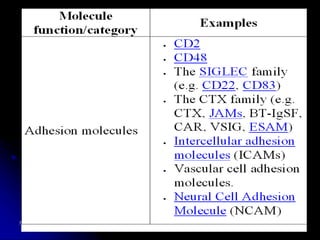

Members of the IgSF include
Adhesion molecules
(I CAM-1,V CAM-1)
MHC
TCR
Cellular Receptor for Antibodies
