The document provides an overview of basic debugging terms and tools like process, thread, registers, exceptions, memory dumps, and AdPlus. It discusses setting up a debugger, understanding assembly code, using important CPU registers and variables, reading memory types, and examining stacks. The document also asks questions to check understanding of debugging concepts.

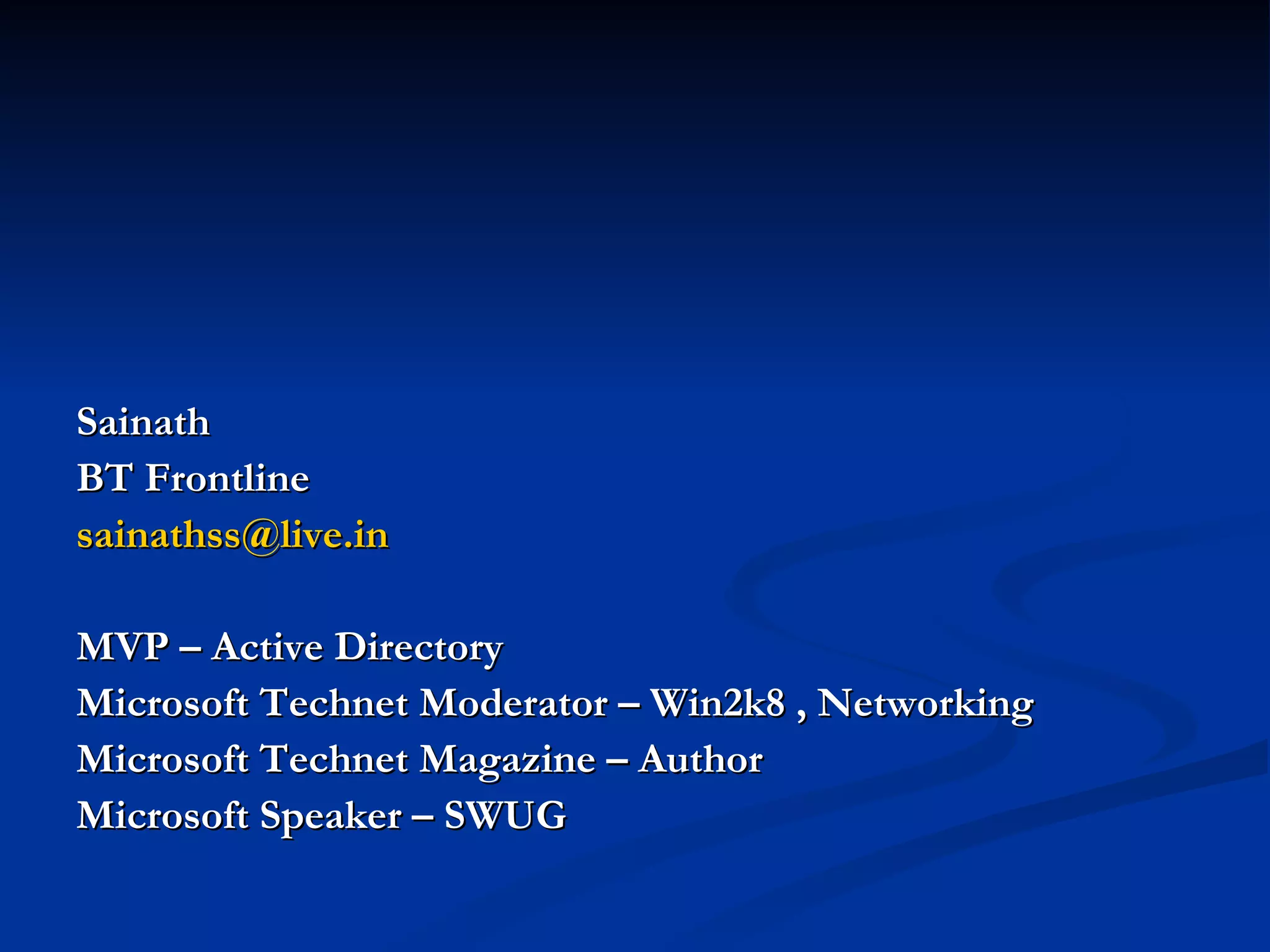

1. Sainath BT Frontline [email_address] MVP – Active Directory Microsoft Technet Moderator – Win2k8 , Networking Microsoft Technet Magazine – Author Microsoft Speaker – SWUG

2. Windows Debugging

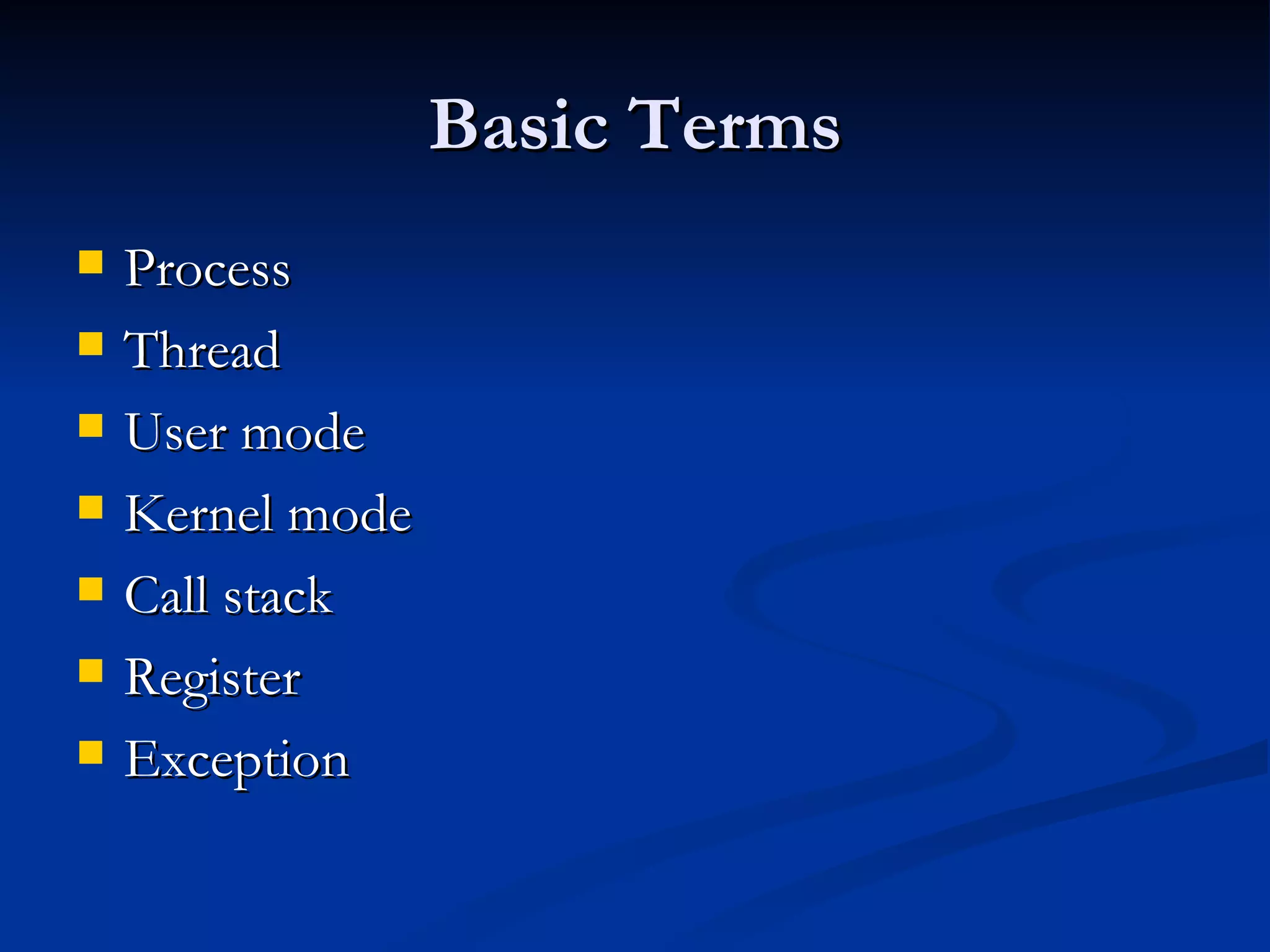

3. Basic Terms Process Thread User mode Kernel mode Call stack Register Exception

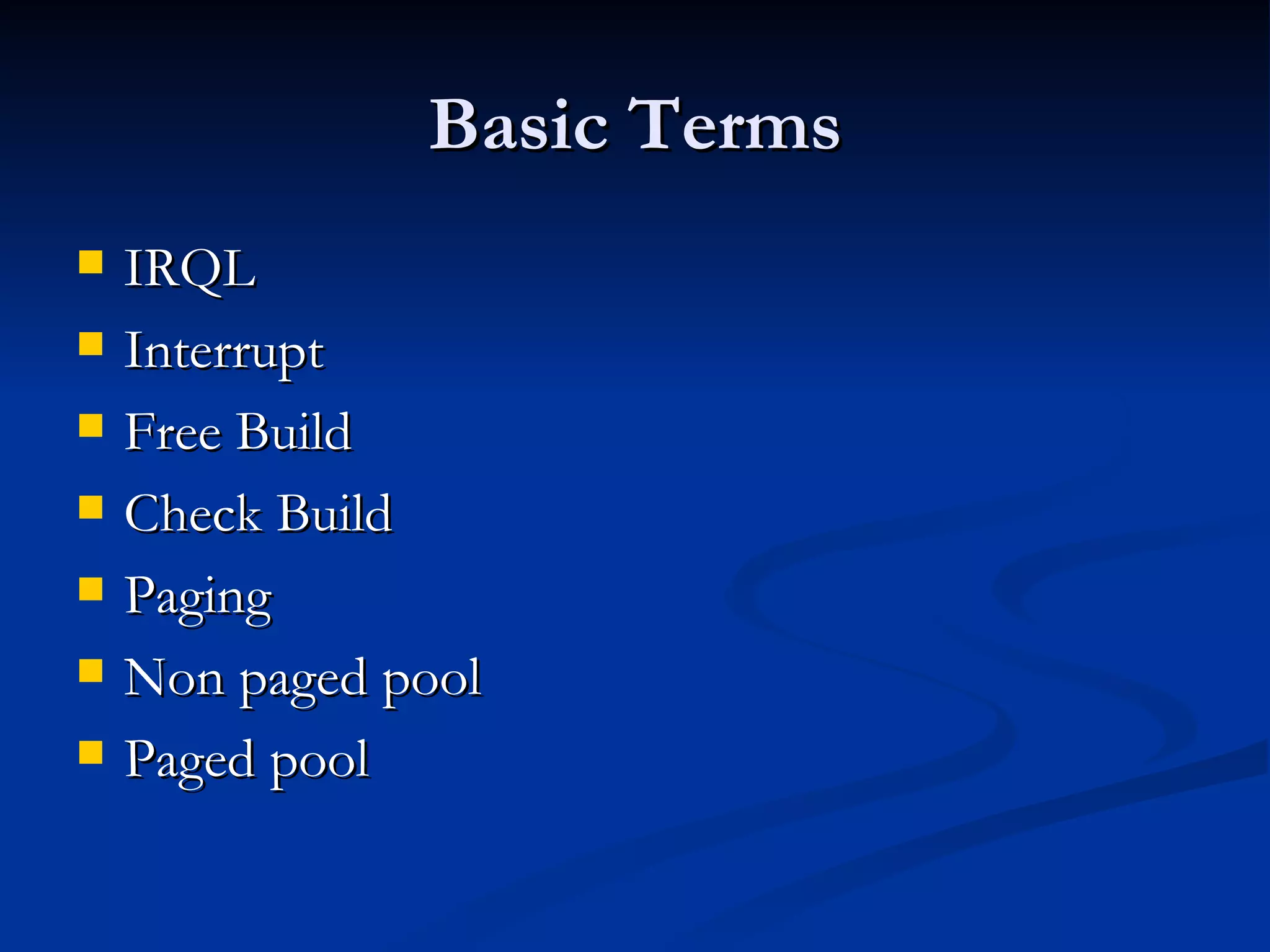

4. Basic Terms IRQL Interrupt Free Build Check Build Paging Non paged pool Paged pool

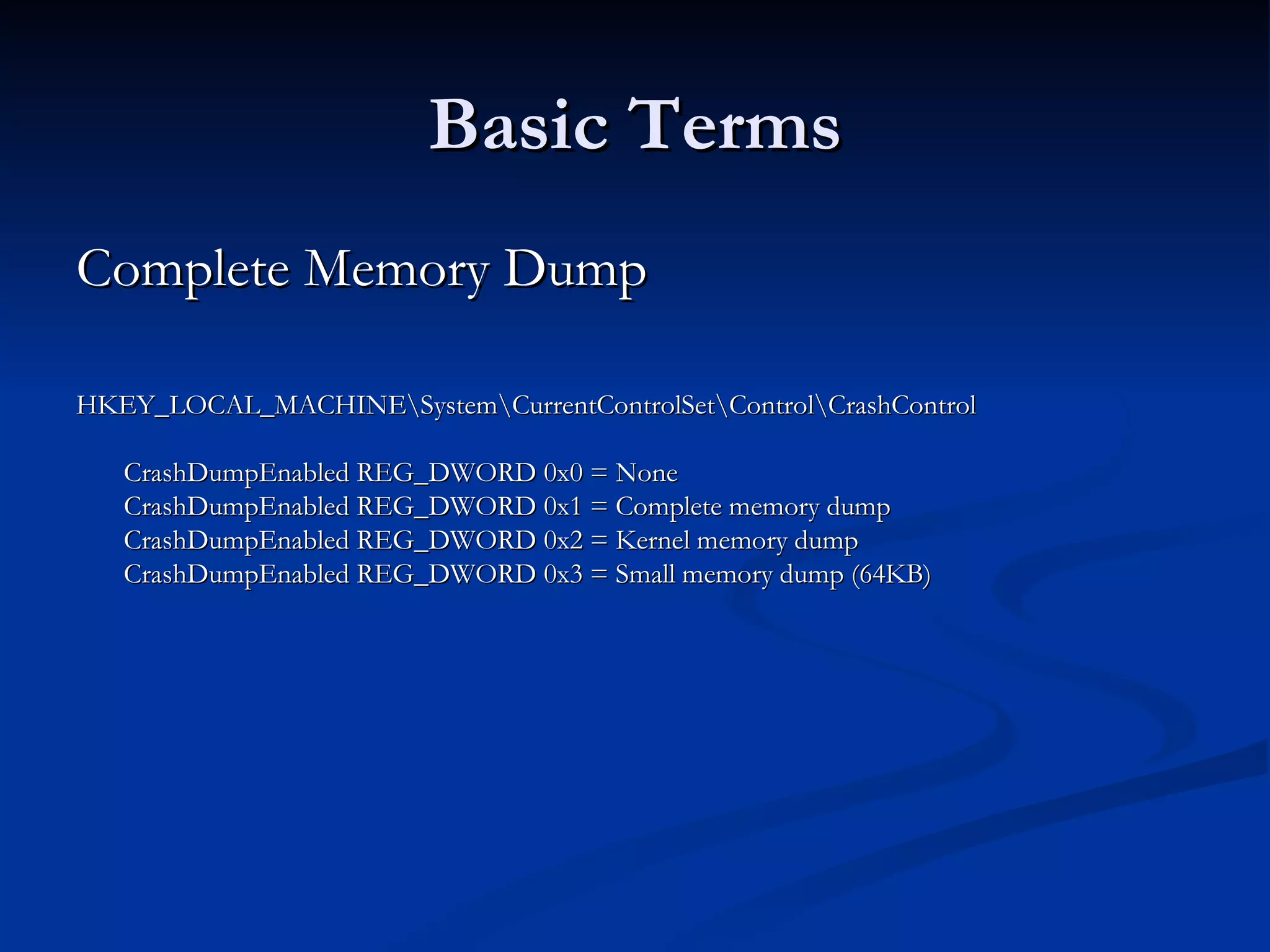

5. Basic Terms Complete Memory Dump HKEY_LOCAL_MACHINE\System\CurrentControlSet\Control\CrashControl CrashDumpEnabled REG_DWORD 0x0 = None CrashDumpEnabled REG_DWORD 0x1 = Complete memory dump CrashDumpEnabled REG_DWORD 0x2 = Kernel memory dump CrashDumpEnabled REG_DWORD 0x3 = Small memory dump (64KB)

6. ASK A QUESTION TO PROCEED 

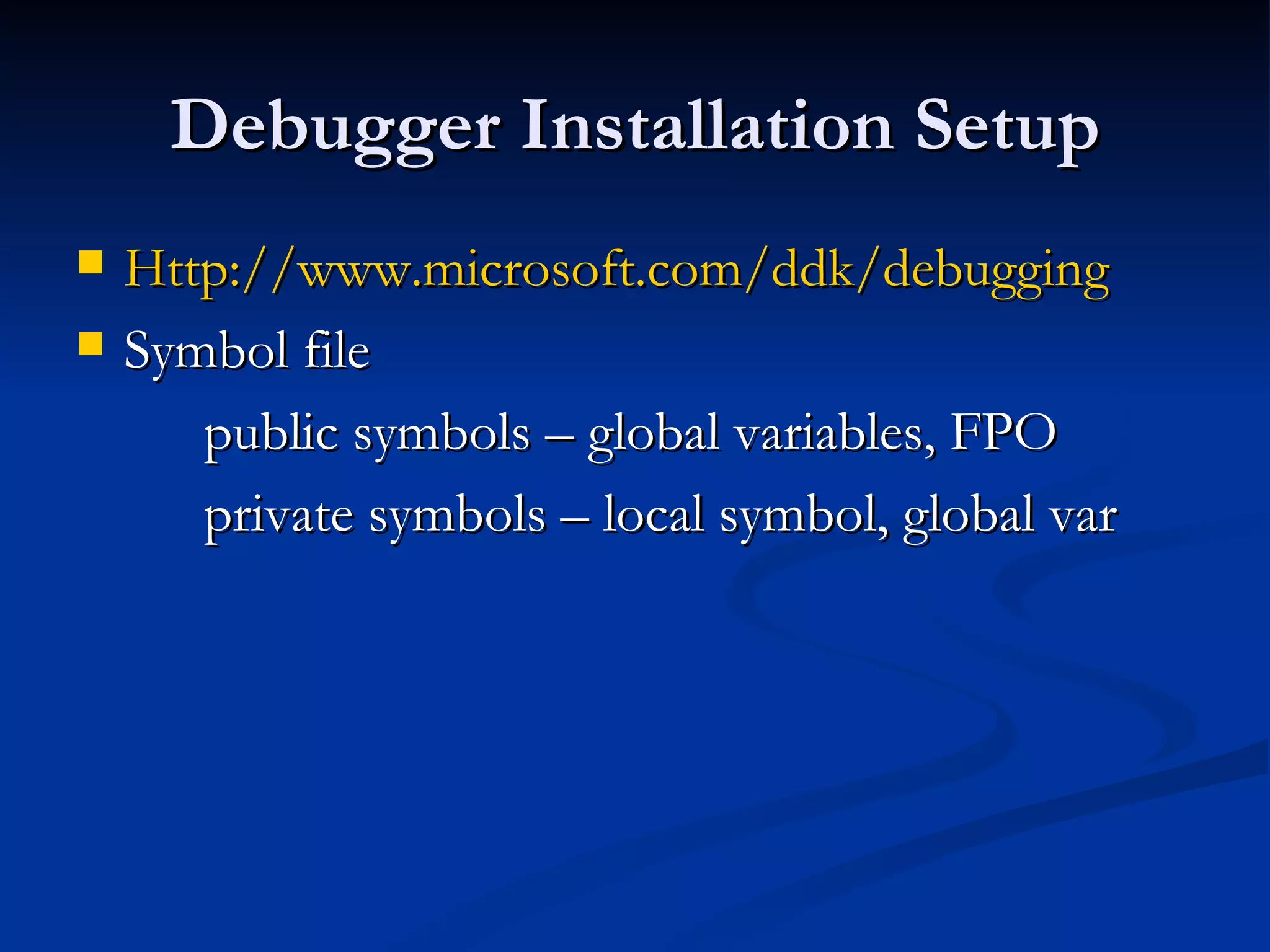

7. Debugger Installation Setup Http://www.microsoft.com/ddk/debugging Symbol file public symbols – global variables, FPO private symbols – local symbol, global var

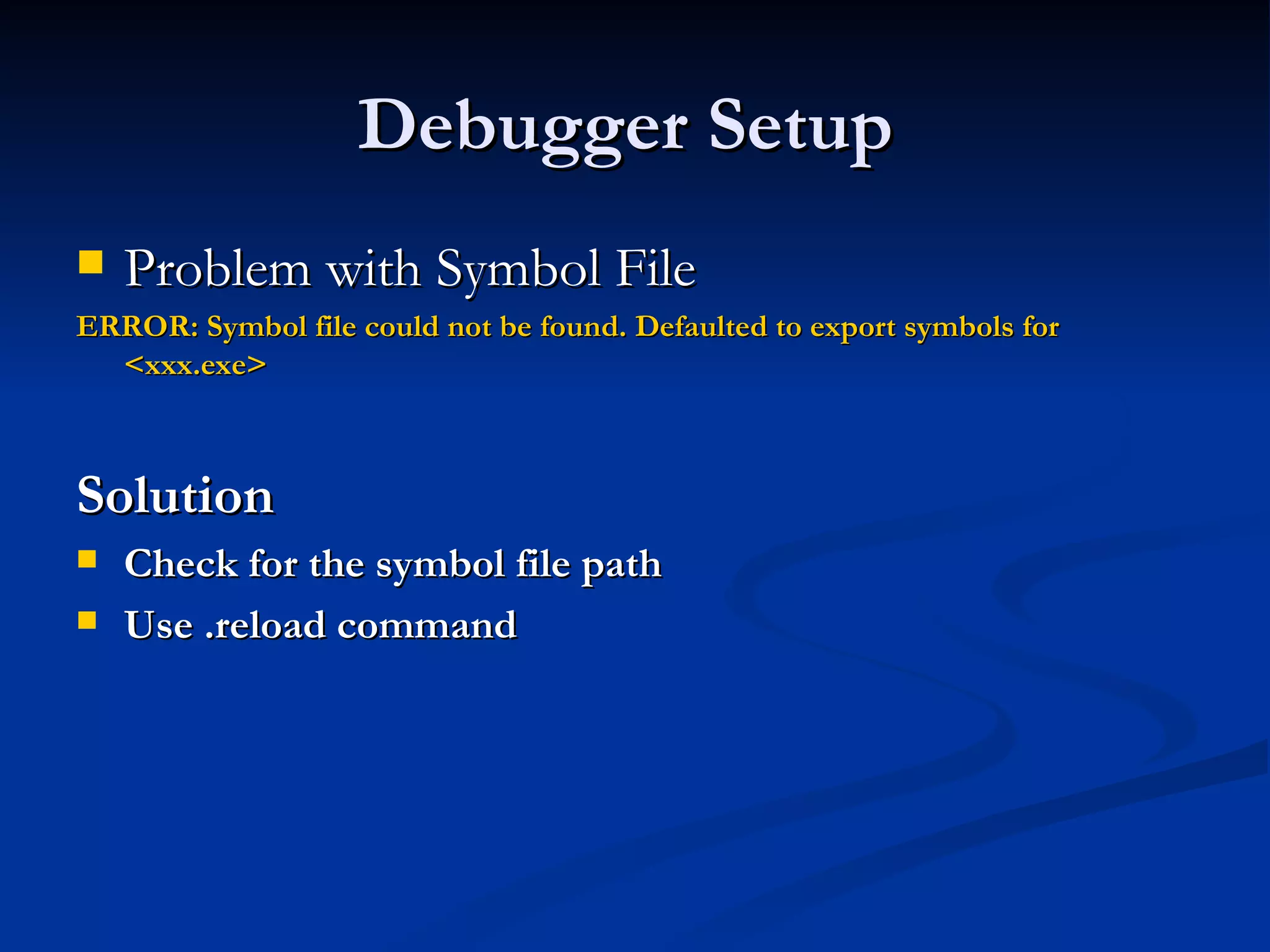

8. Debugger Setup Problem with Symbol File ERROR: Symbol file could not be found. Defaulted to export symbols for <xxx.exe> Solution Check for the symbol file path Use .reload command

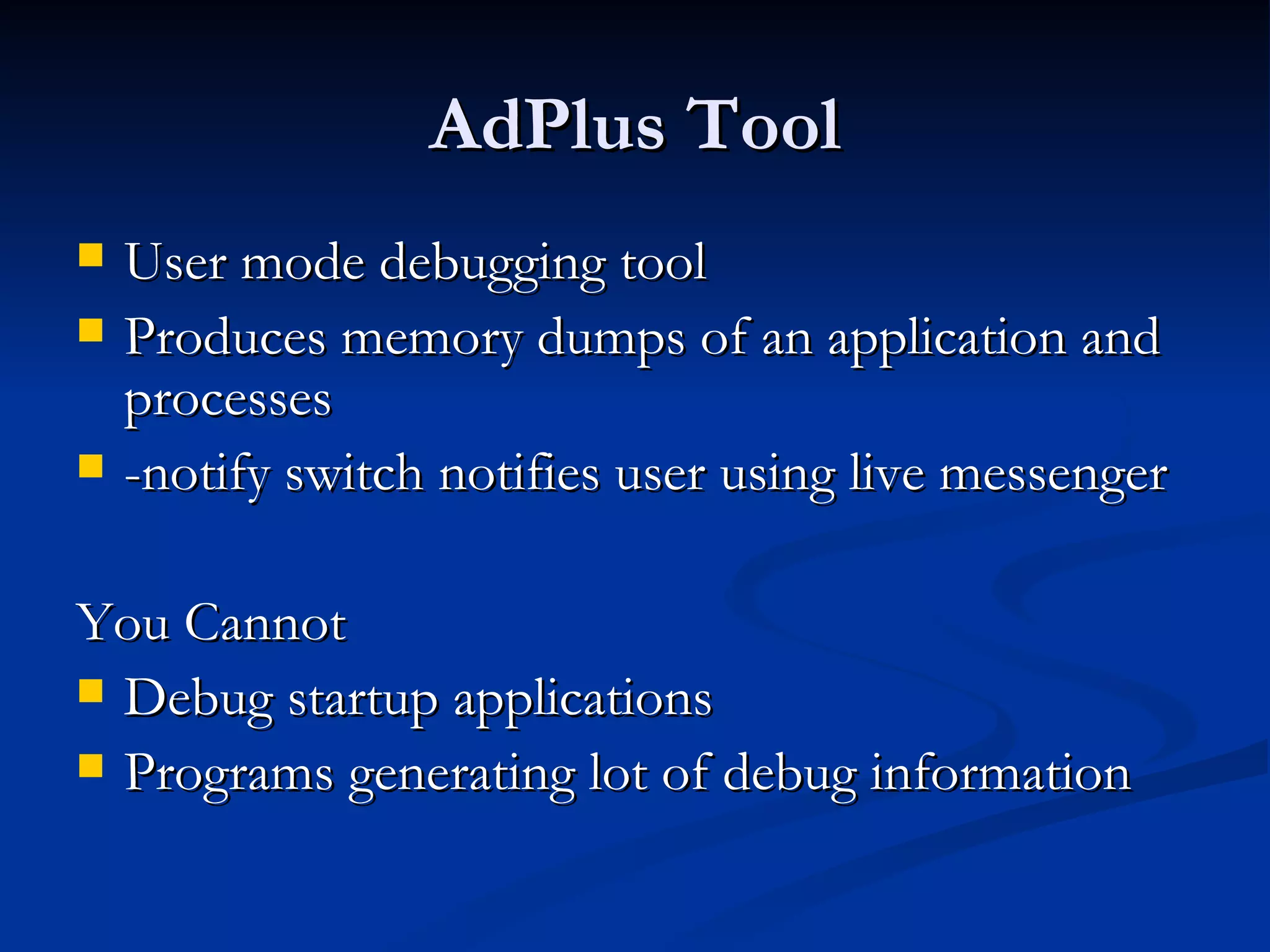

9. AdPlus Tool User mode debugging tool Produces memory dumps of an application and processes -notify switch notifies user using live messenger You Cannot Debug startup applications Programs generating lot of debug information

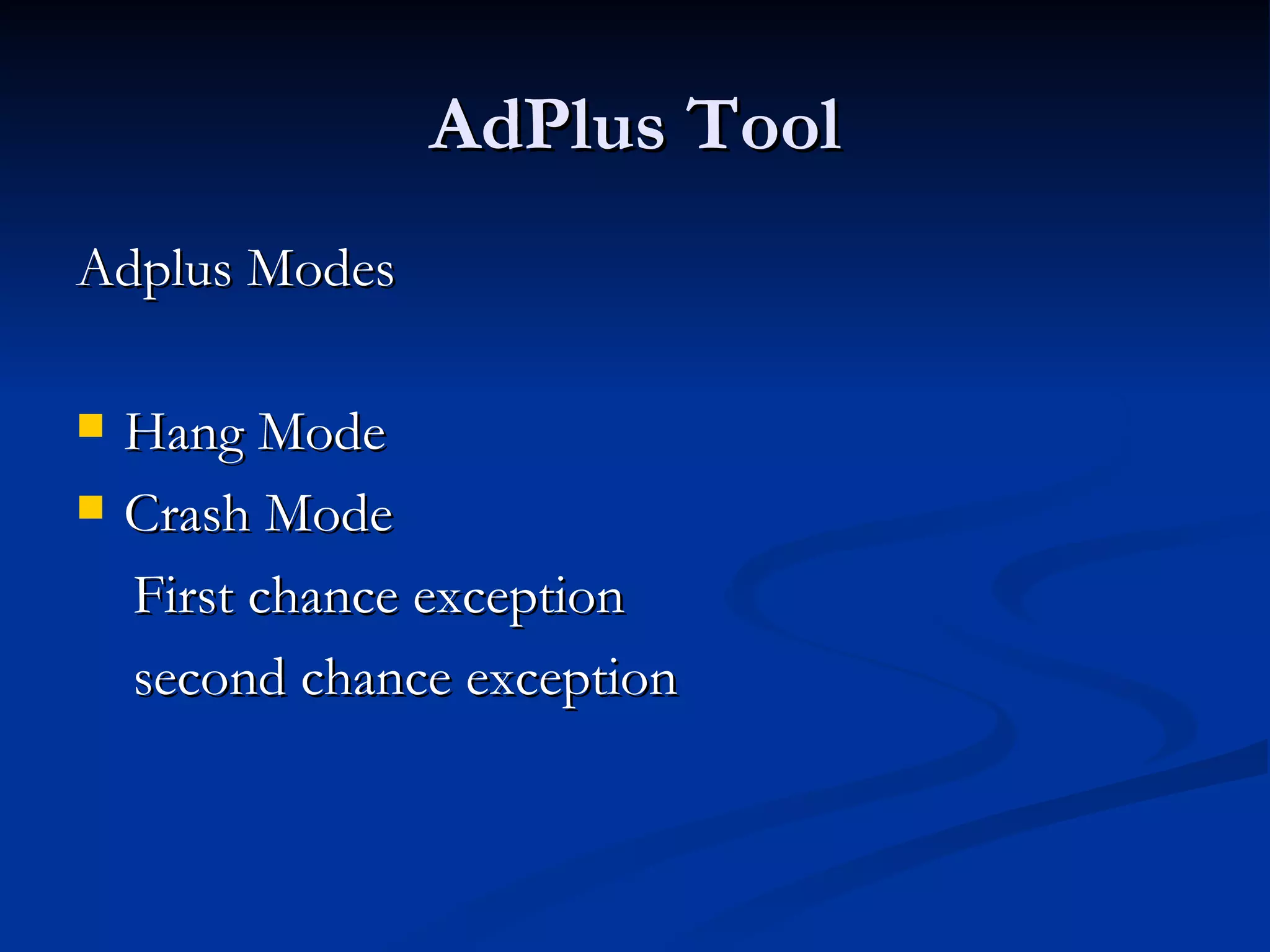

10. AdPlus Tool Adplus Modes Hang Mode Crash Mode First chance exception second chance exception

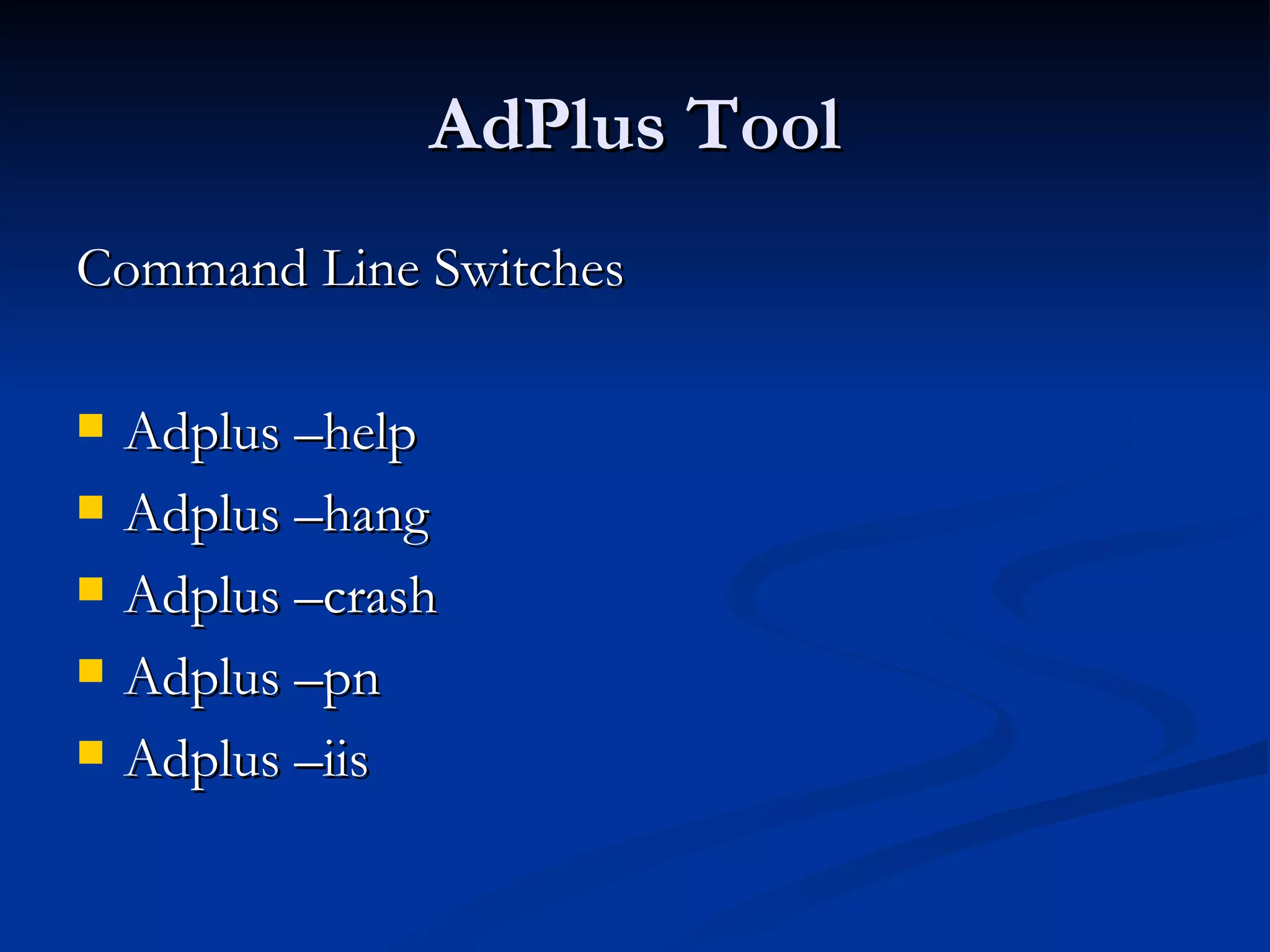

11. AdPlus Tool Command Line Switches Adplus –help Adplus –hang Adplus –crash Adplus –pn Adplus –iis

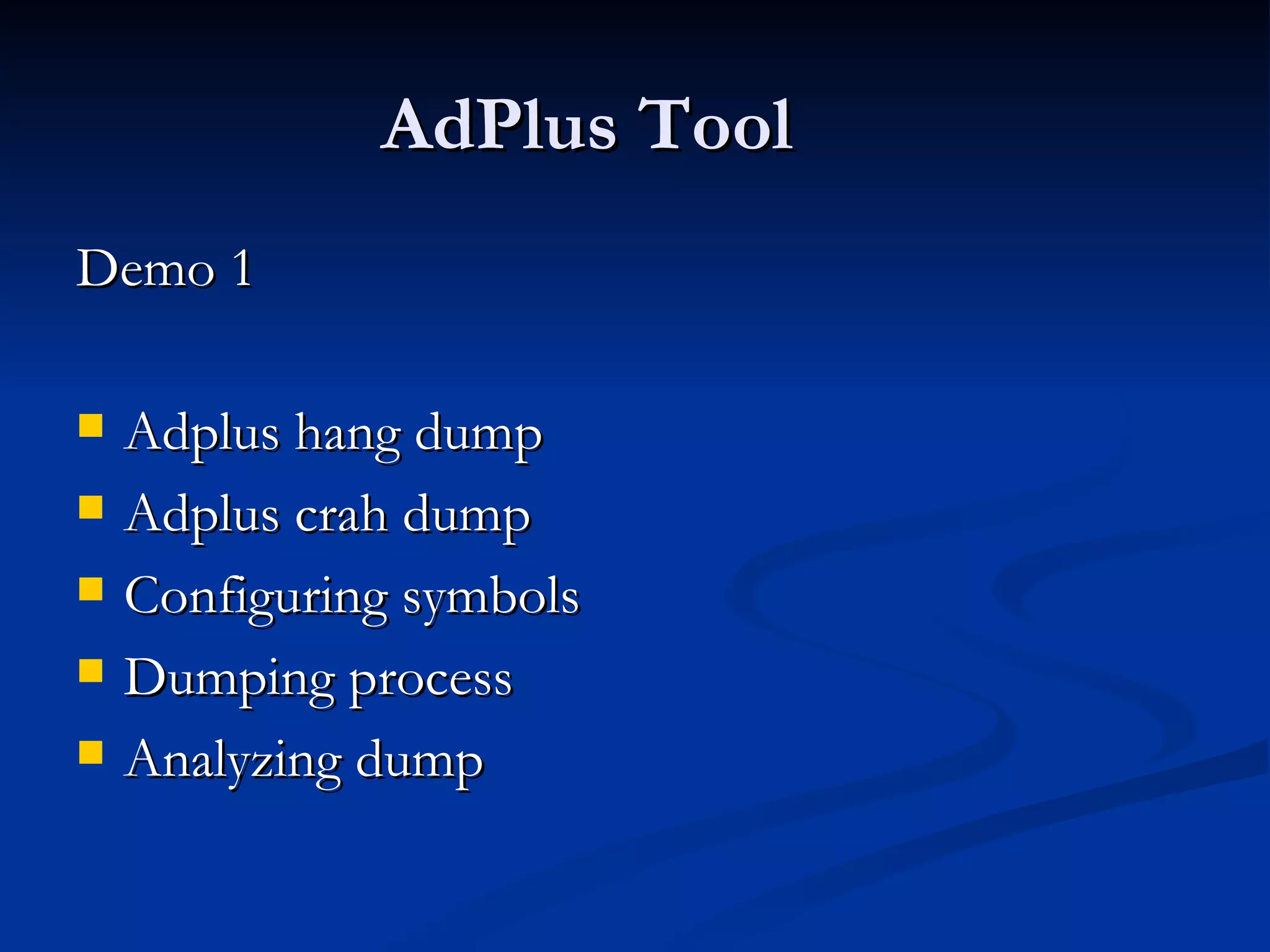

12. AdPlus Tool Demo 1 Adplus hang dump Adplus crah dump Configuring symbols Dumping process Analyzing dump

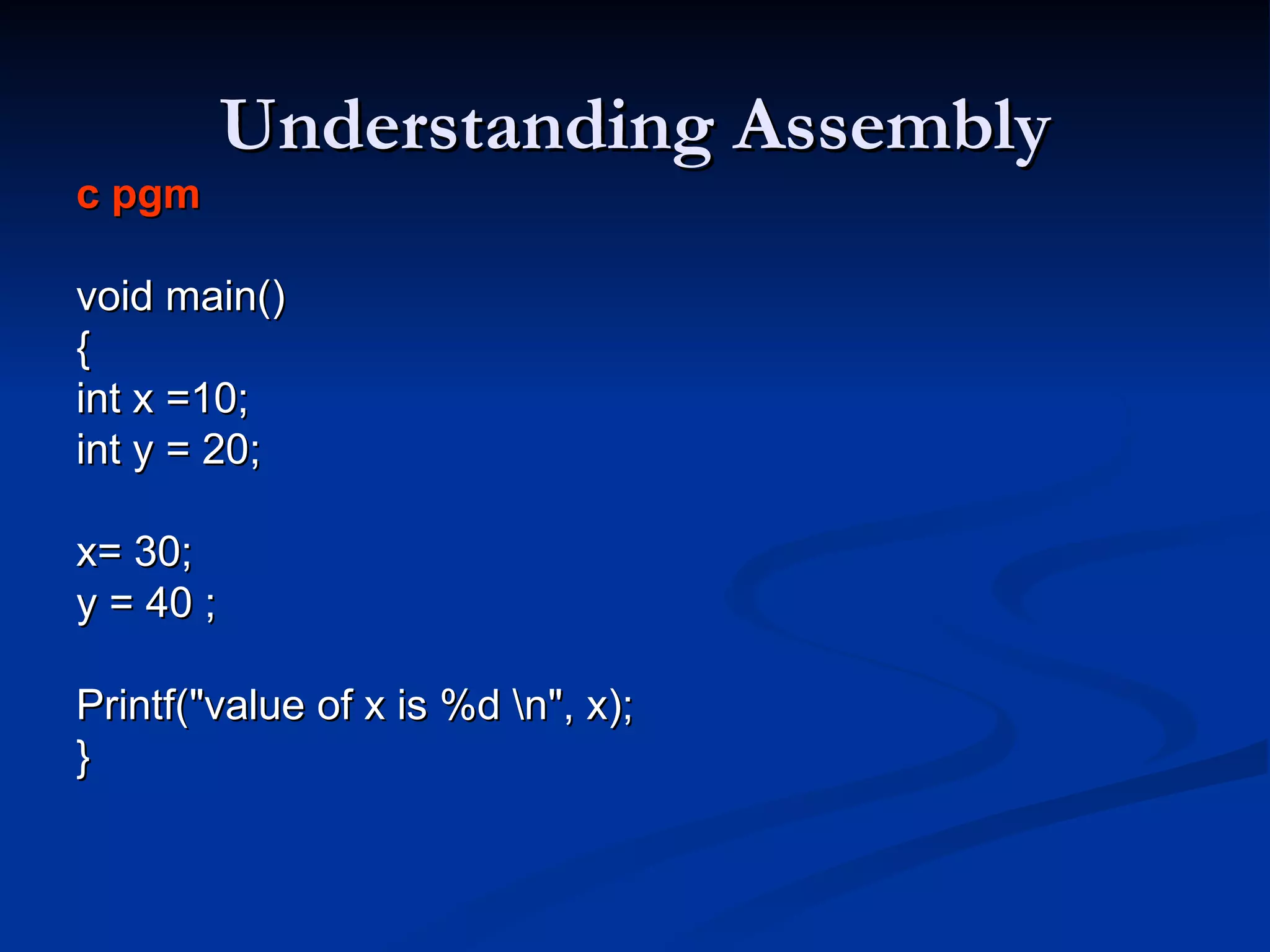

13. Understanding Assembly c pgm void main() { int x =10; int y = 20; x= 30; y = 40 ; Printf(&quot;value of x is %d \n&quot;, x); }

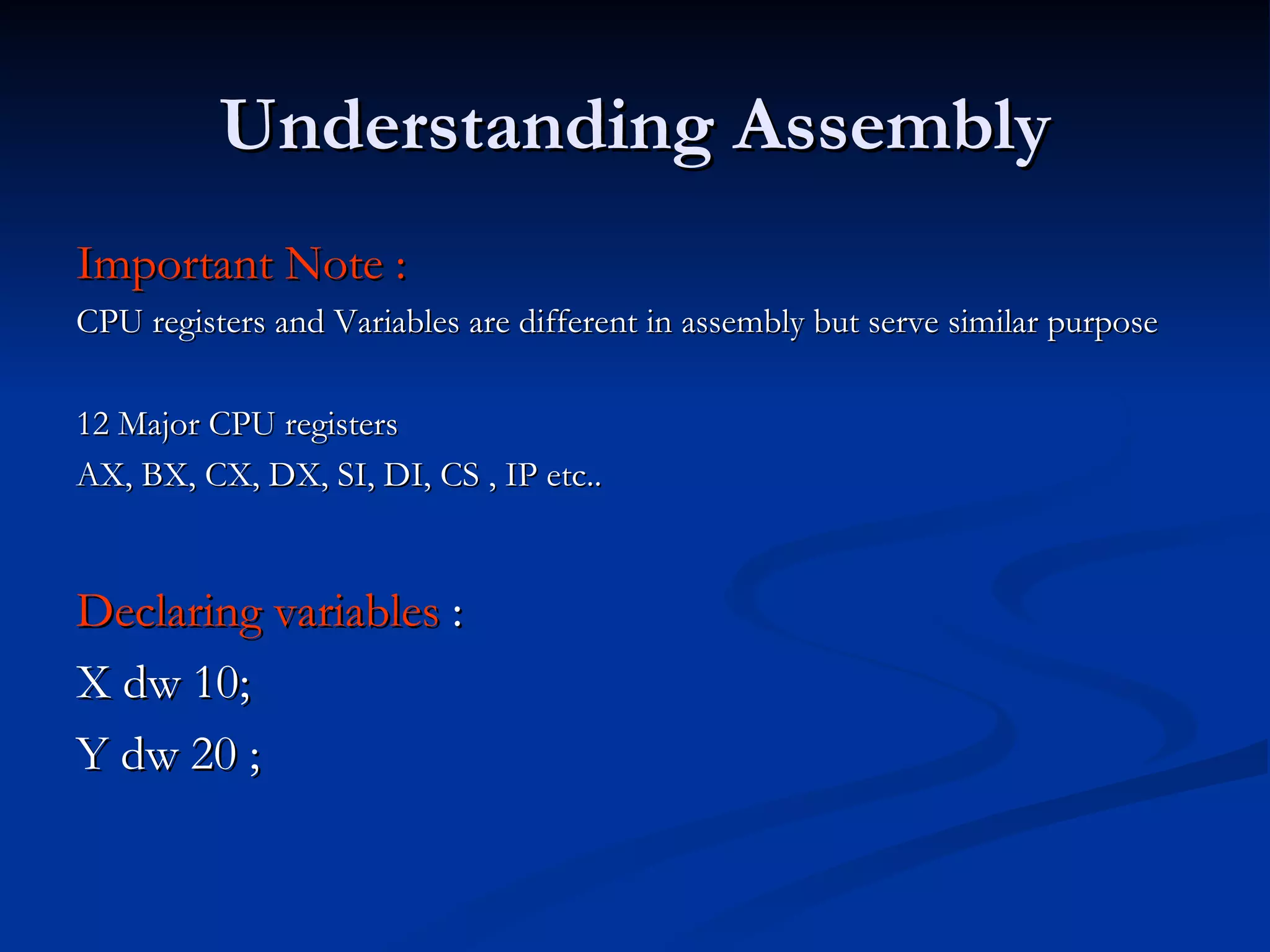

14. Understanding Assembly Important Note : CPU registers and Variables are different in assembly but serve similar purpose 12 Major CPU registers AX, BX, CX, DX, SI, DI, CS , IP etc.. Declaring variables : X dw 10; Y dw 20 ;

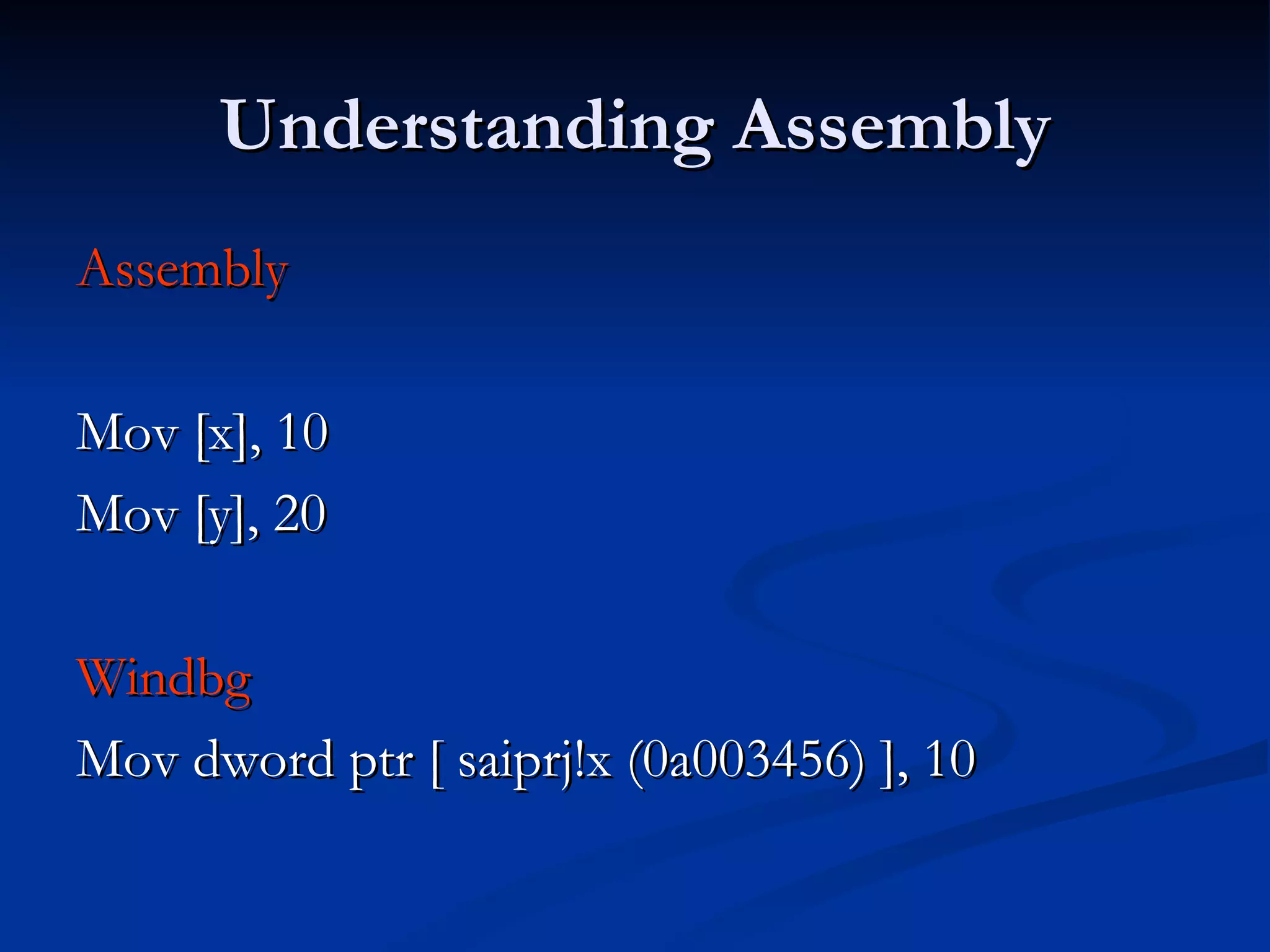

15. Understanding Assembly Assembly Mov [x], 10 Mov [y], 20 Windbg Mov dword ptr [ saiprj!x (0a003456) ], 10

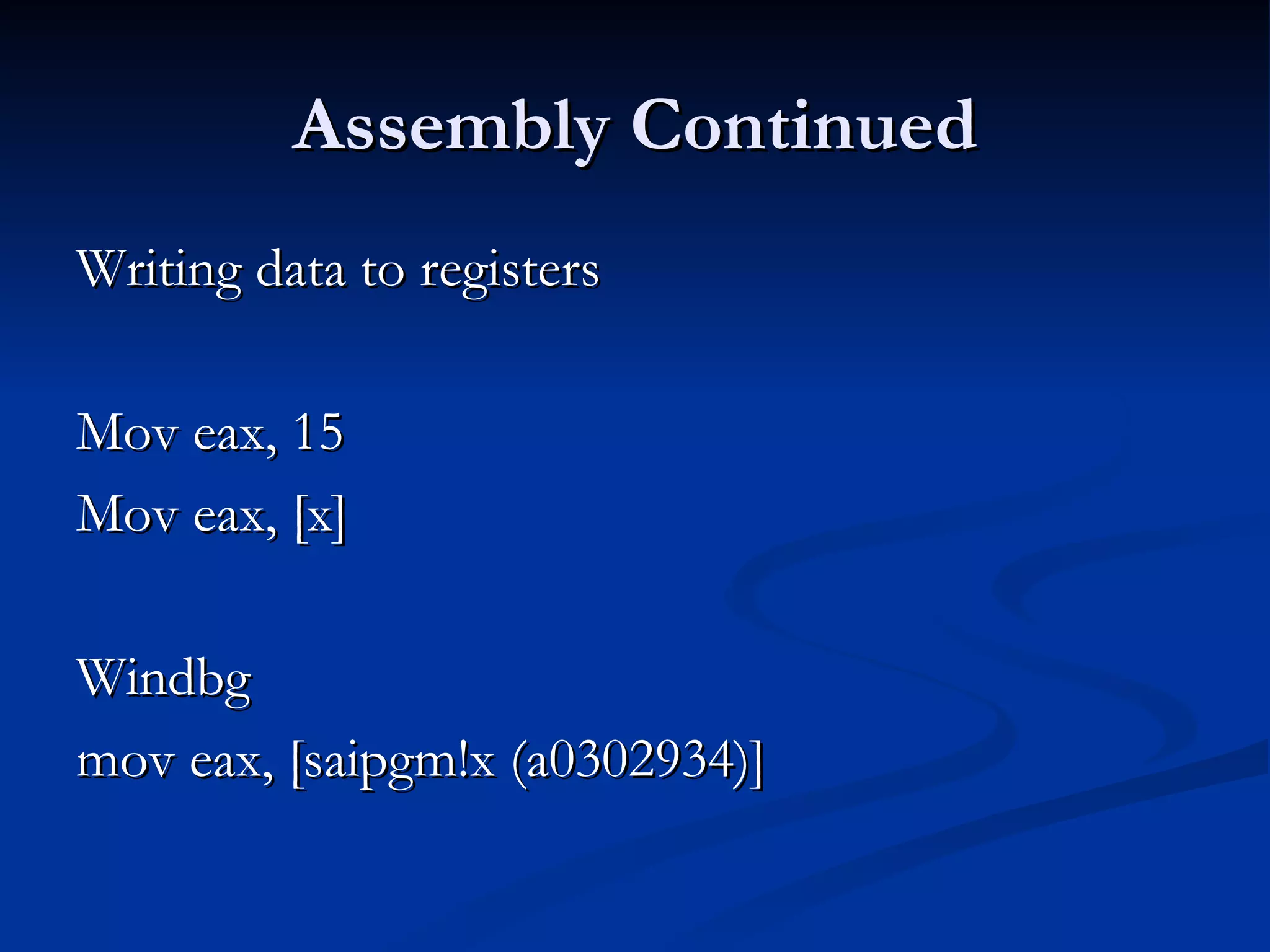

16. Assembly Continued Writing data to registers Mov eax, 15 Mov eax, [x] Windbg mov eax, [saipgm!x (a0302934)]

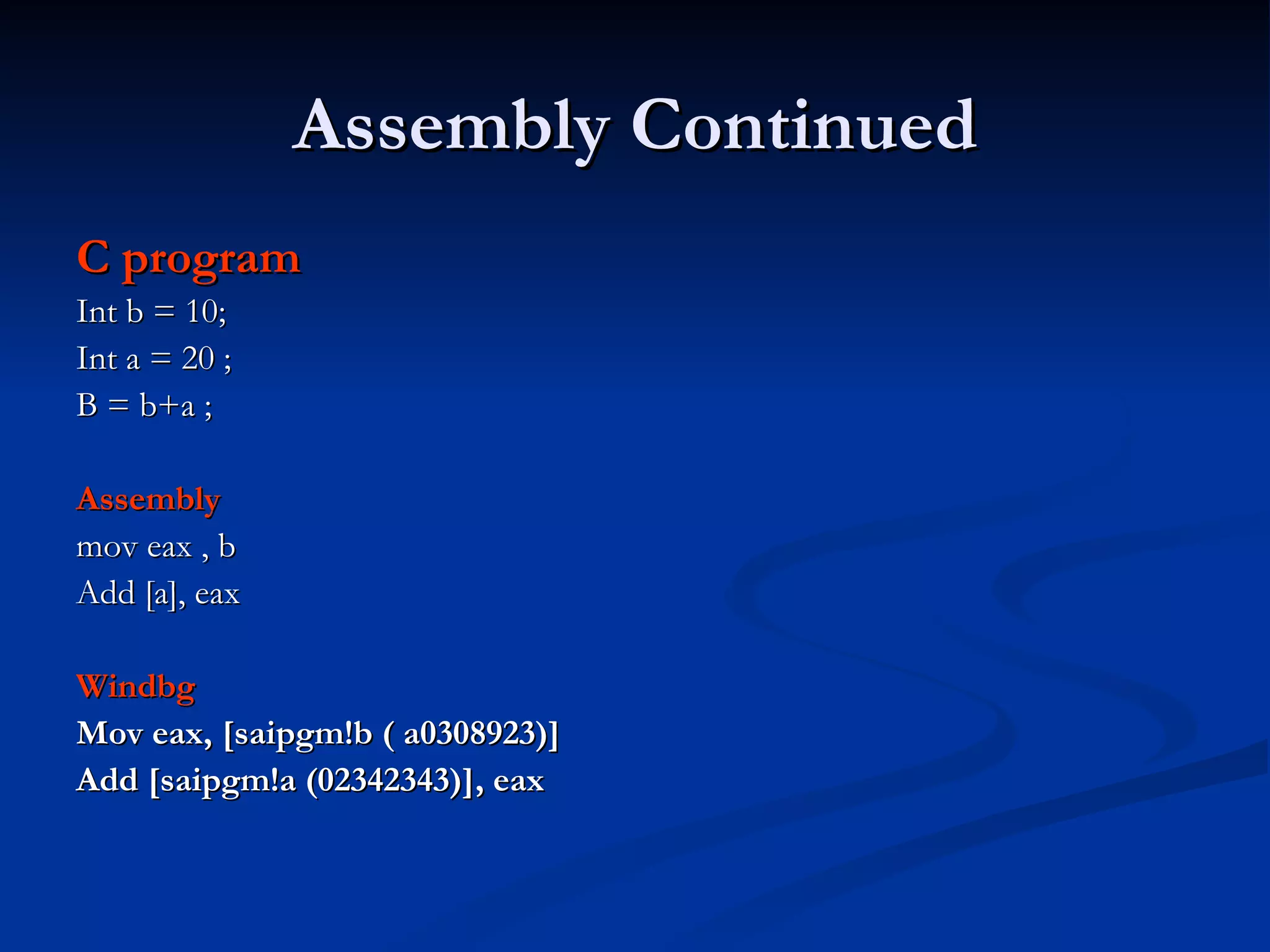

17. Assembly Continued C program Int b = 10; Int a = 20 ; B = b+a ; Assembly mov eax , b Add [a], eax Windbg Mov eax, [saipgm!b ( a0308923)] Add [saipgm!a (02342343)], eax

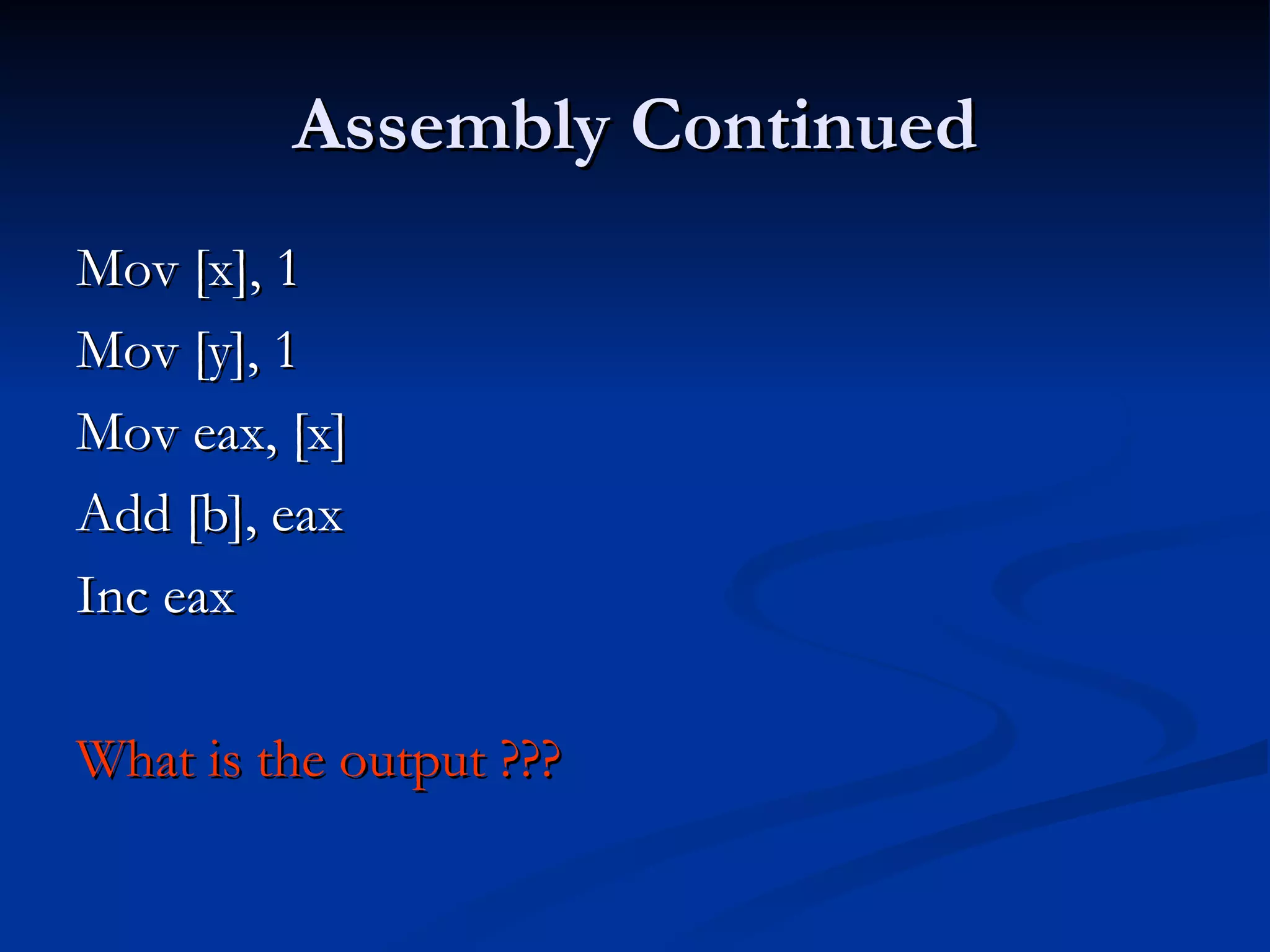

18. Assembly Continued Mov [x], 1 Mov [y], 1 Mov eax, [x] Add [b], eax Inc eax What is the output ???

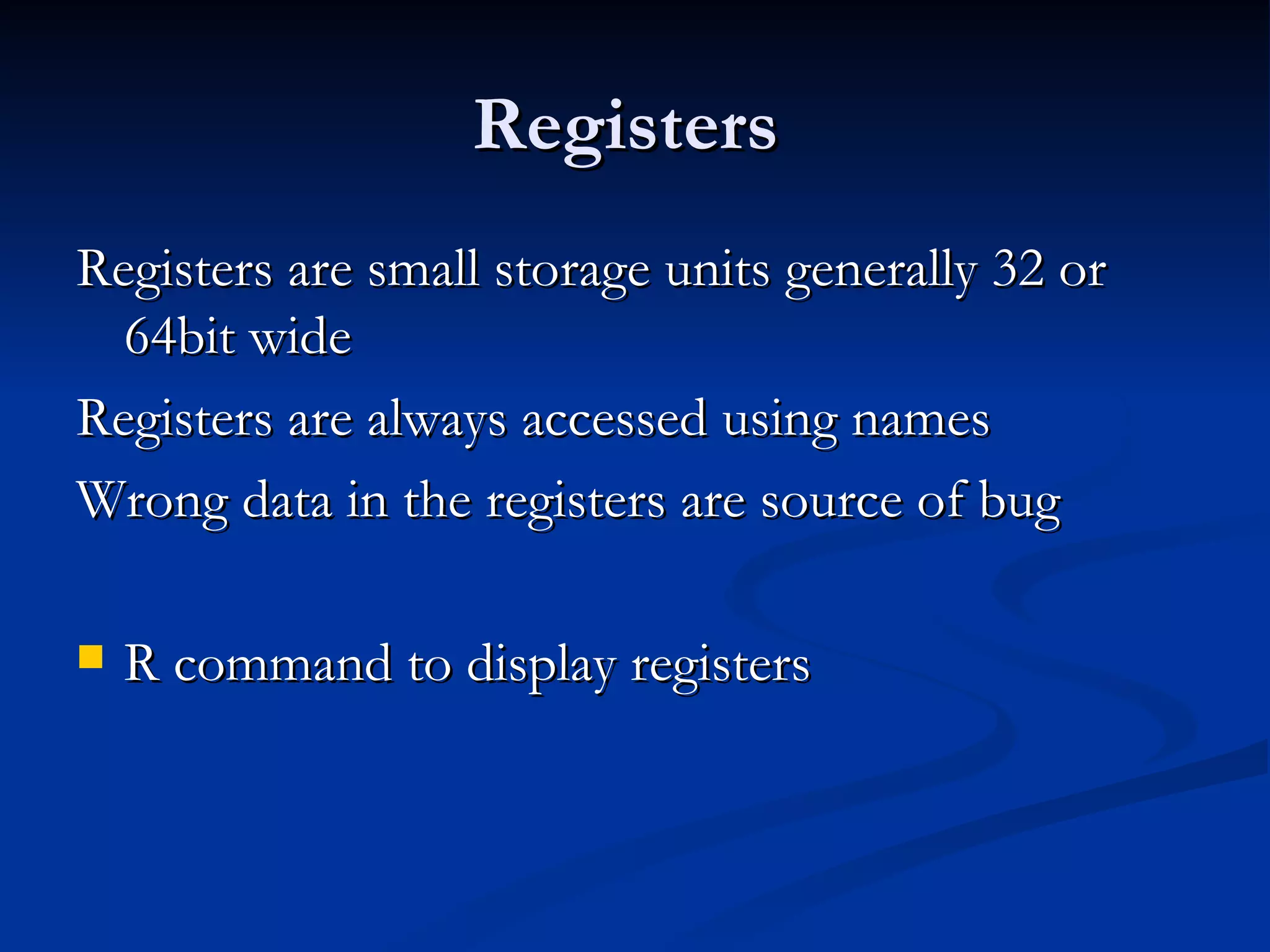

19. Registers Registers are small storage units generally 32 or 64bit wide Registers are always accessed using names Wrong data in the registers are source of bug R command to display registers

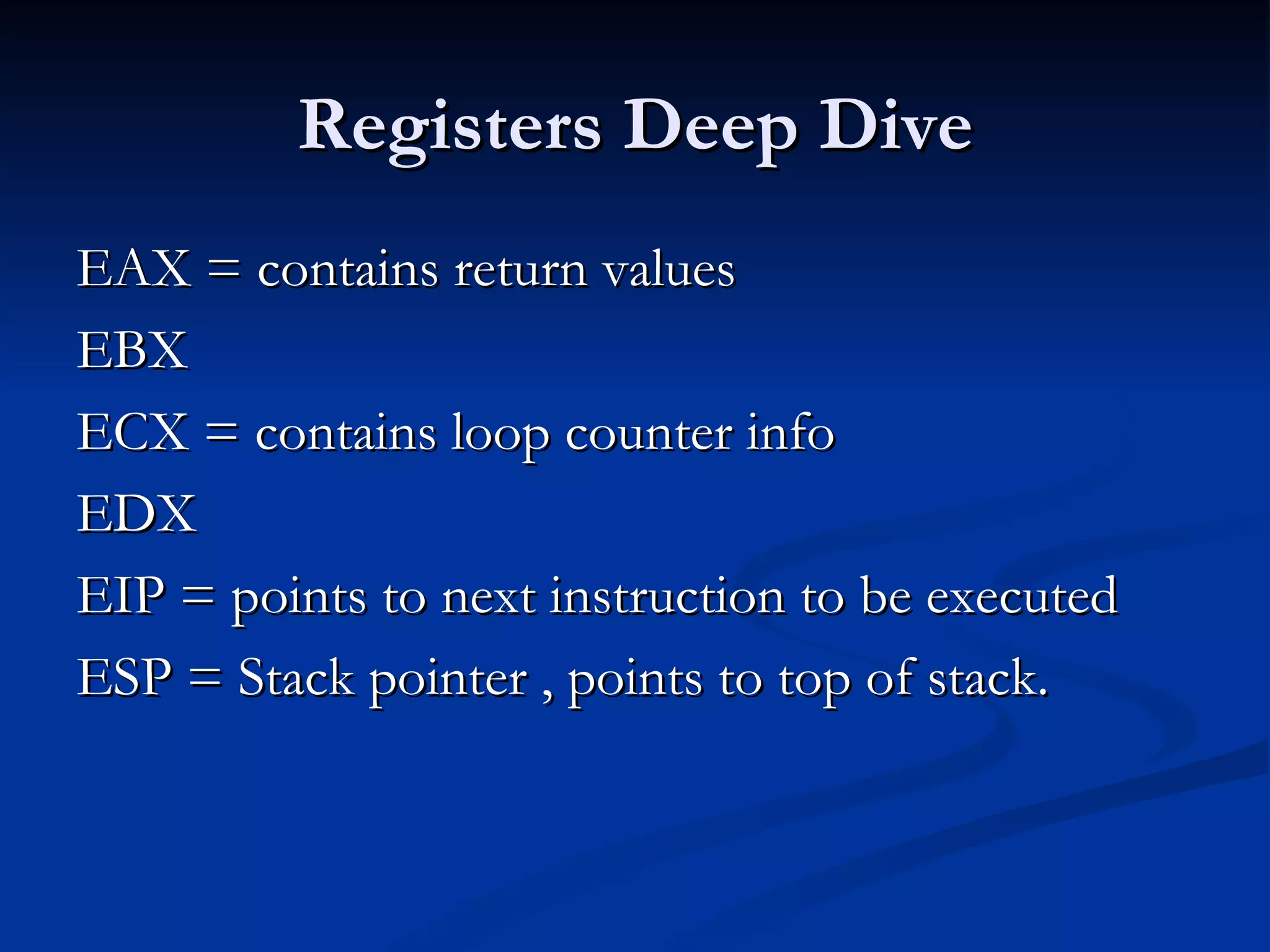

20. Registers Deep Dive EAX = contains return values EBX ECX = contains loop counter info EDX EIP = points to next instruction to be executed ESP = Stack pointer , points to top of stack.

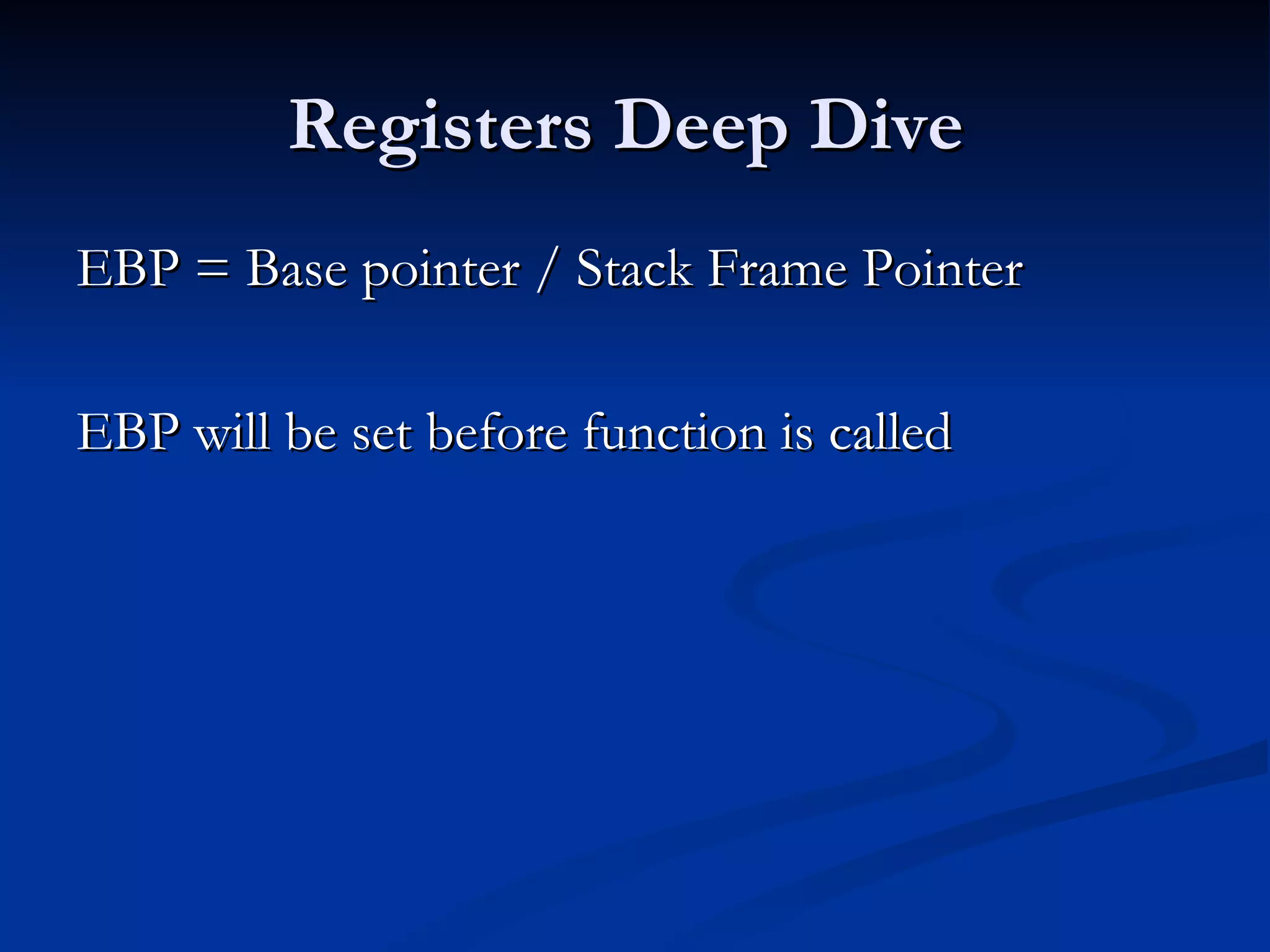

21. Registers Deep Dive EBP = Base pointer / Stack Frame Pointer EBP will be set before function is called

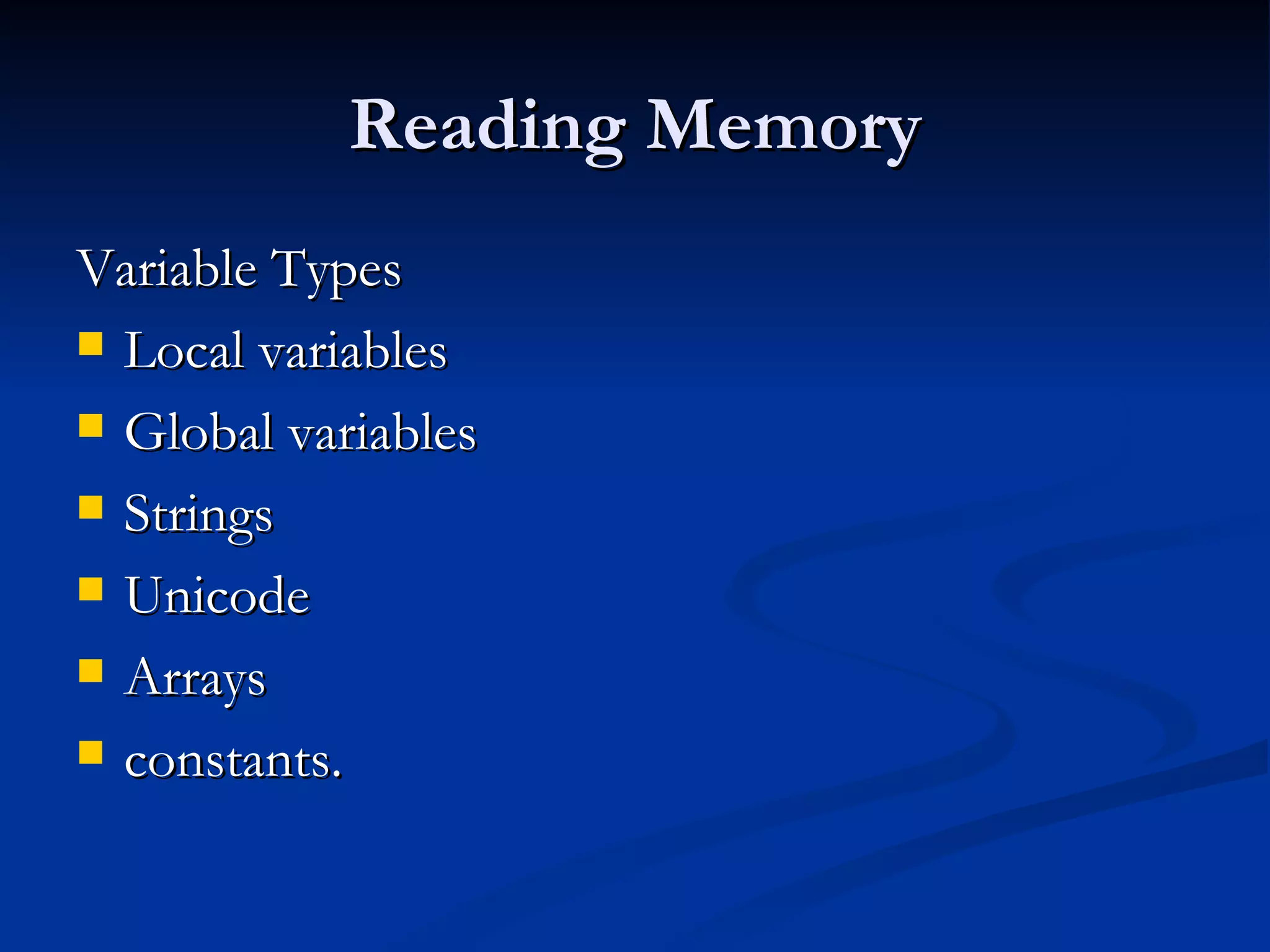

22. Reading Memory Variable Types Local variables Global variables Strings Unicode Arrays constants.

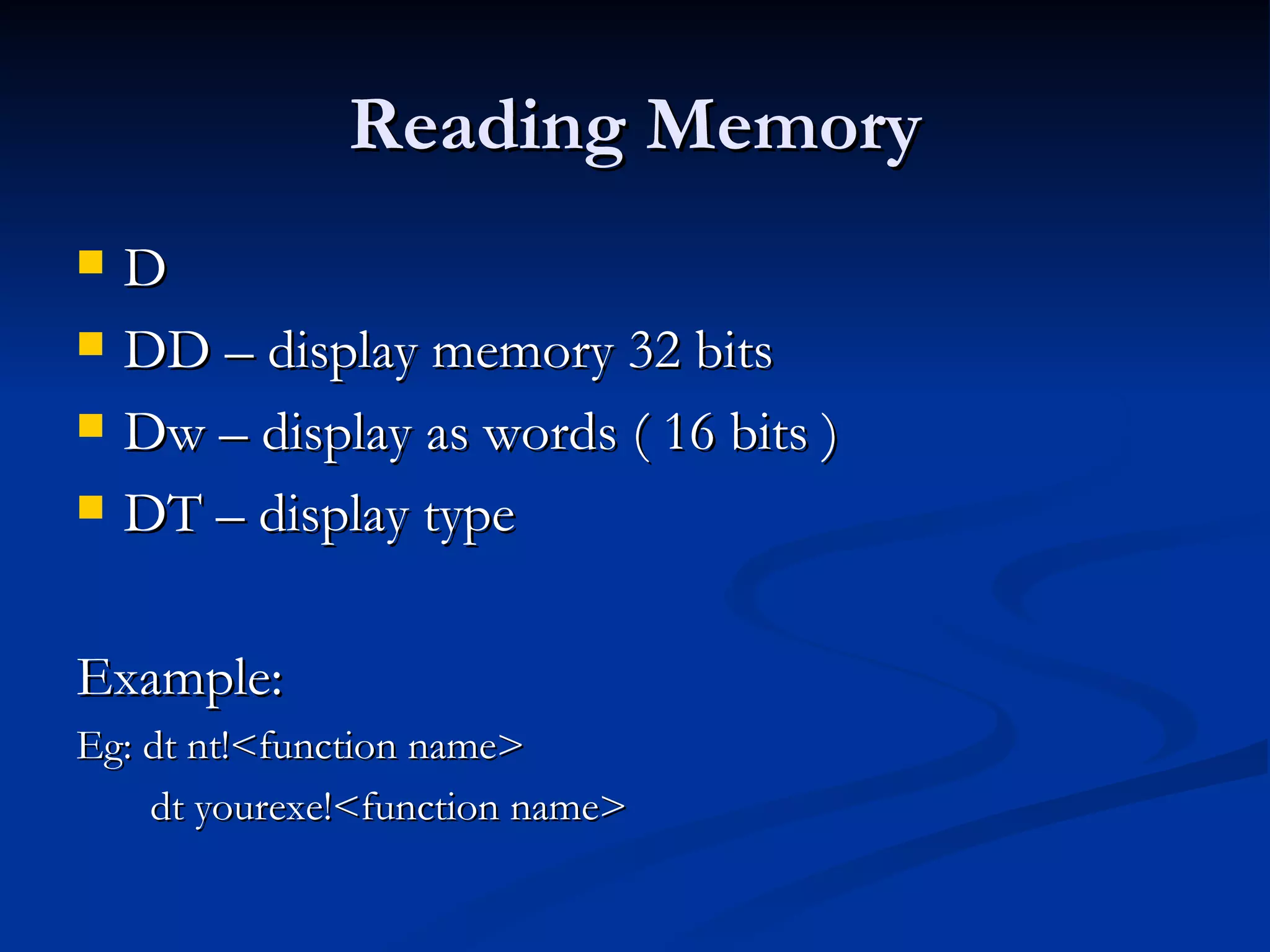

23. Reading Memory D DD – display memory 32 bits Dw – display as words ( 16 bits ) DT – display type Example: Eg: dt nt!<function name> dt yourexe!<function name>

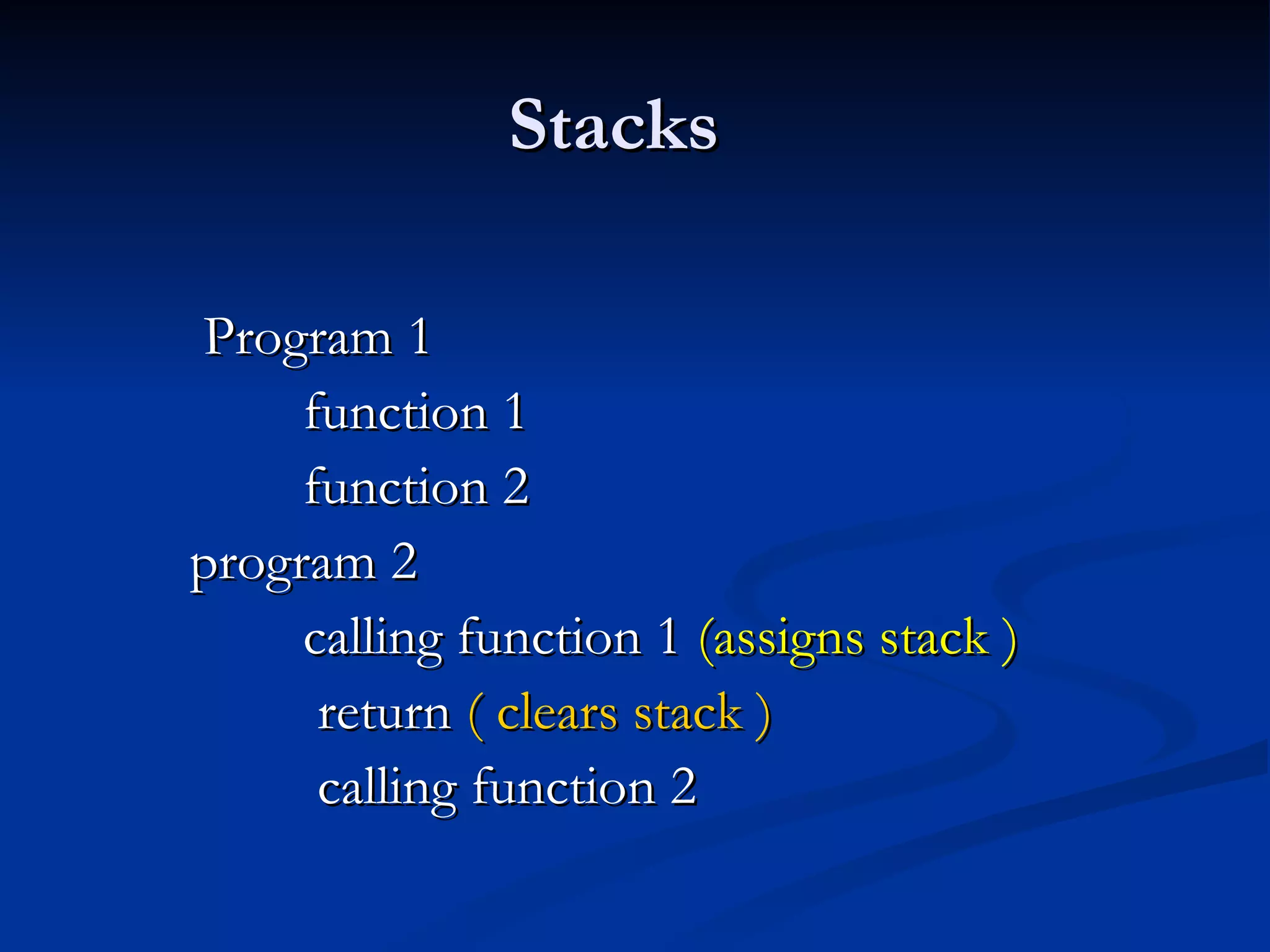

24. Stacks Program 1 function 1 function 2 program 2 calling function 1 (assigns stack ) return ( clears stack ) calling function 2

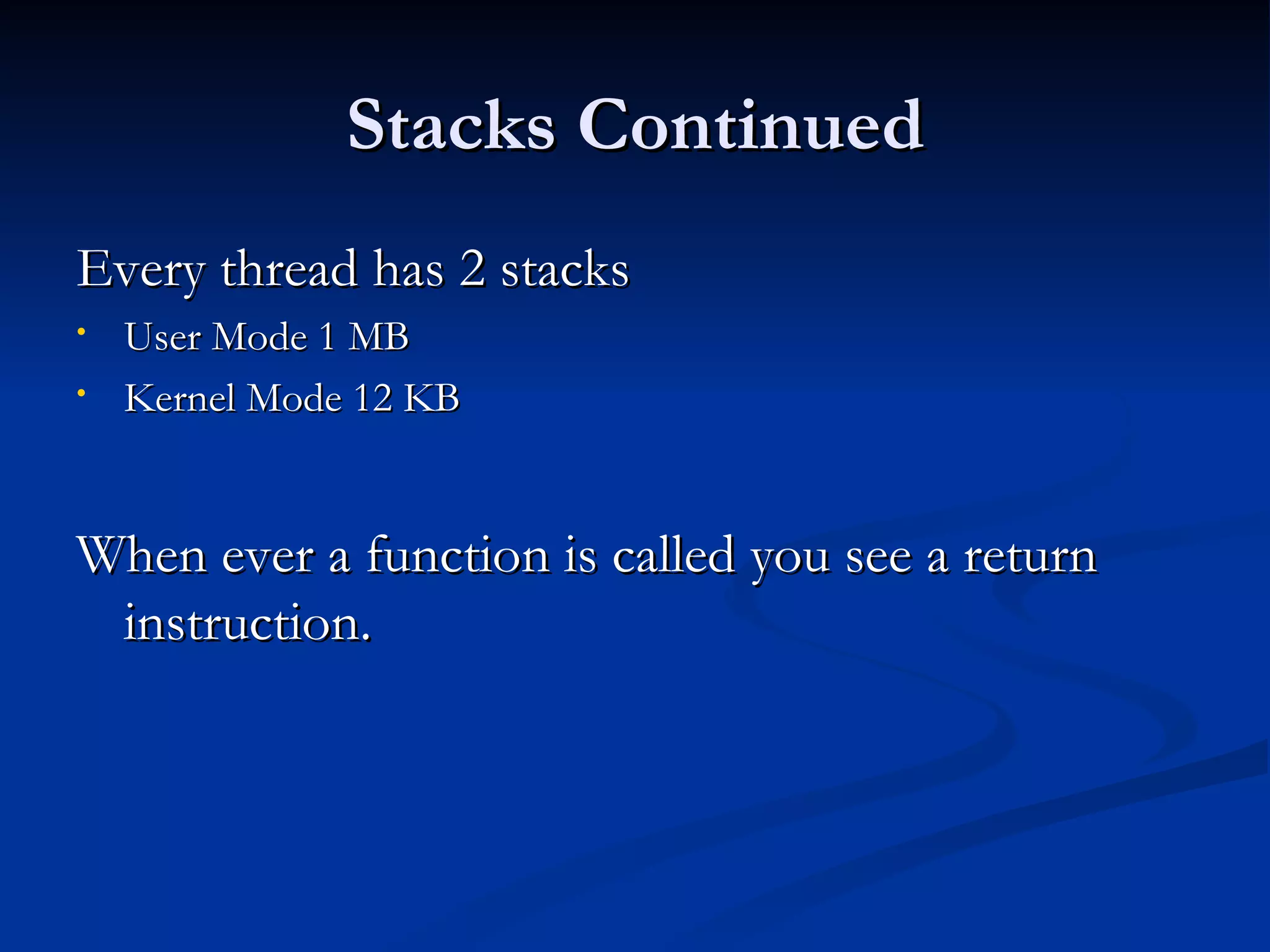

25. Stacks Continued Every thread has 2 stacks User Mode 1 MB Kernel Mode 12 KB When ever a function is called you see a return instruction.

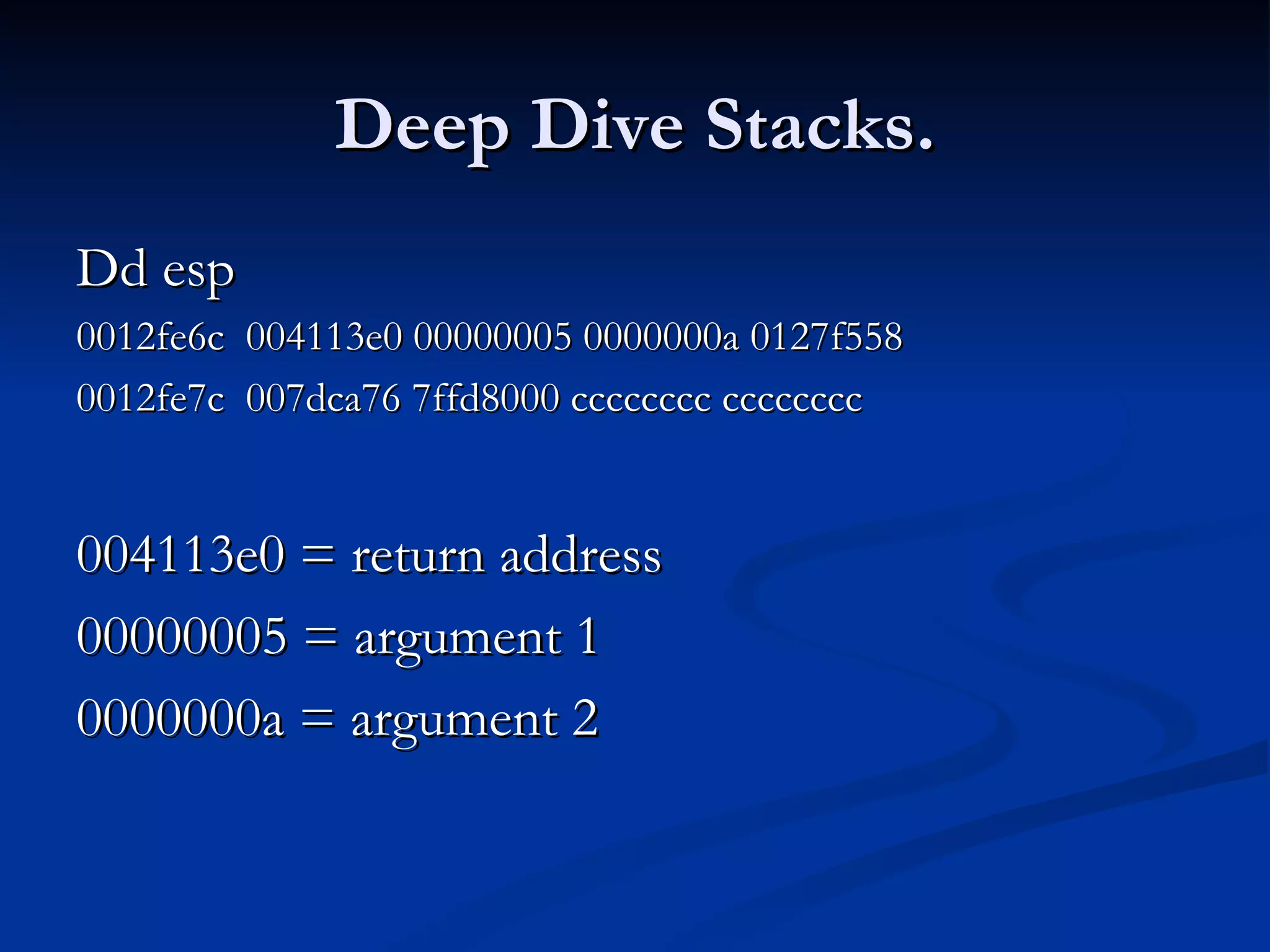

26. Deep Dive Stacks. Dd esp 0012fe6c 004113e0 00000005 0000000a 0127f558 0012fe7c 007dca76 7ffd8000 cccccccc cccccccc 004113e0 = return address 00000005 = argument 1 0000000a = argument 2

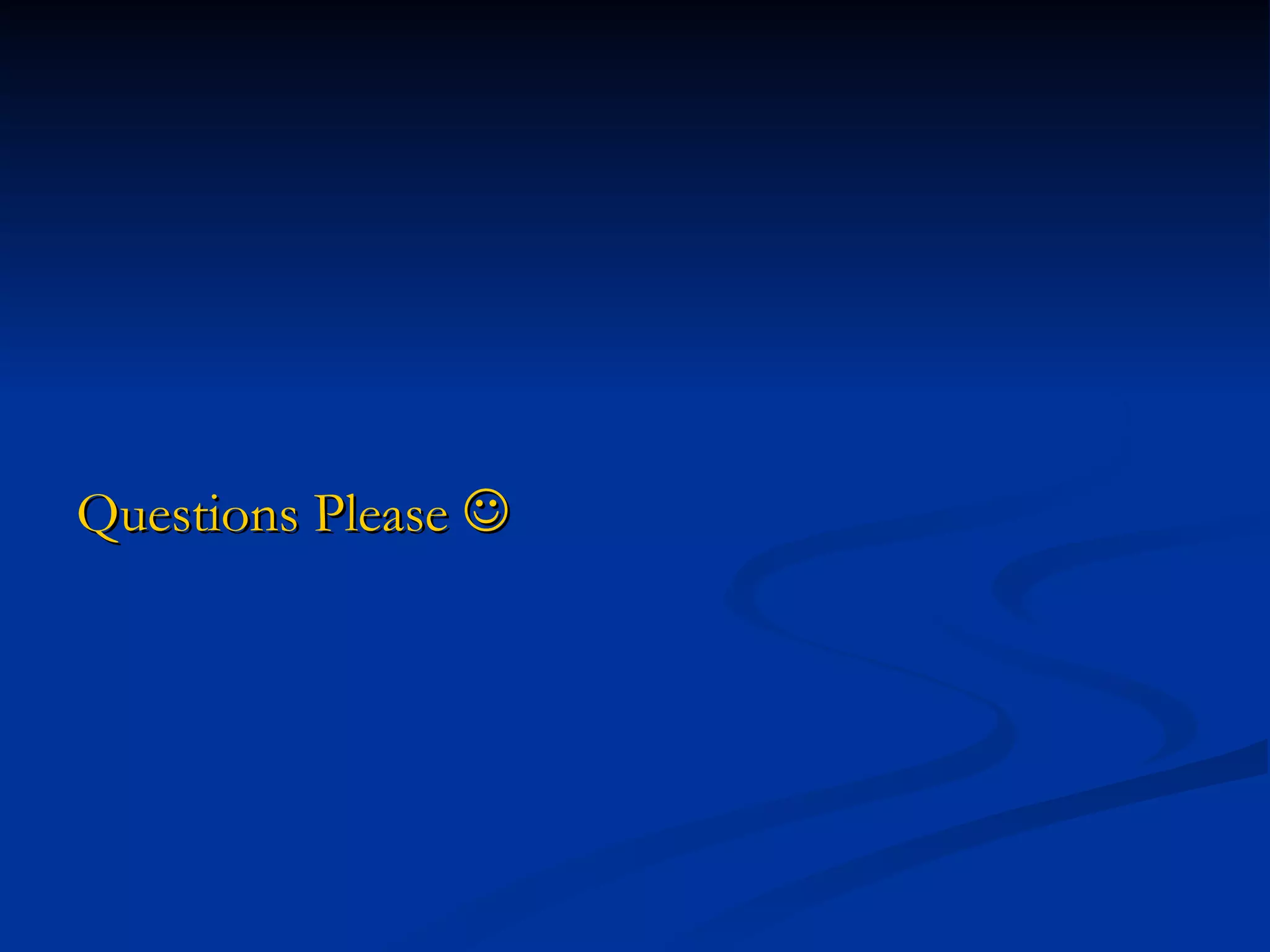

27. Questions Please 
