3. SUSPENSION BRIDGE
1/21/2015 3

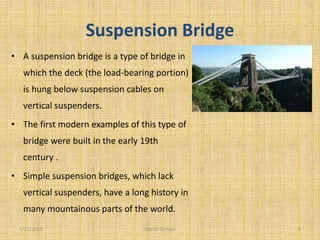

4. Suspension Bridge
• A suspension bridge is a type of bridge in
which the deck (the load-bearing portion)
is hung below suspension cables on
vertical suspenders.
• The first modern examples of this type of
bridge were built in the early 19th
century .
• Simple suspension bridges, which lack
vertical suspenders, have a long history in
many mountainous parts of the world.
1/21/2015 4Danial Gondal

5. Suspension Bridge

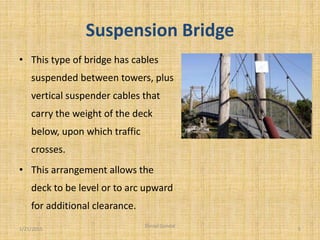

• This type of bridge has cables
suspended between towers, plus
vertical suspender cables that
carry the weight of the deck
below, upon which traffic
crosses.
• This arrangement allows the
deck to be level or to arc upward
for additional clearance.
1/21/2015 5
Danial Gondal

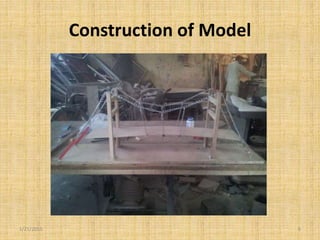

6. Construction of Model
1/21/2015 6

7. Oldest Suspension Bridge

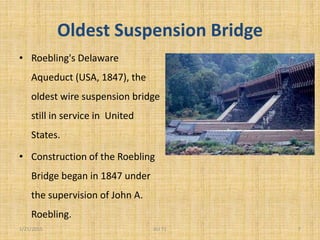

• Roebling's Delaware
Aqueduct (USA, 1847), the
oldest wire suspension bridge
still in service in United
States.
• Construction of the Roebling
Bridge began in 1847 under
the supervision of John A.
Roebling.
1/21/2015 7ALI 71

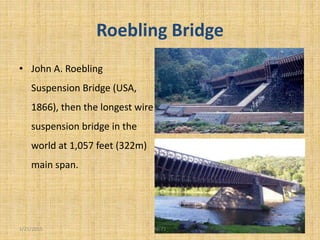

8. Roebling Bridge
• John A. Roebling
Suspension Bridge (USA,
1866), then the longest wire
suspension bridge in the
world at 1,057 feet (322m)
main span.
1/21/2015 8Ali 71

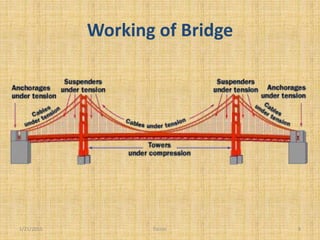

9. Working of Bridge
1/21/2015 9Faizan

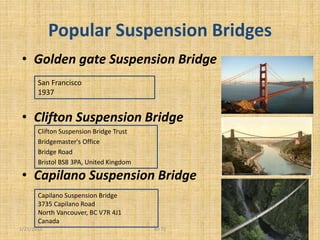

10. Popular Suspension Bridges
• Golden gate Suspension Bridge
• Clifton Suspension Bridge
• Capilano Suspension Bridge
1/21/2015 10
Clifton Suspension Bridge Trust
Bridgemaster's Office
Bridge Road
Bristol BS8 3PA, United Kingdom
Capilano Suspension Bridge
3735 Capilano Road
North Vancouver, BC V7R 4J1
Canada
San Francisco
1937
Ali 72

11. Longest Bridge

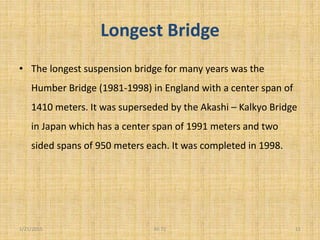

• The longest suspension bridge for many years was the
Humber Bridge (1981-1998) in England with a center span of
1410 meters. It was superseded by the Akashi – Kalkyo Bridge
in Japan which has a center span of 1991 meters and two
sided spans of 950 meters each. It was completed in 1998.
1/21/2015 11Ali 72

12. Advantages
• Economic Advantage
• Height Advantage
• Construction Advantage
1/21/2015 12
Disadvantages
• Flexibility
• Heavy Loads
• Foundation Disadvantage
Ibrahim
