The document discusses gas turbines, including their definition, parts, types, working, and applications. It describes the basic operation of a gas turbine as similar to a steam power plant but using air instead of water. The main parts of a gas turbine are identified as the inlet, compressor, shaft, burner, turbine, and nozzle. Types of gas turbines covered include turbojet, turbofan, turboprop, and afterburning turbojet. Applications discussed are their use in marine vessels, aircraft jet propulsion, small micro gas turbines in devices like the Bladon jet engine, and electricity generation including at remote oil and gas sites from 5-500 megawatts.

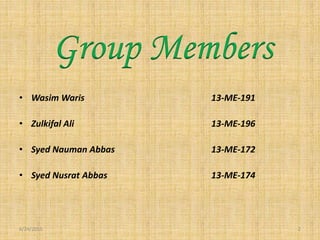

2. • Wasim Waris 13-ME-191
• Zulkifal Ali 13-ME-196
• Syed Nauman Abbas 13-ME-172
• Syed Nusrat Abbas 13-ME-174
6/24/2015 2
Group Members

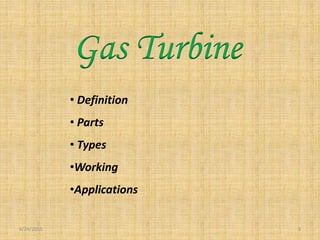

3. 6/24/2015 3
• Definition
• Parts
• Types
•Working
•Applications
Gas Turbine

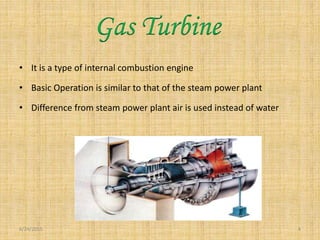

4. • It is a type of internal combustion engine
• Basic Operation is similar to that of the steam power plant
• Difference from steam power plant air is used instead of water
6/24/2015 4
Gas Turbine

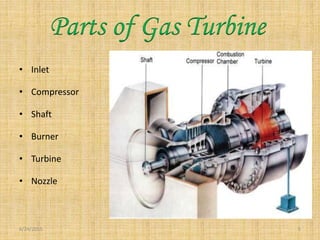

5. • Inlet
• Compressor
• Shaft
• Burner
• Turbine
• Nozzle
6/24/2015 5
Parts of Gas Turbine

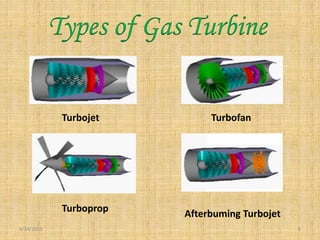

6. 6/24/2015 6
Types of Gas Turbine
Turbojet Turbofan
Turboprop
Afterbuming Turbojet

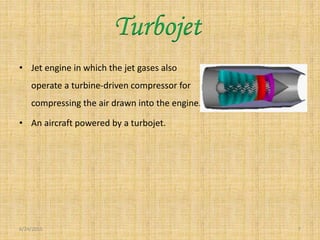

7. • Jet engine in which the jet gases also
operate a turbine-driven compressor for
compressing the air drawn into the engine.
• An aircraft powered by a turbojet.
6/24/2015 7
Turbojet

8. • A jet engine in which a turbine-driven
fan provides additional thrust.
• An aircraft powered by a turbofan
6/24/2015 8
Turbofan

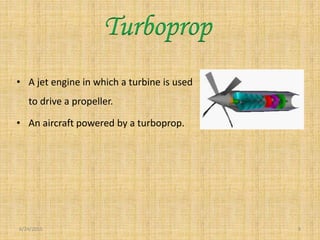

9. • A jet engine in which a turbine is used
to drive a propeller.
• An aircraft powered by a turboprop.
6/24/2015 9
Turboprop

10. • An afterburner or "reheat jet pipe" is a
combustion chamber added to reheat
the turbine exhaust gases.
• Very high fuel consumption
• Four times higher fuel consumption than
that of the main engine.
• Used in supersonic aircraft, most being
military aircraft.
6/24/2015 10
Afterbuming Turbojet

11. 6/24/2015 11
Working of Gas Turbine

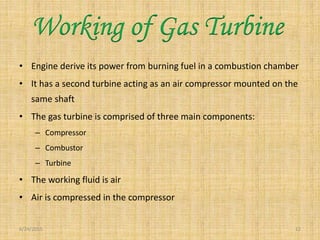

12. • Engine derive its power from burning fuel in a combustion chamber
• It has a second turbine acting as an air compressor mounted on the
same shaft
• The gas turbine is comprised of three main components:
– Compressor
– Combustor
– Turbine
• The working fluid is air
• Air is compressed in the compressor
6/24/2015 12
Working of Gas Turbine

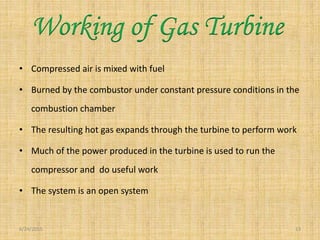

13. • Compressed air is mixed with fuel
• Burned by the combustor under constant pressure conditions in the
combustion chamber
• The resulting hot gas expands through the turbine to perform work
• Much of the power produced in the turbine is used to run the
compressor and do useful work
• The system is an open system
6/24/2015 13
Working of Gas Turbine

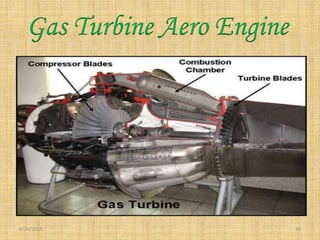

14. 6/24/2015 14
Gas Turbine Aero Engine

15. 6/24/2015 15
Applications of
Gas Turbines

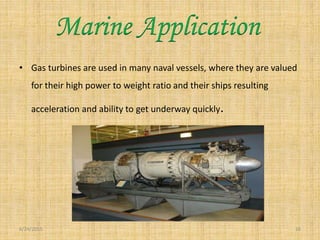

16. • Gas turbines are used in many naval vessels, where they are valued
for their high power to weight ratio and their ships resulting
acceleration and ability to get underway quickly.
6/24/2015 16
Marine Application

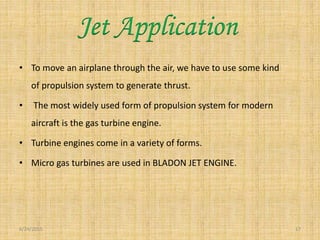

17. • To move an airplane through the air, we have to use some kind
of propulsion system to generate thrust.
• The most widely used form of propulsion system for modern
aircraft is the gas turbine engine.
• Turbine engines come in a variety of forms.
• Micro gas turbines are used in BLADON JET ENGINE.
6/24/2015 17
Jet Application

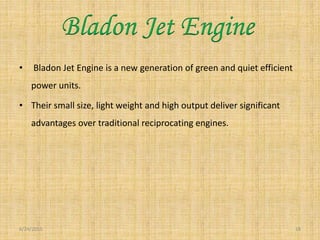

18. • Bladon Jet Engine is a new generation of green and quiet efficient
power units.
• Their small size, light weight and high output deliver significant
advantages over traditional reciprocating engines.
6/24/2015 18
Bladon Jet Engine

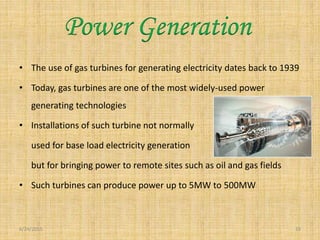

19. • The use of gas turbines for generating electricity dates back to 1939
• Today, gas turbines are one of the most widely-used power
generating technologies
• Installations of such turbine not normally
used for base load electricity generation
but for bringing power to remote sites such as oil and gas fields
• Such turbines can produce power up to 5MW to 500MW
6/24/2015 19
Power Generation

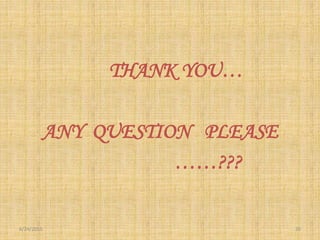

20. THANK YOU…
ANY QUESTION PLEASE
……???
6/24/2015 20
