Lines and planes in space

•Download as PPT, PDF•

1 like•394 views

This document discusses lines and planes in space and their relationships. It covers parallel and intersecting lines, planes, angles between lines and planes, and perpendicular lines and planes. The document contains mainly diagrams and copyright information from Pearson Education.

Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley

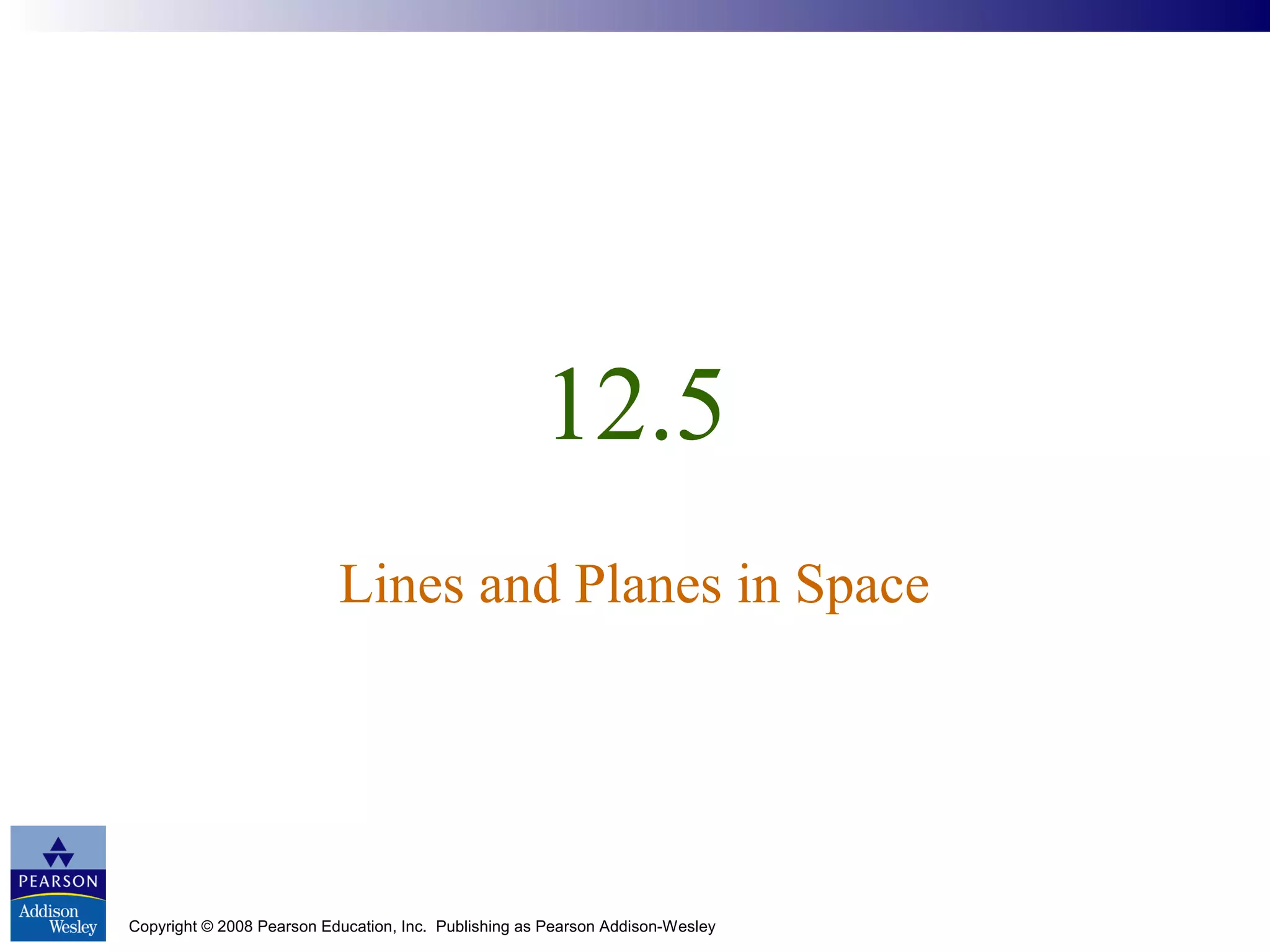

12.5
Lines and Planes in Space

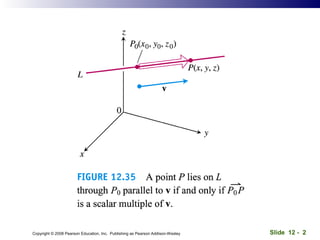

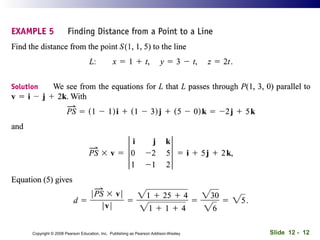

Slide 12 - 2Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley

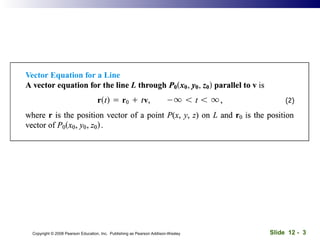

Slide 12 - 3Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley

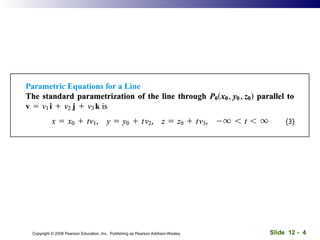

Slide 12 - 4Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley

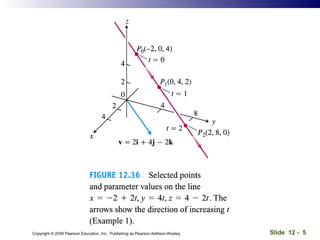

Slide 12 - 5Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley

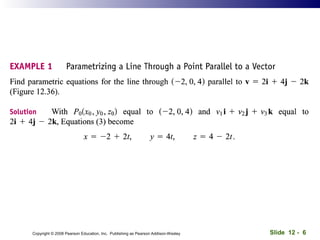

Slide 12 - 6Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley

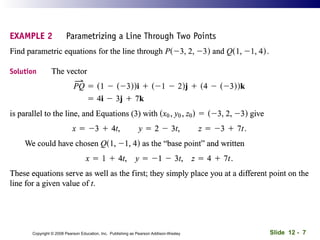

Slide 12 - 7Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley

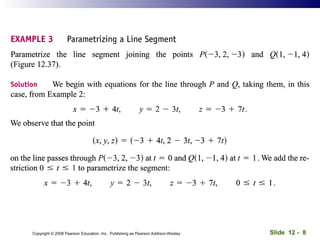

Slide 12 - 8Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley

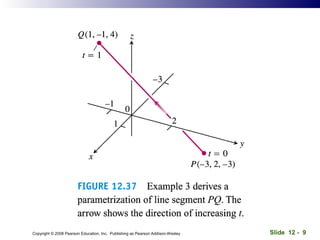

Slide 12 - 9Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley

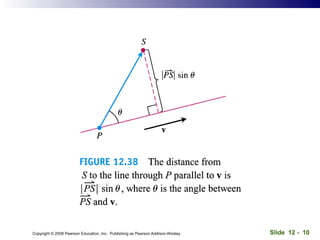

Slide 12 - 10Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley

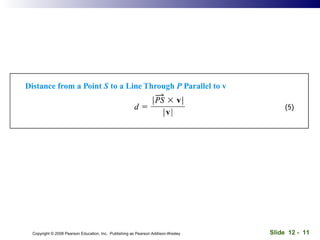

Slide 12 - 11Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley

Slide 12 - 12Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley

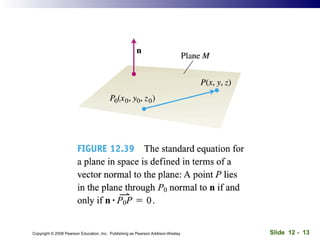

Slide 12 - 13Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley

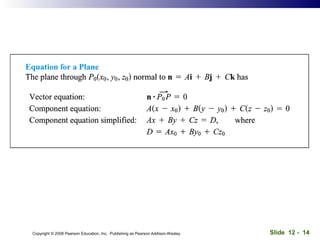

Slide 12 - 14Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley

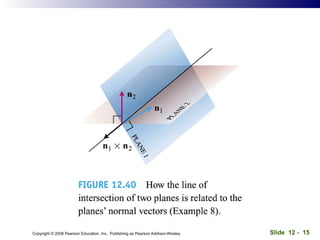

Slide 12 - 15Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley

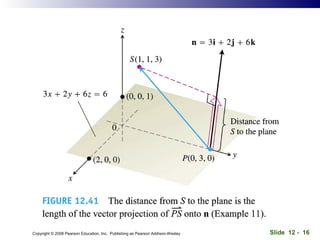

Slide 12 - 16Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley

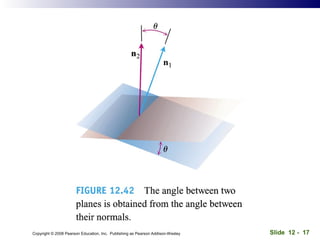

Slide 12 - 17Copyright © 2008 Pearson Education, Inc. Publishing as Pearson Addison-Wesley
