Steam drum lifting
This document provides a rigging analysis for lifting a steam drum using a winch. It discusses the use of winches for hoisting, anchoring rigging components securely, calculating lead line loads, the effect of rigging block angles on loads, using wire rope safely, and required hand signals. Design factors for rigging blocks and lifting at an angle are also addressed.
More Related Content
Steam drum lifting

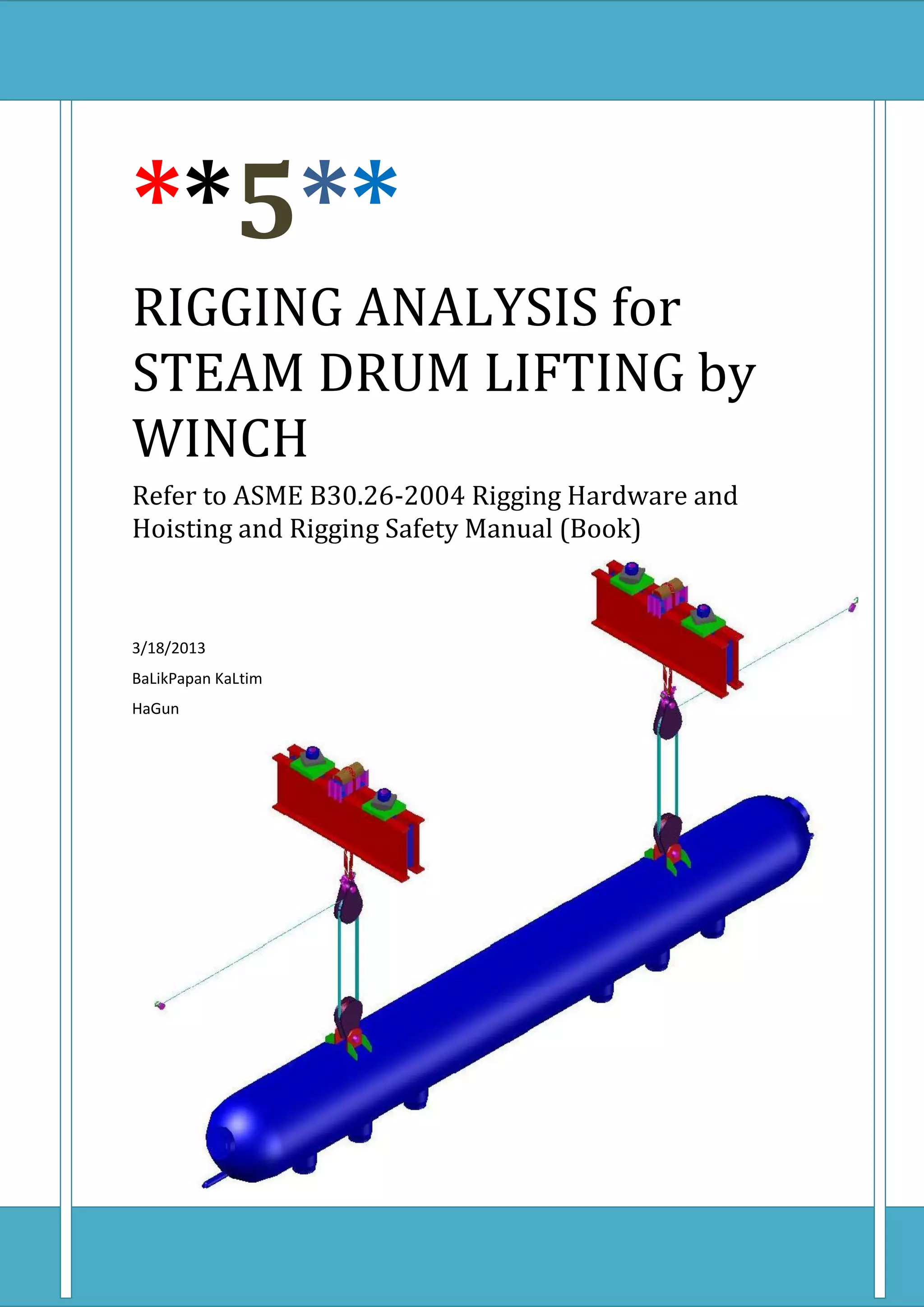

- 1. **5** RIGGING ANALYSIS for STEAMDRUM LIFTING by WINCH Refer to ASME B30.26-2004 Rigging Hardware and Hoisting and Rigging Safety Manual (Book) 3/18/2013 BaLikPapan KaLtim HaGun
- 2. BAB I. RIGGINGANALYSIS A. Winch Base-mounted winches, or tuggers, are a compact, versatile tool for many hoisting and pulling operations. They are particularly useful in areas not accessible to mobile cranes or where there is not enough headroom for a crane to operate. Figure 1 shows a tugger and snatch block arrangement for hoisting. Make sure that the rope leaves the drum at a downward angle and that the loose end is securely anchored. Figure 1
- 3. 2 E-mail:gunawan_hagun@yahoo.co.id B. Anchorage Points Hoists,winches, tirfors, and other rigging devices require secure anchorage points. Anchors may be overhead, in the floor, or at lateral points in walls or other structures. The arrangement may involve columns, beams, beam clamps, welded lugs, slings, or block and tackle. Whatever the method, riggers must be certain of the loads involved and the anchorage required. Lead Line Load Example A = 25 ton 1 line = 25 ton Lead Line Load Example B = 25 ton 6 line = 4,167 ton ~ 5 ton Load on structure A = 25 ton + 25 ton = 50 ton Load on structure B = 25 ton + 5 ton = 30 ton Load on structure = Load + Lead Line Load Lead Line Load = Load Parts of Line at Load
- 4. 3 E-mail:gunawan_hagun@yahoo.co.id C. Angle effectto BLock Load Analysis: Load = 62 ton Lead Line Load = 62 ton 8 line = 7,75 ton ~ 8 ton Load Block C = Load x Factor α deg angle (0o ) Load Block C = 62 ton x 2 = 124 ton . Load Block D = Lead Line Load x Factor α deg angle (40o ) Load Block D = 8 ton x 1.87 = 14.96 ton . Load Block E = Lead Line Load x Factor α deg angle (130o ) Load Block E = 8 ton x 0.84 = 6.72 ton . Load Block F = Lead Line Load x Factor α deg angle (90o ) Load Block F = 8 ton x 1.41 = 11.28 ton
- 5. 4 E-mail:gunawan_hagun@yahoo.co.id D. Rigging Blocks Thedesign factor for rigging blocks shall be a minimum of 4.
- 6. 5 E-mail:gunawan_hagun@yahoo.co.id E. Wire RopeHandling Handling any kind of rope can be hazardous. Handling wire rope presents particular hazards. Personnel should wear appropriate personal protective equipment such as gloves and use caution to keep clothing or gloves from getting caught in sheaves or drums during tugger/Winch operation.
- 7. 6 E-mail:gunawan_hagun@yahoo.co.id F. Hand Signals Handsignals shall be in accordance with ASME B30.7-2006 and shall be posted conspicuously.
- 8.
- 9. 8 E-mail:gunawan_hagun@yahoo.co.id G. LIFTING BYINCLINED AT AN ANGLE
- 10. 9 E-mail:gunawan_hagun@yahoo.co.id H. LOAD DISTRIBUTIONOF INCLINED AT AN ANGLE L Distence Lifting Lug L = 13000 mm h Height of Lifting Lug h = 200 mm ∅ Diameter ∅ = 1800 mm α Angle of Inclined α = 45 Deg Y = ∅ /2 + h Y = 1100 mm A = L Cos α A = 9192.388155 mm B = Y Sin α B = 777.8174593 mm C = (A/2) - B C = 3818.376618 mm D = (A/2) + B D = 5374.011537 mm W Weight Material W = 90 Ton R1 = W (D/A) R1 = 52.61538462 Ton R2 = W (C/A) R2 = 37.38461538 Ton Control QW = 90 Ton
- 11. 10 E-mail:gunawan_hagun@yahoo.co.id L = 13000mm h = 200 mm ∅ = 1800 mm W = 90 Ton Uper Lower R1 = R2 = QW = α = 0 Deg 45.0000 Ton 45.0000 Ton 90 Ton 1 Deg 45.1329 Ton 44.8671 Ton 90 Ton 2 Deg 45.2659 Ton 44.7341 Ton 90 Ton 3 Deg 45.3991 Ton 44.6009 Ton 90 Ton 4 Deg 45.5325 Ton 44.4675 Ton 90 Ton 5 Deg 45.6663 Ton 44.3337 Ton 90 Ton 6 Deg 45.8004 Ton 44.1996 Ton 90 Ton 7 Deg 45.9351 Ton 44.0649 Ton 90 Ton 8 Deg 46.0703 Ton 43.9297 Ton 90 Ton 9 Deg 46.2062 Ton 43.7938 Ton 90 Ton 10 Deg 46.3428 Ton 43.6572 Ton 90 Ton 11 Deg 46.4803 Ton 43.5197 Ton 90 Ton 12 Deg 46.6187 Ton 43.3813 Ton 90 Ton 13 Deg 46.7582 Ton 43.2418 Ton 90 Ton 14 Deg 46.8987 Ton 43.1013 Ton 90 Ton 15 Deg 47.0405 Ton 42.9595 Ton 90 Ton 16 Deg 47.1837 Ton 42.8163 Ton 90 Ton 17 Deg 47.3283 Ton 42.6717 Ton 90 Ton 18 Deg 47.4744 Ton 42.5256 Ton 90 Ton 19 Deg 47.6222 Ton 42.3778 Ton 90 Ton 20 Deg 47.7718 Ton 42.2282 Ton 90 Ton 21 Deg 47.9233 Ton 42.0767 Ton 90 Ton 22 Deg 48.0768 Ton 41.9232 Ton 90 Ton 23 Deg 48.2325 Ton 41.7675 Ton 90 Ton 24 Deg 48.3906 Ton 41.6094 Ton 90 Ton 25 Deg 48.5511 Ton 41.4489 Ton 90 Ton 26 Deg 48.7143 Ton 41.2857 Ton 90 Ton 27 Deg 48.8802 Ton 41.1198 Ton 90 Ton 28 Deg 49.0492 Ton 40.9508 Ton 90 Ton 29 Deg 49.2213 Ton 40.7787 Ton 90 Ton 30 Deg 49.3967 Ton 40.6033 Ton 90 Ton 31 Deg 49.5758 Ton 40.4242 Ton 90 Ton 32 Deg 49.7586 Ton 40.2414 Ton 90 Ton 33 Deg 49.9455 Ton 40.0545 Ton 90 Ton 34 Deg 50.1366 Ton 39.8634 Ton 90 Ton 35 Deg 50.3323 Ton 39.6677 Ton 90 Ton 36 Deg 50.5329 Ton 39.4671 Ton 90 Ton 37 Deg 50.7386 Ton 39.2614 Ton 90 Ton 38 Deg 50.9498 Ton 39.0502 Ton 90 Ton 39 Deg 51.1668 Ton 38.8332 Ton 90 Ton 40 Deg 51.3901 Ton 38.6099 Ton 90 Ton 41 Deg 51.6200 Ton 38.3800 Ton 90 Ton 42 Deg 51.8569 Ton 38.1431 Ton 90 Ton 43 Deg 52.1015 Ton 37.8985 Ton 90 Ton 44 Deg 52.3541 Ton 37.6459 Ton 90 Ton 45 Deg 52.6154 Ton 37.3846 Ton 90 Ton
- 12. START DATA MATERIAL 1. DIMENSION 2.WEIGHT RIGGING DEPARTMENT ANALYZE AND PLANED ACTIVITY FOR LIFTING AND ERECTION WORK REFERENCE 1. RIGGING BOOK 2. EQUIPMENT MANUAL 3. ASME B30.5-2004 Mobil & Locomotive cranes 4. ASME B30.6-2003 Derrick 5. ASME B30.10-1999 Hook 6. ASME B30.21-2005 manually lever operated hoist 7. ASME B30.24-2003 Safety standard for cranes,derrick, hoist, jacks, and Sling 8. ASME B30.26-2004 Rigging Hardware 9. BS EN 5973 Scaffolding 10. Australian Standard, AS 3569--1989, Wire ropes 11. Australian Standard, AS 2759--1985, Wire ropes NEED DUO CRANE Yes No MONO CRANE TAILING DESIGN JOB SAFETY ANALISYS Safe Risk FINISH Final Inspection by HaGun Engineering Prepare Final Report for ApprovaL Handover No Yes RIGGING PLAN ACTION CONTROL RIGGING PLAN LIFTING FOR POWER CONTROL CENTERS SLING13METER 01. OBJECTIVE Rigging Study of Lifting Power Control Centers. 02. SCOPE OF APPLICATION Rigging study is describe the guidelines and operating step of Lifting Power Control Centers. 03. REFERENCE 1. HaGun Engineering RIGGING DEPARTMENT REFERENCE 04. EQUIPMENT No Equipment Qty Capacities Remark 01 Crawler Crane 1 unit 150 ton New 02 Boom Length 48 meter 1 unit New 03 Trailer 1 unit 80 ton New 05. RIGGING TOOLS No Equipment Qty Capacities 01 Sling dia. 1.5" x 13 M 4 pcs 17 ton 02 Chain Block 2 pcs 10 ton 03 Shackle SWL 10 pcs 10 ton 04 Manila Rope 7/8"x10M 2 pcs 06. SAFETY REQUIREMENTS No Equipment Qty 01 Safety Barricade Red White 77 mtr 02 Safety Cone 7 pcs 07. SAFETY FACTOR CALCULATION No Equipment Qty 01 Weight of material 22.00 T 02 Crane Block 1.33 T 03 Wire Sling 0.15 T 04 Spreader Beam 0.60 T 05 Shackle 0.15 T 06 Total Weight 24.23 T 07 Crane Capacity 26.62 T 08 Safety Factor 1.1 SF = 26.62 24.23 = 1.1 Steel plates 1.5m x 6m x 20 mm thk for track BOOM48METER 20000 R 20000 CRANE LAY OUT MOVING OBJECT FROM A TO B A B
