1. SSL & TLS
Architecture
By Avirot M. Liangsiri
Senior Technical Specialist
Professional Computer Co., Ltd.
1

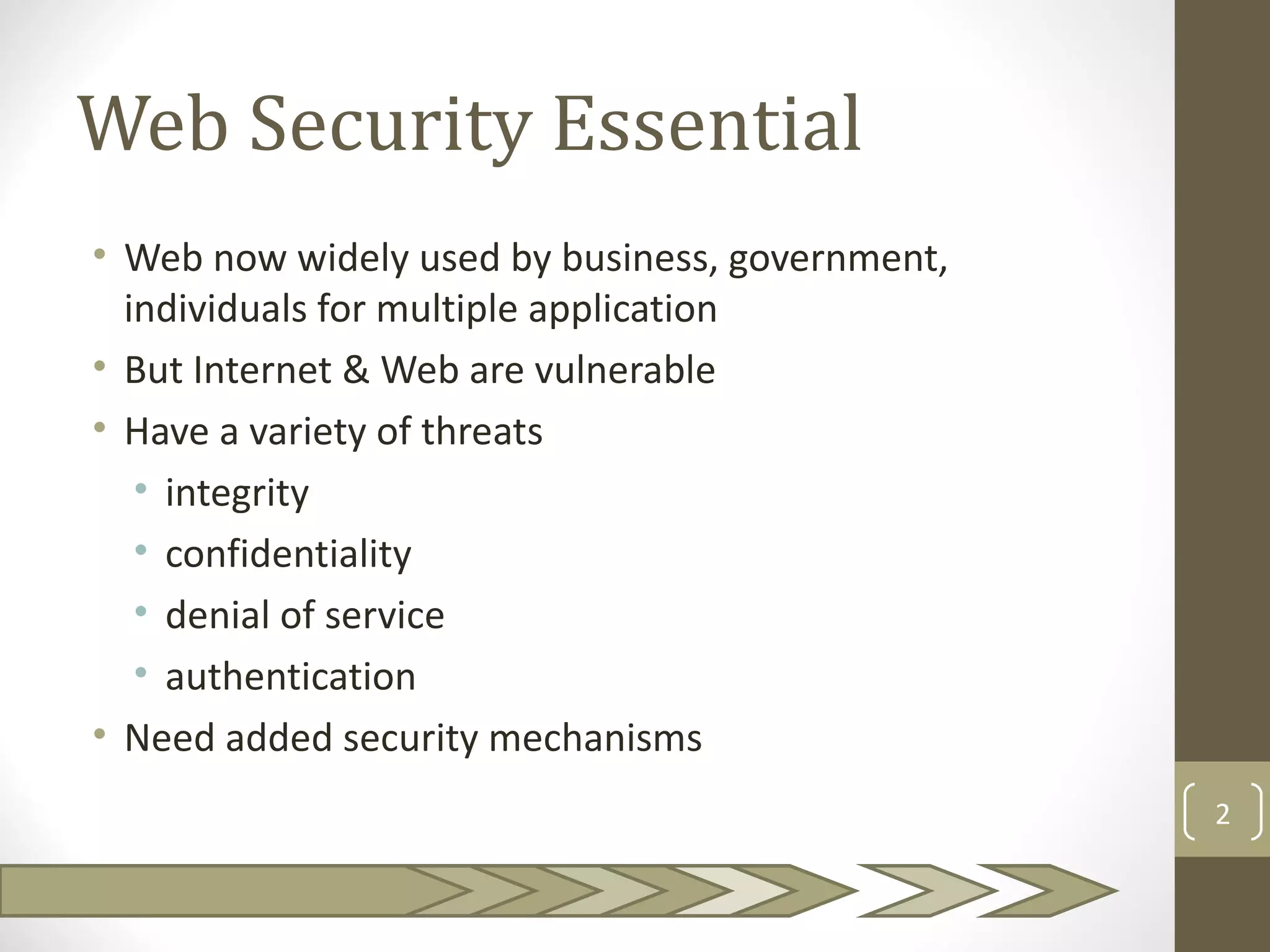

2. Web Security Essential
• Web now widely used by business, government,
individuals for multiple application
• But Internet & Web are vulnerable
• Have a variety of threats
• integrity
• confidentiality
• denial of service
• authentication
• Need added security mechanisms
2

3. Security Architecture
• ITU-T Recommendation X.805 Security architecture for
systems providing end‑to‑end communications had been
developed by ITU-T SG 17 (ITU-T Lead Study Group on
Telecommunication Security) and was published in
October 2003.
• The group has developed a set of the well-recognized
Recommendations on security. Among them are X.800
Series of Recommendations on security and X.509 v3 -
Public-key and Attribute Certificate Frameworks.
3

4. ITU-T X.800 Threat Model
(simplified)
X
1 - Destruction (an attack on availability):
– Destruction of information and/or network
resources
2 - Corruption (an attack on integrity):
– Unauthorized tampering with an asset
3 - Removal (an attack on availability):
– Theft, removal or loss of information and/or
other resources
4 - Disclosure (an attack on confidentiality):
– Unauthorized access to an asset
5 - Interruption (an attack on availability):
– Interruption of services. Network becomes
unavailable or unusable X 4
4

5. ITU-T X.800 Eight Security Dimensions
Address the Breadth of Network
• Limit & control access to
Vulnerabilities
network elements, services & Access Control
• Provide Proof of Identity
applications
• Examples: shared secret,
• Examples: password, ACL,
firewall
Authentication PKI, digital signature, digital
certificate
• Prevent ability to deny that an
activity on the network Non-repudiation • Ensure confidentiality of data
occurred • Example: encryption
• Examples: system logs,
Data Confidentiality
digital signatures
• Ensure data is received as
• Ensure information only flows Communication Security sent or retrieved as stored
from source to destination • Examples: MD5, digital
• Examples: VPN, MPLS, signature, anti-virus software
L2TP Data Integrity
Availability
• Ensure network elements, • Ensure identification and
services and application network use is kept private
available to legitimate users Privacy • Examples: NAT, encryption 5
• Examples: IDS/IPS, network
redundancy, BC/DR
Eight Security Dimensions applied to each Security Perspective (layer and
5

6. ITU-T X.800 Three Security
Layers
Applications Security
3 - Applications Security Layer:
THREATS
• Network-based applications accessed by
Services Security
Destruction end-users
Corruption
VULNERABILITIES
Removal
• Examples:
Disclosure – Web browsing
Vulnerabilities Can Exist Interruption
In Each Layer Infrastructure Security – Directory assistance
ATTACKS – Email
– E-commerce
1 - Infrastructure Security Layer: 2 - Services Security Layer:
• Fundamental building blocks of networks • Services Provided to End-Users
services and applications • Examples:
• Examples: – Frame Relay, ATM, IP
– Individual routers, switches, servers – Cellular, Wi-Fi,
– Point-to-point WAN links – VoIP, QoS, IM, Location services
– Ethernet links – Toll free call services
• Each Security Layer has unique vulnerabilities, threats 6
• Infrastructure security enables services security enables applications security
6

7. ITU-T X.800 Applying Security
Planes to Network Protocols
End User Security Plane
Activities Protocols
•End-user data transfer • HTTP, RTP, POP, IMAP
•End-user – application • TCP, UDP, FTP
interactions • IPsec, TLS
Control/Signaling Security Plane
Activities Protocols
•Update of routing/switching tables • BGP, OSPF, IS-IS, RIP,
•Service initiation, control, and PIM
teardown • SIP, RSVP, H.323, SS7.
•Application control • IKE, ICMP
• PKI, DNS, DHCP, SMTP
Management Security Plane
Activities Protocols
•Operations •SNMP
•Administration •Telnet
7
•Management •FTP
•Provisioning •HTTP
7

8. SSL (Secure Socket Layer)
• transport layer security service
• originally developed by Netscape
• version 3 designed with public input
• subsequently became Internet standard known as
TLS (Transport Layer Security)
• uses TCP to provide a reliable end-to-end service
• SSL has two layers of protocols

9. Where SSL Fits
HTTP SMTP POP3 HTTPS SSMTP SPOP3
80 25 110 443 465 995
Secure Sockets Layer
Transport
Network
Link

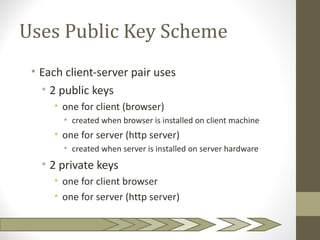

10. Uses Public Key Scheme
• Each client-server pair uses
• 2 public keys
• one for client (browser)
• created when browser is installed on client machine
• one for server (http server)
• created when server is installed on server hardware
• 2 private keys
• one for client browser
• one for server (http server)

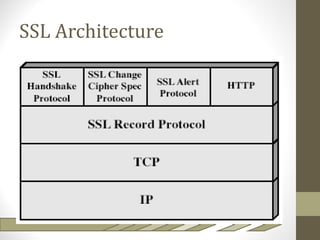

11. SSL Architecture

12. SSL Architecture
• SSL session
• an association between client & server
• created by the Handshake Protocol
• define a set of cryptographic parameters
• may be shared by multiple SSL connections (by using
same session symmetric key)
• SSL connection
• a transient, peer-to-peer, communications link
• associated with 1 SSL session

13. SSL Record Protocol
• confidentiality
• using symmetric encryption with a shared secret key
defined by Handshake Protocol
• IDEA, RC2-40, DES-40, DES, 3DES, Fortezza, RC4-40,
RC4-128
• message is compressed before encryption
• message integrity
• using a MAC (Message Authentication Code) created
using a shared secret key and a short message

14. SSL Alert Protocol
• conveys SSL-related alerts to peer entity
• severity
• warning or fatal
• specific alert
• unexpected message, bad record mac, decompression failure,
handshake failure, illegal parameter
• close notify, no certificate, bad certificate, unsupported
certificate, certificate revoked, certificate expired, certificate
unknown
• compressed & encrypted like all SSL data

15. SSL Handshake Protocol
• allows server & client to:
• authenticate each other
• to negotiate encryption & MAC algorithms
• to negotiate cryptographic keys to be used
• comprises a series of messages in phases
• Establish Security Capabilities
• Server Authentication and Key Exchange
• Client Authentication and Key Exchange
• Finish

16. SSL Handshake Protocol

17. Changes from SSL 3.0 to TLS
• Fortezza removed
• Additional Alerts added
17
• Modification to hash calculations
• Protocol version 3.1 in ClientHello,
ServerHello

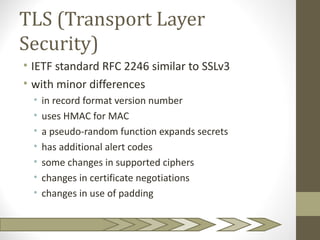

18. TLS (Transport Layer
Security)
• IETF standard RFC 2246 similar to SSLv3
• with minor differences
• in record format version number
• uses HMAC for MAC
• a pseudo-random function expands secrets
• has additional alert codes
• some changes in supported ciphers
• changes in certificate negotiations
• changes in use of padding

19. TLS:Key Exchange
• Need secure method to exchange secret key
• Use public key encryption for this
• “key pair” is used - either one can encrypt and
19
then the other can decrypt
• slower than conventional cryptography
• share one key, keep the other private
• Choices are RSA or Diffie-Hellman

20. TLS: Integrity
• Compute fixed-length Message Authentication
Code (MAC)
• Includes hash of message
20
• Includes a shared secret
• Include sequence number
• Transmit MAC with message

21. TLS: Integrity
• Receiver creates new MAC
• should match transmitted MAC
• TLS allows MD5, SHA-1
21
A B
Message Message’ MAC
MAC MAC’ =?

22. TLS: Authentication
• Verify identities of participants
• Client authentication is optional
• Certificate is used to associate identity with
22
public key and other attributes
A B
Certificate
Certificate

23. TLS: Overview
• Establish a session
• Agree on algorithms
• Share secrets
23
• Perform authentication
• Transfer application data
• Ensure privacy and integrity

24. TLS: Architecture
• TLS defines Record Protocol to transfer
application and TLS information
• A session is established using a Handshake
24
Protocol
Handshake Change Alert
Protocol Cipher Spec Protocol
TLS Record Protocol

25. TLS: Record Protocol
25

26. TLS: Handshake
• Negotiate Cipher-Suite Algorithms
• Symmetric cipher to use
• Key exchange method
26
• Message digest function
• Establish and share master secret
• Optionally authenticate server and/or client

27. Handshake Phases
• Hello messages
• Certificate and Key Exchange messages
• Change CipherSpec and Finished messages
27

28. TLS: Hello
• Client “Hello” - initiates session
• Propose protocol version
• Propose cipher suite
28
• Server chooses protocol and suite
• Client may request use of cached session
• Server chooses whether to honor request

29. TLS: Key Exchange
• Server sends certificate containing public key
(RSA) or Diffie-Hellman parameters
• Client sends encrypted “pre-master” secret to
29
server using Client Key Exchange message
• Master secret calculated
• Use random values passed in Client and Server
Hello messages

30. Public Key Certificates
• X.509 Certificate associates public key with
identity
• Certification Authority (CA) creates certificate
30
• Adheres to policies and verifies identity
• Signs certificate
• User of Certificate must ensure it is valid

31. Validating a Certificate
• Must recognize accepted CA in certificate chain
• One CA may issue certificate for another CA
• Must verify that certificate has not been revoked
31
• CA publishes Certificate Revocation List (CRL)

32. X.509: Certificate Content
• Version • Subject X.500 name
• Serial Number • Subject Public Key
• Signature Algorithm Identifier • Algorithm
• Object Identifier (OID) • Value
32
• e.g. id-dsa: {iso(1) member-
body(2) us(840) x9-57 (10040) • Issuer Unique Id (Version 2 ,3)
x9algorithm(4) 1} • Subject Unique Id (Version
• Issuer (CA) X.500 name 2,3)
• Validity Period (Start,End) • Extensions (version 3)
• optional
• CA digital Signature

33. Subject Names
• X.500 Distinguished Name (DN)
• Associated with node in hierarchical directory
(X.500)
33
• Each node has Relative Distinguished Name
(RDN)
• Path for parent node
• Unique set of attribute/value pairs for this
node

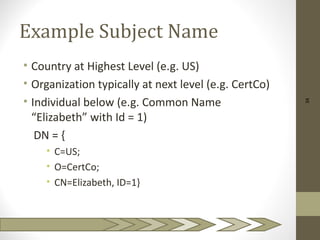

34. Example Subject Name
• Country at Highest Level (e.g. US)
• Organization typically at next level (e.g. CertCo)
• Individual below (e.g. Common Name
34
“Elizabeth” with Id = 1)
DN = {
• C=US;
• O=CertCo;
• CN=Elizabeth, ID=1}

35. Version 3 Certificates
• Version 3 X.509 Certificates support alternative
name formats as extensions
• X.500 names
35
• Internet domain names
• e-mail addresses
• URLs
• Certificate may include more than one name

36. Certificate Signature
• RSA Signature
• Create hash of certificate
• Encrypt using CA’s private key
36
• Signature verification
• Decrypt using CA’s public key
• Verify hash

37. TLS: ServerKeyExchange
Client Server
ClientHello
 ServerHello
37
 Certificate
 ServerKeyExchange

38. TLS: Certificate Request
Client Server
ClientHello
 ServerHello
38
 Certificate
 ServerKeyExchange
 CertificateRequest

39. TLS: Client Certificate
Client Server
ClientHello
 ServerHello
39
 Certificate
 ServerKeyExchange
 CertificateRequest
ClientCertificate
ClientKeyExchange

40. TLS: Change Cipher Spec,
Finished
Client Server
[ChangeCipherSpec]
Finished
40
[ChangeCipherSpec]
 Finished
Application Data Application Data

41. TLS: Change Cipher
Spec/Finished
• Change Cipher Spec
• Announce switch to negotiated algorithms and
values
41
• Finished
• Send copy of handshake using new session
• Permits validation of handshake

42. TLS: Using a Session
Client Server
ClientHello (Session #)
ServerHello (Session #)
42
[ChangeCipherSpec]
 Finished
[ChangeCipherSpec]
Finished
Application Data Application Data

43. TLS: HTTP Application
• HTTP most common TLS application
• https://
• Requires TLS-capable web server
43
• Requires TLS-capable web browser
• Netscape Navigator
• Internet Explorer
• Cryptozilla
• Netscape Mozilla sources with SSLeay

44. X.509 Certificate Issues
• Certificate Administration is complex
• Hierarchy of Certification Authorities
• Mechanisms for requesting, issuing, revoking
44
certificates
• X.500 names are complicated
• Description formats are cumbersome (ASN.1)

45. X.509 Alternative: SDSI
• SDSI: Simple Distributed Security Infrastructure
(Rivest, Lampson)
• Merging with IETF SPKI: Simple Public-Key
45
Infrastructure in SDSI 2.0
• Eliminate X.500 names - use DNS and text
• Everyone is their own CA
• Instead of ASN.1 use “S-expressions” and simple
syntax
• Name and Authorization certificates

46. TLS “Alternatives”
• S-HTTP: secure HTTP protocol, shttp://
• IPSec: secure IP
• SET: Secure Electronic Transaction
46
• Protocol and infrastructure for bank card
payments
• SASL: Simple Authentication and Security Layer
(RFC 2222)

47. Summary
• SSL/TLS addresses the need for security in
Internet communications
• Privacy - conventional encryption
47
• Integrity - Message Authentication Codes
• Authentication - X.509 certificates
• SSL in use today with web browsers and servers
• Equivalent to TLS
