1. Springshed Treatment Measures
International Centre for Integrated Mountain Development (ICIMOD)
PRASARI
Contributors
Content support

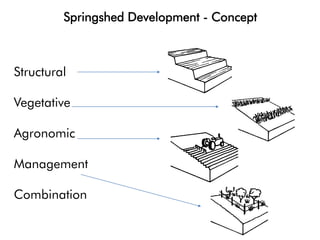

3. Springshed Development - Concept
Structural
Vegetative
Agronomic
Management
Combination

4. STRUCTURAL MEASURES

5. Staggered Contour Trenches (SCT)

6. Dimensions of Staggered Contour
Trenches at different slopes
Slope Proposed
Intervention
Dimensions
(L x W x D) m
Volume
(cum)/ha
Horizontal
Interval (m)
Approx
Number/ha
<20% Trenches 2.5x 0.75x 0.75 140 15 140
20-30% Trenches 2.5x 0.6x 0.6 95 12 160
30-40% Trenches 2x 0.6x 0.45 80 10 200
40-50% Trenches 2x 0.45x 0.45 65 8 240

7. Marking Of Contour On Field Trench
Boundary With The Help Of ‘A’ Frame
Digging Of Trench As Per Slope Condition
Allignment of Staggered Contour Trenches

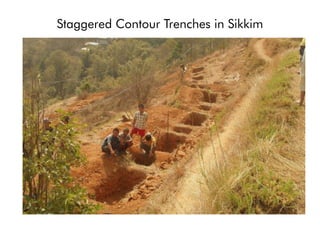

8. Staggered Contour Trenches in Sikkim

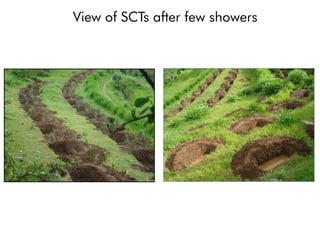

9. View of SCTs after few showers

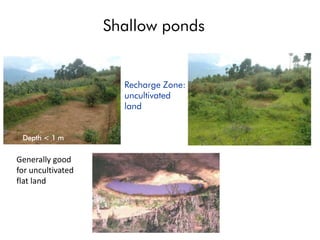

10. Shallow ponds
Recharge Zone:
uncultivated
land
Generally good
for uncultivated
flat land
Depth < 1 m

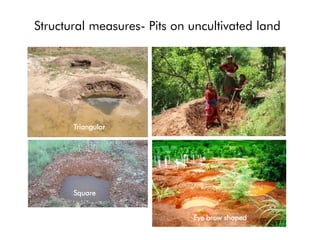

11. Structural measures- Pits on uncultivated land
Triangular
Eye brow shaped
Square

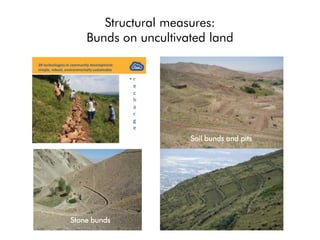

12. Structural measures:
Bunds on uncultivated land
Soil bunds and pits
Stone bunds

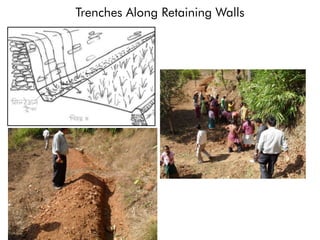

13. Trenches Along Retaining Walls

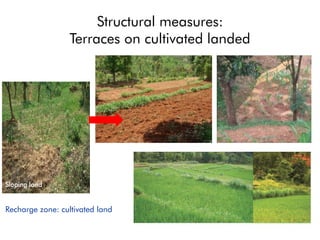

14. Structural measures:
Terraces on cultivated landed
Recharge zone: cultivated land
Sloping land

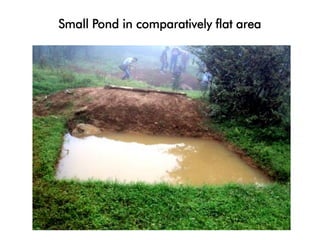

15. Small Pond in comparatively flat area

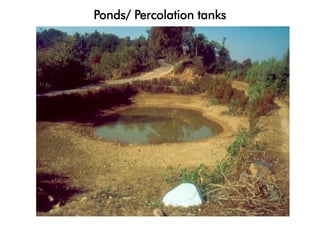

16. Ponds/ Percolation tanks

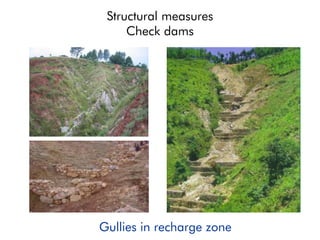

17. Structural measures
Check dams
Gullies in recharge zone

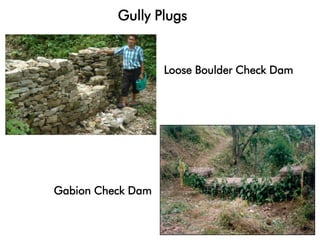

18. Loose Boulder Check Dam
Gabion Check Dam
Gully Plugs

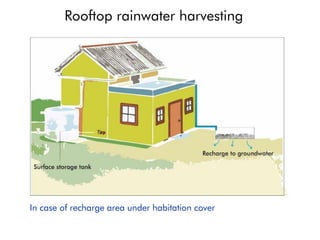

19. Rooftop rainwater harvesting
In case of recharge area under habitation cover

20. VEGETATIVE MEASURES

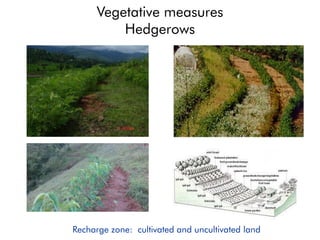

21. Vegetative measures
Hedgerows
Recharge zone: cultivated and uncultivated land

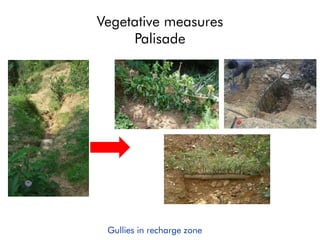

22. Vegetative measures
Palisade
Gullies in recharge zone

23. AGRONOMIC MEASURES

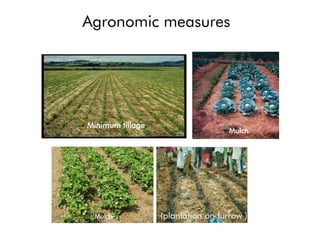

24. Agronomic measures
Minimum tillage
(Mulch)
Mulch
Mulch (plantation on furrow )

25. MANAGEMENT MEASURES

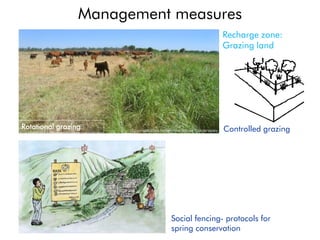

26. Management measures
Recharge zone:
Grazing land
Controlled grazing
Rotational grazing/
Social fencing- protocols for
spring conservation

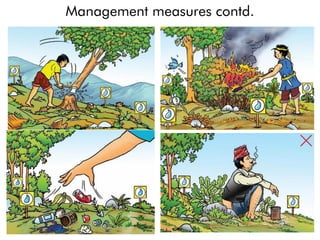

27. Management measures contd.

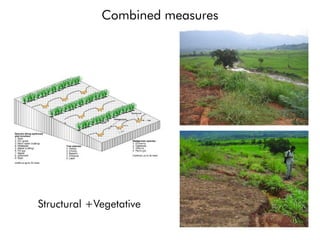

28. Combined measures
Structural +Vegetative

29. PRASARI
Thank You
