1. Spine - Myelopathy
Dr Sidra Afzal
New RadiologyDept.
Services Hospital Lahore.

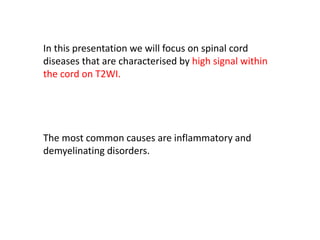

9. In this presentation we will focus on spinal cord
diseases that are characterised by high signal within
the cord on T2WI.
The most common causes are inflammatory and
demyelinating disorders.

10. Differential diagnosis

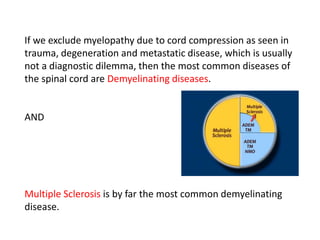

11. If we exclude myelopathy due to cord compression as seen in
trauma, degeneration and metastatic disease, which is usually
not a diagnostic dilemma, then the most common diseases of
the spinal cord are Demyelinating diseases.
AND
Multiple Sclerosis is by far the most common demyelinating
disease.

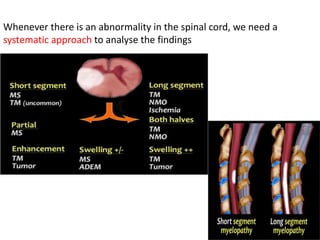

12. Whenever there is an abnormality in the spinal cord, we need a
systematic approach to analyse the findings

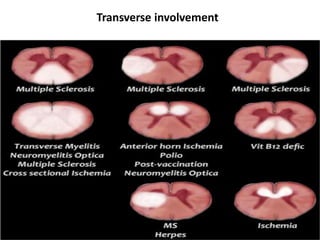

13. Transverse involvement

14. MULTIPLE SCLEROSIS:
MS is an immune-mediated inflammatory demyelinating disease of
the brain and the spinal cord.
Multiple lesions disseminated over time and space.
Pathologic studies have shown that 95% of MS patients have spinal
cord lesions, whether they have spinal symptoms or not.
Brain lesions are typically in periventricular, subcortical and
cerebellar white matter and also in brainstem and corpus callosum.
CSF: monoclonal bands.

15. MS: short segment focal wedge-shaped involvement of the posterior
column of the spinal cord with typical periventricular WM-lesions.

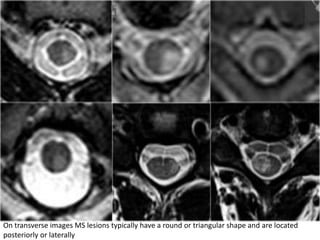

17. On transverse images MS lesions typically have a round or triangular shape and are located
posteriorly or laterally

18. So can we exclude MS if a lesion is located anteriorly?
Unfortunately not.
MS is the great mimicker and can also be located anteriorly like in this patient who has
a lesion in the typical location (blue arrow) but also a lesion ventrally in the cord (red
arrow).
This is uncommon, but we can not exclude MS.

19. When MS lesions are active, they can enhance, but enhancement is not as common as
in the brain.
The enhancement patterns are non-specific.
We can see ring enhancement, intense and less-intense enhancement.
The less intense enhancement is the most common pattern.

20. Diffuse abnormalities that can look like transverse myelitis
or extensive astrocytoma are sometimes seen.
This pattern is more common in primary progressive and
secondary progressive MS.

21. Atrophy in longstanding MS

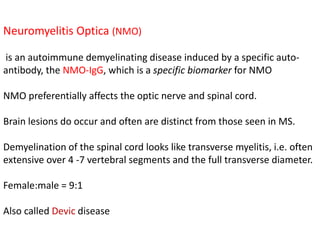

22. Neuromyelitis Optica (NMO)
is an autoimmune demyelinating disease induced by a specific auto-
antibody, the NMO-IgG, which is a specific biomarker for NMO
NMO preferentially affects the optic nerve and spinal cord.
Brain lesions do occur and often are distinct from those seen in MS.
Demyelination of the spinal cord looks like transverse myelitis, i.e. often
extensive over 4 -7 vertebral segments and the full transverse diameter.
Female:male = 9:1
Also called Devic disease

24. NMO presenting with neuritis
optica (arrows). The brain is normal

25. One month later this child presented with acute transverse myelopathy, i.e. bilateral symptoms.
The images show abnormal signal in the spinal cord with swelling and some enhancement.
An astrocytoma could very well present with these images, but given the history of an optic
neuritis and the acute myelopathy, we do not think of a tumor.
This proved to be NMO and the Ig-test for NMO was positive.

26. Previously it was thought that in NMO the brain was spared, but now we know, that brain
lesions do occur.
They are often distinct from those seen in MS.
The location of the brain lesions in NMO is only around the ventricles.

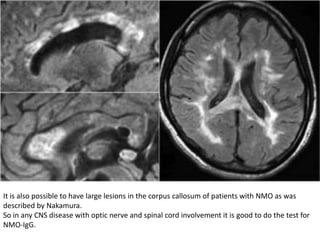

27. It is also possible to have large lesions in the corpus callosum of patients with NMO as was
described by Nakamura.
So in any CNS disease with optic nerve and spinal cord involvement it is good to do the test for
NMO-IgG.

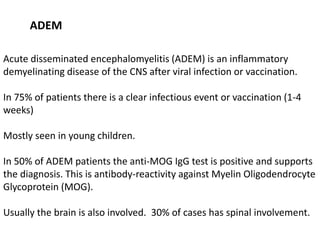

28. ADEM
Acute disseminated encephalomyelitis (ADEM) is an inflammatory
demyelinating disease of the CNS after viral infection or vaccination.
In 75% of patients there is a clear infectious event or vaccination (1-4
weeks)
Mostly seen in young children.
In 50% of ADEM patients the anti-MOG IgG test is positive and supports
the diagnosis. This is antibody-reactivity against Myelin Oligodendrocyte
Glycoprotein (MOG).
Usually the brain is also involved. 30% of cases has spinal involvement.

29. These are images of a teenage child with a typical history of respiratory tract infection
There is swelling and cord involvement and no enhancement
The imaging findings and clinical history is typical of ADEM

30. What is typical for ADEM and uncommon for MS is:
• Massive involvement of the pons.
• Involvement of the basal ganglia.

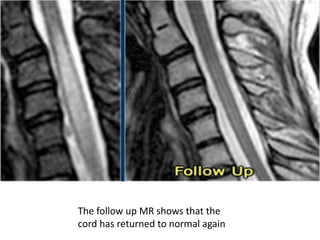

31. The follow up MR shows that the
cord has returned to normal again

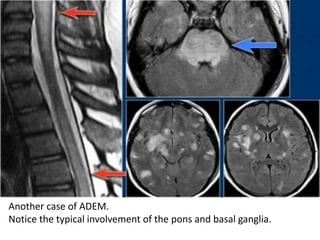

32. Another case of ADEM.
Notice the typical involvement of the pons and basal ganglia.

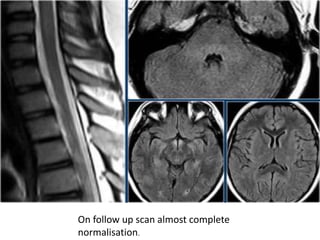

33. On follow up scan almost complete
normalisation.

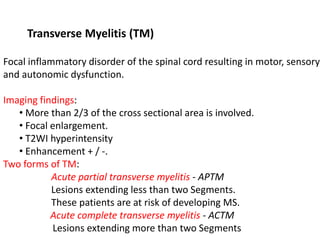

34. Transverse Myelitis (TM)
Focal inflammatory disorder of the spinal cord resulting in motor, sensory
and autonomic dysfunction.
Imaging findings:
• More than 2/3 of the cross sectional area is involved.
• Focal enlargement.
• T2WI hyperintensity
• Enhancement + / -.
Two forms of TM:
Acute partial transverse myelitis - APTM
Lesions extending less than two Segments.
These patients are at risk of developing MS.
Acute complete transverse myelitis - ACTM
Lesions extending more than two Segments

35. The sagittal image shows a large segment of hyperintensity on T2WI.
The transverse image shows that most of the cord is involved.

36. These images are of a 31 year old male
The images show a long segment myelopathy with full transverse involvement.
There is no swelling and no enhancement.
It does not look like MS or tumor, so we should think of ATM - acute transverse
myelitis.

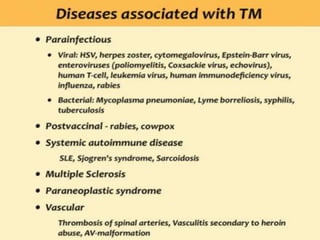

37. Transverse myelitis may occur in isolation or in the
setting of another illness.
When it occurs without apparent underlying cause,
it is referred to as idiopathic.
Idiopathic transverse myelitis is assumed to be the
result of abnormal activation of the immune
system against the spinal cord.
Patients with an acute short segment TM (or
APTM) are at risk of developing MS if there is one
of the following:
• partial TM, i.e. short segment TM.
• Family history of MS. Brain lesions on MR.
• Oligoclonoal bands in CSF.

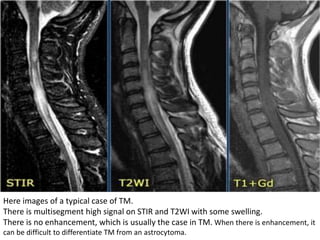

39. Here images of a typical case of TM.
There is multisegment high signal on STIR and T2WI with some swelling.
There is no enhancement, which is usually the case in TM. When there is enhancement, it
can be difficult to differentiate TM from an astrocytoma.

40. Spinal cord tumor
Astrocytoma
The major differential of the spinal cord
diseases that we have discussed so far is an
astrocytoma.
Astrocytoma is a diffusely infiltrating tumor,
that is not mass-like.
Usually there is some patchy enhancement.

41. This ia a case of astrocytoma.T2 hyperintense expansion of the thoracic
cord is demonstrated. Postcontrast images demonstrate patchy irregular
peripheral enhancement of this lesion, and central low intensity

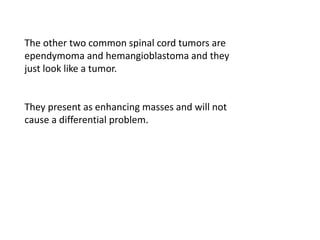

42. The other two common spinal cord tumors are
ependymoma and hemangioblastoma and they
just look like a tumor.
They present as enhancing masses and will not
cause a differential problem.

43. The images are of a patient with neurofibromatosis who has multiple
ependymomas.
They present as multiple enhancing masses.

44. Vascular
Arterial infarction
Spinal cord ischemia is typically seen as a complication
of aortic aneurysm surgery or stenting
Aortic aneurysm stenting is the most common
cause of spinal chord infarction

45. The images are of a patient who developed a paraparesis after stenting of an aortic aneurysm.
Notice the high signal ventrally in the chord, which is typical for arterial infarction.
On transverse images a typical snake-eye appearance can be seen.

46. The diffusion images show restricted diffusion in spinl cord ischemia.

47. Vasculitis
Vasculitis can be idiopathic, but is also seen in SLE,
Sjogren and Behcet.
Normally we think of vasculitis as a disease of the
vessels in the brain, but all vasculitis can be seen in
the spine as well.
It produces MS-like images

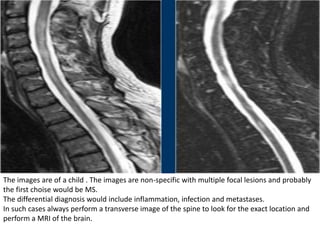

48. The images are of a child . The images are non-specific with multiple focal lesions and probably
the first choise would be MS.
The differential diagnosis would include inflammation, infection and metastases.
In such cases always perform a transverse image of the spine to look for the exact location and
perform a MRI of the brain.

49. The lesions are located dorsally and one of the lesions is enhancing.
Now if this was infection or metastases it would be strange that not all lesions enhance.
MS is still on our list.
We continue with brain images in next slide

50. On the CE-T1WI only one lesion shows enhancement.
The location of the lesions and the enhancement could very well fit to the diagnosis of MS, but
this proved to be vasculitis.
