This document discusses pathology and imaging of multiple sclerosis. It begins by describing the composition and development of myelin and white matter in the central nervous system. It then discusses multiple sclerosis as a primary demyelinating disease characterized by plaques seen on imaging. The clinical manifestations and variants of multiple sclerosis are described. Imaging findings on CT, MRI, T1-weighted, T2-weighted, and FLAIR sequences are provided, showing the appearance of lesions in white matter and ability to detect acute inflammation.

1. Pathology And Imaging Of
Multiple Sclerosis
Dr.D.Sunil Kumar

2. MYELIN AND WHITE MATTER
• The gray and white matter of the central nervous system
(CNS) differ not only in gross morphology but also in water
content and macromolecular components, notably
membrane lipids.
• Although the gray matter primarily contains neurons and
their processes, the white matter is composed
predominantly of myelinated bundles of axons
• The oligodendroglial cell membrane is the source of the
myelin sheath, which is a tightly wrapped, multilayered
membrane composed of a repeating structure
characterized by lipid-cytoplasm-lipid-water and which
ensheathes axons.
.

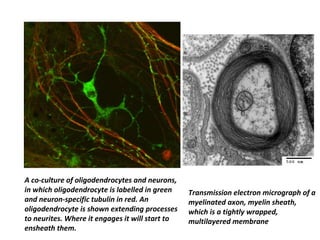

3. A co-culture of oligodendrocytes and neurons,
in which oligodendrocyte is labelled in green
and neuron-specific tubulin in red. An
oligodendrocyte is shown extending processes
to neurites. Where it engages it will start to
ensheath them.
Transmission electron micrograph of a
myelinated axon, myelin sheath,
which is a tightly wrapped,
multilayered membrane

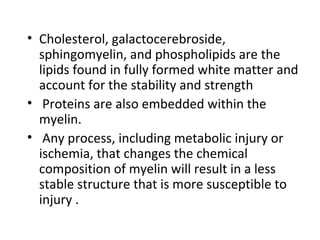

4. • Cholesterol, galactocerebroside,
sphingomyelin, and phospholipids are the
lipids found in fully formed white matter and
account for the stability and strength
• Proteins are also embedded within the
myelin.
• Any process, including metabolic injury or
ischemia, that changes the chemical
composition of myelin will result in a less
stable structure that is more susceptible to
injury .

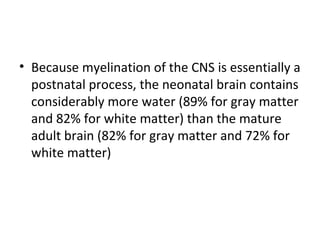

5. • Because myelination of the CNS is essentially a
postnatal process, the neonatal brain contains
considerably more water (89% for gray matter
and 82% for white matter) than the mature
adult brain (82% for gray matter and 72% for
white matter)

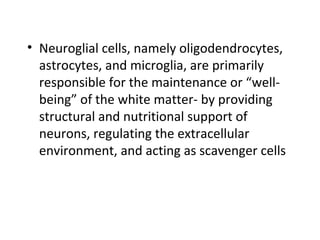

6. • Neuroglial cells, namely oligodendrocytes,
astrocytes, and microglia, are primarily
responsible for the maintenance or “well-
being” of the white matter- by providing
structural and nutritional support of
neurons, regulating the extracellular
environment, and acting as scavenger cells

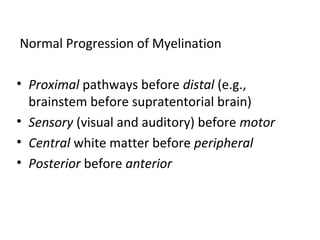

7. Normal Progression of Myelination
• Proximal pathways before distal (e.g.,
brainstem before supratentorial brain)
• Sensory (visual and auditory) before motor
• Central white matter before peripheral
• Posterior before anterior

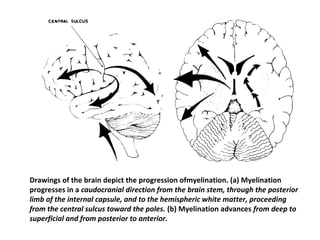

8. Drawings of the brain depict the progression ofmyelination. (a) Myelination
progresses in a caudocranial direction from the brain stem, through the posterior
limb of the internal capsule, and to the hemispheric white matter, proceeding
from the central sulcus toward the poles. (b) Myelination advances from deep to
superficial and from posterior to anterior.

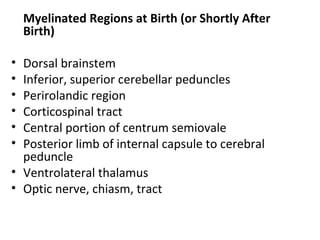

9. Myelinated Regions at Birth (or Shortly After
Birth)
• Dorsal brainstem
• Inferior, superior cerebellar peduncles
• Perirolandic region
• Corticospinal tract
• Central portion of centrum semiovale
• Posterior limb of internal capsule to cerebral
peduncle
• Ventrolateral thalamus
• Optic nerve, chiasm, tract

10. Myelination and MR Findings
• The most commonly used marker for evaluating
normal brain maturation on conventional MR is the
progression of myelination.
• Myelination starts in the second trimester of
gestation and continues into adulthood, beginning
with the peripheral nervous system and then the
spinal cord, the brainstem, and finally the
supratentorial brain.
• Myelination of the brain evolves in a predictable
sequential fashion over the first 2 postnatal years.
• Studies have suggested that the sequence of
myelination has functional significance and is
correlated with psychomotor development.

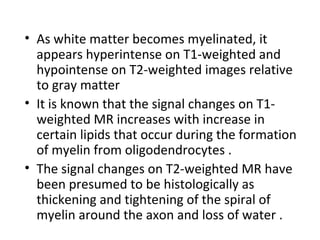

11. • As white matter becomes myelinated, it
appears hyperintense on T1-weighted and
hypointense on T2-weighted images relative
to gray matter
• It is known that the signal changes on T1-
weighted MR increases with increase in
certain lipids that occur during the formation
of myelin from oligodendrocytes .
• The signal changes on T2-weighted MR have
been presumed to be histologically as
thickening and tightening of the spiral of
myelin around the axon and loss of water .

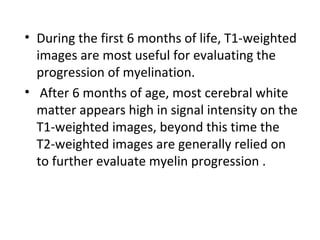

12. • During the first 6 months of life, T1-weighted
images are most useful for evaluating the
progression of myelination.
• After 6 months of age, most cerebral white
matter appears high in signal intensity on the
T1-weighted images, beyond this time the
T2-weighted images are generally relied on
to further evaluate myelin progression .

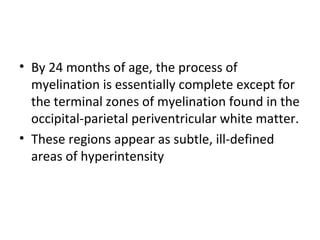

13. • By 24 months of age, the process of
myelination is essentially complete except for
the terminal zones of myelination found in the
occipital-parietal periventricular white matter.
• These regions appear as subtle, ill-defined
areas of hyperintensity

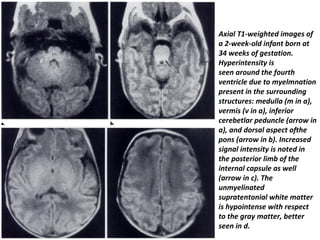

14. Axial T1-weighted images of
a 2-week-old infant born at
34 weeks of gestation.
Hyperintensity is
seen around the fourth
ventricle due to myelmnation
present in the surrounding
structures: medulla (m in a),
vermis (v in a), inferior
cerebetlar peduncle (arrow in
a), and dorsal aspect ofthe
pons (arrow in b). Increased
signal intensity is noted in
the posterior limb of the
internal capsule as well
(arrow in c). The
unmyelinated
supratentonial white matter
is hypointense with respect
to the gray matter, better
seen in d.

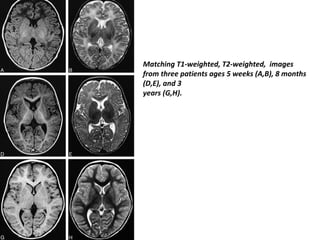

15. Matching T1-weighted, T2-weighted, images
from three patients ages 5 weeks (A,B), 8 months
(D,E), and 3
years (G,H).

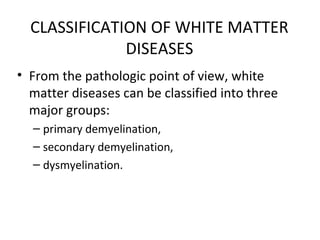

16. CLASSIFICATION OF WHITE MATTER
DISEASES
• From the pathologic point of view, white
matter diseases can be classified into three
major groups:
– primary demyelination,
– secondary demyelination,
– dysmyelination.

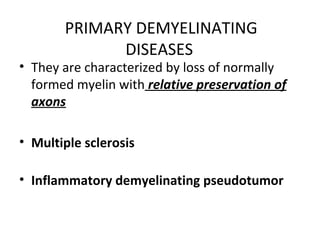

17. PRIMARY DEMYELINATING
DISEASES
• They are characterized by loss of normally
formed myelin with relative preservation of
axons
• Multiple sclerosis
• Inflammatory demyelinating pseudotumor

18. - Demyelination associated with a known
etiology or a systemic disorder with
preferential destruction of white matter (i.e.,
destruction of both axons and myelin)
• Associated with infectious agents and/or
vaccinations, physical/chemical agents or
therapeutic procedures, nutritional/vitamin
deficiency, genetic abnormality.
SECONDARY DEMYELINATION

19. • There is also evidence of axonal destruction in
primary demyelinating processes, possibly
responsible for the irreversible clinical deficits
in many patients, making more difficult and
arbitrary the distinction between primary and
secondary demyelination

20. • It is a pathologic process of the white matter
characterized by defective formation or
maintenance of myelin.
• Many of these dysmyelinating diseases have
known genetic defects regarding abnormal
metabolism of myelin.
• These disorders also called leukodystrophies.
DYSMYELINATION

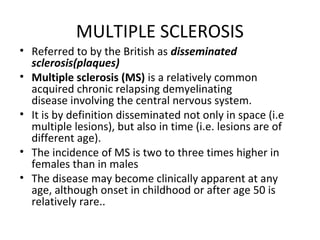

21. MULTIPLE SCLEROSIS
• Referred to by the British as disseminated
sclerosis(plaques)
• Multiple sclerosis (MS) is a relatively common
acquired chronic relapsing demyelinating
disease involving the central nervous system.
• It is by definition disseminated not only in space (i.e
multiple lesions), but also in time (i.e. lesions are of
different age).
• The incidence of MS is two to three times higher in
females than in males
• The disease may become clinically apparent at any
age, although onset in childhood or after age 50 is
relatively rare..

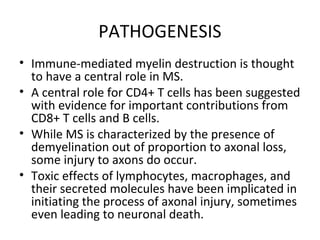

22. PATHOGENESIS
• Immune-mediated myelin destruction is thought
to have a central role in MS.
• A central role for CD4+ T cells has been suggested
with evidence for important contributions from
CD8+ T cells and B cells.
• While MS is characterized by the presence of
demyelination out of proportion to axonal loss,
some injury to axons do occur.
• Toxic effects of lymphocytes, macrophages, and
their secreted molecules have been implicated in
initiating the process of axonal injury, sometimes
even leading to neuronal death.

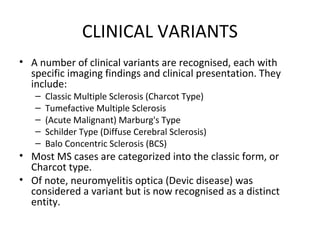

23. CLINICAL VARIANTS
• A number of clinical variants are recognised, each with
specific imaging findings and clinical presentation. They
include:
– Classic Multiple Sclerosis (Charcot Type)

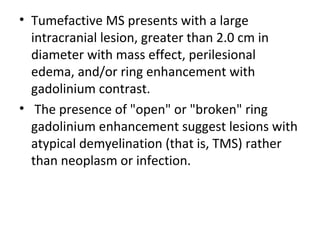

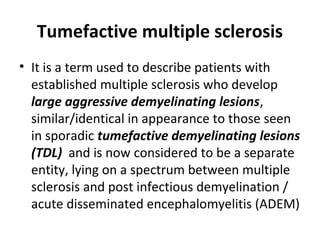

– Tumefactive Multiple Sclerosis

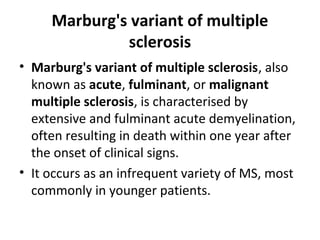

– (Acute Malignant) Marburg's Type

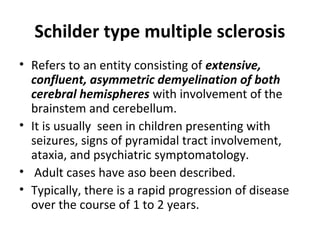

– Schilder Type (Diffuse Cerebral Sclerosis)

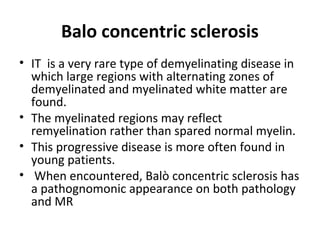

– Balo Concentric Sclerosis (BCS)
• Most MS cases are categorized into the classic form, or
Charcot type.

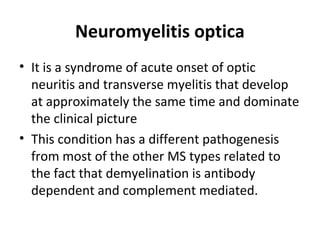

• Of note, neuromyelitis optica (Devic disease) was
considered a variant but is now recognised as a distinct
entity.

24. CLINICAL MANIFESTATIONS
• Weakness or numbness, sometimes both, in one or
more limbs due to involvement of posterior column
and corticospinal tracts is the initial symptom in about
half the patients.
• Other common presenting complaints include
impaired or double vision(25%).
• As the disease progresses, loss of sphincter control,
blindness, paralysis, and dementia may develop.
• Patients rarely experience pain with MS, except that
associated with eye movement in association with
optic neuritis

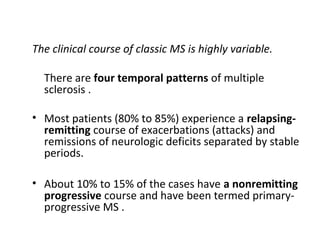

25. The clinical course of classic MS is highly variable.
There are four temporal patterns of multiple
sclerosis .
• Most patients (80% to 85%) experience a relapsing-
remitting course of exacerbations (attacks) and
remissions of neurologic deficits separated by stable
periods.
• About 10% to 15% of the cases have a nonremitting
progressive course and have been termed primary-
progressive MS .

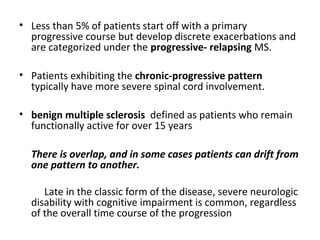

26. • Less than 5% of patients start off with a primary
progressive course but develop discrete exacerbations and
are categorized under the progressive- relapsing MS.
• Patients exhibiting the chronic-progressive pattern
typically have more severe spinal cord involvement.
• benign multiple sclerosis defined as patients who remain
functionally active for over 15 years
There is overlap, and in some cases patients can drift from
one pattern to another.
Late in the classic form of the disease, severe neurologic
disability with cognitive impairment is common, regardless
of the overall time course of the progression

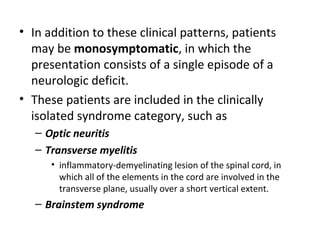

27. • In addition to these clinical patterns, patients
may be monosymptomatic, in which the
presentation consists of a single episode of a
neurologic deficit.
• These patients are included in the clinically
isolated syndrome category, such as
– Optic neuritis
– Transverse myelitis
• inflammatory-demyelinating lesion of the spinal cord, in
which all of the elements in the cord are involved in the
transverse plane, usually over a short vertical extent.
– Brainstem syndrome

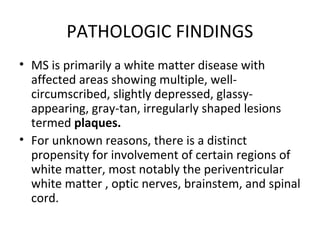

28. PATHOLOGIC FINDINGS
• MS is primarily a white matter disease with
affected areas showing multiple, well-
circumscribed, slightly depressed, glassy-
appearing, gray-tan, irregularly shaped lesions
termed plaques.
• For unknown reasons, there is a distinct
propensity for involvement of certain regions of
white matter, most notably the periventricular
white matter , optic nerves, brainstem, and spinal
cord.

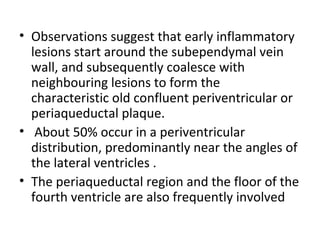

29. • Observations suggest that early inflammatory
lesions start around the subependymal vein
wall, and subsequently coalesce with
neighbouring lesions to form the
characteristic old confluent periventricular or
periaqueductal plaque.
• About 50% occur in a periventricular
distribution, predominantly near the angles of
the lateral ventricles .
• The periaqueductal region and the floor of the
fourth ventricle are also frequently involved

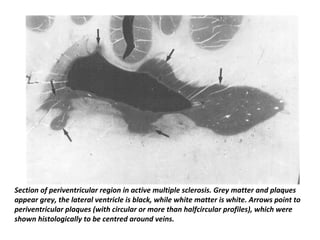

30. Section of periventricular region in active multiple sclerosis. Grey matter and plaques
appear grey, the lateral ventricle is black, while white matter is white. Arrows point to
periventricular plaques (with circular or more than halfcircular profiles), which were
shown histologically to be centred around veins.

31. Slice of brain including the ependymal lining of the third ventricle and central white
matter in active multiple sclerosis, stained in the gross with Nile blue sulphate. Note
pallor around the subependymal veins (V), which appears as a rim of demyelination (D)
in the central white matter cut at right angles to the ventricular lining.

32. Section of fresh brain showing
a plaque around occipital horn of
the lateral ventricle

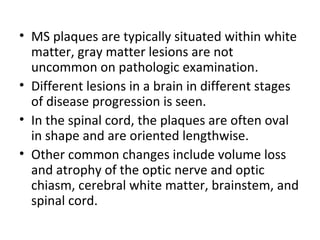

33. • MS plaques are typically situated within white
matter, gray matter lesions are not
uncommon on pathologic examination.
• Different lesions in a brain in different stages
of disease progression is seen.

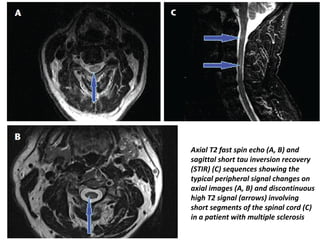

• In the spinal cord, the plaques are often oval
in shape and are oriented lengthwise.
• Other common changes include volume loss
and atrophy of the optic nerve and optic
chiasm, cerebral white matter, brainstem, and
spinal cord.

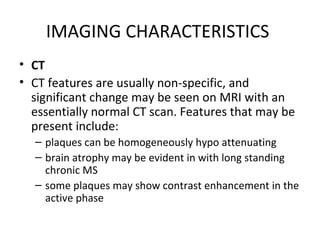

34. IMAGING CHARACTERISTICS
• CT
• CT features are usually non-specific, and
significant change may be seen on MRI with an
essentially normal CT scan. Features that may be
present include:
– plaques can be homogeneously hypo attenuating
– brain atrophy may be evident in with long standing
chronic MS
– some plaques may show contrast enhancement in the
active phase

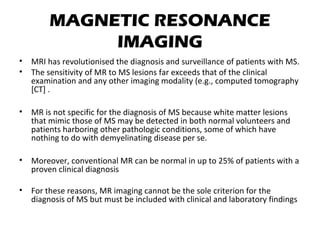

35. MAGNETIC RESONANCE
IMAGING
• MRI has revolutionised the diagnosis and surveillance of patients with MS.
• The sensitivity of MR to MS lesions far exceeds that of the clinical
examination and any other imaging modality (e.g., computed tomography
[CT] .
• MR is not specific for the diagnosis of MS because white matter lesions
that mimic those of MS may be detected in both normal volunteers and
patients harboring other pathologic conditions, some of which have
nothing to do with demyelinating disease per se.
• Moreover, conventional MR can be normal in up to 25% of patients with a
proven clinical diagnosis
• For these reasons, MR imaging cannot be the sole criterion for the
diagnosis of MS but must be included with clinical and laboratory findings

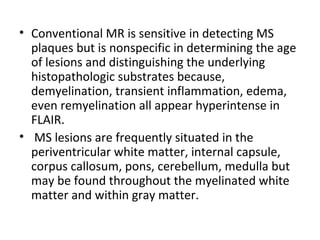

36. • Conventional MR is sensitive in detecting MS
plaques but is nonspecific in determining the age
of lesions and distinguishing the underlying
histopathologic substrates because,
demyelination, transient inflammation, edema,
even remyelination all appear hyperintense in
FLAIR.
• MS lesions are frequently situated in the
periventricular white matter, internal capsule,
corpus callosum, pons, cerebellum, medulla but
may be found throughout the myelinated white
matter and within gray matter.

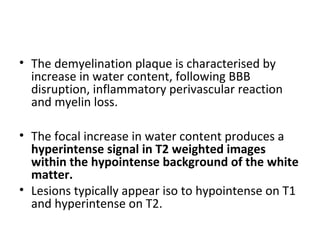

37. • The demyelination plaque is characterised by
increase in water content, following BBB
disruption, inflammatory perivascular reaction
and myelin loss.
• The focal increase in water content produces a
hyperintense signal in T2 weighted images
within the hypointense background of the white
matter.
• Lesions typically appear iso to hypointense on T1
and hyperintense on T2.

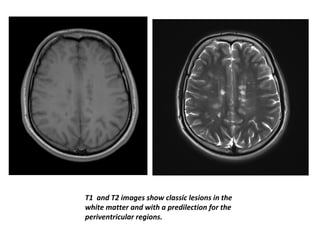

38. T1 and T2 images show classic lesions in the
white matter and with a predilection for the
periventricular regions.

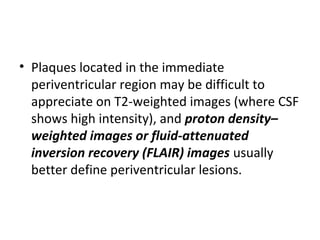

39. • Plaques located in the immediate
periventricular region may be difficult to
appreciate on T2-weighted images (where CSF
shows high intensity), and proton density–
weighted images or fluid-attenuated
inversion recovery (FLAIR) images usually
better define periventricular lesions.

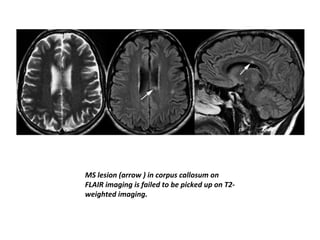

40. MS lesion (arrow ) in corpus callosum on
FLAIR imaging is failed to be picked up on T2-
weighted imaging.

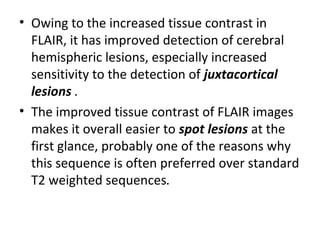

41. • Owing to the increased tissue contrast in
FLAIR, it has improved detection of cerebral
hemispheric lesions, especially increased
sensitivity to the detection of juxtacortical
lesions .
• The improved tissue contrast of FLAIR images
makes it overall easier to spot lesions at the
first glance, probably one of the reasons why
this sequence is often preferred over standard
T2 weighted sequences.

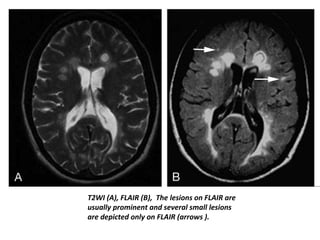

42. T2WI (A), FLAIR (B), The lesions on FLAIR are
usually prominent and several small lesions
are depicted only on FLAIR (arrows ).

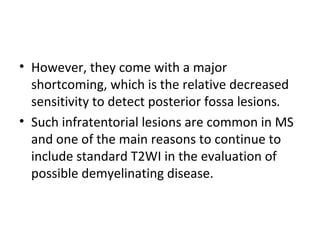

43. • However, they come with a major
shortcoming, which is the relative decreased
sensitivity to detect posterior fossa lesions.
• Such infratentorial lesions are common in MS
and one of the main reasons to continue to
include standard T2WI in the evaluation of
possible demyelinating disease.

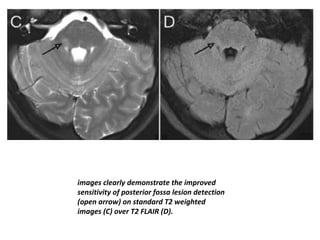

44. images clearly demonstrate the improved
sensitivity of posterior fossa lesion detection
(open arrow) on standard T2 weighted
images (C) over T2 FLAIR (D).

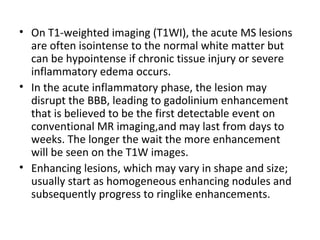

45. • On T1-weighted imaging (T1WI), the acute MS lesions
are often isointense to the normal white matter but
can be hypointense if chronic tissue injury or severe
inflammatory edema occurs.
• In the acute inflammatory phase, the lesion may
disrupt the BBB, leading to gadolinium enhancement
that is believed to be the first detectable event on
conventional MR imaging,and may last from days to
weeks. The longer the wait the more enhancement
will be seen on the T1W images.
• Enhancing lesions, which may vary in shape and size;
usually start as homogeneous enhancing nodules and
subsequently progress to ringlike enhancements.

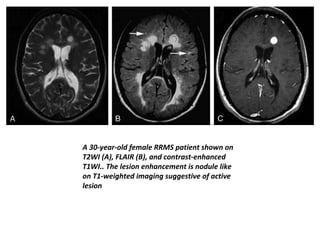

46. A 30-year-old female RRMS patient shown on
T2WI (A), FLAIR (B), and contrast-enhanced
T1WI.. The lesion enhancement is nodule like
on T1-weighted imaging suggestive of active
lesion

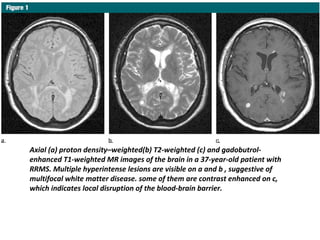

47. Axial (a) proton density–weighted(b) T2-weighted (c) and gadobutrol-
enhanced T1-weighted MR images of the brain in a 37-year-old patient with
RRMS. Multiple hyperintense lesions are visible on a and b , suggestive of
multifocal white matter disease. some of them are contrast enhanced on c,
which indicates local disruption of the blood-brain barrier.

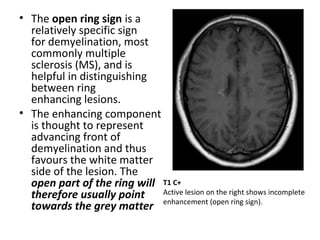

48. • The open ring sign is a
relatively specific sign
for demyelination, most
commonly multiple
sclerosis (MS), and is
helpful in distinguishing
between ring
enhancing lesions.
• The enhancing component
is thought to represent
advancing front of
demyelination and thus
favours the white matter
side of the lesion. The
open part of the ring will
therefore usually point
towards the grey matter
T1 C+
Active lesion on the right shows incomplete
enhancement (open ring sign).

49. • Contrast-enhanced T1WI is now routinely used in
the study of MS and provides in vivo measure of
inflammatory activity.
• It is able to detect disease activity 5–10 times
more frequently than the clinical evaluation of
relapses, which suggests that most of the
enhancing lesions are clinically silent.
• In the chronic stage, lesions often appear as
isointense or hypointense on T1WI and usually
persist for many years on T2WI.
• Some patients may experience the expansion of a
pre-existing lesion with or without enhancement.

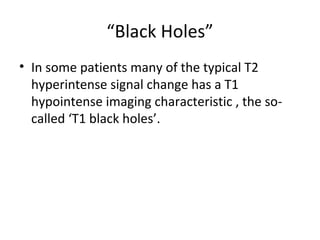

50. “Black Holes”
• In some patients many of the typical T2
hyperintense signal change has a T1
hypointense imaging characteristic , the so-
called ‘T1 black holes’.

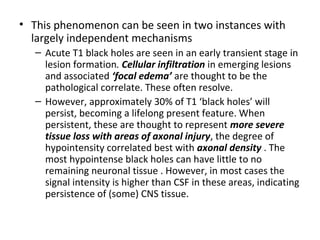

51. • This phenomenon can be seen in two instances with
largely independent mechanisms
– Acute T1 black holes are seen in an early transient stage in
lesion formation. Cellular infiltration in emerging lesions
and associated ‘focal edema’ are thought to be the
pathological correlate. These often resolve.
– However, approximately 30% of T1 ‘black holes’ will
persist, becoming a lifelong present feature. When
persistent, these are thought to represent more severe
tissue loss with areas of axonal injury, the degree of
hypointensity correlated best with axonal density . The
most hypointense black holes can have little to no
remaining neuronal tissue . However, in most cases the
signal intensity is higher than CSF in these areas, indicating
persistence of (some) CNS tissue.

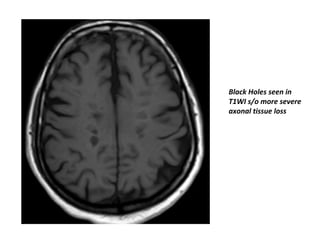

52. Black Holes seen in
T1WI s/o more severe
axonal tissue loss

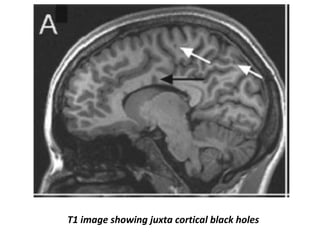

53. T1 image showing juxta cortical black holes

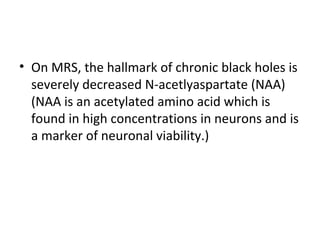

54. • On MRS, the hallmark of chronic black holes is
severely decreased N-acetlyaspartate (NAA)
(NAA is an acetylated amino acid which is
found in high concentrations in neurons and is
a marker of neuronal viability.)

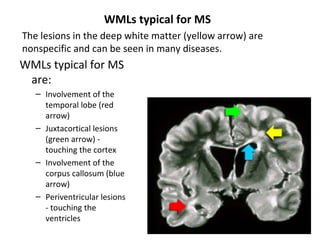

55. WMLs typical for MS
are:
– Involvement of the
temporal lobe (red
arrow)
– Juxtacortical lesions
(green arrow) -
touching the cortex
– Involvement of the
corpus callosum (blue
arrow)
– Periventricular lesions
- touching the
ventricles
The lesions in the deep white matter (yellow arrow) are
nonspecific and can be seen in many diseases.
WMLs typical for MS

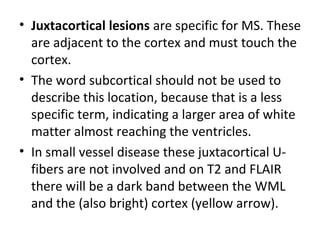

56. • Juxtacortical lesions are specific for MS. These
are adjacent to the cortex and must touch the
cortex.
• The word subcortical should not be used to
describe this location, because that is a less
specific term, indicating a larger area of white
matter almost reaching the ventricles.
• In small vessel disease these juxtacortical U-
fibers are not involved and on T2 and FLAIR
there will be a dark band between the WML
and the (also bright) cortex (yellow arrow).

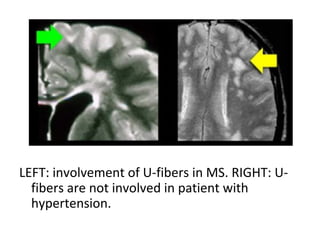

57. LEFT: involvement of U-fibers in MS. RIGHT: U-
fibers are not involved in patient with
hypertension.

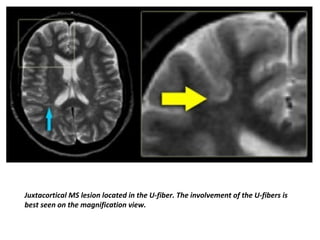

58. Juxtacortical MS lesion located in the U-fiber. The involvement of the U-fibers is
best seen on the magnification view.

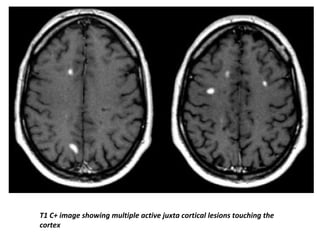

59. T1 C+ image showing multiple active juxta cortical lesions touching the
cortex

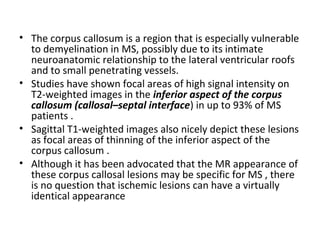

60. • The corpus callosum is a region that is especially vulnerable
to demyelination in MS, possibly due to its intimate
neuroanatomic relationship to the lateral ventricular roofs
and to small penetrating vessels.
• Studies have shown focal areas of high signal intensity on
T2-weighted images in the inferior aspect of the corpus
callosum (callosal–septal interface) in up to 93% of MS
patients .
• Sagittal T1-weighted images also nicely depict these lesions
as focal areas of thinning of the inferior aspect of the
corpus callosum .
• Although it has been advocated that the MR appearance of
these corpus callosal lesions may be specific for MS , there
is no question that ischemic lesions can have a virtually
identical appearance

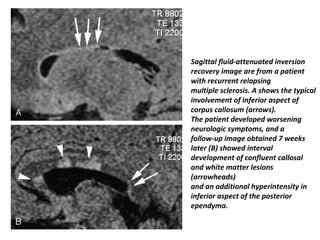

61. Sagittal fluid-attenuated inversion
recovery image are from a patient
with recurrent relapsing
multiple sclerosis. A shows the typical
involvement of inferior aspect of
corpus callosum (arrows).
The patient developed worsening
neurologic symptoms, and a
follow-up image obtained 7 weeks
later (B) showed interval
development of confluent callosal
and white matter lesions
(arrowheads)
and an additional hyperintensity in
inferior aspect of the posterior
ependyma.

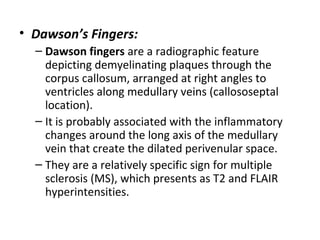

62. • Dawson’s Fingers:
– Dawson fingers are a radiographic feature
depicting demyelinating plaques through the
corpus callosum, arranged at right angles to
ventricles along medullary veins (callososeptal
location).
– It is probably associated with the inflammatory
changes around the long axis of the medullary
vein that create the dilated perivenular space.
– They are a relatively specific sign for multiple
sclerosis (MS), which presents as T2 and FLAIR
hyperintensities.

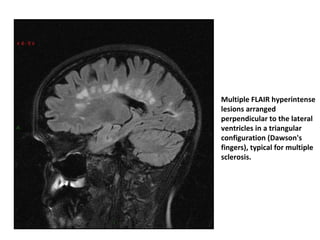

63. Multiple FLAIR hyperintense
lesions arranged
perpendicular to the lateral
ventricles in a triangular
configuration (Dawson's
fingers), typical for multiple
sclerosis.

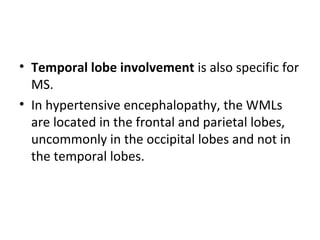

64. • Temporal lobe involvement is also specific for
MS.
• In hypertensive encephalopathy, the WMLs
are located in the frontal and parietal lobes,
uncommonly in the occipital lobes and not in
the temporal lobes.

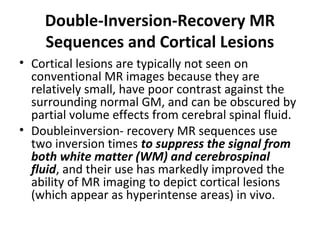

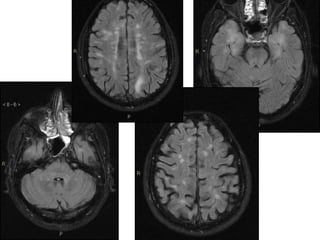

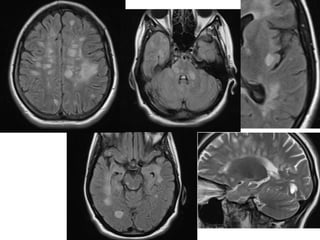

67. Double-Inversion-Recovery MR
Sequences and Cortical Lesions
• Cortical lesions are typically not seen on
conventional MR images because they are
relatively small, have poor contrast against the
surrounding normal GM, and can be obscured by
partial volume effects from cerebral spinal fluid.
• Doubleinversion- recovery MR sequences use
two inversion times to suppress the signal from
both white matter (WM) and cerebrospinal
fluid, and their use has markedly improved the
ability of MR imaging to depict cortical lesions
(which appear as hyperintense areas) in vivo.

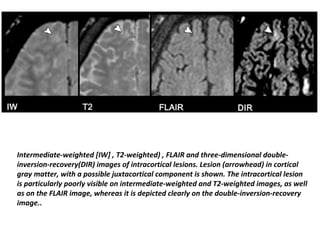

68. Intermediate-weighted [IW] , T2-weighted) , FLAIR and three-dimensional double-
inversion-recovery(DIR) images of intracortical lesions. Lesion (arrowhead) in cortical
gray matter, with a possible juxtacortical component is shown. The intracortical lesion
is particularly poorly visible on intermediate-weighted and T2-weighted images, as well
as on the FLAIR image, whereas it is depicted clearly on the double-inversion-recovery
image..

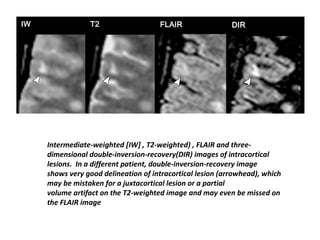

69. Intermediate-weighted [IW] , T2-weighted) , FLAIR and three-
dimensional double-inversion-recovery(DIR) images of intracortical
lesions. In a different patient, double-inversion-recovery image
shows very good delineation of intracortical lesion (arrowhead), which
may be mistaken for a juxtacortical lesion or a partial
volume artifact on the T2-weighted image and may even be missed on
the FLAIR image

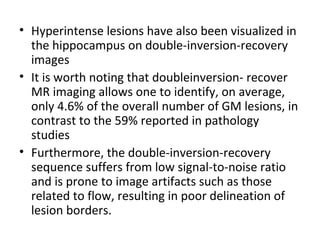

70. • Hyperintense lesions have also been visualized in
the hippocampus on double-inversion-recovery
images
• It is worth noting that doubleinversion- recover
MR imaging allows one to identify, on average,
only 4.6% of the overall number of GM lesions, in
contrast to the 59% reported in pathology
studies
• Furthermore, the double-inversion-recovery
sequence suffers from low signal-to-noise ratio
and is prone to image artifacts such as those
related to flow, resulting in poor delineation of
lesion borders.

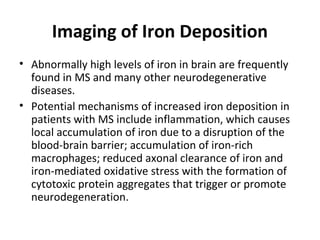

71. Imaging of Iron Deposition
• Abnormally high levels of iron in brain are frequently
found in MS and many other neurodegenerative
diseases.
• Potential mechanisms of increased iron deposition in
patients with MS include inflammation, which causes
local accumulation of iron due to a disruption of the
blood-brain barrier; accumulation of iron-rich
macrophages; reduced axonal clearance of iron and
iron-mediated oxidative stress with the formation of
cytotoxic protein aggregates that trigger or promote
neurodegeneration.

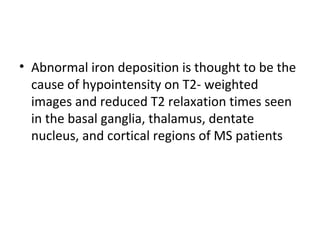

72. • Abnormal iron deposition is thought to be the
cause of hypointensity on T2- weighted
images and reduced T2 relaxation times seen
in the basal ganglia, thalamus, dentate
nucleus, and cortical regions of MS patients

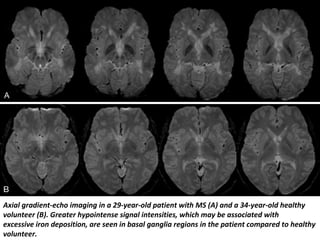

73. Axial gradient-echo imaging in a 29-year-old patient with MS (A) and a 34-year-old healthy
volunteer (B). Greater hypointense signal intensities, which may be associated with
excessive iron deposition, are seen in basal ganglia regions in the patient compared to healthy
volunteer.

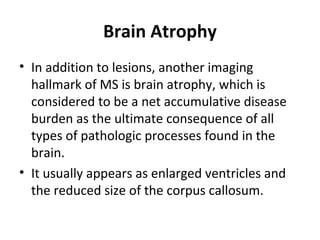

74. Brain Atrophy
• In addition to lesions, another imaging
hallmark of MS is brain atrophy, which is
considered to be a net accumulative disease
burden as the ultimate consequence of all
types of pathologic processes found in the
brain.
• It usually appears as enlarged ventricles and
the reduced size of the corpus callosum.

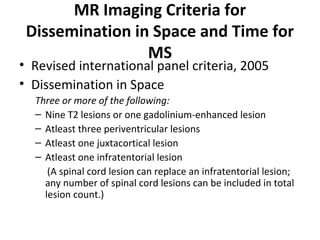

75. MR Imaging Criteria for
Dissemination in Space and Time for
MS
• Revised international panel criteria, 2005
• Dissemination in Space
Three or more of the following:
– Nine T2 lesions or one gadolinium-enhanced lesion
– Atleast three periventricular lesions
– Atleast one juxtacortical lesion
– Atleast one infratentorial lesion
(A spinal cord lesion can replace an infratentorial lesion;
any number of spinal cord lesions can be included in total
lesion count.)

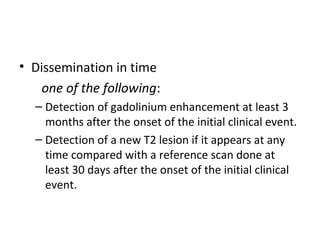

76. • Dissemination in time
one of the following:
– Detection of gadolinium enhancement at least 3
months after the onset of the initial clinical event.
– Detection of a new T2 lesion if it appears at any
time compared with a reference scan done at
least 30 days after the onset of the initial clinical
event.

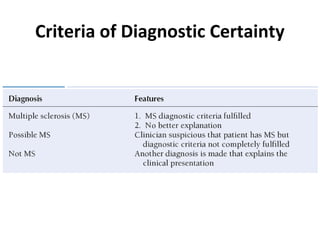

77. Criteria of Diagnostic Certainty

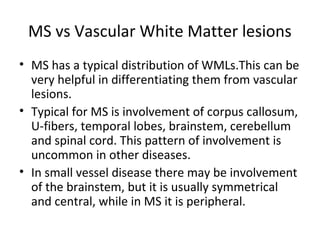

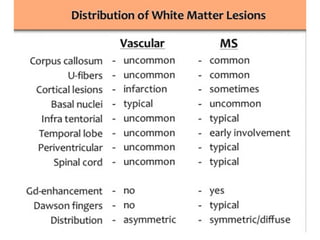

78. MS vs Vascular White Matter lesions
• MS has a typical distribution of WMLs.This can be
very helpful in differentiating them from vascular
lesions.
• Typical for MS is involvement of corpus callosum,
U-fibers, temporal lobes, brainstem, cerebellum
and spinal cord. This pattern of involvement is
uncommon in other diseases.
• In small vessel disease there may be involvement
of the brainstem, but it is usually symmetrical
and central, while in MS it is peripheral.

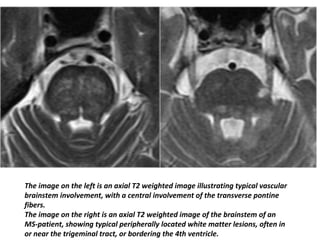

79. The image on the left is an axial T2 weighted image illustrating typical vascular
brainstem involvement, with a central involvement of the transverse pontine
fibers.
The image on the right is an axial T2 weighted image of the brainstem of an
MS-patient, showing typical peripherally located white matter lesions, often in
or near the trigeminal tract, or bordering the 4th ventricle.

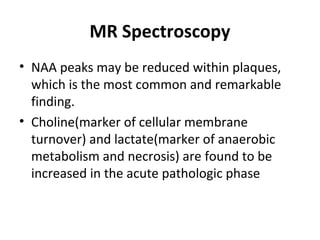

81. MR Spectroscopy
• NAA peaks may be reduced within plaques,
which is the most common and remarkable
finding.
• Choline(marker of cellular membrane
turnover) and lactate(marker of anaerobic
metabolism and necrosis) are found to be
increased in the acute pathologic phase

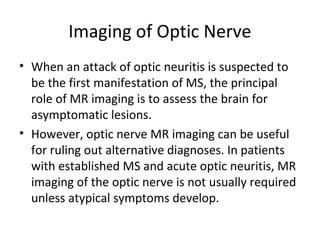

82. Imaging of Optic Nerve
• When an attack of optic neuritis is suspected to
be the first manifestation of MS, the principal
role of MR imaging is to assess the brain for
asymptomatic lesions.
• However, optic nerve MR imaging can be useful
for ruling out alternative diagnoses. In patients
with established MS and acute optic neuritis, MR
imaging of the optic nerve is not usually required
unless atypical symptoms develop.

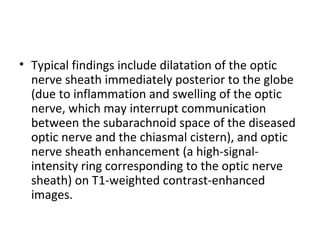

83. • Typical findings include dilatation of the optic
nerve sheath immediately posterior to the globe
(due to inflammation and swelling of the optic
nerve, which may interrupt communication
between the subarachnoid space of the diseased
optic nerve and the chiasmal cistern), and optic
nerve sheath enhancement (a high-signal-
intensity ring corresponding to the optic nerve
sheath) on T1-weighted contrast-enhanced
images.

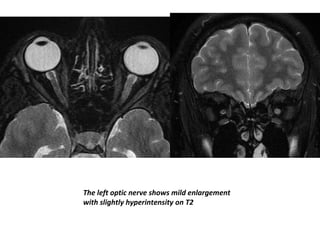

84. The left optic nerve shows mild enlargement
with slightly hyperintensity on T2

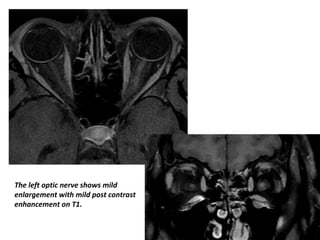

85. The left optic nerve shows mild
enlargement with mild post contrast
enhancement on T1.

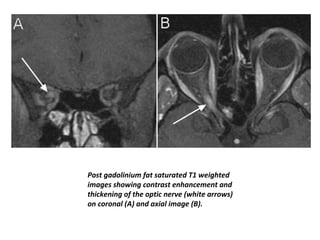

86. Post gadolinium fat saturated T1 weighted
images showing contrast enhancement and
thickening of the optic nerve (white arrows)
on coronal (A) and axial image (B).

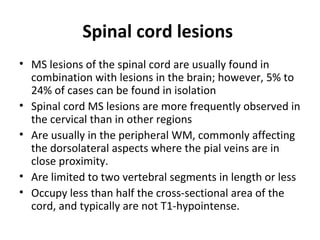

87. • MS lesions of the spinal cord are usually found in
combination with lesions in the brain; however, 5% to
24% of cases can be found in isolation
• Spinal cord MS lesions are more frequently observed in
the cervical than in other regions
• Are usually in the peripheral WM, commonly affecting
the dorsolateral aspects where the pial veins are in
close proximity.
• Are limited to two vertebral segments in length or less
• Occupy less than half the cross-sectional area of the
cord, and typically are not T1-hypointense.
Spinal cord lesions

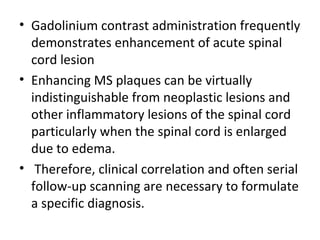

88. • Gadolinium contrast administration frequently
demonstrates enhancement of acute spinal
cord lesion
• Enhancing MS plaques can be virtually
indistinguishable from neoplastic lesions and
other inflammatory lesions of the spinal cord
particularly when the spinal cord is enlarged
due to edema.
• Therefore, clinical correlation and often serial
follow-up scanning are necessary to formulate
a specific diagnosis.

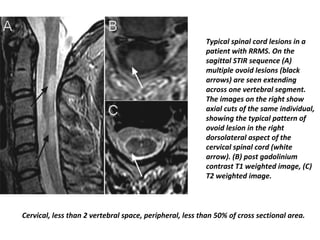

89. Typical spinal cord lesions in a
patient with RRMS. On the
sagittal STIR sequence (A)
multiple ovoid lesions (black
arrows) are seen extending
across one vertebral segment.
The images on the right show
axial cuts of the same individual,
showing the typical pattern of
ovoid lesion in the right
dorsolateral aspect of the
cervical spinal cord (white
arrow). (B) post gadolinium
contrast T1 weighted image, (C)
T2 weighted image.
Cervical, less than 2 vertebral space, peripheral, less than 50% of cross sectional area.

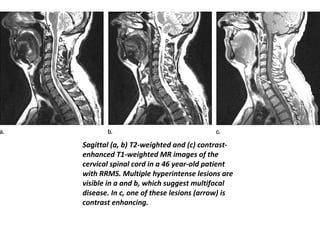

90. 4
Sagittal (a, b) T2-weighted and (c) contrast-
enhanced T1-weighted MR images of the
cervical spinal cord in a 46 year-old patient
with RRMS. Multiple hyperintense lesions are
visible in a and b, which suggest multifocal
disease. In c, one of these lesions (arrow) is
contrast enhancing.

91. Neuromyelitis optica
• It is a syndrome of acute onset of optic
neuritis and transverse myelitis that develop
at approximately the same time and dominate
the clinical picture
• This condition has a different pathogenesis
from most of the other MS types related to
the fact that demyelination is antibody
dependent and complement mediated.

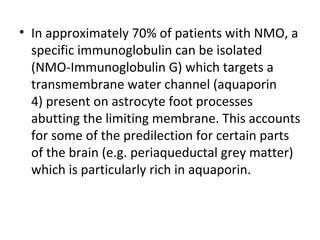

92. • In approximately 70% of patients with NMO, a
specific immunoglobulin can be isolated
(NMO-Immunoglobulin G) which targets a
transmembrane water channel (aquaporin
4) present on astrocyte foot processes
abutting the limiting membrane. This accounts
for some of the predilection for certain parts
of the brain (e.g. periaqueductal grey matter)
which is particularly rich in aquaporin.

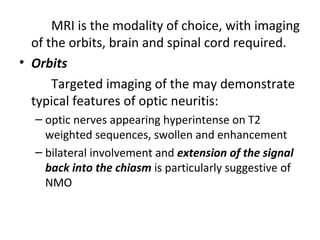

93. MRI is the modality of choice, with imaging
of the orbits, brain and spinal cord required.
• Orbits
Targeted imaging of the may demonstrate
typical features of optic neuritis:
– optic nerves appearing hyperintense on T2
weighted sequences, swollen and enhancement
– bilateral involvement and extension of the signal
back into the chiasm is particularly suggestive of
NMO

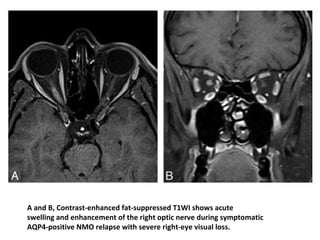

94. A and B, Contrast-enhanced fat-suppressed T1WI shows acute
swelling and enhancement of the right optic nerve during symptomatic
AQP4-positive NMO relapse with severe right-eye visual loss.

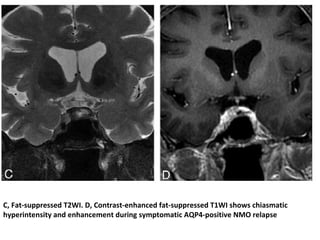

95. C, Fat-suppressed T2WI. D, Contrast-enhanced fat-suppressed T1WI shows chiasmatic
hyperintensity and enhancement during symptomatic AQP4-positive NMO relapse

96. • Spinal cord involvement is extensive, with high T2
signal extending over long distances (over three or
more vertebral segments, often much more - this is
known as a longitudinally extensive spinal cord lesion) .

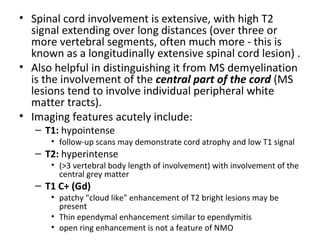

• Also helpful in distinguishing it from MS demyelination
is the involvement of the central part of the cord (MS
lesions tend to involve individual peripheral white
matter tracts).
• Imaging features acutely include:
– T1: hypointense
• follow-up scans may demonstrate cord atrophy and low T1 signal
– T2: hyperintense
• (>3 vertebral body length of involvement) with involvement of the
central grey matter
– T1 C+ (Gd)
• patchy "cloud like" enhancement of T2 bright lesions may be
present
• Thin ependymal enhancement similar to ependymitis
• open ring enhancement is not a feature of NMO

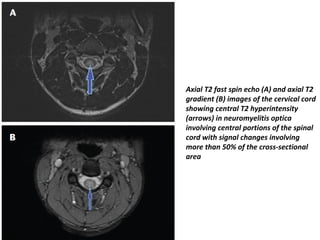

97. Axial T2 fast spin echo (A) and axial T2
gradient (B) images of the cervical cord
showing central T2 hyperintensity
(arrows) in neuromyelitis optica
involving central portions of the spinal
cord with signal changes involving
more than 50% of the cross-sectional
area

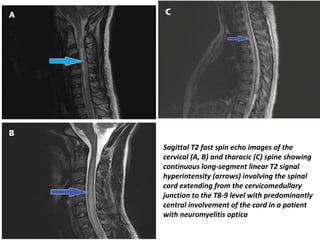

98. Sagittal T2 fast spin echo images of the
cervical (A, B) and thoracic (C) spine showing
continuous long-segment linear T2 signal
hyperintensity (arrows) involving the spinal
cord extending from the cervicomedullary
junction to the T8-9 level with predominantly
central involvement of the cord in a patient
with neuromyelitis optica

99. Axial T2 fast spin echo (A, B) and
sagittal short tau inversion recovery
(STIR) (C) sequences showing the
typical peripheral signal changes on
axial images (A, B) and discontinuous
high T2 signal (arrows) involving
short segments of the spinal cord (C)
in a patient with multiple sclerosis

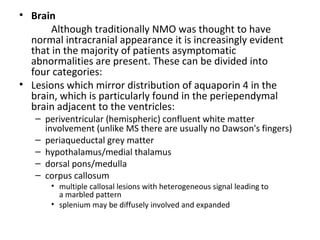

100. • Brain
Although traditionally NMO was thought to have
normal intracranial appearance it is increasingly evident
that in the majority of patients asymptomatic
abnormalities are present. These can be divided into
four categories:
• Lesions which mirror distribution of aquaporin 4 in the
brain, which is particularly found in the periependymal
brain adjacent to the ventricles:
– periventricular (hemispheric) confluent white matter
involvement (unlike MS there are usually no Dawson's fingers)
– periaqueductal grey matter
– hypothalamus/medial thalamus
– dorsal pons/medulla
– corpus callosum
• multiple callosal lesions with heterogeneous signal leading to
a marbled pattern
• splenium may be diffusely involved and expanded

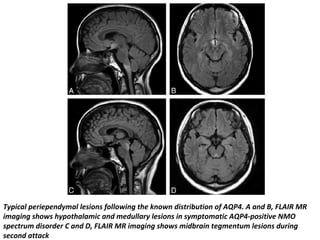

101. Typical periependymal lesions following the known distribution of AQP4. A and B, FLAIR MR
imaging shows hypothalamic and medullary lesions in symptomatic AQP4-positive NMO
spectrum disorder C and D, FLAIR MR imaging shows midbrain tegmentum lesions during
second attack

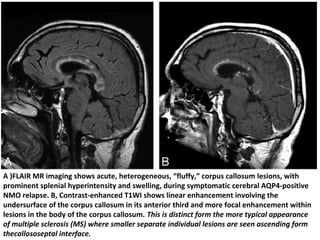

102. A )FLAIR MR imaging shows acute, heterogeneous, “fluffy,” corpus callosum lesions, with
prominent splenial hyperintensity and swelling, during symptomatic cerebral AQP4-positive
NMO relapse. B, Contrast-enhanced T1WI shows linear enhancement involving the
undersurface of the corpus callosum in its anterior third and more focal enhancement within
lesions in the body of the corpus callosum. This is distinct form the more typical appearance
of multiple sclerosis (MS) where smaller separate individual lesions are seen ascending form
thecallososeptal interface.

103. • Deep (or less frequently subcortical) punctate
white matter lesions (which may appear
similar to those seen in multiple sclerosis).
• Corticospinal tract involvement by extensive
longitudinal lesions.
• Larger "spilled ink pattern" of hemispheric
white matter lesions which often vanish with
steroid administration.
• Unlike MS, NMO does not appear to involve
the cortex

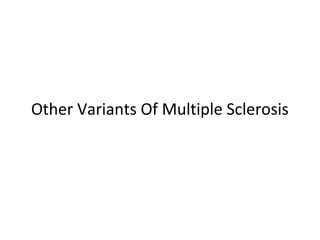

104. Other Variants Of Multiple Sclerosis

105. Tumefactive multiple sclerosis
• It is a term used to describe patients with
established multiple sclerosis who develop
large aggressive demyelinating lesions,
similar/identical in appearance to those seen
in sporadic tumefactive demyelinating lesions
(TDL) and is now considered to be a separate
entity, lying on a spectrum between multiple
sclerosis and post infectious demyelination /
acute disseminated encephalomyelitis (ADEM)

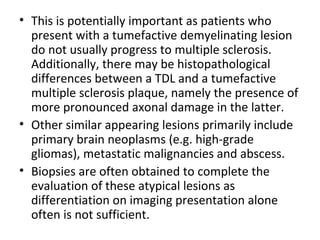

106. • This is potentially important as patients who
present with a tumefactive demyelinating lesion
do not usually progress to multiple sclerosis.
Additionally, there may be histopathological
differences between a TDL and a tumefactive
multiple sclerosis plaque, namely the presence of
more pronounced axonal damage in the latter.
• Other similar appearing lesions primarily include
primary brain neoplasms (e.g. high-grade
gliomas), metastatic malignancies and abscess.
• Biopsies are often obtained to complete the
evaluation of these atypical lesions as
differentiation on imaging presentation alone
often is not sufficient.

107. • Tumefactive MS presents with a large
intracranial lesion, greater than 2.0 cm in
diameter with mass effect, perilesional
edema, and/or ring enhancement with
gadolinium contrast.
• The presence of "open" or "broken" ring
gadolinium enhancement suggest lesions with
atypical demyelination (that is, TMS) rather
than neoplasm or infection.

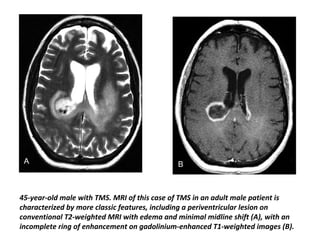

108. 45-year-old male with TMS. MRI of this case of TMS in an adult male patient is
characterized by more classic features, including a periventricular lesion on
conventional T2-weighted MRI with edema and minimal midline shift (A), with an
incomplete ring of enhancement on gadolinium-enhanced T1-weighted images (B).

109. Marburg's variant of multiple
sclerosis
• Marburg's variant of multiple sclerosis, also
known as acute, fulminant, or malignant
multiple sclerosis, is characterised by
extensive and fulminant acute demyelination,
often resulting in death within one year after
the onset of clinical signs.
• It occurs as an infrequent variety of MS, most
commonly in younger patients.

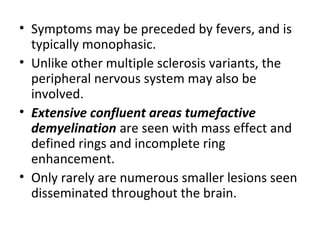

110. • Symptoms may be preceded by fevers, and is
typically monophasic.
• Unlike other multiple sclerosis variants, the
peripheral nervous system may also be
involved.
• Extensive confluent areas tumefactive
demyelination are seen with mass effect and
defined rings and incomplete ring
enhancement.
• Only rarely are numerous smaller lesions seen
disseminated throughout the brain.

111. Schilder type multiple sclerosis
• Refers to an entity consisting of extensive,
confluent, asymmetric demyelination of both
cerebral hemispheres with involvement of the
brainstem and cerebellum.
• It is usually seen in children presenting with
seizures, signs of pyramidal tract involvement,
ataxia, and psychiatric symptomatology.
• Adult cases have aso been described.
• Typically, there is a rapid progression of disease
over the course of 1 to 2 years.

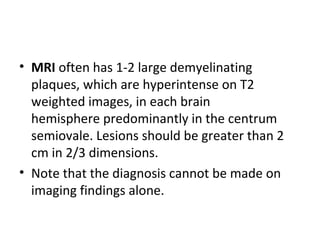

112. • MRI often has 1-2 large demyelinating
plaques, which are hyperintense on T2
weighted images, in each brain
hemisphere predominantly in the centrum
semiovale. Lesions should be greater than 2
cm in 2/3 dimensions.
• Note that the diagnosis cannot be made on
imaging findings alone.

113. Balo concentric sclerosis
• IT is a very rare type of demyelinating disease in
which large regions with alternating zones of
demyelinated and myelinated white matter are
found.
• The myelinated regions may reflect
remyelination rather than spared normal myelin.
• This progressive disease is more often found in
young patients.
• When encountered, Balò concentric sclerosis has
a pathognomonic appearance on both pathology
and MR

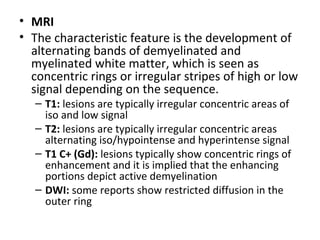

114. • MRI
• The characteristic feature is the development of
alternating bands of demyelinated and
myelinated white matter, which is seen as
concentric rings or irregular stripes of high or low
signal depending on the sequence.
– T1: lesions are typically irregular concentric areas of
iso and low signal
– T2: lesions are typically irregular concentric areas
alternating iso/hypointense and hyperintense signal
– T1 C+ (Gd): lesions typically show concentric rings of
enhancement and it is implied that the enhancing
portions depict active demyelination
– DWI: some reports show restricted diffusion in the
outer ring

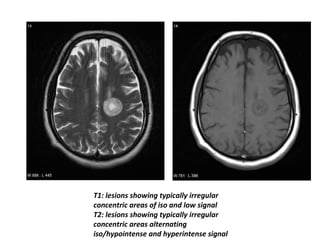

115. T1: lesions showing typically irregular
concentric areas of iso and low signal
T2: lesions showing typically irregular
concentric areas alternating
iso/hypointense and hyperintense signal

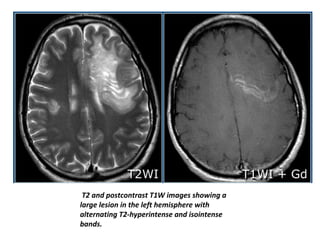

116. T2 and postcontrast T1W images showing a
large lesion in the left hemisphere with
alternating T2-hyperintense and isointense
bands.
