Spectral x-ray photon counting
1. ASIC Development for Energy Resolved
Spectral Counting and Imaging of X-rays
S. Azman, W. Dang, C. Gheorghe, M. Gjetanger, T.M. Johansen,
D. Meier, S. Mikkelsen, G. Mæhlum, J. Talebi, T. Ødegaard
Gamma Medica – Ideas (Norway) AS
CERN, 4.-6. April 2011
dirk.meier@gm-ideas.com 2011-April, CERN, SpecX-Ray Workshop 1

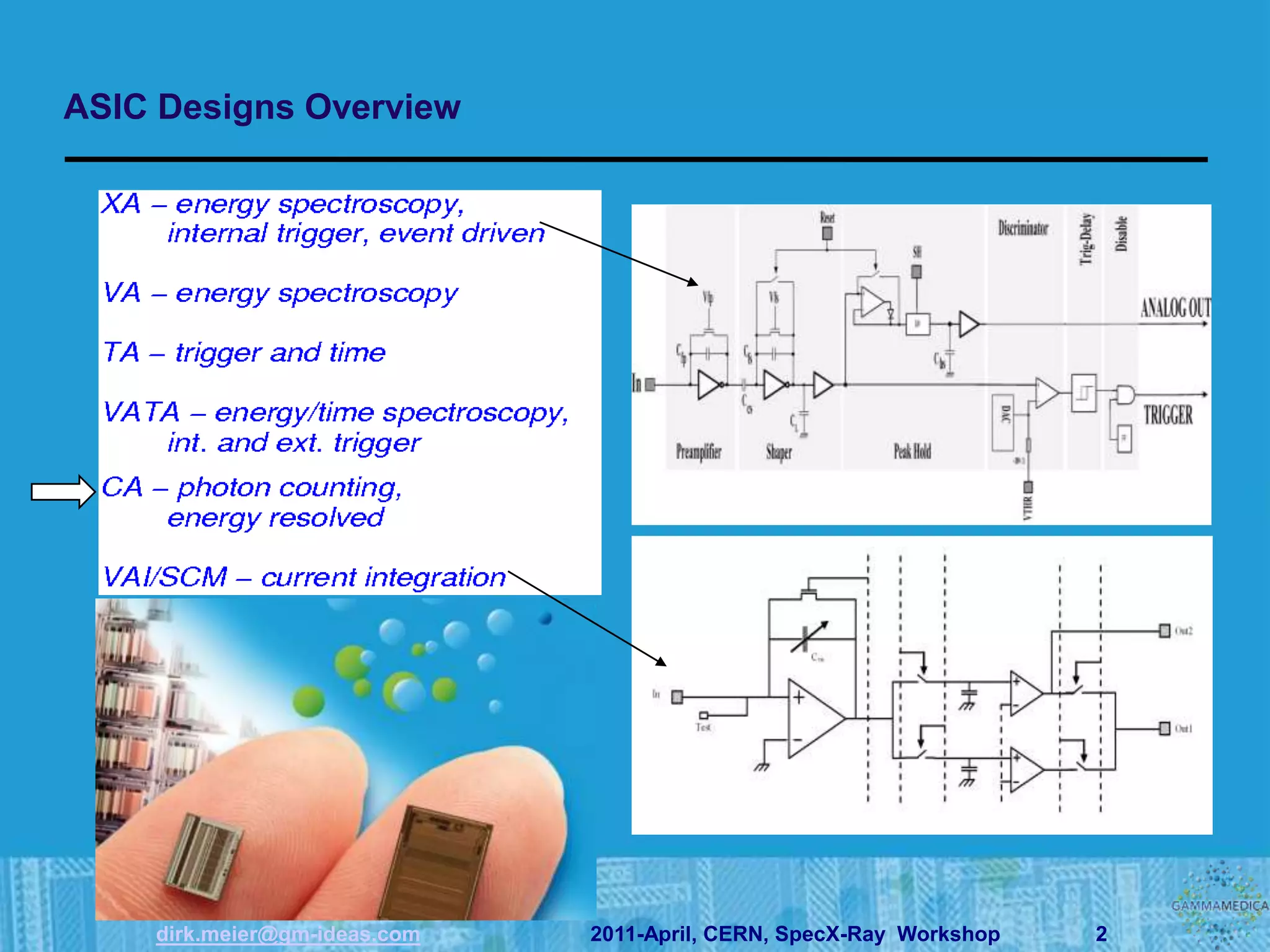

3. Radiation Detector Design and Development for Science
Science: e.g. space, physics
Requirements,
Preliminary
JAXA, BepiColombo Specifications ASIC wafer
Design
Simulation
Implementation,
Rule checks, simulation
ATHENA Manufacture, Foundry
Radiation sensor
Assembly
Integration
Tests,
Verification and
Validation
dirk.meier@gm-ideas.com 2011-April, CERN, SpecX-Ray Workshop 3
4. Abstract – ASIC for Spectral X-ray Photon Counting
We describe an integrated circuit (IC) for spectral counting and imaging of
polychromatic x-rays.
The circuit has been designed for the readout of cadmium telluride (CdTe) radiation
sensors with up to 64 pixel electrodes. Each readout channel contains a charge
sensitive amplifier, up to 6 discriminators and 6 counters which increment when the
amplitude exceeds a given threshold. The energy dynamic range is about 120 keV.
Subsequently we designed and assembled camera prototypes from 1D-linear arrays of
CdTe read out by 32 ASICs. We have tested the cameras with imaging phantoms and
polychromatic x-rays in a micro-computed tomography (microCT) setup. We studied
the use of the cameras for material separation, especially with gadolinium and iodine
based contrast agents, for medical imaging. The presentation will focus on the ASIC
design specifications which were originally set for industrial scanning, but also discuss
the requirements for x-ray microCT and medical imaging.
dirk.meier@gm-ideas.com 2011-April, CERN, SpecX-Ray Workshop 4

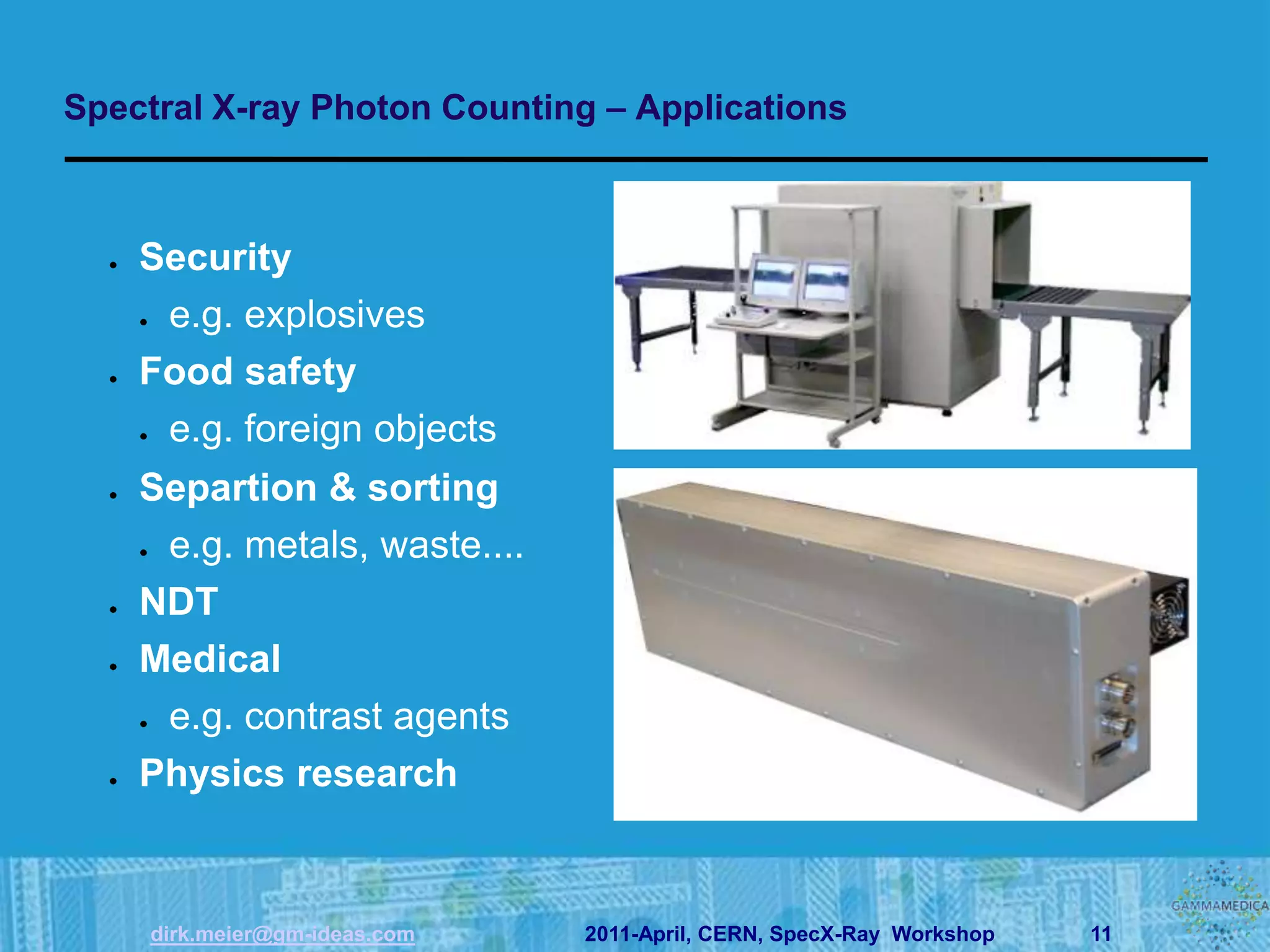

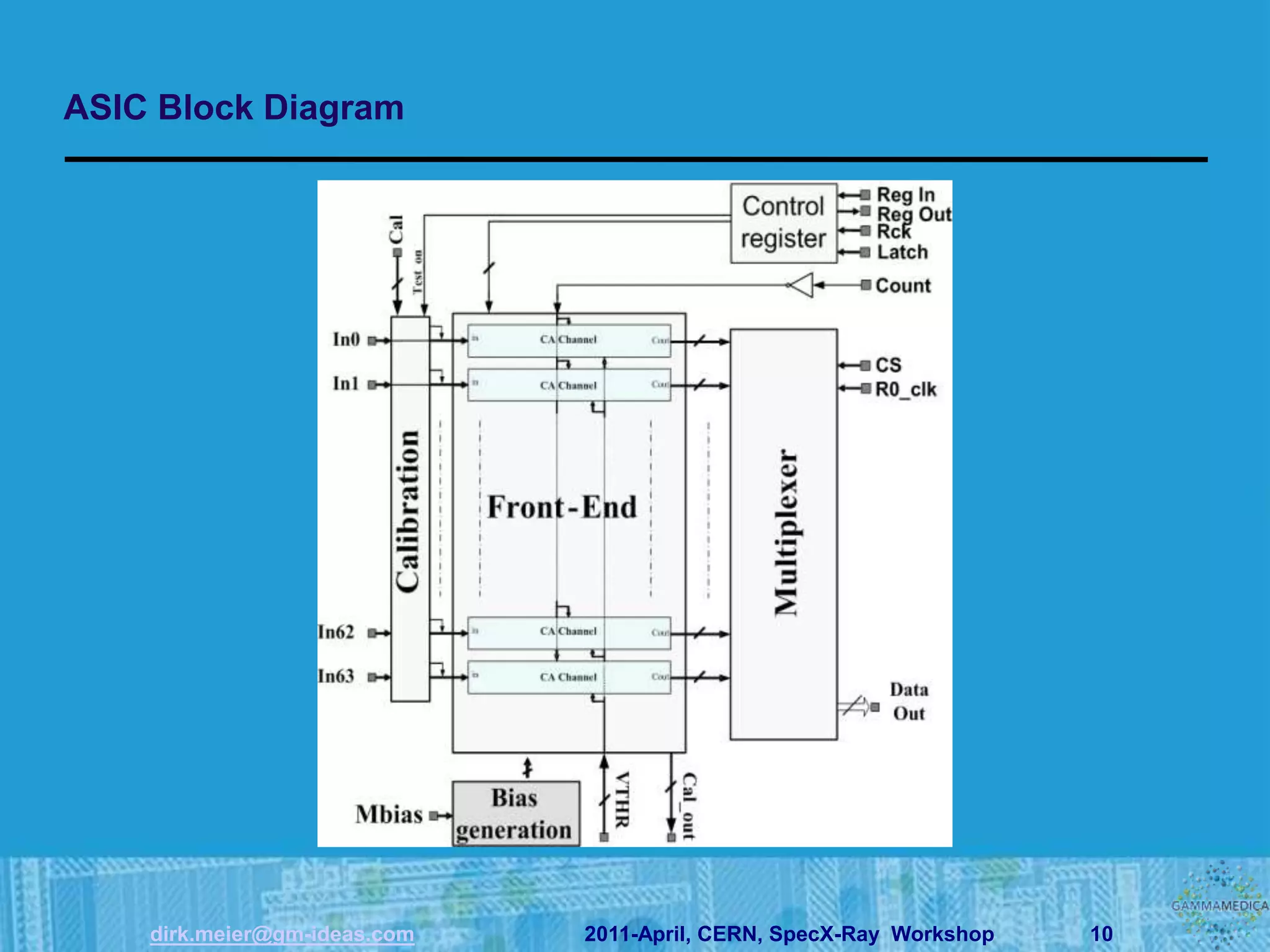

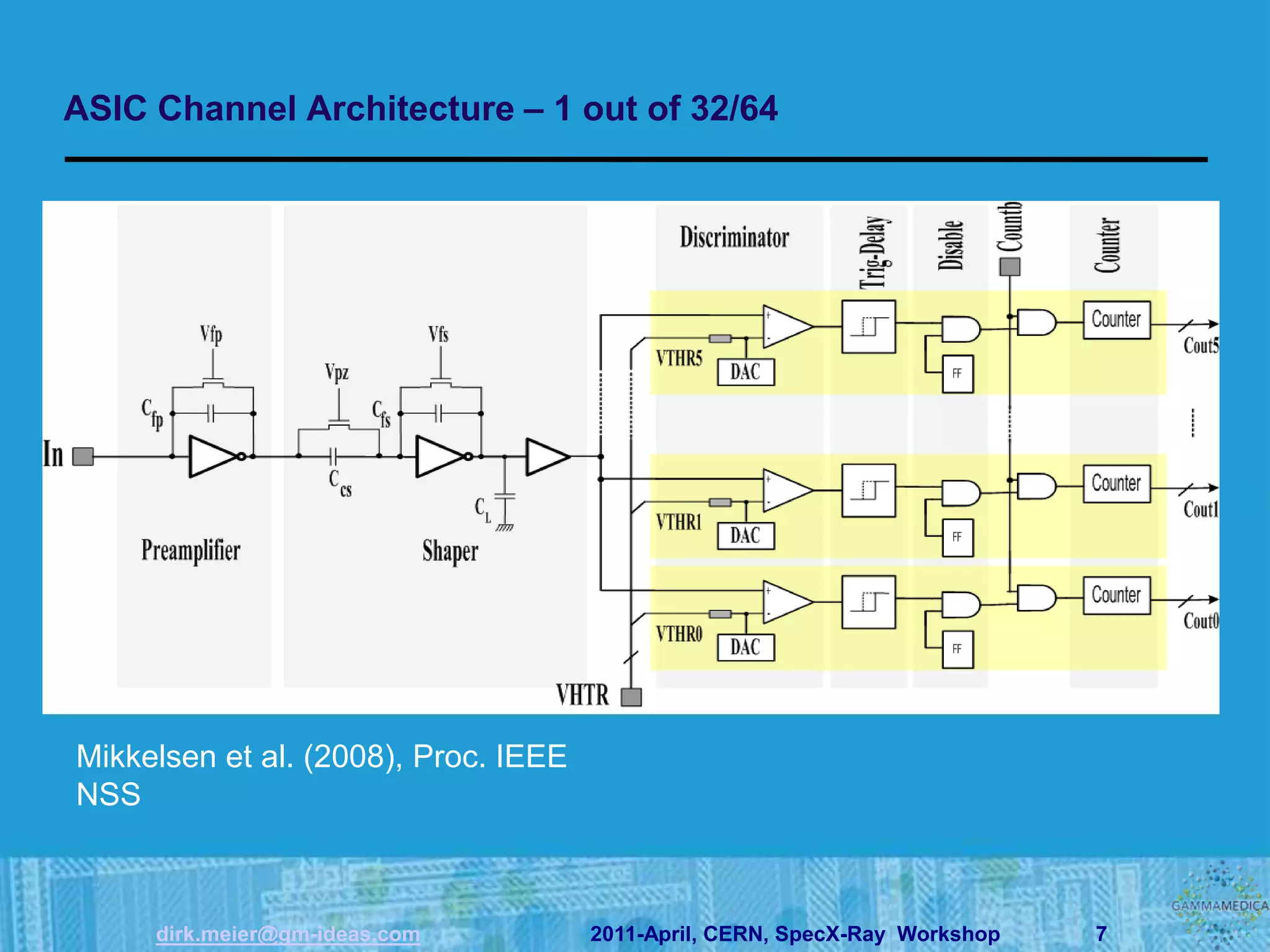

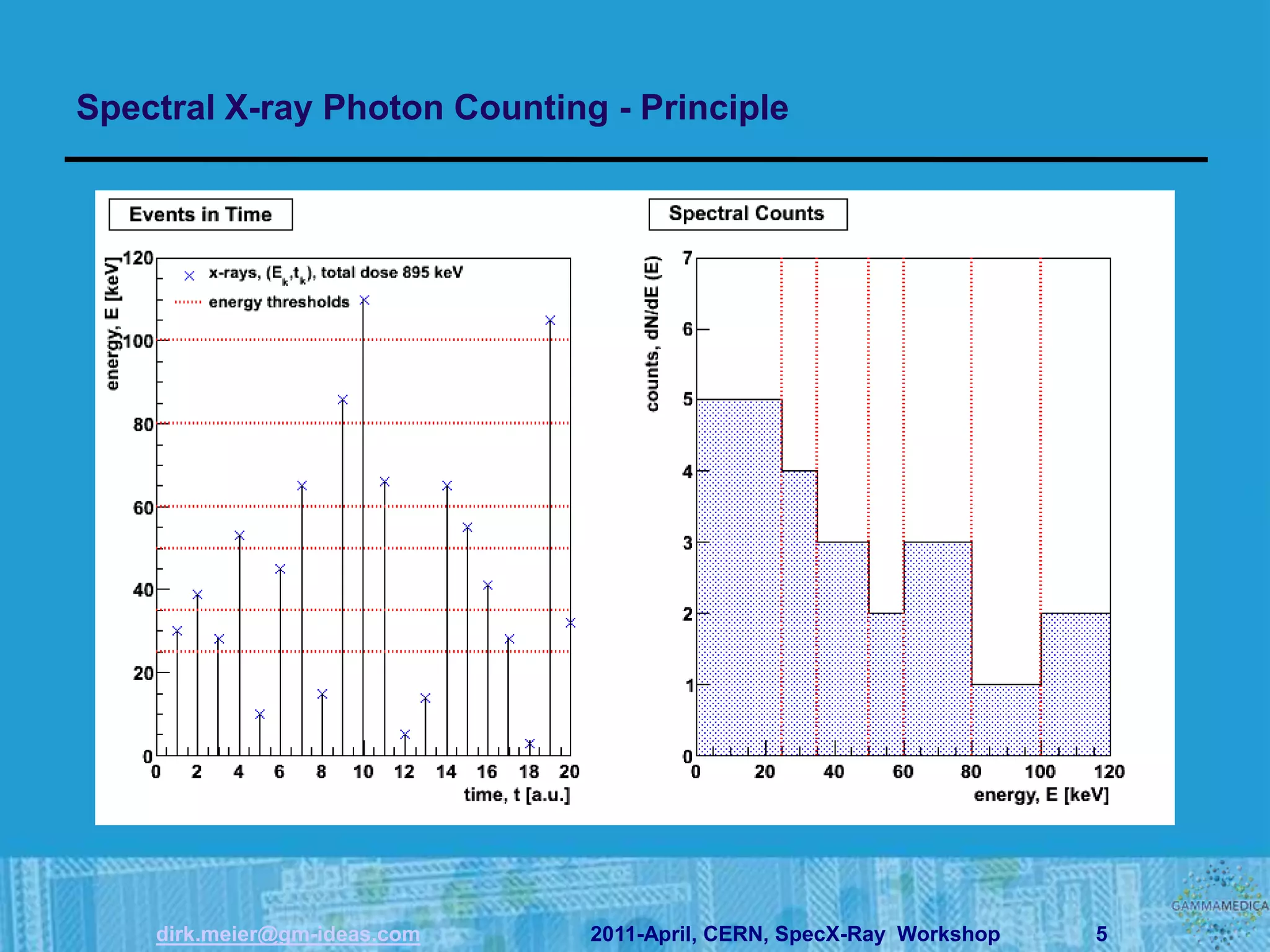

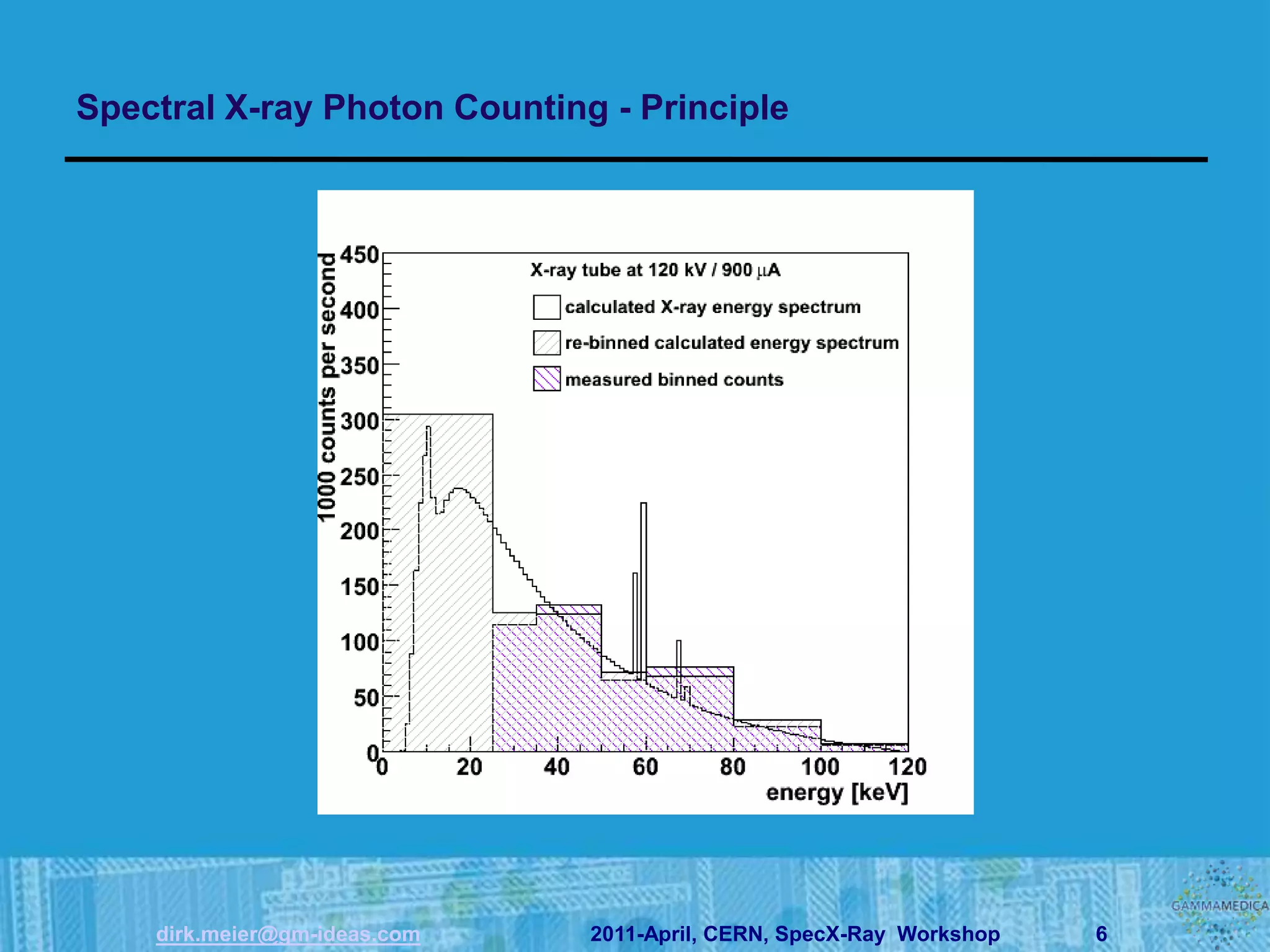

11. Spectral X-ray Photon Counting – Applications
Security
e.g. explosives
Food safety
e.g. foreign objects
Separtion & sorting
e.g. metals, waste....
NDT
Medical
e.g. contrast agents
Physics research
dirk.meier@gm-ideas.com 2011-April, CERN, SpecX-Ray Workshop 11

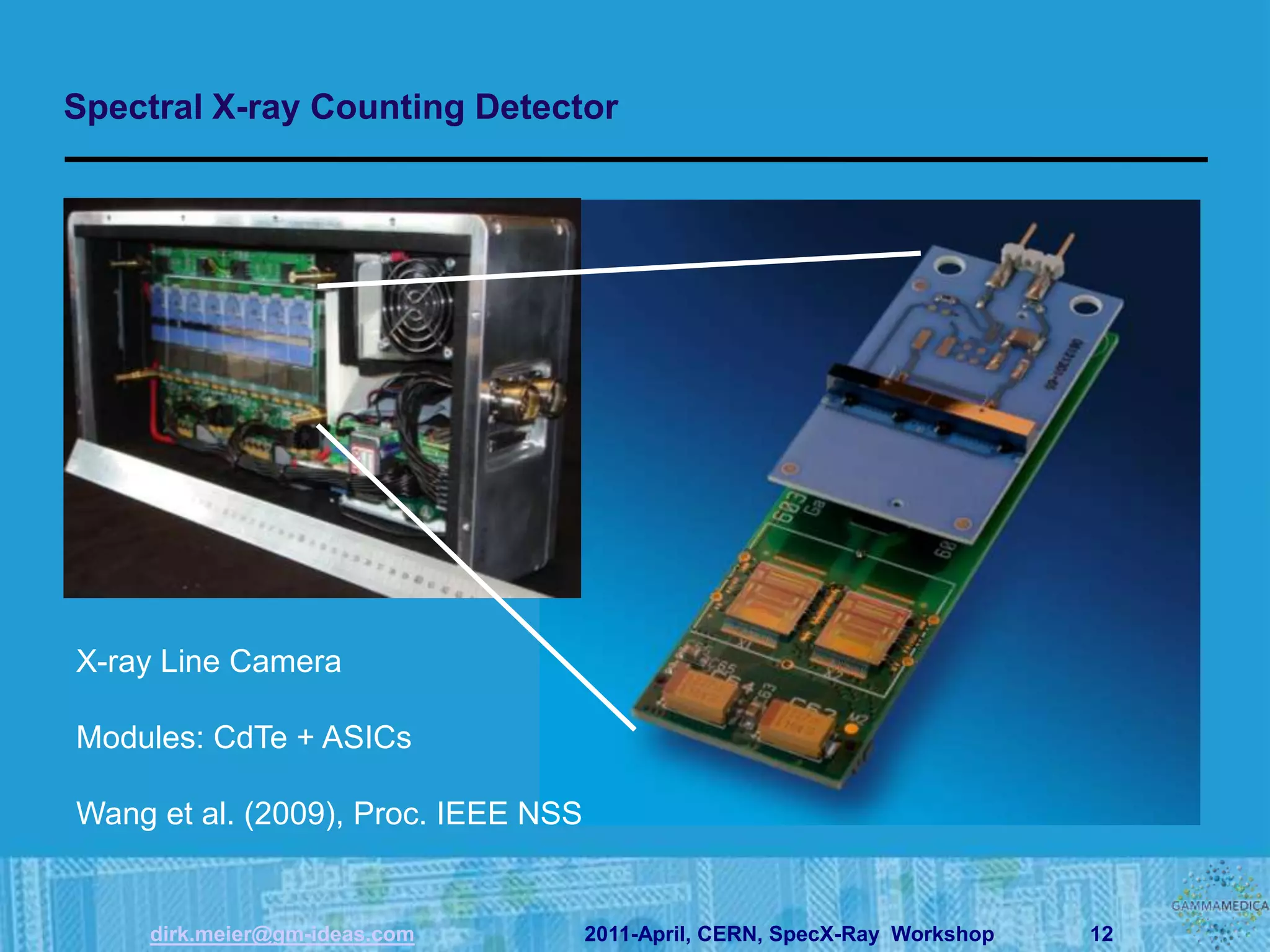

12. Spectral X-ray Counting Detector
X-ray Line Camera
Modules: CdTe + ASICs
Wang et al. (2009), Proc. IEEE NSS
dirk.meier@gm-ideas.com 2011-April, CERN, SpecX-Ray Workshop 12
13. Radiation Sensor - CdTe Crystal with Electrodes
-500V
3 mm
0.4 mm Anode Pitch
dirk.meier@gm-ideas.com 2011-April, CERN, SpecX-Ray Workshop 13

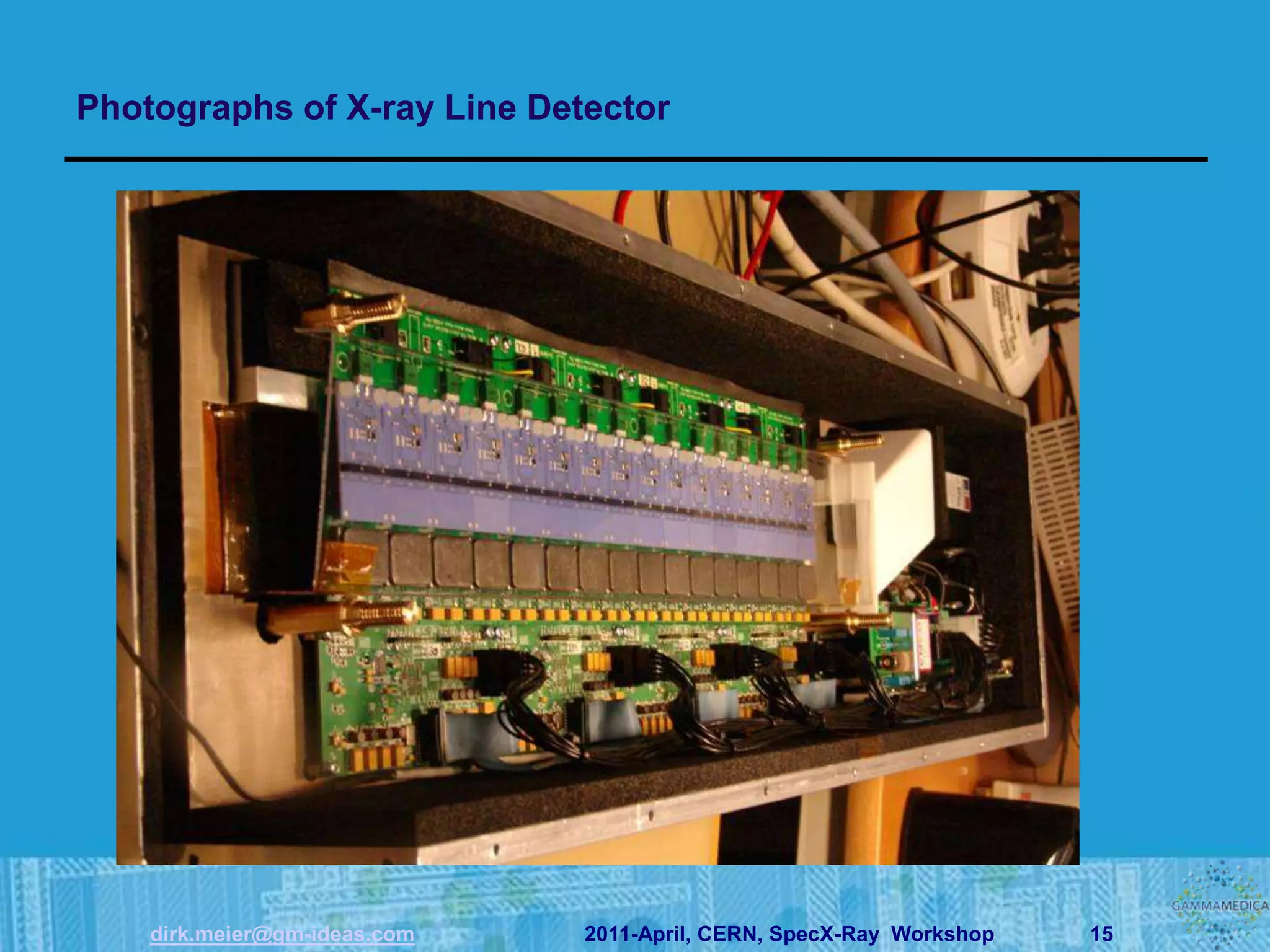

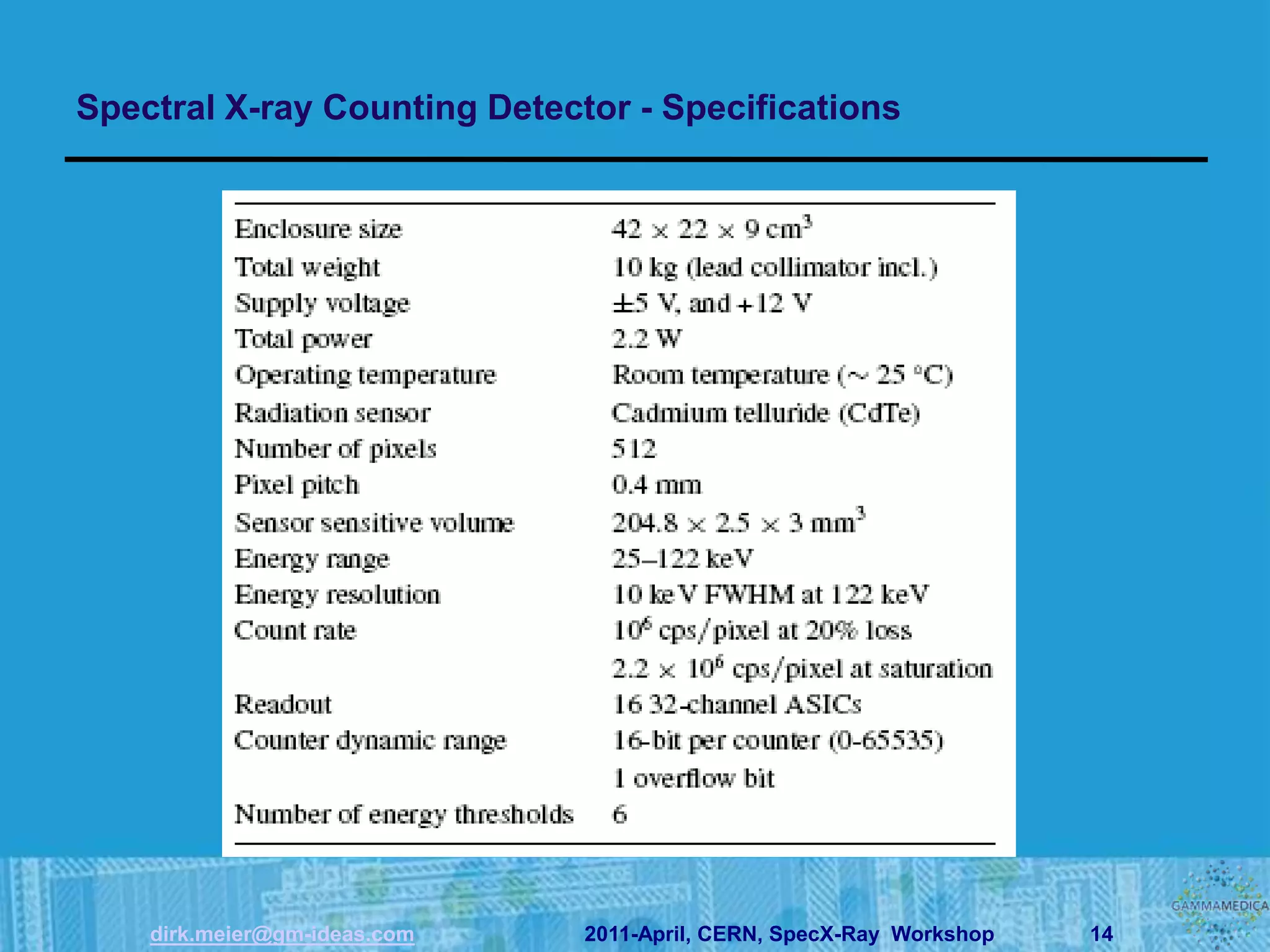

15. Photographs of X-ray Line Detector
dirk.meier@gm-ideas.com 2011-April, CERN, SpecX-Ray Workshop 15

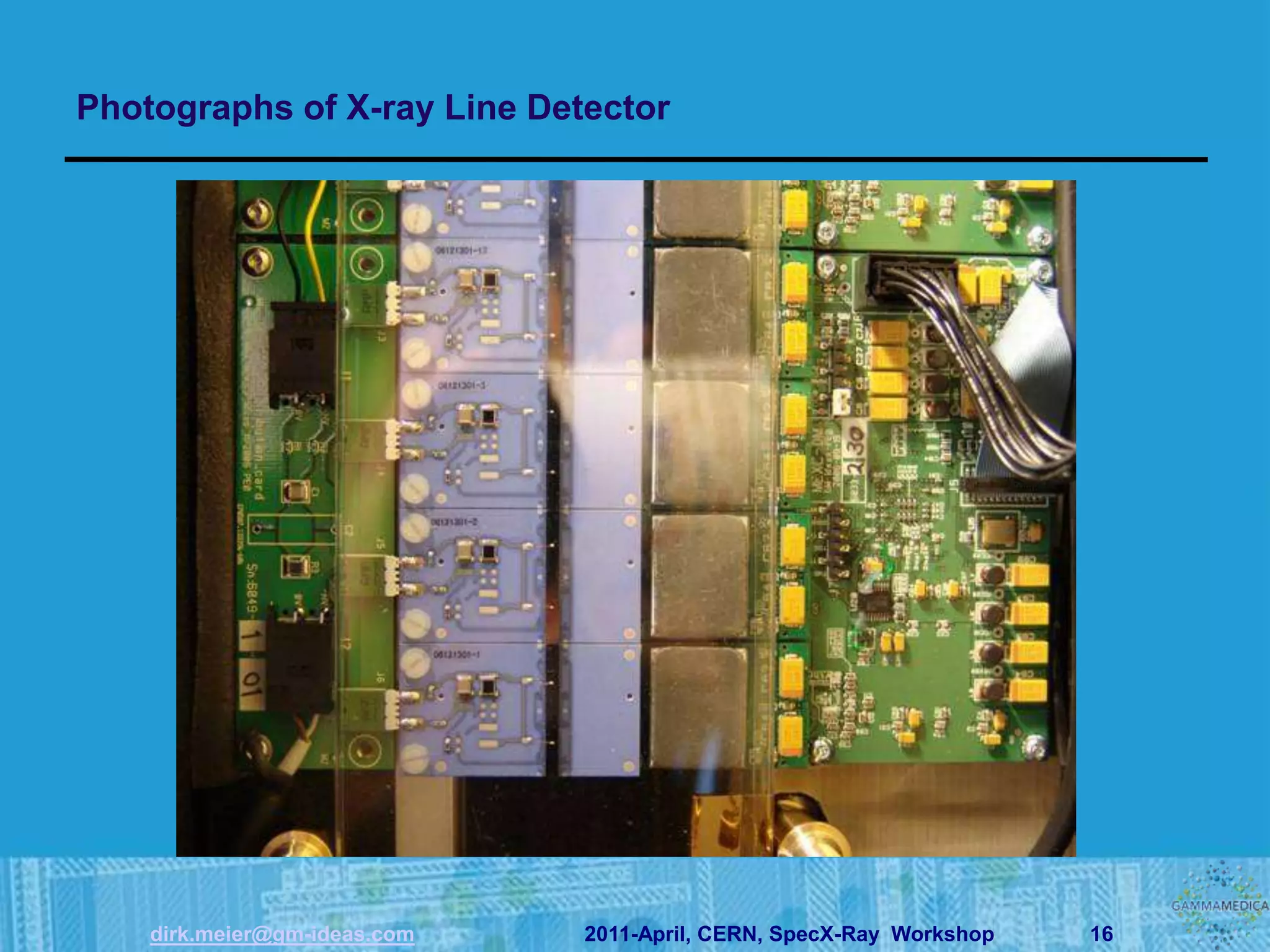

16. Photographs of X-ray Line Detector
dirk.meier@gm-ideas.com 2011-April, CERN, SpecX-Ray Workshop 16

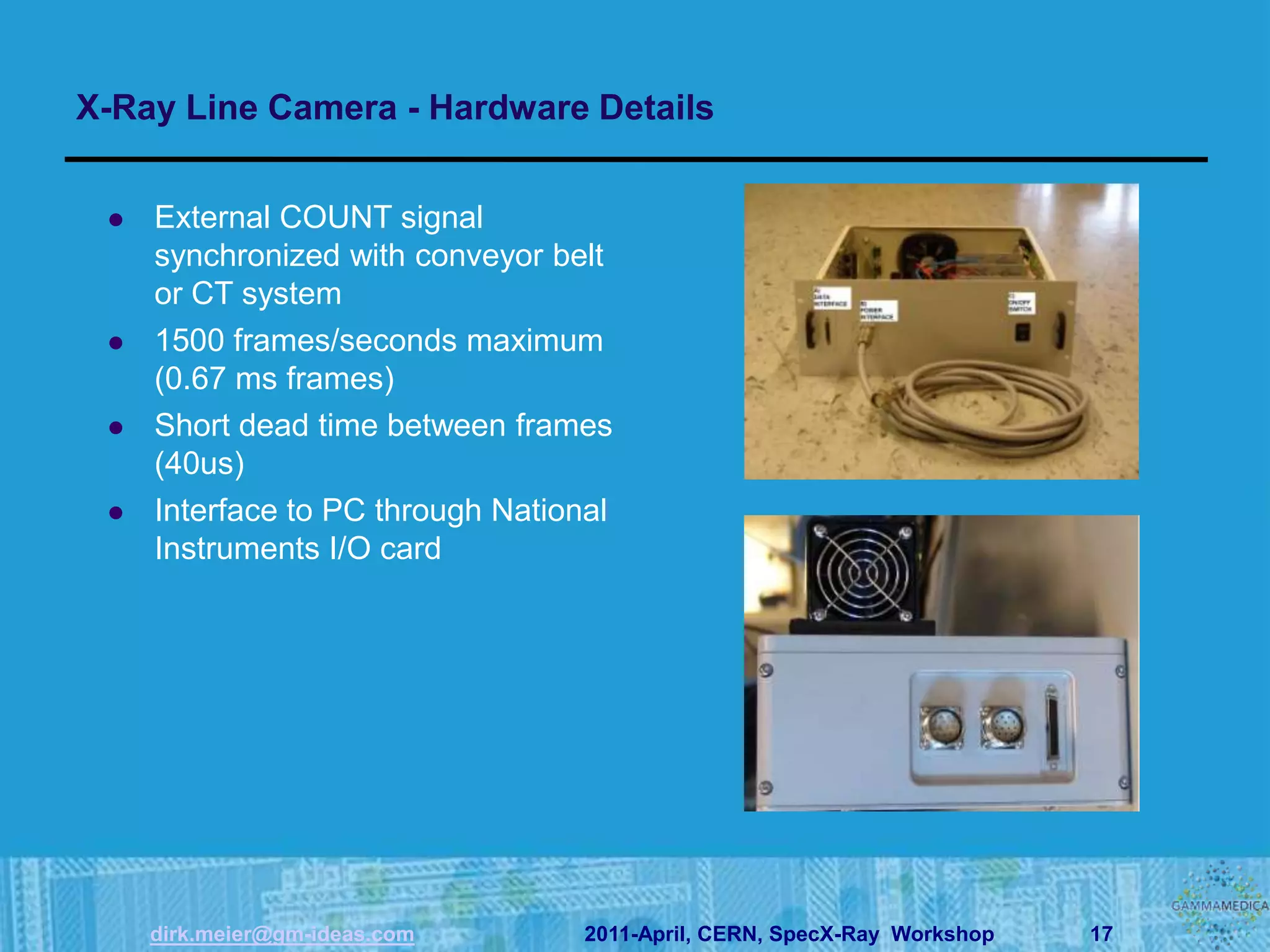

17. X-Ray Line Camera - Hardware Details
External COUNT signal
synchronized with conveyor belt
or CT system
1500 frames/seconds maximum
(0.67 ms frames)
Short dead time between frames
(40us)
Interface to PC through National
Instruments I/O card
dirk.meier@gm-ideas.com 2011-April, CERN, SpecX-Ray Workshop 17

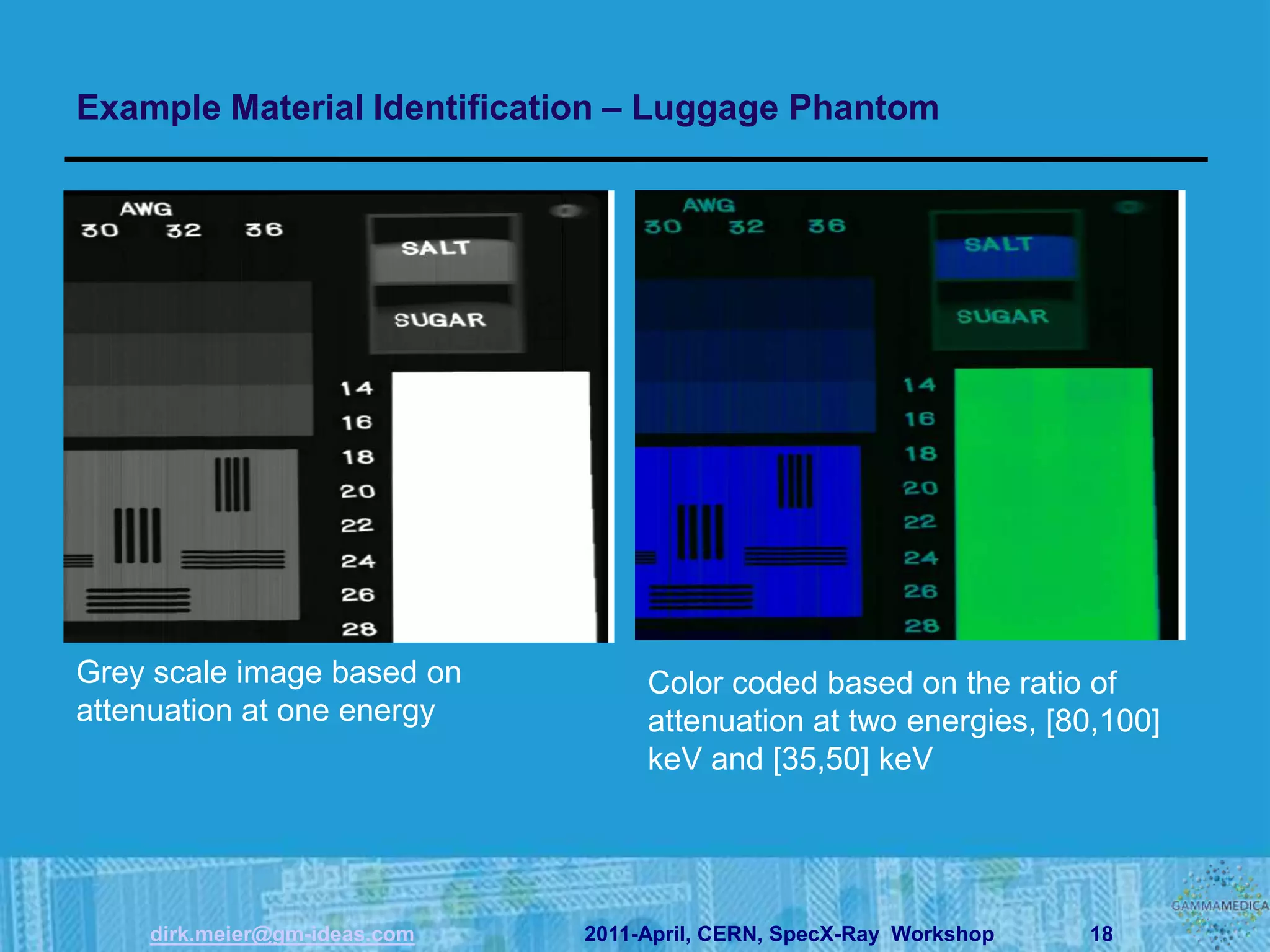

18. Example Material Identification – Luggage Phantom
Grey scale image based on Color coded based on the ratio of
attenuation at one energy attenuation at two energies, [80,100]
keV and [35,50] keV
dirk.meier@gm-ideas.com 2011-April, CERN, SpecX-Ray Workshop 18

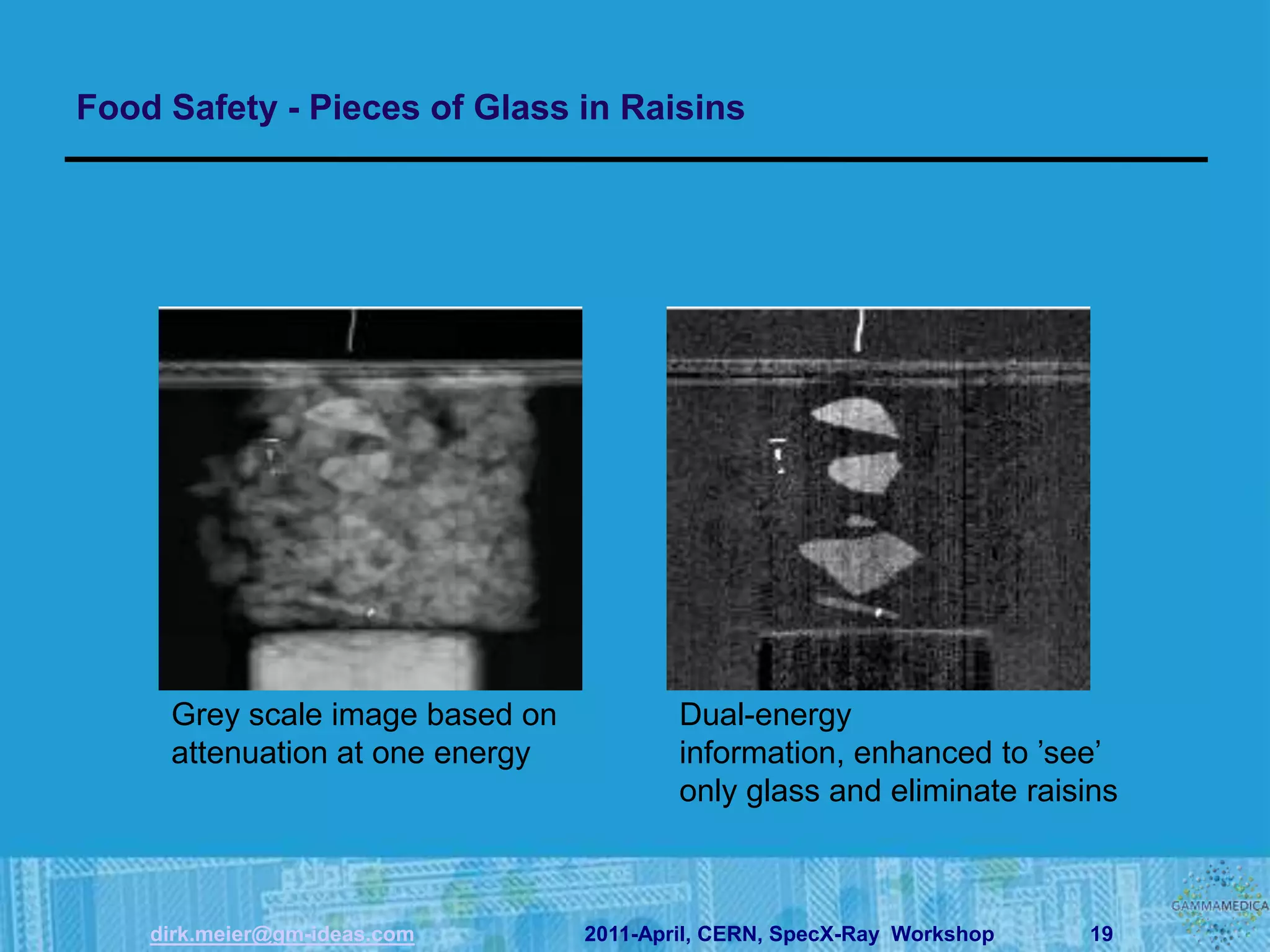

19. Food Safety - Pieces of Glass in Raisins
Grey scale image based on Dual-energy
attenuation at one energy information, enhanced to ’see’
only glass and eliminate raisins
dirk.meier@gm-ideas.com 2011-April, CERN, SpecX-Ray Workshop 19

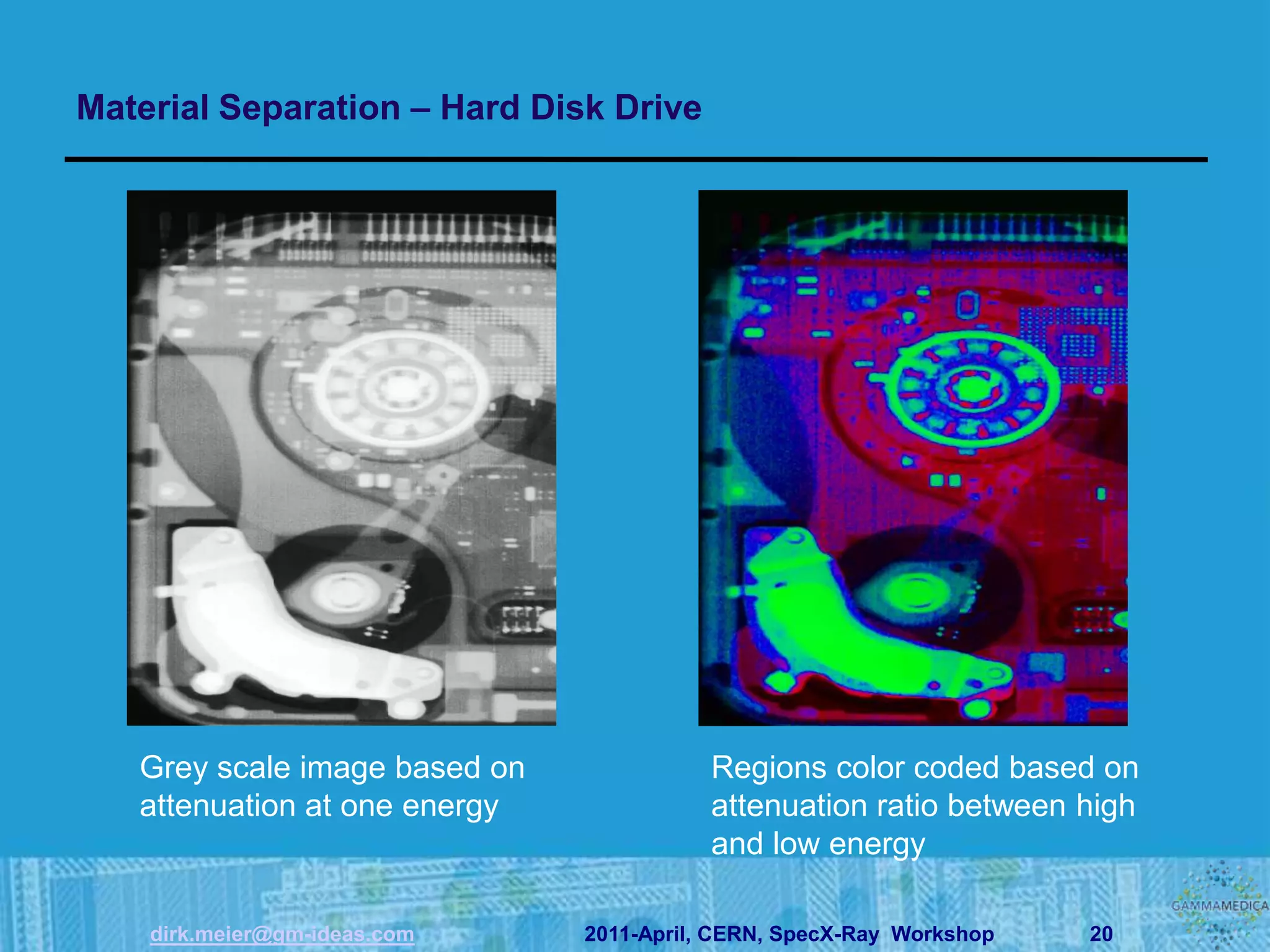

20. Material Separation – Hard Disk Drive
Grey scale image based on Regions color coded based on
attenuation at one energy attenuation ratio between high
and low energy
dirk.meier@gm-ideas.com 2011-April, CERN, SpecX-Ray Workshop 20

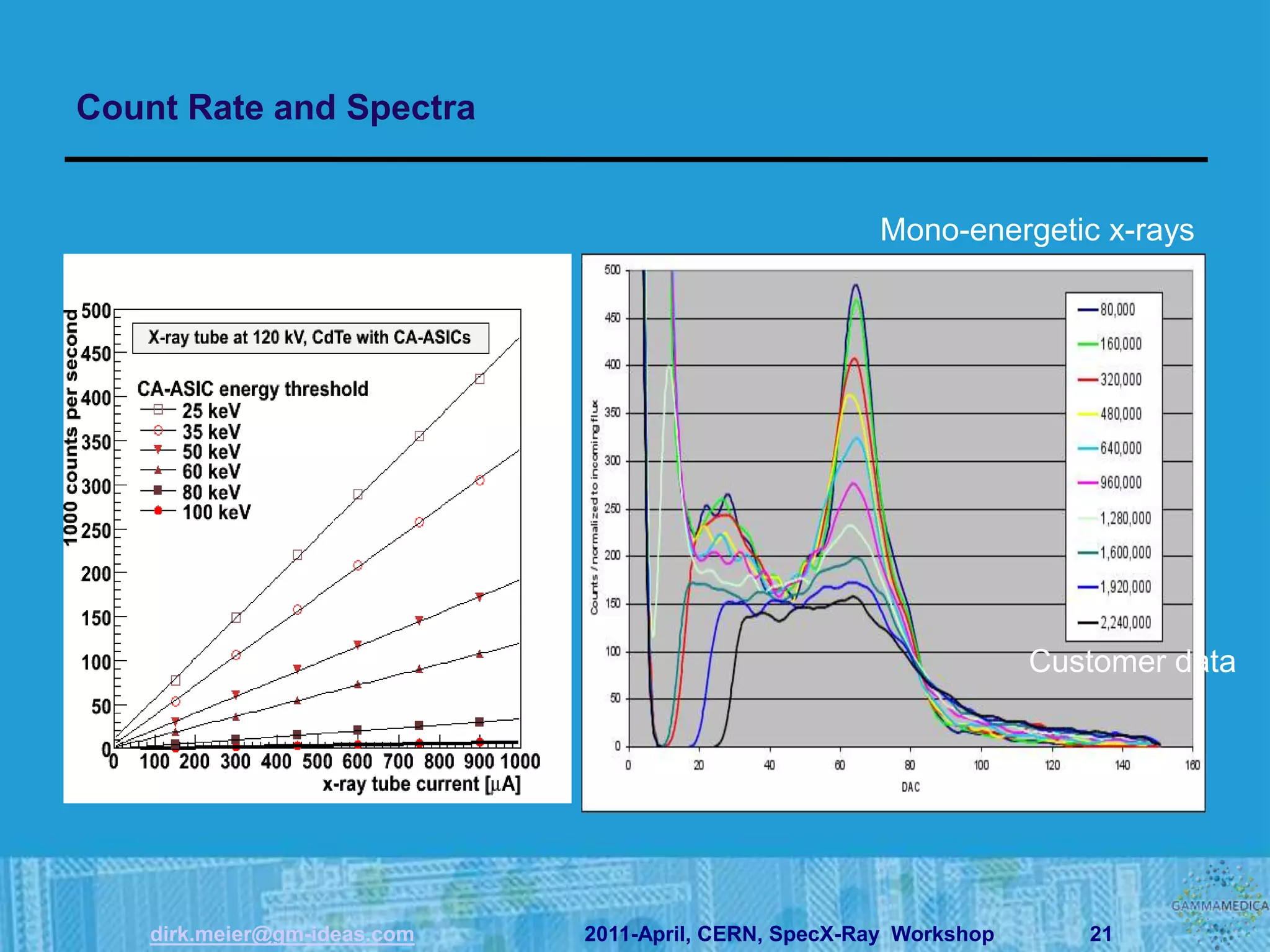

21. Count Rate and Spectra
Mono-energetic x-rays
Customer data
dirk.meier@gm-ideas.com 2011-April, CERN, SpecX-Ray Workshop 21

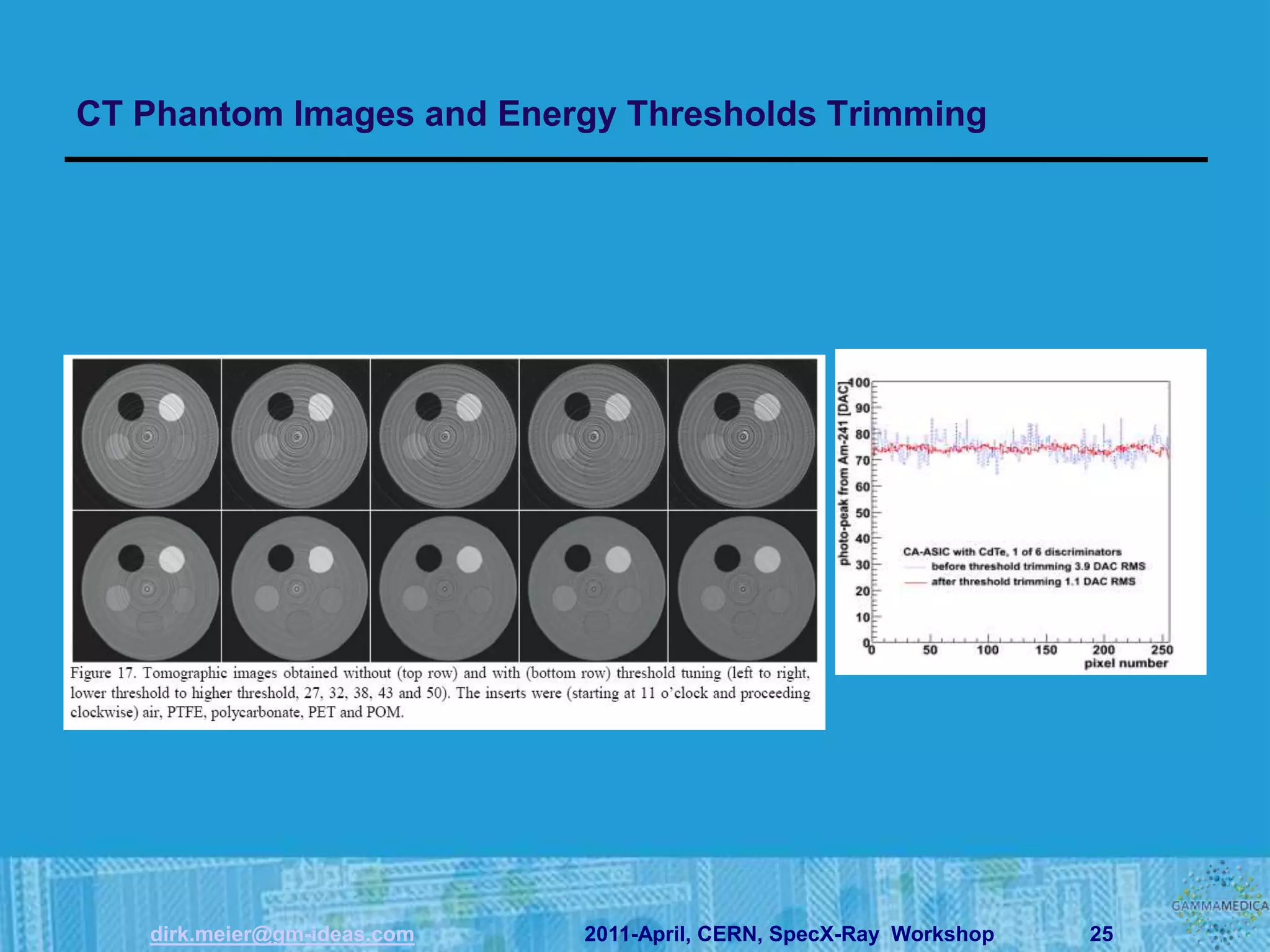

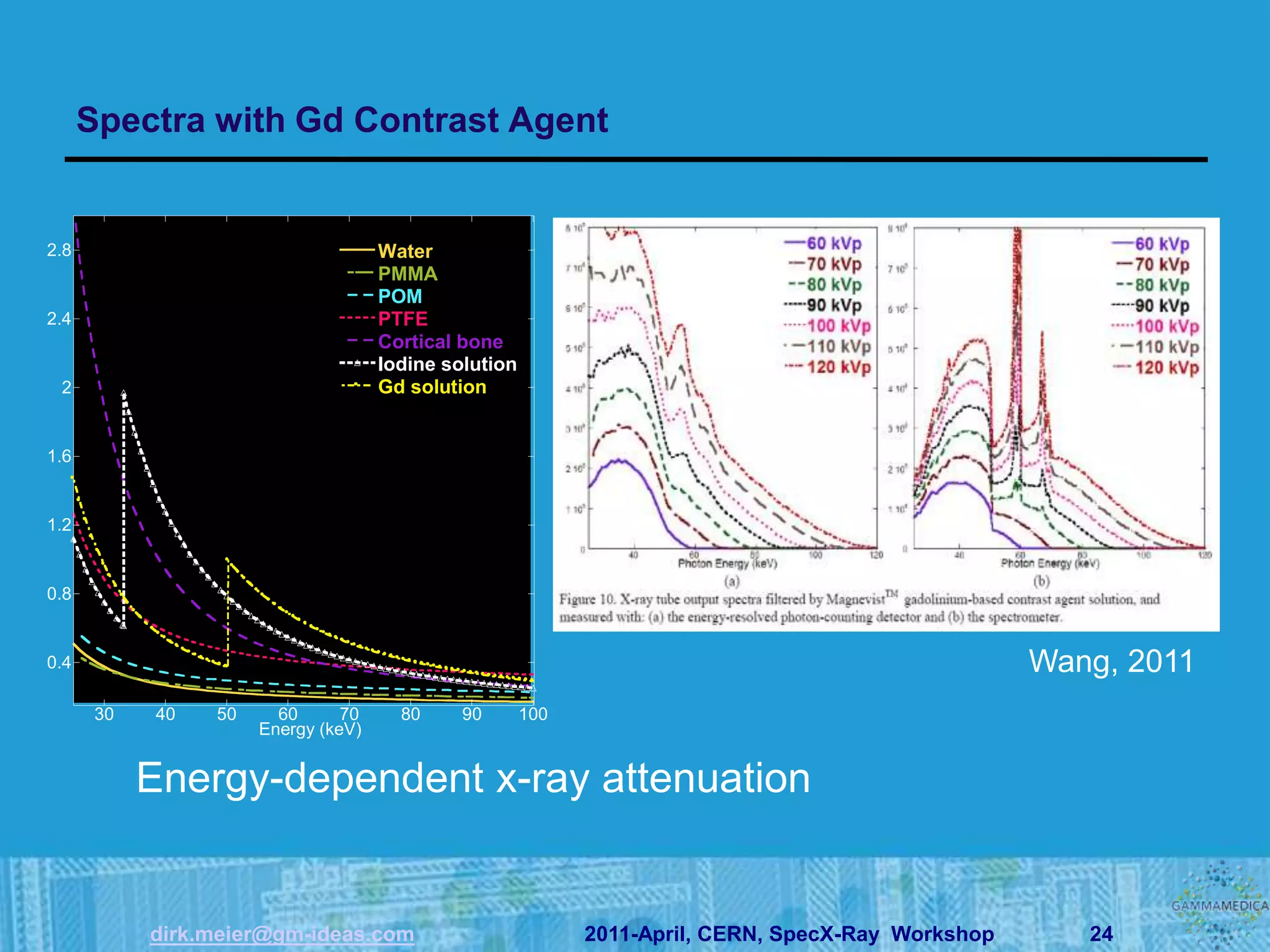

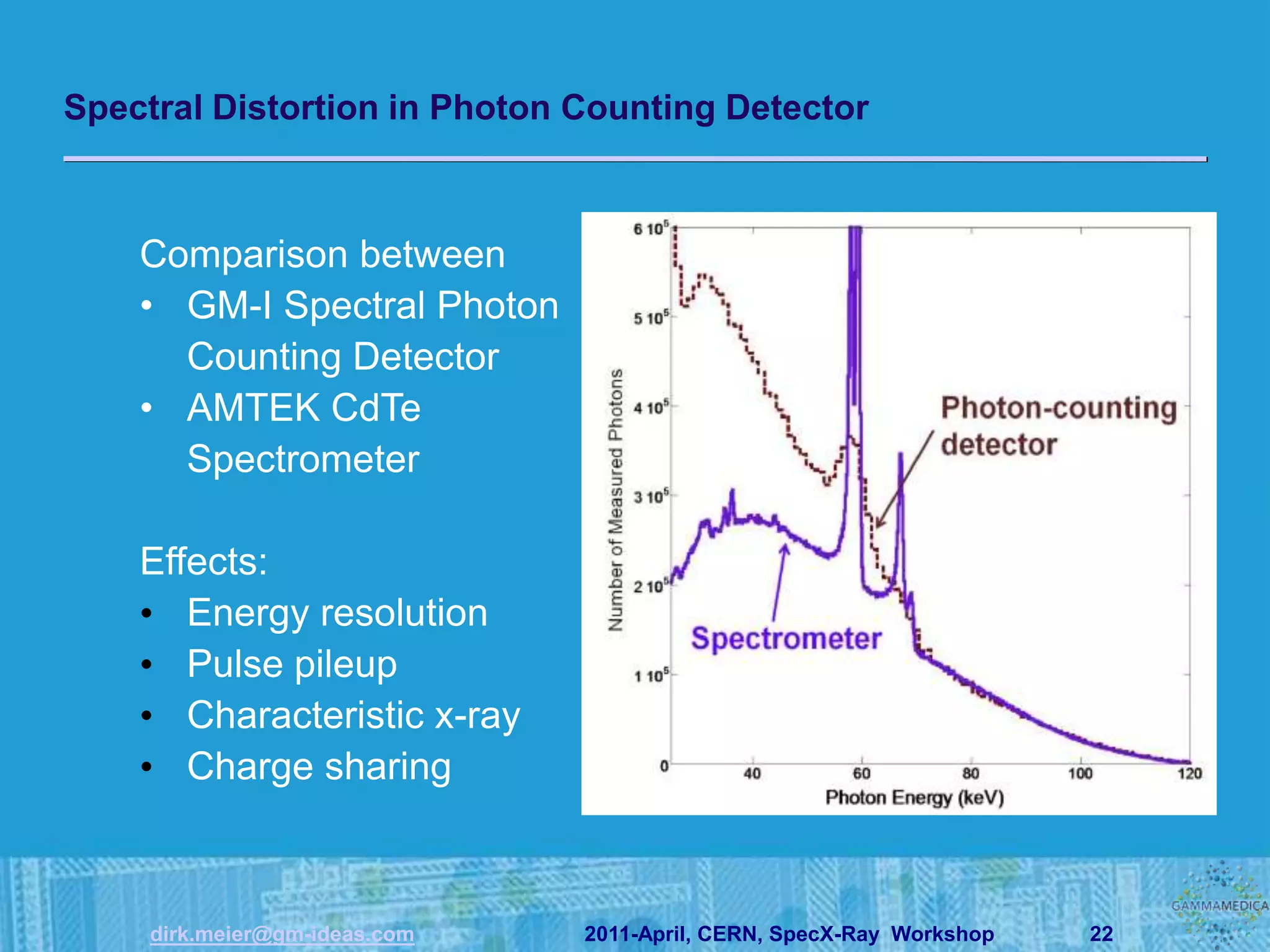

25. CT Phantom Images and Energy Thresholds Trimming
dirk.meier@gm-ideas.com 2011-April, CERN, SpecX-Ray Workshop 25

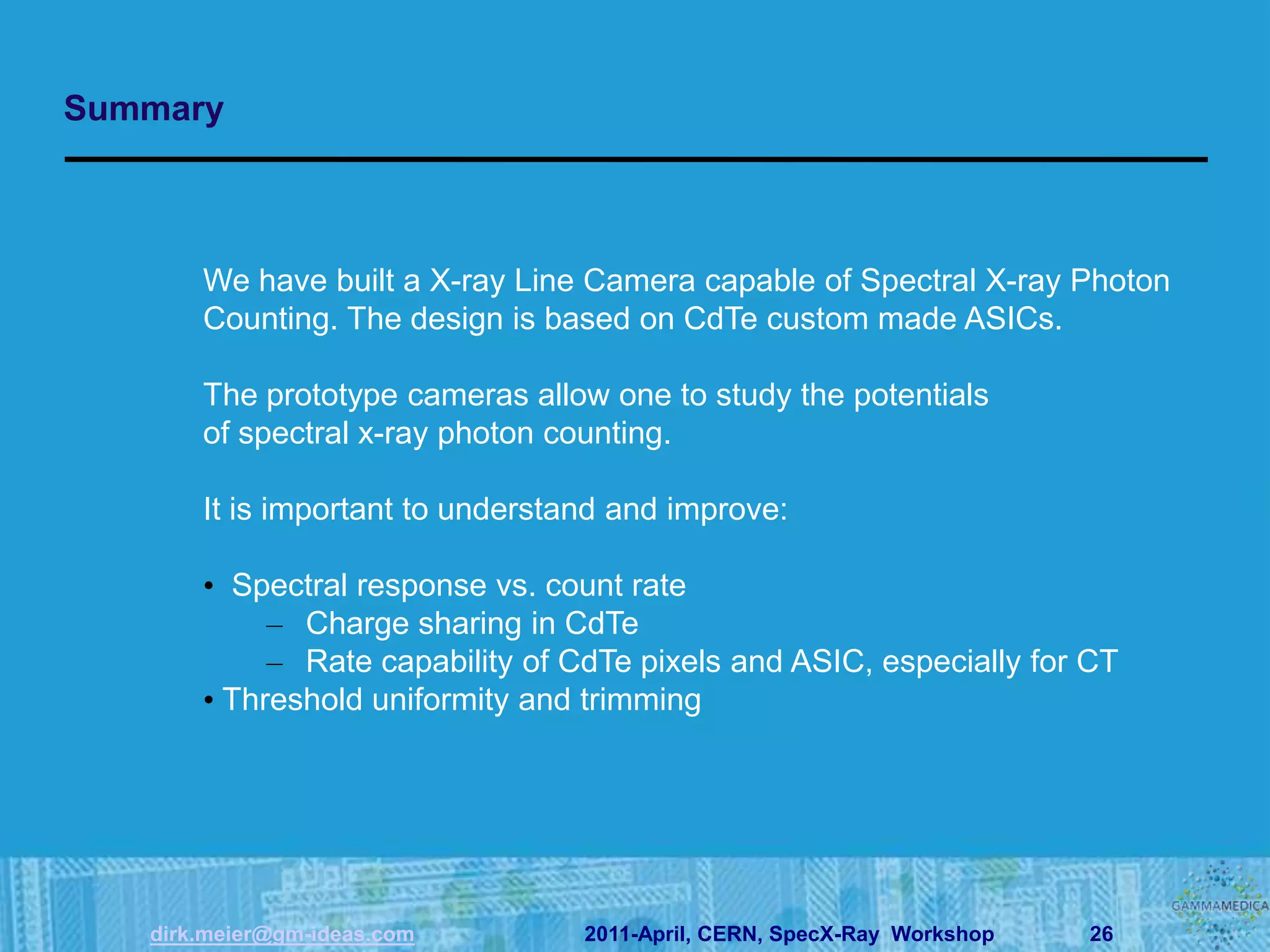

26. Summary
We have built a X-ray Line Camera capable of Spectral X-ray Photon
Counting. The design is based on CdTe custom made ASICs.
The prototype cameras allow one to study the potentials
of spectral x-ray photon counting.
It is important to understand and improve:
• Spectral response vs. count rate
– Charge sharing in CdTe
– Rate capability of CdTe pixels and ASIC, especially for CT
• Threshold uniformity and trimming
dirk.meier@gm-ideas.com 2011-April, CERN, SpecX-Ray Workshop 26

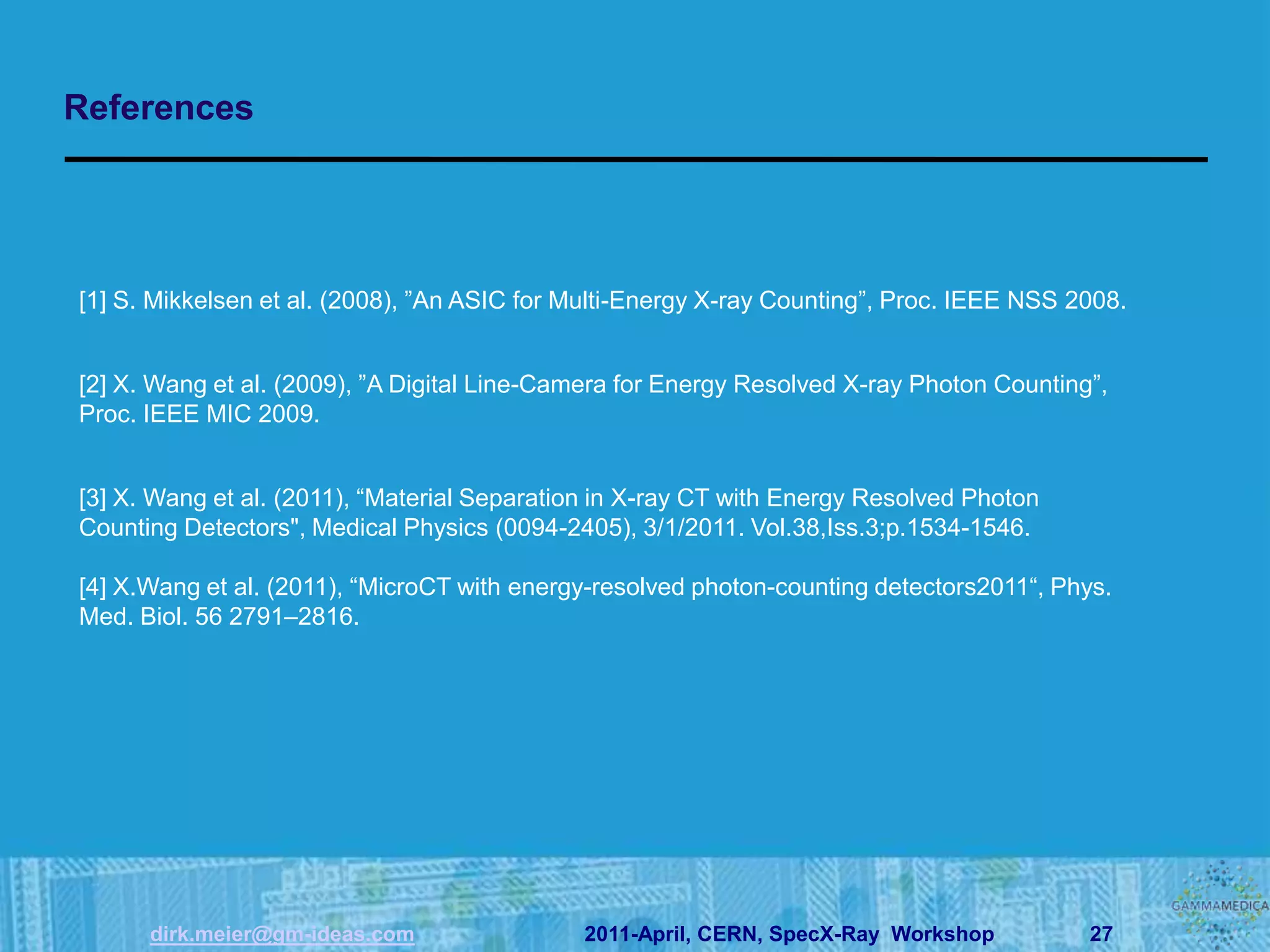

27. References
[1] S. Mikkelsen et al. (2008), ”An ASIC for Multi-Energy X-ray Counting”, Proc. IEEE NSS 2008.
[2] X. Wang et al. (2009), ”A Digital Line-Camera for Energy Resolved X-ray Photon Counting”,
Proc. IEEE MIC 2009.
[3] X. Wang et al. (2011), “Material Separation in X-ray CT with Energy Resolved Photon
Counting Detectors", Medical Physics (0094-2405), 3/1/2011. Vol.38,Iss.3;p.1534-1546.
[4] X.Wang et al. (2011), “MicroCT with energy-resolved photon-counting detectors2011“, Phys.
Med. Biol. 56 2791–2816.
dirk.meier@gm-ideas.com 2011-April, CERN, SpecX-Ray Workshop 27
28. Acknowledgments
We like to thank our customers and collaborators.
and
X. Wang, E. Frey, K. Taguchi, B.M.W. Tsui at Johns Hopkins
University
D. Wagenaar at Gamma Medica, Northridge
B. Sundal at Corentium, Norway
Thank you
dirk.meier@gm-ideas.com 2011-April, CERN, SpecX-Ray Workshop 28
