The document discusses the measurement of radiation dose in computed tomography (CT), highlighting concepts like absorbed dose, effective dose, and the differences between deterministic and stochastic effects of radiation. It explains the use of standard phantoms for estimating patient doses, the relationship between CT parameters such as CTDI and DLP, and the methods for calculating effective doses using Monte Carlo simulations. Additionally, it outlines how to account for tissue sensitivity and variations in patient anatomy in dose measurements.

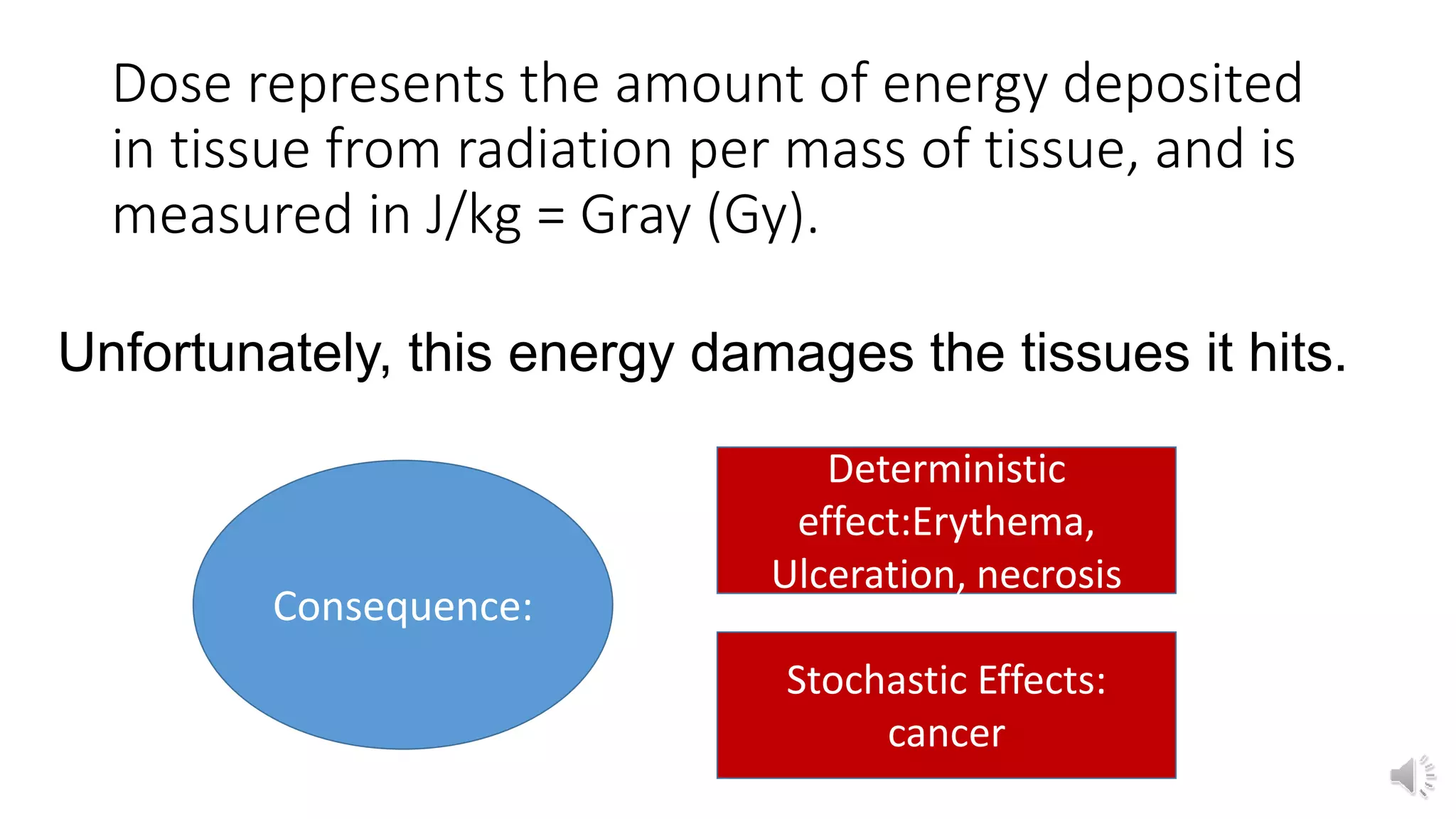

1. Dose represents the amount of energy deposited
in tissue from radiation per mass of tissue, and is
measured in J/kg = Gray (Gy).
Unfortunately, this energy damages the tissues it hits.
Consequence:
Deterministic
effect:Erythema,
Ulceration, necrosis
Stochastic Effects:
cancer

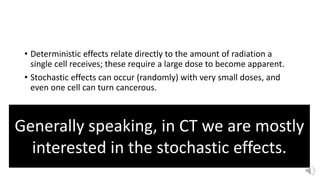

2. • Deterministic effects relate directly to the amount of radiation a
single cell receives; these require a large dose to become apparent.
• Stochastic effects can occur (randomly) with very small doses, and
even one cell can turn cancerous.
Generally speaking, in CT we are mostly
interested in the stochastic effects.

3. Exposure
Absorbed
Dose
Equivalent
Dose
Energy/gm
(Energy/gm)
X Q.F
# ion/ cc of
air
Roentgen
rem
rads
Quality factor :Cell killing ability of radiation
X ray , Gamma : 1
Proton, Neutron, Alpha Particle: >1 ( 2-20)
Gray:
1Gy = 100rad
Sievert
1Sv = 100rem

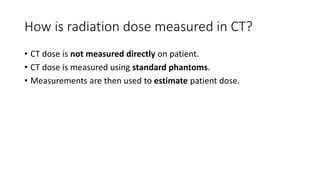

4. How is radiation dose measured in CT?
• CT dose is not measured directly on patient.

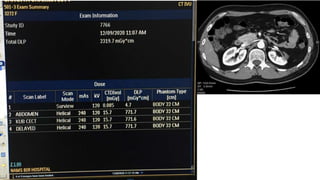

• CT dose is measured using standard phantoms.
• Measurements are then used to estimate patient dose.

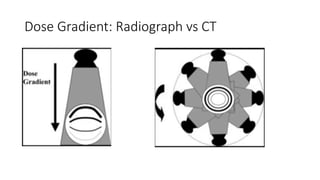

5. Dose Gradient: Radiograph vs CT

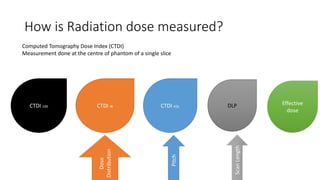

6. How is Radiation dose measured?
CTDI 100 CTDI W CTDI VOL DLP Effective
dose
Dose
Distribution
Pitch
Scan
Length
Computed Tomography Dose Index (CTDI)
Measurement done at the centre of phantom of a single slice

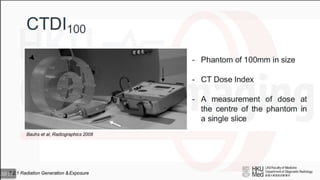

7. CTDI
• Obtained by making
measurement in acryllic
cylinder phantom.
• Holes in centre and periphery
• Placement of pensil shaped
ionization chamber.

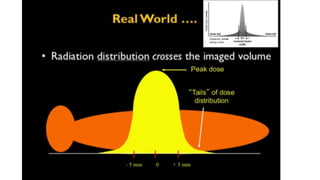

12. CTDI100 – Dose Distribution
In CT: the highest dose delivered is at the
periphery
Dose is uniform on the surface but
decreases towards centre.

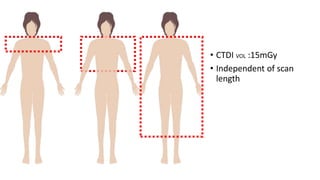

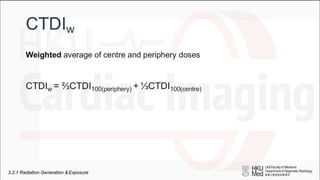

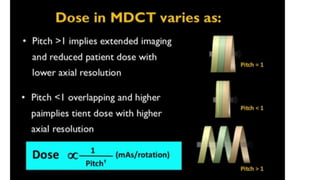

16. • CTDI VOL :15mGy
• Independent of scan
length

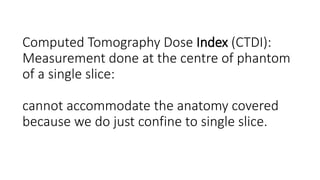

17. Computed Tomography Dose Index (CTDI):
Measurement done at the centre of phantom
of a single slice:
cannot accommodate the anatomy covered
because we do just confine to single slice.

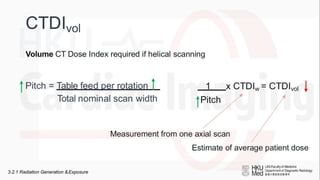

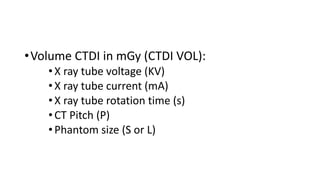

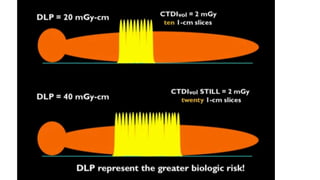

20. •Volume CTDI in mGy (CTDI VOL):
•X ray tube voltage (KV)
•X ray tube current (mA)
•X ray tube rotation time (s)
•CT Pitch (P)
•Phantom size (S or L)

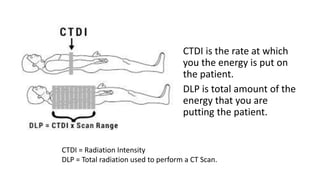

21. • CTDI is the rate at which
you the energy is put on
the patient.

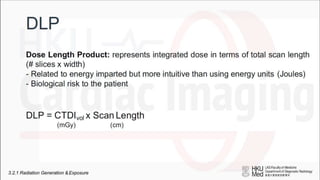

• DLP is total amount of the
energy that you are
putting the patient.
CTDI = Radiation Intensity
DLP = Total radiation used to perform a CT Scan.

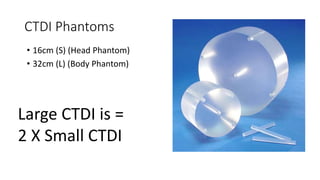

24. CTDI Phantoms
• 16cm (S) (Head Phantom)
• 32cm (L) (Body Phantom)
Large CTDI is =
2 X Small CTDI

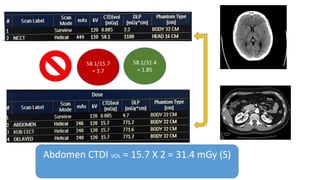

25. 58.1/15.7
= 3.7
Abdomen CTDI VOL = 15.7 X 2 = 31.4 mGy (S)
58.1/31.4
= 1.85

26. Axial CT
•CTDI VOL is directly proportional to :
•Tube current (mA)
•Tube rotation time (s)
•mAs

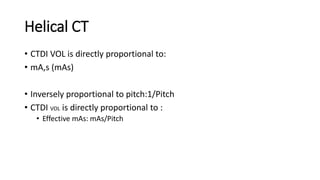

27. Helical CT
• CTDI VOL is directly proportional to:
• mA,s (mAs)
• Inversely proportional to pitch:1/Pitch
• CTDI VOL is directly proportional to :
• Effective mAs: mAs/Pitch

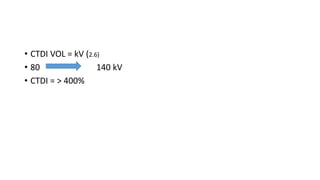

28. • CTDI VOL = kV (2.6)
• 80 140 kV
• CTDI = > 400%

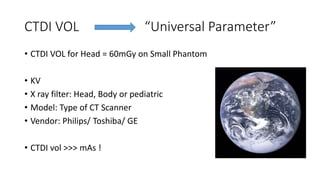

29. CTDI VOL “Universal Parameter”
• CTDI VOL for Head = 60mGy on Small Phantom
• KV
• X ray filter: Head, Body or pediatric
• Model: Type of CT Scanner
• Vendor: Philips/ Toshiba/ GE
• CTDI vol >>> mAs !

30. CTDI VOL/ DLP & Patient Dose

31. • CTDI Vol is the radiation incident on patient, not the patient dose.
• CTDI VOL = 20mGy:
CTDI Vol is not the
indicator of any kind of
patient dose.

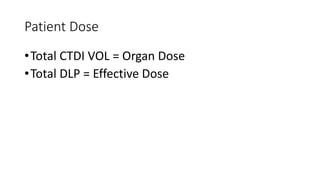

32. Patient Dose
•Total CTDI VOL = Organ Dose
•Total DLP = Effective Dose

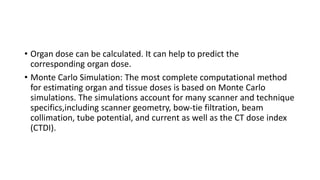

33. • Organ dose can be calculated. It can help to predict the
corresponding organ dose.
• Monte Carlo Simulation: The most complete computational method
for estimating organ and tissue doses is based on Monte Carlo
simulations. The simulations account for many scanner and technique
specifics,including scanner geometry, bow-tie filtration, beam
collimation, tube potential, and current as well as the CT dose index
(CTDI).

34. • Jones and Shrimpton used a simulated hermaphroditic patient (MIRD-
5 phantom) having mathematically modeled organs and tissues .
• The mathematic phantom was divided from head to mid thigh into
208 axial slabs of 5 mm thickness. Then, accounting for tube voltage
and using CT scanner–specific data for geometry and beam shaping,
they simulated a
• CT scan and calculated absorbed doses to all organs of the body for
the irradiation of each axial slab. Summing contributions from all
slabs exposed during a particular CT examination yielded the total
organ doses.

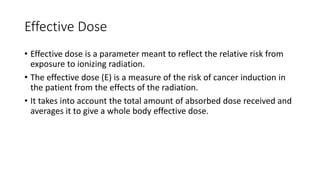

35. Effective Dose
• Effective dose is a parameter meant to reflect the relative risk from
exposure to ionizing radiation.
• The effective dose (E) is a measure of the risk of cancer induction in
the patient from the effects of the radiation.
• It takes into account the total amount of absorbed dose received and
averages it to give a whole body effective dose.

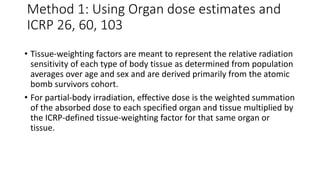

36. Method 1: Using Organ dose estimates and
ICRP 26, 60, 103
• Tissue-weighting factors are meant to represent the relative radiation
sensitivity of each type of body tissue as determined from population
averages over age and sex and are derived primarily from the atomic
bomb survivors cohort.
• For partial-body irradiation, effective dose is the weighted summation
of the absorbed dose to each specified organ and tissue multiplied by
the ICRP-defined tissue-weighting factor for that same organ or
tissue.

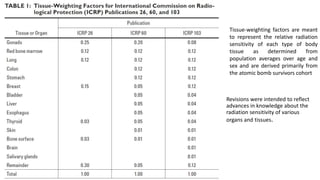

37. Revisions were intended to reflect
advances in knowledge about the
radiation sensitivity of various
organs and tissues.
Tissue-weighting factors are meant
to represent the relative radiation
sensitivity of each type of body
tissue as determined from
population averages over age and
sex and are derived primarily from
the atomic bomb survivors cohort

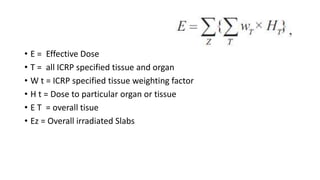

38. • E = Effective Dose
• T = all ICRP specified tissue and organ
• W t = ICRP specified tissue weighting factor
• H t = Dose to particular organ or tissue
• E T = overall tisue
• Ez = Overall irradiated Slabs

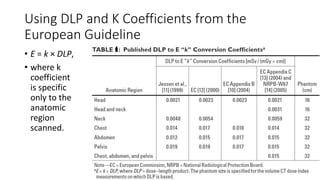

39. Using DLP and K Coefficients from the
European Guideline
• E = k × DLP,
• where k
coefficient
is specific
only to the
anatomic
region
scanned.

40. Measuring Effective Dose
Effective Dose in NCCT Head: (1100X 0.0021 ) + 4.4 X 0.0021 = 2.31
msv
Effective Dose in CT IVU: ((771.7 X 3) + 4.7 ) X 0.015 = 34.79 msv

41. Body
Region
KvP Effective
mAs
Scan
Length(cm)
CTDI
VOL(mGy)
DLP
(mGy-cm)
K factor Effective
Dose(mSv)
Head 120 390 17 60 (S) 1000 0.002 2
Chest 120 110 30 7.4 (L) 220 0.018 4.5
Abdomen 120 210 25 14 (L) 350 0.016 5.7
Pelvis 120 210 30 14 420 0.014 6

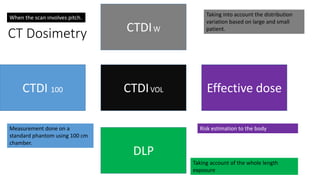

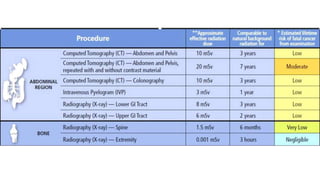

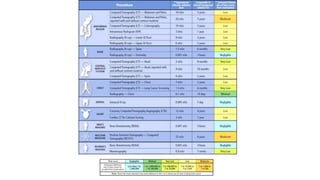

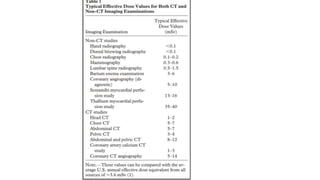

47. CT Dosimetry
CTDI 100 Effective dose
DLP
CTDIVOL
CTDIW
Measurement done on a
standard phantom using 100 cm
chamber.
Taking into account the distribution
variation based on large and small
patient.
When the scan involves pitch.
Taking account of the whole length
exposure
Risk estimation to the body

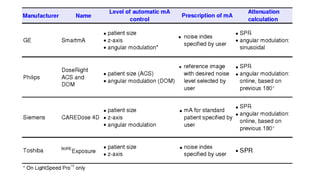

48. Automatic Tube Current Modulation
• mA is varied: Around the patient, Along the patient(scan length), &
between patient

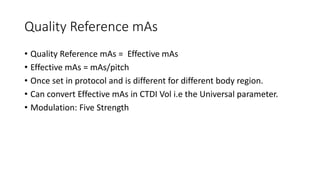

49. Quality Reference mAs
• Quality Reference mAs = Effective mAs
• Effective mAs = mAs/pitch
• Once set in protocol and is different for different body region.
• Can convert Effective mAs in CTDI Vol i.e the Universal parameter.
• Modulation: Five Strength

51. Thankyou

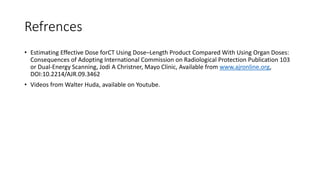

52. Refrences
• Estimating Effective Dose forCT Using Dose–Length Product Compared With Using Organ Doses:
Consequences of Adopting International Commission on Radiological Protection Publication 103
or Dual-Energy Scanning, Jodi A Christner, Mayo Clinic, Available from www.ajronline.org,
DOI:10.2214/AJR.09.3462
• Videos from Walter Huda, available on Youtube.
