![Spark word count example
file = spark.textFile("hdfs://...")
file.flatMap(line => line.split(" "))
.map(word => (word, 1))
.reduceByKey(_ + _)
Saturday, December 7, 13
1 package org.myorg;
2
3 import java.io.IOException;
4 import java.util.*;
5
6 import org.apache.hadoop.fs.Path;
7 import org.apache.hadoop.conf.*;
8 import org.apache.hadoop.io.*;
9 import org.apache.hadoop.mapreduce.*;
10 import org.apache.hadoop.mapreduce.lib.input.FileInputFormat;
11 import org.apache.hadoop.mapreduce.lib.input.TextInputFormat;
12 import org.apache.hadoop.mapreduce.lib.output.FileOutputFormat;
13 import org.apache.hadoop.mapreduce.lib.output.TextOutputFormat;
14
15 public class WordCount {
16
17 public static class Map extends Mapper<LongWritable, Text, Text, IntWritable> {
18
private final static IntWritable one = new IntWritable(1);
19
private Text word = new Text();
20
21
public void map(LongWritable key, Text value, Context context) throws IOException,
InterruptedException {
22
String line = value.toString();
23
StringTokenizer tokenizer = new StringTokenizer(line);
24
while (tokenizer.hasMoreTokens()) {
25
word.set(tokenizer.nextToken());
26
context.write(word, one);
27
}
28
}
29 }
30
31 public static class Reduce extends Reducer<Text, IntWritable, Text, IntWritable> {
32
33
public void reduce(Text key, Iterable<IntWritable> values, Context context)
34
throws IOException, InterruptedException {
35
int sum = 0;
36
for (IntWritable val : values) {
37
sum += val.get();
38
}
39
context.write(key, new IntWritable(sum));
40
}
41 }
42
43 public static void main(String[] args) throws Exception {
44
Configuration conf = new Configuration();
45
46
Job job = new Job(conf, "wordcount");
47
48
job.setOutputKeyClass(Text.class);
49
job.setOutputValueClass(IntWritable.class);
50
51
job.setMapperClass(Map.class);
52
job.setReducerClass(Reduce.class);
53
54
job.setInputFormatClass(TextInputFormat.class);
55
job.setOutputFormatClass(TextOutputFormat.class);
56
57
FileInputFormat.addInputPath(job, new Path(args[0]));
58
FileOutputFormat.setOutputPath(job, new Path(args[1]));
59
60
job.waitForCompletion(true);
61 }
62
63 }](https://image.slidesharecdn.com/cassandra2013decmeetupsparktalk-131209173507-phpapp02/75/Cassandra-Meetup-Real-time-Analytics-using-Cassandra-Spark-and-Shark-at-Ooyala-21-2048.jpg)
Uploaded byDataStax Academy
Cassandra Meetup: Real-time Analytics using Cassandra, Spark and Shark at Ooyala
The document discusses the integration of real-time analytics using Cassandra, Spark, and Shark at Ooyala, highlighting the company’s large-scale operations and data infrastructure. It outlines the challenges of processing vast amounts of complex data quickly and the solutions provided by a partially dynamic querying model using Spark's in-memory capabilities. The presentation also touches on the architecture connecting raw data to efficient queries and the efficiencies gained through these technologies.
More Related Content
Similar to Cassandra Meetup: Real-time Analytics using Cassandra, Spark and Shark at Ooyala
Cassandra Meetup: Real-time Analytics using Cassandra, Spark and Shark at Ooyala
- 1. Real-time Analytics with Cassandra,Spark and Shark Saturday, December 7, 13

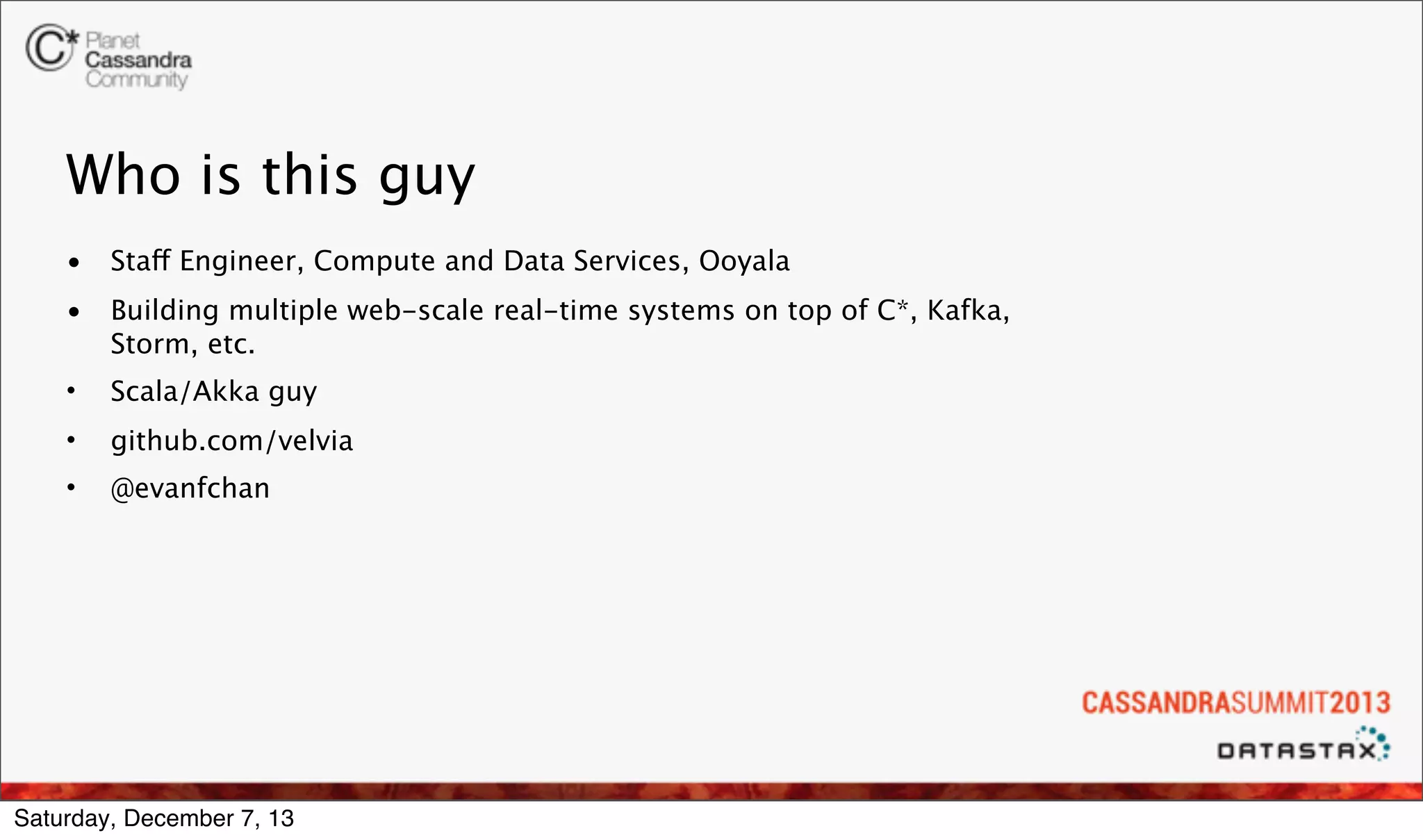

- 2. Who is thisguy • Staff Engineer, Compute and Data Services, Ooyala • Building multiple web-scale real-time systems on top of C*, Kafka, Storm, etc. • Scala/Akka guy • github.com/velvia • @evanfchan Saturday, December 7, 13

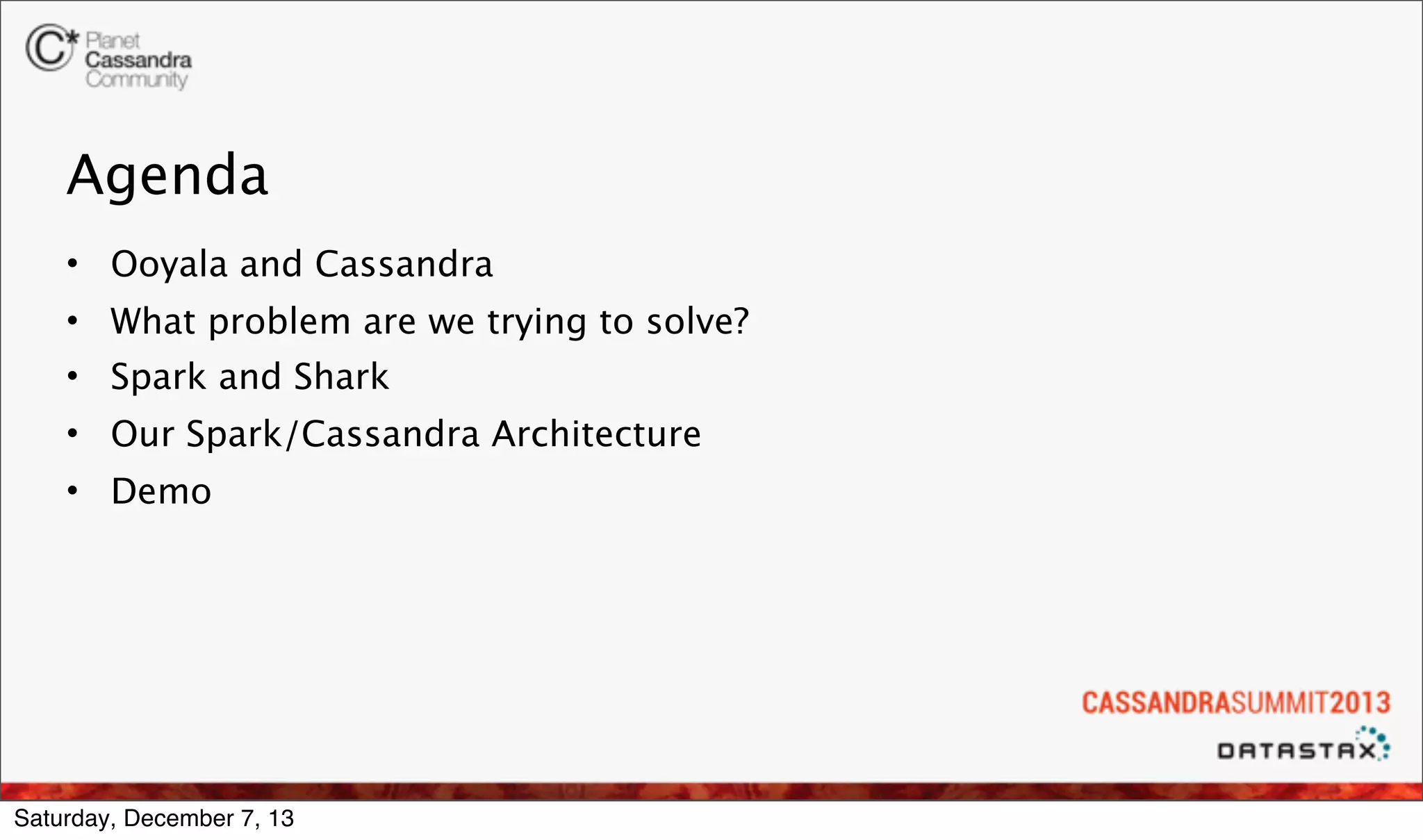

- 3. Agenda • Ooyala andCassandra • What problem are we trying to solve? • Spark and Shark • Our Spark/Cassandra Architecture • Demo Saturday, December 7, 13
- 4. Cassandra at Ooyala Whois Ooyala, and how we use Cassandra Saturday, December 7, 13
- 5. OOYALA Powering personalized video experiencesacross all screens. CONFIDENTIAL—DO NOT DISTRIBUTE Saturday, December 7, 13 5
- 6. COMPANY OVERVIEW Founded in2007 Commercially launch in 2009 300 employees in Silicon Valley, LA, NYC, London, Paris, Tokyo, Sydney & Guadalajara Global footprint, 200M unique users, 110+ countries, and more than 6,000 websites Over 1 billion videos played per month and 2 billion analytic events per day 25% of U.S. online viewers watch video powered by Ooyala CONFIDENTIAL—DO NOT DISTRIBUTE Saturday, December 7, 13 6
- 7. TRUSTED VIDEO PARTNER CUSTOMERS STRATEGICPARTNERS CONFIDENTIAL—DO NOT DISTRIBUTE Saturday, December 7, 13 7

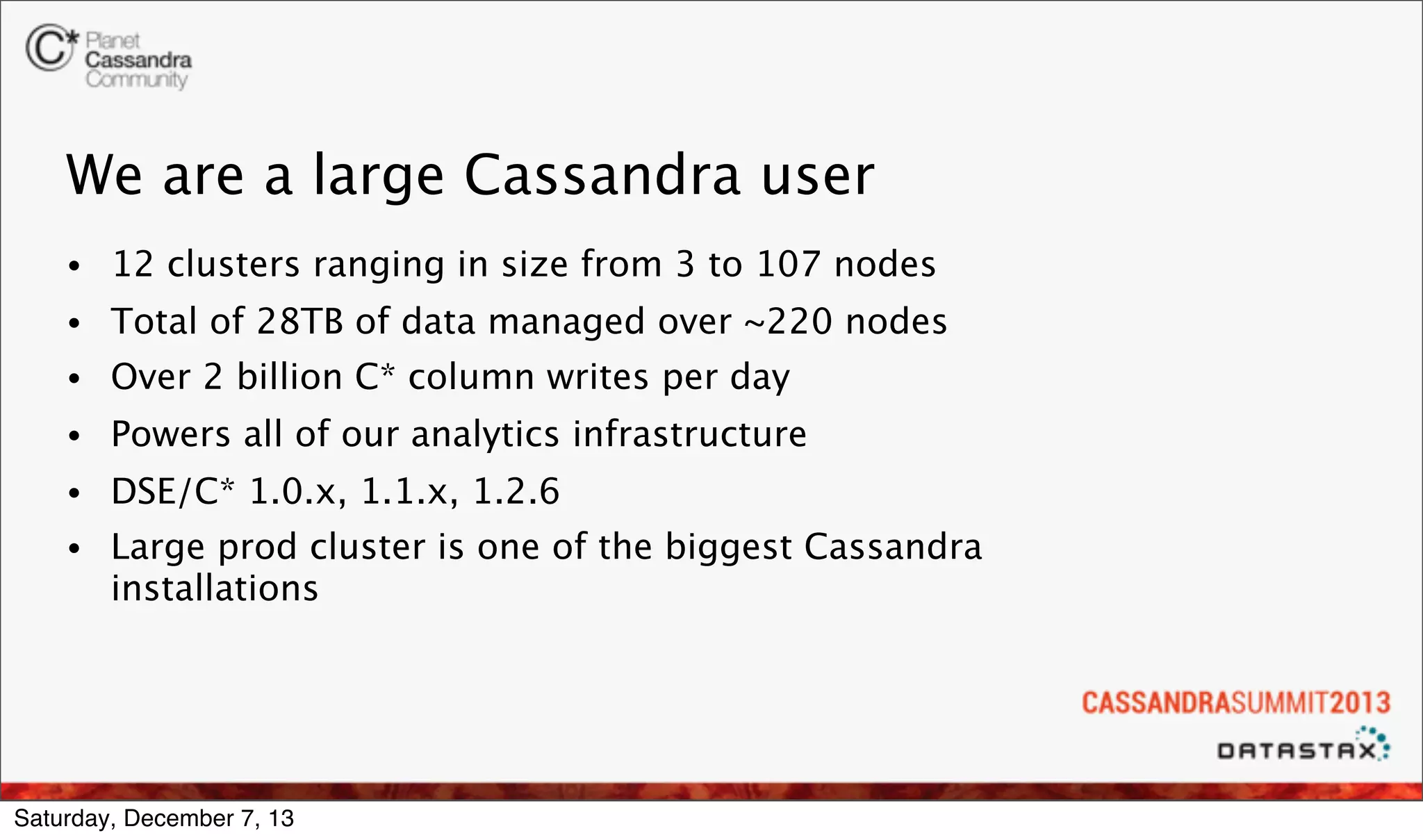

- 8. We are alarge Cassandra user • 12 clusters ranging in size from 3 to 107 nodes • Total of 28TB of data managed over ~220 nodes • Over 2 billion C* column writes per day • Powers all of our analytics infrastructure • DSE/C* 1.0.x, 1.1.x, 1.2.6 • Large prod cluster is one of the biggest Cassandra installations Saturday, December 7, 13

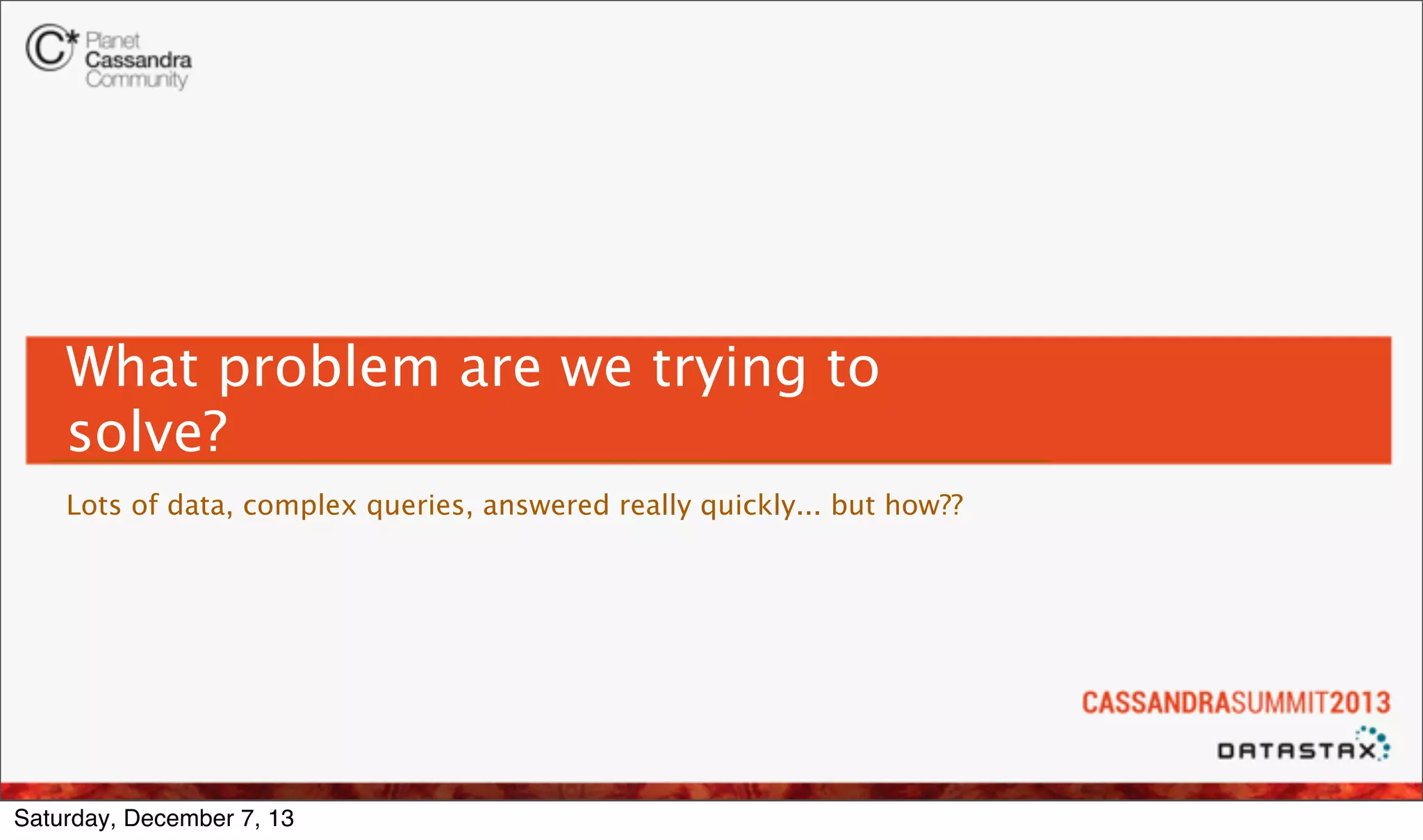

- 9. What problem arewe trying to solve? Lots of data, complex queries, answered really quickly... but how?? Saturday, December 7, 13

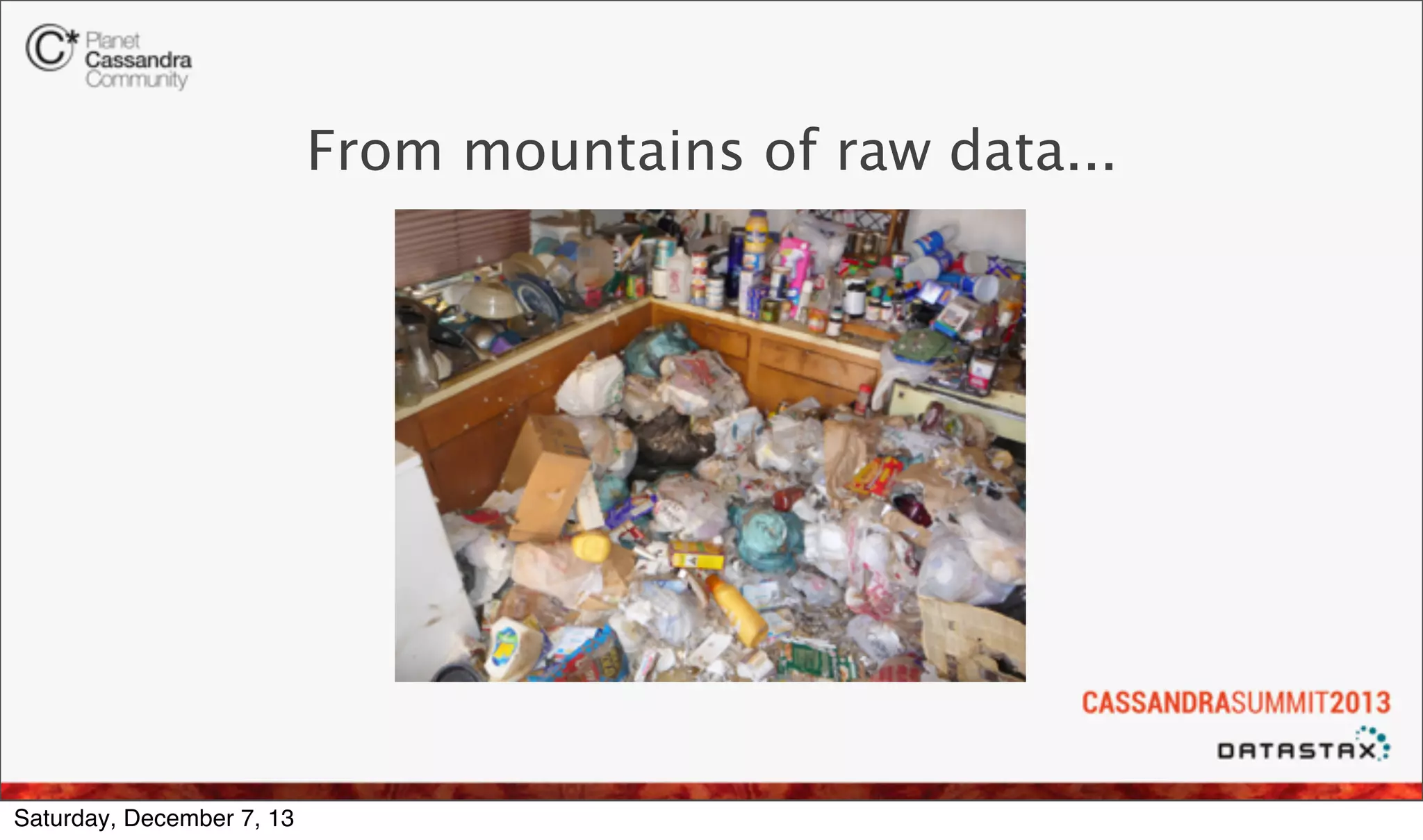

- 10. From mountains ofraw data... Saturday, December 7, 13
- 11. To nuggets oftruth... • Quickly • Painlessly • At Saturday, December 7, 13 scale?

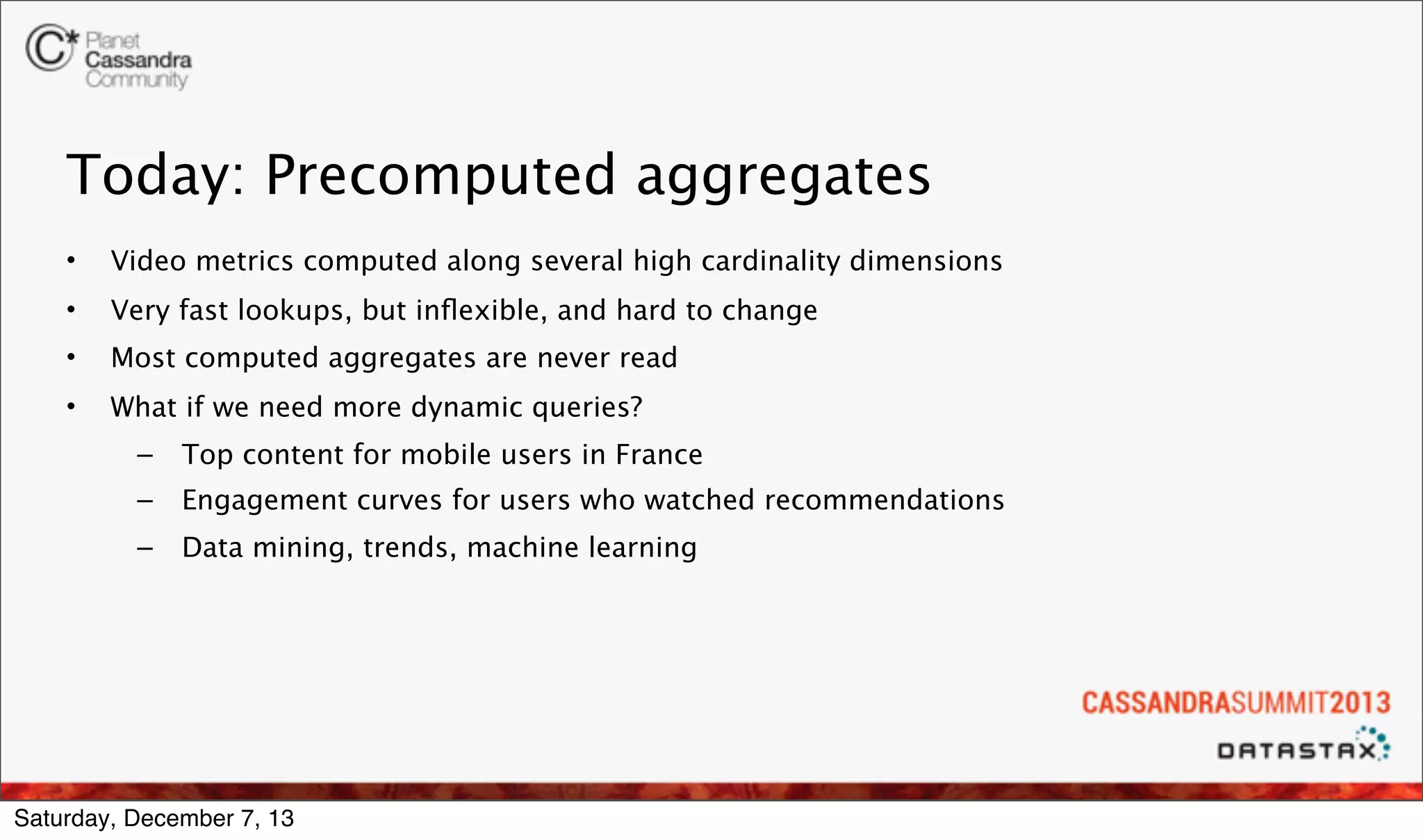

- 12. Today: Precomputed aggregates • Videometrics computed along several high cardinality dimensions • Very fast lookups, but inflexible, and hard to change • Most computed aggregates are never read • What if we need more dynamic queries? – Top content for mobile users in France – Engagement curves for users who watched recommendations – Data mining, trends, machine learning Saturday, December 7, 13

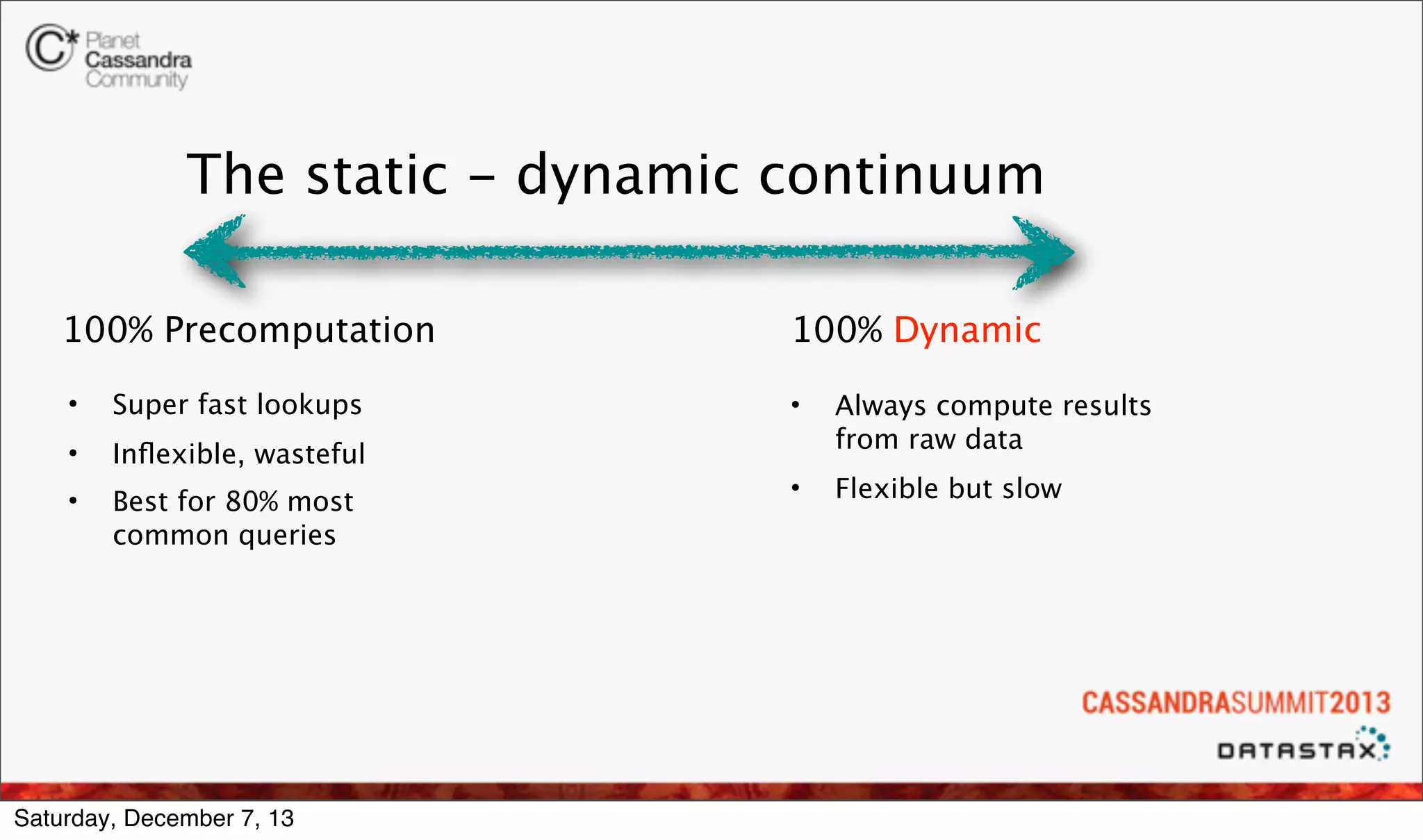

- 13. The static -dynamic continuum 100% Precomputation • Super fast lookups • Inflexible, wasteful • Best for 80% most common queries 100% Dynamic Saturday, December 7, 13 • Always compute results from raw data • Flexible but slow

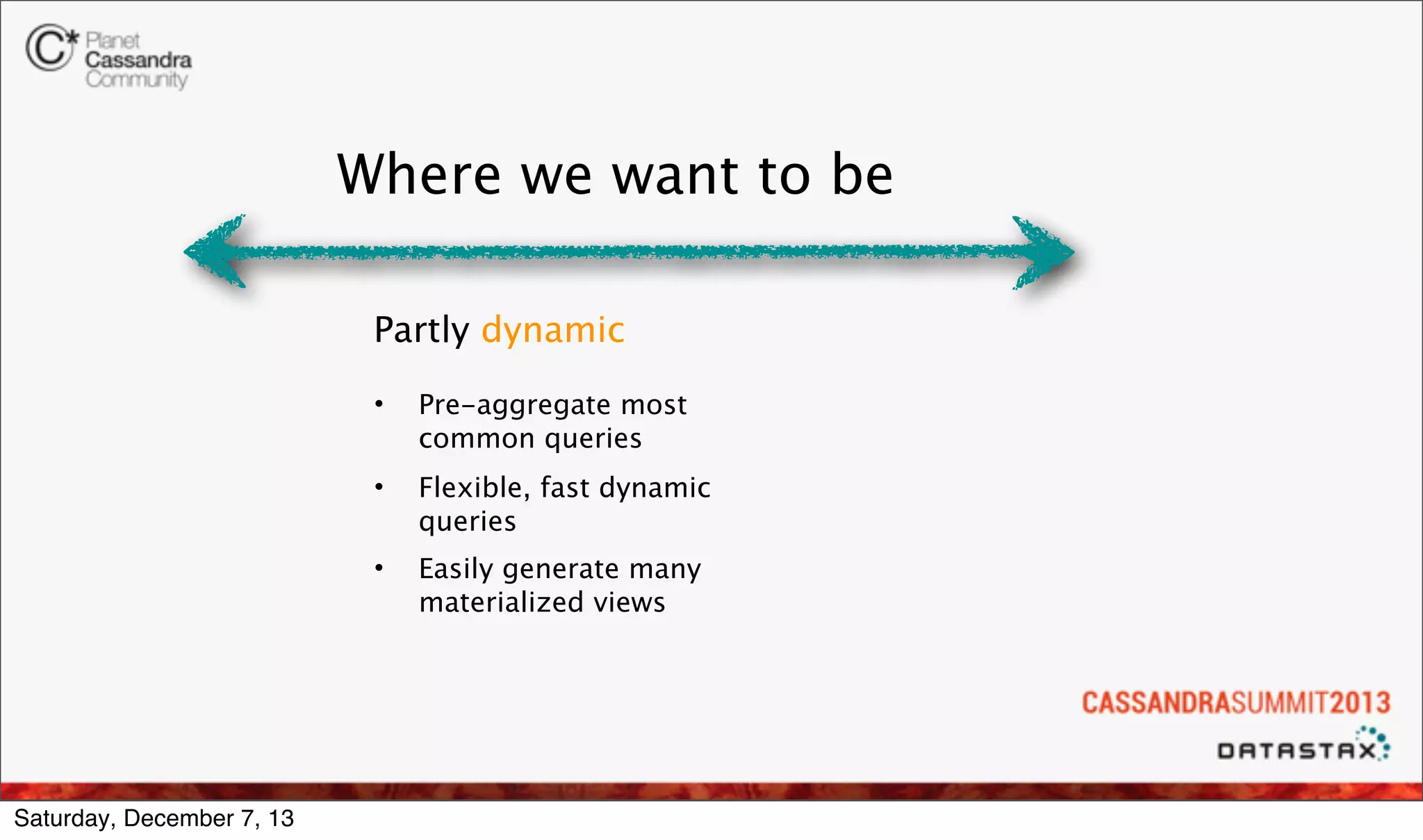

- 14. Where we wantto be Partly dynamic • • Flexible, fast dynamic queries • Saturday, December 7, 13 Pre-aggregate most common queries Easily generate many materialized views

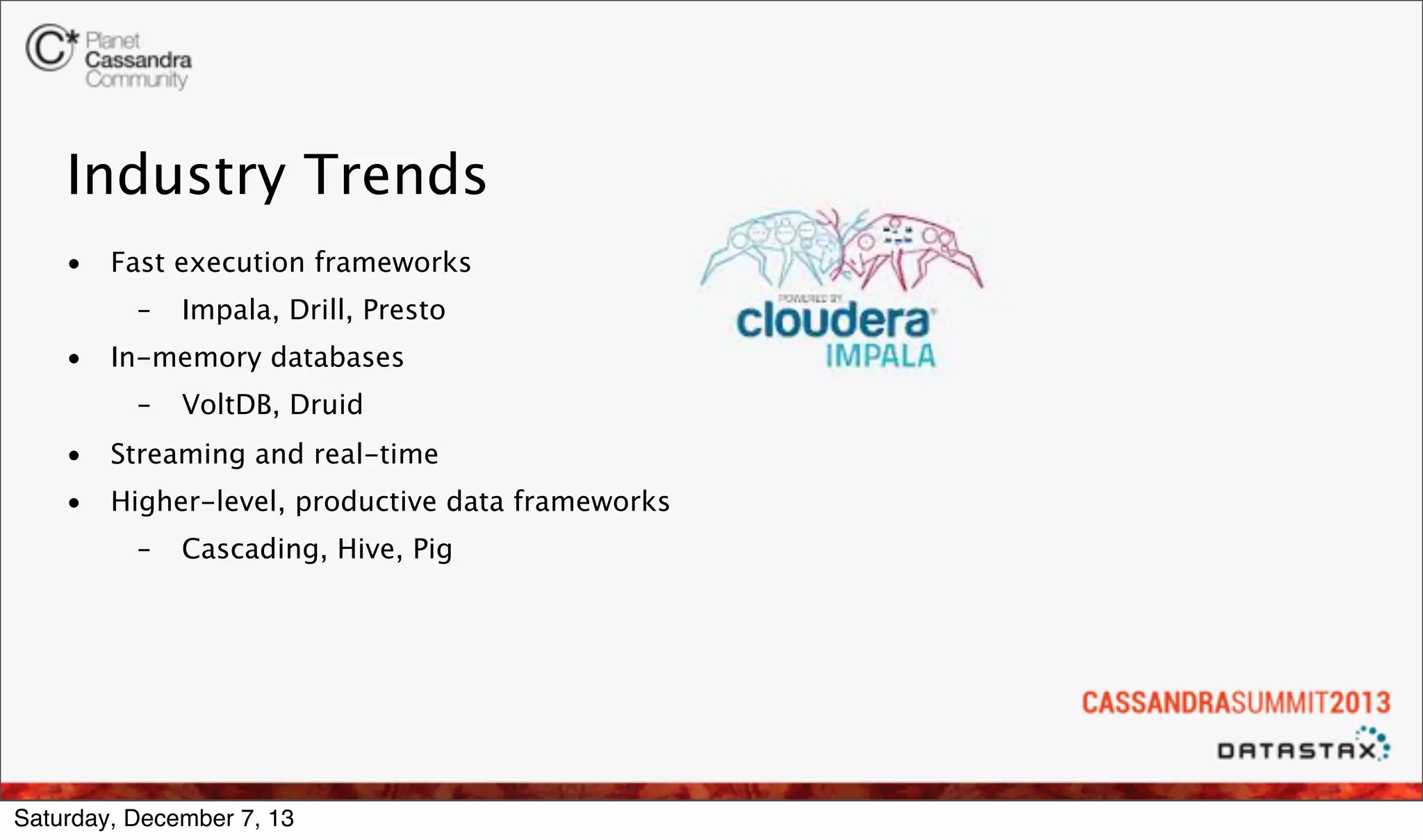

- 15. Industry Trends • Fast executionframeworks – • Impala, Drill, Presto In-memory databases – VoltDB, Druid • Streaming and real-time • Higher-level, productive data frameworks – Cascading, Hive, Pig Saturday, December 7, 13

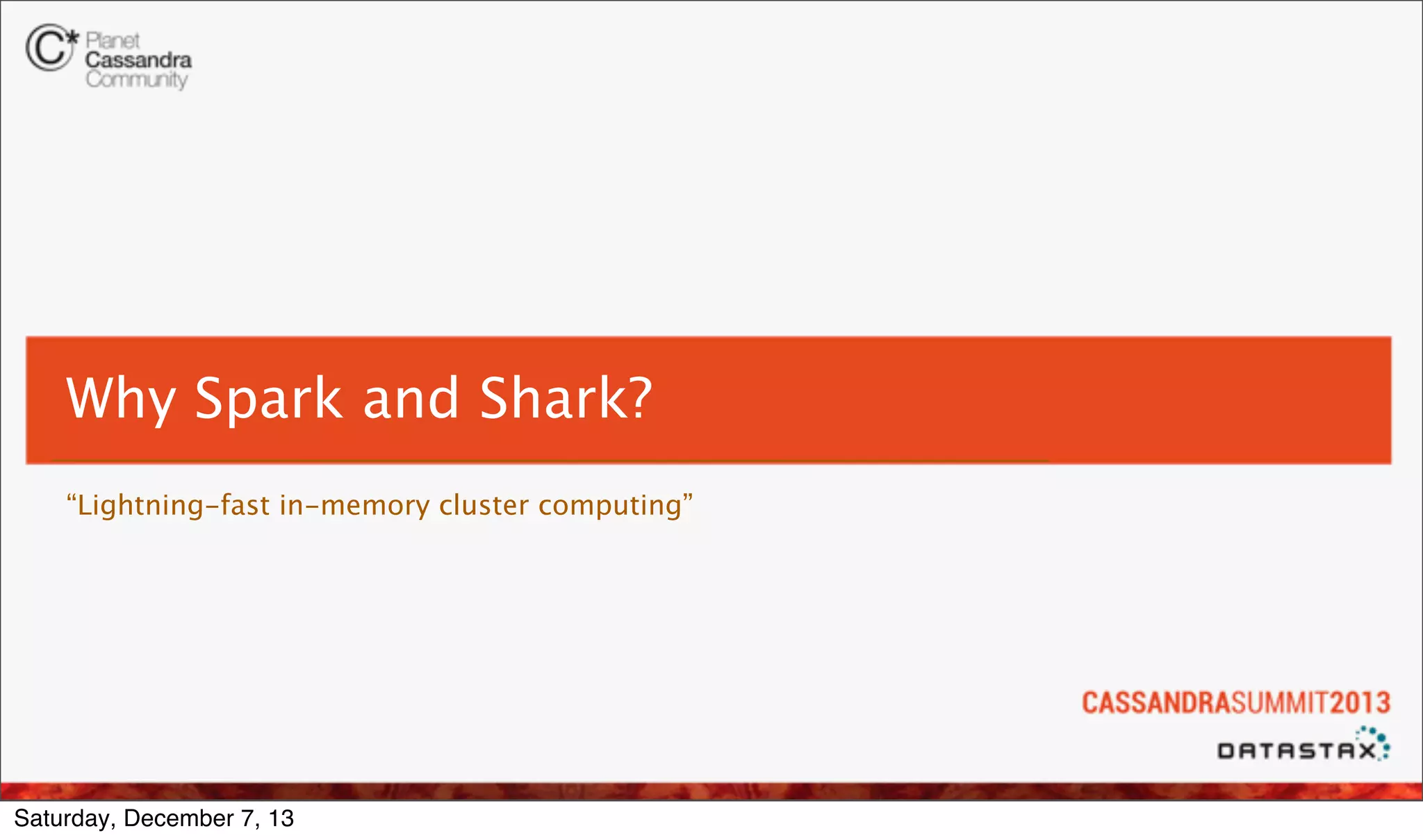

- 16. Why Spark andShark? “Lightning-fast in-memory cluster computing” Saturday, December 7, 13

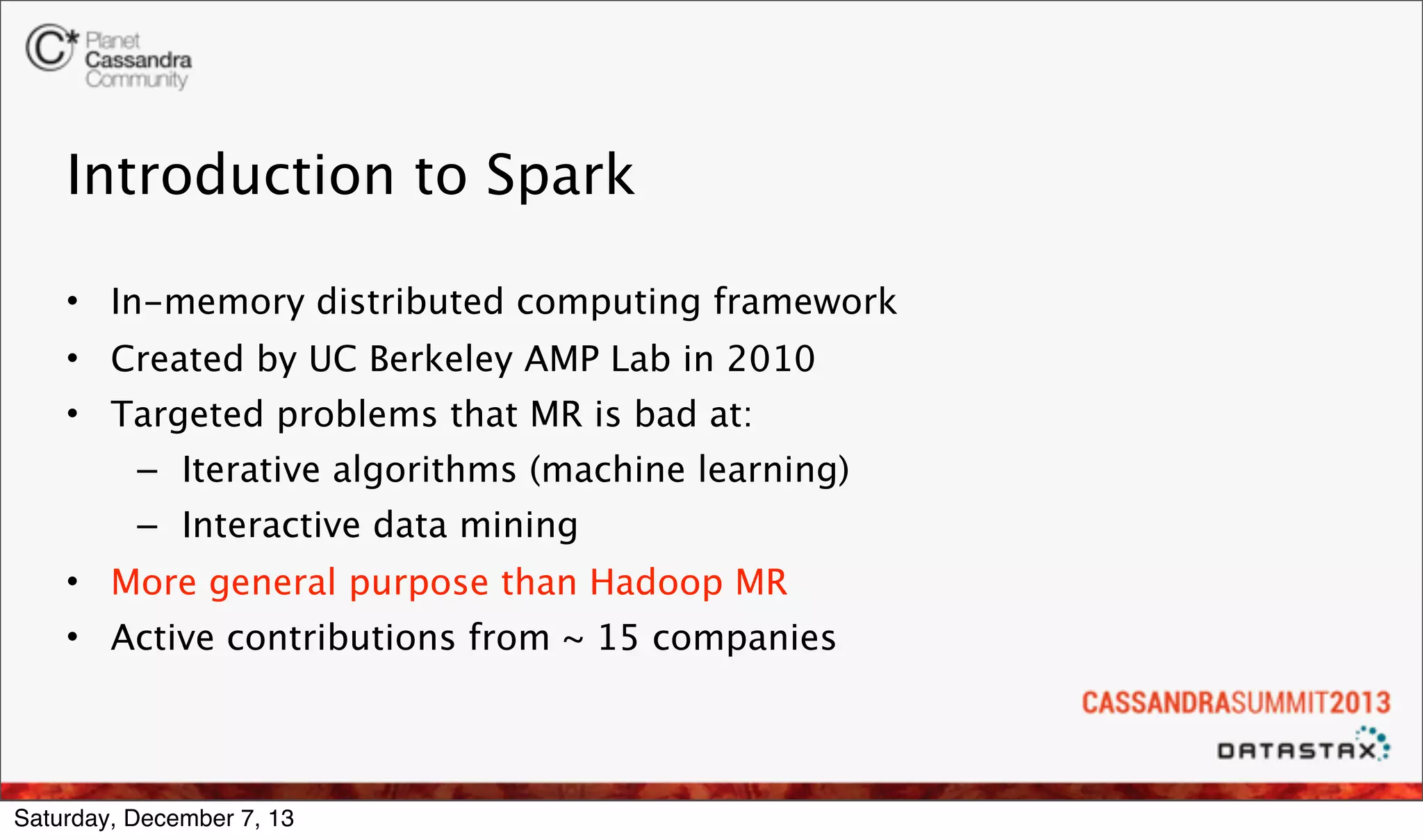

- 17. Introduction to Spark •In-memory distributed computing framework • Created by UC Berkeley AMP Lab in 2010 • Targeted problems that MR is bad at: – Iterative algorithms (machine learning) – Interactive data mining • More general purpose than Hadoop MR • Active contributions from ~ 15 companies Saturday, December 7, 13

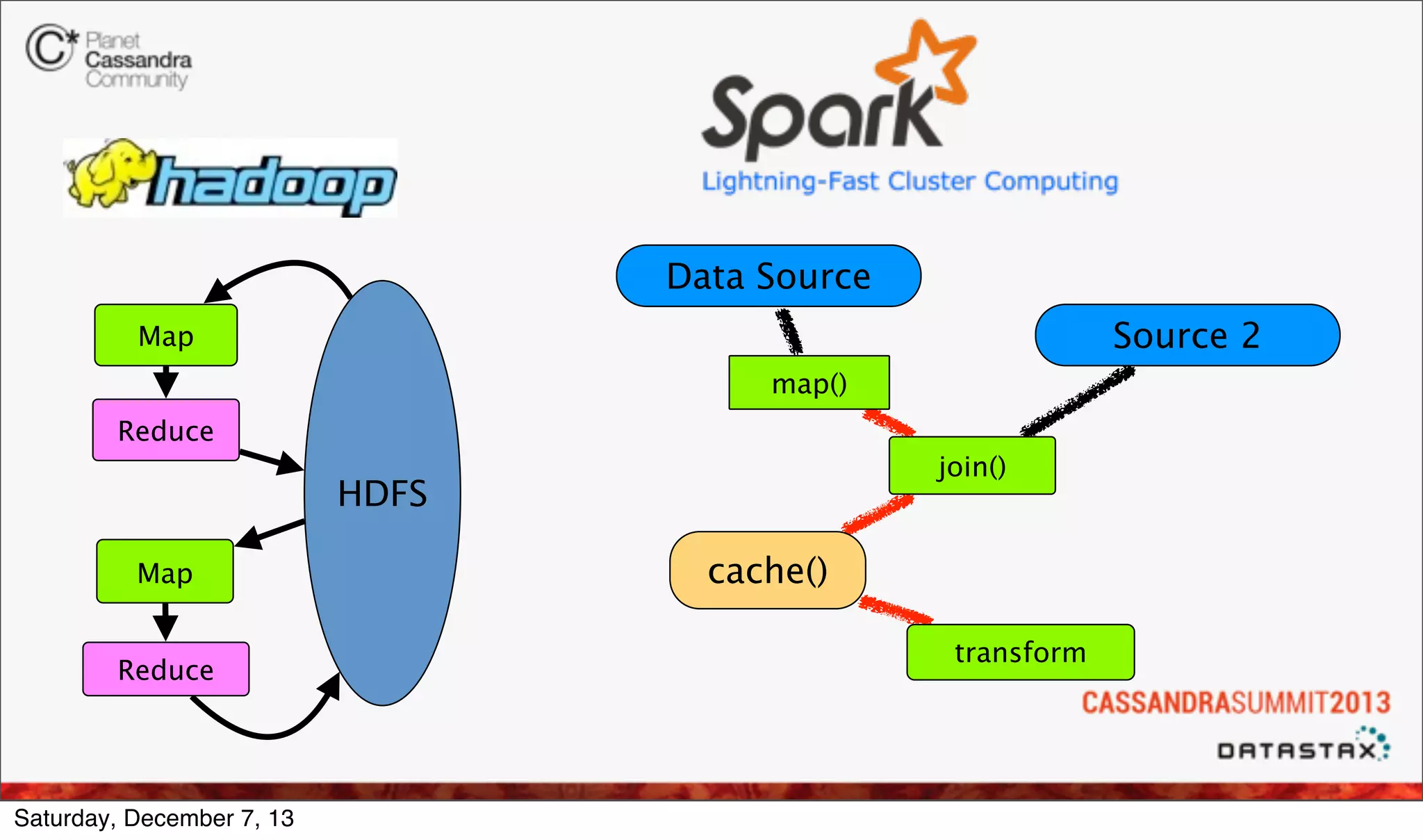

- 18. Data Source Source 2 Map map() Reduce join() HDFS Map Reduce Saturday,December 7, 13 cache() transform

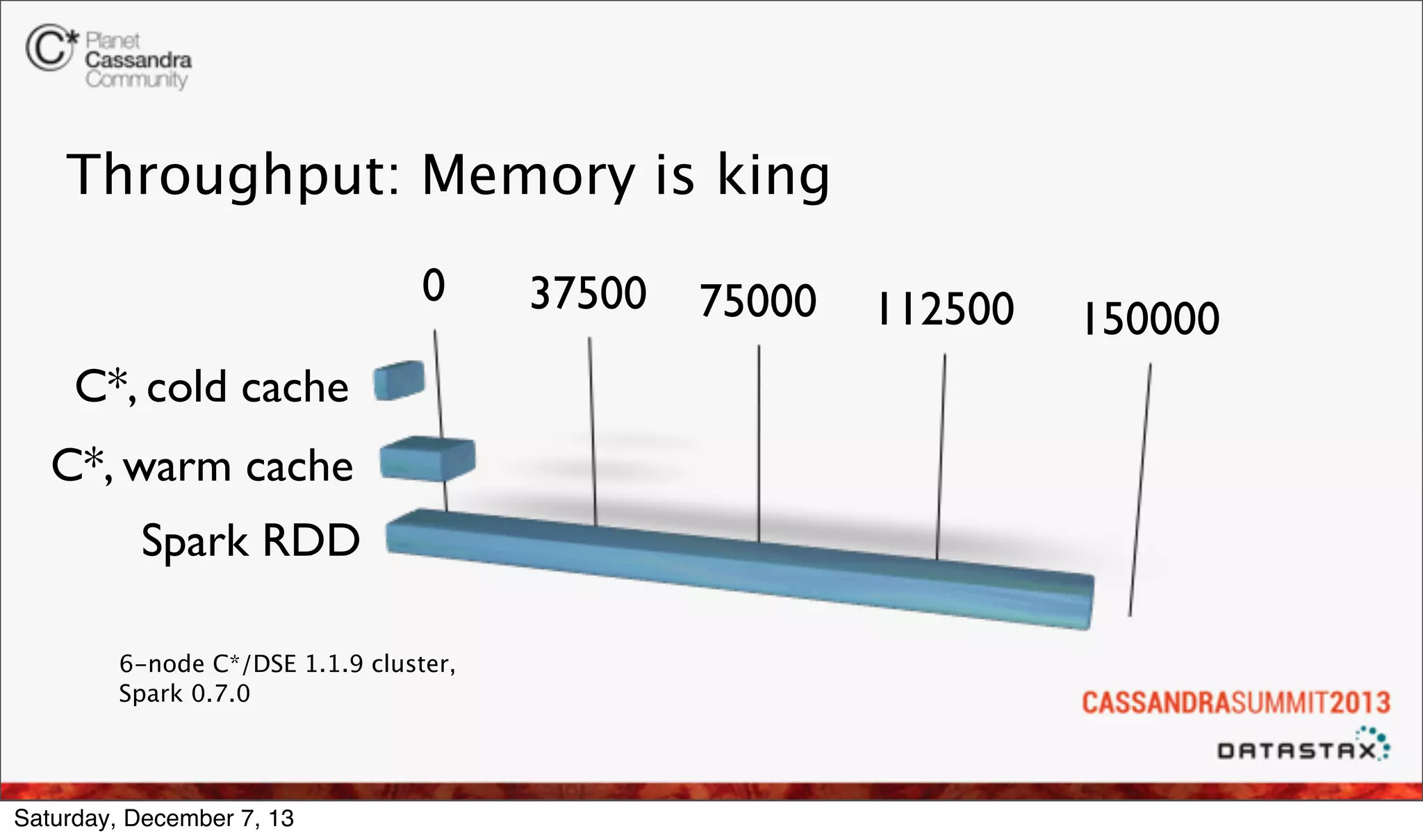

- 19. Throughput: Memory isking 0 C*, cold cache C*, warm cache Spark RDD 6-node C*/DSE 1.1.9 cluster, Spark 0.7.0 Saturday, December 7, 13 37500 75000 112500 150000

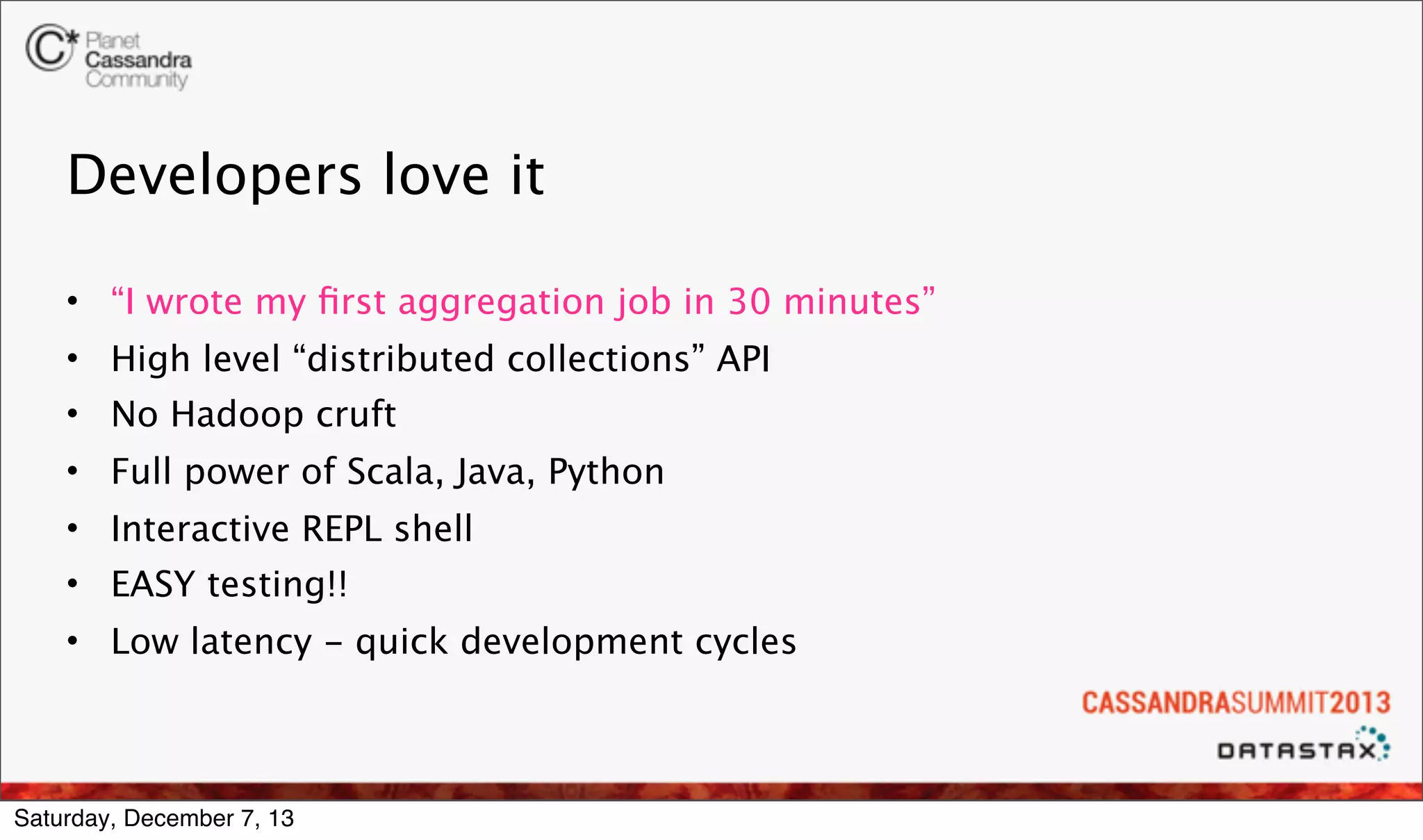

- 20. Developers love it •“I wrote my first aggregation job in 30 minutes” • High level “distributed collections” API • No Hadoop cruft • Full power of Scala, Java, Python • Interactive REPL shell • EASY testing!! • Low latency - quick development cycles Saturday, December 7, 13

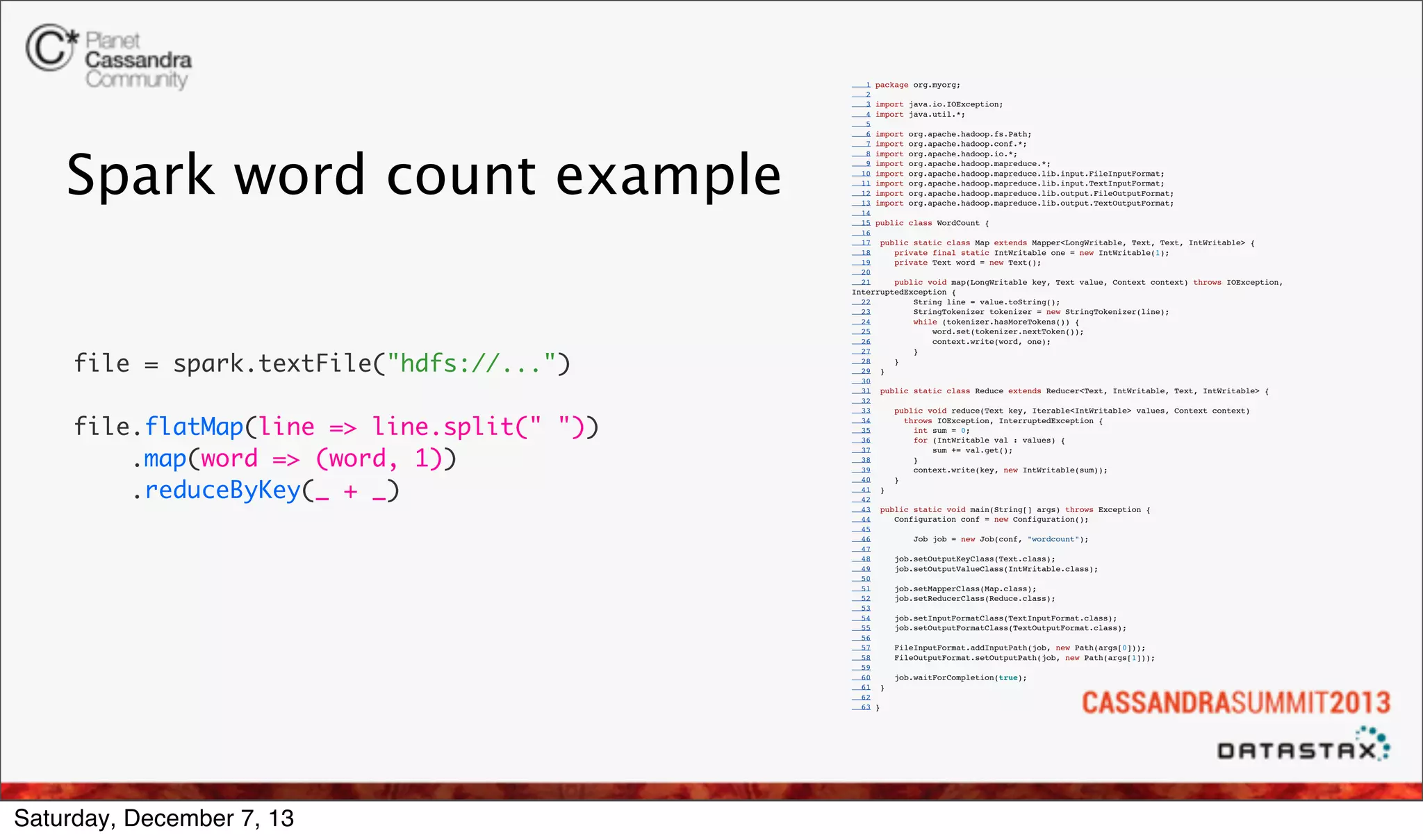

- 21. Spark word countexample file = spark.textFile("hdfs://...") file.flatMap(line => line.split(" ")) .map(word => (word, 1)) .reduceByKey(_ + _) Saturday, December 7, 13 1 package org.myorg; 2 3 import java.io.IOException; 4 import java.util.*; 5 6 import org.apache.hadoop.fs.Path; 7 import org.apache.hadoop.conf.*; 8 import org.apache.hadoop.io.*; 9 import org.apache.hadoop.mapreduce.*; 10 import org.apache.hadoop.mapreduce.lib.input.FileInputFormat; 11 import org.apache.hadoop.mapreduce.lib.input.TextInputFormat; 12 import org.apache.hadoop.mapreduce.lib.output.FileOutputFormat; 13 import org.apache.hadoop.mapreduce.lib.output.TextOutputFormat; 14 15 public class WordCount { 16 17 public static class Map extends Mapper<LongWritable, Text, Text, IntWritable> { 18 private final static IntWritable one = new IntWritable(1); 19 private Text word = new Text(); 20 21 public void map(LongWritable key, Text value, Context context) throws IOException, InterruptedException { 22 String line = value.toString(); 23 StringTokenizer tokenizer = new StringTokenizer(line); 24 while (tokenizer.hasMoreTokens()) { 25 word.set(tokenizer.nextToken()); 26 context.write(word, one); 27 } 28 } 29 } 30 31 public static class Reduce extends Reducer<Text, IntWritable, Text, IntWritable> { 32 33 public void reduce(Text key, Iterable<IntWritable> values, Context context) 34 throws IOException, InterruptedException { 35 int sum = 0; 36 for (IntWritable val : values) { 37 sum += val.get(); 38 } 39 context.write(key, new IntWritable(sum)); 40 } 41 } 42 43 public static void main(String[] args) throws Exception { 44 Configuration conf = new Configuration(); 45 46 Job job = new Job(conf, "wordcount"); 47 48 job.setOutputKeyClass(Text.class); 49 job.setOutputValueClass(IntWritable.class); 50 51 job.setMapperClass(Map.class); 52 job.setReducerClass(Reduce.class); 53 54 job.setInputFormatClass(TextInputFormat.class); 55 job.setOutputFormatClass(TextOutputFormat.class); 56 57 FileInputFormat.addInputPath(job, new Path(args[0])); 58 FileOutputFormat.setOutputPath(job, new Path(args[1])); 59 60 job.waitForCompletion(true); 61 } 62 63 }

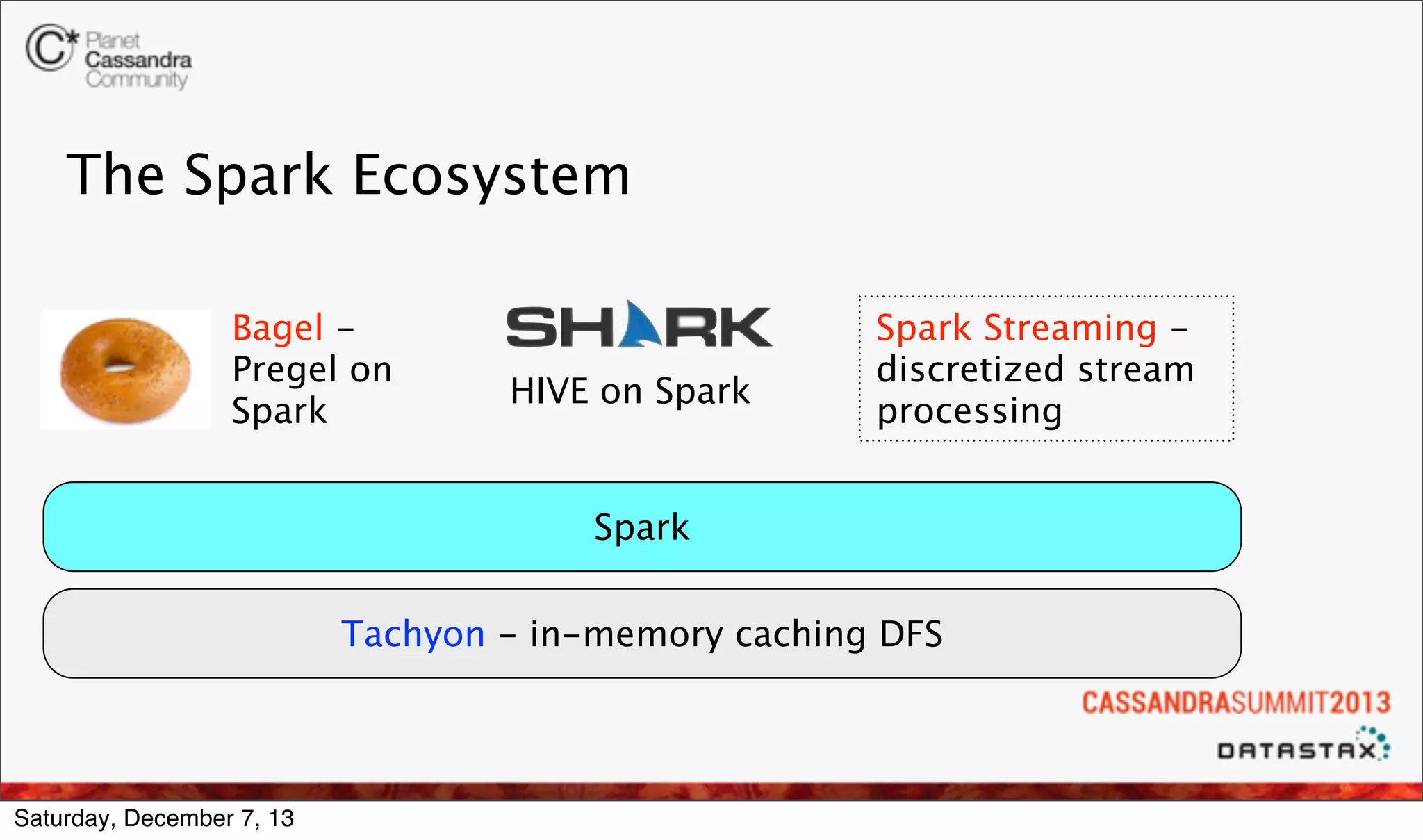

- 22. The Spark Ecosystem BagelPregel on Spark HIVE on Spark Spark Streaming discretized stream processing Spark Tachyon - in-memory caching DFS Saturday, December 7, 13

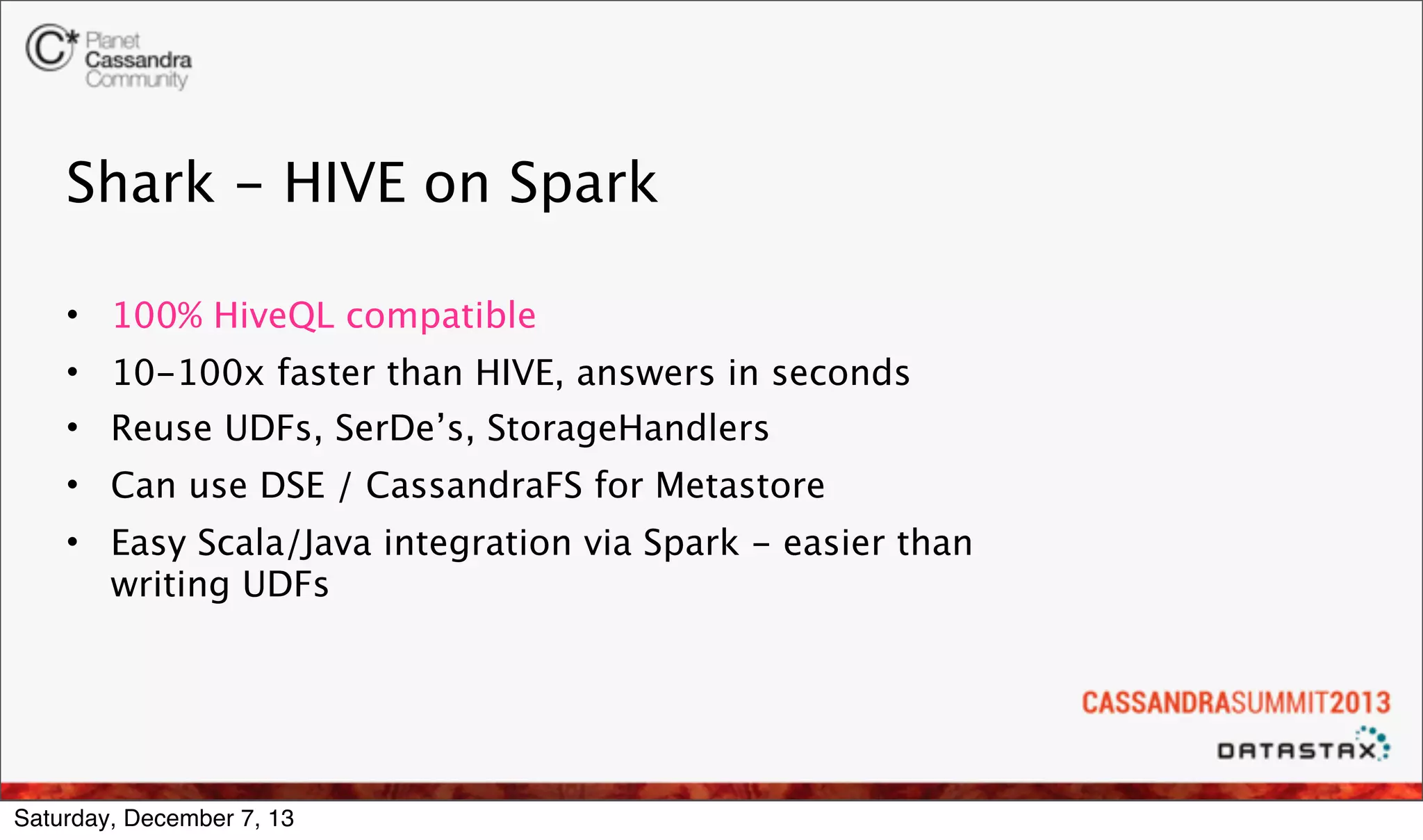

- 23. Shark - HIVEon Spark • 100% HiveQL compatible • 10-100x faster than HIVE, answers in seconds • Reuse UDFs, SerDe’s, StorageHandlers • Can use DSE / CassandraFS for Metastore • Easy Scala/Java integration via Spark - easier than writing UDFs Saturday, December 7, 13

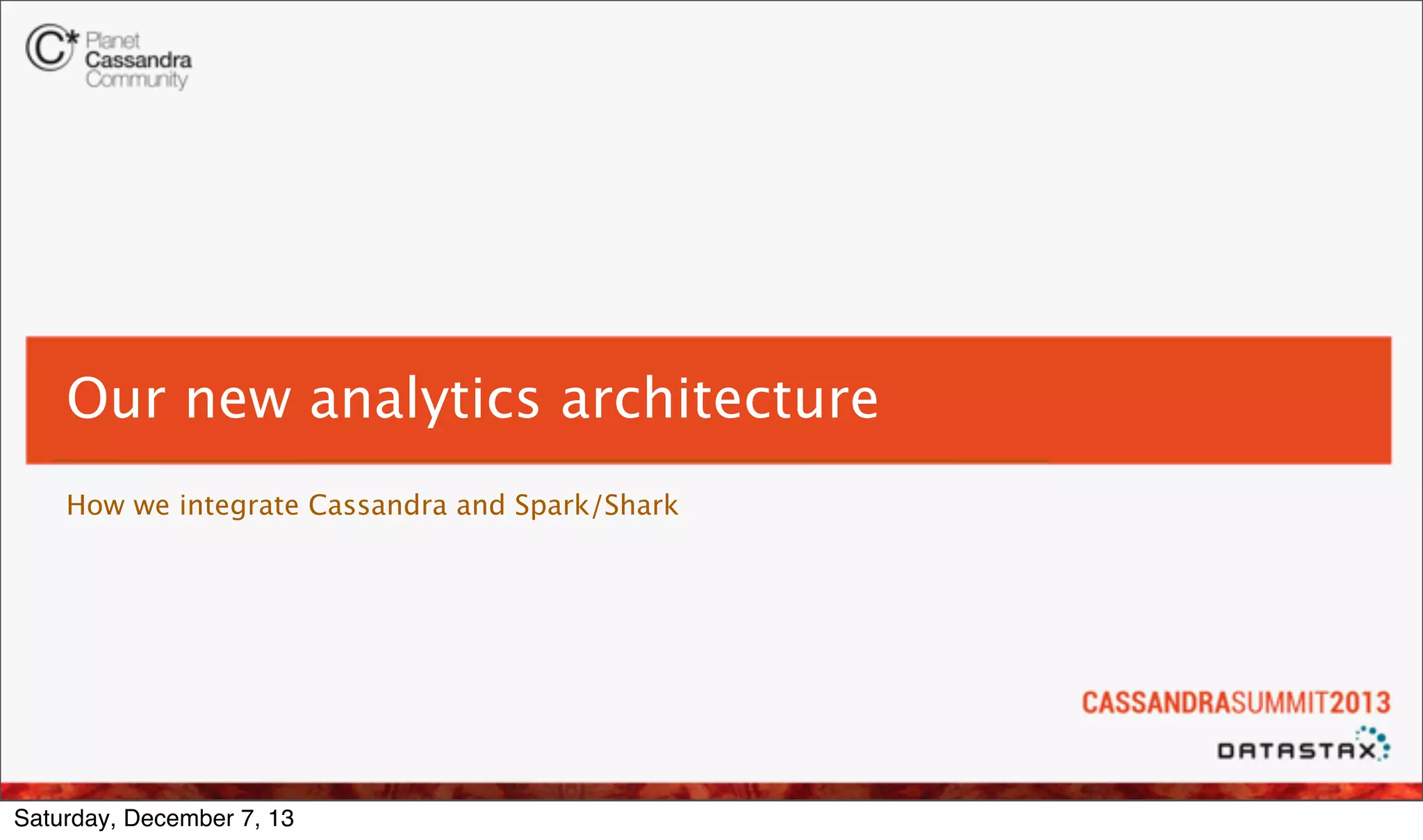

- 24. Our new analyticsarchitecture How we integrate Cassandra and Spark/Shark Saturday, December 7, 13

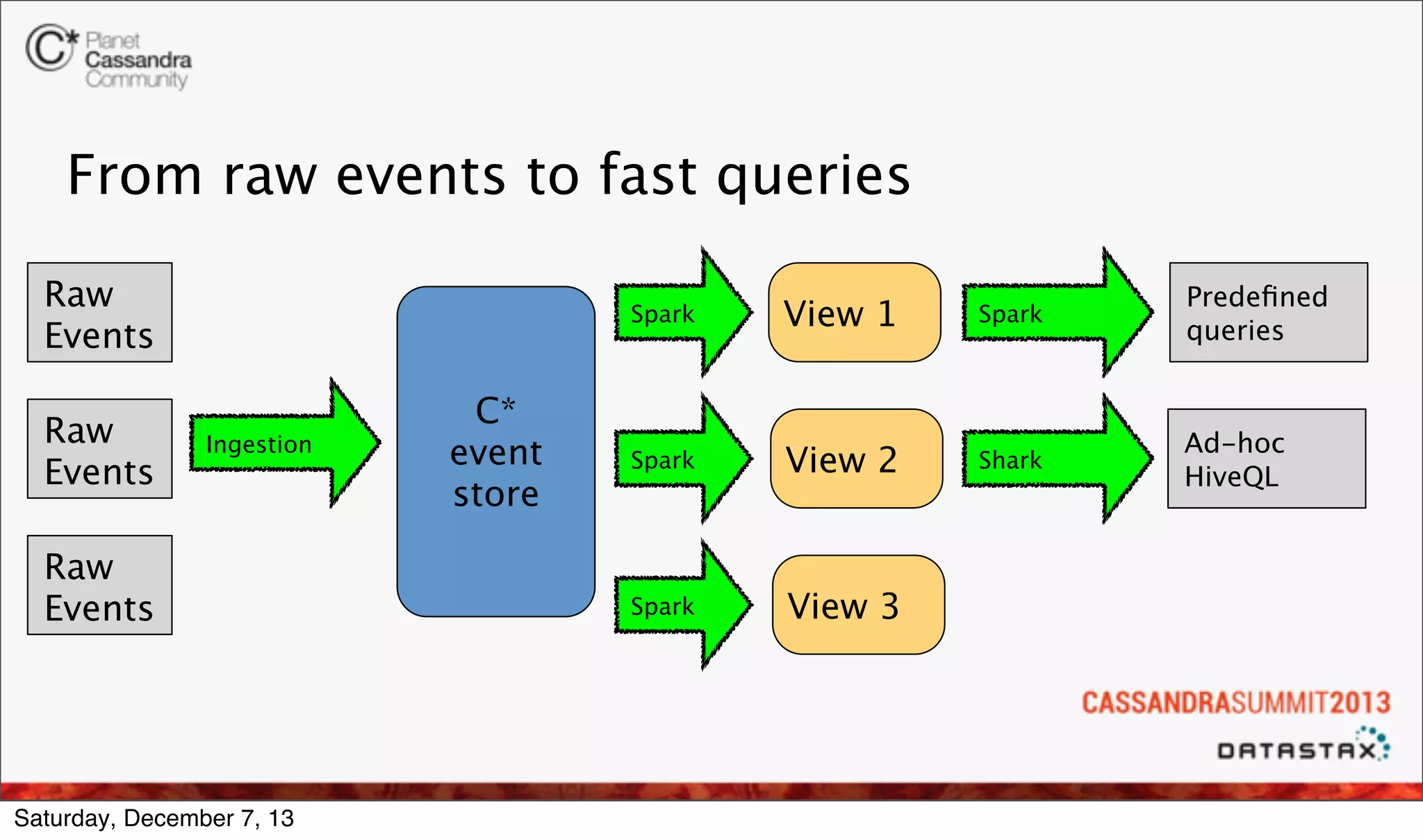

- 25. From raw eventsto fast queries Raw Events Raw Events Spark Ingestion Raw Events Saturday, December 7, 13 C* event store View 1 Spark Predefined queries Spark View 2 Shark Ad-hoc HiveQL Spark View 3

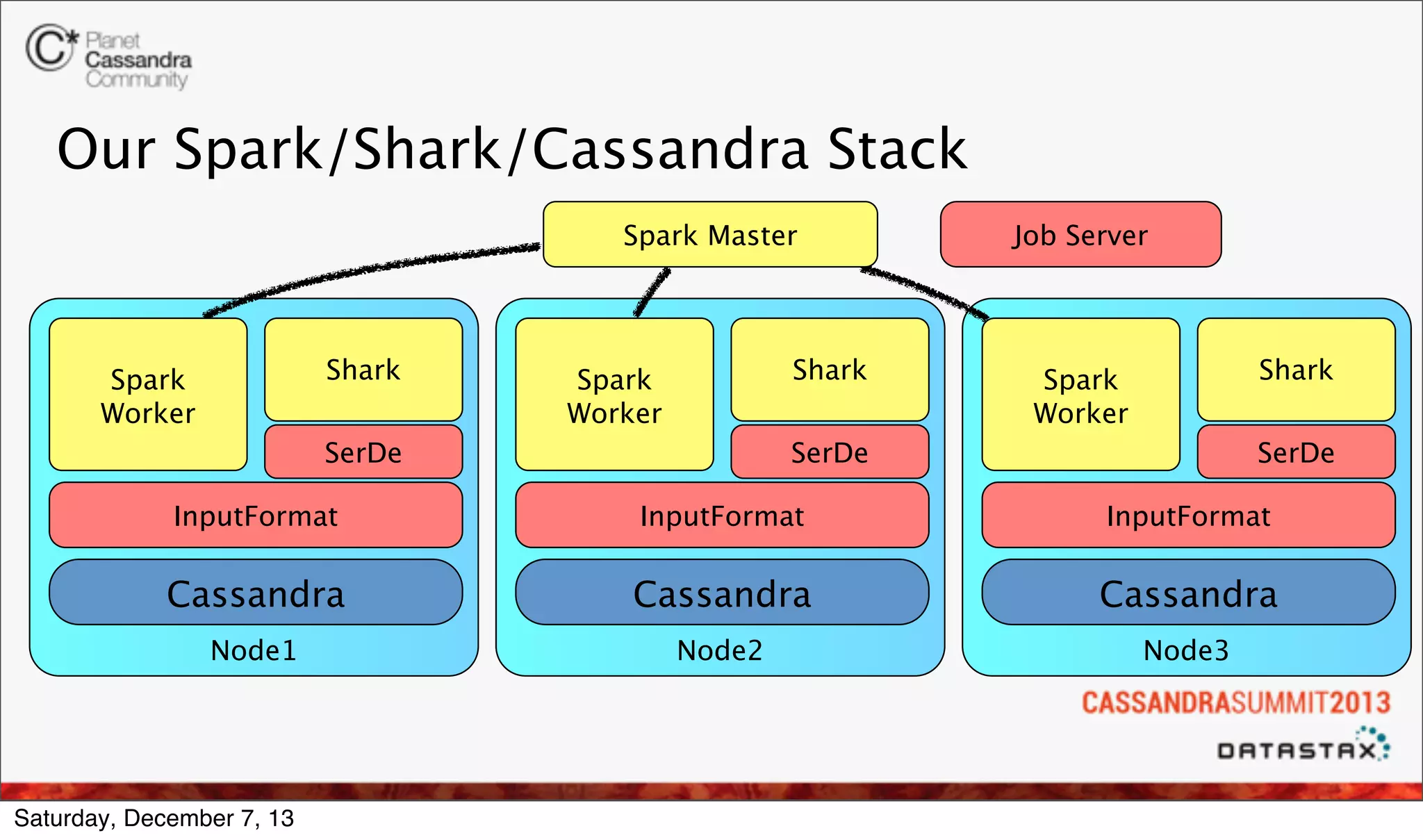

- 26. Our Spark/Shark/Cassandra Stack SparkMaster Shark Spark Worker Shark Spark Worker SerDe Job Server Shark Spark Worker SerDe SerDe InputFormat InputFormat InputFormat Cassandra Cassandra Cassandra Node1 Node2 Node3 Saturday, December 7, 13

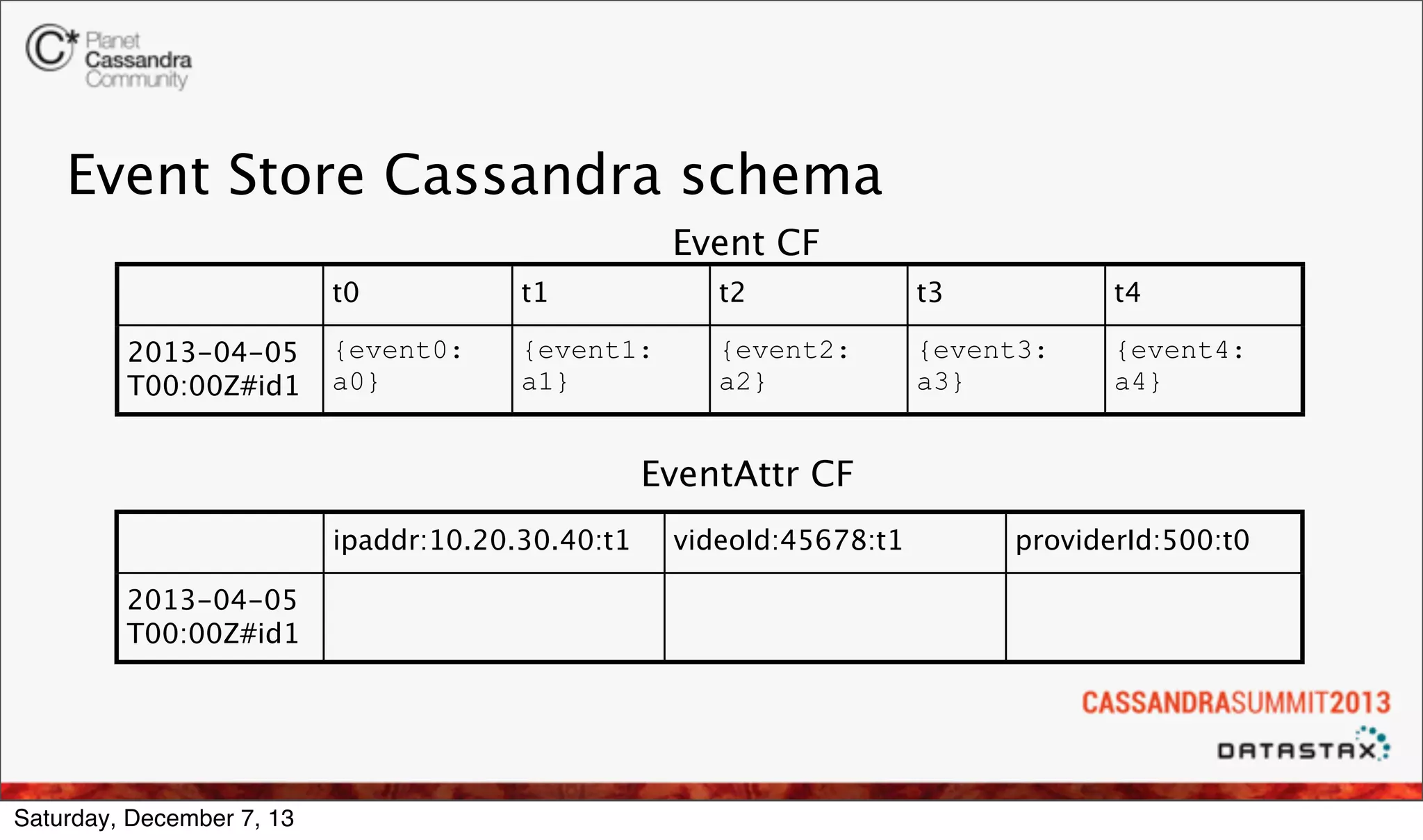

- 27. Event Store Cassandraschema Event CF t0 2013-04-05 T00:00Z#id1 t1 t2 t3 t4 {event0: a0} {event1: a1} {event2: a2} {event3: a3} {event4: a4} EventAttr CF ipaddr:10.20.30.40:t1 2013-04-05 T00:00Z#id1 Saturday, December 7, 13 videoId:45678:t1 providerId:500:t0

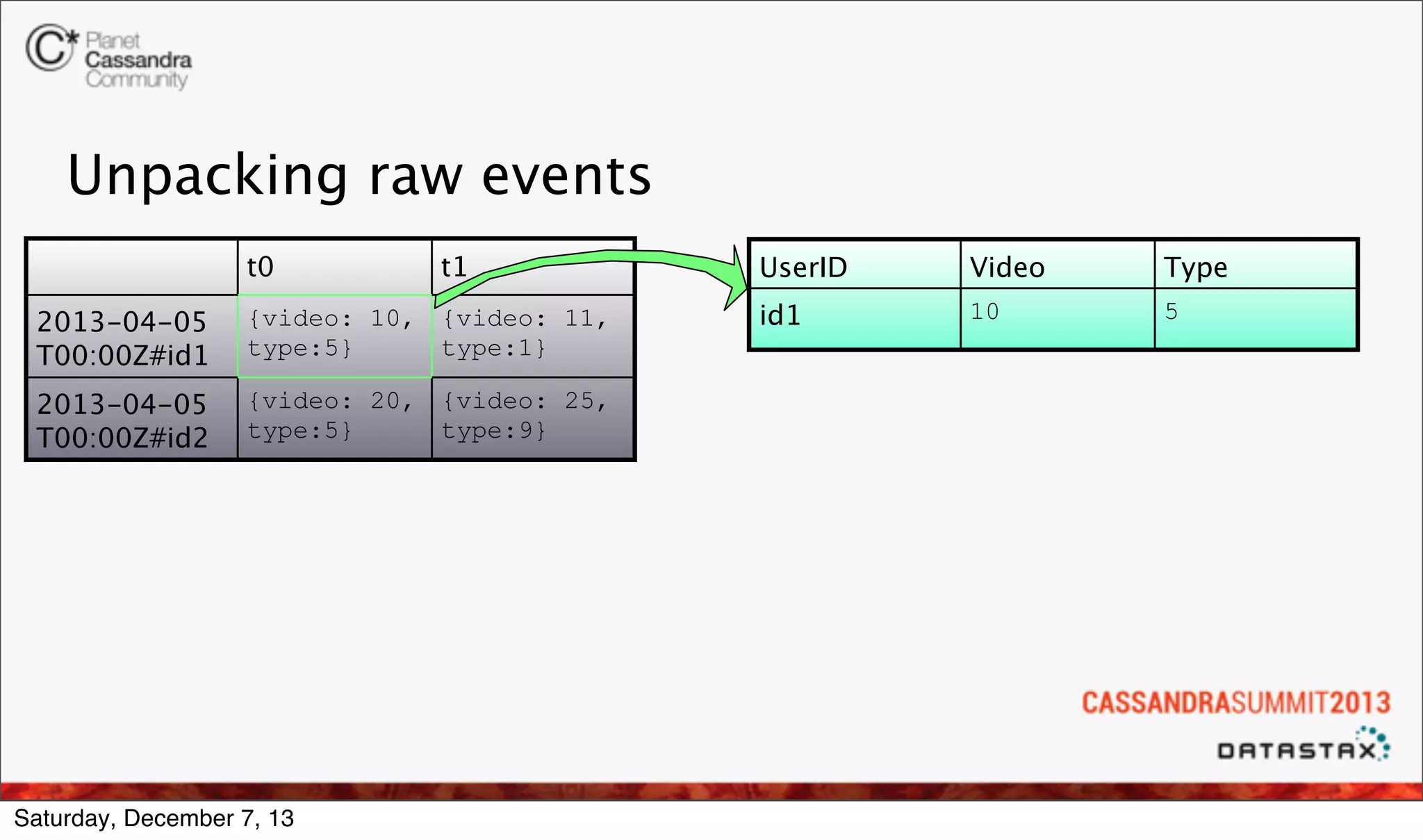

- 28. Unpacking raw events t0 t1 2013-04-05 T00:00Z#id1 {video:10, {video: 11, type:5} type:1} 2013-04-05 T00:00Z#id2 {video: 20, {video: 25, type:5} type:9} Saturday, December 7, 13 UserID Video Type id1 10 5

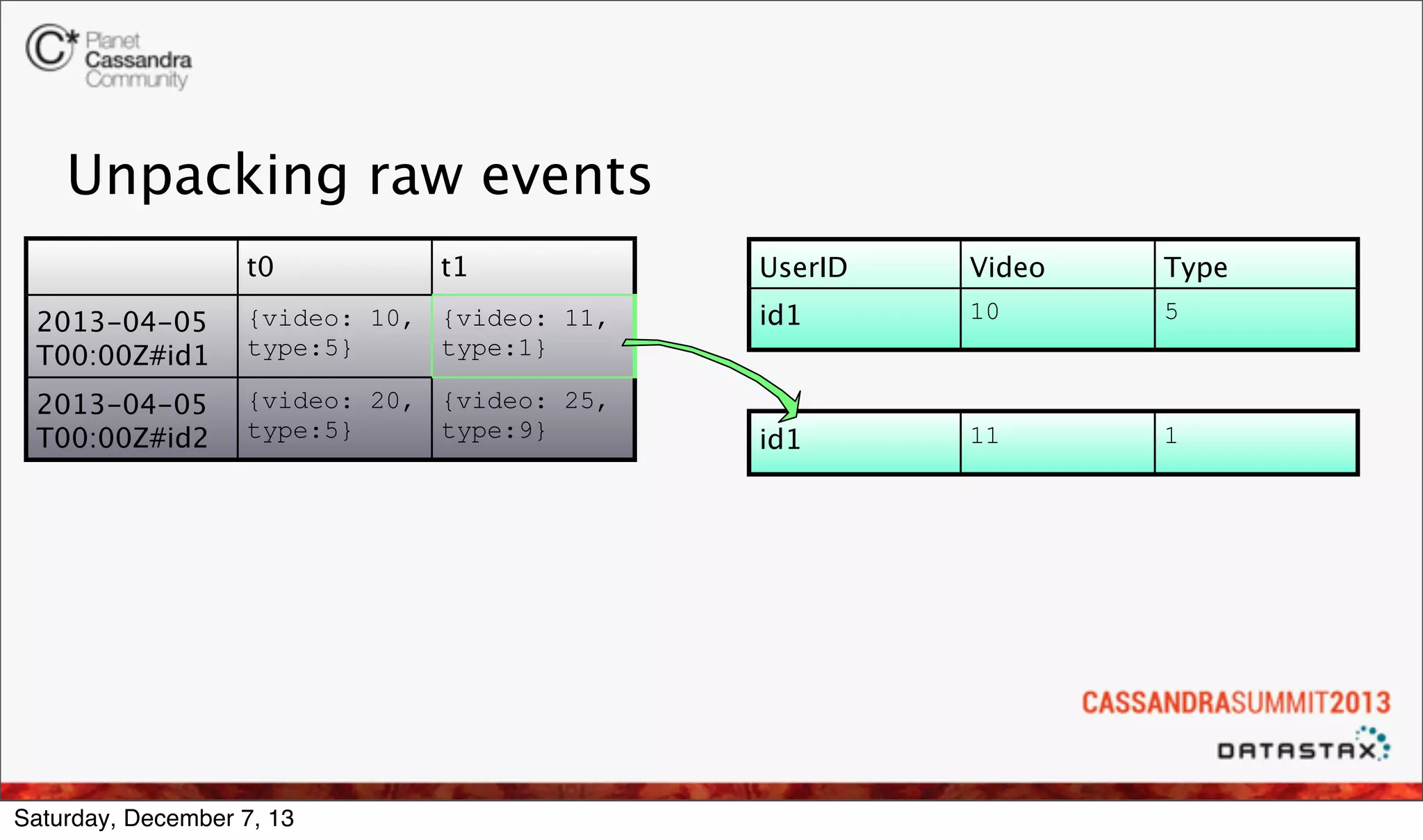

- 29. Unpacking raw events t0 t1 2013-04-05 T00:00Z#id1 {video:10, {video: 11, type:5} type:1} 2013-04-05 T00:00Z#id2 {video: 20, {video: 25, type:5} type:9} Saturday, December 7, 13 UserID Video Type id1 10 5 id1 11 1

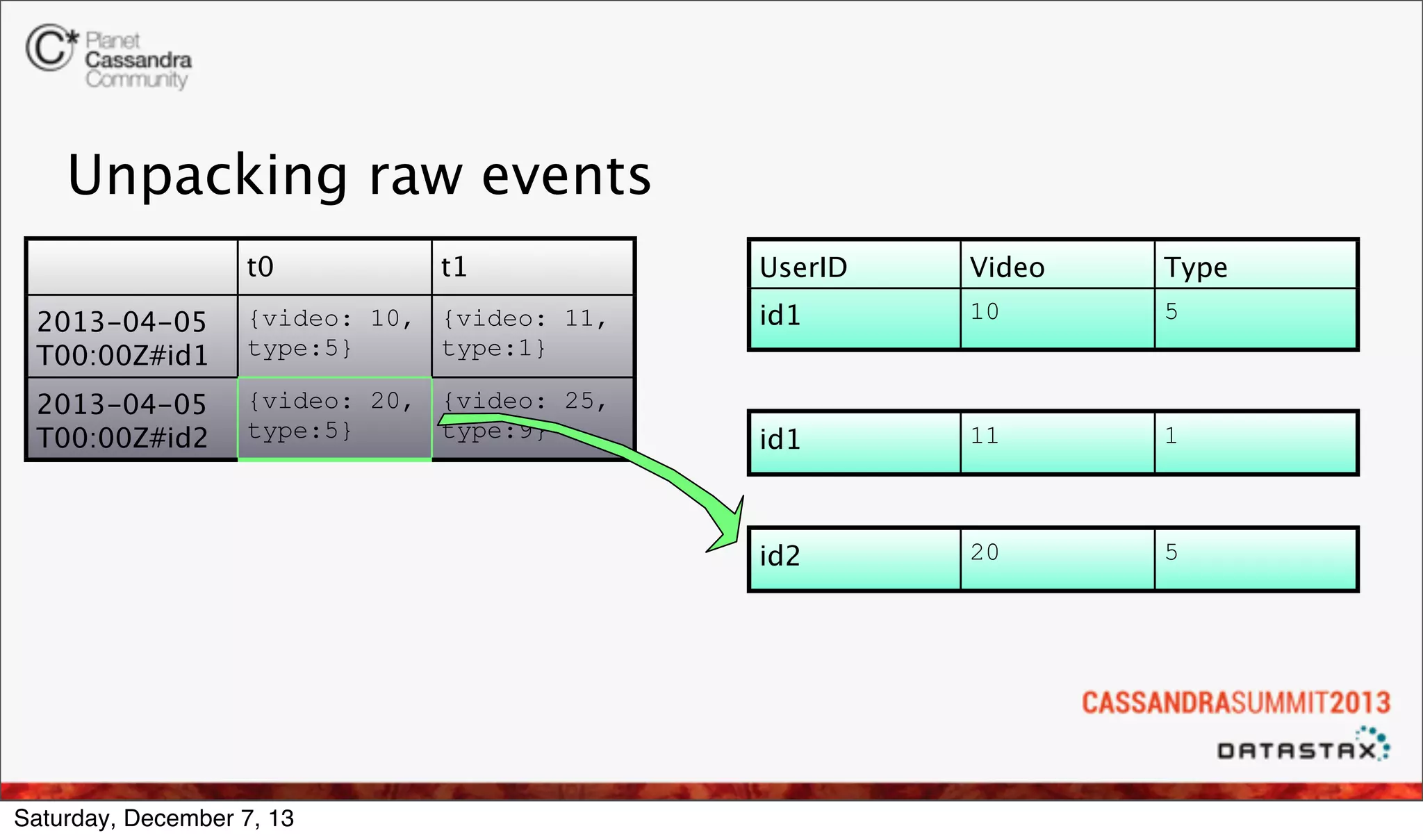

- 30. Unpacking raw events t0 t1 {video:10, {video: 11, type:5} type:1} 2013-04-05 T00:00Z#id2 {video: 20, {video: 25, type:5} type:9} Saturday, December 7, 13 Video Type id1 10 5 id1 11 1 id2 2013-04-05 T00:00Z#id1 UserID 20 5

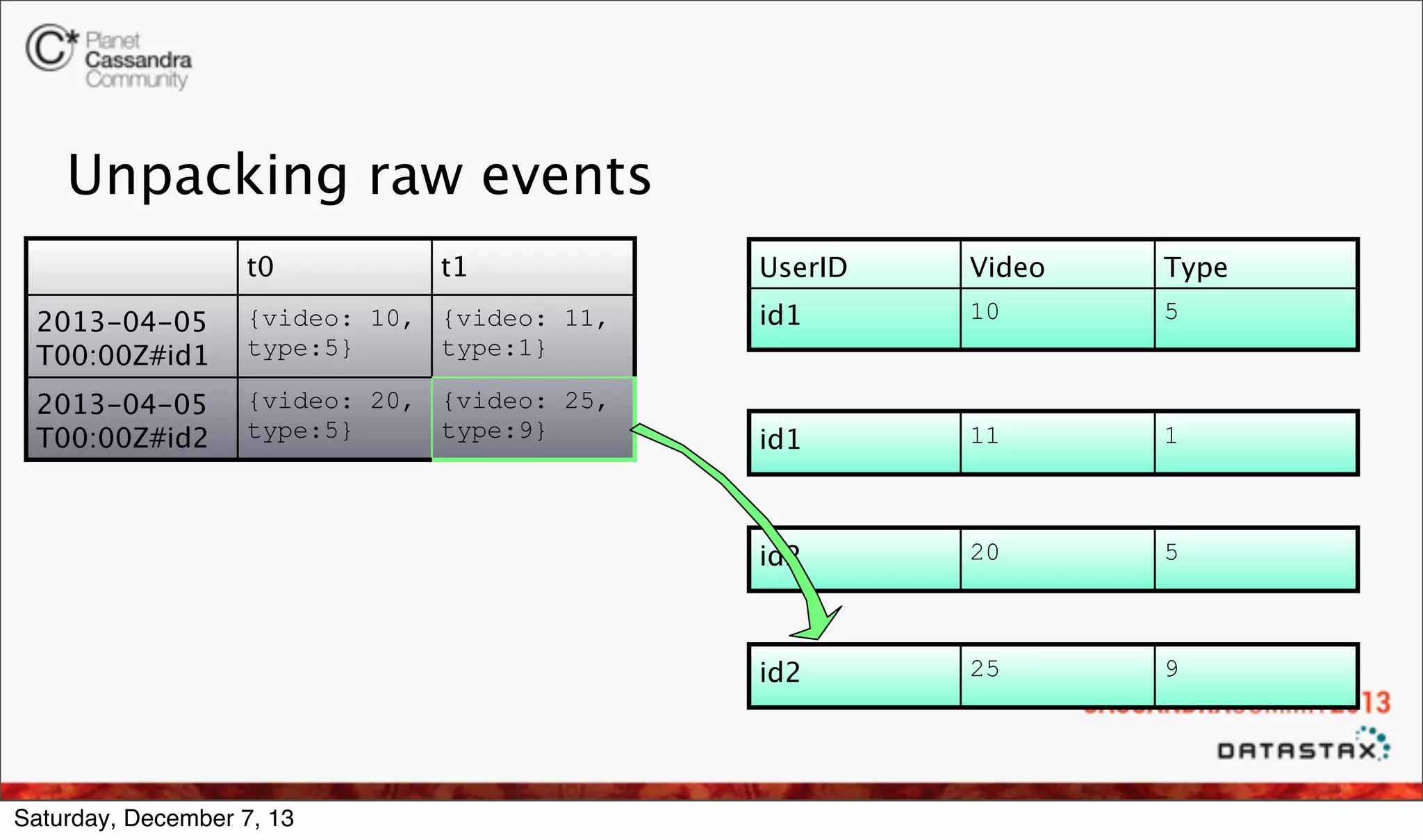

- 31. Unpacking raw events t0 t1 2013-04-05 T00:00Z#id2 {video:20, {video: 25, type:5} type:9} Saturday, December 7, 13 Type id1 10 5 id1 11 1 20 5 id2 {video: 10, {video: 11, type:5} type:1} Video id2 2013-04-05 T00:00Z#id1 UserID 25 9

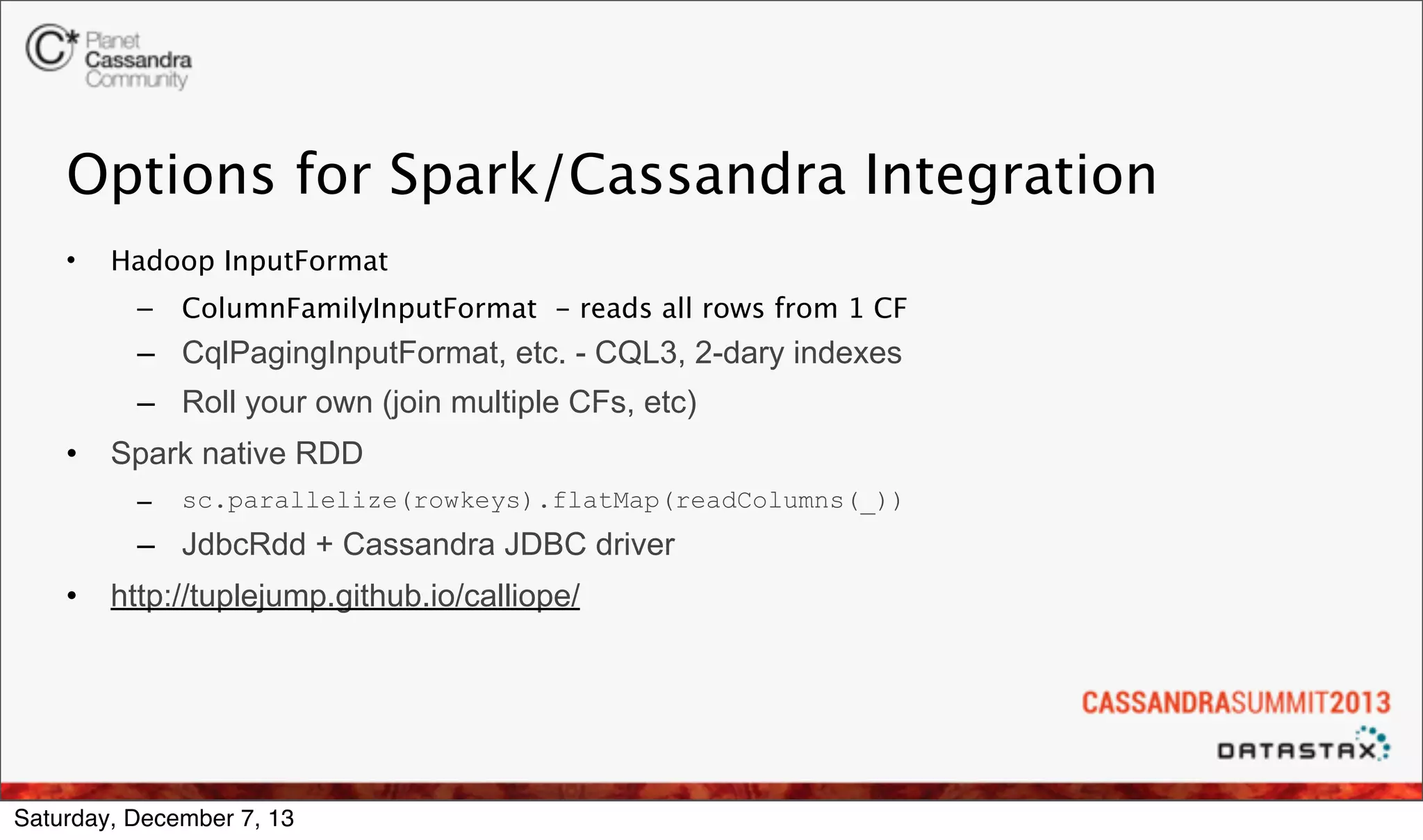

- 32. Options for Spark/CassandraIntegration • Hadoop InputFormat – ColumnFamilyInputFormat - reads all rows from 1 CF – CqlPagingInputFormat, etc. - CQL3, 2-dary indexes – Roll your own (join multiple CFs, etc) • Spark native RDD – sc.parallelize(rowkeys).flatMap(readColumns(_)) – JdbcRdd + Cassandra JDBC driver • http://tuplejump.github.io/calliope/ Saturday, December 7, 13

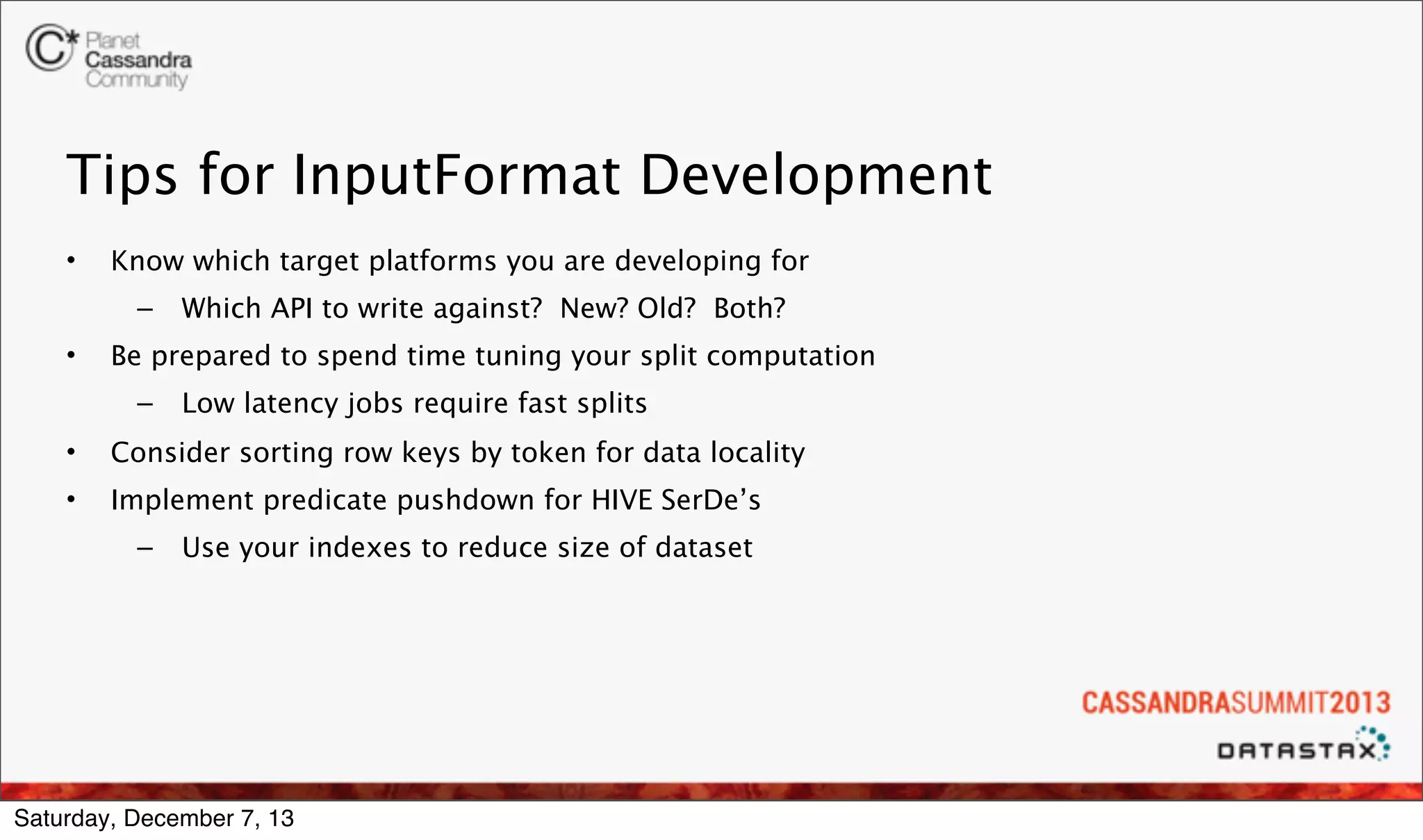

- 33. Tips for InputFormatDevelopment • Know which target platforms you are developing for – • Which API to write against? New? Old? Both? Be prepared to spend time tuning your split computation – Low latency jobs require fast splits • Consider sorting row keys by token for data locality • Implement predicate pushdown for HIVE SerDe’s – Use your indexes to reduce size of dataset Saturday, December 7, 13

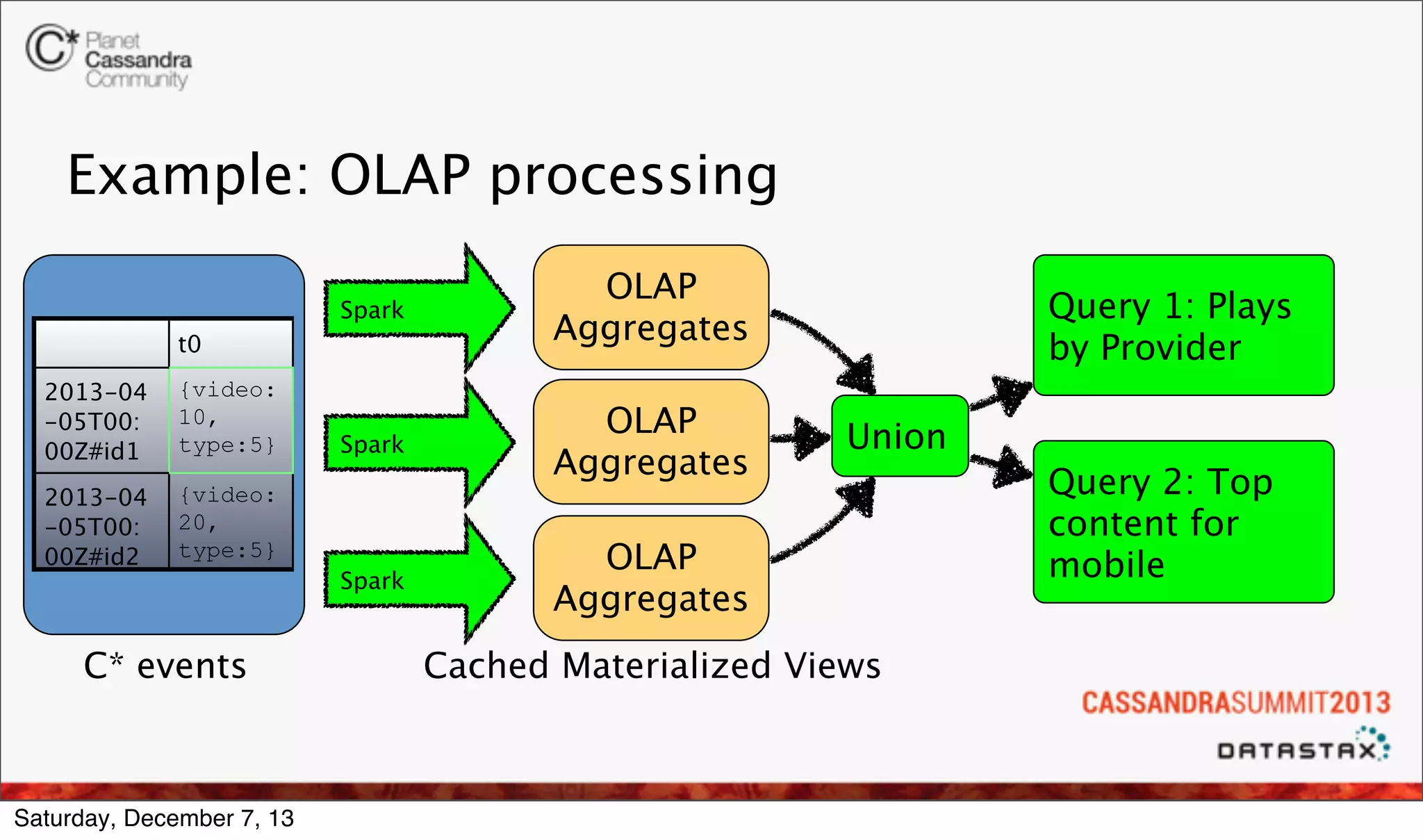

- 34. Example: OLAP processing Spark OLAP Aggregates Spark OLAP Aggregates t0 2013-04 -05T00: 00Z#id1 {video: 10, type:5} 2013-04 -05T00: 00Z#id2 {video: 20, type:5} C*events Saturday, December 7, 13 Spark Query 1: Plays by Provider Union OLAP Aggregates Cached Materialized Views Query 2: Top content for mobile

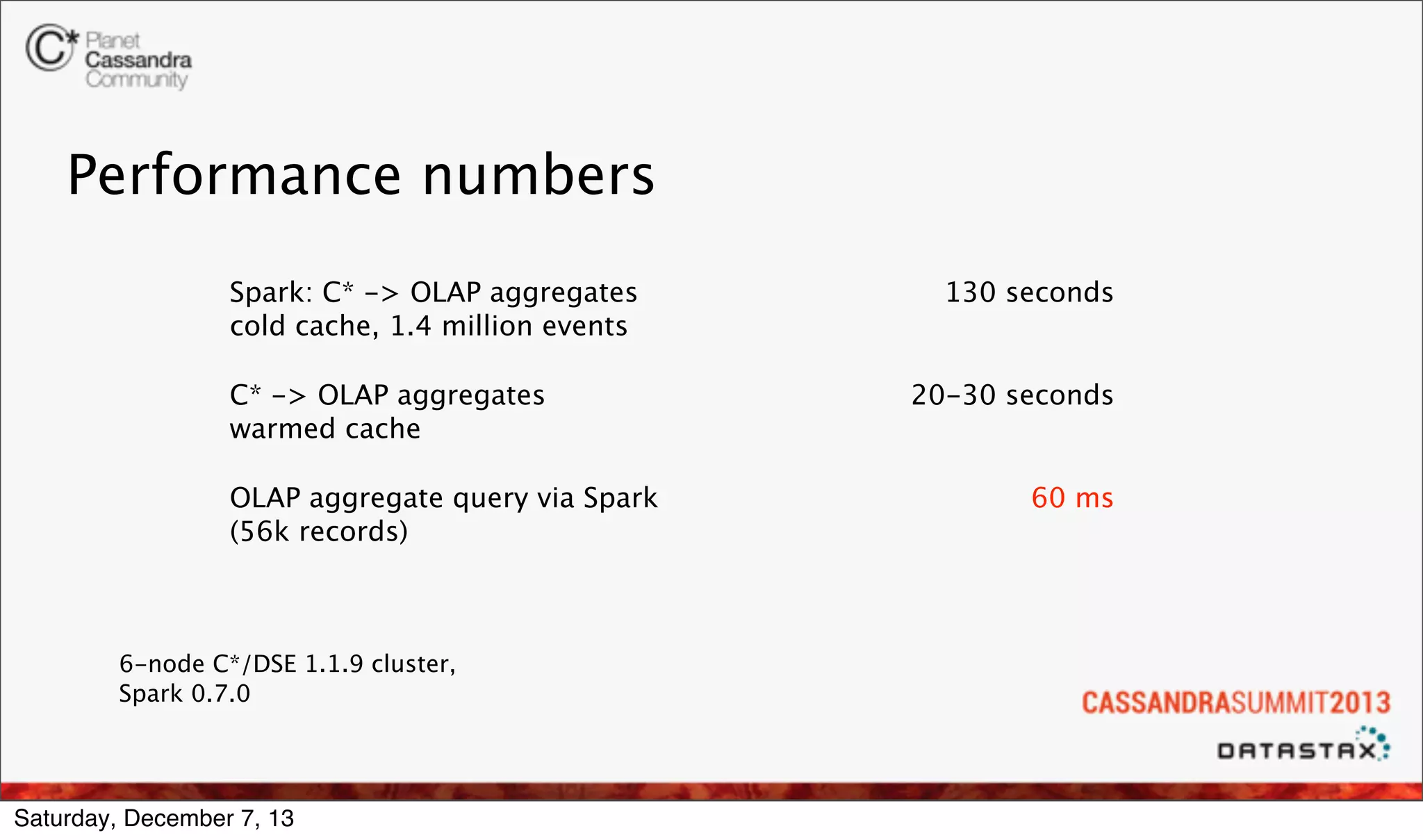

- 35. Performance numbers Spark: C*-> OLAP aggregates cold cache, 1.4 million events C* -> OLAP aggregates warmed cache OLAP aggregate query via Spark (56k records) 6-node C*/DSE 1.1.9 cluster, Spark 0.7.0 Saturday, December 7, 13 130 seconds 20-30 seconds 60 ms

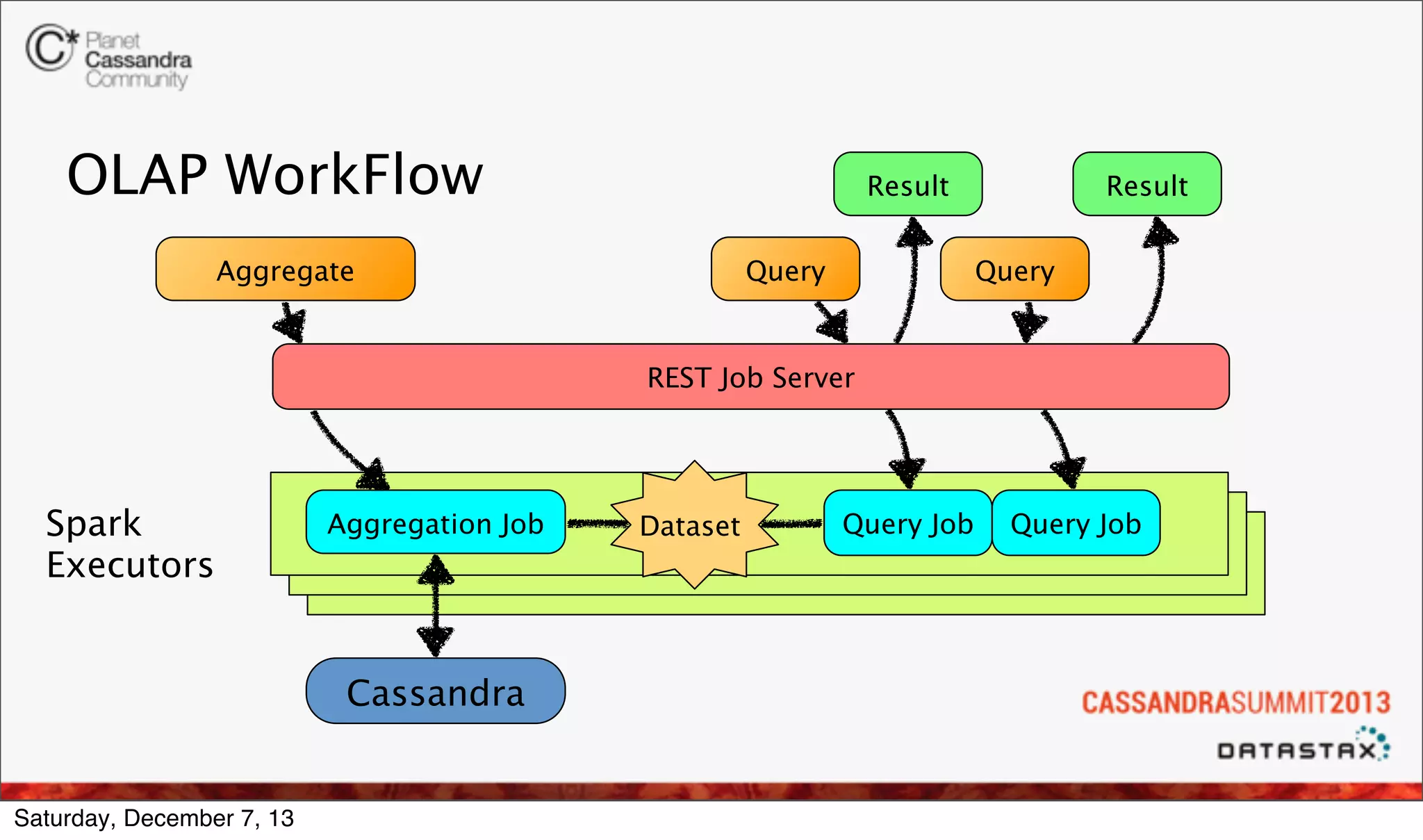

- 36. OLAP WorkFlow Result Aggregate Query Result Query REST JobServer Spark Executors Aggregation Job Cassandra Saturday, December 7, 13 Dataset Query Job Query Job

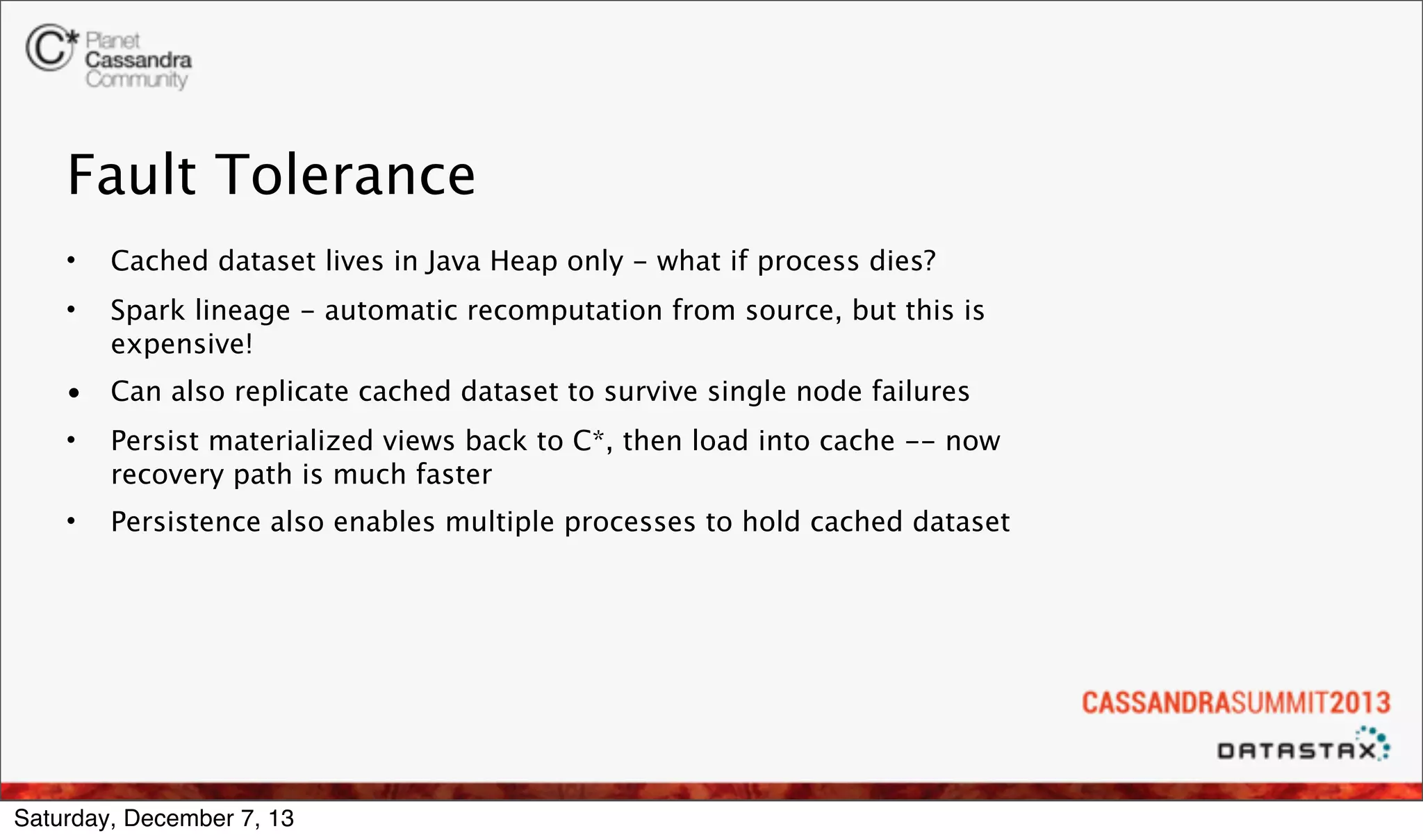

- 37. Fault Tolerance • Cached datasetlives in Java Heap only - what if process dies? • Spark lineage - automatic recomputation from source, but this is expensive! • Can also replicate cached dataset to survive single node failures • Persist materialized views back to C*, then load into cache -- now recovery path is much faster • Persistence also enables multiple processes to hold cached dataset Saturday, December 7, 13
- 38.

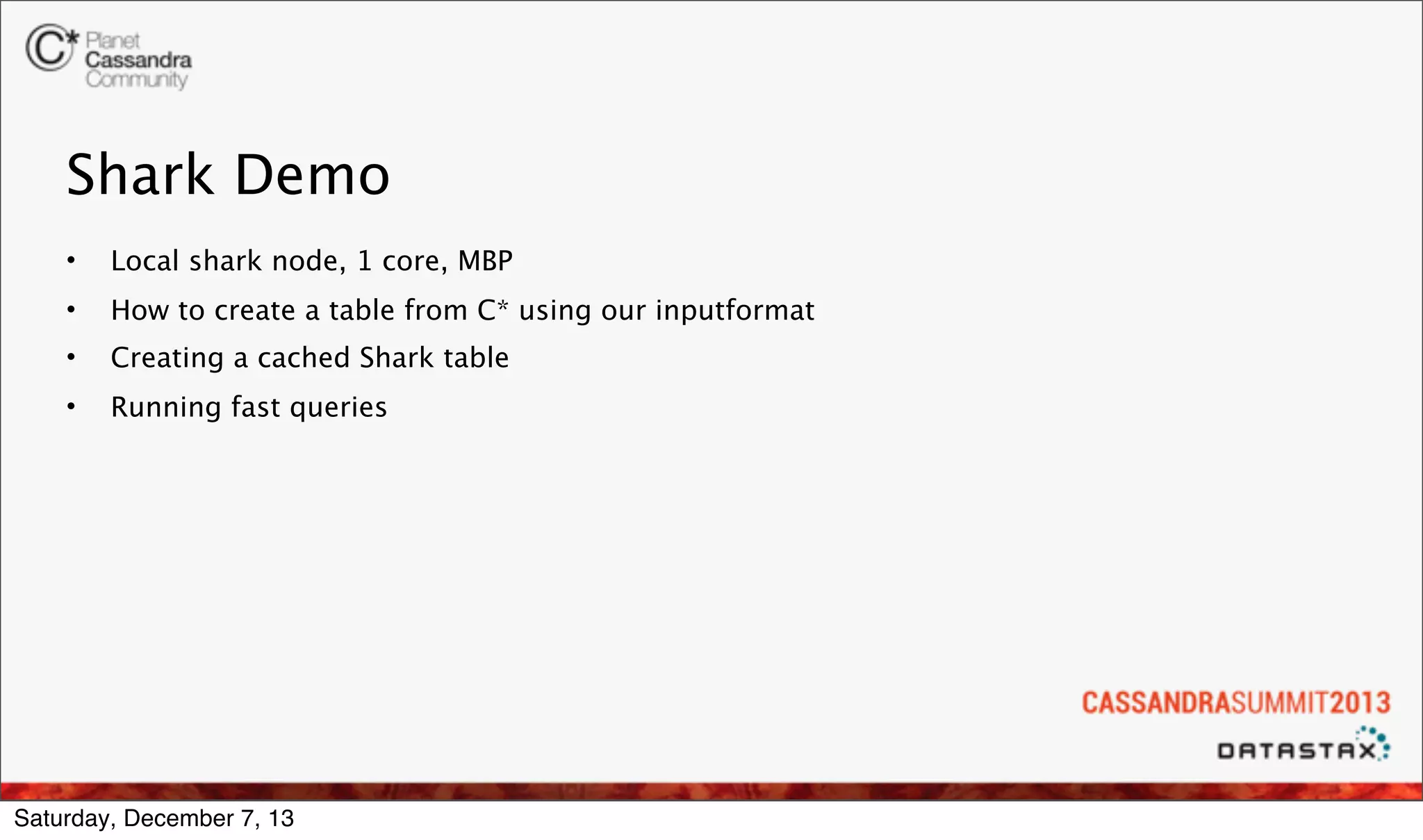

- 39. Shark Demo • Local sharknode, 1 core, MBP • How to create a table from C* using our inputformat • Creating a cached Shark table • Running fast queries Saturday, December 7, 13

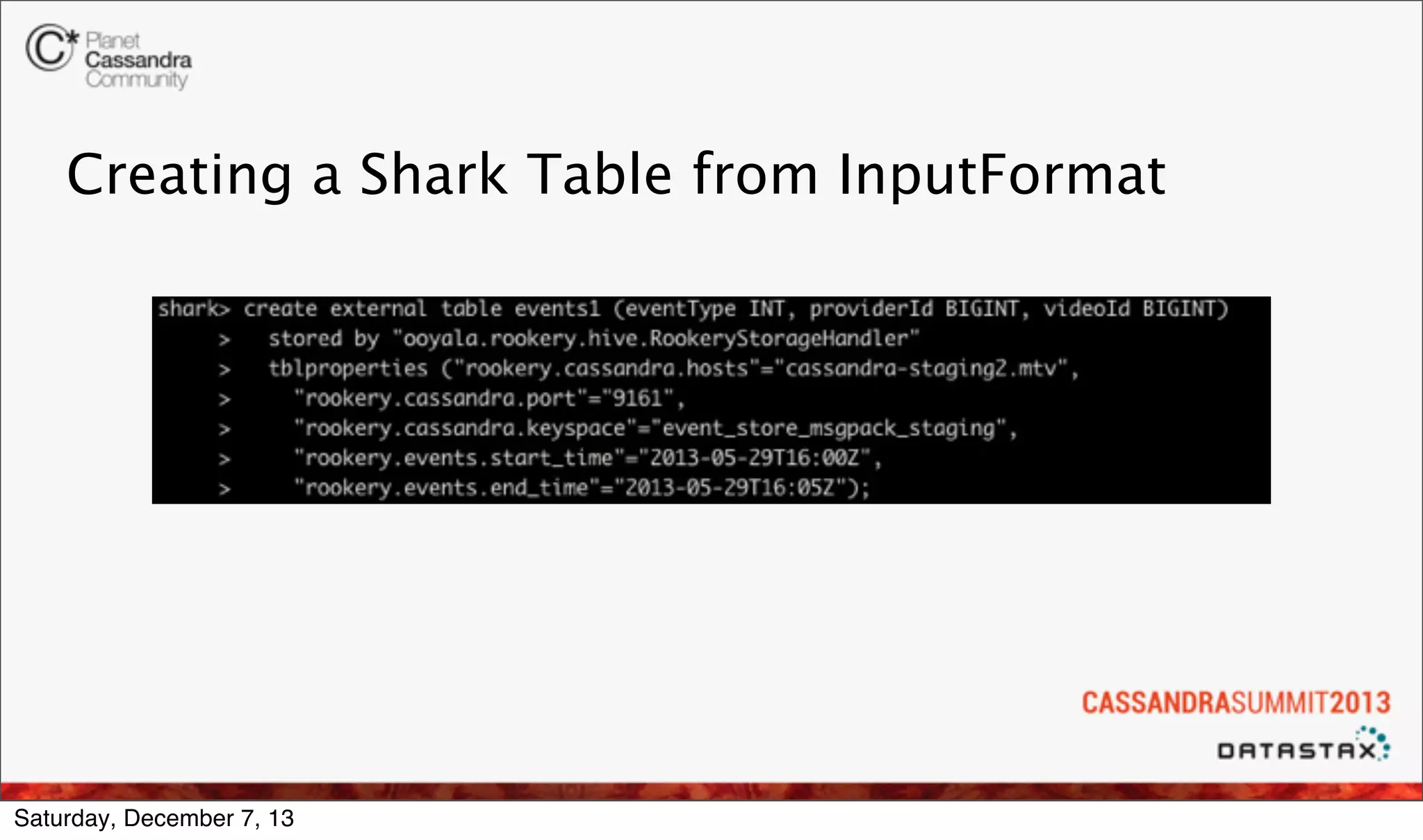

- 40. Creating a SharkTable from InputFormat Saturday, December 7, 13

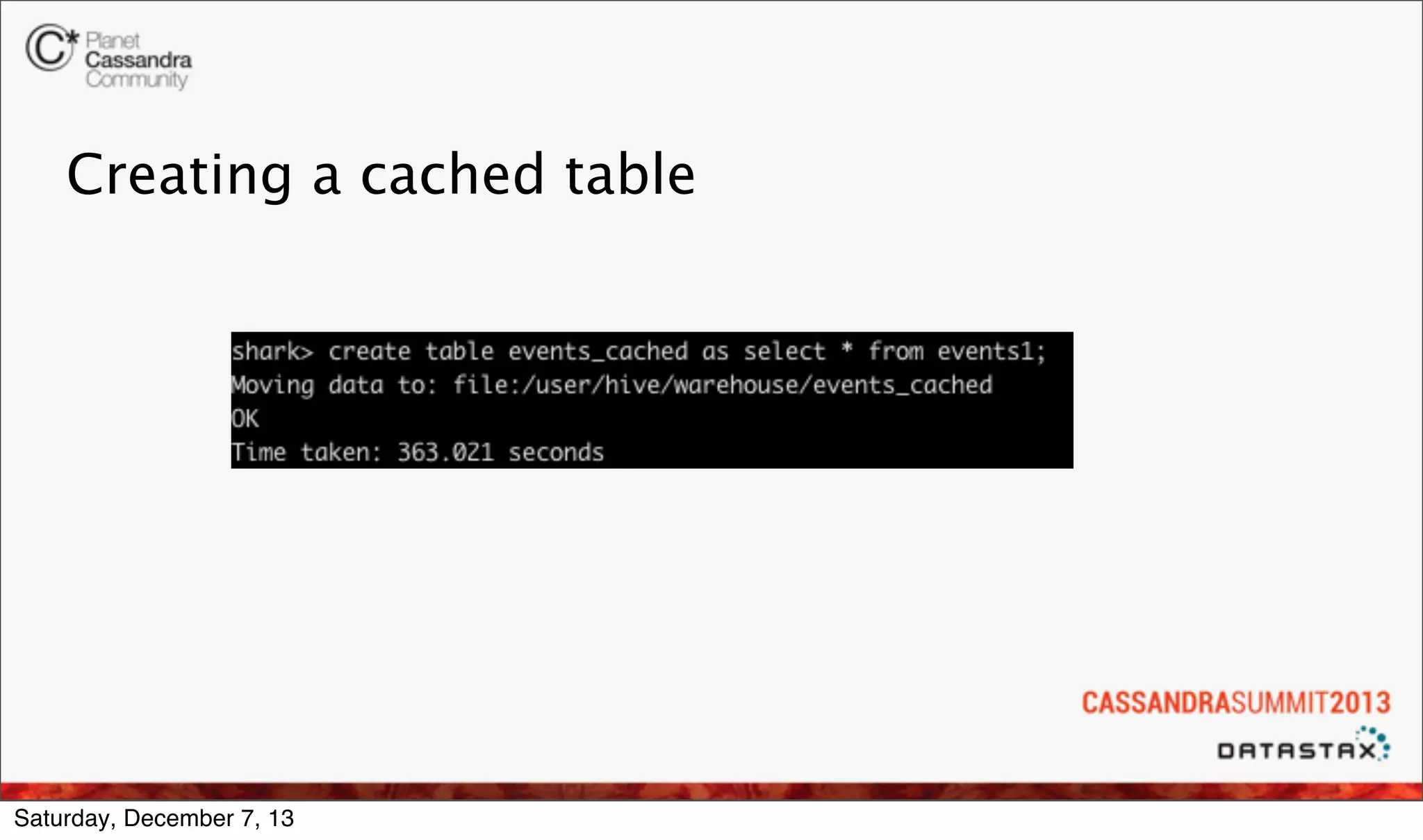

- 41. Creating a cachedtable Saturday, December 7, 13
- 42. Querying cached table Saturday,December 7, 13
- 43. THANK YOU • @evanfchan • ev@ooyala.com • WE AREHIRING!! Saturday, December 7, 13

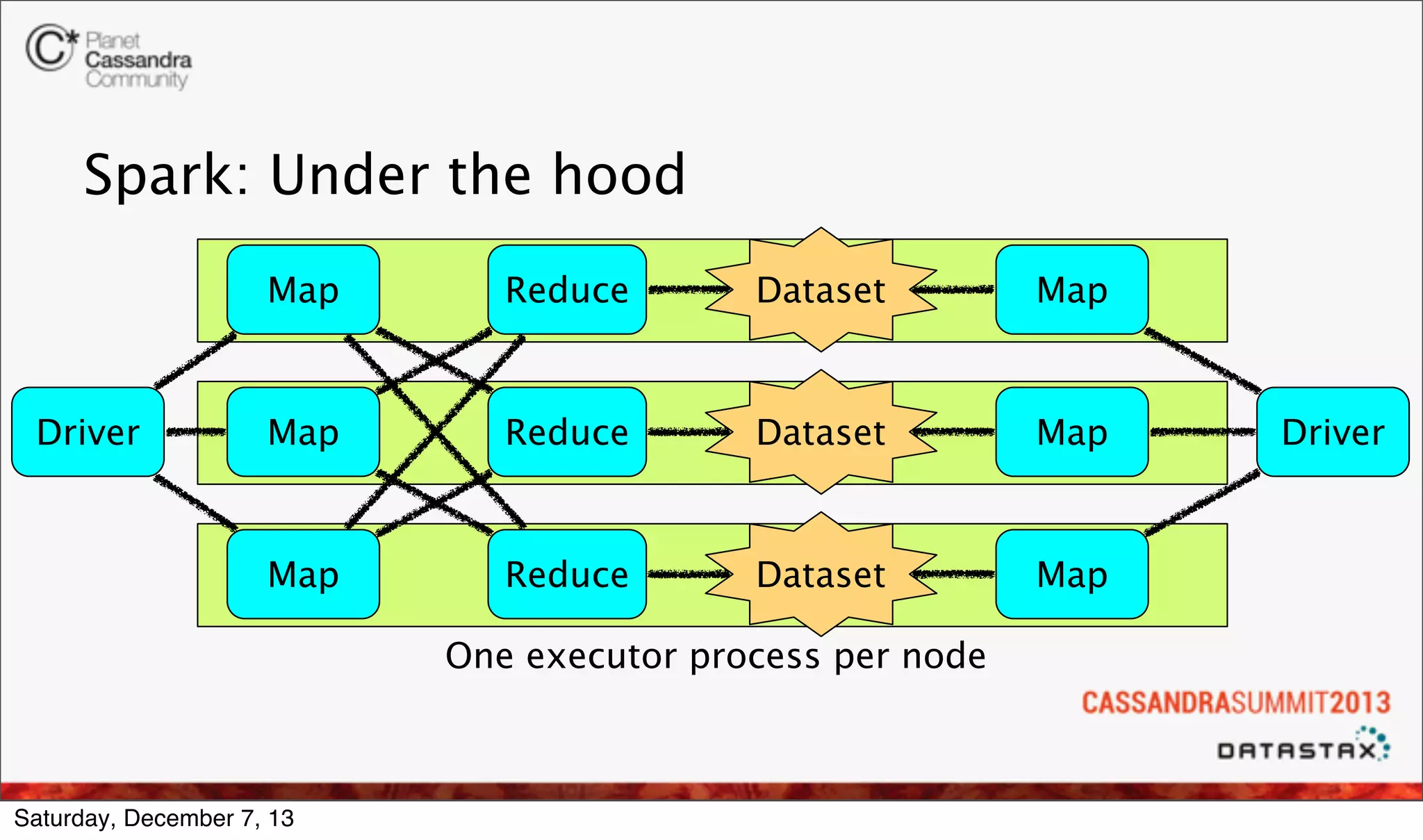

- 44. Spark: Under thehood Map Dataset Map Map Reduce Dataset Map Map Driver Reduce Reduce Dataset Map One executor process per node Saturday, December 7, 13 Driver
