1. Slope

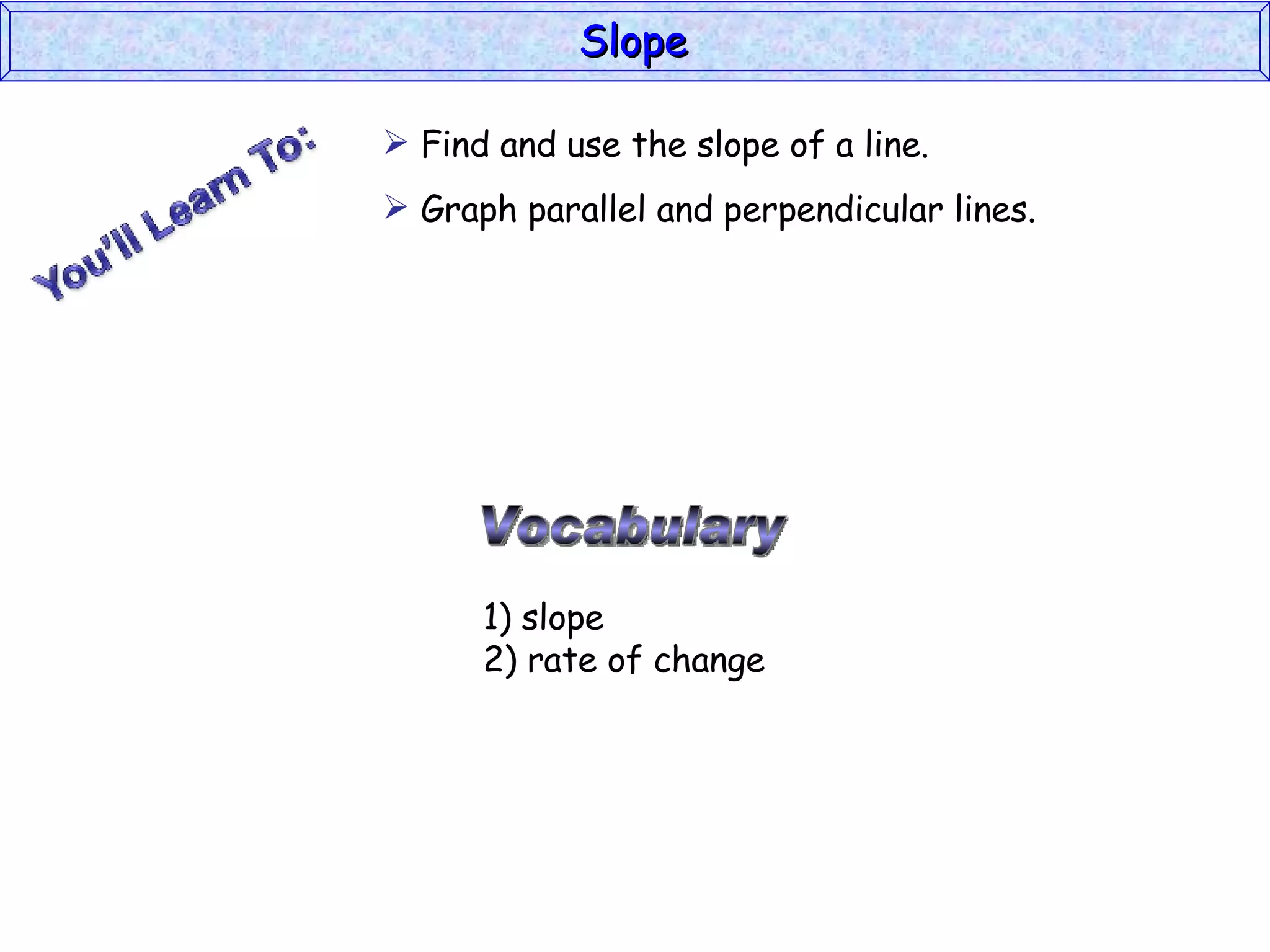

2. Vocabulary Find and use the slope of a line. Graph parallel and perpendicular lines. 1) slope 2) rate of change Slope

3. If the pilot doesn’t change something, he / she will not make it home for Christmas. Would you agree?

4. Consider the options: 1) Keep the same slope of his / her path.

5. Consider the options: 1) Keep the same slope of his / her path.

6. Consider the options: 1) Keep the same slope of his / her path. Not a good choice!

7. Consider the options: 1) Keep the same slope of his / her path. Not a good choice! 2) Go straight up.

8. Consider the options: 1) Keep the same slope of his / her path. Not a good choice! 2) Go straight up.

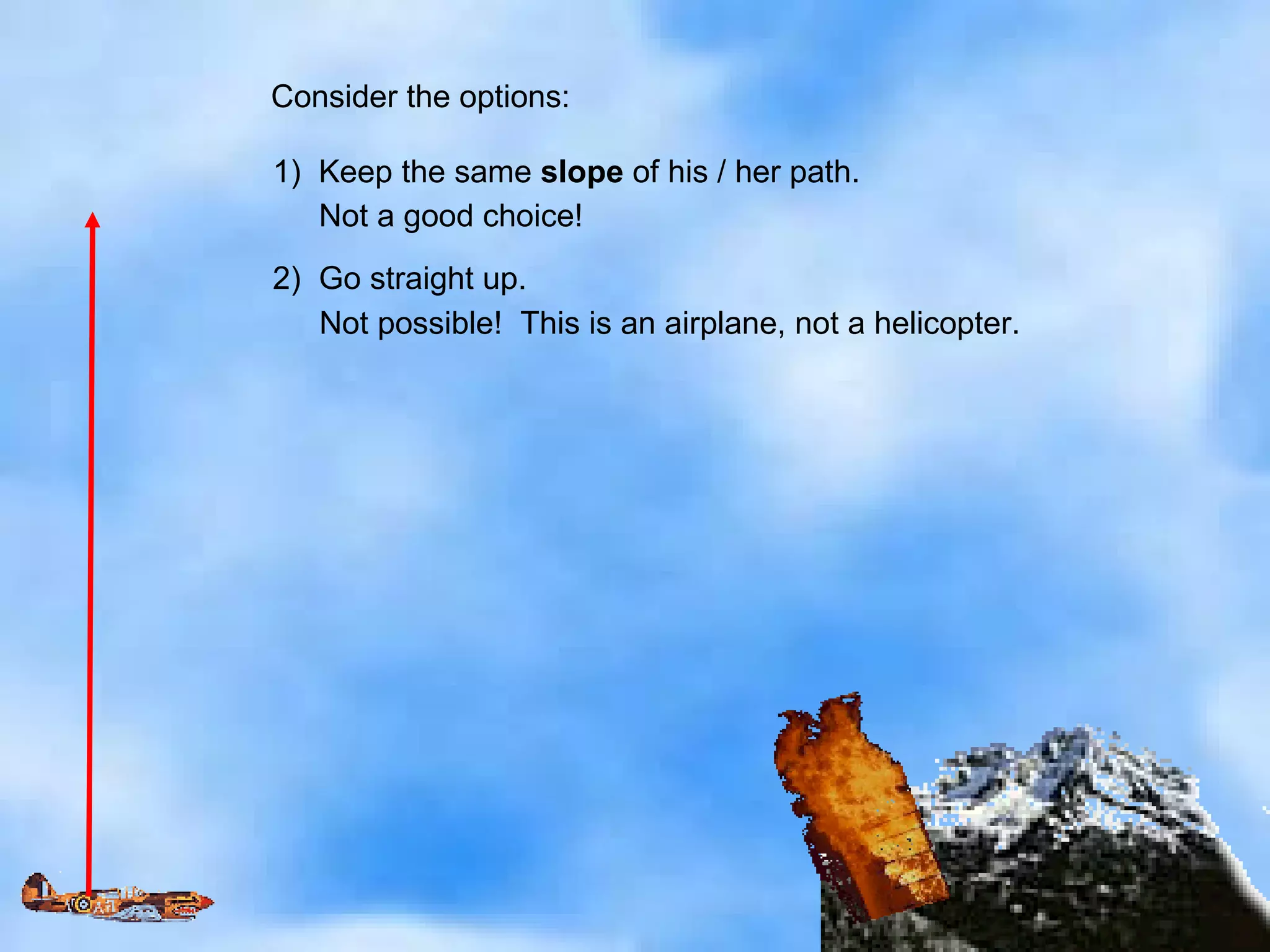

9. Consider the options: 1) Keep the same slope of his / her path. Not a good choice! 2) Go straight up. Not possible! This is an airplane, not a helicopter.

10. Fortunately, there is a way to measure a proper “ slope ” to clear the obstacle.

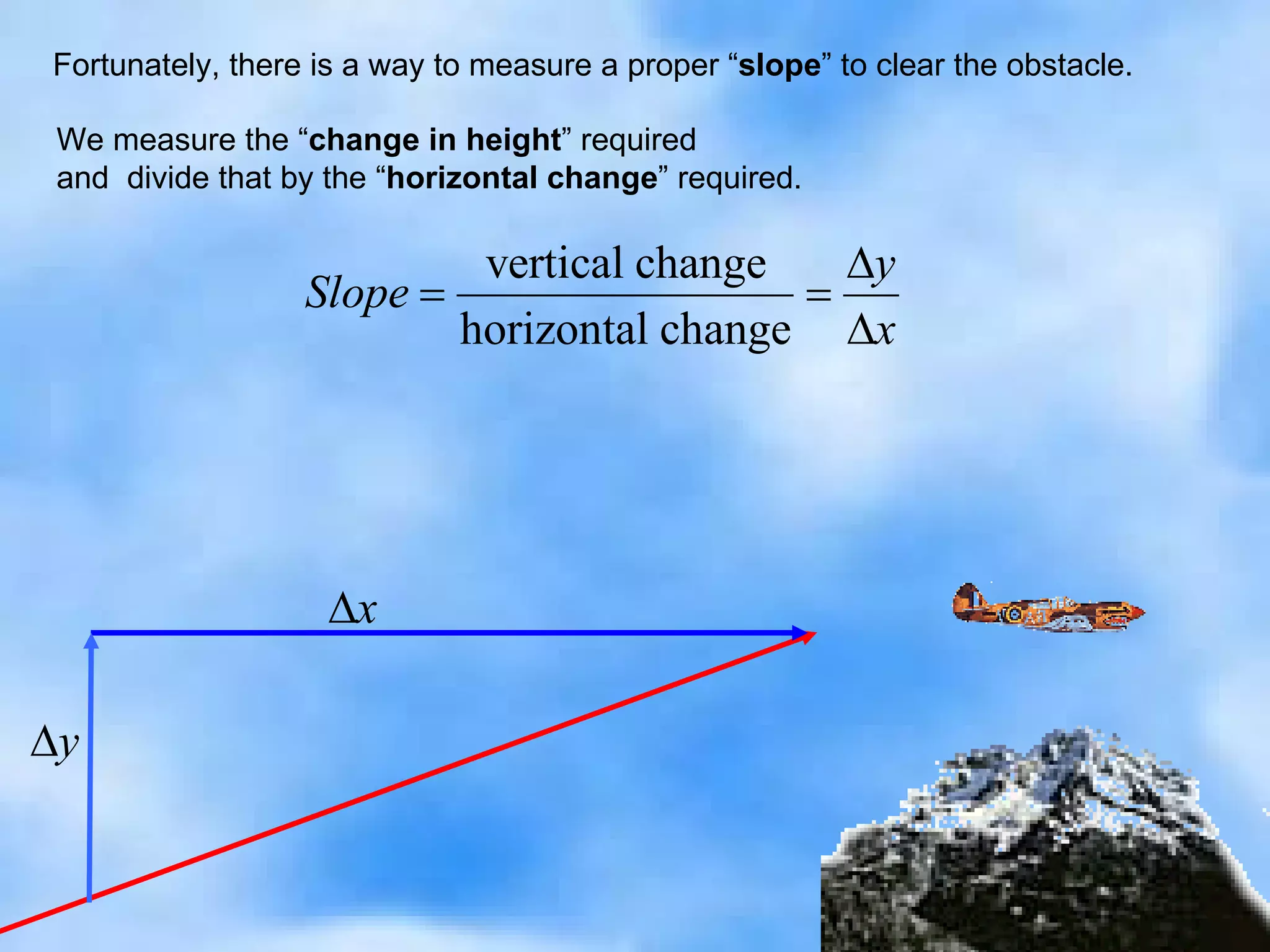

11. Fortunately, there is a way to measure a proper “ slope ” to clear the obstacle. We measure the “ change in height ” required and divide that by the “ horizontal change ” required.

12. Fortunately, there is a way to measure a proper “ slope ” to clear the obstacle. We measure the “ change in height ” required and divide that by the “ horizontal change ” required.

13. Fortunately, there is a way to measure a proper “ slope ” to clear the obstacle. We measure the “ change in height ” required and divide that by the “ horizontal change ” required.

14. Fortunately, there is a way to measure a proper “ slope ” to clear the obstacle. We measure the “ change in height ” required and divide that by the “ horizontal change ” required.

15. Fortunately, there is a way to measure a proper “ slope ” to clear the obstacle. We measure the “ change in height ” required and divide that by the “ horizontal change ” required.

16. Fortunately, there is a way to measure a proper “ slope ” to clear the obstacle. We measure the “ change in height ” required and divide that by the “ horizontal change ” required.

17. Fortunately, there is a way to measure a proper “ slope ” to clear the obstacle. We measure the “ change in height ” required and divide that by the “ horizontal change ” required.

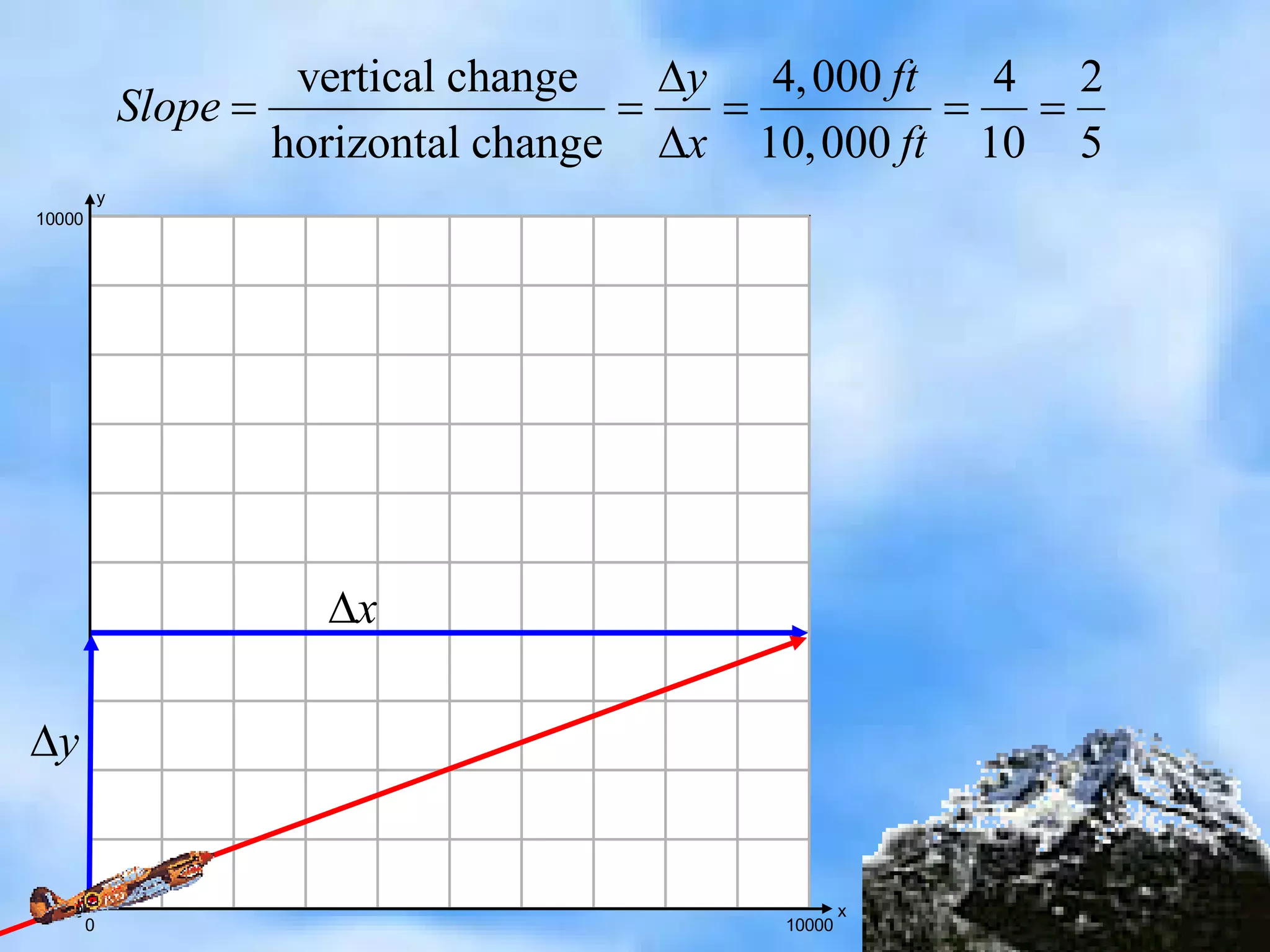

18. y x 10000 10000 0 0

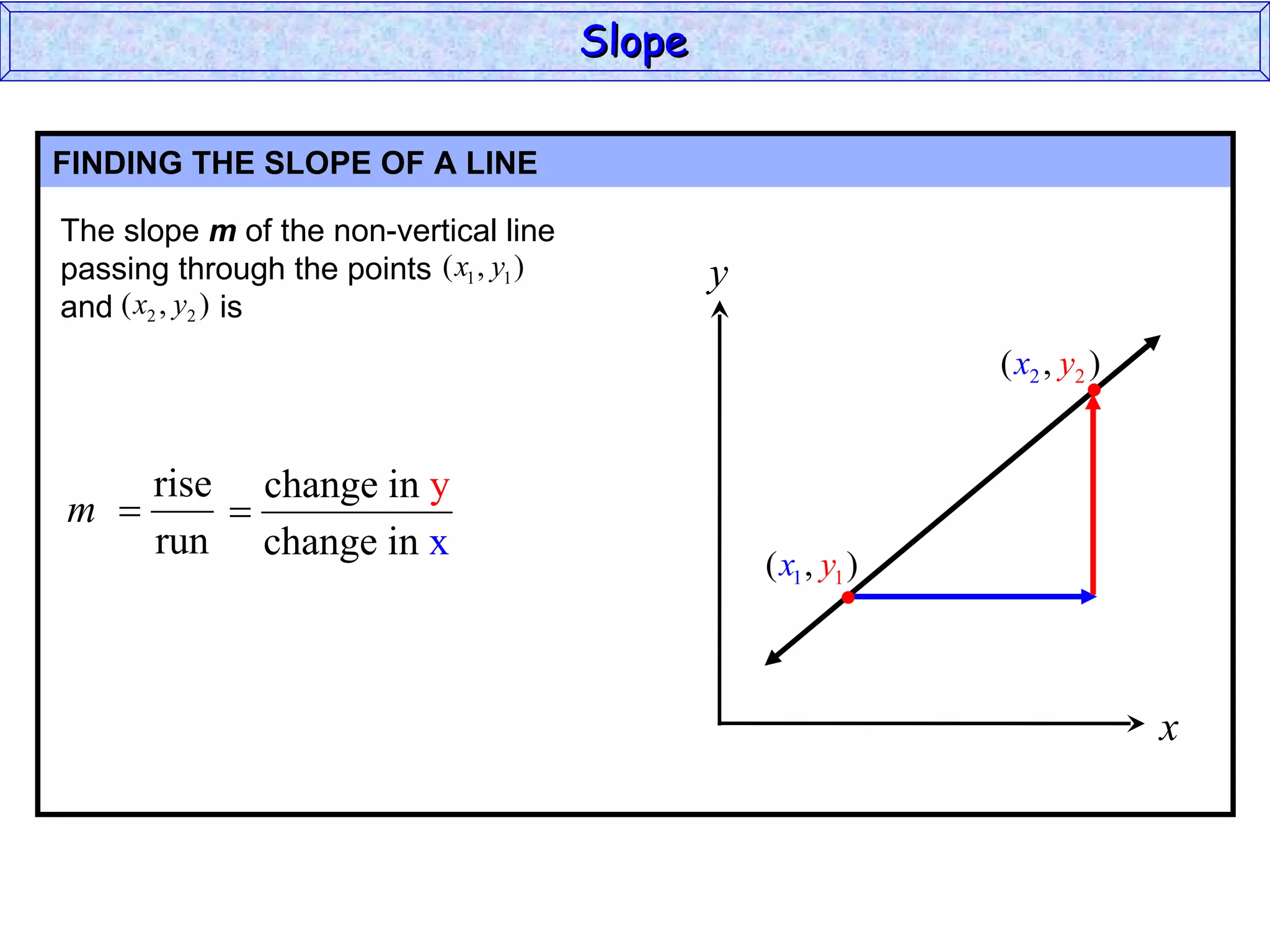

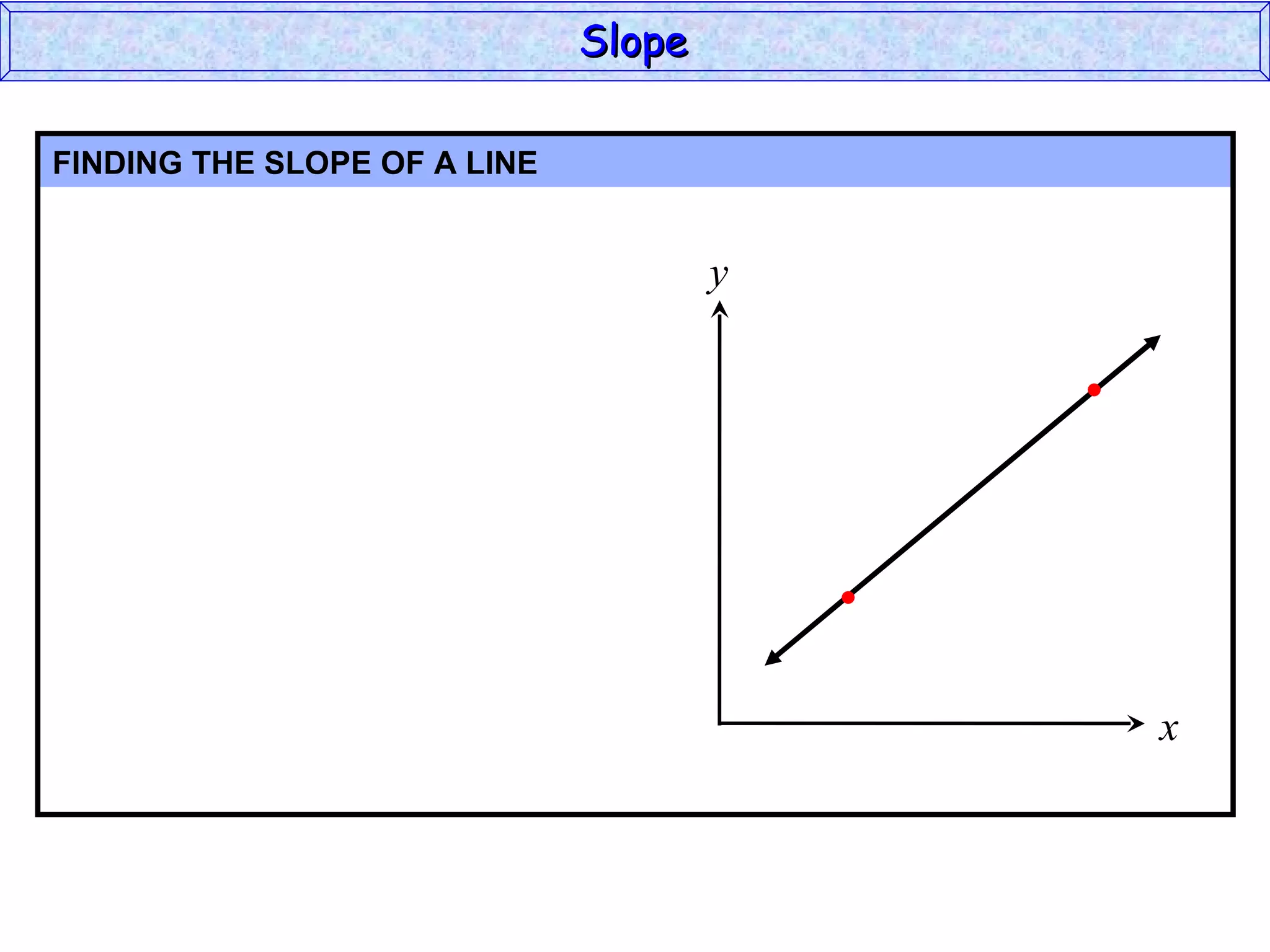

19. FINDING THE SLOPE OF A LINE Slope x y

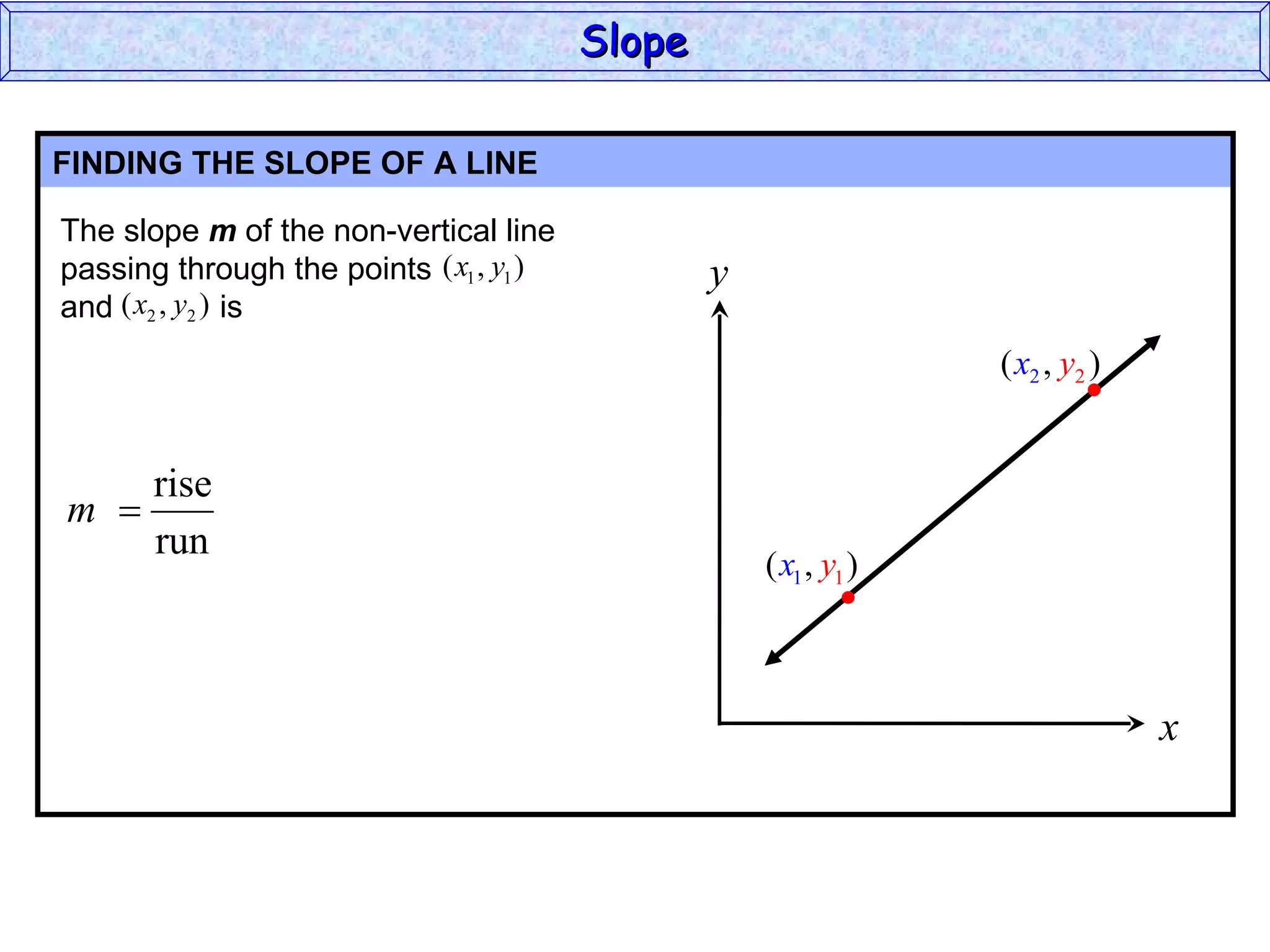

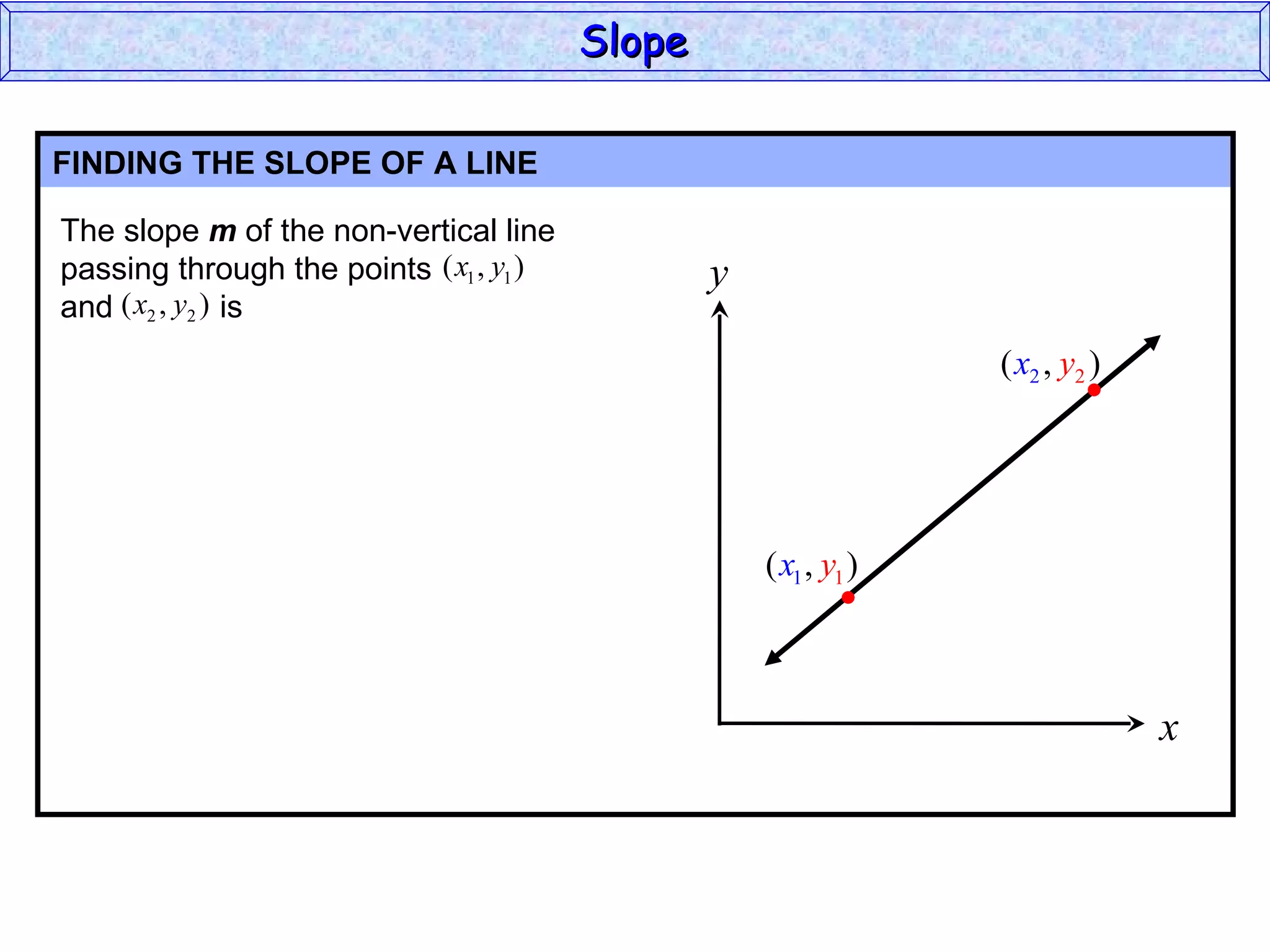

20. FINDING THE SLOPE OF A LINE Slope x y The slope m of the non-vertical line passing through the points and is

21. FINDING THE SLOPE OF A LINE Slope x y The slope m of the non-vertical line passing through the points and is

22. FINDING THE SLOPE OF A LINE Slope x y The slope m of the non-vertical line passing through the points and is

23. FINDING THE SLOPE OF A LINE Slope x y The slope m of the non-vertical line passing through the points and is

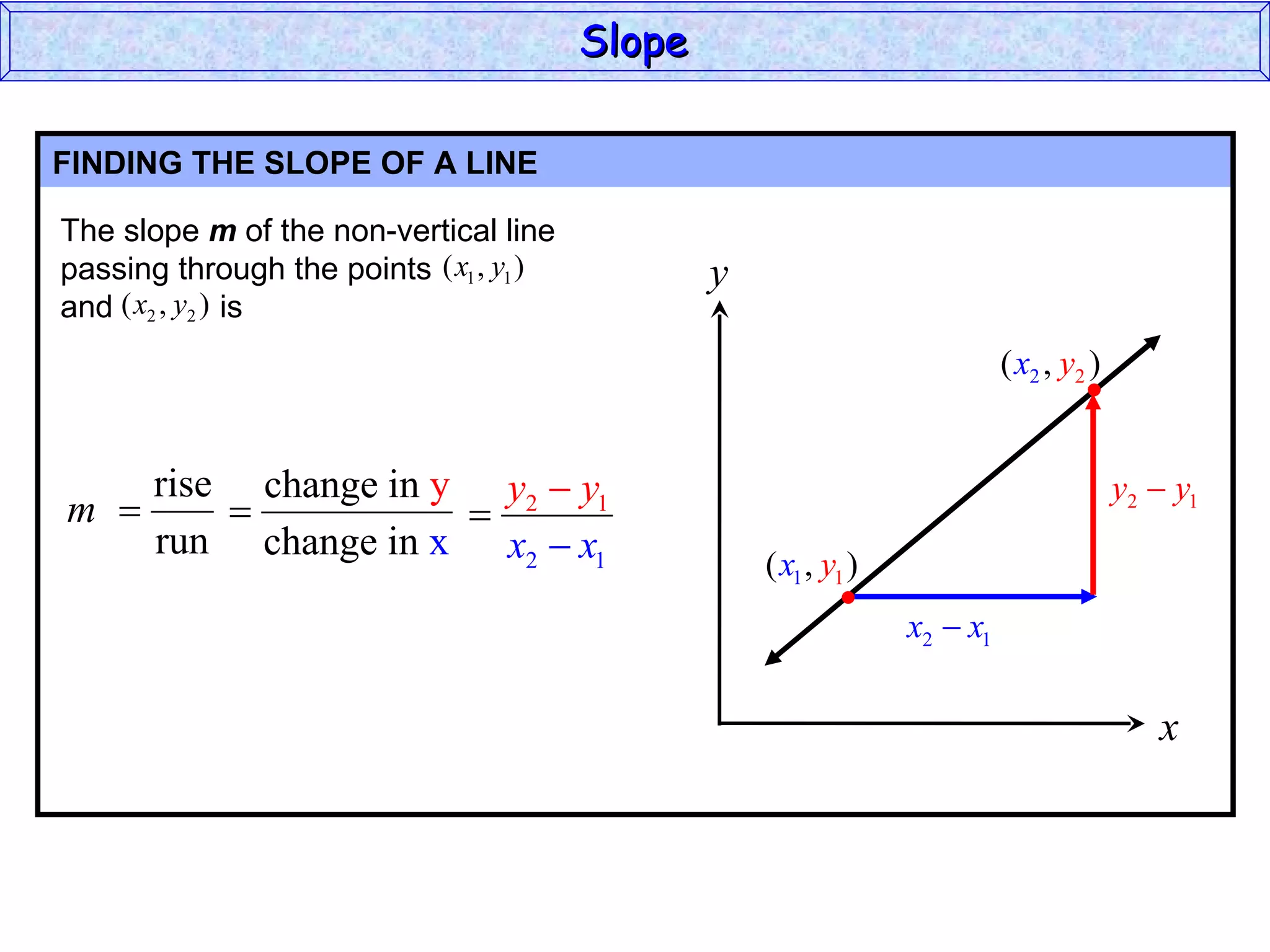

24. FINDING THE SLOPE OF A LINE Slope x y The slope m of the non-vertical line passing through the points and is

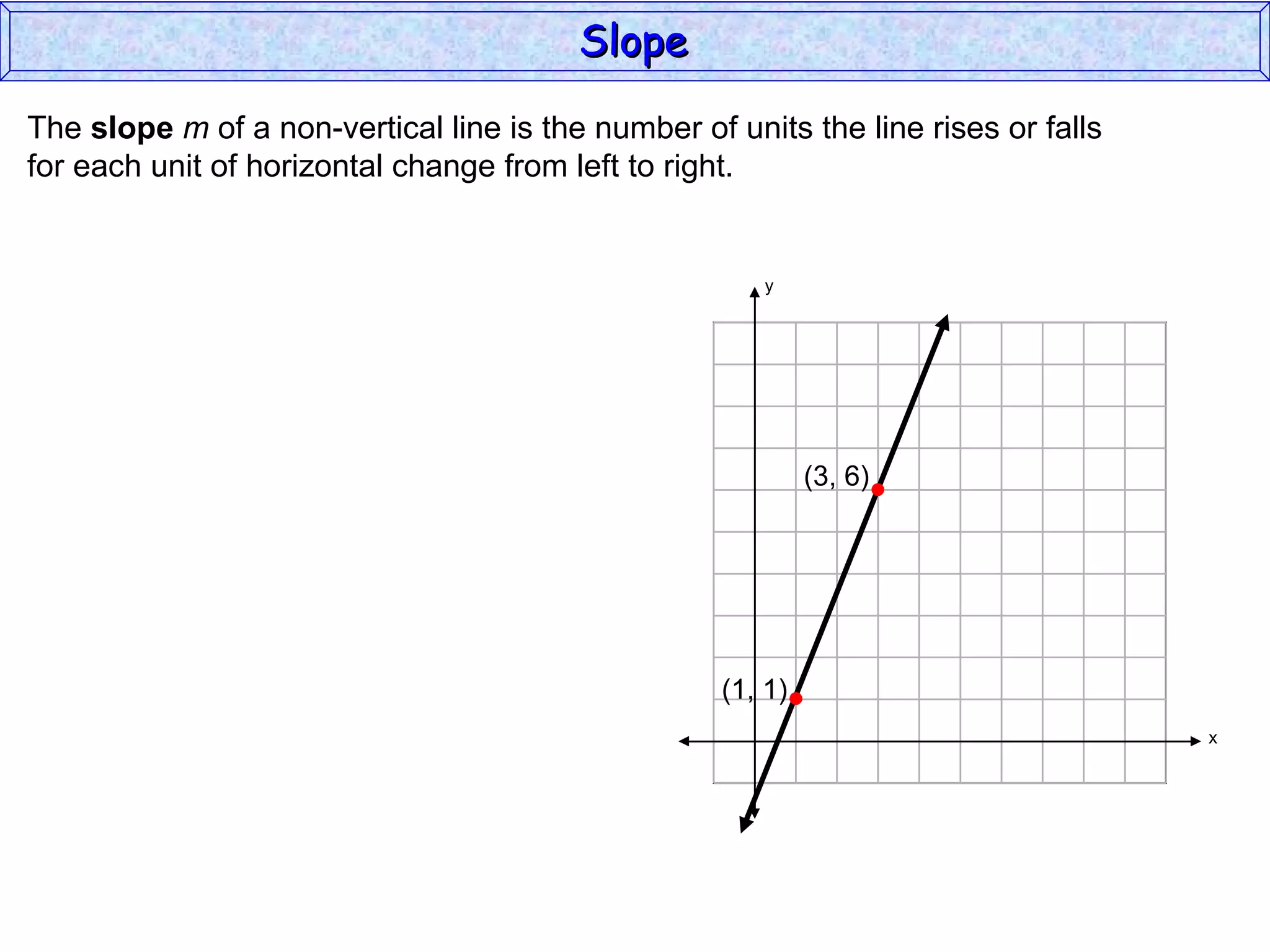

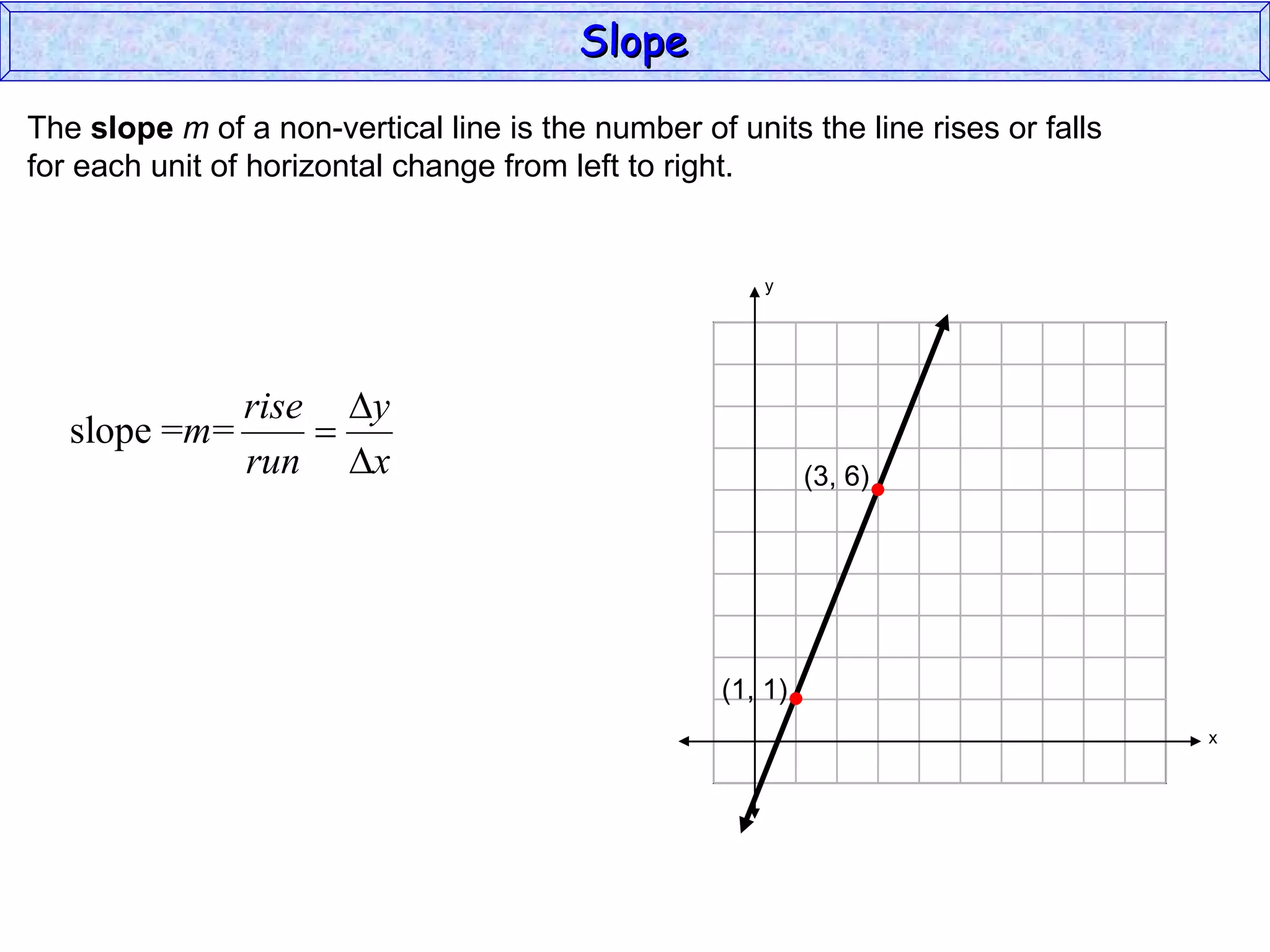

25. The slope m of a non-vertical line is the number of units the line rises or falls for each unit of horizontal change from left to right. Slope y x (1, 1) (3, 6)

26. The slope m of a non-vertical line is the number of units the line rises or falls for each unit of horizontal change from left to right. Slope y x (1, 1) (3, 6)

27. The slope m of a non-vertical line is the number of units the line rises or falls for each unit of horizontal change from left to right. Slope y x (1, 1) (3, 6)

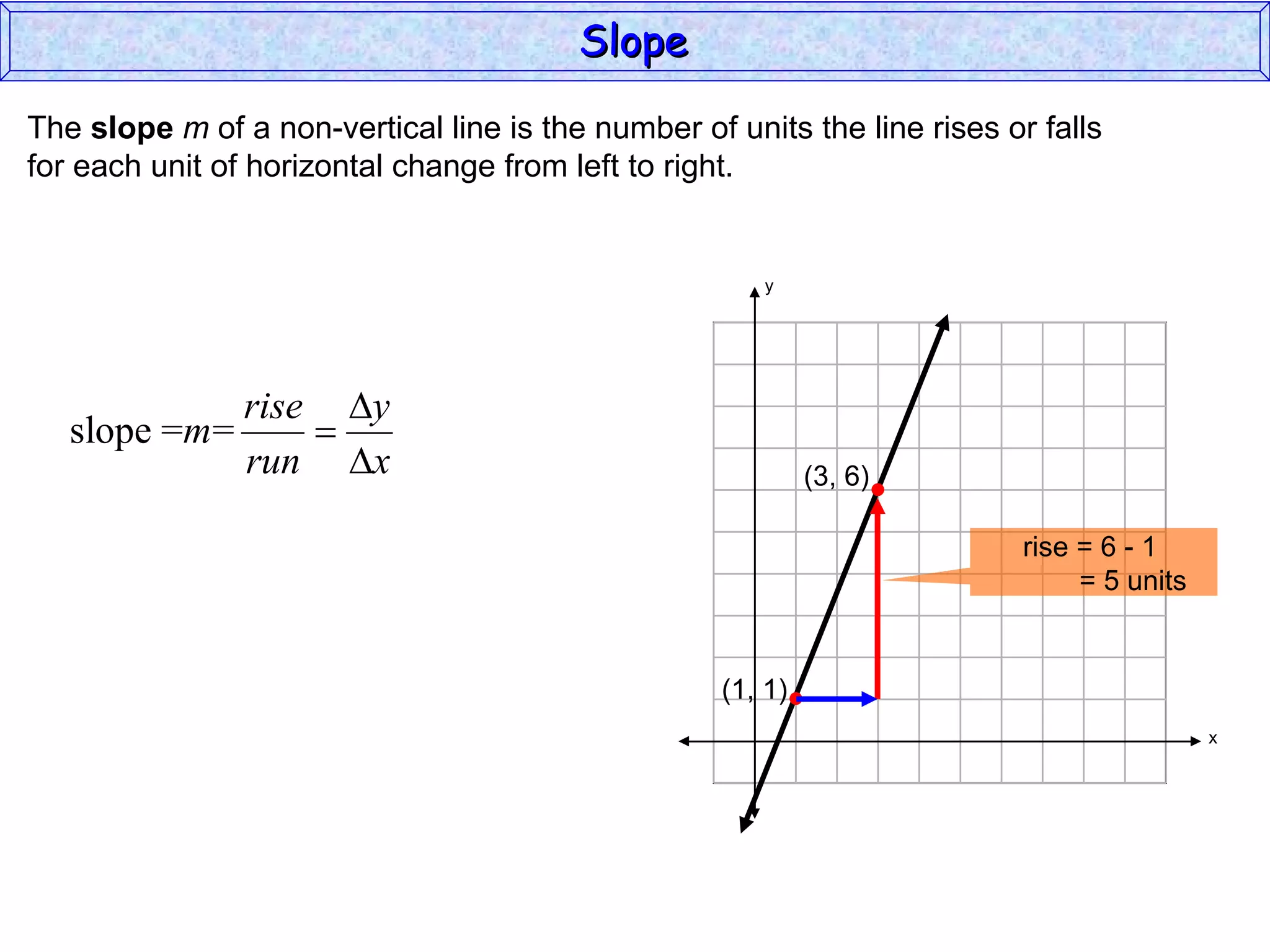

28. The slope m of a non-vertical line is the number of units the line rises or falls for each unit of horizontal change from left to right. rise = 6 - 1 = 5 units Slope y x (1, 1) (3, 6)

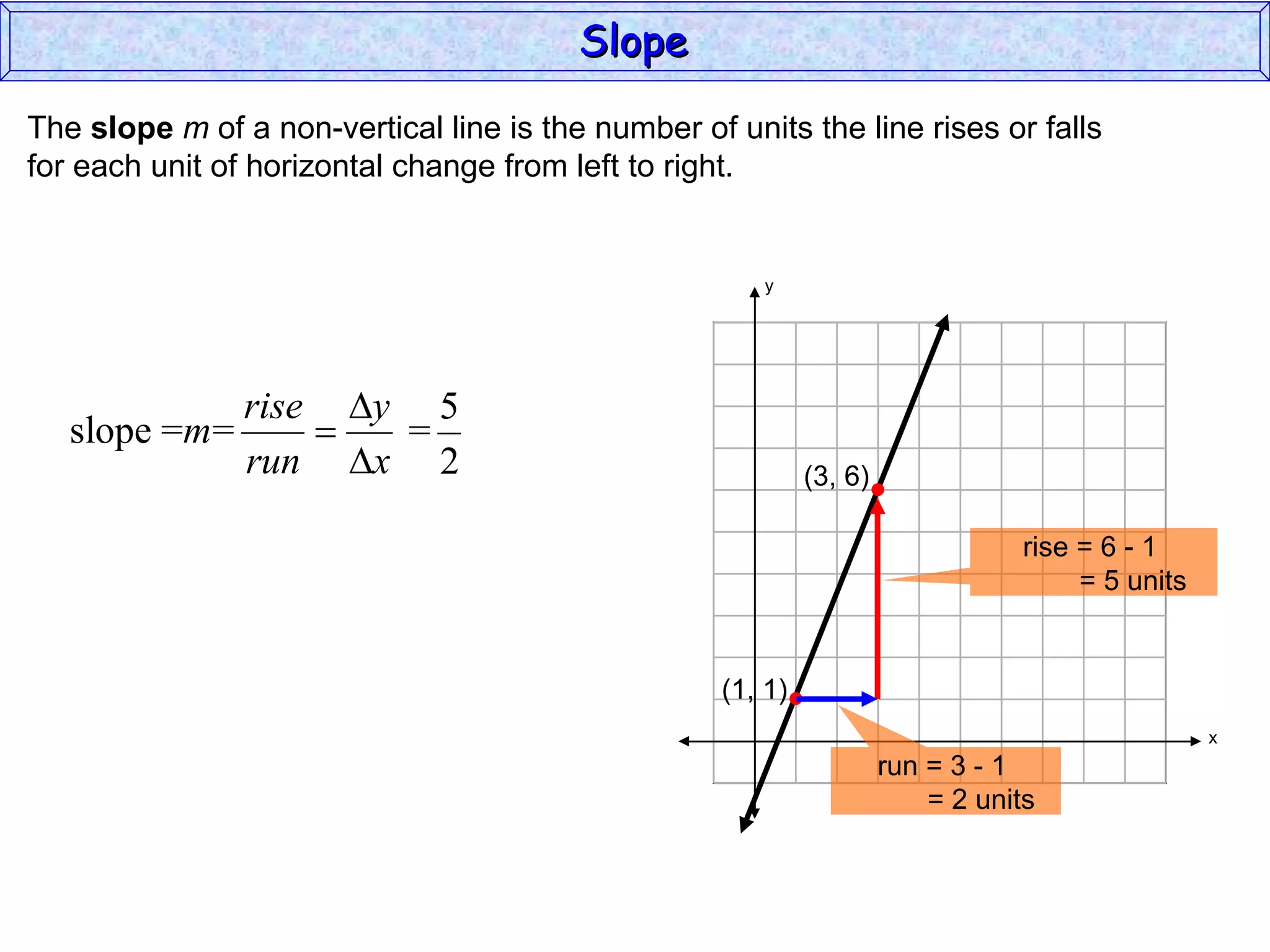

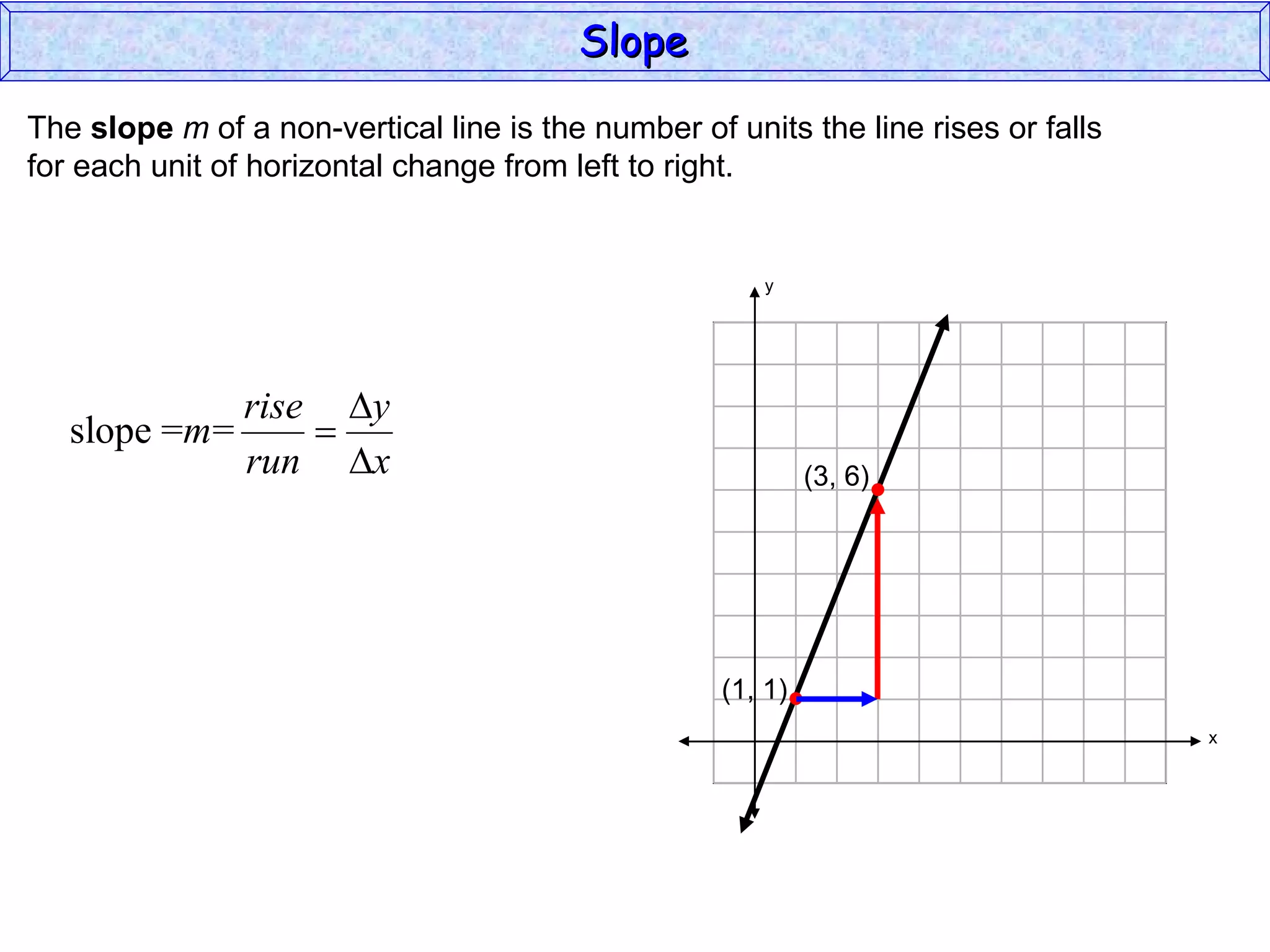

29. The slope m of a non-vertical line is the number of units the line rises or falls for each unit of horizontal change from left to right. run = 3 - 1 = 2 units rise = 6 - 1 = 5 units Slope y x (1, 1) (3, 6)

30. The slope m of a non-vertical line is the number of units the line rises or falls for each unit of horizontal change from left to right. run = 3 - 1 = 2 units rise = 6 - 1 = 5 units Slope y x (1, 1) (3, 6)

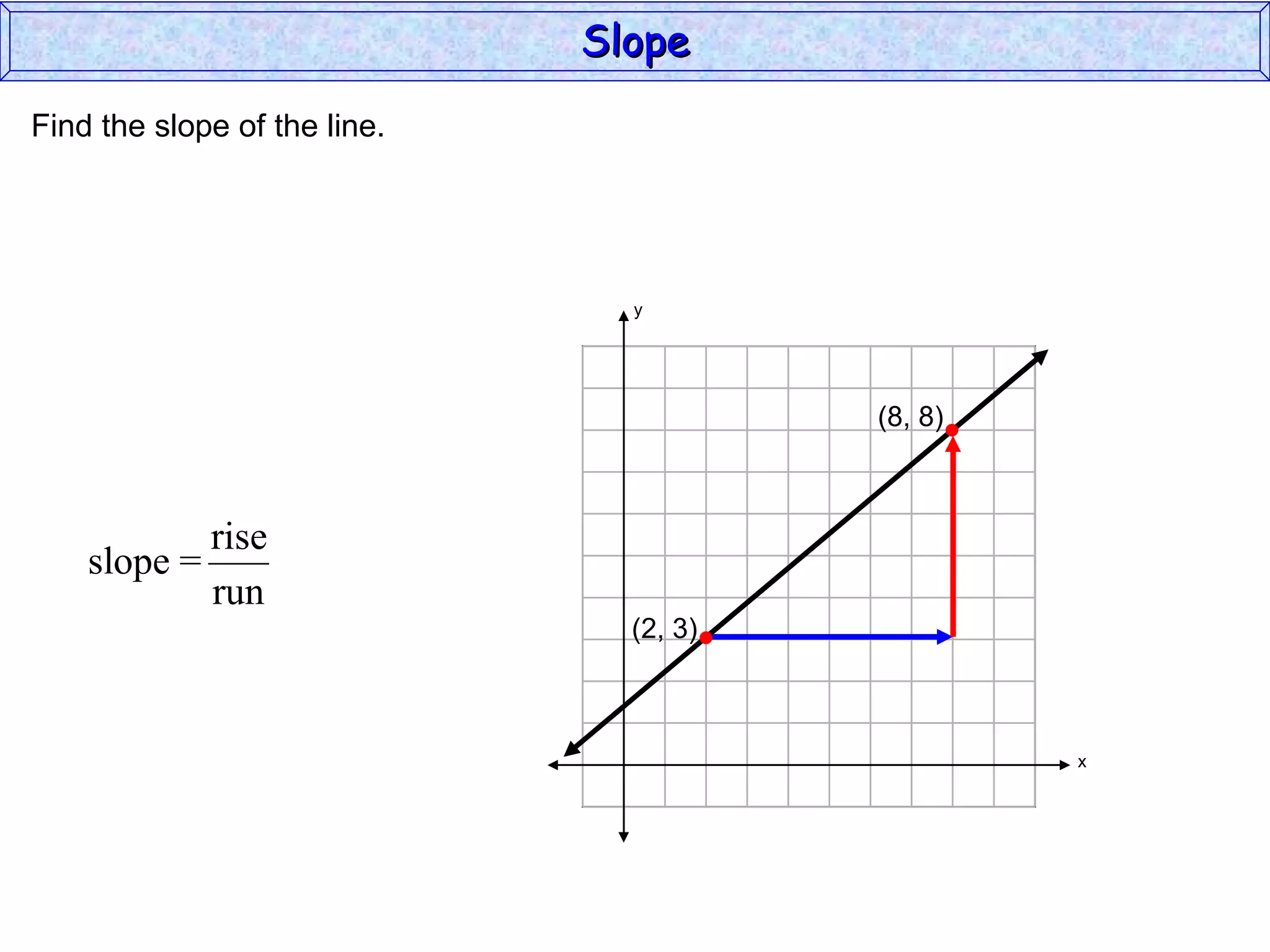

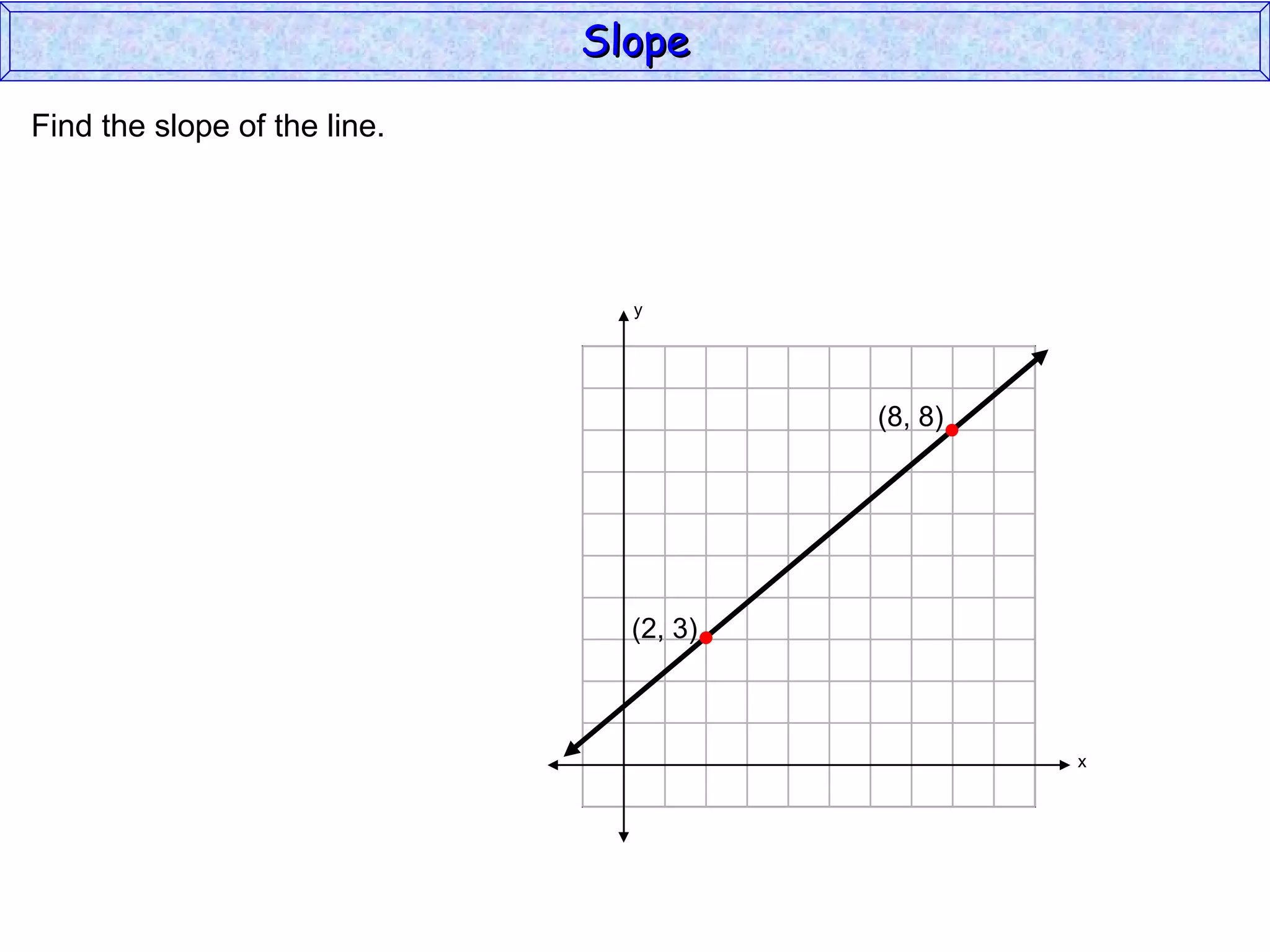

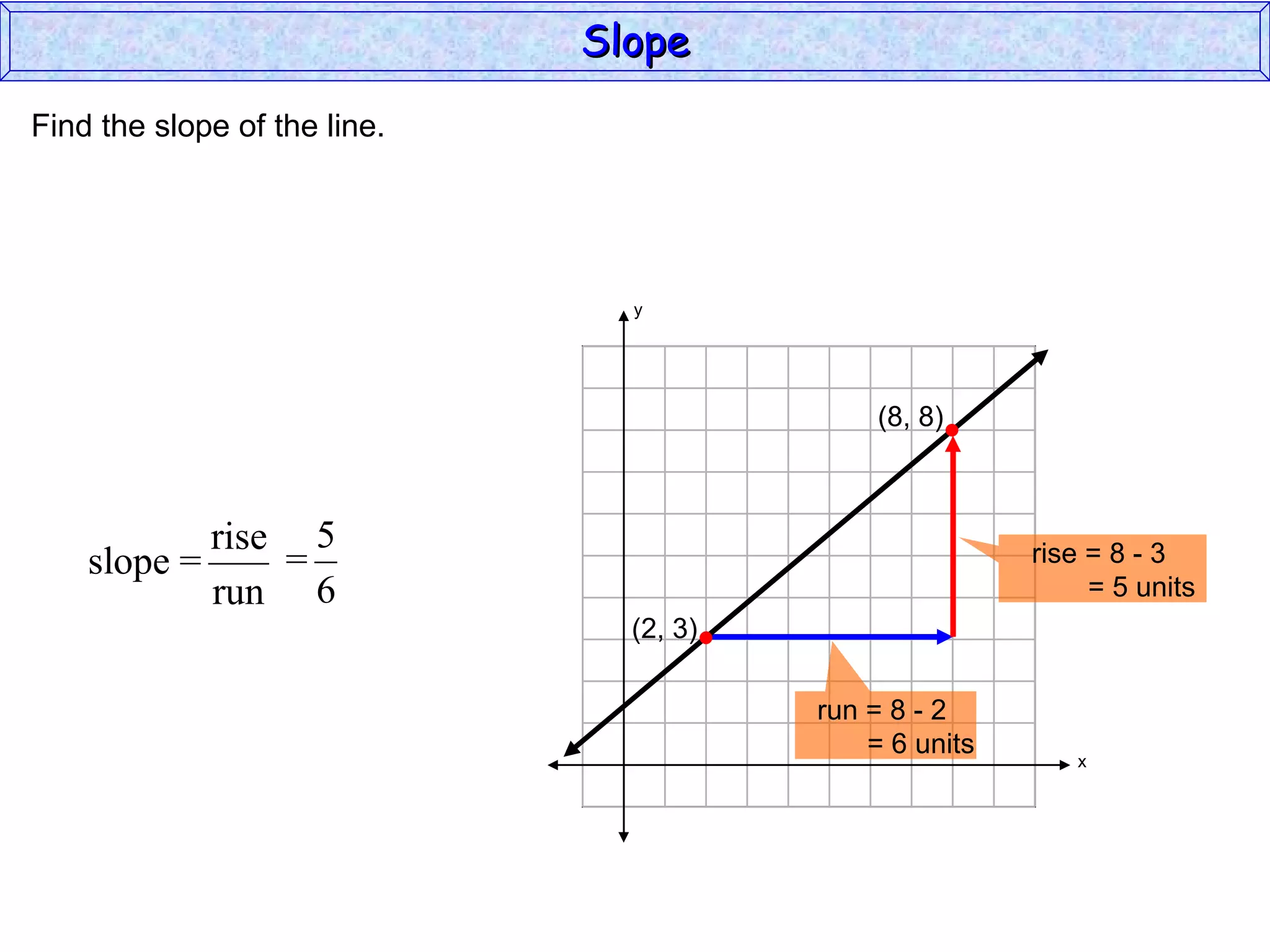

31. Slope Find the slope of the line. y x (2, 3) (8, 8)

32. Slope Find the slope of the line. y x (2, 3) (8, 8)

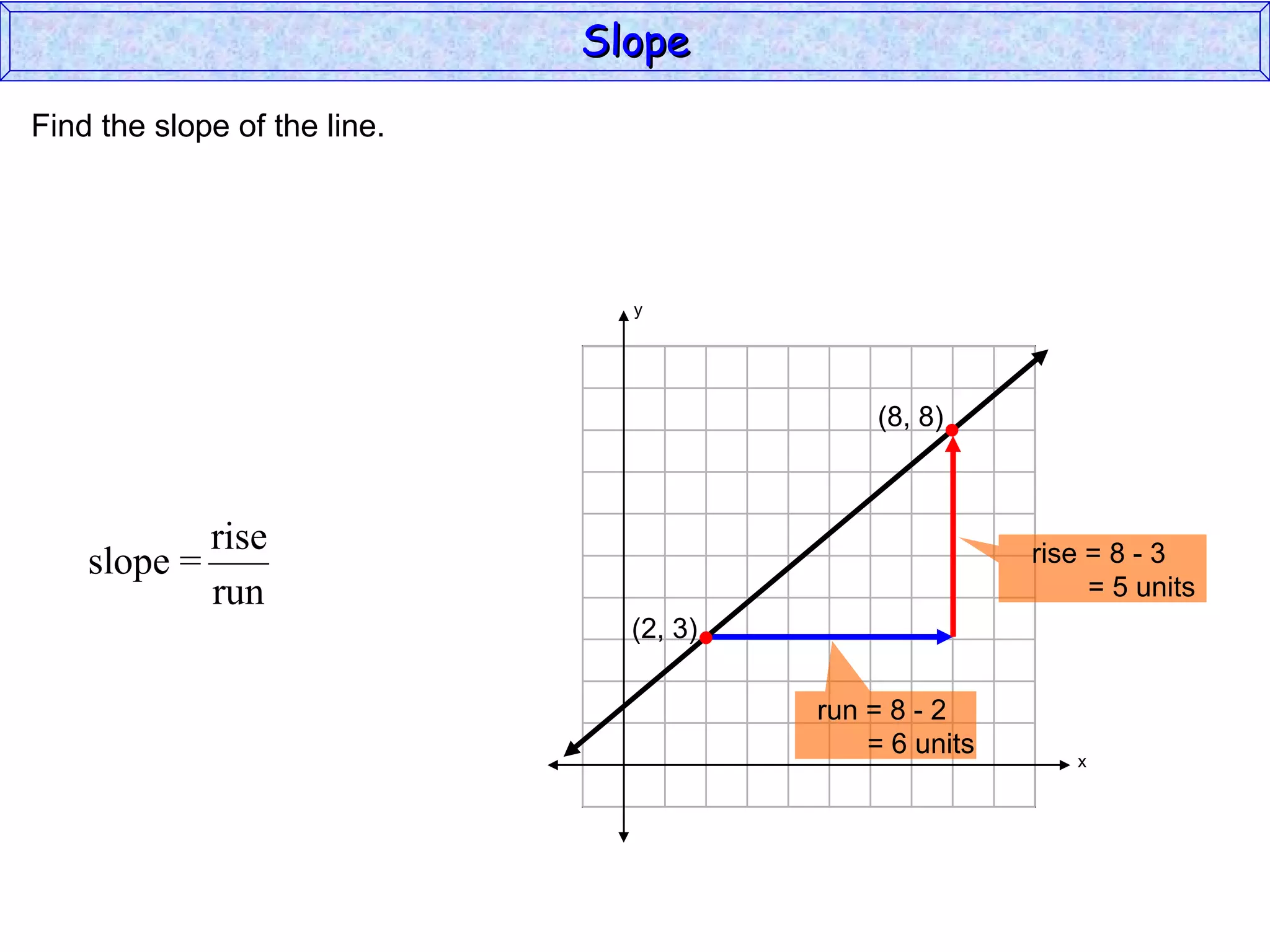

33. Slope Find the slope of the line. run = 8 - 2 = 6 units rise = 8 - 3 = 5 units y x (2, 3) (8, 8)

34. Slope Find the slope of the line. run = 8 - 2 = 6 units rise = 8 - 3 = 5 units y x (2, 3) (8, 8)

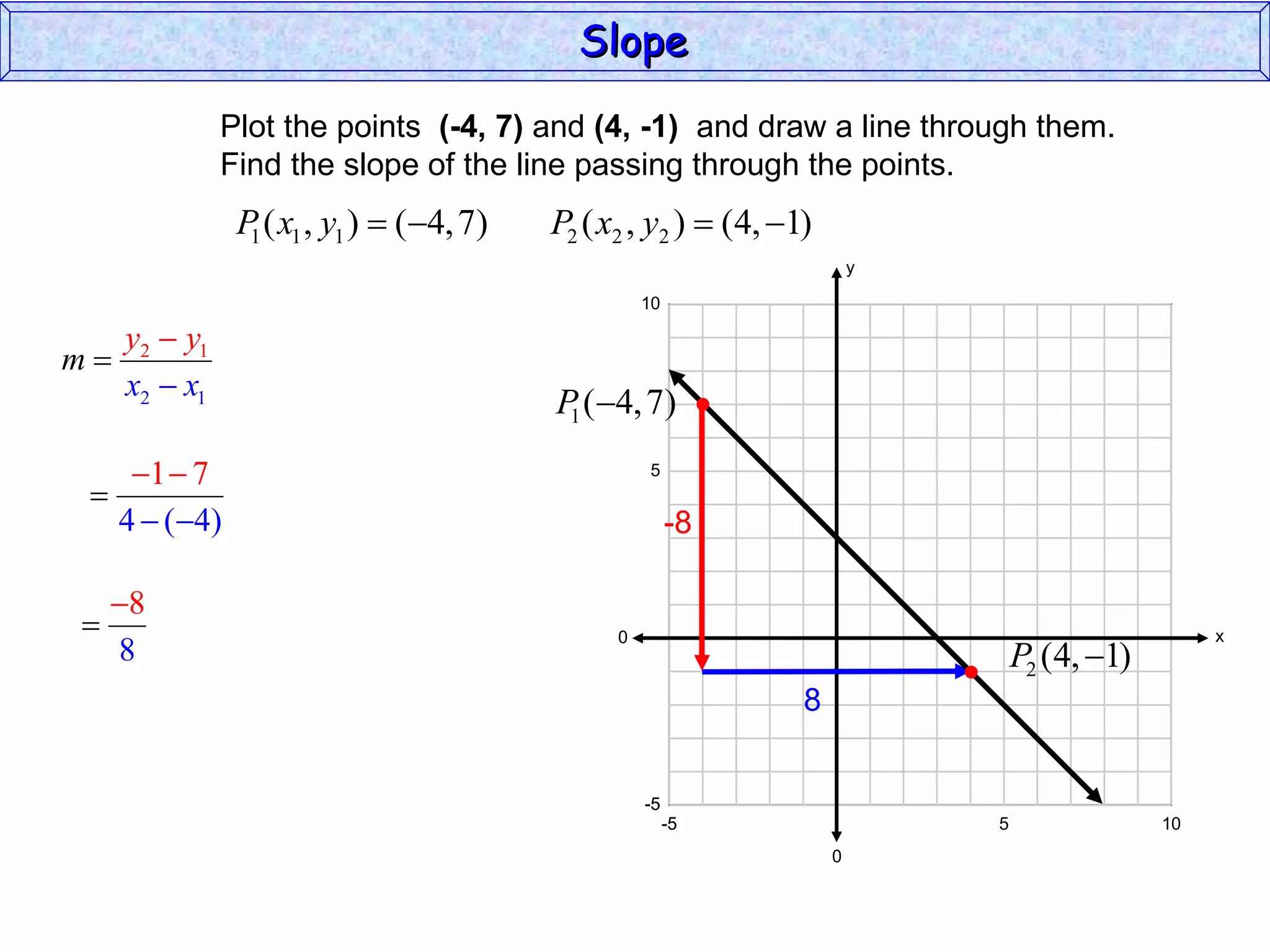

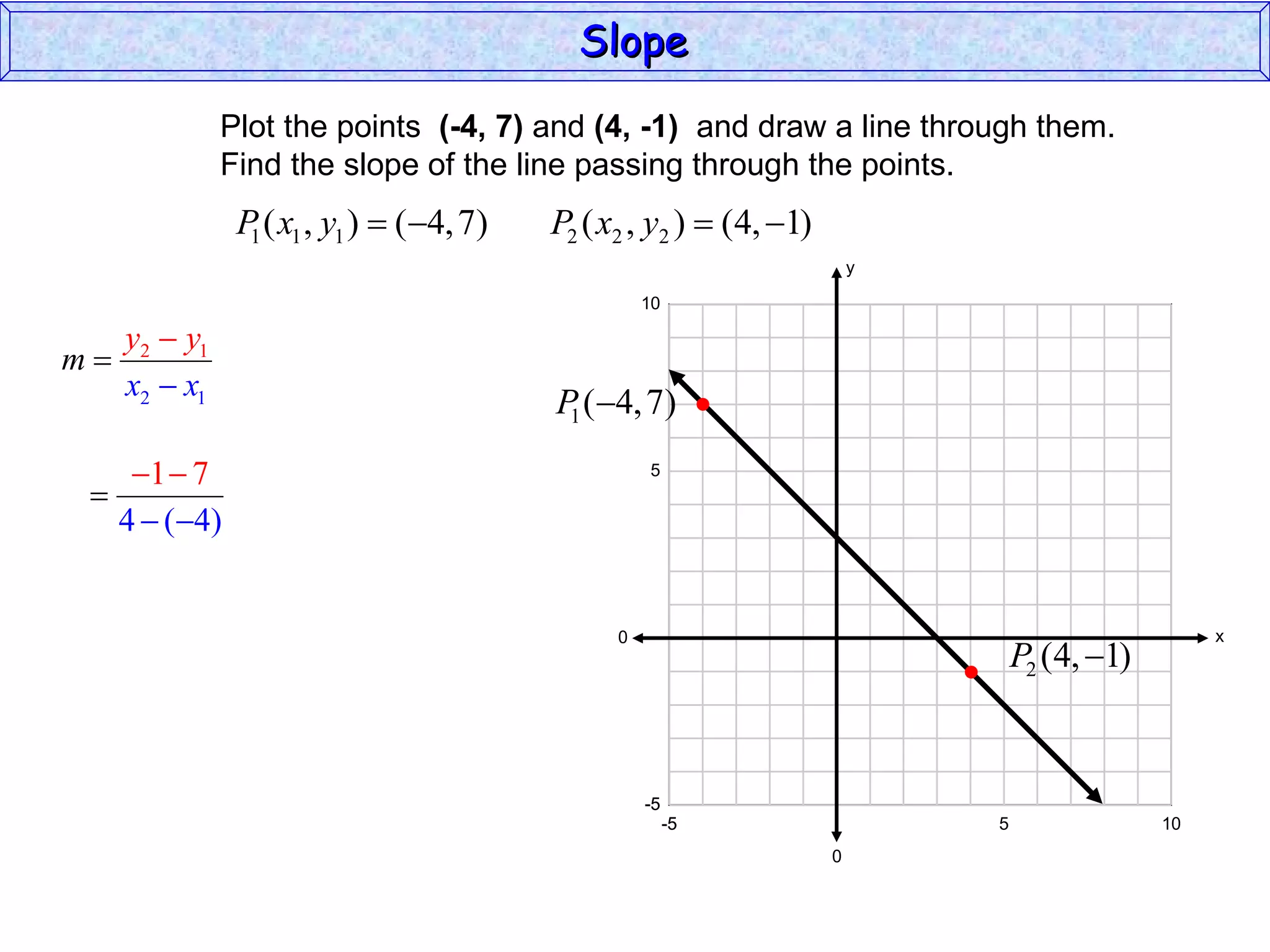

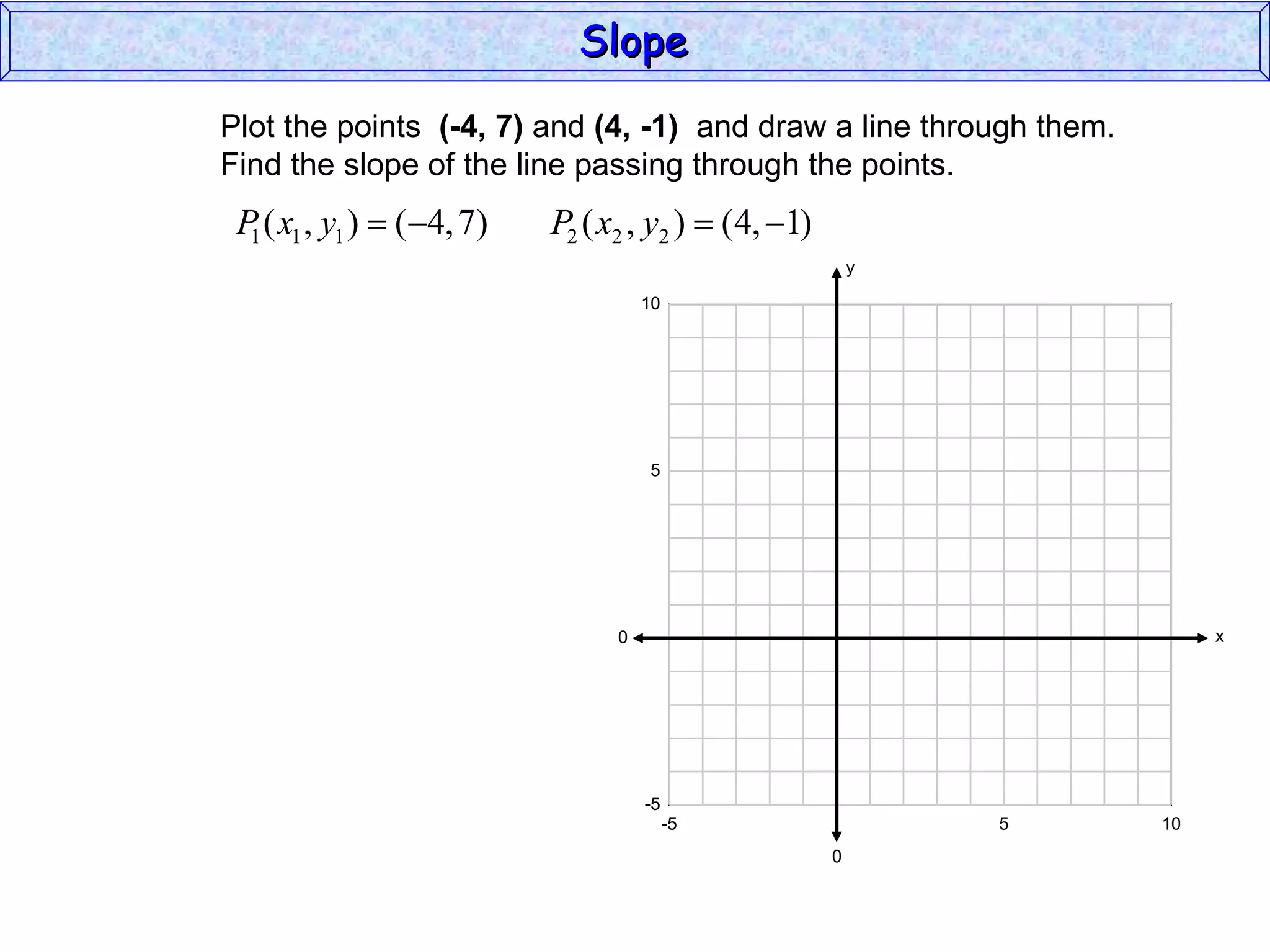

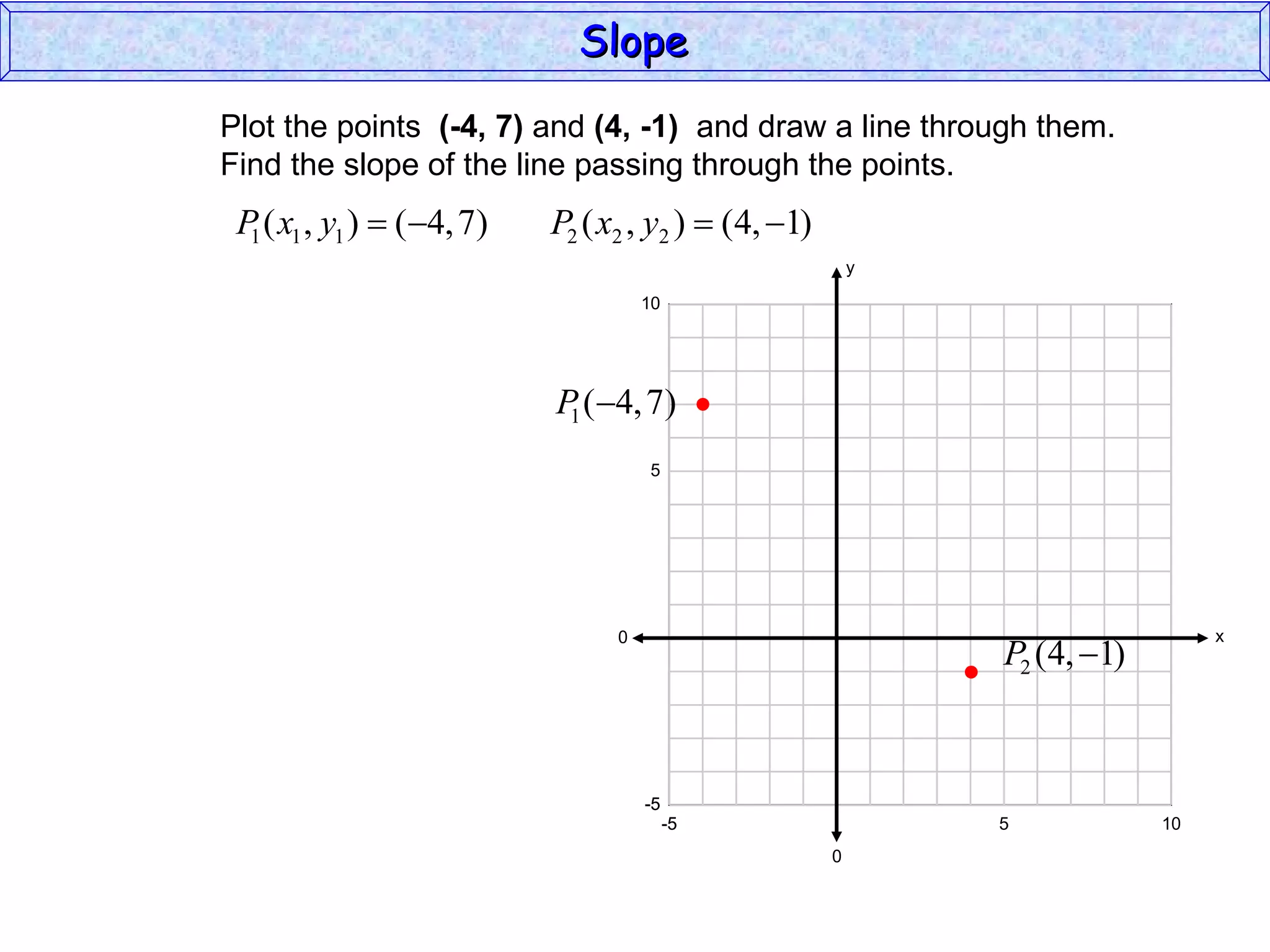

35. Plot the points (-4, 7) and (4, -1) and draw a line through them. Find the slope of the line passing through the points. Slope y x 10 0 -5 -5 5 -5 10 -5 0 5

36. Plot the points (-4, 7) and (4, -1) and draw a line through them. Find the slope of the line passing through the points. Slope y x 10 0 -5 -5 5 -5 10 -5 0 5

37. Plot the points (-4, 7) and (4, -1) and draw a line through them. Find the slope of the line passing through the points. Slope y x 10 0 -5 -5 5 -5 10 -5 0 5

38. Plot the points (-4, 7) and (4, -1) and draw a line through them. Find the slope of the line passing through the points. Slope y x 10 0 -5 -5 5 -5 10 -5 0 5

39. Plot the points (-4, 7) and (4, -1) and draw a line through them. Find the slope of the line passing through the points. Slope y x 10 0 -5 -5 5 -5 10 -5 0 5

40. Plot the points (-4, 7) and (4, -1) and draw a line through them. Find the slope of the line passing through the points. Slope y x 10 0 -5 -5 5 -5 10 -5 0 5 -8 8

41. Plot the points (-4, 7) and (4, -1) and draw a line through them. Find the slope of the line passing through the points. Slope y x 10 0 -5 -5 5 -5 10 -5 0 5 -8 8

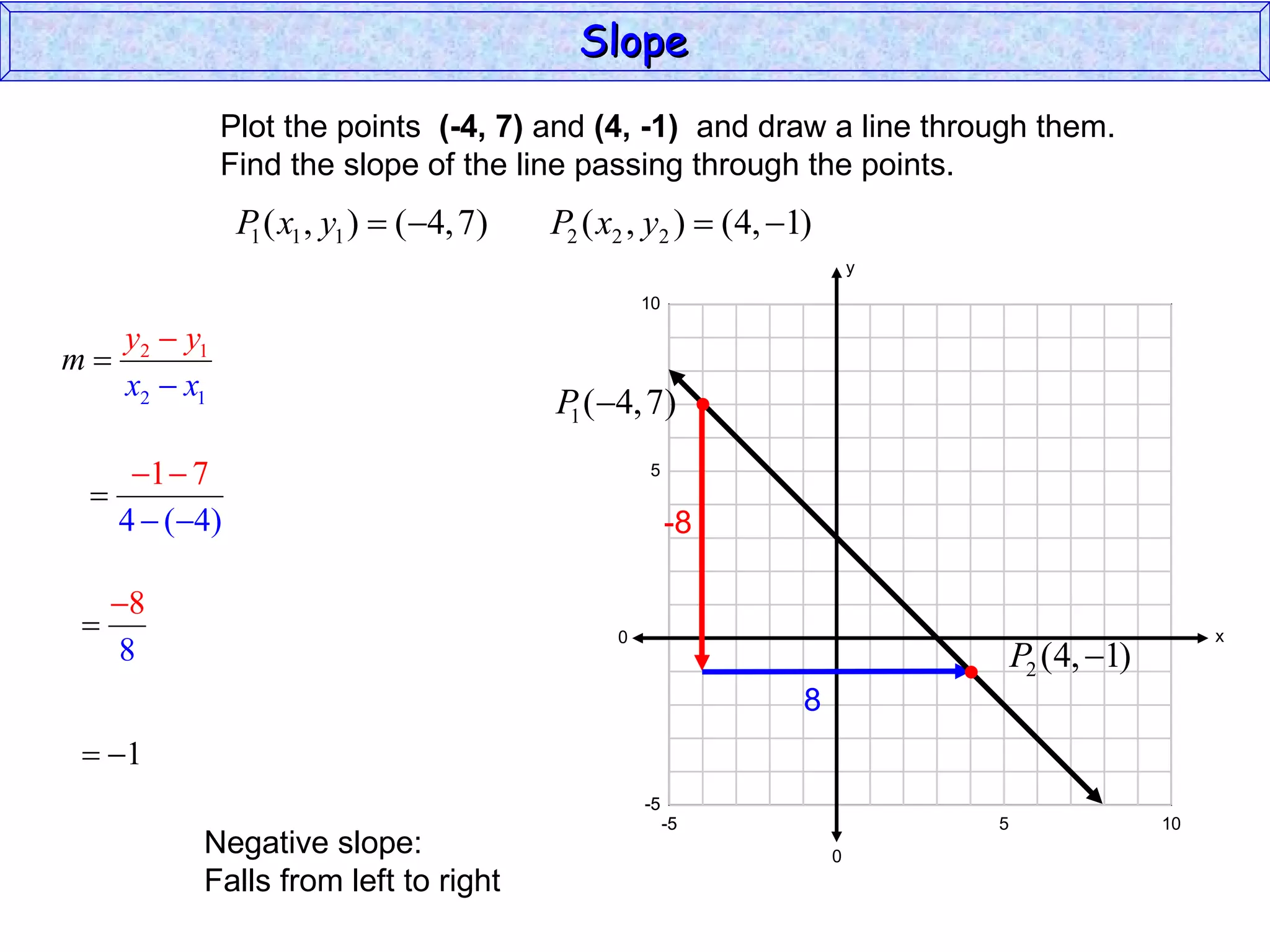

42. Plot the points (-4, 7) and (4, -1) and draw a line through them. Find the slope of the line passing through the points. Negative slope: Falls from left to right Slope y x 10 0 -5 -5 5 -5 10 -5 0 5 -8 8

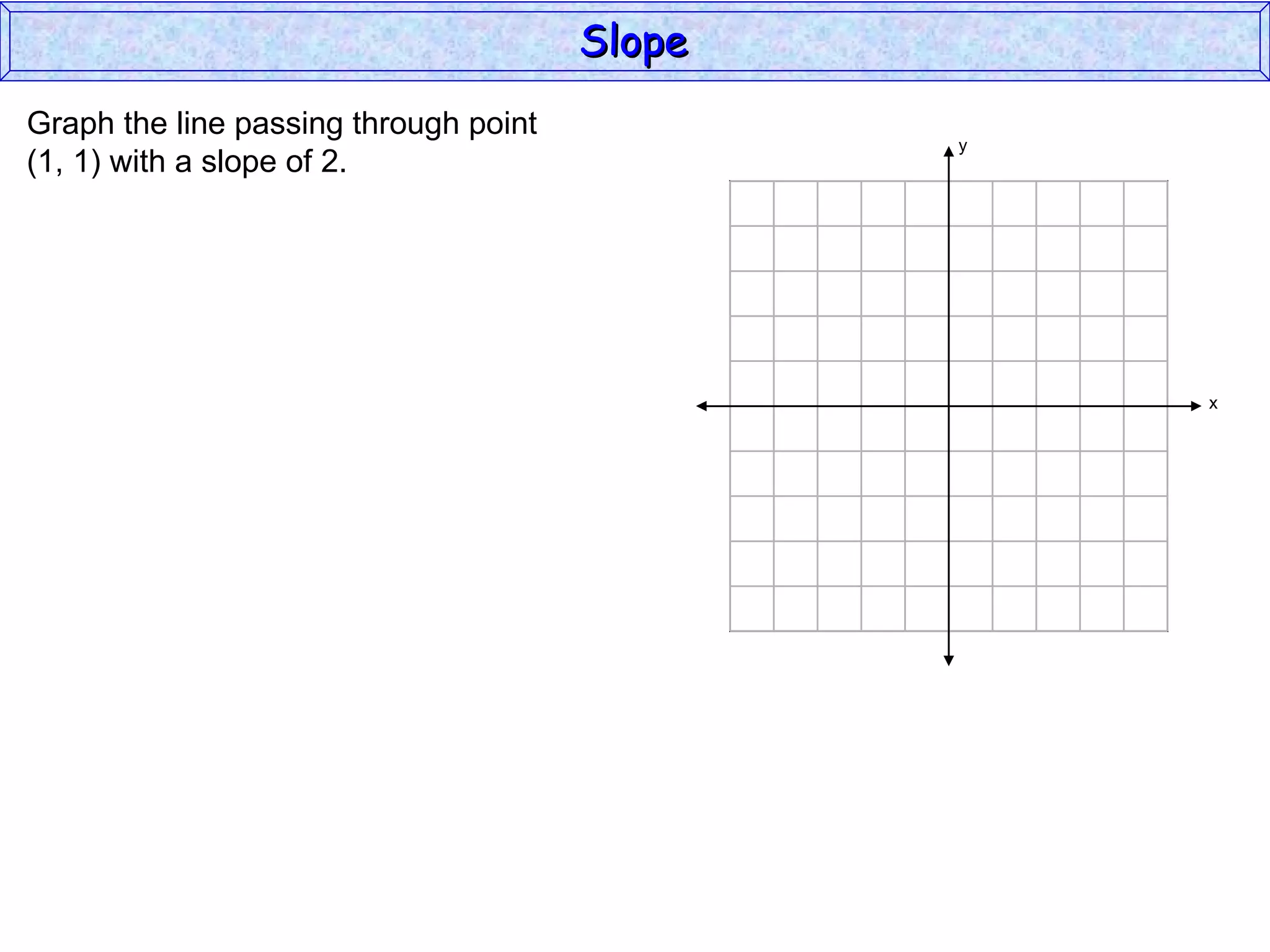

43. Graph the line passing through point (1, 1) with a slope of 2. Slope y x

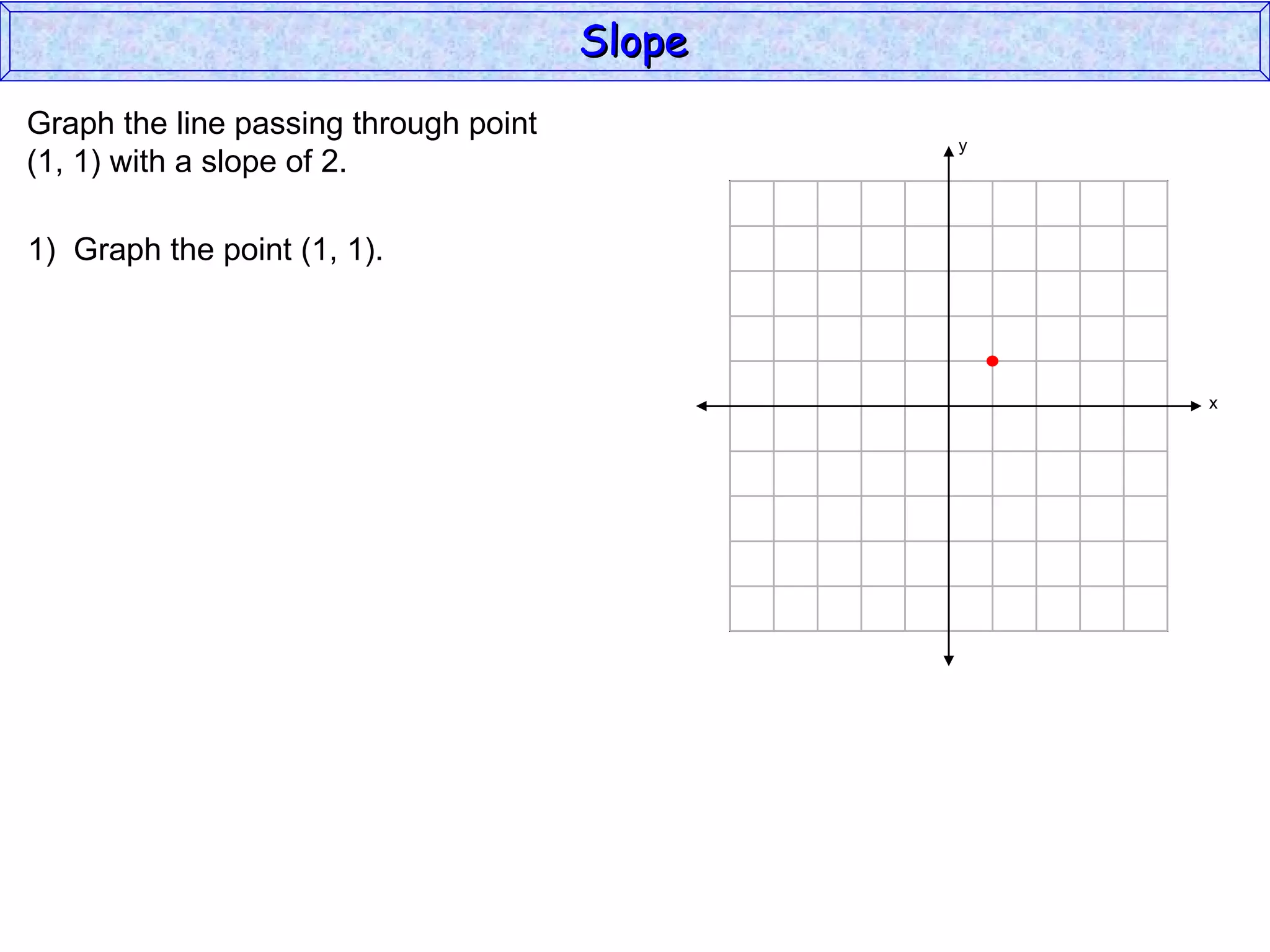

44. Graph the line passing through point (1, 1) with a slope of 2. 1) Graph the point (1, 1). Slope y x

45. Graph the line passing through point (1, 1) with a slope of 2. 1) Graph the point (1, 1). Slope y x 2) Follow the slope of to locate another point on the line.

46. Graph the line passing through point (1, 1) with a slope of 2. 1) Graph the point (1, 1). Slope y x 2) Follow the slope of to locate another point on the line.

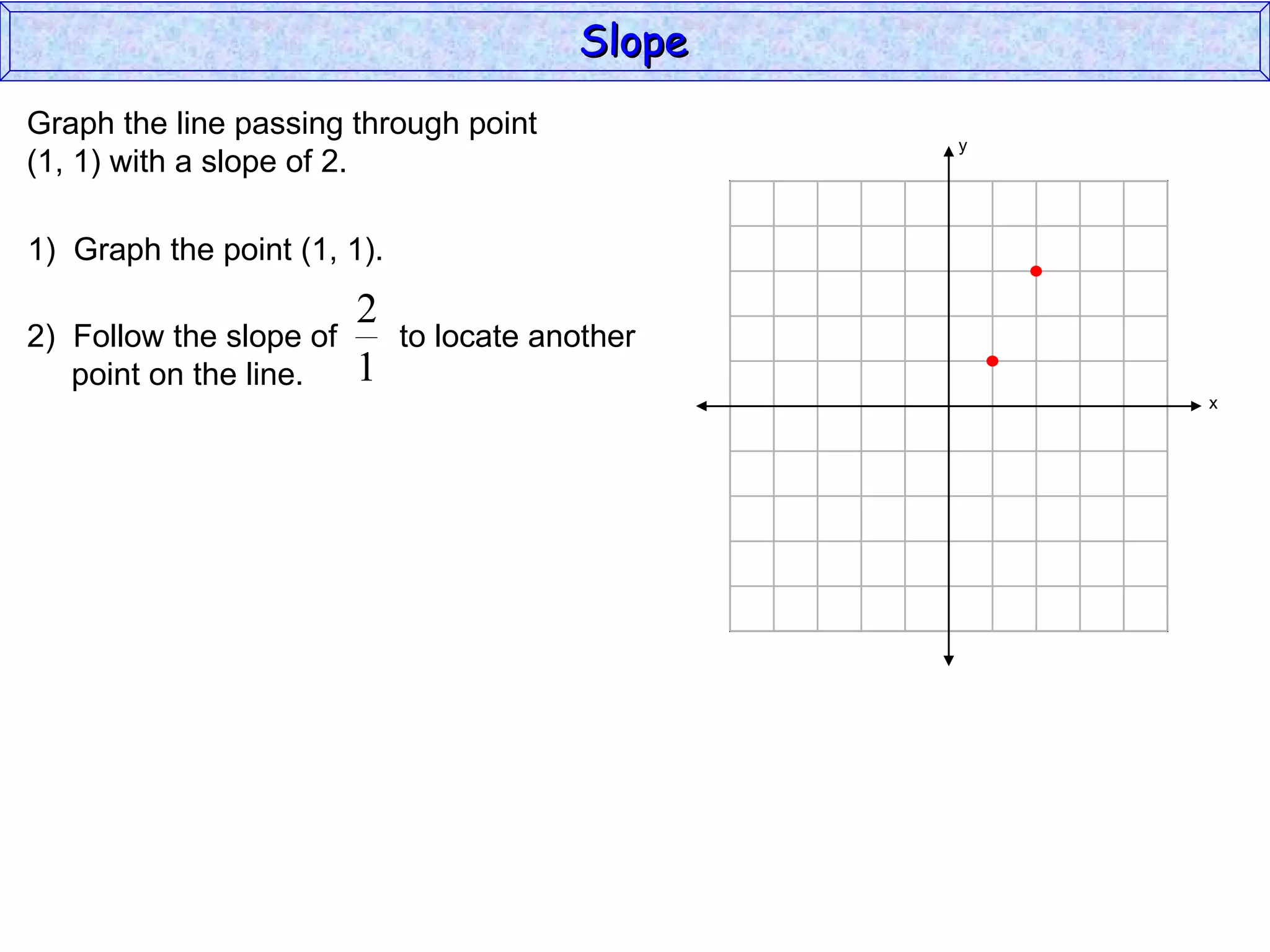

47. Graph the line passing through point (1, 1) with a slope of 2. 1) Graph the point (1, 1). Slope y x 2) Follow the slope of to locate another point on the line.

48. Graph the line passing through point (1, 1) with a slope of 2. 1) Graph the point (1, 1). Slope y x 2) Follow the slope of to locate another point on the line.

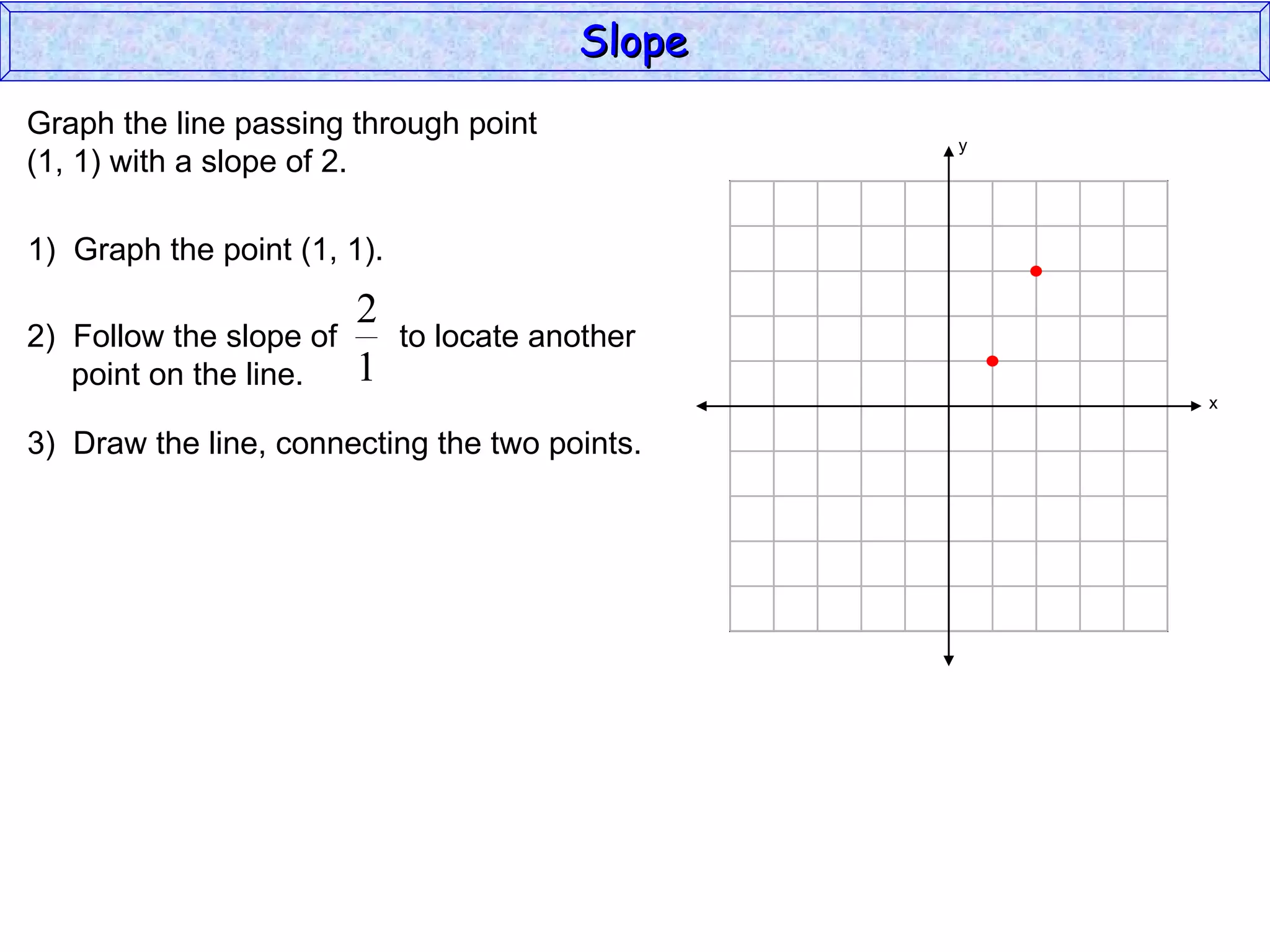

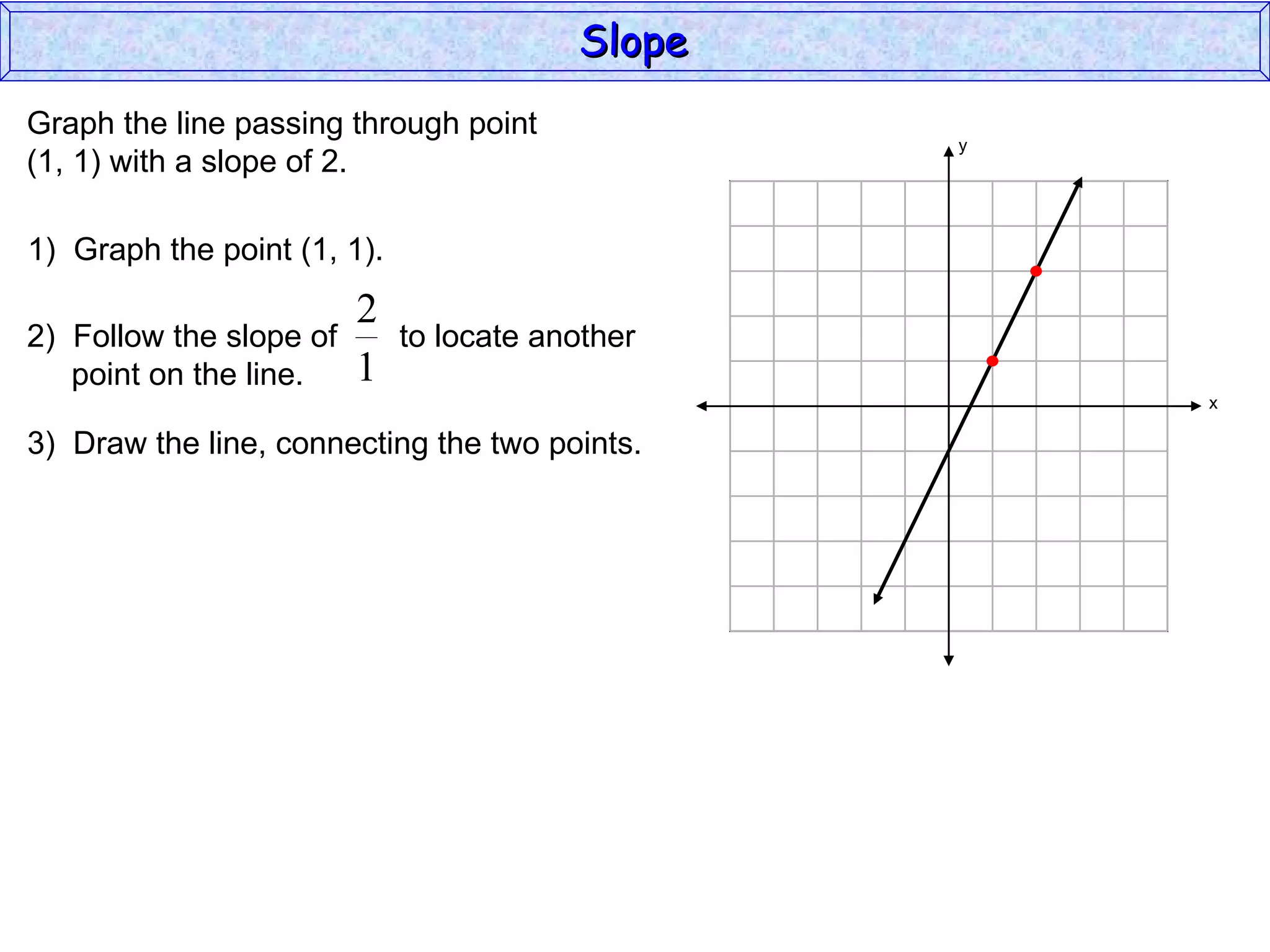

49. Graph the line passing through point (1, 1) with a slope of 2. 1) Graph the point (1, 1). 3) Draw the line, connecting the two points. Slope y x 2) Follow the slope of to locate another point on the line.

50. Graph the line passing through point (1, 1) with a slope of 2. 1) Graph the point (1, 1). 3) Draw the line, connecting the two points. Slope y x 2) Follow the slope of to locate another point on the line.

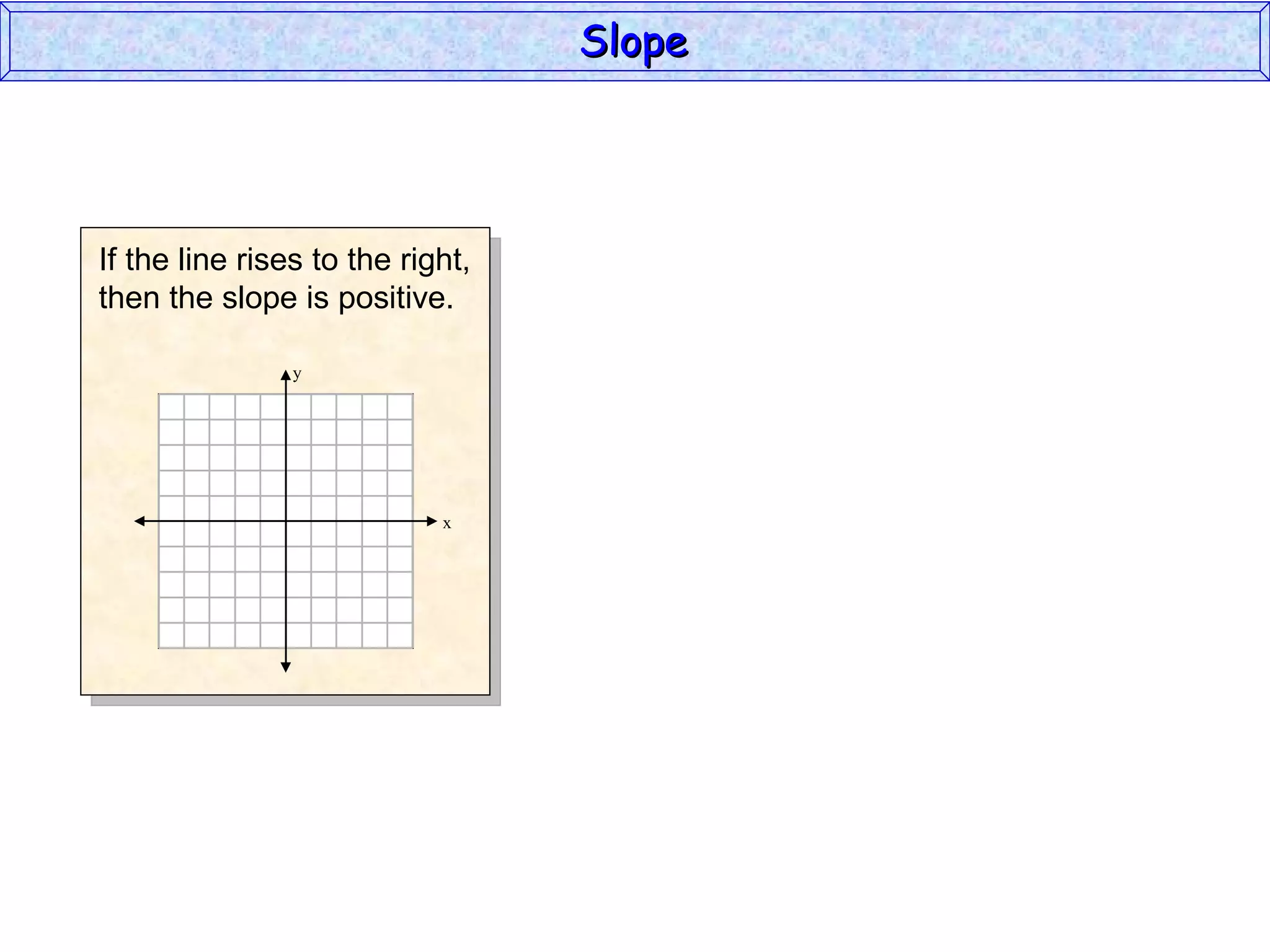

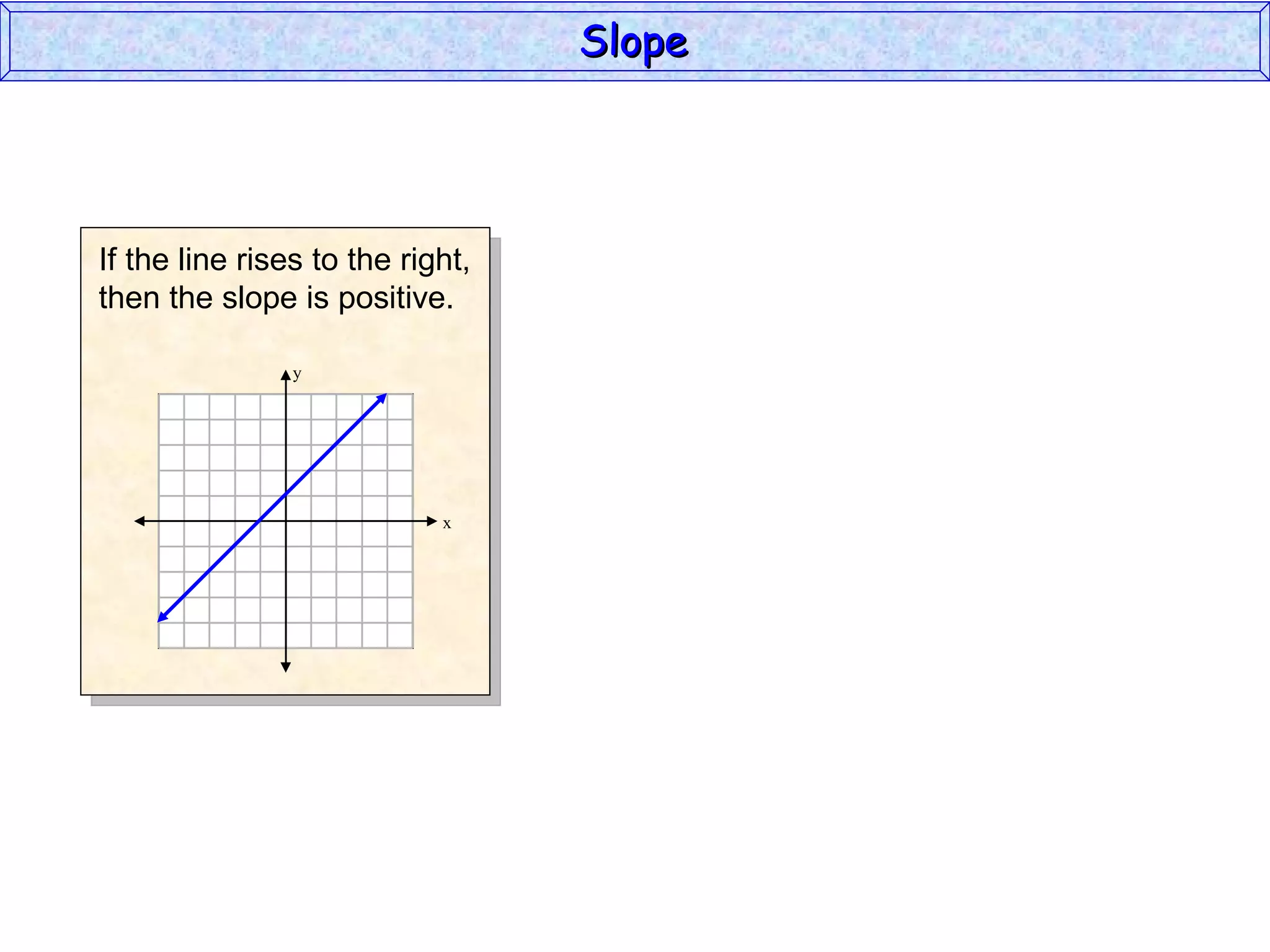

51. y x If the line rises to the right, then the slope is positive. Slope

52. y x If the line rises to the right, then the slope is positive. Slope

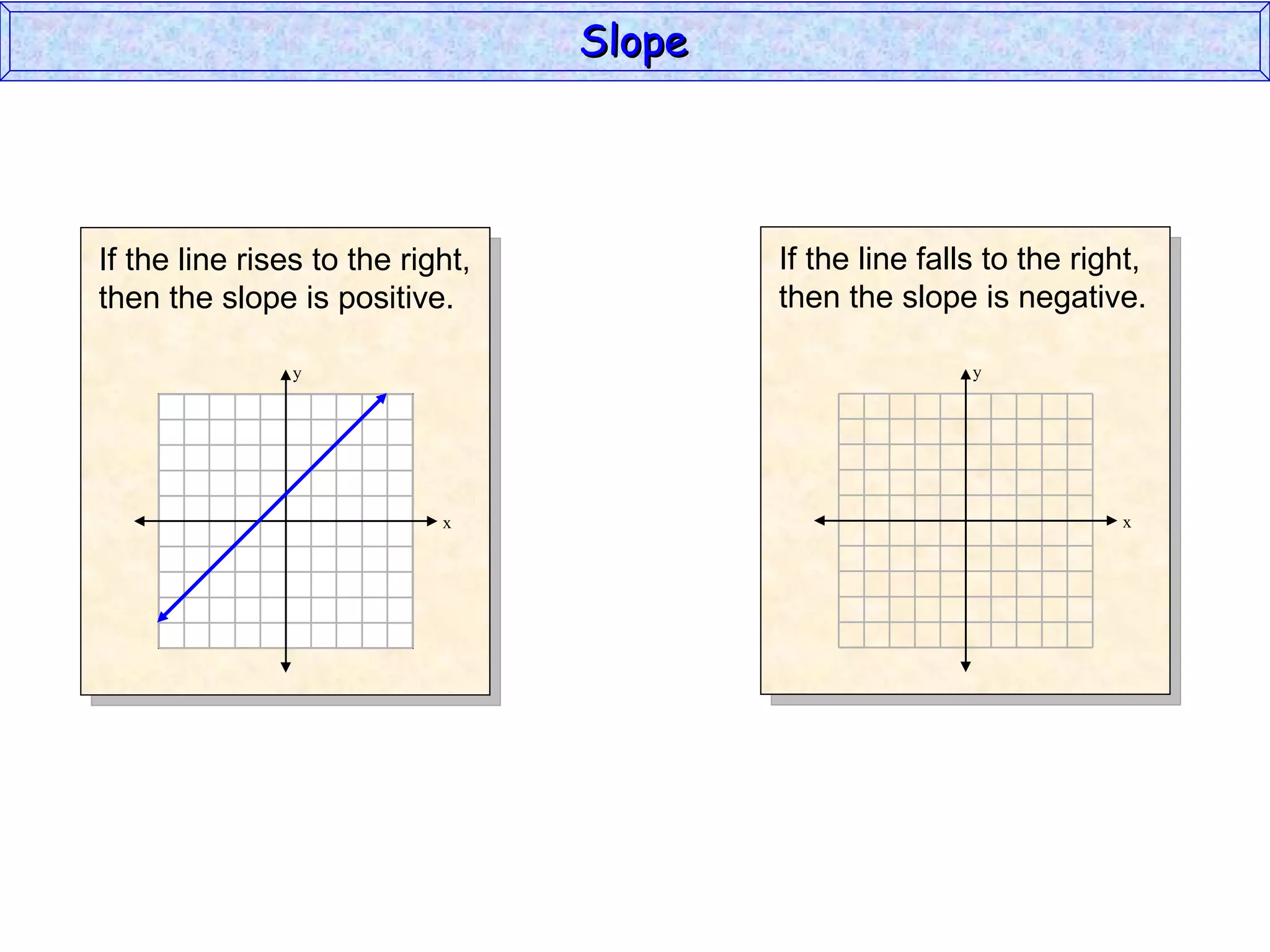

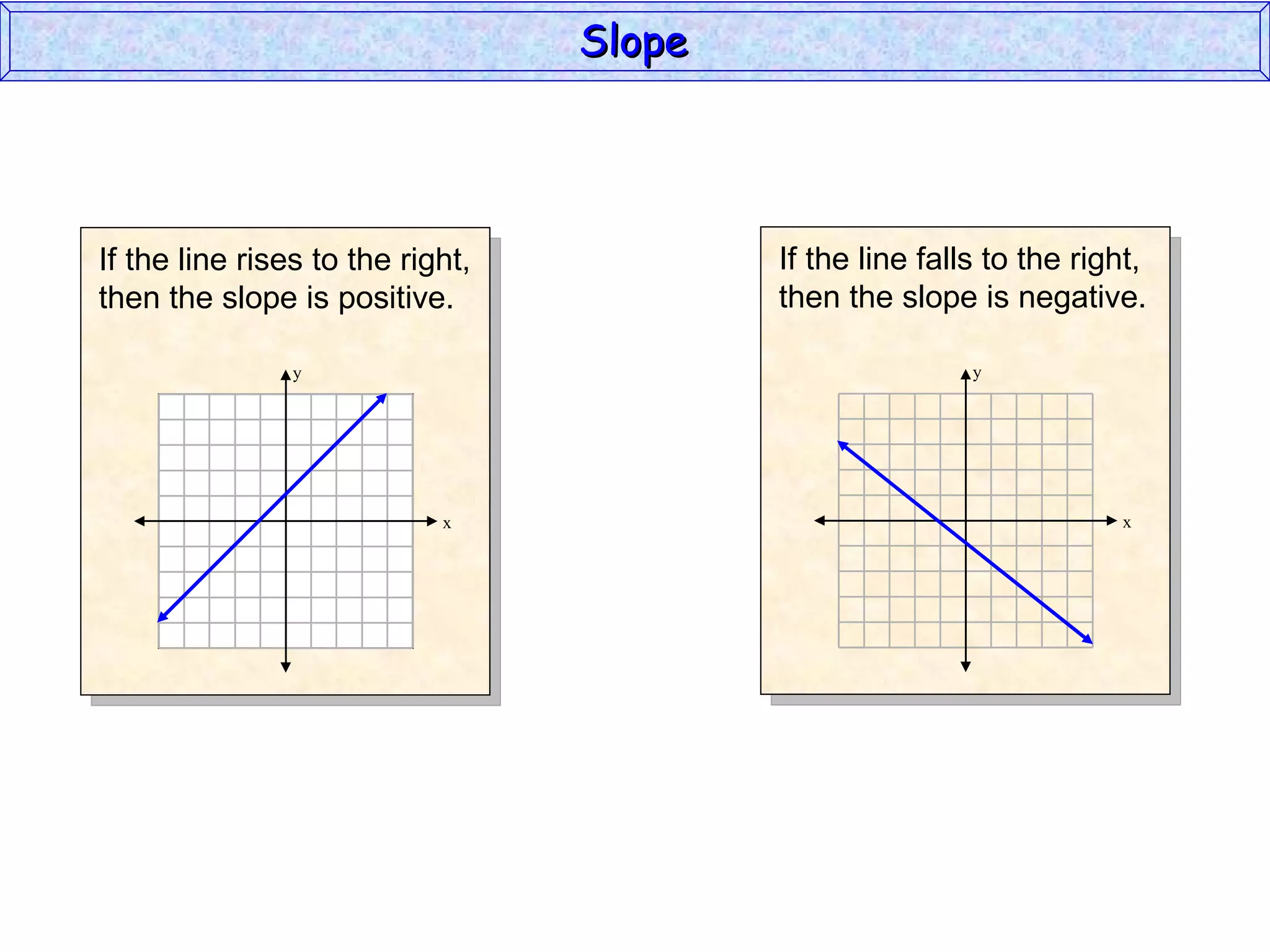

53. y x If the line rises to the right, then the slope is positive. Slope y x If the line falls to the right, then the slope is negative.

54. y x If the line rises to the right, then the slope is positive. Slope y x If the line falls to the right, then the slope is negative.

55. Slope y x If the line is horizontal, then the slope is zero.

56. Slope y x If the line is horizontal, then the slope is zero.

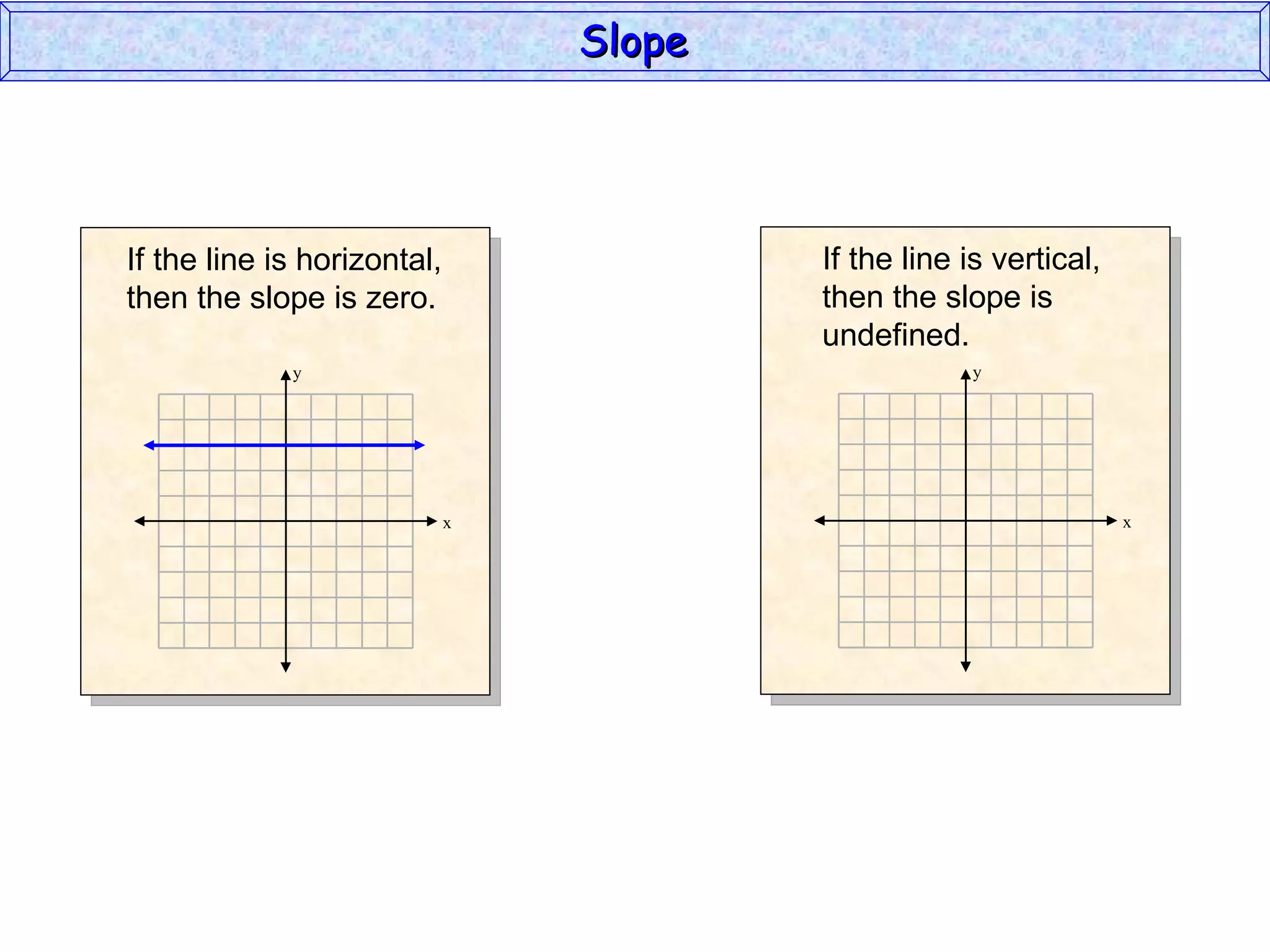

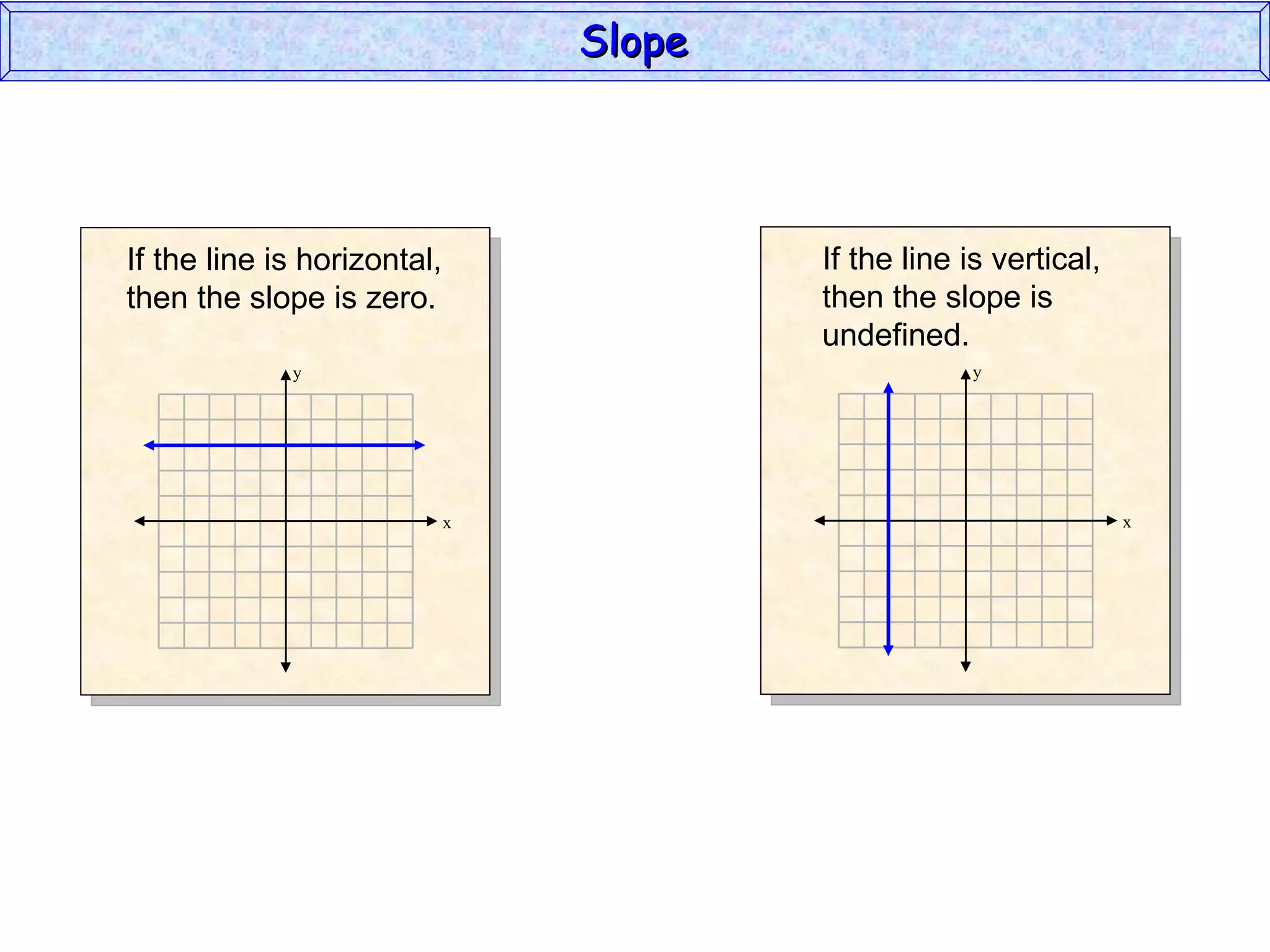

57. Slope y x If the line is horizontal, then the slope is zero. y x If the line is vertical, then the slope is undefined.

58. Slope y x If the line is horizontal, then the slope is zero. y x If the line is vertical, then the slope is undefined.

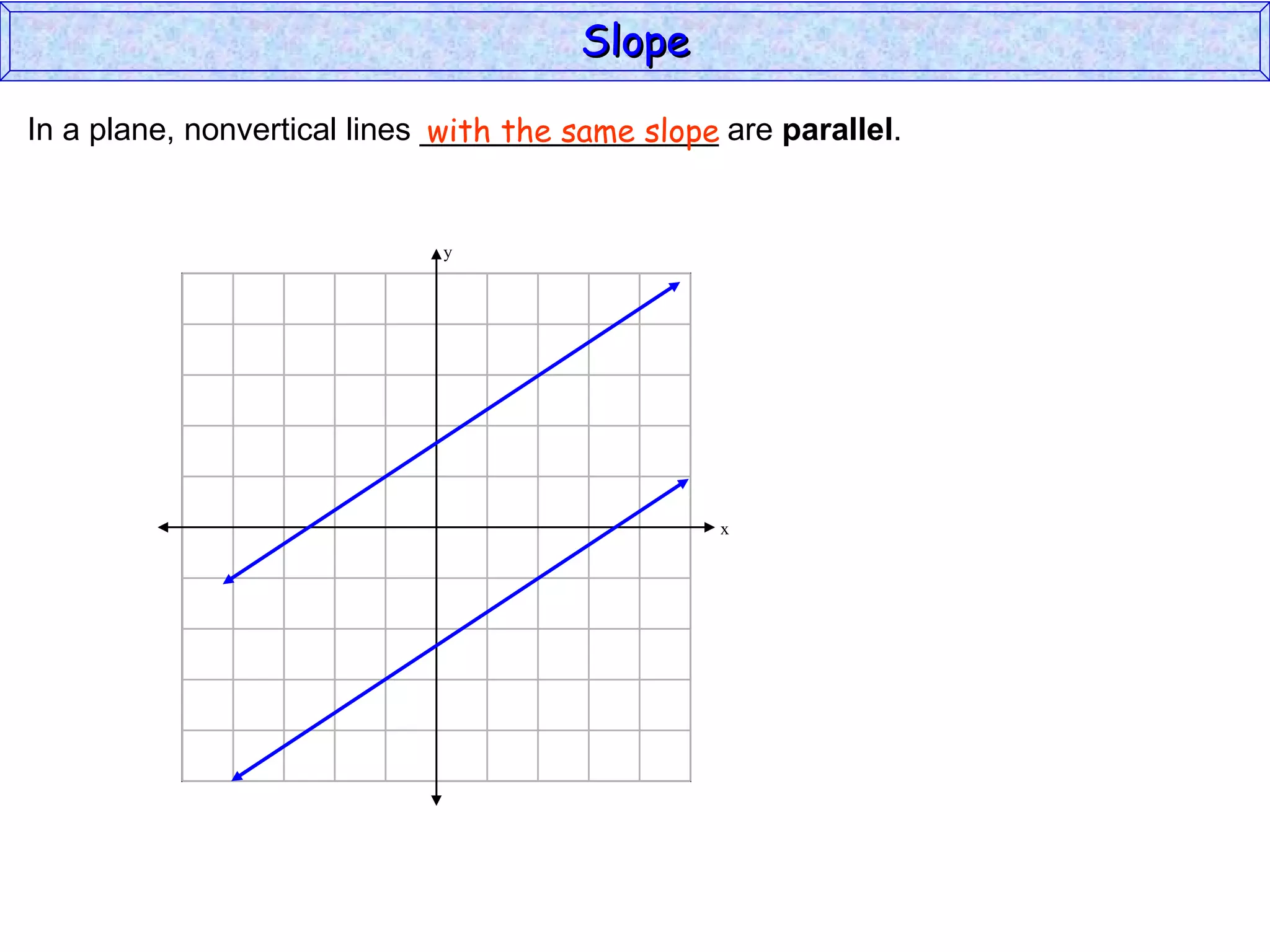

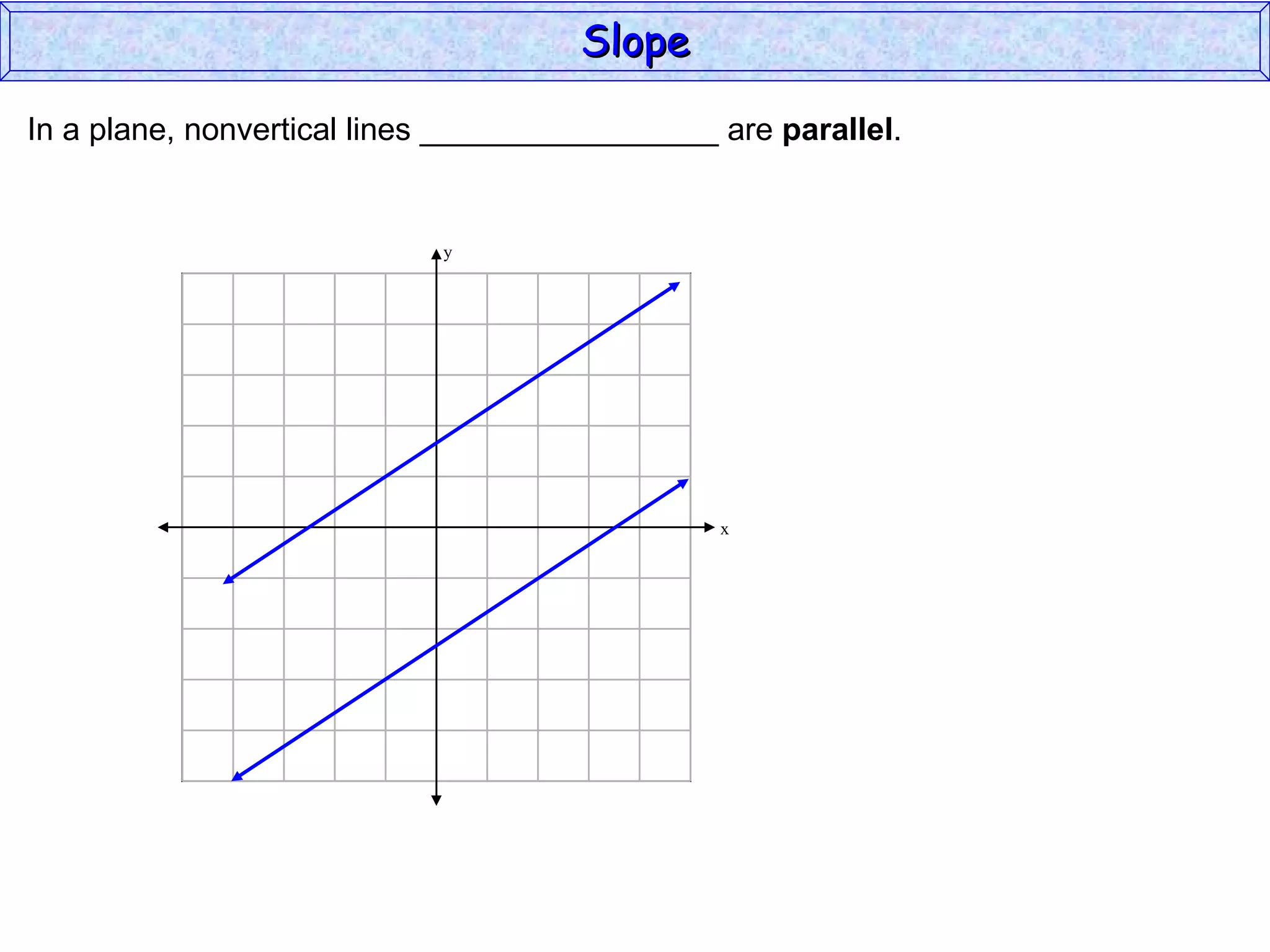

59. Slope In a plane, nonvertical lines _________________ are parallel . y x

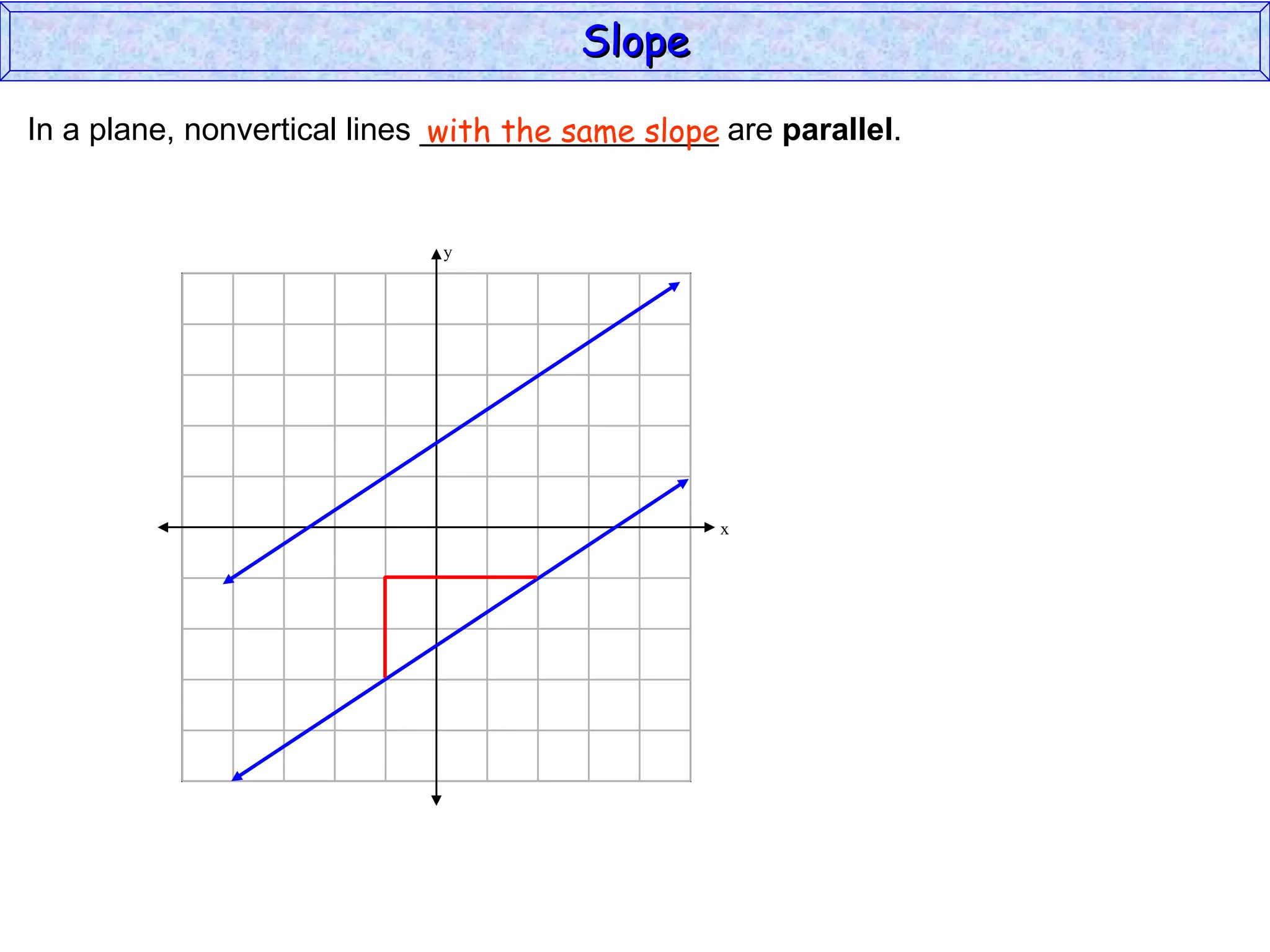

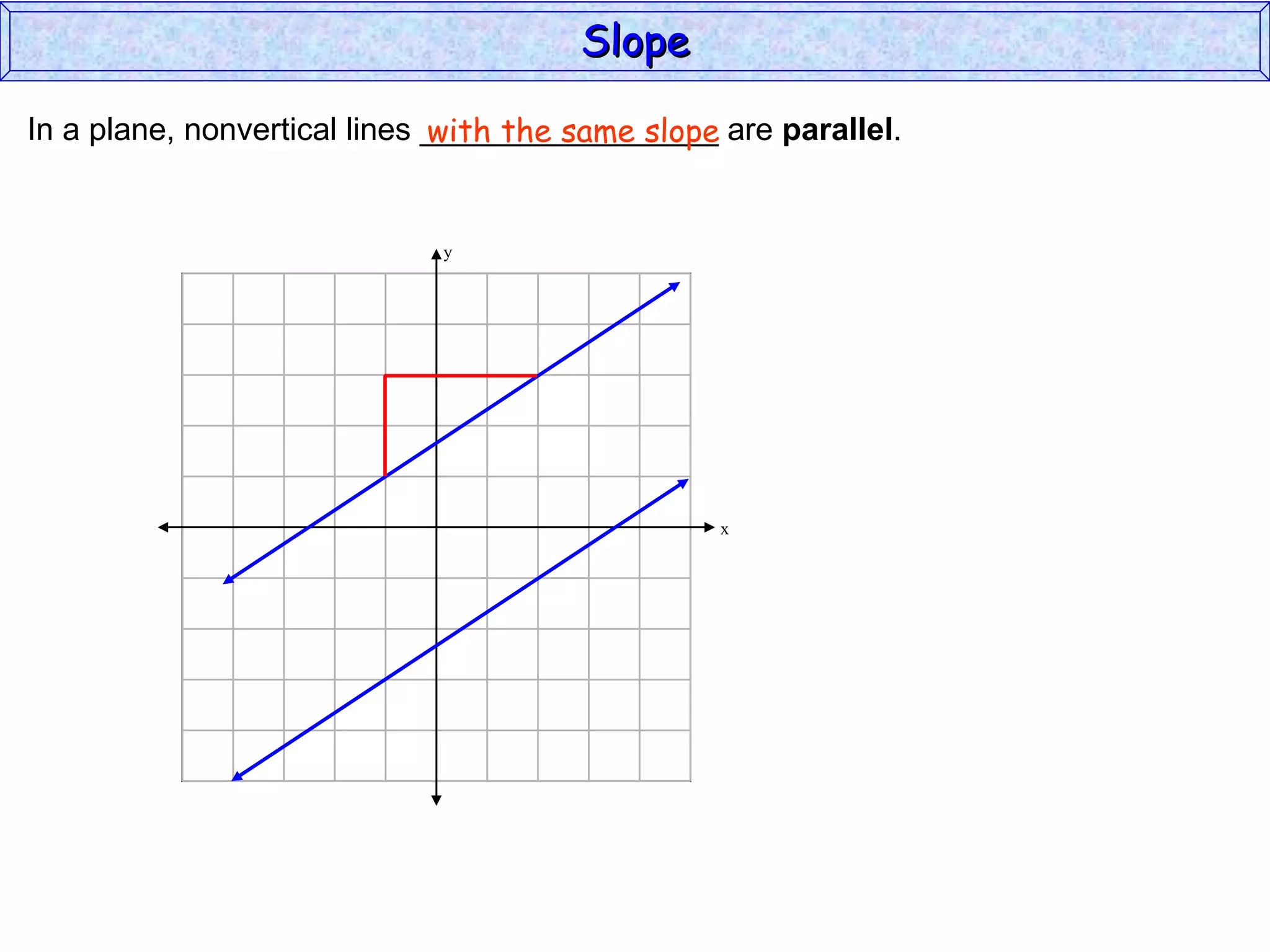

60. Slope In a plane, nonvertical lines _________________ are parallel . with the same slope y x

61. Slope In a plane, nonvertical lines _________________ are parallel . with the same slope y x

62. Slope In a plane, nonvertical lines _________________ are parallel . with the same slope y x

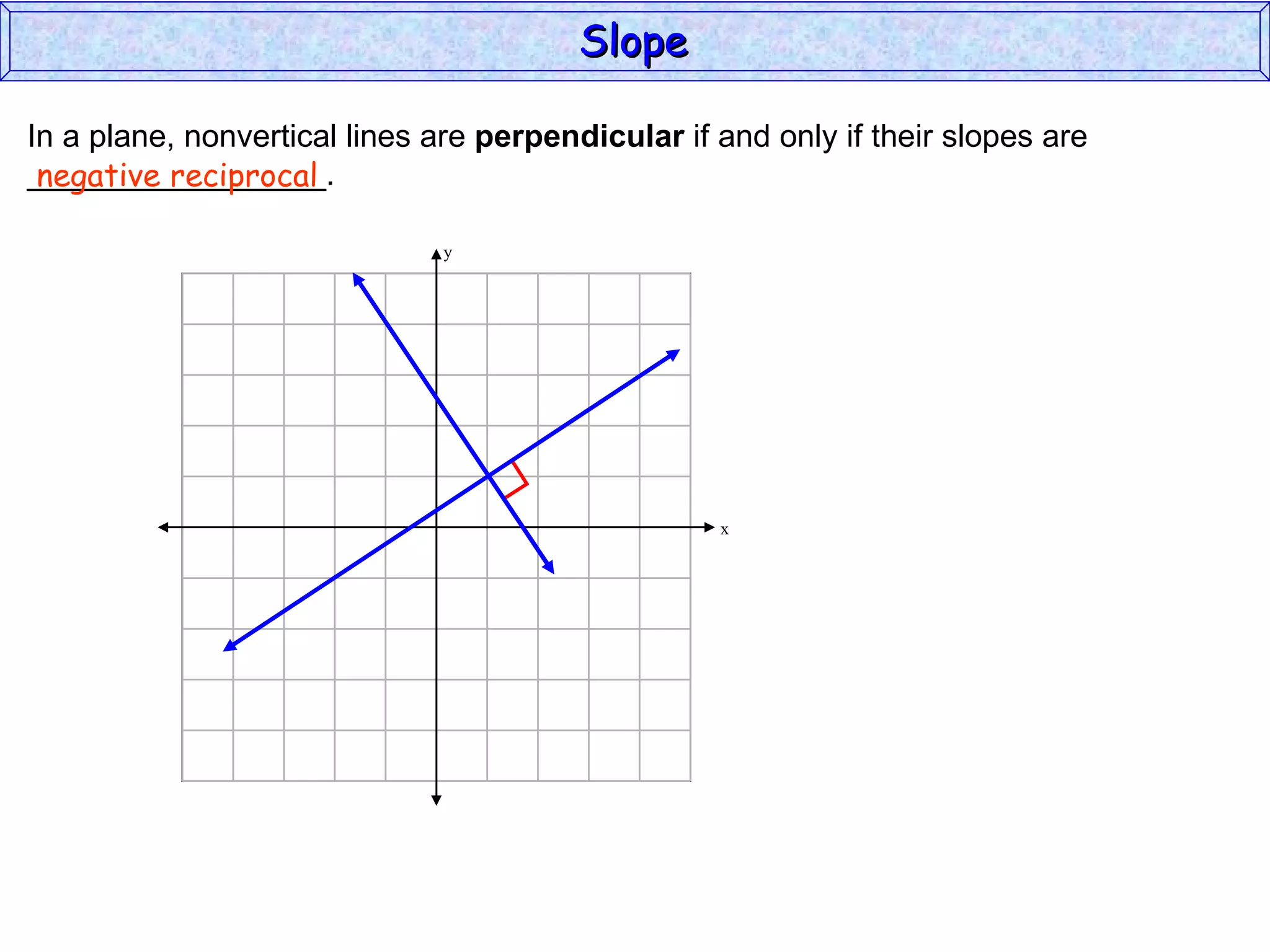

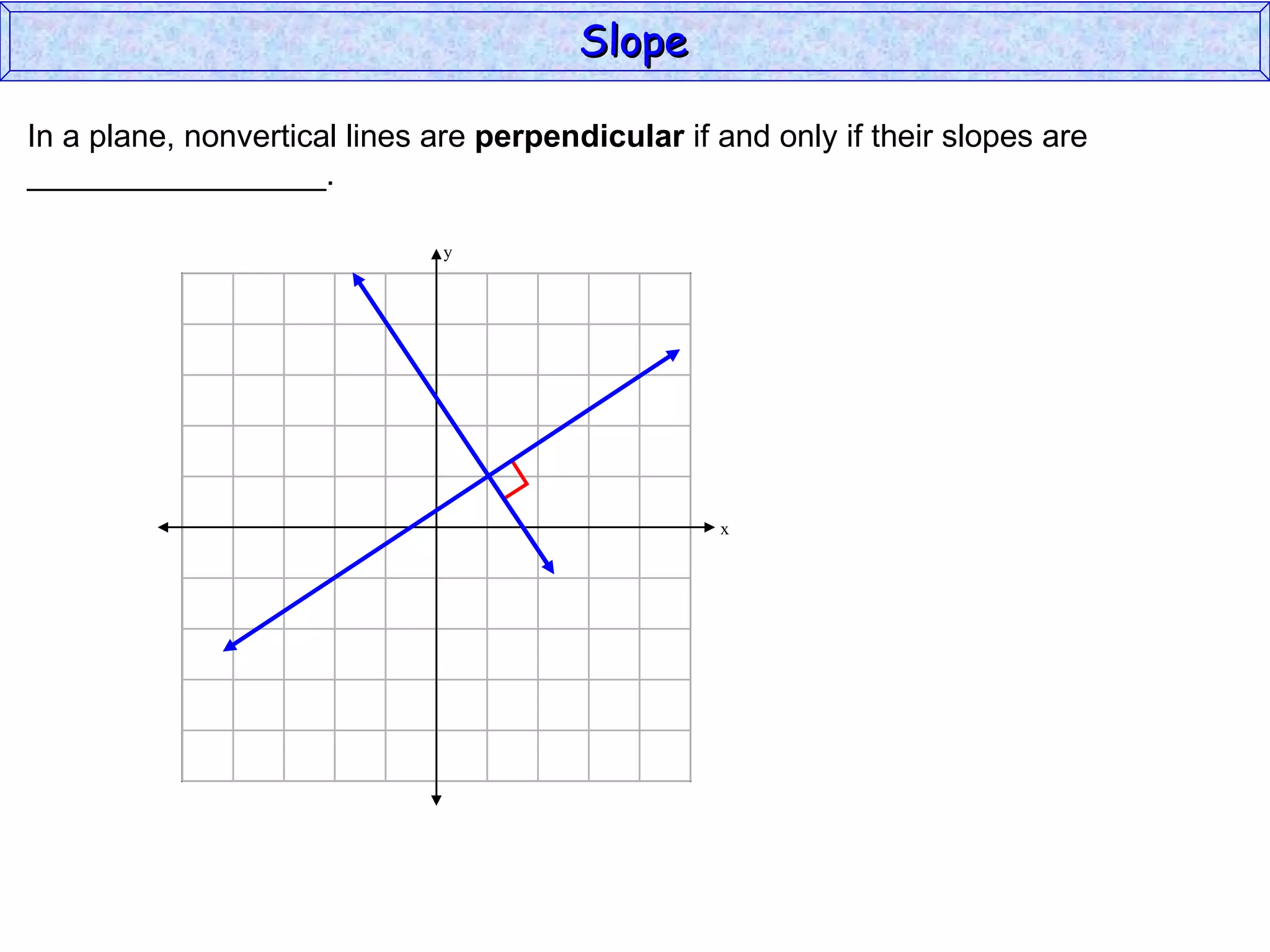

63. In a plane, nonvertical lines are perpendicular if and only if their slopes are _________________. Slope y x

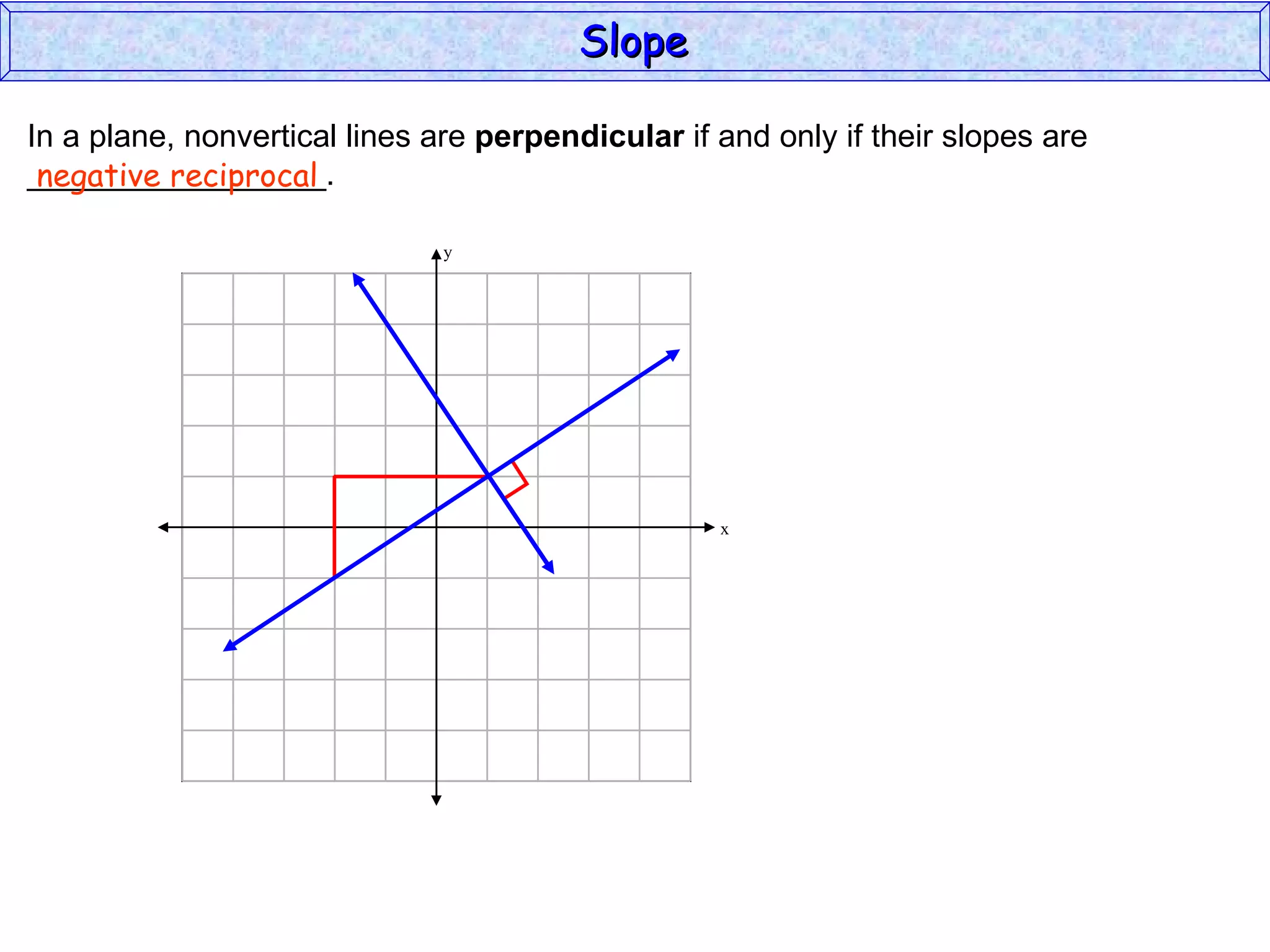

64. In a plane, nonvertical lines are perpendicular if and only if their slopes are _________________. negative reciprocal Slope y x

65. In a plane, nonvertical lines are perpendicular if and only if their slopes are _________________. negative reciprocal Slope y x

66. In a plane, nonvertical lines are perpendicular if and only if their slopes are _________________. negative reciprocal Slope y x

67. Slope End of Lesson
