1. Finding The
Slope of a Line
Jennifer Prince 6/18/03

2. Slopes are commonly
associated with mountains.

3. The slope we are studying is
associated with the graph of a
line.

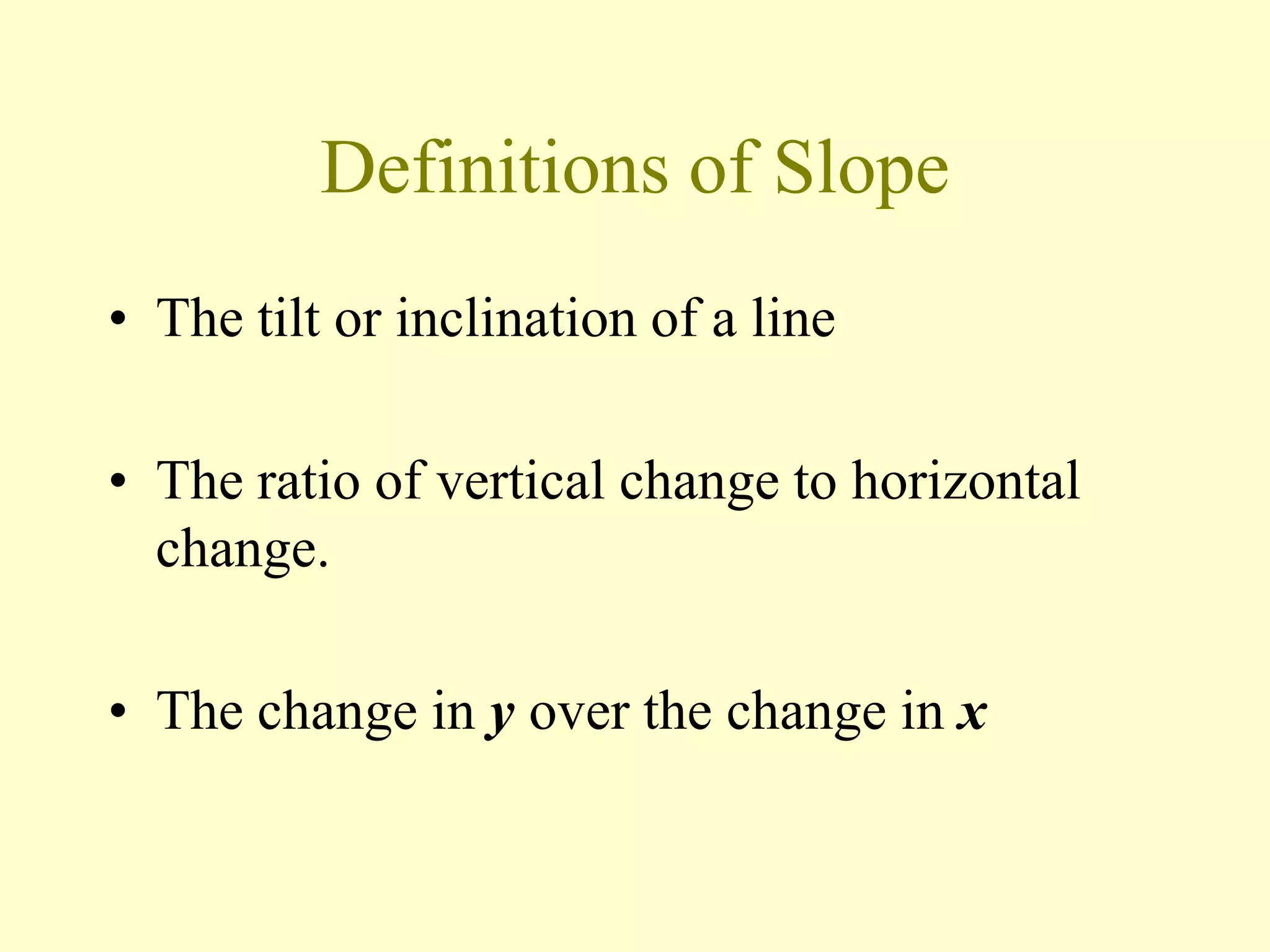

4. Definitions of Slope
• The tilt or inclination of a line
• The ratio of vertical change to horizontal
change.
• The change in y over the change in x

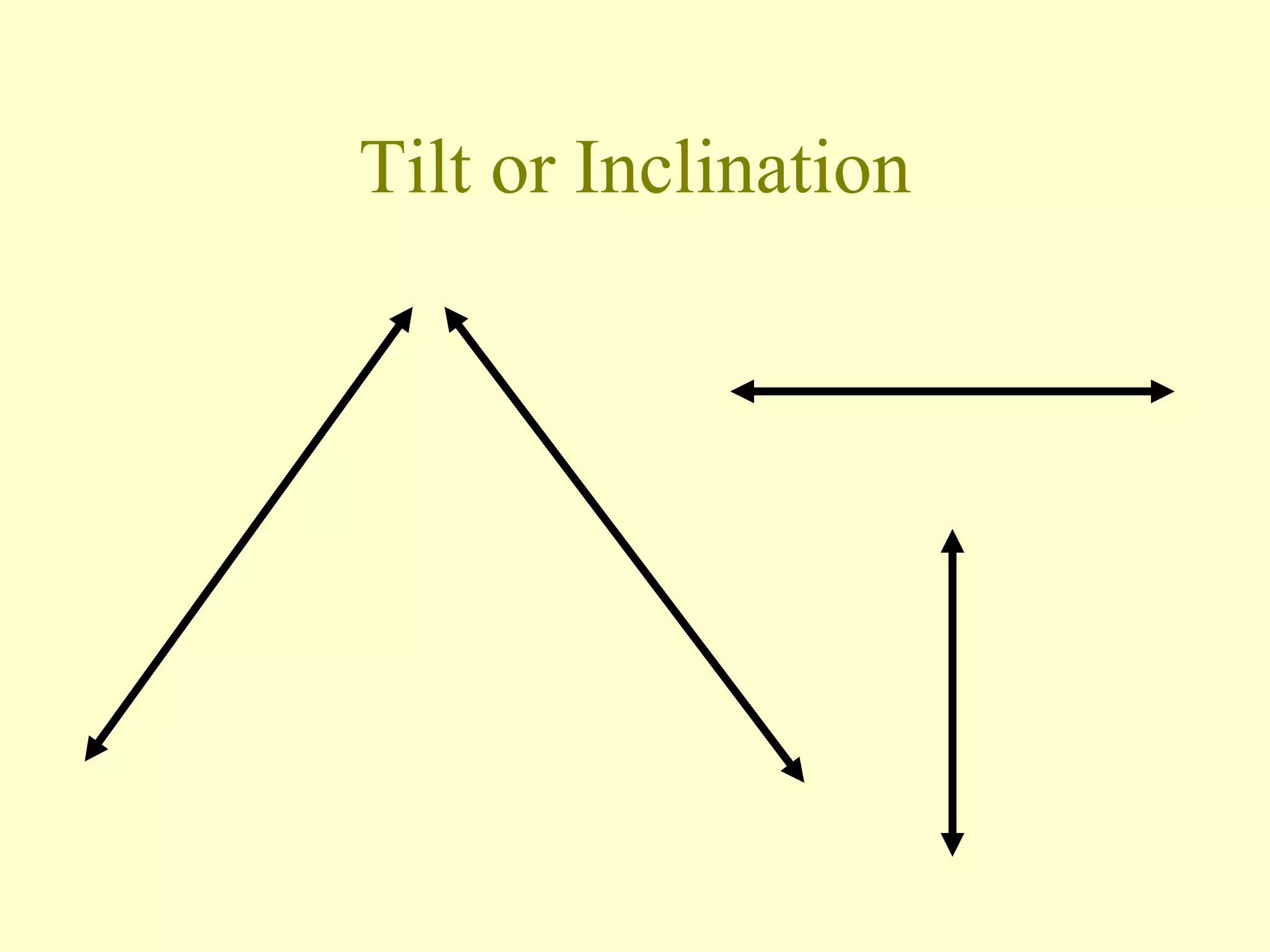

5. Tilt or Inclination

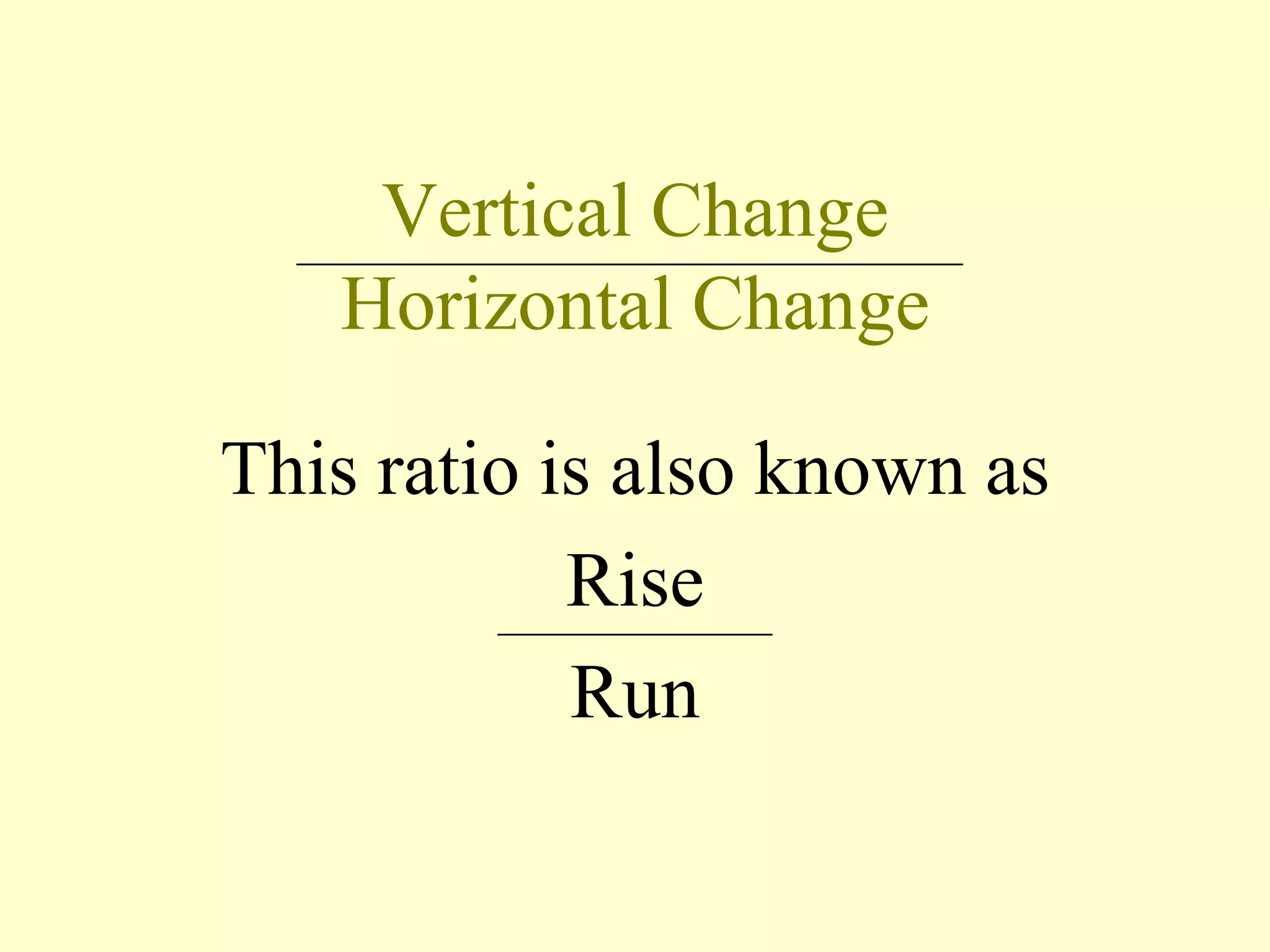

6. Vertical Change
Horizontal Change
This ratio is also known as
Rise
Run

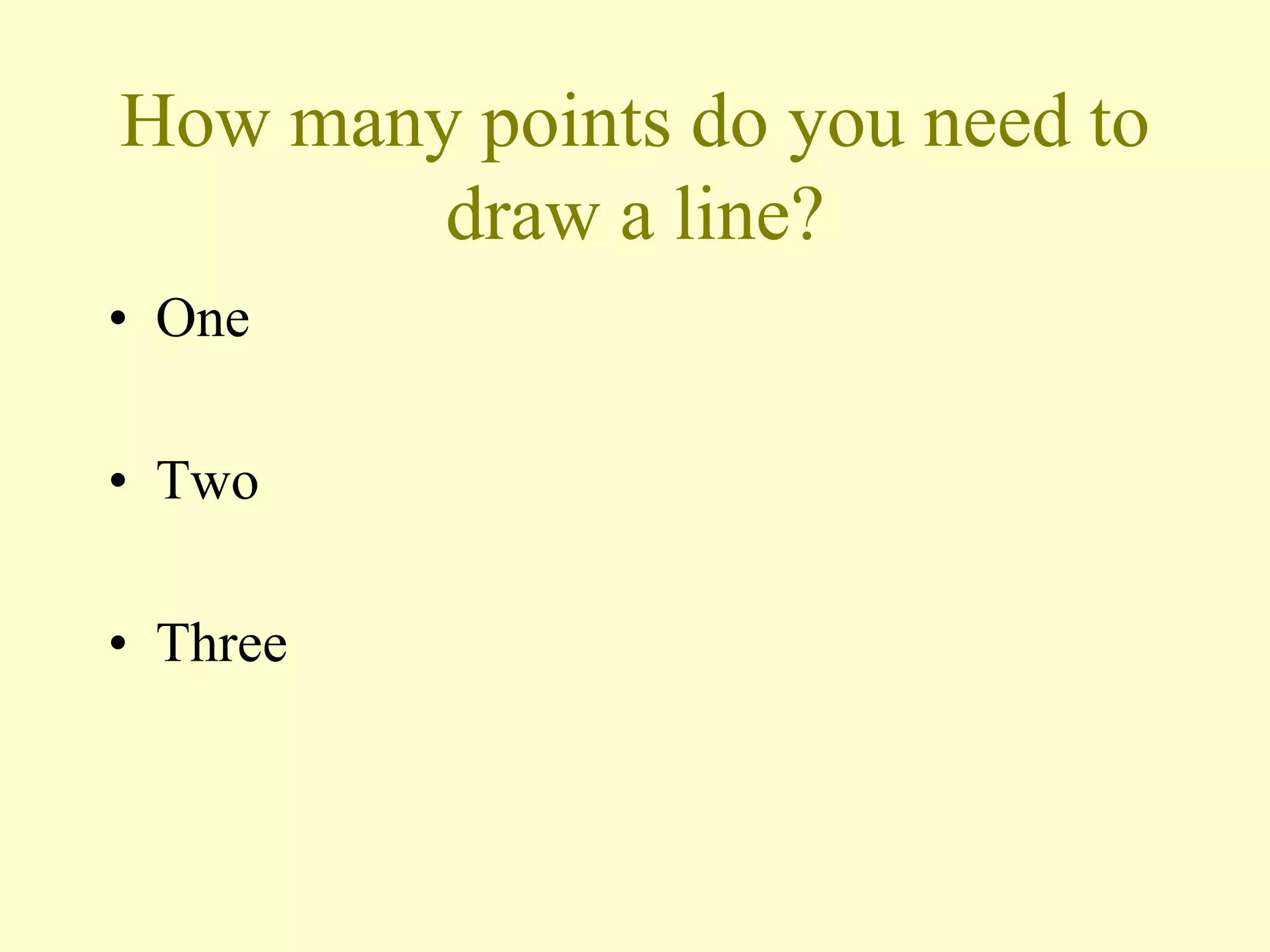

7. How many points do you need to
draw a line?
• One
• Two
• Three

8. Graph (3,2) and (-1,-1)

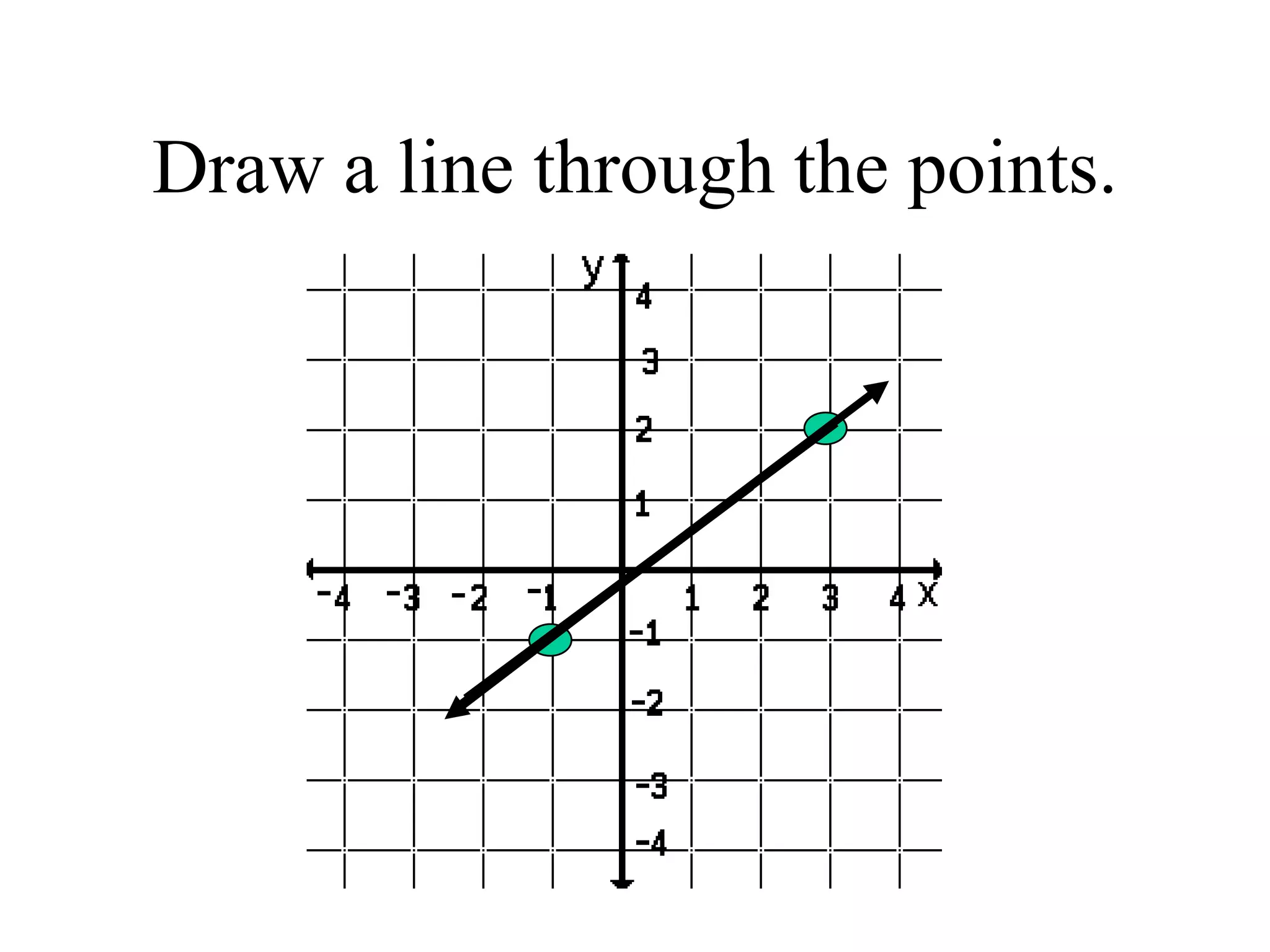

9. Draw a line through the points.

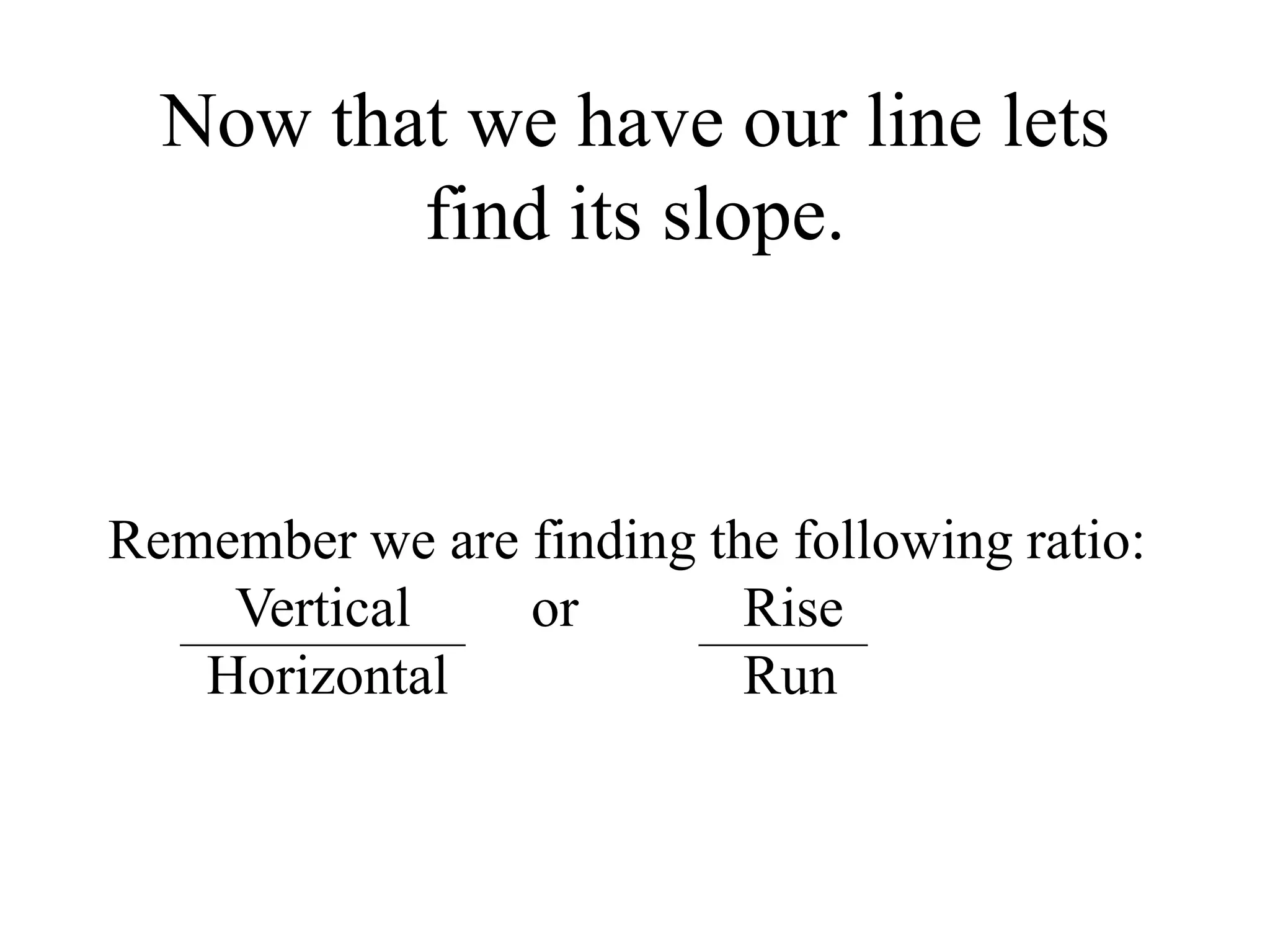

10. Now that we have our line lets
find its slope.
Remember we are finding the following ratio:
Vertical or Rise
Horizontal Run

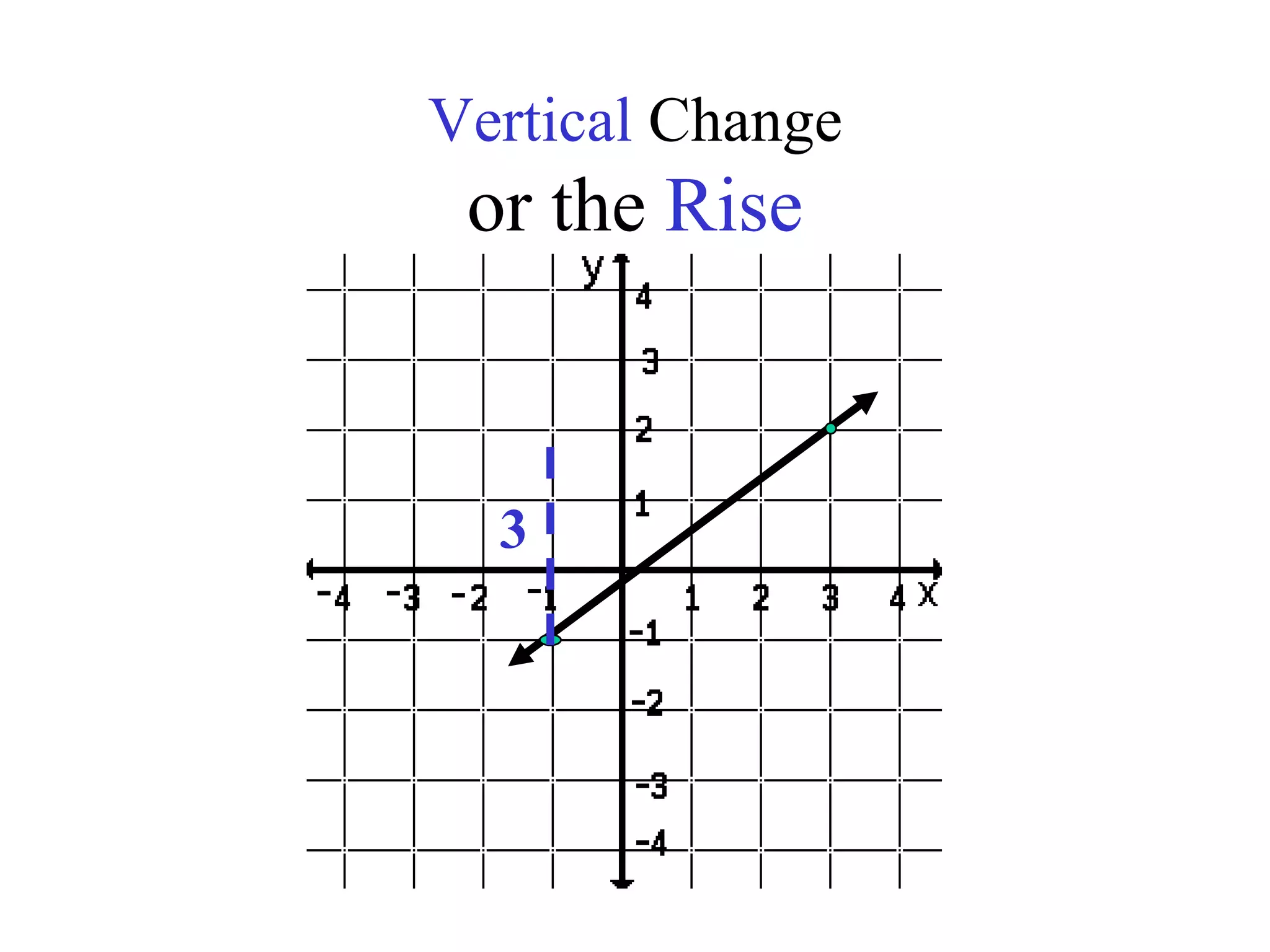

11. Vertical Change
or the Rise
3

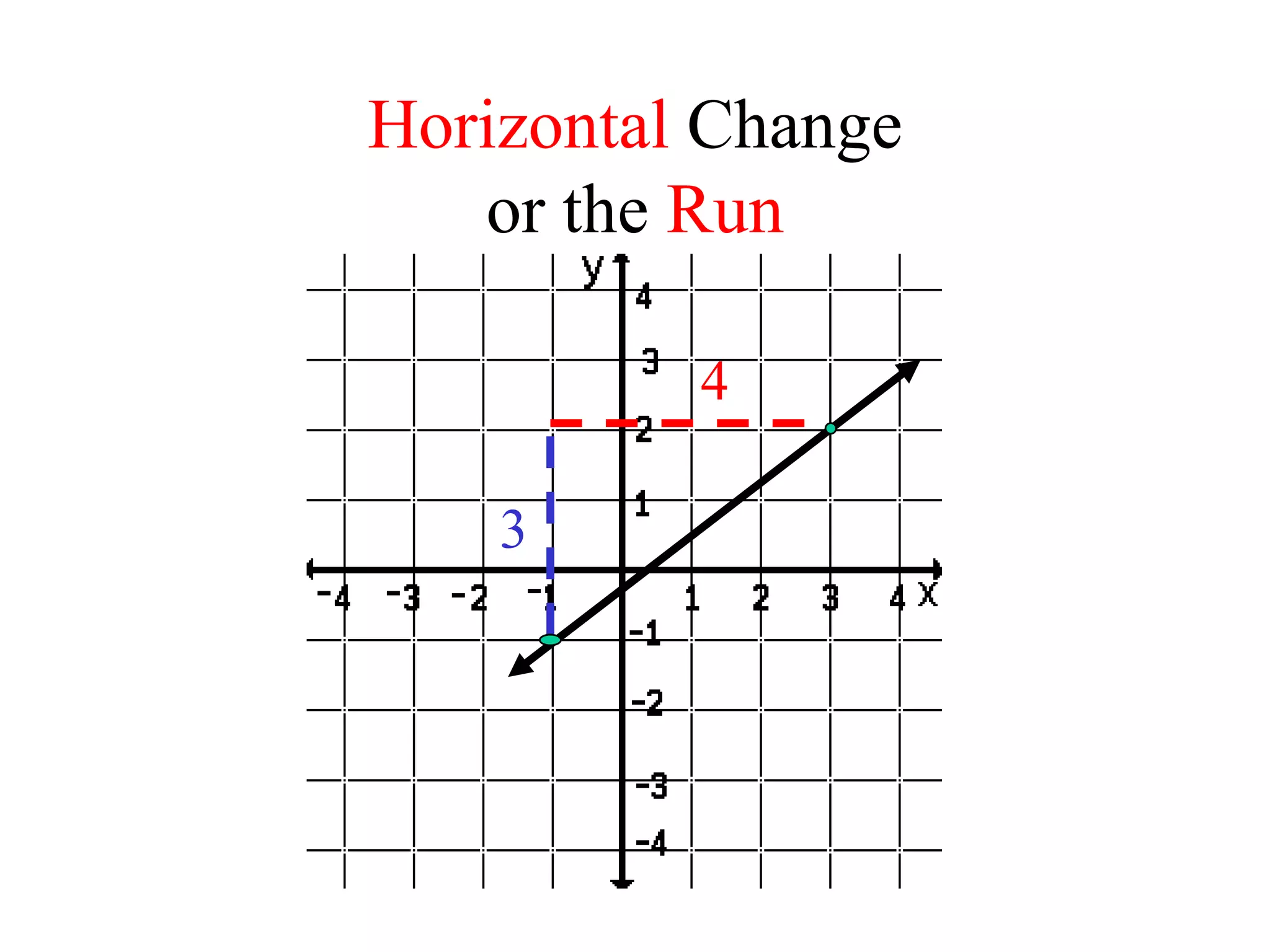

12. Horizontal Change
or the Run
4
3

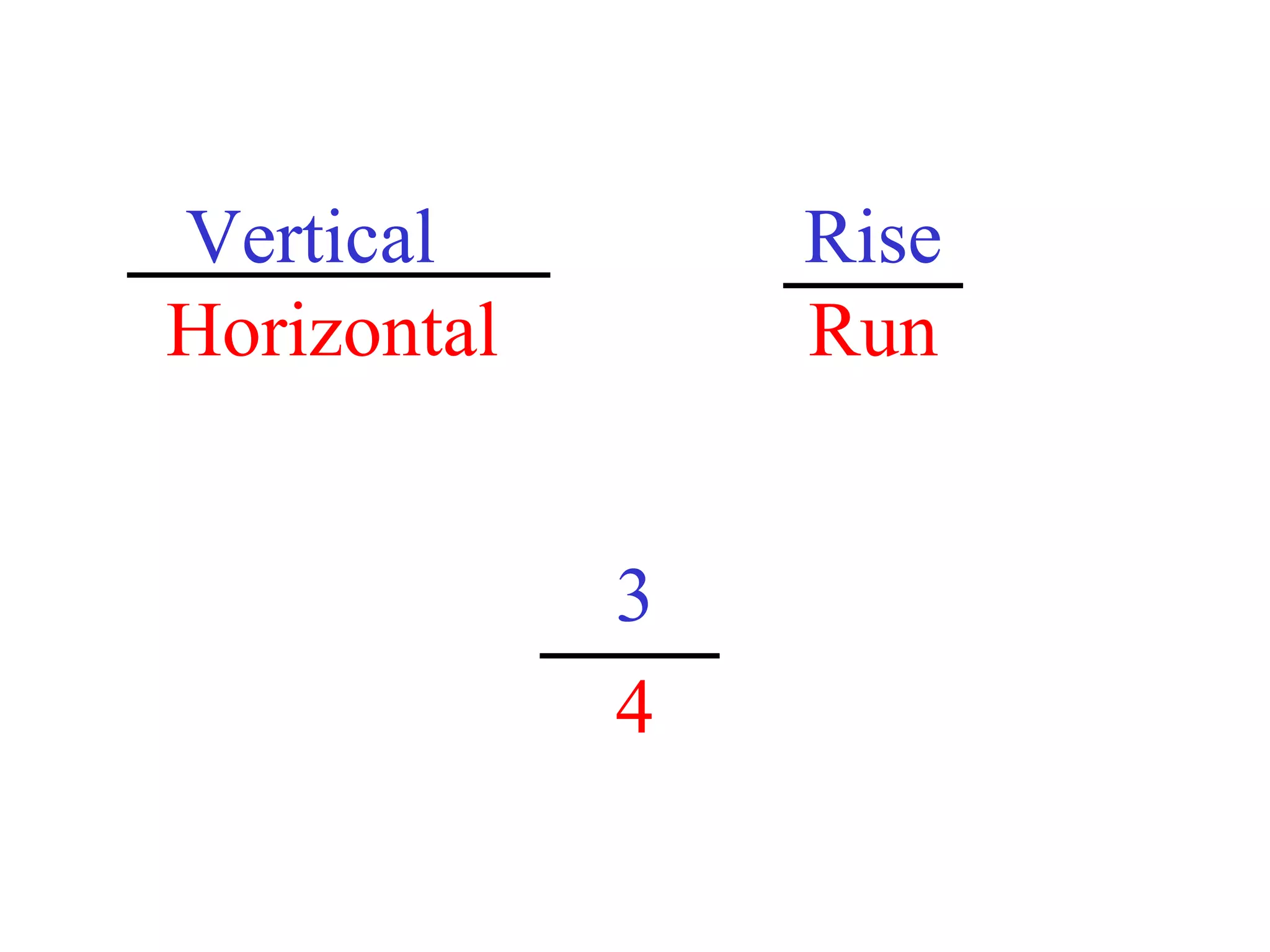

13. Vertical Rise
Horizontal Run
3
4

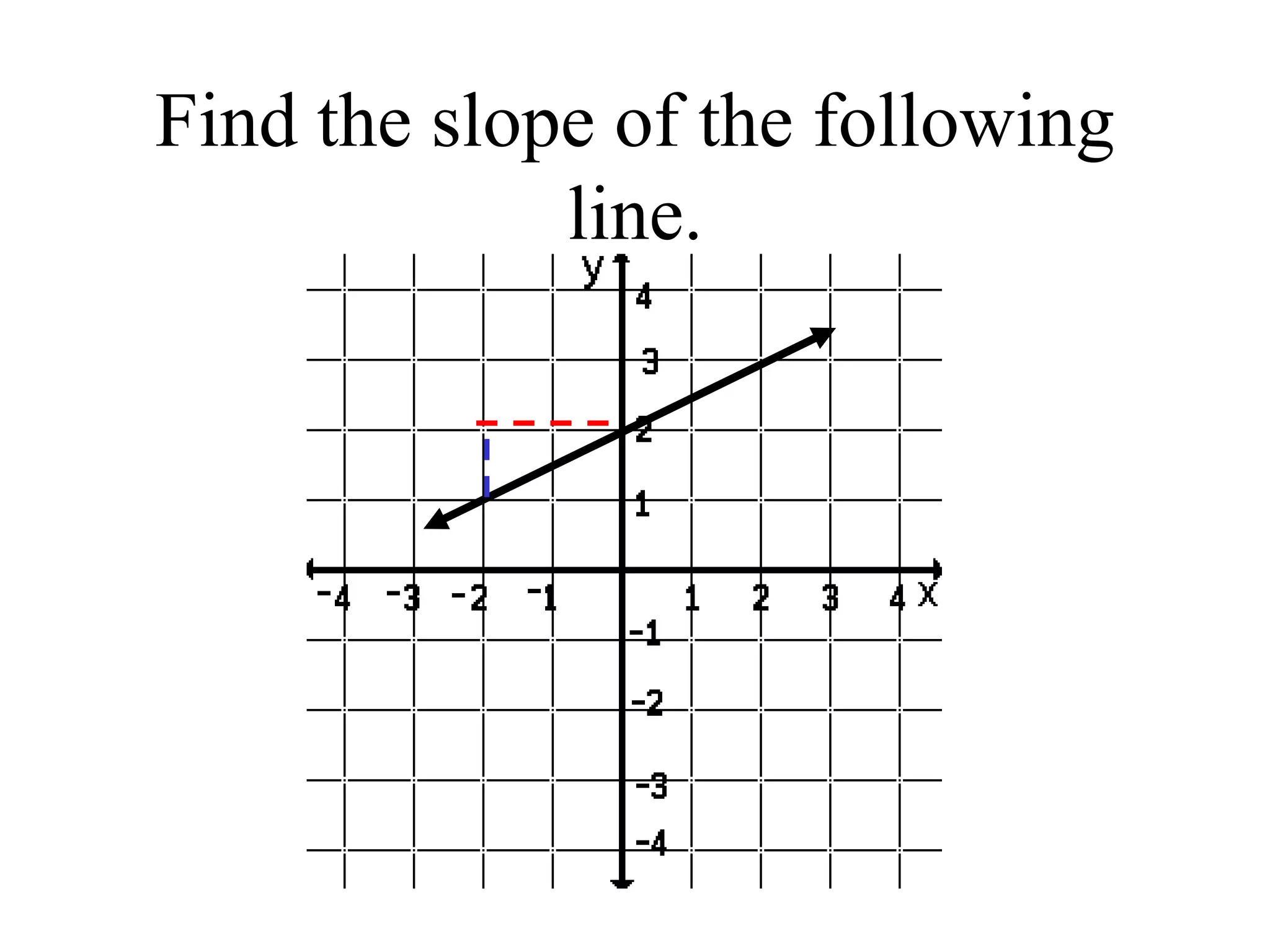

14. Find the slope of the following
line.

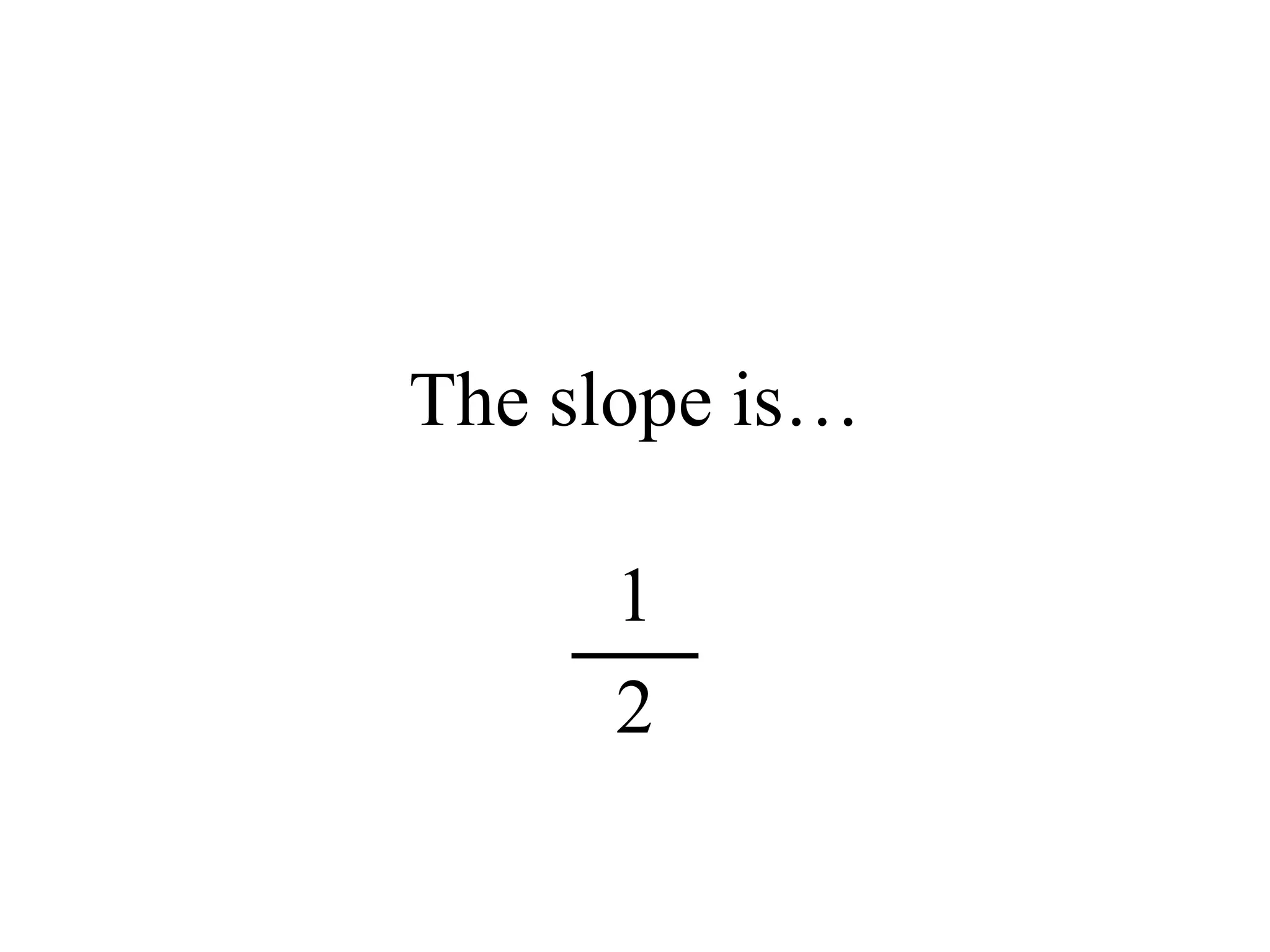

15. The slope is…
1
2

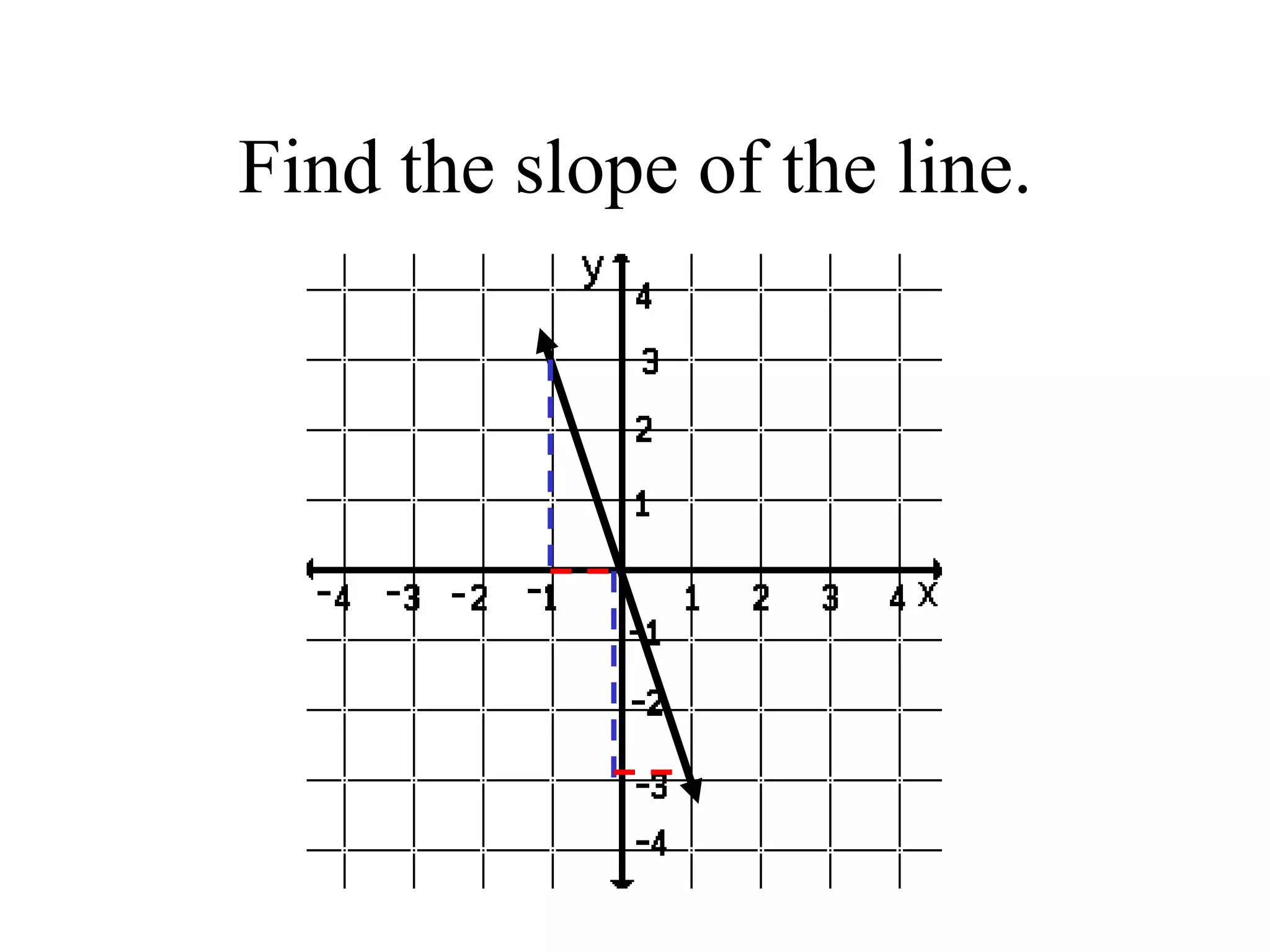

16. Find the slope of the line.

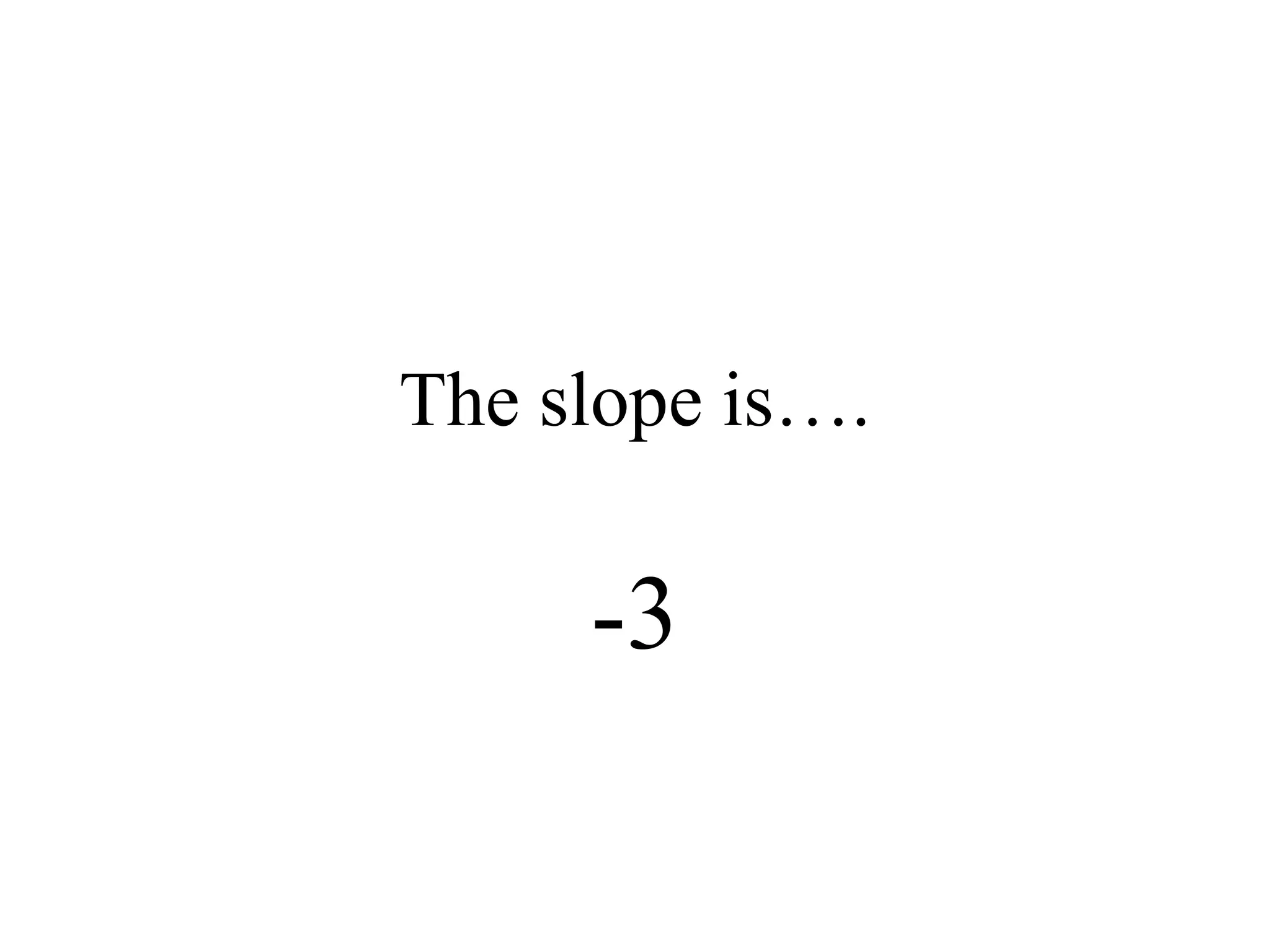

17. The slope is….
-3

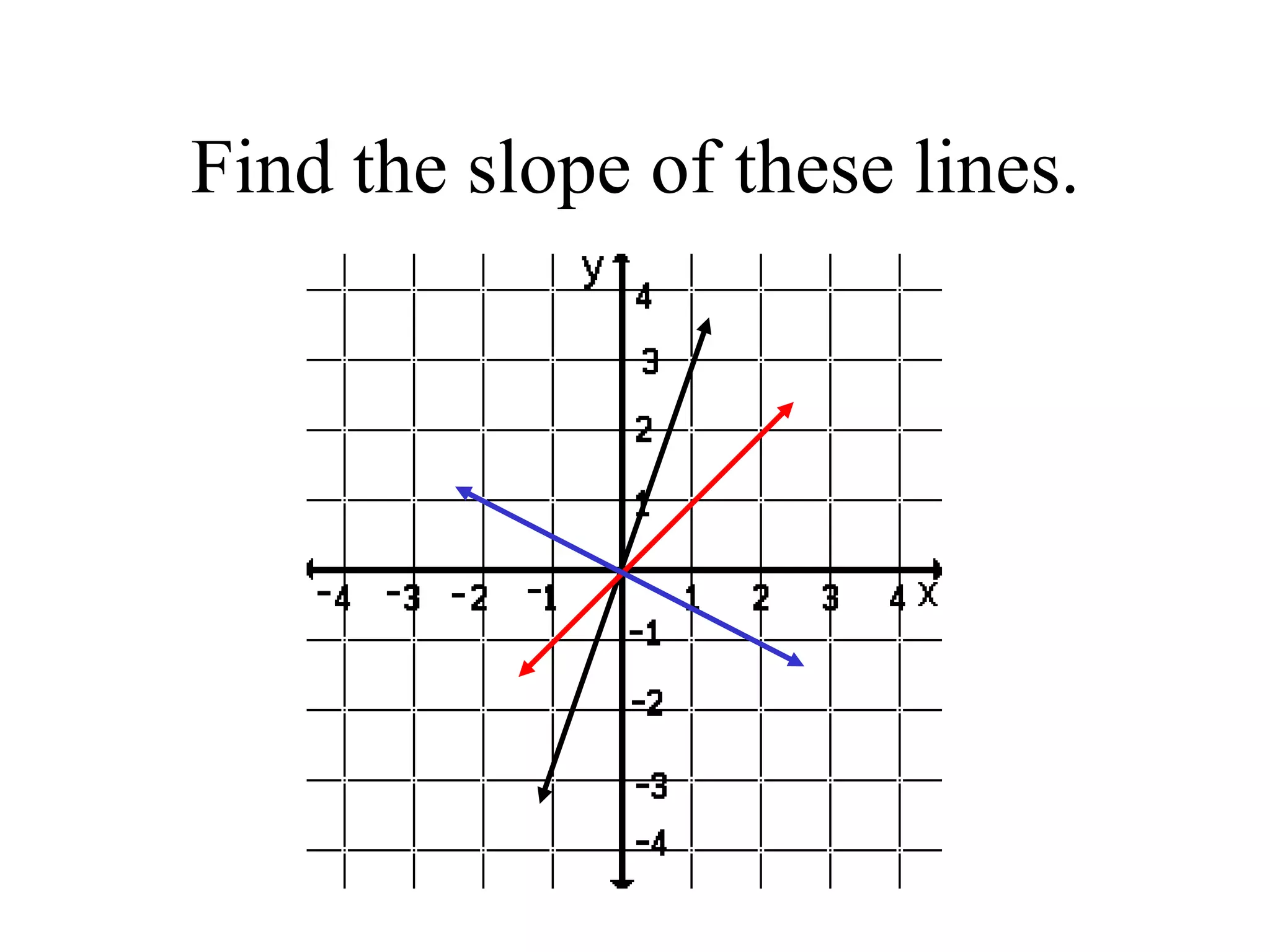

18. Find the slope of these lines.

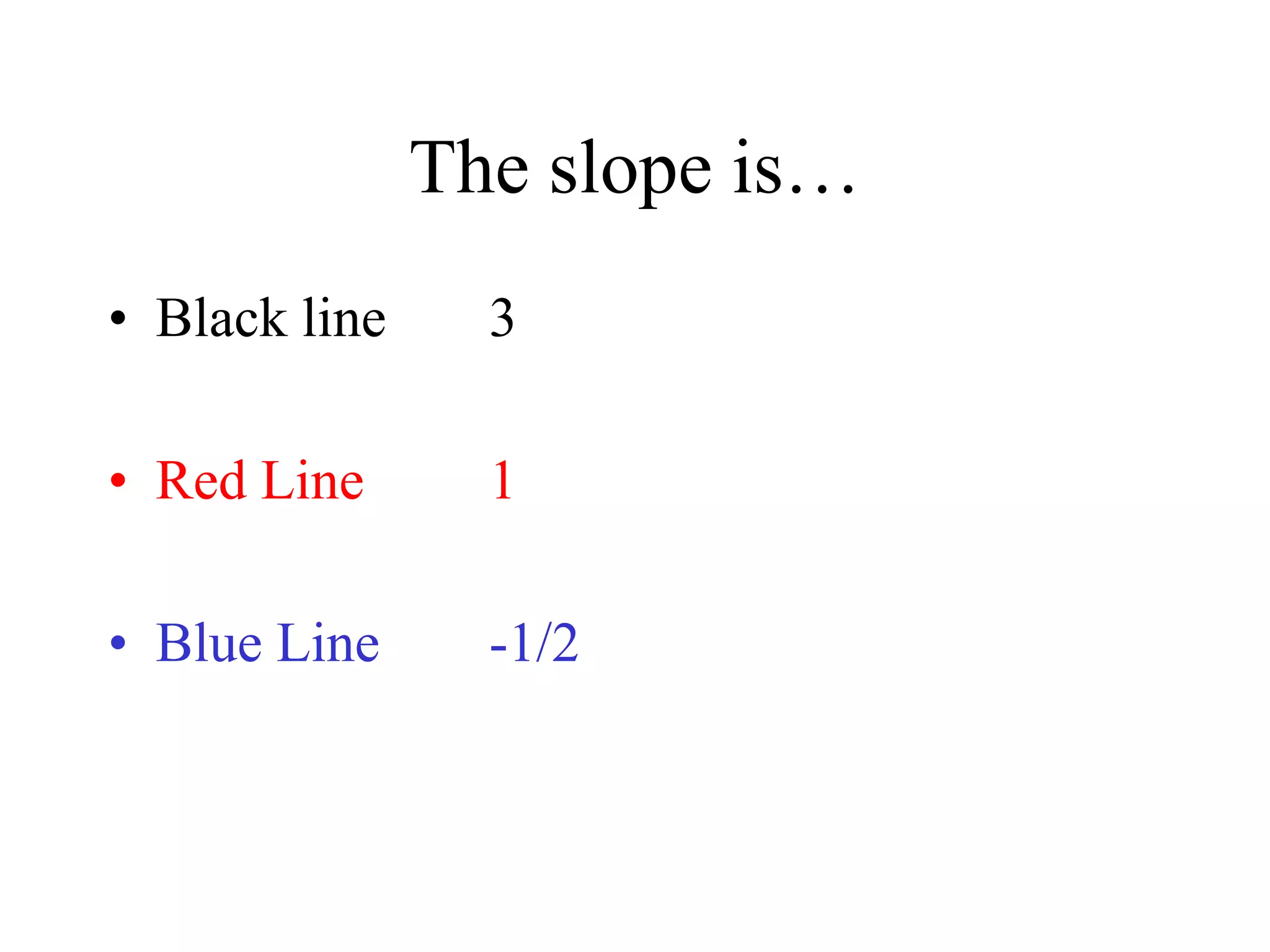

19. The slope is…
• Black line 3
• Red Line 1
• Blue Line -1/2

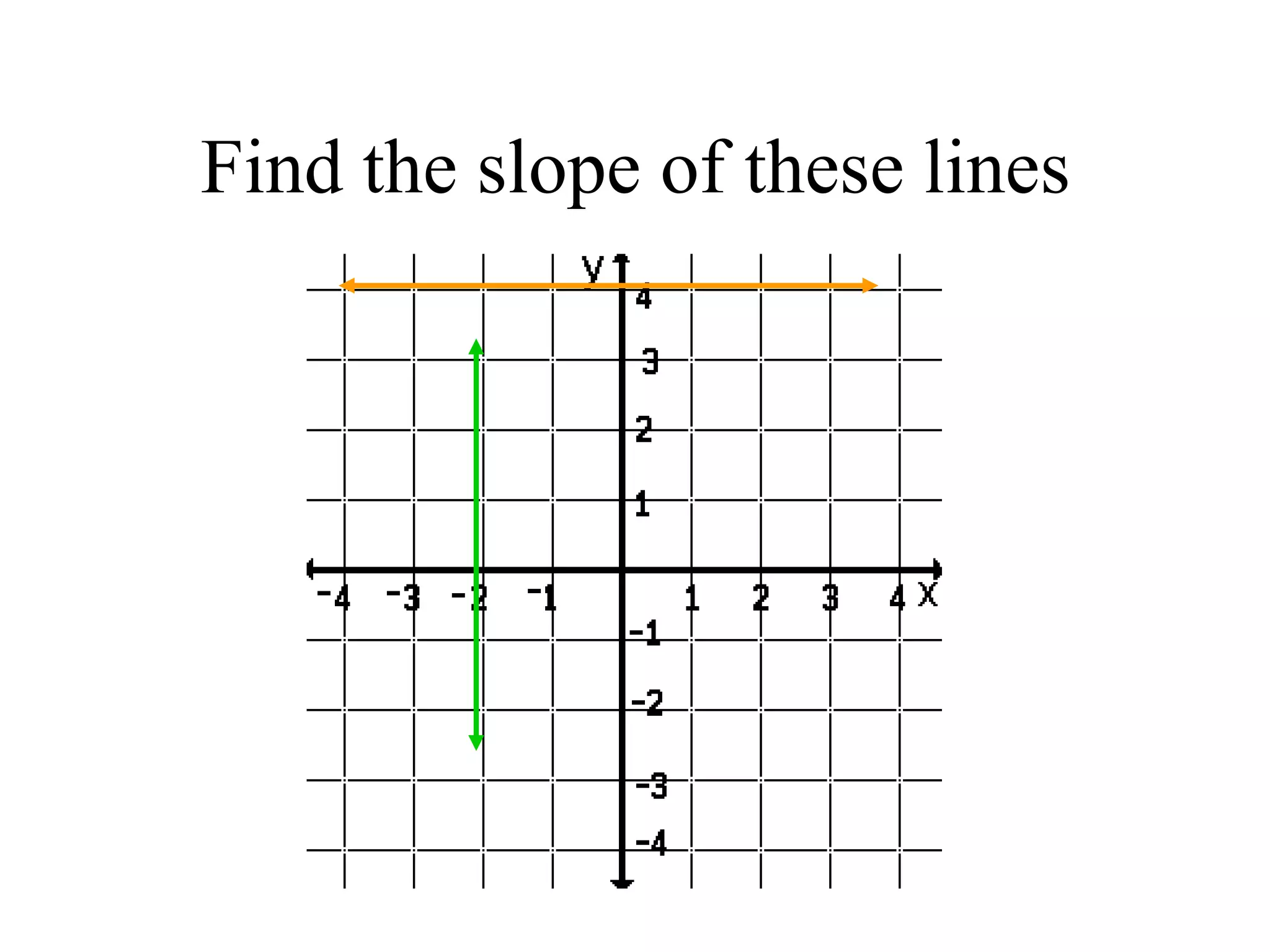

20. Find the slope of these lines

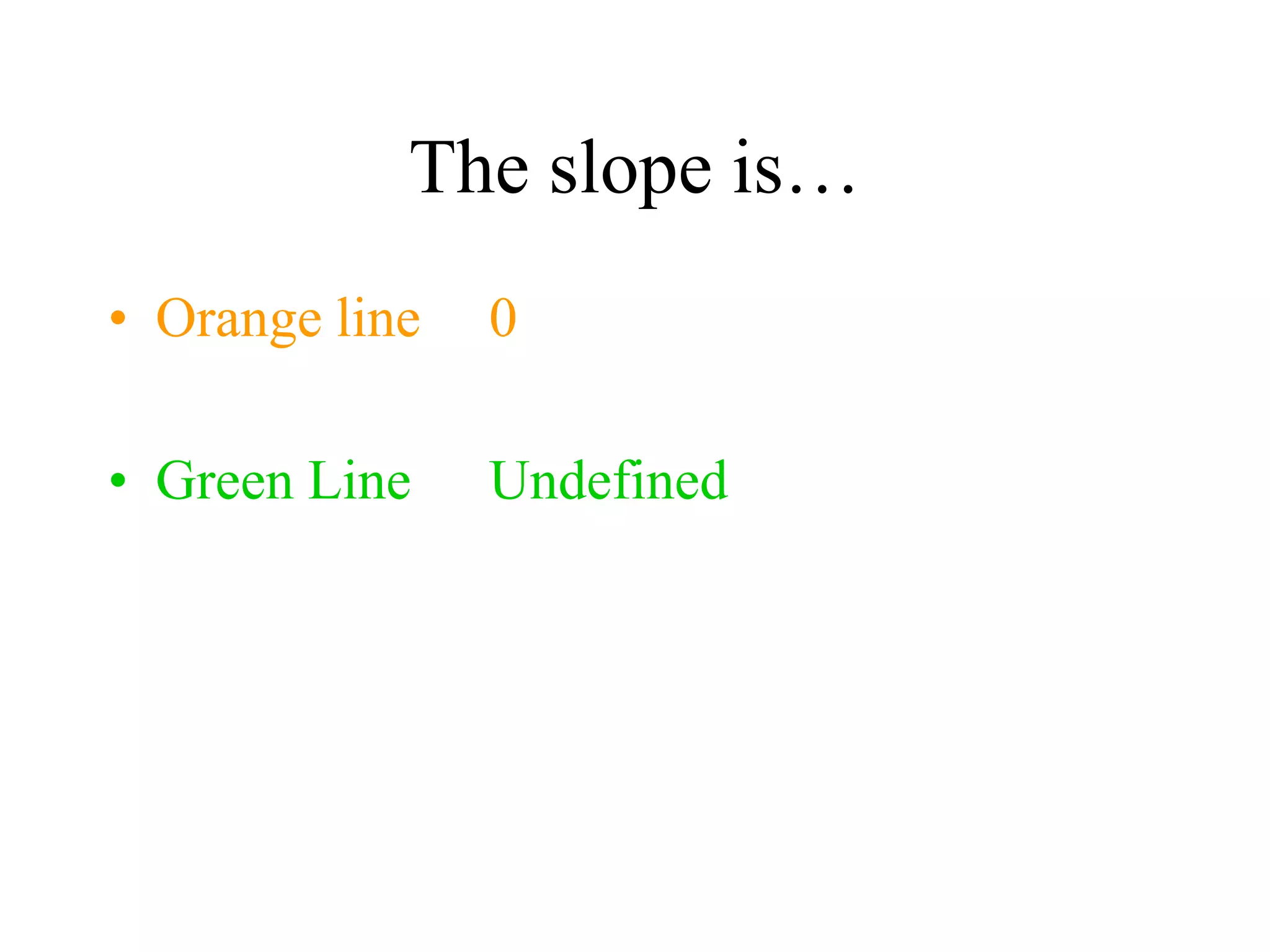

21. The slope is…
• Orange line 0
• Green Line Undefined

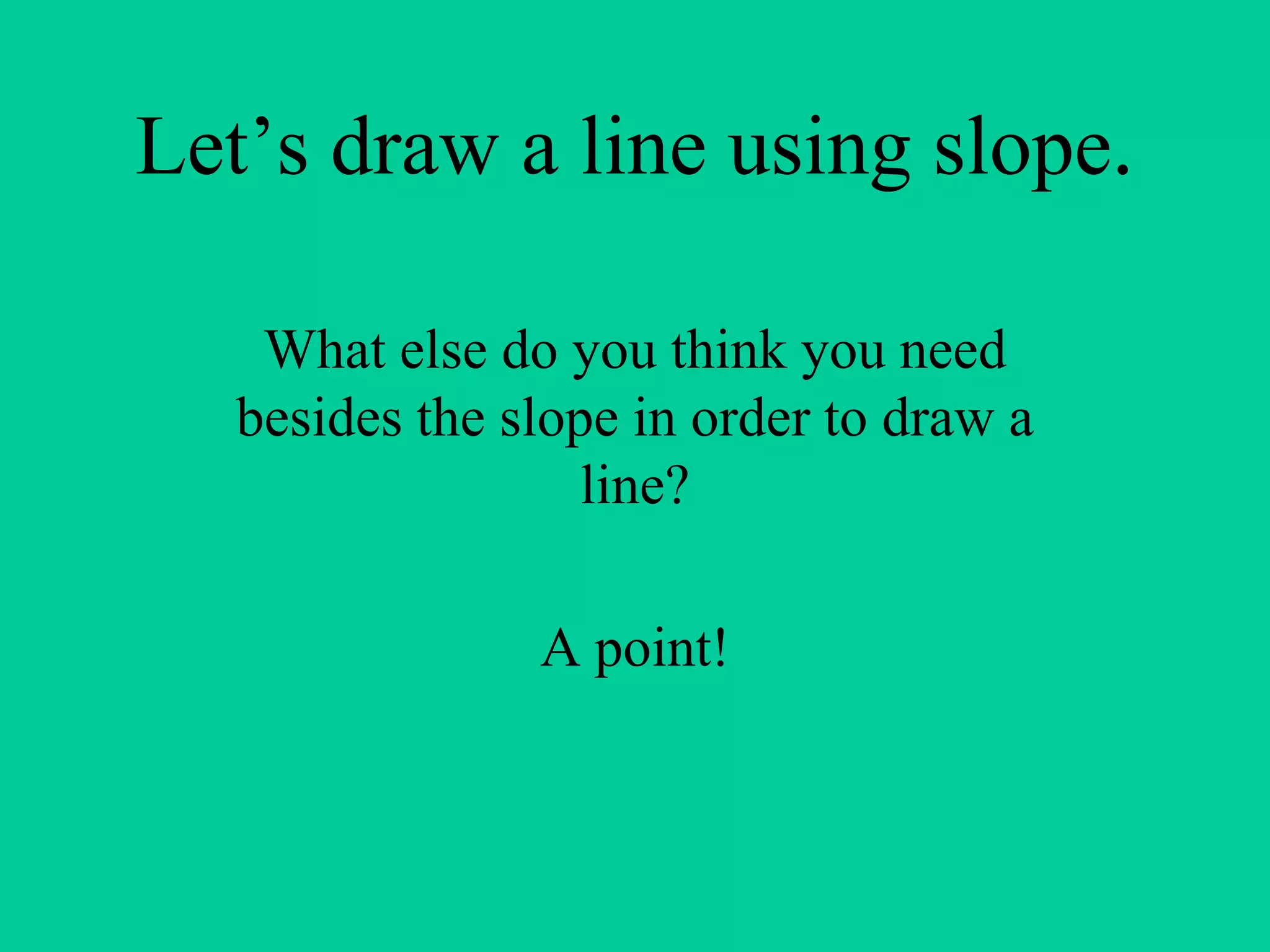

22. Let’s draw a line using slope.
What else do you think you need
besides the slope in order to draw a
line?
A point!

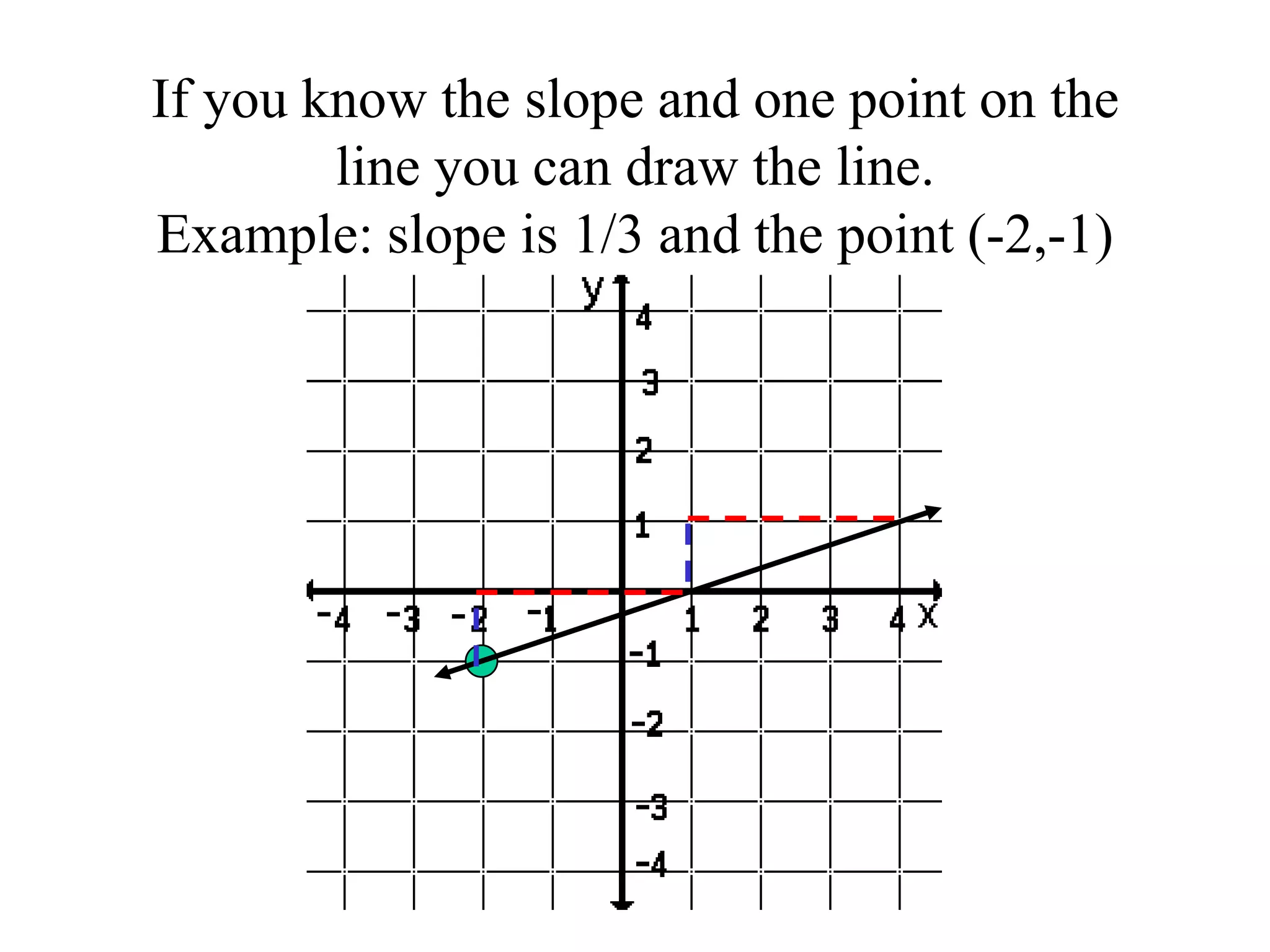

23. If you know the slope and one point on the
line you can draw the line.
Example: slope is 1/3 and the point (-2,-1)

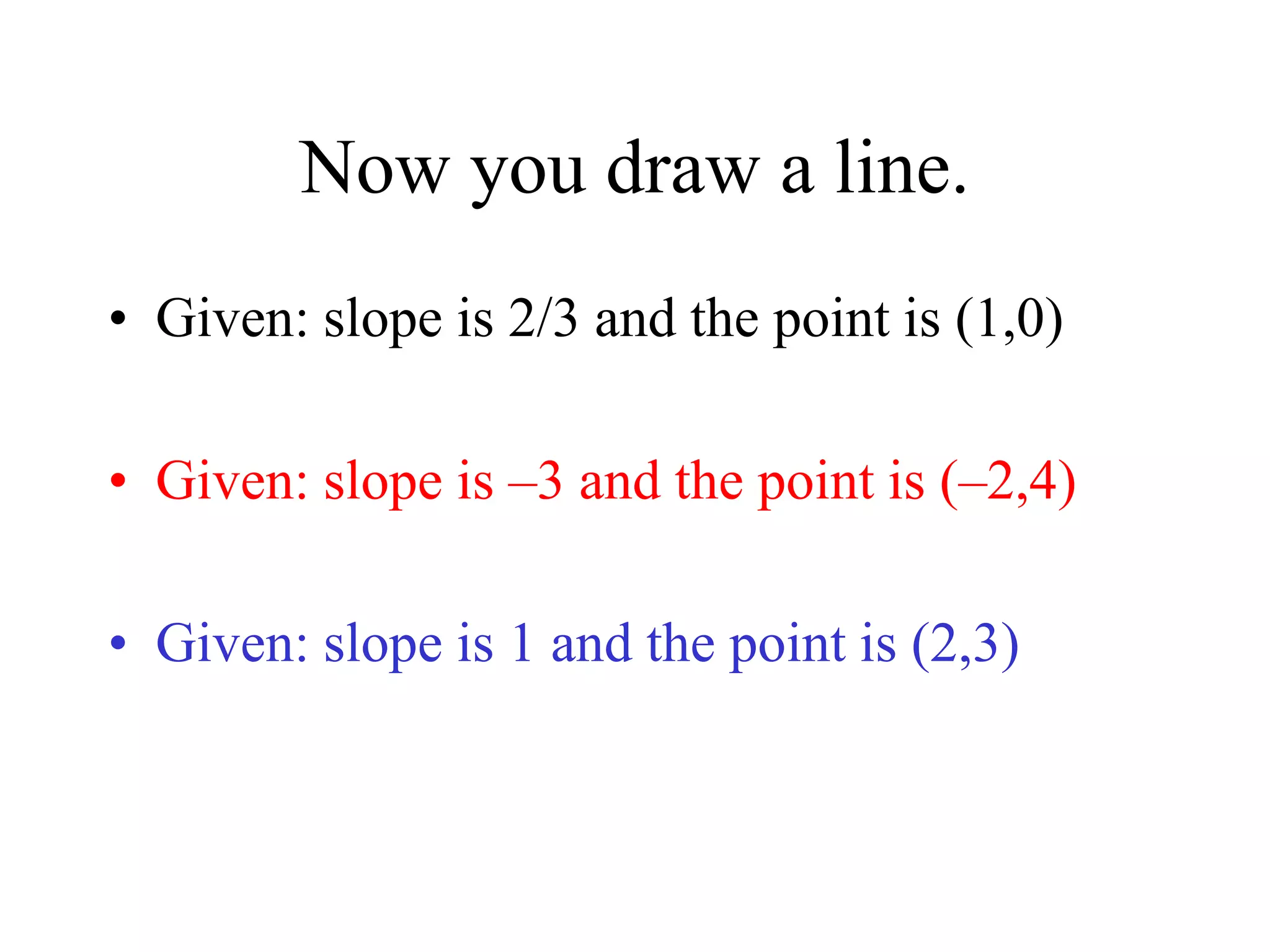

24. Now you draw a line.
• Given: slope is 2/3 and the point is (1,0)
• Given: slope is –3 and the point is (–2,4)
• Given: slope is 1 and the point is (2,3)

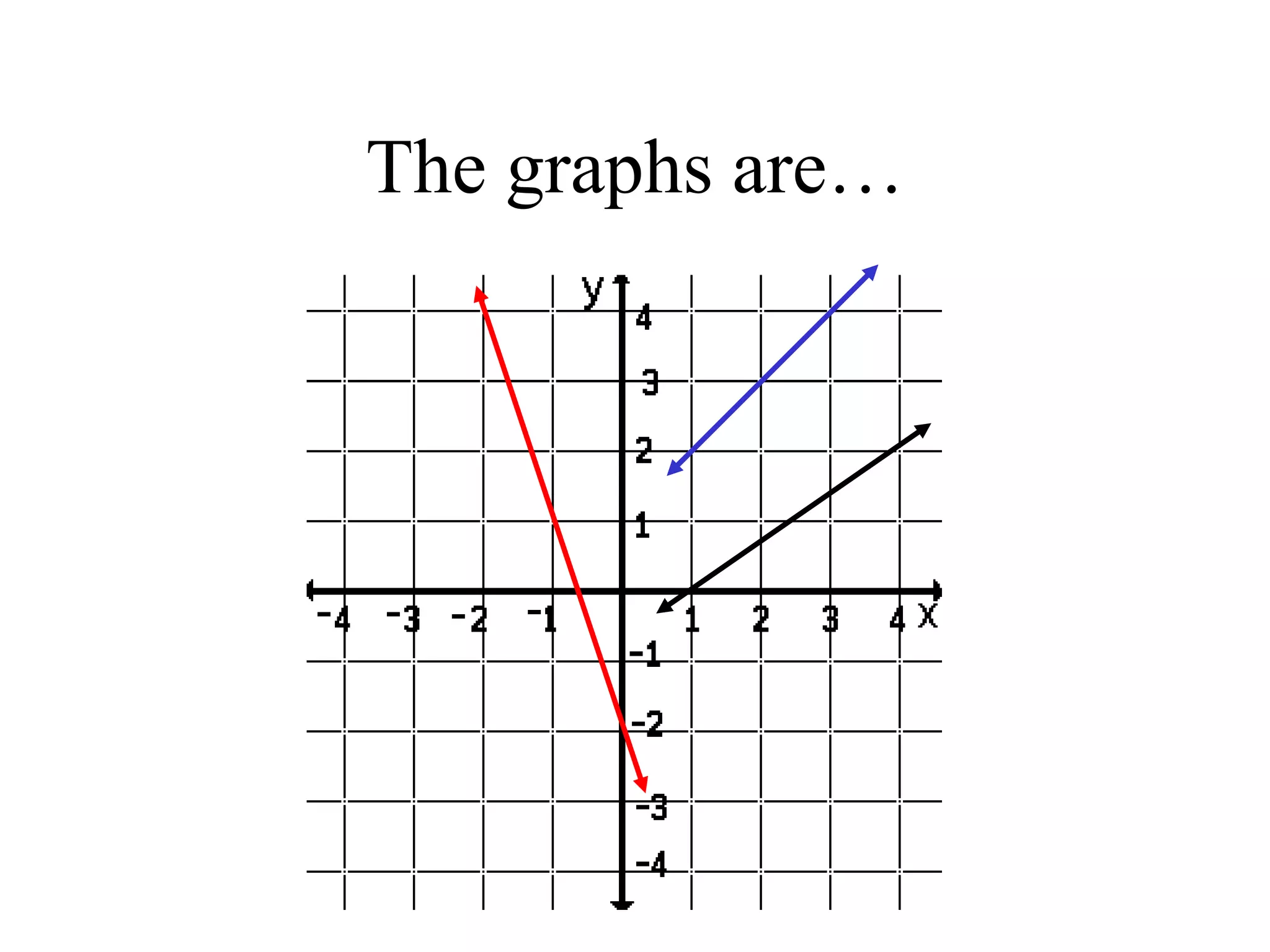

25. The graphs are…

26. Work Time

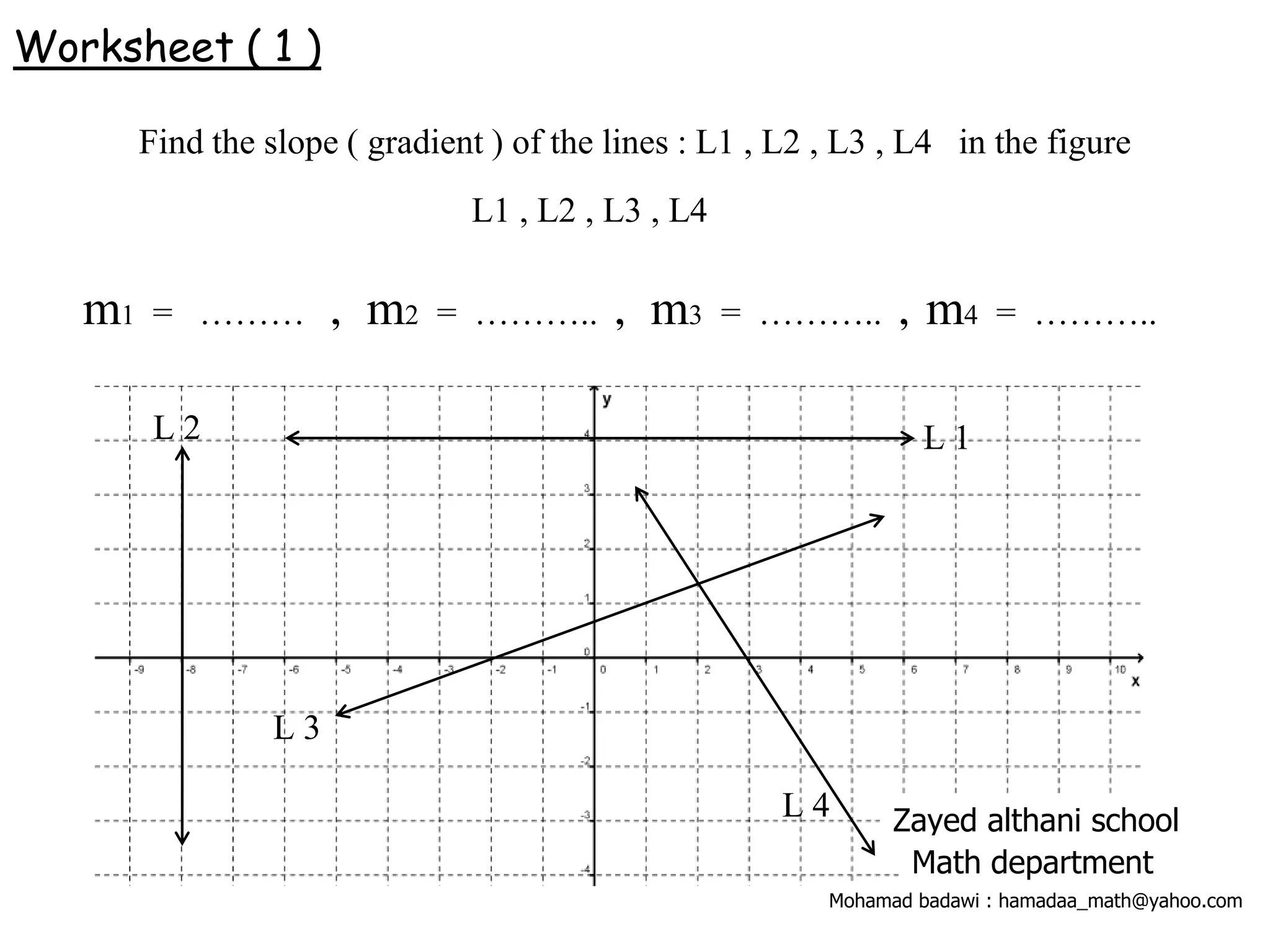

27. Find the slope ( gradient ) of the lines : L1 , L2 , L3 , L4 in the figure
L1 , L2 , L3 , L4
Worksheet ( 1 )
m1 = ……… , m2 = ……….. , m3 = ……….. , m4 = ………..
L 1L 2
L 3
L 4 Zayed althani school
Math department
Mohamad badawi : hamadaa_math@yahoo.com

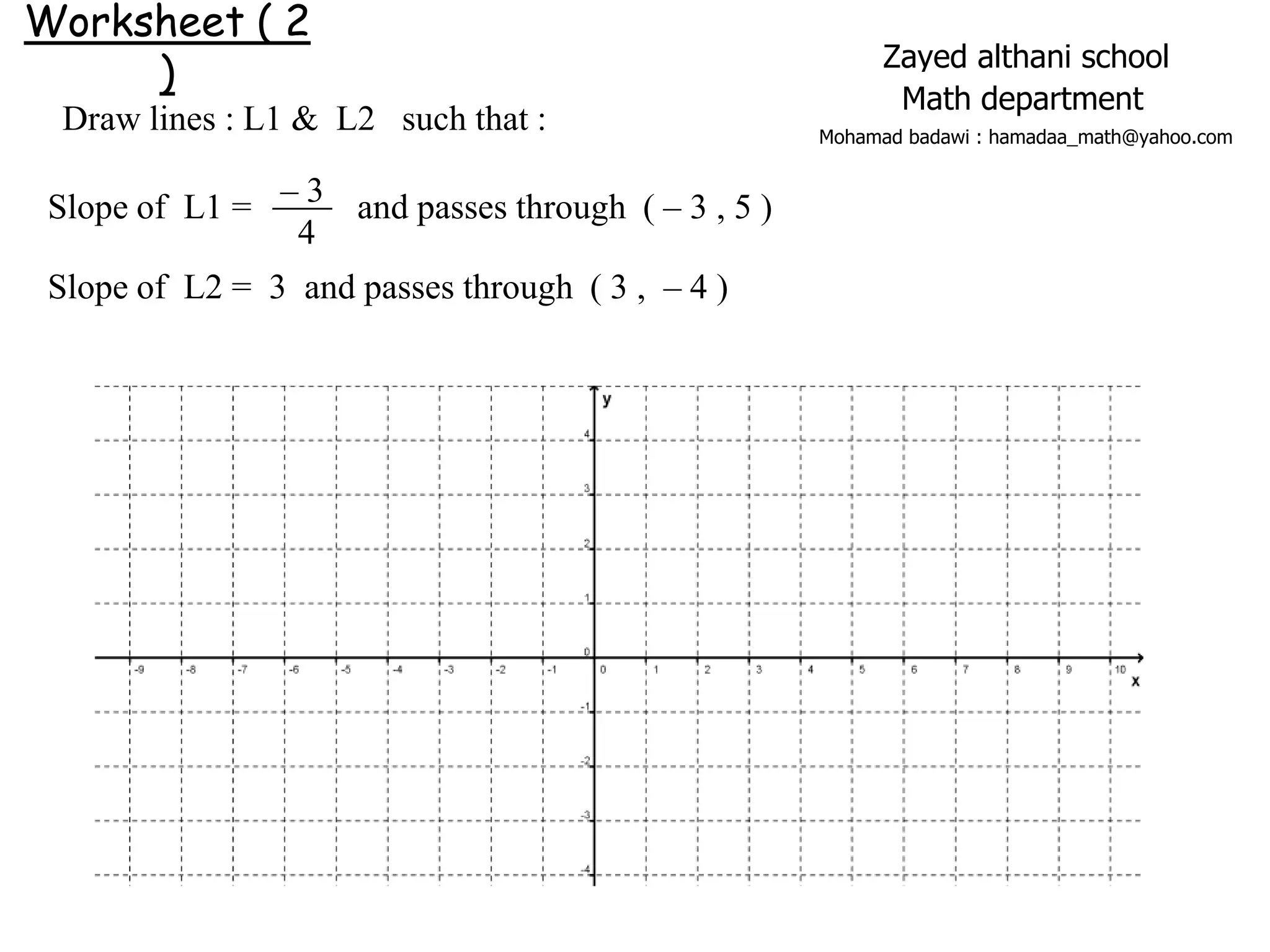

28. Draw lines : L1 & L2 such that :
Worksheet ( 2
)
Slope of L1 = and passes through ( – 3 , 5 )
Slope of L2 = 3 and passes through ( 3 , – 4 )
– 3
4
Zayed althani school
Math department
Mohamad badawi : hamadaa_math@yahoo.com
