ShareCafe: SharePoint 2010 Search

2. 30 January, 2015
Title2

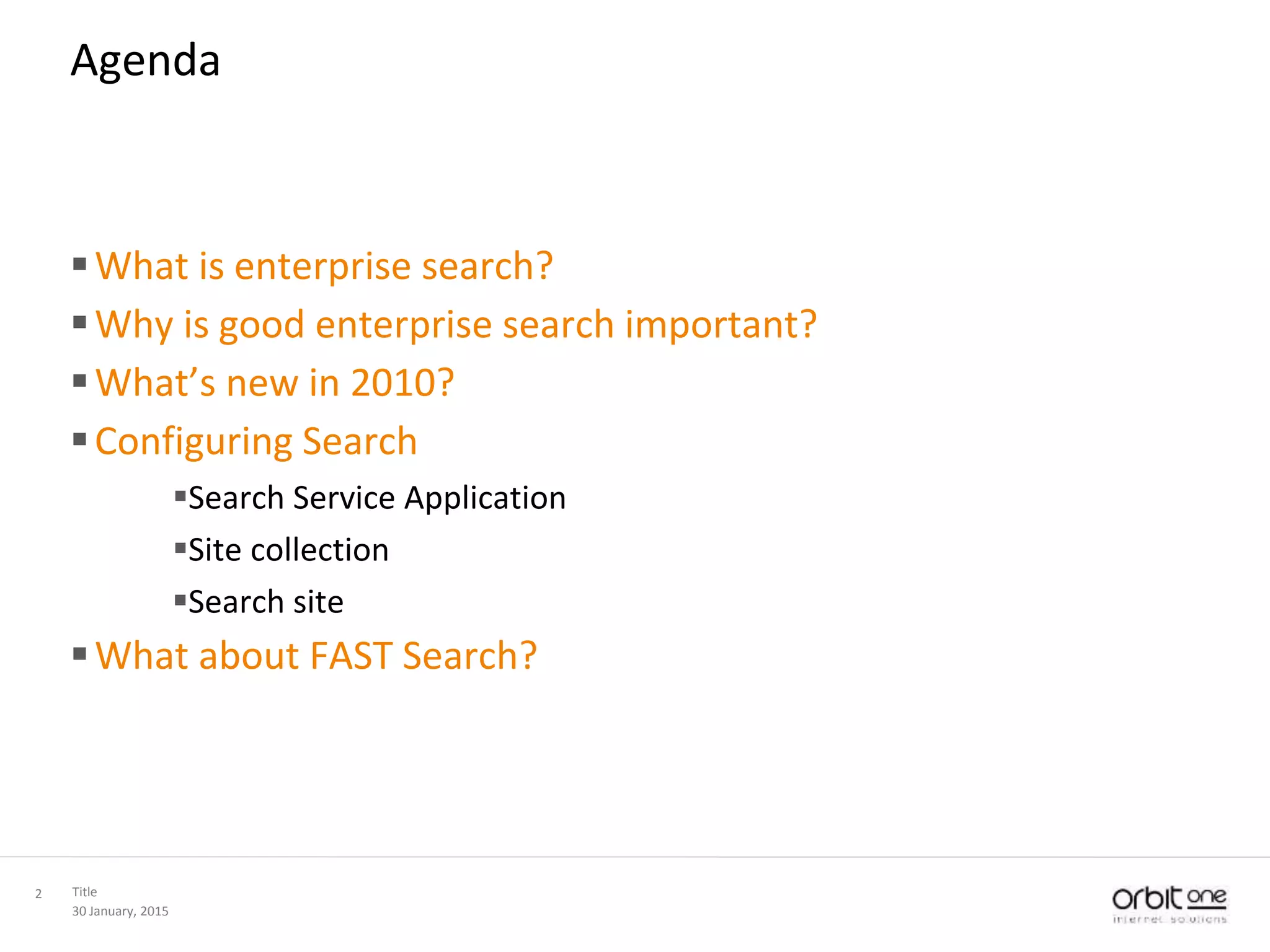

Agenda
What is enterprise search?
Why is good enterprise search important?
What’s new in 2010?
Configuring Search
Search Service Application
Site collection
Search site
What about FAST Search?

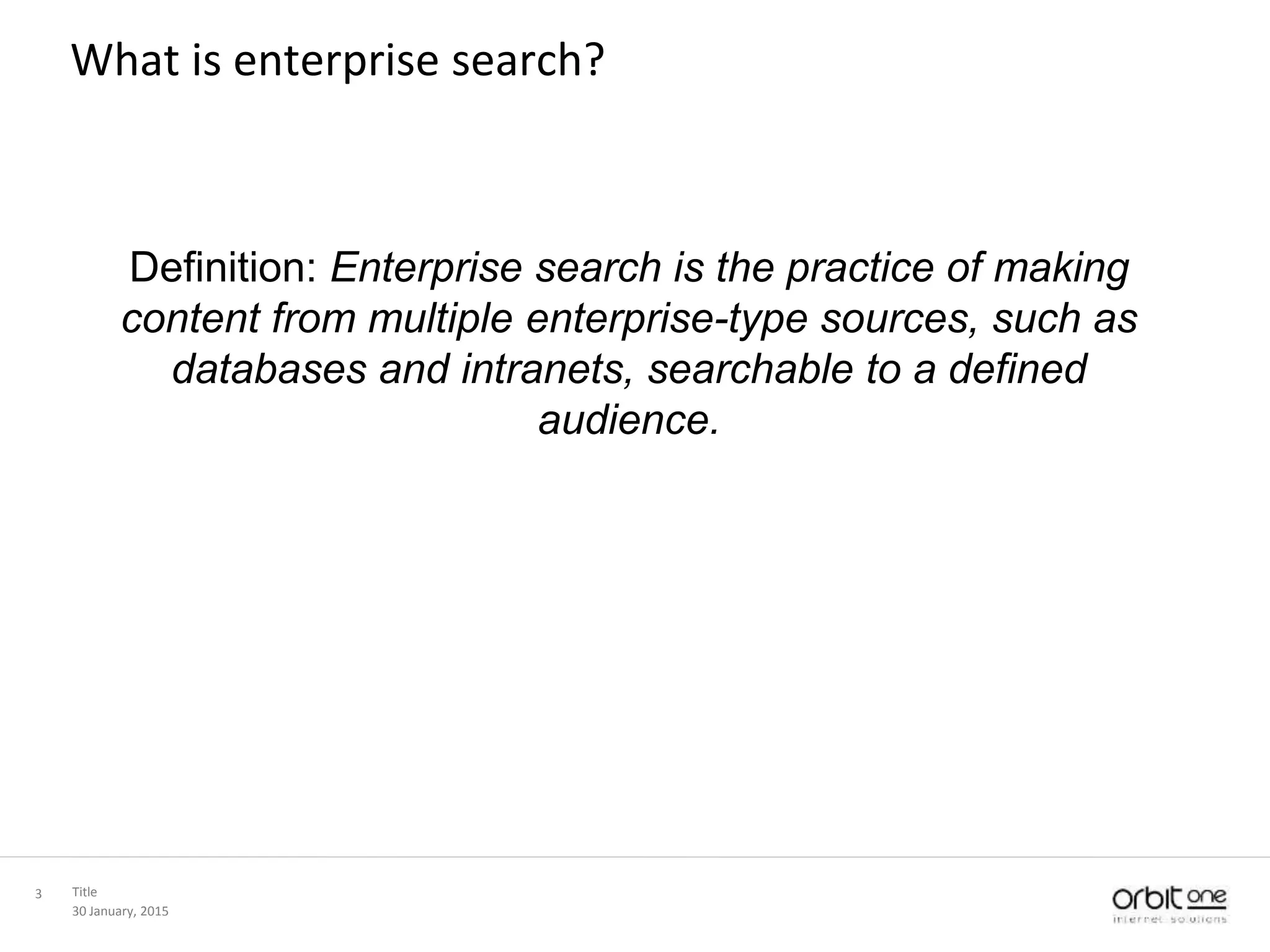

3. What is enterprise search?
30 January, 2015
Title3
Definition: Enterprise search is the practice of making
content from multiple enterprise-type sources, such as
databases and intranets, searchable to a defined
audience.

4. 20% structured
Enterprise Data Challenges
Unmanaged Data is Pervasive & Increasing
80% unstructured
90% of unstructured
data is unmanaged
Volume of data is
increasing ~36%/year
Source: Doculabs 4

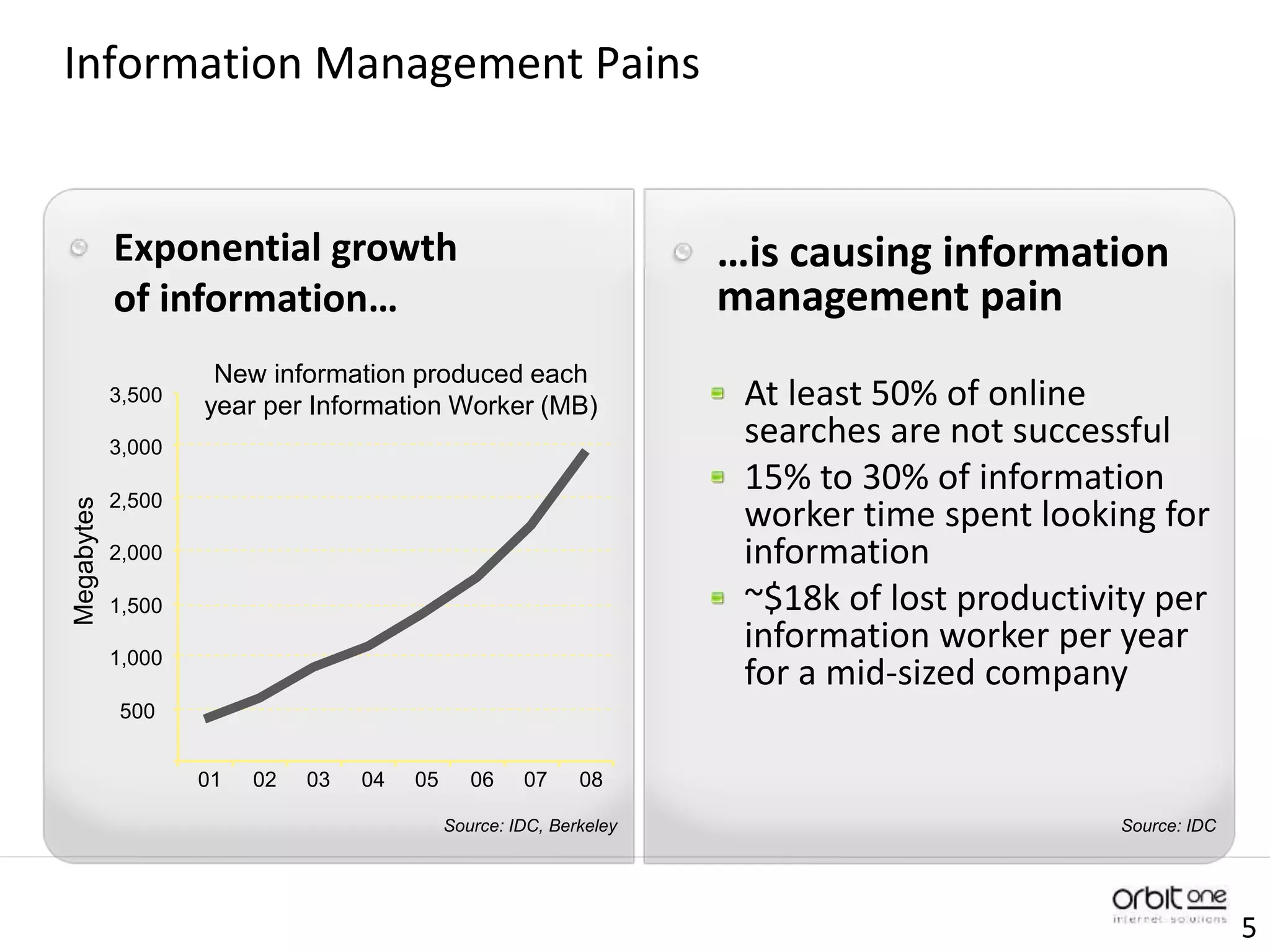

5. Information Management Pains
Exponential growth
of information…
…is causing information
management pain
At least 50% of online
searches are not successful
15% to 30% of information
worker time spent looking for
information
~$18k of lost productivity per
information worker per year
for a mid-sized company
New information produced each
year per Information Worker (MB)
Source: IDC, Berkeley
Megabytes
500
1,000
1,500
2,000
2,500
3,000
3,500
01 02 03 04 05 06 07 08
Source: IDC
5

6. 30 January, 2015
Title6

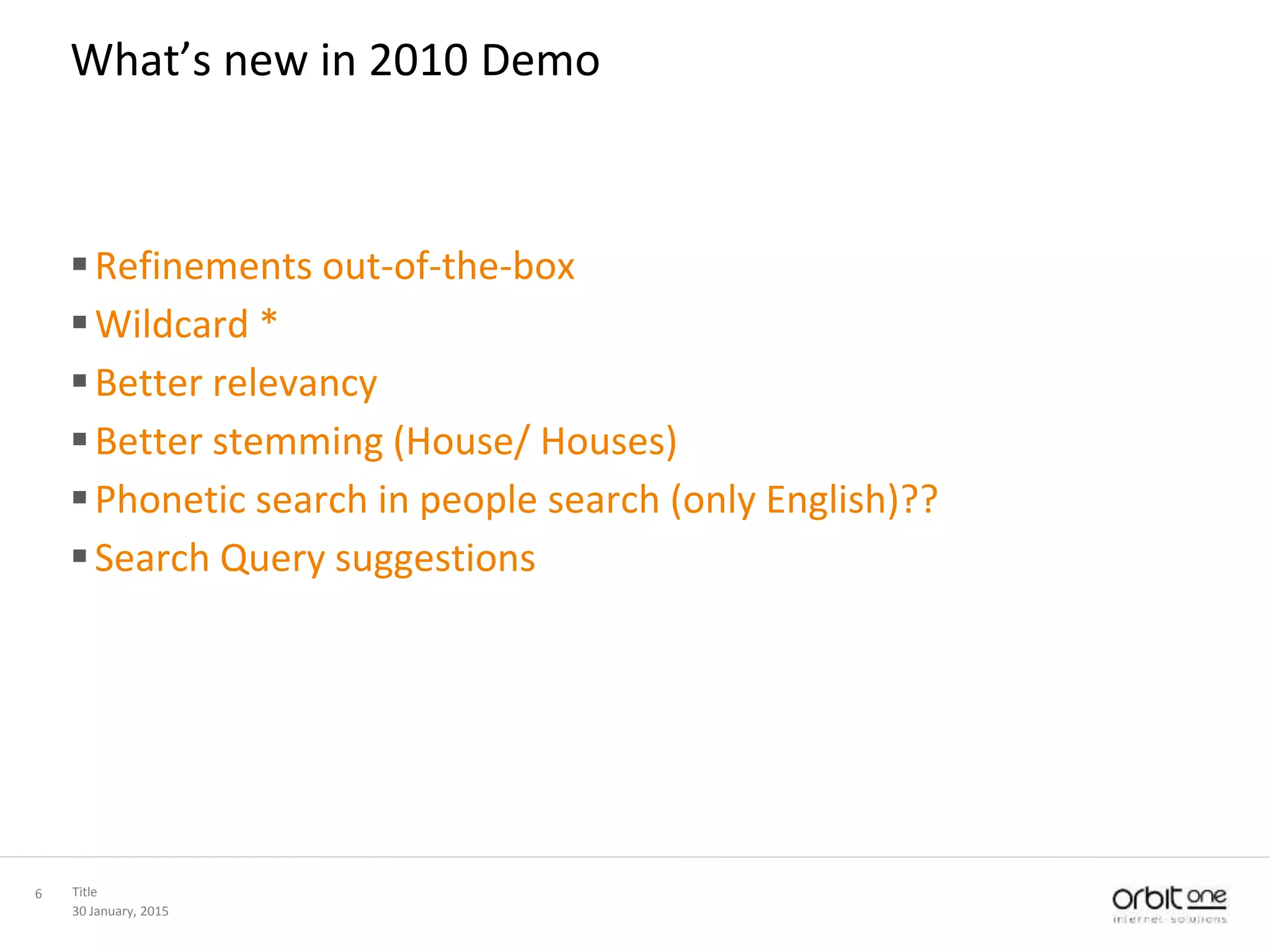

What’s new in 2010 Demo
Refinements out-of-the-box
Wildcard *
Better relevancy
Better stemming (House/ Houses)
Phonetic search in people search (only English)??
Search Query suggestions

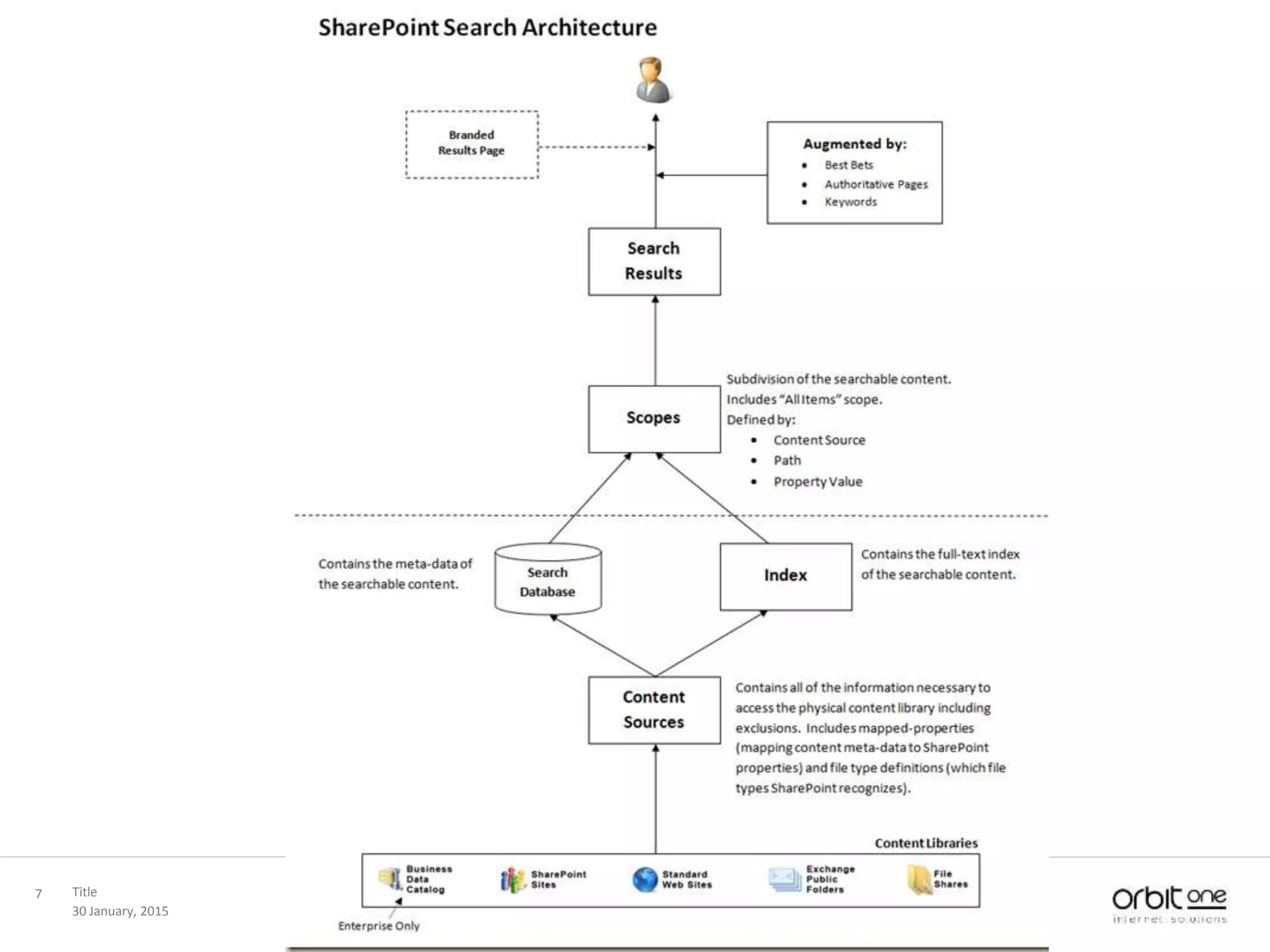

7. 30 January, 2015
Title7

8. 30 January, 2015
Title8

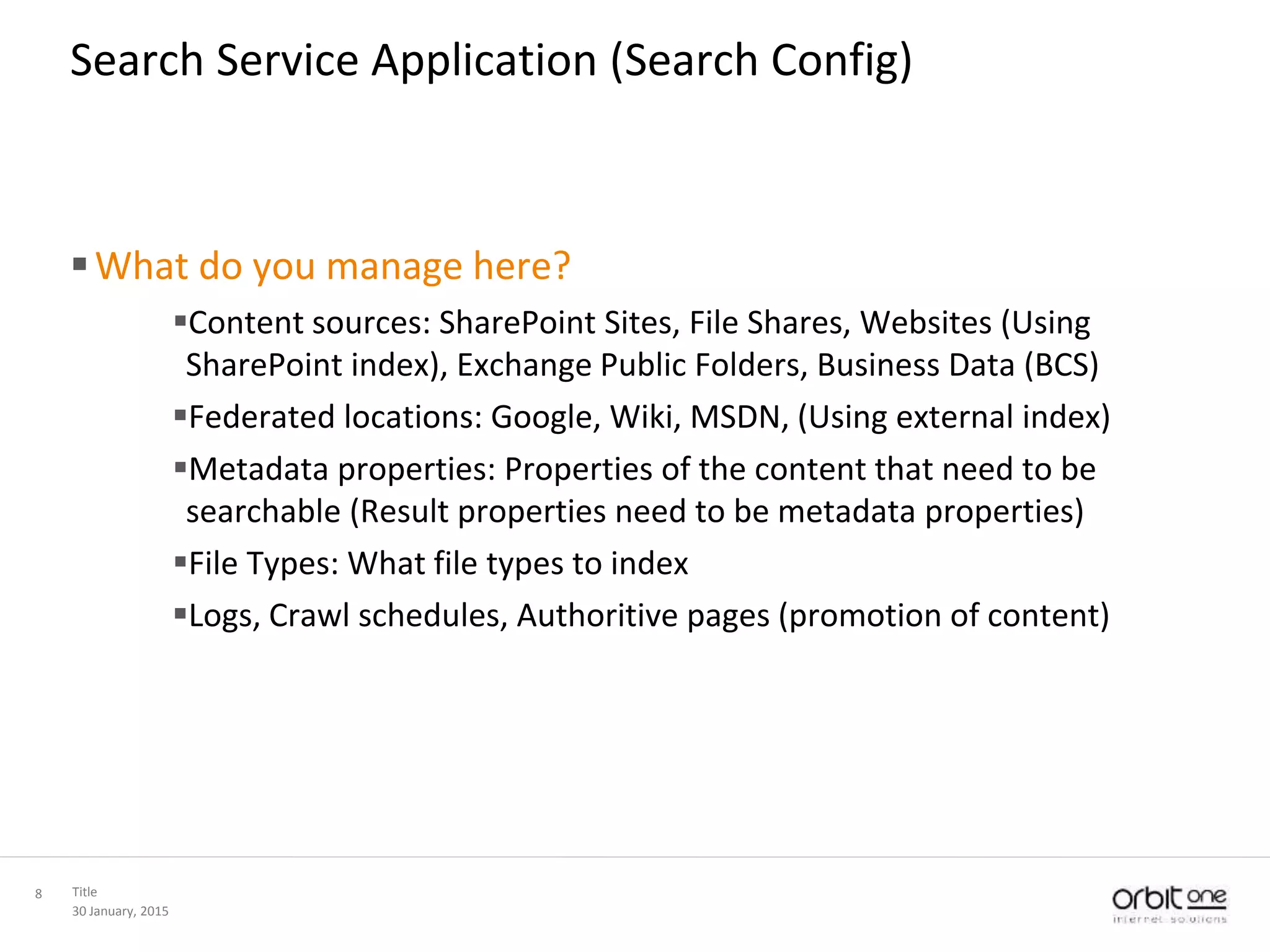

Search Service Application (Search Config)
What do you manage here?
Content sources: SharePoint Sites, File Shares, Websites (Using
SharePoint index), Exchange Public Folders, Business Data (BCS)
Federated locations: Google, Wiki, MSDN, (Using external index)
Metadata properties: Properties of the content that need to be
searchable (Result properties need to be metadata properties)
File Types: What file types to index
Logs, Crawl schedules, Authoritive pages (promotion of content)

9. 30 January, 2015
Title9

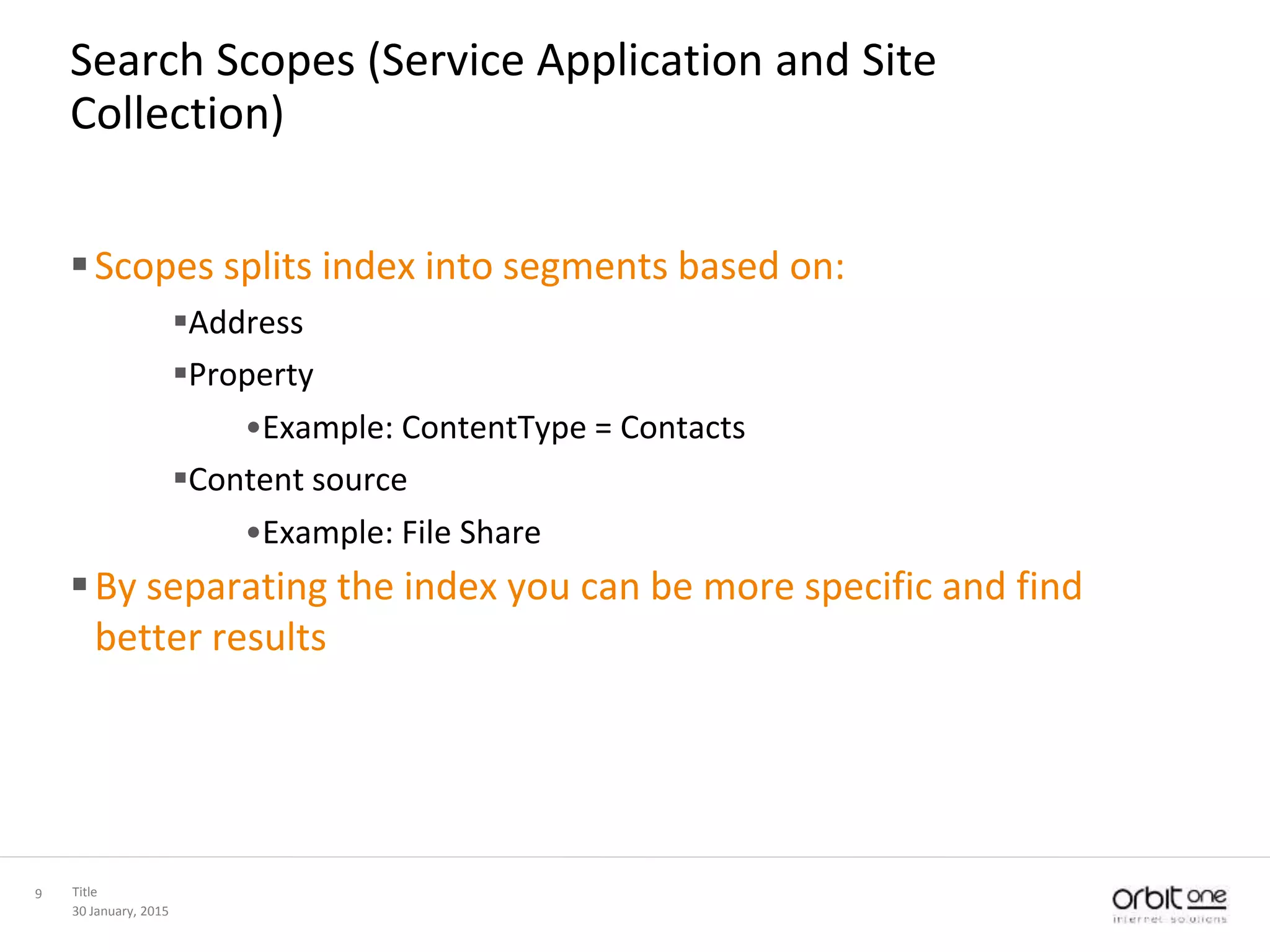

Search Scopes (Service Application and Site
Collection)
Scopes splits index into segments based on:
Address
Property
•Example: ContentType = Contacts
Content source
•Example: File Share
By separating the index you can be more specific and find
better results

10. 30 January, 2015
Title10

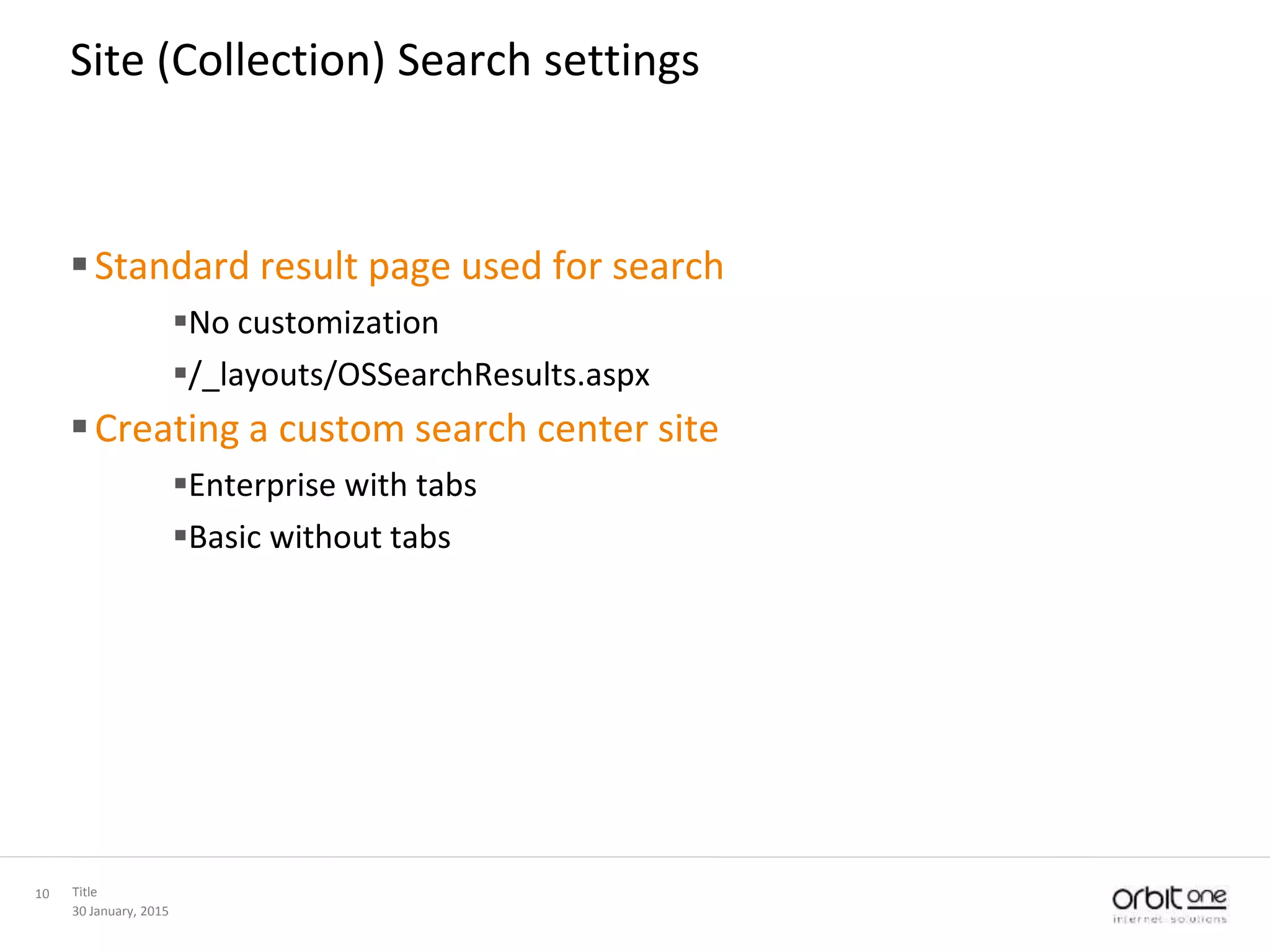

Site (Collection) Search settings
Standard result page used for search
No customization
/_layouts/OSSearchResults.aspx
Creating a custom search center site
Enterprise with tabs
Basic without tabs

11. 30 January, 2015
Title11

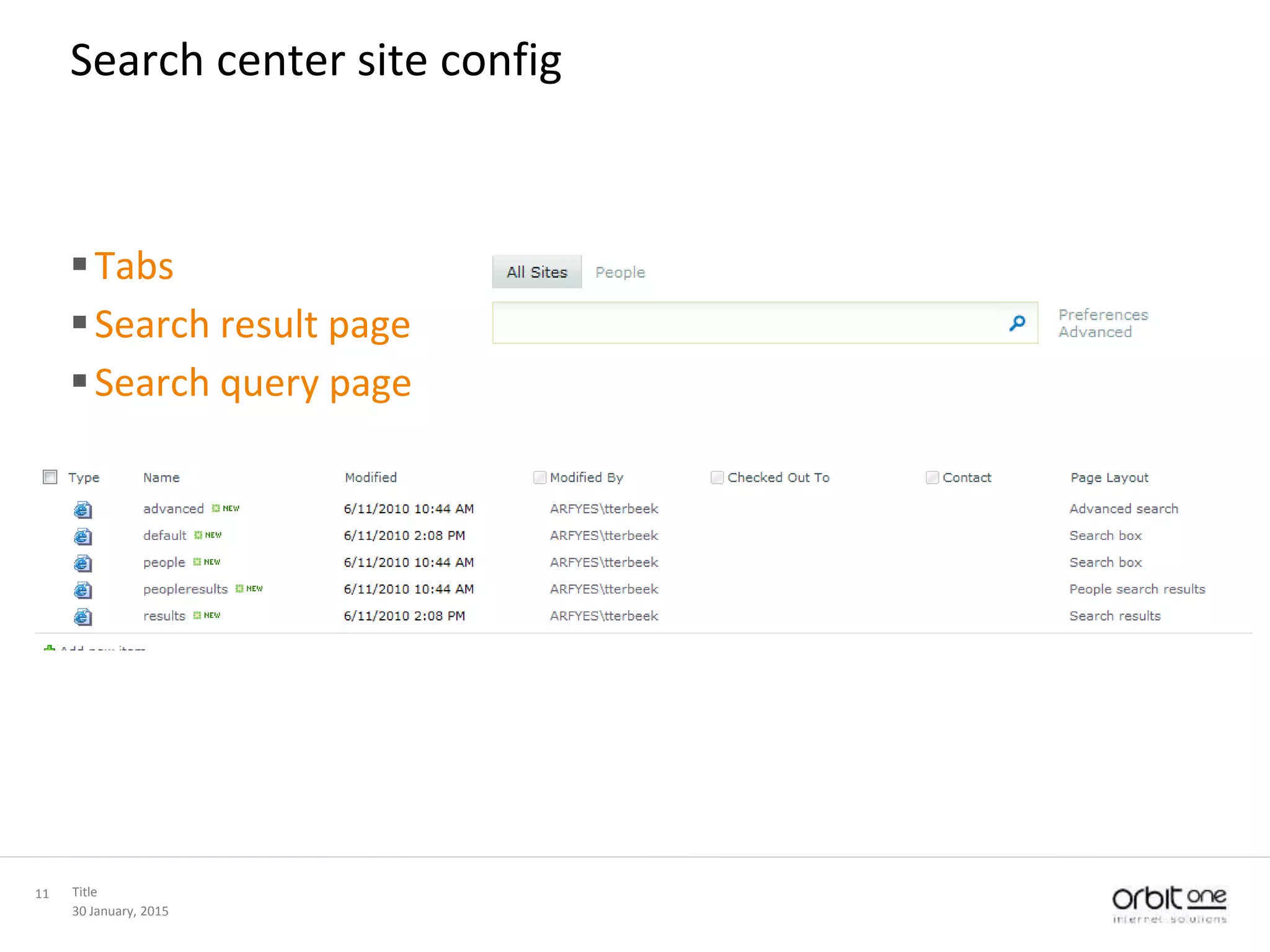

Search center site config
Tabs
Search result page
Search query page

12. 30 January, 2015
Title12
Refinement panel config
Promote properties you want to use as refinement
Some problems with multiple value lookup/choice columns
Crawl
Edit webpart refinement web part on results page
!Don’t forget to uncheck localisation

13. 30 January, 2015
Title13

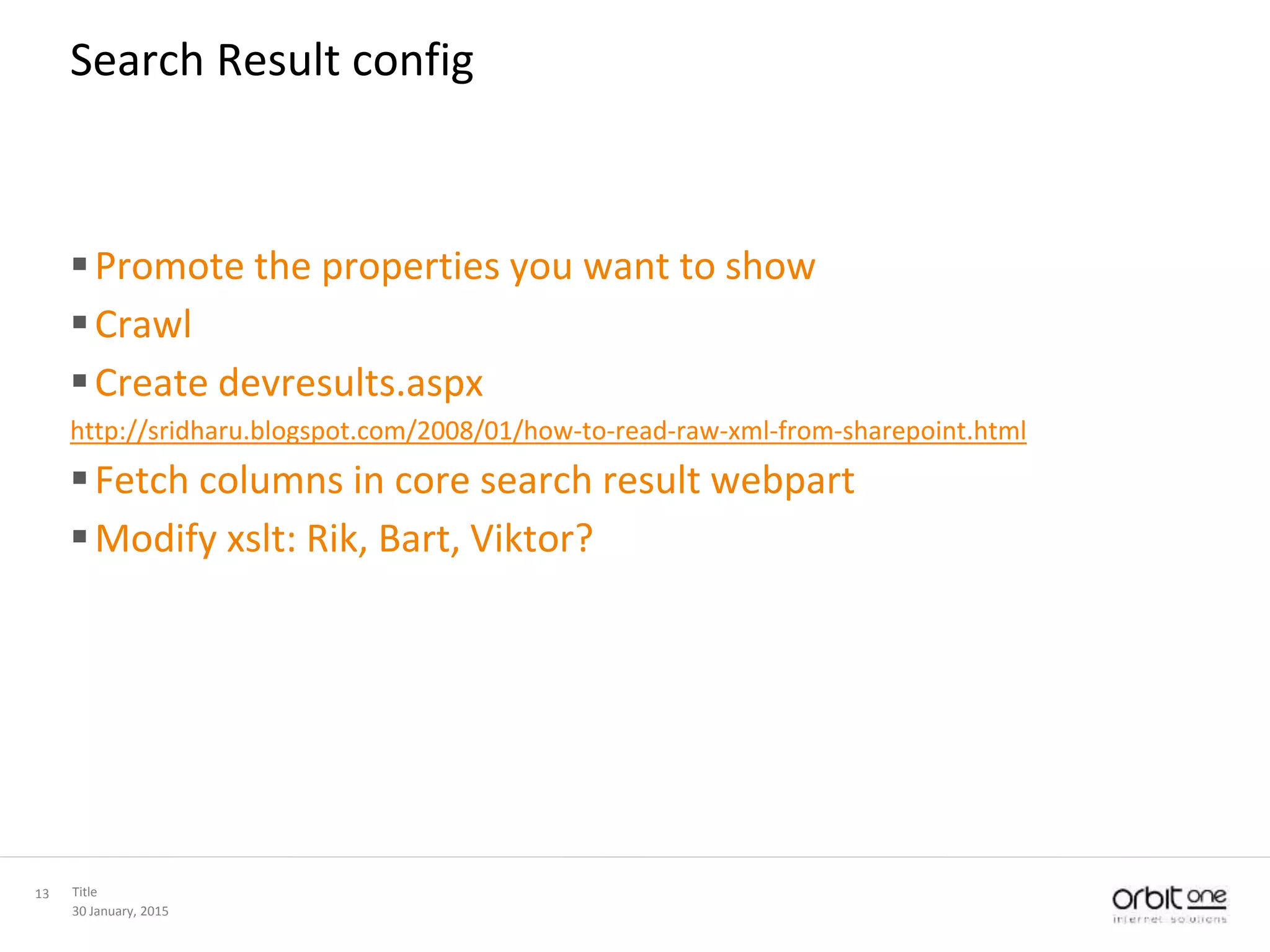

Search Result config
Promote the properties you want to show
Crawl
Create devresults.aspx
http://sridharu.blogspot.com/2008/01/how-to-read-raw-xml-from-sharepoint.html
Fetch columns in core search result webpart
Modify xslt: Rik, Bart, Viktor?

14. 30 January, 2015
Title14

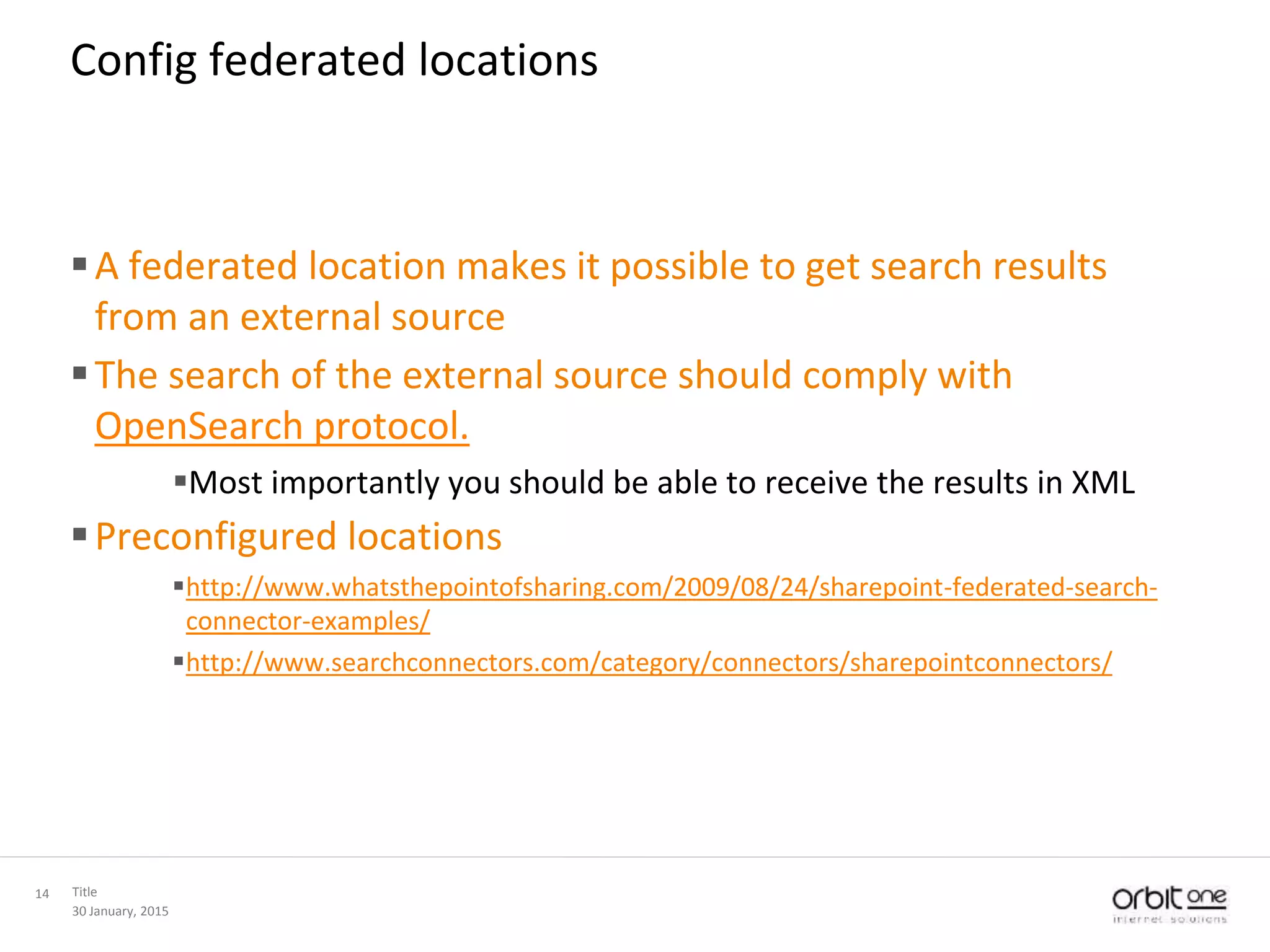

Config federated locations
A federated location makes it possible to get search results
from an external source
The search of the external source should comply with
OpenSearch protocol.
Most importantly you should be able to receive the results in XML
Preconfigured locations
http://www.whatsthepointofsharing.com/2009/08/24/sharepoint-federated-search-
connector-examples/
http://www.searchconnectors.com/category/connectors/sharepointconnectors/

15. 30 January, 2015
Title15

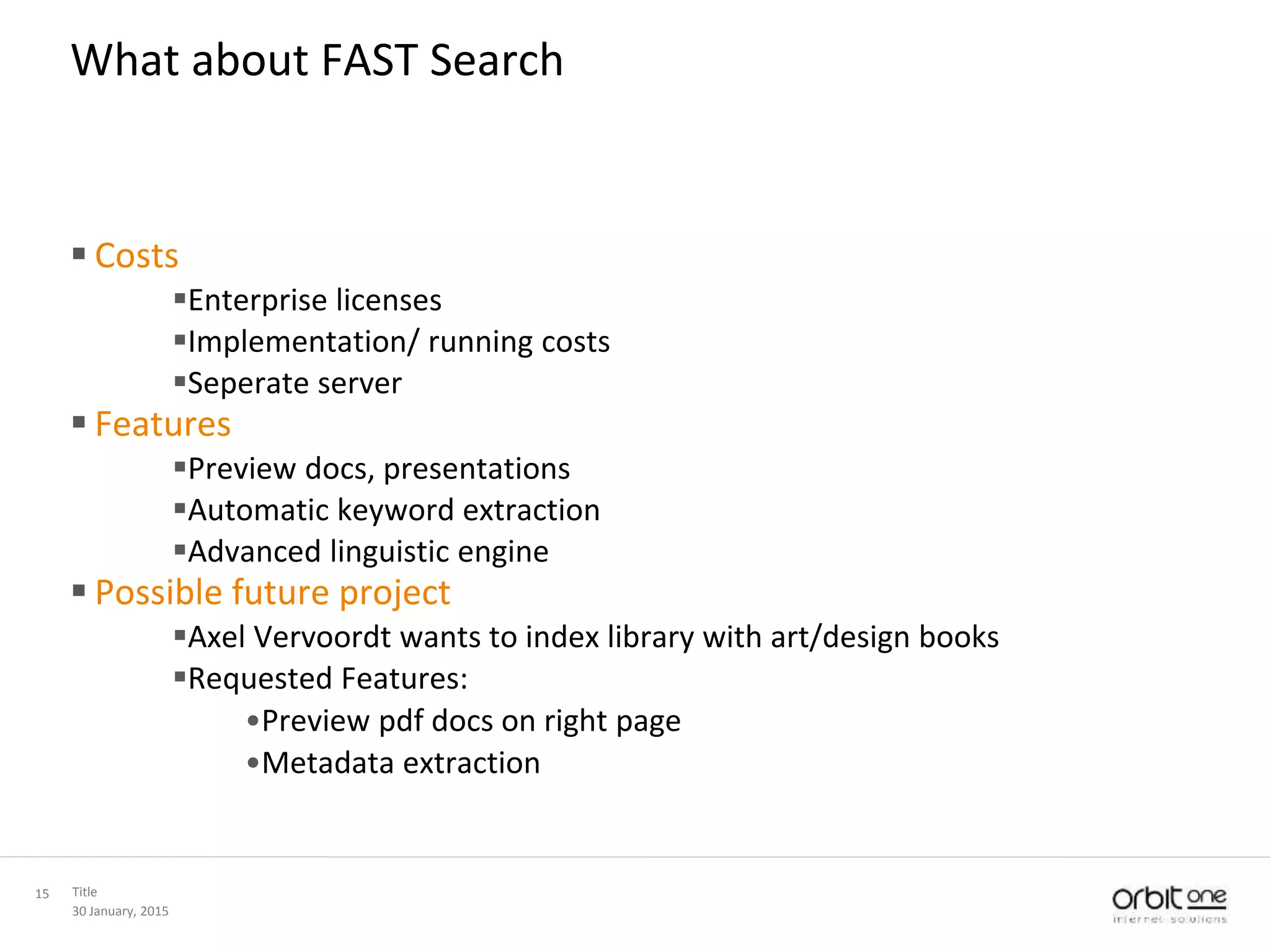

What about FAST Search
 Costs
Enterprise licenses
Implementation/ running costs
Seperate server
 Features
Preview docs, presentations
Automatic keyword extraction
Advanced linguistic engine
 Possible future project
Axel Vervoordt wants to index library with art/design books
Requested Features:
•Preview pdf docs on right page
•Metadata extraction
