This document discusses series and parallel circuits. It defines series circuits as those where components are arranged in sequence, with current passing through each component. Parallel circuits have components arranged in branches, with the same voltage applied across each. The key formulas are provided: for series circuits current is the same through each component but voltage adds up, while for parallel circuits voltage is the same across each branch but currents combine. Examples are given applying the formulas to calculate total resistance in series, parallel and combined series-parallel circuits. Measurement devices like multimeters are also introduced.
In this presentation I defined the series and parallel circuit's and their behaviour how to these circuit works and their advantages and disadvantages it may be help you to understand their use.
In this presentation I defined the series and parallel circuit's and their behaviour how to these circuit works and their advantages and disadvantages it may be help you to understand their use.
An electric circuit is a path in which electrons from a voltage or current source flow. The point where those electrons enter an electrical circuit is called the "source" of electrons.
A series circuit is a circuit in which resistors are arranged in a chain, so the current has only one path to take. The current is the same through each resistor.
An electric circuit is a path in which electrons from a voltage or current source flow. The point where those electrons enter an electrical circuit is called the "source" of electrons.
A series circuit is a circuit in which resistors are arranged in a chain, so the current has only one path to take. The current is the same through each resistor.
Biological screening of herbal drugs: Introduction and Need for
Phyto-Pharmacological Screening, New Strategies for evaluating
Natural Products, In vitro evaluation techniques for Antioxidants, Antimicrobial and Anticancer drugs. In vivo evaluation techniques
for Anti-inflammatory, Antiulcer, Anticancer, Wound healing, Antidiabetic, Hepatoprotective, Cardio protective, Diuretics and
Antifertility, Toxicity studies as per OECD guidelines
Acetabularia Information For Class 9 .docxvaibhavrinwa19
Acetabularia acetabulum is a single-celled green alga that in its vegetative state is morphologically differentiated into a basal rhizoid and an axially elongated stalk, which bears whorls of branching hairs. The single diploid nucleus resides in the rhizoid.
Embracing GenAI - A Strategic ImperativePeter Windle
Artificial Intelligence (AI) technologies such as Generative AI, Image Generators and Large Language Models have had a dramatic impact on teaching, learning and assessment over the past 18 months. The most immediate threat AI posed was to Academic Integrity with Higher Education Institutes (HEIs) focusing their efforts on combating the use of GenAI in assessment. Guidelines were developed for staff and students, policies put in place too. Innovative educators have forged paths in the use of Generative AI for teaching, learning and assessments leading to pockets of transformation springing up across HEIs, often with little or no top-down guidance, support or direction.
This Gasta posits a strategic approach to integrating AI into HEIs to prepare staff, students and the curriculum for an evolving world and workplace. We will highlight the advantages of working with these technologies beyond the realm of teaching, learning and assessment by considering prompt engineering skills, industry impact, curriculum changes, and the need for staff upskilling. In contrast, not engaging strategically with Generative AI poses risks, including falling behind peers, missed opportunities and failing to ensure our graduates remain employable. The rapid evolution of AI technologies necessitates a proactive and strategic approach if we are to remain relevant.
Honest Reviews of Tim Han LMA Course Program.pptxtimhan337
Personal development courses are widely available today, with each one promising life-changing outcomes. Tim Han’s Life Mastery Achievers (LMA) Course has drawn a lot of interest. In addition to offering my frank assessment of Success Insider’s LMA Course, this piece examines the course’s effects via a variety of Tim Han LMA course reviews and Success Insider comments.
Unit 8 - Information and Communication Technology (Paper I).pdfThiyagu K
This slides describes the basic concepts of ICT, basics of Email, Emerging Technology and Digital Initiatives in Education. This presentations aligns with the UGC Paper I syllabus.
Welcome to TechSoup New Member Orientation and Q&A (May 2024).pdfTechSoup
In this webinar you will learn how your organization can access TechSoup's wide variety of product discount and donation programs. From hardware to software, we'll give you a tour of the tools available to help your nonprofit with productivity, collaboration, financial management, donor tracking, security, and more.
Palestine last event orientationfvgnh .pptxRaedMohamed3
An EFL lesson about the current events in Palestine. It is intended to be for intermediate students who wish to increase their listening skills through a short lesson in power point.
Instructions for Submissions thorugh G- Classroom.pptxJheel Barad
This presentation provides a briefing on how to upload submissions and documents in Google Classroom. It was prepared as part of an orientation for new Sainik School in-service teacher trainees. As a training officer, my goal is to ensure that you are comfortable and proficient with this essential tool for managing assignments and fostering student engagement.

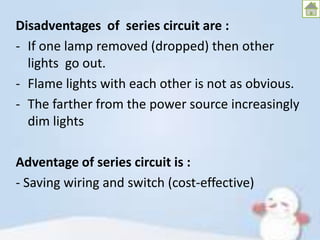

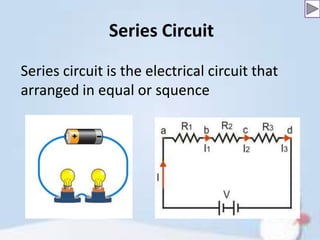

4. Disadventages of series circuit are :
- If one lamp removed (dropped) then other
lights go out.
- Flame lights with each other is not as obvious.
- The farther from the power source increasingly
dim lights
Adventage of series circuit is :
- Saving wiring and switch (cost-effective)

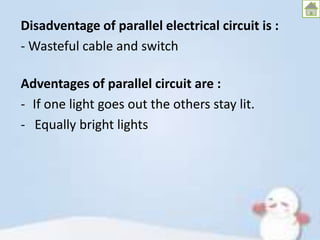

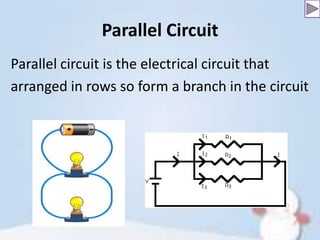

6. Disadventage of parallel electrical circuit is :
- Wasteful cable and switch
Adventages of parallel circuit are :
- If one light goes out the others stay lit.
- Equally bright lights

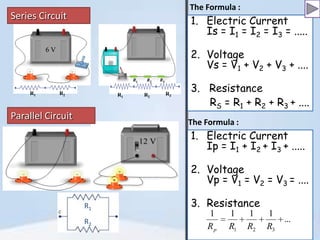

7. The Formula :
Series Circuit
1. Electric Current
Is = I1 = I2 = I3 = .....
2. Voltage
Vs = V1 + V2 + V3 + ....
R1
R2
R1
Parallel Circuit
R2
R3
3. Resistance
RS = R1 + R2 + R3 + ....
The Formula :
1. Electric Current
Ip = I1 + I2 + I3 + .....
2. Voltage
Vp = V1 = V2 = V3 = ....
R1
R2
3. Resistance
1
Rp
1
R1
1
R2
1
R3
...
8. Example to Measuring Resistor
1. Resistor Series Circuit
Answer
Use Formula Of Series Resistor
R Total = R1 + R2 + R3
R Total = 15 + 5 + 30
R Total = 50 Ohm
9. 2. Resistor Parallel Circuit
Answer
Use Formula Of Parallel Resistor
1/R Total = 1/R1 + 1/R2 + 1/R3
1/R Total = 1/15 + 1/15 + 1/30
1/R Total = 2/30 + 2/30 + 1/30
1/R Total = 5/30
R Total = 30/5
R Total = 6 Ohm

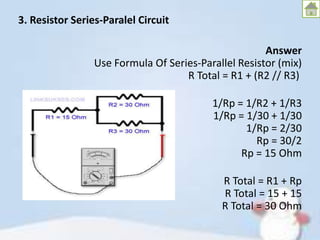

10. 3. Resistor Series-Paralel Circuit
Answer
Use Formula Of Series-Parallel Resistor (mix)
R Total = R1 + (R2 // R3)
1/Rp = 1/R2 + 1/R3
1/Rp = 1/30 + 1/30
1/Rp = 2/30
Rp = 30/2
Rp = 15 Ohm
R Total = R1 + Rp
R Total = 15 + 15
R Total = 30 Ohm

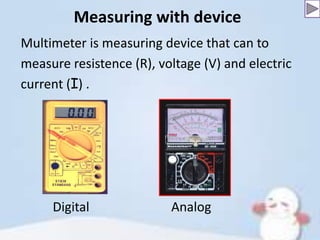

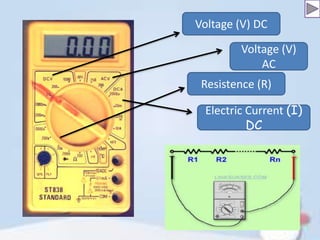

11. Measuring with device
