Docker summit 2015: 以 Docker Swarm 打造多主機叢集環境
The document outlines the configuration and management of Docker Swarm and networking, including linking containers, setting up multi-host networking, and orchestrating Docker services across cloud and local environments. It provides specific Docker commands, container setups, and examples for services like MySQL and web applications, along with links to resources and GitHub repositories. Additionally, it covers network creation, firewall rules setup for Digital Ocean and Google Cloud, and emphasizes high availability in Docker Swarm.
More Related Content
Similar to Docker summit 2015: 以 Docker Swarm 打造多主機叢集環境
Docker summit 2015: 以 Docker Swarm 打造多主機叢集環境
- 1.
- 3. Outline ‣ Introduce ‣ Linkingcontainers together ‣ Linking Docker Engine ‣ multi-host networking ‣ Docker Swarm on multiple VM ‣ Docker Swarm on multiple cloud instance
- 4.
- 5.
- 6. Linking Containers docker compose links dockercompose external_links docker command links
- 7. 1 on 1 serverdatabase Links browser test case JCConf 2015 workshop: 透過 docker 進⾏ e2e test，以 Gradle 及 Geb 為例 http://blog.trunk-studio.com/jcconf2015/
- 8. main: container_name: jcconf_main image: trunk/groovy_gradle command:"/bin/bash -l -c 'gradle remoteFirefoxTest'" links: - client volumes: - ./:/jcconf_main working_dir: /jcconf_main client: container_name: jcconf_client image: vvoyer/docker-selenium-firefox-chrome ports: - "4444:4444" - "5999:5999" docker-compose up -d Links
- 9.
- 10. mysql: container_name: mysql image: dgraziotin/mysql ports: -"3306:3306" environment: MYSQL_ADMIN_PASS: "root" MYSQL_USER_NAME: "nodejsSample" MYSQL_USER_DB: "nodejsSample" MYSQL_USER_PASS: "nodejsSample" CREATE_MYSQL_BASIC_USER_AND_DB: "true" volumes: - ../database:/var/lib/mysql/ restart: always web: container_name: sailsSample image: trunk/sails_env command: "/bin/bash -l -c 'npm start'" ports: - "1337:1337" working_dir: /sailsSample volumes: - ./:/sailsSample external_links: - mysql restart: always docker-compose up -d mysql docker-compose up -d web external_links
- 11.
- 12. Docker Swarm cloud Docker Swarm DockerSwarm with Network local Docker Swarm
- 13.
- 14.
- 15. Overlay Network key-store consul Swarm Master Swarm Node Docker Machine Container Communication DockerEngine Control Docker Engine Register Cloud Docker Swarm Digital Ocean My laptop Digital Ocean Google

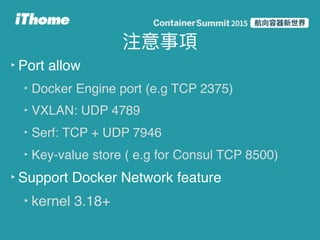

- 16. ‣ Port allow ‣Docker Engine port (e.g TCP 2375) ‣ VXLAN: UDP 4789 ‣ Serf: TCP + UDP 7946 ‣ Key-value store ( e.g for Consul TCP 8500) ‣ Support Docker Network feature ‣ kernel 3.18+

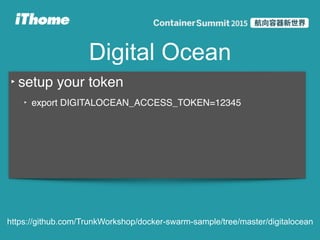

- 17. Digital Ocean ‣ setupyour token ‣ export DIGITALOCEAN_ACCESS_TOKEN=12345 https://github.com/TrunkWorkshop/docker-swarm-sample/tree/master/digitalocean
- 18. Google Cloud Platform ‣gcloud auth login https://cloud.google.com/sdk/ ‣ create google-project ‣ export GOOGLE_PROJECT='project name' ‣ activate Compute Engine API ‣ setup firewall-rules ‣ gcloud compute firewall-rules update default-swarm --allow tcp:2376 tcp:2375 tcp:3376 tcp:8500 UDP:4789 TCP:7946 UDP:7946 --source-range 0.0.0.0/0 ‣ gcloud compute firewall-rules create default-demo --allow tcp:5000 tcp:27017 tcp:80 --source-range 0.0.0.0/0 https://github.com/TrunkWorkshop/docker-swarm-sample/tree/master/google
- 19. Prepare Muti-Host DockerEnvironment

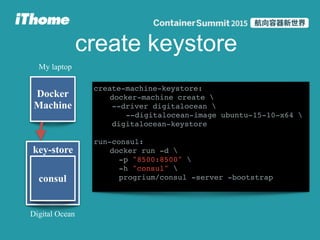

- 20. key-store consul Docker Machine create-machine-keystore: docker-machine create --driverdigitalocean --digitalocean-image ubuntu-15-10-x64 digitalocean-keystore run-consul: docker run -d -p "8500:8500" -h "consul" progrium/consul -server -bootstrap create keystore Digital Ocean My laptop
- 21. key-store consul create-machine-swarm-master: docker-machine create --driverdigitalocean --digitalocean-image ubuntu-15-10-x64 --swarm --swarm-image="swarm" --swarm-master --swarm-discovery="consul://$(DOCKER_IP_KEYSTORE):8500" --engine-opt="cluster-store=consul://$(DOCKER_IP_KEYSTORE):8500" --engine-opt="cluster-advertise=eth0:2376" digitalocean-master Create Swarm Master Swarm Master Docker Machine export DOCKER_IP_KEYSTORE=$(docker-machine ip digitalocean-keystore) Digital Ocean My laptop Digital Ocean

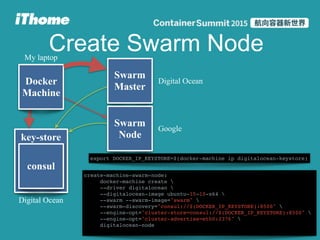

- 22. key-store consul create-machine-swarm-node: docker-machine create --driverdigitalocean --digitalocean-image ubuntu-15-10-x64 --swarm --swarm-image="swarm" --swarm-discovery="consul://$(DOCKER_IP_KEYSTORE):8500" --engine-opt="cluster-store=consul://$(DOCKER_IP_KEYSTORE):8500" --engine-opt="cluster-advertise=eth0:2376" digitalocean-node Create Swarm Node Swarm Master Docker Machine export DOCKER_IP_KEYSTORE=$(docker-machine ip digitalocean-keystore) Swarm Node Digital Ocean My laptop Digital Ocean Google
- 23.
- 24.
- 25. Create Overlay Network create-network-overlay: dockernetwork create --driver overlay cloud-overlay Overlay Network key-store consul Swarm Master Swarm Node Docker Machine Digital Ocean My laptop Digital Ocean Google
- 26.
- 27. Run Docker Containers With Multi-HostDocker Environment
- 28. Orchestration Docker Compose Manual Network DockerCompose Auto Network Docker Command
- 29. Docker Commandrun-sample-server: docker run-itd --name=web --net=cloud-overlay --env="constraint:node==master" nginx run-sample-client: docker run -it --rm --net=cloud-overlay --env="constraint:node==node" busybox wget -O- http://web Overlay Network key-store consul Swarm Master Swarm Node Docker Machine api server client server
- 30. compose_web: container_name: 'compose_web' image: bfirsh/compose-mongodb-demo environment: -"MONGO_HOST=compose_mongo" - "constraint:node==google-node" net: overlay ports: - "80:5000" Docker Compose Manual Network compose_mongo: container_name: 'compose_mongo' image: mongo environment: - "constraint:node==master" net: overlay Overlay Networkkey-store consul Swarm Master Swarm Node Docker Machine server database docker-compose up -d
- 31. compose_web: container_name: 'compose_web' image: bfirsh/compose-mongodb-demo environment: -"MONGO_HOST=compose_mongo" - "constraint:node==google-node" ports: - "80:5000" Docker Compose Auto Network compose_mongo: container_name: 'compose_mongo' image: mongo environment: - "constraint:node==master" Overlay Networkkey-store consul Swarm Master Swarm Node Docker Machine server database docker-compose --x-networking --x-network-driver overlay up -d
- 32.
- 33.
- 35. https://github.com/TrunkWorkshop/docker-swarm-sample make clean-machine make create-machine-keystore eval$(docker-machine env digitalocean-keystore) export DOCKER_IP_KEYSTORE=$(docker-machine ip digitalocean-keystore) make run-consul make create-machine-swarm-master make create-machine-swarm-node eval $(docker-machine env --swarm digitalocean-master) make create-network-overlay make run-sample-server make run-sample-clients make run-by-compose

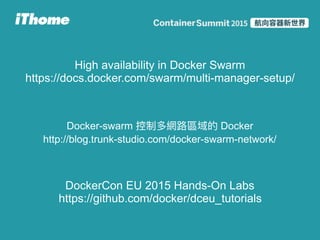

- 36. High availability inDocker Swarm https://docs.docker.com/swarm/multi-manager-setup/ Docker-swarm Docker http://blog.trunk-studio.com/docker-swarm-network/ DockerCon EU 2015 Hands-On Labs https://github.com/docker/dceu_tutorials
