This document summarizes a Docker workshop that covers: 1. Running Docker containers, including starting containers interactively or detached, checking statuses, port forwarding, linking containers, and mounting volumes. 2. Building Docker images, including committing existing containers or building from a Dockerfile, and using Docker build context. 3. The official Docker Hub for finding and using common Docker images like Redis, MySQL, and Jenkins. It also covers tagging and pushing images to private Docker registries.

1. Docker Workshop
Evans Ye
2014.10.13

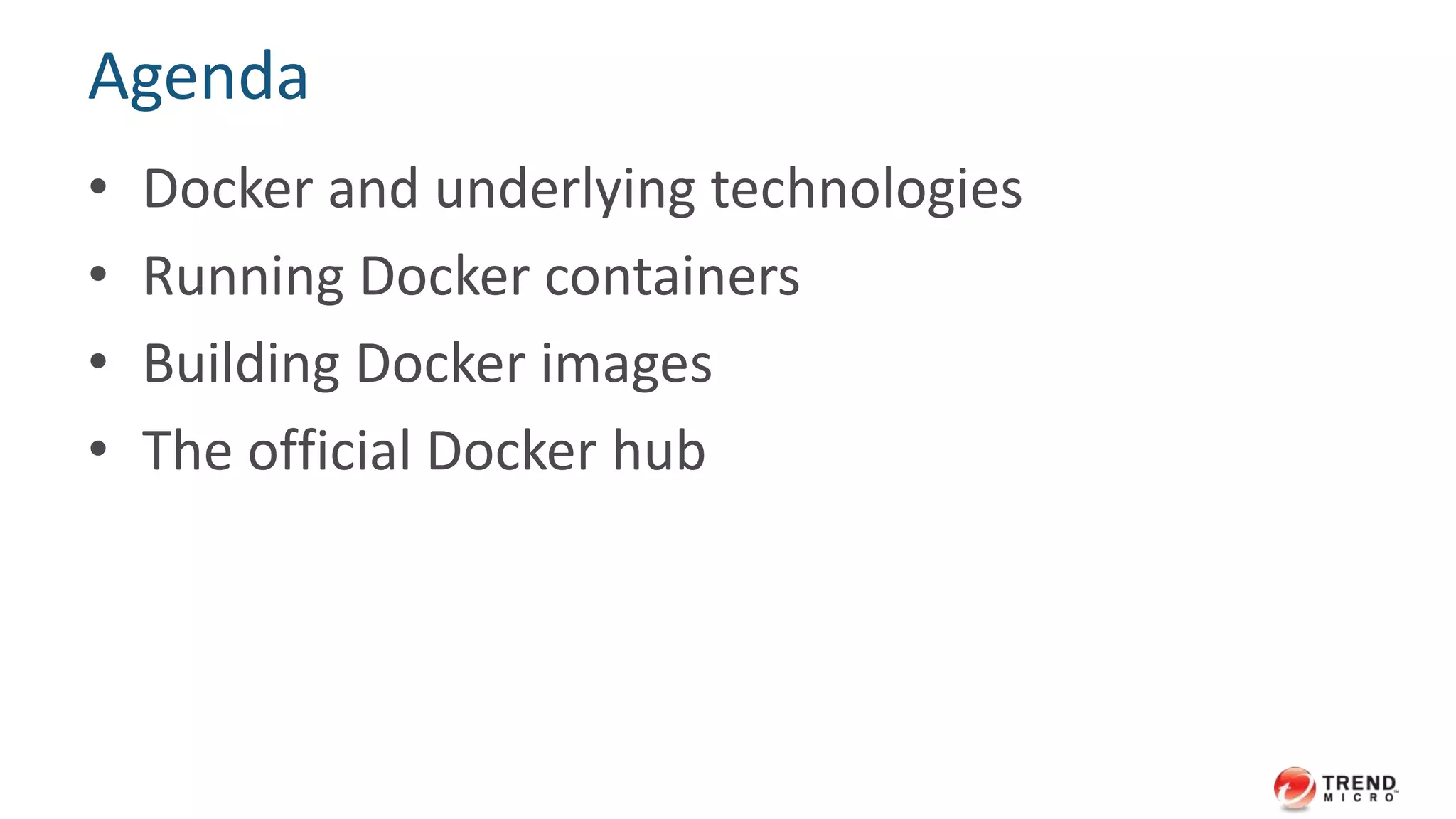

2. Agenda
• Docker and underlying technologies
• Running Docker containers
• Building Docker images
• The official Docker hub

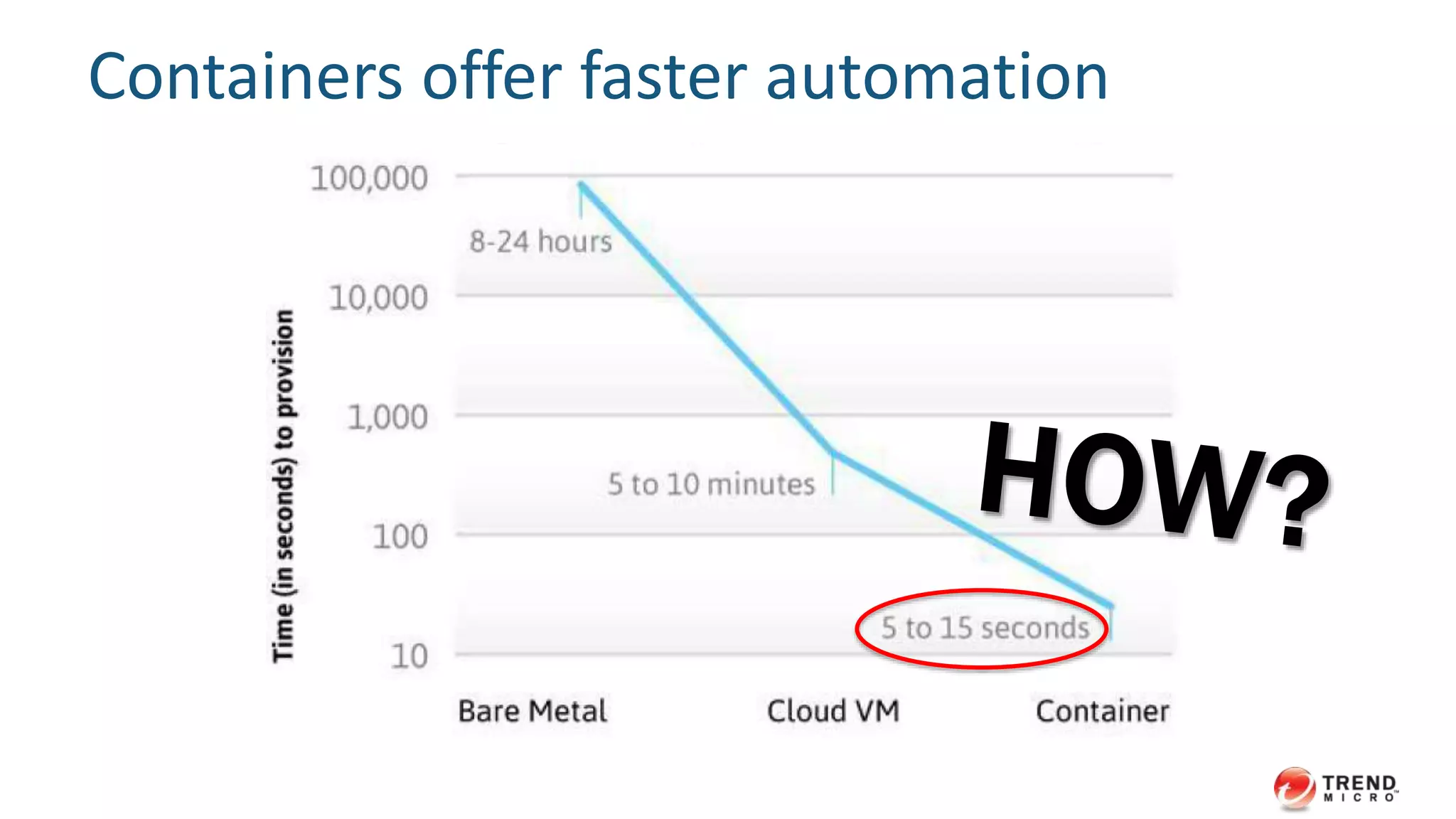

5. Containers offer faster automation

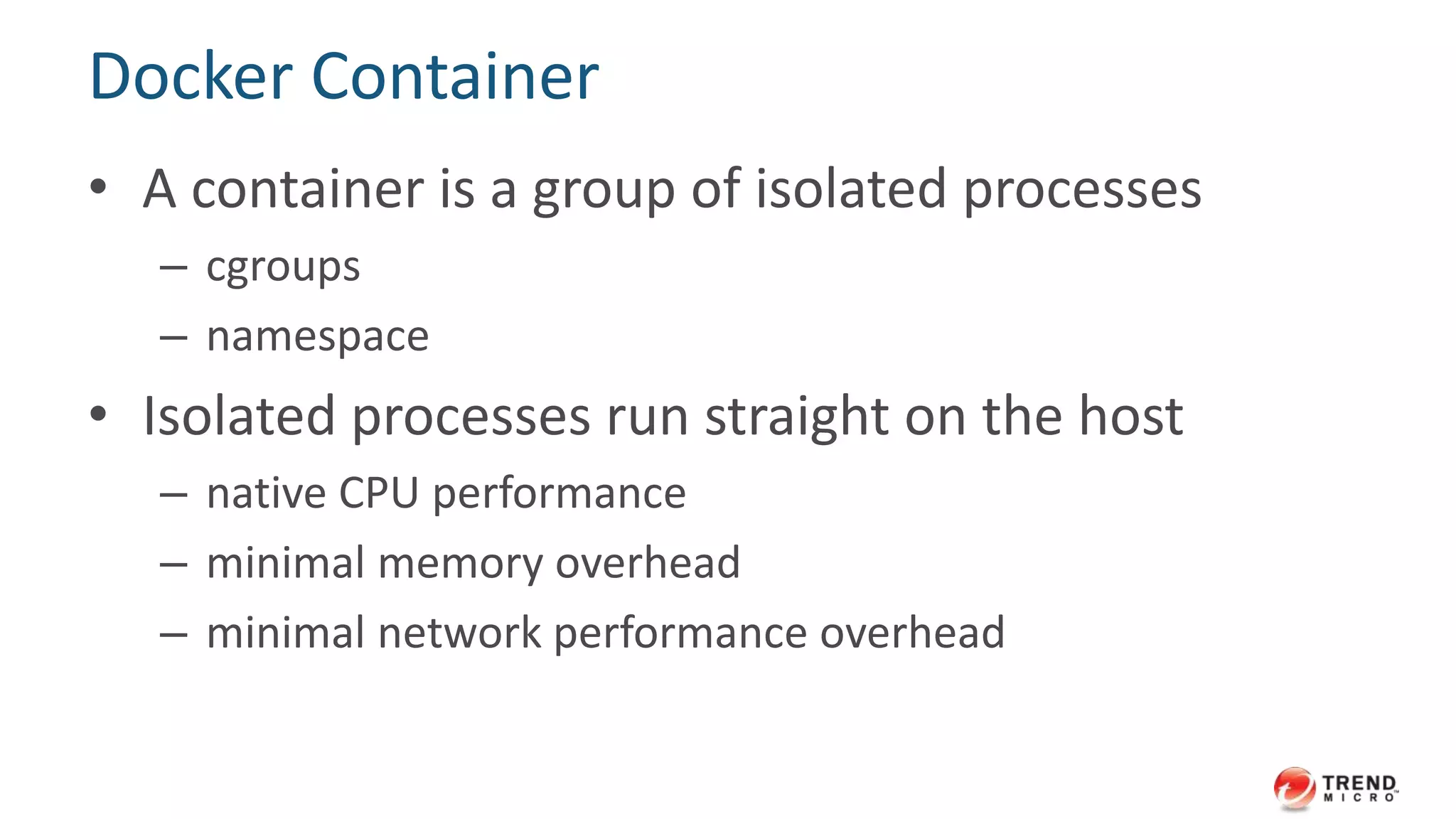

6. Docker Container
• A container is a group of isolated processes
– cgroups
– namespace
• Isolated processes run straight on the host
– native CPU performance
– minimal memory overhead
– minimal network performance overhead

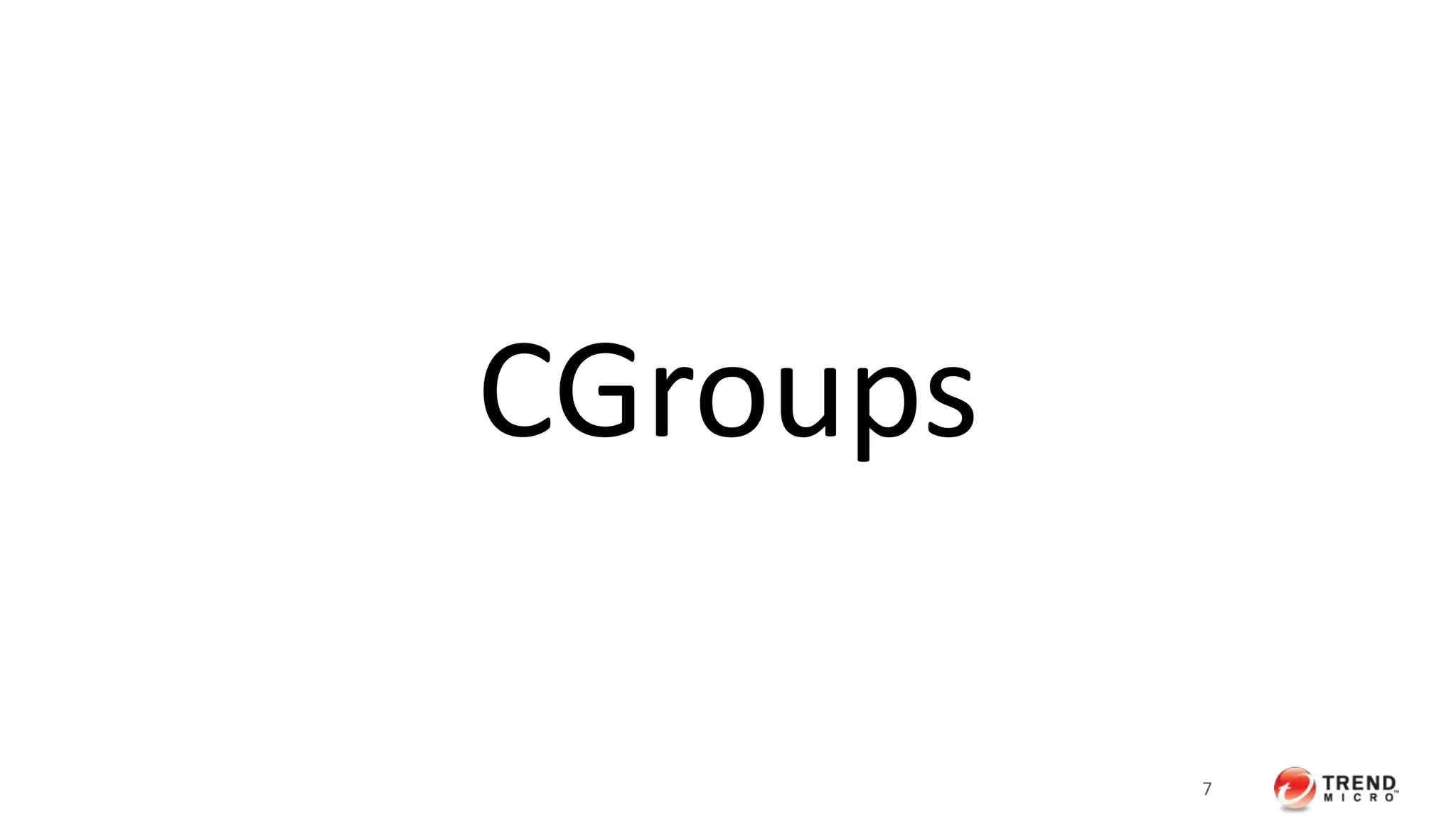

7. 7
CGroups

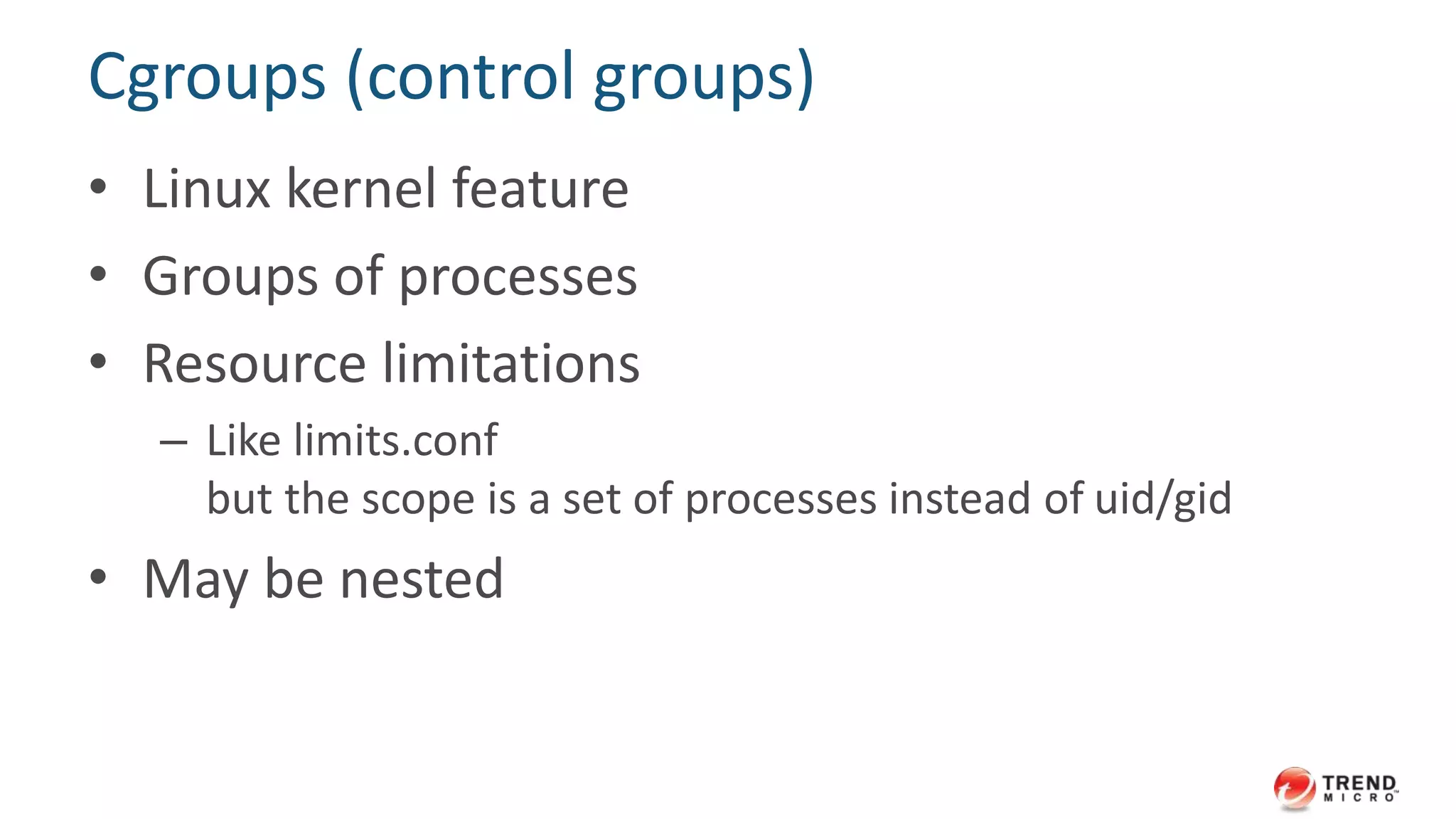

8. Cgroups (control groups)
• Linux kernel feature
• Groups of processes
• Resource limitations
– Like limits.conf
but the scope is a set of processes instead of uid/gid
• May be nested

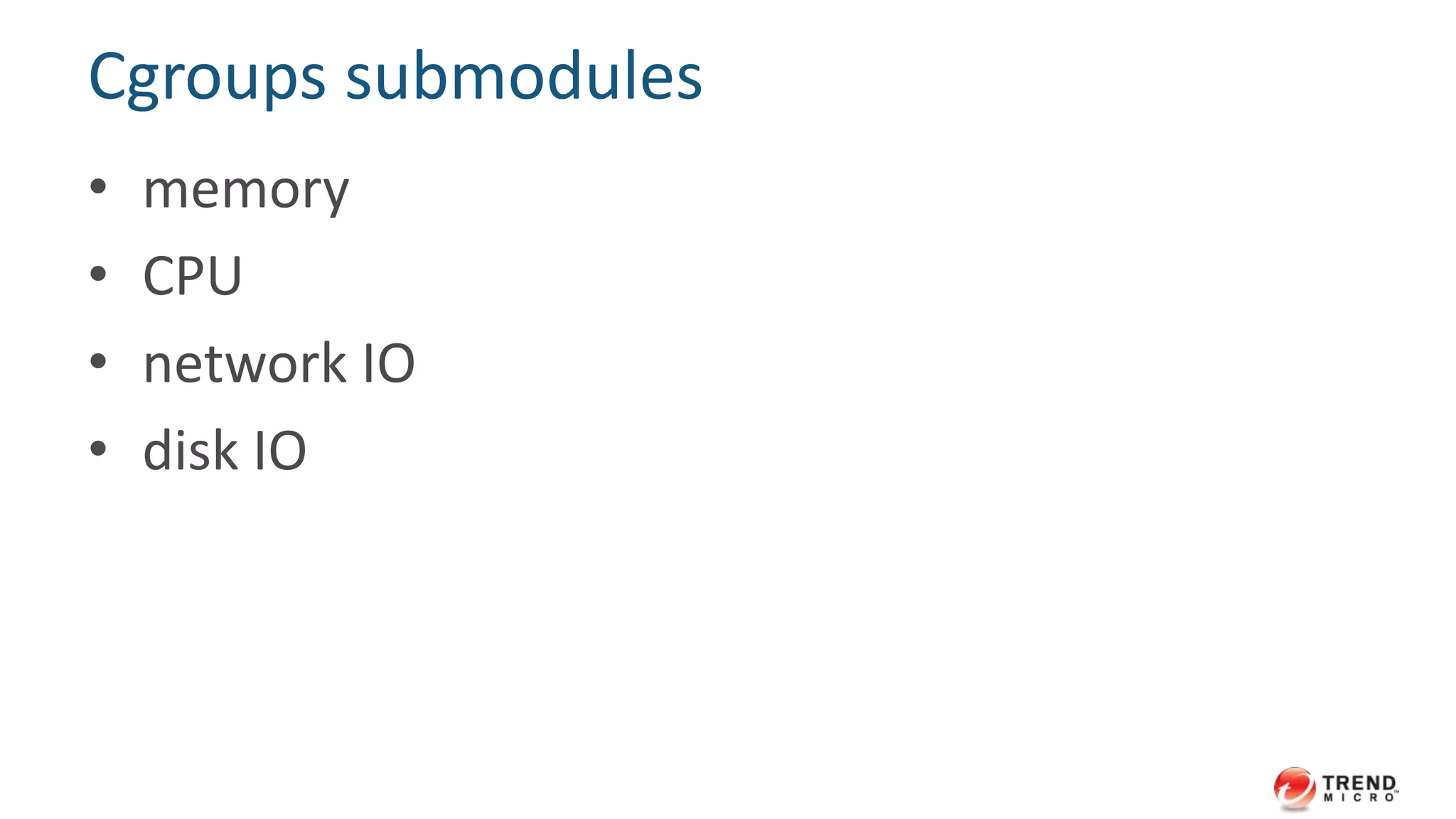

9. Cgroups submodules
• memory
• CPU
• network IO
• disk IO

10. 10
Namespaces

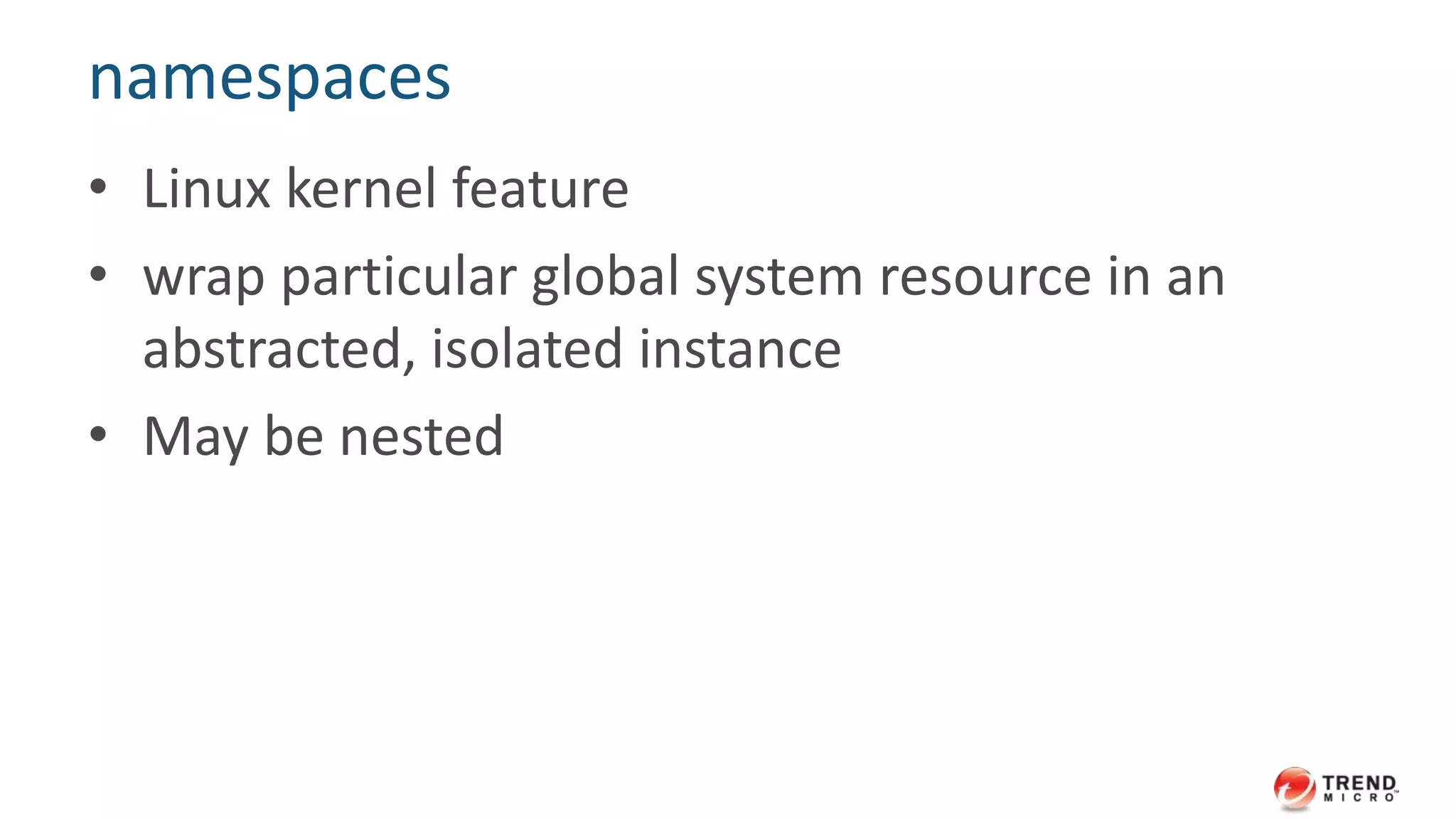

11. namespaces
• Linux kernel feature
• wrap particular global system resource in an
abstracted, isolated instance
• May be nested

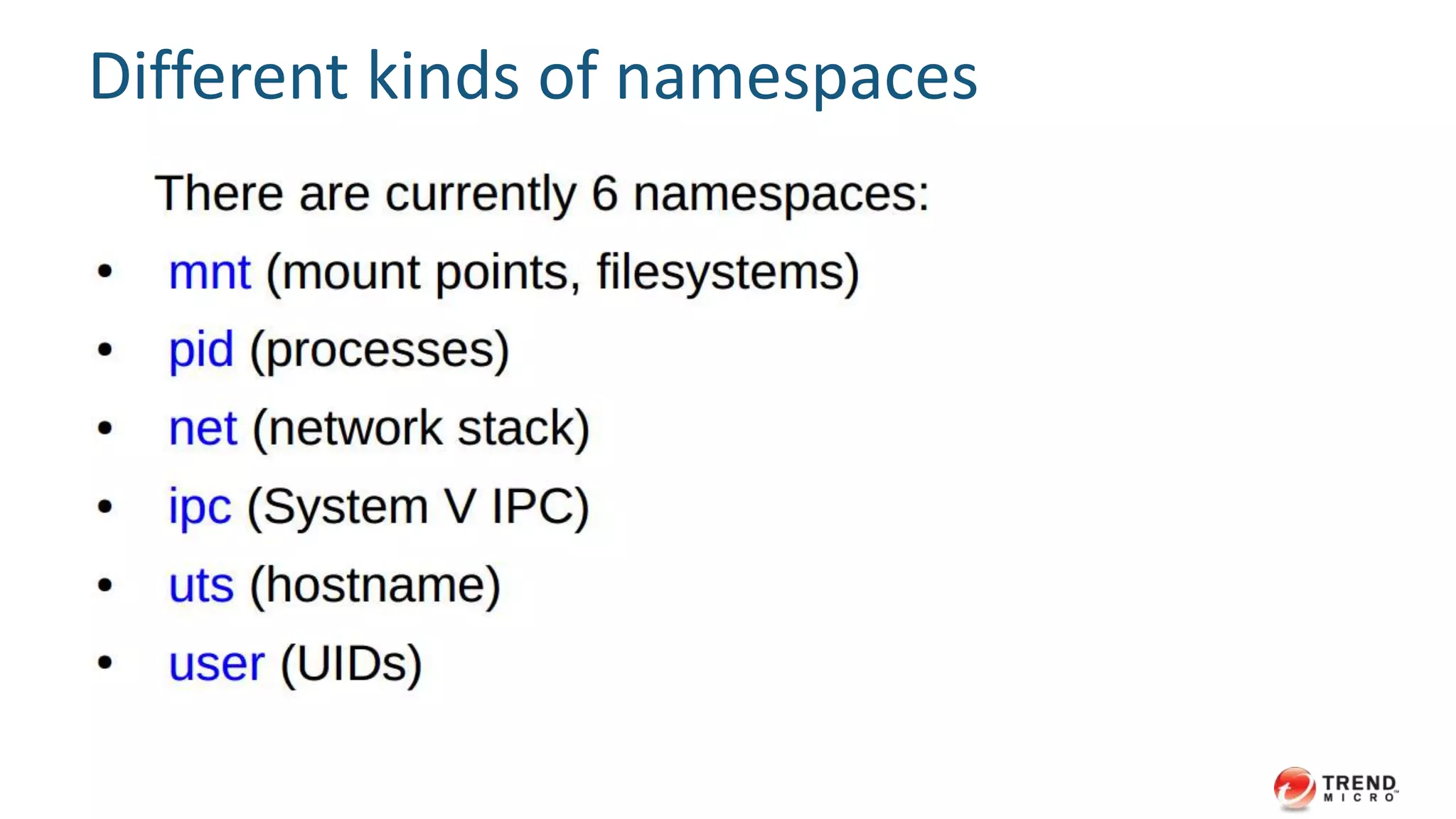

12. Different kinds of namespaces

13. #TrendInsight
Running Docker Containers

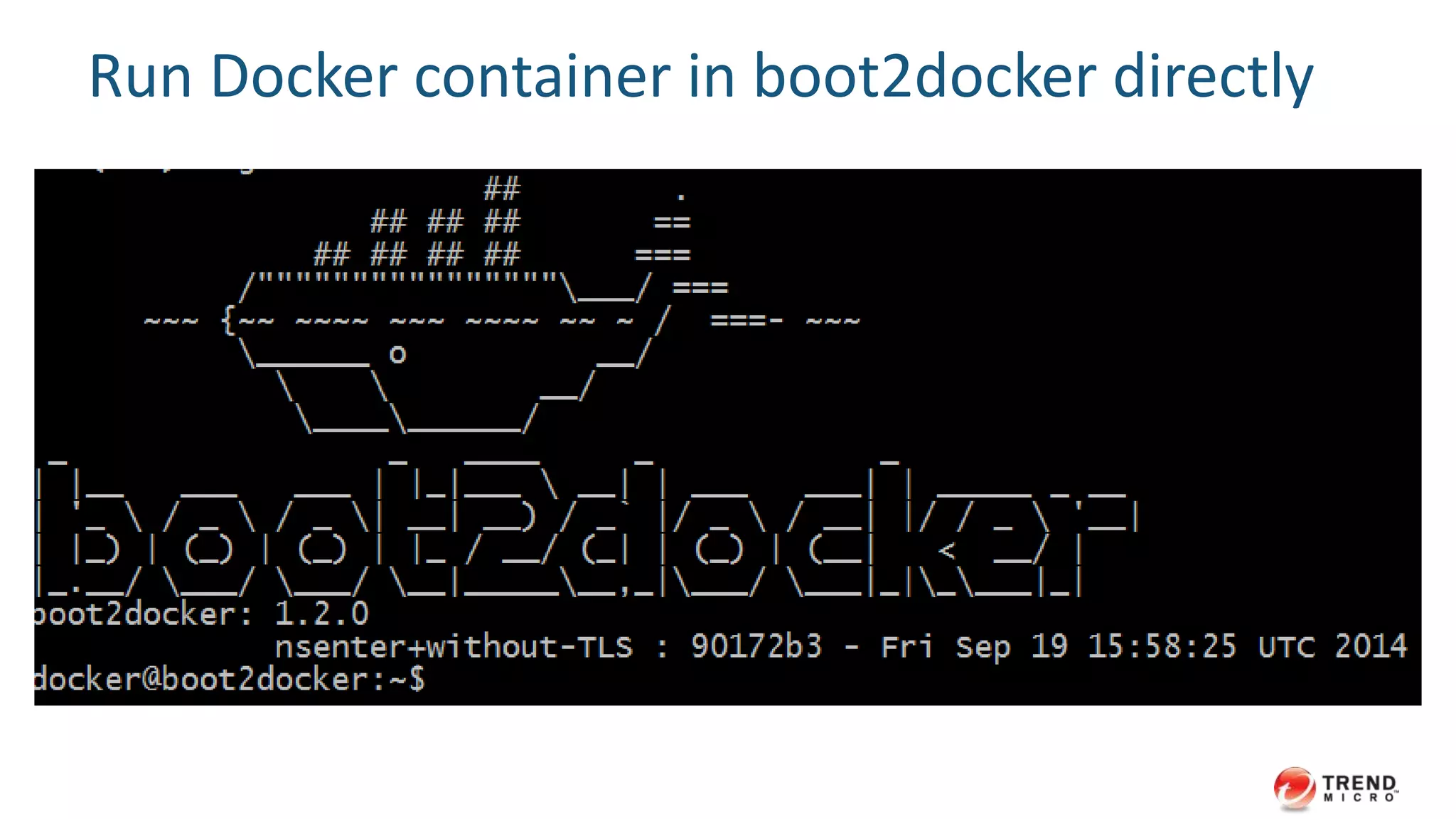

15. Run Docker container in boot2docker directly

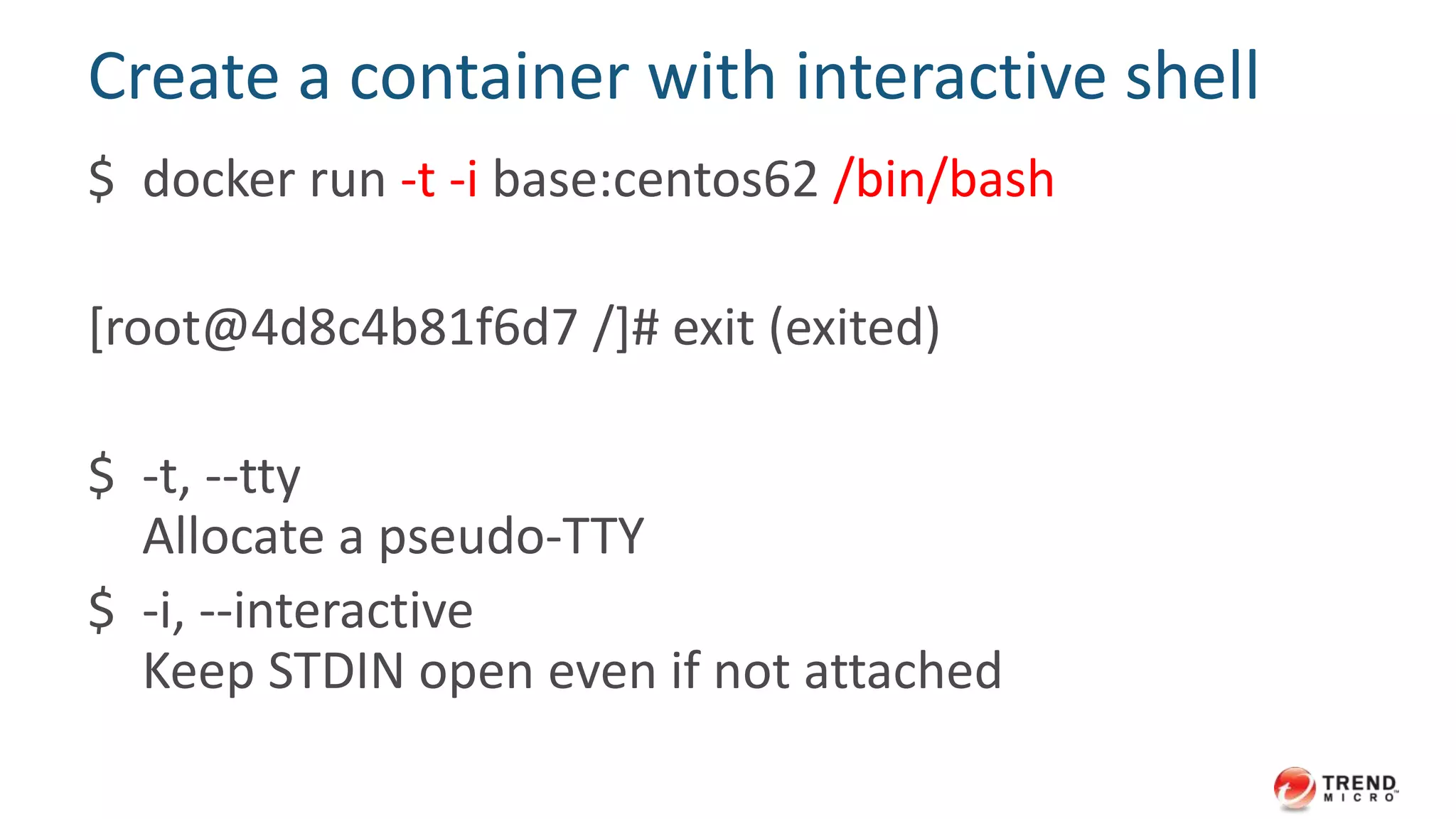

16. Create a container with interactive shell
$ docker run -t -i base:centos62 /bin/bash
[root@4d8c4b81f6d7 /]# exit (exited)
$ -t, --tty
Allocate a pseudo-TTY
$ -i, --interactive
Keep STDIN open even if not attached

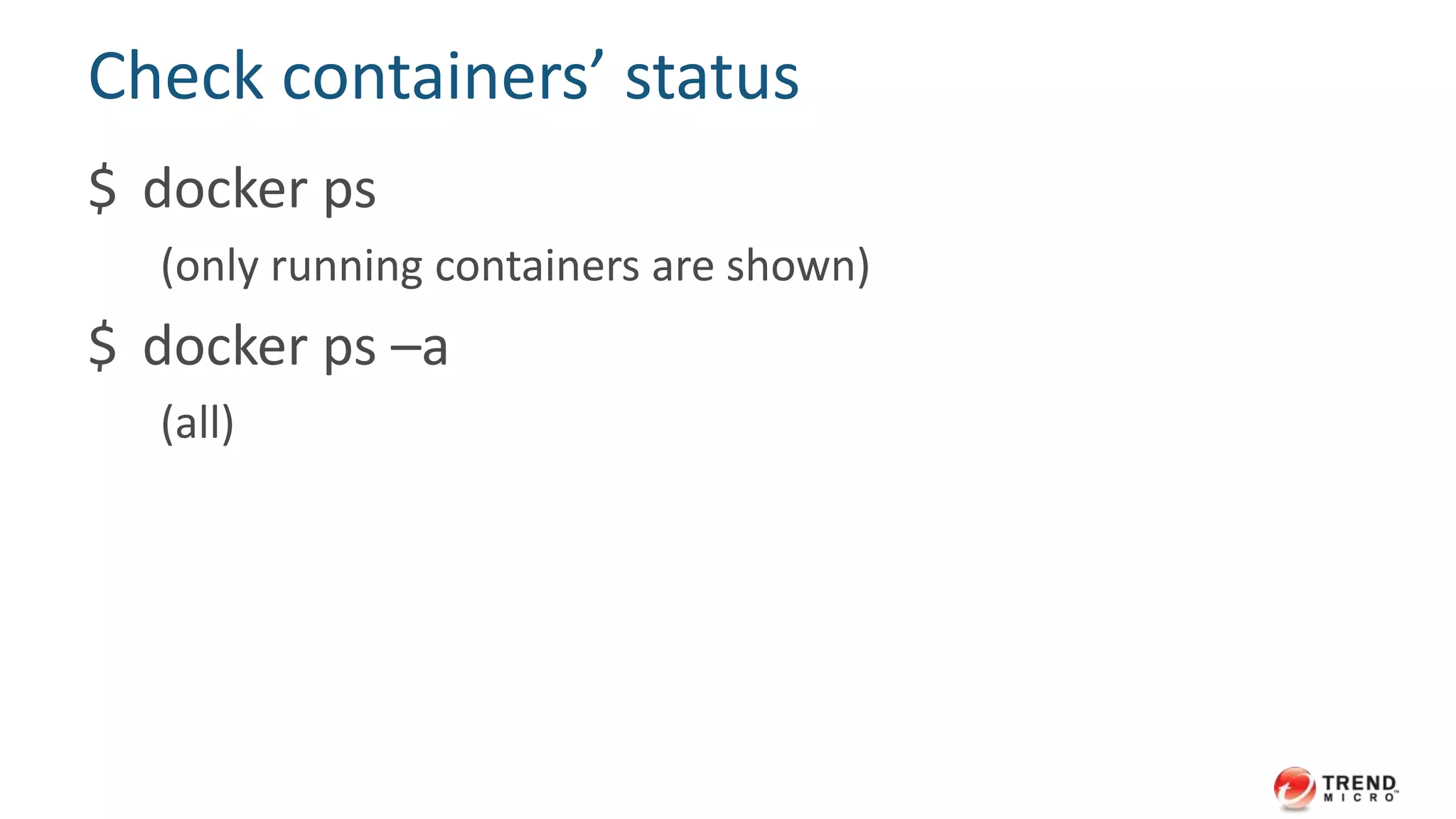

17. Check containers’ status
$ docker ps
(only running containers are shown)
$ docker ps –a
(all)

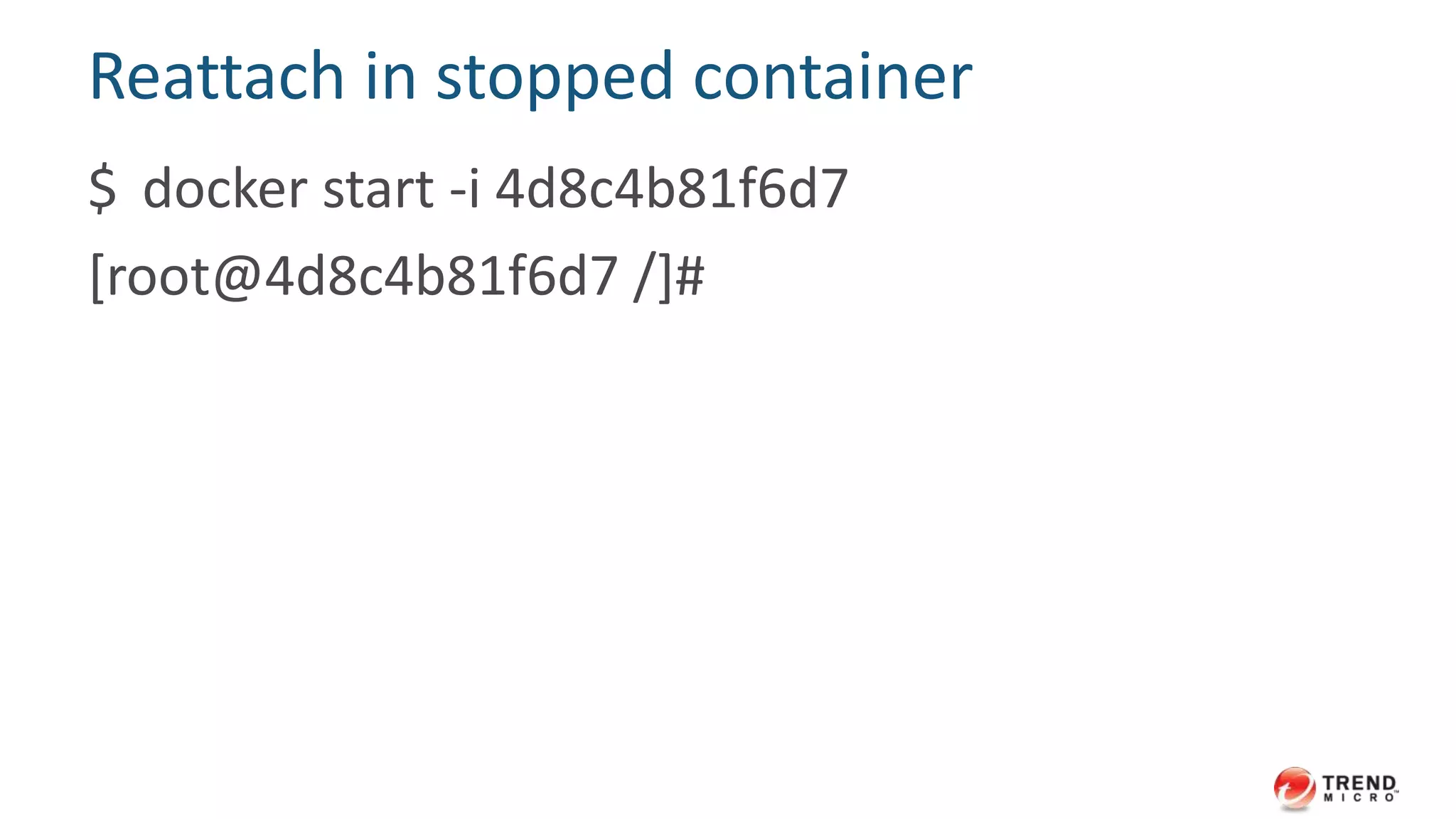

18. Reattach in stopped container
$ docker start -i 4d8c4b81f6d7
[root@4d8c4b81f6d7 /]#

19. or use docker exec instead
$ docker start 4d8c4b81f6d7
$ docker exec –ti 4d8c4b81f6d7 bash
[root@4d8c4b81f6d7 /]#

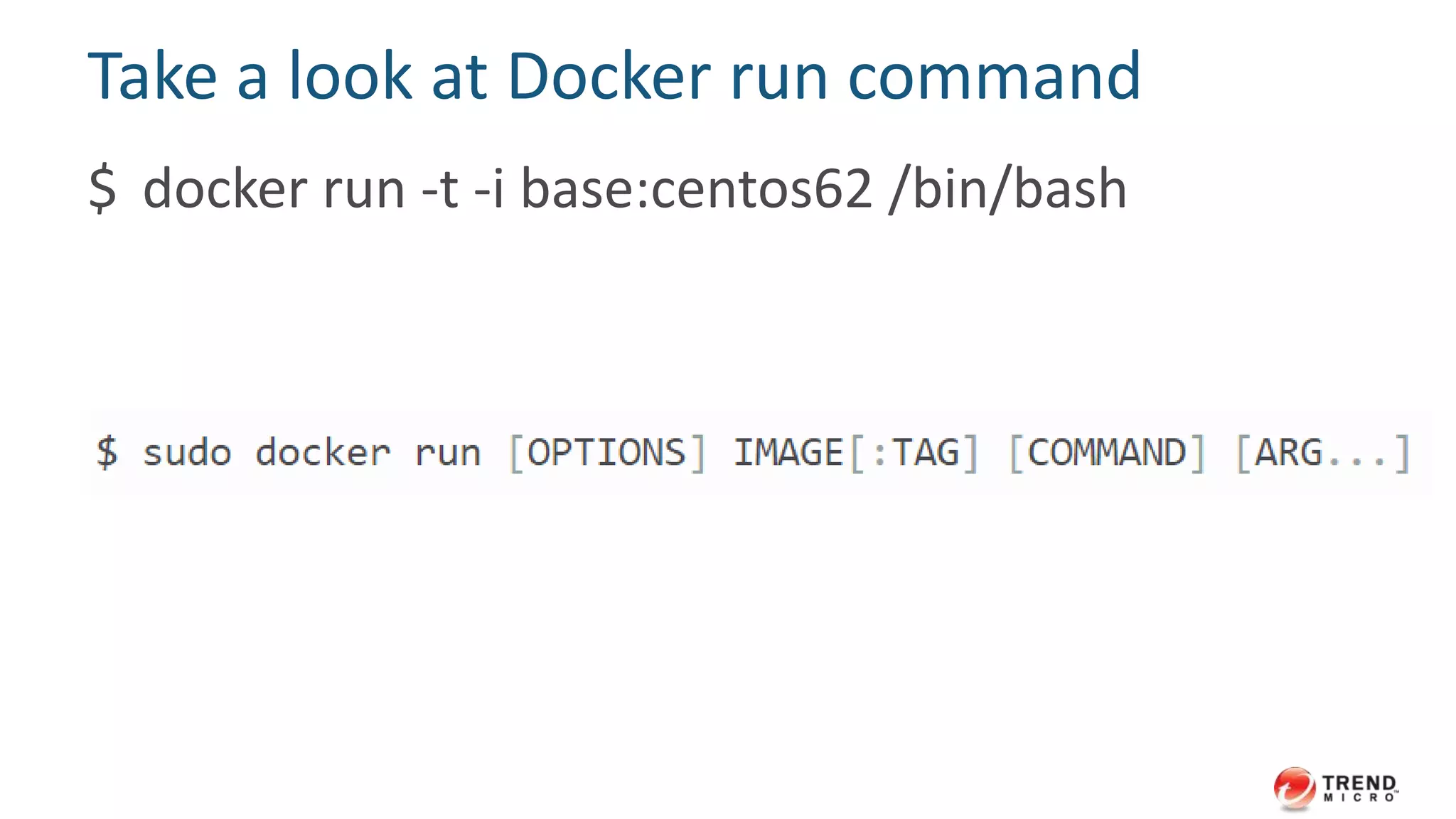

20. Take a look at Docker run command
$ docker run -t -i base:centos62 /bin/bash

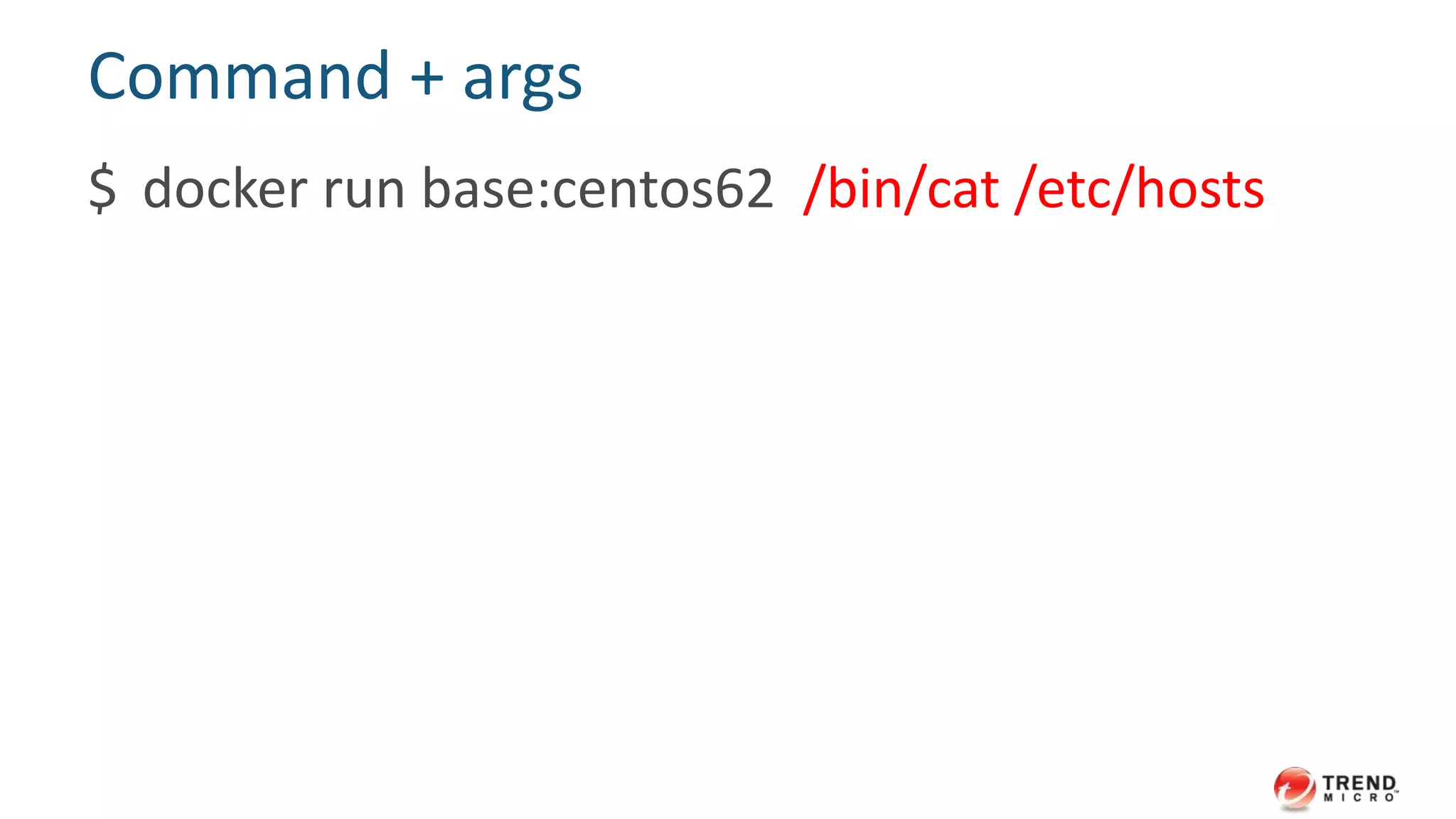

21. Command + args
$ docker run base:centos62 /bin/cat /etc/hosts

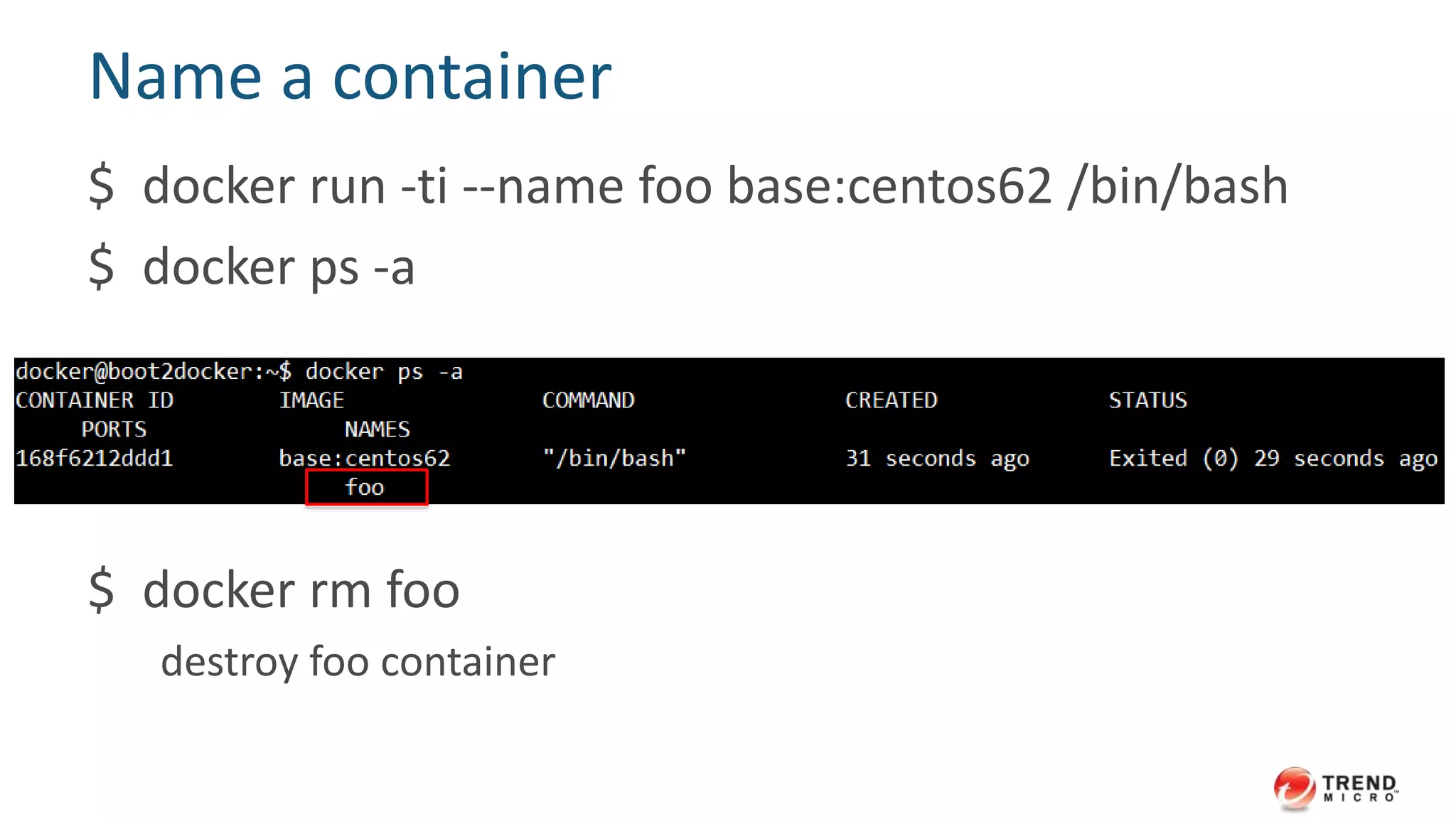

22. Name a container
$ docker run -ti --name foo base:centos62 /bin/bash
$ docker ps -a
$ docker rm foo
destroy foo container

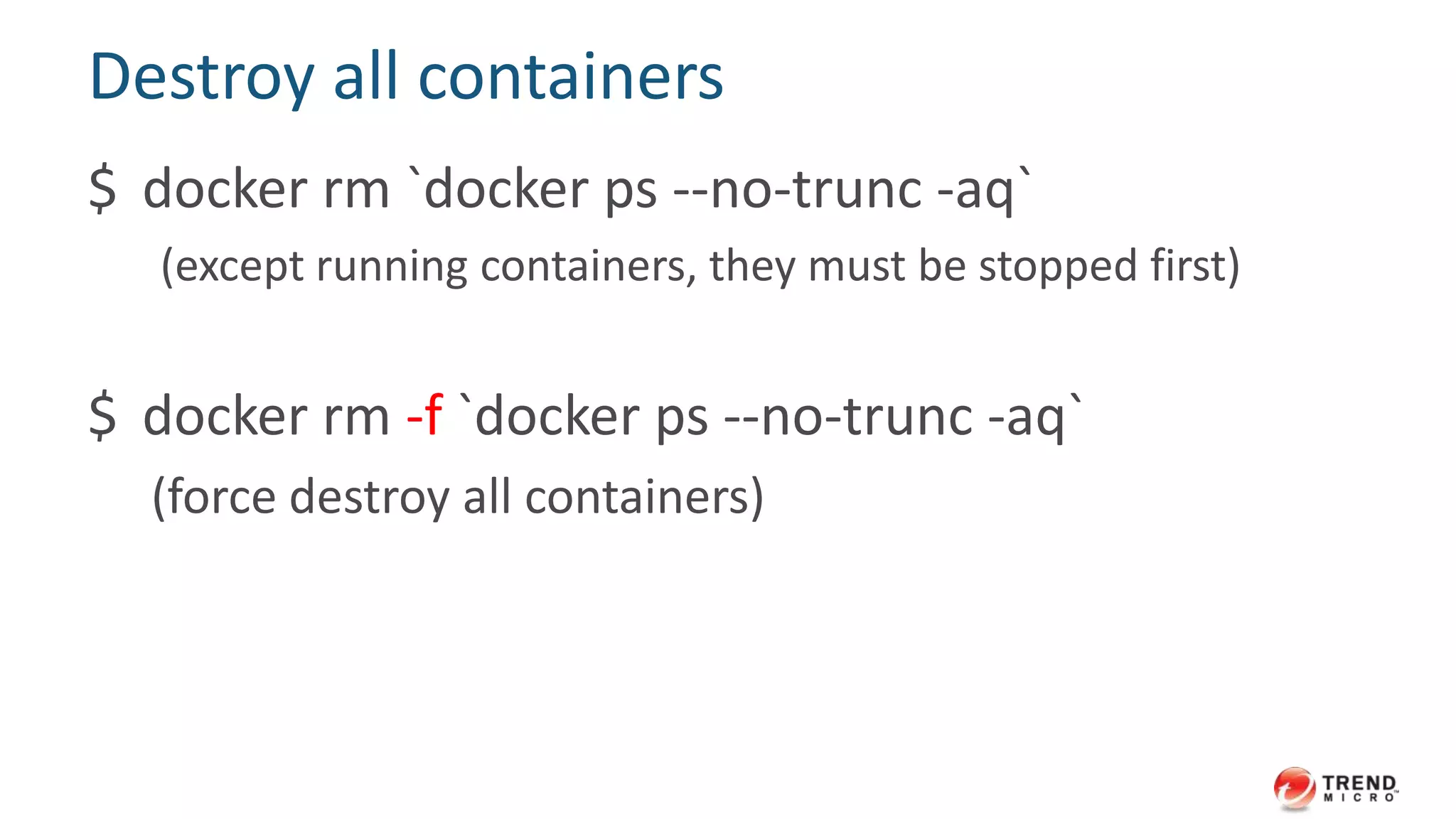

23. Destroy all containers
$ docker rm `docker ps --no-trunc -aq`
(except running containers, they must be stopped first)
$ docker rm -f `docker ps --no-trunc -aq`
(force destroy all containers)

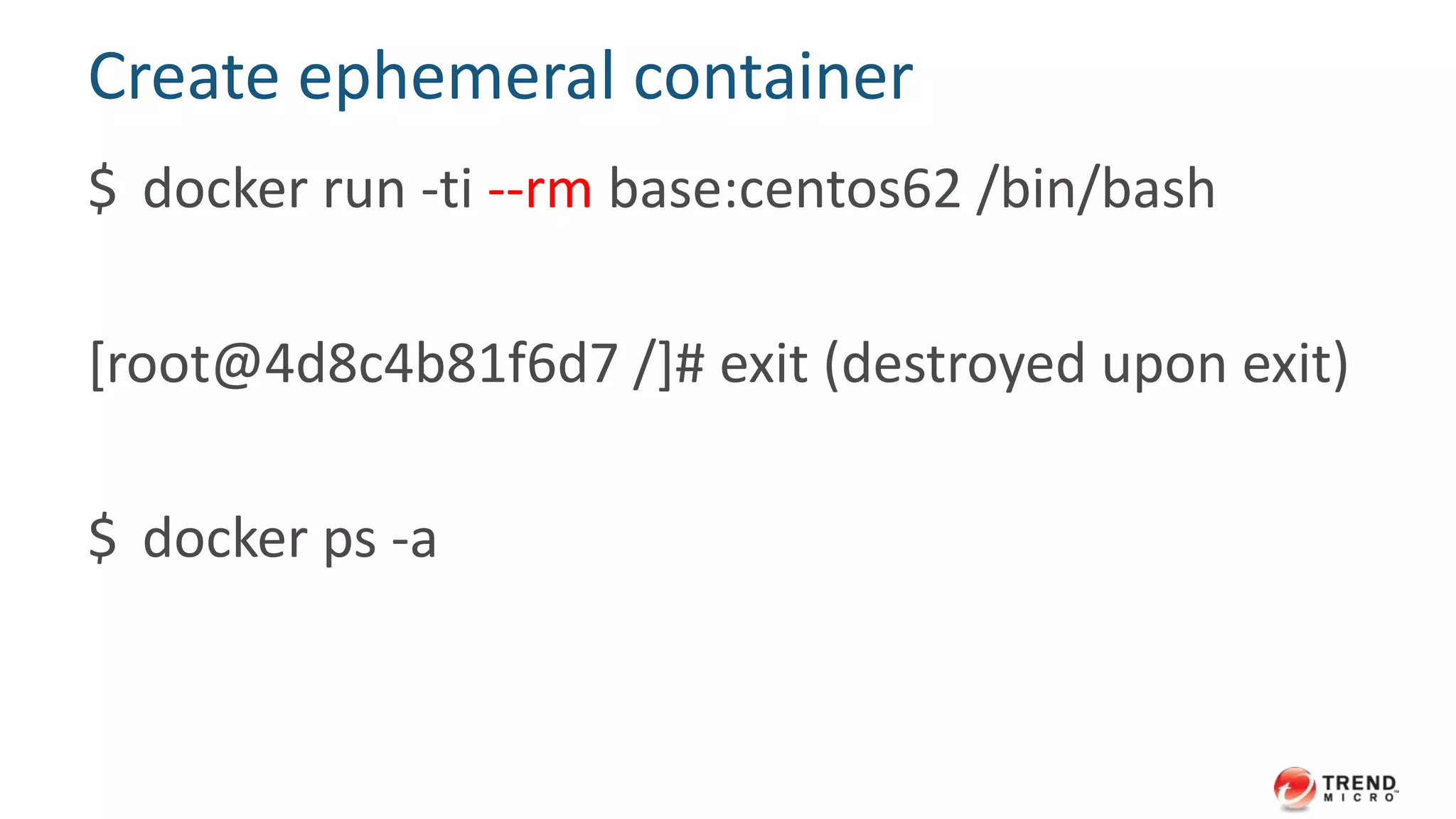

24. Create ephemeral container
$ docker run -ti --rm base:centos62 /bin/bash
[root@4d8c4b81f6d7 /]# exit (destroyed upon exit)
$ docker ps -a

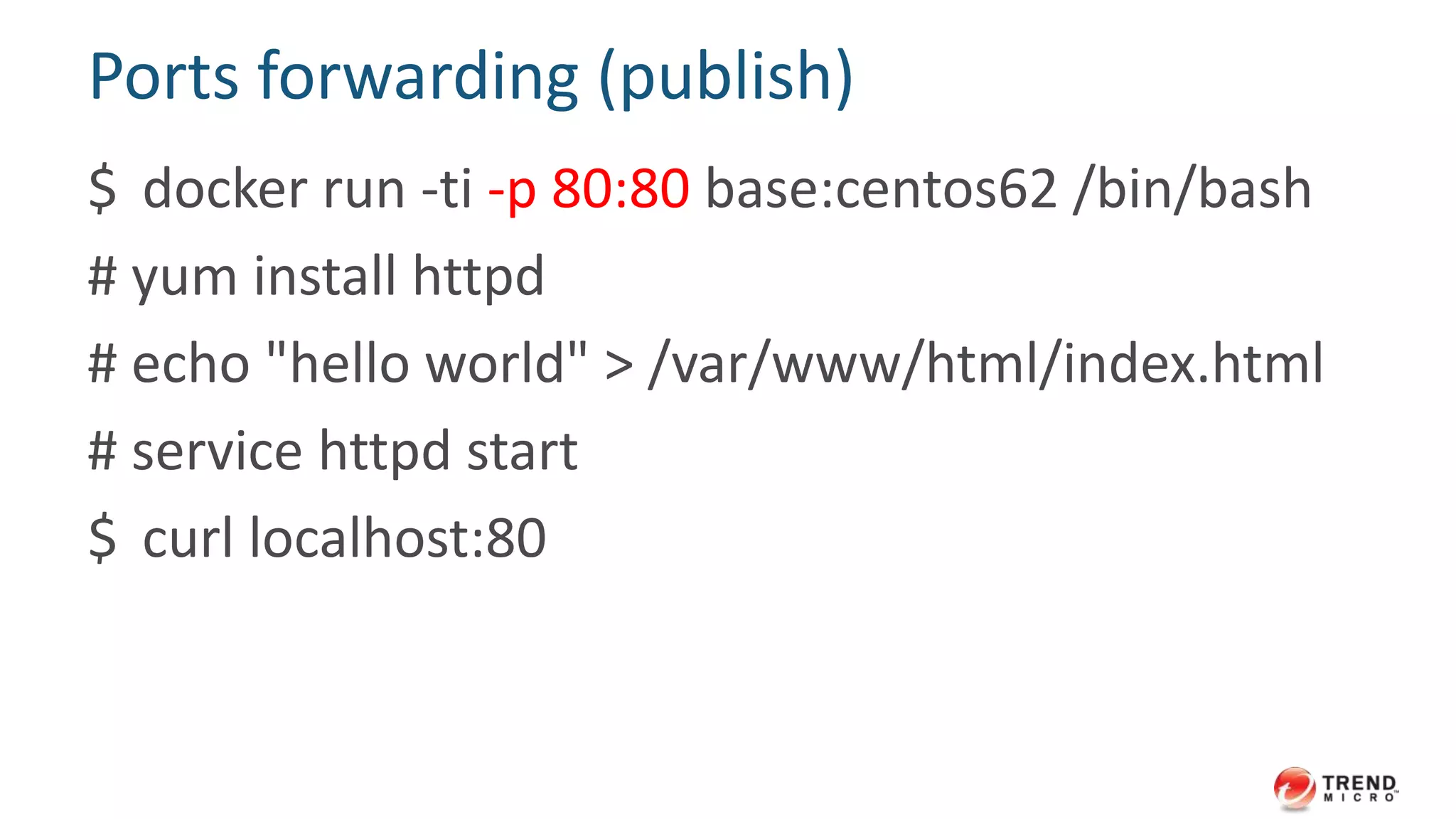

25. Ports forwarding (publish)
$ docker run -ti -p 80:80 base:centos62 /bin/bash
# yum install httpd
# echo "hello world" > /var/www/html/index.html
# service httpd start
$ curl localhost:80

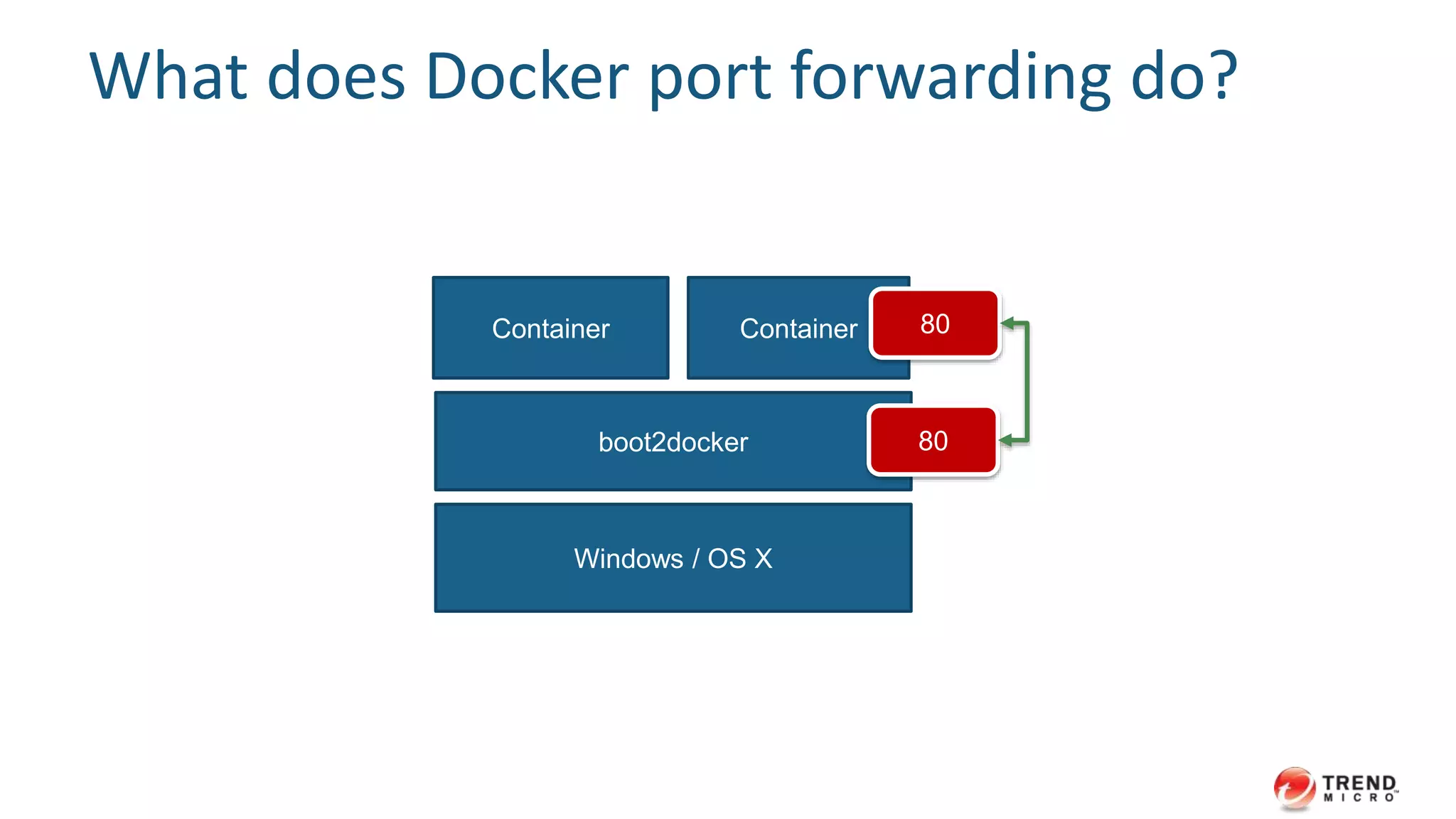

26. What does Docker port forwarding do?
Windows / OS X
boot2docker
Container Container 80
80

27. 27
Well, I need to
render it
in browsers…

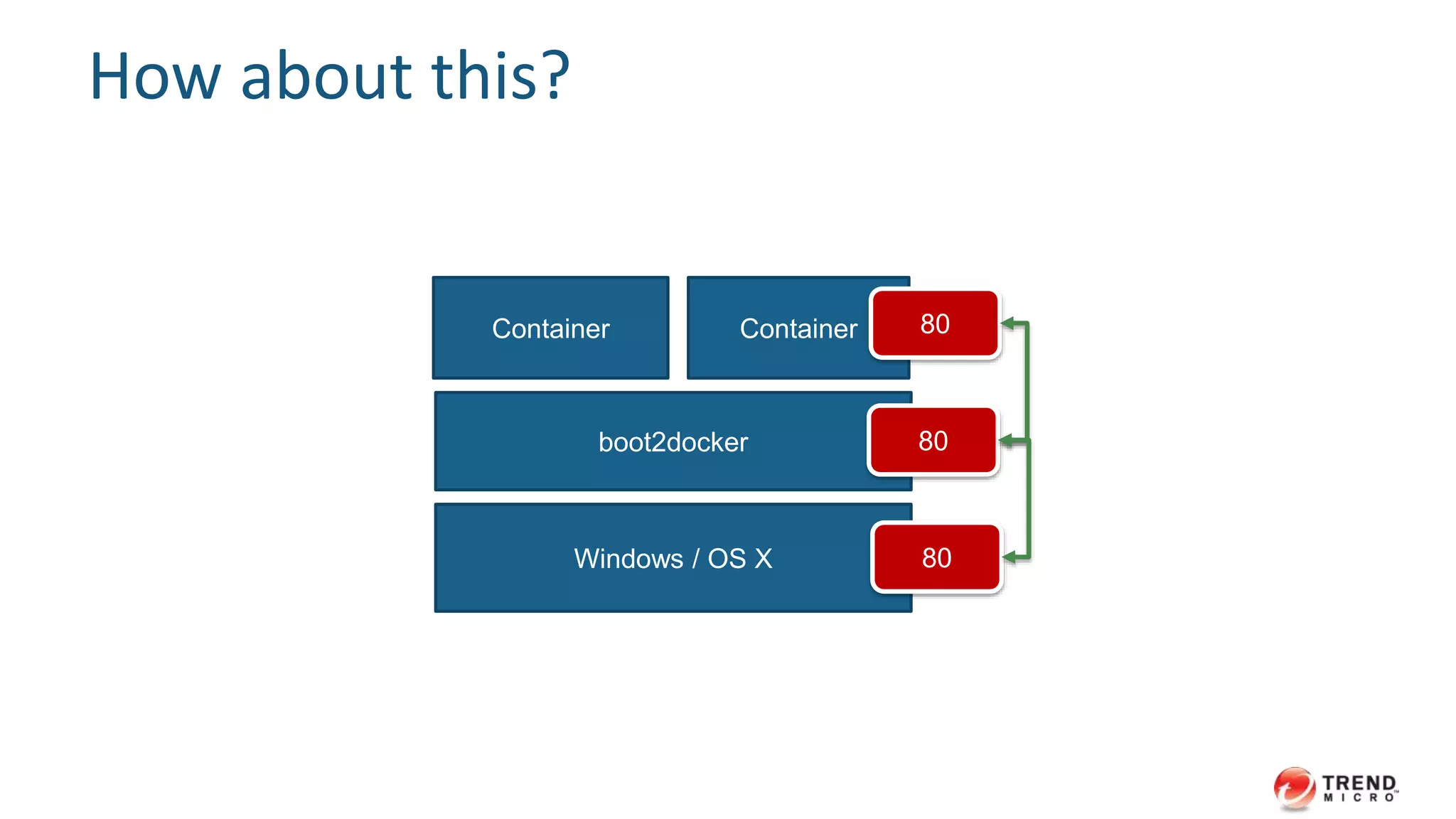

28. How about this?
Windows / OS X
boot2docker
Container Container 80
80
80

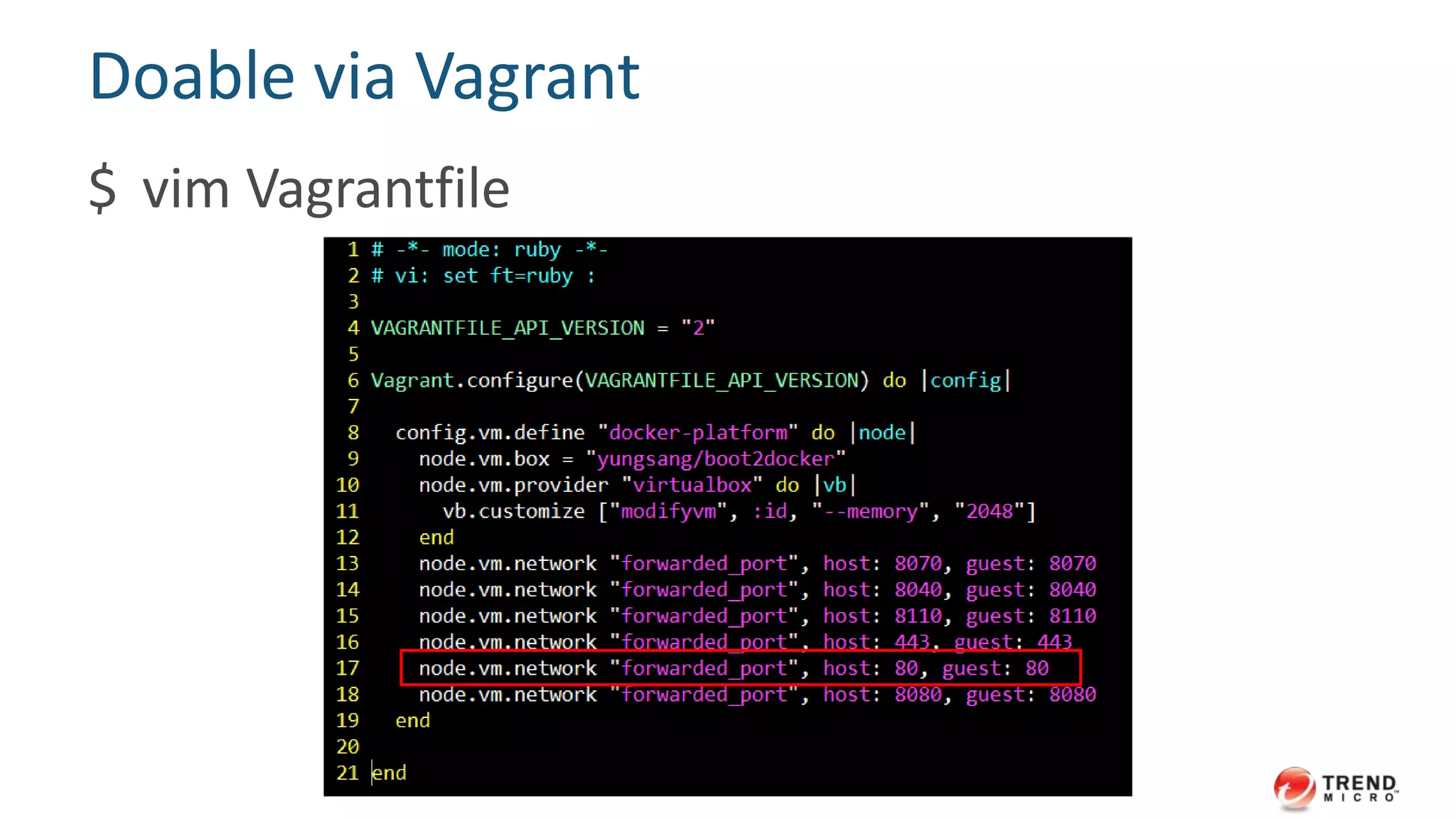

29. Doable via Vagrant
$ vim Vagrantfile

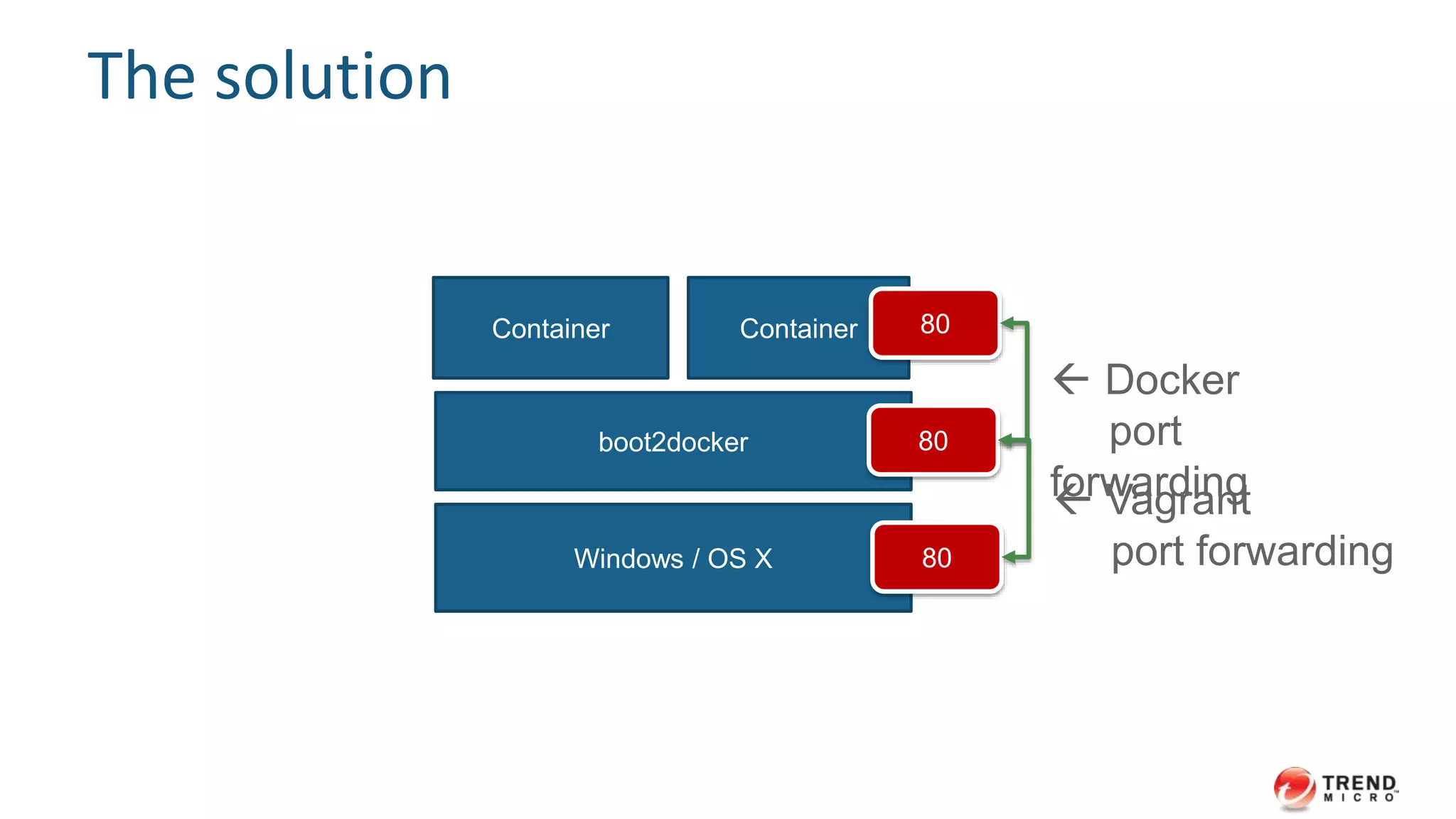

30. The solution
Windows / OS X
boot2docker
Container Container 80
80
80
 Docker
port
forwarding Vagrant
port forwarding

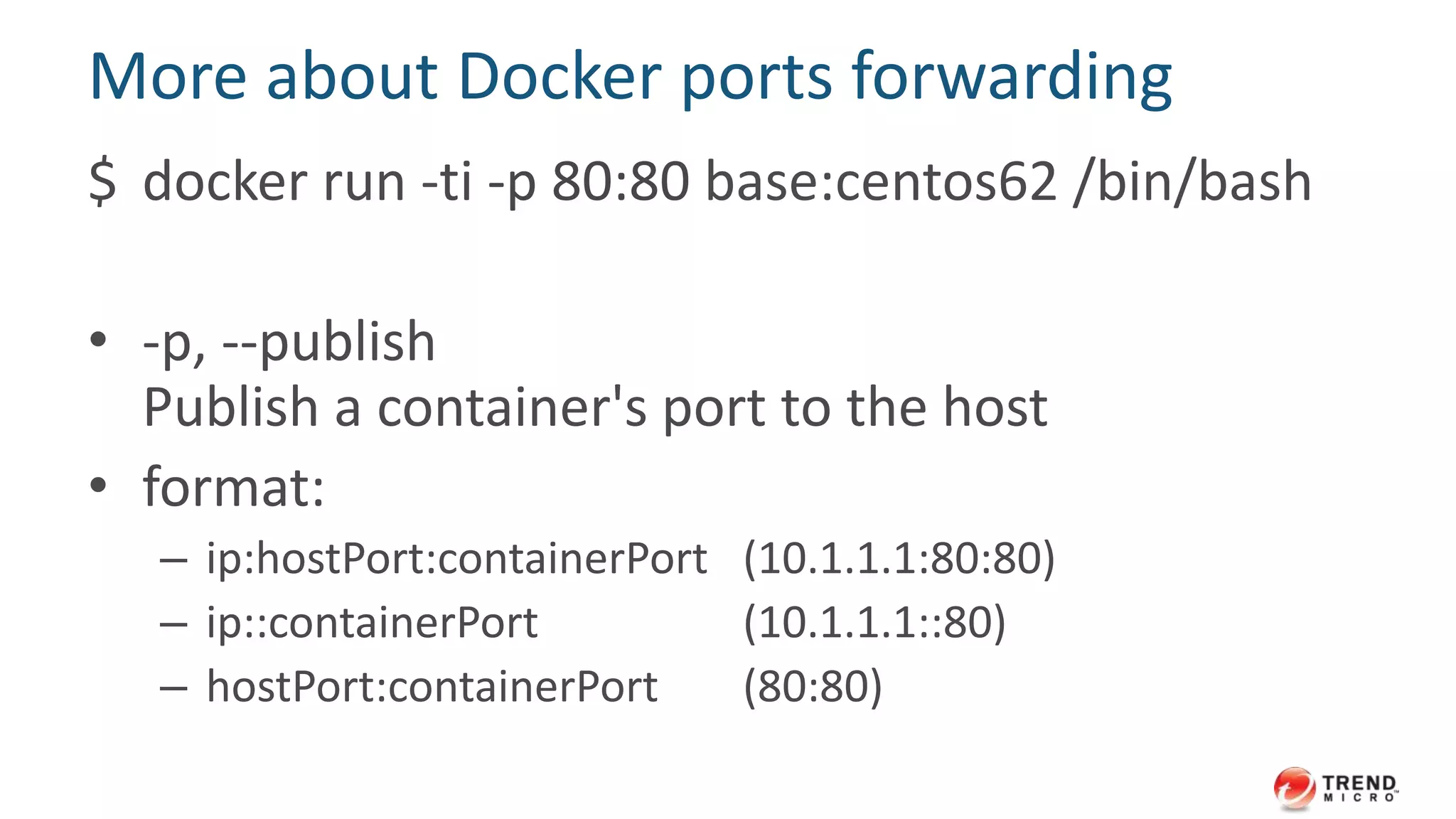

31. More about Docker ports forwarding
$ docker run -ti -p 80:80 base:centos62 /bin/bash
• -p, --publish
Publish a container's port to the host
• format:
– ip:hostPort:containerPort (10.1.1.1:80:80)
– ip::containerPort (10.1.1.1::80)
– hostPort:containerPort (80:80)

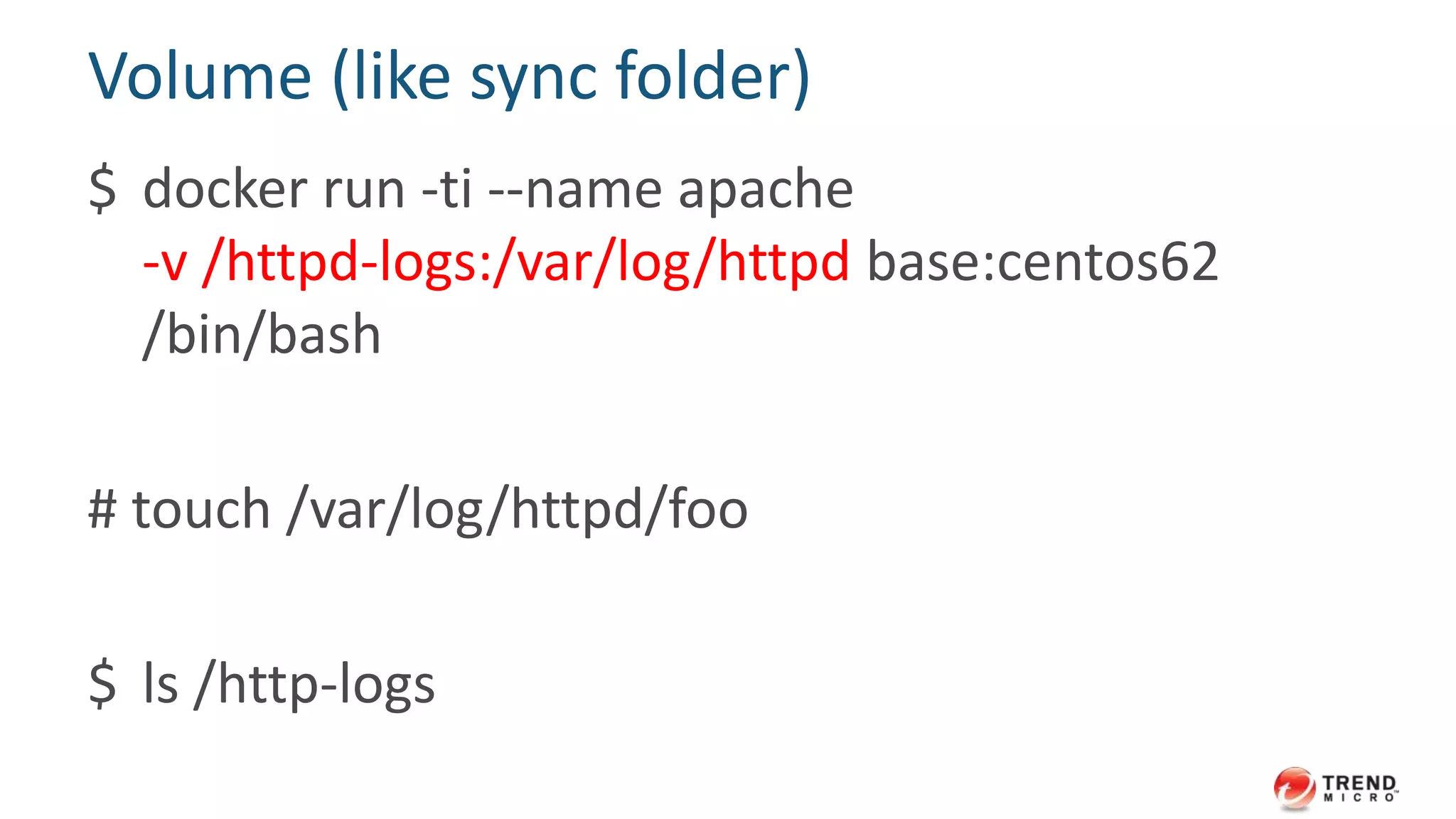

32. Volume (like sync folder)
$ docker run -ti --name apache
-v /httpd-logs:/var/log/httpd base:centos62
/bin/bash
# touch /var/log/httpd/foo
$ ls /http-logs

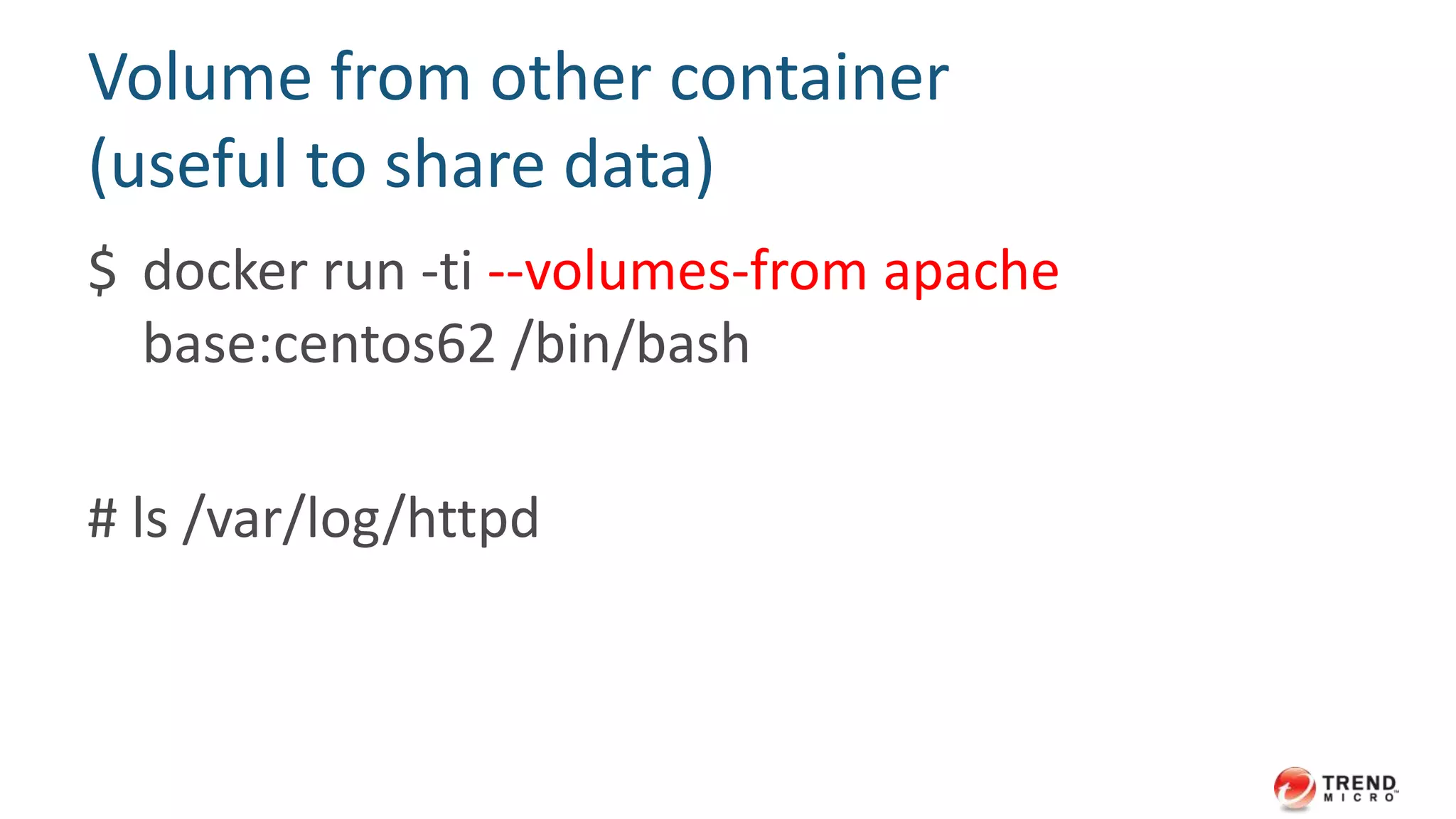

33. Volume from other container
(useful to share data)
$ docker run -ti --volumes-from apache
base:centos62 /bin/bash
# ls /var/log/httpd

34. Link
$ docker run -ti --link apache:apache.trendmicro.com
base:centos62 /bin/bash
# cat /etc/hosts
• Exposes information from source container to recipient
container in two ways:
– Environment variables
– Updating the /etc/hosts file
• format:
– name:alias

35. useful in multi-node situation
12/25/2014
service
(hadoop-client)
data
(hadoop-client)
link

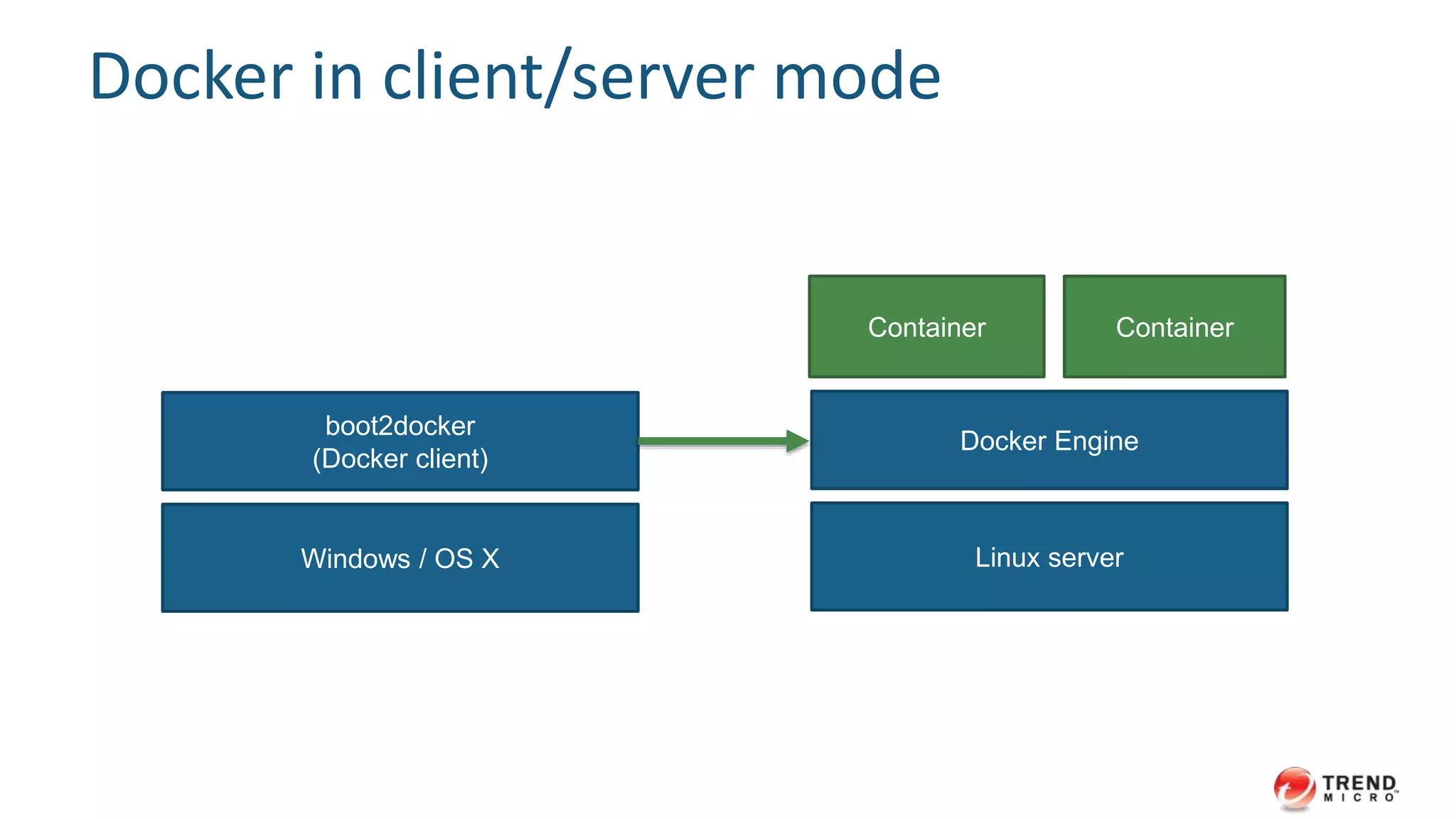

36. Docker in client/server mode
Windows / OS X
boot2docker
(Docker client)
Linux server
Docker Engine
Container Container

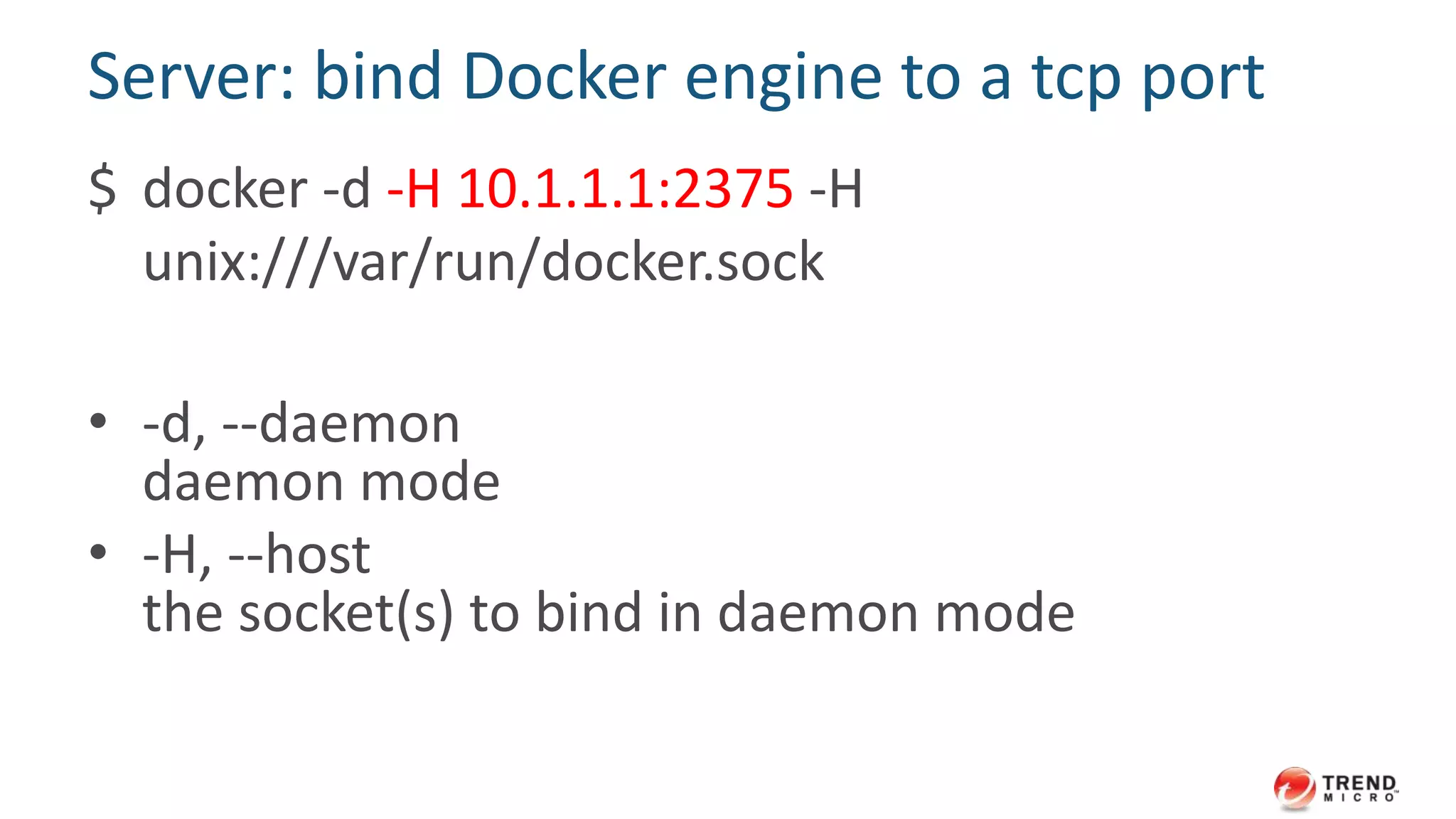

37. Server: bind Docker engine to a tcp port
$ docker -d -H 10.1.1.1:2375 -H
unix:///var/run/docker.sock
• -d, --daemon
daemon mode
• -H, --host
the socket(s) to bind in daemon mode

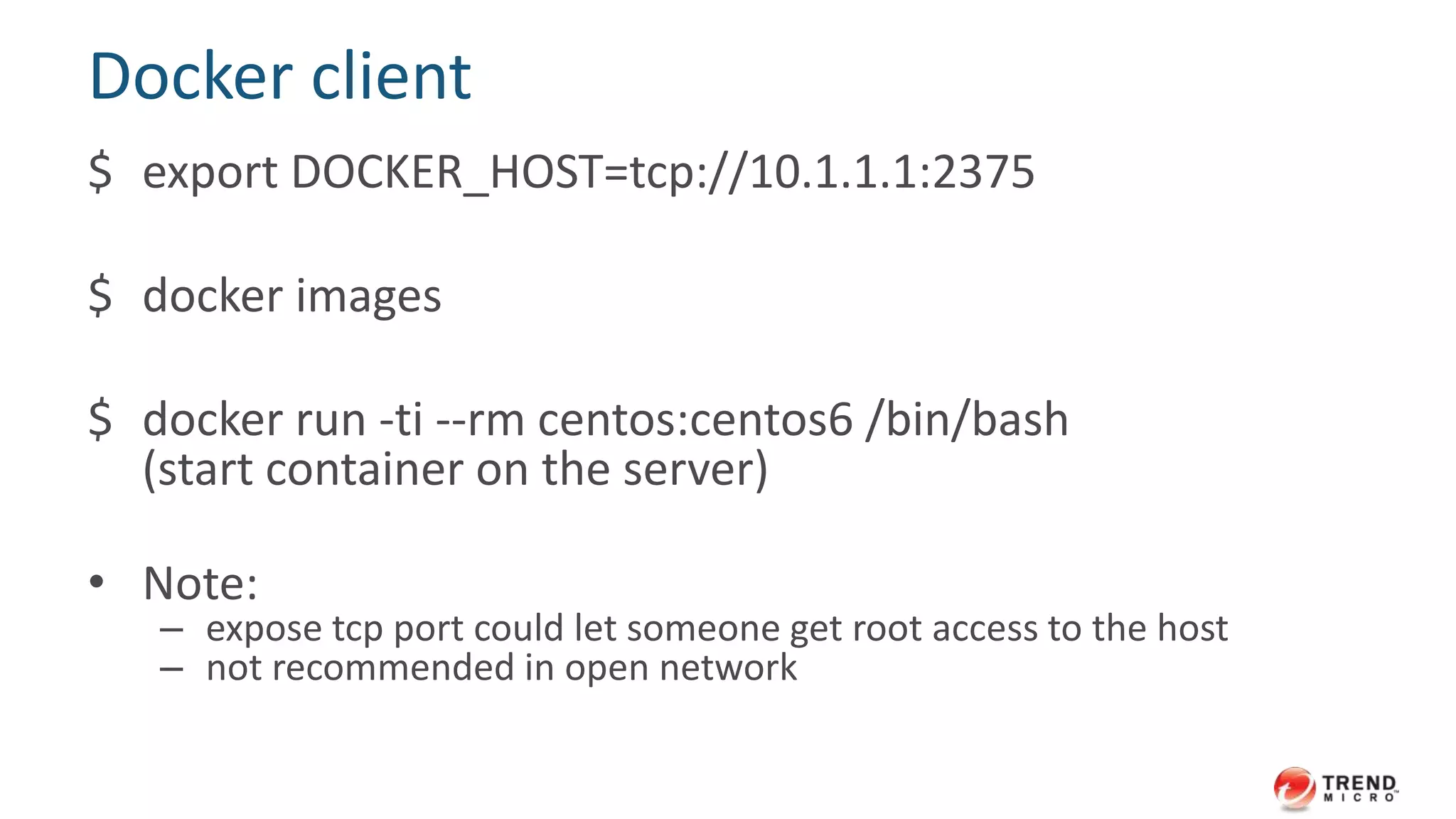

38. Docker client
$ export DOCKER_HOST=tcp://10.1.1.1:2375
$ docker images
$ docker run -ti --rm centos:centos6 /bin/bash
(start container on the server)
• Note:
– expose tcp port could let someone get root access to the host
– not recommended in open network

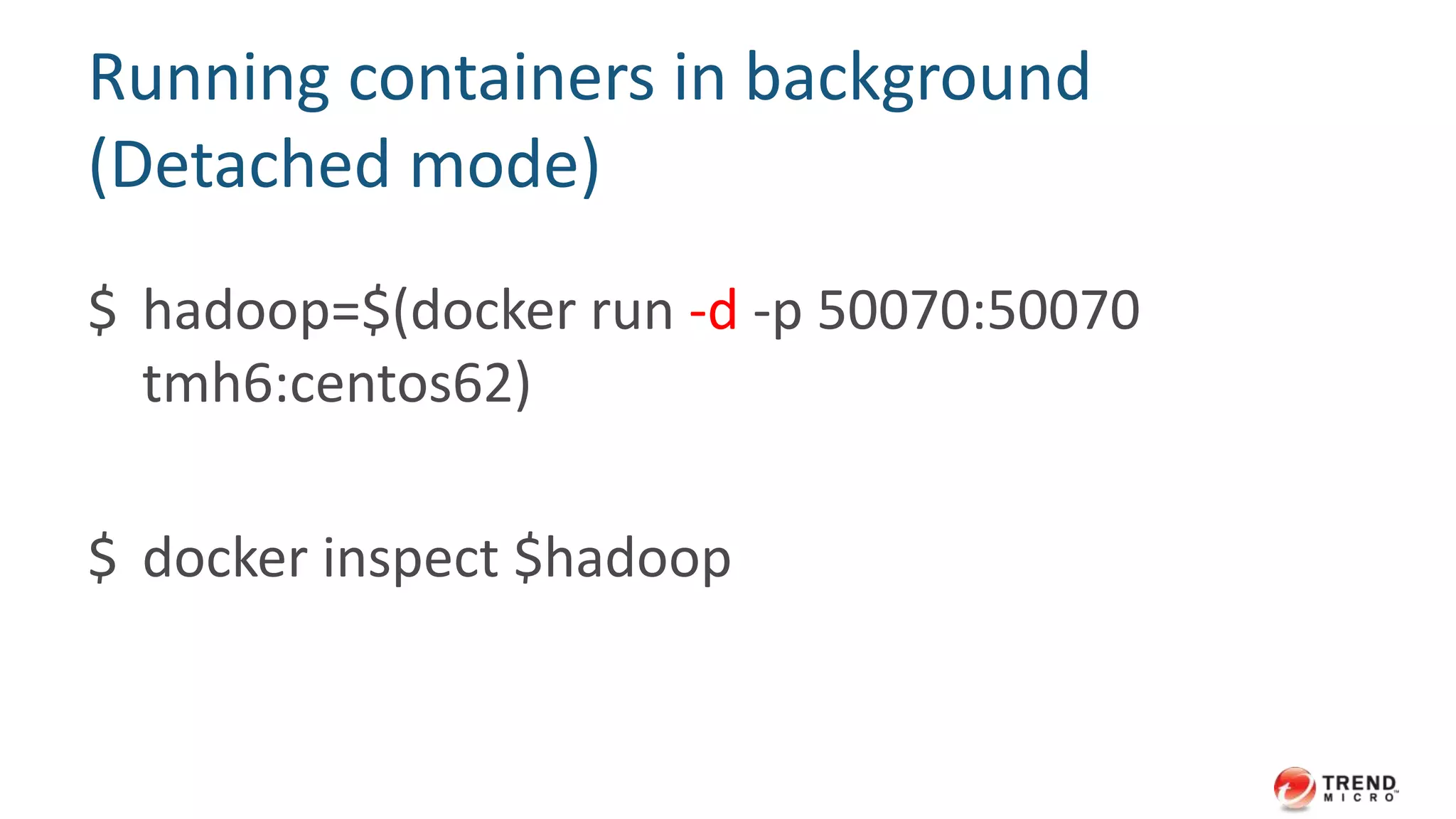

39. Running containers in background
(Detached mode)
$ hadoop=$(docker run -d -p 50070:50070
tmh6:centos62)
$ docker inspect $hadoop

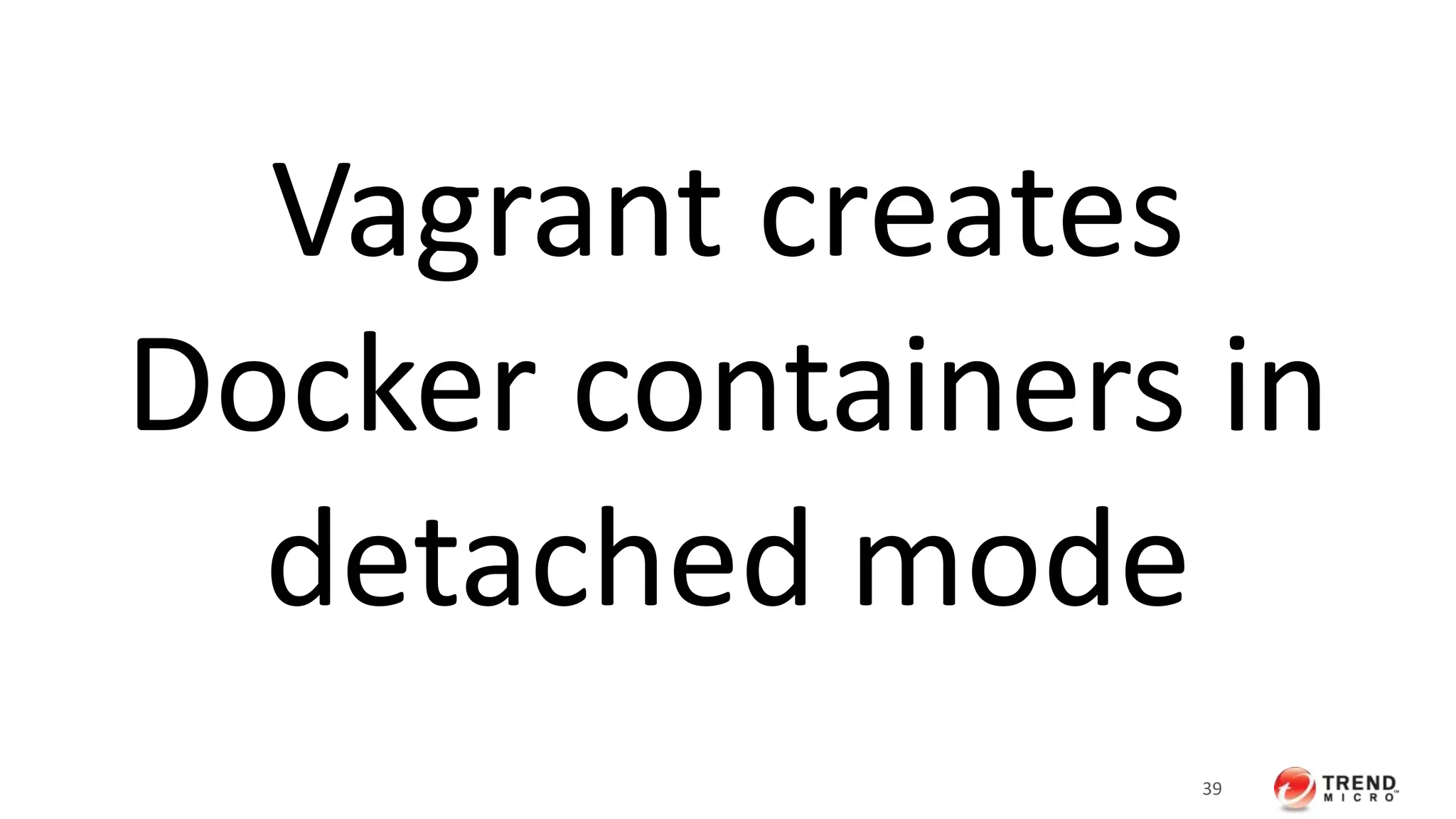

40. 40
Vagrant creates
Docker containers in
detached mode

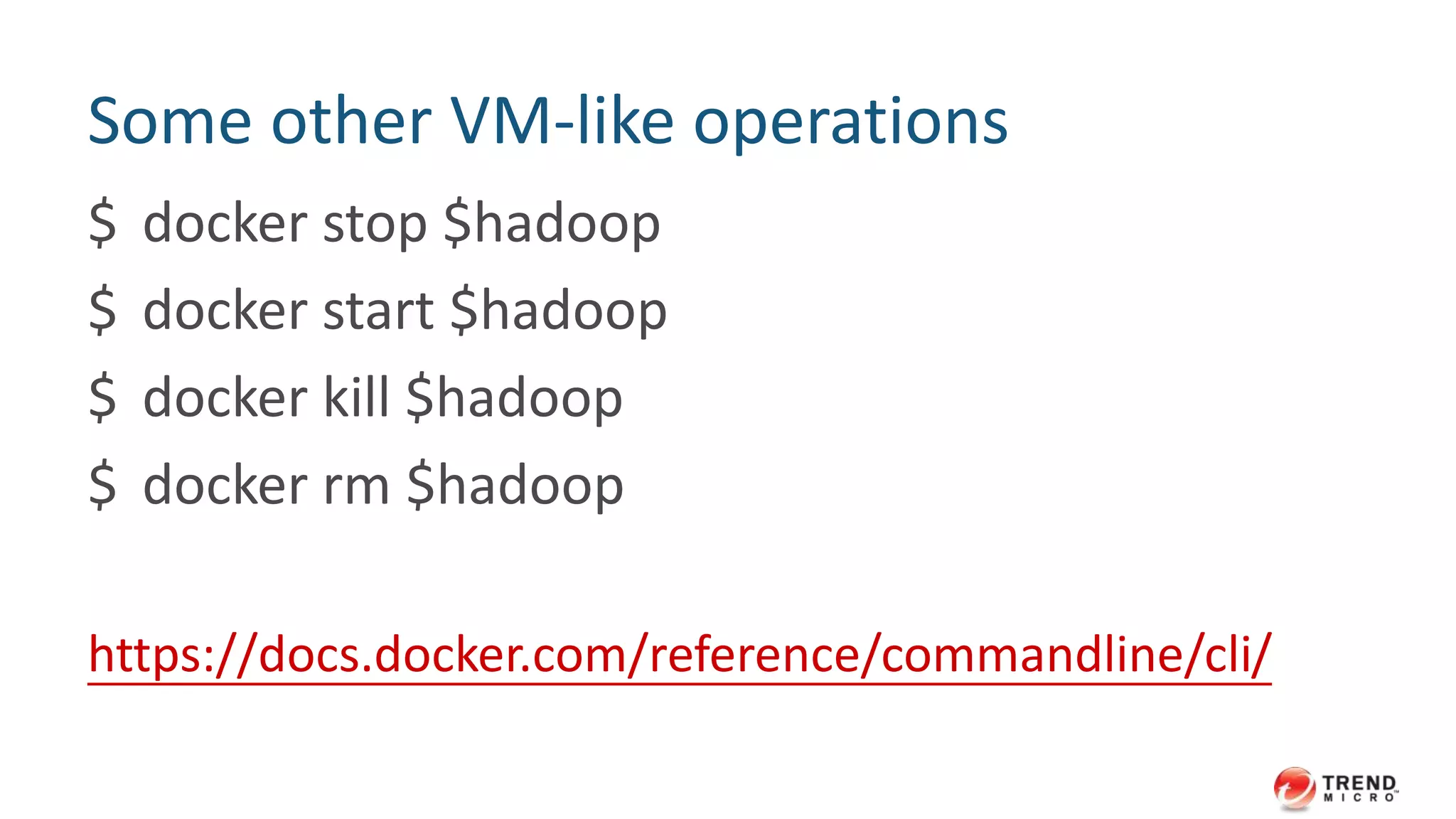

41. Some other VM-like operations
$ docker stop $hadoop
$ docker start $hadoop
$ docker kill $hadoop
$ docker rm $hadoop
https://docs.docker.com/reference/commandline/cli/

42. #TrendInsight
Building Docker Images

43. 43
There are two ways
to build docker
images

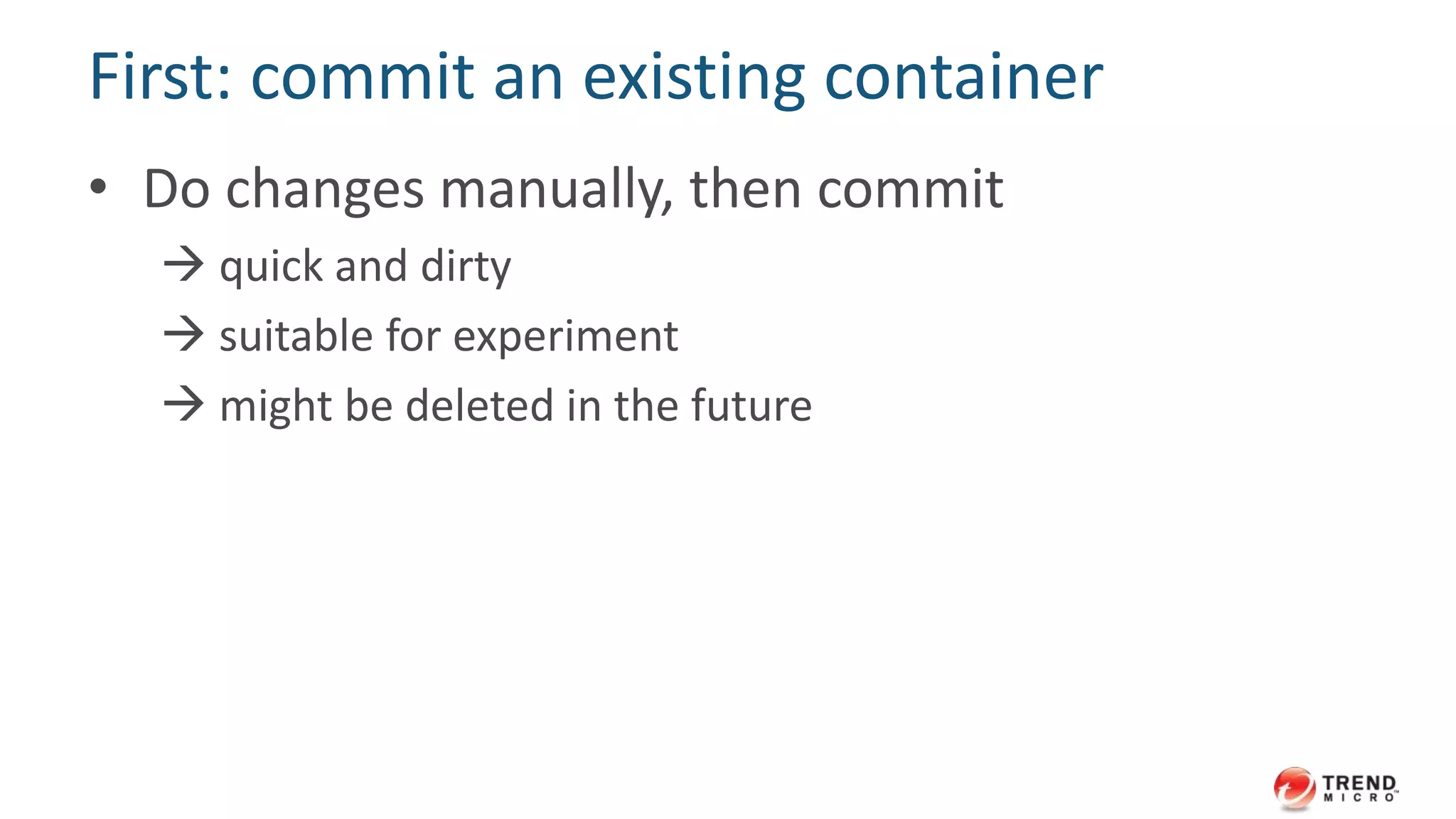

44. First: commit an existing container
• Do changes manually, then commit
 quick and dirty
 suitable for experiment
 might be deleted in the future

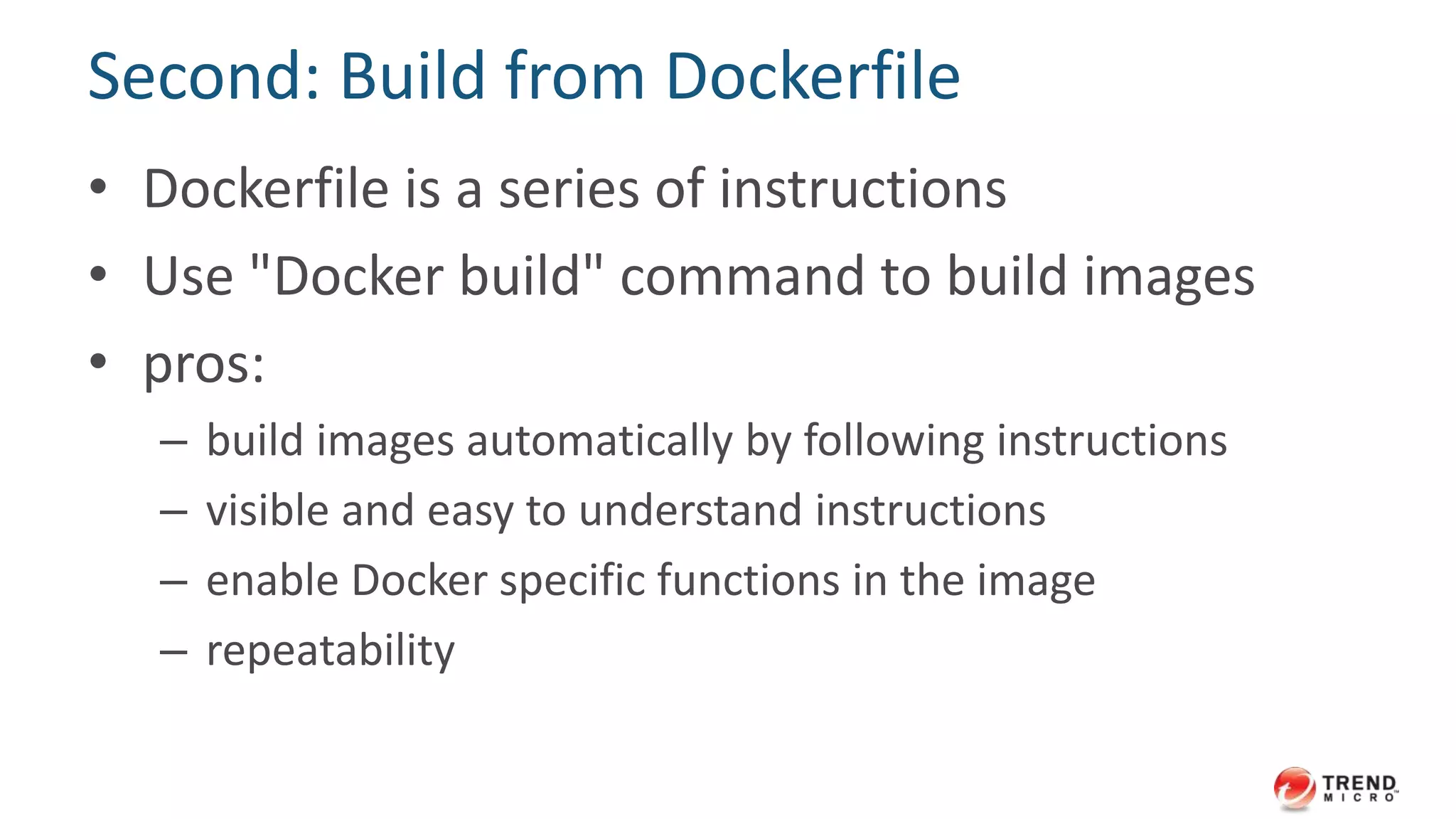

45. Second: Build from Dockerfile
• Dockerfile is a series of instructions
• Use "Docker build" command to build images
• pros:
– build images automatically by following instructions
– visible and easy to understand instructions
– enable Docker specific functions in the image
– repeatability

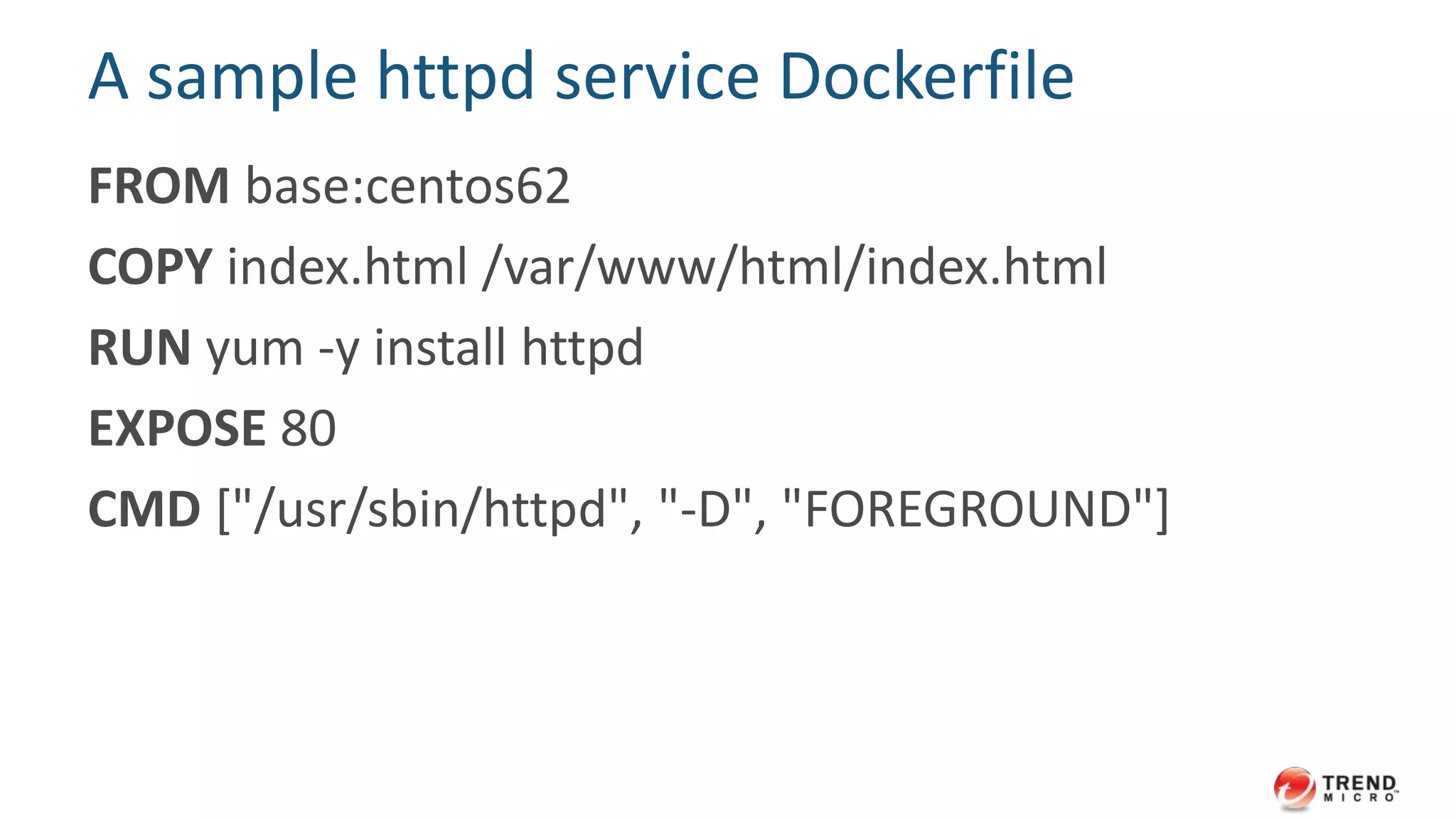

46. A sample httpd service Dockerfile
FROM base:centos62
COPY index.html /var/www/html/index.html
RUN yum -y install httpd
EXPOSE 80
CMD ["/usr/sbin/httpd", "-D", "FOREGROUND"]

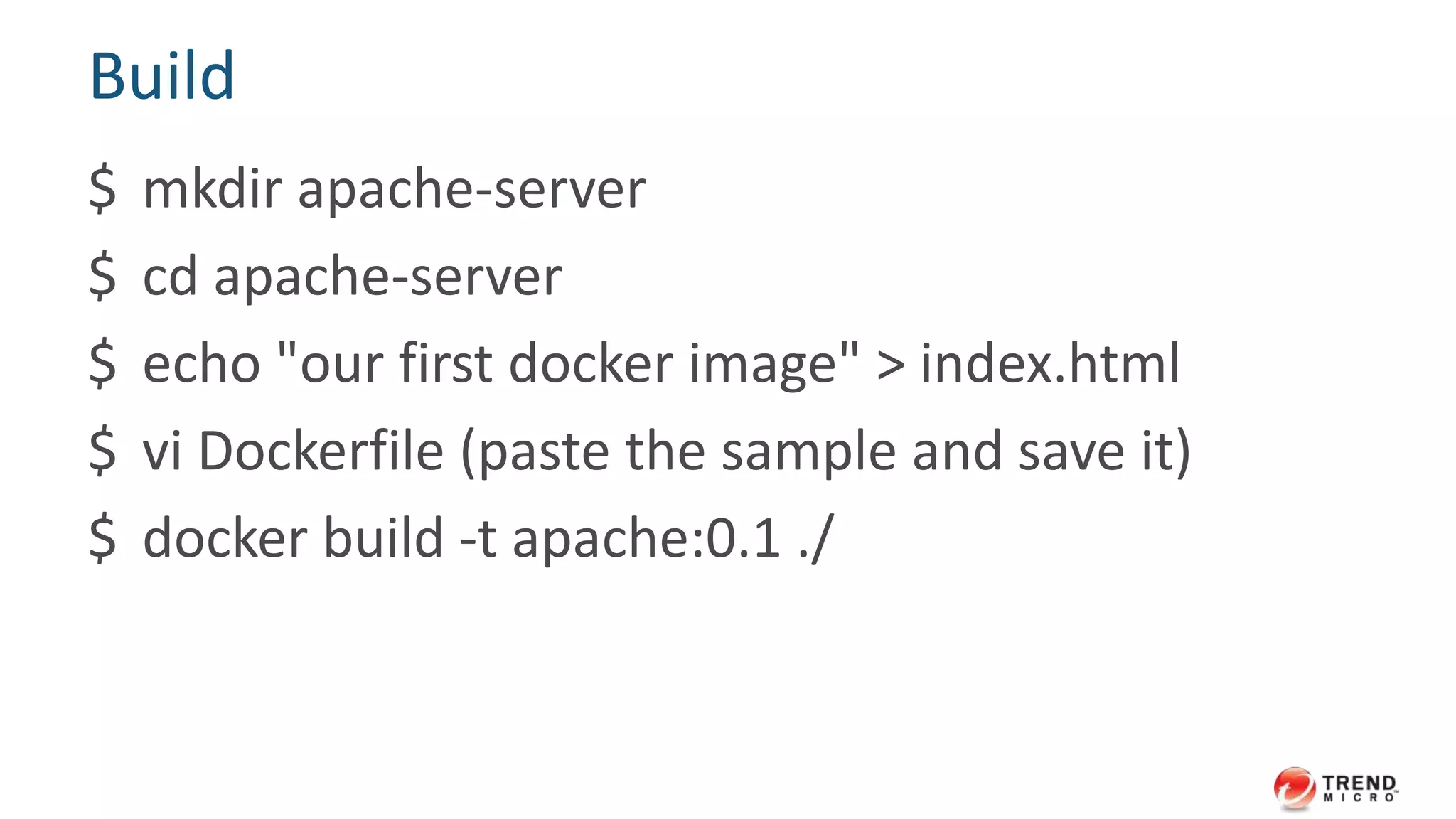

47. Build
$ mkdir apache-server
$ cd apache-server
$ echo "our first docker image" > index.html
$ vi Dockerfile (paste the sample and save it)
$ docker build -t apache:0.1 ./

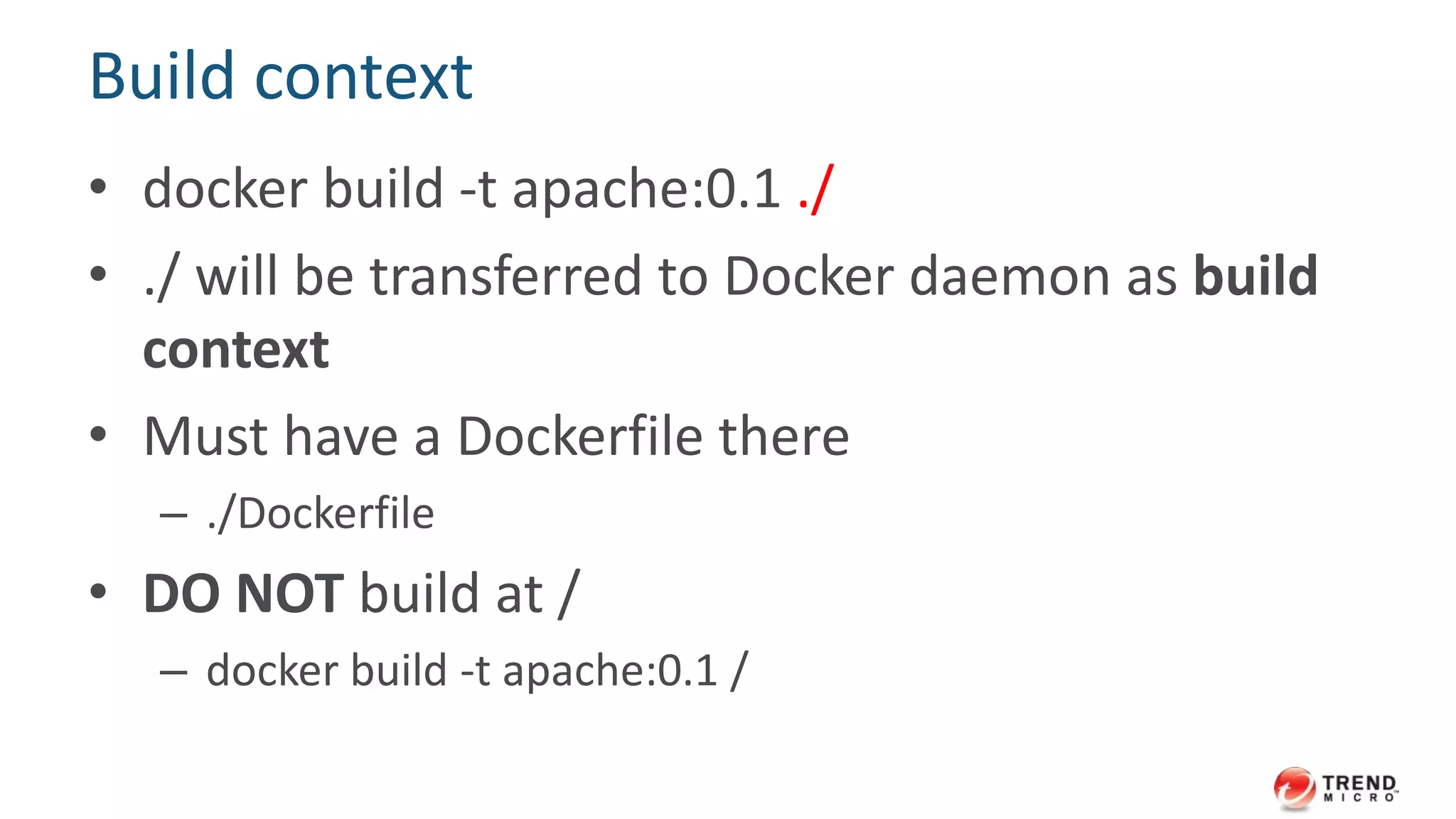

48. Build context
• docker build -t apache:0.1 ./
• ./ will be transferred to Docker daemon as build
context
• Must have a Dockerfile there
– ./Dockerfile
• DO NOT build at /
– docker build -t apache:0.1 /

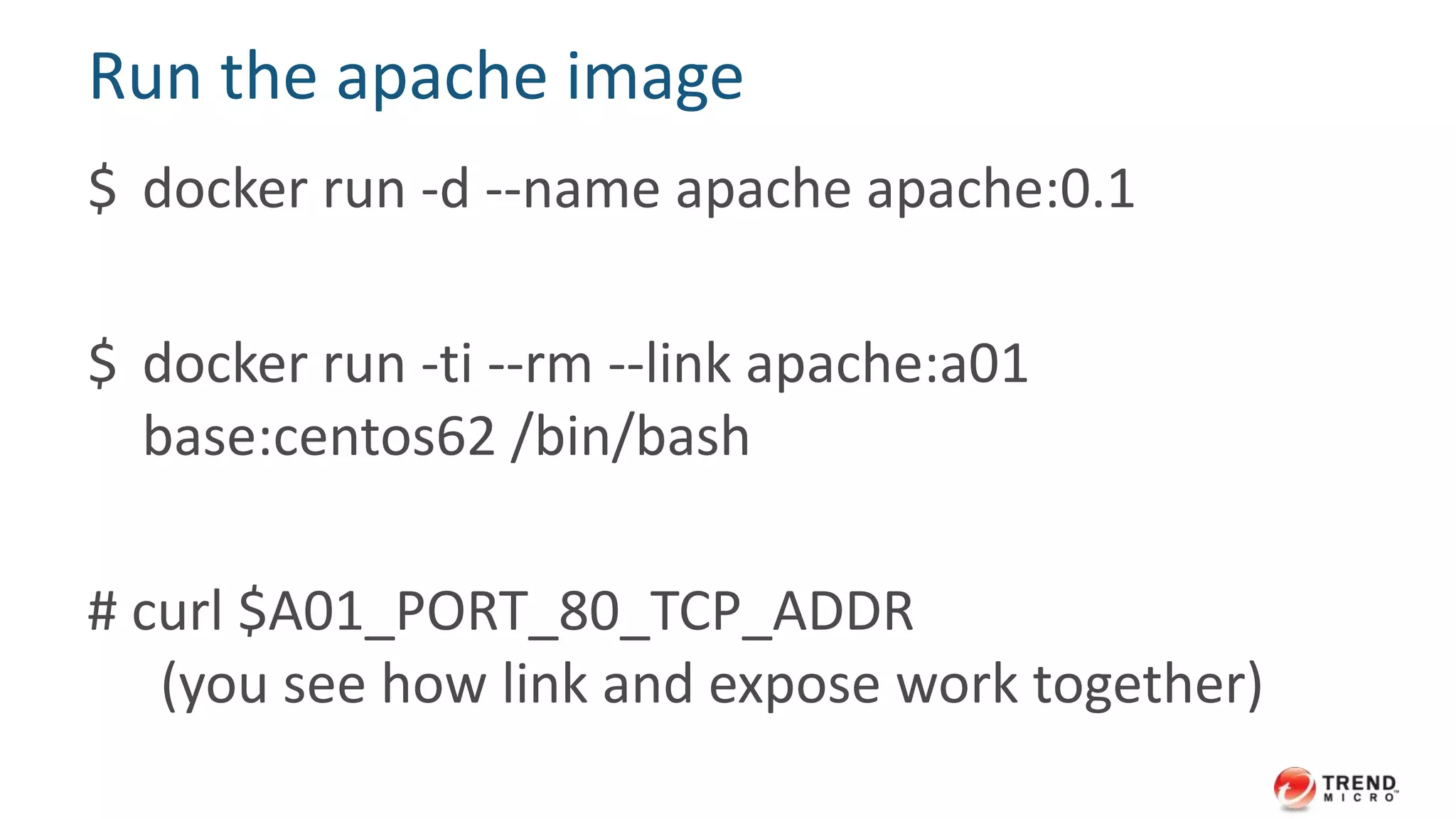

49. Run the apache image
$ docker run -d --name apache apache:0.1
$ docker run -ti --rm --link apache:a01
base:centos62 /bin/bash
# curl $A01_PORT_80_TCP_ADDR
(you see how link and expose work together)

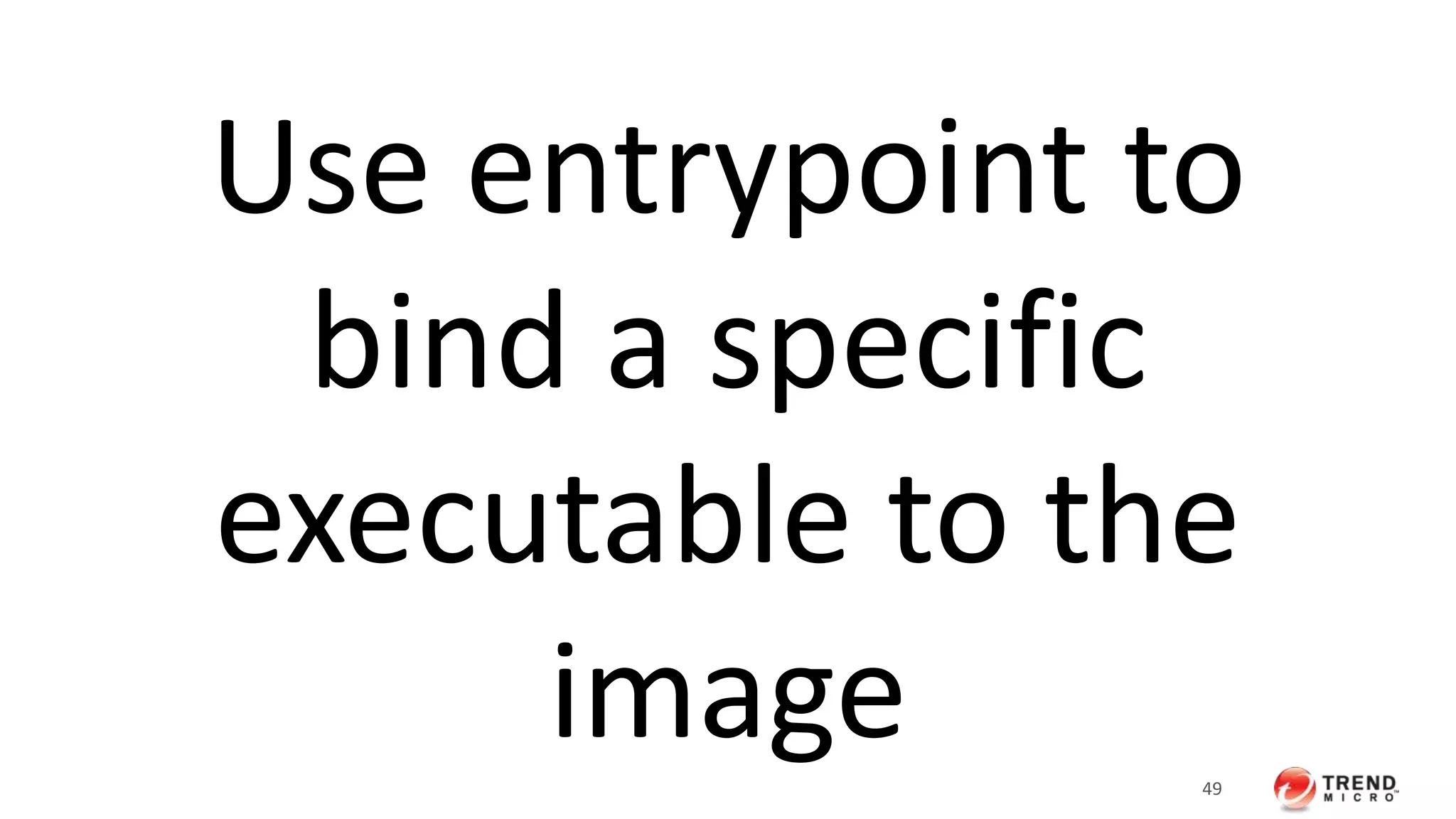

50. 50
Use entrypoint to
bind a specific
executable to the

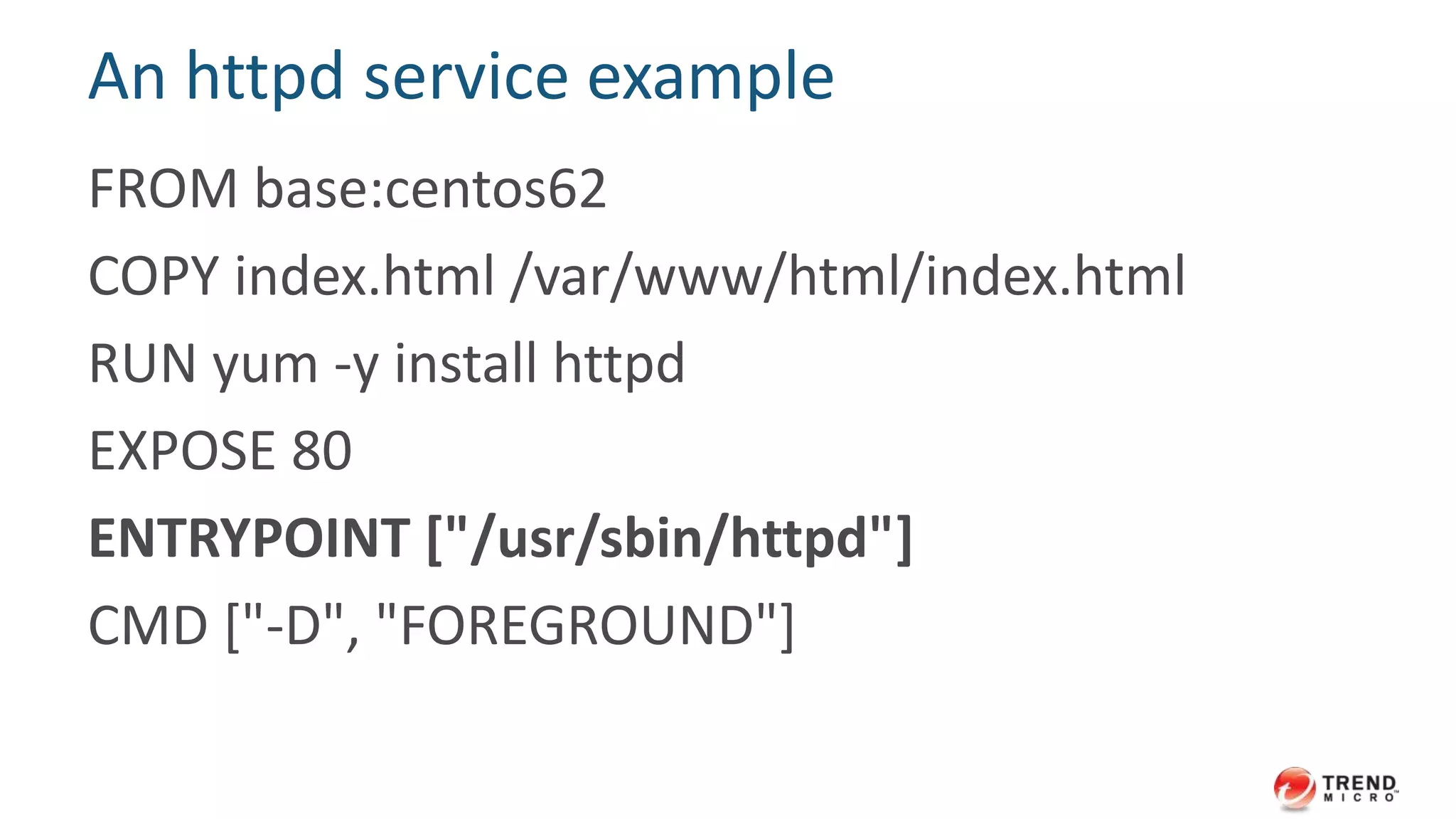

51. An httpd service example
FROM base:centos62
COPY index.html /var/www/html/index.html
RUN yum -y install httpd
EXPOSE 80
ENTRYPOINT ["/usr/sbin/httpd"]
CMD ["-D", "FOREGROUND"]

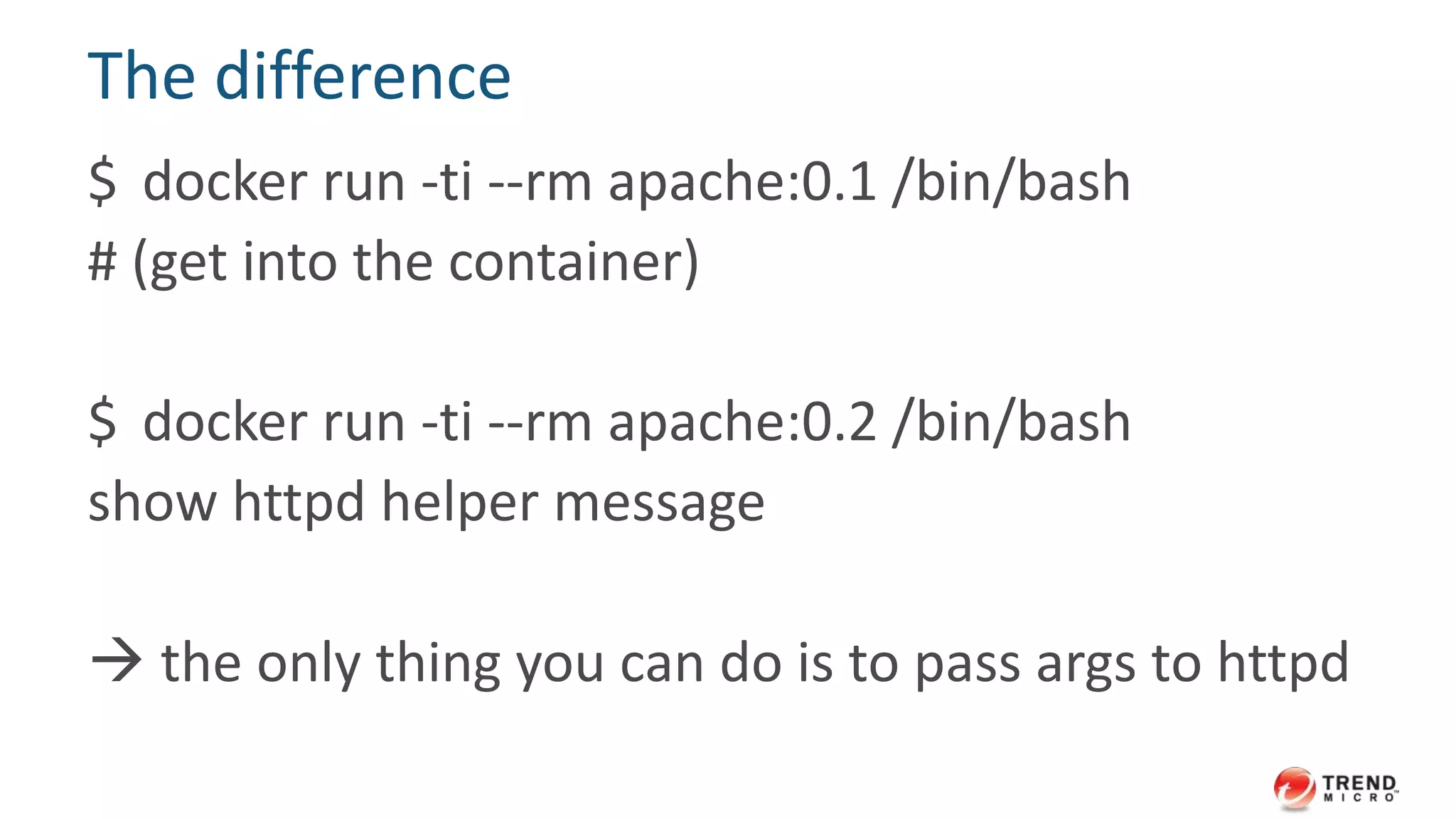

52. The difference
$ docker run -ti --rm apache:0.1 /bin/bash
# (get into the container)
$ docker run -ti --rm apache:0.2 /bin/bash
show httpd helper message
 the only thing you can do is to pass args to httpd

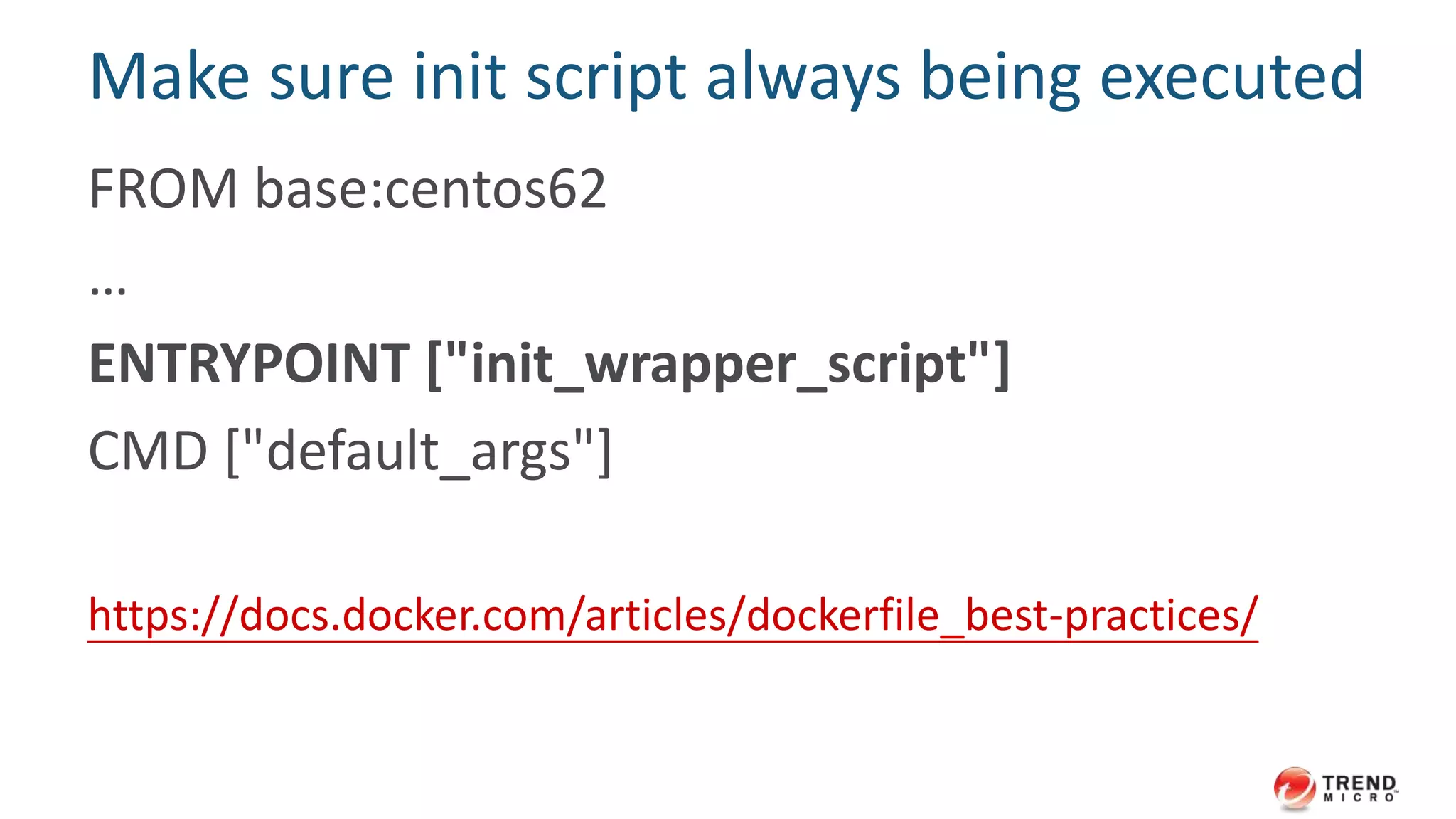

53. Make sure init script always being executed
FROM base:centos62
…
ENTRYPOINT ["init_wrapper_script"]
CMD ["default_args"]
https://docs.docker.com/articles/dockerfile_best-practices/

54. SHIPPING
CONTAINERS

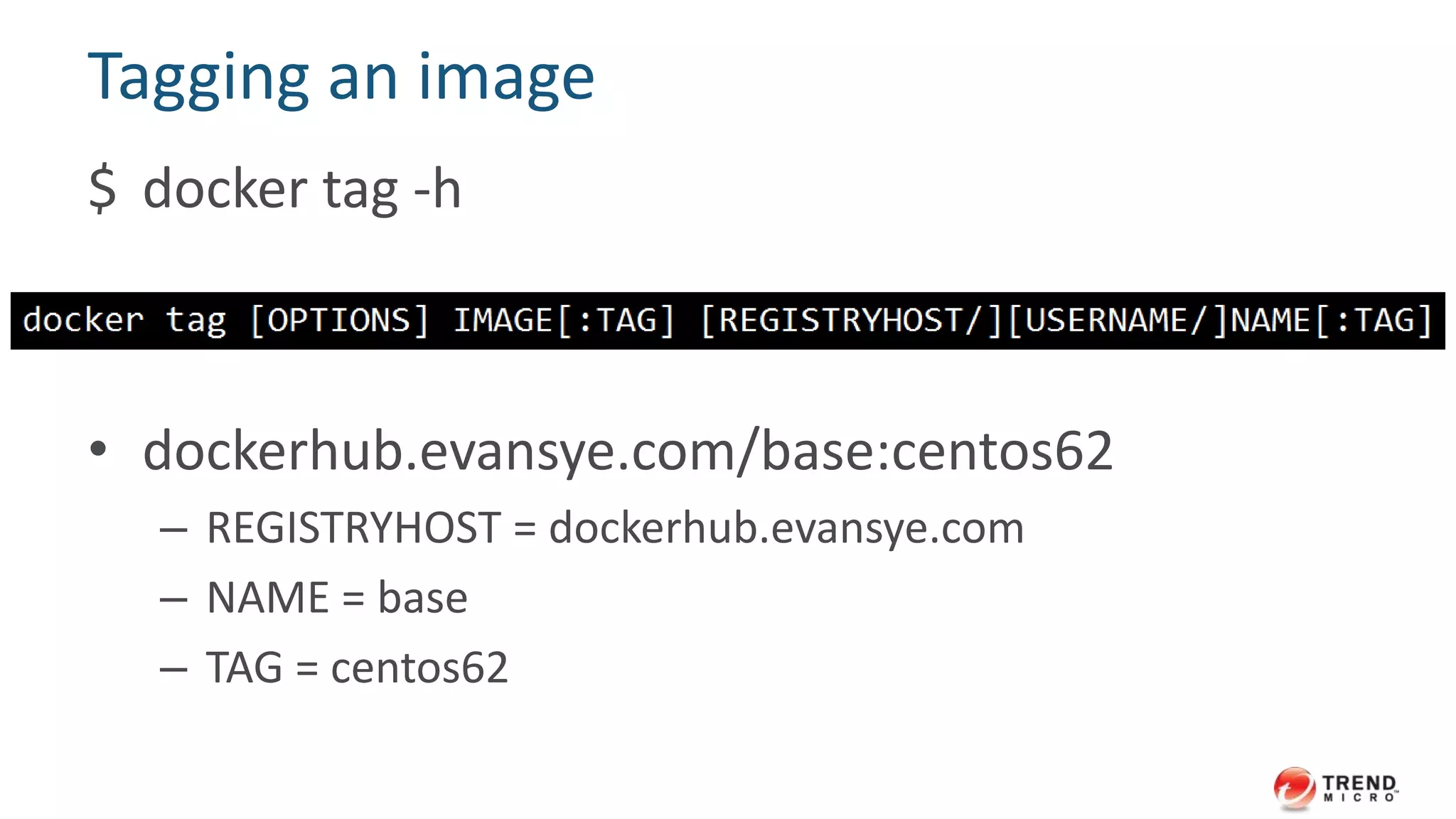

55. Tagging an image
$ docker tag -h
• dockerhub.evansye.com/base:centos62
– REGISTRYHOST = dockerhub.evansye.com
– NAME = base
– TAG = centos62

56. #TrendInsight

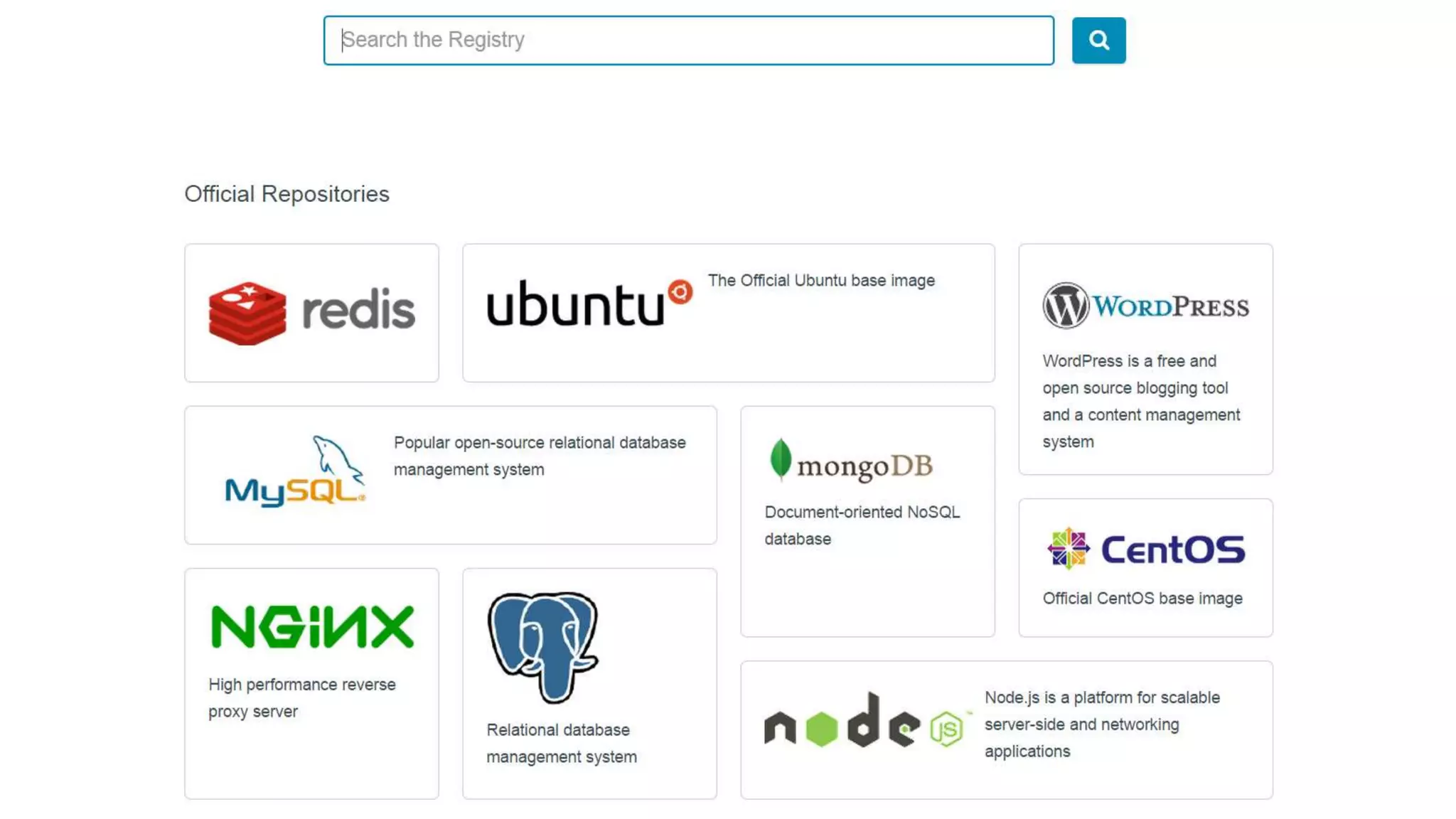

The official Docker hub

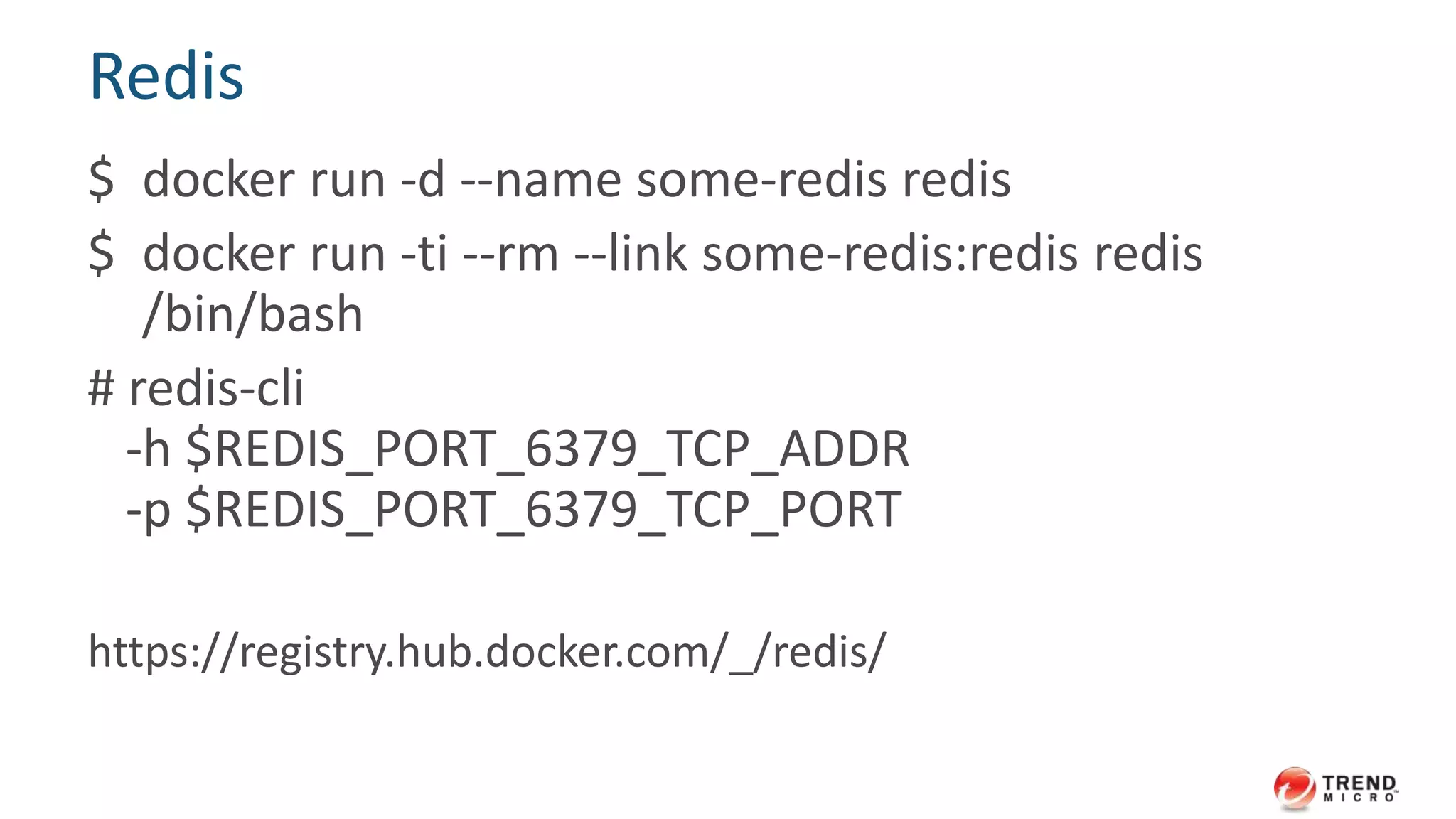

58. Redis
$ docker run -d --name some-redis redis
$ docker run -ti --rm --link some-redis:redis redis
/bin/bash
# redis-cli
-h $REDIS_PORT_6379_TCP_ADDR
-p $REDIS_PORT_6379_TCP_PORT
https://registry.hub.docker.com/_/redis/

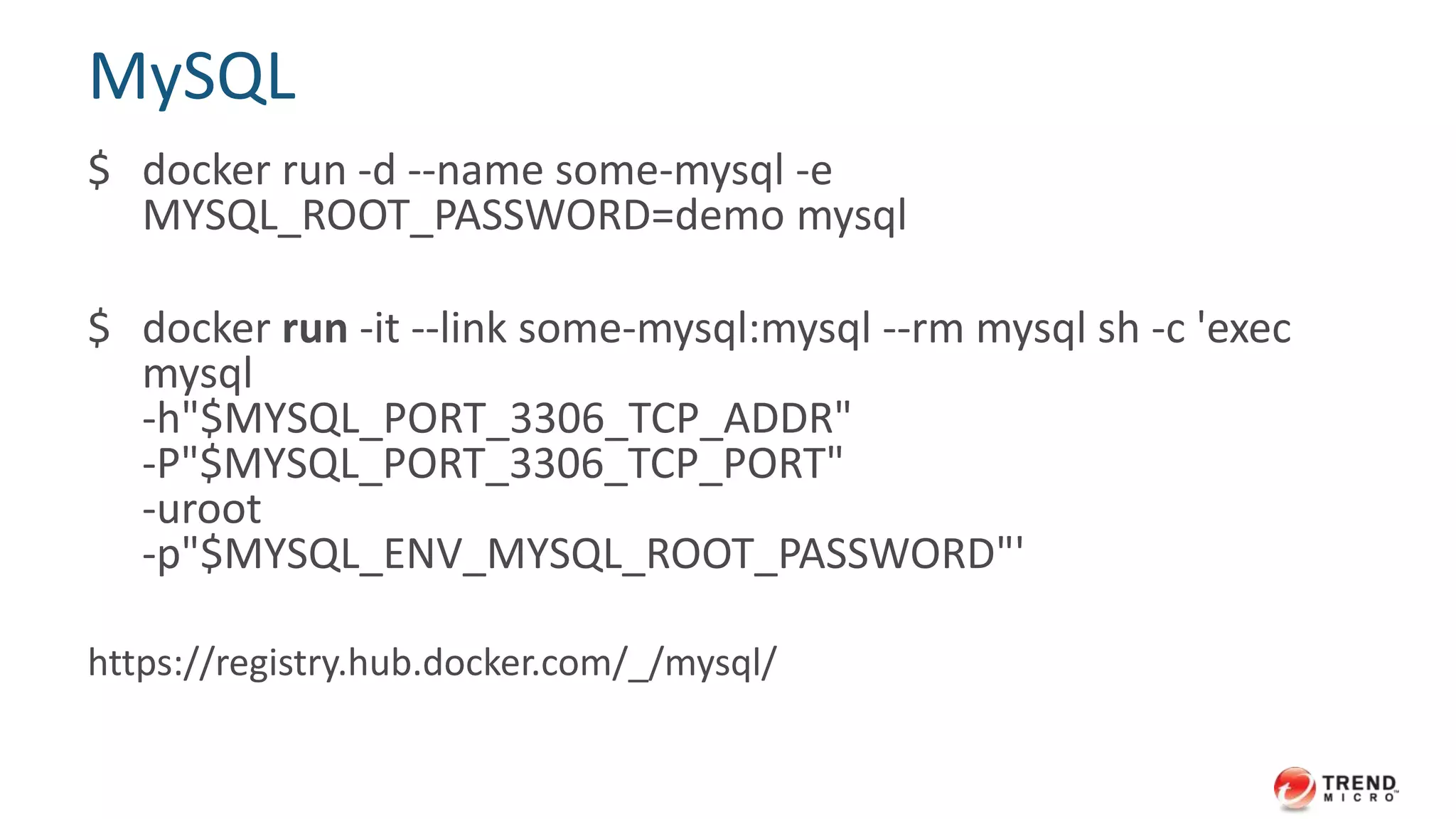

59. MySQL
$ docker run -d --name some-mysql -e
MYSQL_ROOT_PASSWORD=demo mysql
$ docker run -it --link some-mysql:mysql --rm mysql sh -c 'exec
mysql
-h"$MYSQL_PORT_3306_TCP_ADDR"
-P"$MYSQL_PORT_3306_TCP_PORT"
-uroot
-p"$MYSQL_ENV_MYSQL_ROOT_PASSWORD"'
https://registry.hub.docker.com/_/mysql/

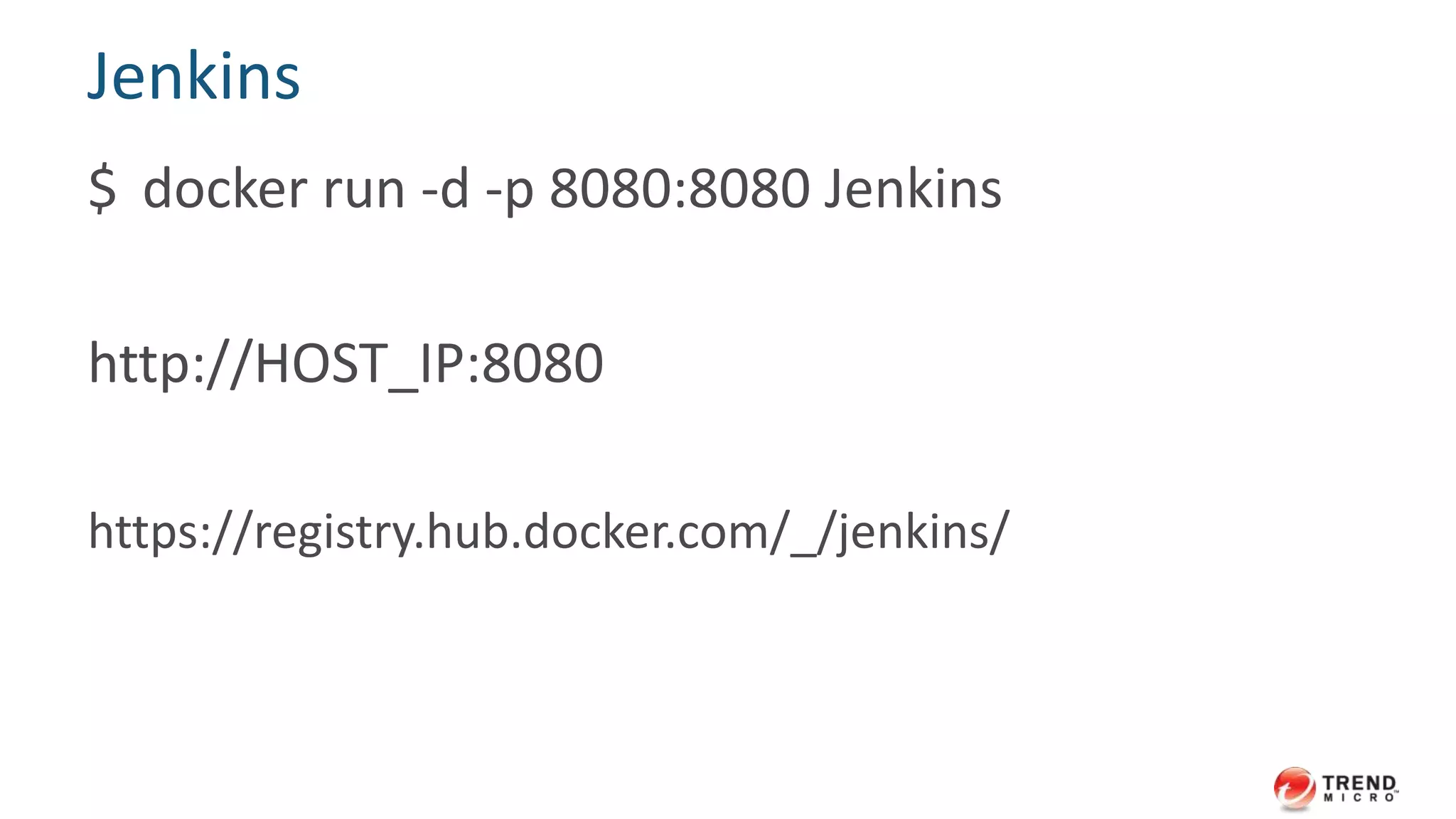

60. Jenkins
$ docker run -d -p 8080:8080 Jenkins
http://HOST_IP:8080
https://registry.hub.docker.com/_/jenkins/

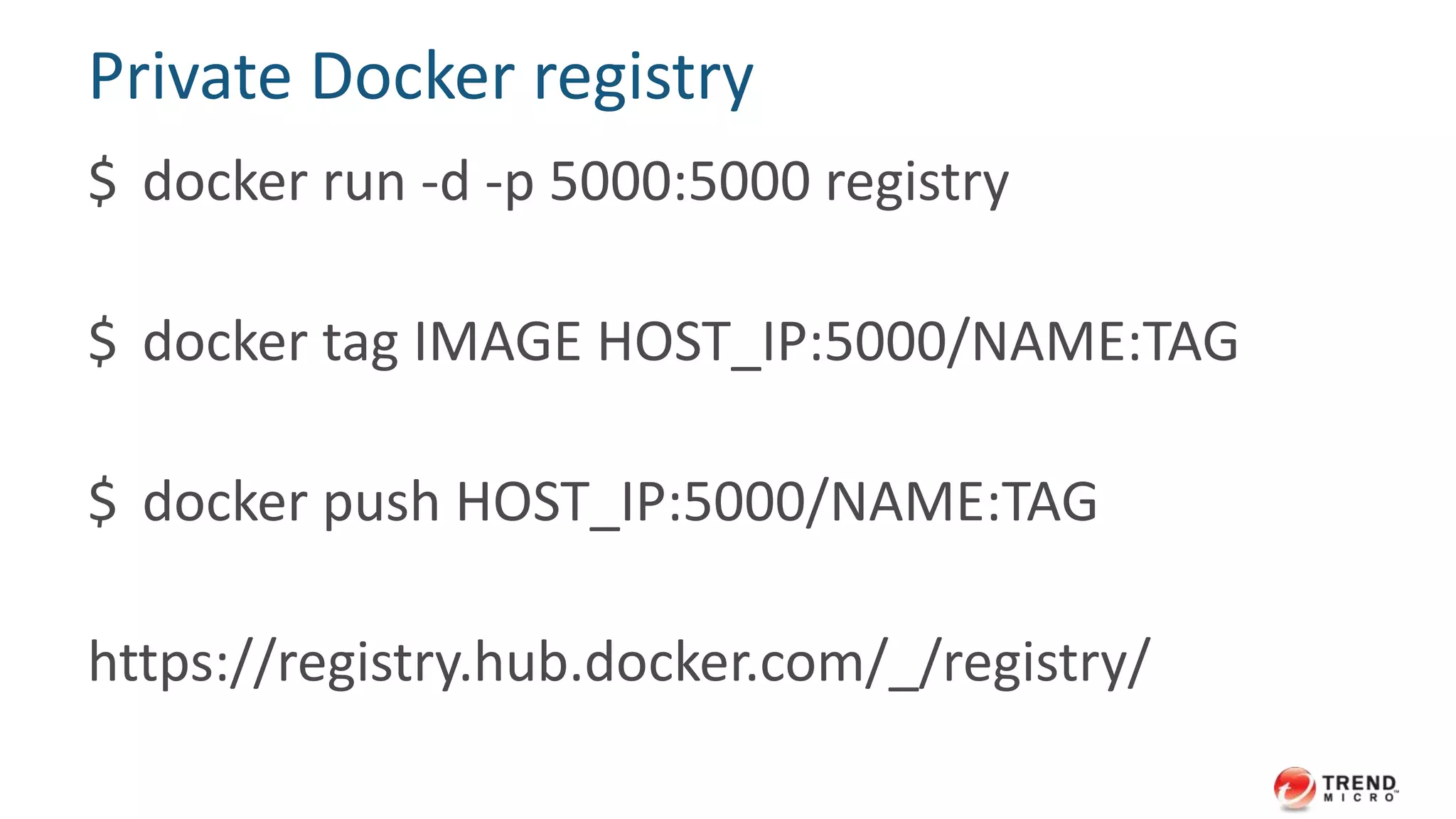

61. Private Docker registry
$ docker run -d -p 5000:5000 registry
$ docker tag IMAGE HOST_IP:5000/NAME:TAG
$ docker push HOST_IP:5000/NAME:TAG
https://registry.hub.docker.com/_/registry/

62. #TrendInsight
Summary

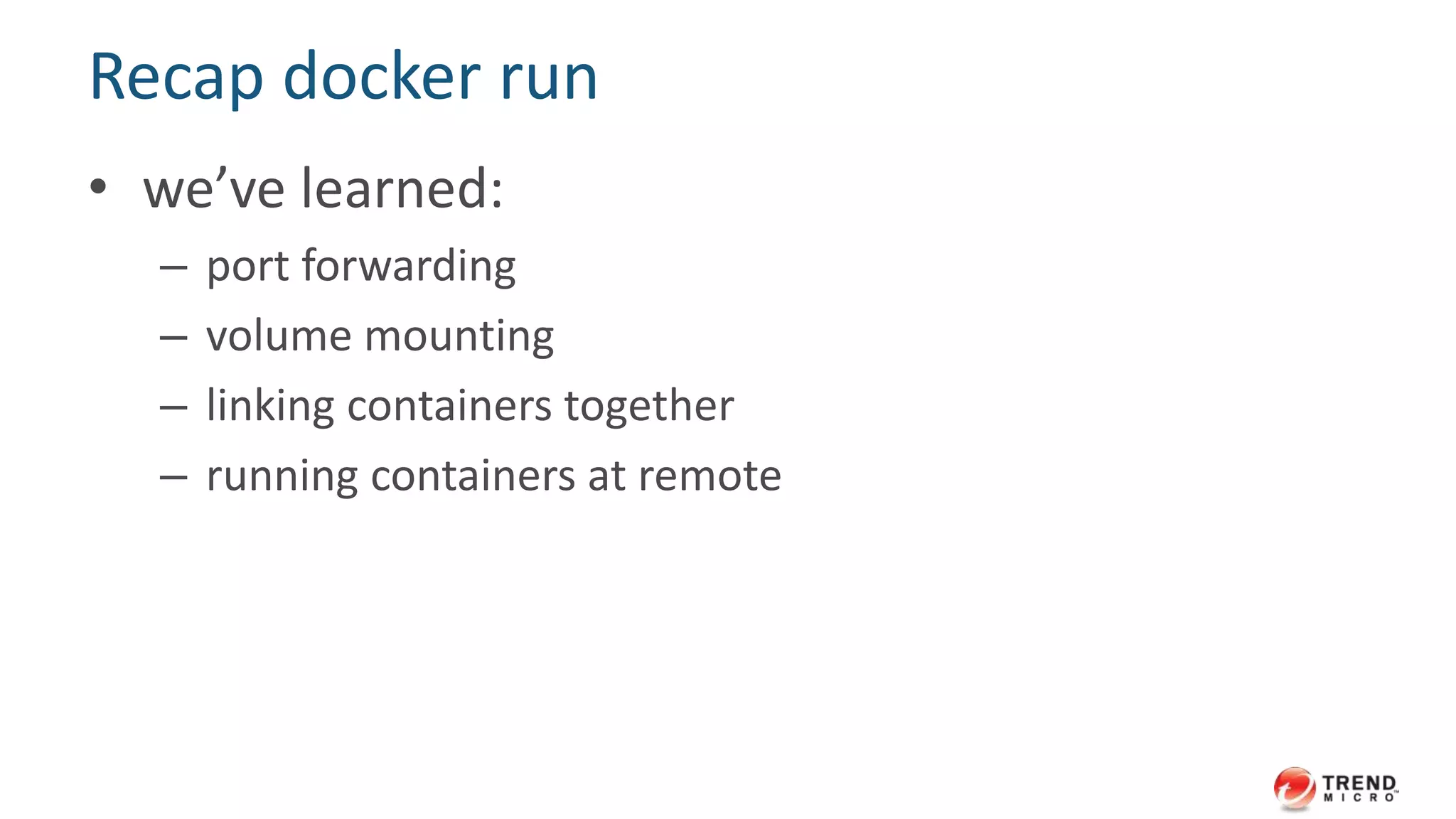

63. Recap docker run
• we’ve learned:
– port forwarding
– volume mounting
– linking containers together
– running containers at remote

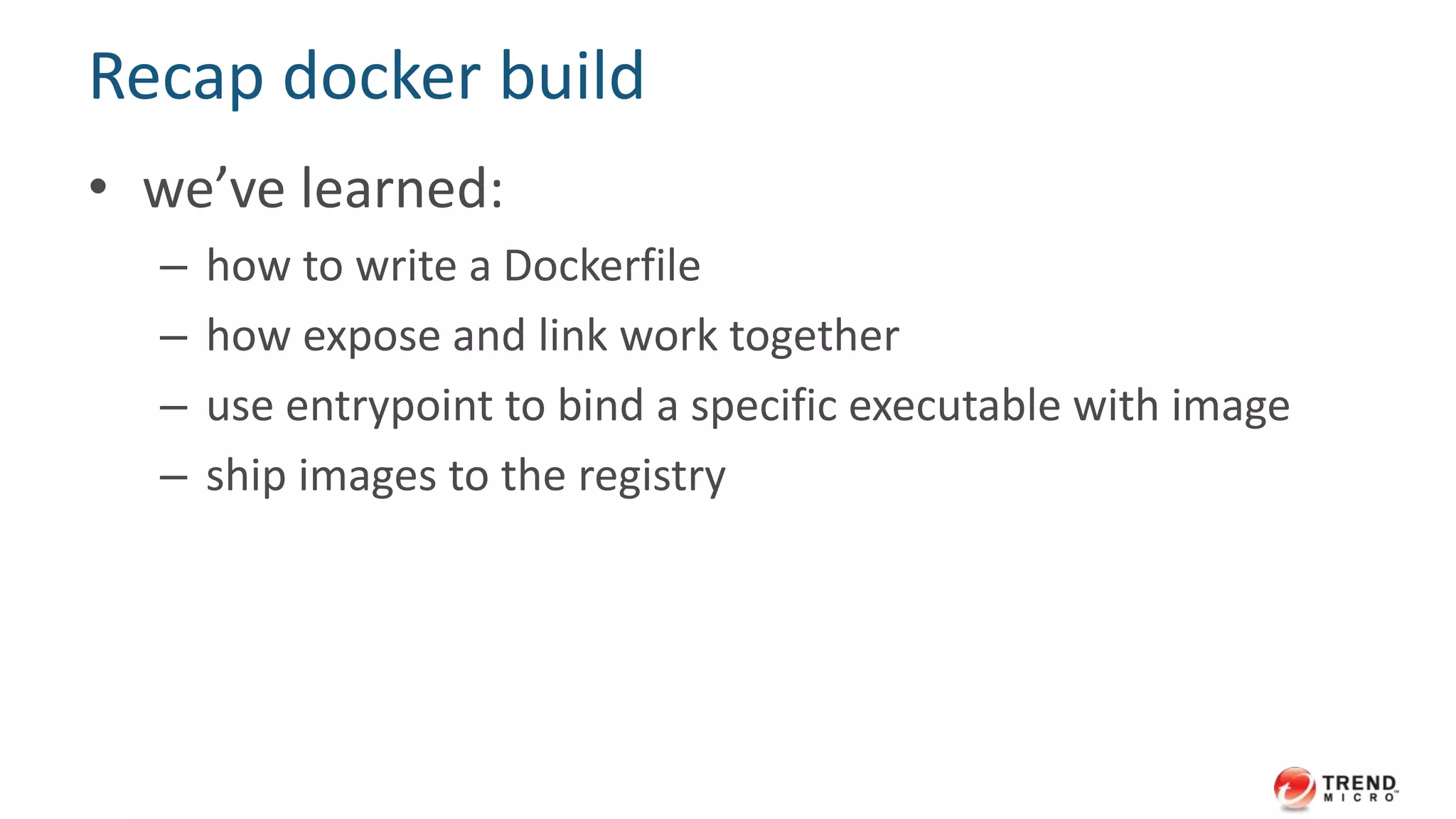

64. Recap docker build
• we’ve learned:
– how to write a Dockerfile
– how expose and link work together
– use entrypoint to bind a specific executable with image
– ship images to the registry

65. #TrendInsight
Q & A

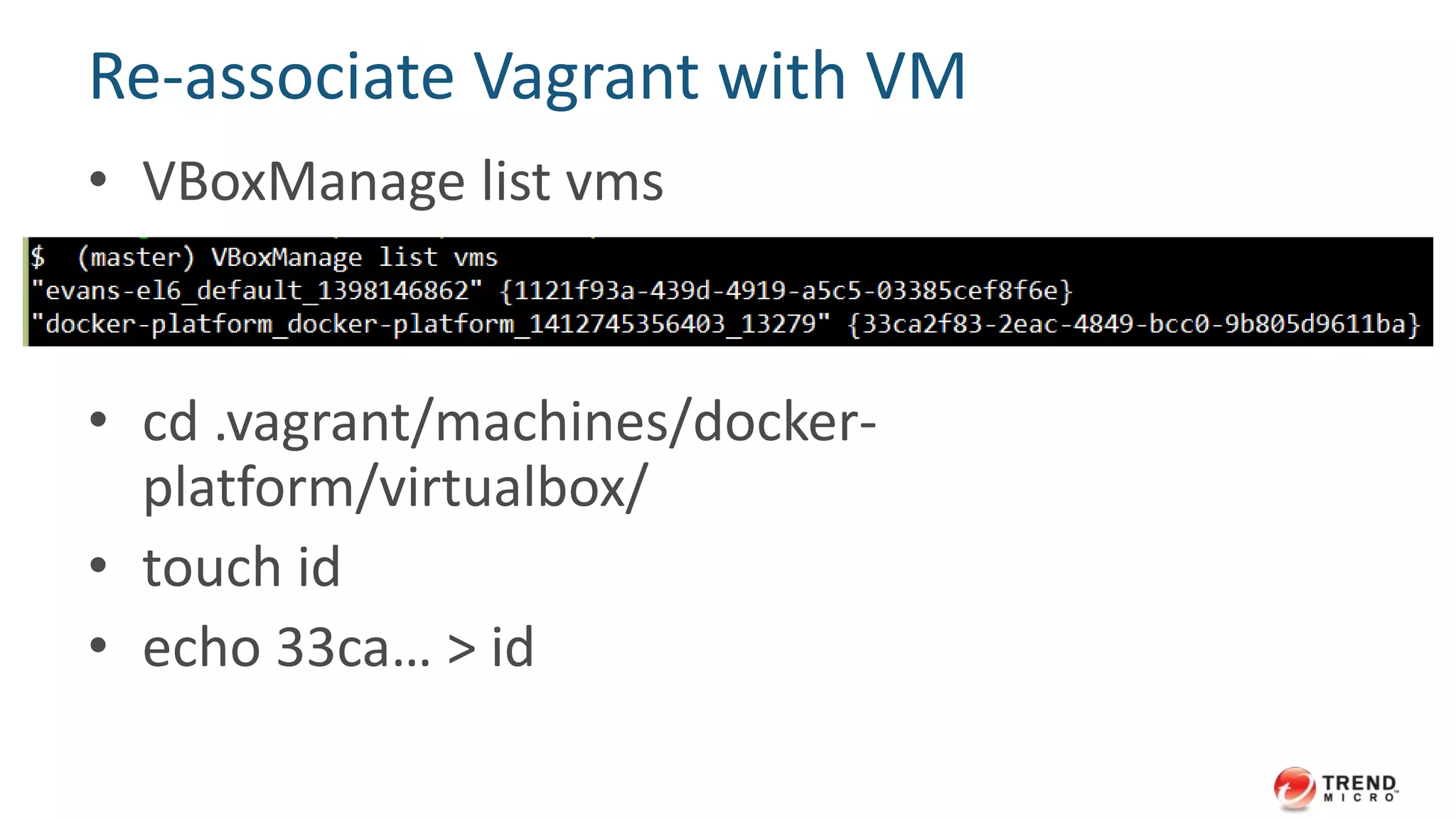

66. Re-associate Vagrant with VM
• VBoxManage list vms
• cd .vagrant/machines/docker-
platform/virtualbox/
• touch id
• echo 33ca… > id
