Learn the basics of Docker and Kubernetes before applying these complementary tools to deploy containers on Google Cloud Platform (GCP).

1. DOCKER, KUBERNETES, AND GCP
How do you use these complementary tools to deploy containers in the Cloud?

2. THE BASICS

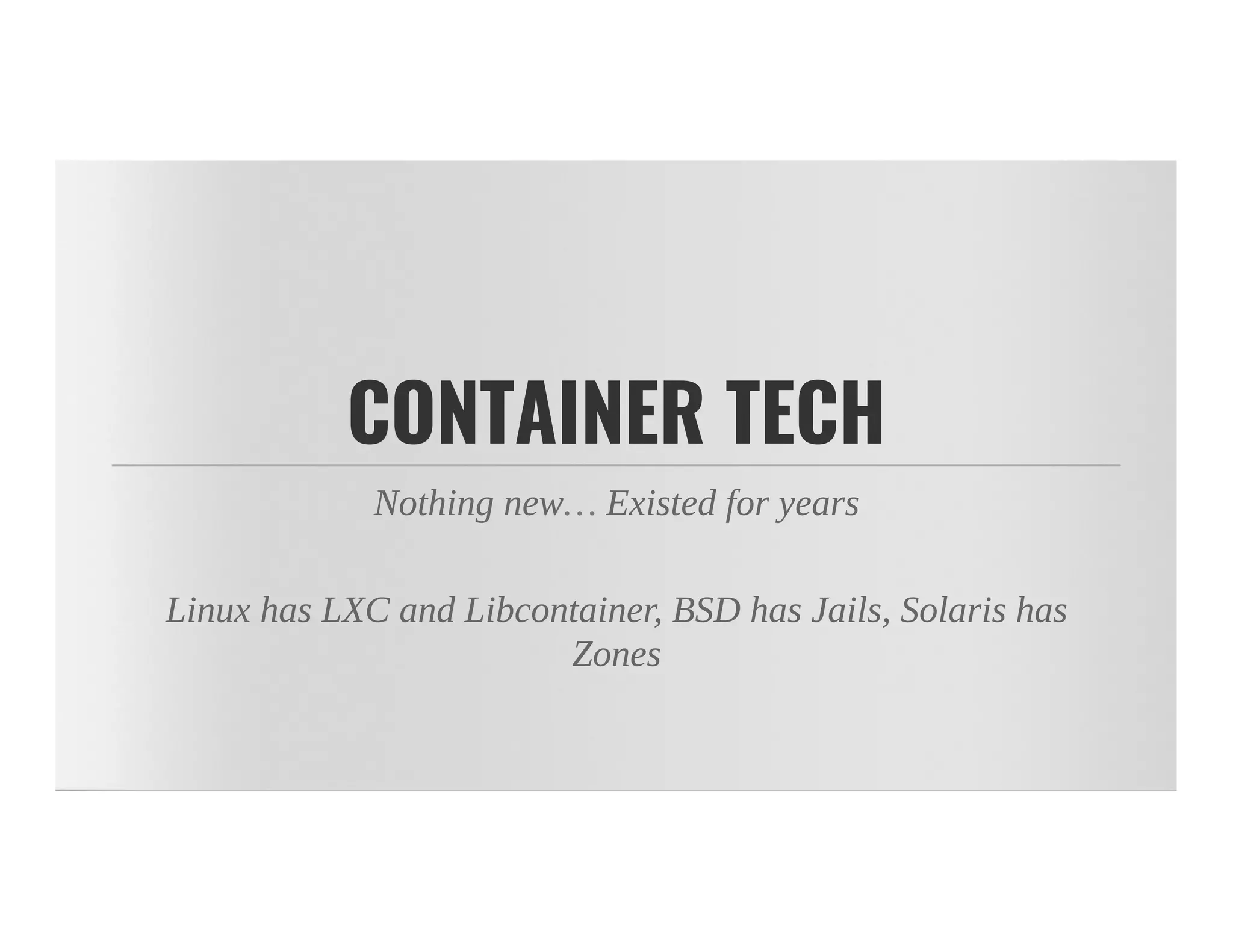

3. CONTAINER TECH
Nothing new… Existed for years
Linux has LXC and Libcontainer, BSD has Jails, Solaris has
Zones

4. Docker (the company) just figured a clever way to packaging it
and adding a rich toolset around it.

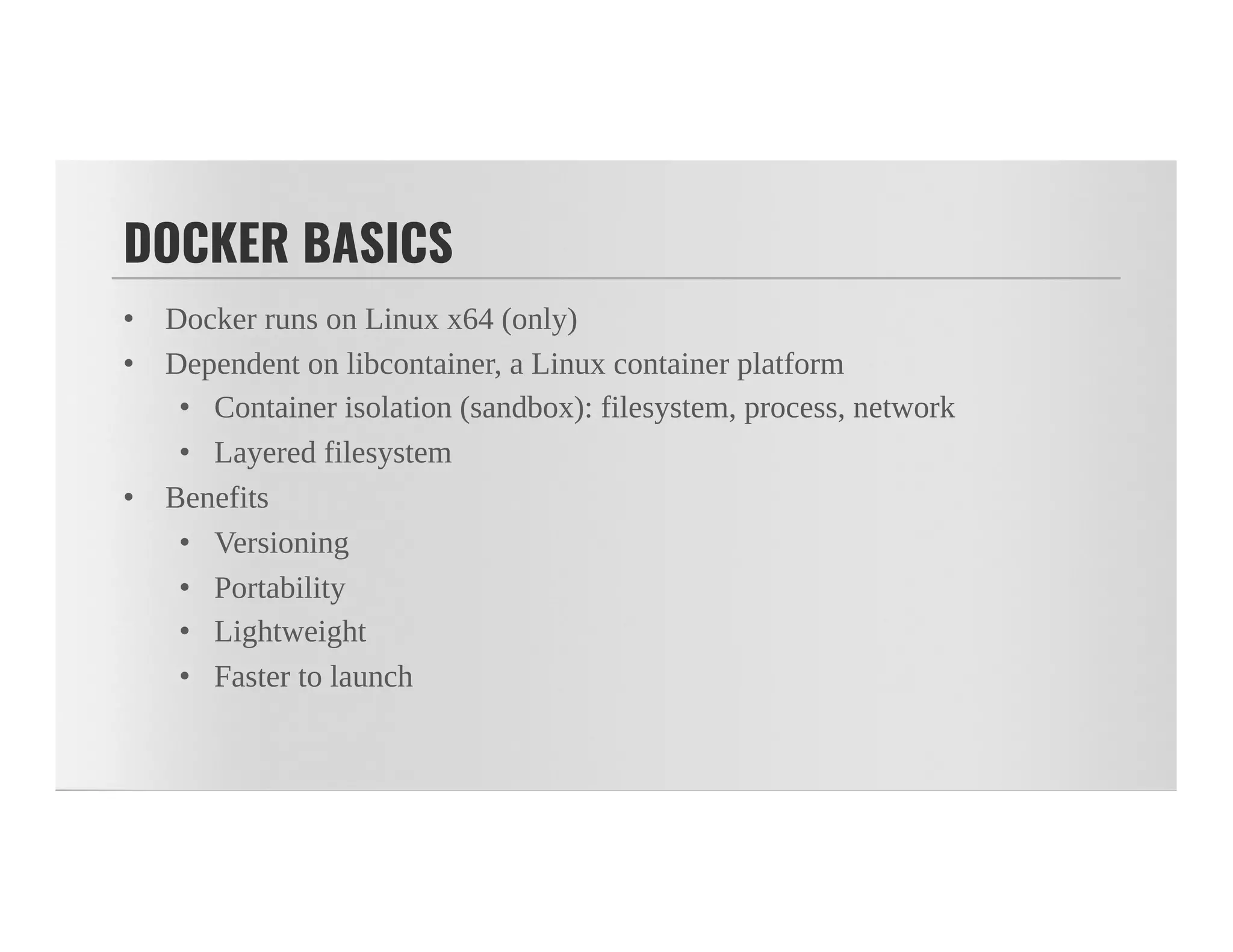

5. DOCKER BASICS
• Docker runs on Linux x64 (only)
• Dependent on libcontainer, a Linux container platform
• Container isolation (sandbox): filesystem, process, network
• Layered filesystem
• Benefits
• Versioning
• Portability
• Lightweight
• Faster to launch

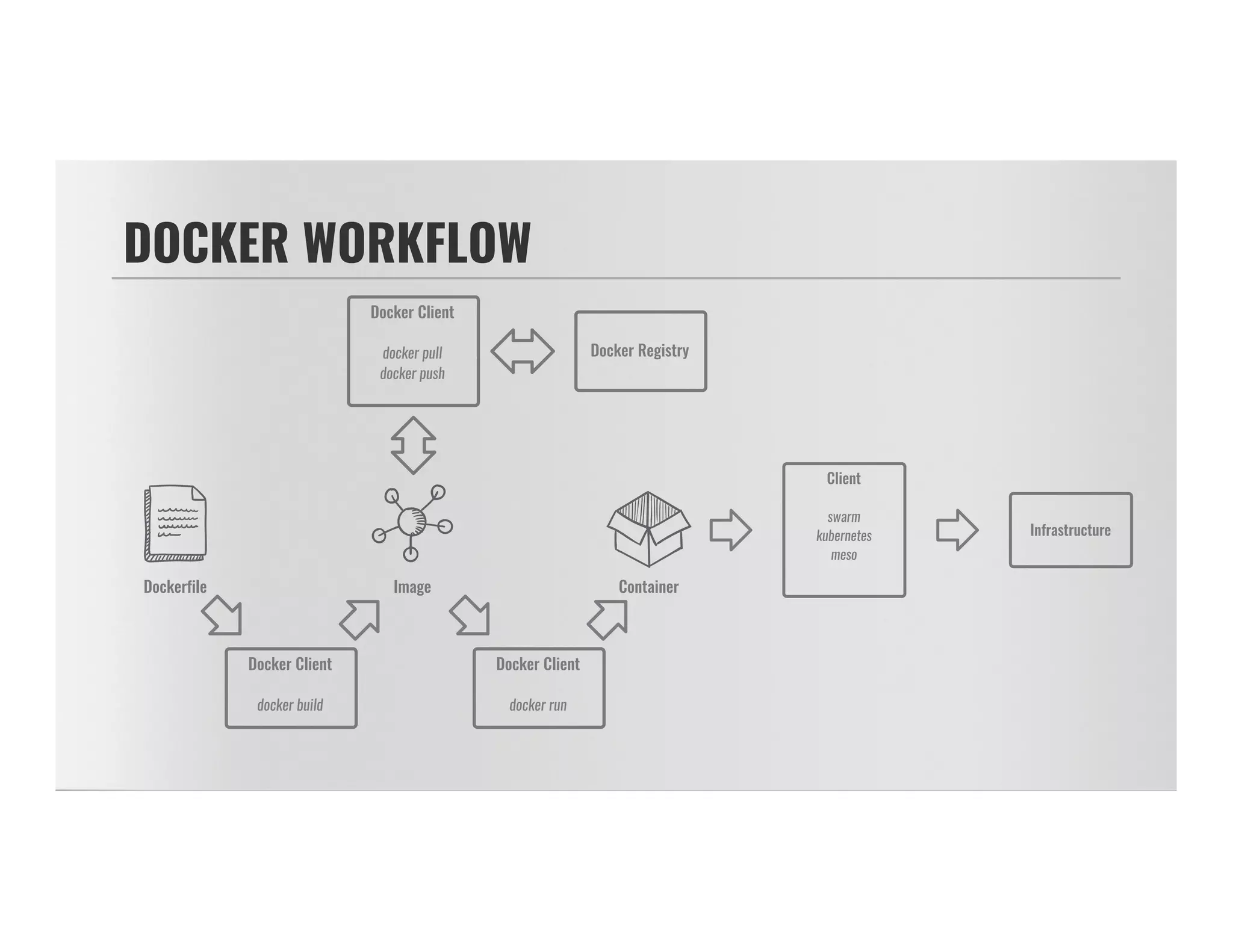

6. DOCKER WORKFLOW
Dockerfile
Docker Client
docker build
Docker Client
docker run
Container
Docker Client
docker pull
docker push
Docker Registry
Infrastructure
Client
swarm
kubernetes
meso

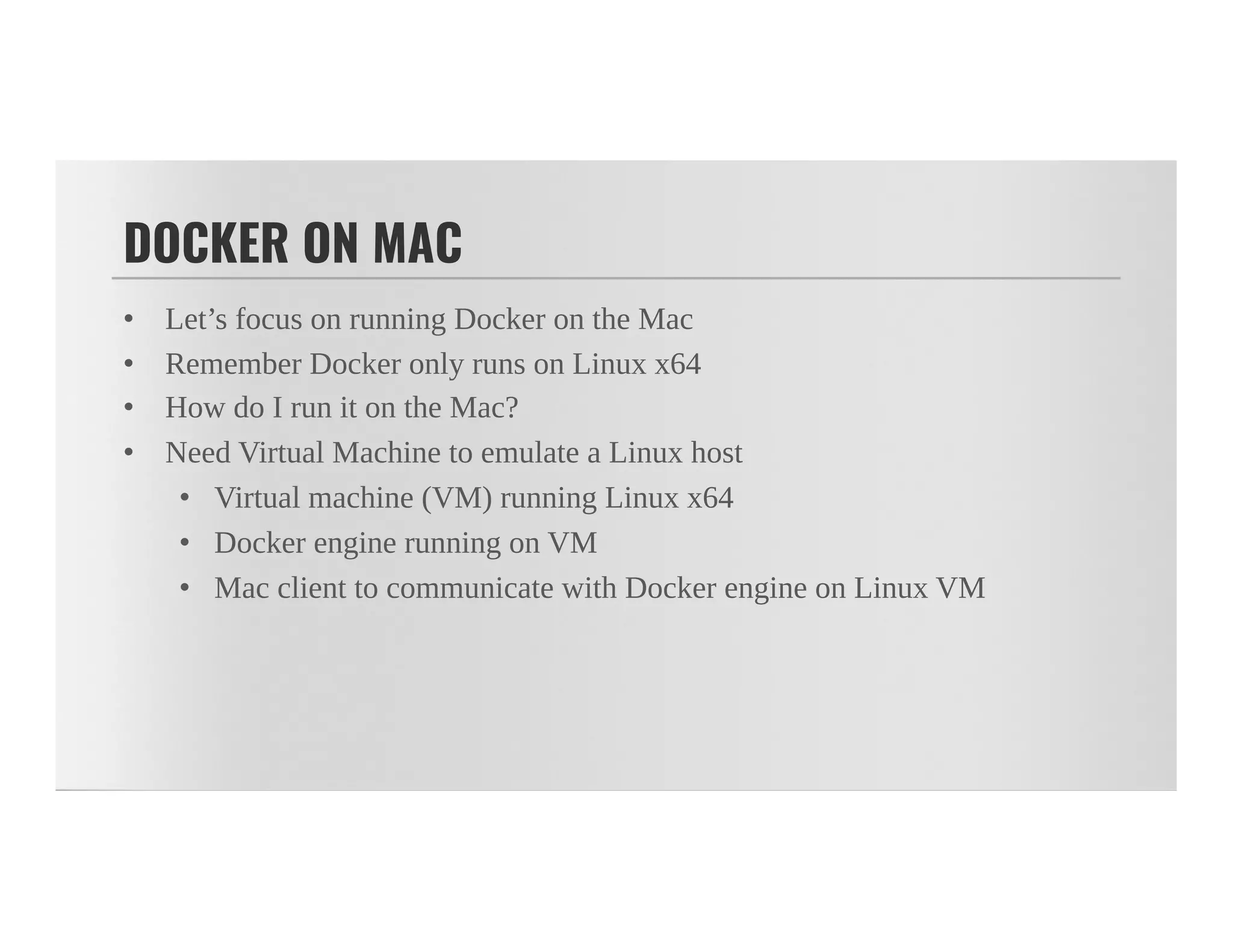

7. DOCKER ON MAC
• Let’s focus on running Docker on the Mac
• Remember Docker only runs on Linux x64
• How do I run it on the Mac?
• Need Virtual Machine to emulate a Linux host
• Virtual machine (VM) running Linux x64
• Docker engine running on VM
• Mac client to communicate with Docker engine on Linux VM

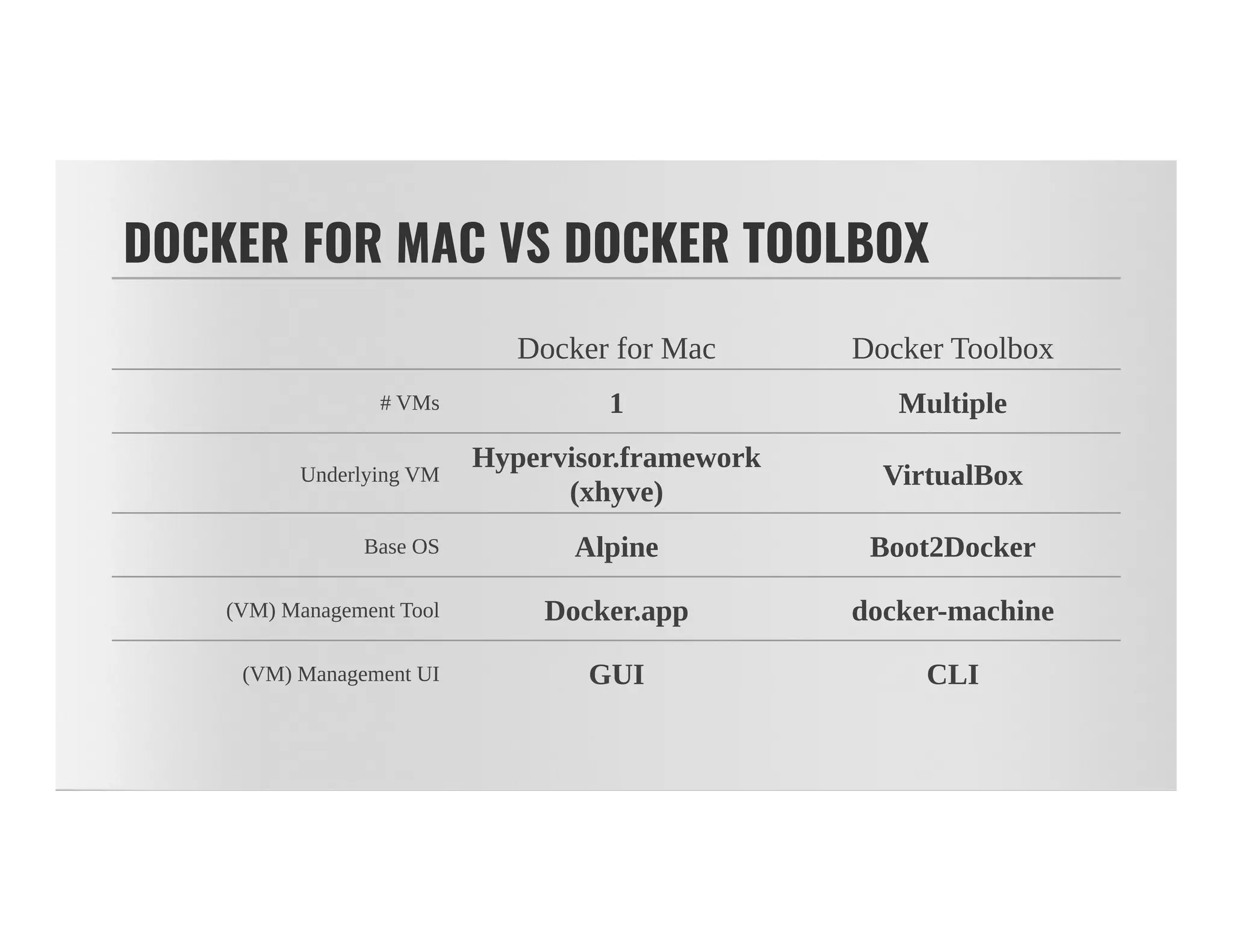

8. DOCKER FOR MAC VS DOCKER TOOLBOX
Docker for Mac Docker Toolbox
# VMs 1 Multiple
Underlying VM
Hypervisor.framework
(xhyve)
VirtualBox
Base OS Alpine Boot2Docker
(VM) Management Tool Docker.app docker-machine
(VM) Management UI GUI CLI

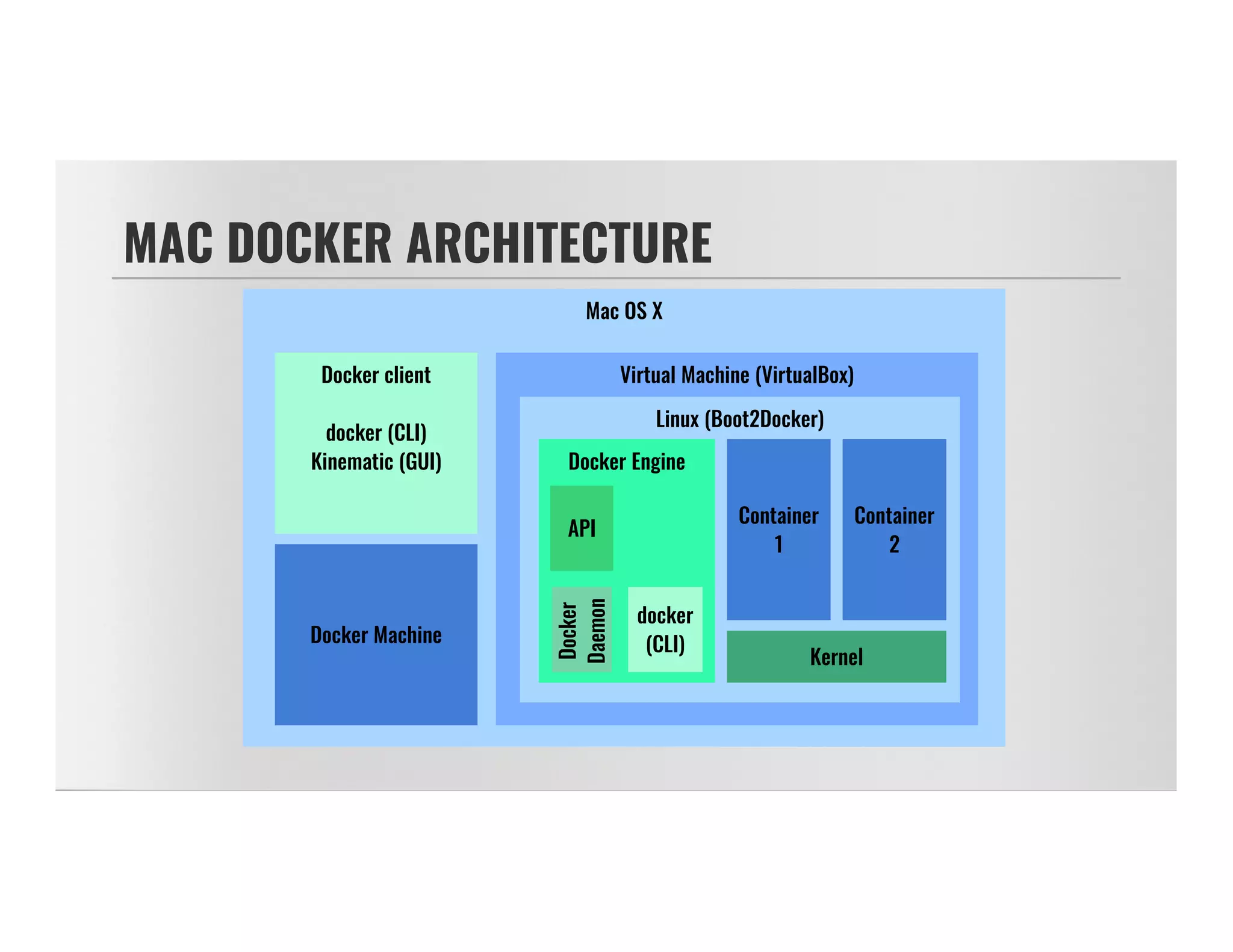

9. MAC DOCKER ARCHITECTURE
Mac OS X
Virtual Machine (VirtualBox)Docker client
docker (CLI)
Kinematic (GUI)
Docker Machine
Linux (Boot2Docker)
Container
1
Container
2
Kernel
Docker Engine
Docker
Daemon
API
docker
(CLI)

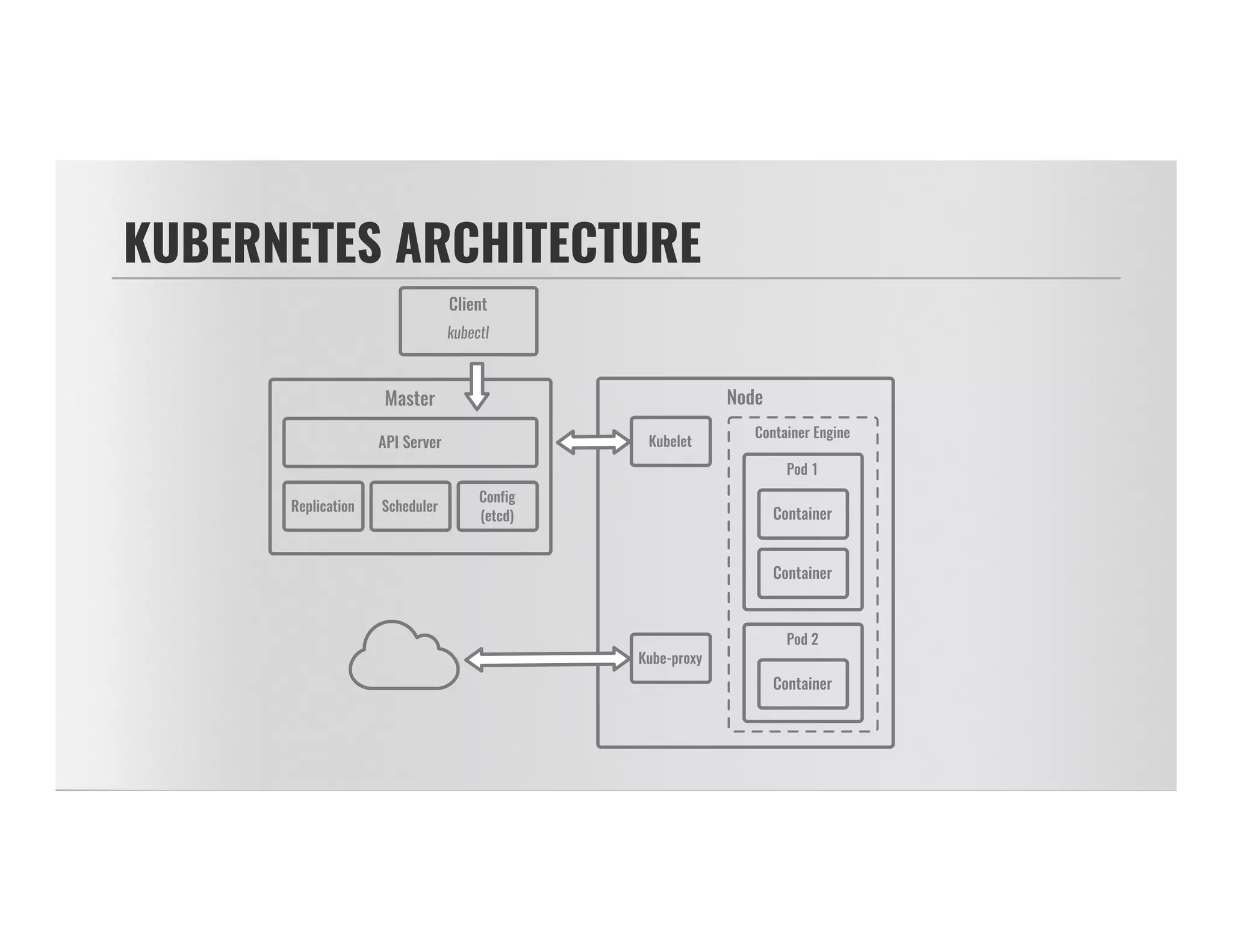

10. KUBERNETES ARCHITECTURE
Master
API Server
Replication Scheduler
Config
(etcd)
Client
kubectl
Node
Kubelet
Kube-proxy
Pod 1
Container
Container
Container Engine
Pod 2
Container

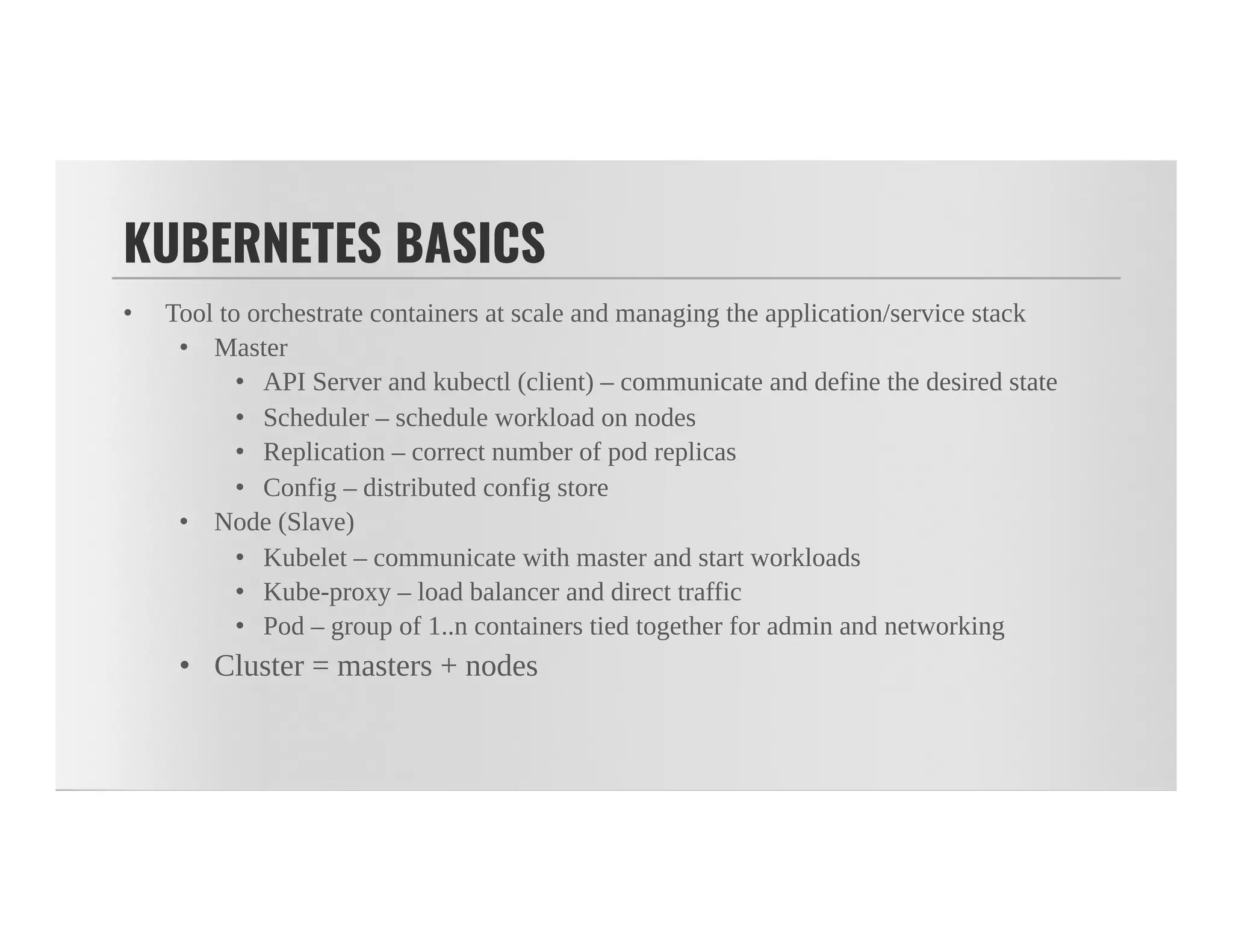

11. KUBERNETES BASICS
• Tool to orchestrate containers at scale and managing the application/service stack
• Master
• API Server and kubectl (client) – communicate and define the desired state
• Scheduler – schedule workload on nodes
• Replication – correct number of pod replicas
• Config – distributed config store
• Node (Slave)
• Kubelet – communicate with master and start workloads
• Kube-proxy – load balancer and direct traffic
• Pod – group of 1..n containers tied together for admin and networking
• Cluster = masters + nodes

12. DEMO
Tying together what we have learned so far and deploy Docker containers to Google
Cloud

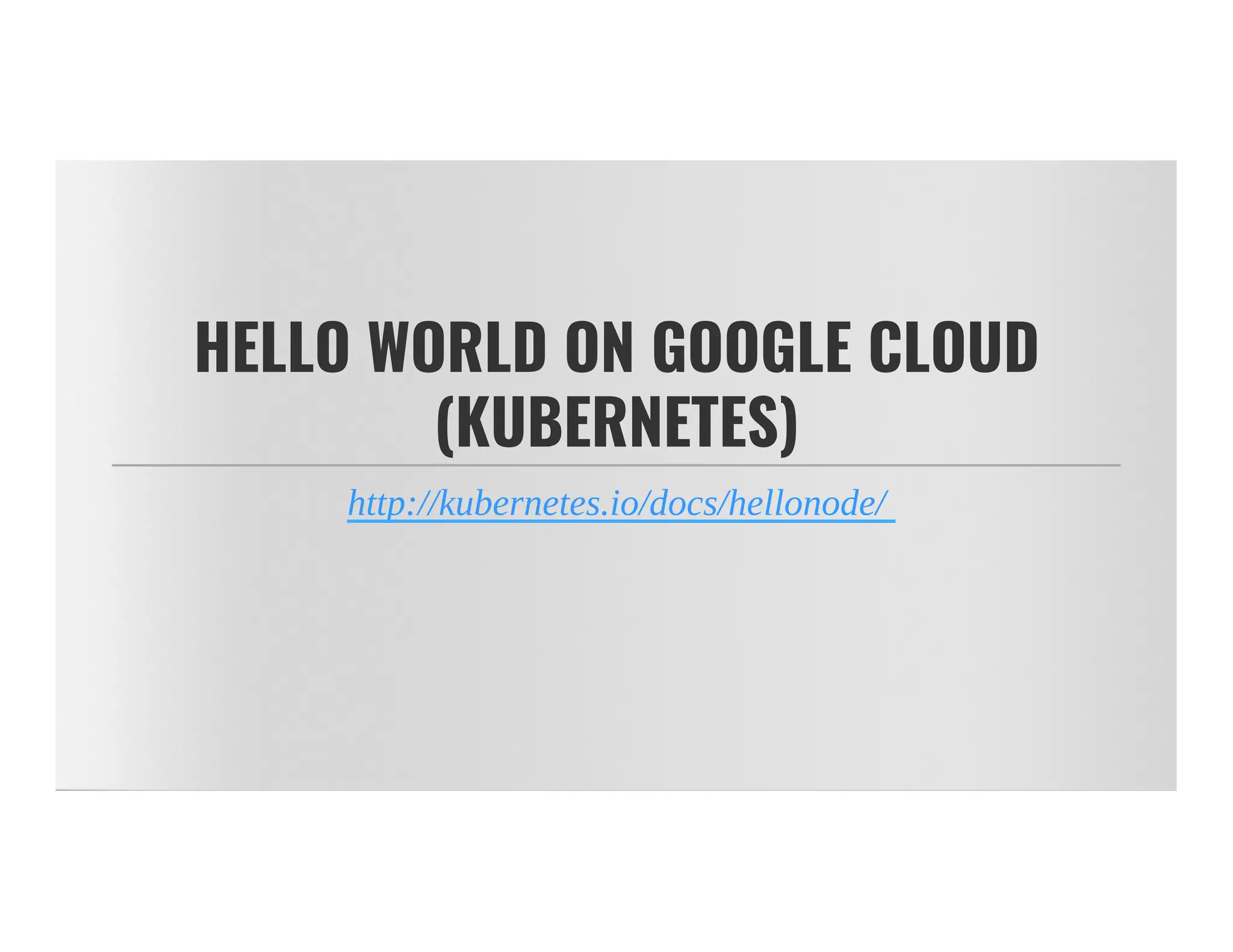

13. HELLO WORLD ON GOOGLE CLOUD
(KUBERNETES)
http://kubernetes.io/docs/hellonode/

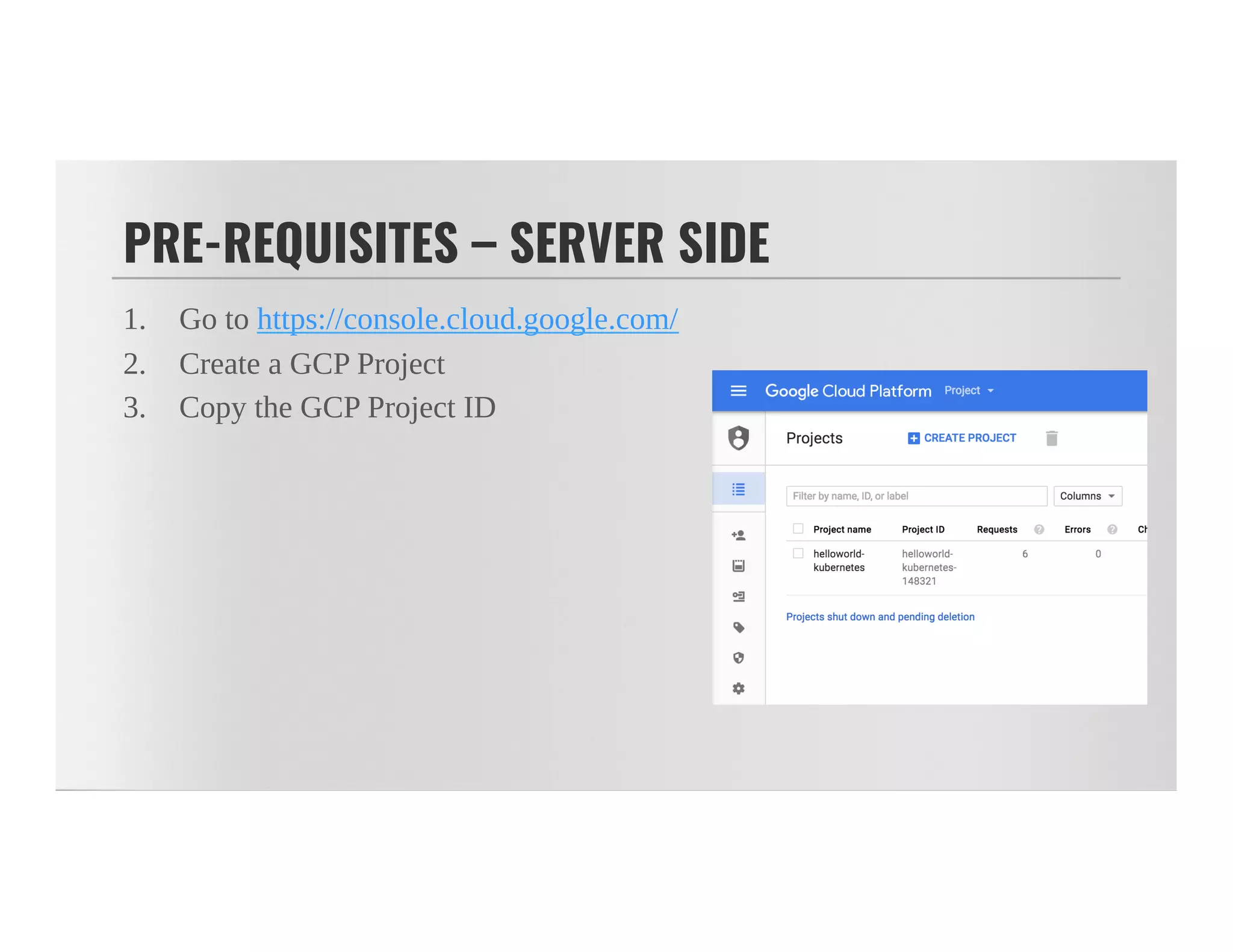

14. PRE-REQUISITES – SERVER SIDE
1. Go to https://console.cloud.google.com/
2. Create a GCP Project
3. Copy the GCP Project ID

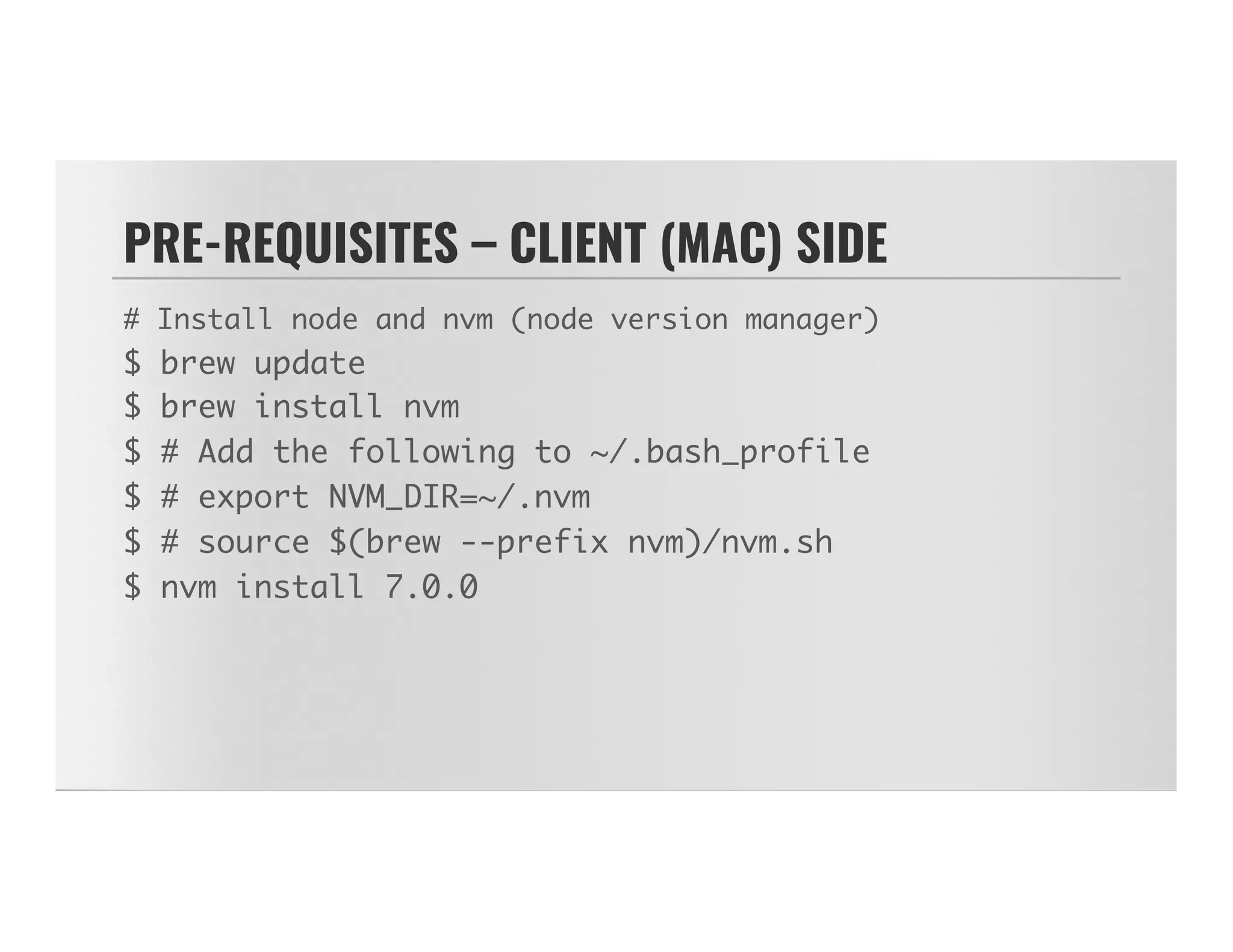

15. PRE-REQUISITES – CLIENT (MAC) SIDE
# Install node and nvm (node version manager)
$ brew update
$ brew install nvm
$ # Add the following to ~/.bash_profile
$ # export NVM_DIR=~/.nvm
$ # source $(brew --prefix nvm)/nvm.sh
$ nvm install 7.0.0

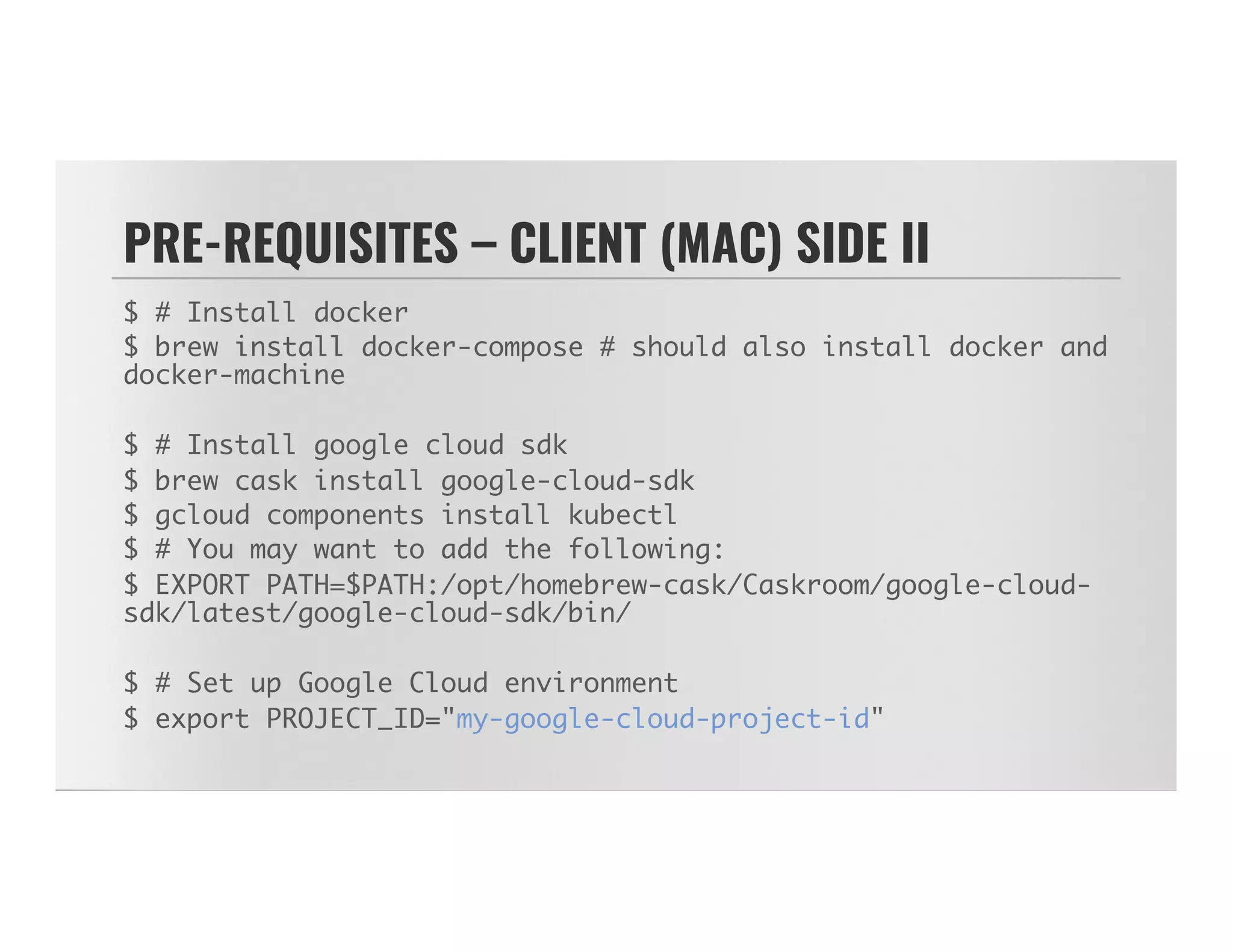

16. PRE-REQUISITES – CLIENT (MAC) SIDE II
$ # Install docker
$ brew install docker-compose # should also install docker and
docker-machine
$ # Install google cloud sdk
$ brew cask install google-cloud-sdk
$ gcloud components install kubectl
$ # You may want to add the following:
$ EXPORT PATH=$PATH:/opt/homebrew-cask/Caskroom/google-cloud-
sdk/latest/google-cloud-sdk/bin/
$ # Set up Google Cloud environment
$ export PROJECT_ID="my-google-cloud-project-id"

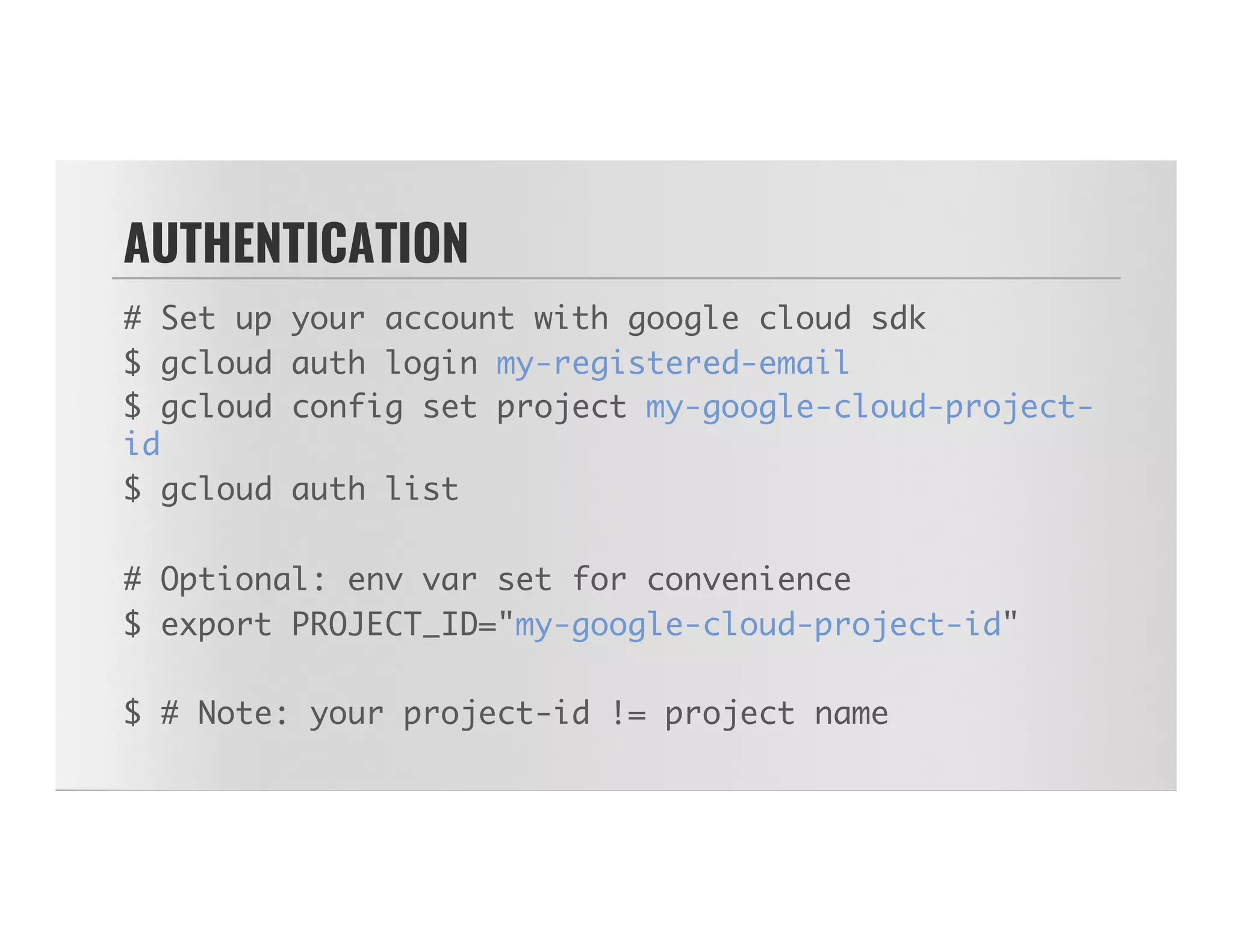

17. AUTHENTICATION
# Set up your account with google cloud sdk
$ gcloud auth login my-registered-email
$ gcloud config set project my-google-cloud-project-
id
$ gcloud auth list
# Optional: env var set for convenience
$ export PROJECT_ID="my-google-cloud-project-id"
$ # Note: your project-id != project name

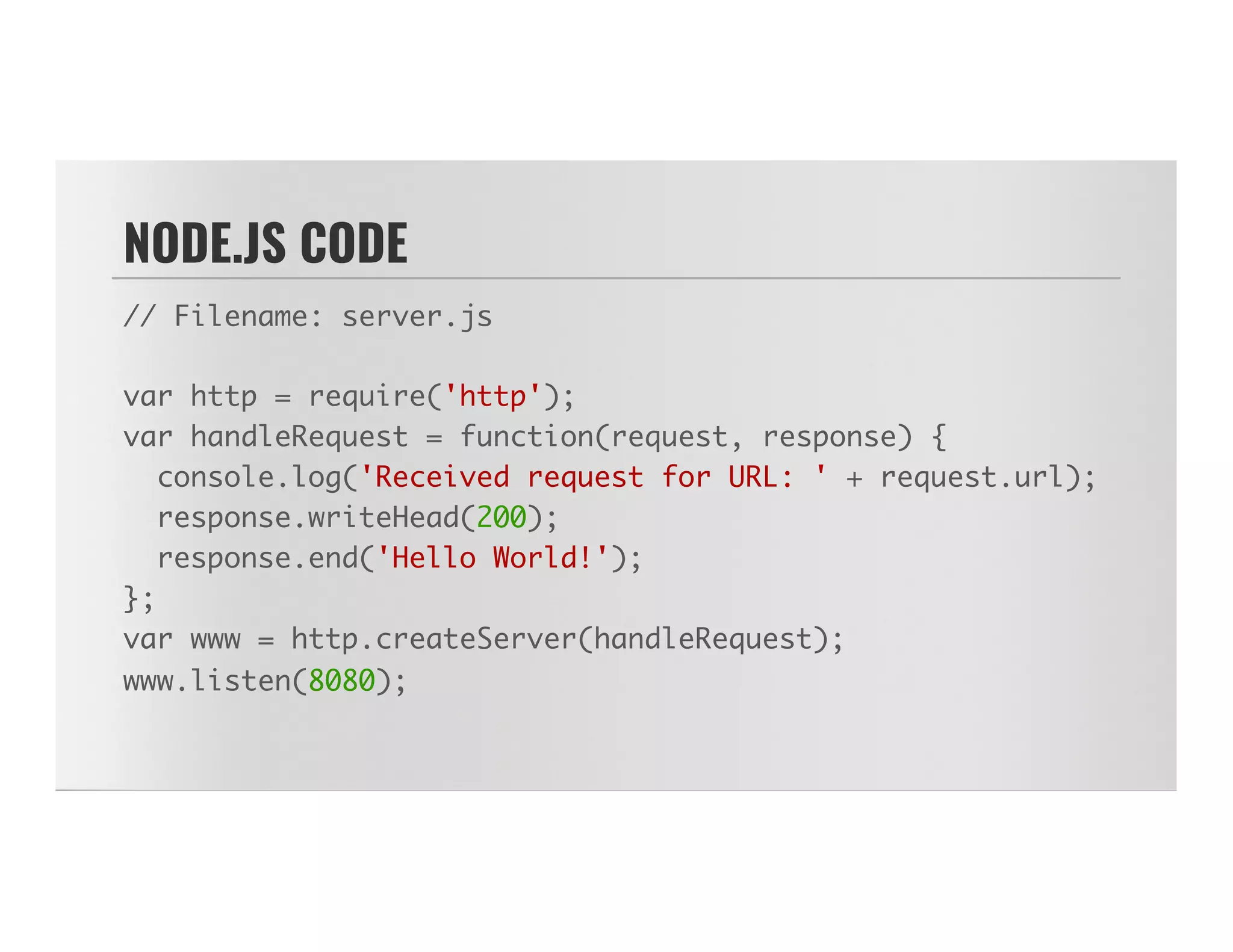

18. NODE.JS CODE
// Filename: server.js
var http = require('http');
var handleRequest = function(request, response) {
console.log('Received request for URL: ' + request.url);
response.writeHead(200);
response.end('Hello World!');
};
var www = http.createServer(handleRequest);
www.listen(8080);

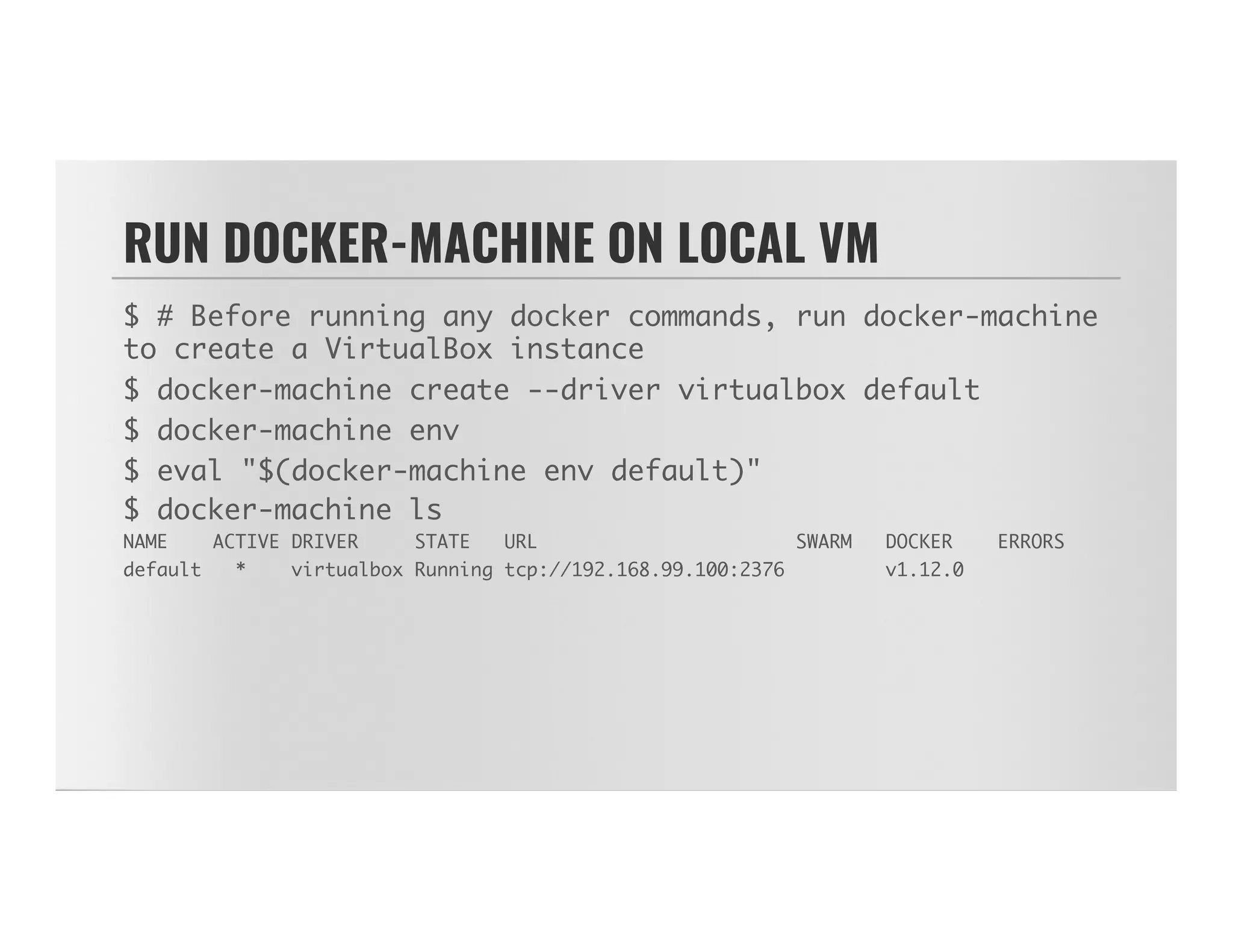

19. RUN DOCKER-MACHINE ON LOCAL VM
$ # Before running any docker commands, run docker-machine
to create a VirtualBox instance
$ docker-machine create --driver virtualbox default
$ docker-machine env
$ eval "$(docker-machine env default)"
$ docker-machine ls
NAME ACTIVE DRIVER STATE URL SWARM DOCKER ERRORS
default * virtualbox Running tcp://192.168.99.100:2376 v1.12.0

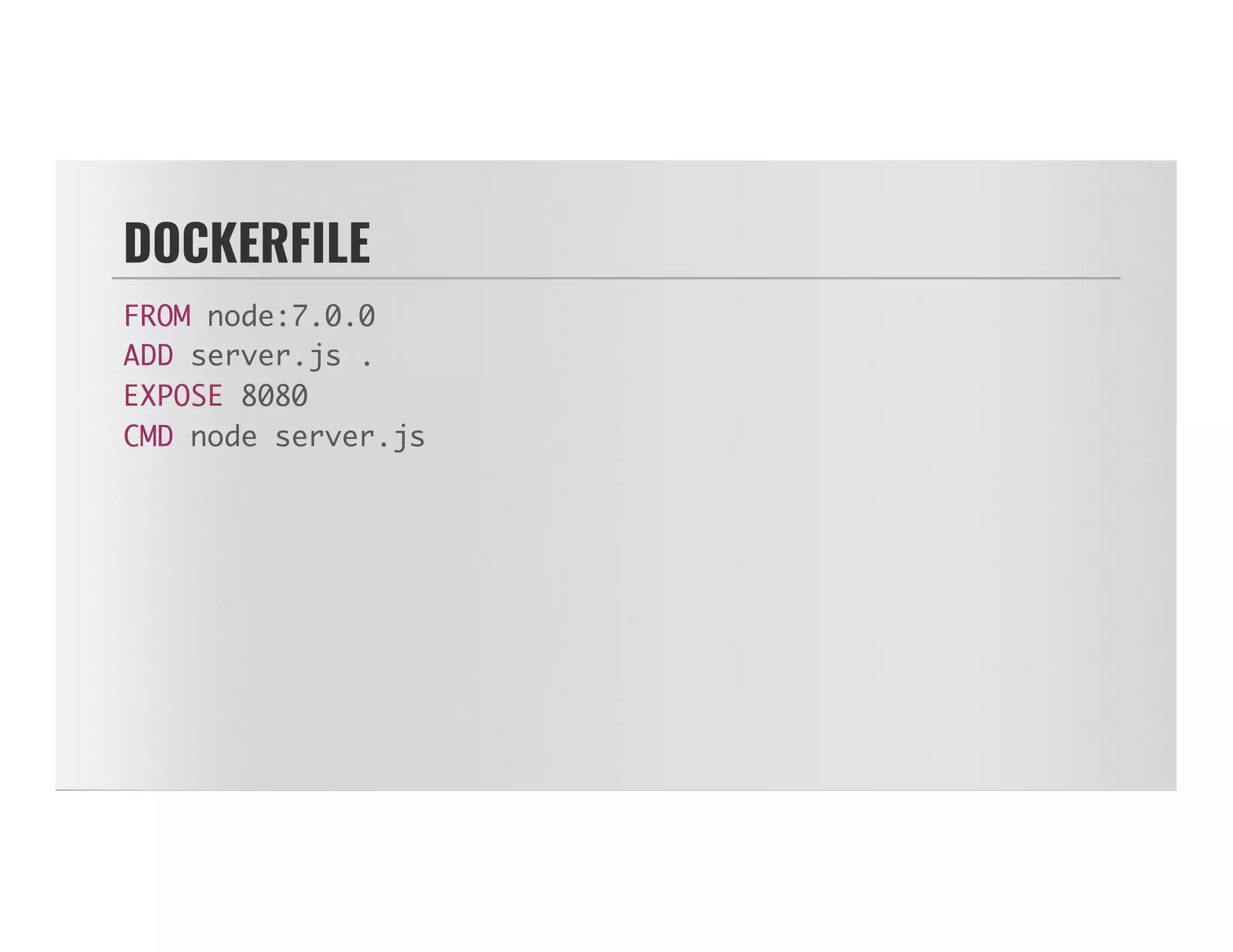

20. DOCKERFILE
FROM node:7.0.0
ADD server.js .
EXPOSE 8080
CMD node server.js

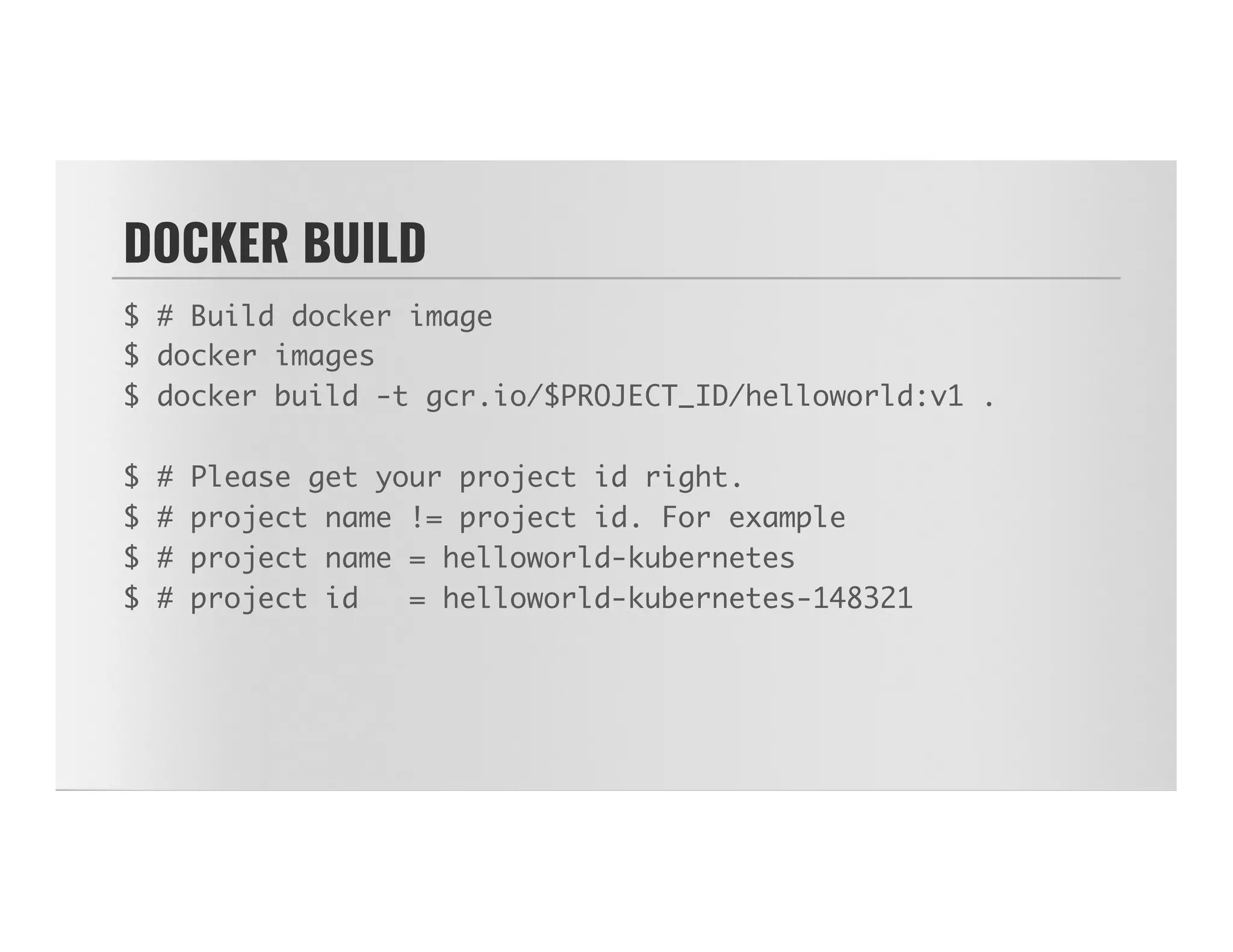

21. DOCKER BUILD
$ # Build docker image
$ docker images
$ docker build -t gcr.io/$PROJECT_ID/helloworld:v1 .
$ # Please get your project id right.
$ # project name != project id. For example
$ # project name = helloworld-kubernetes
$ # project id = helloworld-kubernetes-148321

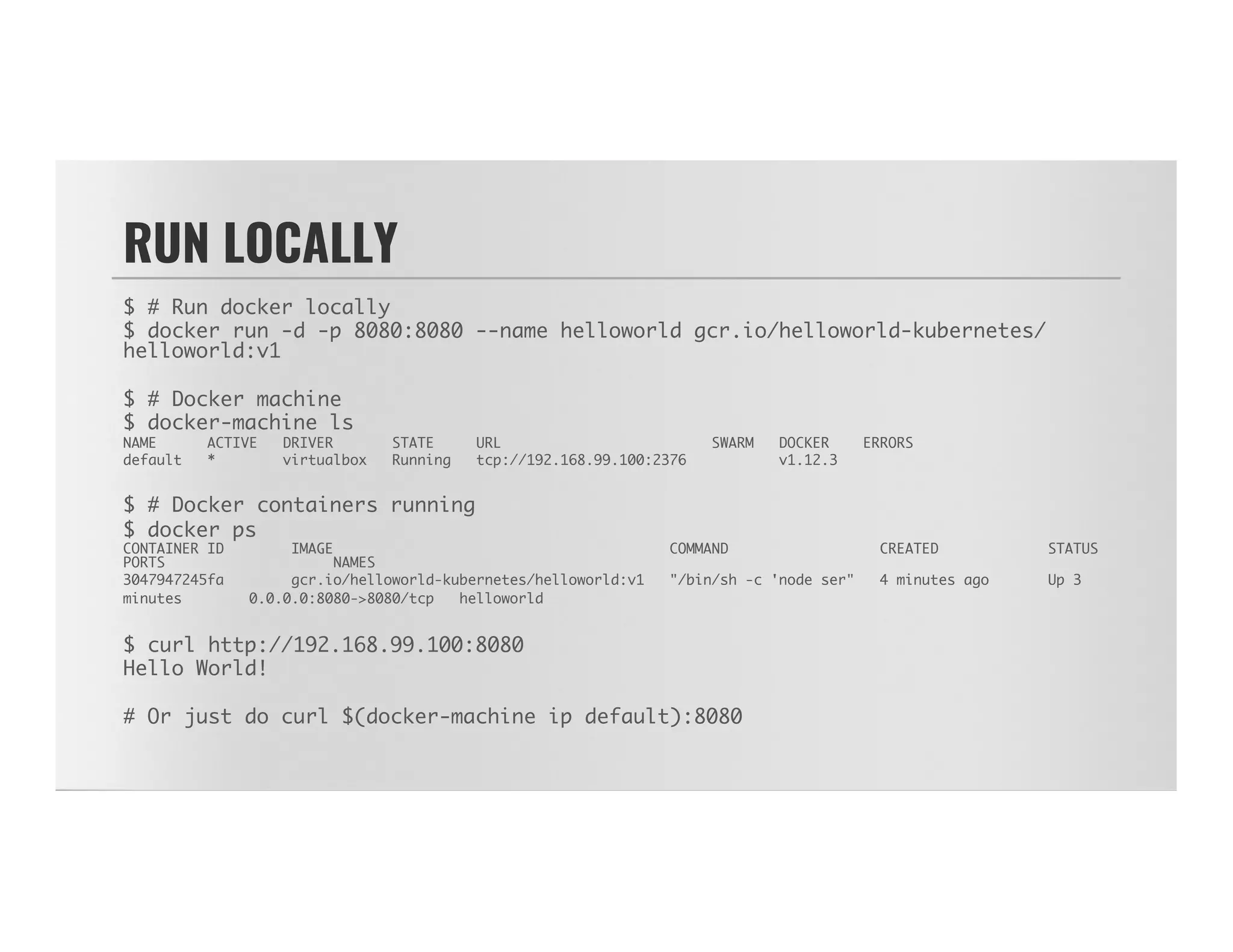

22. RUN LOCALLY
$ # Run docker locally
$ docker run -d -p 8080:8080 --name helloworld gcr.io/helloworld-kubernetes/
helloworld:v1
$ # Docker machine
$ docker-machine ls
NAME ACTIVE DRIVER STATE URL SWARM DOCKER ERRORS
default * virtualbox Running tcp://192.168.99.100:2376 v1.12.3
$ # Docker containers running
$ docker ps
CONTAINER ID IMAGE COMMAND CREATED STATUS
PORTS NAMES
3047947245fa gcr.io/helloworld-kubernetes/helloworld:v1 "/bin/sh -c 'node ser" 4 minutes ago Up 3
minutes 0.0.0.0:8080->8080/tcp helloworld
$ curl http://192.168.99.100:8080
Hello World!
# Or just do curl $(docker-machine ip default):8080

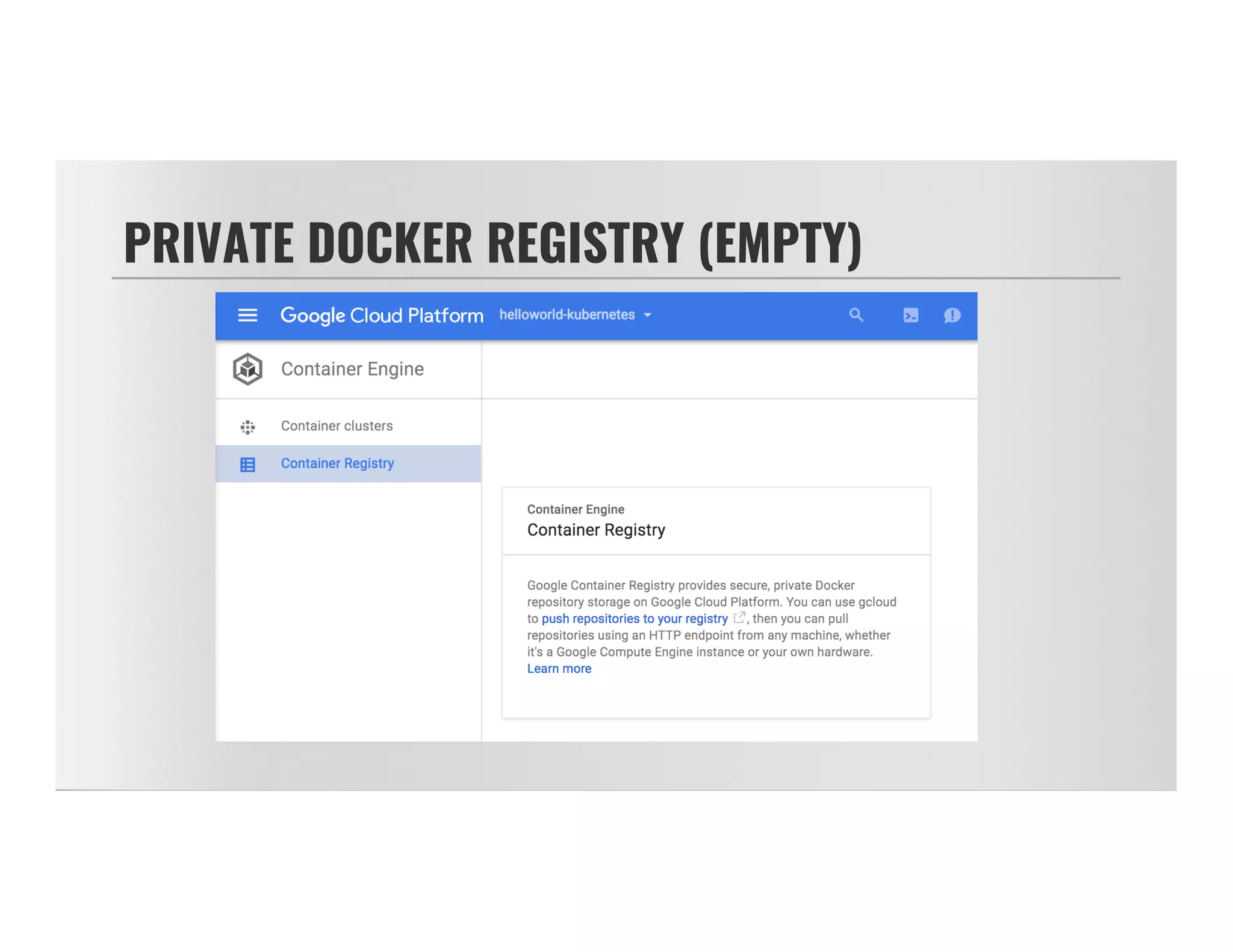

23. PRIVATE DOCKER REGISTRY (EMPTY)

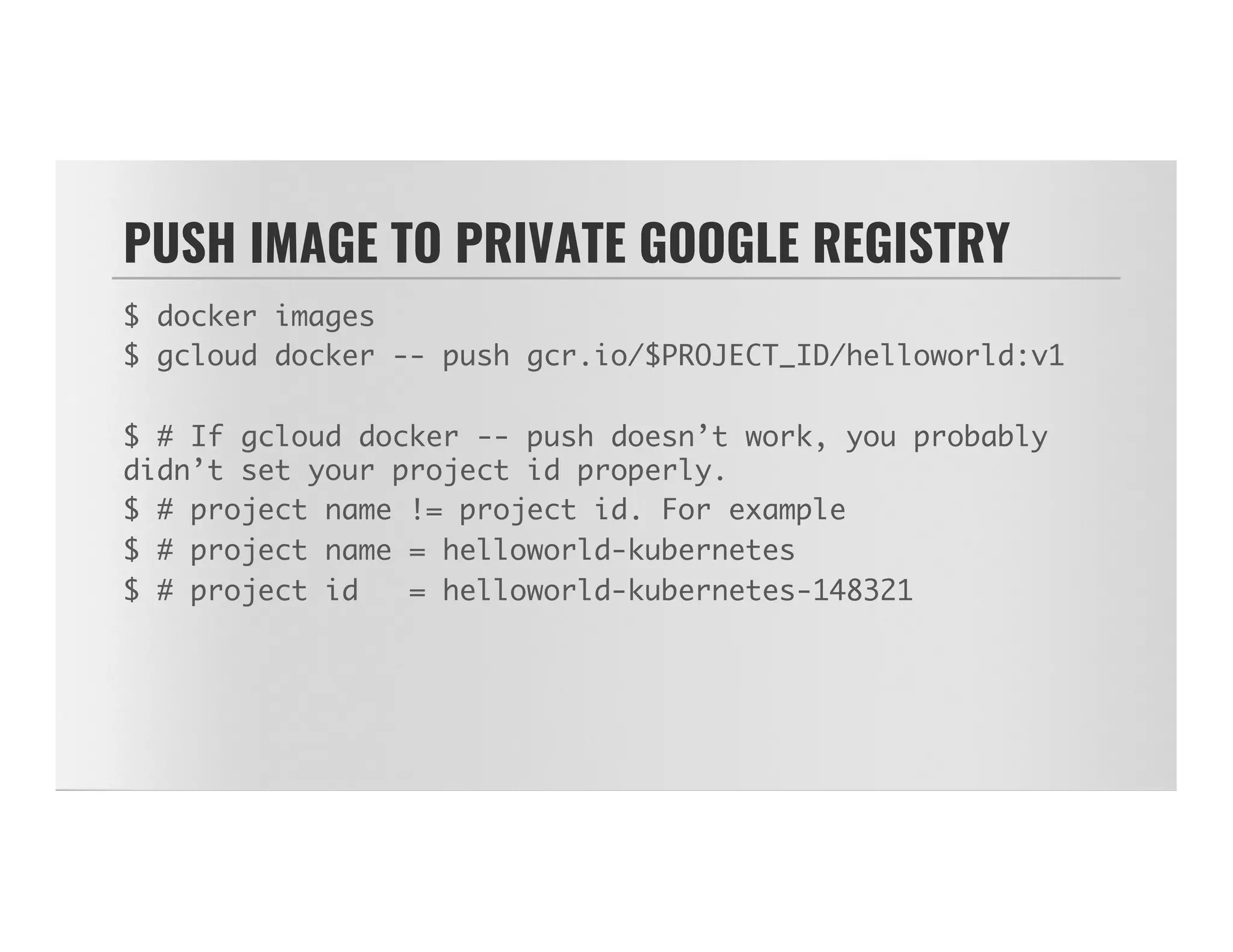

24. PUSH IMAGE TO PRIVATE GOOGLE REGISTRY
$ docker images
$ gcloud docker -- push gcr.io/$PROJECT_ID/helloworld:v1
$ # If gcloud docker -- push doesn’t work, you probably
didn’t set your project id properly.
$ # project name != project id. For example
$ # project name = helloworld-kubernetes
$ # project id = helloworld-kubernetes-148321

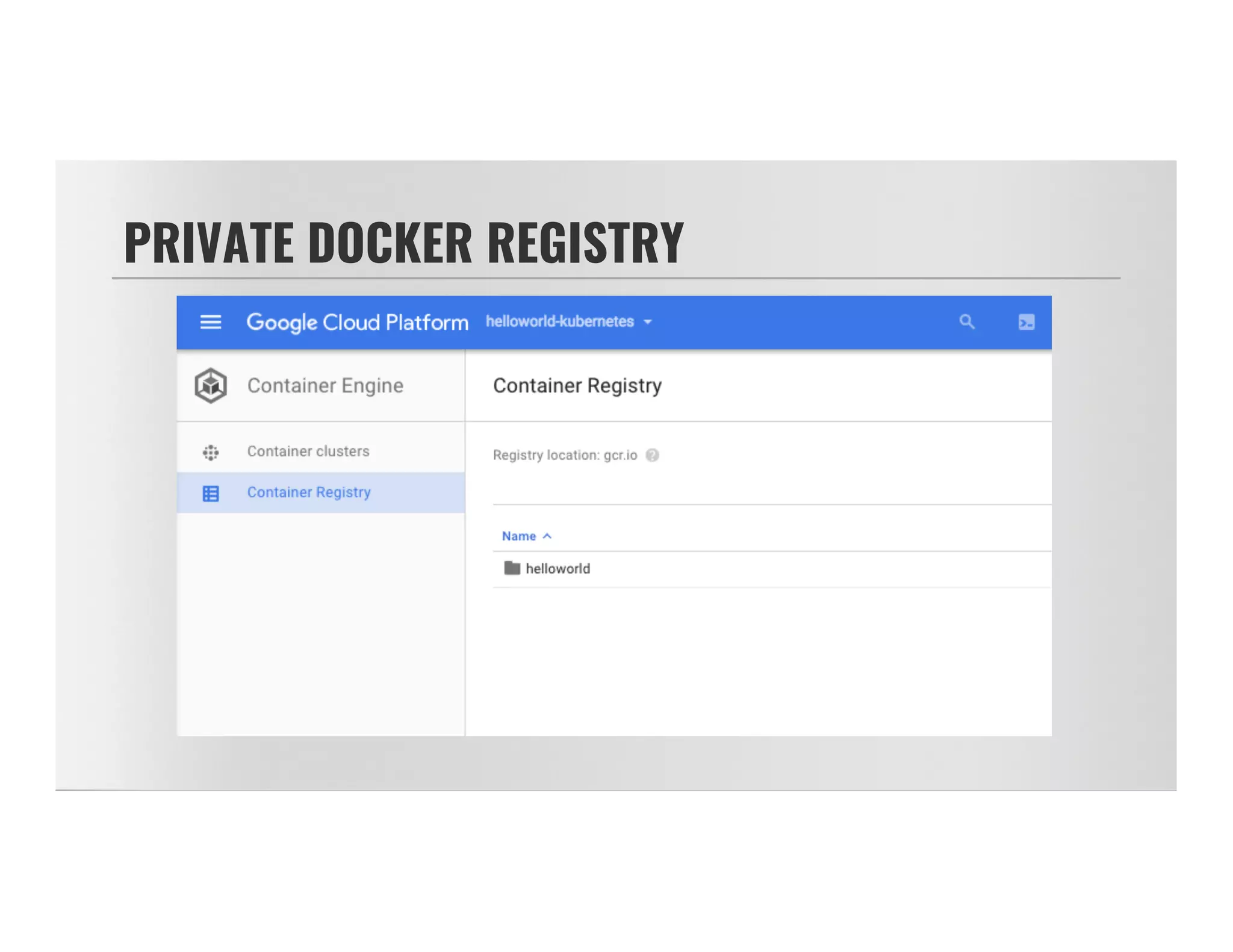

25. PRIVATE DOCKER REGISTRY

26. PUSH IMAGE TO PRIVATE GOOGLE REGISTRY
$ docker images
$ gcloud docker -- push gcr.io/$PROJECT_ID/helloworld:v1
$ # If gcloud docker -- push doesn’t work, you probably
didn’t set your project id properly.
$ # project name != project id. For example
$ # project name = helloworld-kubernetes
$ # project id = helloworld-kubernetes-148321

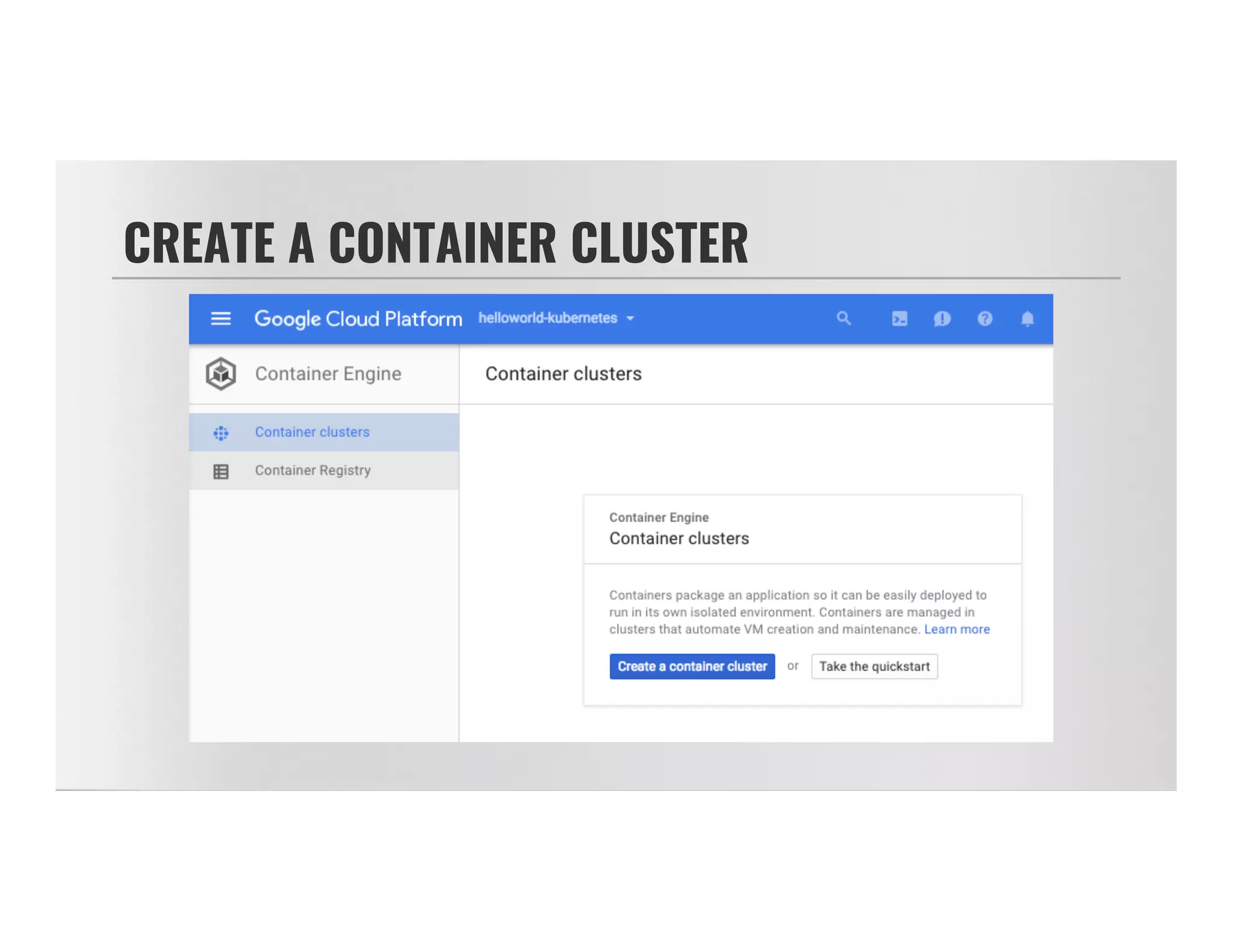

27. CREATE A CONTAINER CLUSTER

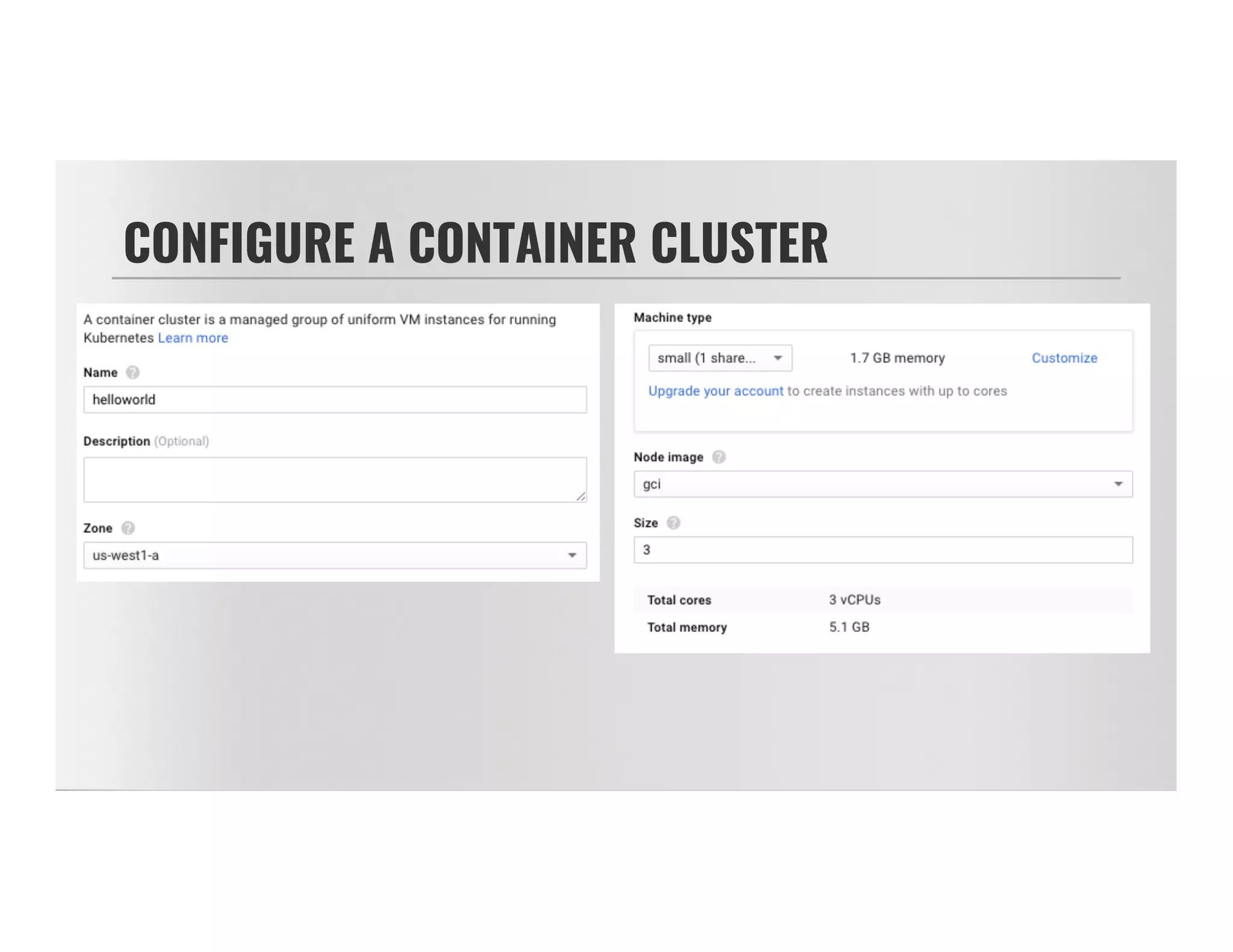

28. CONFIGURE A CONTAINER CLUSTER

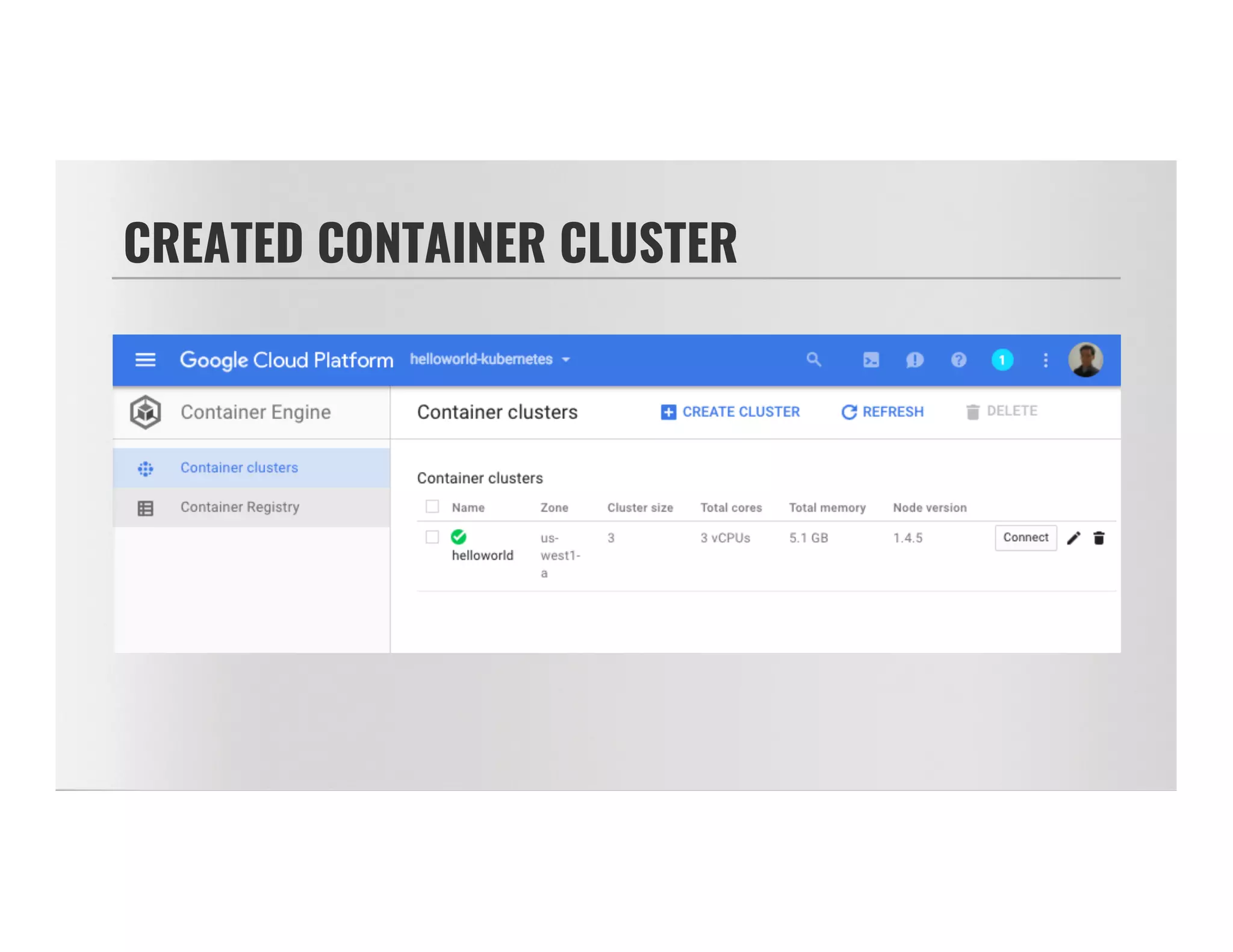

29. CREATED CONTAINER CLUSTER

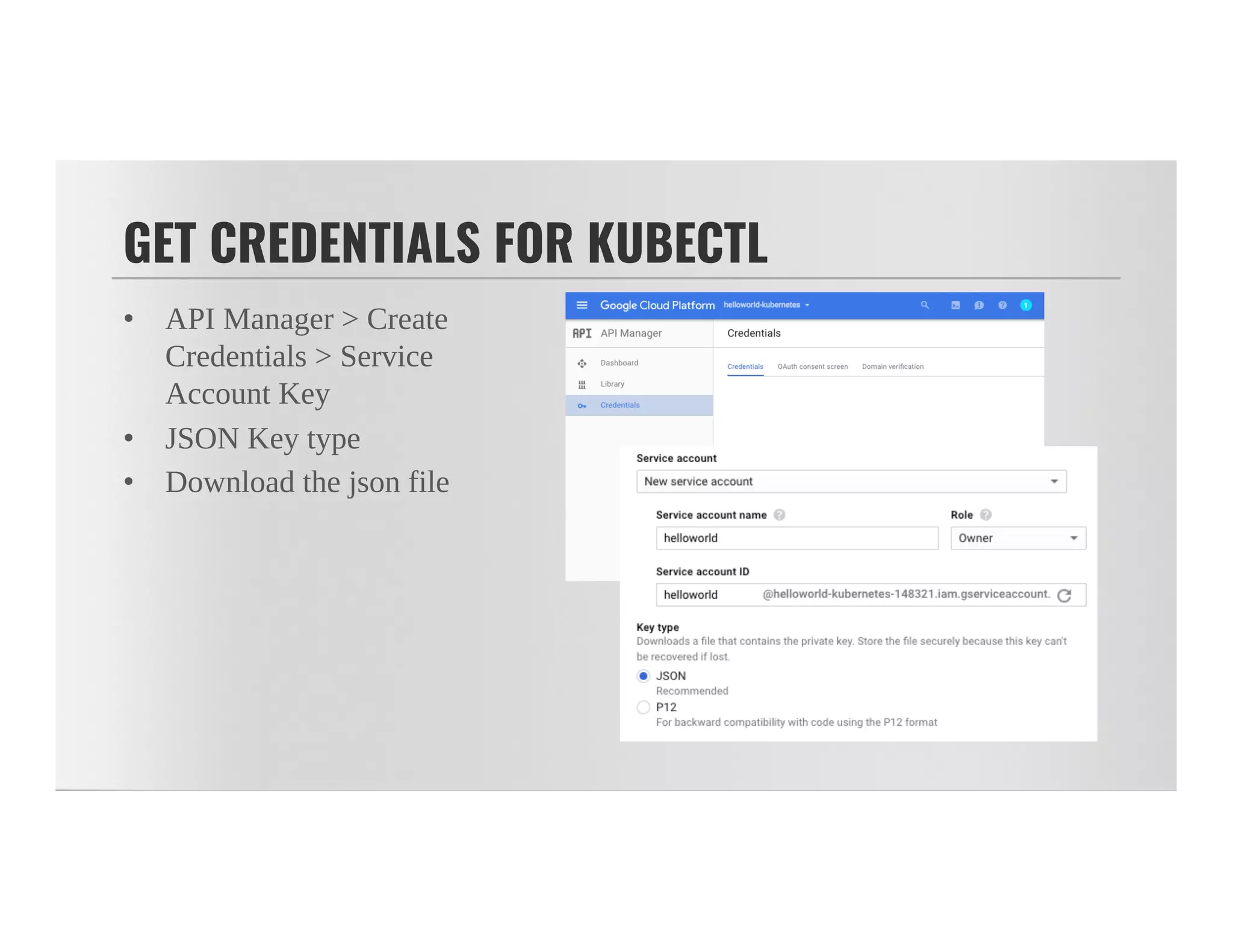

30. GET CREDENTIALS FOR KUBECTL
• API Manager > Create
Credentials > Service
Account Key
• JSON Key type
• Download the json file

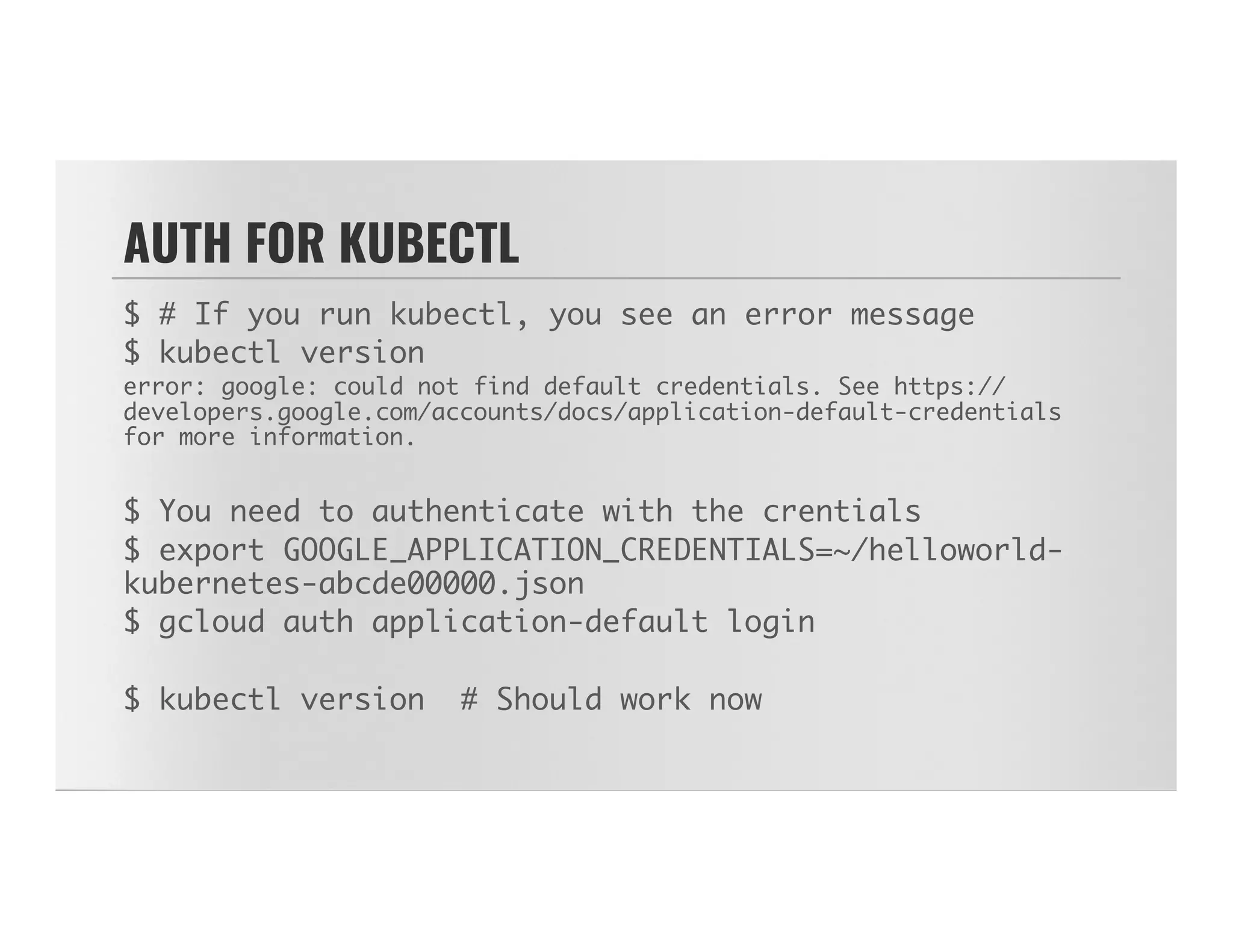

31. AUTH FOR KUBECTL
$ # If you run kubectl, you see an error message
$ kubectl version
error: google: could not find default credentials. See https://
developers.google.com/accounts/docs/application-default-credentials
for more information.
$ You need to authenticate with the crentials
$ export GOOGLE_APPLICATION_CREDENTIALS=~/helloworld-
kubernetes-abcde00000.json
$ gcloud auth application-default login
$ kubectl version # Should work now

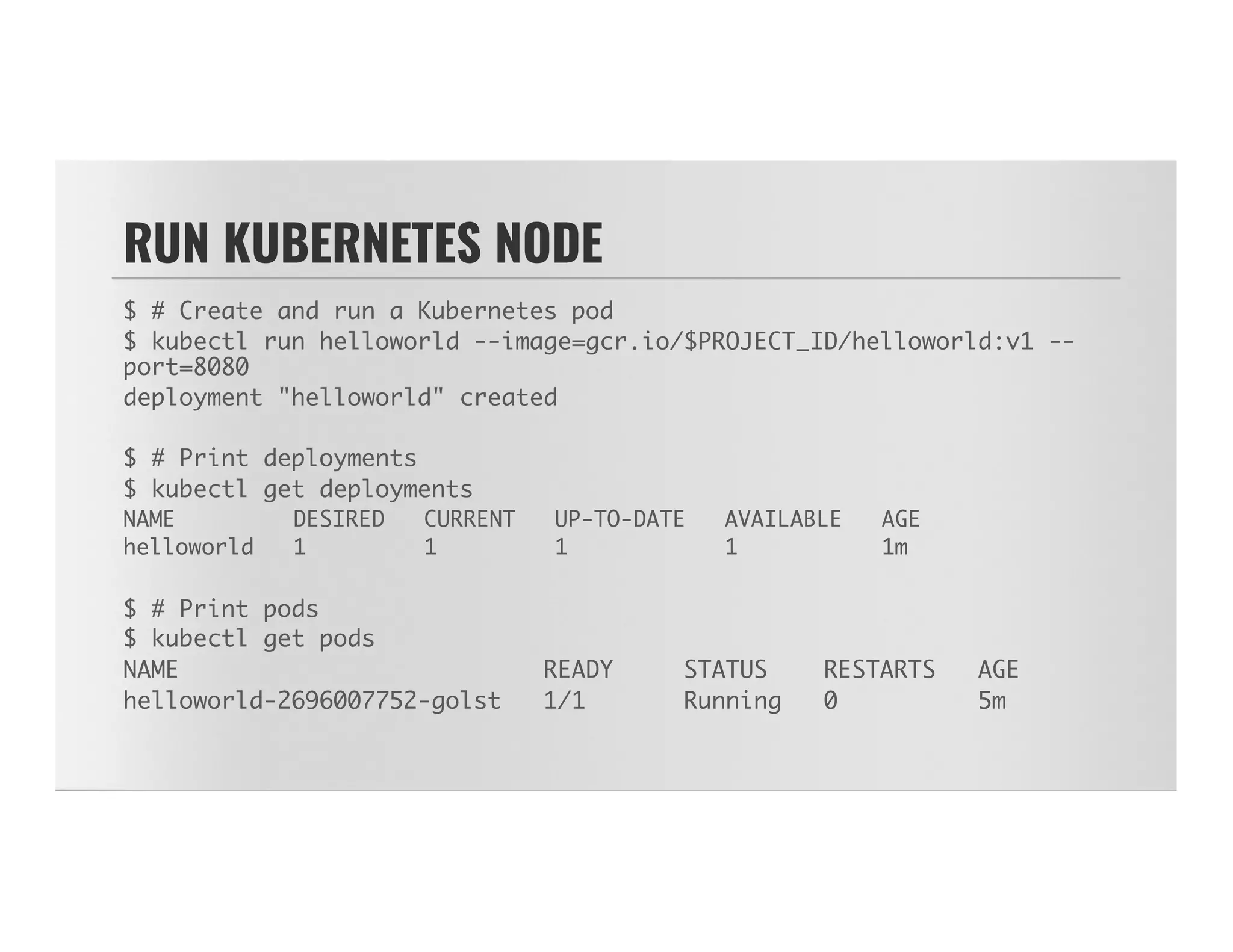

32. RUN KUBERNETES NODE
$ # Create and run a Kubernetes pod
$ kubectl run helloworld --image=gcr.io/$PROJECT_ID/helloworld:v1 --
port=8080
deployment "helloworld" created
$ # Print deployments
$ kubectl get deployments
NAME DESIRED CURRENT UP-TO-DATE AVAILABLE AGE
helloworld 1 1 1 1 1m
$ # Print pods
$ kubectl get pods
NAME READY STATUS RESTARTS AGE
helloworld-2696007752-golst 1/1 Running 0 5m

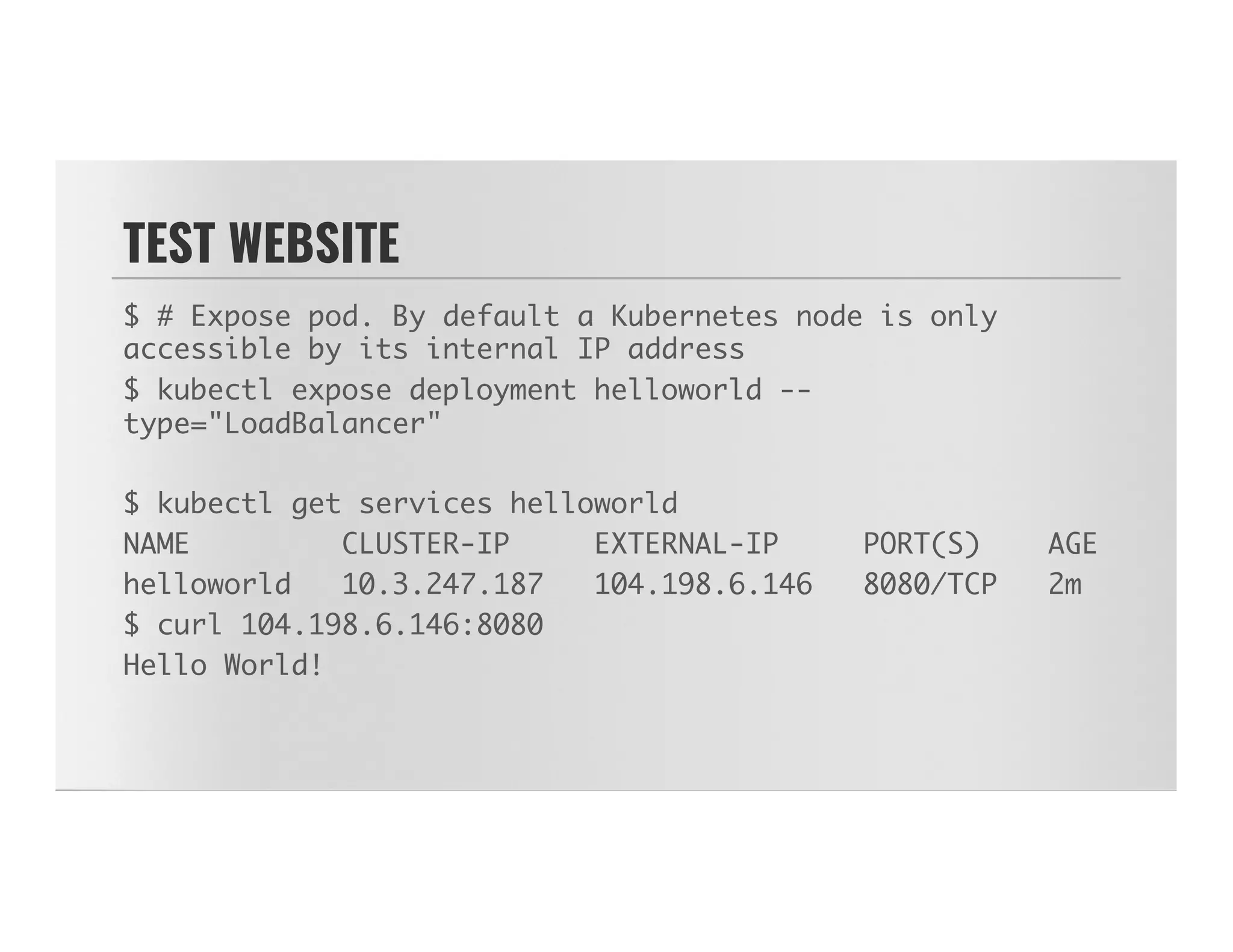

33. TEST WEBSITE
$ # Expose pod. By default a Kubernetes node is only
accessible by its internal IP address
$ kubectl expose deployment helloworld --
type="LoadBalancer"
$ kubectl get services helloworld
NAME CLUSTER-IP EXTERNAL-IP PORT(S) AGE
helloworld 10.3.247.187 104.198.6.146 8080/TCP 2m
$ curl 104.198.6.146:8080
Hello World!

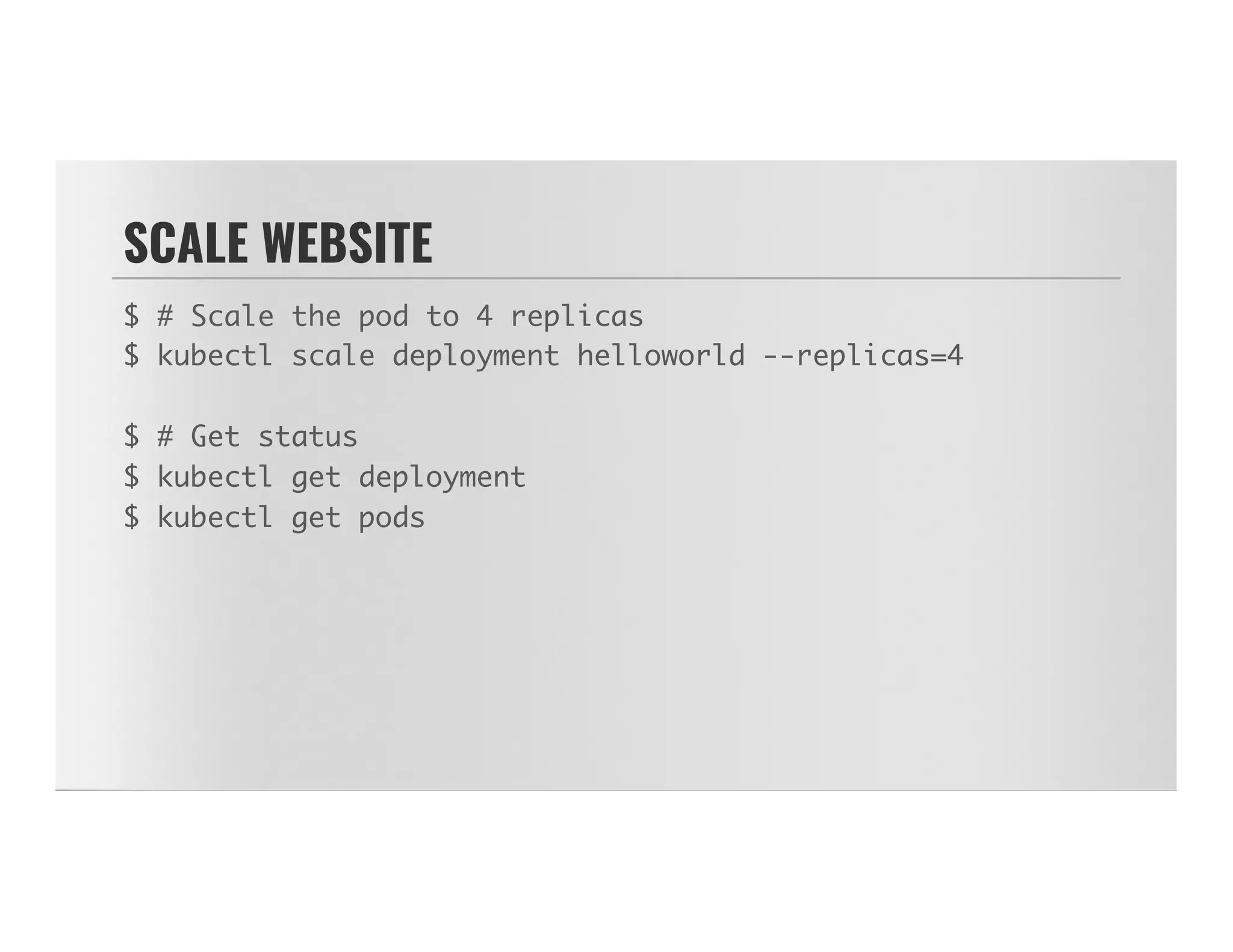

34. SCALE WEBSITE
$ # Scale the pod to 4 replicas
$ kubectl scale deployment helloworld --replicas=4
$ # Get status
$ kubectl get deployment
$ kubectl get pods

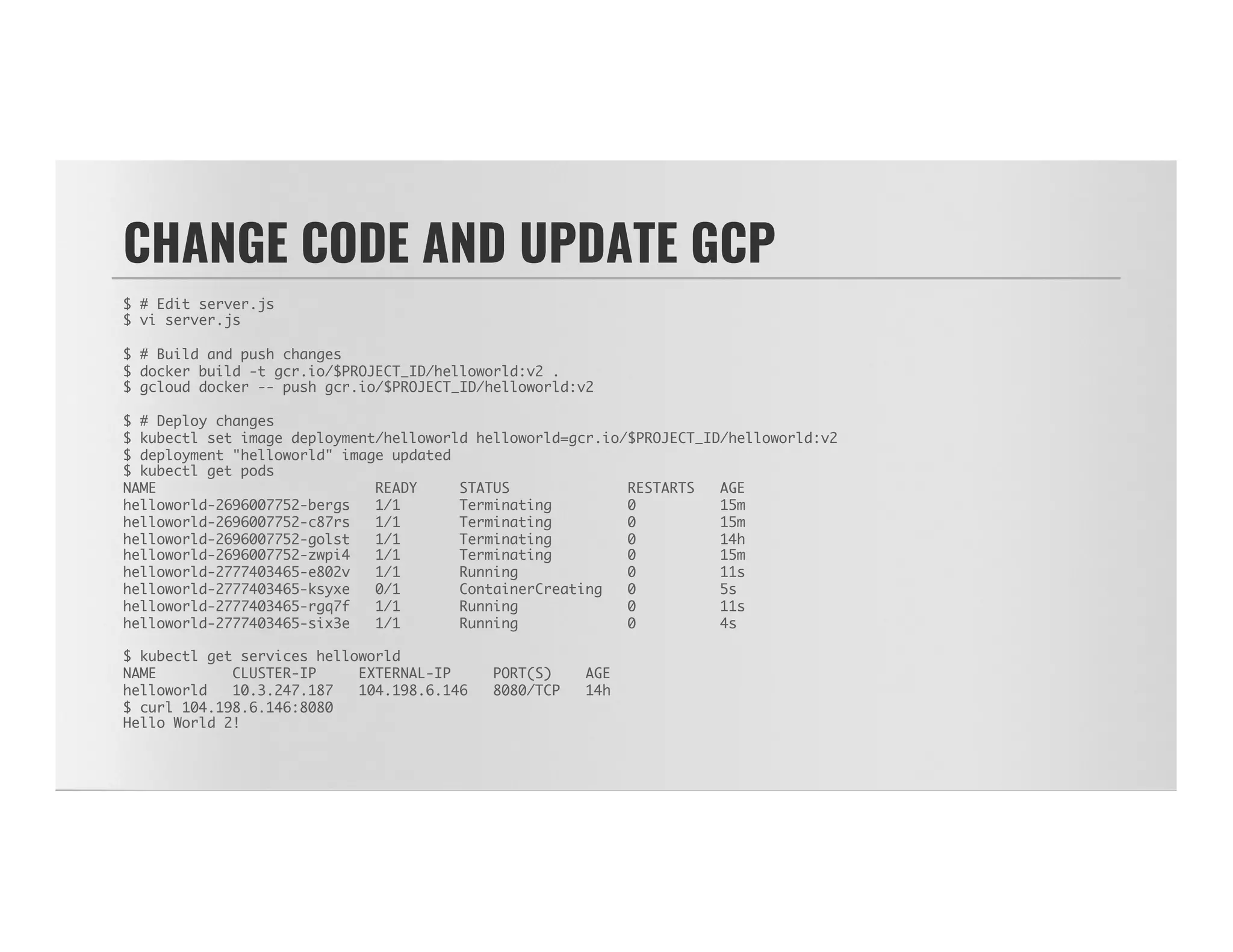

35. CHANGE CODE AND UPDATE GCP
$ # Edit server.js
$ vi server.js
$ # Build and push changes
$ docker build -t gcr.io/$PROJECT_ID/helloworld:v2 .
$ gcloud docker -- push gcr.io/$PROJECT_ID/helloworld:v2
$ # Deploy changes
$ kubectl set image deployment/helloworld helloworld=gcr.io/$PROJECT_ID/helloworld:v2
$ deployment "helloworld" image updated
$ kubectl get pods
NAME READY STATUS RESTARTS AGE
helloworld-2696007752-bergs 1/1 Terminating 0 15m
helloworld-2696007752-c87rs 1/1 Terminating 0 15m
helloworld-2696007752-golst 1/1 Terminating 0 14h
helloworld-2696007752-zwpi4 1/1 Terminating 0 15m
helloworld-2777403465-e802v 1/1 Running 0 11s
helloworld-2777403465-ksyxe 0/1 ContainerCreating 0 5s
helloworld-2777403465-rgq7f 1/1 Running 0 11s
helloworld-2777403465-six3e 1/1 Running 0 4s
$ kubectl get services helloworld
NAME CLUSTER-IP EXTERNAL-IP PORT(S) AGE
helloworld 10.3.247.187 104.198.6.146 8080/TCP 14h
$ curl 104.198.6.146:8080
Hello World 2!

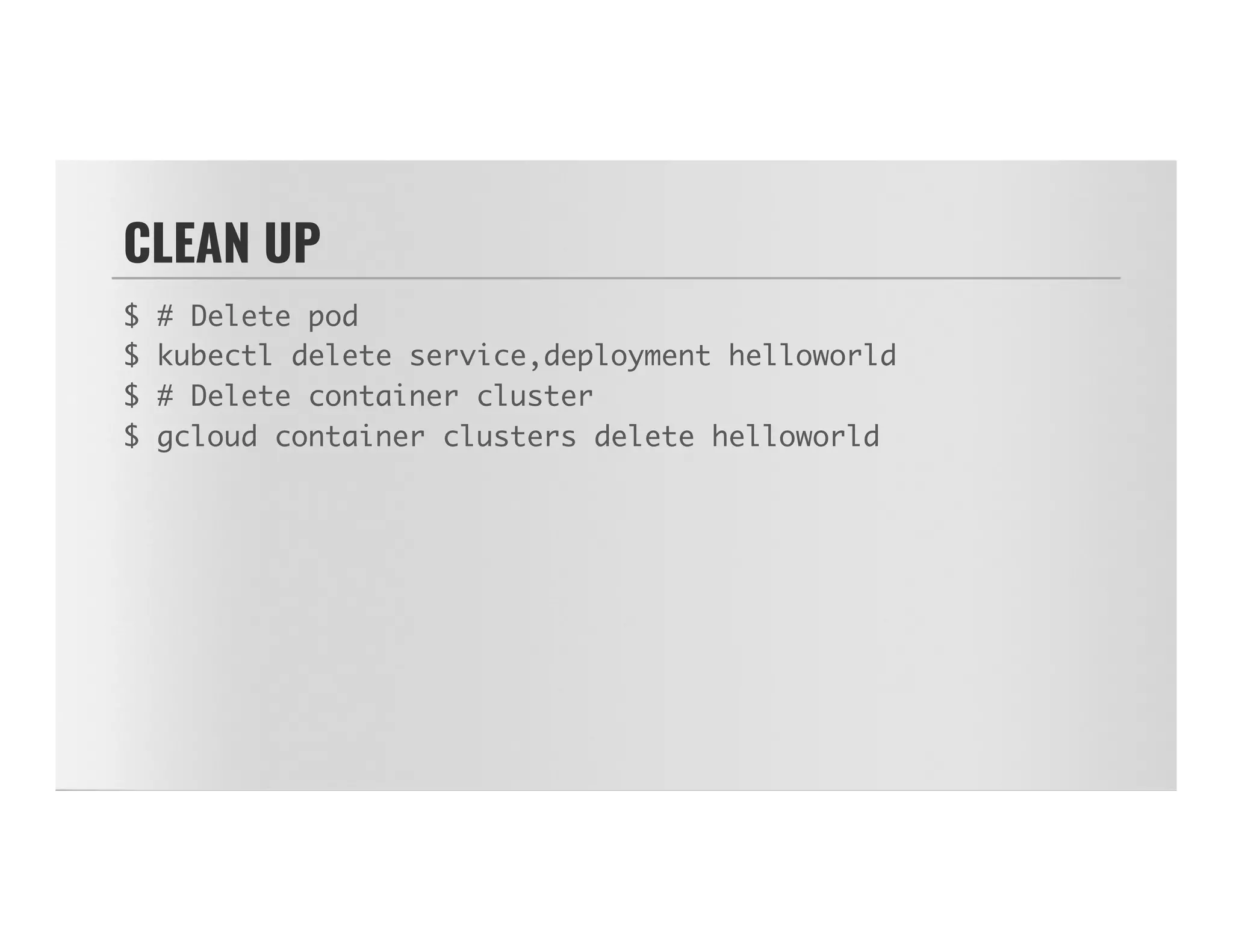

36. CLEAN UP
$ # Delete pod
$ kubectl delete service,deployment helloworld
$ # Delete container cluster
$ gcloud container clusters delete helloworld

37. Q + A
Any questions?
You can find me at @cybersam
