Scaling Docker Containers using Kubernetes and Azure Container Service

Scaling Docker Containers using Kubernetes
and Azure Container Service
@Ben_Hall
Ben@BenHall.me.uk
Katacoda.com

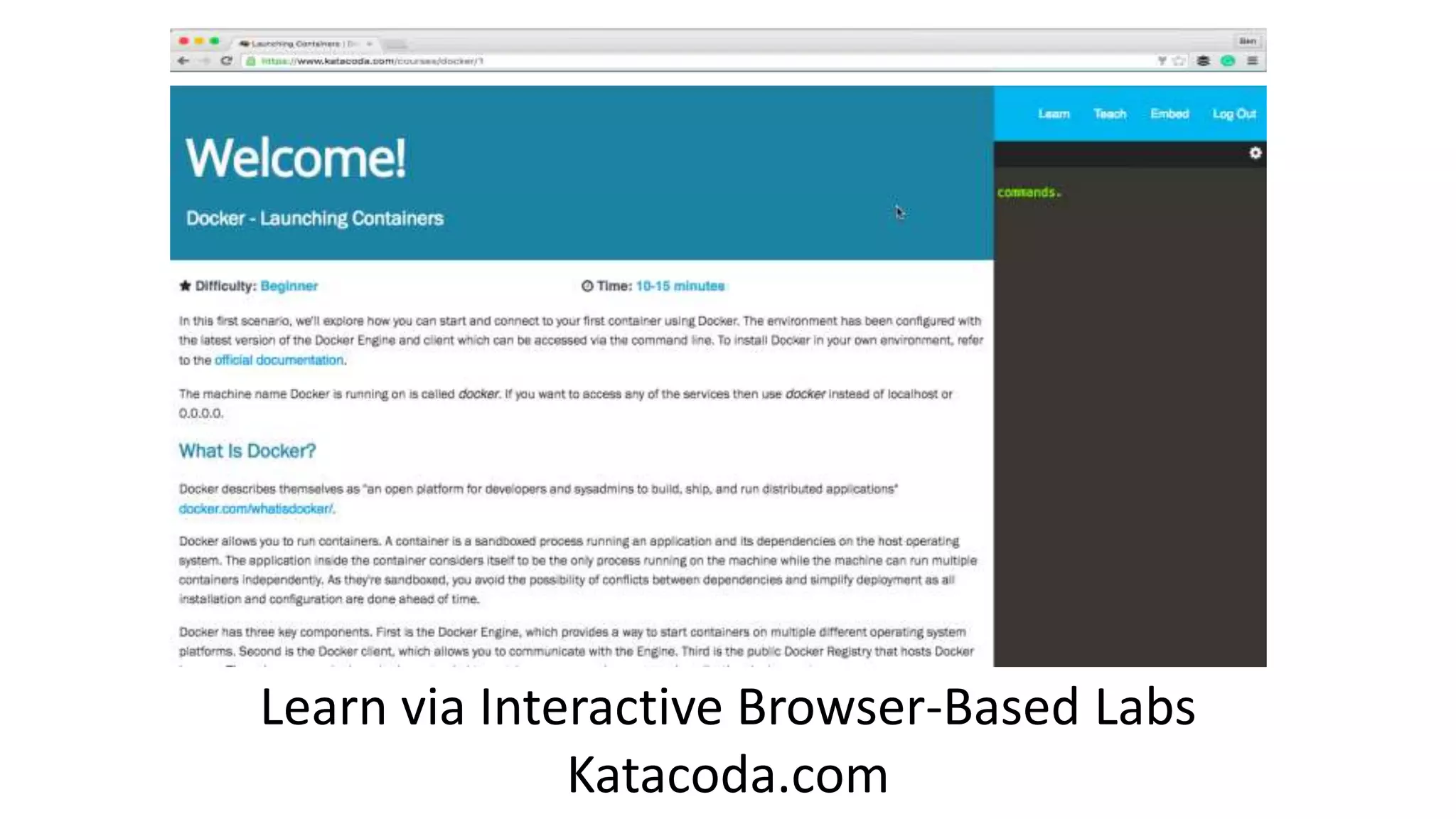

Learn via Interactive Browser-Based Labs
Katacoda.com

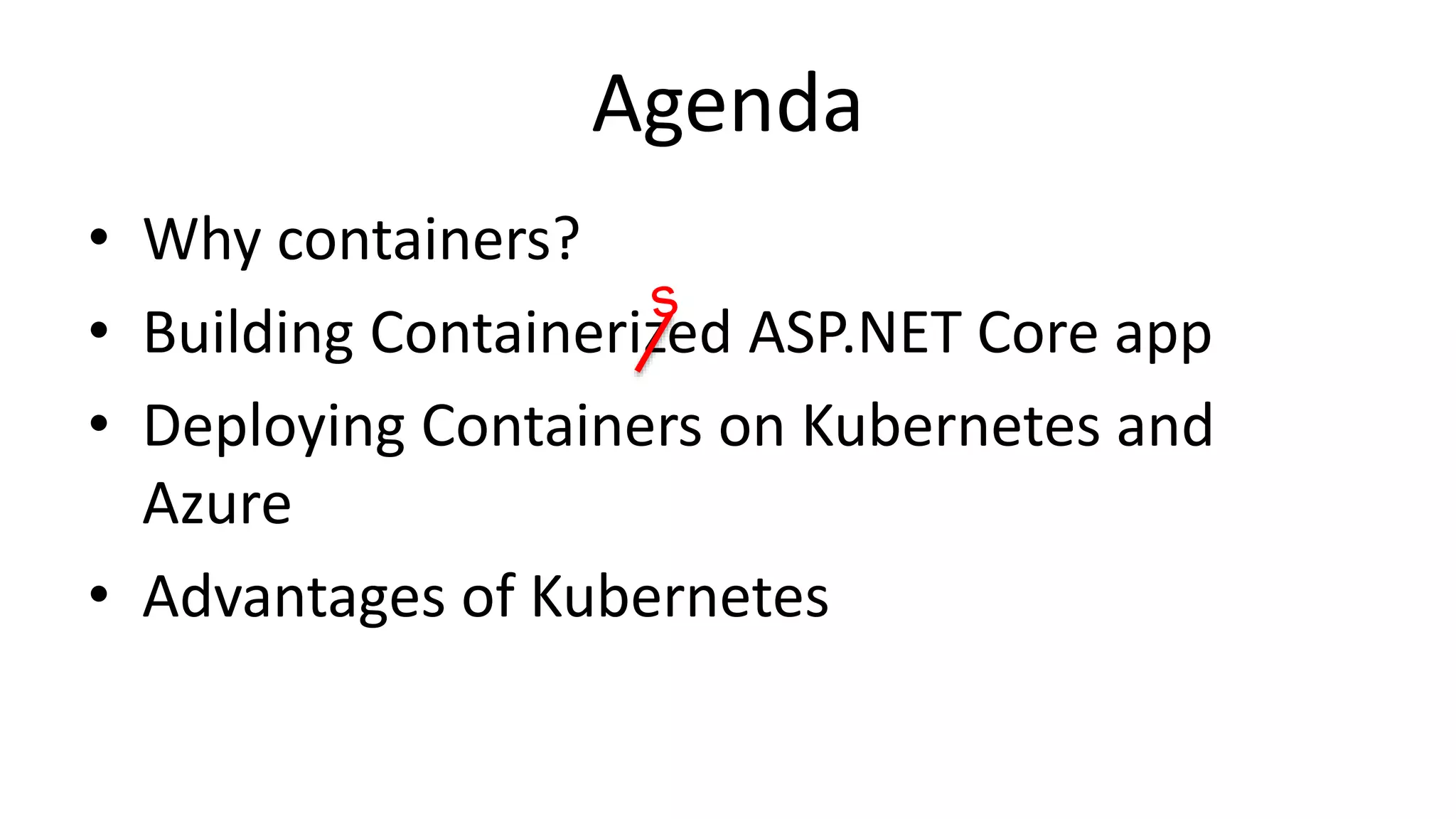

Agenda
• Why containers?
• Building Containerized ASP.NET Core app
• Deploying Containers on Kubernetes and
Azure
• Advantages of Kubernetes

What if we could remove
configuration complexity,
dependency conflicts and
uncertainty?

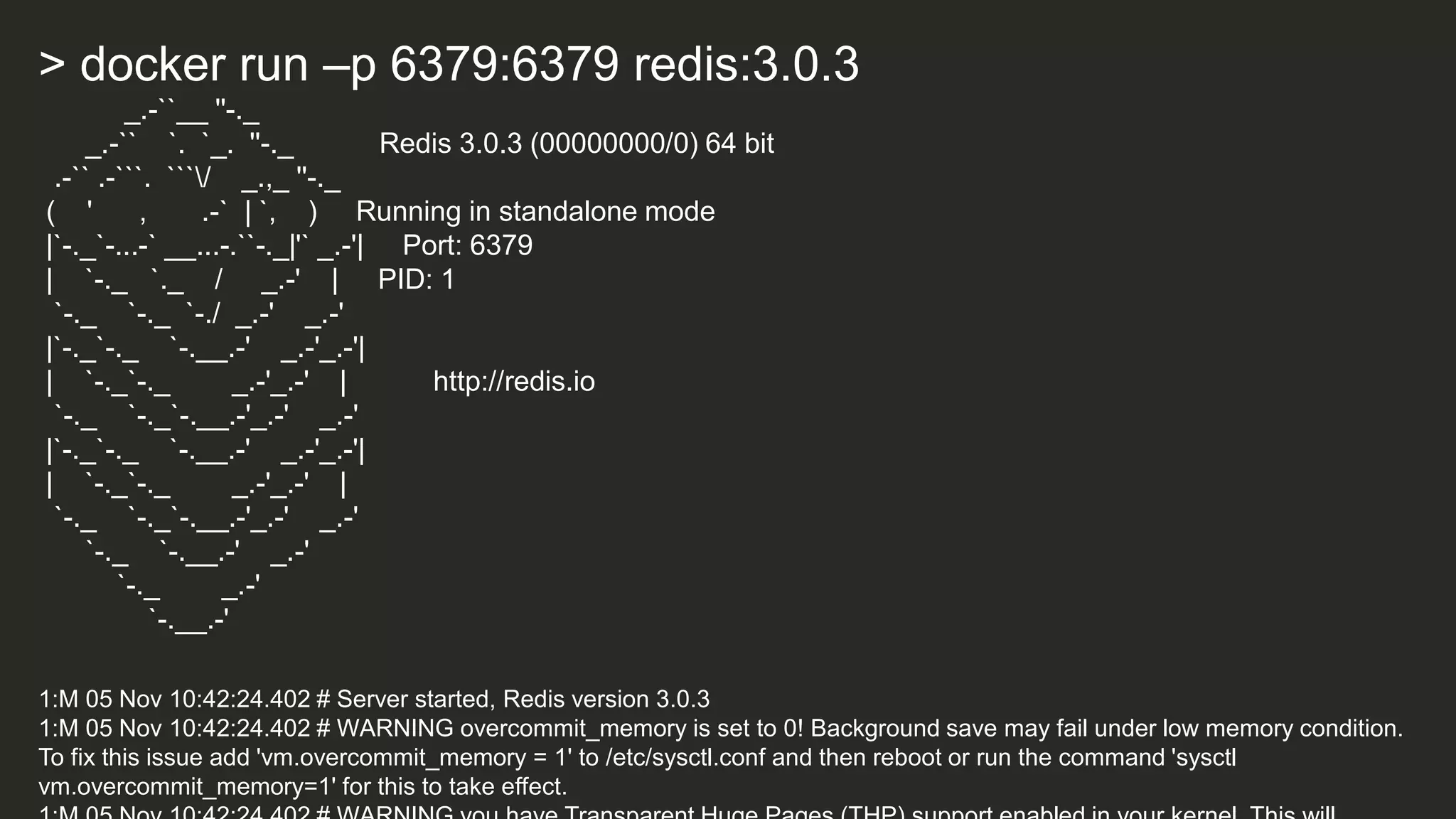

> docker run –p 6379:6379 redis:3.0.3
_.-``__ ''-._
_.-`` `. `_. ''-._ Redis 3.0.3 (00000000/0) 64 bit
.-`` .-```. ```/ _.,_ ''-._
( ' , .-` | `, ) Running in standalone mode
|`-._`-...-` __...-.``-._|'` _.-'| Port: 6379
| `-._ `._ / _.-' | PID: 1
`-._ `-._ `-./ _.-' _.-'
|`-._`-._ `-.__.-' _.-'_.-'|
| `-._`-._ _.-'_.-' | http://redis.io
`-._ `-._`-.__.-'_.-' _.-'
|`-._`-._ `-.__.-' _.-'_.-'|
| `-._`-._ _.-'_.-' |
`-._ `-._`-.__.-'_.-' _.-'
`-._ `-.__.-' _.-'
`-._ _.-'
`-.__.-'
1:M 05 Nov 10:42:24.402 # Server started, Redis version 3.0.3
1:M 05 Nov 10:42:24.402 # WARNING overcommit_memory is set to 0! Background save may fail under low memory condition.
To fix this issue add 'vm.overcommit_memory = 1' to /etc/sysctl.conf and then reboot or run the command 'sysctl
vm.overcommit_memory=1' for this to take effect.

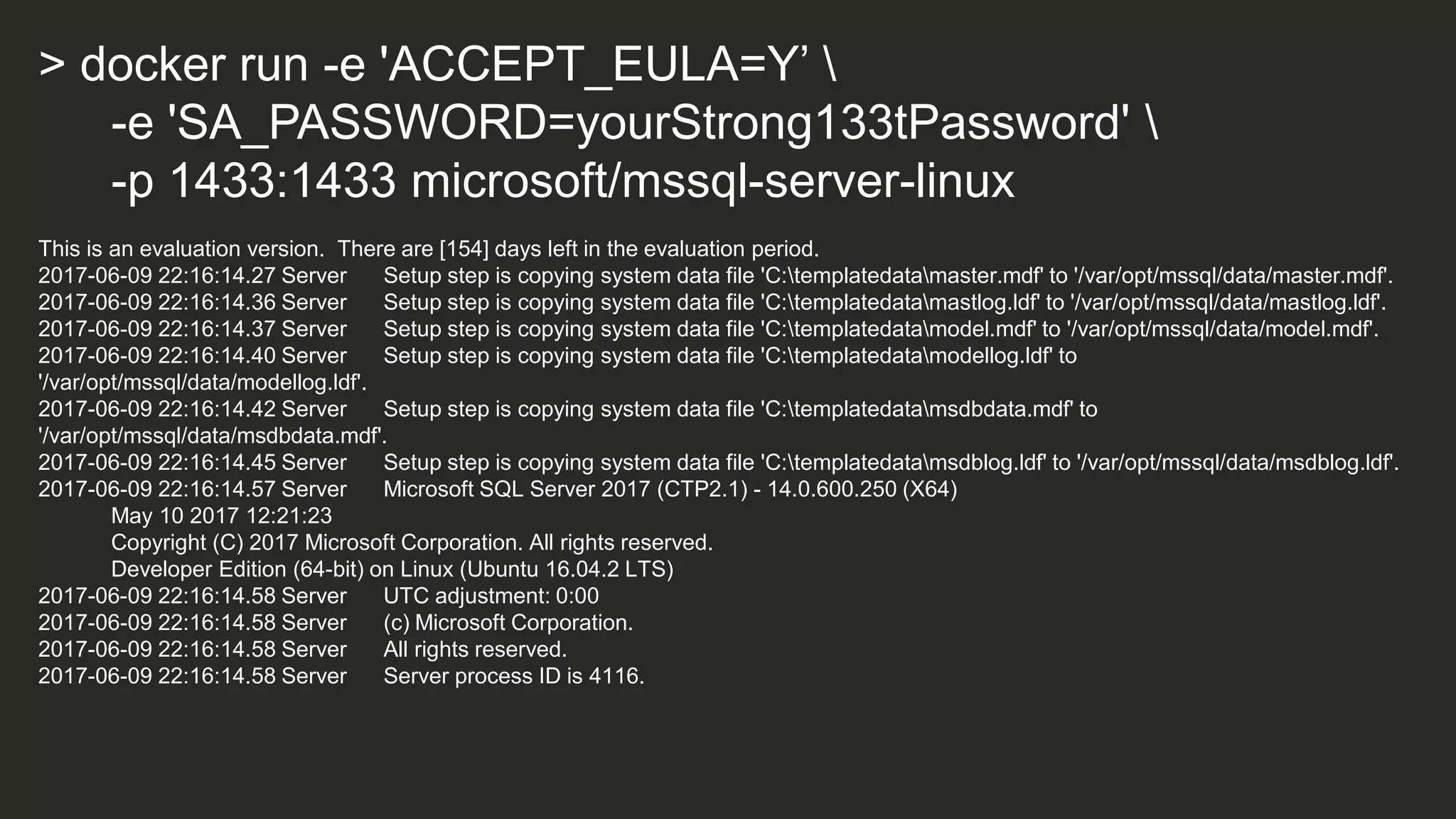

> docker run -e 'ACCEPT_EULA=Y’
-e 'SA_PASSWORD=yourStrong133tPassword'
-p 1433:1433 microsoft/mssql-server-linux
This is an evaluation version. There are [154] days left in the evaluation period.
2017-06-09 22:16:14.27 Server Setup step is copying system data file 'C:templatedatamaster.mdf' to '/var/opt/mssql/data/master.mdf'.
2017-06-09 22:16:14.36 Server Setup step is copying system data file 'C:templatedatamastlog.ldf' to '/var/opt/mssql/data/mastlog.ldf'.
2017-06-09 22:16:14.37 Server Setup step is copying system data file 'C:templatedatamodel.mdf' to '/var/opt/mssql/data/model.mdf'.
2017-06-09 22:16:14.40 Server Setup step is copying system data file 'C:templatedatamodellog.ldf' to
'/var/opt/mssql/data/modellog.ldf'.
2017-06-09 22:16:14.42 Server Setup step is copying system data file 'C:templatedatamsdbdata.mdf' to
'/var/opt/mssql/data/msdbdata.mdf'.
2017-06-09 22:16:14.45 Server Setup step is copying system data file 'C:templatedatamsdblog.ldf' to '/var/opt/mssql/data/msdblog.ldf'.
2017-06-09 22:16:14.57 Server Microsoft SQL Server 2017 (CTP2.1) - 14.0.600.250 (X64)
May 10 2017 12:21:23
Copyright (C) 2017 Microsoft Corporation. All rights reserved.
Developer Edition (64-bit) on Linux (Ubuntu 16.04.2 LTS)
2017-06-09 22:16:14.58 Server UTC adjustment: 0:00
2017-06-09 22:16:14.58 Server (c) Microsoft Corporation.
2017-06-09 22:16:14.58 Server All rights reserved.
2017-06-09 22:16:14.58 Server Server process ID is 4116.

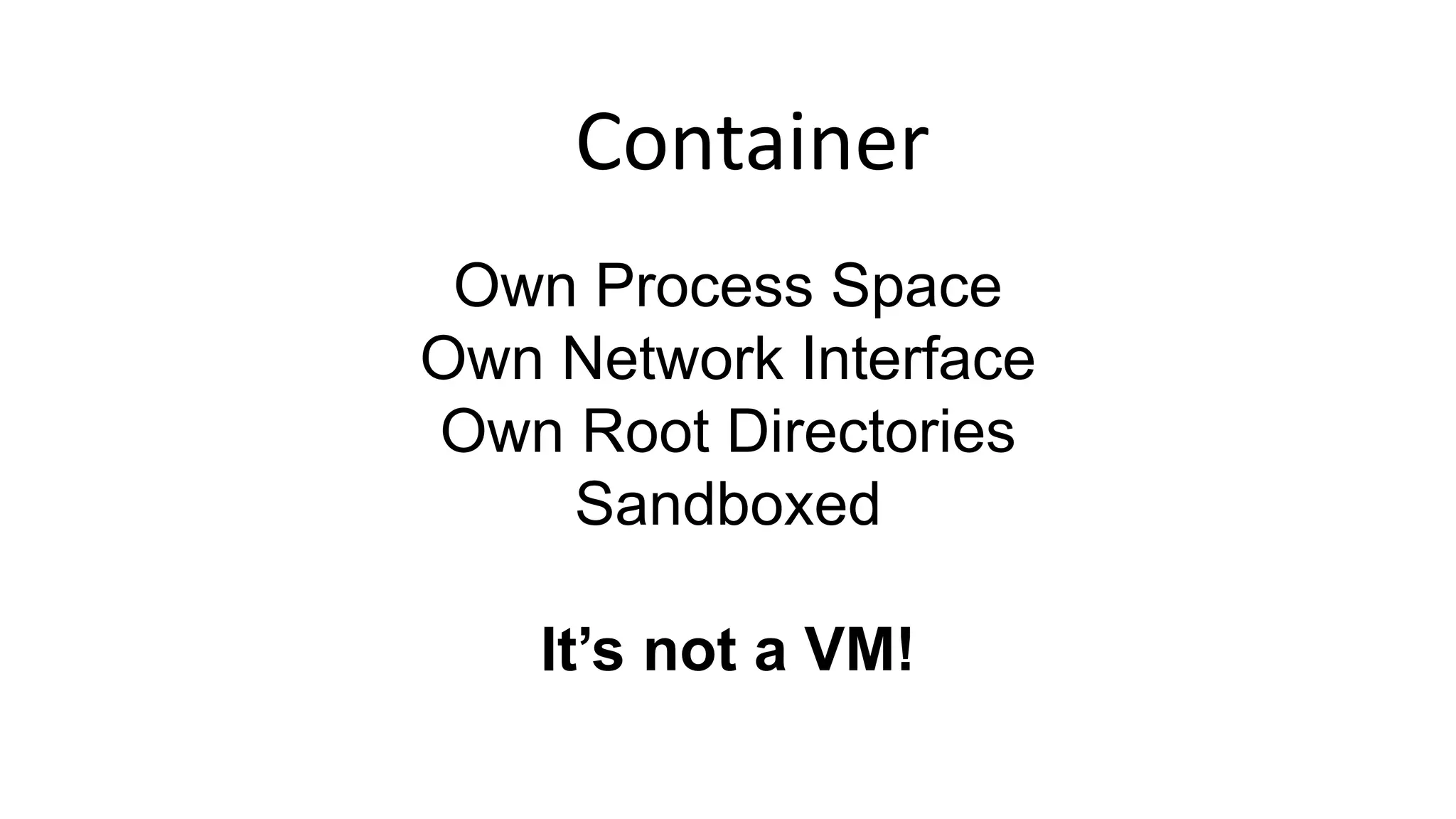

Own Process Space
Own Network Interface
Own Root Directories
Sandboxed
It’s not a VM!
Container

Native CPU
Native Memory
Native IO
No Pre-Allocation
No Performance Overheard
Container

Docker – “Kernel Virtualisation”

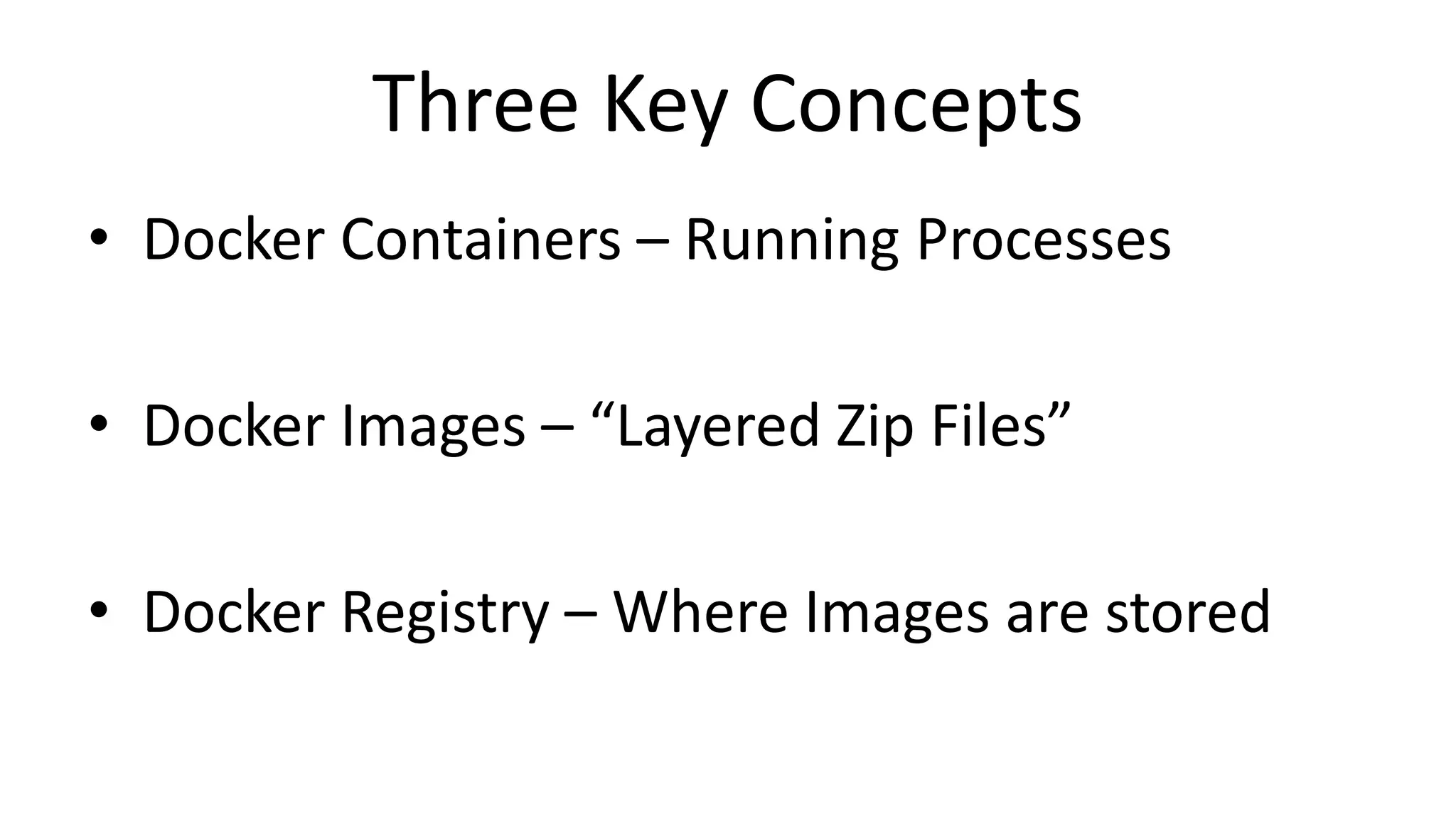

Three Key Concepts
• Docker Containers – Running Processes

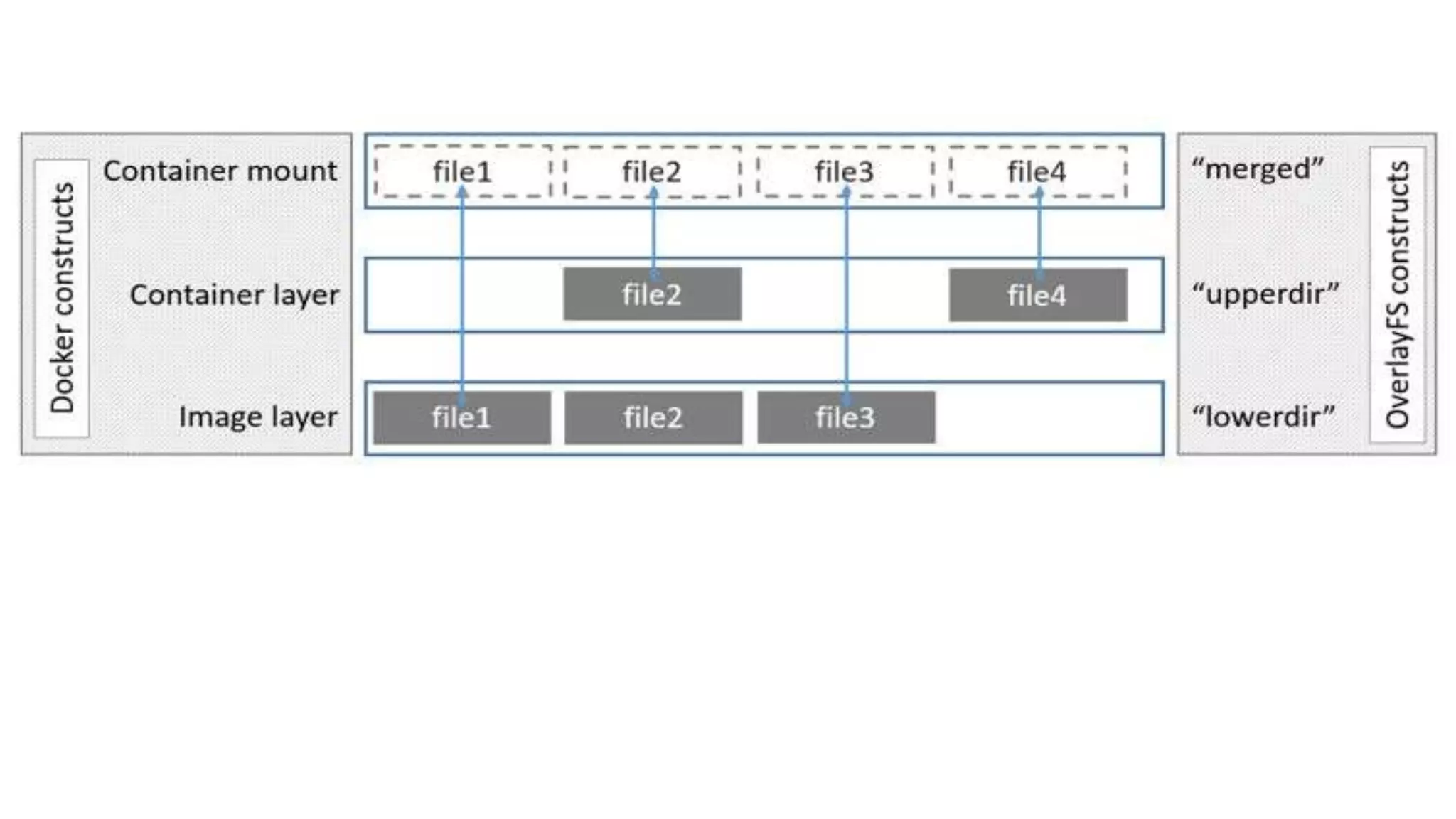

• Docker Images – “Layered Zip Files”
• Docker Registry – Where Images are stored

Docker isn’t the only
container runtime!

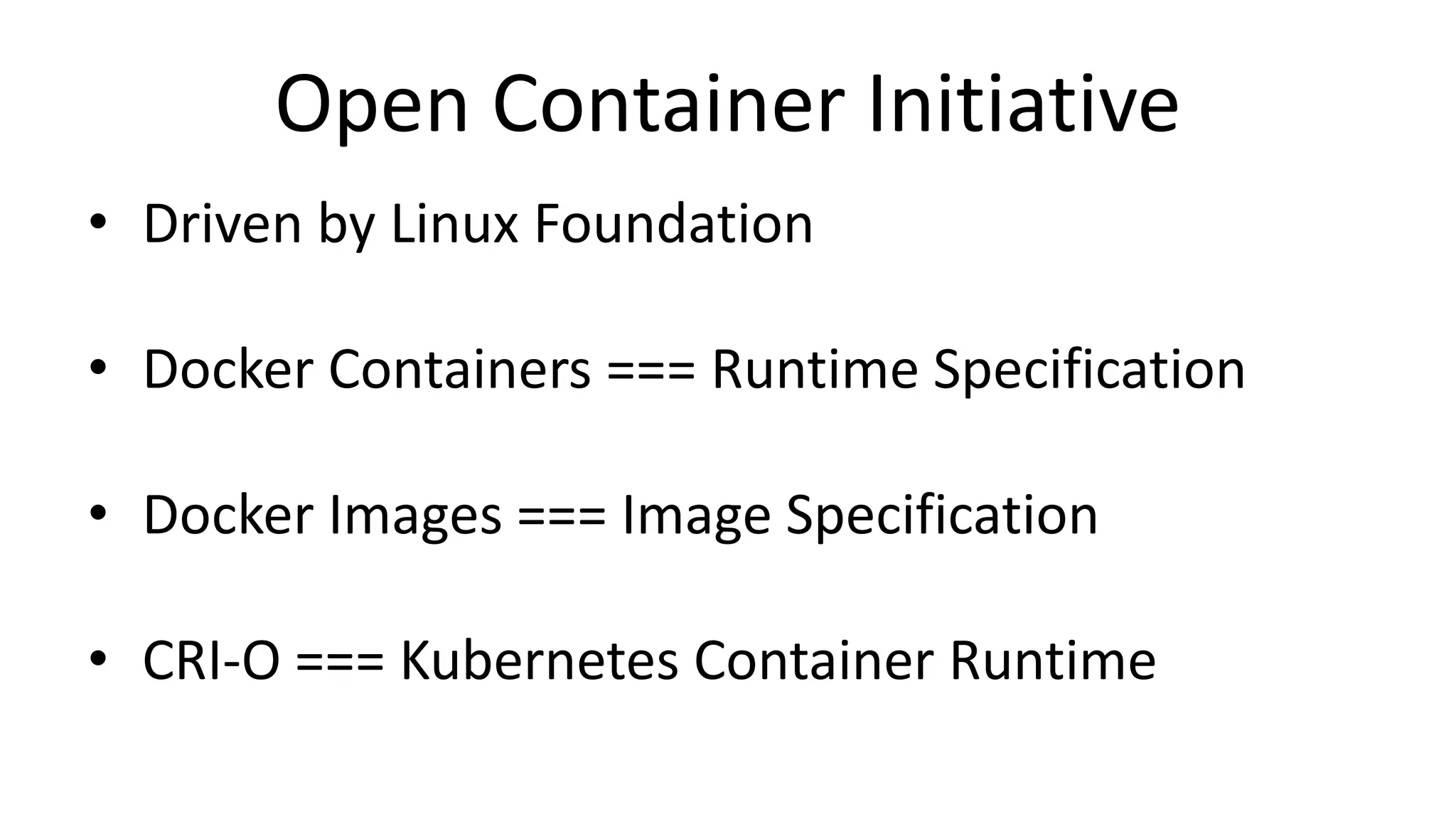

Open Container Initiative
• Driven by Linux Foundation
• Docker Containers === Runtime Specification
• Docker Images === Image Specification
• CRI-O === Kubernetes Container Runtime

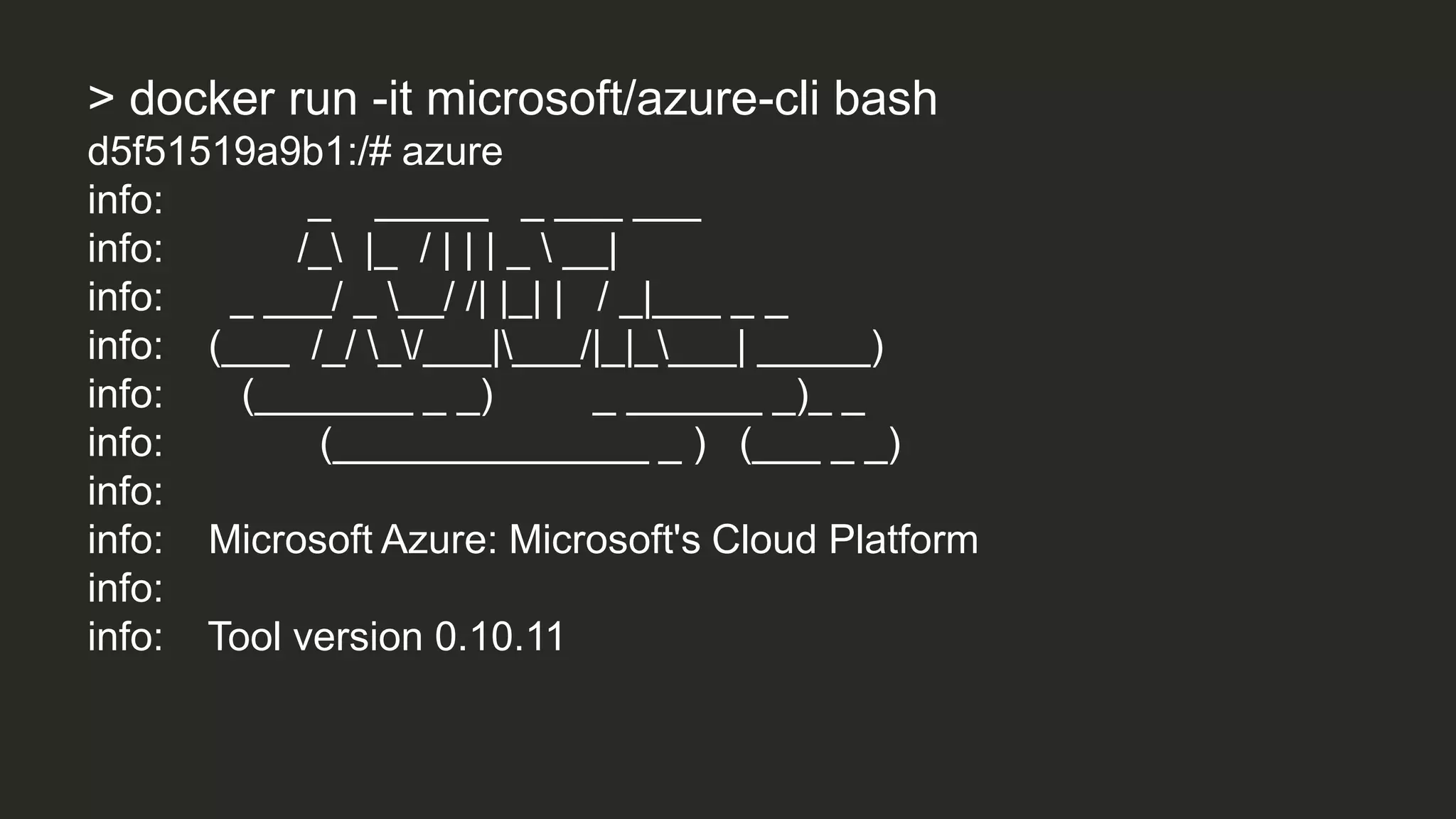

> docker run -it microsoft/azure-cli bash
d5f51519a9b1:/# azure
info: _ _____ _ ___ ___
info: /_ |_ / | | | _ __|
info: _ ___/ _ __/ /| |_| | / _|___ _ _
info: (___ /_/ _/___|___/|_|____| _____)
info: (_______ _ _) _ ______ _)_ _
info: (______________ _ ) (___ _ _)
info:
info: Microsoft Azure: Microsoft's Cloud Platform
info:
info: Tool version 0.10.11

Building Containerised
ASP.NET Core app

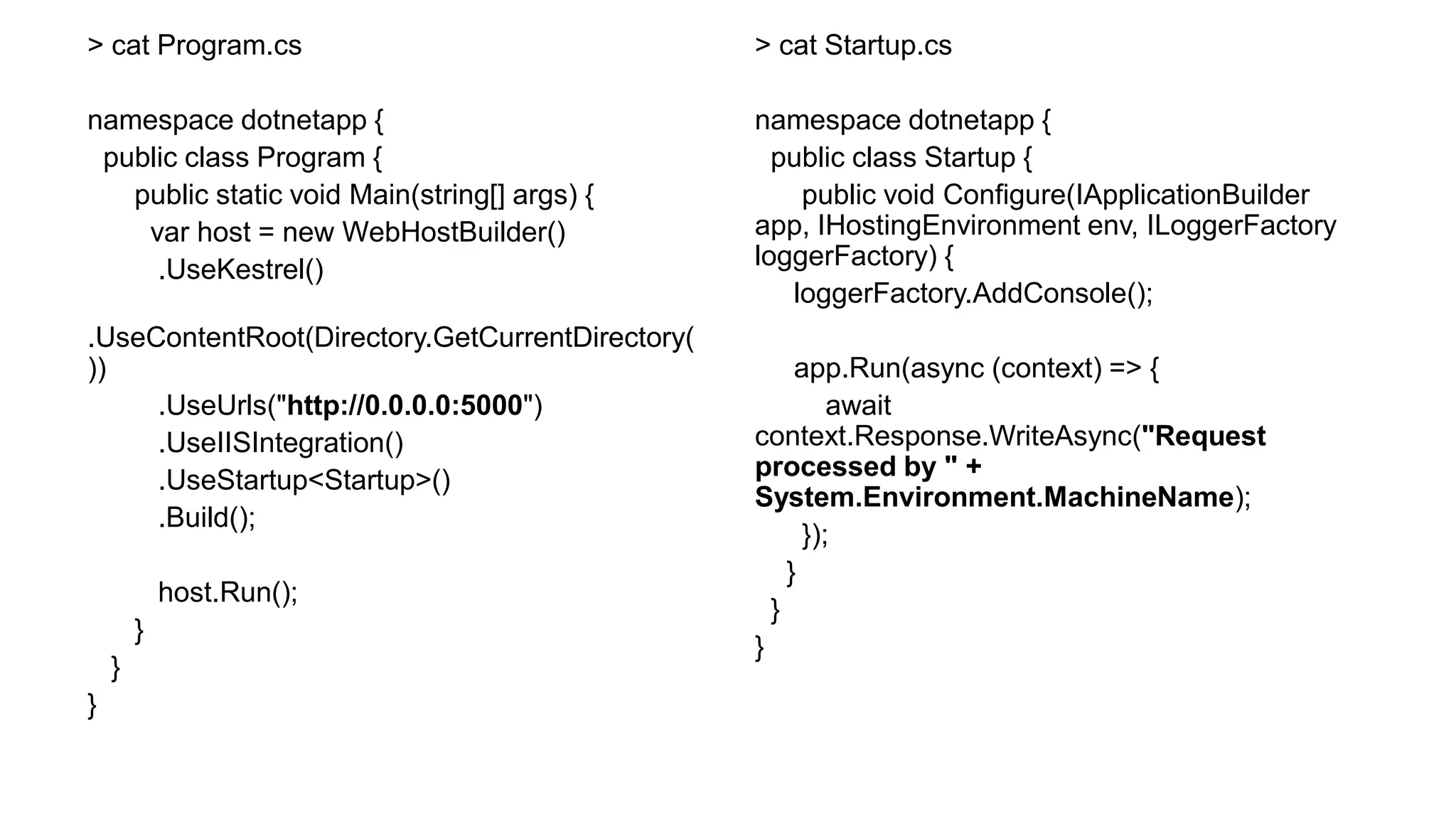

> cat Program.cs
namespace dotnetapp {
public class Program {
public static void Main(string[] args) {
var host = new WebHostBuilder()
.UseKestrel()
.UseContentRoot(Directory.GetCurrentDirectory(
))
.UseUrls("http://0.0.0.0:5000")
.UseIISIntegration()
.UseStartup<Startup>()
.Build();
host.Run();
}
}
}
> cat Startup.cs
namespace dotnetapp {
public class Startup {
public void Configure(IApplicationBuilder
app, IHostingEnvironment env, ILoggerFactory
loggerFactory) {
loggerFactory.AddConsole();
app.Run(async (context) => {
await
context.Response.WriteAsync("Request
processed by " +
System.Environment.MachineName);
});
}
}
}

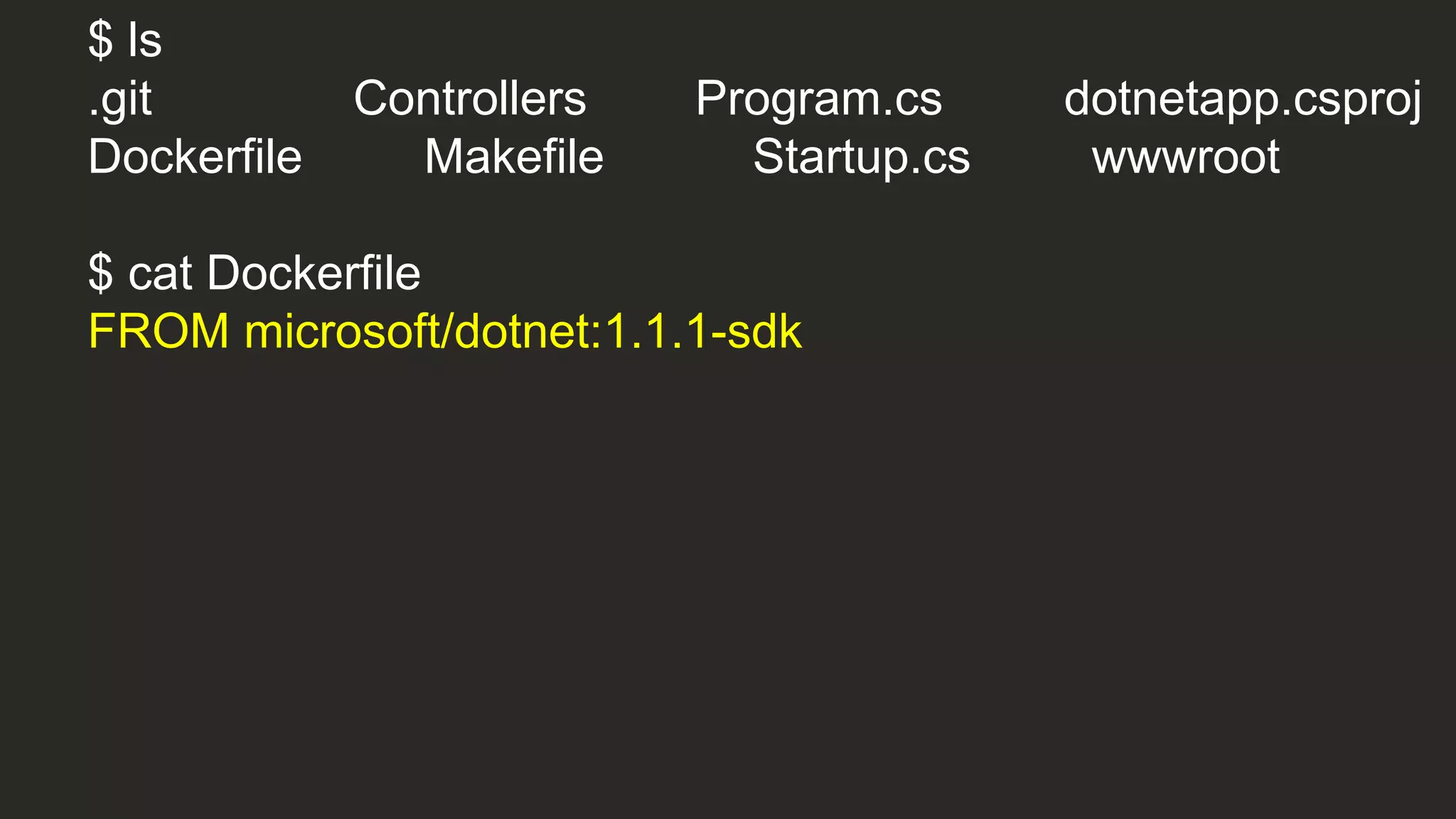

$ ls
.git Controllers Program.cs dotnetapp.csproj
Dockerfile Makefile Startup.cs wwwroot

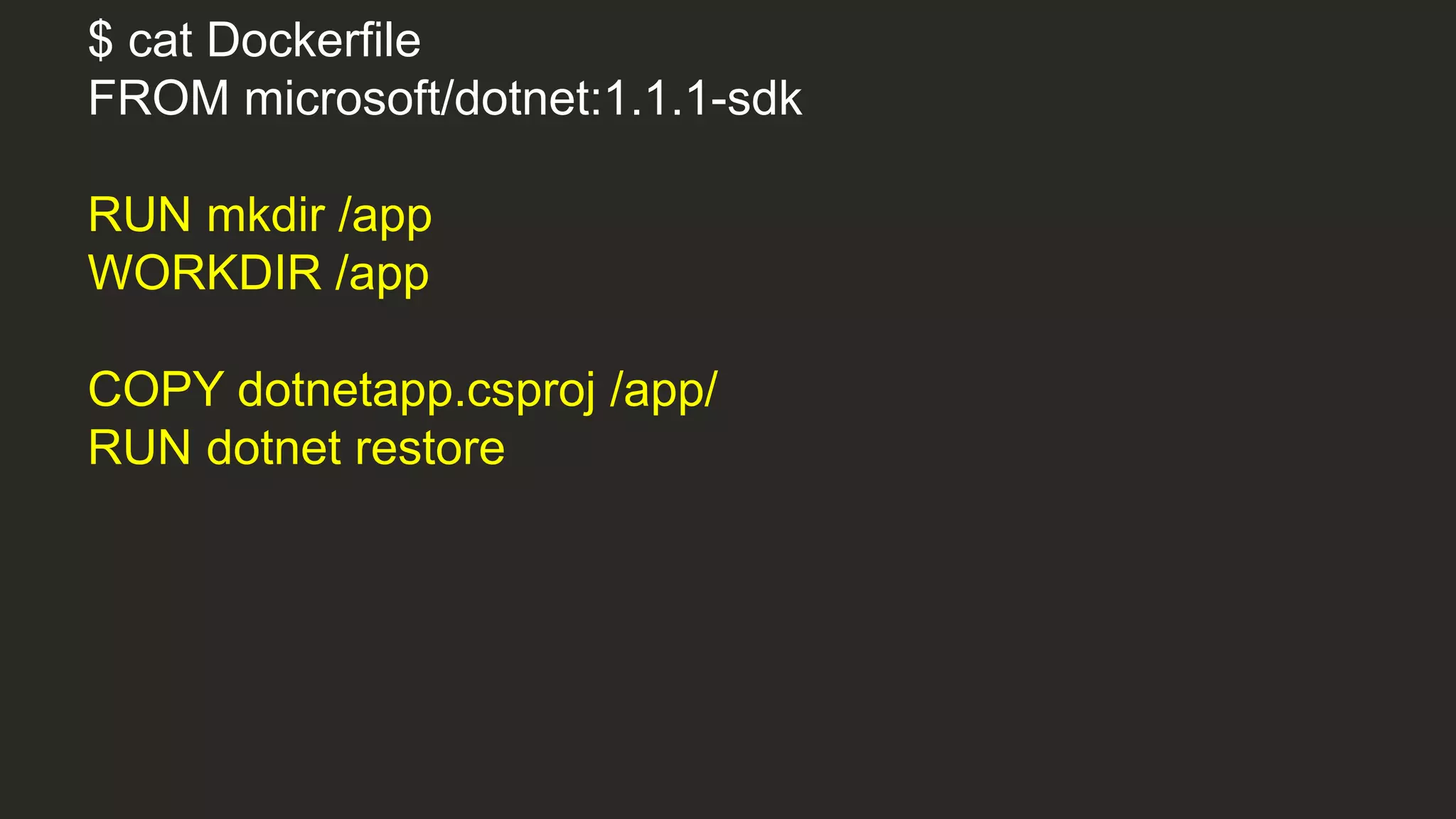

$ cat Dockerfile
FROM microsoft/dotnet:1.1.1-sdk

$ cat Dockerfile
RUN mkdir /app
WORKDIR /app
COPY dotnetapp.csproj /app/
RUN dotnet restore

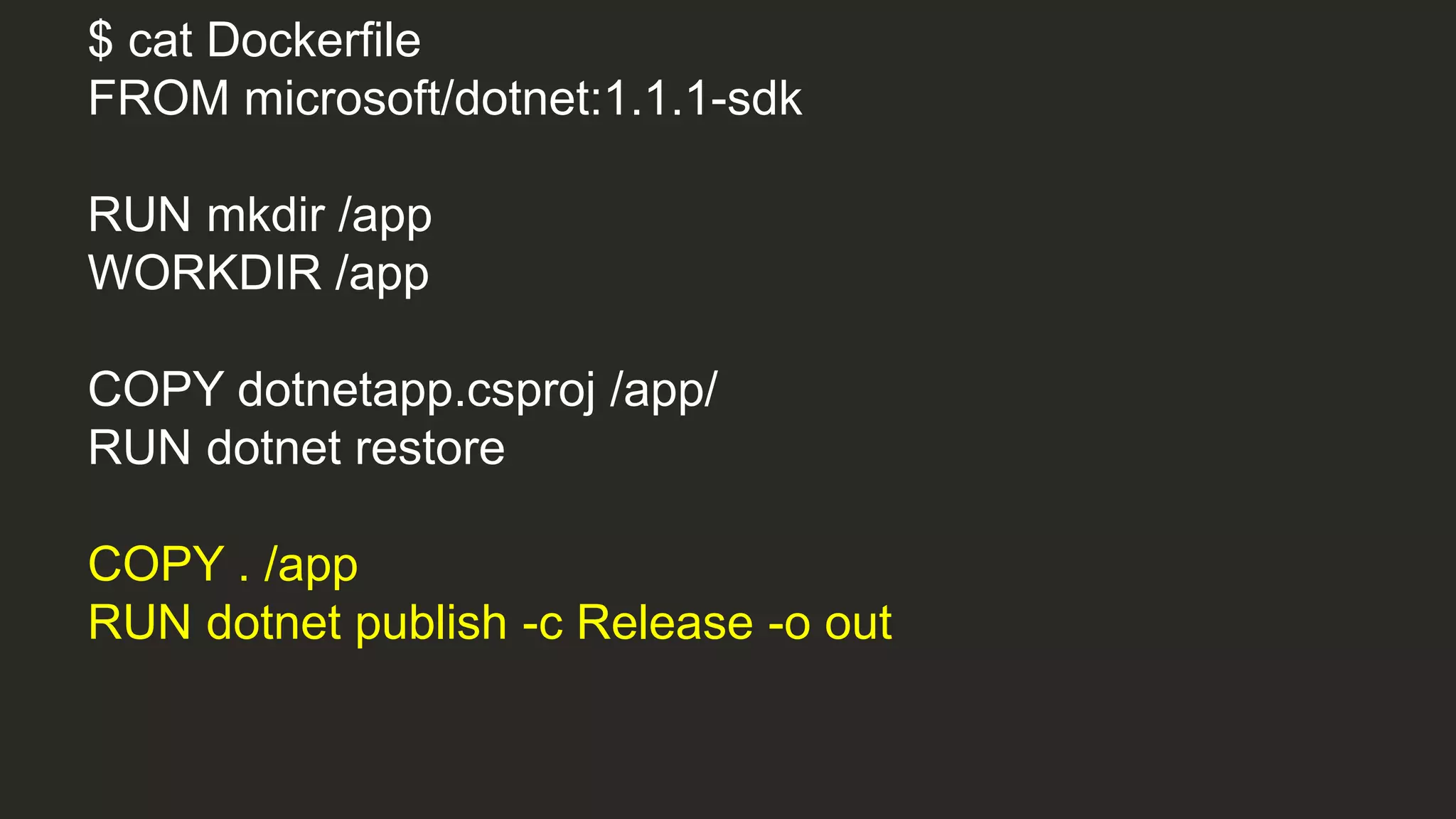

$ cat Dockerfile
RUN mkdir /app
WORKDIR /app
RUN dotnet restore
COPY . /app
RUN dotnet publish -c Release -o out

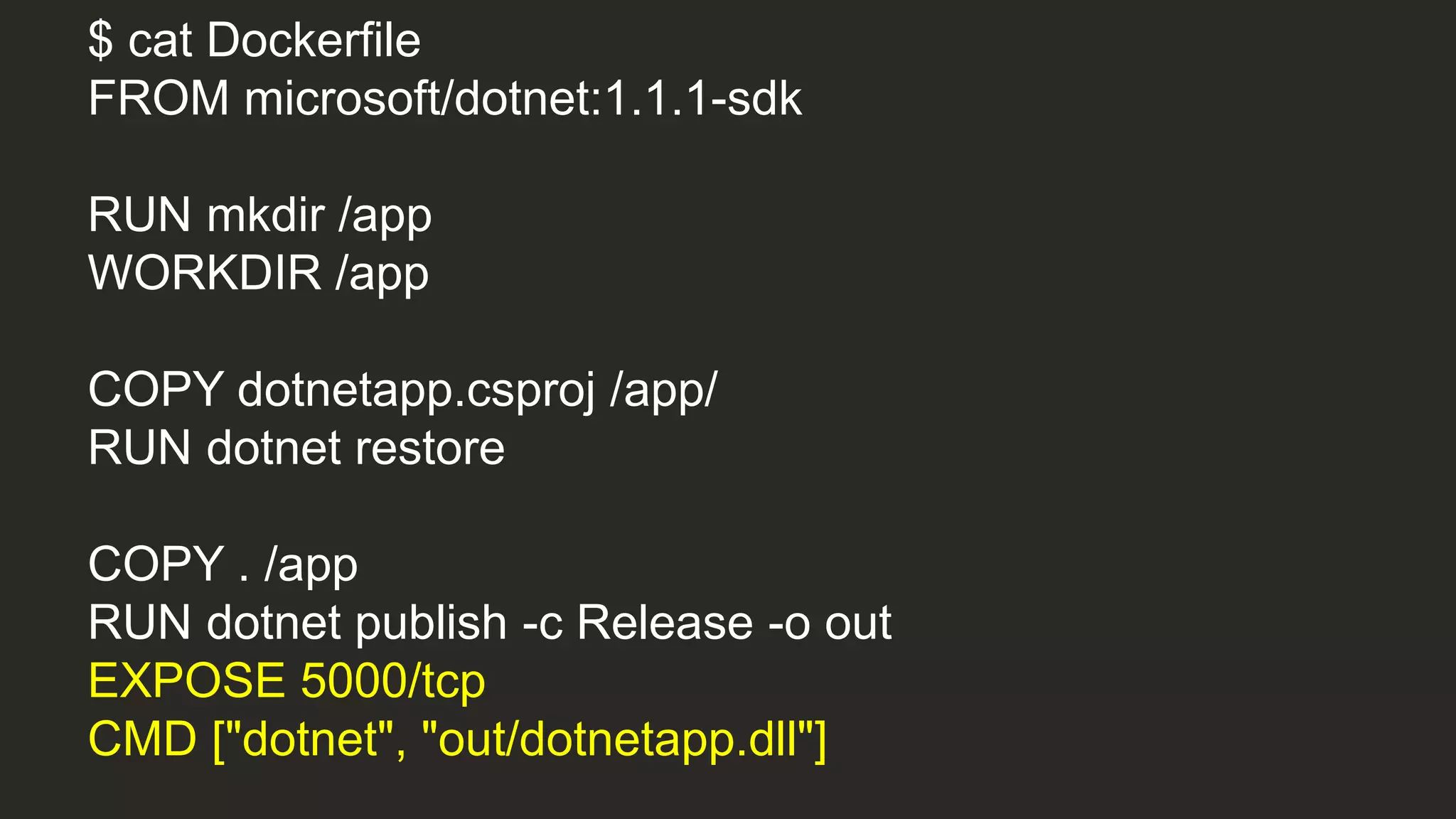

$ cat Dockerfile
RUN mkdir /app
WORKDIR /app
RUN dotnet restore
COPY . /app
EXPOSE 5000/tcp
CMD ["dotnet", "out/dotnetapp.dll"]

$ docker build -t katacoda/dotnet-example:v1 .
Sending build context to Docker daemon 137.7 kB
Step 1/11 : FROM microsoft/dotnet:1.1.1-sdk
Step 2/11 : RUN mkdir /build
Step 3/11 : WORKDIR /build
Step 4/11 : COPY dotnetapp.csproj .
Step 5/11 : RUN dotnet restore
Step 6/11 : COPY . .
Step 7/11 : RUN dotnet publish -c Release -o out
---> Running in fcde25425eee
Microsoft (R) Build Engine version 15.1.548.43366
Copyright (C) Microsoft Corporation. All rights reserved.
dotnetapp -> /build/bin/Release/netcoreapp1.1/dotnetapp.dll
Step 8/11 : FROM microsoft/dotnet:1.1.1-runtime
Step 9/11 : WORKDIR /app
Step 10/11 : CMD dotnet dotnetapp.dll
Step 11/11 : COPY --from=0 /build/out /app/
Successfully built 1dbec44d4150
Successfully tagged katacoda/dotnet-example:v1.1

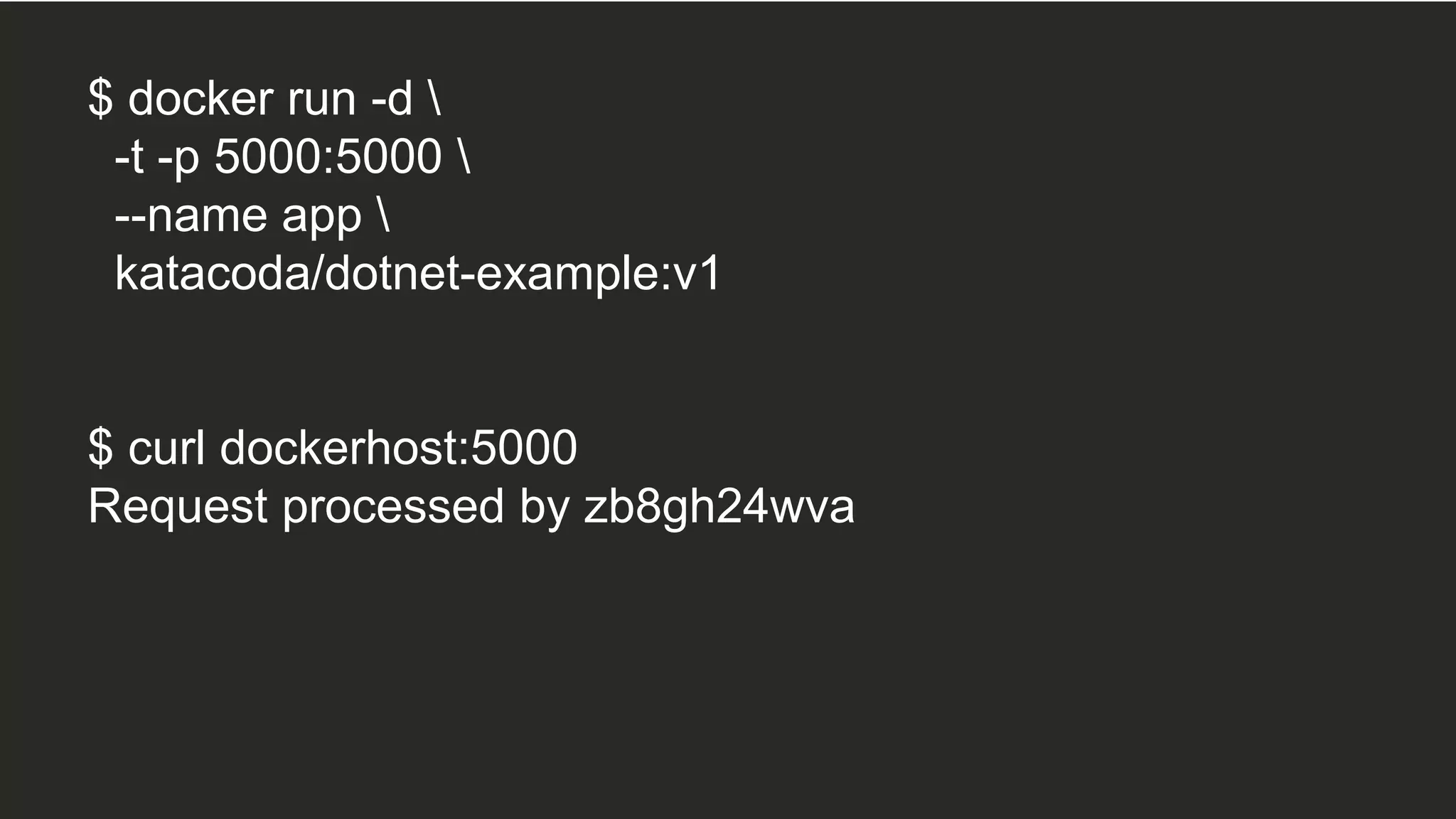

$ docker run -d
-t -p 5000:5000
--name app
katacoda/dotnet-example:v1
$ curl dockerhost:5000
Request processed by zb8gh24wva

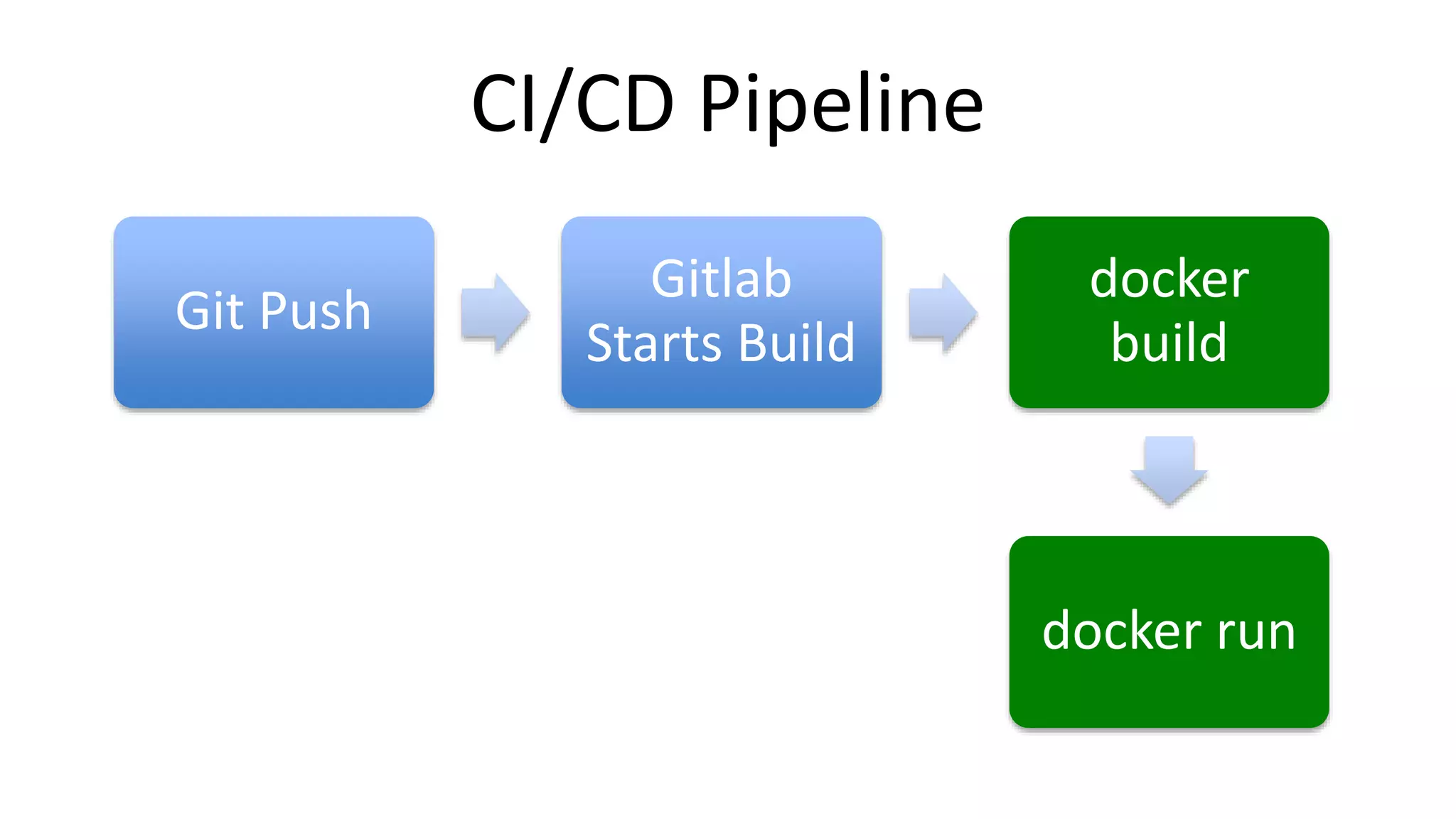

CI/CD Pipeline
Git Push
Gitlab
Starts Build
docker
build
docker run

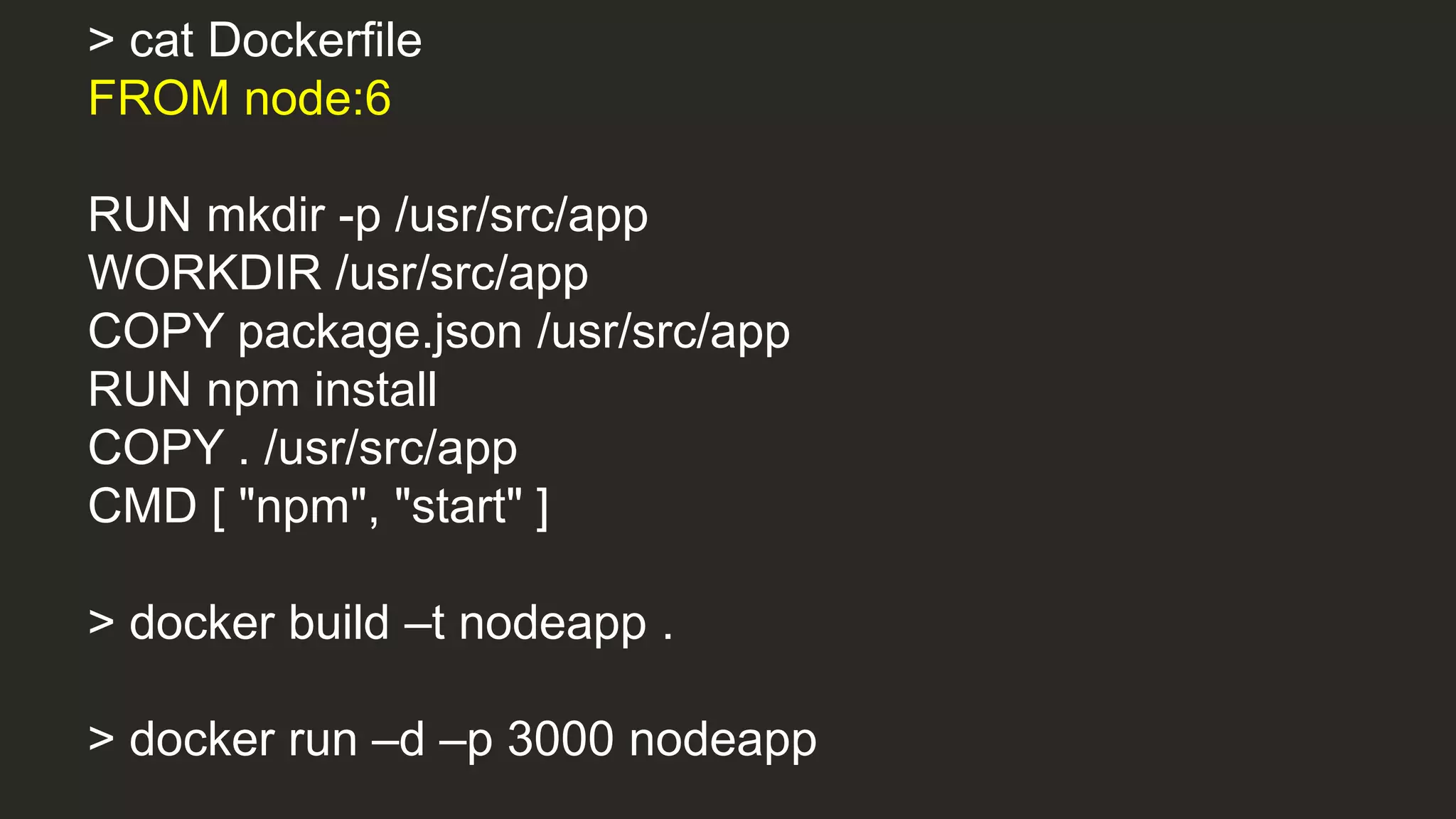

> cat Dockerfile
FROM node:6
RUN mkdir -p /usr/src/app
WORKDIR /usr/src/app
COPY package.json /usr/src/app
RUN npm install
COPY . /usr/src/app
CMD [ "npm", "start" ]
> docker build –t nodeapp .
> docker run –d –p 3000 nodeapp

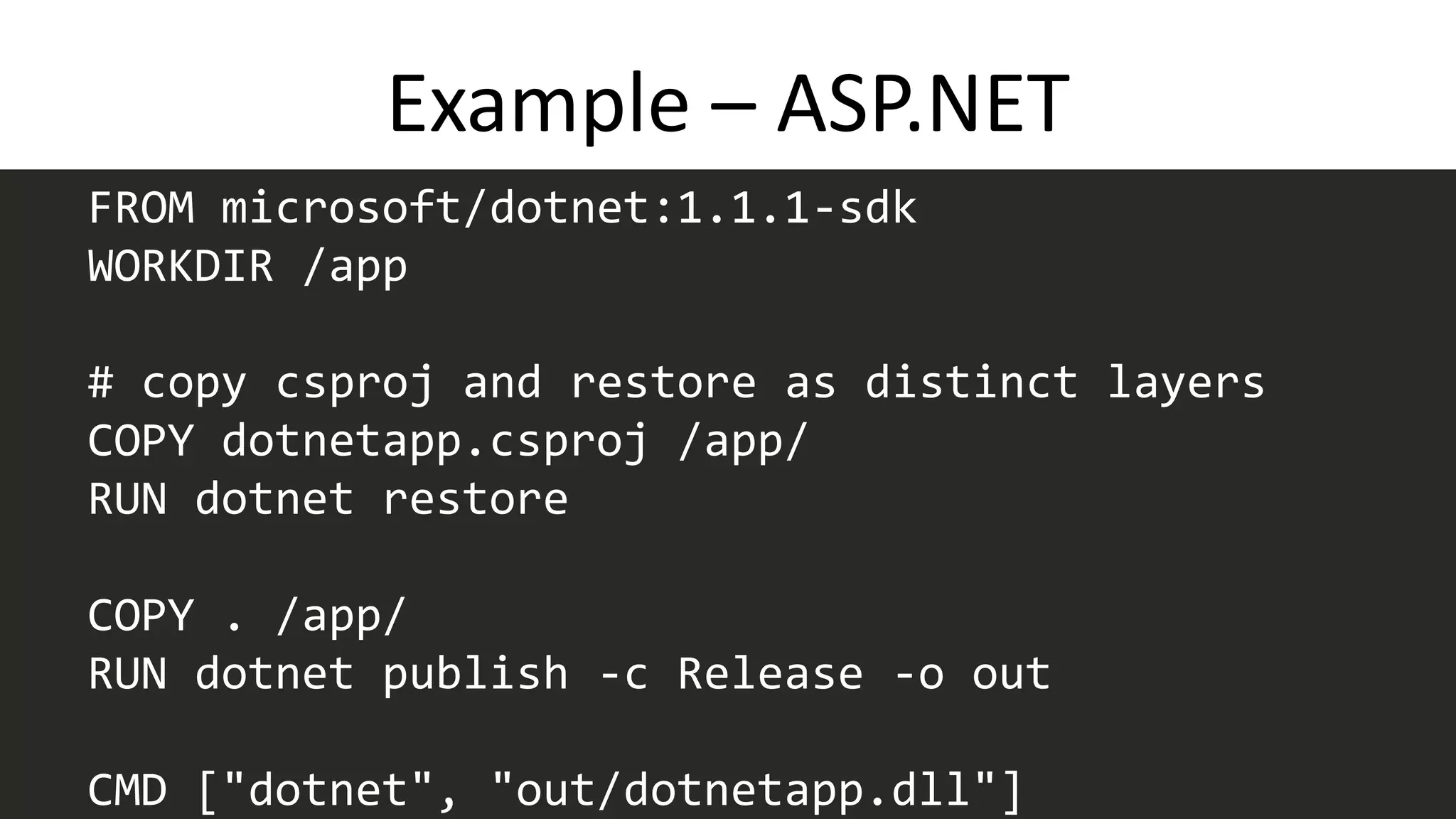

Example – ASP.NET
WORKDIR /app
# copy csproj and restore as distinct layers
RUN dotnet restore
COPY . /app/
CMD ["dotnet", "out/dotnetapp.dll"]

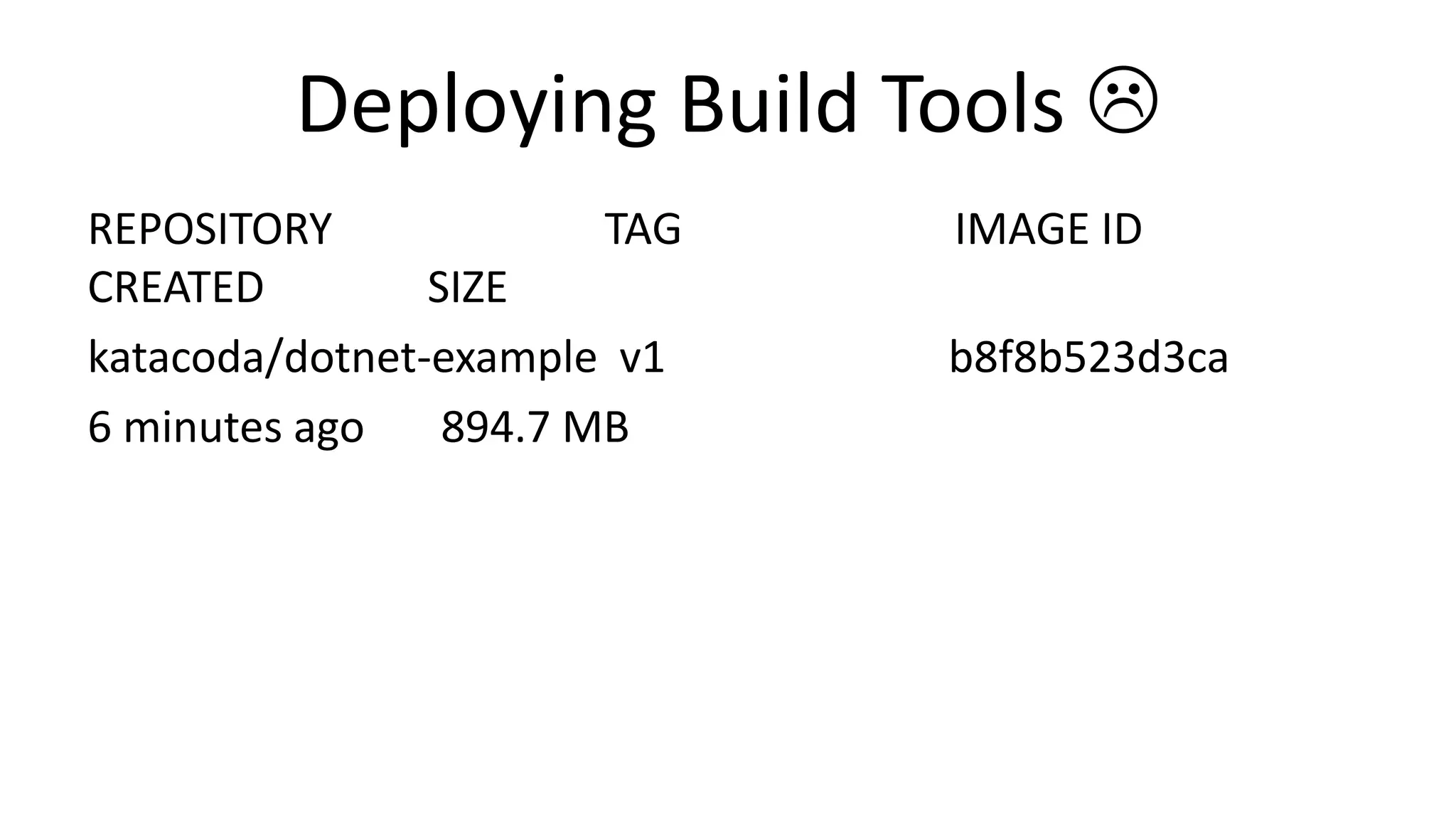

Deploying Build Tools 
REPOSITORY TAG IMAGE ID
CREATED SIZE
katacoda/dotnet-example v1 b8f8b523d3ca
6 minutes ago 894.7 MB

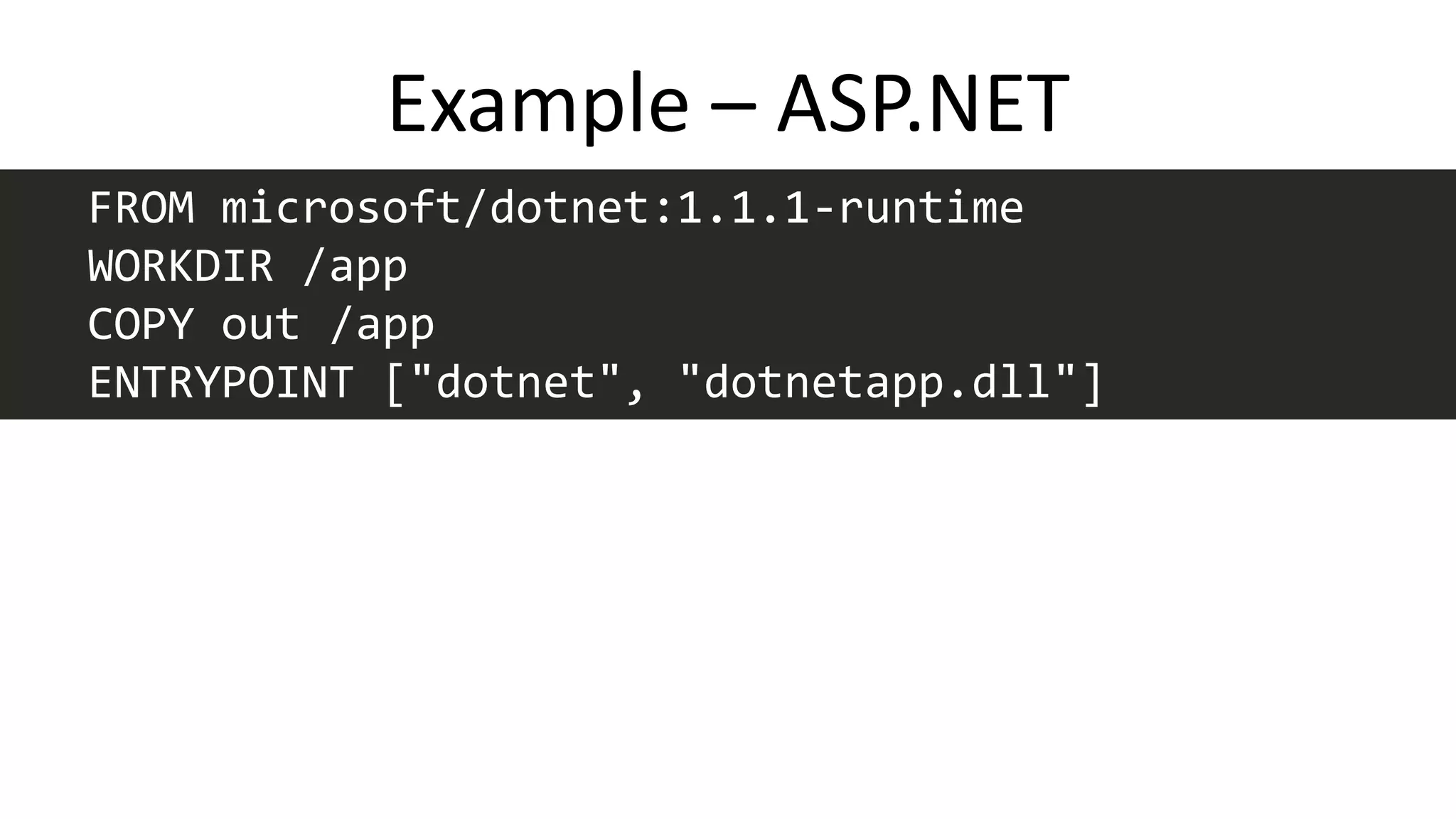

Example – ASP.NET
FROM microsoft/dotnet:1.1.1-runtime
WORKDIR /app
COPY out /app
ENTRYPOINT ["dotnet", "dotnetapp.dll"]

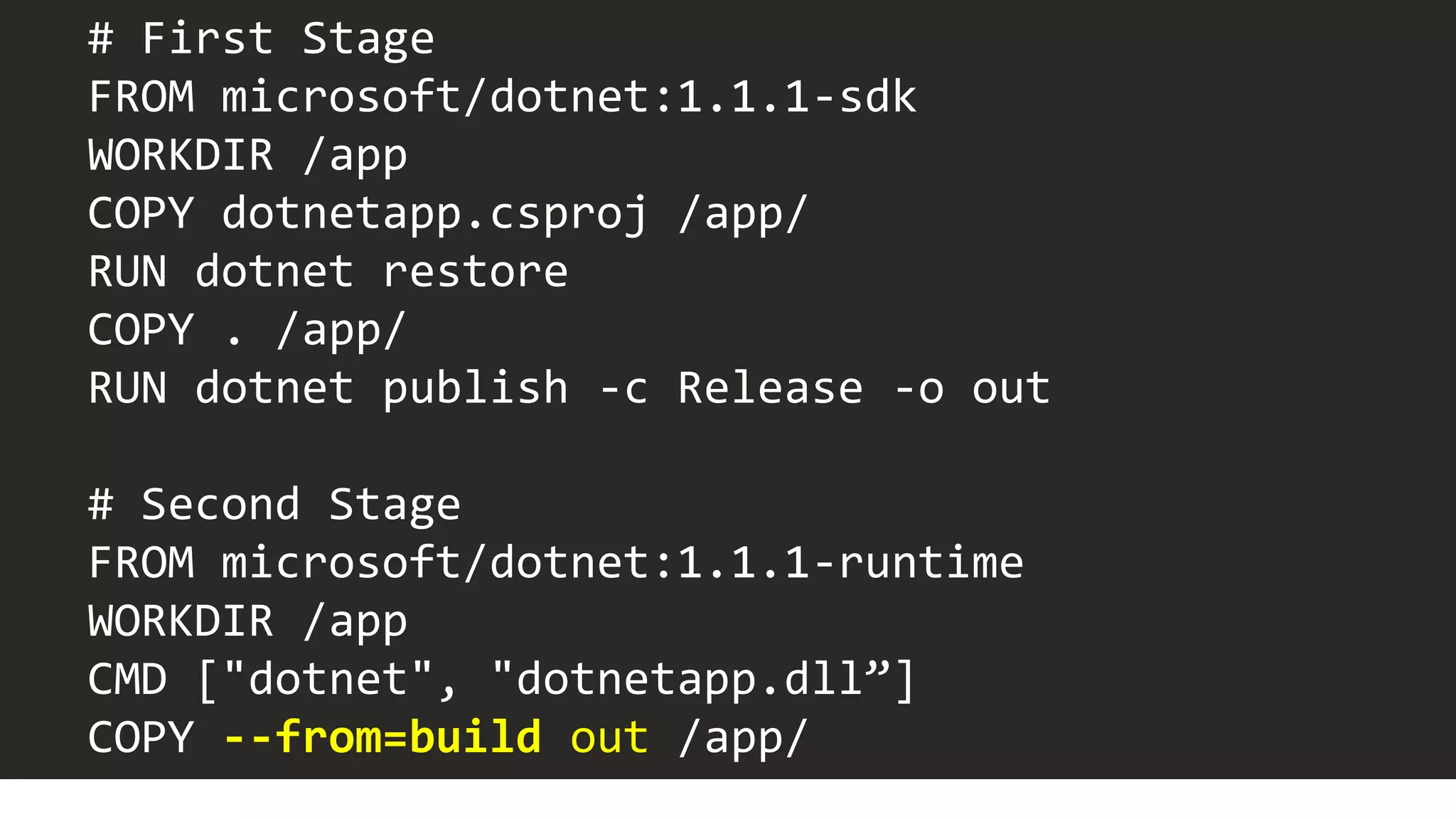

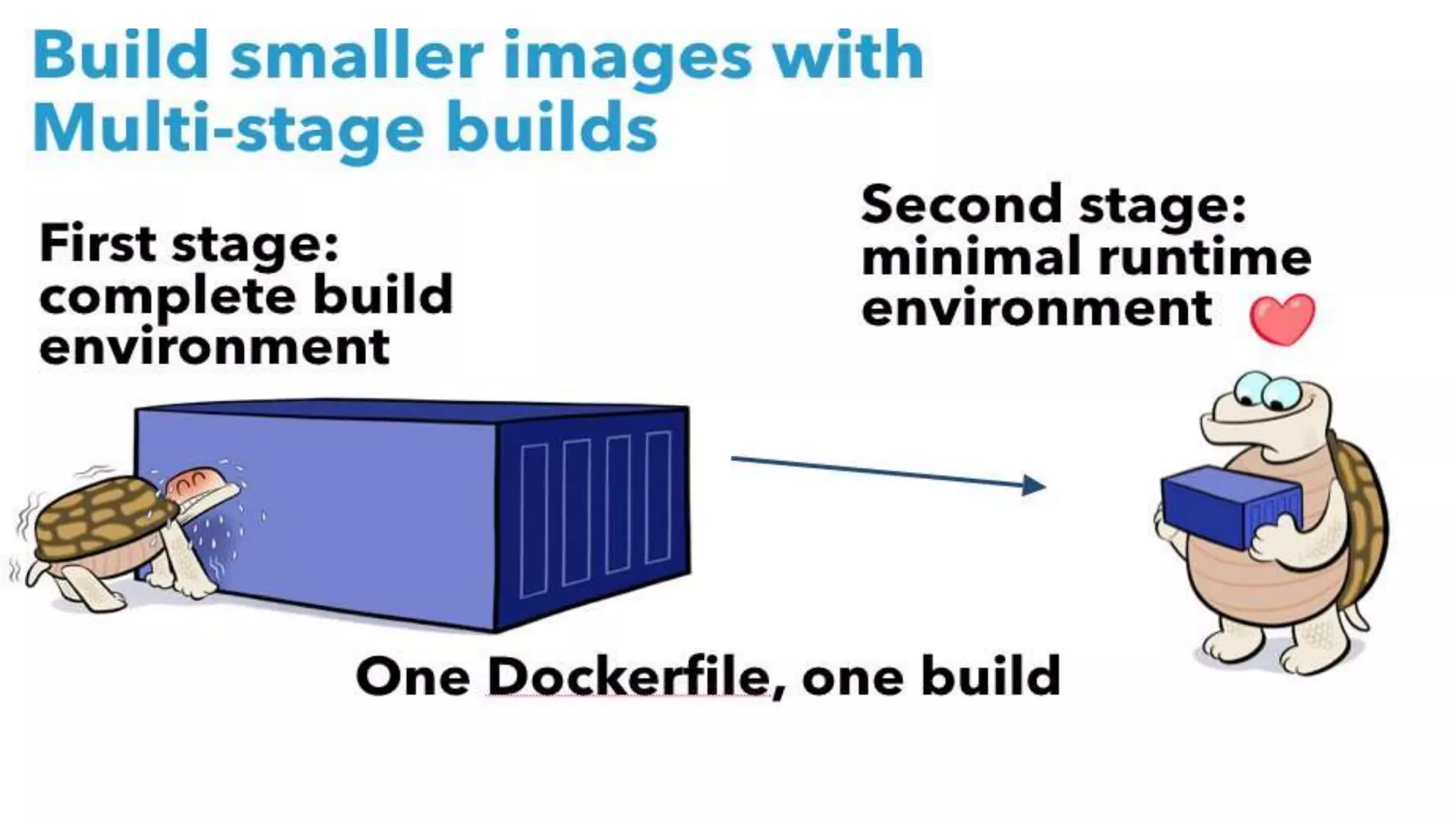

# First Stage
WORKDIR /app
RUN dotnet restore
COPY . /app/
# Second Stage
FROM microsoft/dotnet:1.1.1-runtime
WORKDIR /app
CMD ["dotnet", "dotnetapp.dll”]
COPY --from=build out /app/

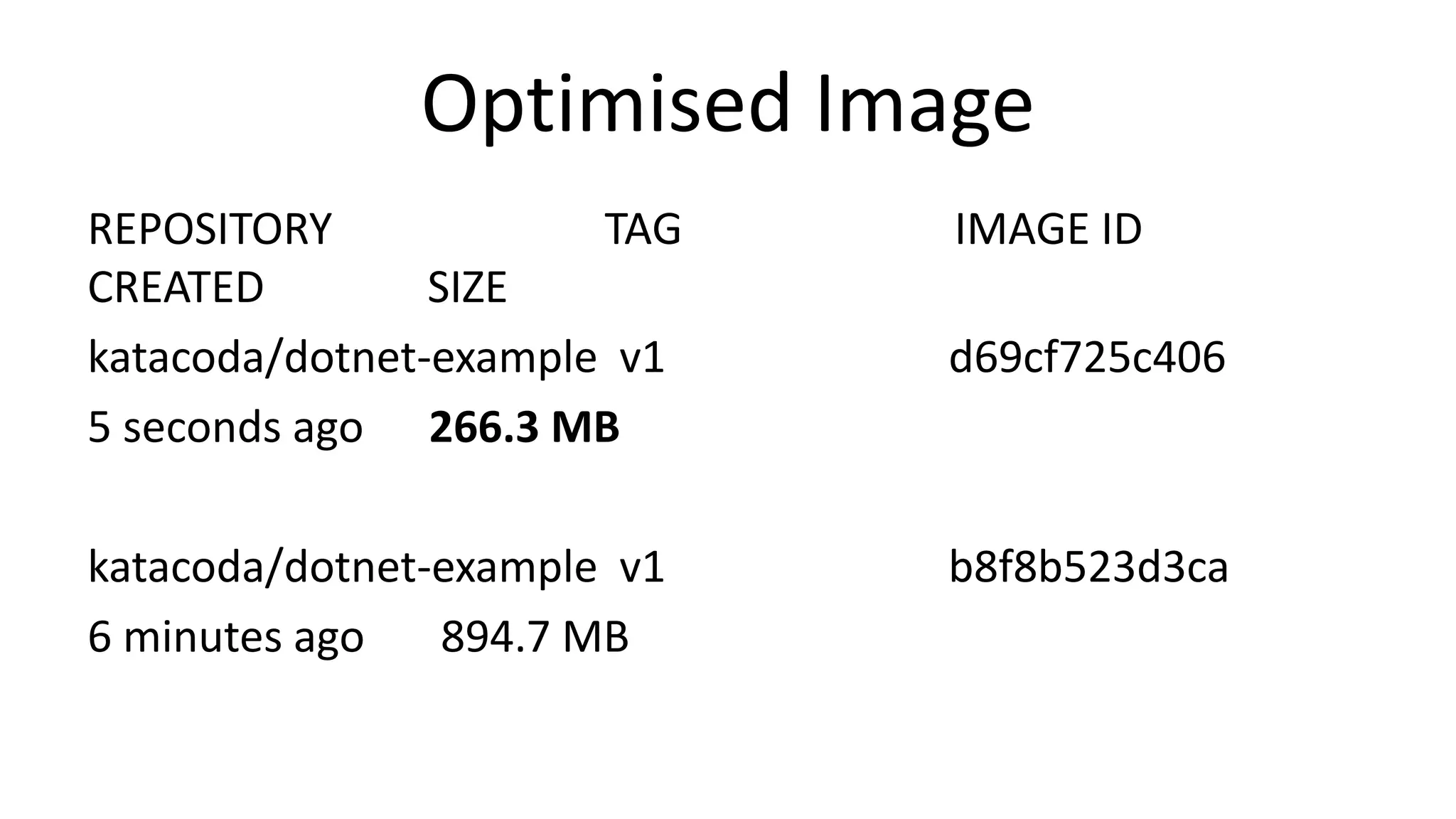

Optimised Image
REPOSITORY TAG IMAGE ID
CREATED SIZE
katacoda/dotnet-example v1 d69cf725c406
5 seconds ago 266.3 MB
katacoda/dotnet-example v1 b8f8b523d3ca
6 minutes ago 894.7 MB

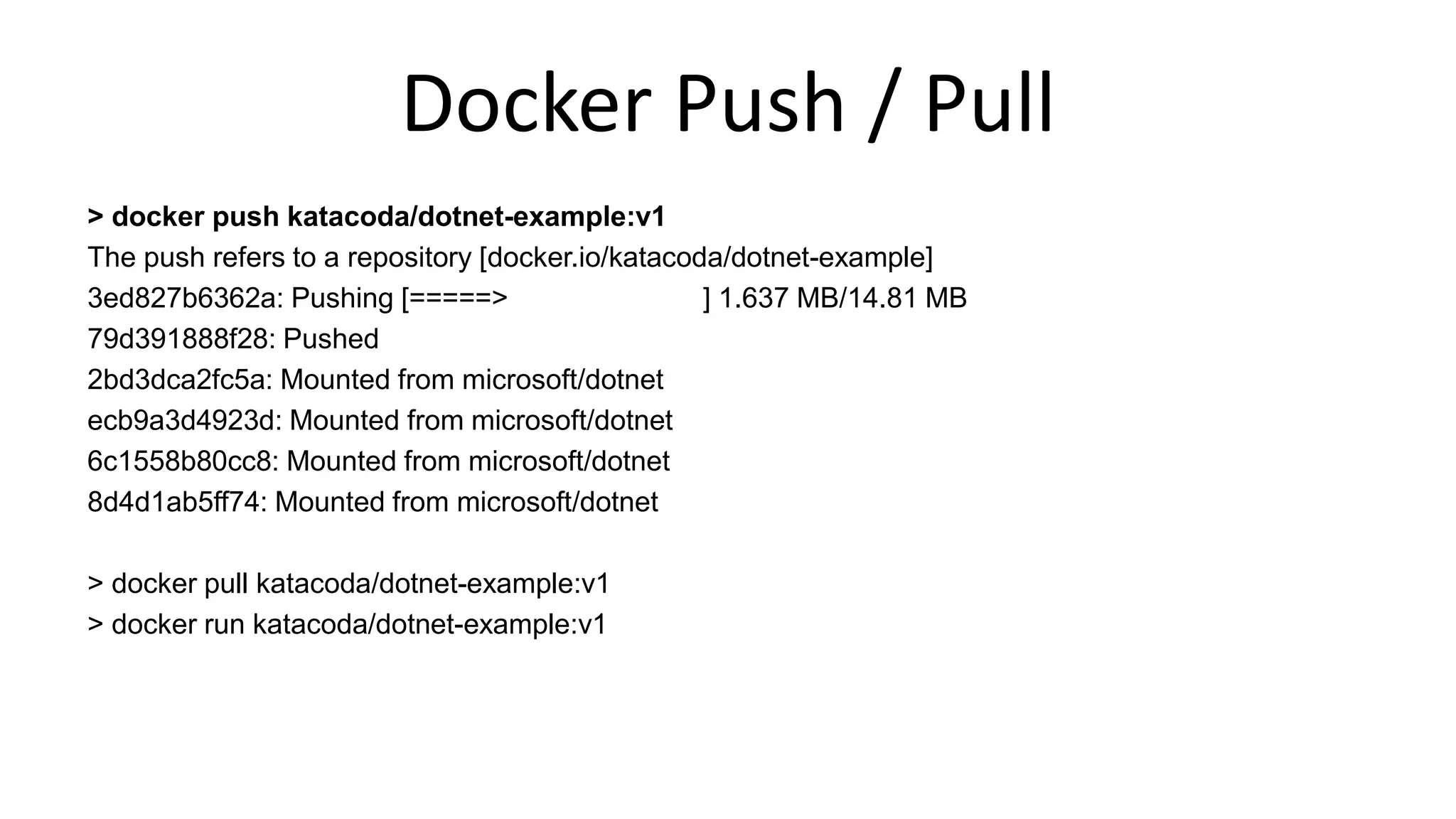

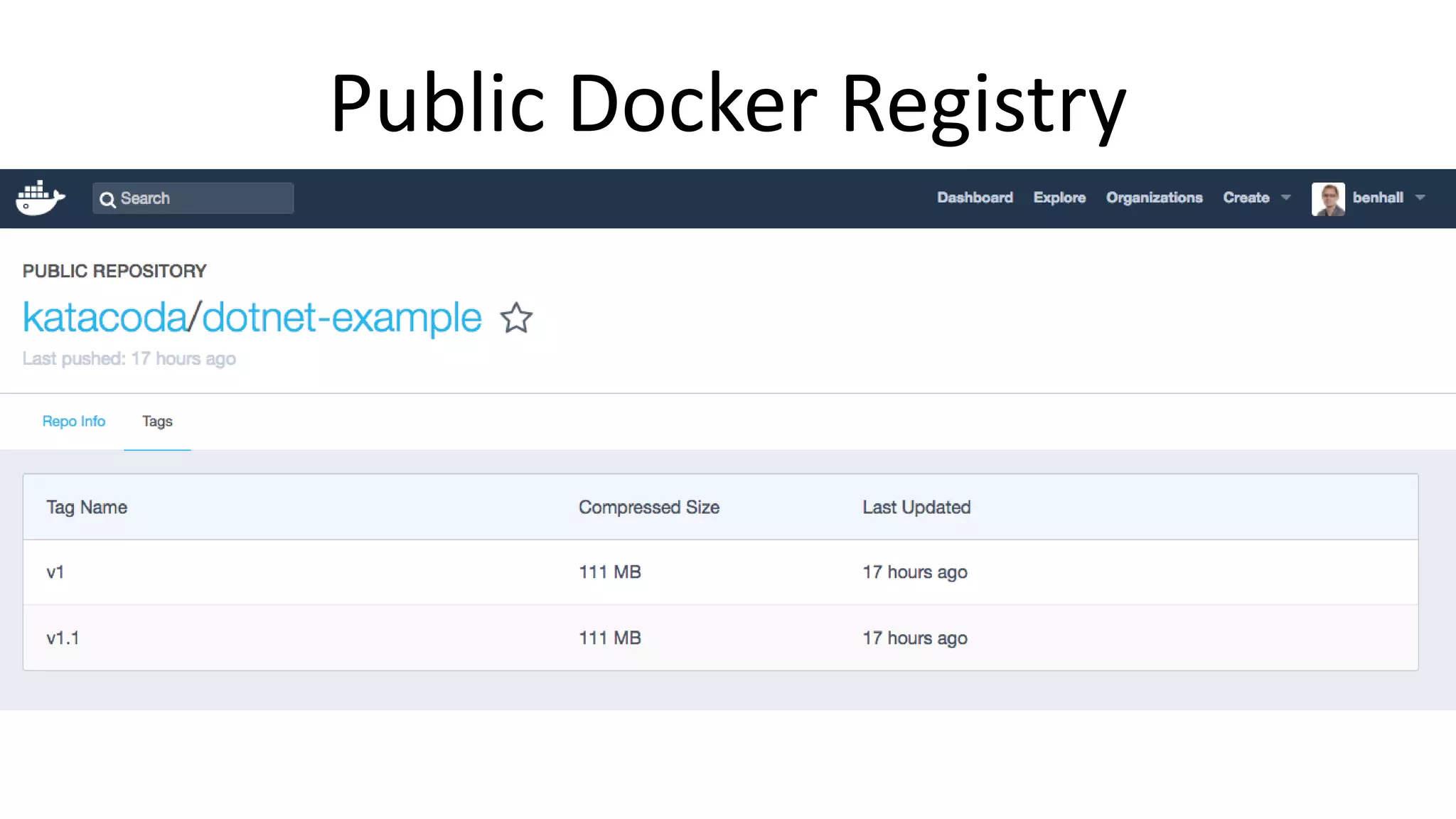

Docker Push / Pull
> docker push katacoda/dotnet-example:v1
The push refers to a repository [docker.io/katacoda/dotnet-example]
3ed827b6362a: Pushing [=====> ] 1.637 MB/14.81 MB
79d391888f28: Pushed
2bd3dca2fc5a: Mounted from microsoft/dotnet
ecb9a3d4923d: Mounted from microsoft/dotnet
6c1558b80cc8: Mounted from microsoft/dotnet
8d4d1ab5ff74: Mounted from microsoft/dotnet
> docker pull katacoda/dotnet-example:v1
> docker run katacoda/dotnet-example:v1

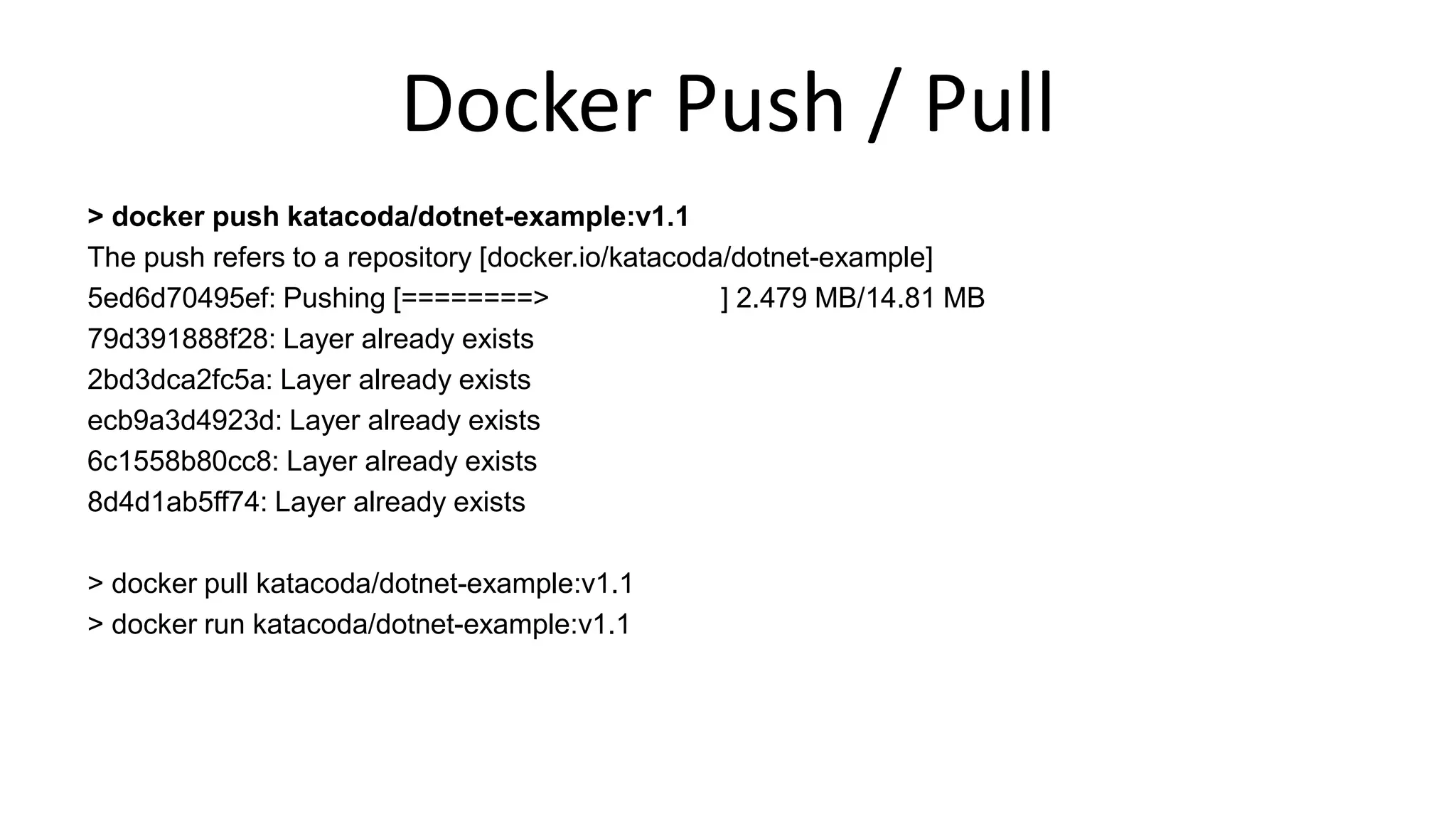

Docker Push / Pull
> docker push katacoda/dotnet-example:v1.1
The push refers to a repository [docker.io/katacoda/dotnet-example]
5ed6d70495ef: Pushing [========> ] 2.479 MB/14.81 MB
79d391888f28: Layer already exists
2bd3dca2fc5a: Layer already exists
ecb9a3d4923d: Layer already exists
6c1558b80cc8: Layer already exists
8d4d1ab5ff74: Layer already exists
> docker pull katacoda/dotnet-example:v1.1
> docker run katacoda/dotnet-example:v1.1

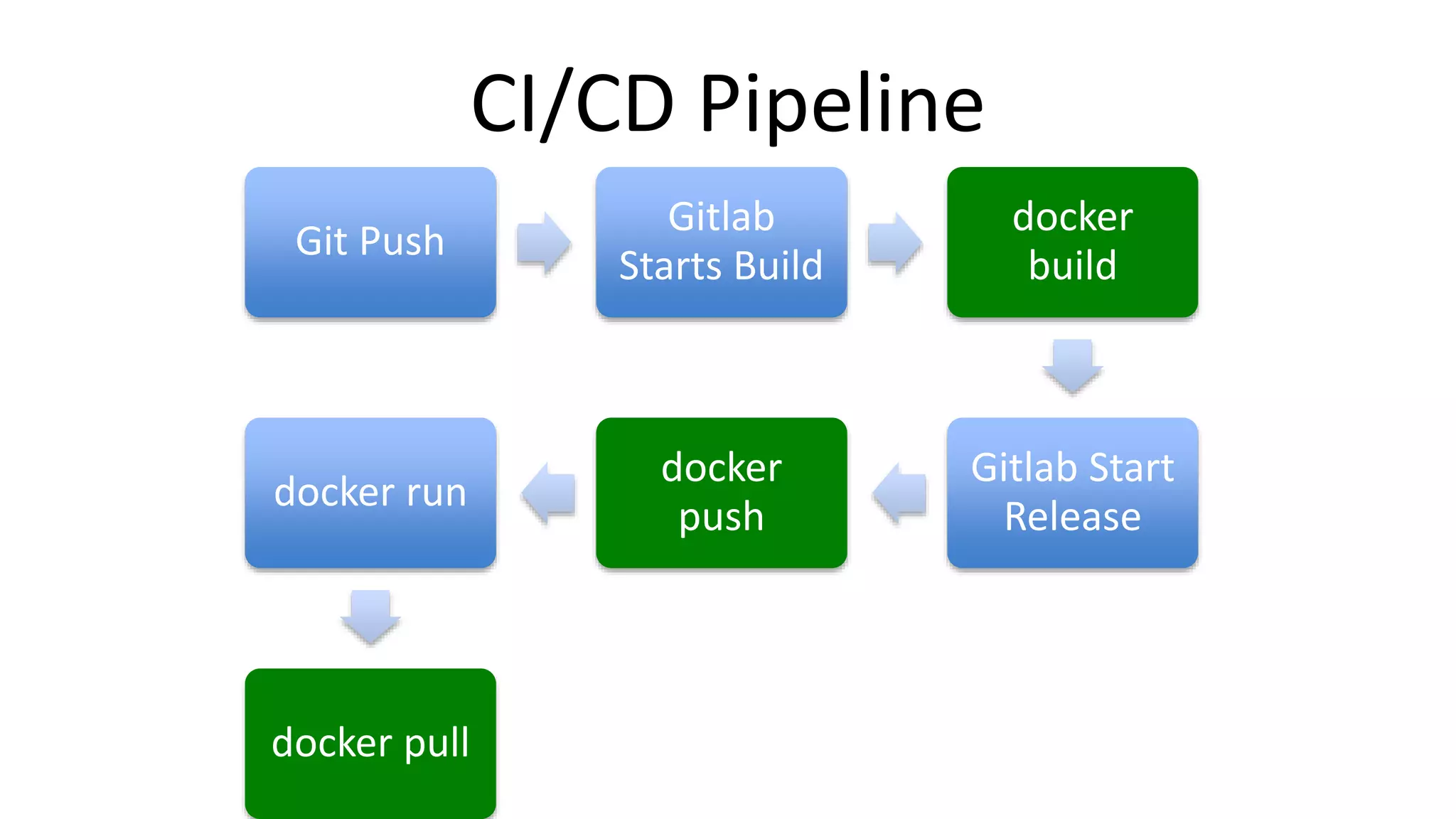

CI/CD Pipeline
Git Push
Gitlab
Starts Build
docker
build
Gitlab Start
Release
docker
push
docker run
docker pull

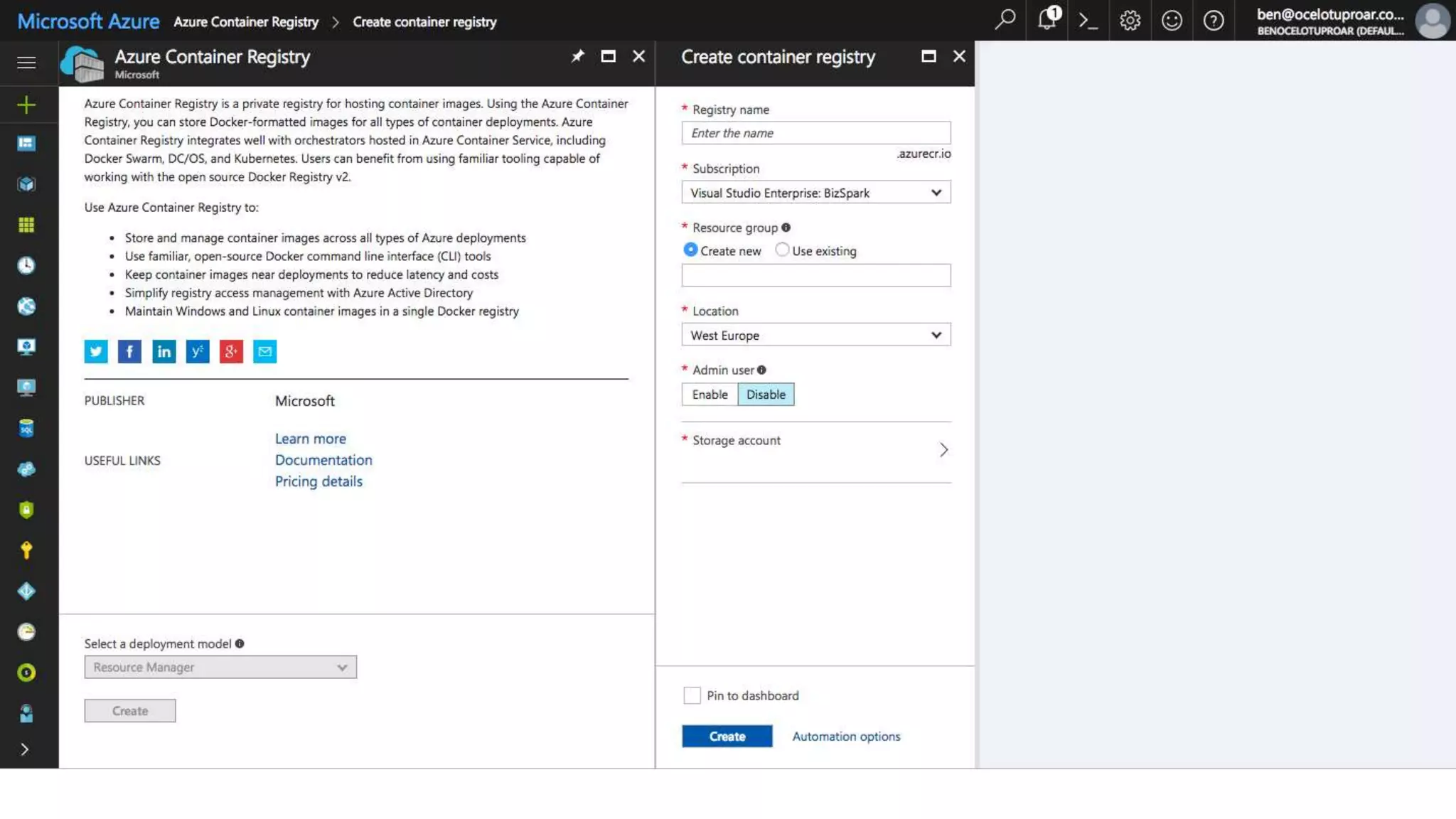

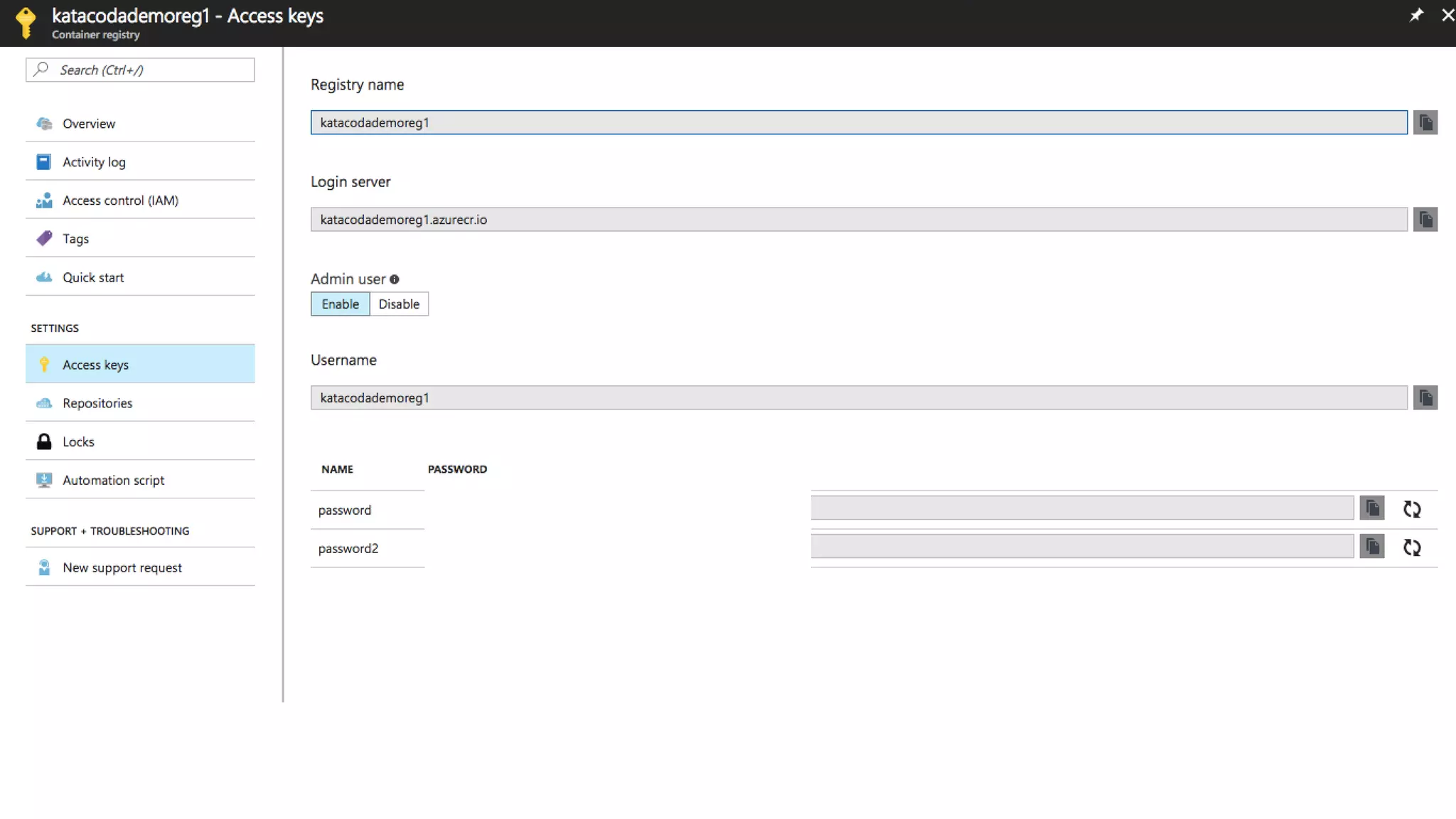

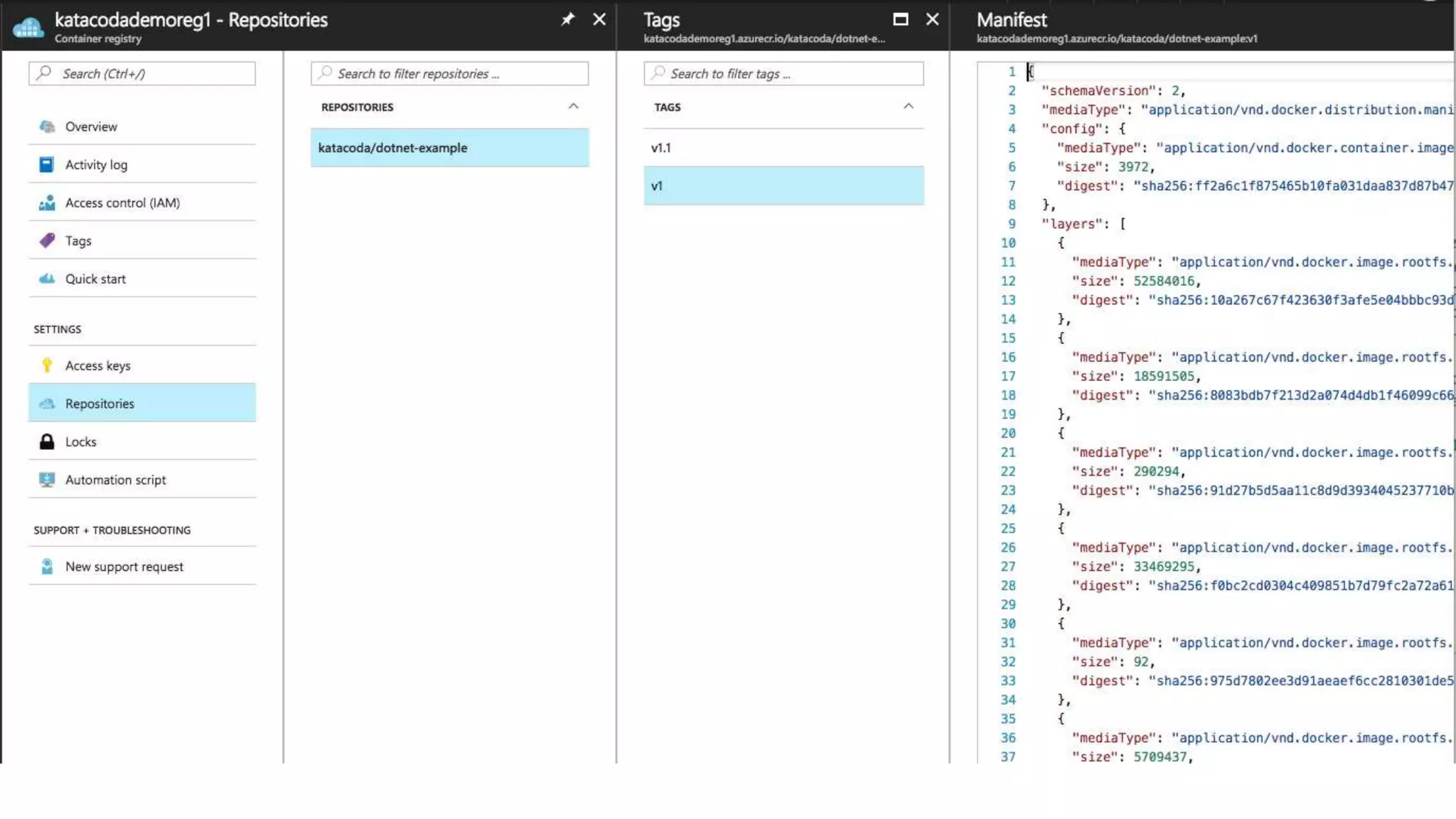

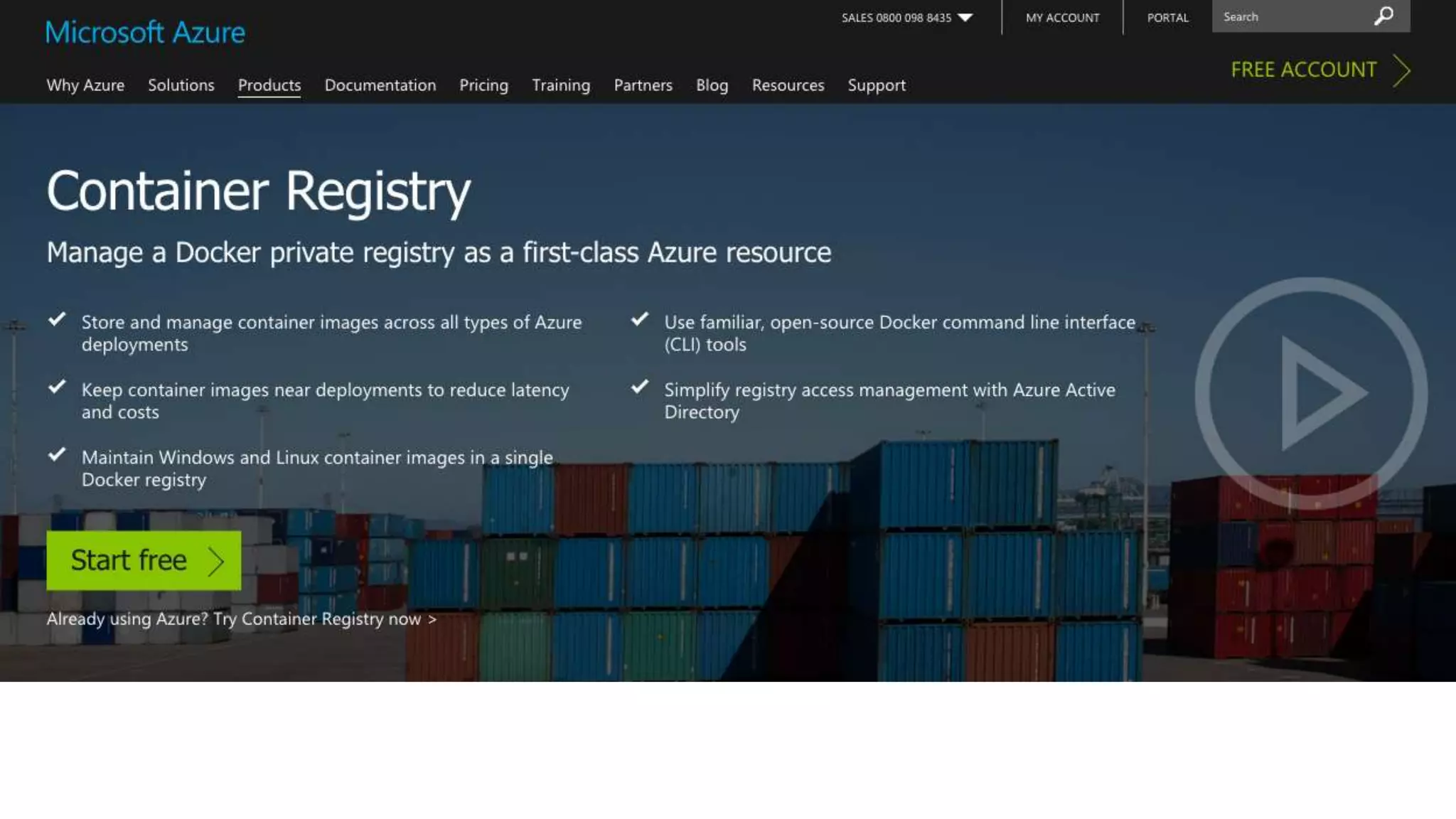

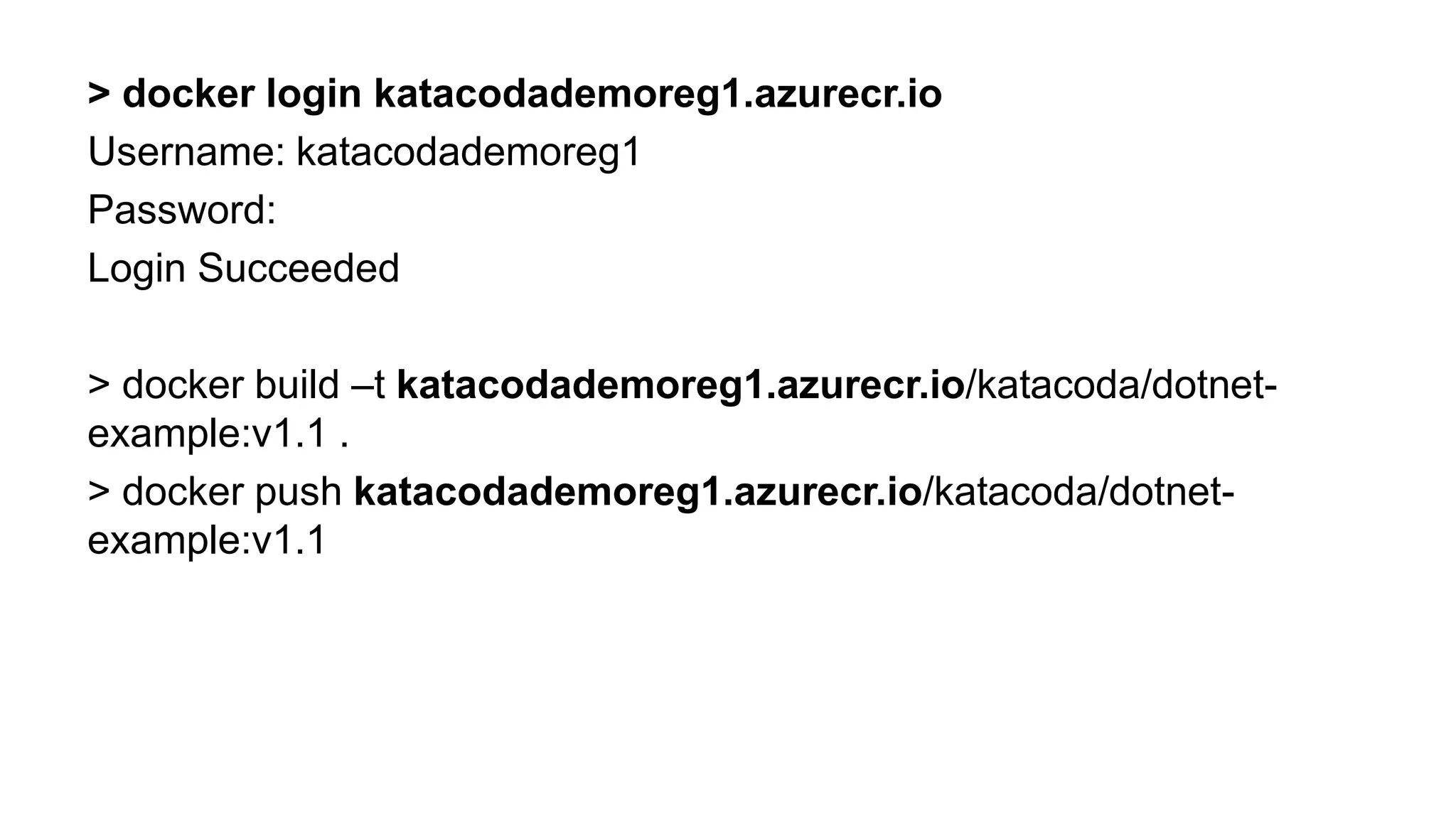

> docker login katacodademoreg1.azurecr.io
Username: katacodademoreg1
Password:
Login Succeeded
> docker build –t katacodademoreg1.azurecr.io/katacoda/dotnet-
example:v1.1 .
> docker push katacodademoreg1.azurecr.io/katacoda/dotnet-
example:v1.1

“docker run” in production?

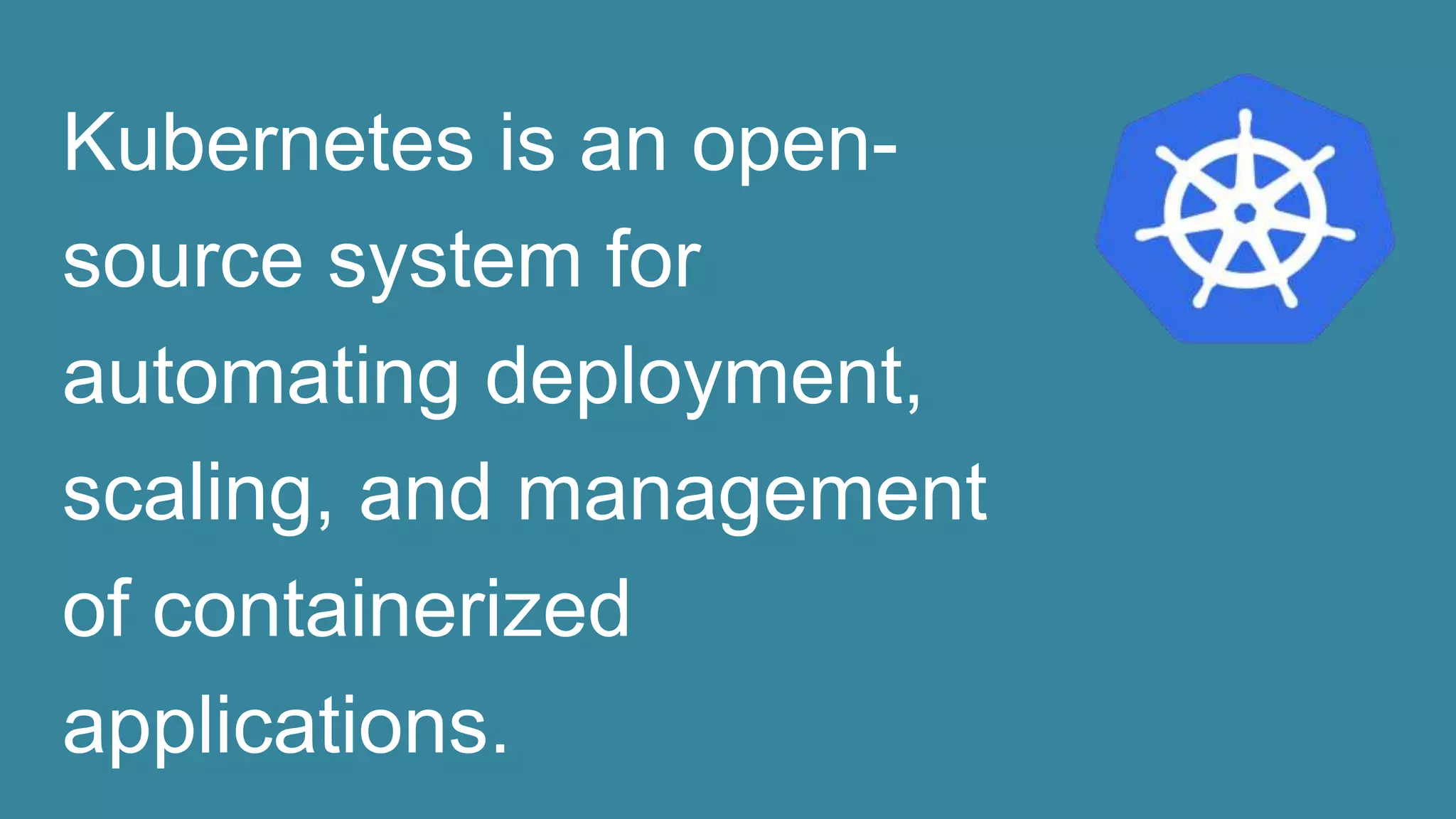

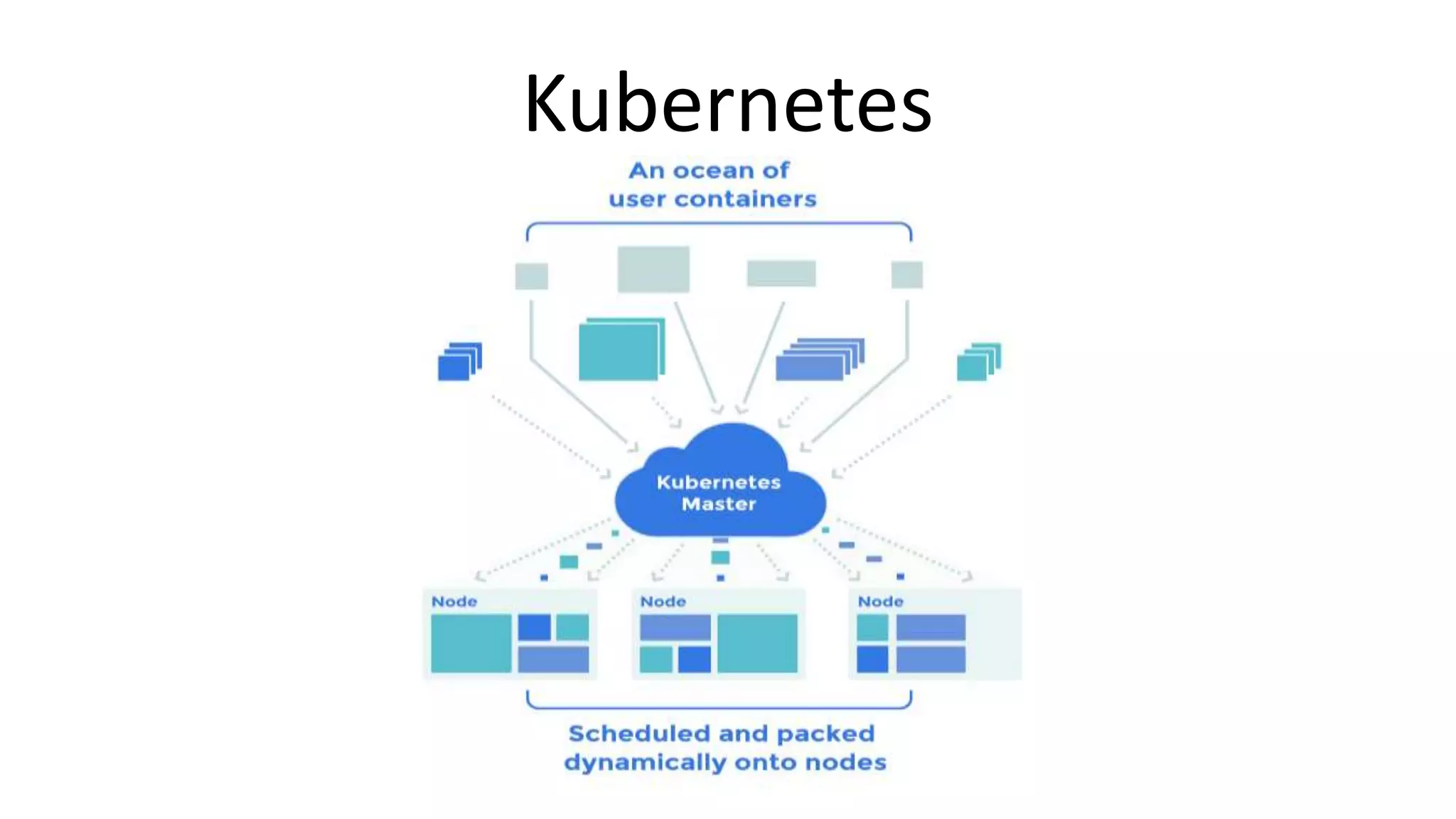

Kubernetes is an open-
source system for
automating deployment,
scaling, and management
of containerized
applications.

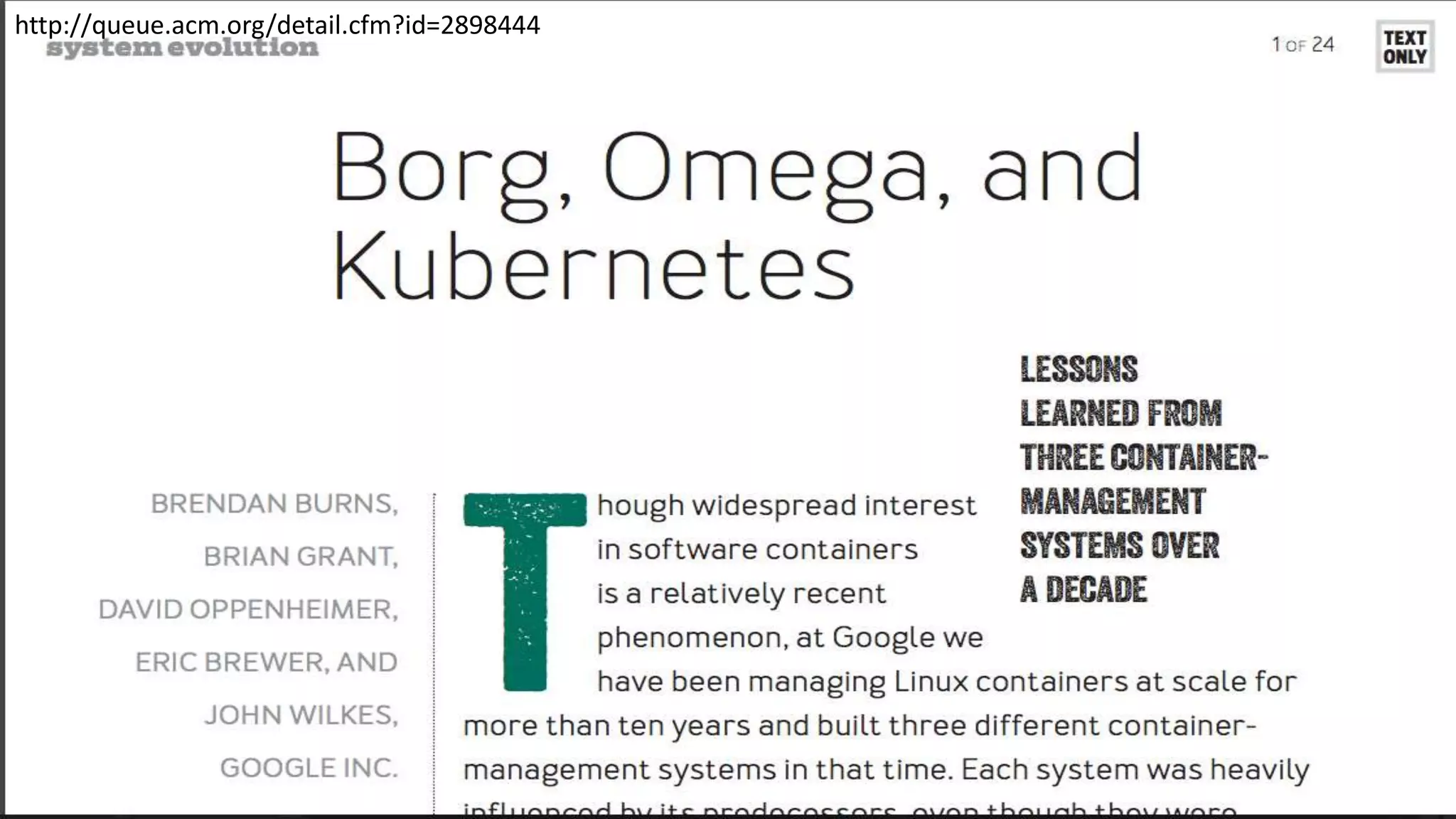

http://queue.acm.org/detail.cfm?id=2898444

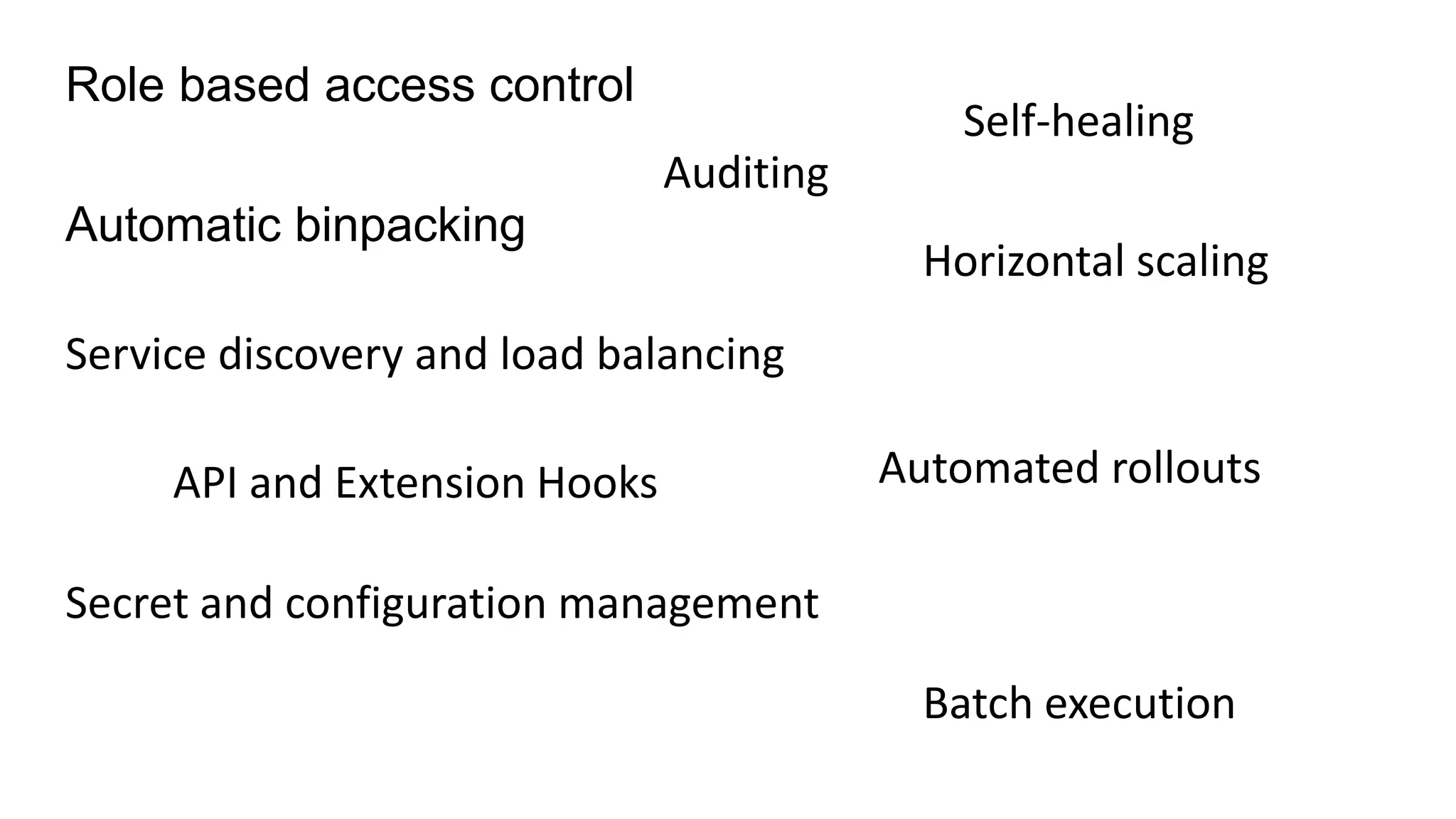

Automatic binpacking
Self-healing
Horizontal scaling
Service discovery and load balancing
Automated rollouts
Secret and configuration management
Batch execution
Role based access control
Auditing
API and Extension Hooks

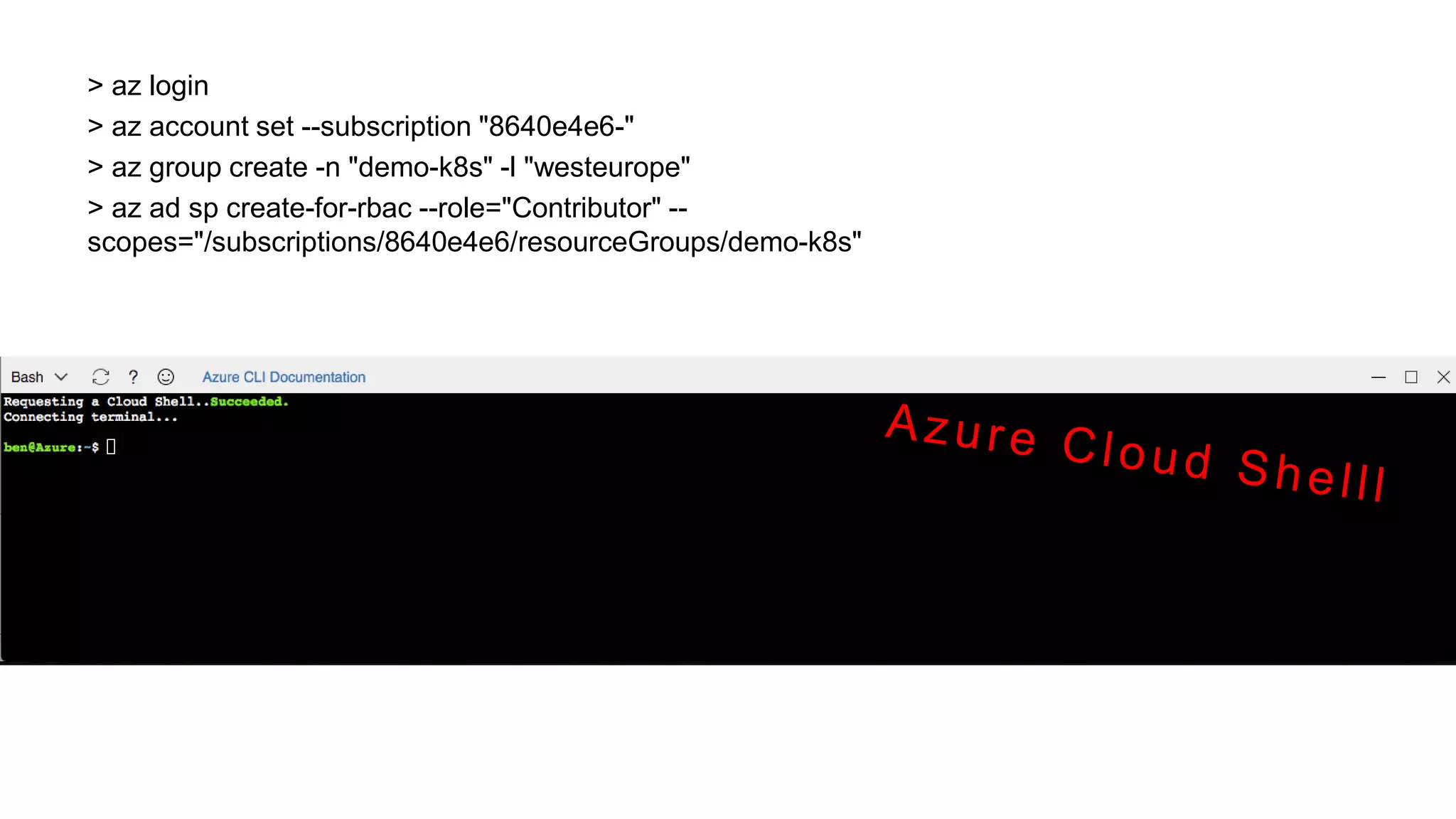

> az login
> az account set --subscription "8640e4e6-"
> az group create -n "demo-k8s" -l "westeurope"
> az ad sp create-for-rbac --role="Contributor" --
scopes="/subscriptions/8640e4e6/resourceGroups/demo-k8s"

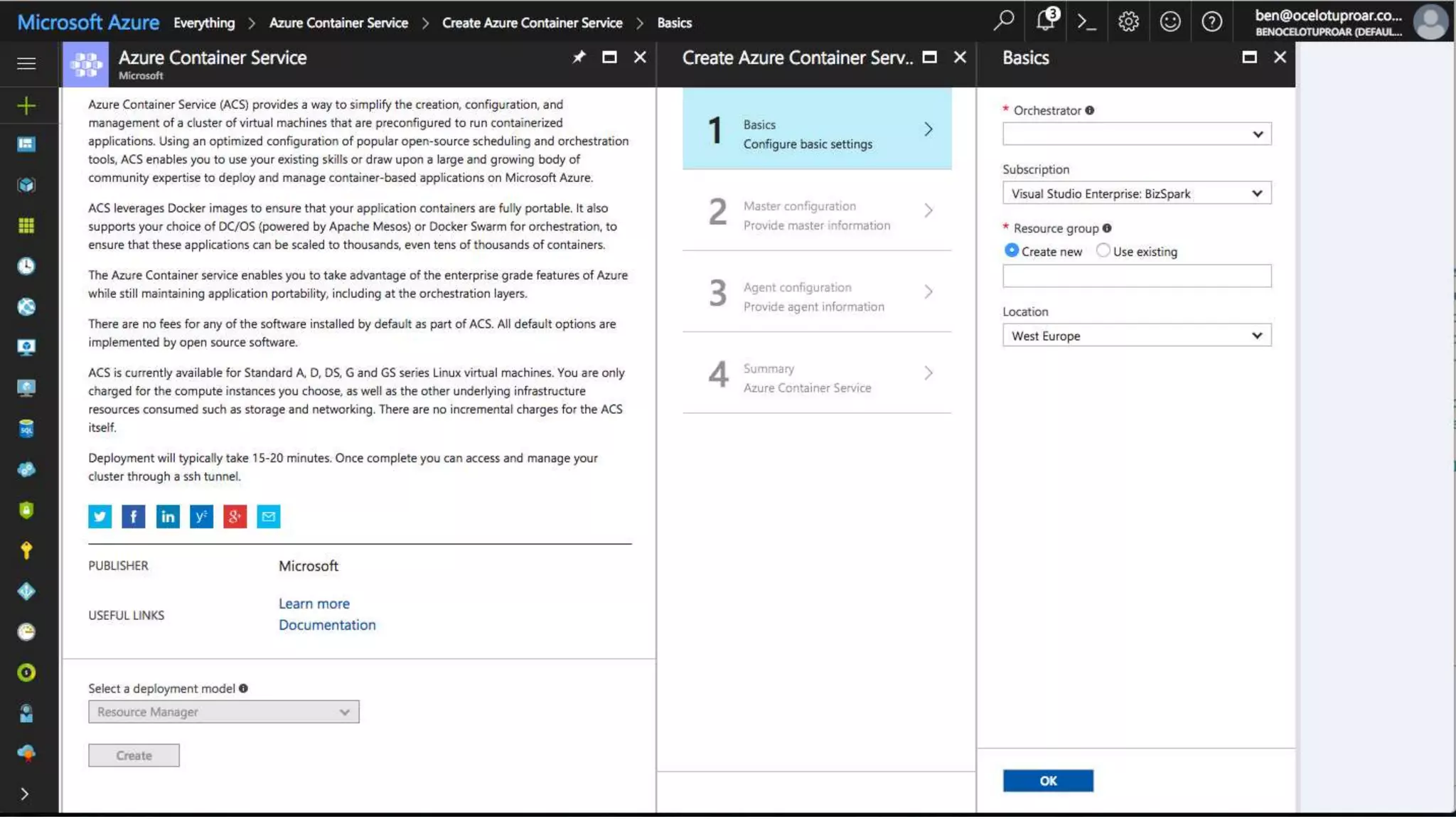

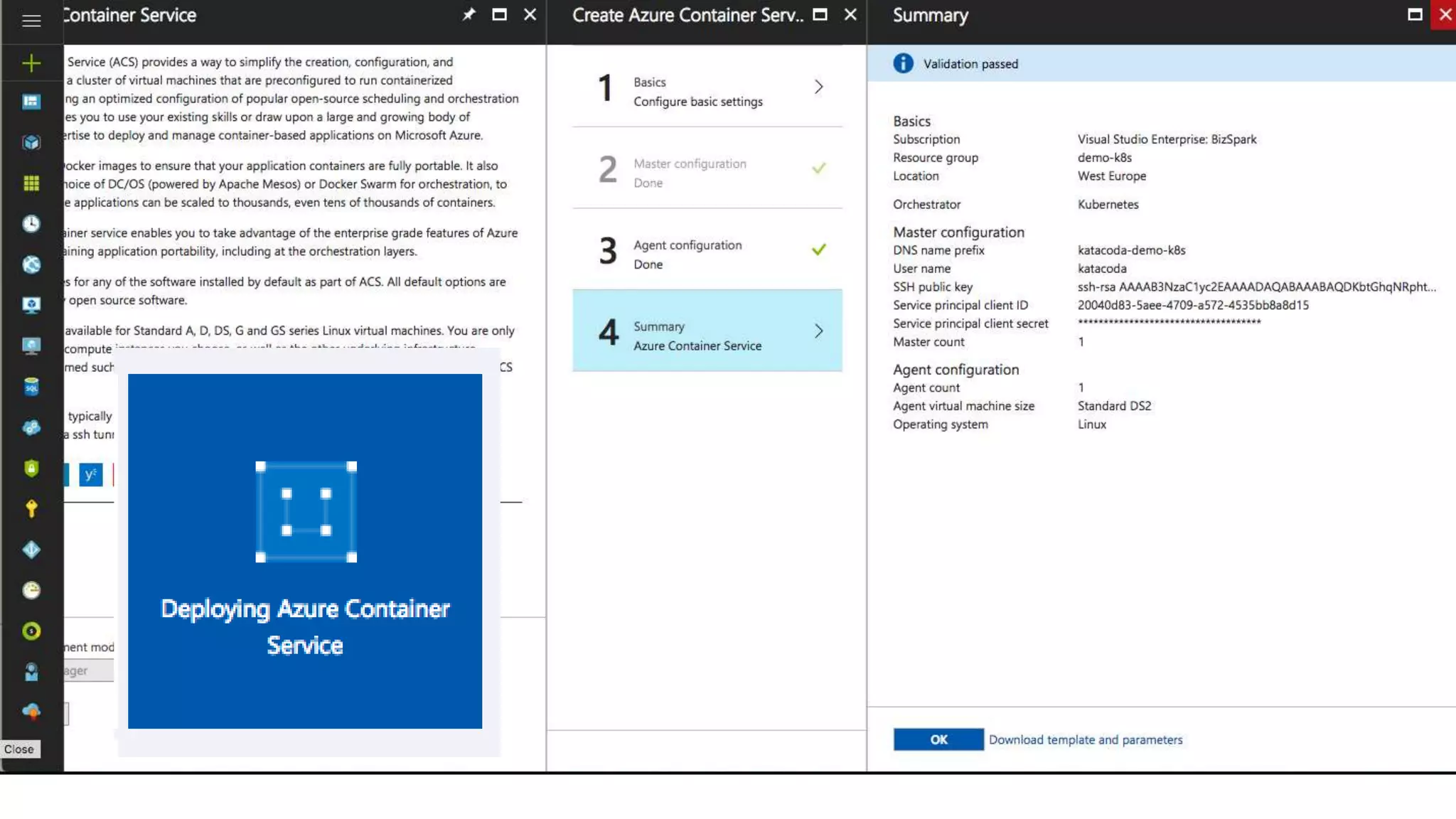

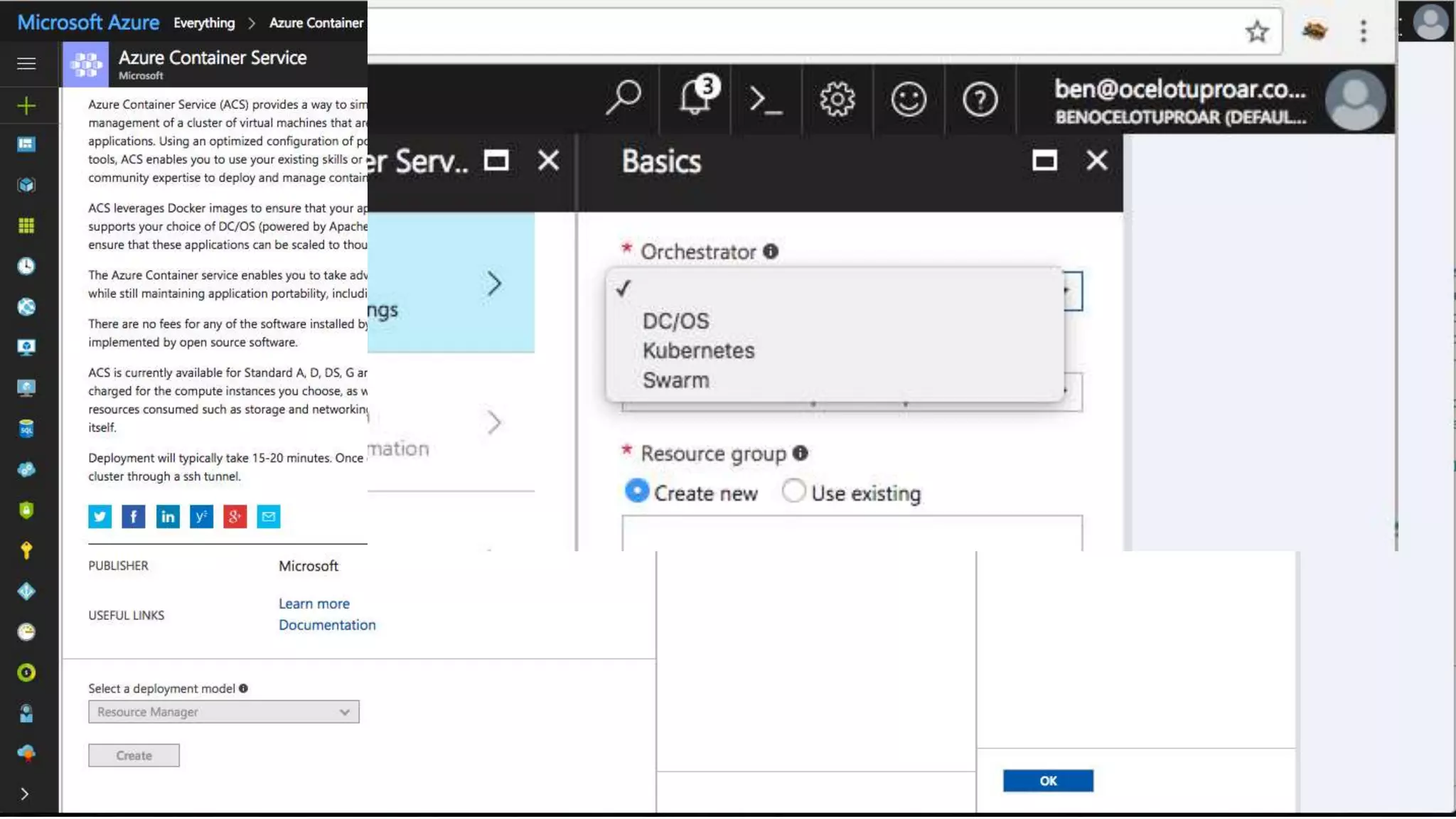

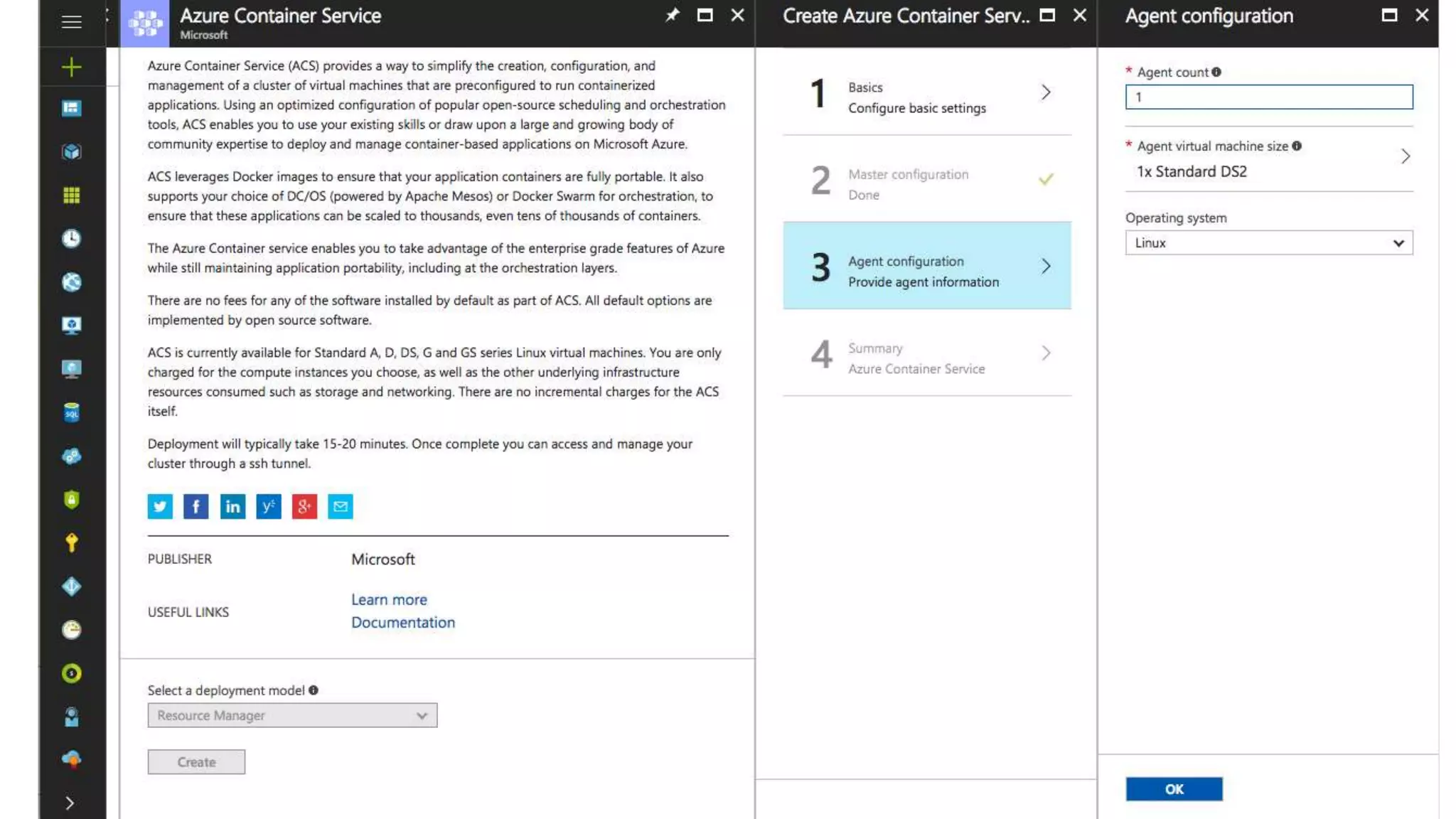

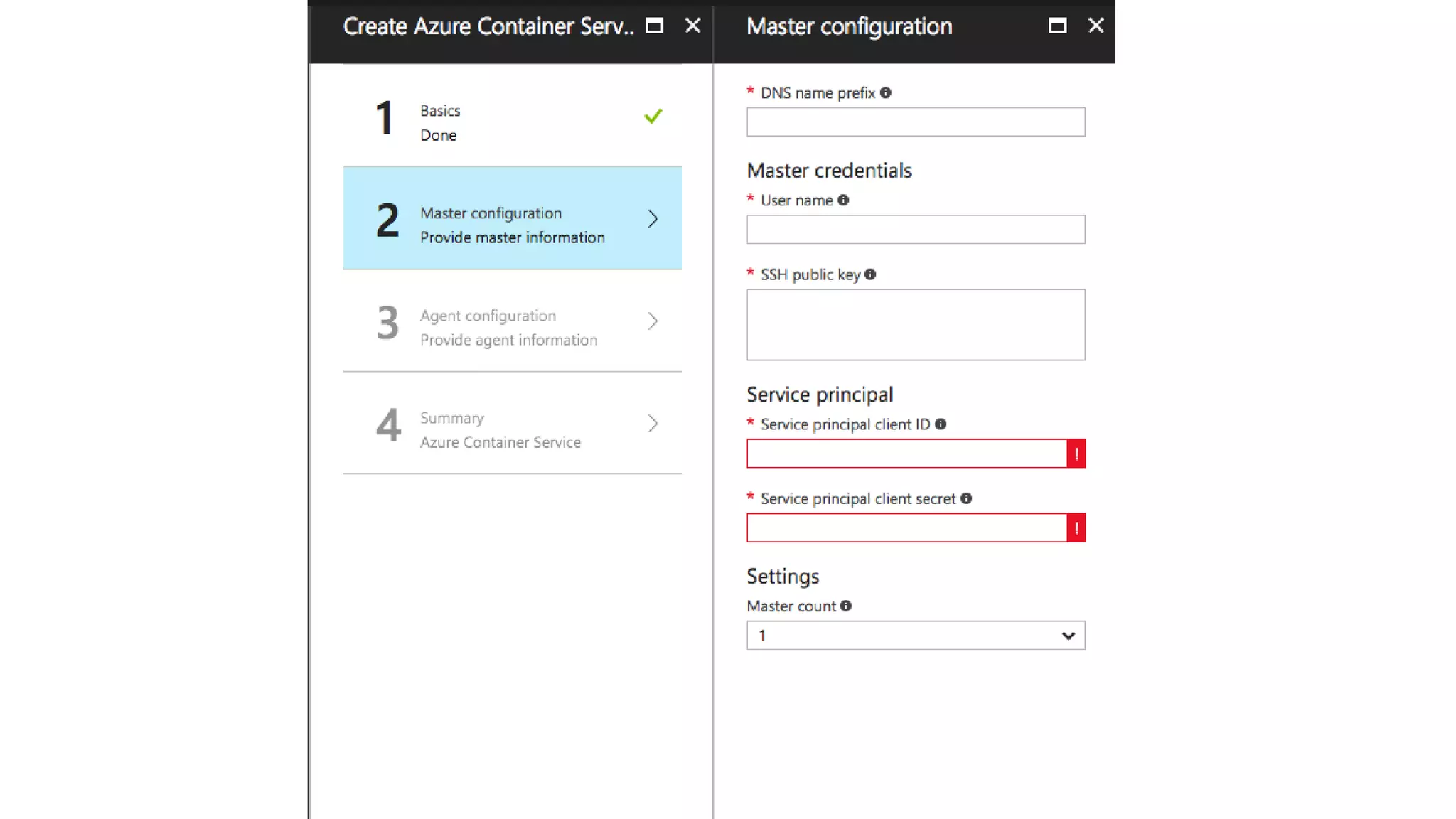

Kubernetes in 1 command…
OK, it’s three…

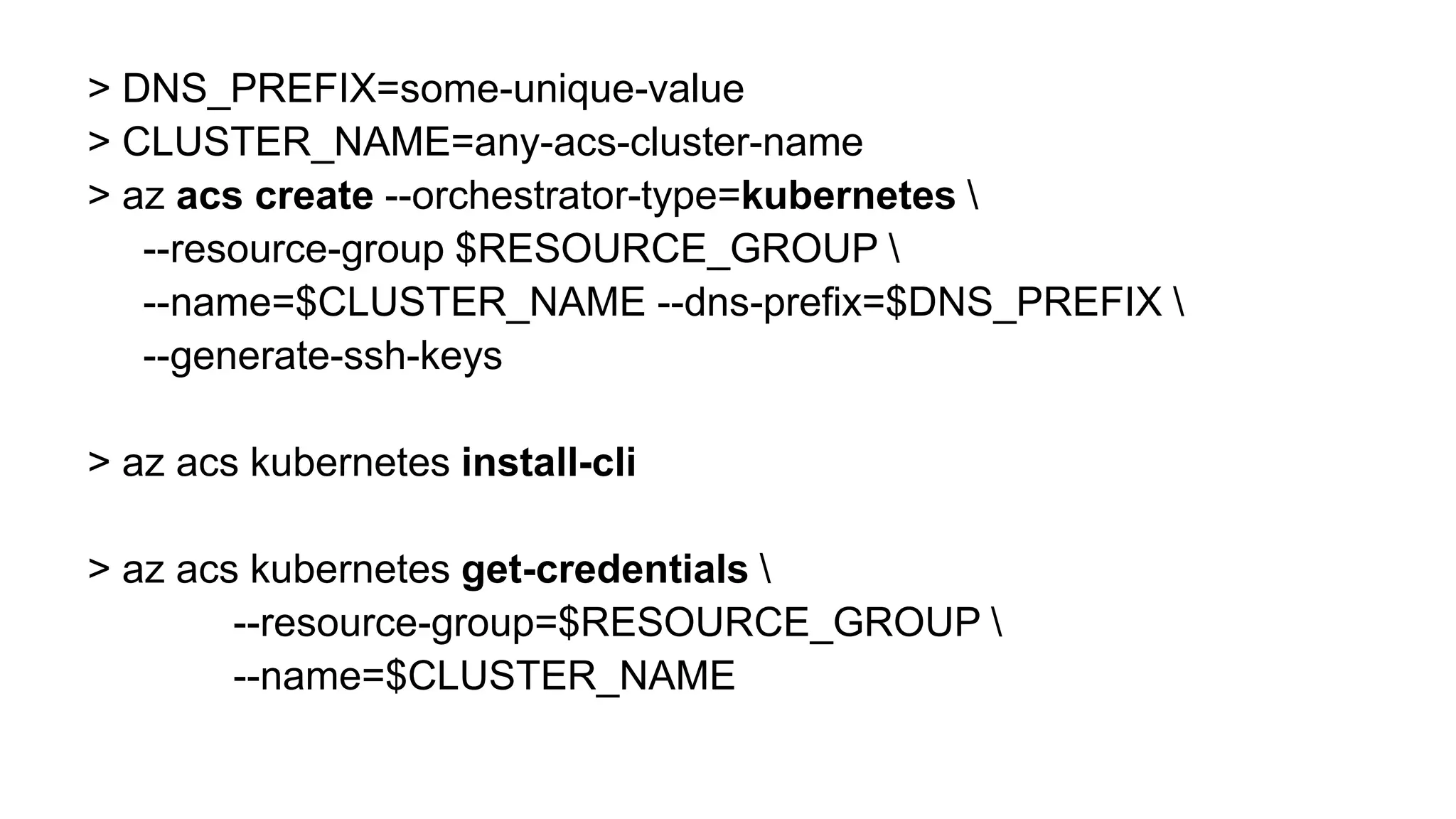

> DNS_PREFIX=some-unique-value
> CLUSTER_NAME=any-acs-cluster-name
> az acs create --orchestrator-type=kubernetes
--resource-group $RESOURCE_GROUP
--name=$CLUSTER_NAME --dns-prefix=$DNS_PREFIX
--generate-ssh-keys
> az acs kubernetes install-cli
> az acs kubernetes get-credentials
--resource-group=$RESOURCE_GROUP
--name=$CLUSTER_NAME

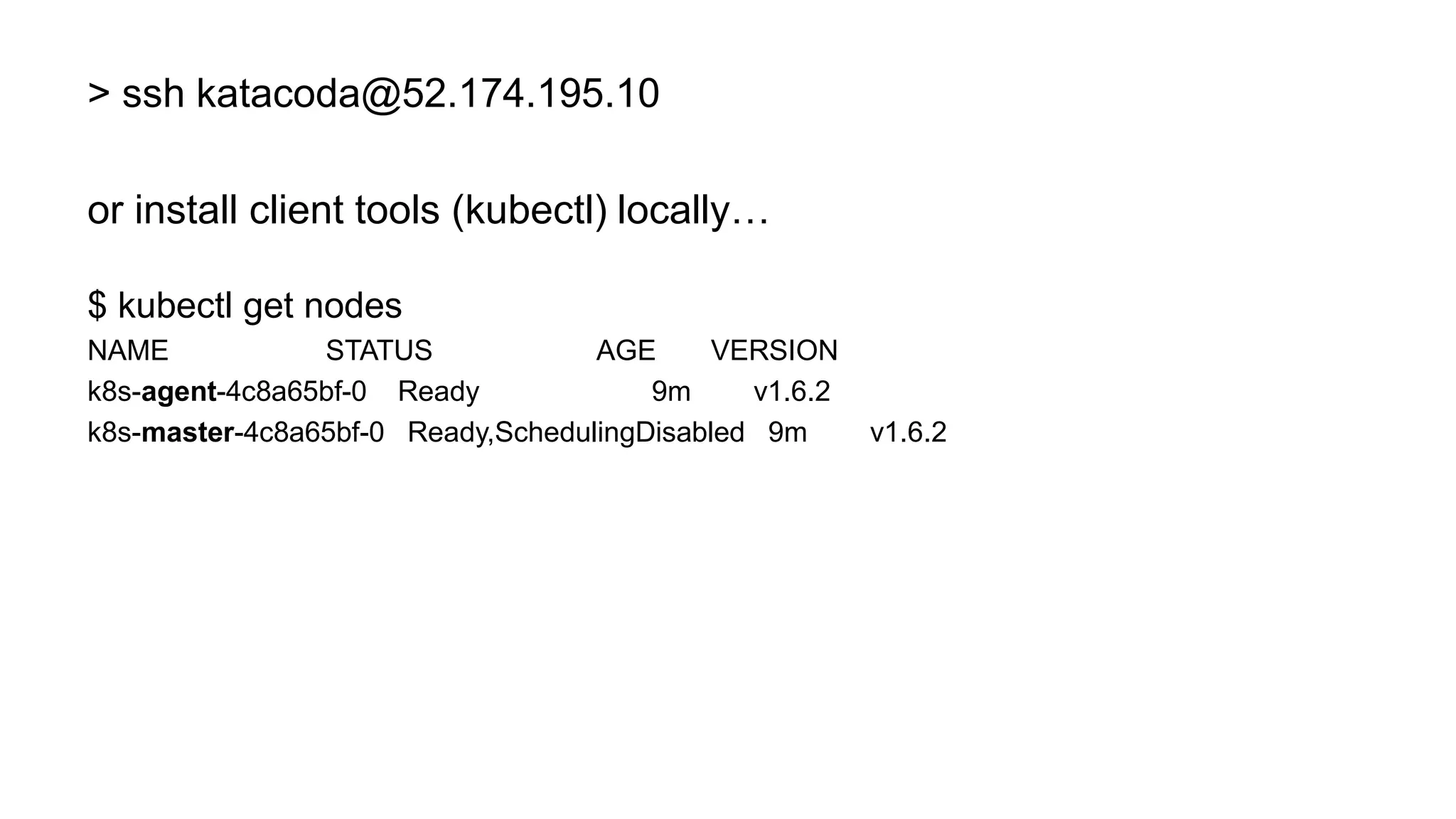

> ssh katacoda@52.174.195.10
or install client tools (kubectl) locally…
$ kubectl get nodes
NAME STATUS AGE VERSION
k8s-agent-4c8a65bf-0 Ready 9m v1.6.2
k8s-master-4c8a65bf-0 Ready,SchedulingDisabled 9m v1.6.2

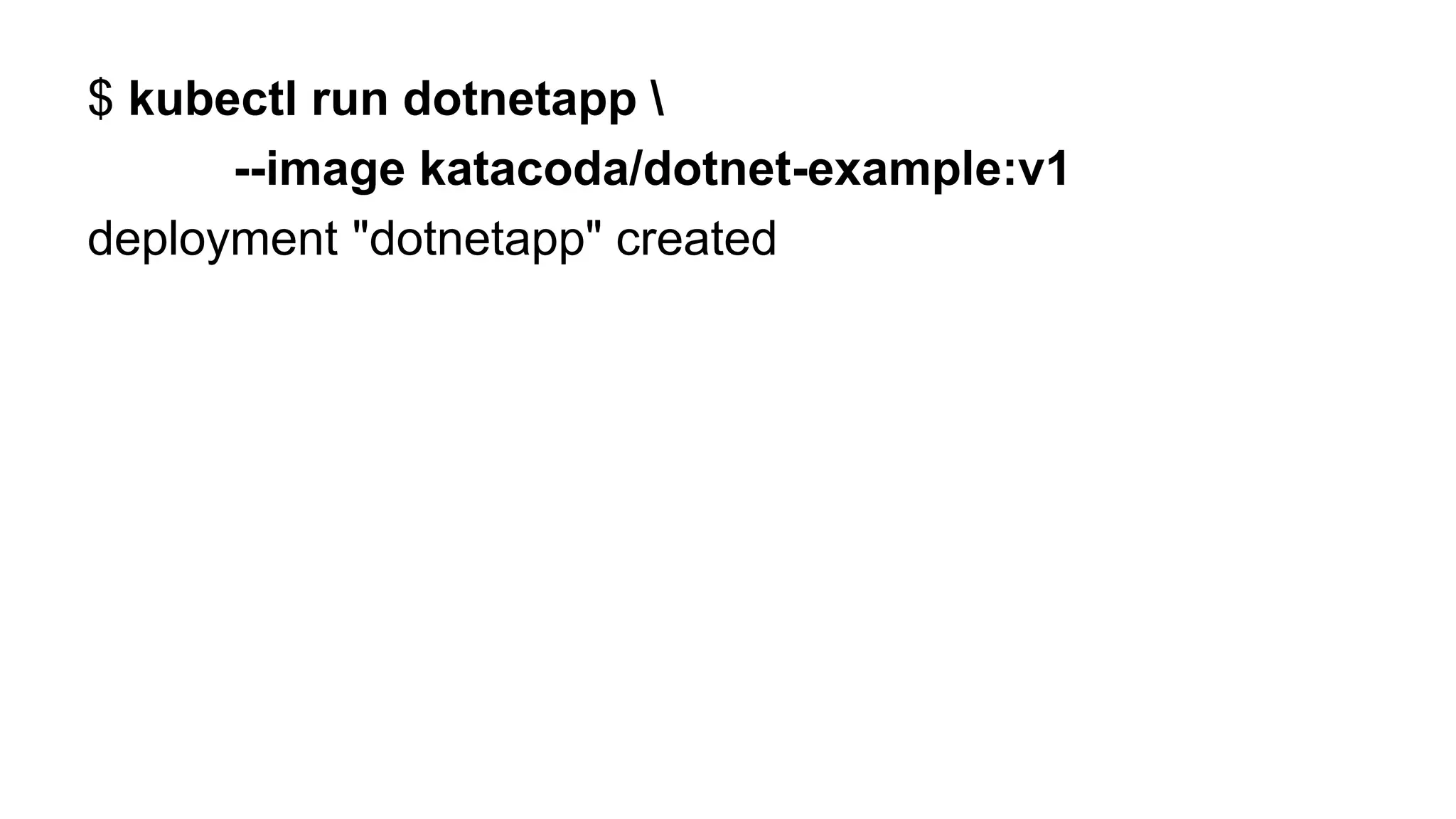

$ kubectl run dotnetapp
--image katacoda/dotnet-example:v1
deployment "dotnetapp" created

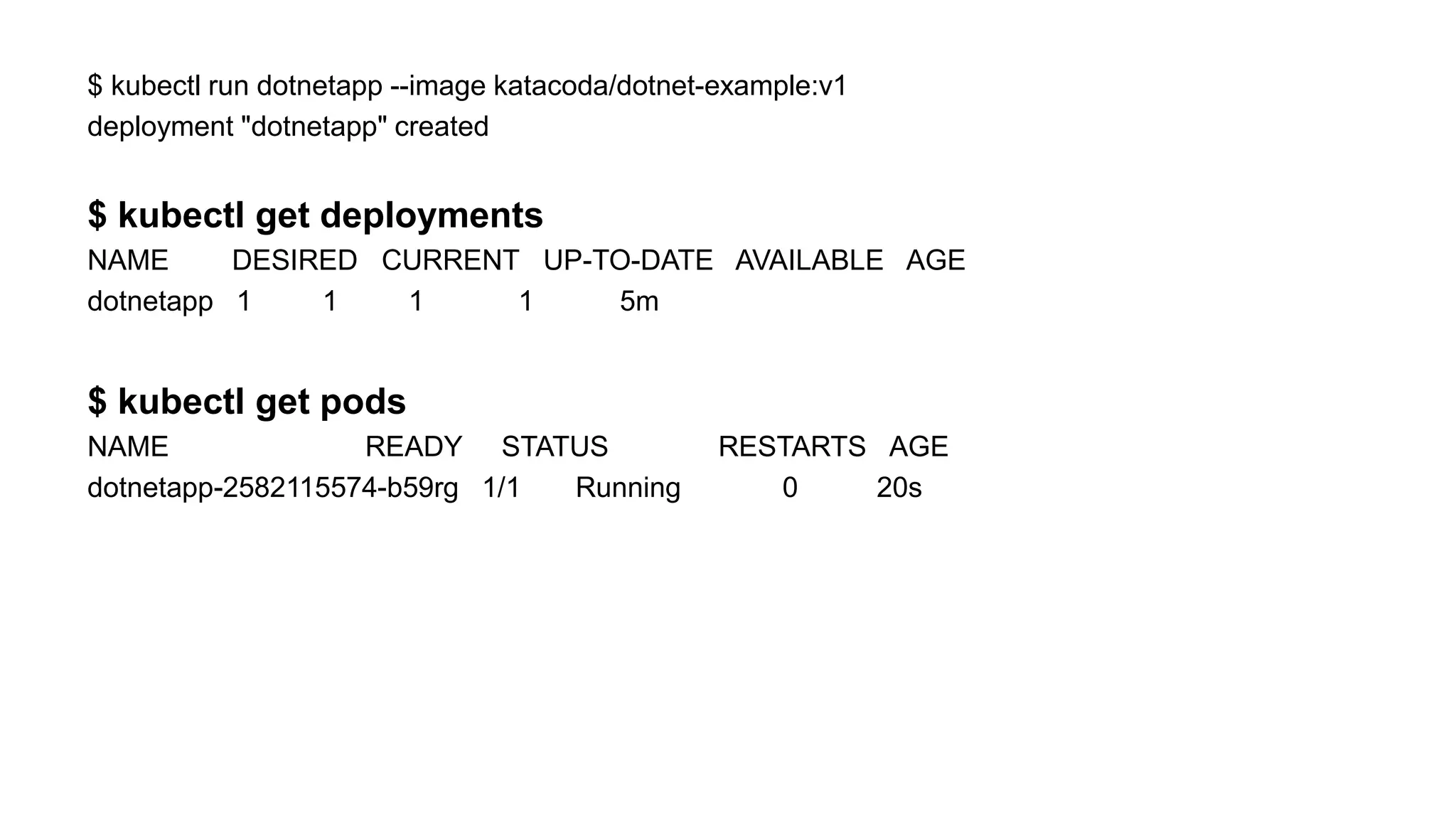

$ kubectl run dotnetapp --image katacoda/dotnet-example:v1
deployment "dotnetapp" created
$ kubectl get deployments
NAME DESIRED CURRENT UP-TO-DATE AVAILABLE AGE
dotnetapp 1 1 1 1 5m
$ kubectl get pods
NAME READY STATUS RESTARTS AGE
dotnetapp-2582115574-b59rg 1/1 Running 0 20s

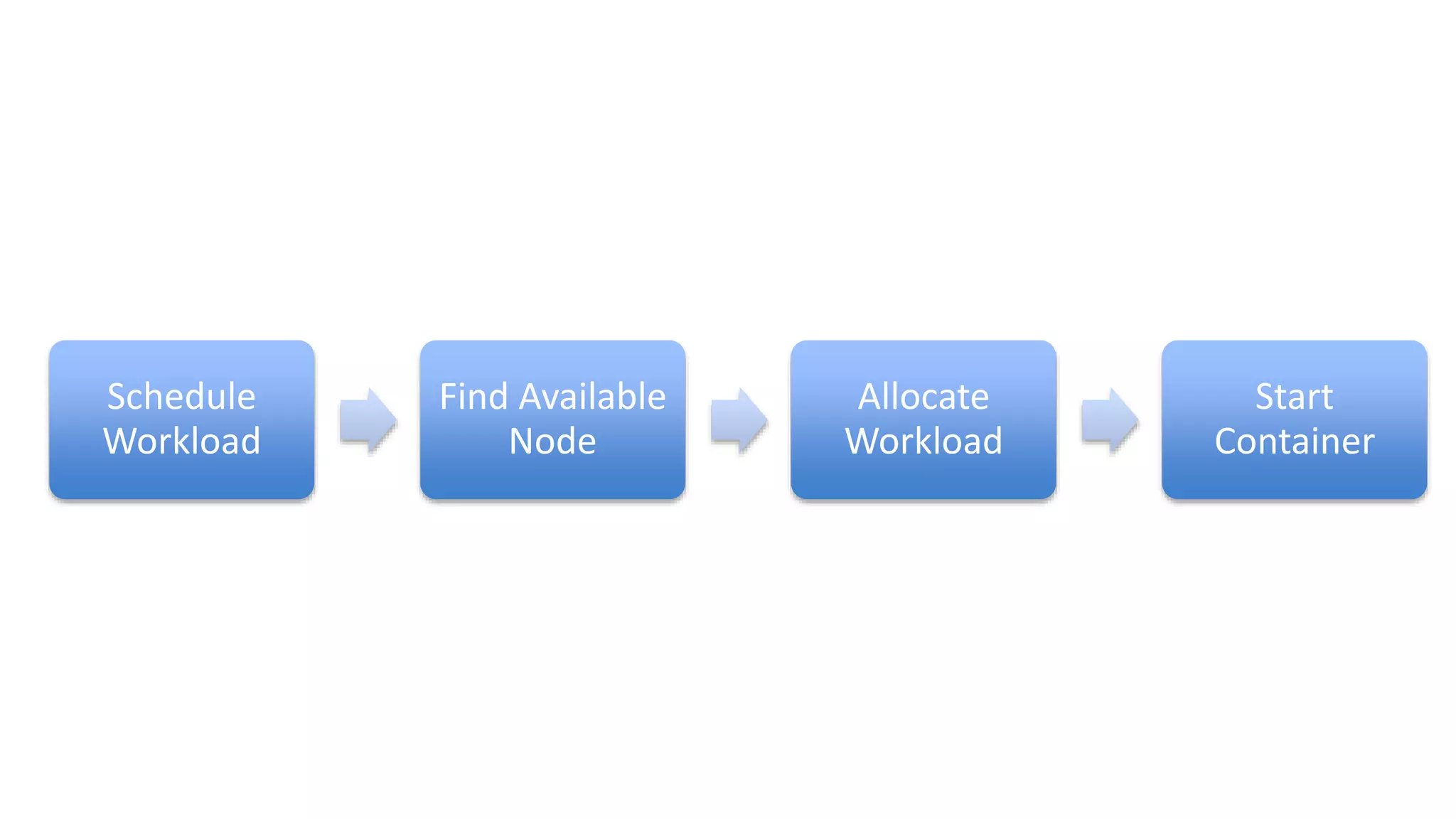

Schedule
Workload
Find Available
Node
Allocate
Workload
Start
Container

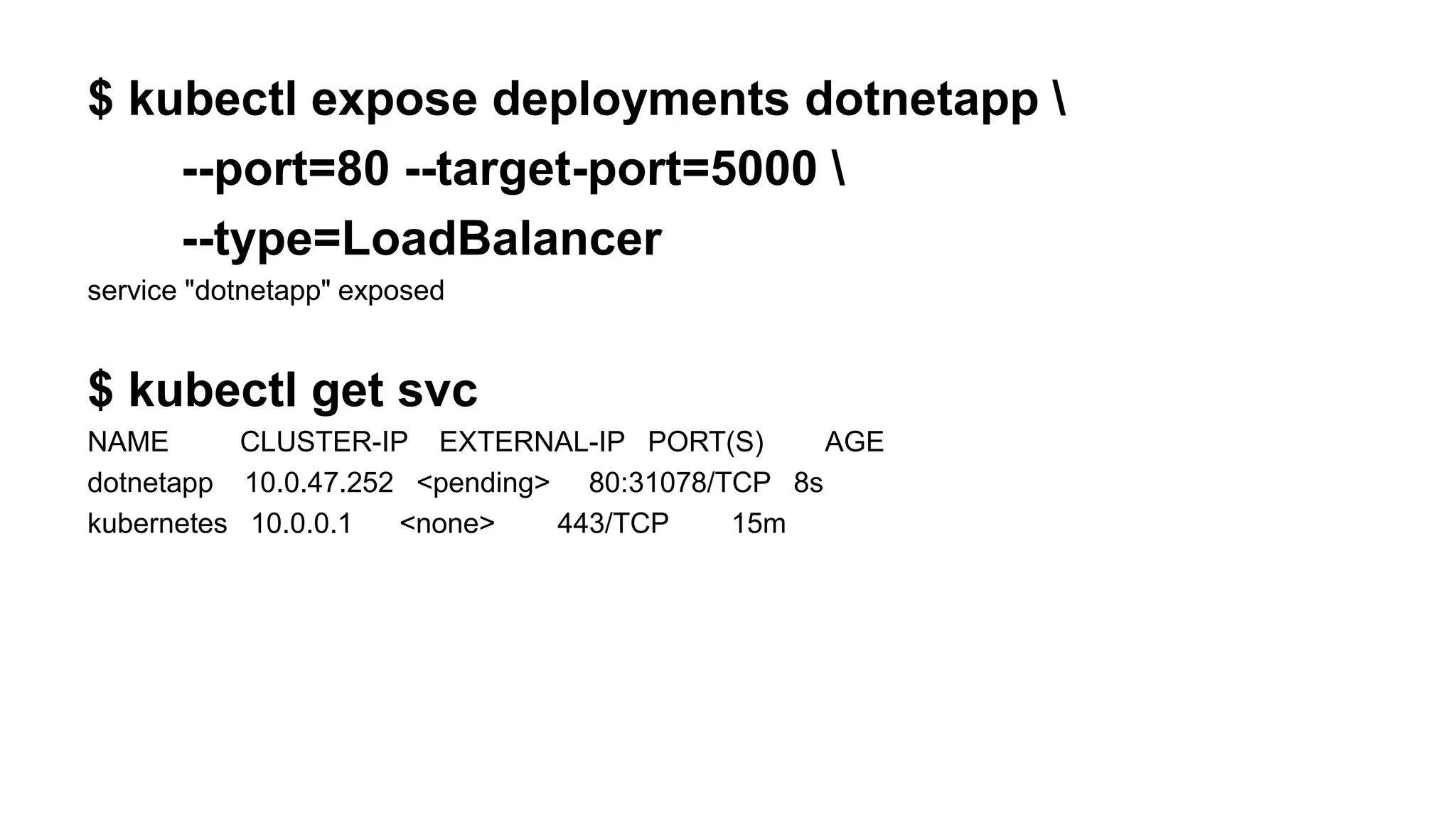

$ kubectl expose deployments dotnetapp
--port=80 --target-port=5000
--type=LoadBalancer
service "dotnetapp" exposed
$ kubectl get svc
NAME CLUSTER-IP EXTERNAL-IP PORT(S) AGE
dotnetapp 10.0.47.252 <pending> 80:31078/TCP 8s
kubernetes 10.0.0.1 <none> 443/TCP 15m

$ kubectl expose deployments dotnetapp --port=80 --target-port=5000 --type=LoadBalancer
service "dotnetapp" exposed
$ kubectl get svc
dotnetapp 10.0.47.252 <pending> 80:31078/TCP 8s
kubernetes 10.0.0.1 <none> 443/TCP 15m
wait for Kubernetes to configure Azure LB
$ kubectl get svc
dotnetapp 10.0.47.252 40.118.100.56 80:31078/TCP 5m
curl 40.118.100.56

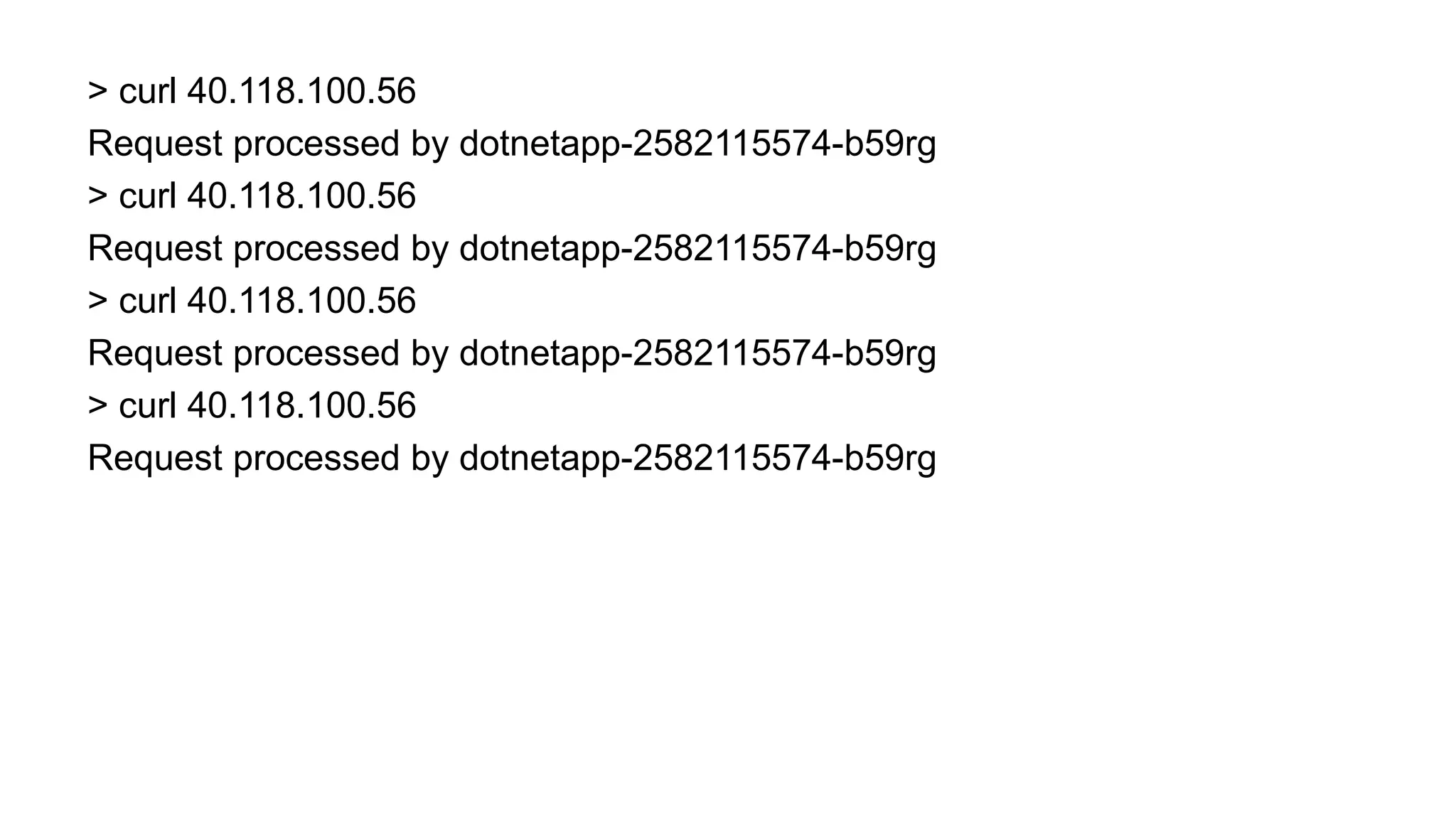

> curl 40.118.100.56
Request processed by dotnetapp-2582115574-b59rg
> curl 40.118.100.56
> curl 40.118.100.56
> curl 40.118.100.56

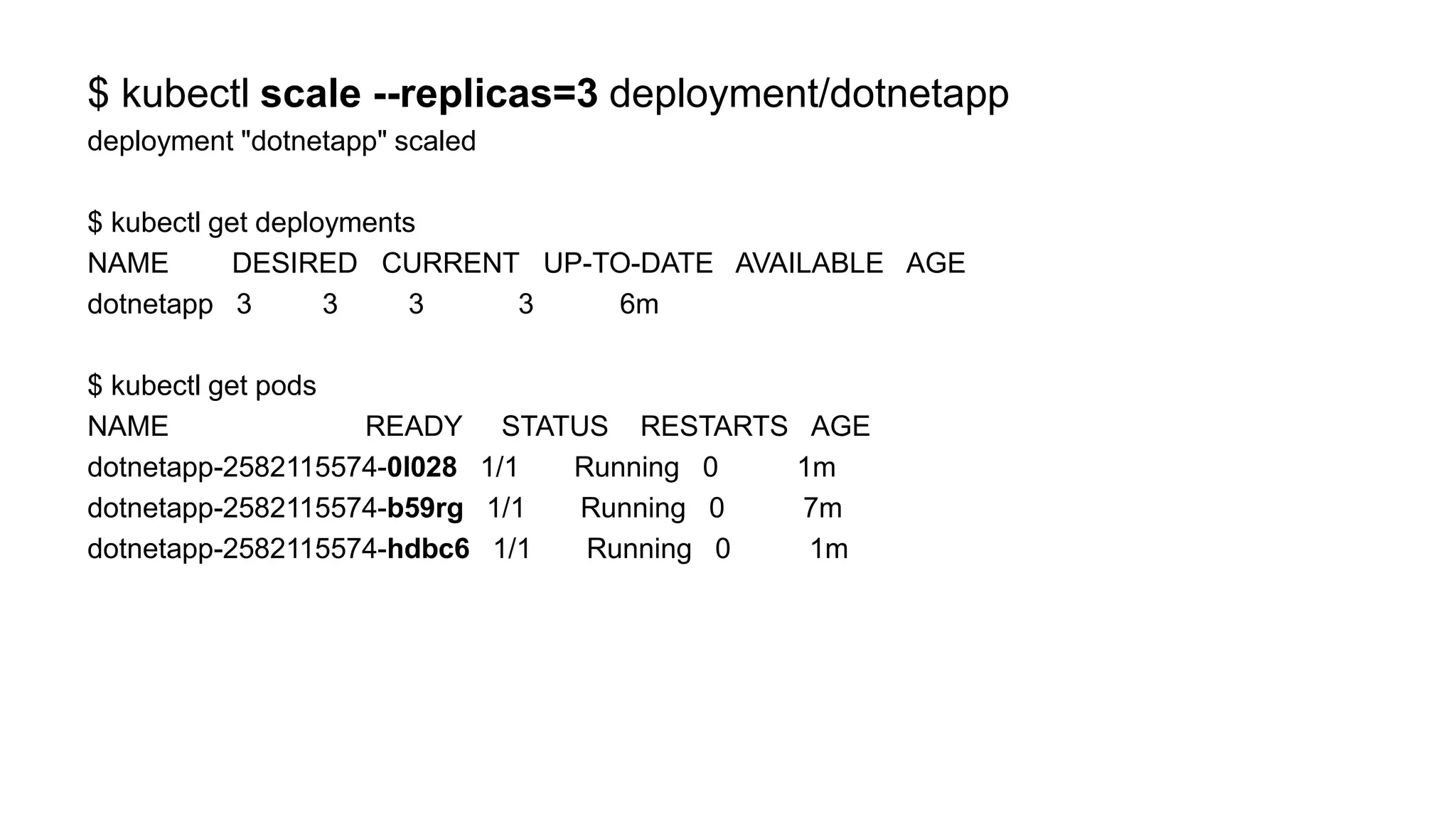

$ kubectl scale --replicas=3 deployment/dotnetapp
deployment "dotnetapp" scaled
$ kubectl get deployments
$ kubectl get pods
NAME READY STATUS RESTARTS AGE
dotnetapp-2582115574-0l028 1/1 Running 0 1m
dotnetapp-2582115574-b59rg 1/1 Running 0 7m
dotnetapp-2582115574-hdbc6 1/1 Running 0 1m

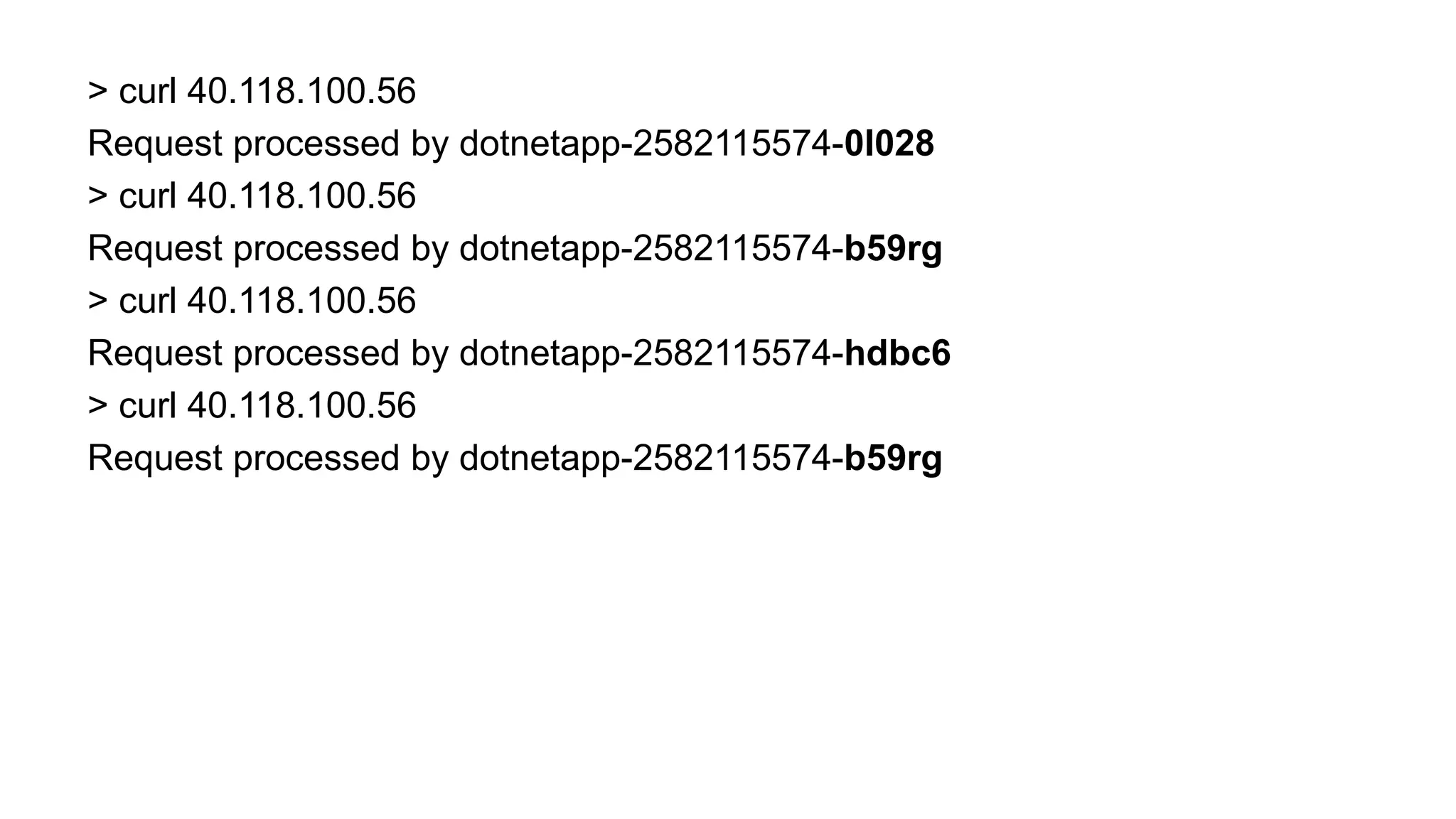

> curl 40.118.100.56
Request processed by dotnetapp-2582115574-0l028
> curl 40.118.100.56
> curl 40.118.100.56
Request processed by dotnetapp-2582115574-hdbc6
> curl 40.118.100.56

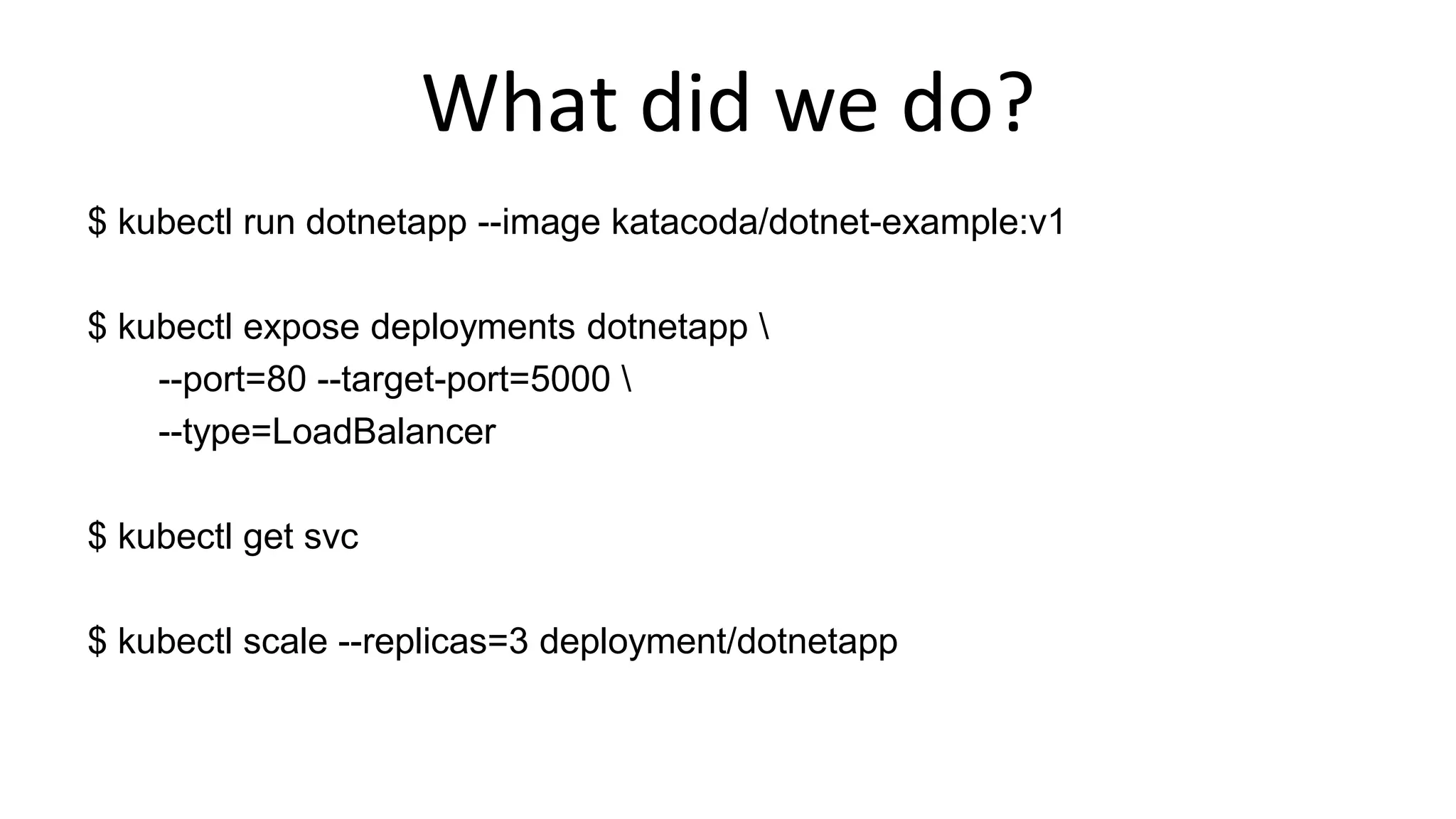

What did we do?
$ kubectl run dotnetapp --image katacoda/dotnet-example:v1
$ kubectl expose deployments dotnetapp
--port=80 --target-port=5000
--type=LoadBalancer
$ kubectl get svc

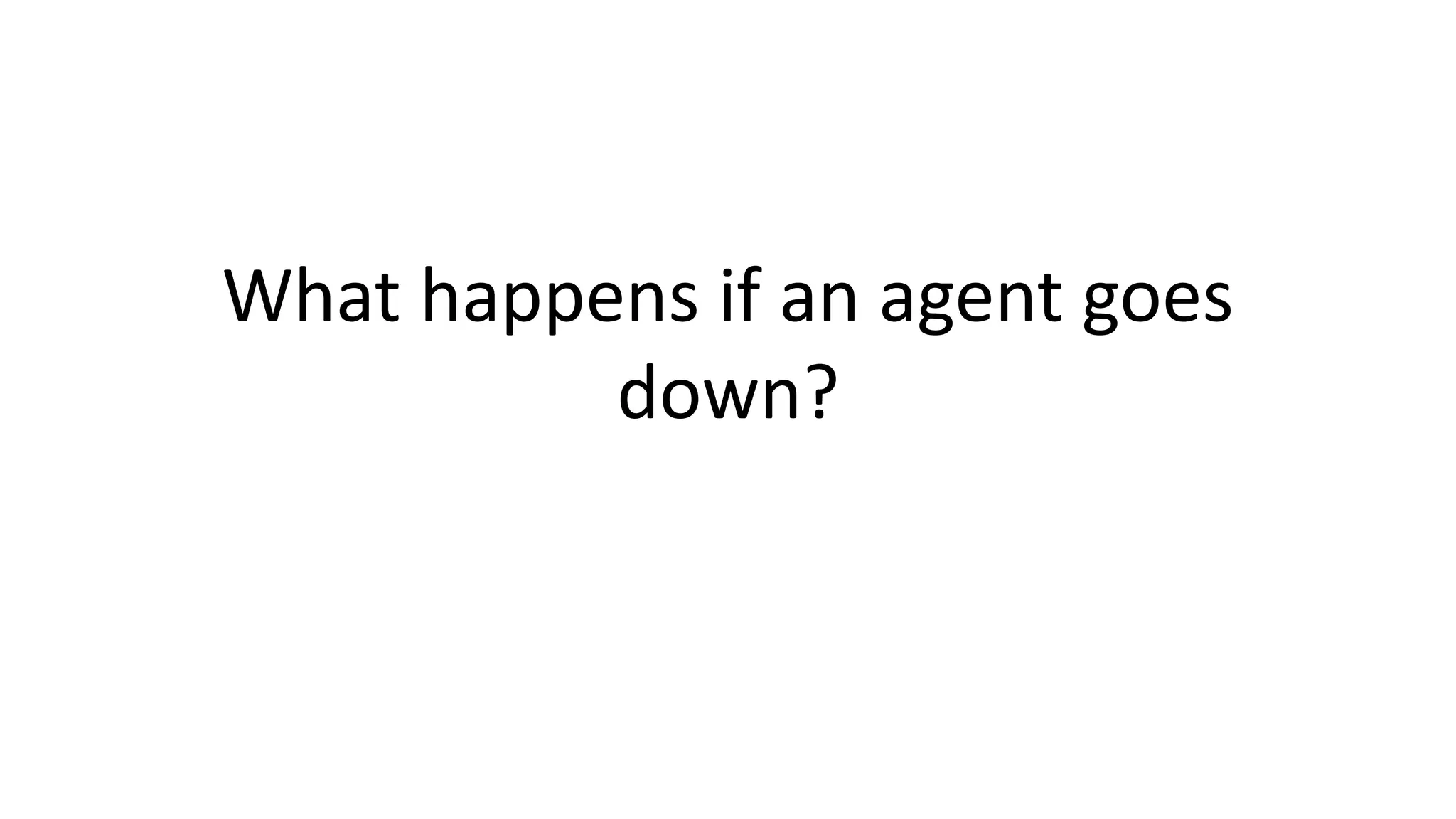

What happens if an agent goes
down?

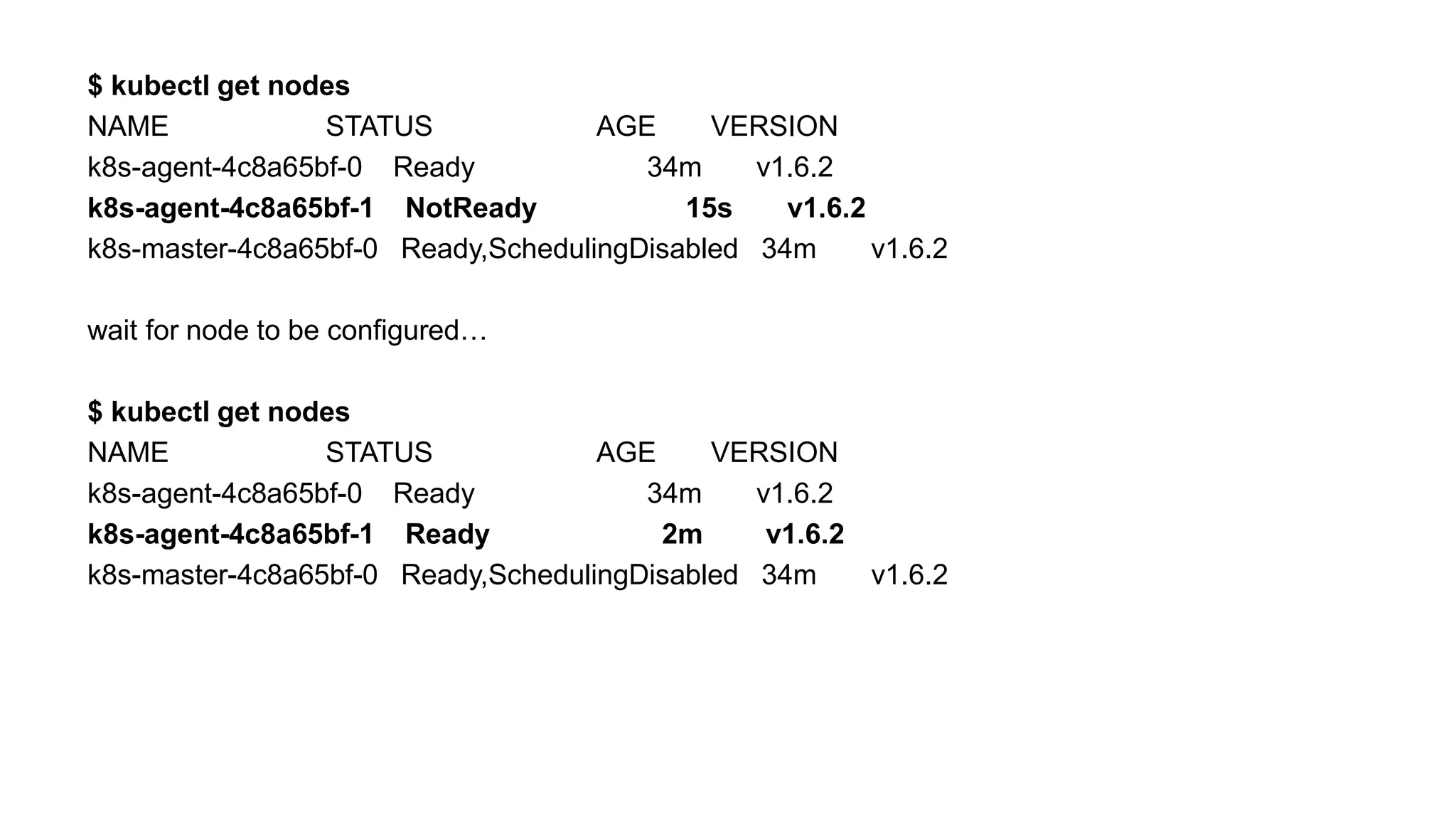

$ kubectl get nodes
k8s-agent-4c8a65bf-1 NotReady 15s v1.6.2

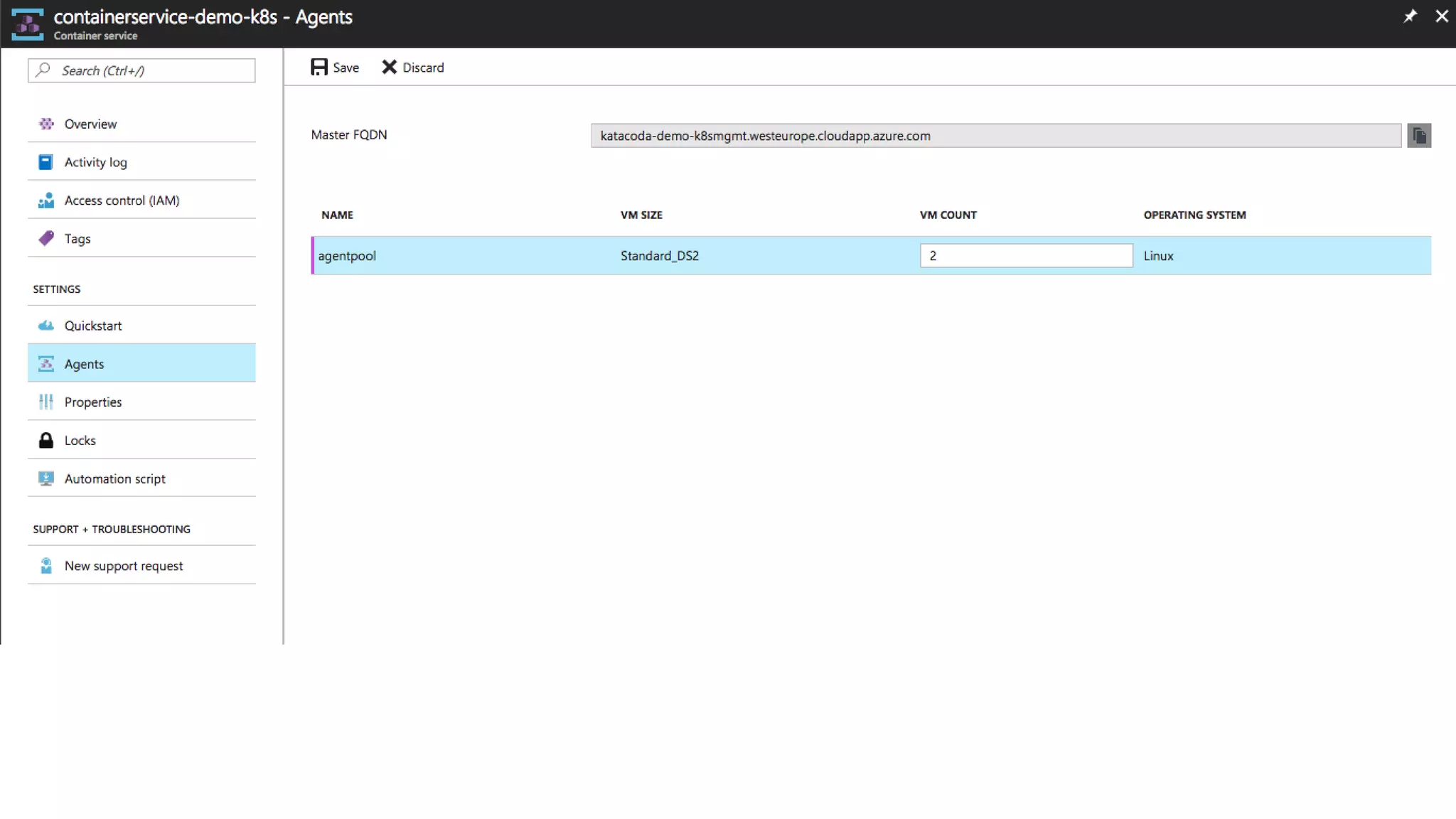

wait for node to be configured…
$ kubectl get nodes

$ kubectl get deployment
wait for containers to be downloaded…
$ kubectl get deployment

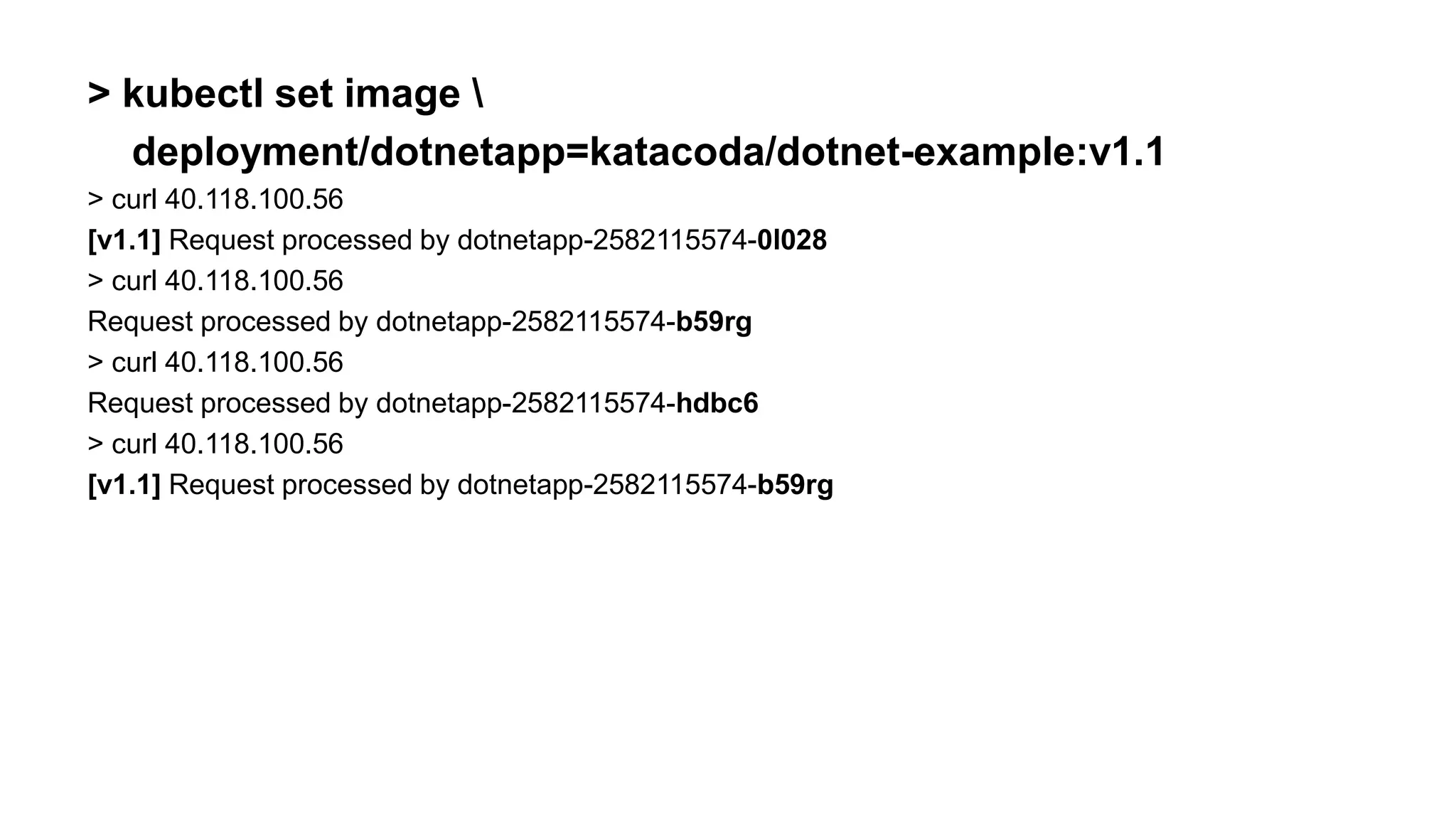

> kubectl set image
deployment/dotnetapp=katacoda/dotnet-example:v1.1
> curl 40.118.100.56
[v1.1] Request processed by dotnetapp-2582115574-0l028
> curl 40.118.100.56
> curl 40.118.100.56
Request processed by dotnetapp-2582115574-hdbc6
> curl 40.118.100.56
[v1.1] Request processed by dotnetapp-2582115574-b59rg

What about the Azure Registry
Service?

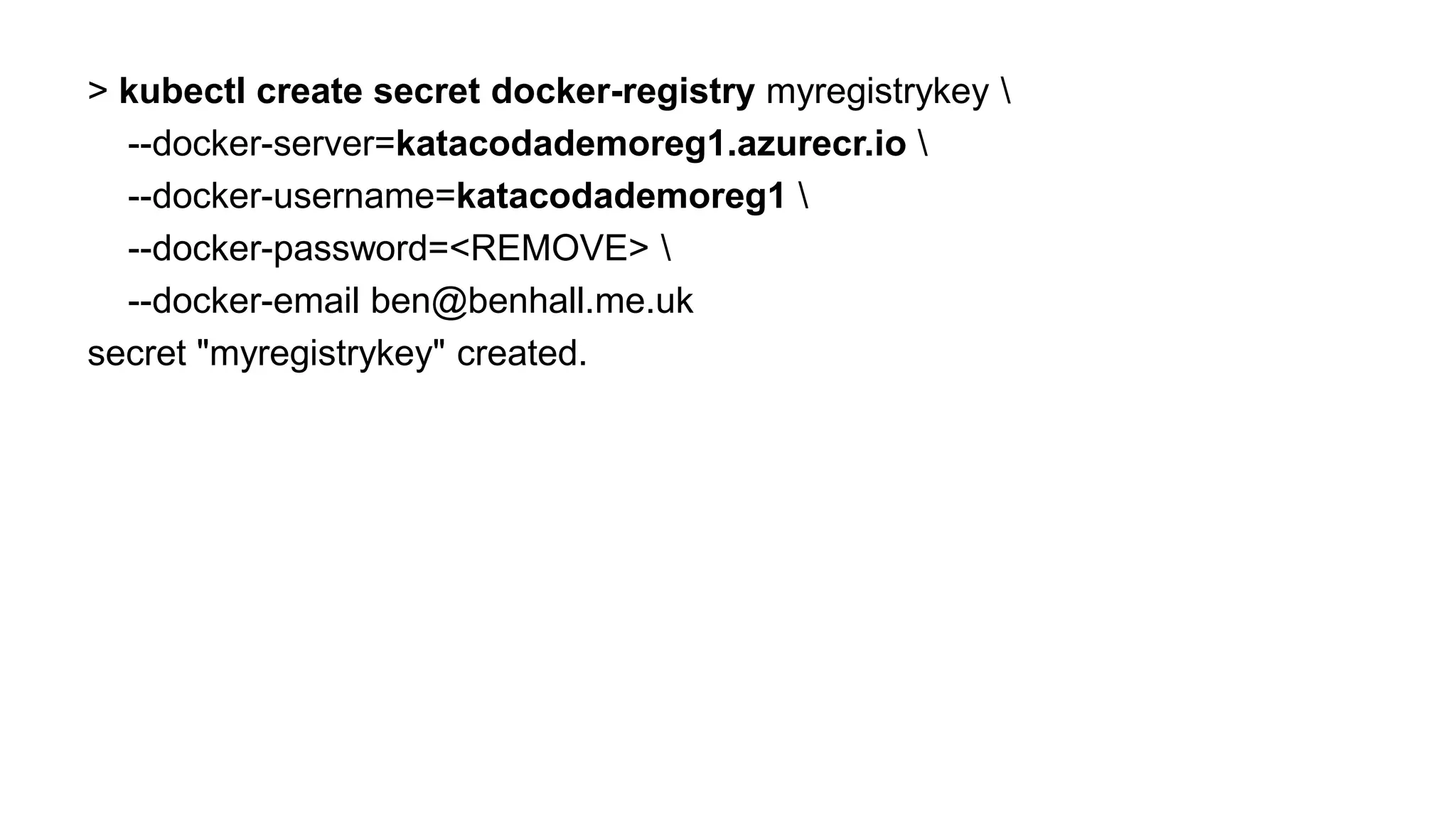

> kubectl create secret docker-registry myregistrykey
--docker-server=katacodademoreg1.azurecr.io
--docker-username=katacodademoreg1
--docker-password=<REMOVE>
--docker-email ben@benhall.me.uk
secret "myregistrykey" created.

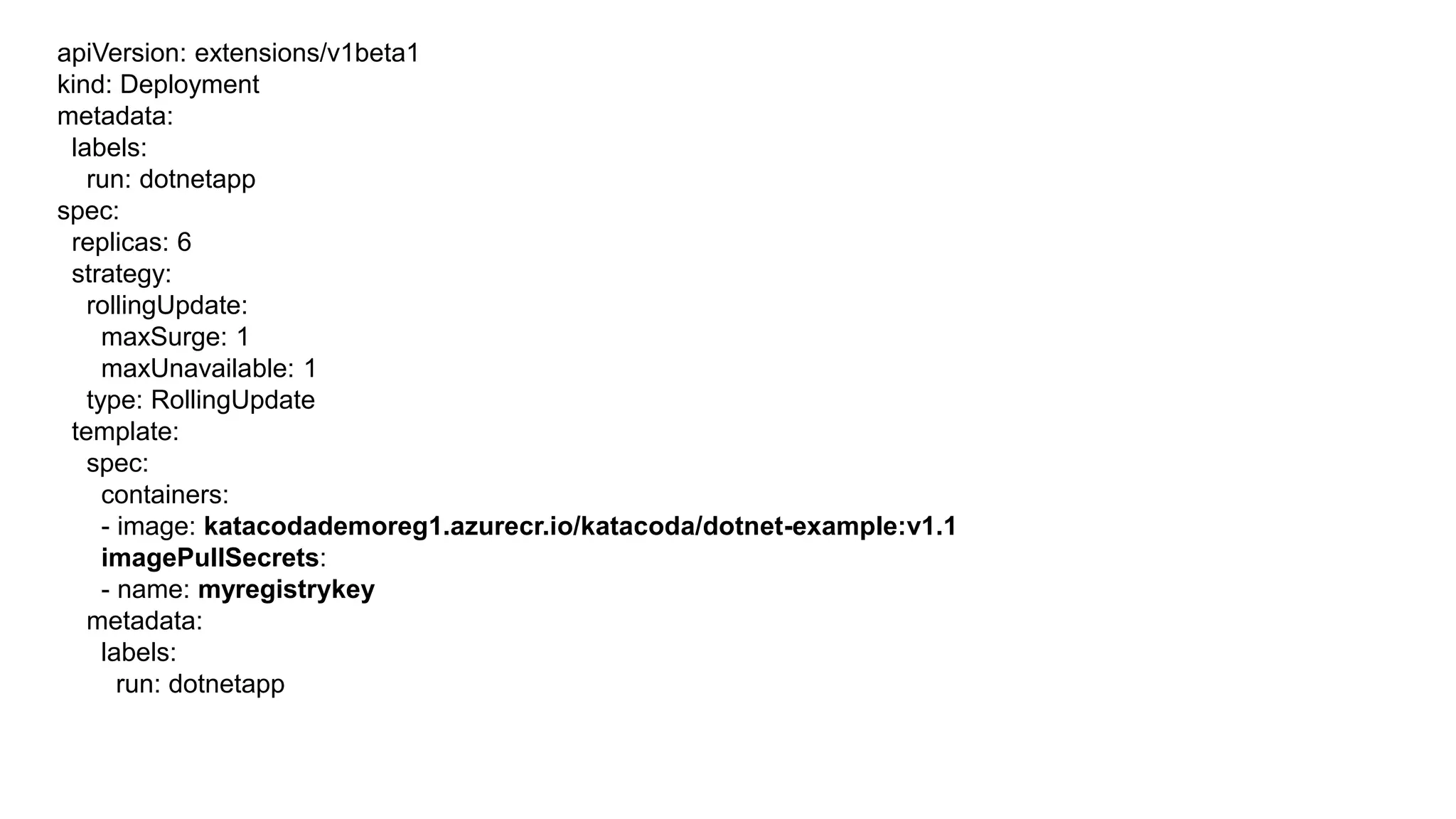

apiVersion: extensions/v1beta1
kind: Deployment
metadata:
labels:
run: dotnetapp
spec:
replicas: 6
strategy:
rollingUpdate:
maxSurge: 1
maxUnavailable: 1
type: RollingUpdate
template:
spec:
containers:
- image: katacodademoreg1.azurecr.io/katacoda/dotnet-example:v1.1
imagePullSecrets:
- name: myregistrykey
metadata:
labels:
run: dotnetapp

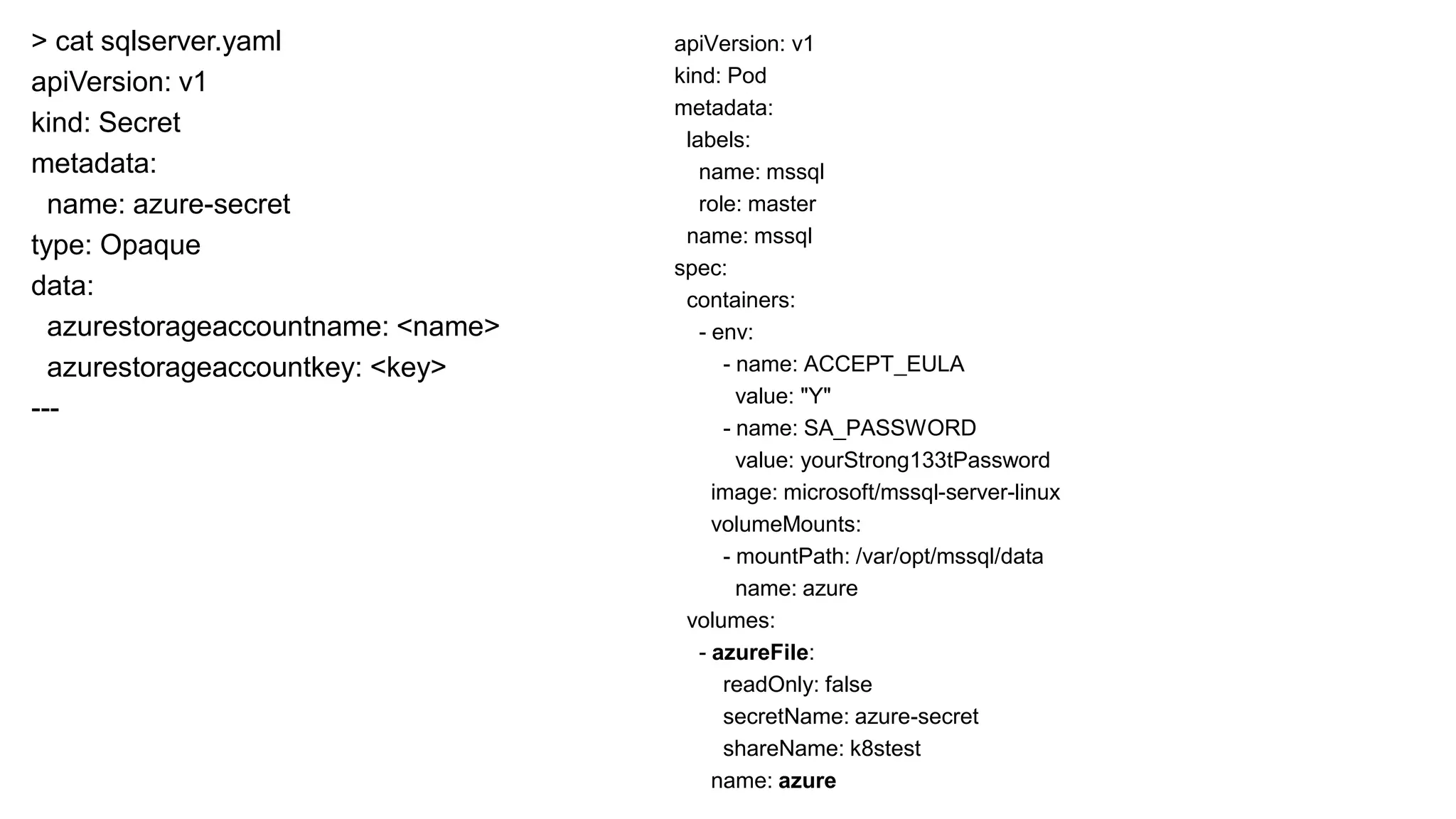

> cat sqlserver.yaml
apiVersion: v1
kind: Secret
metadata:
name: azure-secret
type: Opaque
data:
azurestorageaccountname: <name>
azurestorageaccountkey: <key>
---
apiVersion: v1
kind: Pod
metadata:
labels:
name: mssql
role: master
name: mssql
spec:
containers:
- env:
- name: ACCEPT_EULA
value: "Y"
- name: SA_PASSWORD
value: yourStrong133tPassword
image: microsoft/mssql-server-linux
volumeMounts:
- mountPath: /var/opt/mssql/data
name: azure
volumes:
- azureFile:
readOnly: false
secretName: azure-secret
shareName: k8stest
name: azure

Is it still up?

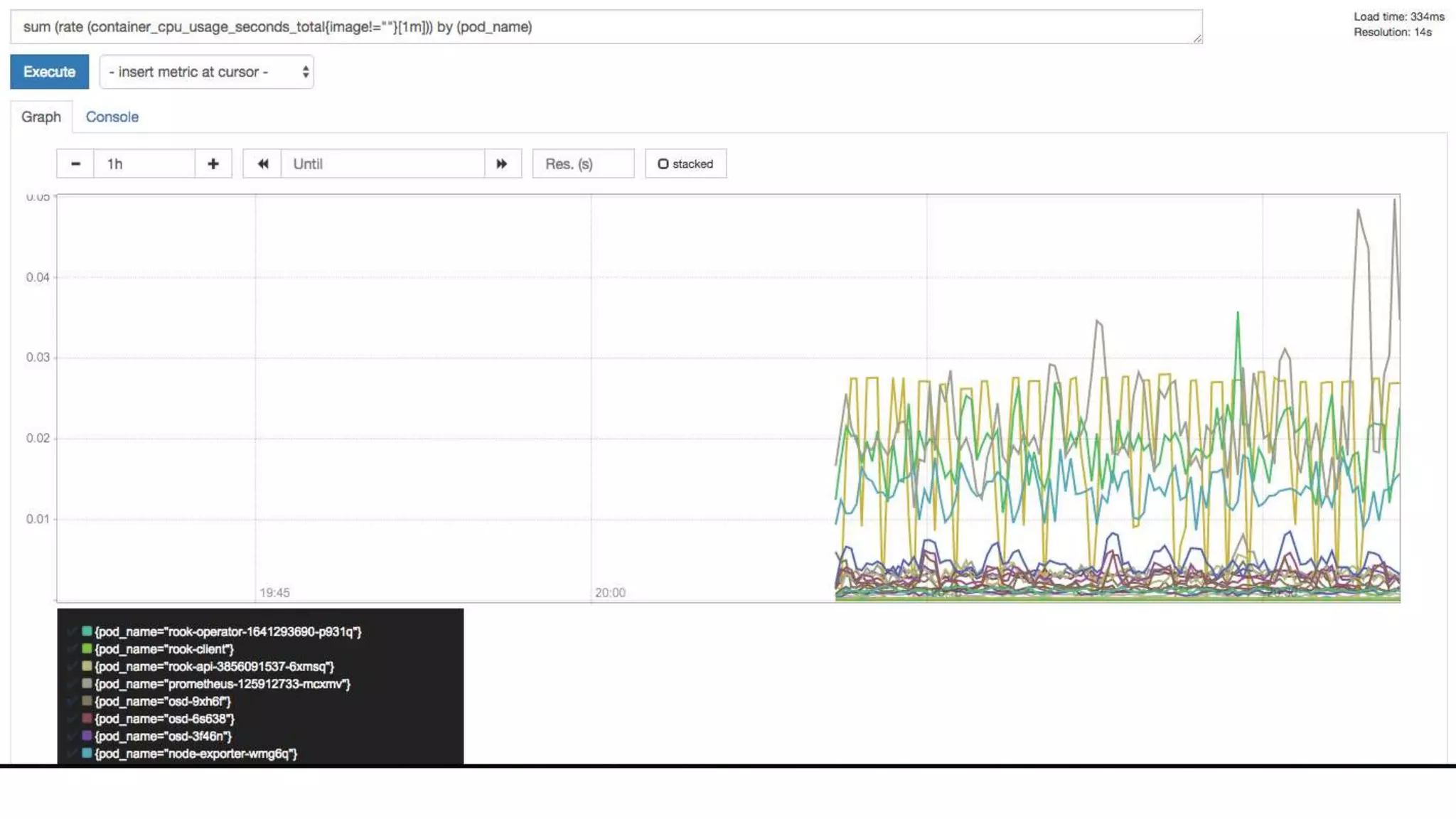

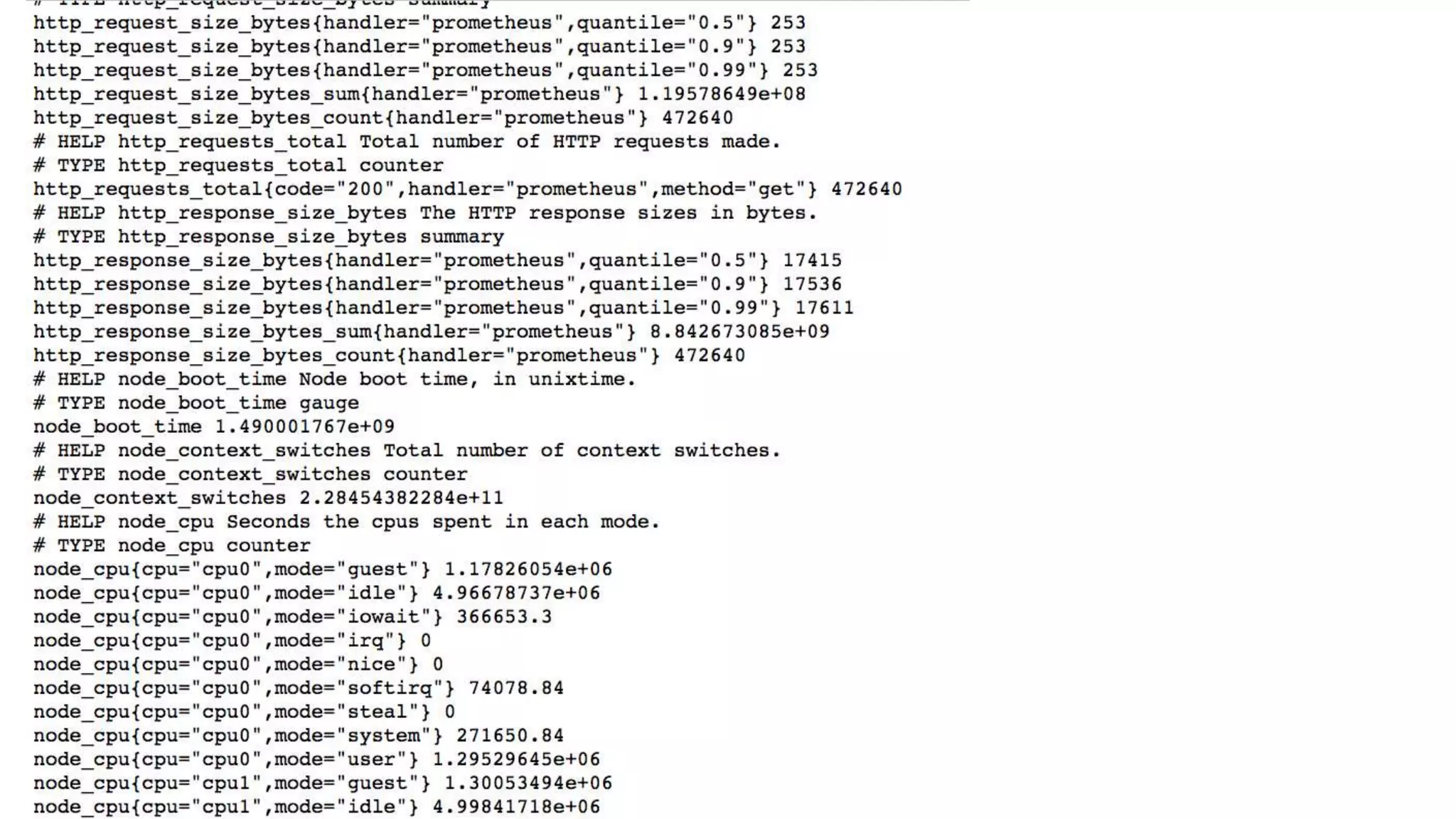

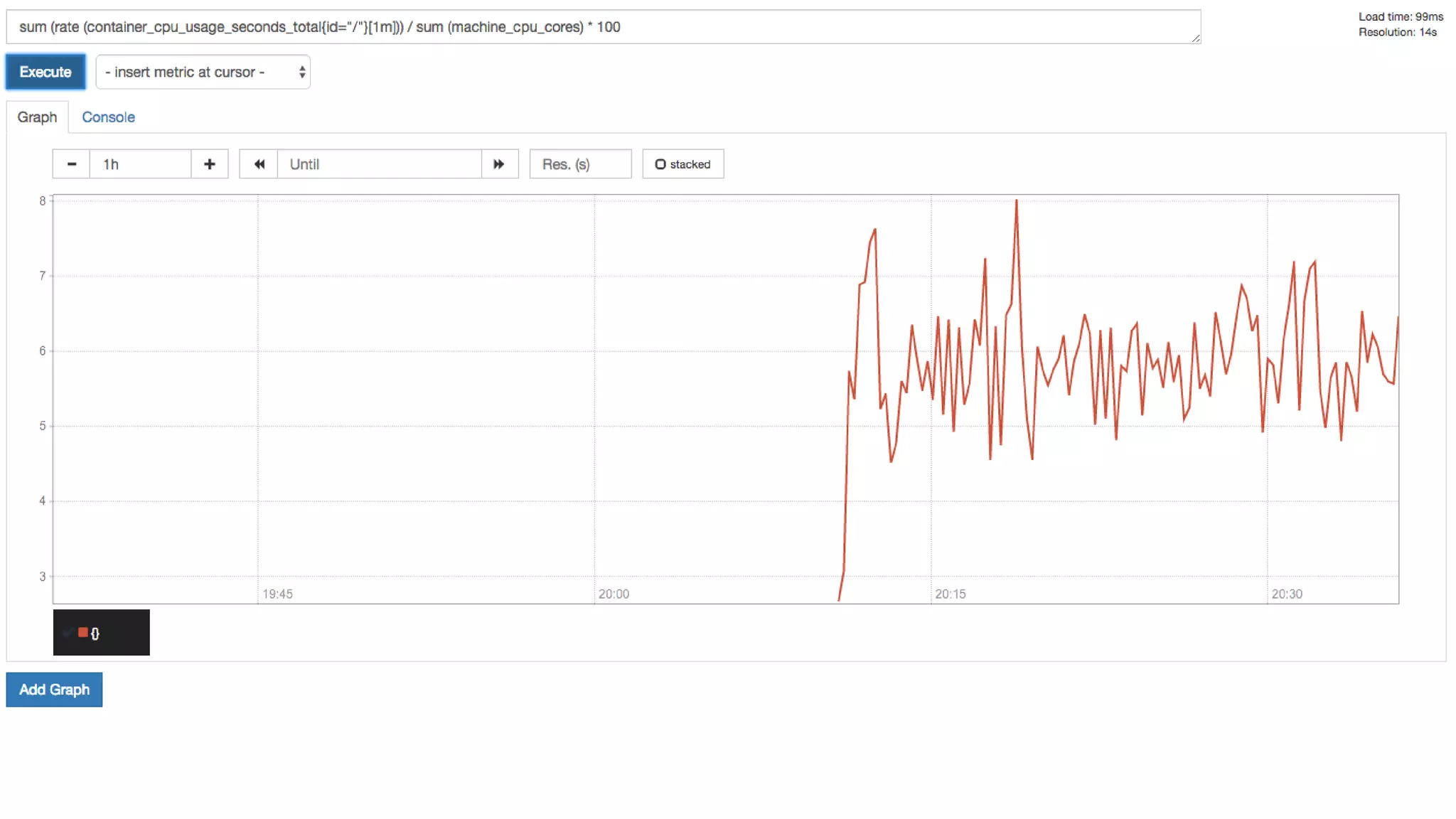

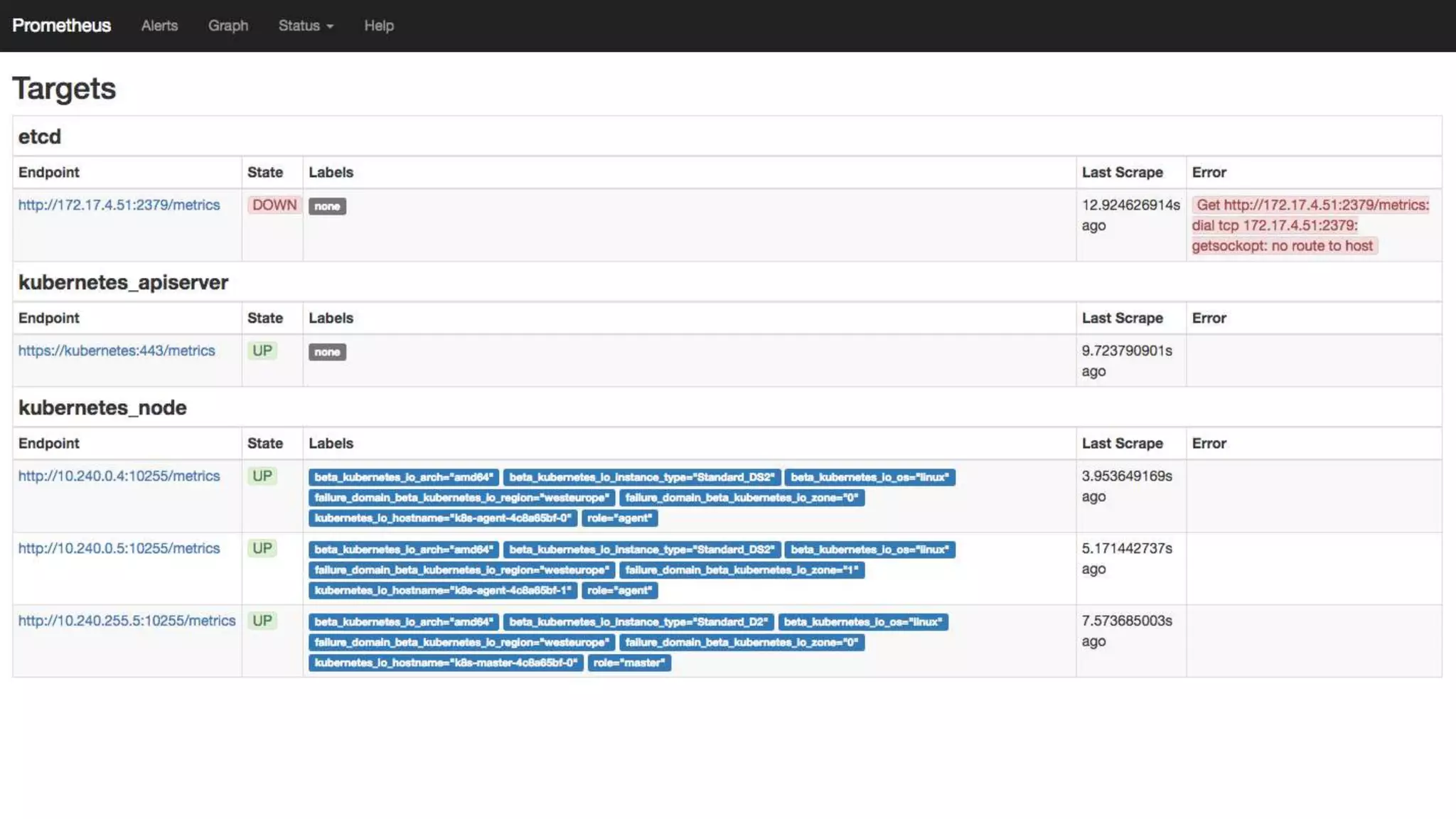

Monitoring with Prometheus and
Kubernetes

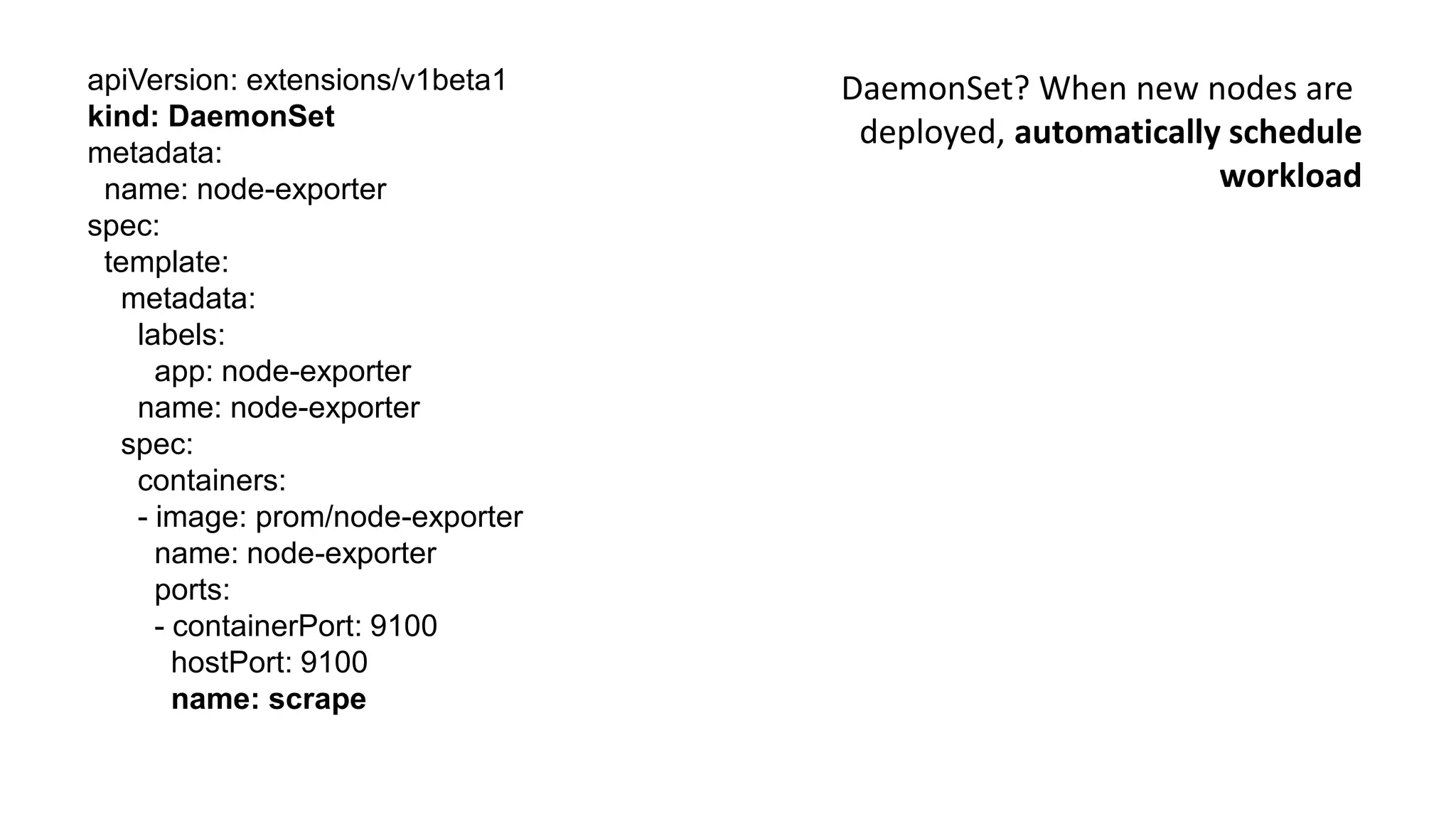

apiVersion: extensions/v1beta1
kind: DaemonSet
metadata:
name: node-exporter
spec:
template:
metadata:
labels:
app: node-exporter
name: node-exporter
spec:
containers:
- image: prom/node-exporter
name: node-exporter
ports:
- containerPort: 9100
hostPort: 9100
name: scrape
DaemonSet? When new nodes are
deployed, automatically schedule
workload

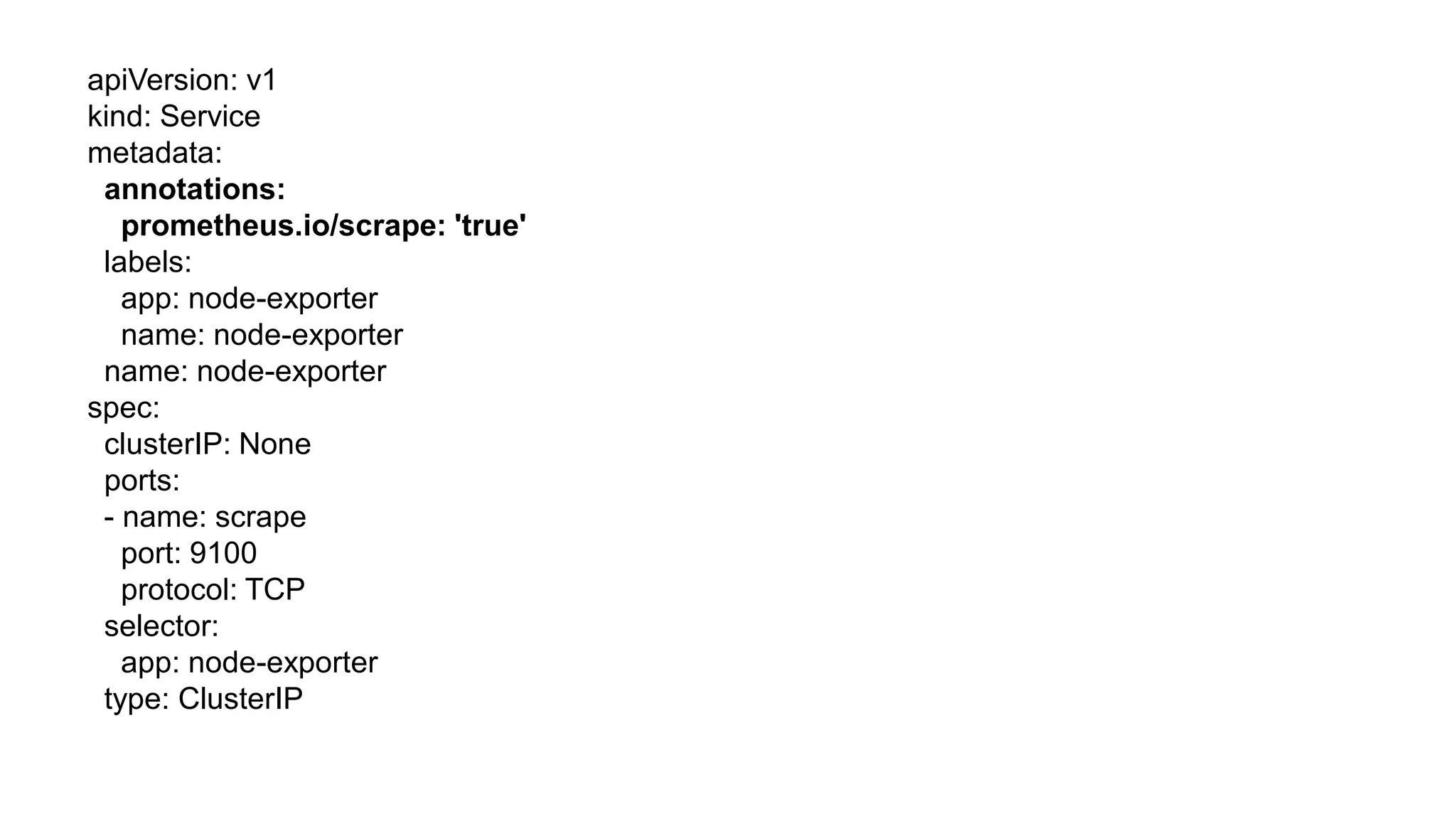

apiVersion: v1
kind: Service
metadata:
annotations:
prometheus.io/scrape: 'true'
labels:
app: node-exporter
name: node-exporter
name: node-exporter
spec:
clusterIP: None
ports:
- name: scrape
port: 9100
protocol: TCP
selector:
app: node-exporter
type: ClusterIP

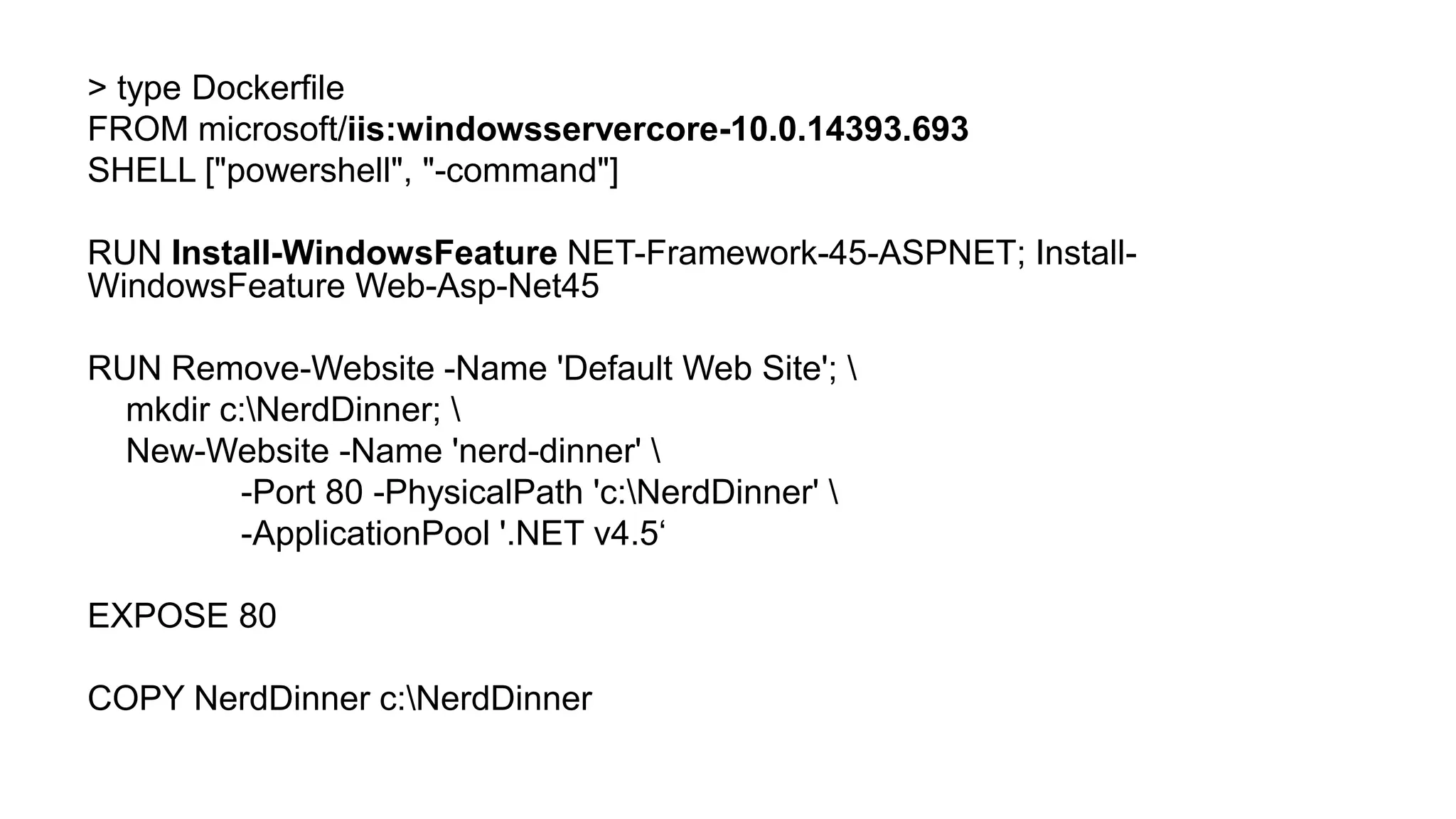

> type Dockerfile
FROM microsoft/iis:windowsservercore-10.0.14393.693
SHELL ["powershell", "-command"]
RUN Install-WindowsFeature NET-Framework-45-ASPNET; Install-
WindowsFeature Web-Asp-Net45
RUN Remove-Website -Name 'Default Web Site';
mkdir c:NerdDinner;
New-Website -Name 'nerd-dinner'
-Port 80 -PhysicalPath 'c:NerdDinner'
-ApplicationPool '.NET v4.5‘
EXPOSE 80
COPY NerdDinner c:NerdDinner

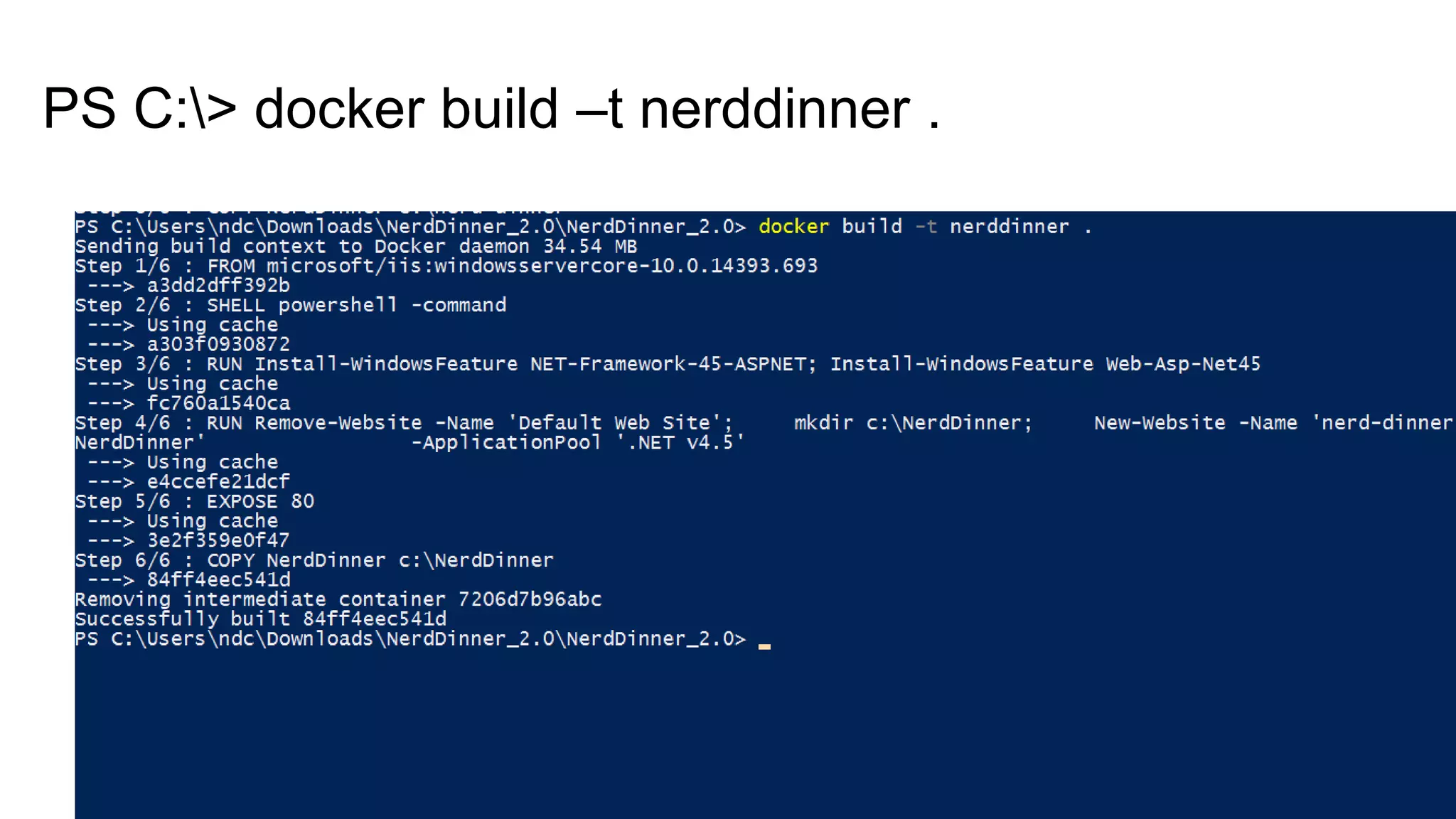

PS C:> docker build –t nerddinner .

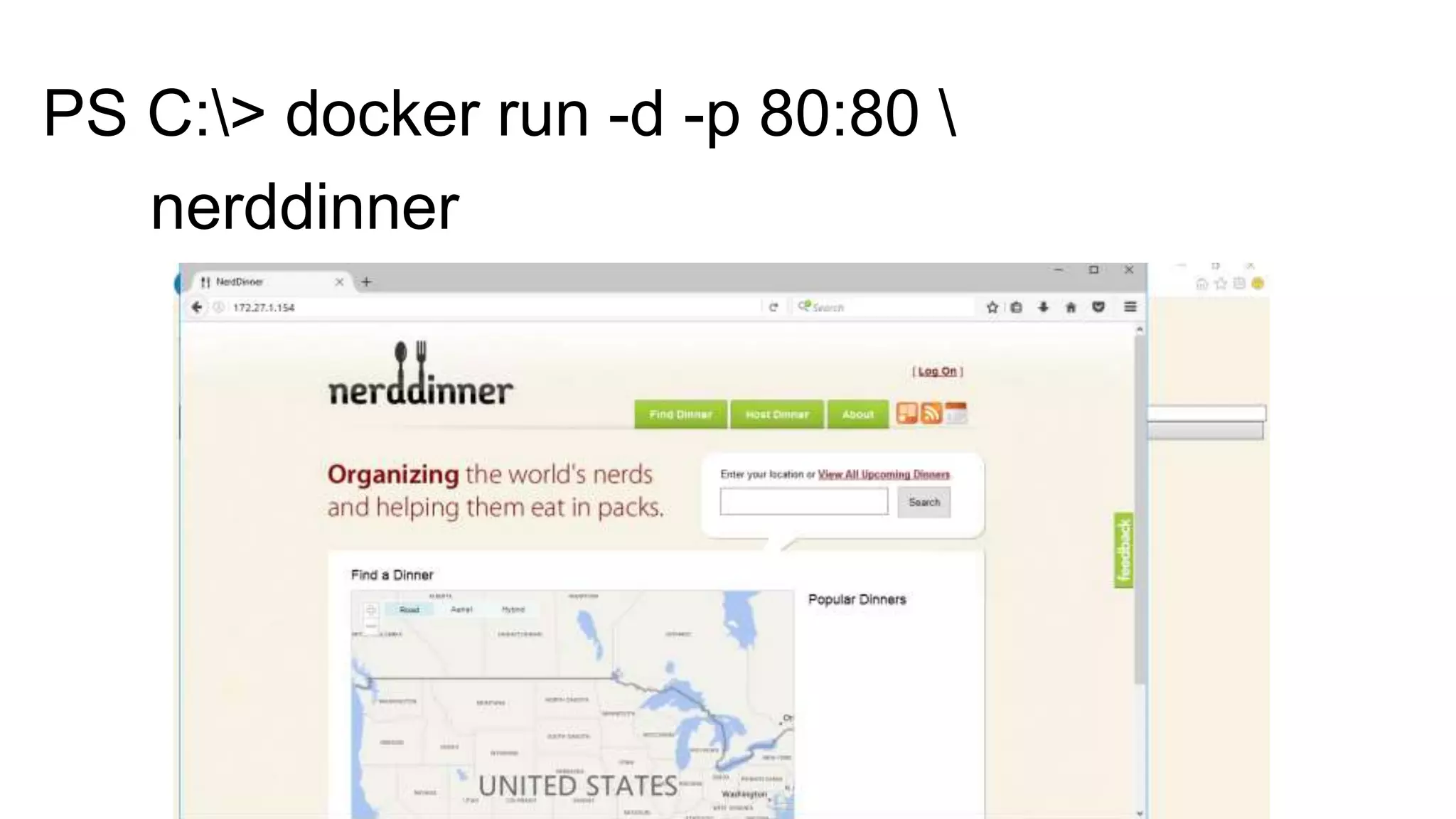

PS C:> docker run -d -p 80:80
nerddinner

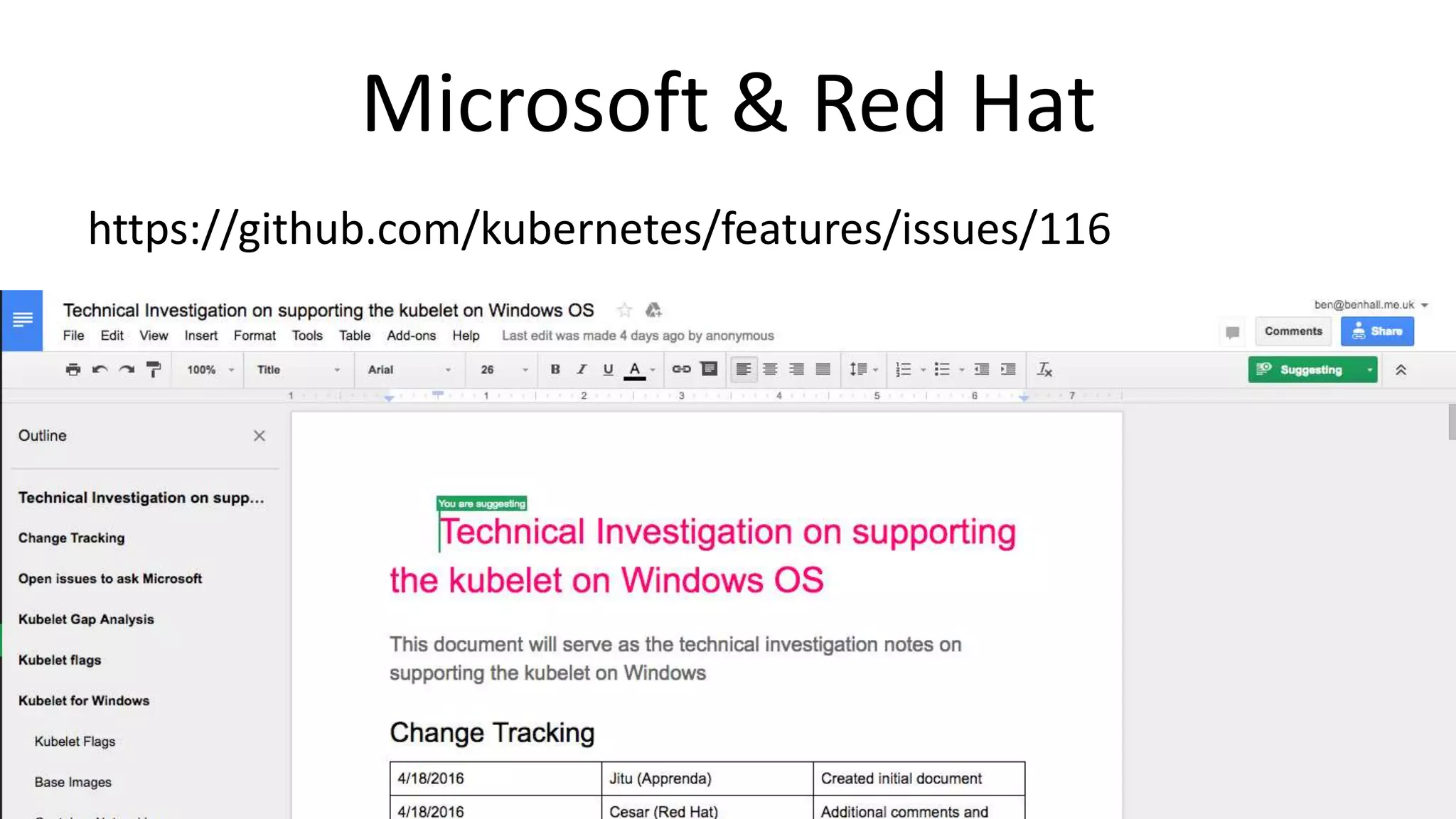

Microsoft & Red Hat
https://github.com/kubernetes/features/issues/116

Online Kubernetes
Training for Companies
at Katacoda.com
@Ben_Hall
Ben@BenHall.me.uk
Blog.BenHall.me.uk
www.Katacoda.com

Scaling Docker Containers using Kubernetes and Azure Container Service

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Similar to Scaling Docker Containers using Kubernetes and Azure Container Service

Similar to Scaling Docker Containers using Kubernetes and Azure Container Service (20)

More from Ben Hall

More from Ben Hall (20)

Recently uploaded

Recently uploaded (20)

Scaling Docker Containers using Kubernetes and Azure Container Service

Editor's Notes
