![Heat: Cirros
heat_template_version: 2013-05-23
description: Single compute instance running cirros in a Docker
container.
resources:
my_instance:
type: OS::Nova::Server
properties:
key_name: ewindisch_key
image: ubuntu-precise
flavor: m1.large
user_data: #include https://get.docker.io
my_docker_container:
type: DockerInc::Docker::Container
docker_endpoint: { get_attr: [my_instance, first_address] }
image: cirros](https://image.slidesharecdn.com/dockeropenstackparis-141112104205-conversion-gate01/85/Orchestrating-Docker-with-OpenStack-11-320.jpg)

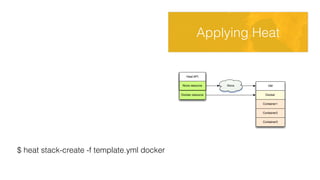

![$ cat template.yml
heat_template_version: 2013-05-23
description: Single compute instance running cirros in a Docker
container.
resources:
my_instance:
type: OS::Nova::Server
properties:
key_name: ewindisch_key
image: ubuntu-precise
flavor: m1.large
user_data: #include https://get.docker.io
my_docker_container:
type: DockerInc::Docker::Container
docker_endpoint: { get_attr: [my_instance, first_address] }
image: cirros
$ heat stack-create -f template.yml docker
Heat API
VM
Docker
Nova resource Nova
Docker resource
Container1
Container2
Container3
HOT
Applying Heat](https://image.slidesharecdn.com/dockeropenstackparis-141112104205-conversion-gate01/85/Orchestrating-Docker-with-OpenStack-13-320.jpg)
![Heat: Dockenstack
heat_template_version: 2013-05-23
description: Single compute instance running Tempest
resources:
my_instance:
type: OS::Nova::Server
properties:
key_name: ewindisch_key
image: ubuntu-precise
flavor: m1.large
user_data: #include https://get.docker.io
my_docker_container:
type: DockerInc::Docker::Container
properties:
docker_endpoint: { get_attr: [my_instance, first_address] }
image: dockenstack
privileged: true
cmd: /opt/dockenstack/bin/tempest](https://image.slidesharecdn.com/dockeropenstackparis-141112104205-conversion-gate01/85/Orchestrating-Docker-with-OpenStack-14-320.jpg)
![heat_template_version: 2013-05-23
description: Two containers, one host with shared volumes
resources:
my_instance:
type: OS::Nova::Server
properties:
key_name: ewindisch_key
image: ubuntu-precise
flavor: m1.large
user_data: #include https://get.docker.io
ftp_container:
type: DockerInc::Docker::Container
properties:
docker_endpoint: { get_attr: [my_instance, first_address] }
image: mikz/vsftpd
ports: [ “21:21” ]
volumes: [ “/ftp” ]
name: “FTP”
apache_container:
type: DockerInc::Docker::Container
properties:
docker_endpoint: { get_attr: [my_instance, first_address] }
image: fedora/apache
ports: [ “80:80” ]
volumes-from: “FTP”
cmd: “rm -rf /var/www; ln -s /ftp /var/www; /run-apache.sh”](https://image.slidesharecdn.com/dockeropenstackparis-141112104205-conversion-gate01/85/Orchestrating-Docker-with-OpenStack-15-320.jpg)
Uploaded byErica Windisch
Orchestrating Docker with OpenStack
The document discusses integrating Docker with OpenStack, specifically focusing on the Magnum project, which aims to orchestrate containers as a service within OpenStack. It highlights the Heat orchestration for managing Docker resources and provides examples of templates for deploying Docker containers on VMs. Additionally, it addresses challenges in using Nova as a machine abstraction while managing container workloads and outlines the features and limitations of this integration.
More Related Content
![[Open stack] heat + docker](https://cdn.slidesharecdn.com/ss_thumbnails/openstackheatdocker-131022214649-phpapp02-thumbnail.jpg?width=640&height=640&fit=bounds)
Similar to Orchestrating Docker with OpenStack
Orchestrating Docker with OpenStack
- 1. Orchestrating Docker withOpenStack Nov 3rd, 2014
- 3. Compute MAGNUM Containersas a Service

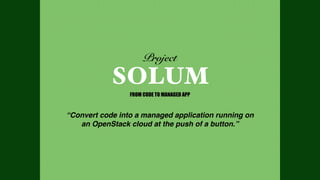

- 4. Project SOLUM FROMCODE TO MANAGED APP “Convert code into a managed application running on an OpenStack cloud at the push of a button.”

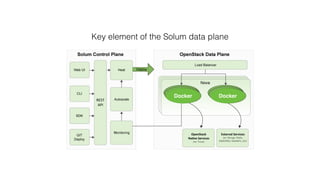

- 5. Key element ofthe Solum data plane Docker Docker
- 6. Applying Heat Orchestrationfor Docker API

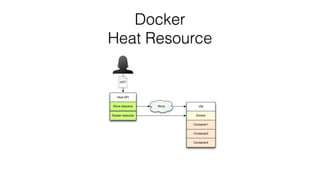

- 7. Docker Heat Resource Heat API VM Docker Nova resource Nova Docker resource Container1 Container2 Container3 HOT

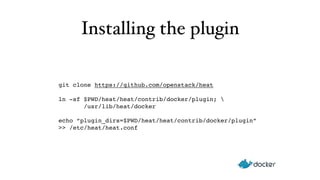

- 8. Installing the plugin git clone https://github.com/openstack/heat ln -sf $PWD/heat/heat/contrib/docker/plugin; /usr/lib/heat/docker" echo “plugin_dirs=$PWD/heat/heat/contrib/docker/plugin” >> /etc/heat/heat.conf

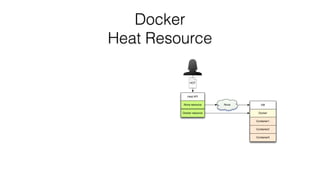

- 9. Docker Heat Resource Heat API VM Docker Nova resource Nova Docker resource Container1 Container2 Container3 HOT
- 10. Docker Heat Resource Heat API VM Docker Nova resource Nova Docker resource Container1 Container2 Container3 HOT 1. Heat provides a Docker resource 2. Docker resource communicates directly to Docker 3. Templates may glue Nova and Docker resources 4. Can deploy containers on top of VMs or bare-metal instances.
- 11. Heat: Cirros heat_template_version:2013-05-23 description: Single compute instance running cirros in a Docker container. resources: my_instance: type: OS::Nova::Server properties: key_name: ewindisch_key image: ubuntu-precise flavor: m1.large user_data: #include https://get.docker.io my_docker_container: type: DockerInc::Docker::Container docker_endpoint: { get_attr: [my_instance, first_address] } image: cirros

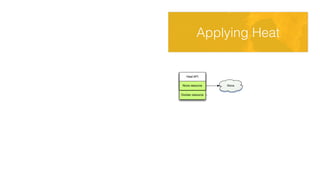

- 12. Applying Heat HeatAPI VM Docker Nova resource Nova Docker resource Container1 Container2 Container3 HOT
- 13. $ cat template.yml heat_template_version: 2013-05-23 description: Single compute instance running cirros in a Docker container. resources: my_instance: type: OS::Nova::Server properties: key_name: ewindisch_key image: ubuntu-precise flavor: m1.large user_data: #include https://get.docker.io my_docker_container: type: DockerInc::Docker::Container docker_endpoint: { get_attr: [my_instance, first_address] } image: cirros $ heat stack-create -f template.yml docker Heat API VM Docker Nova resource Nova Docker resource Container1 Container2 Container3 HOT Applying Heat
- 14. Heat: Dockenstack heat_template_version:2013-05-23 description: Single compute instance running Tempest resources: my_instance: type: OS::Nova::Server properties: key_name: ewindisch_key image: ubuntu-precise flavor: m1.large user_data: #include https://get.docker.io my_docker_container: type: DockerInc::Docker::Container properties: docker_endpoint: { get_attr: [my_instance, first_address] } image: dockenstack privileged: true cmd: /opt/dockenstack/bin/tempest

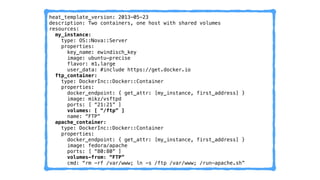

- 15. heat_template_version: 2013-05-23 description:Two containers, one host with shared volumes resources: my_instance: type: OS::Nova::Server properties: key_name: ewindisch_key image: ubuntu-precise flavor: m1.large user_data: #include https://get.docker.io ftp_container: type: DockerInc::Docker::Container properties: docker_endpoint: { get_attr: [my_instance, first_address] } image: mikz/vsftpd ports: [ “21:21” ] volumes: [ “/ftp” ] name: “FTP” apache_container: type: DockerInc::Docker::Container properties: docker_endpoint: { get_attr: [my_instance, first_address] } image: fedora/apache ports: [ “80:80” ] volumes-from: “FTP” cmd: “rm -rf /var/www; ln -s /ftp /var/www; /run-apache.sh”

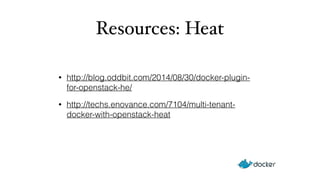

- 16. Resources: Heat •http://blog.oddbit.com/2014/08/30/docker-plugin-for- openstack-he/ • http://techs.enovance.com/7104/multi-tenant-docker- with-openstack-heat

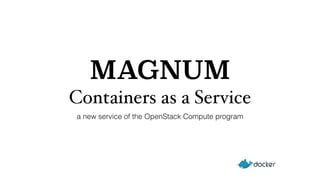

- 17. MAGNUM Containers asa Service a new service of the OpenStack Compute program
- 18. The Containers Team Working Group of the Compute Program

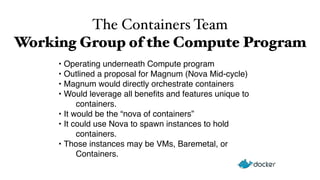

- 19. The Containers Team Working Group of the Compute Program • Operating underneath Compute program • Outlined a proposal for Magnum (Nova Mid-cycle) • Magnum would directly orchestrate containers • Would leverage all benefits and features unique to containers. • It would be the “nova of containers” • It could use Nova to spawn instances to hold containers. • Those instances may be VMs, Baremetal, or Containers.
- 20. See Adrian Otto’spresentation: Containers for Multi-cloud Apps Tomorrow: 17:20
- 21. Nova Integration Dockerplugin for Nova
- 22. Awesome People IanMain (Red Hat) Chris Alfonso (Red Hat) Davanum ‘dims’ (IBM) ChangBo Guo Julien Vey (Numergy) Aaron Rosen (Nicera) Derek Higgins (Red Hat) Paul Czarkowski (Rackspace) Daniel Kuffner Pedro R Marques (Juniper) Lars Kellogg-Stedman (Red_Hat) Sam Alba (Docker) & more…

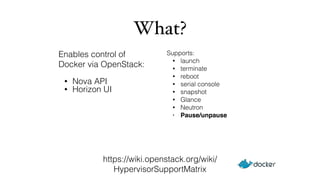

- 23. What? Enables controlof Docker via OpenStack: • Nova API • Horizon UI Supports: • launch • terminate • reboot • serial console • snapshot • Glance • Neutron • Pause/unpause https://wiki.openstack.org/wiki/ HypervisorSupportMatrix
- 24.
- 25. Nova doesn’t… Linkcontainer networks Pass environment variables Specify working directories Create docker-volumes Share docker-volumes between containers Arbitrary commands Arbitrary command-arguments Pass devices Nova is a machine abstraction, not a process one.

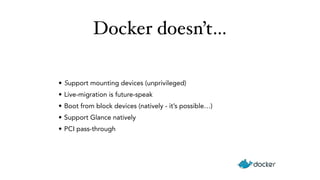

- 26. Docker doesn’t… •Support mounting devices (unprivileged) • Live-migration is future-speak • Boot from block devices (natively - it’s possible…) • Support Glance natively • PCI pass-through

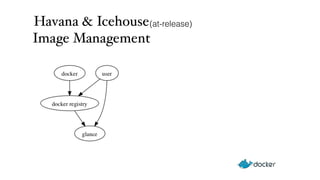

- 27. Havana & Icehouse Image Management (at-release)

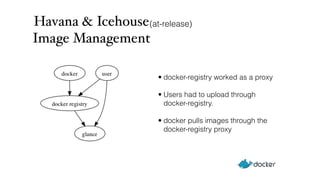

- 28. Havana & Icehouse Image Management (at-release) • docker-registry worked as a proxy • Users had to upload through docker-registry. • docker pulls images through the docker-registry proxy
- 29. Havana & Icehouse Image Management (at-release)

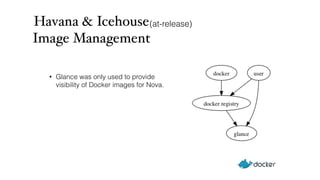

- 30. Havana & Icehouse Image Management (at-release) • Glance was only used to provide visibility of Docker images for Nova.
- 31. Havana & Icehouse Image Management (at-release) • Glance was only used to provide visibility of Docker images for Nova. • Users could not upload through Glance directly

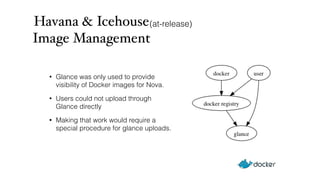

- 32. Havana & Icehouse Image Management (at-release) • Glance was only used to provide visibility of Docker images for Nova. • Users could not upload through Glance directly • Making that work would require a special procedure for glance uploads.
- 33. so… we tookout the docker-registry instead.
- 34.
- 35.
- 36. Just Enough Docker • A subset of Nova features…
- 37. Just Enough Docker • A subset of Nova features… • A subset of Docker features…

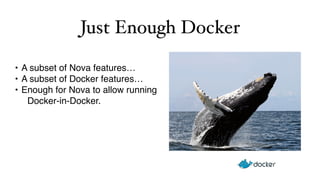

- 38. Just Enough Docker • A subset of Nova features… • A subset of Docker features… • Enough for Nova to allow running Docker-in-Docker.
- 39. Just Enough Docker • A subset of Nova features… • A subset of Docker features… • Enough for Nova to allow running Docker-in-Docker. • DinD retains most performance benefits of Docker.

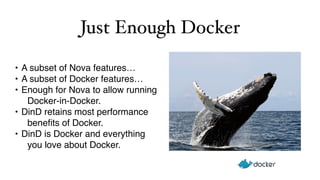

- 40. Just Enough Docker • A subset of Nova features… • A subset of Docker features… • Enough for Nova to allow running Docker-in-Docker. • DinD retains most performance benefits of Docker. • DinD is Docker and everything you love about Docker.

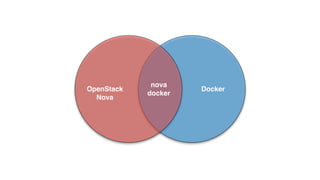

- 41. OpenStack Docker Nova nova docker

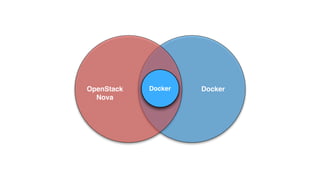

- 42. OpenStack Docker Nova nova docker Docker

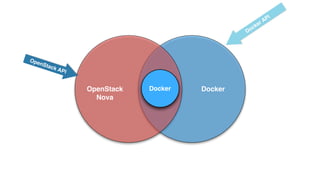

- 43. OpenStack Docker Nova nova docker Docker OpenStack API Docker API

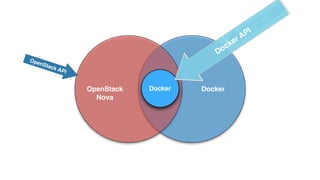

- 44. OpenStack Docker Nova nova docker Docker OpenStack API Docker API Docker API

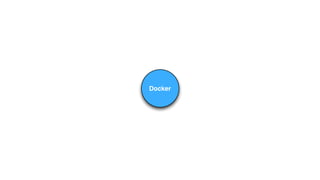

- 45.

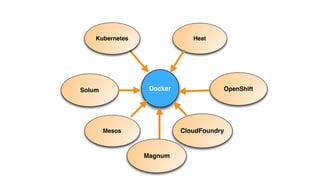

- 46. Kubernetes Heat Docker Solum OpenShift Mesos CloudFoundry Magnum

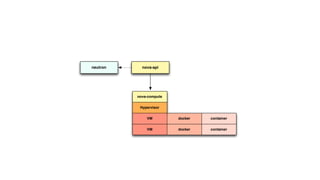

- 47. neutron nova-api nova-compute VM VM docker docker Hypervisor container container
- 48.
- 49.

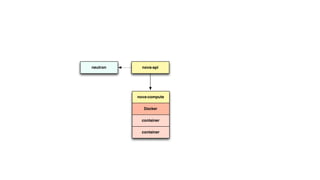

- 50. neutron nova-api nova-compute Docker container container

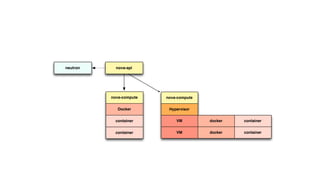

- 51. neutron nova-api nova-compute Docker container container nova-compute VM VM docker docker Hypervisor container container

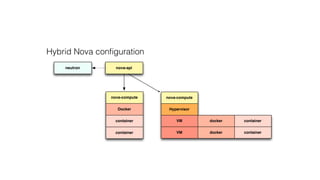

- 52. Hybrid Nova configuration neutron nova-api nova-compute Docker container container nova-compute VM VM docker docker Hypervisor container container

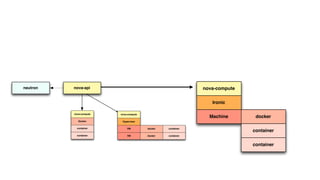

- 53. neutron nova-api nova-compute Docker container container nova-compute VM VM docker docker Hypervisor container container nova-compute Ironic Machine docker container container

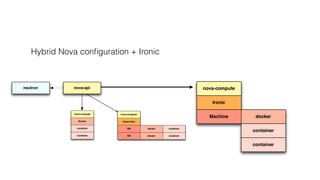

- 54. Hybrid Nova configuration+ Ironic neutron nova-api nova-compute Docker container container nova-compute VM VM docker docker Hypervisor container container nova-compute Ironic Machine docker container container

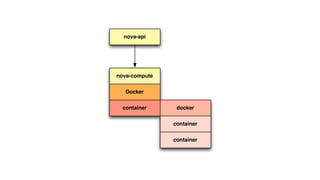

- 55. nova-api nova-compute Docker container docker container container

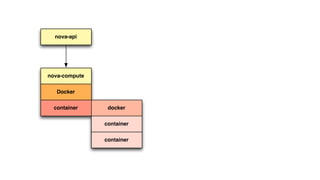

- 56. nova-api nova-compute Docker container docker container container

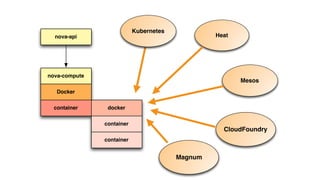

- 57. nova-api nova-compute Docker container docker container container Kubernetes Heat Mesos CloudFoundry Magnum

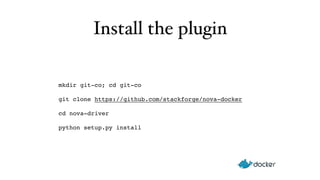

- 58. Install the plugin mkdir git-co; cd git-co" git clone https://github.com/stackforge/nova-docker" cd nova-driver" python setup.py install

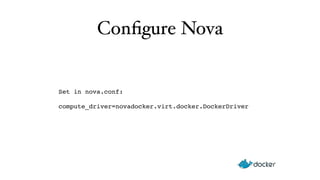

- 59. Configure Nova Setin nova.conf:" compute_driver=novadocker.virt.docker.DockerDriver"

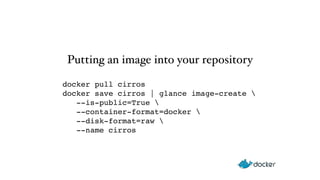

- 60. Putting an imageinto your repository docker pull cirros" docker save cirros | glance image-create --is-public=True --container-format=docker --disk-format=raw --name cirros
- 61.
- 62.
- 63.
- 64. Testing - Running& Passing

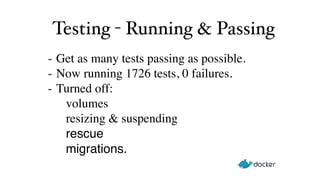

- 65. Testing - Running& Passing - Get as many tests passing as possible.! - Now running 1726 tests, 0 failures.! - Turned off: volumes resizing & suspending rescue! ! ! migrations.
- 66.

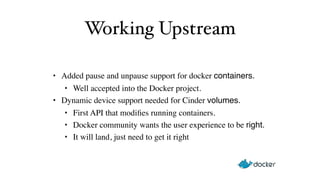

- 67. Working Upstream •Added pause and unpause support for docker containers. • Well accepted into the Docker project. • Dynamic device support needed for Cinder volumes. • First API that modifies running containers. • Docker community wants the user experience to be right. • It will land, just need to get it right

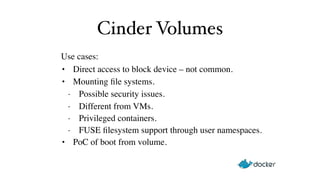

- 68. Cinder Volumes Usecases:! • Direct access to block device – not common.! • Mounting file systems.! - Possible security issues.! - Different from VMs.! - Privileged containers.! - FUSE filesystem support through user namespaces.! • PoC of boot from volume.
- 69.
- 70.
- 71. KILO - Cindersupport
- 72. KILO - Cindersupport - Security groups (merged)

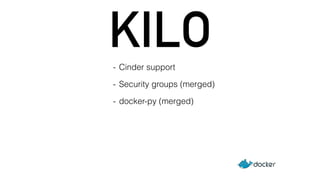

- 73. KILO - Cindersupport - Security groups (merged) - docker-py (merged)
- 74. KILO - Cindersupport - Security groups (merged) - docker-py (merged) - privileged containers

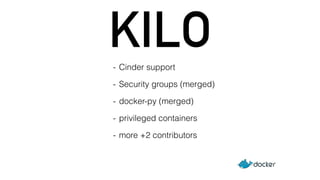

- 75. KILO - Cindersupport - Security groups (merged) - docker-py (merged) - privileged containers - more +2 contributors
- 76. use our code… Fix our Bugs!
- 77. Q & A Eric Windisch <erw>@freenode @ewindisch Ian Main <slower>@freenode
