RTOS APPLICATIONS
RTOS find applications in various fields of engineering and technology .Some of them include
Control systems, Image processing, Fault Tolerance systems etc.
(i).RTOS for control systems
Many real-time systems are embedded in sensors and actuators and function as digital

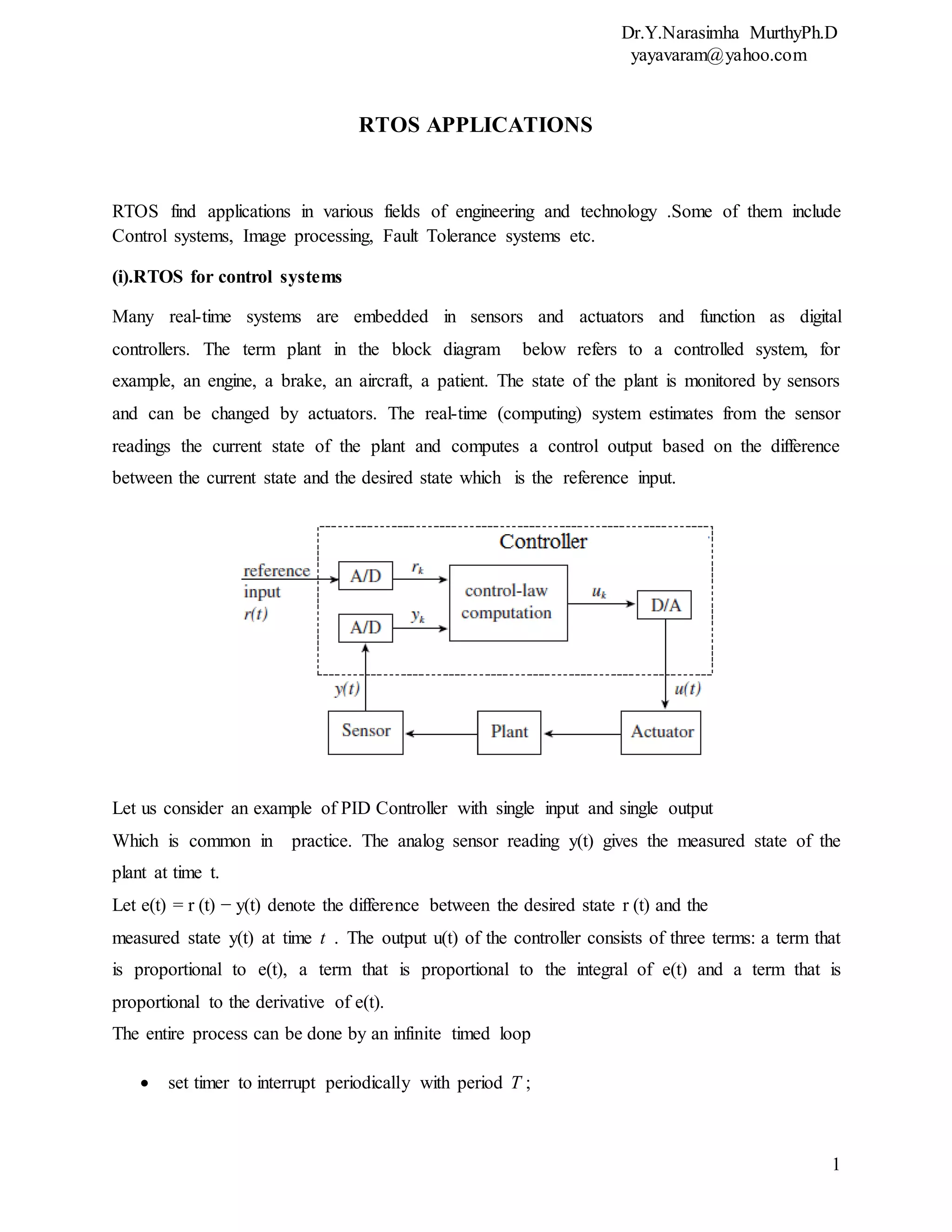

controllers. The term plant in the block diagram below refers to a controlled system, for
example, an engine, a brake, an aircraft, a patient. The state of the plant is monitored by sensors
and can be changed by actuators. The real-time (computing) system estimates from the sensor
readings the current state of the plant and computes a control output based on the difference
between the current state and the desired state which is the reference input.
Let us consider an example of PID Controller with single input and single output
Which is common in practice. The analog sensor reading y(t) gives the measured state of the
plant at time t.
Let e(t) = r (t) − y(t) denote the difference between the desired state r (t) and the
measured state y(t) at time t . The output u(t) of the controller consists of three terms: a term that
is proportional to e(t), a term that is proportional to the integral of e(t) and a term that is
proportional to the derivative of e(t).
The entire process can be done by an infinite timed loop
 set timer to interrupt periodically with period T ;

yayavaram@yahoo.com
2

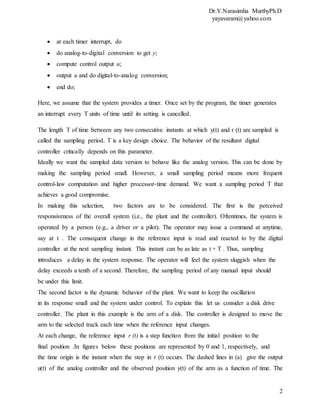

 at each timer interrupt, do
 do analog-to-digital conversion to get y;
 compute control output u;
 output u and do digital-to-analog conversion;
 end do;
Here, we assume that the system provides a timer. Once set by the program, the timer generates
an interrupt every T units of time until its setting is cancelled.
The length T of time between any two consecutive instants at which y(t) and r (t) are sampled is
called the sampling period. T is a key design choice. The behavior of the resultant digital
controller critically depends on this parameter.
Ideally we want the sampled data version to behave like the analog version. This can be done by
making the sampling period small. However, a small sampling period means more frequent
control-law computation and higher processor-time demand. We want a sampling period T that
achieves a good compromise.
In making this selection, two factors are to be considered. The first is the perceived
responsiveness of the overall system (i.e., the plant and the controller). Oftentimes, the system is
operated by a person (e.g., a driver or a pilot). The operator may issue a command at anytime,
say at t . The consequent change in the reference input is read and reacted to by the digital
controller at the next sampling instant. This instant can be as late as t + T . Thus, sampling
introduces a delay in the system response. The operator will feel the system sluggish when the
delay exceeds a tenth of a second. Therefore, the sampling period of any manual input should
be under this limit.
The second factor is the dynamic behavior of the plant. We want to keep the oscillation
in its response small and the system under control. To explain this let us consider a disk drive
controller. The plant in this example is the arm of a disk. The controller is designed to move the
arm to the selected track each time when the reference input changes.
At each change, the reference input r (t) is a step function from the initial position to the
final position .In figures below these positions are represented by 0 and 1, respectively, and
the time origin is the instant when the step in r (t) occurs. The dashed lines in (a) give the output
u(t) of the analog controller and the observed position y(t) of the arm as a function of time. The

yayavaram@yahoo.com
3

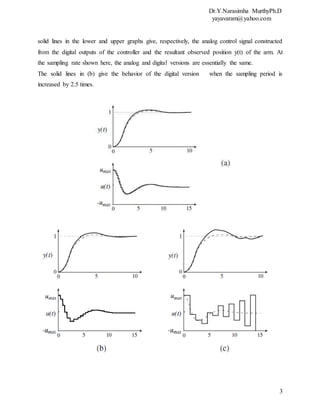

solid lines in the lower and upper graphs give, respectively, the analog control signal constructed
from the digital outputs of the controller and the resultant observed position y(t) of the arm. At
the sampling rate shown here, the analog and digital versions are essentially the same.
The solid lines in (b) give the behavior of the digital version when the sampling period is
increased by 2.5 times.

yayavaram@yahoo.com
4

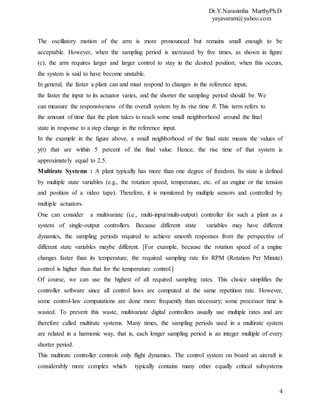

The oscillatory motion of the arm is more pronounced but remains small enough to be
acceptable. However, when the sampling period is increased by five times, as shown in figure
(c), the arm requires larger and larger control to stay in the desired position; when this occurs,
the system is said to have become unstable.
In general, the faster a plant can and must respond to changes in the reference input,
the faster the input to its actuator varies, and the shorter the sampling period should be. We
can measure the responsiveness of the overall system by its rise time R. This term refers to
the amount of time that the plant takes to reach some small neighborhood around the final
state in response to a step change in the reference input.
In the example in the figure above, a small neighborhood of the final state means the values of
y(t) that are within 5 percent of the final value. Hence, the rise time of that system is
approximately equal to 2.5.
Multirate Systems : A plant typically has more than one degree of freedom. Its state is defined
by multiple state variables (e.g., the rotation speed, temperature, etc. of an engine or the tension
and position of a video tape). Therefore, it is monitored by multiple sensors and controlled by
multiple actuators.
One can consider a multivariate (i.e., multi-input/multi-output) controller for such a plant as a
system of single-output controllers. Because different state variables may have different
dynamics, the sampling periods required to achieve smooth responses from the perspective of
different state variables maybe different. [For example, because the rotation speed of a engine
changes faster than its temperature, the required sampling rate for RPM (Rotation Per Minute)
control is higher than that for the temperature control.]
Of course, we can use the highest of all required sampling rates. This choice simplifies the
controller software since all control laws are computed at the same repetition rate. However,
some control-law computations are done more frequently than necessary; some processor time is
wasted. To prevent this waste, multivariate digital controllers usually use multiple rates and are
therefore called multirate systems. Many times, the sampling periods used in a multirate system
are related in a harmonic way, that is, each longer sampling period is an integer multiple of every
shorter period.
This multirate controller controls only flight dynamics. The control system on board an aircraft is
considerably more complex which typically contains many other equally critical subsystems

yayavaram@yahoo.com
5
(e.g., air inlet, fuel, hydraulic, brakes, and anti-ice controllers) and many not so critical
subsystems (e.g., lighting and environment temperature controllers). So, in addition to the flight
control-law computations, the system also computes the control laws of these subsystems.
Controllers in a complex monitor and control system are typically organized hierarchically. One
or more digital controllers at the lowest level directly control the physical plant. Each output of a
higher-level controller is a reference input of one or more lower-level controllers.
For example, a patient care system may consist of microprocessor-based controllers that monitor
and control the patient’s blood pressure, respiration, glucose, and so forth. There may be a
higher-level controller (e.g., an expert system) which interacts with the operator (a nurse or
doctor) and chooses the desired values of these health indicators. While the computation done by
each digital controller is simple and nearly deterministic, the computation of a high level
controller is likely to be far more complex and variable. While the period of a low level control-
law computation ranges from milliseconds to seconds, the periods of high-level control-law
computations may be minutes, even hours.
Figure below shows a more complex example: the hierarchy of flight control, avionics,and air
traffic control systems .
The Air Traffic Control (ATC) system is at the highest level. It regulates the flow of flights to
each destination airport. It does so by assigning to each air craft an arrival time at each metering
(or waypoint) en route to the destination: The aircraft is supposed to arrive at the metering fix at
the assigned arrival time. At any time while in flight, the assigned arrival time to the next
metering fix is a reference input to the on-board flight management system. The flight
management system chooses a time-referenced flight path that brings the aircraft to the next
metering fix at the assigned arrival time. The cruise speed, turn radius, decent/accent rates, and
so forth required to follow the chosen time-referenced flight path are the reference inputs to the
flight controller at the lowest level of the control hierarchy.
As another example for higher levels of control let us consider a control system of robots that
perform assembly tasks in a factory for example. Path and trajectory planners at the second level
determine the trajectory to be followed by each industrial robot. These planners typically take as
an input the plan generated by a task planner, which chooses the sequence of assembly steps to
be performed. In a space robot control system, there may be a scenario planner, which

yayavaram@yahoo.com
6
determines how a repair or rendezvous function should be performed. The plan generated by this
planner is an input of the task planner.

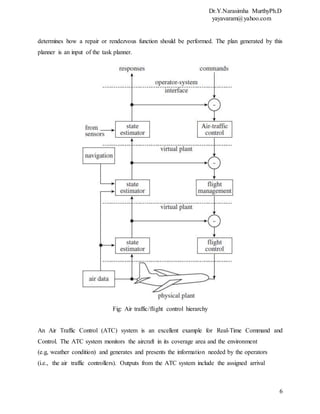

Fig: Air traffic/flight control hierarchy
An Air Traffic Control (ATC) system is an excellent example for Real-Time Command and
Control. The ATC system monitors the aircraft in its coverage area and the environment
(e.g, weather condition) and generates and presents the information needed by the operators
(i.e., the air traffic controllers). Outputs from the ATC system include the assigned arrival

yayavaram@yahoo.com
7
times to metering fixes for individual aircraft. As stated earlier, these outputs are reference
inputs to on-board flight management systems. Thus, the ATC system indirectly controls the
embedded components in low levels of the control hierarchy. In addition, the ATC system
provides voice and telemetry links to on-board avionics. Thus it supports the communication
among the operators at both levels (i.e., the pilots and air traffic controllers).The ATC system
gathers information on the “state” of each aircraft via one or more active radars. Such a radar
interrogates each aircraft periodically. When interrogated, an aircraft responds by sending to
the ATC system its “state variables”: identifier, position, altitude, heading, and so on.

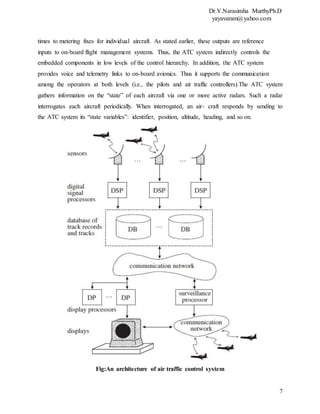

Fig:An architecture of air traffic control system

yayavaram@yahoo.com
8

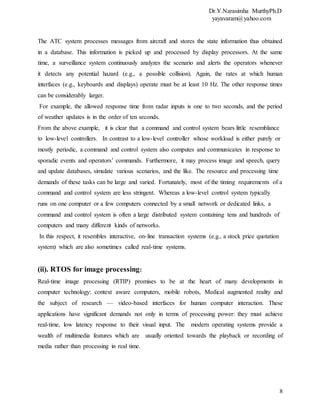

The ATC system processes messages from aircraft and stores the state information thus obtained
in a database. This information is picked up and processed by display processors. At the same
time, a surveillance system continuously analyzes the scenario and alerts the operators whenever
it detects any potential hazard (e.g., a possible collision). Again, the rates at which human
interfaces (e.g., keyboards and displays) operate must be at least 10 Hz. The other response times
can be considerably larger.
For example, the allowed response time from radar inputs is one to two seconds, and the period
of weather updates is in the order of ten seconds.
From the above example, it is clear that a command and control system bears little resemblance
to low-level controllers. In contrast to a low-level controller whose workload is either purely or
mostly periodic, a command and control system also computes and communicates in response to
sporadic events and operators’ commands. Furthermore, it may process image and speech, query
and update databases, simulate various scenarios, and the like. The resource and processing time
demands of these tasks can be large and varied. Fortunately, most of the timing requirements of a
command and control system are less stringent. Whereas a low-level control system typically
runs on one computer or a few computers connected by a small network or dedicated links, a
command and control system is often a large distributed system containing tens and hundreds of
computers and many different kinds of networks.
In this respect, it resembles interactive, on-line transaction systems (e.g., a stock price quotation
system) which are also sometimes called real-time systems.
(ii). RTOS for image processing:
Real-time image processing (RTIP) promises to be at the heart of many developments in
computer technology: context aware computers, mobile robots, Medical augmented reality and
the subject of research — video-based interfaces for human computer interaction. These
applications have significant demands not only in terms of processing power: they must achieve
real-time, low latency response to their visual input. The modern operating systems provide a
wealth of multimedia features which are usually oriented towards the playback or recording of
media rather than processing in real time.

yayavaram@yahoo.com
9

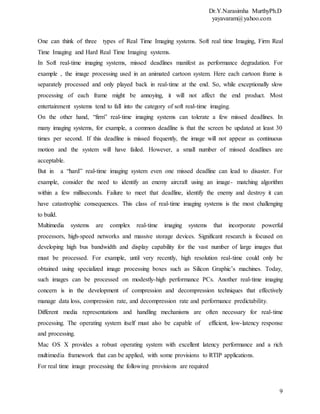

One can think of three types of Real Time Imaging systems. Soft real time Imaging, Firm Real
Time Imaging and Hard Real Time Imaging systems.
In Soft real-time imaging systems, missed deadlines manifest as performance degradation. For
example , the image processing used in an animated cartoon system. Here each cartoon frame is
separately processed and only played back in real-time at the end. So, while exceptionally slow
processing of each frame might be annoying, it will not affect the end product. Most
entertainment systems tend to fall into the category of soft real-time imaging.
On the other hand, “firm” real-time imaging systems can tolerate a few missed deadlines. In
many imaging systems, for example, a common deadline is that the screen be updated at least 30
times per second. If this deadline is missed frequently, the image will not appear as continuous
motion and the system will have failed. However, a small number of missed deadlines are
acceptable.
But in a “hard” real-time imaging system even one missed deadline can lead to disaster. For
example, consider the need to identify an enemy aircraft using an image- matching algorithm
within a few milliseconds. Failure to meet that deadline, identify the enemy and destroy it can
have catastrophic consequences. This class of real-time imaging systems is the most challenging
to build.
Multimedia systems are complex real-time imaging systems that incorporate powerful
processors, high-speed networks and massive storage devices. Significant research is focused on
developing high bus bandwidth and display capability for the vast number of large images that
must be processed. For example, until very recently, high resolution real-time could only be
obtained using specialized image processing boxes such as Silicon Graphic’s machines. Today,
such images can be processed on modestly-high performance PCs. Another real-time imaging
concern is in the development of compression and decompression techniques that effectively
manage data loss, compression rate, and decompression rate and performance predictability.
Different media representations and handling mechanisms are often necessary for real-time
processing. The operating system itself must also be capable of efficient, low-latency response
and processing.
Mac OS X provides a robust operating system with excellent latency performance and a rich
multimedia framework that can be applied, with some provisions to RTIP applications.
For real time image processing the following provisions are required

yayavaram@yahoo.com
10

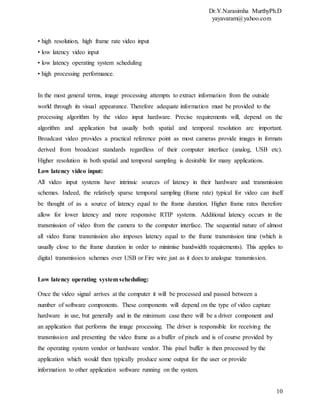

• high resolution, high frame rate video input
• low latency video input
• low latency operating system scheduling
• high processing performance.
In the most general terms, image processing attempts to extract information from the outside
world through its visual appearance. Therefore adequate information must be provided to the
processing algorithm by the video input hardware. Precise requirements will, depend on the
algorithm and application but usually both spatial and temporal resolution are important.
Broadcast video provides a practical reference point as most cameras provide images in formats
derived from broadcast standards regardless of their computer interface (analog, USB etc).
Higher resolution in both spatial and temporal sampling is desirable for many applications.
Low latency video input:
All video input systems have intrinsic sources of latency in their hardware and transmission
schemes. Indeed, the relatively sparse temporal sampling (frame rate) typical for video can itself
be thought of as a source of latency equal to the frame duration. Higher frame rates therefore
allow for lower latency and more responsive RTIP systems. Additional latency occurs in the
transmission of video from the camera to the computer interface. The sequential nature of almost
all video frame transmission also imposes latency equal to the frame transmission time (which is
usually close to the frame duration in order to minimise bandwidth requirements). This applies to
digital transmission schemes over USB or Fire wire just as it does to analogue transmission.
Low latency operating system scheduling:
Once the video signal arrives at the computer it will be processed and passed between a
number of software components. These components will depend on the type of video capture
hardware in use, but generally and in the minimum case there will be a driver component and
an application that performs the image processing. The driver is responsible for receiving the
transmission and presenting the video frame as a buffer of pixels and is of course provided by
the operating system vendor or hardware vendor. This pixel buffer is then processed by the
application which would then typically produce some output for the user or provide
information to other application software running on the system.

yayavaram@yahoo.com
11

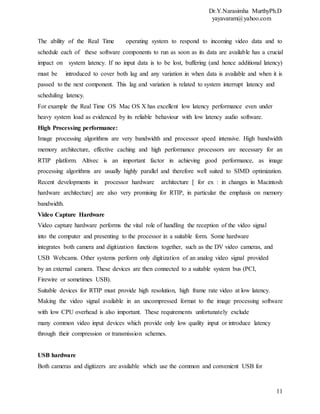

The ability of the Real Time operating system to respond to incoming video data and to
schedule each of these software components to run as soon as its data are available has a crucial
impact on system latency. If no input data is to be lost, buffering (and hence additional latency)
must be introduced to cover both lag and any variation in when data is available and when it is
passed to the next component. This lag and variation is related to system interrupt latency and
scheduling latency.
For example the Real Time OS Mac OS X has excellent low latency performance even under
heavy system load as evidenced by its reliable behaviour with low latency audio software.
High Processing performance:
Image processing algorithms are very bandwidth and processor speed intensive. High bandwidth
memory architecture, effective caching and high performance processors are necessary for an
RTIP platform. Altivec is an important factor in achieving good performance, as image
processing algorithms are usually highly parallel and therefore well suited to SIMD optimization.
Recent developments in processor hardware architecture [ for ex : in changes in Macintosh
hardware architecture] are also very promising for RTIP, in particular the emphasis on memory
bandwidth.
Video Capture Hardware
Video capture hardware performs the vital role of handling the reception of the video signal
into the computer and presenting to the processor in a suitable form. Some hardware
integrates both camera and digitization functions together, such as the DV video cameras, and
USB Webcams. Other systems perform only digitization of an analog video signal provided
by an external camera. These devices are then connected to a suitable system bus (PCI,
Firewire or sometimes USB).
Suitable devices for RTIP must provide high resolution, high frame rate video at low latency.
Making the video signal available in an uncompressed format to the image processing software
with low CPU overhead is also important. These requirements unfortunately exclude
many common video input devices which provide only low quality input or introduce latency
through their compression or transmission schemes.
USB hardware
Both cameras and digitizers are available which use the common and convenient USB for

yayavaram@yahoo.com
12

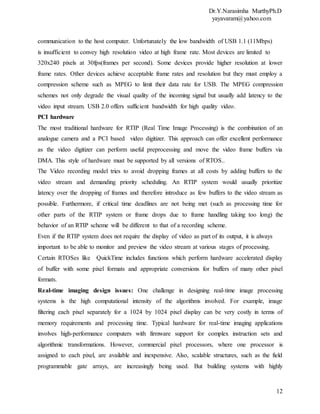

communication to the host computer. Unfortunately the low bandwidth of USB 1.1 (11Mbps)
is insufficient to convey high resolution video at high frame rate. Most devices are limited to
320x240 pixels at 30fps(frames per second). Some devices provide higher resolution at lower
frame rates. Other devices achieve acceptable frame rates and resolution but they must employ a
compression scheme such as MPEG to limit their data rate for USB. The MPEG compression
schemes not only degrade the visual quality of the incoming signal but usually add latency to the
video input stream. USB 2.0 offers sufficient bandwidth for high quality video.
PCI hardware
The most traditional hardware for RTIP (Real Time Image Processing) is the combination of an
analogue camera and a PCI based video digitizer. This approach can offer excellent performance
as the video digitizer can perform useful preprocessing and move the video frame buffers via
DMA. This style of hardware must be supported by all versions of RTOS..
The Video recording model tries to avoid dropping frames at all costs by adding buffers to the
video stream and demanding priority scheduling. An RTIP system would usually prioritize
latency over the dropping of frames and therefore introduce as few buffers to the video stream as
possible. Furthermore, if critical time deadlines are not being met (such as processing time for
other parts of the RTIP system or frame drops due to frame handling taking too long) the
behavior of an RTIP scheme will be different to that of a recording scheme.
Even if the RTIP system does not require the display of video as part of its output, it is always
important to be able to monitor and preview the video stream at various stages of processing.
Certain RTOSes like QuickTime includes functions which perform hardware accelerated display
of buffer with some pixel formats and appropriate conversions for buffers of many other pixel
formats.
Real-time imaging design issues: One challenge in designing real-time image processing
systems is the high computational intensity of the algorithms involved. For example, image
filtering each pixel separately for a 1024 by 1024 pixel display can be very costly in terms of
memory requirements and processing time. Typical hardware for real-time imaging applications
involves high-performance computers with firmware support for complex instruction sets and
algorithmic transformations. However, commercial pixel processors, where one processor is
assigned to each pixel, are available and inexpensive. Also, scalable structures, such as the field
programmable gate arrays, are increasingly being used. But building systems with highly

yayavaram@yahoo.com
13

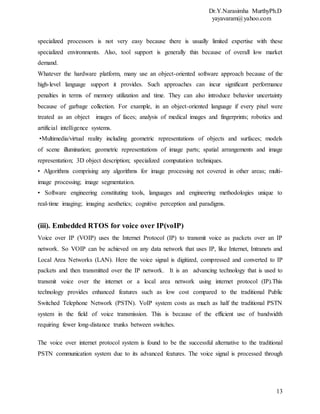

specialized processors is not very easy because there is usually limited expertise with these
specialized environments. Also, tool support is generally thin because of overall low market
demand.
Whatever the hardware platform, many use an object-oriented software approach because of the
high-level language support it provides. Such approaches can incur significant performance
penalties in terms of memory utilization and time. They can also introduce behavior uncertainty
because of garbage collection. For example, in an object-oriented language if every pixel were
treated as an object images of faces; analysis of medical images and fingerprints; robotics and
artificial intelligence systems.
•Multimedia/virtual reality including geometric representations of objects and surfaces; models
of scene illumination; geometric representations of image parts; spatial arrangements and image
representation; 3D object description; specialized computation techniques.
• Algorithms comprising any algorithms for image processing not covered in other areas; multi-
image processing; image segmentation.
• Software engineering constituting tools, languages and engineering methodologies unique to
real-time imaging; imaging aesthetics; cognitive perception and paradigms.
(iii). Embedded RTOS for voice over IP(voIP)
Voice over IP (VOIP) uses the Internet Protocol (IP) to transmit voice as packets over an IP
network. So VOIP can be achieved on any data network that uses IP, like Internet, Intranets and
Local Area Networks (LAN). Here the voice signal is digitized, compressed and converted to IP
packets and then transmitted over the IP network. It is an advancing technology that is used to
transmit voice over the internet or a local area network using internet protocol (IP).This
technology provides enhanced features such as low cost compared to the traditional Public
Switched Telephone Network (PSTN). VoIP system costs as much as half the traditional PSTN
system in the field of voice transmission. This is because of the efficient use of bandwidth
requiring fewer long-distance trunks between switches.
The voice over internet protocol system is found to be the successful alternative to the traditional
PSTN communication system due to its advanced features. The voice signal is processed through

yayavaram@yahoo.com
14
the internet based network during the communication. The conceptual diagram of VoIP system is
shown in Fig.below.
The basic steps in derivation of the designed VoIP system are:
 The original speech signal is fed in to the system and the speech samples are taken from .
 The speech signal is then encoded with G.711a and Speex speech encoders, which is the
compressed version of the input signal. G.711a is the standard used for the
communication purpose and is a high bit rate Pulse Code Modulation codec. It works at
sampling rate of 8 kHz and uses and compresses the 16 bit audio samples into 8bits . The
Code Excited Linear Prediction (CELP) Speex codec is an open source codec developed
for the packet network and VoIP applications.The Speex supports three different
sampling rates narrowband (8 kHz), wideband (16 kHz) and ultra-wideband (32 kHz).
 The compressed signal is then packetized into VoIP packets to transfer it to the IP
network.
 The speech signal is degraded due to the various network impairments including delay,
jitter and packet loss during VoIP communications. The network impairments are
introduced through the lab WANem emulator .
 The degraded VoIP signal is depacketized and then decoded with G.711a and Speex
decoders.
 The performance is evaluated with Perceptual Evaluation of Speech Quality (PESQ)
measurement defined by ITU-T recommendation P.862 . After comparing the degraded

yayavaram@yahoo.com
15
signal with the original one, the PESQ measurement gives the subjective measurement as
Mean Opinion Scores (MOS) value from -0.5 to 4.5.
 The VoIP signal is processed through various signal processing algorithms to evaluate the
performance of the system.
Voice quality in communication systems is influenced by many factors such as packet delay,
jitter, packet loss and type & amount of voice compression. Due to these distortion factors, the
speech signal is not of very good quality over the VoIP network. Delay is the time taken by the
voice to reach from talker’s mouth to the listener’s ear. Round trip delay is the sum of two one-
way delays that occur in the user’s call. In VoIP system, the propagation delay is also affected by
two additional delays such as packeting delay and the time required for propagating the packet
through the network. This varies the propagation delay during the transmission.
The variation in the arrival time of the packets at the receiver end leads to jitter, which affects the
perceived quality of conversation very badly. The sender is expected to transmit each voice
packet at a regular interval. But jitter affects the speech in such a way that all voice packets do
not arrive at the right time at the decoder and thus reconstructed speech would not be continuous,
at the receiver end. The transmission time of a packet through IP network varies due to queuing
effect in the interconnected network. The packet loss is the percentage of the lost packets during
the transportation due to various network conditions such as buffer overflow, network congestion
etc. The delay and jitter also contribute to the packet losses and these results in harmful effects
on the quality of VoIP signal. Due to the real time requirement for interactive speech
transmission, it is usually impossible for the receivers to request the sender to retransmit the lost
packets. When voice packets do not arrive before their payout time, they are considered as lost
and cannot be played when they are received. Even a single lost packet may generate audible
distortion in the decoded speech signal.

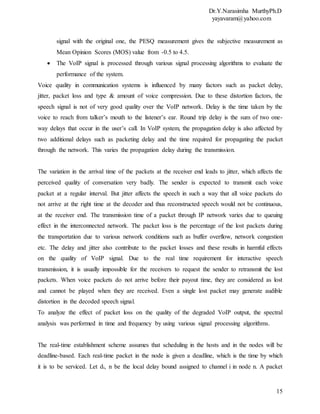

To analyze the effect of packet loss on the quality of the degraded VoIP output, the spectral
analysis was performed in time and frequency by using various signal processing algorithms.
The real-time establishment scheme assumes that scheduling in the hosts and in the nodes will be
deadline-based. Each real-time packet in the node is given a deadline, which is the time by which
it is to be serviced. Let di, n be the local delay bound assigned to channel i in node n. A packet

yayavaram@yahoo.com
16

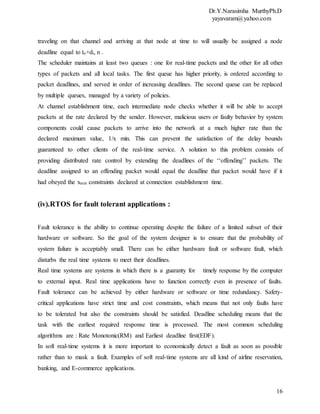

traveling on that channel and arriving at that node at time to will usually be assigned a node
deadline equal to to+di, n .
The scheduler maintains at least two queues : one for real-time packets and the other for all other
types of packets and all local tasks. The first queue has higher priority, is ordered according to
packet deadlines, and served in order of increasing deadlines. The second queue can be replaced
by multiple queues, managed by a variety of policies.
At channel establishment time, each intermediate node checks whether it will be able to accept
packets at the rate declared by the sender. However, malicious users or faulty behavior by system
components could cause packets to arrive into the network at a much higher rate than the
declared maximum value, 1/x min. This can prevent the satisfaction of the delay bounds
guaranteed to other clients of the real-time service. A solution to this problem consists of
providing distributed rate control by extending the deadlines of the ‘‘offending’’ packets. The
deadline assigned to an offending packet would equal the deadline that packet would have if it
had obeyed the xmin constraints declared at connection establishment time.
(iv).RTOS for fault tolerant applications :
Fault tolerance is the ability to continue operating despite the failure of a limited subset of their
hardware or software. So the goal of the system designer is to ensure that the probability of
system failure is acceptably small. There can be either hardware fault or software fault, which
disturbs the real time systems to meet their deadlines.
Real time systems are systems in which there is a guaranty for timely response by the computer
to external input. Real time applications have to function correctly even in presence of faults.
Fault tolerance can be achieved by either hardware or software or time redundancy. Safety-
critical applications have strict time and cost constraints, which means that not only faults have
to be tolerated but also the constraints should be satisfied. Deadline scheduling means that the
task with the earliest required response time is processed. The most common scheduling
algorithms are : Rate Monotonic(RM) and Earliest deadline first(EDF).
In soft real-time systems it is more important to economically detect a fault as soon as possible
rather than to mask a fault. Examples of soft real-time systems are all kind of airline reservation,
banking, and E-commerce applications.

yayavaram@yahoo.com
17

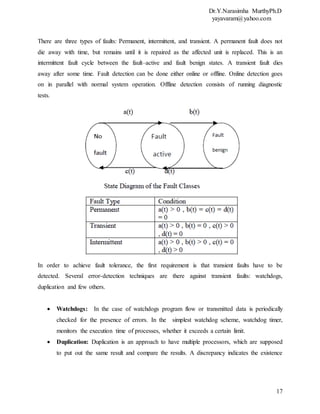

There are three types of faults: Permanent, intermittent, and transient. A permanent fault does not
die away with time, but remains until it is repaired as the affected unit is replaced. This is an
intermittent fault cycle between the fault–active and fault benign states. A transient fault dies
away after some time. Fault detection can be done either online or offline. Online detection goes
on in parallel with normal system operation. Offline detection consists of running diagnostic
tests.
In order to achieve fault tolerance, the first requirement is that transient faults have to be
detected. Several error-detection techniques are there against transient faults: watchdogs,
duplication and few others.
 Watchdogs: In the case of watchdogs program flow or transmitted data is periodically
checked for the presence of errors. In the simplest watchdog scheme, watchdog timer,
monitors the execution time of processes, whether it exceeds a certain limit.
 Duplication: Duplication is an approach to have multiple processors, which are supposed
to put out the same result and compare the results. A discrepancy indicates the existence

yayavaram@yahoo.com
18

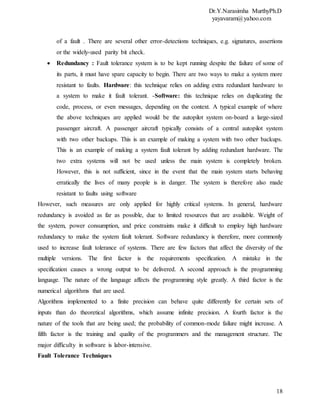

of a fault . There are several other error-detections techniques, e.g. signatures, assertions
or the widely-used parity bit check.
 Redundancy : Fault tolerance system is to be kept running despite the failure of some of
its parts, it must have spare capacity to begin. There are two ways to make a system more
resistant to faults. Hardware: this technique relies on adding extra redundant hardware to
a system to make it fault tolerant. -Software: this technique relies on duplicating the
code, process, or even messages, depending on the context. A typical example of where
the above techniques are applied would be the autopilot system on-board a large-sized
passenger aircraft. A passenger aircraft typically consists of a central autopilot system
with two other backups. This is an example of making a system with two other backups.
This is an example of making a system fault tolerant by adding redundant hardware. The
two extra systems will not be used unless the main system is completely broken.
However, this is not sufficient, since in the event that the main system starts behaving
erratically the lives of many people is in danger. The system is therefore also made
resistant to faults using software
However, such measures are only applied for highly critical systems. In general, hardware
redundancy is avoided as far as possible, due to limited resources that are available. Weight of
the system, power consumption, and price constraints make it difficult to employ high hardware
redundancy to make the system fault tolerant. Software redundancy is therefore, more commonly
used to increase fault tolerance of systems. There are few factors that affect the diversity of the
multiple versions. The first factor is the requirements specification. A mistake in the
specification causes a wrong output to be delivered. A second approach is the programming
language. The nature of the language affects the programming style greatly. A third factor is the
numerical algorithms that are used.
Algorithms implemented to a finite precision can behave quite differently for certain sets of
inputs than do theoretical algorithms, which assume infinite precision. A fourth factor is the
nature of the tools that are being used; the probability of common-mode failure might increase. A
fifth factor is the training and quality of the programmers and the management structure. The
major difficulty in software is labor-intensive.
Fault Tolerance Techniques

yayavaram@yahoo.com
19
(i)TMR (Triple Modular Redundancy): Multiple copies are executed and error checking is
achieved by comparing results after completion. In this scheme, the overhead is always on the
order of the number of copies running simultaneously.
(ii) PB (Primary/Backup): The tasks are assumed to be periodic and two instances of each task
(a primary and a backup) are scheduled on a uni-processor system. One of the restrictions of this
approach is that the period of any task should be a multiple of the period of its preceding tasks. It
also assumes that the execution time of the backup is shorter than that of the primary.
(iii) PE (Primary/Exception): It is the same as PB method except that exception handlers are
executed instead of backup programs.
(iv)Primary Backup Fault Tolerance : This is the traditional fault-tolerant approach wherein
both time as well as space exclusions are used. The main idea behind this algorithm is that (a) the
backup of a task need not execute if its primary executes successfully, (b) the time exclusion in
this algorithm ensures that no resource conflicts occur between the two versions of any task,
which might improve the schedulability. Disadvantages in this system are that (a) there is no de-
allocation of the backup copy, (b) the algorithm assumes that the tasks are periodic (the times of
the tasks are predetermined), (c) compatible (the period of one process is an integral multiple of
the period of the other process) and execution time of the backup is shorter than that of the
primary process.
It can be concluded that appropriate use of redundancy is important in Fault Tolerance ,since
too much redundancy increases reliability but potentially decreases the schedulability. Too little
redundancy decreases reliability but increases schedulability. Also, designing, managing
redundancy incurs additional cost, time, and memory and power consumption.
Acknowledgement: Thanks are due to Prof.Philip A.Laplante, Prof.Daniel HeckenBerg,
Dr.T.R.Gopalkrishnan Nair and Prof.A.Christy Persya without whose papers, the preparation of
this material can’t be thought of.

RTOS APPLICATIONS

More Related Content

What's hot

Viewers also liked

Similar to RTOS APPLICATIONS

More from Dr.YNM

Recently uploaded

RTOS APPLICATIONS
