2. Radial Nerve Palsy Tendon Transfers
Episode II

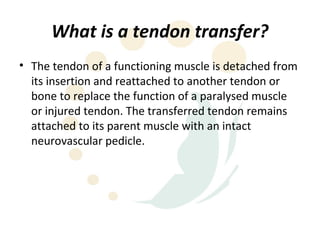

3. What is a tendon transfer?
• The tendon of a functioning muscle is detached from
its insertion and reattached to another tendon or
bone to replace the function of a paralysed muscle
or injured tendon. The transferred tendon remains
attached to its parent muscle with an intact
neurovascular pedicle.

4. What is a tendon transfer?
• “Using the power of a functioning muscle unit to
activate a non functioning nerve/muscle/tendon
unit”.
• Tendon transfers work to correct:
– instability
– imbalance
– lack of co-ordination
– restore function by redistributing remaining muscular
forces

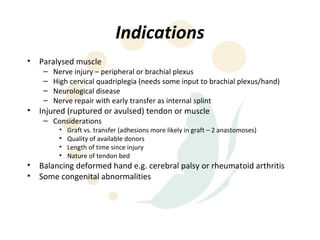

5. Indications
• Paralysed muscle
– Nerve injury – peripheral or brachial plexus
– High cervical quadriplegia (needs some input to brachial plexus/hand)
– Neurological disease
– Nerve repair with early transfer as internal splint
• Injured (ruptured or avulsed) tendon or muscle
– Considerations
• Graft vs. transfer (adhesions more likely in graft – 2 anastomoses)
• Quality of available donors
• Length of time since injury
• Nature of tendon bed
• Balancing deformed hand e.g. cerebral palsy or rheumatoid arthritis
• Some congenital abnormalities

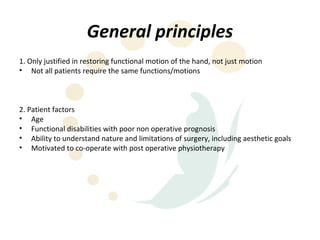

6. General principles
1. Only justified in restoring functional motion of the hand, not just motion
• Not all patients require the same functions/motions
2. Patient factors
• Age
• Functional disabilities with poor non operative prognosis
• Ability to understand nature and limitations of surgery, including aesthetic goals
• Motivated to co-operate with post operative physiotherapy

7. General principles
3. Recipient site
• “Tissue Equilibrium” concept as per Steindler/Boyes
• Tissue bed into which transfer is placed should be soft and supple
• Good soft tissue coverage
• Stable underlying skeleton
• Full passive range of motion of joints to be powered
• Area to be powered must be sensate

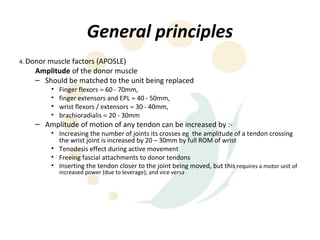

8. General principles
4. Donor muscle factors (APOSLE)
Amplitude of the donor muscle
– Should be matched to the unit being replaced
• Finger flexors ≈ 60 - 70mm,
• finger extensors and EPL ≈ 40 - 50mm,
• wrist flexors / extensors ≈ 30 - 40mm,
• brachioradialis ≈ 20 - 30mm
– Amplitude of motion of any tendon can be increased by :-
• Increasing the number of joints its crosses eg the amplitude of a tendon crossing
the wrist joint is increased by 20 – 30mm by full ROM of wrist
• Tenodesis effect during active movement
• Freeing fascial attachments to donor tendons
• Inserting the tendon closer to the joint being moved, but this requires a motor unit of
increased power (due to leverage); and vice versa

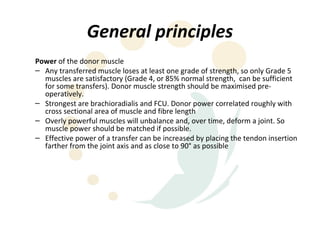

9. General principles
Power of the donor muscle
– Any transferred muscle loses at least one grade of strength, so only Grade 5
muscles are satisfactory (Grade 4, or 85% normal strength, can be sufficient
for some transfers). Donor muscle strength should be maximised pre-
operatively.
– Strongest are brachioradialis and FCU. Donor power correlated roughly with
cross sectional area of muscle and fibre length
– Overly powerful muscles will unbalance and, over time, deform a joint. So
muscle power should be matched if possible.
– Effective power of a transfer can be increased by placing the tendon insertion
farther from the joint axis and as close to 90° as possible

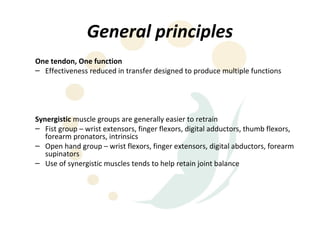

10. General principles
One tendon, One function
– Effectiveness reduced in transfer designed to produce multiple functions
Synergistic muscle groups are generally easier to retrain
– Fist group – wrist extensors, finger flexors, digital adductors, thumb flexors,
forearm pronators, intrinsics
– Open hand group – wrist flexors, finger extensors, digital abductors, forearm
supinators
– Use of synergistic muscles tends to help retain joint balance

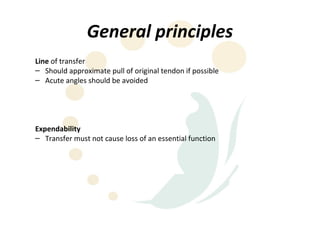

11. General principles
Line of transfer
– Should approximate pull of original tendon if possible
– Acute angles should be avoided
Expendability
– Transfer must not cause loss of an essential function

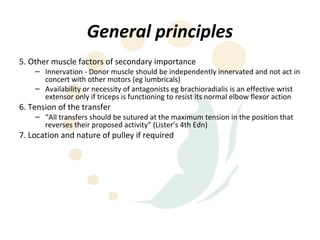

12. General principles
5. Other muscle factors of secondary importance
– Innervation - Donor muscle should be independently innervated and not act in
concert with other motors (eg lumbricals)
– Availability or necessity of antagonists eg brachioradialis is an effective wrist
extensor only if triceps is functioning to resist its normal elbow flexor action
6. Tension of the transfer
– “All transfers should be sutured at the maximum tension in the position that
reverses their proposed activity” (Lister’s 4th Edn)
7. Location and nature of pulley if required

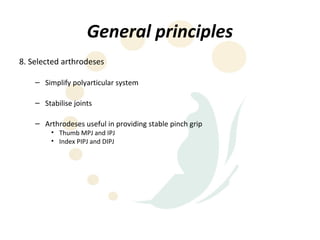

13. General principles
8. Selected arthrodeses
– Simplify polyarticular system
– Stabilise joints
– Arthrodeses useful in providing stable pinch grip
• Thumb MPJ and IPJ
• Index PIPJ and DIPJ

14. General principles
9. Timing
– “The timing of tendon transfers depends upon the aetiology and prognosis of motor
imbalance, the neurophysiologic problems for the patient, and the constitution of the
involved extremity” (Omer GE: Timing of tendon transfers to the hand. Hand Clin
4(2):317, 1988)
– Usually last stage in reconstruction, after skeletal stability, soft tissue coverage,
sensation and joint mobility “tissue equilibrium”
– Brown suggested early transfer if expected poor results
• Nerve gap>4cm
• Large wound or extensive scarring
• Skin loss over nerve
10. Comparison to alternatives
– Nerve repair or transfer
– Tendon repair or graft
– Tenodesis (joint stabilisation by anchoring tendons that move the joint)
– Arthrodesis
– Amputation
– Muscle lengthening, release or denervation (in spasticity)

15. General principles
11. Contraindications
– Age – due to joint stiffness, decreased need for power movements and
difficult rehabilitation
– Motivation – patients must be concerned about disability and highly
motivated to perform hand rehabilitation
– Task analysis – transfers must be designed to accomplish tasks rather than just
specific motions. Eg opening doors requires grasp and twist
– Nature of disability – systemic and local disease factors must be controlled
before reconstruction attempted
12. Disadvantages
– No increase in strength
– Normal function of transferred muscle is lost
– Transferred tendon may perform a different force, amplitude of movement
and functional pattern
– Transferred tendon must learn a new movement/function

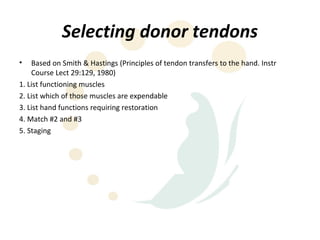

16. Selecting donor tendons
• Based on Smith & Hastings (Principles of tendon transfers to the hand. Instr
Course Lect 29:129, 1980)
1. List functioning muscles
2. List which of those muscles are expendable
3. List hand functions requiring restoration
4. Match #2 and #3
5. Staging

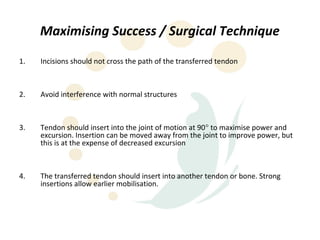

17. Maximising Success / Surgical Technique
1. Incisions should not cross the path of the transferred tendon
2. Avoid interference with normal structures
3. Tendon should insert into the joint of motion at 90° to maximise power and
excursion. Insertion can be moved away from the joint to improve power, but
this is at the expense of decreased excursion
4. The transferred tendon should insert into another tendon or bone. Strong
insertions allow earlier mobilisation.

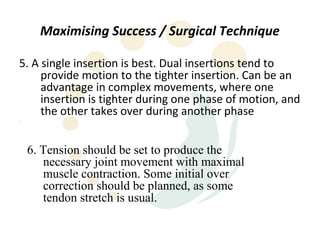

18. Maximising Success / Surgical Technique
5. A single insertion is best. Dual insertions tend to
provide motion to the tighter insertion. Can be an
advantage in complex movements, where one
insertion is tighter during one phase of motion, and
the other takes over during another phase
.
6. Tension should be set to produce the
necessary joint movement with maximal
muscle contraction. Some initial over
correction should be planned, as some
tendon stretch is usual.

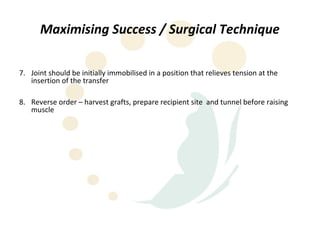

19. Maximising Success / Surgical Technique
7. Joint should be initially immobilised in a position that relieves tension at the
insertion of the transfer
8. Reverse order – harvest grafts, prepare recipient site and tunnel before raising
muscle

20. General Post Operative Management
• Rehabilitation is equally important in tendon transfer success
as surgical execution
• Rehabilitation / physiotherapy is essential in
– Regaining joint mobility lost during splinting
– Training tendon to glide in new course
– Teaching patients to activate a new muscle to achieve a certain
function, which requires development of new neural pathways
• The more that a patient notices a disability, the greater the
motivation, so the easier the retraining
• Children are usually managed with static protocols or longer
protective phase

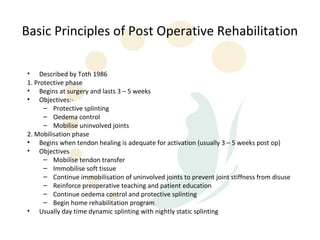

21. Basic Principles of Post Operative Rehabilitation
• Described by Toth 1986
1. Protective phase
• Begins at surgery and lasts 3 – 5 weeks
• Objectives:-
– Protective splinting
– Oedema control
– Mobilise uninvolved joints
2. Mobilisation phase
• Begins when tendon healing is adequate for activation (usually 3 – 5 weeks post op)
• Objectives
– Mobilise tendon transfer
– Immobilise soft tissue
– Continue immobilisation of uninvolved joints to prevent joint stiffness from disuse
– Reinforce preoperative teaching and patient education
– Continue oedema control and protective splinting
– Begin home rehabilitation program
• Usually day time dynamic splinting with nightly static splinting

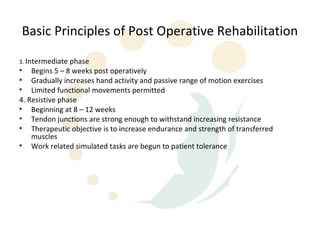

22. Basic Principles of Post Operative Rehabilitation
3. Intermediate phase
• Begins 5 – 8 weeks post operatively
• Gradually increases hand activity and passive range of motion exercises
• Limited functional movements permitted
4. Resistive phase
• Beginning at 8 – 12 weeks
• Tendon junctions are strong enough to withstand increasing resistance
• Therapeutic objective is to increase endurance and strength of transferred
muscles
• Work related simulated tasks are begun to patient tolerance

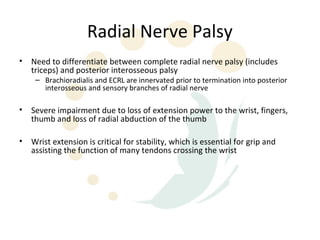

23. Radial Nerve Palsy
• Need to differentiate between complete radial nerve palsy (includes
triceps) and posterior interosseous palsy
– Brachioradialis and ECRL are innervated prior to termination into posterior
interosseous and sensory branches of radial nerve
• Severe impairment due to loss of extension power to the wrist, fingers,
thumb and loss of radial abduction of the thumb
• Wrist extension is critical for stability, which is essential for grip and
assisting the function of many tendons crossing the wrist

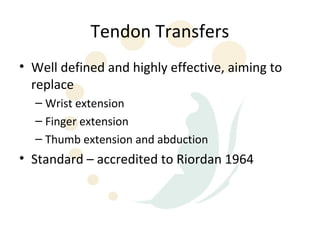

24. Tendon Transfers
• Well defined and highly effective, aiming to
replace
– Wrist extension
– Finger extension
– Thumb extension and abduction
• Standard – accredited to Riordan 1964

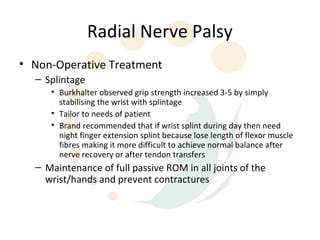

25. Radial Nerve Palsy
• Non-Operative Treatment
– Splintage
• Burkhalter observed grip strength increased 3-5 by simply
stabilising the wrist with splintage
• Tailor to needs of patient
• Brand recommended that if wrist splint during day then need
night finger extension splint because lose length of flexor muscle
fibres making it more difficult to achieve normal balance after
nerve recovery or after tendon transfers
– Maintenance of full passive ROM in all joints of the
wrist/hands and prevent contractures

26. Radial Nerve Palsy
• Early transfers (“Internal Splintage”)
– Burkhalter believes greatest functional loss is grip strength
therefore advocated early PT to ECRB
• Therefore eliminate need for external splint plus also restore grip
strength
– 3 indications:
• Works as substitute during early regeneration
• Works as helper by adding power to reinnervated muscle
• Acts as substitute in cases which results of nerve repair are poor
(eg chronic/crush injuries or elderly)

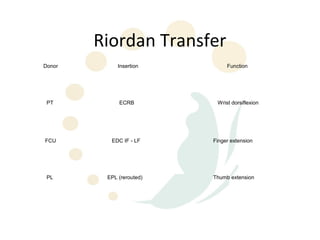

27. Riordan Transfer
Donor Insertion Function
PT ECRB Wrist dorsiflexion
FCU EDC IF - LF Finger extension
PL EPL (rerouted) Thumb extension

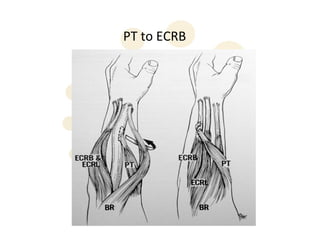

28. PT to ECRB

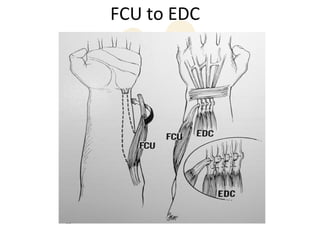

29. FCU to EDC

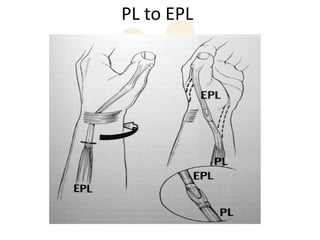

30. PL to EPL

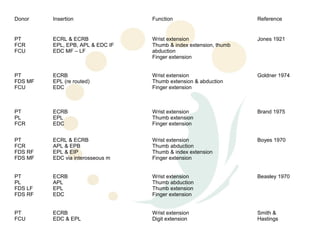

31. Donor Insertion Function Reference
PT ECRL & ECRB Wrist extension Jones 1921
FCR EPL, EPB, APL & EDC IF Thumb & index extension, thumb
FCU EDC MF – LF abduction
Finger extension
PT ECRB Wrist extension Goldner 1974
FDS MF EPL (re routed) Thumb extension & abduction
FCU EDC Finger extension
PT ECRB Wrist extension Brand 1975
PL EPL Thumb extension
FCR EDC Finger extension
PT ECRL & ECRB Wrist extension Boyes 1970
FCR APL & EPB Thumb abduction
FDS RF EPL & EIP Thumb & index extension
FDS MF EDC via interosseous m Finger extension
PT ECRB Wrist extension Beasley 1970
PL APL Thumb abduction
FDS LF EPL Thumb extension
FDS RF EDC Finger extension
PT ECRB Wrist extension Smith &
FCU EDC & EPL Digit extension Hastings

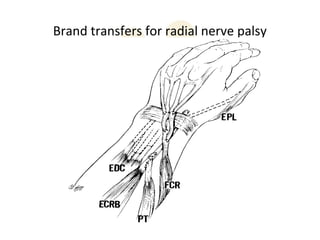

32. Brand transfers for radial nerve palsy

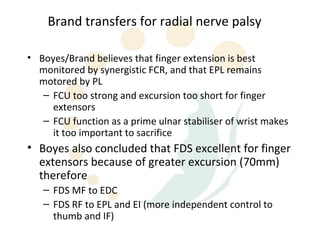

33. Brand transfers for radial nerve palsy
• Boyes/Brand believes that finger extension is best
monitored by synergistic FCR, and that EPL remains
motored by PL
– FCU too strong and excursion too short for finger
extensors
– FCU function as a prime ulnar stabiliser of wrist makes
it too important to sacrifice
• Boyes also concluded that FDS excellent for finger
extensors because of greater excursion (70mm)
therefore
– FDS MF to EDC
– FDS RF to EPL and EI (more independent control to
thumb and IF)

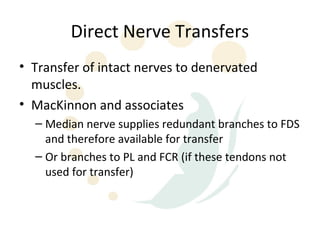

34. Direct Nerve Transfers
• Transfer of intact nerves to denervated
muscles.
• MacKinnon and associates
– Median nerve supplies redundant branches to FDS
and therefore available for transfer
– Or branches to PL and FCR (if these tendons not
used for transfer)

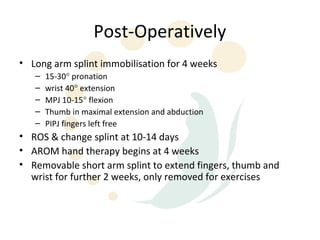

35. Post-Operatively
• Long arm splint immobilisation for 4 weeks
– 15-30° pronation
– wrist 40° extension
– MPJ 10-15° flexion
– Thumb in maximal extension and abduction
– PIPJ fingers left free
• ROS & change splint at 10-14 days
• AROM hand therapy begins at 4 weeks
• Removable short arm splint to extend fingers, thumb and
wrist for further 2 weeks, only removed for exercises
