In this project I use a stack of denoising autoencoders to learn low-dimensional representations of images. These encodings are used as input to a locality sensitive hashing algorithm to find images similar to a given query image. The results clearly shows that this approach outperforms basic LSH by far.

1. Data Mining Project
By Gabriele Angeletti
angeletti.gabriele@gmail.com

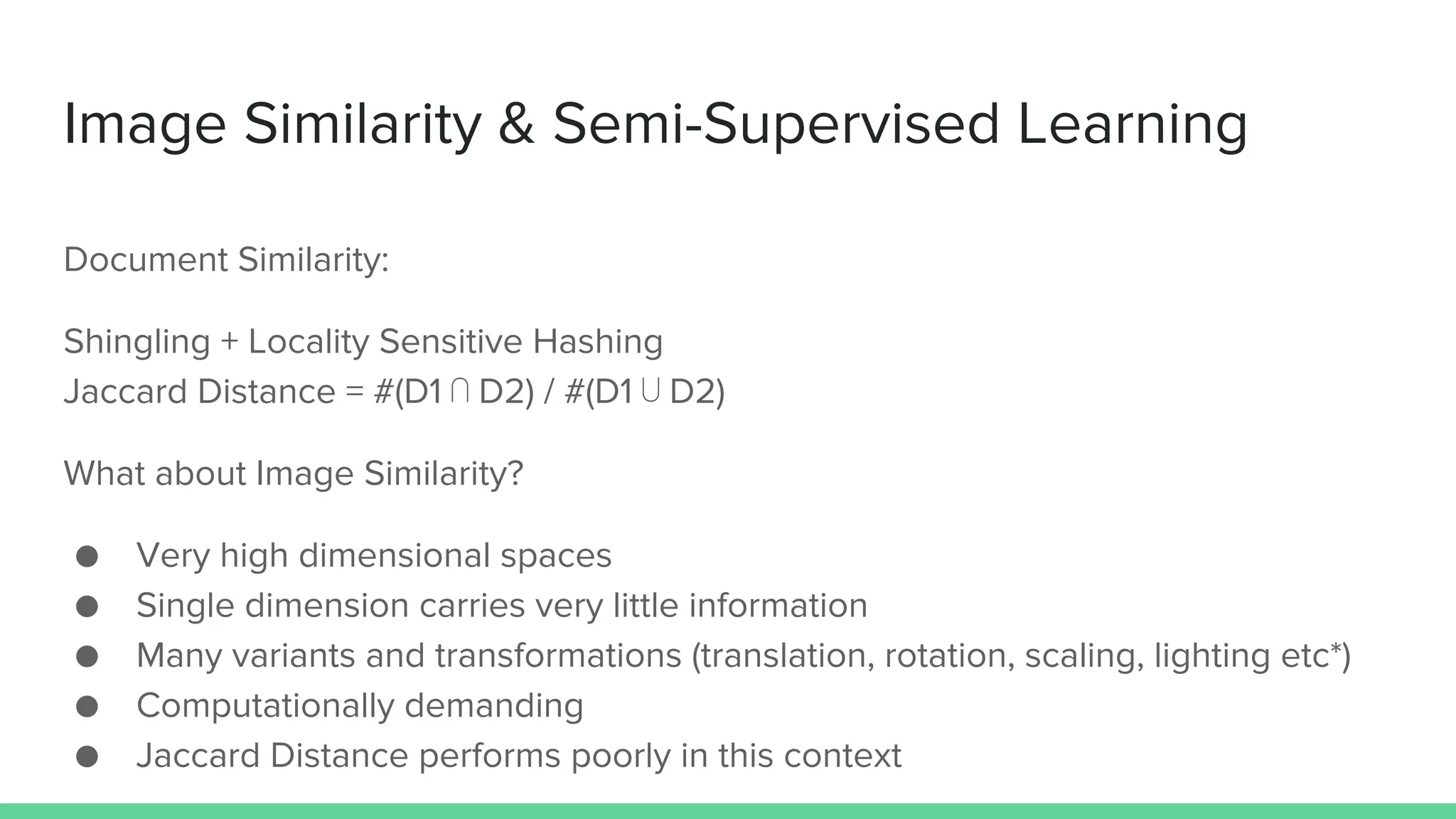

2. Image Similarity & Semi-Supervised Learning
Document Similarity:
Shingling + Locality Sensitive Hashing
Jaccard Distance = #(D1 ⋂ D2) / #(D1 ⋃ D2)
What about Image Similarity?
● Very high dimensional spaces
● Single dimension carries very little information
● Many variants and transformations (translation, rotation, scaling, lighting etc*)
● Computationally demanding
● Jaccard Distance performs poorly in this context

3. Locality Sensitive Hashing
Main idea: hash points in buckets, such that the nearer two points are, the more
likely they are to be hashed in the same bucket.
Need a definition of “near”, and a function that maps “nearby” points to the same
buckets.
LSH Family H: set of function H that is (d1, d2, p1, p2)-sensitive. For points q,p:
If D(p,q) < d1 then P(h(p) == h(q)) > p1
If D(p,q) > d2 then P(h(p) == h(q)) < p2
H: hash functions, D: definition of “near” (“far” actually).
LSH problems: many hyper-parameters to fine-tune, computationally expensive

4. LSH Forest
LSH index place each point p into a bucket with label g(p) = (h1(p), h2(p), . . . , hk(p)), g(p) is the k-digit label
assigned to point p.
LSH Forest, instead of assigning fixed-length labels to points, let the labels be of variable length; each label
is made long enough to ensure that every point has a distinct label. A maximum label length km is imposed.
The variable length label generation: let h1, h2, . . . , hkm be a sequence of km hash functions drawn
independently and uniformly at random from H. The length-x label of a point p is given by g(p, x) = (h1(p), h2
(p), . . . , hx(p)).
Ref: M. Bawa, T. Condie and P. Ganesan, “LSH Forest: Self-Tuning Indexes for Similarity Search”, WWW ‘05 Proceedings of the 14th
international conference on World Wide Web, 651-660, 2005.

5. LSH Forest (cont.)
LSH Tree: logical prefix tree on the set of all labels, with each leaf corresponding to a point.
LSH Forest: composed of L such LSH Trees, each constructed with an independently drawn random
sequence of hash functions from H.
Query processing (m nearest neighbors of point p):
Traversing the LSH Trees in two phases.
In the first top-down phase, find the leaf having the largest
prefix match with p’s label. x := maxl i{xi} is the bottom-most
level of leaf nodes across all L trees.
In the second bottom-up phase, we collect M points from
the LSH Forest, moving up from level x towards the root.
The M points are then ranked in order of decreasing
similarity with p and returned.

6. LSH Forest - test setting
Distance function: cosine distance
LSHForest implementation: sklearn
Hyper-parameters: default values of sklearn
Accuracy metric for the k-th nearest neighbor: (p / data_len)
p = 0
for each element in test set:
If label(element) == label(k nearest neighbor of element)
p++
This accuracy metric measures the ability of LSH Forest to retrieve elements of the same class.

7. LSH Forest - MNIST results
Dataset: MNIST - handwritten digits grayscale image dataset. 28x28 pixels per image
Training set - 50k images
Test set - 10k images
Dataset random samples:
LSH Forest accuracy@k for k = 1, … , 50 neighbors
Accuracy of ~95% for the first neighbor, drops to
~57% for the 50th neighbor.

8. LSH Forest - notMNIST results
Dataset: notMNIST - grayscale images of letters from A to J in different fonts. 28x28 pixels per image
Training set - 200k images
Test set - 10k images
Dataset random samples:
LSH Forest accuracy@k for k = 1, … , 50 neighbors
Accuracy of ~92% for the first neighbor, drops to
~70% for the 50th neighbor.

9. Can we do
better?
Idea: extract higher-level
features with semantic meaning.
How: Unsupervised Neural
Networks (Autoencoders)
● LSH Forest took 784 feature
vectors as input, treating each
pixel like a feature
● Extracting higher-level features
would:
- compress the data
- be computationally efficient
(features << 784)
- improve performance
(comparisons done between
features with semantic meaning
rather than raw pixels)

10. Autoencoders
Idea: Map input space to another space, and then
reconstruct the original input from that space.
The hope is that if the autoencoder is able to
reconstruct the original input from a lower dimensional
representation of if, it means that the representation
has successfully captured important features in the
input distribution.
The mappings are linear in the model parameters (W, b),
followed by a non-linearity, e.s. tanh(Wx + b).
The loss function is usually the l2 loss (mean squared error)
or the cross-entropy loss.

11. Autoencoders - math
Input x with dimension (N x P)
Model parameters:
- matrix W of dimension (P x H)
- vector bh of dimension H
- vector bv of dimension P
h = sigma(Wx + bh) // latent representation (encoder)
z = sigma(W’h + bv) // reconstruction (decoder)
loss = loss_function(x, z)
The parameters update rule is derived using backpropagation (i.e. computing
the gradients with respect to the chosen loss function).
theta’ = theta + learning_rate * gradient_wrt_theta
sigma() is a non-linear activation function (common choices are sigmoid and tanh)

12. Denoising Autoencoders
Autoencoder variant trained to reconstruct the original input starting from a
corrupted version of it (denoising task).
Idea: If the autoencoder is able to reconstruct the input ( )
from a corrupted version of it ( ) we can expect that it must have
captured robust features in the latent representation.
Corruption method used - masking noise: a random fraction v of pixels
is set to 0. Other possible methods: salt-and-pepper noise (fraction v
flipped to minimum or maximum value), gaussian noise.
x~ = noise(x)
h = sigma(Wx~ + bh) // latent representation (encoder)
z = sigma(W’h + bv) // reconstruction (decoder)
loss = loss_function(x, z)

13. Stacked (Denoising) Autoencoders
We can take the latent representation learned by an autoencoder, and use it as
training data for a second autoencoder. In this way, we can create
a stack of autoencoders, where each layer learns a higher-level
representation of the input distribution with respect to the layer
below it. It can be theoretically proved that adding a layer to the stack
will improve the variational bound on the log probability of the data,
if the layers are trained properly.
This procedure is called unsupervised pre-training.
Once the autoencoders are trained, we can construct the final architecture
(deep autoencoder) and perform unsupervised fine-tuning of all the
layers together.

14. Deep Autoencoder - visualize high-level features
Visualization: t-distributed stochastic neighbor embedding (t-SNE)
Left: t-SNE of the original MNIST (784 to 2), Right: t-SNE of the latent representation of a trained deep autoencoder (64 to 2)

15. Combine Deep
Autoencoders
with LSH Forest
● Deep Autoencoders extract high-level
meaningful features (encodings)
● Encodings dimension is typically much
lower than original dimension (data
compression + computational efficiency)
● Similarity can be computed at the
encodings level rather than pixel level (i.
e. similarity between two high-level
features (e.g. eyes) is much more
meaningful than similarity between pairs
of pixels
● This more powerful similarity detection
algorithm can be used in semi-
supervised settings (more on that later)

16. Deep Autoencoder + LSH Forest - MNIST
- Deep Autoencoder architecture:
4 encoders - 784 → 2048 → 1024 → 256 → 64
4 decoders - 64 → 256 → 1024 → 2048 → 784
- LSH Forest ran on 64d encodings
- Sample reconstructions of the model:
LSH Forest accuracy@k for k = 1, … , 50 neighbors
Similar accuracy for the first neighbors, +~35%
deep autoencoder improvement for 50th neighbor

17. Deep Autoencoder + LSH Forest - notMNIST
- Deep Autoencoder architecture:
4 encoders - 784 → 2048 → 1024 → 256 → 64
4 decoders - 64 → 256 → 1024 → 2048 → 784
- LSH Forest ran on 64d encodings
- Sample reconstructions of the model:
LSH Forest accuracy@k for k = 1, … , 50 neighbors
Similar accuracy for the first neighbors, +~16%
deep autoencoder improvement for 50th neighbor

18. Deep Autoencoder + LSH Forest - Query results
MNIST: query image: , neighbors indexes: 1, 6, 12, 20, 27, 36, 50
Basic LSH (n. of 2: 17/50) Deep Autoencoder + LSH (n. of 2: 50/50)
notMNIST: query image: , neighbors indexes: 1, 6, 12, 20, 27, 36, 50
Basic LSH (n. Of G: 7/50) Deep Autoencoder + LSH (n. Of G: 37/50)

19. Can we exploit
better similarity
techniques in
semi-supervised
settings?
● Big Data (unlabeled data >>>> labeled data)
● Supervised learning algorithms need labels
● Assumption: dataset with k% unlabeled data
(say 98%) and j% labeled data (say 2%)
● Can we infer the labels of the 98% of the
data using the labels we have for the 2%?
● Deep Autoencoder + LSH is totally
unsupervised: we can use 100% of the data
● Idea: estimate the label of an item with the
label of the most similar item for which we
have the label

20. Two approaches
First Found: Assign the label of the
most similar item for which the label
is known.
Majority Voting: Assign the most
frequent label between neighbors.
The two results are nearly identical between
the two approaches.
Result: By knowing only 2750 / 55000 (5%) of
the labels in the training set, we can infer the
labels for the test set with a ~95% accuracy.

21. Two more metrics
The average position of the first neighbor
with known label decreases as the number
of known labels increases. Thus, the more
labels we know, the less neighbors we have
to compute with LSH.
The average number of not found elements with
known label decreases as the number of known
label increases. For this not found elements, a
random label is chosen. Anyway, for just 5% of
known labels, avg not founds are just 0.2.

22. Future work:
● Try majority voting weighted on distances
● Try convolutional autoencoders instead of denoising
autoencoders (Huge expected improvement especially
with images, provides translation and rotation invariance)
● Try with more complex datasets (e.g. CIFAR-10, 32x32
color images)
● Try the approach with other domains (e.g. sound, text, ...)
● Object similarity between domains (e.g. image of two
similar to sound of person spelling “two”)
