Pr057 mask rcnn
- 1.
- 3.
- 4.

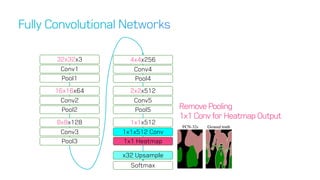

- 5. 32x32x3 Conv1 Pool1 16x16x64 Conv2 Pool2 8x8x128 Conv3 Pool3 4x4x256 Conv4 Pool4 2x2x512 Conv5 Pool5 1x1x512 1x1x512 Conv 1x1 Heatmap x32Upsample Softmax Remove Pooling 1x1 Conv for Heatmap Output
- 7.
- 8.
- 9.
- 10.
- 11.
- 12.
- 13.
- 14.

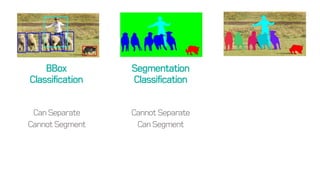

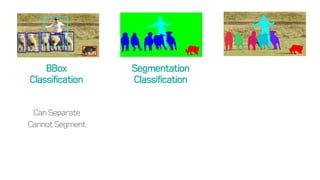

- 15. BBox Classification Segmentation Classification Segmentation in BBox Classification + = CanSeparate Cannot Segment Cannot Separate Can Segment

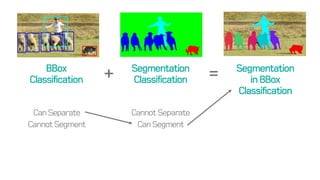

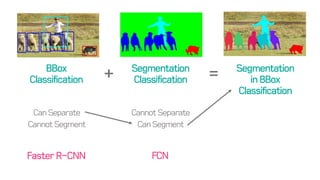

- 16. BBox Classification Segmentation Classification Segmentation in BBox Classification + = CanSeparate Cannot Segment Cannot Separate Can Segment Faster R-CNN FCN

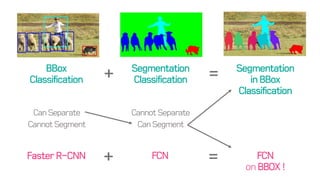

- 17. BBox Classification Segmentation Classification Segmentation in BBox Classification Faster R-CNNFCN FCN on BBOX ! + = + = Can Separate Cannot Segment Cannot Separate Can Segment
- 18.

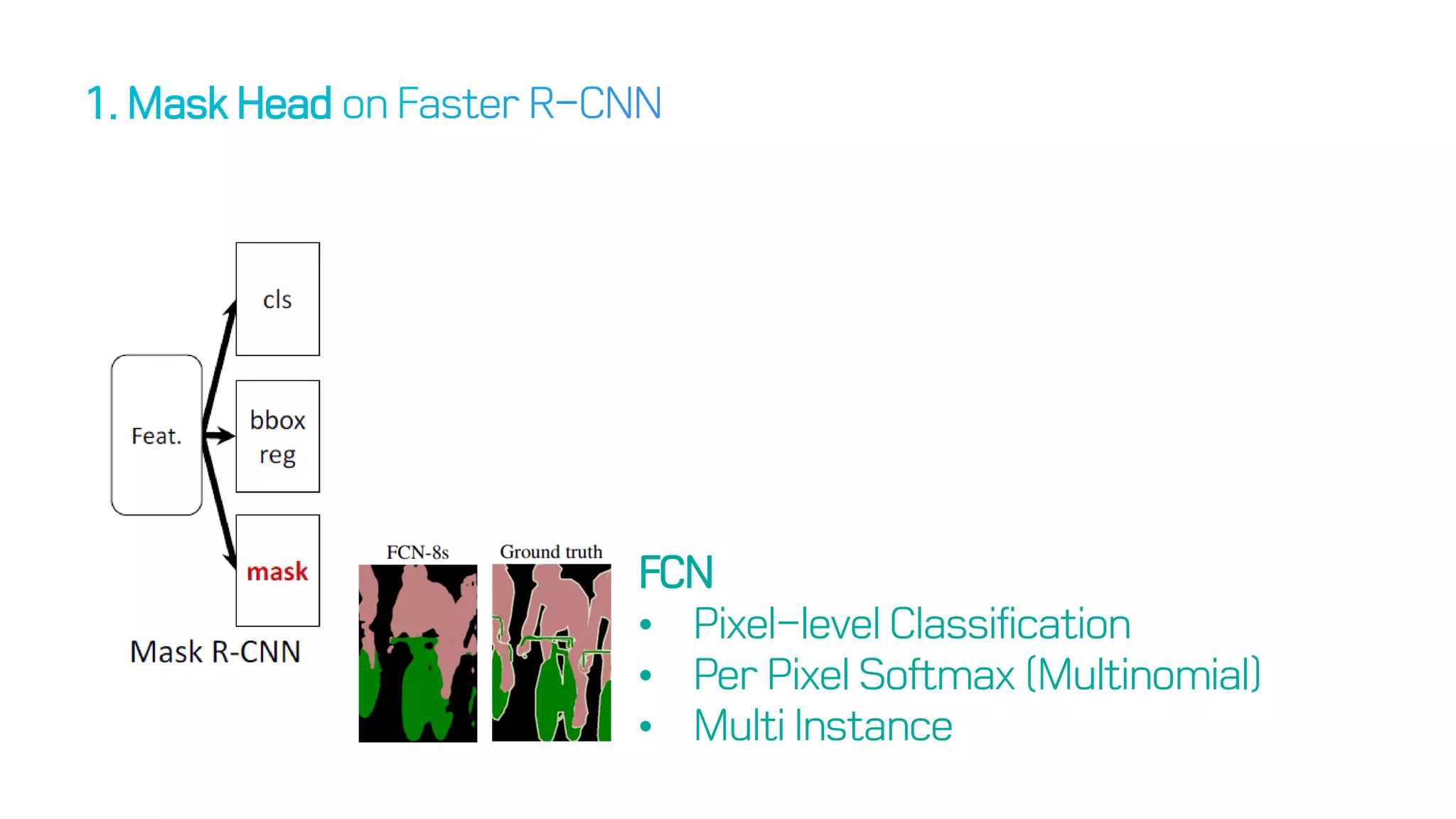

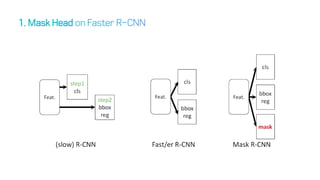

- 28. FCN • Pixel-level Classification •Per Pixel Softmax (Multinomial) • Multi Instance

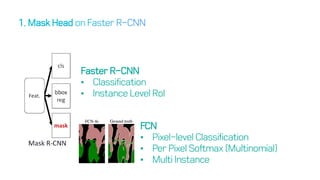

- 29. FCN • Pixel-level Classification •Per Pixel Softmax (Multinomial) • Multi Instance Faster R-CNN • Classification • Instance Level RoI

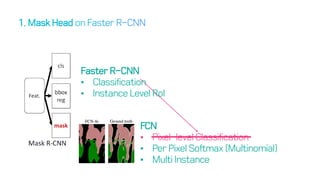

- 30. FCN • Pixel-level Classification •Per Pixel Softmax (Multinomial) • Multi Instance Faster R-CNN • Classification • Instance Level RoI

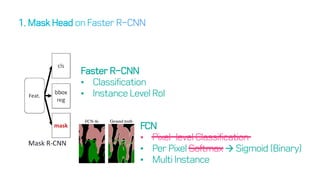

- 31. FCN • Pixel-level Classification •Per Pixel Softmax Sigmoid (Binary) • Multi Instance Faster R-CNN • Classification • Instance Level RoI
- 32. FCN • Pixel-level Classification •Per Pixel Softmax Sigmoid (Binary) • Multi Instance Faster R-CNN • Classification • Instance Level RoI

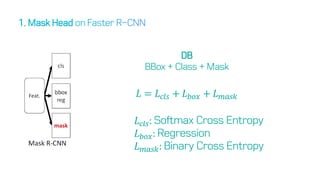

- 33. DB BBox + Class+ Mask 𝐿 = 𝐿𝑐𝑙𝑠 + 𝐿 𝑏𝑜𝑥 + 𝐿 𝑚𝑎𝑠𝑘 𝐿𝑐𝑙𝑠: Softmax Cross Entropy 𝐿 𝑏𝑜𝑥: Regression 𝐿 𝑚𝑎𝑠𝑘: Binary Cross Entropy

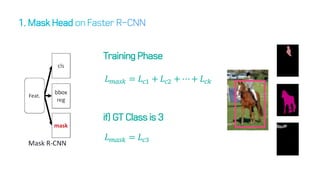

- 34. Training Phase 𝐿 𝑚𝑎𝑠𝑘= 𝐿𝑐1 + 𝐿𝑐2 + ⋯+ 𝐿𝑐𝑘 𝐿 𝑚𝑎𝑠𝑘 = 𝐿𝑐3 if) GT Class is 3

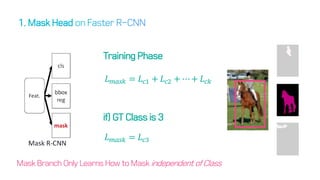

- 35. Training Phase 𝐿 𝑚𝑎𝑠𝑘= 𝐿𝑐1 + 𝐿𝑐2 + ⋯+ 𝐿𝑐𝑘 𝐿 𝑚𝑎𝑠𝑘 = 𝐿𝑐3 if) GT Class is 3 Mask Branch Only Learns How to Mask independent of Class

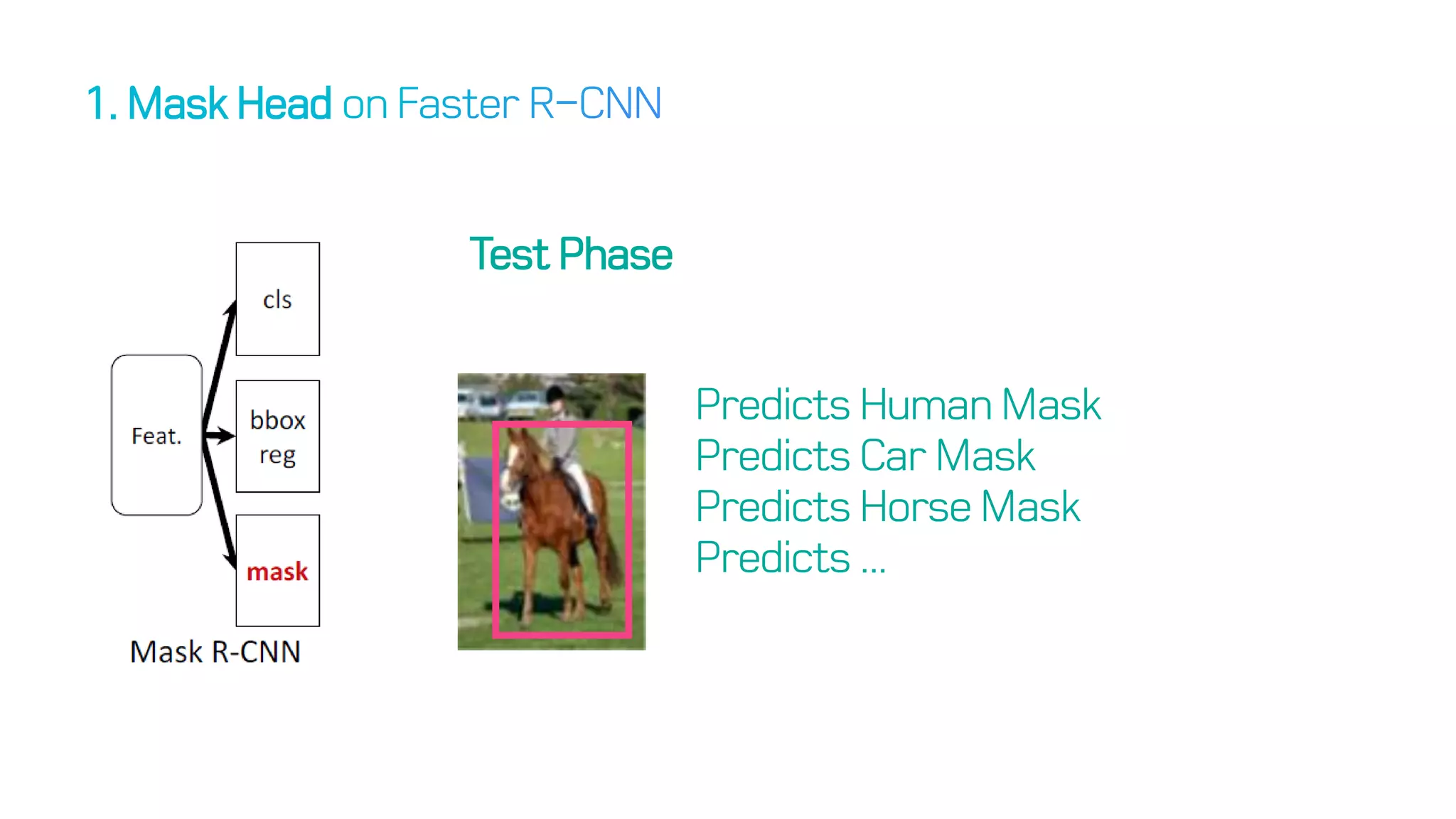

- 36. Test Phase Predicts HumanMask Predicts Car Mask Predicts Horse Mask Predicts ...

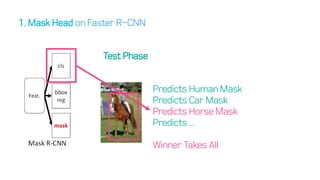

- 37. Test Phase Predicts HumanMask Predicts Car Mask Predicts Horse Mask Predicts ... Winner Takes All
- 39.
- 40.
- 41.
- 42.

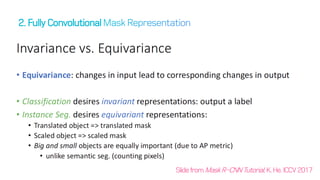

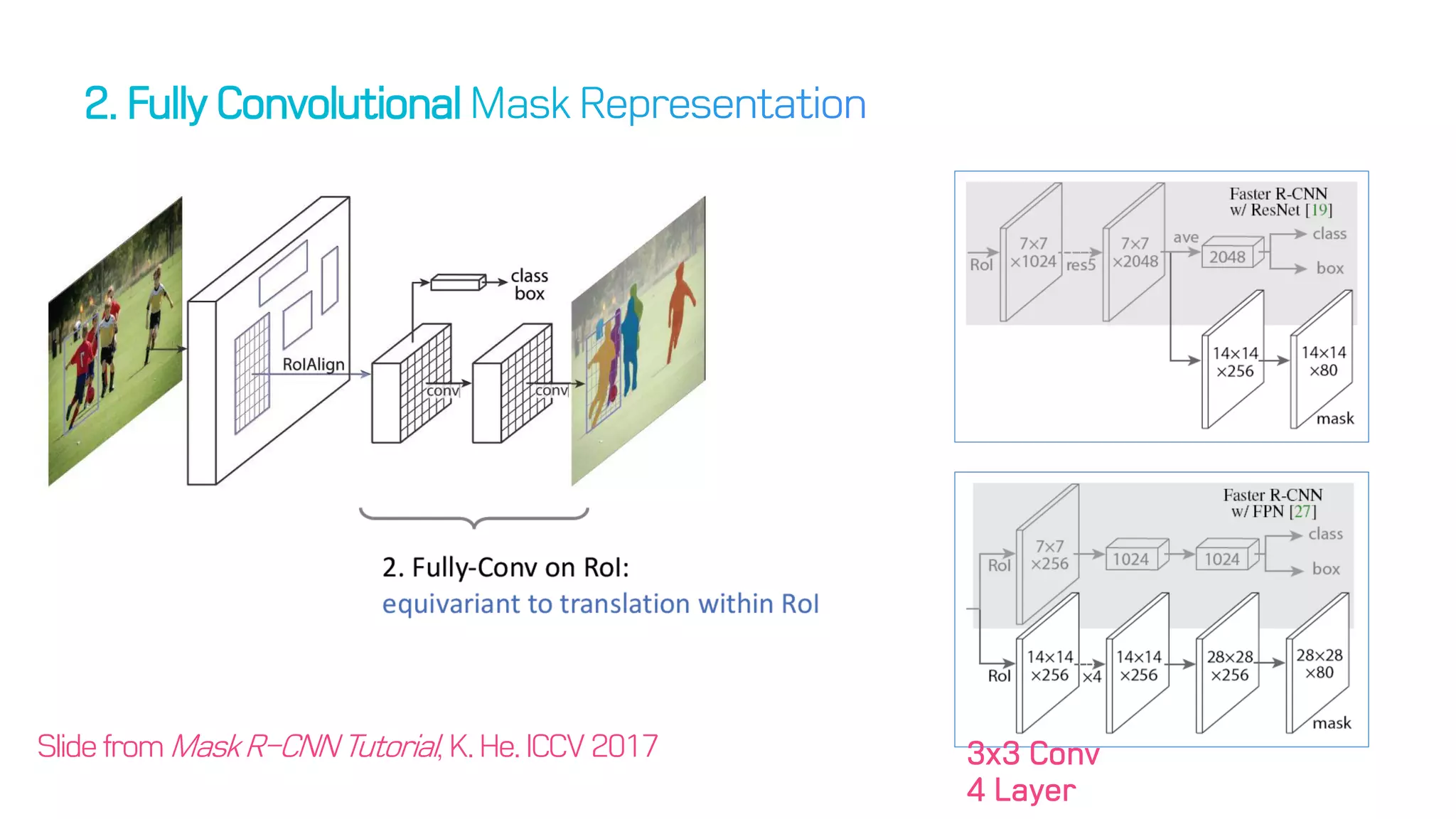

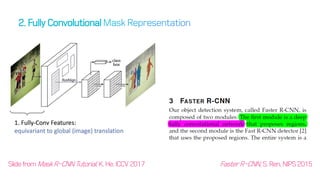

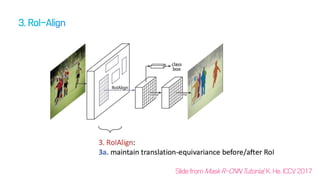

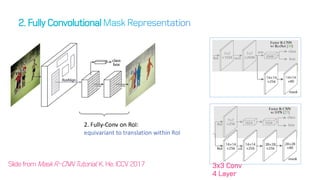

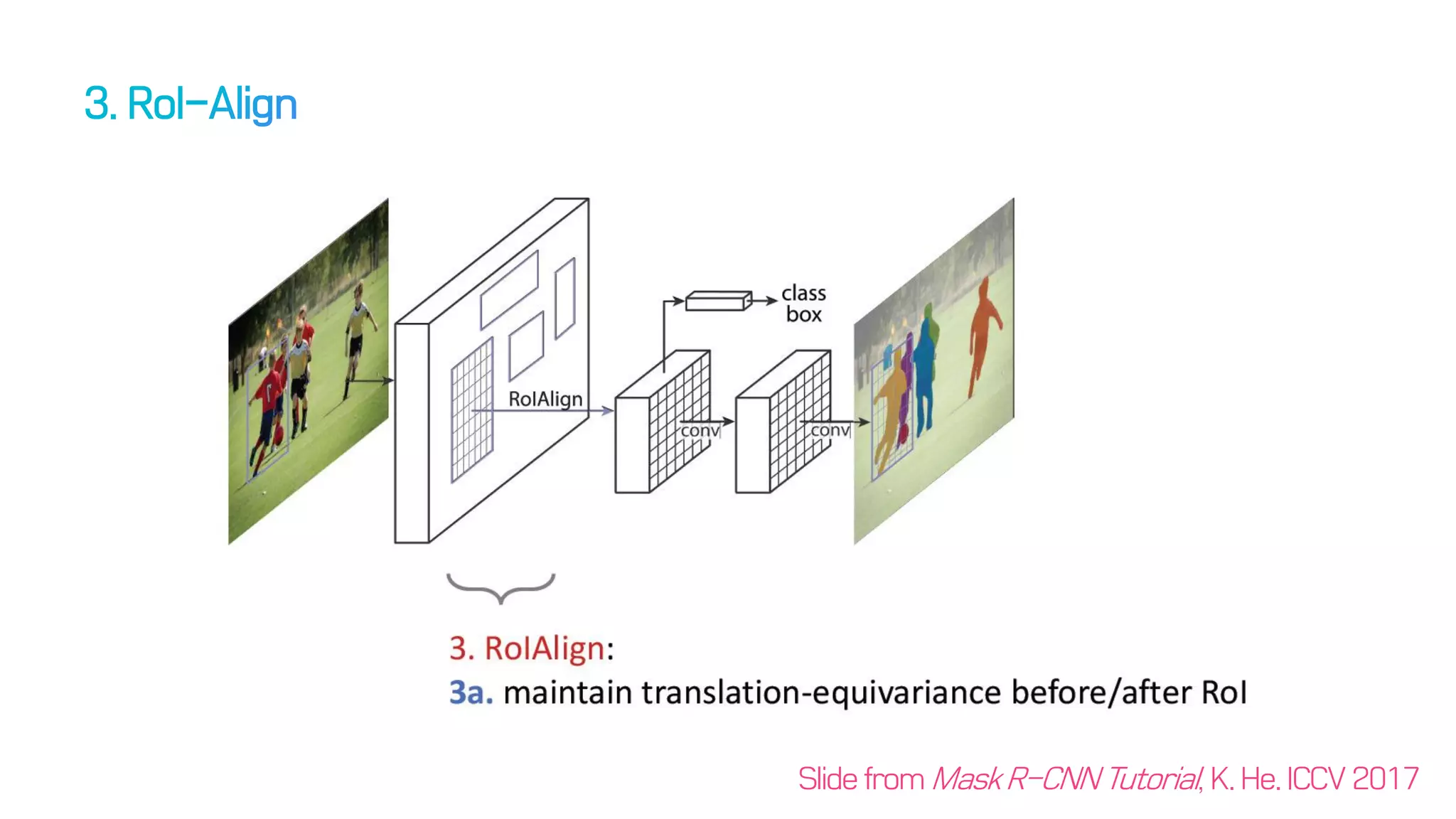

- 43. SlidefromMaskR-CNNTutorial, K.He.ICCV2017 3x3Conv 4 Layer
- 44.
- 46.
- 47.

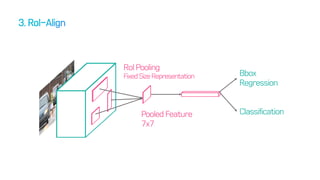

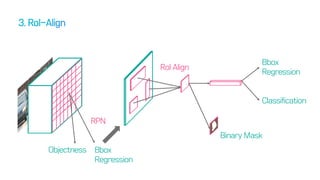

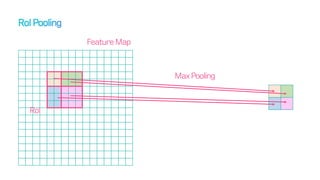

- 48. RoI Pooling (FastR-CNN) • Input: Each RoI • Output: 7x7 Pooled Feature RoI Align (Mask R-CNN) • Input: Each RoI • Output: 7x7 Pooled Feature

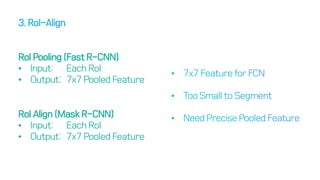

- 49. RoI Pooling (FastR-CNN) • Input: Each RoI • Output: 7x7 Pooled Feature RoI Align (Mask R-CNN) • Input: Each RoI • Output: 7x7 Pooled Feature

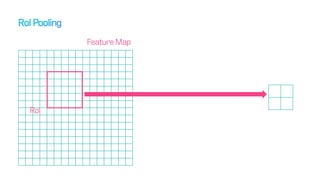

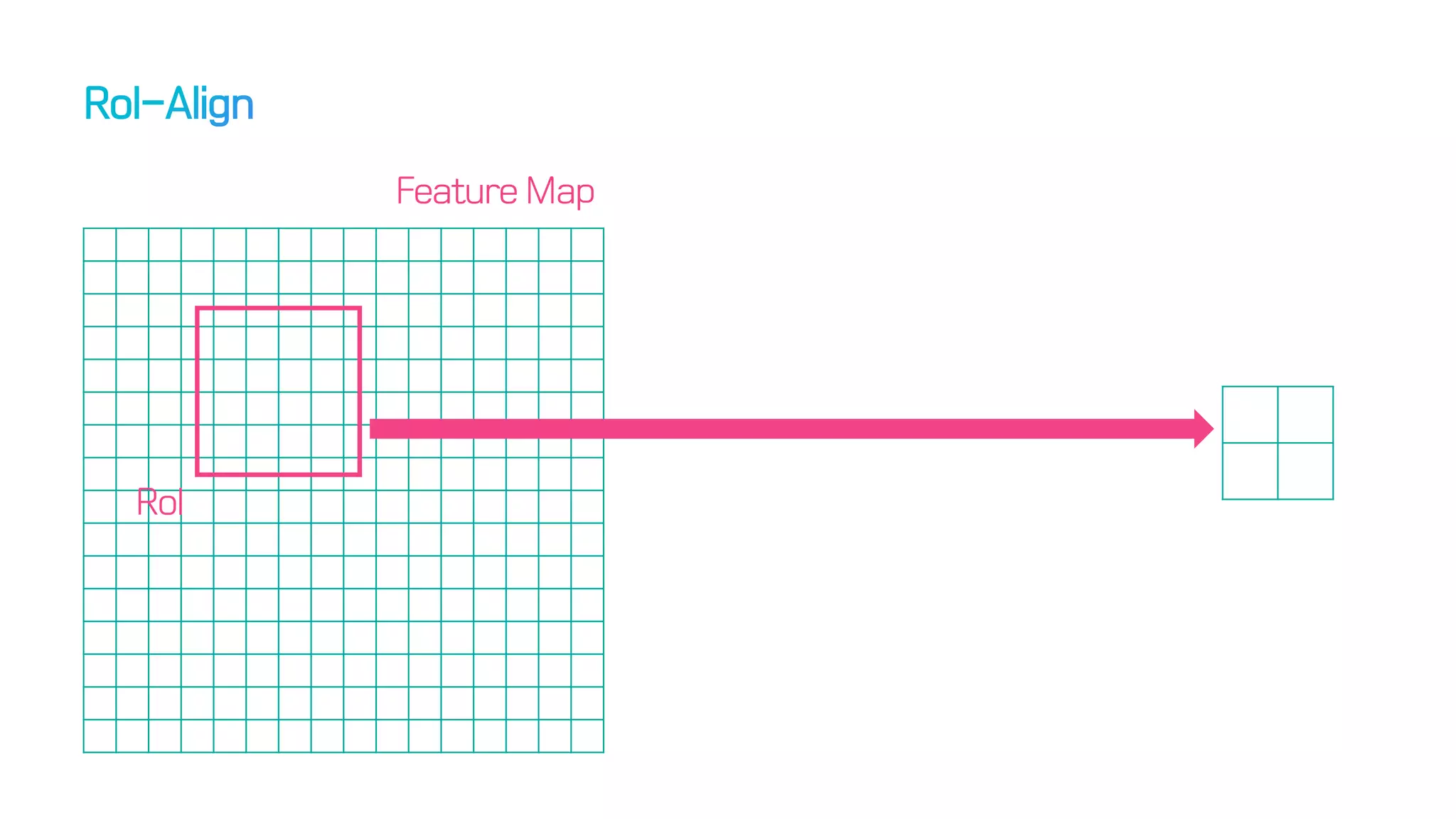

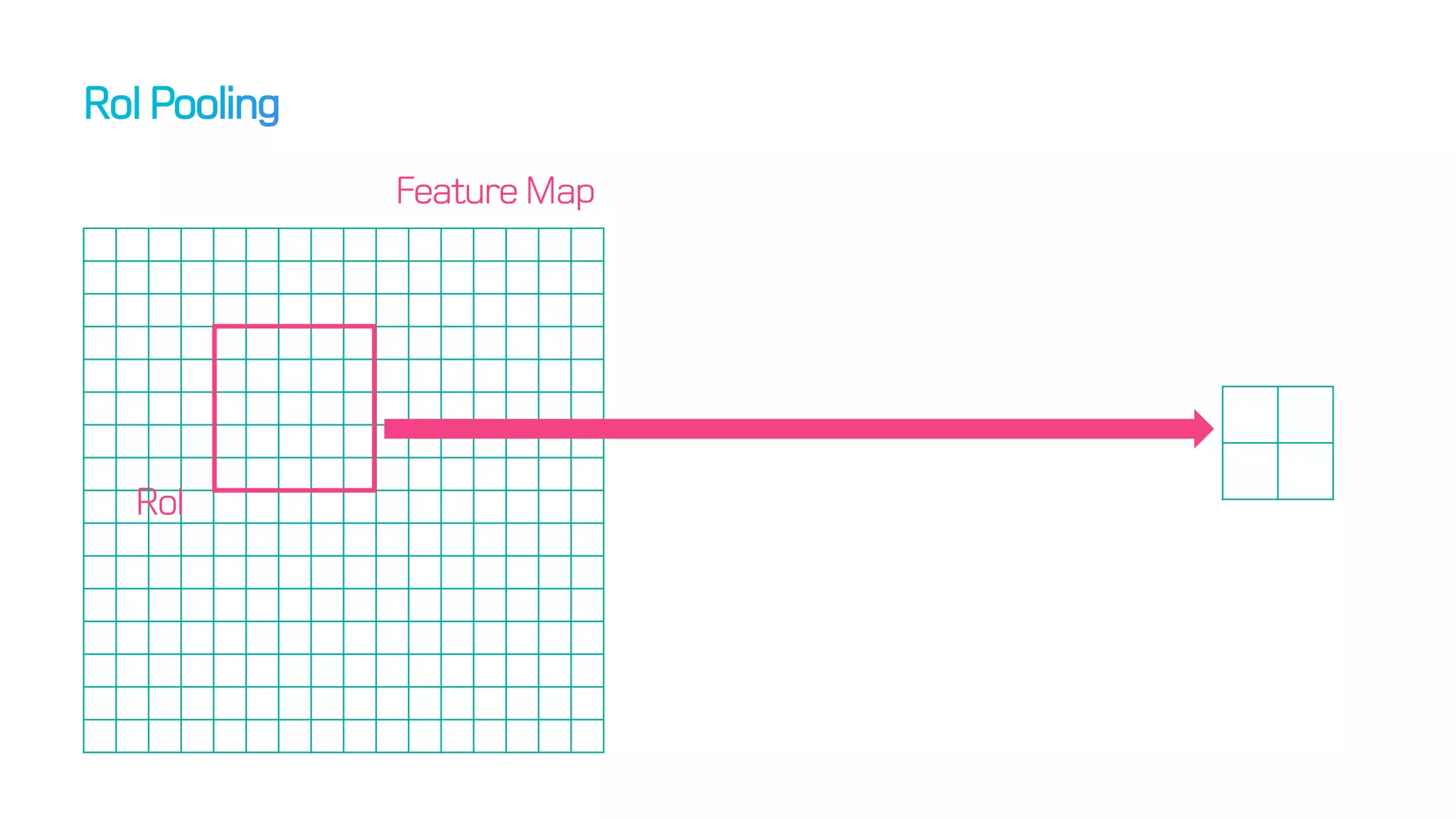

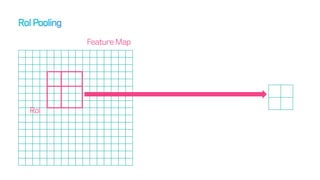

- 50. Feature Map RoI Note: Region ProposalNetwork RoI Prediction = Floating Point Representation
- 51.
- 52.
- 53.
- 54.
- 55.
- 56.

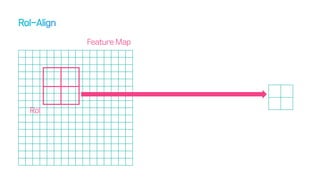

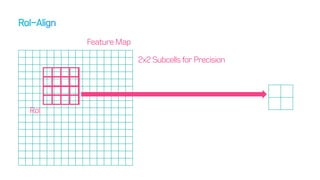

- 57. Feature Map RoI 2x2 Subcellsfor Precision

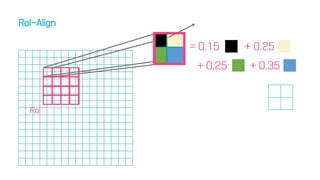

- 58. = 0.15 +0.25 + 0.25 + 0.35 RoI

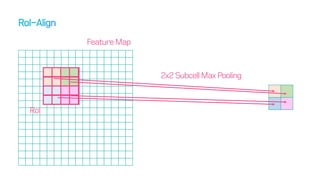

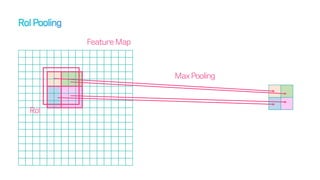

- 59. Feature Map RoI 2x2 SubcellMax Pooling
- 60.
- 61.
- 62.

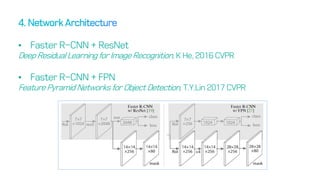

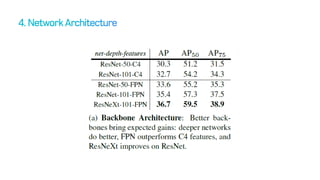

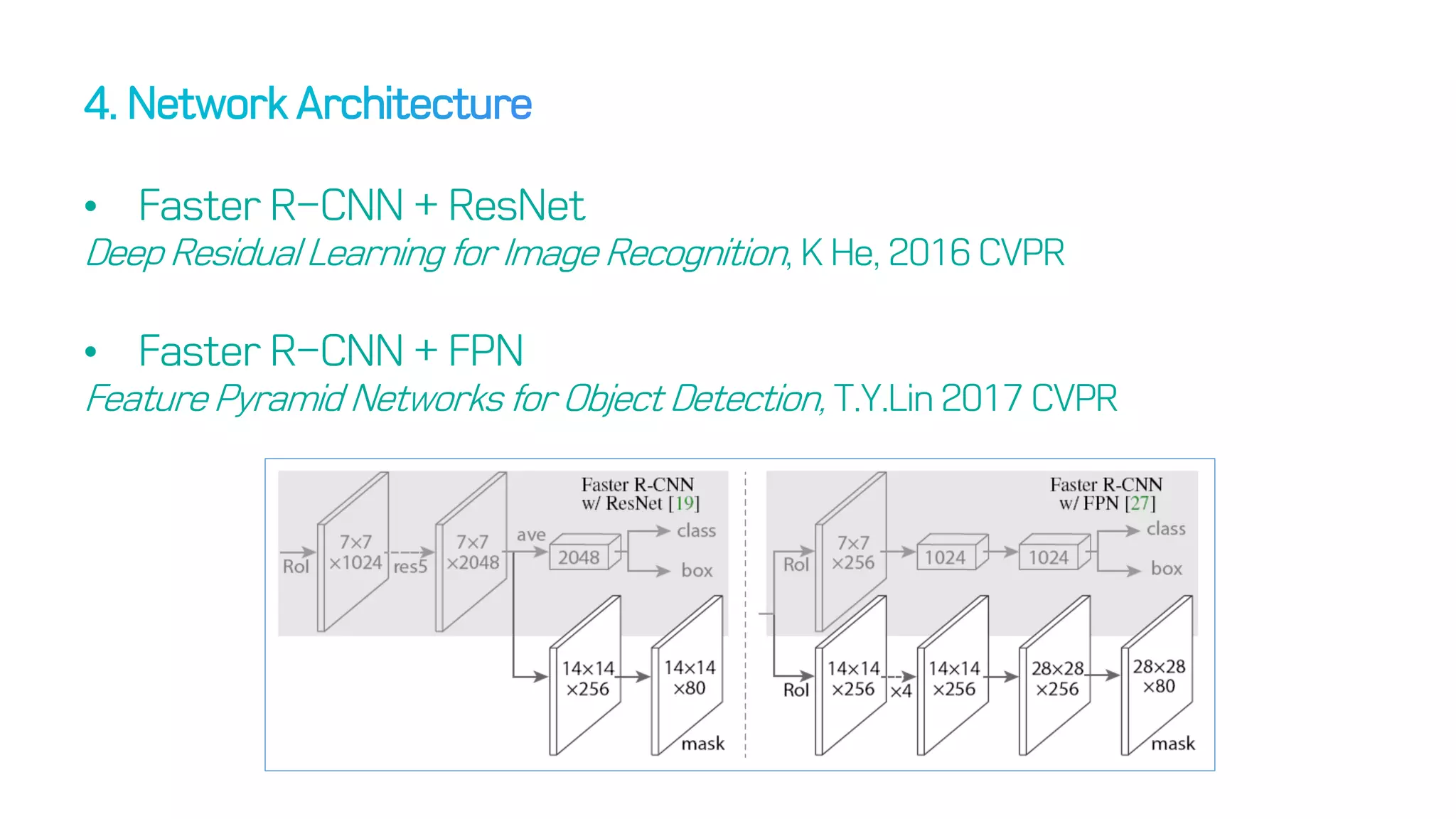

- 64. • Faster R-CNN+ ResNet Deep ResidualLearning for Image Recognition, K He, 2016 CVPR • Faster R-CNN + FPN Feature Pyramid Networks for Object Detection, T.Y.Lin 2017 CVPR

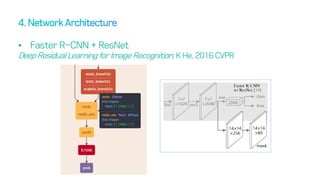

- 65. • Faster R-CNN+ ResNet Deep ResidualLearning for Image Recognition, K He, 2016 CVPR

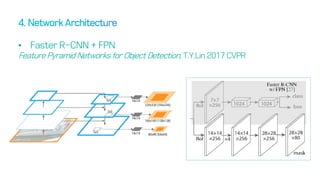

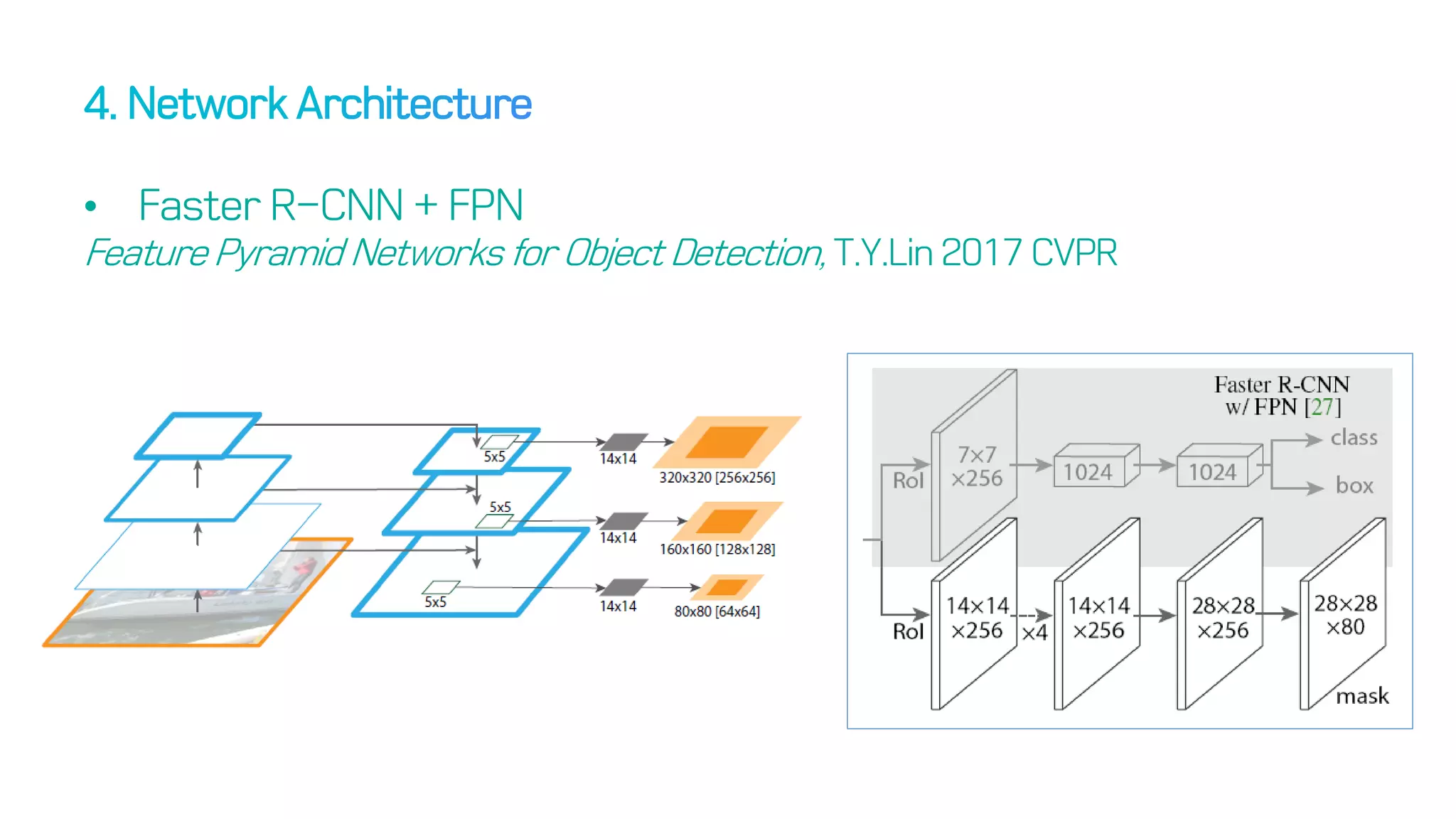

- 66. • Faster R-CNN+ FPN Feature Pyramid Networks for Object Detection, T.Y.Lin 2017 CVPR

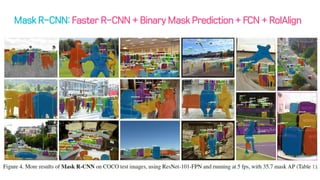

- 68. Faster R-CNN +Binary Mask Prediction + FCN + RoIAlign

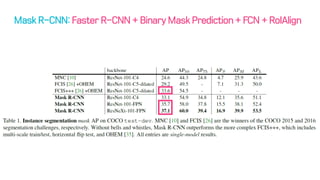

- 69. Faster R-CNN +Binary Mask Prediction + FCN + RoIAlign

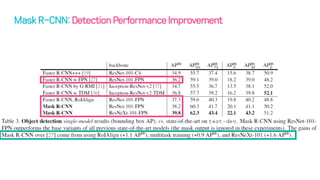

- 70.
- 73.
