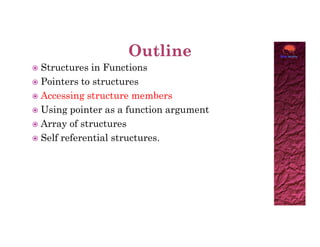

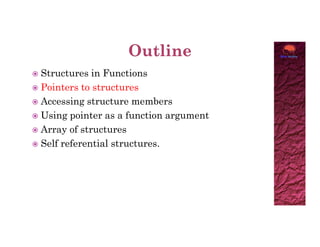

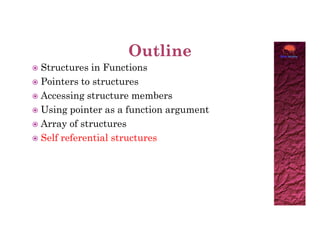

Pointers and Structures

 Structures in Functions
 Pointers to structures
 Accessing structure members
 Using pointer as a function argument
 Array of structures
 Self referential structures.

 Like all other types, we can pass structures as
arguments to a function.
 In fact, we can pass, individual members, structure
variables, a pointer to structures etc to the function.
 Similarly, functions can return either an individual
 Similarly, functions can return either an individual
member or structures variable or pointer to the
structure.
 Passing Structure Members as arguments to Function
 Passing Structure Variable as Argument to a Function
 Returning Structure from Function

#include<stdio.h>
/*
structure is defined above all functions so it is global.
*/
struct student
struct student
{
char name[20];
int roll_no;
int marks;
};
void print_struct(char name[], int roll_no, int marks);

Output
Name: Tim
Roll no: 1
Marks: 78
int main()
{
struct student stu = {"Tim", 1, 78};
print_struct(stu.name, stu.roll_no,stu.marks);
return 0;
} Marks: 78
}
void print_struct(char name[], int roll_no, int marks)
{
printf("Name: %sn", name);
printf("Roll no: %dn", roll_no);
printf("Marks: %dn", marks);
printf("n");
}

 If a structure contains two-three members then we
can easily pass them to function but what if there
are 9-10 or more members ?
 Certainly passing 9-10 members is a tiresome and
error-prone process. So in such cases instead of
passing members individually, we can pass
structure variable itself.

#include<stdio.h>
/*structure is defined above all functions so it is global. */
struct student
{
char name[20];
char name[20];
int roll_no;
int marks;
};
void print_struct(struct student stu);

OUTPUT
Name: George
Roll no: 10
Marks: 69
int main()
{
struct student stu = {"George", 10, 69};
print_struct(stu);
return 0;
Marks: 69
return 0;
}
void print_struct(struct student stu){
printf("Name: %sn", stu.name);
printf("Roll no: %dn", stu.roll_no);
printf("Marks: %dn", stu.marks);
printf("n");
}

 Although passing structure variable as an argument allows us to pass
all the members of the structure to a function there are some
downsides to this operation.
 Recall that a copy of the structure is passed to the formal argument.
 Recall that a copy of the structure is passed to the formal argument.
If the structure is large and you are passing structure variables
frequently then it can take quite a bit of time which make the
program inefficient.
 Additional memory is required to save every copy of the structure.

#include<stdio.h>
/*structure is defined above all functions so it is global.
*/
struct employee
{
{
char name[20];
int age;
char doj[10]; // date of joining
char designation[20];
};
void print_struct(struct employee *);

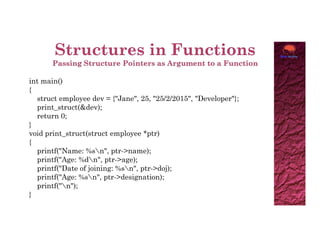

int main()
{
struct employee dev = {"Jane", 25, "25/2/2015", "Developer"};
print_struct(&dev);
return 0;
}
}
void print_struct(struct employee *ptr)
{
printf("Name: %sn", ptr->name);
printf("Age: %dn", ptr->age);
printf("Date of joining: %sn", ptr->doj);
printf("Age: %sn", ptr->designation);
printf("n");
}

 To return a structure from a function we must
specify the appropriate return type in the function
definition and declaration.
struct player check_health(struct player p);
{
{
...
}
 This function accepts an argument of type struct
player and returns an argument of type struct
player.

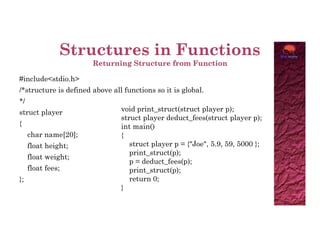

#include<stdio.h>
/*structure is defined above all functions so it is global.
*/
struct player
{
void print_struct(struct player p);
struct player deduct_fees(struct player p);
int main()
{
char name[20];
float height;
float weight;
float fees;
};
int main()
{
struct player p = {"Joe", 5.9, 59, 5000 };
print_struct(p);
p = deduct_fees(p);
print_struct(p);
return 0;
}

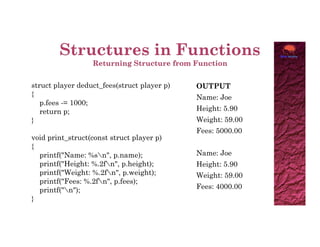

struct player deduct_fees(struct player p)
{
p.fees -= 1000;
return p;
}
OUTPUT
Name: Joe
Height: 5.90
Weight: 59.00
}
void print_struct(const struct player p)
{
printf("Name: %sn", p.name);
printf("Height: %.2fn", p.height);
printf("Weight: %.2fn", p.weight);
printf("Fees: %.2fn", p.fees);
printf("n");
}
Weight: 59.00
Fees: 5000.00
Name: Joe
Height: 5.90
Weight: 59.00
Fees: 4000.00

Array of structures
 Self referential structures.

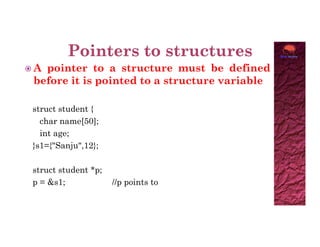

 A pointer to a structure must be defined
before it is pointed to a structure variable
struct student {
char name[50];
char name[50];
int age;
}s1={"Sanju",12};
struct student *p;
p = &s1; //p points to

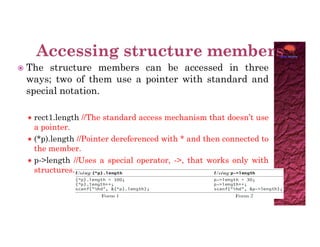

 The structure members can be accessed in three
ways; two of them use a pointer with standard and
special notation.
 rect1.length //The standard access mechanism that doesn’t use
a pointer.
a pointer.
 (*p).length //Pointer dereferenced with * and then connected to
the member.
 p->length //Uses a special operator, ->, that works only with
structures.

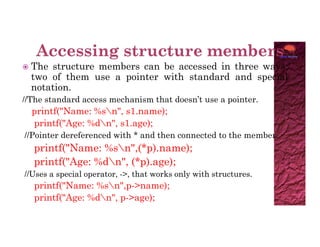

 The structure members can be accessed in three ways;
two of them use a pointer with standard and special
notation.
//The standard access mechanism that doesn’t use a pointer.
printf("Name: %sn", s1.name);
printf("Age: %dn", s1.age);
printf("Age: %dn", s1.age);
//Pointer dereferenced with * and then connected to the member.
printf("Name: %sn",(*p).name);
printf("Age: %dn", (*p).age);
//Uses a special operator, ->, that works only with structures.
printf("Name: %sn",p->name);
printf("Age: %dn", p->age);

#include <stdio.h>
#include <string.h>
int main(void)
{
struct employee
{
short id;
char name[30];
int pay;
int pay;
} emp = {1024, “Steve Wozniak”, 10000}, *p;
p = &emp;
printf(“Emp-id: %hd, Name: %s, Pay: %dn”, emp.id, (*p).name, p->pay);
(*p).id = 4201; /* Updates id */
strcpy(p->name, “Steve Jobs”); /* Updates name */
p->pay = 20000; /* Updates pay */
printf(“Emp-id: %hd, Name: %s, Pay: %dn”, p->id, p->name, p->pay);
return 0;
}

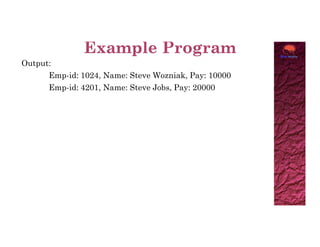

Output:
Emp-id: 1024, Name: Steve Wozniak, Pay: 10000
Emp-id: 4201, Name: Steve Jobs, Pay: 20000

 A structure variable can be passed as function arguments
 This will behave as pass-by-value.
 This mechanism is safe and it protects the original structure
from modification by the function.
from modification by the function.
 However, large structures can consume a lot of memory, so we
may need to pass a pointer to a structure instead of the entire
structure.
 Updating a member’s value using a pointer represents a
memory-efficient technique because the function copies not the
structure (36 bytes) but its pointer (4 bytes).

/* update_pay.c: Uses a pointer to a structure as a function argument to update the structure. */
#include <stdio.h>
struct employee
{
short id;
char name[30];
int pay;
} emp = {1024, “Steve Wozniak”, 10000};
void update_pay(struct employee *f_emp, int f_pay);
int main(void)
{
printf(“Old pay = %dn”, emp.pay);
update_pay(&emp, 20000);
printf(“New pay = %dn”, emp.pay);
return 0;
}

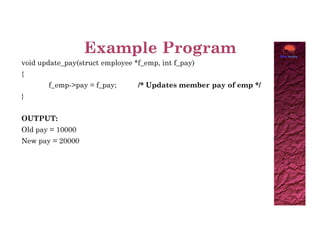

void update_pay(struct employee *f_emp, int f_pay)
{
f_emp->pay = f_pay; /* Updates member pay of emp */
}
OUTPUT:
Old pay = 10000
New pay = 20000

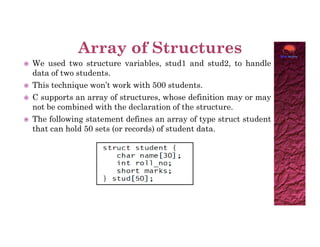

 We used two structure variables, stud1 and stud2, to handle
data of two students.
 This technique won’t work with 500 students.
 C supports an array of structures, whose definition may or may
not be combined with the declaration of the structure.
 The following statement defines an array of type struct student
that can hold 50 sets (or records) of student data.
that can hold 50 sets (or records) of student data.

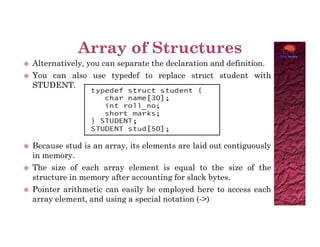

 Alternatively, you can separate the declaration and definition.
 You can also use typedef to replace struct student with
STUDENT.
 Because stud is an array, its elements are laid out contiguously
in memory.
 The size of each array element is equal to the size of the
structure in memory after accounting for slack bytes.
 Pointer arithmetic can easily be employed here to access each
array element, and using a special notation (->)

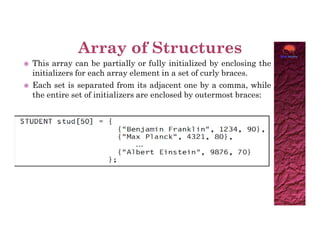

 This array can be partially or fully initialized by enclosing the
initializers for each array element in a set of curly braces.
 Each set is separated from its adjacent one by a comma, while
the entire set of initializers are enclosed by outermost braces:

 Each member of each element of this array is accessed by using
a dot to connect the member to its array element.
 You can use scanf to input values to each member using
pointers to these variables (like &stud[i].marks).
 A simple for loop using the array index as the key variable
prints the entire list

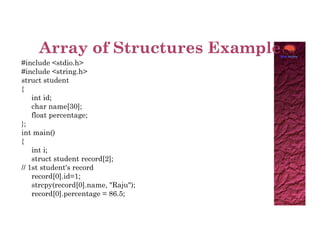

#include <stdio.h>
#include <string.h>
struct student
{
int id;
char name[30];
float percentage;
};
};
int main()
{
int i;
struct student record[2];
// 1st student's record
record[0].id=1;
strcpy(record[0].name, "Raju");
record[0].percentage = 86.5;

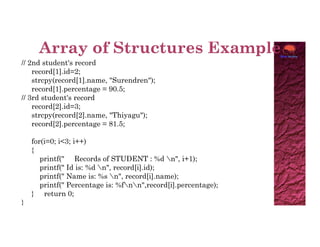

// 2nd student's record
record[1].id=2;
strcpy(record[1].name, "Surendren");
// 3rd student's record
record[2].id=3;
strcpy(record[2].name, "Thiyagu");
for(i=0; i<3; i++)
{
printf(" Records of STUDENT : %d n", i+1);
printf(" Id is: %d n", record[i].id);
printf(" Name is: %s n", record[i].name);
printf(" Percentage is: %fnn",record[i].percentage);
} return 0;
}

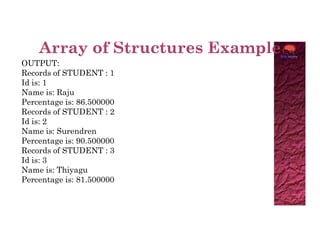

OUTPUT:
Records of STUDENT : 1
Id is: 1
Name is: Raju
Percentage is: 86.500000
Id is: 2
Id is: 2
Name is: Surendren
Id is: 3
Name is: Thiyagu

 Self referential structures

 A structure can have members which point to a structure variable of the same type.
 These types of structures are called self referential structures and are widely used in
dynamic data structures like trees, linked list, etc.
 Syntax to define self referential structure
struct node
{
---
---
---
struct node *next;
};
Here, next is a pointer to a struct node variable.
 It should be remembered that a pointer to a structure is similar to a pointer to any
other variable
 A self referential data structure is essentially a structure definition which includes at
least one member that is a pointer to the structure of its own kind.

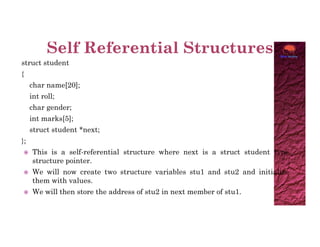

struct student
{
char name[20];
int roll;
char gender;
int marks[5];
struct student *next;
};
 This is a self-referential structure where next is a struct student type
structure pointer.
 We will now create two structure variables stu1 and stu2 and initialize
them with values.
 We will then store the address of stu2 in next member of stu1.

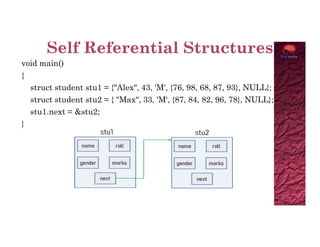

void main()
{
struct student stu1 = {"Alex", 43, 'M', {76, 98, 68, 87, 93}, NULL};
struct student stu2 = { "Max", 33, 'M', {87, 84, 82, 96, 78}, NULL};
stu1.next = &stu2;
}
}

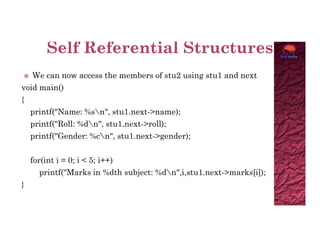

 We can now access the members of stu2 using stu1 and next
void main()
{
printf("Name: %sn", stu1.next->name);
printf("Roll: %dn", stu1.next->roll);
printf("Roll: %dn", stu1.next->roll);
printf("Gender: %cn", stu1.next->gender);
for(int i = 0; i < 5; i++)
printf("Marks in %dth subject: %dn",i,stu1.next->marks[i]);
}

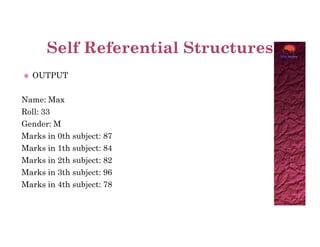

 OUTPUT
Name: Max
Roll: 33
Gender: M
Gender: M
Marks in 0th subject: 87

 Suppose we want a different structure variable after stu1,
that is insert another structure variable between stu1 and
stu2. This can be done easily.
void main()
{
struct student stu3 = { "Gasly", 23, 'M', {83, 64, 88, 79, 91},
NULL};
NULL};
st1.next = &stu3;
stu3.next = &stu2;
}

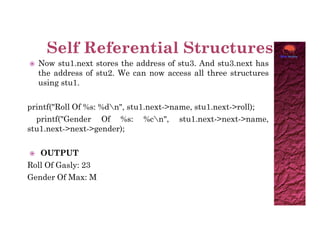

 Now stu1.next stores the address of stu3. And stu3.next has
the address of stu2. We can now access all three structures
using stu1.
printf("Roll Of %s: %dn", stu1.next->name, stu1.next->roll);
printf("Gender Of %s: %cn", stu1.next->next->name,
stu1.next->next->gender);
stu1.next->next->gender);
 OUTPUT
Roll Of Gasly: 23
Gender Of Max: M

Pointers and Structures

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Similar to Pointers and Structures

Similar to Pointers and Structures (20)

More from Gem WeBlog

More from Gem WeBlog (20)

Recently uploaded

Recently uploaded (20)

Pointers and Structures
