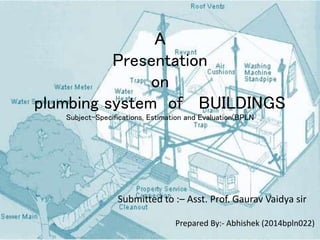

1. A
Presentation
on
plumbing system of BUILDINGS
Subject-Specifications, Estimation and Evaluation(BPLN
Prepared By:- Abhishek (2014bpln022)
Submitted to :– Asst. Prof. Gaurav Vaidya sir

2. It is a system of pipes, drains fittings, valves, valve assemblies, and devices installed
in a building for the distribution of water for drinking, heating and washing, and the
removal of waterborne wastes, and the skilled trade of working with pipes ,
tubing and plumbing fixtures in such systems.
Works Required to Install or Repair a Plumbing System
What is a Plumbing System ?

3. Galvanised iron
pipes
Cast iron pipes Unplasticsized
PVC pipes
Rigid PVC pipes
Diameter used for small diameter Up to 60 mm Ranging from 16 mm
to 315mm
Ranging from 32 to 315
mm
Property Best for services and
internal connections
they don't echo
when water moves
through
Corrosion resistant ,
Chemical resistance
Same as Unplasticsized
PVC Pipes
Types of pipes used in Plumbing System

4. Water Distribution System
Gravity Distribution By means of Pump and Storage
It is possible when source is lake or
impound reservoir at some elevation
Example- Hampi, Karnataka( source- Wikipedia)
Water is pumped in overhead tanks
and Reservoirs.
Example- Kutch, Gujarat( source- Tradeindia)
