Macroeconomics- Movie Location
This will be used as part of your Personal Professional Portfolio once graded.
Objective:
Prepare a presentation or a paper using research, basic comparative analysis, data organization and application of economic information. You will make an informed assessment of an economic climate outside of the United States to accomplish an entertainment industry objective.
2. Content
• What is PLC
• Need of PLC
• Major components in PLC
• PLC input/ output component
• Programming languages & example
• Advantages
• What is SCADA
• Software & example
3. • PLC is stands for programabel logic controller
• PLC is a industrial computer that monitor input
makes decision based on it program and control
output automation process or machine
What is PLC

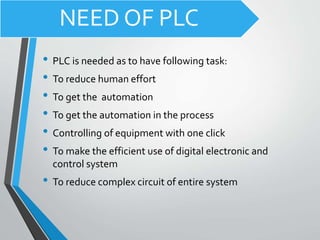

4. NEED OF PLC
• PLC is needed as to have following task:
• To reduce human effort
• To get the automation
• To get the automation in the process
• Controlling of equipment with one click
• To make the efficient use of digital electronic and
control system
• To reduce complex circuit of entire system
5. O M
U O
T D
P U
U L
T E
Power
supply
PROCESSOR
M
O
D
U
L
E
I
N
P
U
T
PROGRAMMING
DEVICE
For SENSER
To OUTPUT
Major component in PLC
9. • PLC use ladder logic
• This is based on relay control schemes
• Relay contacts and coils, input and output lie on
“rungs”between the positive and groung rails
• Two basic relay symbol
LADDER LOGIC DIAGRAM
11. • Large quantities of contact
• Lower cost
• Visual Observation
• Communication capability
• Reprogrammable
Advantages of PLC
12. • Operator/s,
• Engineer/s
Supervisory
• Monitoring ,
• Remote access
Control
• Sending data into different
sites through telemetry
Data
acquisition
What is SCADA
•Supervisory Control and Data Acquisition
13. SCADA Software
• By Rock well
RSView 32
• By InTouch
Wonder ware
• By Citect
Citect SCADA 5.42
14. • Data can be display at any time when user require
• The SCADA system provides on board graphical
information
• The SCADA system provides ability to operates critical
situation
Advantage of SCADA
