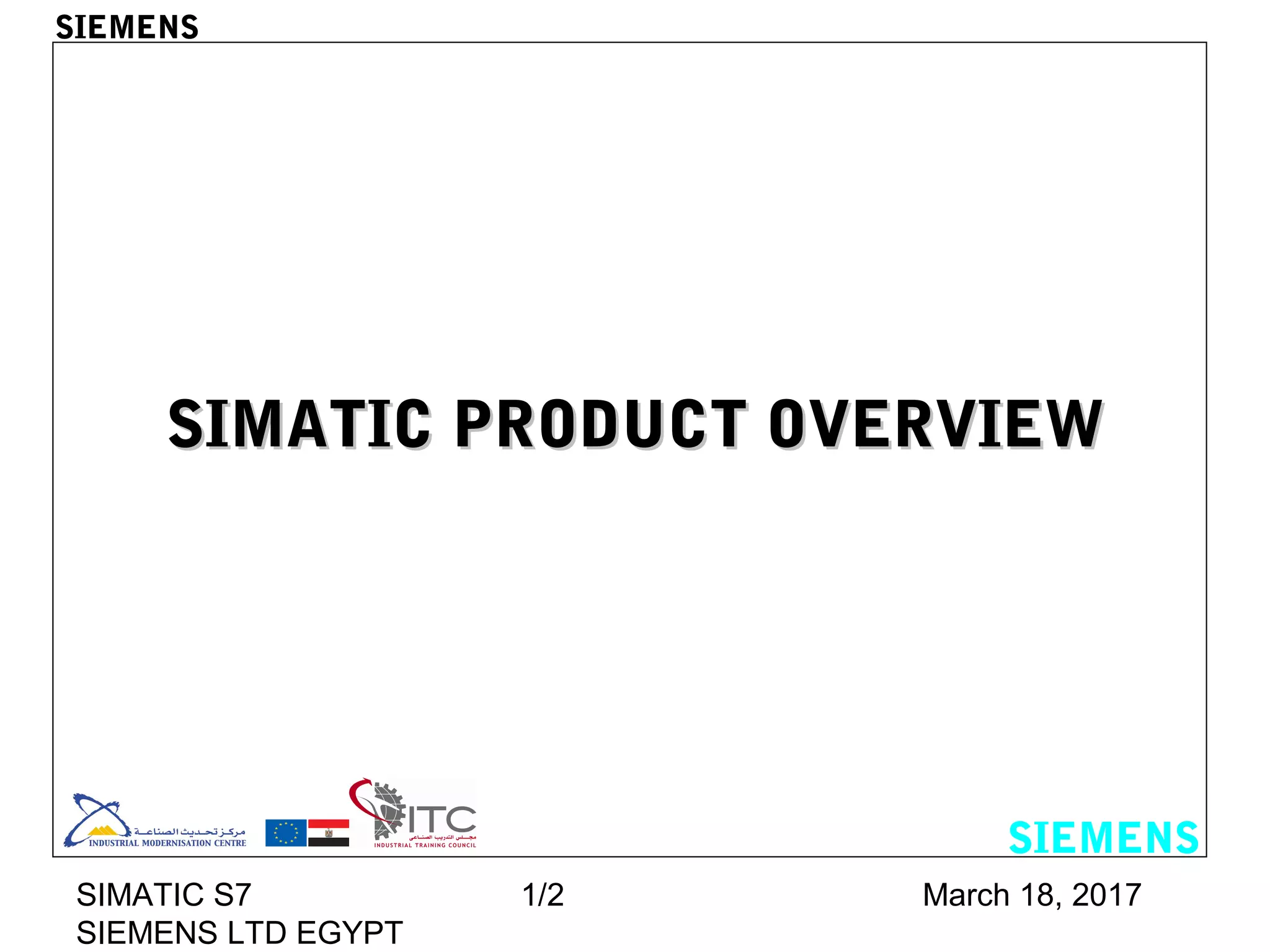

- 1. March 18, 2017SIMATICS7 SIEMENS LTD EGYPT 1/2 SIMATIC PRODUCT OVERVIEWSIMATIC PRODUCT OVERVIEW SIEMENS SIEMENS
- 2. March 18, 2017SIMATICS7 SIEMENS LTD EGYPT 2/2 SIEMENS Objectives - Overview On Simatic S7 Product. - Familiar With S7-200, S7-300 & S7-400. - Different Between Siemens Programming Device.

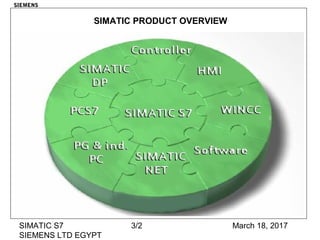

- 3. March 18, 2017SIMATICS7 SIEMENS LTD EGYPT 3/2 SIMATIC PRODUCT OVERVIEW SIEMENS

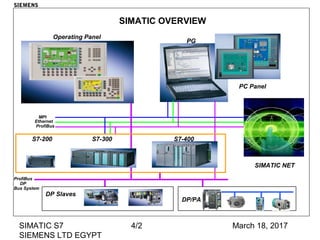

- 4. March 18, 2017SIMATICS7 SIEMENS LTD EGYPT 4/2 SIMATIC OVERVIEW SIEMENS SIMATIC NET Operating Panel PG S7-400S7-300S7-200 ProfiBus Ethernet MPI DP Slaves ProfiBus DP Bus System PC Panel DP/PA

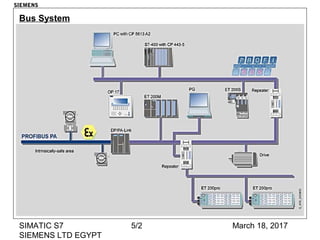

- 5. March 18, 2017SIMATICS7 SIEMENS LTD EGYPT 5/2 Bus System SIEMENS

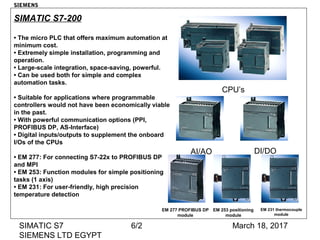

- 6. March 18, 2017SIMATICS7 SIEMENS LTD EGYPT 6/2 SIMATIC S7-200 • The micro PLC that offers maximum automation at minimum cost. • Extremely simple installation, programming and operation. • Large-scale integration, space-saving, powerful. • Can be used both for simple and complex automation tasks. • Suitable for applications where programmable controllers would not have been economically viable in the past. • With powerful communication options (PPI, PROFIBUS DP, AS-Interface) • Digital inputs/outputs to supplement the onboard I/Os of the CPUs • EM 277: For connecting S7-22x to PROFIBUS DP and MPI • EM 253: Function modules for simple positioning tasks (1 axis) • EM 231: For user-friendly, high precision temperature detection CPU’s DI/DOAI/AO EM 231 thermocouple module EM 253 positioning module EM 277 PROFIBUS DP module SIEMENS

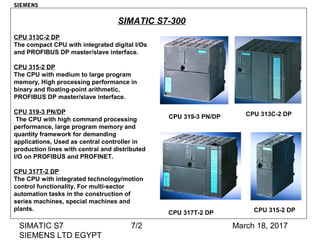

- 7. March 18, 2017SIMATICS7 SIEMENS LTD EGYPT 7/2 CPU 313C-2 DPCPU 319-3 PN/DP CPU 317T-2 DP CPU 315-2 DP CPU 313C-2 DP The compact CPU with integrated digital I/Os and PROFIBUS DP master/slave interface. CPU 315-2 DP The CPU with medium to large program memory, High processing performance in binary and floating-point arithmetic, PROFIBUS DP master/slave interface. CPU 319-3 PN/DP The CPU with high command processing performance, large program memory and quantity framework for demanding applications, Used as central controller in production lines with central and distributed I/O on PROFIBUS and PROFINET. CPU 317T-2 DP The CPU with integrated technology/motion control functionality, For multi-sector automation tasks in the construction of series machines, special machines and plants. SIMATIC S7-300 SIEMENS

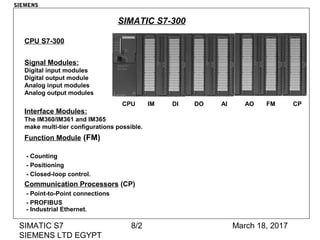

- 8. March 18, 2017SIMATICS7 SIEMENS LTD EGYPT 8/2 SIMATIC S7-300 CPU IM DI DO AI AO FM CP CPU S7-300 Signal Modules: Digital input modules Digital output module Analog input modules Analog output modules Interface Modules: The IM360/IM361 and IM365 make multi-tier configurations possible. Function Module (FM) - Counting - Positioning - Closed-loop control. Communication Processors (CP) - Point-to-Point connections - PROFIBUS - Industrial Ethernet. SIEMENS

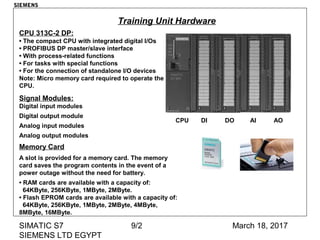

- 9. March 18, 2017SIMATICS7 SIEMENS LTD EGYPT 9/2 CPU 313C-2 DP: • The compact CPU with integrated digital I/Os • PROFIBUS DP master/slave interface • With process-related functions • For tasks with special functions • For the connection of standalone I/O devices Note: Micro memory card required to operate the CPU. Signal Modules: Digital input modules Digital output module Analog input modules Analog output modules Memory Card A slot is provided for a memory card. The memory card saves the program contents in the event of a power outage without the need for battery. • RAM cards are available with a capacity of: 64KByte, 256KByte, 1MByte, 2MByte. • Flash EPROM cards are available with a capacity of: 64KByte, 256KByte, 1MByte, 2MByte, 4MByte, 8MByte, 16MByte. CPU DI DO AI AO Training Unit Hardware SIEMENS
- 10. March 18, 2017SIMATICS7 SIEMENS LTD EGYPT 10/2 Mode Selector: MRES =Memory reset function (Module Reset) STOP = Stop mode, the program is not executed. RUN = Program execution Status Indicators. SF = Internal CPU fault or fault in module. BATF = Battery fault; battery empty or non-existent. DC5V = Internal 5 VDC voltage indicator. FRCE = FORCE; indicates that at least one input or output is forced. RUN = Flashes when the CPU is starting up, then a steady light in Run mode. STOP = Shows a steady light in Stop mode. Flashes slowly for a memory reset request, Flashes quickly when a memory reset is being carried out, Flashes slowly when a memory reset is necessary because a memory card has been inserted. Training Unit Hardware SIEMENS

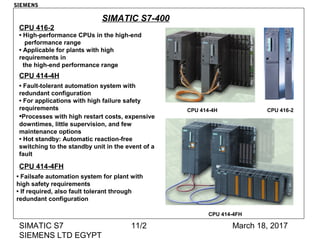

- 11. March 18, 2017SIMATICS7 SIEMENS LTD EGYPT 11/2 SIMATIC S7-400 CPU 416-2CPU 414-4H CPU 414-4FH • High-performance CPUs in the high-end performance range • Applicable for plants with high requirements in the high-end performance range CPU 416-2 CPU 414-4H • Fault-tolerant automation system with redundant configuration • For applications with high failure safety requirements •Processes with high restart costs, expensive downtimes, little supervision, and few maintenance options • Hot standby: Automatic reaction-free switching to the standby unit in the event of a fault CPU 414-4FH • Failsafe automation system for plant with high safety requirements • If required, also fault tolerant through redundant configuration SIEMENS
- 12. March 18, 2017SIMATICS7 SIEMENS LTD EGYPT 12/2 Rack UR2-H (18 Slot) Rack UR2 (9 Slot) PS CPU DI DO FM CP IM • The power PLC for the mid to upper performance range • Performance-graded range of CPUs • Extensive selection of modules • Expandable design to over 300 modules •Backplane bus integrated in the modules •Can be networked with - (MPI) - PROFIBUS - Industrial Ethernet • UR1 (Universal Rack) with up to 18 modules • UR2 (Universal Rack) with up to 9 modules • UR2-H (Universal Rack For H-SYS) • ER1 (Expansion Rack) with up to 18 modules •ER2 (Expansion Rack) with up to 9 modules S7-400 Rack SIMATIC S7-400 SIEMENS

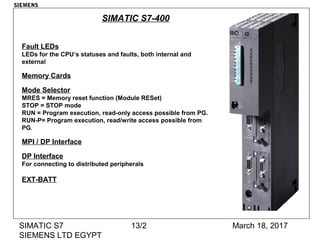

- 13. March 18, 2017SIMATICS7 SIEMENS LTD EGYPT 13/2 Fault LEDs LEDs for the CPU‘s statuses and faults, both internal and external Memory Cards Mode Selector MRES = Memory reset function (Module RESet) STOP = STOP mode RUN = Program execution, read-only access possible from PG. RUN-P= Program execution, read/write access possible from PG. MPI / DP Interface DP Interface For connecting to distributed peripherals EXT-BATT SIMATIC S7-400 SIEMENS
- 14. March 18, 2017SIMATICS7 SIEMENS LTD EGYPT 14/2 Field PG Intel Pentium M processor. Power PG SIMATIC Programming Device SIEMENS
Editor's Notes
- #6 Profibus Notes: • PROFIBUS is a powerful, open, and robust bus system, which guarantees trouble-free communication. • Configuration, commissioning, and troubleshooting can be carried out from any side. This results in user-defined communication relationships that are very versatile, simple to implement, and easy to change. • Fast assembly and startup on site with the help of the Fast Connect wiring system. • Continuous monitoring of network components through a simple and effective signaling concept. • High security of investment since existing networks can be extended without any adverse effects. - for process and field communication in cell networks with a small number of stations and with field devices Offers openness for interfacing to standardized non-Siemens components - specification of the standards for the physical characteristics of the bus and the access procedure specification of the user protocol and the user interface High-performance tools such as STEP 7 and COM PROFIBUS are available for configuring and parameterizing the I/O devices. PROFIBUS DP/PA is used to link field devices such as distributed I/O stations or drives with automation systems such as SIMATIC S7 or PCs.
- #7 • Modular small control system for the lowest performance range. • Performance-graded range of CPUs (up to 8KB memory, 8-40 integrated I/O points onboard the CPU). • Each CPU available in either 24 VDC or 120 VAC - 230 VAC supply voltage versions. • CPU connected to modules by flexible integrated ribbon cables (S7-22x series) and by bus connectors (S7-21x series). • Uses its own S7 Micro/WIN32 software • PROFIBUS slave CPU 215 or CPU 222 or CPU 224 • The EM277 PROFIBUS-DP module allows connection of S7-22x series CPUs (6ES7-22x-xxx21-xxxx and later) to PROFIBUS-DP. • Slot for memory card. A memory card saves the program Expansion Digital input modules: Analog input modules: - Voltage - 24 VDC - Current - 120/230 VAC - Resistance - Thermocouple Analog output modules: -Digital output modules: - 24 VDC - Voltage - Relay - Current
- #8 • Modular small control system for the lower performance range • Performance-graded range of CPUs • Extensive selection of modules • Expandable design with up to 32 modules • Backplane bus integrated in the modules • Can be networked with MPI, PROFIBUS, Industrial Ethernet. CPU 313C-2 DP 6ES7 313-6CF03-0AB0 Compact CPU, main memory 64 KB, power supply 24 V DC, 16 DI/16 DO integrated, integrated functions, MPI PROFIBUS DP master/slave interface; MMC is required CPU 315-2 DP 6ES7 315-2AG10-0AB0 Main memory 128 KB, power supply 24 V DC, MPI/PROFIBUS DP master/slave interface, MMC required
- #10 For Expantion: Interface Modules: The IM360/IM361 and IM365 make multi-tier configurations possible. For no slot restrictions: Dummy Modules: The DM 370 dummy module reserves a slot for a signal module whose parameters For special functions: Function Modules: (FM) - Counting -Positioning - Closed-loop control. For networking facilities: Communication Processors (CP) -Point-to-Point connections -PROFIBUS -Industrial Ethernet. Accessories: Bus connectors and front connectors
- #14 Memory Cards •RAM cards are available with a capacity of: 64KByte, 256KByte, 1MByte, 2MByte. •Flash EPROM cards are available with a capacity of: 64KByte, 256KByte, 1MByte, 2MByte, 4MByte, 8MByte, 16MByte. MPI / DP Interface MPI / DP interface (parameter-assignable in HW-Config) for • Establishing the online connection to the programming device •Connecting to distributed peripherals (DP) •Data exchange with other stations (S7 Communication)EXT-BATT Additional external battery socket for a 5 VDC to 15 VDC source to back up the RAM when the power supply is being replaced.
- #15 Field PG An industry-standard programming device. The Field PG is powerful and easy to use, especially for maintenance and service. It is also appropriate for programming and configuration - the ideal tool for shop floor applications. • The mobile, industry-compatible programming device with the powerful Intel Pentium M processor. • It is ideal for start-up, servicing and maintaining automation systems. • Industrial notebook with wireless technology, large display, slow battery discharge, high-speed RAM and integrated data backup concept. • With all the usual interfaces for industrial applications. Power PG A portable programming device, ideal for all applications in an automation project. It is also an extremely powerful, industry-standard PC. Features:• High-level system performance• Excellent expansion facilities• TFT color display• Highly rugged design• Equipped with all the necessary SIMATIC interface ports
