SIMATIC S7 system family
S7-400
High-end and mid performance range
 Large quantitative framework
 High performance in communication throughput
S7-300
Mid and low-end performance range
 Max. of 2 interfaces (field bus, cell bus)
 Medium performance in throughput
S7-200
Low-end performance range
Positioning /
Range
Innovation S7-300
Synchronism
Roadmap

3. Automation and Drives
A&D AS SM6, Page 3

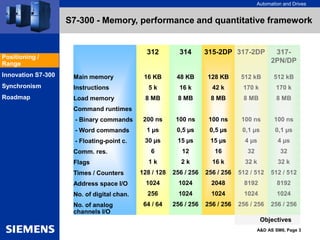

S7-300 - Memory, performance and quantitative framework
Main memory
Instructions
Load memory
Command runtimes
- Binary commands
- Word commands
- Floating-point c.
Comm. res.
Flags
Times / Counters
Address space I/O
No. of digital chan.
No. of analog
channels I/O
314
48 KB
16 k
8 MB
100 ns
0,5 µs
15 µs
12
2 k
256 / 256
1024
1024
256 / 256
312
16 KB
5 k
8 MB
200 ns
1 µs
30 µs
6
1 k
128 / 128
1024
256
64 / 64
315-2DP
128 KB
42 k
8 MB
100 ns
0,5 µs
15 µs
16
16 k
256 / 256
2048
1024
256 / 256
317-
2PN/DP
512 kB
170 k
8 MB
100 ns
0,1 µs
4 µs
32
32 k
512 / 512
8192
1024
256 / 256
317-2DP
512 kB
170 k
8 MB
100 ns
0,1 µs
4 µs
32
32 k
512 / 512
8192
1024
256 / 256
Objectives
Positioning /
Range
Innovation S7-300
Synchronism
Roadmap

4. Automation and Drives
A&D AS SM6, Page 4
S7-300 Innovation - Overview
Quantitative framework
Doubling of memory
Flags, timers, counters
Processing speed
4 x faster binary processing
2 - 10 x faster floating-point
commands
Communication performance
100 Mbaud Ethernet
up to 16 communications resources
Communication paths
PROFIBUS DPV1
PROFInet / CbA
Technology platform
Controlling, counting, positioning
Positioning /
Range
Innovation S7-300
Performance
Communication
Miscellaneous
Synchronism
Roadmap

5. Automation and Drives
A&D AS SM6, Page 5
Innovations - Features and benefits (I)
High processing speed
 4x faster processing of binary word commands
 10x faster floating-point arithmetic
 Increased system reaction time
How does the customer benefit?
 Performance-enhanced execution of user applications
Particularly advantageous in motion control tasks and closed-
loop control
 Increased machine cycle times and throughput as a
result of shorter program execution times
Positioning
/ Range
Innovation S7-300
Performance
Communication
Miscellaneous
Synchronism
Roadmap

6. Automation and Drives
A&D AS SM6, Page 6
Innovations - Features and benefits (II)
The extended quantitative
framework
 Main memory doubled
 Operating hours counter
 Timers / Counters
 Flags
 Greater range of numbers
Positioning /
Range
Innovation S7-300
Performance
Communication
Miscellaneous
Synchronism
Roadmap
Makes plant innovation possible while
retaining the CPU

7. Automation and Drives
A&D AS SM6, Page 7

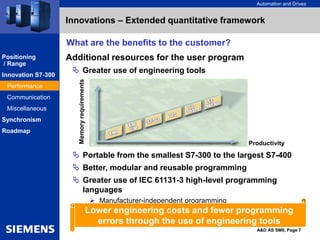

Innovations – Extended quantitative framework
What are the benefits to the customer?
 Portable from the smallest S7-300 to the largest S7-400
 Better, modular and reusable programming
 Greater use of IEC 61131-3 high-level programming
languages
 Manufacturer-independent programming
Additional resources for the user program
 Greater use of engineering tools
Positioning
/ Range
Innovation S7-300
Performance
Communication
Miscellaneous
Synchronism
Roadmap
Lower engineering costs and fewer programming
errors through the use of engineering tools
Productivity
Memory
requirements

8. Automation and Drives
A&D AS SM6, Page 8

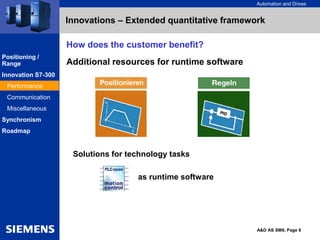

Innovations – Extended quantitative framework
Additional resources for runtime software
Solutions for technology tasks
as runtime software
How does the customer benefit?
Positioning /
Range
Innovation S7-300
Performance
Communication
Miscellaneous
Synchronism
Roadmap

9. Automation and Drives
A&D AS SM6, Page 9
Innovations – Extended quantitative framework
Programming with STEP 7 Lite
The new programming package for
basic functions for simple stand-
alone applications
Features of STEP 7-Lite
 Rapid familiarization due to intuitive working
 Simpler project handling (project = CPU)
 Migration i.e. data import into STEP 7 possible
Programming with STEP 7 (from V5.1 SP4)
The well-known tool for all functions and
applications
Positioning
/ Range
Innovation S7-300
Performance
Communication
Miscellaneous
Roadmap

10. Automation and Drives
A&D AS SM6, Page 10
Innovations – Extended quantitative framework
Additional resources for diagnostic software
 System diagnosis
 Error diagnosis from the CPU up to the I/O
 Internal CPU services (e.g. error messages with time stamp)
 Process diagnosis
 Critical process signals are monitored by a program
 Easy planning with S7-PDIAG and ProAgent
 Automatic alarms from CPU to HMI device
How does the customer benefit?
Positioning /
Range
Innovation S7-300
Performance
Communication
Miscellaneous
Synchronism
Roadmap
Optimized fault analysis reduces downtimes
and increases productivity

11. Automation and Drives
A&D AS SM6, Page 11
Innovations - Features and benefits (III)
Increased communication performance /
improved openness
 15 OPs or active connections
 Support of PROFIBUS DPV1 standard
How does the customer benefit?
 Greater degree of networking at the cell level
 Increased data exchange with MES/ERP systems
 Detailed error information from non-Siemens field devices
makes finding errors easier
 Reduced downtimes
 Flexible optimization of field devices during operation
 Reduced product changeover times
Positioning /
Range
Innovation S7-300
Performance
Communication
Miscellaneous
Synchronism
Roadmap

12. Automation and Drives
A&D AS SM6, Page 12
Innovations - Features and benefits (IV)

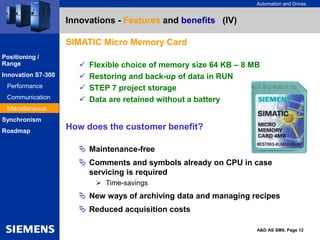

SIMATIC Micro Memory Card
 Flexible choice of memory size 64 KB – 8 MB
 Restoring and back-up of data in RUN
 STEP 7 project storage
 Data are retained without a battery
How does the customer benefit?
 Maintenance-free
 Comments and symbols already on CPU in case
servicing is required
 Time-savings
 New ways of archiving data and managing recipes
 Reduced acquisition costs
Positioning /
Range
Innovation S7-300
Performance
Communication
Miscellaneous
Synchronism
Roadmap

13. Automation and Drives
A&D AS SM6, Page 13

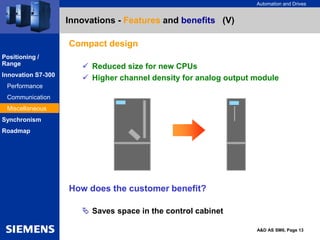

Innovations - Features and benefits (V)
Compact design
 Reduced size for new CPUs
 Higher channel density for analog output module
How does the customer benefit?
 Saves space in the control cabinet
Positioning /
Range
Innovation S7-300
Performance
Communication
Miscellaneous
Synchronism
Roadmap

14. Automation and Drives
A&D AS SM6, Page 17
Planning of stages of further development of S7-300
SEP OCT NOV DEC
2001
312C
313C
313C - 2 PTP
313C - 2 DP
314C - 2 DP
314C - 2 PTP
OCT
2002
312
315- 2DP
314
SEP NOV DEC
2003
2. Step
317- 2 PN/DP
Positioning /
Range
Innovation S7-300
Synchronism
Roadmap

15. Automation and Drives
A&D AS SM6, Page 18
ca. 2800 - 3050 €
SIMATIC S7-300 CPU range
S7-300
High End
317- 2 DP - 512k
MPI/DP, DP
317- 2 PN/DP - 512k
PN (Ethernet), DP
S7-300
Low End
S7-300
Mid Range
315- 2 DP - 128k
MPI, DP
S7-300
Compact Class
312 - 16k
MPI
260 €
345 - 1.360 €
500 - 1250 €
Performance
Memory
Communication
Price
314 - 48k
MPI
Based on 314C
Positioning /
Range
Innovation S7-300
Synchronism
Roadmap

16. Automation and Drives
A&D AS SM6, Page 19
SIMATIC
S7-300
designed for
Totally Integrated
Automation
The universal automation platform for
discrete manufacturing
